Introduction
This article will take an in-depth look at ball bearings.
The article will take a look at topics such as:
Ball Bearings Design and Function
Types of Ball Bearings
Applications & Benefits of Ball Bearings
And Much More…
Chapter 1: What is the design and function of ball bearings?
This chapter explores the design, structure, and purpose of ball bearings.
Understanding Ball Bearings
Ball bearings are rolling-element bearings created to support loads, decrease friction, and position moving parts within machinery, facilitating smooth movement.
Ball bearings use two separate rings or "races" to minimize surface contact and friction between moving components. The rolling motion of the balls reduces the coefficient of friction compared to flat surfaces moving against one another.
Design of Ball Bearings
Ball bearings contain four key components: two races (rings), the balls (rolling elements), and the retainer (which keeps the balls apart). Angular contact and radial ball bearings include an inner and outer ring, designed to support radial loads, applied perpendicular to the rotation axis.
The stationary outer race is housed to transfer radial loads. The inner race, attached to the rotating shaft, supports and steers the shaft. Rolling elements are crucial for carrying and spreading loads across raceways.
These elements rotate at different speeds from the inner race's speed but revolve around the inner race. The separator acts as a buffer to prevent the balls from colliding. Positioned between the balls, it prevents contact. Thrust bearings are designed to support loads parallel to the rotation axis (axial loads), consisting of two equal-sized rings.
Materials Used in Ball Bearings
Materials for manufacturing balls in rolling bearings vary, primarily matching the rings' materials to ensure optimal performance. This matching is crucial, especially when bearings undergo heating or cooling. Below are common materials used for ball bearings and their compatibility with ring materials:
Roller Bearing Steel 1.3505/100Cr6
Steel ball bearings typically utilize hardened steel balls. Chrome steel, with about 1% carbon and 1.5% chromium content, is popular due to its robust performance and durability.
Martensitic chrome steel balls enhance stability and durability for continuous operation, providing robustness against wear. Roller bearing steel, used in needle and cylindrical rollers, offers durability and corrosion resistance for demanding applications.
Stainless Steel 1.4401 and 14401
Used in plastic ball bearings, this material includes non-hardened stainless steel balls, resisting corrosion from saltwater and alkalis. Compared to hardened steel balls, stainless steel balls are compatible with plastic rings. The strength of plastic determines maximum load capacity. Stainless steel balls are more economical than glass balls.
Soda-Lime Glass
For metal-free bearings, glass balls, especially soda-lime glass, offer chemical resistance. Used in common applications such as bottles, soda-lime glass is suitable for environments with mild chemical stress but not ideal for harsh chemical conditions. It's sometimes called "lemon glass" due to its light green tint.
Borosilicate Glass
Borosilicate glass, though pricier than soda-lime glass, provides excellent chemical resistance and suits applications involving strong acids. Benefits include:
Superior heat resistance and ability to handle temperature changes
Mechanical stability
A very low coefficient of linear expansion
Aluminum Oxide
Ceramic ball bearings employ aluminum oxide balls. These lightweight ceramics offer properties like resistance to corrosion, abrasion, and high temperatures.
They withstand corrosion from water, acids, and salt solutions but avoid hydrochloric and hydrofluoric acids, strong alkalis, and warm sulfuric acid. Featuring self-lubricating and insulating qualities, these white to ivory-colored ceramics meet ASTM F 2094 Class II/III standards.
Silicon Nitride
Silicon nitride ceramic balls are light, tough, and resist corrosion. While they endure many acid and base solutions, certain corrosives might affect them. Silicon nitride offers insulation, is self-lubricating, and withstands temperature fluctuations, enhancing performance though costlier than aluminum oxide. Usually black with a mother-of-pearl hue, their advanced properties make them a premium choice.
Ball Bearing Specifications
Key specifications of ball bearings include dimensions and operating characteristics, detailed below.
Ball Bearing Dimensions
When specifying ball bearings, consider these critical dimensions:
Bore Diameter
Using a standard system, metric bore sizes are identified. Multiply bore sizes from 04 and up by 5 to determine millimeters. For hex bores, this refers to across-the-flats measurement. For tapered bearings, refer to the narrower diameter.
Outside Diameter
If housed, the outside diameter includes the housing but excludes the flange in flanged bearings. The outer ring width accounts for the entire bearing's outside width.
Overall Width
If present, the locking collar becomes part of the entire width of the bearing assembly.
Operating Specifications
Grease-lubricated bearings have lower rated speeds compared to oil-lubricated ones.
Dynamic thrust (axial load) is a constant axial load an identical bearing group with stationary outer rings can sustain for a theoretical one million inner ring revolutions.
Dynamic radial load is a constant load for an identical bearing group with stationary outer rings to endure one million inner ring revolutions.
Ball Bearing Load, Fatigue, and Lifespan
To optimize bearing life, minimize contact between balls and raceways and provide good lubrication. Ball bearings endure dynamic and static, radial, and axial loads. Considering these variables is crucial to determine a bearing's operating loads.
They handle higher dynamic and radial loads but less static and axial loads. The first sign of non-elastic deformation appears as flattened areas on balls, impeding rotation. Bearing lifespan depends on speeds, load and environmental conditions. Industry standards suggest they last up to a million rotations, maintaining functionality in 90% of cases, a phenomenon termed bearing fatigue.
Function of Ball Bearings
Ball bearings reduce rotational friction while supporting axial and radial loads. By using two races to house the balls, which transfer the loads, one race is typically fixed to a rotating assembly like a shaft, while the other is stationary.
As one race rotates, the balls rotate with it. Their rolling motion minimizes friction compared to two flat surfaces in contact. Despite a lower load capacity due to smaller contact areas between races and balls, they allow some misalignment between inner and outer races.
Chapter 2: What are the different types of ball bearings?
This chapter will cover the different types of ball bearings.
Angular Contact Ball Bearings
These bearings feature raceways on both the inner and outer rings that are offset along the bearing axis. This design allows them to handle combined loads, including both axial and radial forces, simultaneously. They come in various designs and can be equipped with shields or seals for added protection.
These bearings not only prevent contamination but also serve as retainers for lubricants. They are constructed from various materials, including ceramic hybrids, stainless steel, cadmium, or plastic, and may be coated with chrome or other materials. They can be re-lubricated, pre-lubricated, or feature solid lubrication. Angular contact bearings are further classified into the following subtypes:
Single Row Angular Contact Bearing
These bearings feature a large number of balls to provide a relatively high load-carrying capacity and can accommodate axial loads in only one direction. They are usually paired with a second bearing for proper adjustment and consist of non-separable rings.
Double Row Angular Contact Ball Bearing
These bearings are designed similarly to two single-row bearings arranged back-to-back, but they are combined into a single unit to save axial space. They can accommodate both axial and radial loads in either direction, as well as tilting moments.
Four Points Angular Contact Bearing
These bearings are designed to support axial loads in all directions and have a high load-carrying capacity. They can handle radial loads, though these are limited for a given axial load. They are separable and require less axial space compared to double-row bearings.
Deep Groove Ball Bearing
Deep groove ball bearings are the most commonly used type of ball bearings. They are available in shielded, sealed, and snap-ring arrangements. The dimensions of the race in these bearings closely match the dimensions of the contained balls. They are capable of supporting heavy loads and offer both axial and radial support.
Nonetheless, the varying degrees of load support are fixed as the contact angle remains non-adjustable. Deep groove ball bearings are categorized into the following specific types:
Single Row Deep Groove Ball Bearing
These bearings are among the most prevalent types in use. They are extensively utilized across various applications. The raceway grooves in both the inner and outer rings feature circular arcs with a slightly larger radius than the balls. These bearings can handle both radial and axial loads in either direction. They are characterized by low friction, making them ideal for high-speed applications where minimal power loss is crucial. Typically, these bearings are available in open designs or with steel shields or rubber seals on one or both sides, and they are often pre-lubricated with grease.
Double Row Deep Groove Ball Bearing
These ball bearings feature a design similar to single row deep groove bearings. They are characterized by deep, uninterrupted raceway grooves that closely fit the balls. This design allows them to support both axial and radial loads in either direction effectively.
Double row deep groove ball bearings are ideal for applications where the load capacity of a single row is insufficient. These bearings are slightly wider than their single-row counterparts in the 63 and 62 series, while maintaining the same bore and outer diameter. They offer a significantly higher load-carrying capacity. Typically, double row deep groove bearings are available only as open bearings, lacking seals or shields.
Duplex Ball Bearing
These ball bearings are constructed by pairing two angular contact bearings. They can be arranged in several configurations: back-to-back (designated DB), face-to-face (designated DF, with the outer ring faces oriented towards each other), or in a tandem arrangement where both faces of the rings are aligned in the same direction (designated DT).
DB and DF duplex bearings can handle axial and radial loads in both directions. When a significant axial load is applied in one direction and it is crucial to distribute the load evenly across each bearing, the type DT configuration is used.

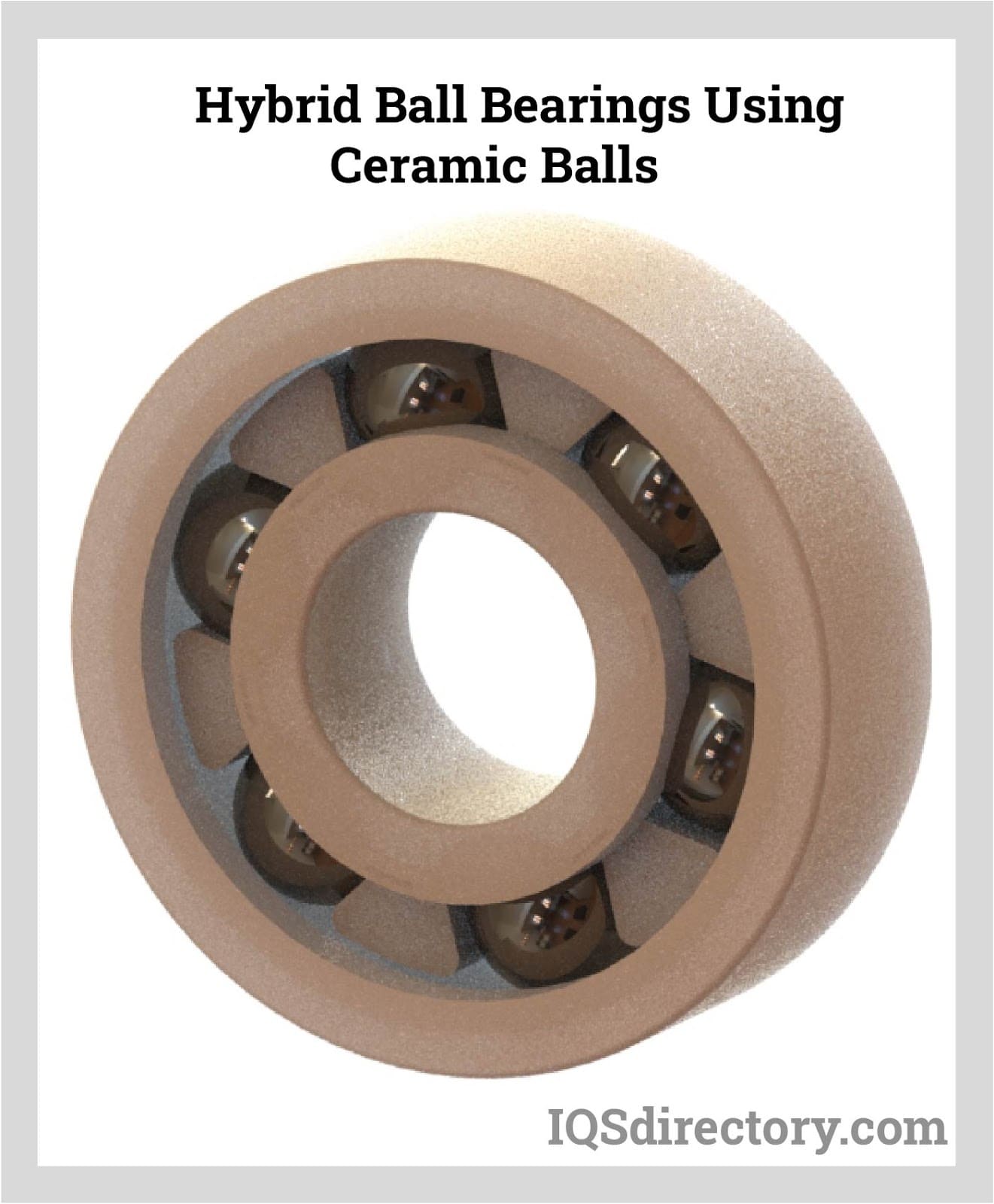

Hybrid Ball Bearings Using Ceramic Balls
Ceramic bearing balls can be up to 40% lighter than their steel counterparts, depending on the material and size. This reduction in weight leads to lower centrifugal forces and minimizes skidding, allowing hybrid ceramic ball bearings to achieve speeds that are 20% to 40% higher compared to traditional bearings. Essentially, this means that the inward force exerted on the ball by the outer race groove during rotation is reduced.
The decrease in force reduces both friction and rolling resistance. Lighter balls enable the bearing to rotate more quickly, consuming less power to sustain its speed. While ceramic balls are harder than the race, ceramic hybrid ball bearings are made with steel rings and ceramic balls. Although ceramic is stronger than steel, it is also more rigid, which can lead to higher stresses on the rings and thus a reduction in load capacity.
Miniature Bearings
These are small bearings having balls as their rolling element. Miniature bearings are sometimes referred to as micro bearings or instrument bearings with inner and outer rings, snap rings, balls, and retainers. These types of bearings are utilized in industrial and medical handpieces and other precision applications. Ball bearing designs include angular, radial, thrust, and pivot.
Miniature bearings are produced to conform to standard European metric dimensions, typically measuring less than 20 millimeters. They come in sizes ranging from just a quarter inch in diameter up to 20 millimeters. Among the smallest variants are those with a bore of 0.04 inches and an overall diameter of a quarter inch. Their compact size makes them versatile for various applications.
These bearings are engineered for high performance, providing dependable operation under moderate thrust and radial loads while maintaining low operating torque. Key attributes of miniature bearings include precision, speed, and durability. Additionally, noise reduction at high speeds can be crucial. Due to their limited material usage, many miniature bearings are manufactured from stainless steel, and they are generally not suited for high-load applications.
Precision Ball Bearings
These types of bearings allow for extra fine precision and tolerance. Precision ball bearings are ideal for applications having stringent requirements for speed and guidance accuracy. Precision ball bearings are available in two main types which are angular contact bearings and deep groove bearings. Deep groove ball bearings have full shoulders on either side of the raceways of the inner and outer ring, allowing for the addition of seals or shields with ease.
These bearings are designed to manage thrust loads, radial loads, or a combination of both. They come in various sizes, including miniature precision types, and can be equipped with different cage designs. Deep groove bearings are highly versatile and are among the most commonly used types of bearings.
Angular contact bearings feature one complete ring shoulder, with the other ring either partially or fully removed. This design allows for the use of larger balls, which enhances both load capacity and speed capability. Various cage configurations are available to address specific high-speed needs.
While angular contact bearings are adept at handling thrust loads or a mix of radial and thrust loads, they cannot support radial loads alone. They are capable of accommodating thrust loads in both directions when arranged face-to-face or back-to-back.
Challenges of Miniature Ball Bearings
Miniature ball bearings are precisely engineered to reduce friction and extend the lifespan of equipment. Neglecting these small bearings can lead to maintenance issues and reduce flexibility.
Regular maintenance is essential to ensure their smooth operation and longevity. Lubrication must be applied consistently to keep the bearings functioning effectively. Finding suitable options for these small bearings can be challenging, potentially complicating project completion. To address these difficulties, collaborate with a supplier who offers a comprehensive range of options.
Roller Bearings
Rolling bearings guide and support rotating machine elements that include axles or wheels, shafts and transfer loads between the components of the machine.
Miniature ball bearings provide exceptional precision and reduced friction, enabling high rotational speeds while minimizing noise, energy consumption, heat generation, and wear. They are also cost-effective and are designed to be interchangeable, adhering to national or international dimensional standards.
Self-Aligning Ball Bearings
This category of ball bearings features a dual-row ball arrangement. The outer ring is typically shaped with a spherical raceway, while the inner ring contains deep and continuous raceway grooves.
These ball bearings come in both sealed and open variations. They are designed to handle angular misalignment between the shaft and the housing, which might occur due to shaft deflection, without issues.
Steel Ball Bearings
Ball bearings of this kind are highly adaptable. They find use in various applications, from arts and crafts and bicycle maintenance to precision machinery, model engineering, and numerous experimental projects.
There are many different types of bearings made from stainless steel available. There are ball bearings made from hardened steel for hobby projects or professional work requirements. Steel ball bearings are durable and they are resistant to corrosion.
Thrust Ball Bearing
This category of ball bearings is specially engineered to handle axial loads exclusively. They are not suited for supporting radial loads.
Thrust ball bearings are known for their smooth operation, minimal noise, and suitability for high-speed applications. They come in two types: single direction and double direction. The choice between them depends on whether the load is applied in one direction or both.
Single Direction Thrust Ball Bearing
These ball bearings feature ring components resembling washers, each with raceway grooves. The ring mounted on the shaft is called the shaft washer or inner ring, while the ring fixed to the housing is referred to as the housing washer or outer ring.
Double Direction Thrust Ball Bearing
These ball bearings consist of three rings, with the central ring attached to the shaft. Some models include a thrust ball bearing with an aligning seat washer positioned under the housing washer to address mounting errors or shaft misalignment. Smaller bearings typically use pressed steel cages, whereas larger ones employ machined cages.
Leading Manufacturers and Suppliers
Chapter 3: What are the applications and benefits of ball bearings?
This section will explore the various applications and advantages of utilizing ball bearings.
Applications of Ball Bearings
Bearings find specialized applications in diverse fields such as aerospace, automotive, agriculture, ball screw support, medical and dental, precision instruments, pumps, military, sports, high-precision spindles, consumer products, and aircraft or airframe control.
Airframe and Aircraft Control
Bearings used in airframe and aircraft control are specifically engineered to meet the rigorous requirements of aerospace applications. They come in various designs, including roller, ball, and needle roller configurations.
Aerospace Applications
Ball bearings are specifically engineered for various aerospace applications, including those used in jet engines and helicopters.
Agricultural Machinery
Specialized ball bearings are available for use in agricultural machinery and environments.
Automotive Sector
Bearings designed for the automotive industry are tailored to meet the specific needs of this sector.
Ball Screw Support
Ball bearings used in ball screw applications are often angular contact types with a steep contact angle, such as 60 degrees, and can be configured in duplex, triplex, or quadruplex arrangements. Other designs include bearings with separate radial and thrust rollers in a single assembly and cartridge versions that integrate seals, housings, and bearings.
Miniature and Instrument Bearings
Miniature or instrument ball bearings are compact angular contact or deep groove bearings used in applications requiring very small bearings, such as computer disk drives and dental drills.
Medical or Dental Bearings
These bearings are specifically designed for use in medical and dental equipment, often featuring miniature designs.
Pump Applications
Ball bearings for pump applications are built to withstand harsh conditions, including inadequate lubrication, high loads, and elevated operating temperatures.
Spindle and Super Precision
High-precision ball bearings are used in machine tool spindles, designed for superior accuracy and performance.
Sporting and Consumer Goods
Bearings intended for the sports and consumer goods markets include those used in skateboards, inline skates, and fishing reels.
Benefits of Ball Bearings
Miniature bearings provide a low level of vibration, noise, and frictional torque performance.
Ball bearings made from steel are robust and durable; they are less susceptible to corrosion.
Ball bearings made from borosilicate glass are good heat resistors and they also resist changes in temperature. They have mechanical stability. The coefficient of linear expansion they possess is low.
The load-carrying capacity of single row angular contact ball bearings is high. Their running properties are very good. The mounting of the universally matchable bearings is easy.
Double row angular contact bearings also have a lot of benefits that include less axial space, and accommodate both axial and radial loads in either direction. They are able to accommodate tilting moments. They have a stiff bearing arrangement
Four point angular contact ball bearings have a lot of advantages that include less axial space. They are able to handle axial loads in both directions. Their load carrying capacity is high. They have a design that is separable. They have an oil flow that is improved. The inner ring deformation is limited, when subjected to high clamping forces.
Self-aligning ball bearings are able to accommodate dynamic and static misalignment. They also have a speed of performance that is highly excellent. They require minimum maintenance. They experience low friction. Their load performance is excellent and light. Self-aligning ball bearings are capable of reducing vibration levels and noise such as in fans.
Conclusion
Ball bearings are rolling elements that facilitate motion while reducing friction in moving machine parts. There are different materials that are used to produce ball bearings including steel, plastic, ceramics, etc. each type of material exhibits its own properties which makes it unique. There are also many different types of ball bearings including angular contact ball bearings, steel made ball bearings, deep groove ball bearings, and some are further classified into subgroups, with each subgroup having differences from the other one.
Each ball bearing has its own specific type of application depending on its material, load-carrying capacity, size, or design. Therefore when selecting a ball bearing, one must take into consideration the type of material used to produce the ball bearing, the size of the ball bearing, the design of the ball bearing, the load-carrying capacity of the ball bearing. The ball bearing must suit its application depending on the mentioned parameters.
Leading Manufacturers and Suppliers
Related Posts
Linear Bearings
Linear bearings are a type of bearing that "bear" or support the load of the carriage during its single-axis linear movement and provide a low friction sliding surface for the guide rails. In a linear guide, the carriage is the component that travels in a straight line, back and forth, along the length of the guide rail...
Electric Actuators
Electric actuators are devices capable of creating motion of a load, or an action that requires a force like clamping, making use of an electric motor to create the force that is necessary...
Linear Actuators

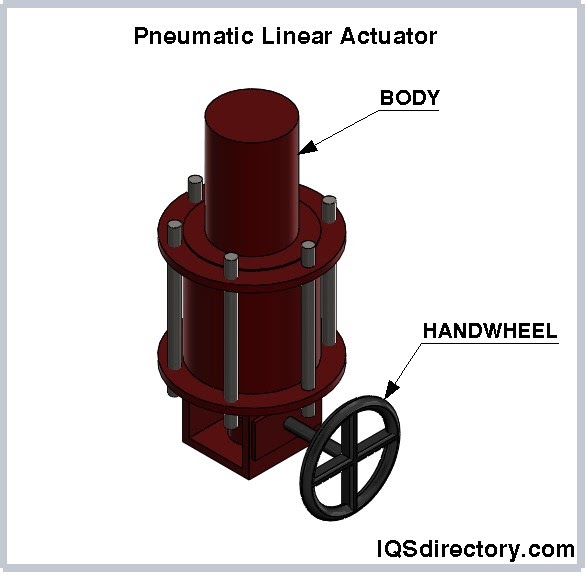

A linear actuator is a means for converting rotational motion into push or pull linear motion, which can be used for lifting, dropping, sliding, or tilting of machines or materials. They provide safe and clean motion control that is efficient and maintenance free...
Linear Rails
Linear Rails are ideal for moving items through a production process with great precision and as little friction as possible if creating, packing, and distributing products. Linear Rail is a type of gadget that...
Linear Slides

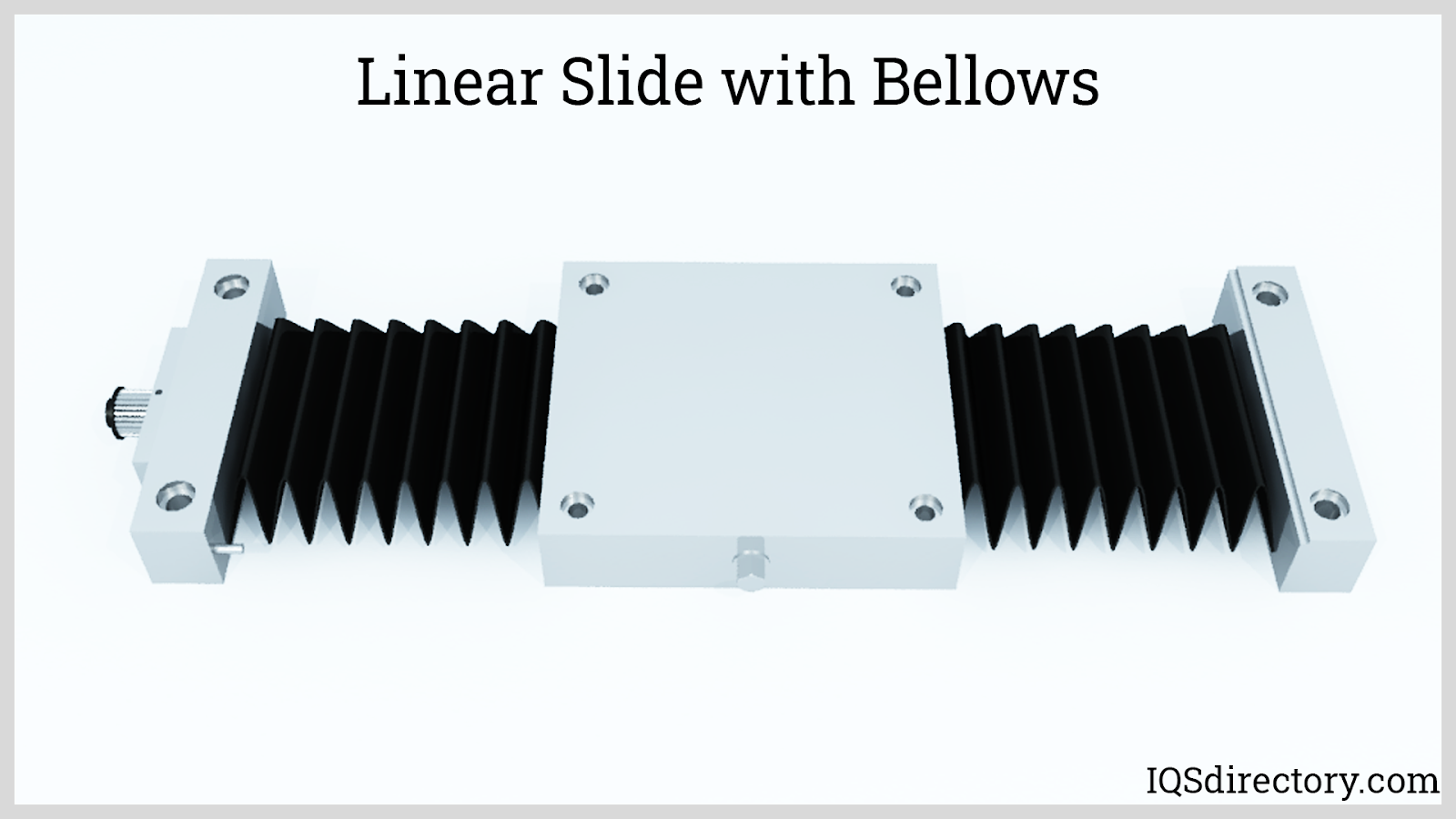

Linear slides, also referred to as linear guides or linear-motion bearings, are types of bearings that allow smooth and near-frictionless motion in a single axis. Machine tools, robots, actuators, sensors, and other mechanical equipment often require moving components in a straight line in any of the three-dimensional axes...
Roller Tables

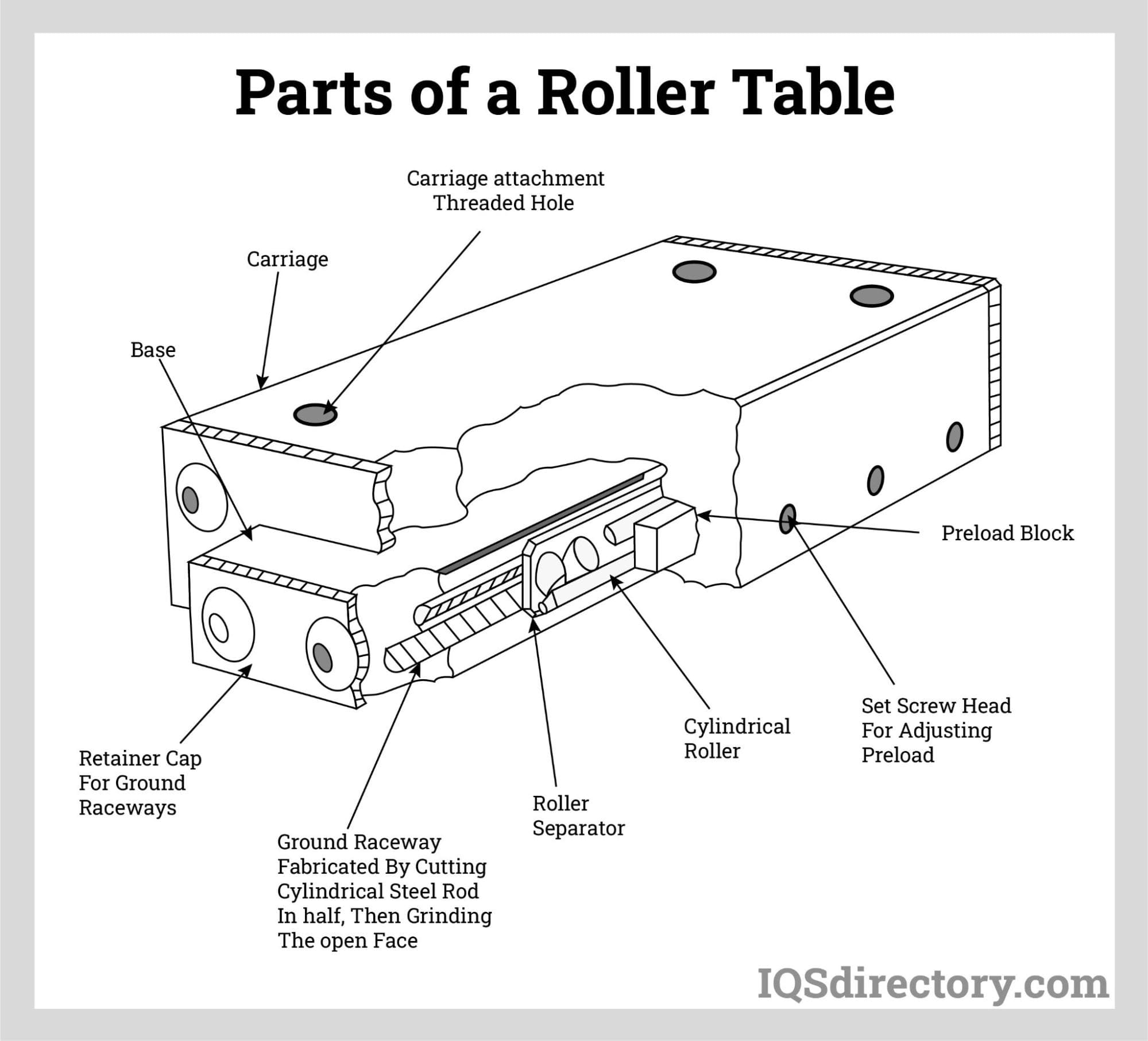

A roller table is a small, stiff, limited linear guide device with an integrated cross-roller guide. Electrical or mechanical drive systems are frequently used to move a roller table, making it easy to transfer heavy loads...
