This article takes an in depth look at lead screws.
Read further to learn more about topics such as:
A lead screw is a type of mechanical linear actuator that transforms rotational motion into linear movement. It operates through the sliding interaction between the screw shaft and the nut threads, without the use of ball bearings. This direct contact between the screw shaft and nut results in greater friction and higher energy losses. Nevertheless, advancements in lead screw thread designs have aimed to reduce friction and improve efficiency.
The lead screws are a cost-effective alternative to ball screws in low power and light to medium-duty applications. Since they have poor efficiency, their use is not advisable for continuous power transmission. Unlike ball screws, they operate silently with no vibration and have a more compact size. They are typically used as a kinematic pair (linkage) and actuation and positioning in equipment such as lathe machines, scanners, recorders, wire bonders, and disk drive testers. They are used to transmit forces in testing machines, presses, and screw jacks.
The key components of a lead screw include:
The screw shaft is a cylindrical component featuring one or more helical threads that spiral around its length, commonly known as the external thread.
The thread is the mechanism that transforms rotational movement into linear movement as the screw shaft and nut move relative to one another.
The lead screw nut is a cylindrical component with an internal thread that corresponds to the external thread of the screw shaft.
Lead screws can function in two distinct ways. In the first mode, either the screw shaft or the nut rotates while the other part remains stationary, resulting in linear movement. This configuration is often used in applications like printers and helical pairs. In the second mode, either the screw shaft or the nut rotates without producing linear motion. This setup is commonly found in machinery such as presses and lathes.
The design features of lead screws include the following:
The major diameter refers to the widest diameter of the thread. For the screw shaft, it is the distance between two opposing crests, while for the nut, it is the distance between two opposing roots.
The minor diameter is the smallest diameter of the thread. For the screw shaft, it is the distance between two opposing roots, and for the nut, it is the distance between two opposing crests.
The crest is the elevated helical part of an external thread (screw shaft) and the indented helical part of an internal thread (nut).
The root is the indented helical part of an external thread (screw shaft) and the elevated helical part of an internal thread.
Thread depth is the radial distance from the root to the crest.
The flank is the surface connecting the root and the crest.
The pitch diameter, also known as the effective diameter, is the diameter of an imaginary cylinder that is approximately midway between the major and minor diameters. It is the diameter where the circumference intersects half of the thread pitch.
The pitch is the axial spacing between two adjacent threads, measured parallel to the axis. It is the reciprocal of the number of threads per inch.
The lead is the distance the screw shaft or nut moves along its axis with one full rotation (360 degrees). A larger lead results in higher linear speed but reduced load capacity.
The term "number of starts" denotes how many independent threads spiral along the length of the screw. The lead of a screw is calculated by multiplying the number of starts by the pitch.
Lead screws typically feature one, two, or four starts. A single-start lead screw has a lead equal to its pitch. Multiple-start lead screws are employed for achieving higher speeds and greater load capacities. With more starts, the linear distance covered per rotation increases. For instance, in a double-start lead screw, the lead is twice the pitch, meaning that one rotation covers a distance equivalent to two pitch units.
The helix angle is the angle between the thread’s helical path and a line perpendicular to the screw's axis of rotation. Typically, a lead screw with a greater helix angle exhibits reduced frictional losses and thus higher efficiency. This is because it requires fewer revolutions to achieve the same linear movement compared to a screw with a smaller helix angle. However, a higher helix angle demands more torque to turn the screw.
The lead angle is the angle complementary to the helix angle. It is the angle between the thread’s helical path and a line parallel to the screw’s axis of rotation.
The thread angle is the angle formed between two neighboring threads.

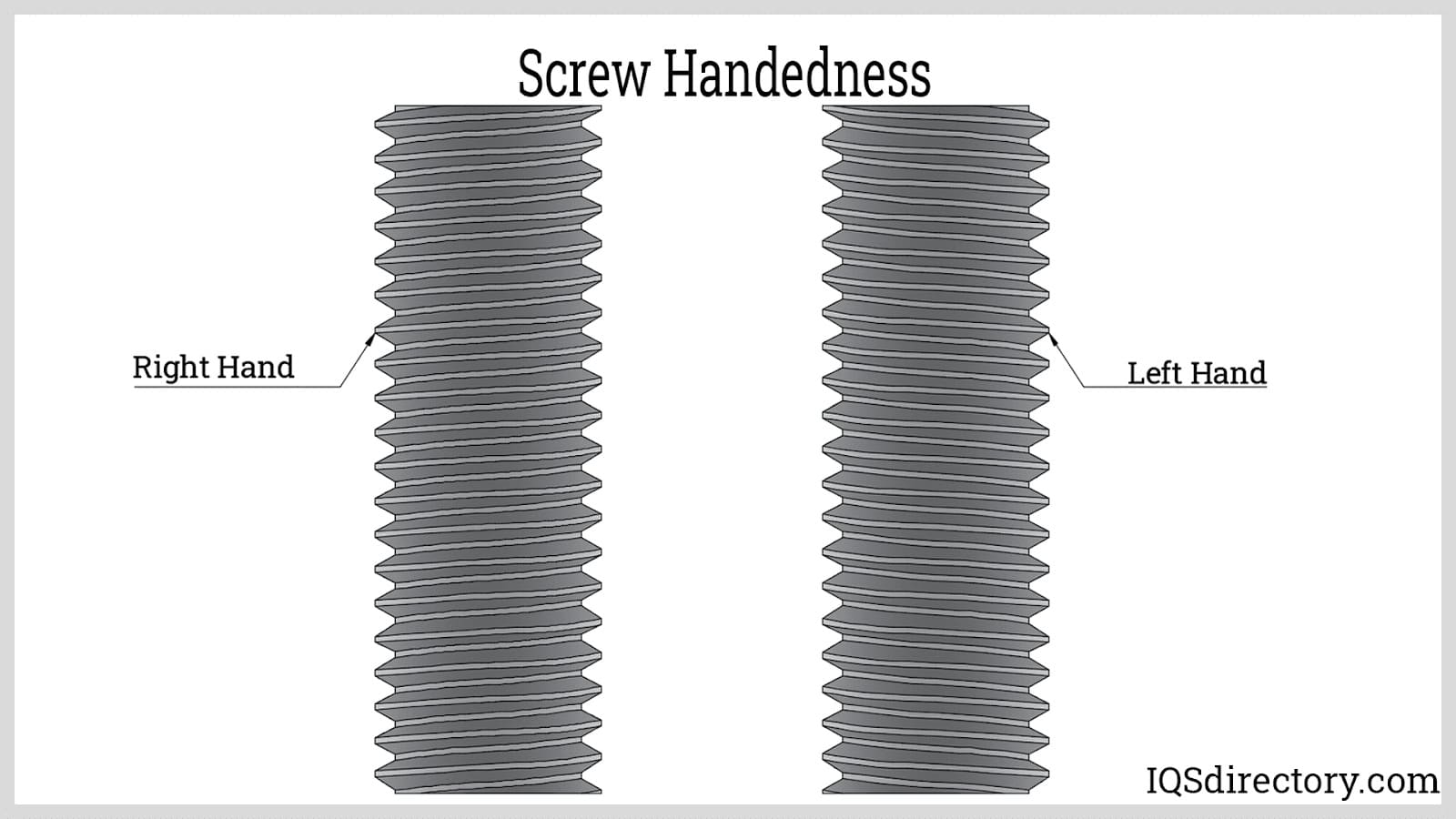

Screw handedness indicates the direction in which the thread spirals along the screw’s length. A lead screw can be either right-handed or left-handed. In right-handed screws, the thread spirals clockwise, while in left-handed screws, it spirals counterclockwise.
Here are the types of lead screw threads categorized by their profile:
The square thread features flanks that are perpendicular to the screw's axis, creating a 90-degree thread angle. This design minimizes radial and bursting pressures on the nut, resulting in reduced resistance and friction.
Square threads are commonly employed in power transmission applications, such as in lathe machines and jackscrews. Despite their effectiveness, they are challenging and expensive to produce, typically requiring a single-point cutting tool. Additionally, their load-bearing capacity is relatively low because the areas at the crest and root of the threads are nearly identical.
The acme thread features a 29-degree thread angle and was introduced in the mid-1800s as an improvement over square threads. It offers greater load capacity due to its wider base and has fewer threads per inch, which increases the lead. Although acme threads can accommodate wear better, they are less efficient than square threads because of the friction created by the thread angle.
Acme threads are easier to manufacture than square threads, thanks to their angled flanks that allow for the use of multi-point cutting tools. They are commonly used in applications such as bench vices, clamps, valve stems, lathe machines, and linear actuators.
There are three types of acme threads: General Purpose, Centralizing, and Stub acme threads. The General Purpose and Centralizing acme threads have a thread depth approximately equal to half of the pitch diameter. Centralizing acme threads feature tighter tolerances between the external and internal threads to reduce wedging under radial loads. The Stub acme thread has a shallower thread depth, less than half of its pitch, and combines characteristics of both the General Purpose and Centralizing acme threads.
The trapezoidal thread is similar to the acme thread, except that the thread angle is 300. It is manufactured in metric dimensions; that is why it is referred to as "metric lead screw" or "metric acme screw."

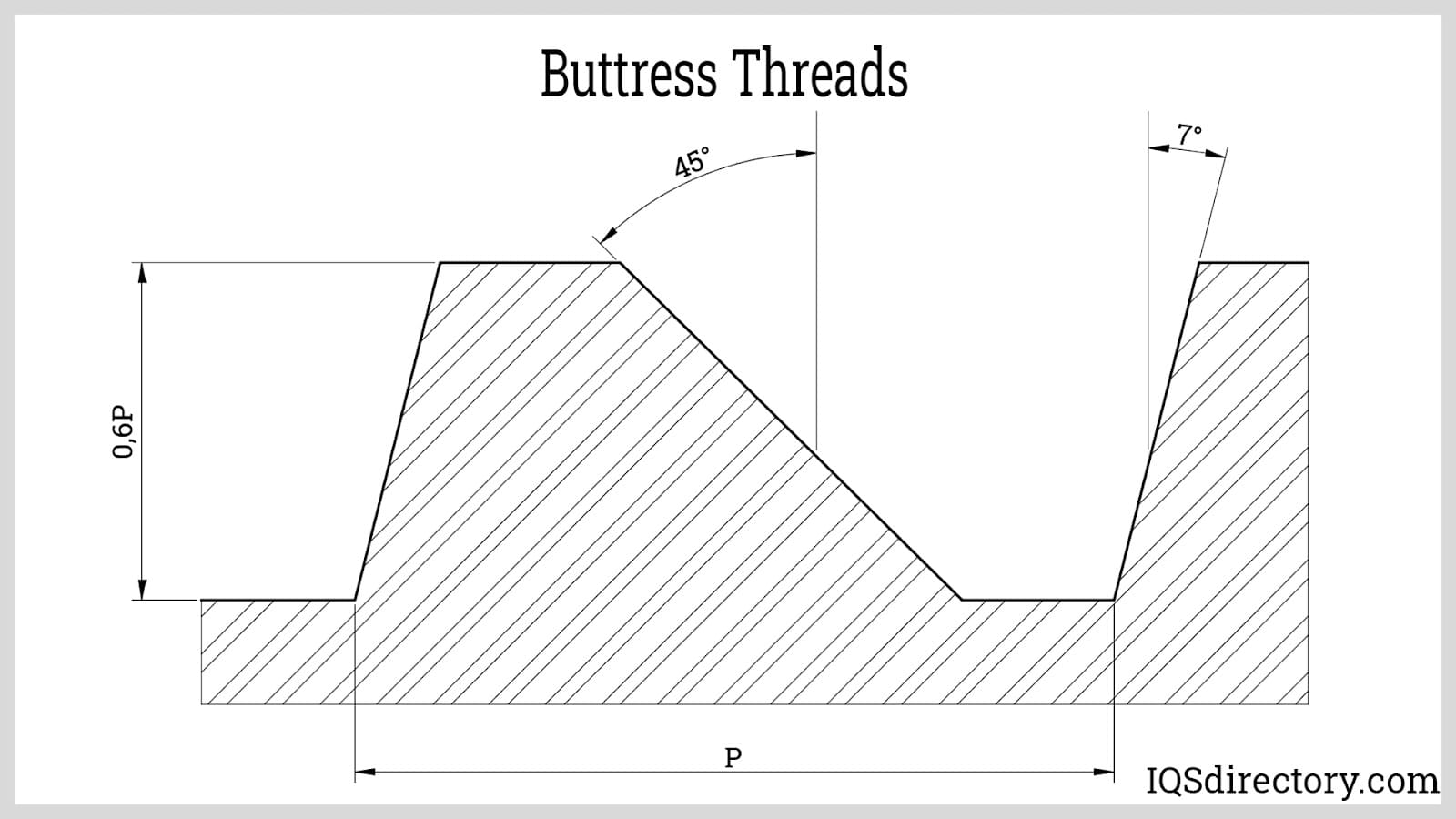

The buttress thread is specifically designed to manage high axial loads and transmit power in a single direction, determined by the orientation of the weight-bearing and trailing flanks. In a standard buttress thread, the weight-bearing flank has a 70-degree slant, while the trailing flank has a 45-degree slant. This thread's wider base enhances its shear strength, making it approximately twice as strong as the square thread. Its efficiency is nearly comparable to that of the square thread due to minimal frictional losses.
Buttress threads are commonly used in applications such as large screw presses, jacks, vertical lifts, turning machinery, and milling machines. However, they are only suitable for applications requiring unidirectional threading and perform poorly if axial loads are applied in the reverse direction.
The following are the commonly used methods for manufacturing lead screws:

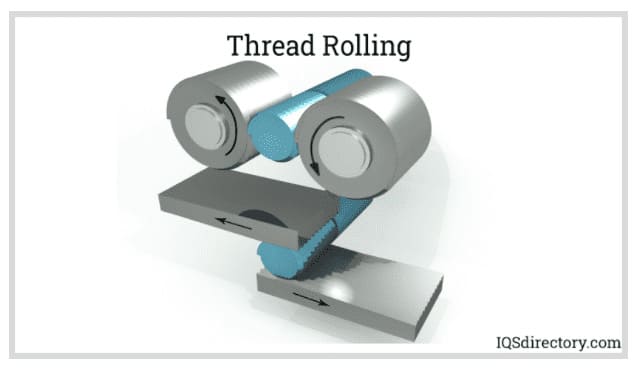

In thread rolling, the metal rod (the blank material) is compressed between two roller dies containing a thread profile. The dies deform the surface of the blank after multiple passes; this transfers the thread profile to the workpiece. Thread rolling is a metal cold forming process; hence, the thread achieves higher strength and hardness. The products from thread rolling are "rolled threads".

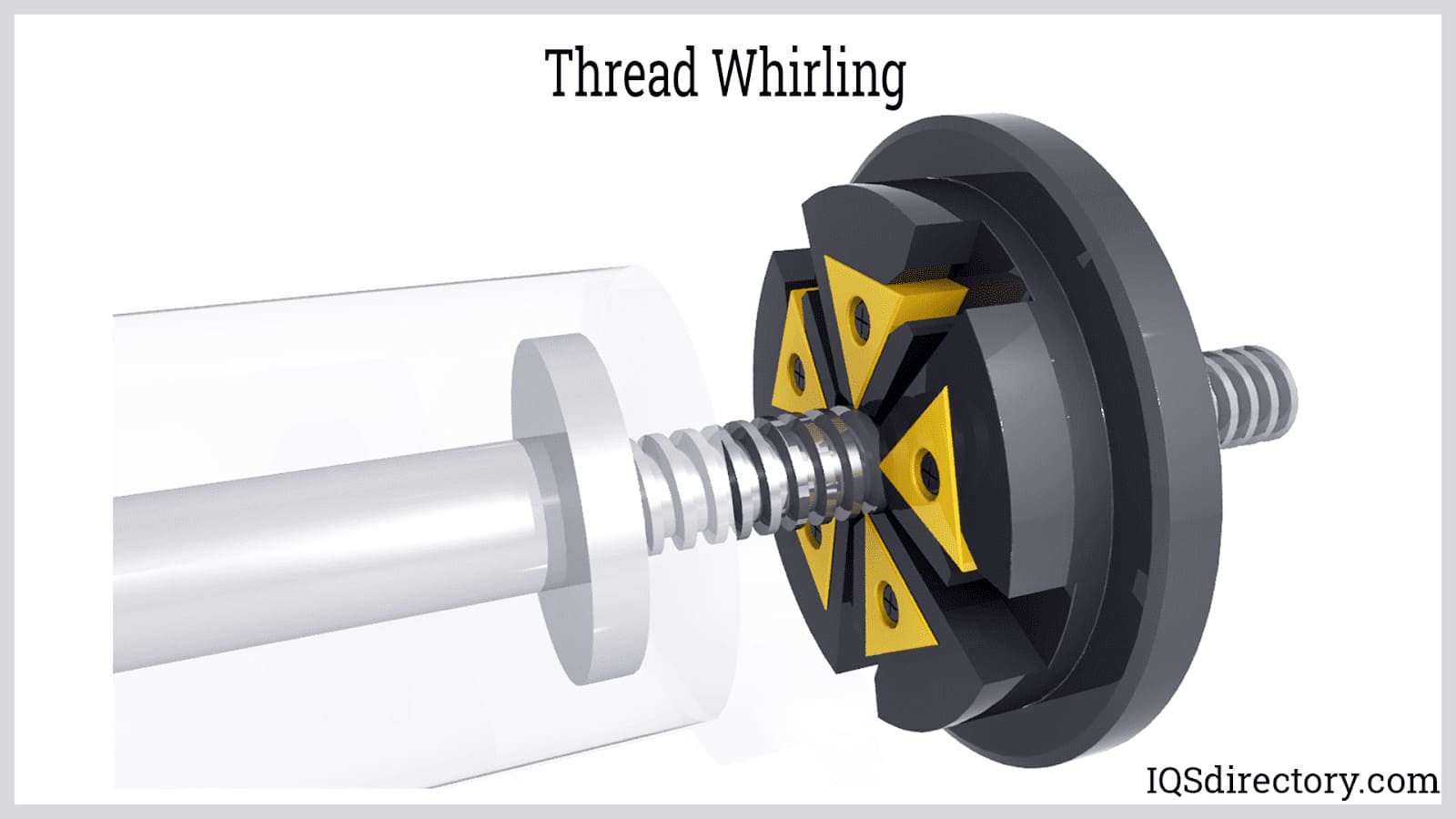

Thread whirling involves clamping a metal rod in a whirling head and tilting it to achieve the desired helix angle. The whirling head then rotates the rod at high speeds while it is slowly fed against a single cutting tool. This method allows for the creation of threads in just one pass, producing deeper and more precise threads. The resulting threads from thread whirling are known as cut threads.
Linear actuators are devices that move loads in a single-axis straight path. They can be driven by lead screws. There are two types in which lead screw actuators can be operated:
The nut facilitates linear movement of the load. For enhanced stability and increased load capacity, it is commonly supported by a linear guide system, which includes guide rails, bearings, and a carriage. Additionally, the nut is often fitted with an anti-backlash mechanism to maintain accuracy and consistency in linear motion.
A lead screw table is an advanced form of lead screw actuators, designed with a broader platform for mounting larger loads. The lead screw is generally aligned parallel to two guide rails, with the nut enclosed within the linear guide's carriage. Lead screw tables are commonly utilized in positioning systems for larger objects.

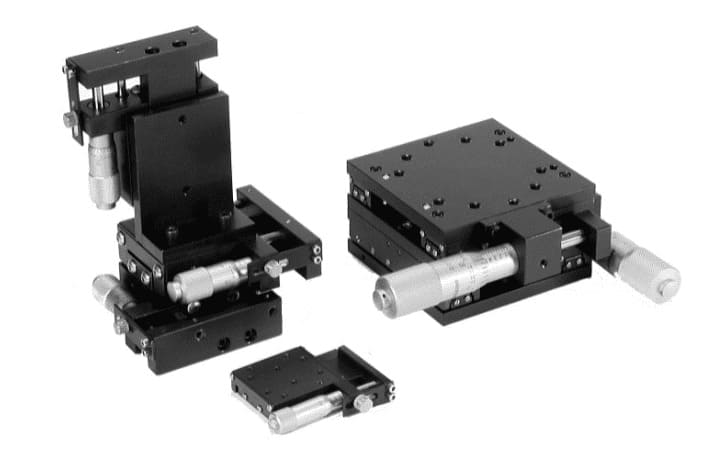

Lead screw stages are actuators designed for precise positioning applications. They offer high torsional stiffness and include a friction locking mechanism, making them suitable for both horizontal and vertical use. Certain lead screw stages are capable of multi-axis movement, and they come in configurations such as X, X-Y, and X-Y-Z.
The efficiency and durability of lead screws are significantly affected by the coefficient of friction between the nut and screw shaft surfaces. This coefficient is an inherent characteristic of the materials used. It is crucial that both the screw shaft and nut materials are compatible. Hard materials are generally avoided as they can lead to increased wear of the lead screw. Ideal materials for lead screws should possess high tensile and compressive strength, resistance to fatigue, rigidity, and resistance to corrosion and chemicals.

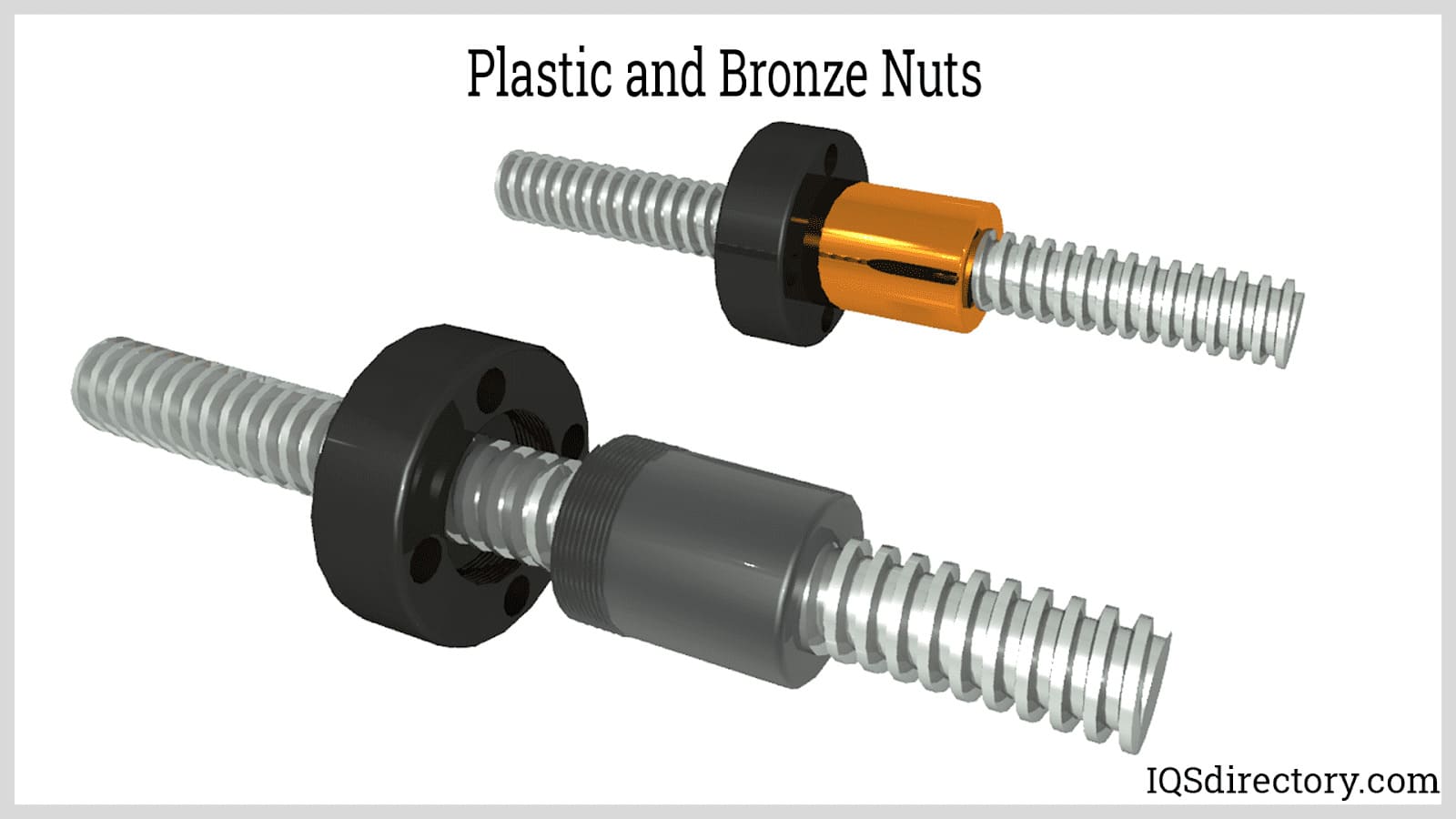

Common materials for the screw shaft include carbon steel, stainless steel, aluminum, and titanium. For the nut, materials such as plastic or bronze are typically used:
To further decrease friction and enhance anti-corrosion and thermal resistance, lead screw materials are often coated with engineered composites that have self-lubricating properties. These coatings eliminate the need for additional lubrication and offer protection in harsh environments. Common coating materials include polytetrafluoroethylene (PTFE), polyether ether ketone (PEEK), Torlon®, and Vespel®.
Backlash refers to the axial movement of the screw shaft and nut without corresponding rotation of either component. It is an inherent characteristic of lead screws and occurs due to unwanted clearance and inadequate fitting of the internal and external threads, leading to lost motion between lead screw components.
Backlash can impact the accuracy and consistency of lead screw systems. While some degree of backlash is acceptable in applications such as presses, jacks, clamps, and vices, it can adversely affect the performance of positioning, dispensing, and assembly systems. Additionally, backlash can contribute to increased wear on the lead screw.
An anti-backlash nut is designed to maintain close contact between the screw shaft and the nut, reducing clearance and minimizing backlash. The different types of anti-backlash nuts include:

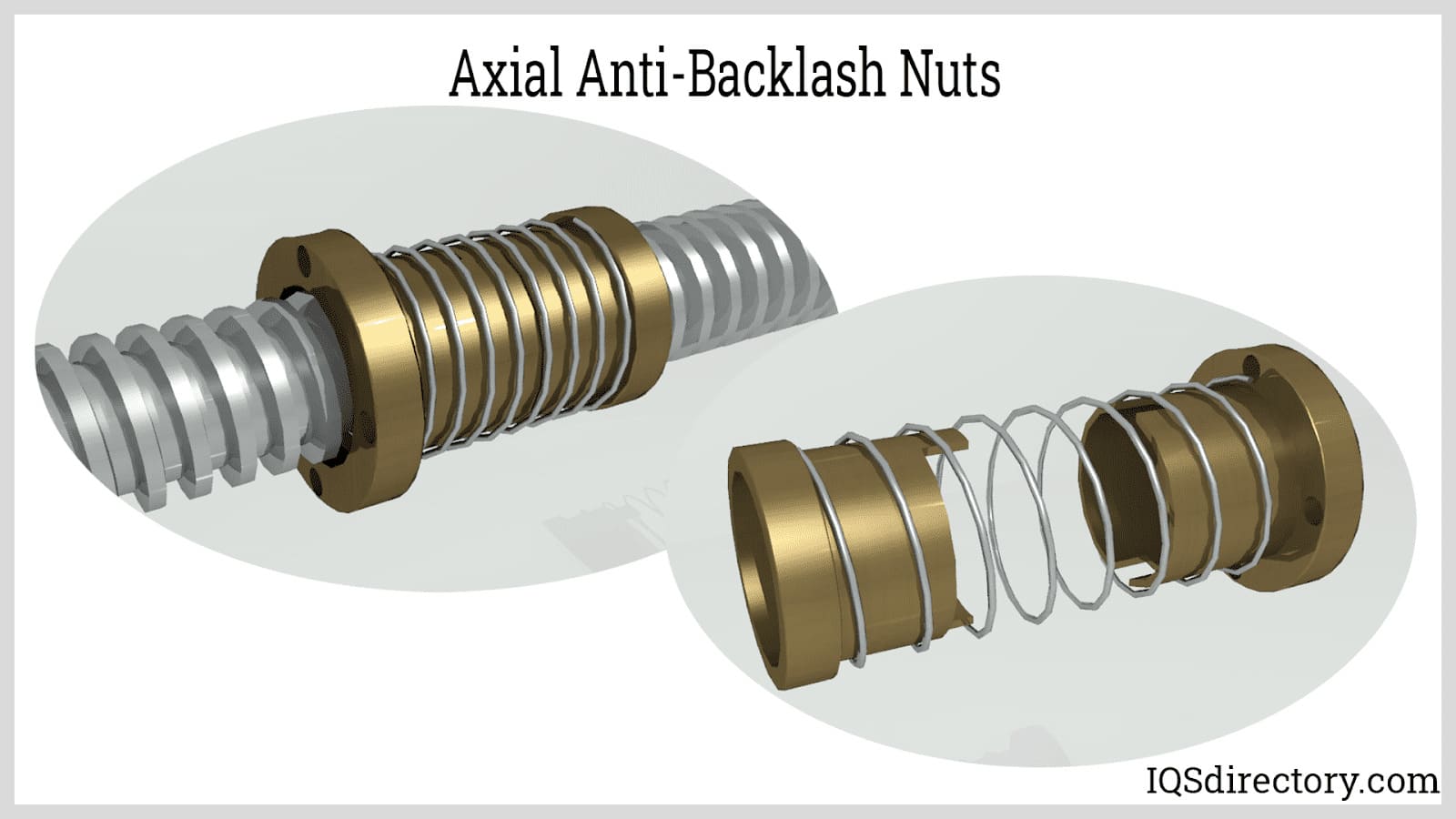

An axial anti-backlash nut utilizes a spring positioned between two halves of the nut. This spring compresses the opposing flanks of the internal and external threads, effectively eliminating unwanted axial clearances. However, this type of nut requires more torque to operate the lead screw, which increases frictional losses and reduces overall efficiency. To minimize backlash, the spring force must exceed the applied load.

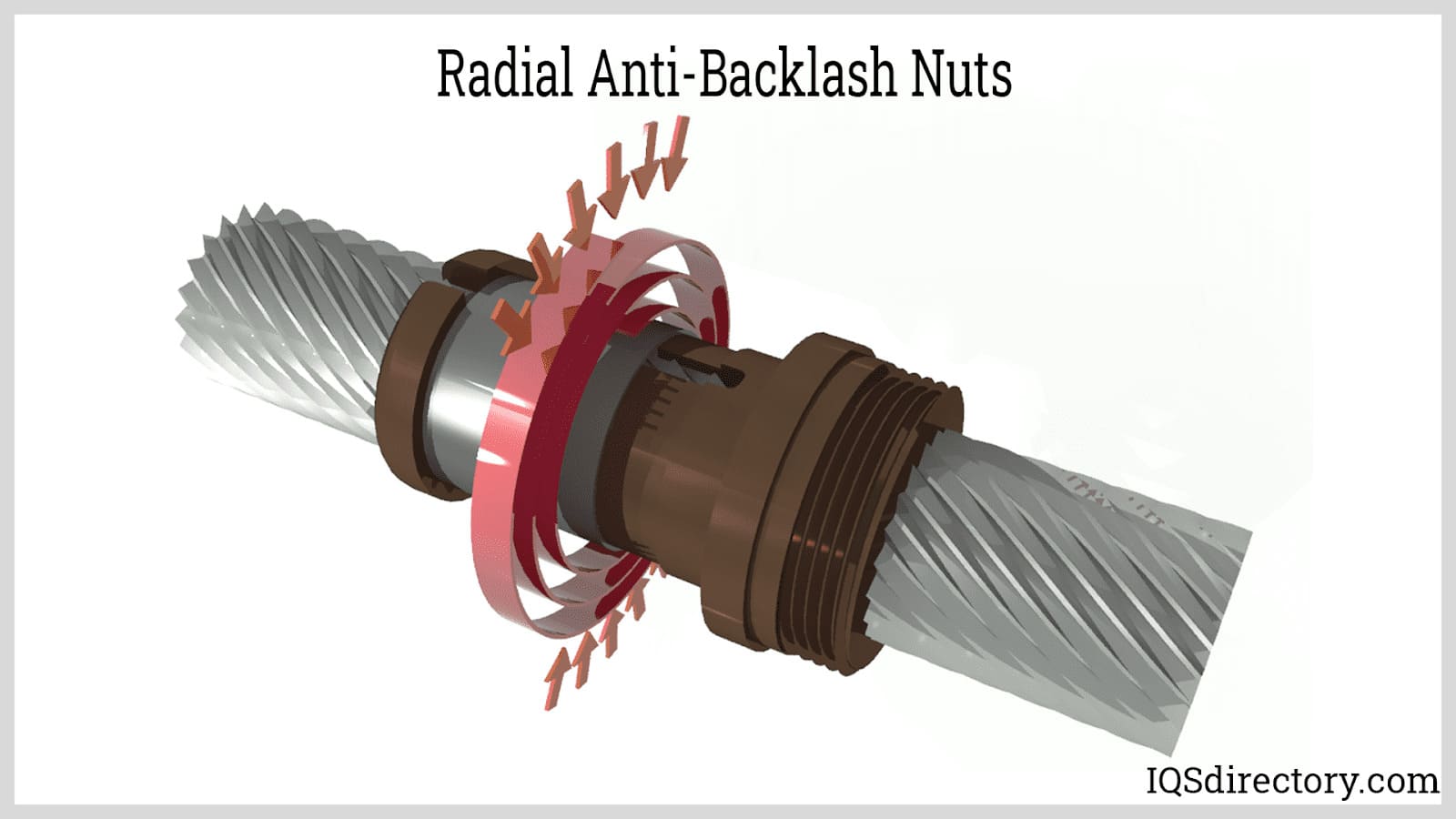

Radial anti-backlash nuts address backlash by applying radial force to compress the screw shaft and the threads, thus removing unwanted radial clearance between the crest and root. This method effectively eliminates backlash regardless of the applied load and compensates for thread wear. Radial backlash reduction is achieved through two main approaches: one involves a nut body with flexible fingers pressed down by an axial spring, while the other features an externally wrapped adjustable spring around the nut body to set the preload and clearance as needed.

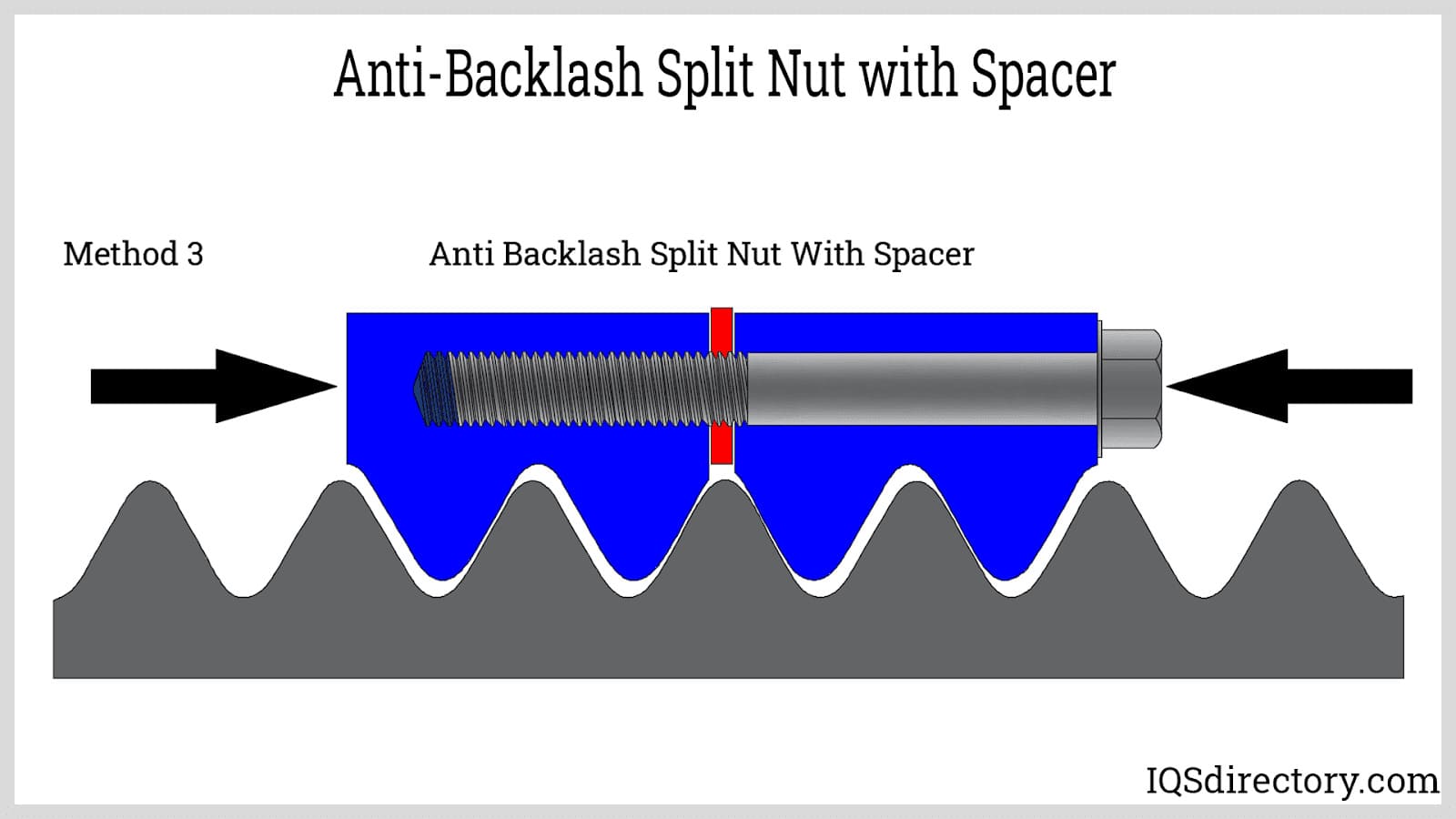

Another approach to eliminating axial backlash involves using a spacer between two nut halves that are fastened together with bolts. The bolts secure the opposing flanks of the nuts, while the spacer prevents over-tightening. This setup applies additional compressive force to the screw shaft, helping to minimize backlash.
In more advanced and automated systems, backlash can be predicted and adjusted for electronically through software, allowing for precise compensation.
In addition to addressing backlash and material selection, take into account the following factors when choosing, operating, and maintaining lead screws:
The PV rating indicates the maximum allowable combination of axial load and revolutions per minute (rpm) that a lead screw can endure. It is determined by the heat generated during operation and the wear experienced by the lead screw. The PV value represents the product of contact surface pressure and sliding velocity, which are two independent parameters of a lead screw.

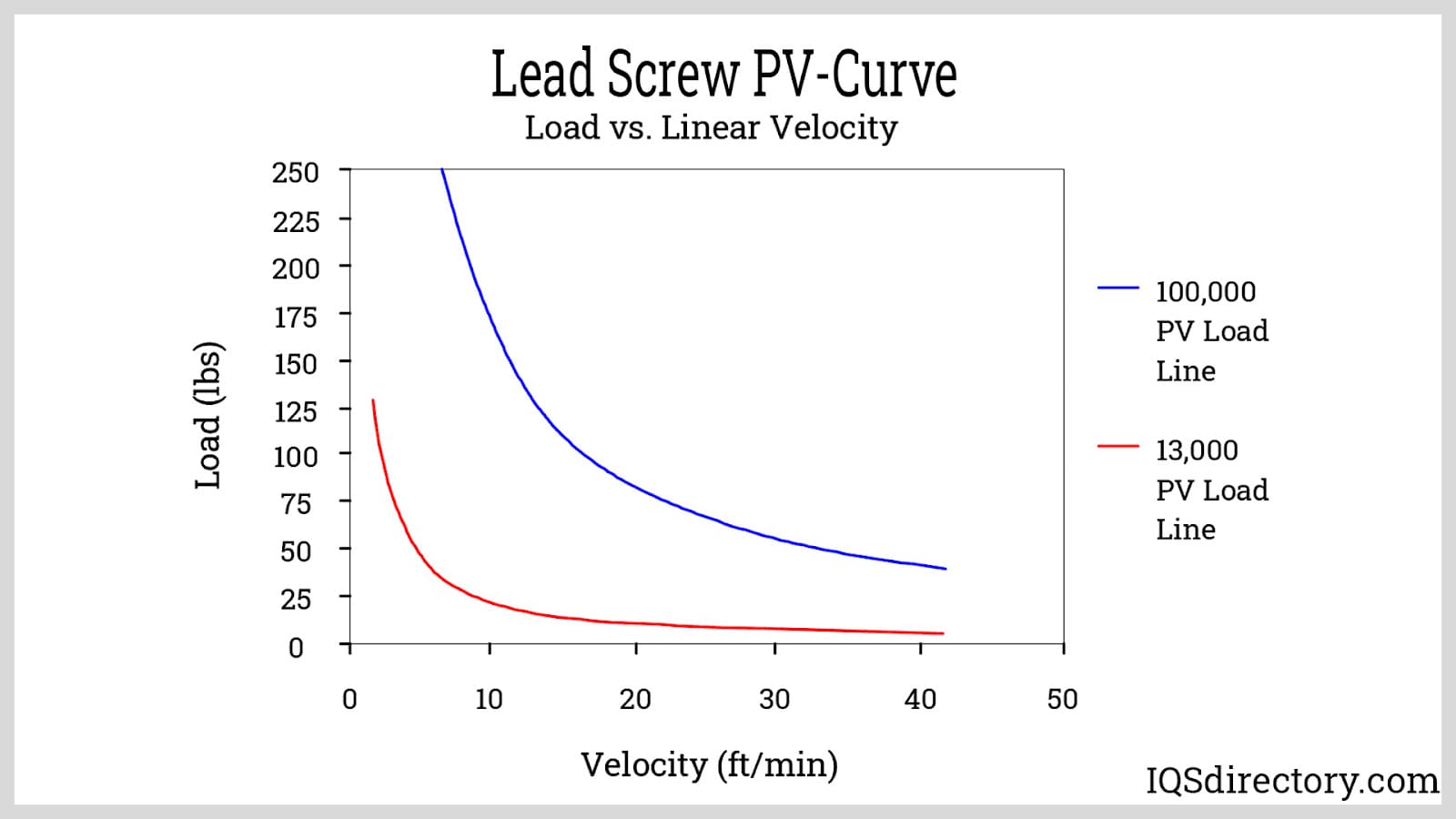

The PV curve outlines the safe operating boundaries for the lead screw, illustrating the inverse relationship between contact surface pressure and sliding velocity to ensure safe operation. When handling a greater axial load, it is advisable to reduce the screw's rotational speed. This principle should be applied whenever adjustments are made to the axial load or rpm.
The PV value is influenced by the materials used in the lead screw's construction and its lubrication conditions.

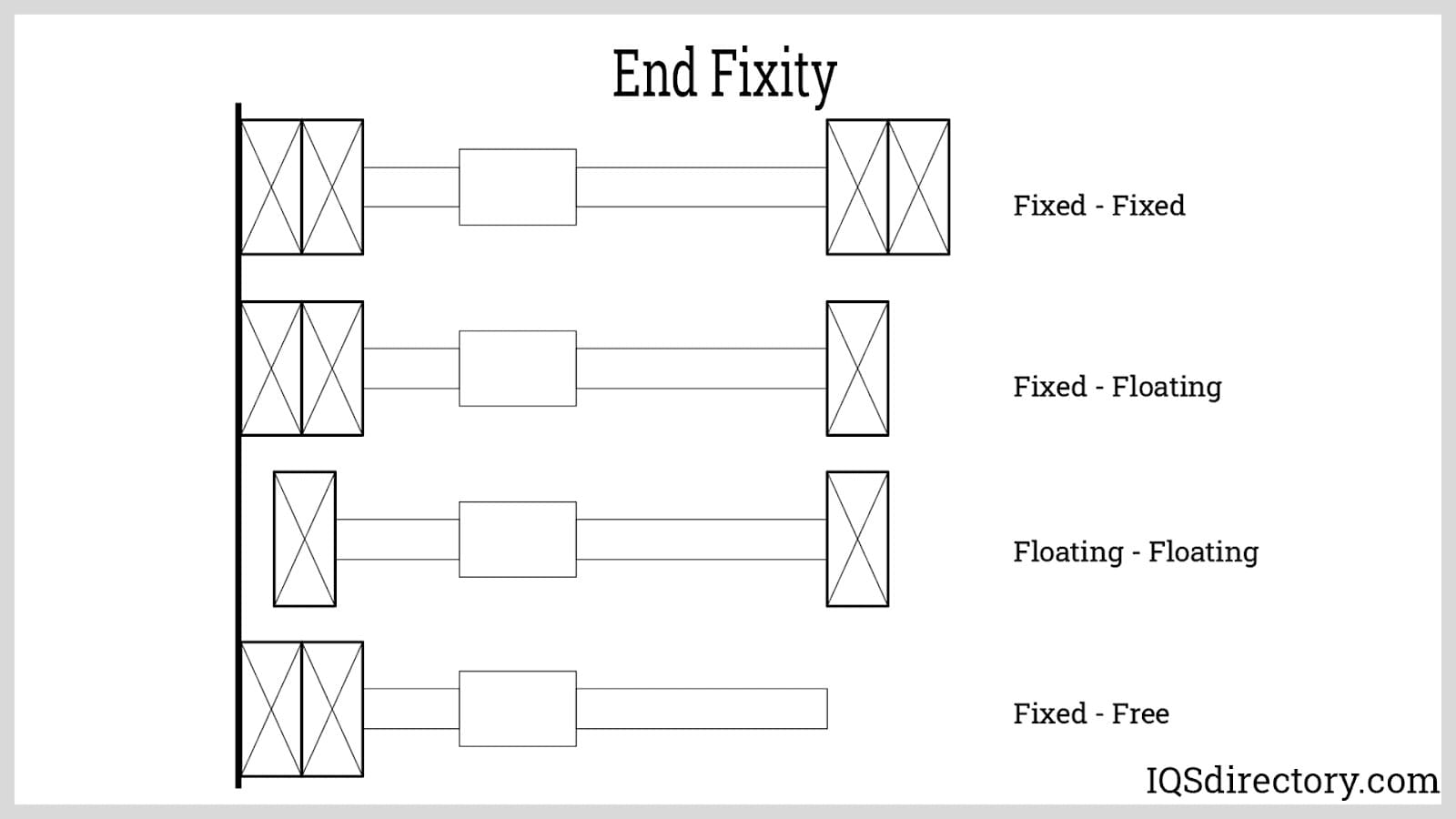

End fixity describes the support arrangement of the lead screw, which impacts its rigidity, critical speed, and buckling load. The different types of end fixity include fixed-free, floating-floating, fixed-floating, and fixed-fixed configurations.
The critical speed of a lead screw is the highest rotational speed it can achieve without causing excessive vibrations or potential damage. This threshold is determined by the screw's natural frequency and factors such as its minor diameter, length, shaft straightness, assembly alignment, and end fixity. To ensure reliable performance, it's advisable to keep the operational rpm below 80% of the calculated critical speed.
Buckling load, also known as column strength, is the maximum compressive force a lead screw can endure before it begins to bend or buckle. This is a crucial factor in determining the appropriate size of a lead screw. For a given type of end fixity, the buckling load rises with a larger minor diameter and decreases as the distance between bearing supports shortens.
Lead accuracy measures how much the actual linear displacement of a lead screw differs from the theoretical distance determined by its pitch and lead. This metric is typically included in the manufacturer's specifications. A lead screw with a smaller lead accuracy value indicates higher precision and accuracy.
Lead screws offer several advantages, including:
Lead screws come with certain drawbacks, such as:
