This article will give an in-depth look at plastic bottles and their functions.
The article will give more information about topics such as:
This chapter will explore what plastic bottles are and the various manufacturing techniques used to produce them.
Plastic bottles are constructed from various types of plastics, including polyethylene terephthalate (PET), polyethylene (PE), polypropylene (PP), polycarbonate (PC), and polyvinyl chloride (PVC). Each material serves a specific purpose, with distinct characteristics and applications, which include:
Apart from the general blow molding, other techniques bring about the formation of bottles like reheat and blow molding, co-extrusion blow molding, and injection molding.
These techniques will be detailed below:

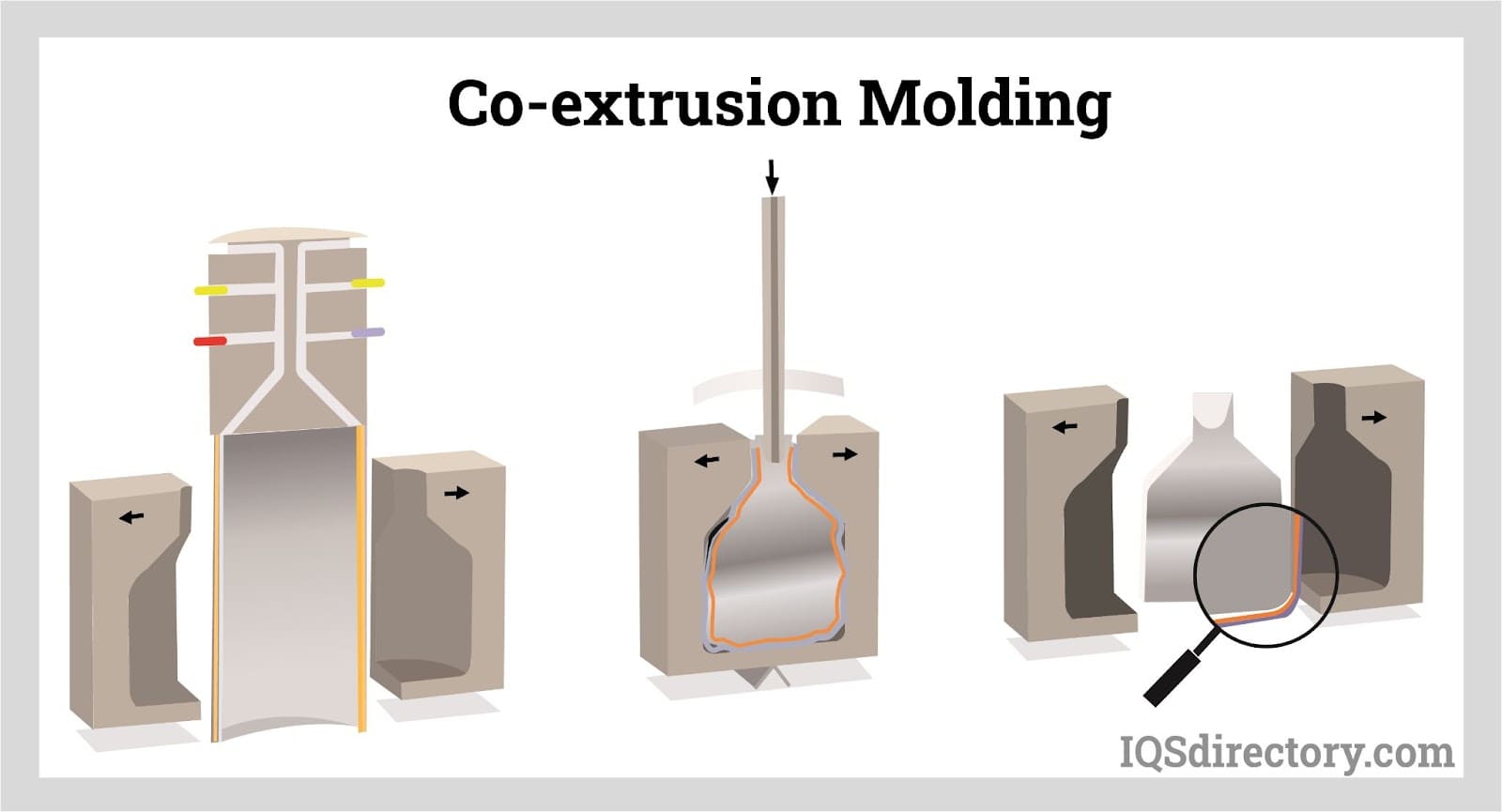

Multi-layered bottles are created using co-extrusion blow molding, where multiple layers of plastic are simultaneously extruded into a parison and fused to form the final bottle. This technique enables various cosmetic effects, such as adding a soft-touch matte finish without additional spraying, or preserving post-consumer recycled (PCR) material on the outer layer while using virgin plastic inside to protect the contents. Additionally, co-extrusion can enhance the barrier properties of bottles, similar to its application in tube production.
The parison forms vertically in the extrusion blow molding process. The wall thickness is controlled by adjusting the orifice size through which the parison extrudes. It then closes the mold over the parison as it hangs and transfers it to the blow molding station. This is where the bottle is made, as previously highlighted in the second phase of the RBM process. The problem of non-uniformity of the hanging parison is solved by varying the wall thickness. The weight of the formed portion would otherwise extend the hot and still-forming area above it. As the parison forms, the wall thickness increases to achieve a consistent thickness across the formation.
Injection-molded bottles are relatively rare, as this technique is typically used for applications requiring extremely precise tolerances. In injection molding, plastic is injected into a closed mold formed by cavity and core inserts. The plastic is forced into the mold under pressure, cooling and taking shape as the pressure pulls it into the cavity. Once cooled, the mold opens to release the finished part. For narrow-mouthed containers, such as bottles, the labor and cost involved in ejecting the part make injection molding less practical compared to blow molding. However, injection molding can be suitable for bottles with straight walls or those needing threading on both the inside and outside of the neck.
This procedure involves two steps of the standard Reheat and Blow Molding (RBM) process for bottle production.

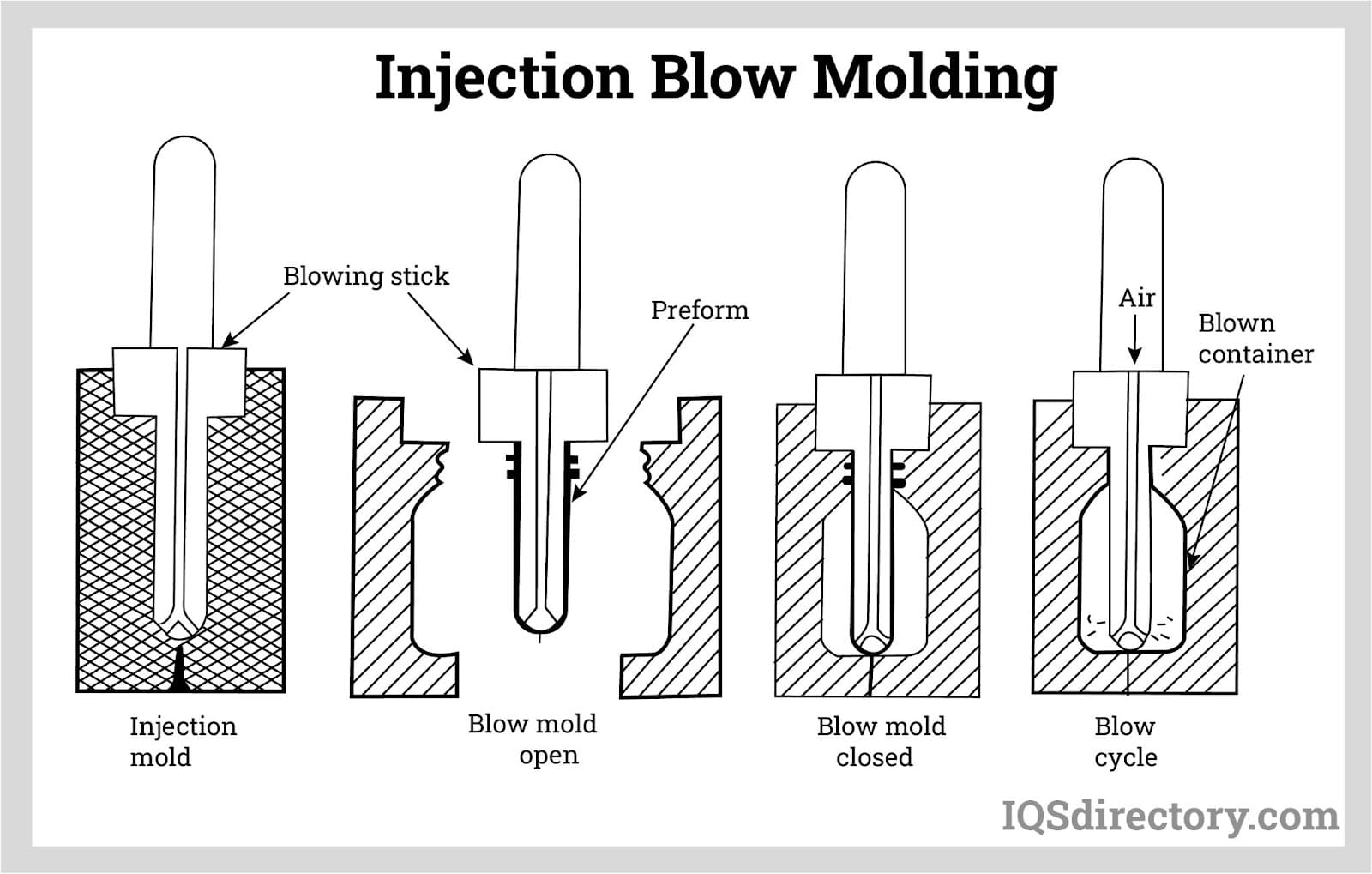

For the manufacture of hollow plastic products, the injection blow molding (IBM) process is employed. Injection blow molding is a three-stage process. Melted plastic is pumped into a mold cavity to create a preform parison during the first stage. The preform is formed like a test tube, but it has a molded screw finish on top. The preform is subsequently sent to the second stage of blow molding. To inflate a preform against a cold mold chamber, the air is pumped through a core pin. After that, the container is moved to the third station for ejection.
Processes can be executed in two ways i.e. one-step injection molding process; and two-step injection molding process. These happen when:
The injection blow molding process serves as the foundation for stretch blow molding. This involves molding a preformed parison before transferring it to a blow molding chamber. To orient and align the molecules, the parison is stretched biaxially during blow molding. The container's gas barrier, stiffness, clarity, and impact strength are all improved because of this orientation. Containers can thus be lighter as a result. PET and polypropylene are examples of stretch blow molding resins.
Plastic bottles play a vital role in our modern lives, and numerous companies specialize in manufacturing the machines used to produce them. Below is a list of brands that provide bottle production machinery in the United States and Canada, including specific models and their unique features:
Description: Husky Injection Molding Systems is a prominent manufacturer of injection molding machines for plastic bottles. Their HyPET® HPP5 model is engineered for high-performance packaging applications, offering features such as rapid cycle times, precise control over molding parameters, energy efficiency, and versatility with various resins. The HyPET® HPP5 is recognized for its reliability, productivity, and capability to produce high-quality plastic bottles.
Description: Krones AG specializes in packaging technology, including machines for plastic bottle production. The Contiform 3 is a versatile model that combines stretch blow molding and filling capabilities in one integrated system. It offers features like precise bottle forming, high-speed operation, efficient energy consumption, and the flexibility to produce various bottle shapes and sizes. The Contiform 3 is known for its reliability, product quality, and efficiency in bottle production.
Description: Sidel Group is a well-known manufacturer of packaging solutions, including equipment for plastic bottle production. The Sidel Matrix™ series features modular machines designed for blow molding, filling, and labeling. This series boasts optimized production speeds, flexibility for various bottle formats, advanced control systems, and energy-efficient operation. The Sidel Matrix™ machines are celebrated for their versatility, high quality, and exceptional performance in plastic bottle manufacturing.
Description: Aoki Technical Laboratory specializes in injection stretch blow molding (ISBM) machines for plastic bottle production. The SBIII-500-150 model combines injection and stretch blow molding processes to achieve fast and precise bottle production. It features a compact design, high-speed operation, energy efficiency, and the ability to mold bottles with intricate shapes. The SBIII-500-150 is recognized for its quality, efficiency, and versatility in handling different bottle sizes and materials.
Description: Wilmington Machinery manufactures Rotary Blow Molding Machines designed for plastic bottle production. These machines are known for their high-speed operation, precise control over the blow molding process, energy efficiency, and ability to produce bottles with consistent wall thickness. Wilmington's Rotary Blow Molding Machines are recognized for their reliability, versatility, and capacity to deliver high-quality plastic bottles across various industries.
Please note that the availability of specific models and their features may change over time. For the most current and detailed information on the models and features offered by these manufacturers for plastic bottle production in the United States or Canada, I recommend contacting the manufacturers directly or consulting their product catalogs and specifications.

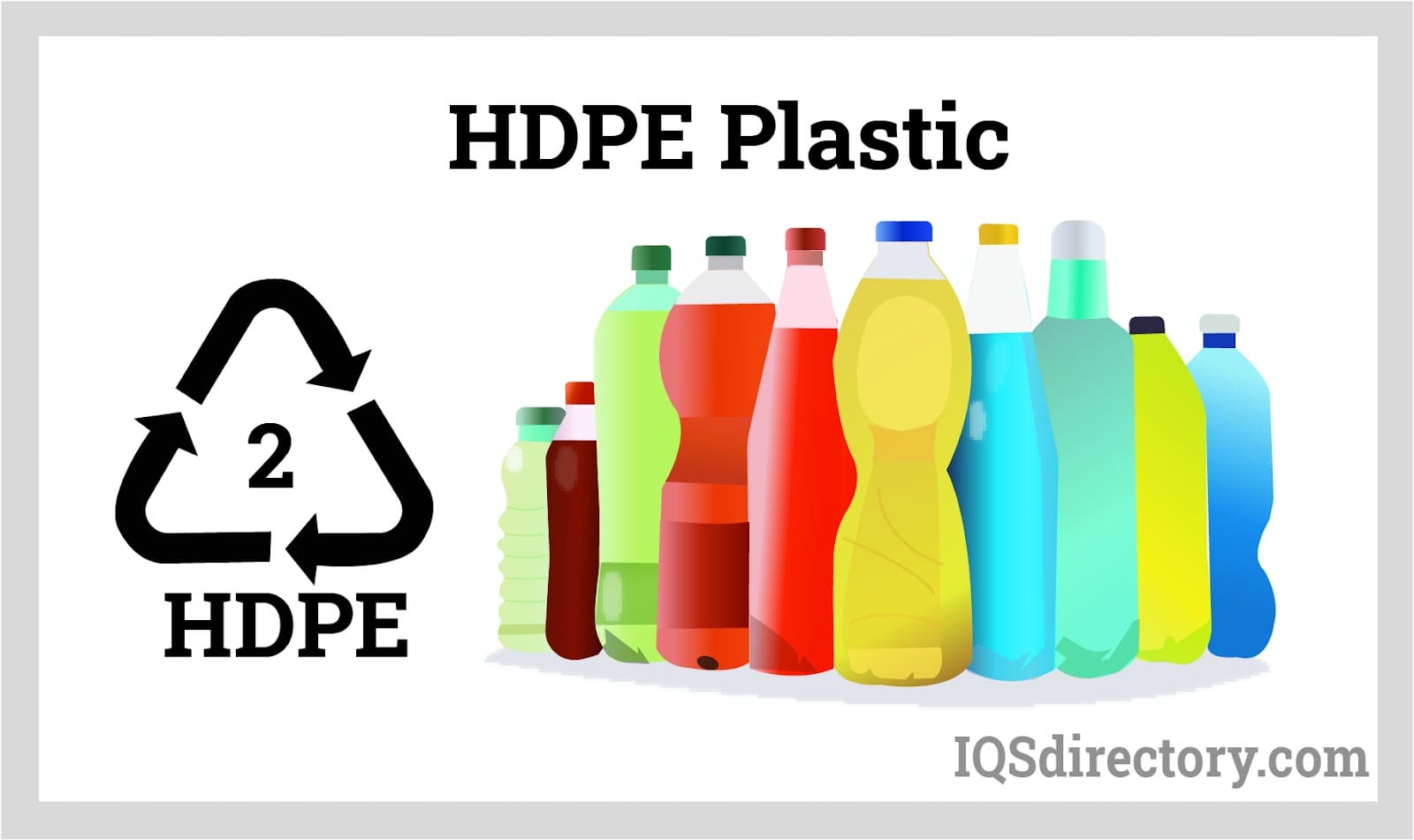

As noted earlier, plastic bottles are commonly made from four primary materials: PET, PP, PC, and PE. The latter is often referred to as Low-Density Polyethylene (LDPE) or High-Density Polyethylene (HDPE).
The material is cost-effective, impact-resistant, and compatible with a wide range of chemicals, including acids and caustics (corrosive elements that bind compounds). It has good moisture insulative properties. It is typically offered in FDA-approved food grade. Aromatic hydrocarbons are incompatible with HDPE. It is also suitable for milk bottles and liquid cleaning product bottles. HDPE is naturally transparent and flexible. When color is added to HDPE, it becomes opaque, which adds weight to the bottle and makes it more rigid. While HDPE offers excellent protection at temperatures over the freezing point, it cannot be used with goods that are filled at temperatures above 70 degrees.
The following section will go through each of these five materials in depth.
By reacting petroleum hydrocarbons with ethylene glycol and terephthalic acid, a thermoplastic polymer is produced. The resulting polymer can be either opaque or transparent, depending on its specific composition. The production process involves polymerization, which forms long molecular chains that are subsequently used to manufacture PET bottles.
During polymerization, two common contaminants that may form are diethylene glycol and acetaldehyde. While diethylene glycol is typically produced in insufficient quantities to affect PET, acetaldehyde can be generated during both polymerization and the bottle production process. High levels of acetaldehyde in PET can cause an off taste in beverages. Once the plastic is produced, the PET bottle manufacturing process begins. To ensure the plastic's safety, several post-manufacturing tests are conducted. These tests verify that the bottles are impermeable to carbon dioxide, particularly important for soda bottles. Additionally, the PET's shatter resistance, transparency, thickness, gloss, and pressure resistance are carefully monitored.
Polypropylene resin is a low-density polymer that is usually opaque and has good thermoforming and injection molding properties. It competes largely with polyethylene for bottle applications and can be made transparent for see-through uses, whereas polyethylene can only be made translucent. Polypropylene cannot compete with the optical purity of polymers like polycarbonate, yet it performs admirably.
Polypropylene (PP) is well-suited for extrusion and molding applications, including blow molding, due to its low viscosity at melt temperatures. While PP offers excellent chemical resistance, its impact resistance decreases at low temperatures. However, oriented PP demonstrates improved impact resistance in cold conditions
Polycarbonates are produced through the polymerization of bisphenol A (C15H16O2) and phosgene (COCl2). Due to its higher cost compared to other polymers, polycarbonate is typically used for premium, reusable bottles, such as those for baby feeding, water coolers, or laboratory applications.
Polycarbonate offers exceptional optical clarity and strength, making it ideal for bottles that need to display their contents clearly while withstanding repeated and sometimes harsh handling. Unlike other materials, polycarbonate is autoclavable and can be sterilized, making it suitable for reusable bottles. Its high quality and cost-effectiveness make it a popular choice for baby bottles and milk packaging in countries like Germany and Austria. Its durability is valued by large retailers for reducing risk and loss. However, it is important to note that bisphenol A (BPA), a component of polycarbonate and a byproduct of its polymerization, is suspected to have potential health risks.
Polystyrene is a transparent thermoplastic available in both solid plastic and rigid foam forms. It is widely used in consumer products and commercial packaging. A well-known foam product made from polystyrene is "styrofoam," which has become common in the industry. However, polystyrene is controversial among environmental groups due to its slow biodegradation and prevalence as outdoor litter, especially as foam debris in waterways and oceans. The solid form of polystyrene is frequently used in medical applications, such as test tubes, as well as in everyday items like smoke detector housings and food containers. Polystyrene foam is primarily used for packing materials.
Styrofoam is commonly used for disposable tableware in many restaurants. Polystyrene is highly inert, making it resistant to reactions with both acidic and basic solutions, which contributes to its persistence in the environment and its potential as a litter hazard. One major drawback is that polystyrene is often discarded after only brief use. However, it can quickly dissolve when exposed to chlorinated compounds or other hydrocarbons.
Polyvinyl Chloride (PVC) is one of the most commonly used thermoplastic polymers worldwide, second only to a few other plastics like PET and PP. Naturally white and highly brittle, PVC is produced in two main forms:
PVC is characterized by its rigid yet brittle structure in its basic form. Rigid PVC is widely used in various industries, including plumbing, sewage, and agriculture. When plasticizers like phthalates (e.g., diisononyl phthalate or DINP) are added, PVC becomes more flexible and pliable, making it suitable for applications such as electrical insulation and flooring in environments where hygiene is crucial, like residences, clinics, and educational institutions. In some cases, flexible PVC can serve as a substitute for rubber. Rigid PVC, commonly referred to as "vinyl," is used in construction for plumbing pipes and siding. The term "schedule" (e.g., Schedule 40 or Schedule 80) refers to PVC pipe specifications, including wall thickness, pressure rating, and color variations across different schedules.
Here are some of the key features of Polyvinyl Chloride (PVC):
PVC, whether rigid or flexible, is utilized across various sectors. Rigid PVC is known for its high density, which makes it exceptionally strong and durable. Its widespread availability and affordability, combined with the longevity of most plastics, make it a popular choice for industrial applications, including construction. PVC is lightweight yet durable, making it suitable for plumbing and other industrial uses. Additionally, its high chlorine content grants it fire resistance, contributing to its widespread use in different industries. Despite these advantages, there are some considerations to keep in mind when working with PVC. The following disadvantages persist:
Plastic is a versatile material used in various industries, and plastic bottles are no exception. They are primarily utilized for packaging a wide range of products, including:
These bottles come in a variety of sizes, from very small containers to large carboys.
While the use of plastic bottles across industries does have some drawbacks, such as the significant use of fossil fuels in their production, the numerous benefits generally outweigh these concerns. Key advantages include:
PET, along with other types of bottle materials, is easily recyclable after its initial use. Recycled PET can be transformed into a range of secondary products, including new beverage bottles and non-food containers. Additionally, the lightweight nature of plastic bottles helps lower the cost of transporting recyclables to recycling centers.
Plastic products can be molded into various bottle shapes, enhancing both their functionality and appearance. For instance, some plastic bottles feature built-in handles, measurement markings, and pouring spouts. Additionally, plastics can be manufactured in a wide range of colors, from clear to opaque, which makes product and brand identification easy. Since the color is integrated into the plastic resin, there is no need for painting, and the color is resistant to rubbing or washing off.
Plastic bottles are lighter than glass bottles, which reduces energy and costs associated with shipping products. Additionally, the production of plastic bottles requires less energy compared to glass bottles, as plastics have lower melting temperatures and are softer.
In contrast to glass containers, plastic bottles are durable and resistant to breaking. They do not shatter into sharp pieces when dropped, making them safer to handle. Plastics, being polymers (large molecules made by linking smaller ones), exhibit important physical properties like toughness and chemical resistance. Plastic bottles and containers are also leak-proof and resistant to bursting, ensuring that both the contents and the outer packaging are protected during transport.
While plastic bottles offer various benefits, such as being compact, easy to grip, and durable, their post-use management is crucial. Proper disposal, reuse, or recycling of plastic bottles significantly impacts the environment and can contribute to cost savings.
Globally, over 60 million water bottles are discarded each day, and a single plastic bottle can take up to 700 years to biodegrade. These bottles contribute to landfill congestion and occupy valuable space for non-recyclable waste. Plastic waste has detrimental effects on the ecosystem, as it releases toxins into the water and air during degradation, which can harm humans, plants, and animals. To mitigate these issues, efforts have been made to develop recycling processes that transform plastic bottles into useful products, such as clothing, furniture, fences, and new plastic bottles, bags, and containers.
Recycling involves several stages. First, bottles are collected from homes, businesses, and other locations. Next, they must be separated from metal, glass, and other materials that are often mixed in recycling bins. Plastic bottles are then sorted according to the type of plastic they are made from. After sorting, any remaining food, drink, or chemical residues are removed from the bottles.
Next, the bottles are crushed into flakes and shredded. These flakes are then melted and molded into small pellets, roughly the size of a grain of rice. The pellets are packaged and sold to companies that use them to create a variety of products. Many plastic toys, tools, electronic devices, and other items are made from recycled plastic.
Recycling plastic bottles offers several benefits. First, it reduces pollution from the chemicals used in manufacturing these bottles. It also decreases the amount of waste sent to landfills, which helps save space.
Much of this waste ends up in landfills, where it can take up to 500 years to decompose and may leach harmful pollutants into the soil and water. Additionally, around 165 million tons of plastic waste float in the oceans, posing serious risks to marine life.
Microplastics, tiny particles smaller than five millimeters created from cosmetics, fabrics, or the breakdown of larger items, are ingested by marine animals and add an extra 8.8 million tons of plastic to the oceans each year. Recycling not only helps address these issues but also supports jobs in collection and processing facilities. It is crucial for both the environment and the economy and is easy to practice.
Plastic has become widely used due to its low cost and versatility, allowing it to be manufactured with a broad range of properties. However, only a small fraction of plastic waste is recycled. This is because plastics come in various types with different chemical compositions, and recycled plastics can become contaminated when mixed with other types. For instance, paper and ink can pollute plastic waste.
Plastic is produced by combining smaller molecules into long chain-like structures, often with added components to give it specific properties. These materials are derived from petroleum or natural gas. Separating plastics from other recyclables, as well as differentiating between various plastic types, is time-consuming and complex. Additionally, some plastic additives, like phthalates and bisphenol A, may pose health risks.
Plastic production accounts for 4% of global oil production, used both as a raw material and as an energy source in the manufacturing process. Plastics contain fossil fuel energy and have a higher energy value than coal and wood. Disposing of them in landfills not only wastes a valuable resource that could be used to generate electricity, heat, or fuel but also represents a significant loss.
Plastics are strong yet lightweight, resistant to chemical and UV degradation, and capable of conducting heat and electricity. They also offer resistance to bacterial degradation.

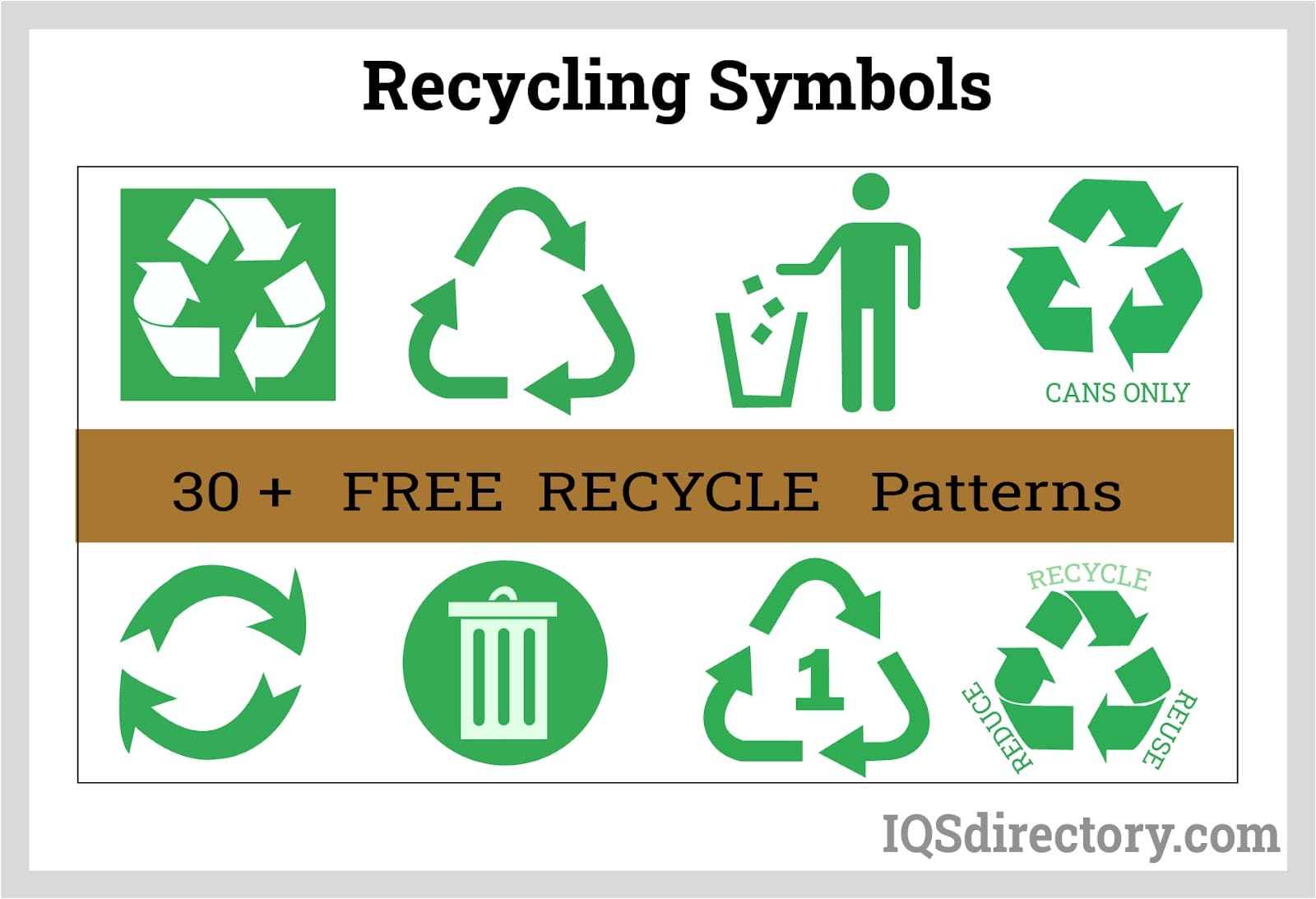

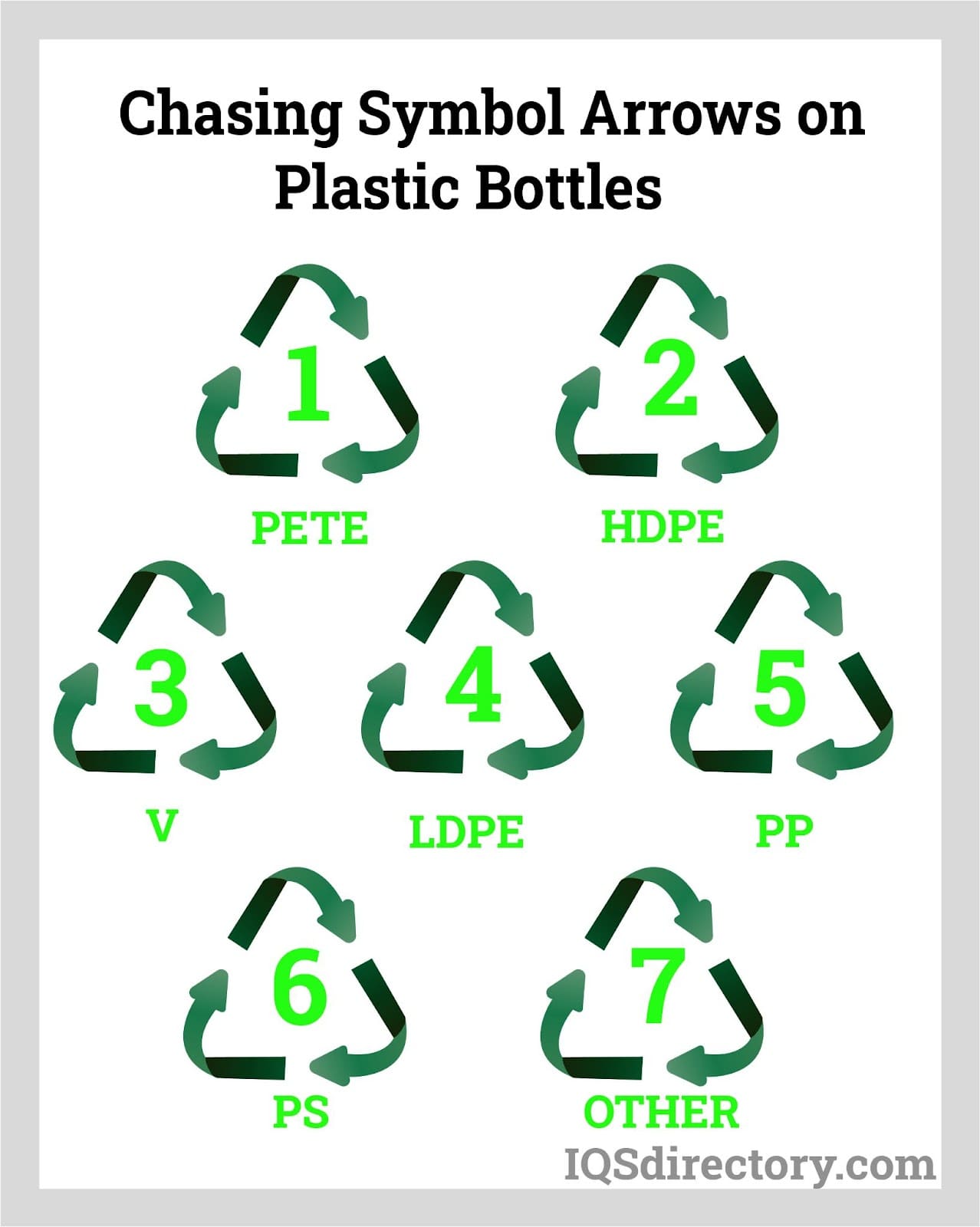

A chasing arrows symbol, or resin code, does not necessarily mean that a plastic container is recyclable. Most plastic containers are marked with the chasing arrows symbol number one through seven in the center.
The chemical compound used to create a plastic container is indicated by the number inside the arrows. However, this sign does not necessarily imply that the plastic container can be recycled.

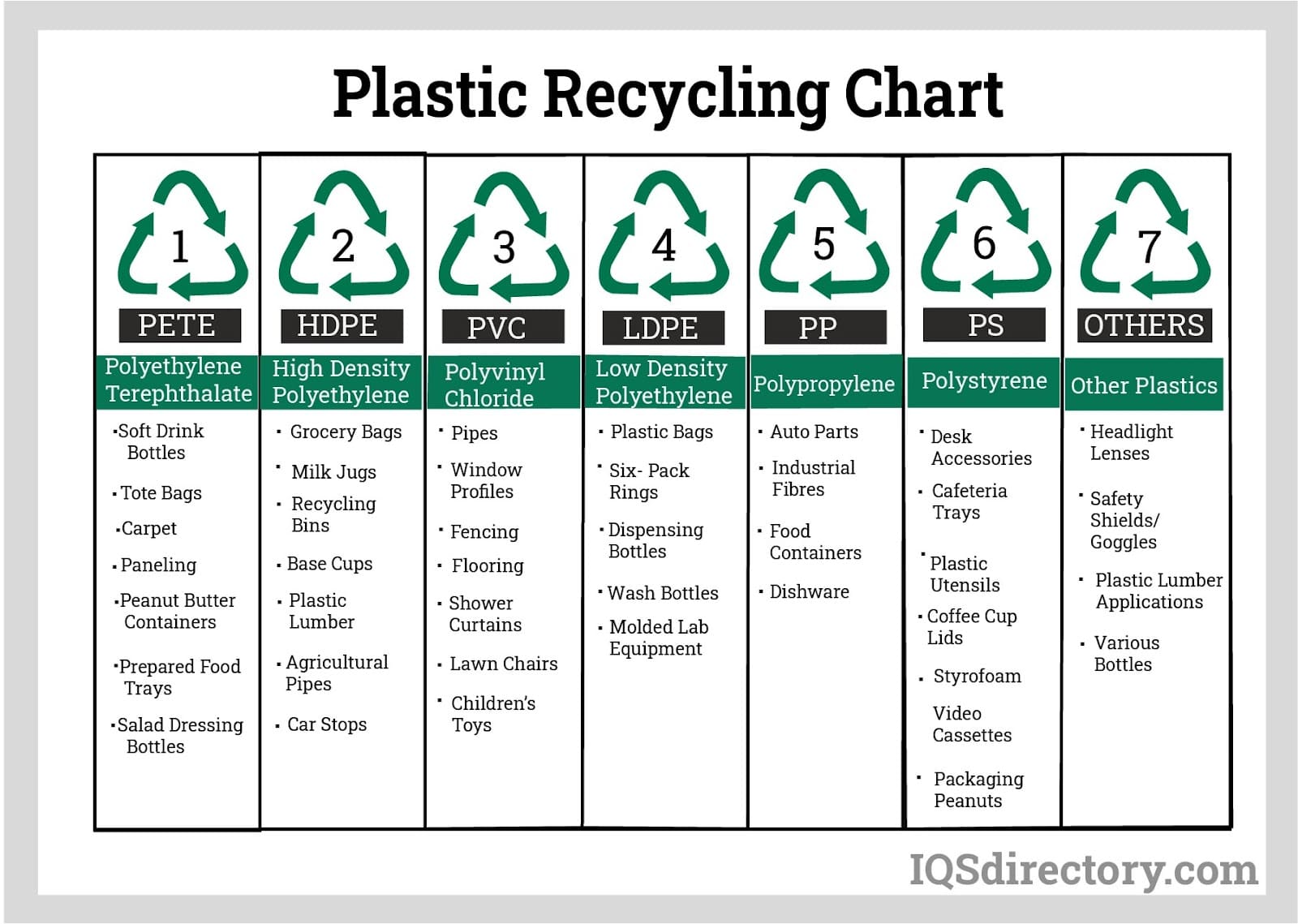

Inside the chasing arrow symbols, there are seven resin codes. These are:
Most cities collect type 1 and 2 plastics, as well as PET and HDPE resin bottles. These are created using a blow-molding procedure. The remaining plastics numbered 3 through 7, which are made using injection molding or stamp molding techniques, contain additives. These plastics require distinct recycling procedures and have a different end market, so they are not commonly collected.
The markets for plastics with numbers 1 and 2 are stable and plentiful. In contrast, the markets for the other plastics are sporadic and inconsistent. For these markets, it is often cheaper and easier to start with new plastic rather than gathering enough of the correct type (right color, no additives, no inks, etc.) from recycled sources. Plastics numbered 3 through 7 are frequently collected at the curb but must be sorted at a recycling center, which is expensive. Consequently, it is significantly easier and less costly for residents to reuse or properly dispose of these containers.
To reduce trash and make room in recycling trucks, residents can flatten plastic bottles. They can also assist by using reusable containers, choosing products with less packaging, shopping in bulk, and purchasing items made from post-consumer recycled materials. This aligns with recycling resin numbers 1 and 2 plastics (bottles) with other recyclable materials in the recycling bins.
Reducing plastic usage, along with reuse and recycling whenever possible, remains the most effective solutions to the plastic problem. Implementing more regulations to ban plastic bags, impose bottle deposits, and enhance recycling efforts would be beneficial. However, millions of tons of plastic waste continue to fill landfills across the country. Technologies that can repurpose this waste as a resource can help clean up the environment, decrease reliance on oil, reduce the use of non-renewable materials, lower greenhouse gas emissions, and generate energy.
Plastic bottles are bottles made of high or low-density plastic, such as polyethylene terephthalate (PET), polyethylene (PE), polypropylene (PP), polycarbonate (PC), or polyvinyl chloride (PVC). Each of the materials mentioned has a distinct function, which includes:
It is essential to align the choice of a plastic bottle with the best suited manufacturing technique. Apart from the general blow molding, other techniques are used to form bottles like reheat and blow molding, co-extrusion blow molding, and injection molding.
Blow molding is a type of plastic forming process for creating hollow plastic products made from thermoplastic materials. The process involves heating and inflating a plastic tube known as a parison or preform. The parison is placed between two dies that contain the desired shape of the product...
