Here is concise and complete information about industrial blowers and their use.
You will learn:
An industrial blower is a device designed to significantly enhance airflow using an electric motor, impeller, and airfoils within a sealed housing. Its primary function is to increase air movement while removing contaminants, dust, dirt, and particulate matter. Industrial blowers are advanced devices that generate higher pressure compared to a fan, typically with a pressure ratio ranging from 1.11 to 1.2. This positions them between fans and compressors in terms of airflow and pressure capabilities.
Industrial blowers come in several types: centrifugal, multi-stage centrifugal, axial, and positive displacement. Centrifugal blowers feature a gear system and can have either a single or multiple stage construction. Axial blowers are similar to household fans, with a central shaft and attached blades. Positive displacement blowers, on the other hand, utilize a rotor geometry for their operation.
Industrial blowers are classified based on the direction of airflow. The two main categories are centrifugal and axial blowers. Centrifugal blowers use centrifugal force to move air, while axial blowers employ axial movement to direct airflow.
Industrial blowers are crucial in production and manufacturing operations for increasing airflow and creating positive air pressure. Modern industrial blowers evolved during the early stages of the industrial revolution as air pumps for internal combustion engines. These early models featured a simple design, including a motor, shaft, and impeller blades.
Over time, industrial blowers have advanced into a diverse range of types, designs, and applications, enhancing industrial processes and making work faster, easier, and safer. Today’s industrial blowers are designed to provide a steady and powerful flow of air or gas in various processes.
Despite the wide variety of industrial blowers available, certain types are commonly used due to their durability, reliability, and adaptability to different conditions. These blowers enable large-scale production tasks to be performed efficiently, reliably, and effectively.
Positive displacement industrial blowers, often referred to as lobe blowers, discharge air at precise intervals, pressures, velocities, and directions, utilizing a safety valve. The term "lobe blower" derives from the mechanism's two counter-rotating lobes. Air is drawn into a chamber within the blower and then expelled through an outlet. This design ensures a consistent airflow and stable pressure.
Centrifugal industrial blowers are the most commonly used type in ventilation systems because of their ability to continuously transfer air and gas while removing pollutants. In these blowers, the airflow passes through a series of rotating impellers that progressively increase the speed and volume of the air. As the fan wheel adjusts direction and accelerates with the increasing air volume, the blower's kinetic energy also rises.
Multi stage centrifugal blowers are used in operations where a variable flow at a constant pressure is a requirement. They build pressure by accelerating the air flow using impellers and decelerate the flow through the use of long radius and high efficiency diffusers. A valve at the suction side modulates the airflow while maintaining a constant and even pressure.
Baffle rings direct airflow into the impeller's eye, reducing losses at the inlet passage. Balance pistons counteract axial forces and lessen pressure on the drive bearings, thereby extending bearing life and minimizing leakage. Two-dimensional, multi-stage shrouded impellers are securely keyed to the shaft and balanced to ensure smooth, vibration-free operation.
Flexible couplings connect the blowers and exhaust system to the power source, optimizing power usage and reducing bearing loads. The housings for multi-stage centrifugal blowers vary with size: larger blowers feature heavy-duty cast iron housings, while smaller ones are made of aluminum. Intermediate components are constructed from steel rods, and both the blower and driver are mounted on a steel baseplate.
Multi-stage centrifugal blowers use several sealing methods. Labyrinth seals are employed to minimize gas leaks and prevent airflow reversal. For specialized applications, carbon ring seals or mechanical seals are used. Mechanical seals, a dry seal technology, offer superior sealing performance and significantly reduce emissions.
Multi-stage centrifugal blowers accommodate a broad range of flow rates, from 25 CFM to 25,000 CFM, utilizing multiple impeller configurations to achieve the desired pressure and flow. The number of stages can vary from one to 10 or 11, depending on the pressure requirements, with each stage serving as a compression stage.
Regenerative industrial blowers, also known as high-flow, low-pressure compressed air blowers, generate a rapid flow of compressed air with low pressure or create a vacuum. Air within the housing is compressed to produce pressure. These blowers can be single-stage or two-stage. In a single-stage blower, the air circulates once, while in a two-stage blower, it circulates twice, resulting in higher pressure production.
A high speed industrial blower operates at very high speed creating high pressure and rapid airflow. It has an electric motor and impellers placed around the shaft of the blower to increase the volume of air being taken in. The construction of a high speed blower consists of a valve to release the air and a compression unit to control blower speed. Each of these factors is easily adjustable to fit the needs of the operation.

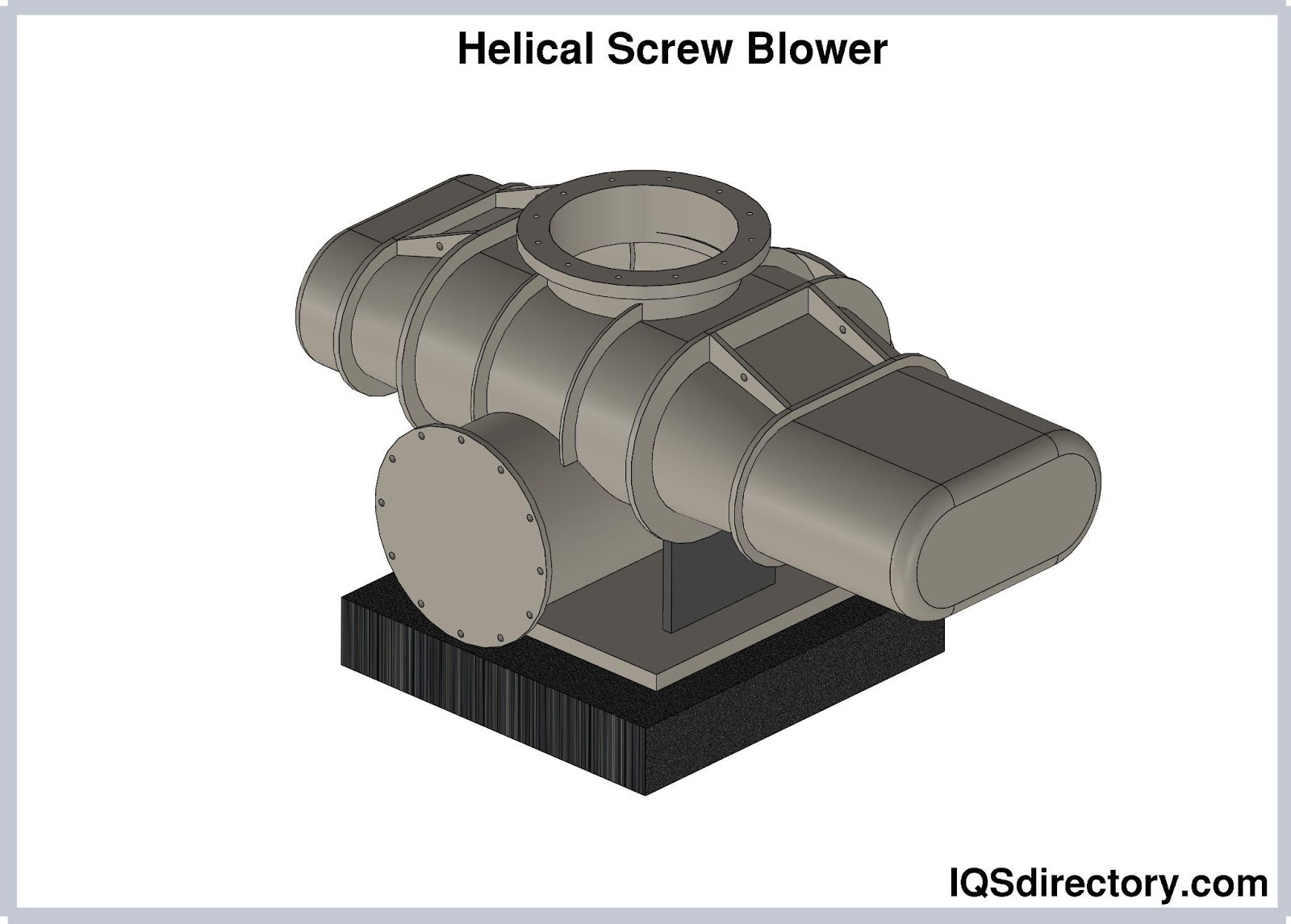

A helical screw industrial blower features a primary rotor with two lobes and a secondary rotor. The main rotor is positioned within the flute of the secondary rotor. Although the design of helical screw blowers is more complex, it is highly effective in generating higher pressure. The two rotors rotate in a helical pattern, carefully timed to prevent contact between them.
Axial industrial blowers create positive and negative pressure around their blades, which creates airflow. The fan blades are positioned vertically and tilted to allow for atmospheric pressure changes. In an axial blower, the air is forced to move in an axial parallel direction to the shaft where the blades rotate. This design is what creates the air pressure difference causing the continuous airflow. The performance of an axial fan is determined by its number of blades and their shape.

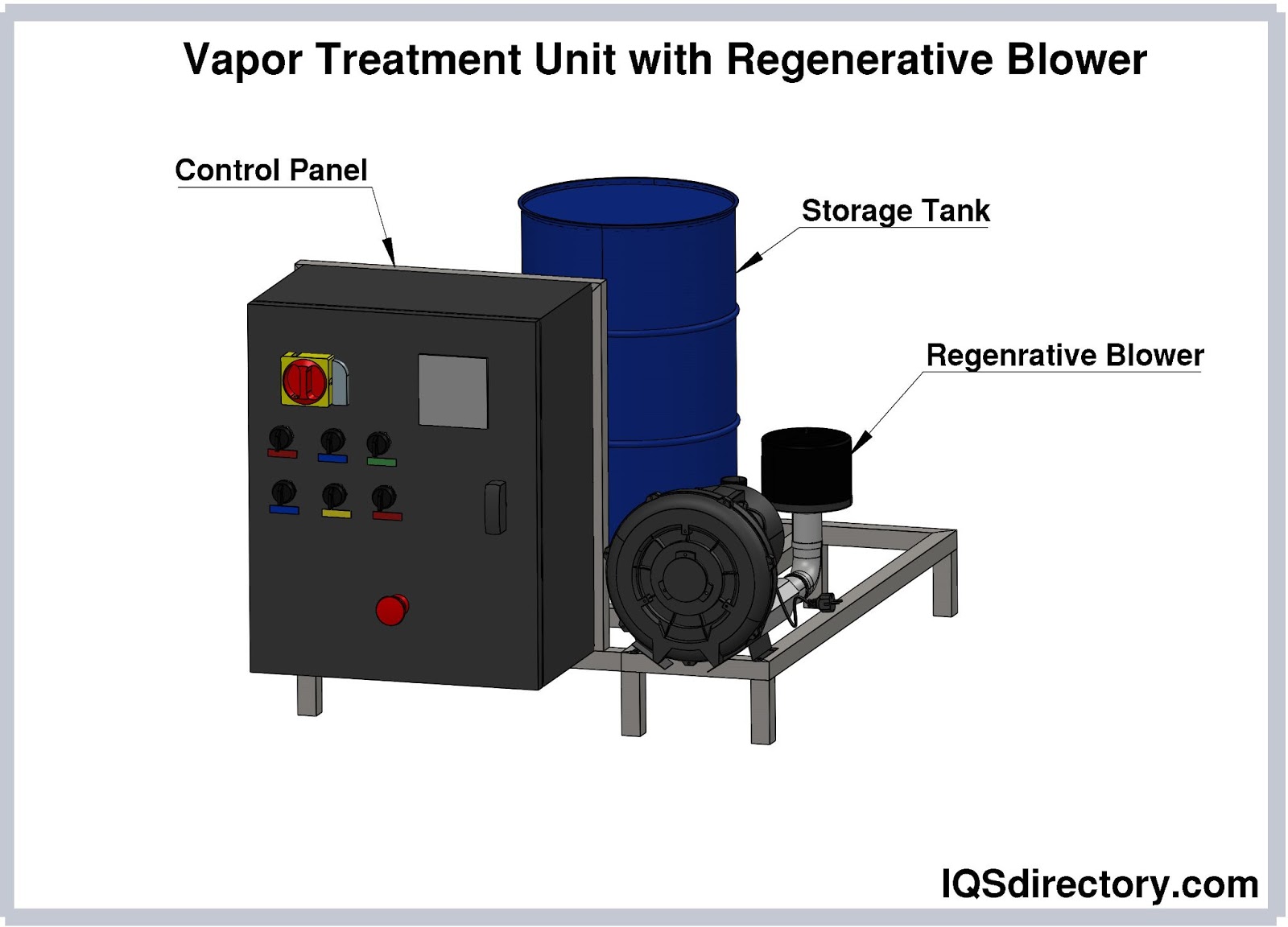

Vapor recovery industrial blowers are specialized centrifugal blowers designed to capture vapors from gases and fuels, preventing their release into the atmosphere. In situations where noxious, explosive, or flammable fumes are present, this type of blower may be legally required. As fuel storage tanks are filled, pressure increases, and the vapor recovery blowers extract these vapors. The captured vapors are then either converted into natural gas or safely burned off.
Industrial blowers are essential in various operations and applications where the movement of gas or air is required, including conveying systems, ventilation, cooling, aspiration, and exhaust systems. Different types of blowers are designed to perform specific functions tailored to particular applications. For example, a blower used for ventilating a manufacturing plant differs significantly from one used for air circulation in a nursery.
The differentiation among blowers is based on factors such as type, flow capacity, dimensions, operating pressure, design, and electrical rating. Various blowers are utilized for purposes such as cooling, drying, dust control, and fluid bed aeration.
Industrial blowers ensure high and consistent airflow through a building's ductwork. This is achieved using large-angle blades attached to the blower's hub, which effectively moves air throughout the system.
Dust loading industrial blowers are designed to capture dust and improve air quality. For many industries, dust collection is not only crucial for operational efficiency but also a legal requirement under Environmental Protection Agency (EPA) regulations. These regulations are in place to protect workers, as airborne particulates can cause various health issues.
Dust loading systems move air and contaminants through a network that includes hoods, air filtration units, and collectors such as baghouses, traps, and ductwork. This comprehensive system captures, collects, and removes hazardous particles to ensure a safer and cleaner environment.
Industrial processes often generate fumes, smoke, and chemicals that must be removed from the air. This is typically achieved using a system of blowers and fans that capture and eliminate these contaminants at points of emission or through scrubbers.
Fume removal industrial blowers are integral to systems equipped with large-capacity filtration units. These systems offer up to 99% efficiency, ensuring the complete removal of harmful odors, contaminants, and gas fumes.
The material handling industry utilizes pneumatic pressure systems to transport granular and powder materials to production areas. Industries such as pharmaceuticals, food processing, agriculture, chemicals, and cement production rely on industrial blowers to remove fine particulates from the air.
While standard fans can handle average particles, heavier materials require abrasion-resistant, heavy-duty industrial blowers designed to withstand the wear from such materials. These blowers are constructed from exceptionally durable materials to endure the intense conditions involved in removing chips, particles, and granular residue.
Saturated air contains moisture or gases and is characterized by humidity at its maximum level relative to pressure and temperature. Beyond this point, condensation occurs, potentially causing corrosion and rust damage to equipment. To address this issue, the air must be removed and cleaned.
Custom-designed industrial blowers are used to handle saturated air, featuring corrosion and rust-resistant materials such as stainless steel or metals coated with moisture-resistant epoxy. These blowers are equipped with specially designed blades to operate effectively in wet environments.

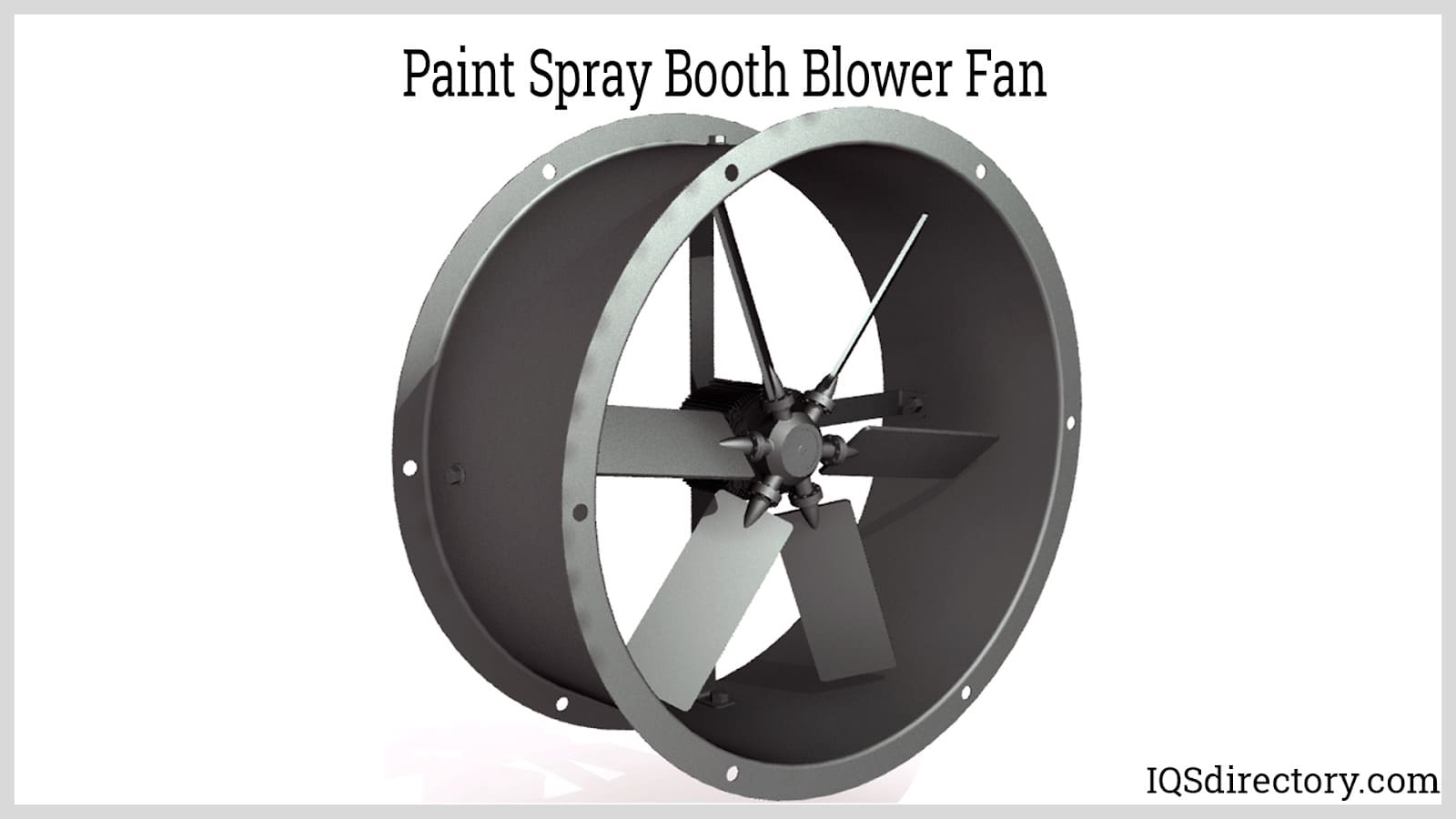

In small, enclosed workspaces where paint and vapors accumulate, industrial blowers are used to remove and filter fumes and vapors, ensuring clean air. Due to the potential combustibility of some chemicals, exhaust blowers must be spark-resistant.
To prevent explosions and fires from the buildup of paint, lacquer, and varnish, spark-resistant blowers are typically constructed with specially fabricated aluminum impellers.
Cooling industrial fans, also known as fluid displacers, operate by displacing air from one location and moving it to another using rotating blades. These fans are designed to introduce cool air and expel hot air, earning them the designation of industrial cooling blowers.

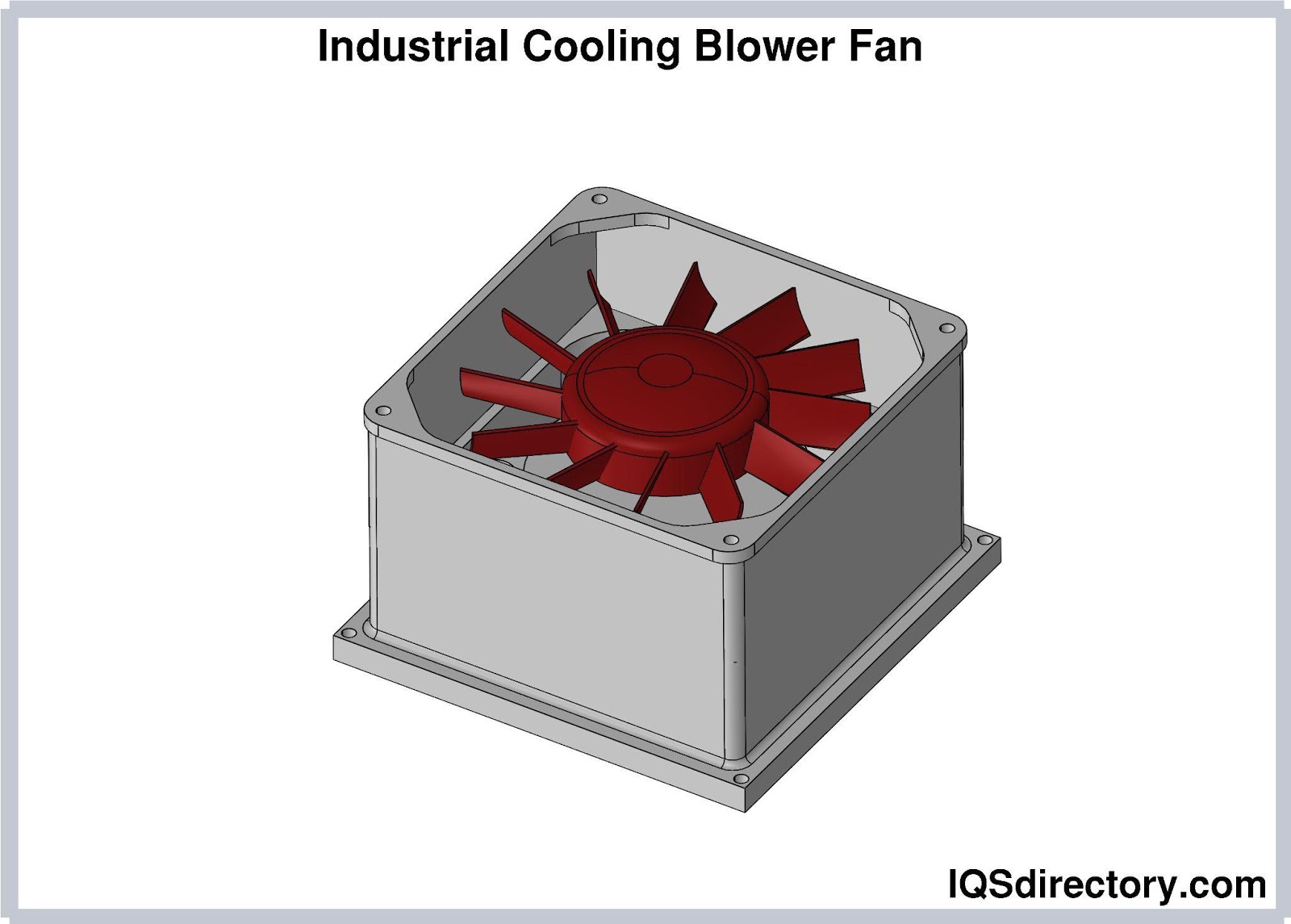

Effective cooling requires a specially designed blower. Cooling fans feature a larger diameter to handle the movement of large volumes of air at low pressure. While this characteristic sets cooling industrial blowers apart, their other components—such as the motor, rotor shaft, impellers, casing, and mountings—are similar to those in other types of blowers.
During the manufacturing process, parts that require painting typically undergo cooling and cleaning procedures involving water, dust, granules, or other abrasive materials. To ensure proper adhesion of paint, all particulate matter must be removed using high-pressure streams of air, which are delivered by industrial blowers.
Industrial blowers generate the necessary force and power to remove water vapor and accumulated debris from parts before painting. Pressure blowers used for this purpose are constructed from materials designed to provide the required pressure and airflow to effectively clean and prepare the parts.
Some airflow systems face increased resistance and require blowers with greater force and power to maintain effective operation. These high-pressure blowers are typically installed in environments with high static pressure and are used for various applications, including equipment cooling, material conveying, drying, ventilation, and exhausting. They come with open drip-proof motors for clean environments and enclosed motors for dusty or dirty conditions.
High-pressure industrial blowers are designed to handle demanding conditions, including high temperatures. They are often made to be spark and corrosion-resistant. For optimal durability and performance, the housings of these blowers are constructed from high-gauge steel and welded for added strength.
Material conveying industrial blowers are designed to move air within a confined space to transfer and transport various granular and powder materials. Their primary function is to create airflow within a tube by generating a vacuum that pulls materials such as granules, paper, powder, and pellets. Due to their specific role, these blowers are enclosed within a confined system to enable effective pneumatic conveying. This method is regarded as one of the most efficient for transporting raw materials.
The primary requirement for any industrial blower is durability and endurance. Unlike traditional fans, industrial blowers generate substantial pressure and force, necessitating the use of high-strength, sturdy materials in their construction.
Industrial blowers deliver a large volume of air and gas to various buildings, manufacturing facilities, and other structures. They achieve proper airflow by rotating multiple blades connected to a hub and shaft, which are driven by a turbine or motor. The air displacement from these blowers ranges from 200 cubic feet to 2,000,000 cubic feet per minute.
When selecting an industrial blower, it is crucial to know the cubic feet per minute (CFM) of airflow required. All blowers handle the same volume of air and gas regardless of density. The actual CFM value is essential for choosing the right blower for your needs.
The flow rate required for conveying materials through an enclosed feeder line or pipe depends on the velocity needed to transport the material effectively without causing it to settle or collect.
Static pressure refers to the resistance to airflow encountered as air moves through ductwork, pipes, filters, or hoses. Factors such as altitude and temperature can affect pressure and, consequently, the performance of an industrial blower. It is important to consider these factors when assessing the quality of air and gas movement within your facility, as they can significantly impact blower performance.
The motor is the central component of an industrial blower, supplying the electrical power needed to turn the blower blades. When selecting a blower, consider the environment where it will be installed, as various types of motors are available. Some motors are completely enclosed to protect them from the elements.
Brake horsepower (BHP) is the force required to stop the motor. When purchasing a blower, the motor's horsepower should be slightly higher than the BHP to ensure adequate performance.
Blower motors can be direct drive or belt drive. For direct drive blowers, ensure the motor has the correct RPMs for the application. Belt-driven motors should be selected based on the BHP and the expected belt loss.
There are several types of motors used in blowers, including brushed, switched reluctance, brushless, and induction motors. Of these, induction motors are the most commonly used for industrial blowers due to their ability to power high horsepower applications.

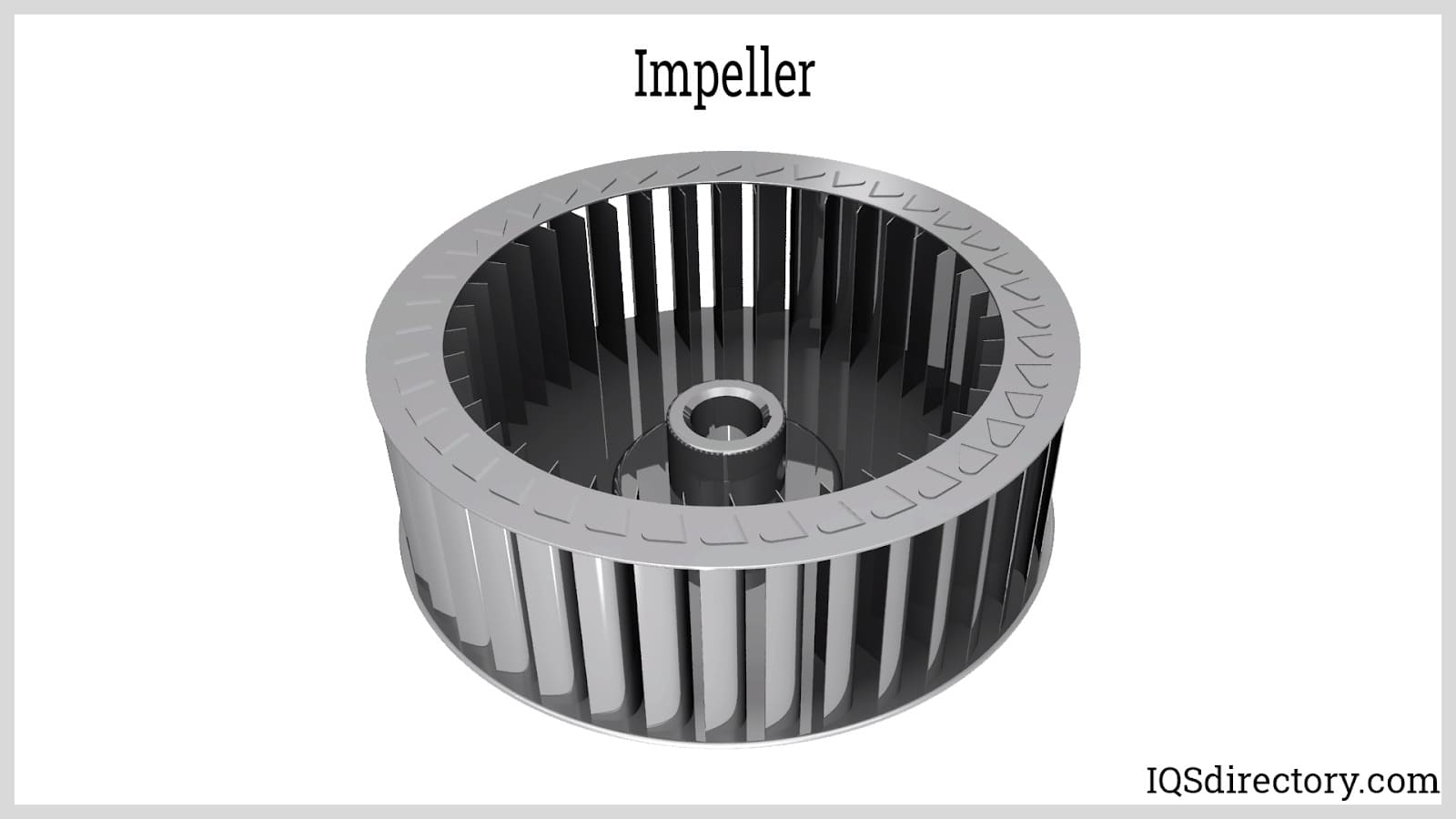

An impeller is a crucial component of a centrifugal blower, resembling the wheels found in a hamster cage. As the impeller rotates, it draws air into the blower, accelerates its movement, and redirects it by 90 degrees. This rotational motion ensures a continuous flow of air.
The blades of the impeller fan come in four distinct configurations: radial, forward curved, backward curved, and airfoil. Each blade type is designed for specific airflow needs: radial blades are used for high-pressure applications with medium airflow; forward curved blades suit medium-pressure applications; backward curved blades are ideal for high-pressure settings; and airfoil blades, known for their high efficiency, are the most commonly used design.
An axial fan features blades or airfoils attached to a hub or impeller mounted on the motor. The number of blades can range from two or three to as many as thirteen. These blades can be constructed from various materials, including steel, aluminum, and different types of polymers. The pitch of the fan blades is crucial and can be fixed, propeller-type, or adjustable, depending on the fan design.
The wing tip of an axial fan blade is similar to the tip of an airplane propeller blade. It functions to prevent air from transferring between the positive and negative sides of the blade, which helps reduce turbulence and significantly lowers noise levels.
Industrial blowers come with a range of mounting configurations, including top, bottom, and side mounts, as well as close-mounted or coupled setups. These diverse mounting options are tailored to fit specific conditions, such as when conveyance industrial fans are mounted directly on the conveyor line to achieve the required pressure.
Port design for an industrial blower determines how it connects to existing ducts, pipes, tubes, vents, or lines. To ensure a smooth integration into an existing system, the inlet and outlet ports of the blower must match the configuration of the current setup. However, this is not a universal requirement, as some blowers may be installed in the ceiling, on the floor, or mounted on a wall.
When installing a blower onto a conveying system, precise port design is crucial. A secure and tight seal is necessary to maintain the correct pressure for effective material conveyance.
Bearings are a critical component of an industrial blower and require careful selection and maintenance. As blower speeds increase, the likelihood of bearing issues also rises. Choosing the right type of bearings can reduce maintenance time and the frequency of replacements.

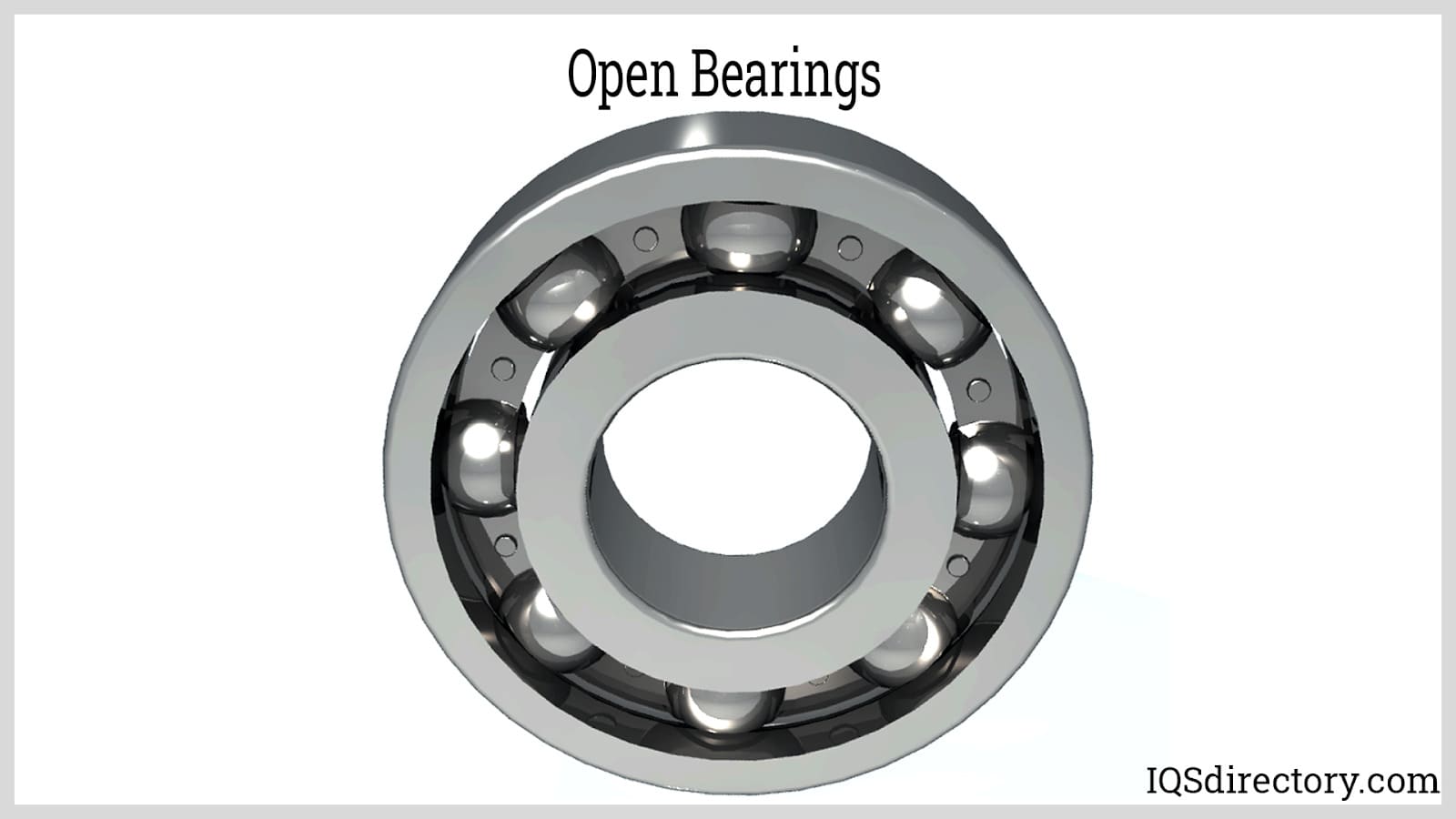

Bearings come in various configurations, with some being enclosed and sealed for easier replacement. Key considerations include ensuring that bearings are well-lubricated and have low friction between surfaces. Magnetic bearings, which levitate above rotating shafts to avoid physical contact, minimize friction and wear.
As the need for effective methods to eliminate odors, fumes, and maintain clean air increases, the use of industrial blowers has significantly expanded in recent years. Producers and manufacturers are continuously developing and engineering innovative solutions for airflow and air movement to keep pace with the growing demand.
Almost every industry depends on ventilation systems, air transfer, or air cleaning methods. In particular, industrial blowers have been integral to product handling and transport operations since their inception. These blowers play a crucial role in various industries by ensuring safe conditions and removing unwanted substances.
Industrial blowers play a crucial role in wastewater treatment by providing continuous tank aeration. These blowers must be highly reliable and require minimal maintenance. They also help manage methane and other gases generated during the treatment process, ensuring effective dissipation of these potentially harmful substances.
In the food industry, industrial blowers are crucial not just for maintaining clean air but for several other vital functions. Equipment used in this sector must adhere to strict Federal Food and Drug Administration (FDA) standards and be thoroughly sanitary to comply with industry regulations. While clean airflow is essential for food production, industrial blowers also serve multiple other purposes.
Before production, fruits and vegetables are scrubbed to remove contaminants. Any remaining water or residues must be effectively removed, a task accomplished with the help of industrial blowers. This process is equally important for bottles and cans used in food packaging, ensuring that all components are free from contaminants before they are filled and sealed.
With ongoing industrial activities and the closure of businesses, it is essential to ensure that soil is free of hazardous gases and toxins. Industrial blowers are used in soil vapor extraction systems to remove these contaminants, ensuring environmental safety.
These blowers are connected to wells and create negative pressure in the soil to extract contaminants. The extracted vapors are then treated at the surface to ensure complete removal. The system typically includes the blower, its motor, and a moisture separator to handle the extracted vapors effectively.
Among the various industries that depend on industrial blowers, the mining industry showcases one of the most critical applications: ventilation for underground operations. Given the harsh and demanding environment of mining, these blowers must be exceptionally robust and resilient. Longevity, durability, and minimal maintenance are essential attributes for blowers used in this sector.
Mining operations pose significant challenges due to the presence of dust, dirt, and particulates, which can be detrimental to blowers. To address these hazards, industrial blowers used in mining are often equipped with specialized collection units or advanced filtration systems to ensure optimal performance and longevity.
In the dry method of cement production, raw materials are first crushed and pulverized into granules or powder. These materials are then mixed in a kiln to produce cement. During the kiln's heating process, gases are generated that need to be extracted while the mixture is blended into a fine powder. This powder is then used to create concrete for construction purposes.
Blowers play a crucial role in this process by being part of the pneumatic system that transports raw materials to different stages, including into the kiln and during the bagging of the finished product. They are also employed for aeration, supplying oxygen, and as components in cooling systems.
In seafood production, hatcheries are crucial for the cultivation of both freshwater and saltwater animals. Blowers are essential for generating oxygen, which helps maintain water quality and product freshness. They are also used in feeding systems and for creating bubble curtains. The primary role of air blowers in aquaculture is to provide a continuous supply of fresh, clean oxygen, which is critical for the health of densely stocked tanks.
Oxygen is vital for the survival of aquatic animals, making aeration a key aspect of the production process. Aeration ensures that oxygen levels remain constant, keeps water circulating, and protects against extreme temperature fluctuations.
Pneumatic conveying systems are used to safely deliver pellets and powders to water organisms. Industrial blowers facilitate the efficient operation of these pneumatic feeding systems. Their versatility allows them to be adapted to various installations, regardless of location.
Low pressure industrial blowers play a crucial role in the transportation of petroleum materials during product production. A key part of the refining process is the production of toxic hydrogen sulfide, which is managed by thermal incinerators that oxidize the sulfur to clean it. Blowers enhance this combustion process, aiding in the thorough cleaning of the gases.
In the production of carbon, used in the manufacture of plastics, paints, and inks, combustion is a critical step. Blowers deliver high volumes of air to the furnaces and assist in injecting natural gas, facilitating thermal decomposition.
Air and gas movement, filtration, and cleaning have become essential components across various industries, central to their production processes. Industrial blowers have proven to be indispensable in these operations, often exceeding their expected roles.
Manufacturers using industrial blowers consistently find them to be durable and dependable. The robust design of their motors, fans, and mountings underscores their value and effectiveness in industrial applications.
Industrial blowers play a crucial role in reducing air pollution, smoke, and unpleasant odors, thereby creating healthier and more comfortable work environments. They also help manage heat and humidity, offering a range of functionalities and styles to meet diverse needs.
Industrial blowers are designed to deliver various outputs with minimal power consumption. Given their use across offices, industrial settings, manufacturing, and technical processes, it's crucial for these blowers to be cost-effective. They are engineered to minimize electrical costs through efficient power usage, and their construction, installation, and insulation are optimized for low-cost, high-efficiency operation.
Industrial blowers can adapt to any air and gas movement needs, offering a range of styles, designs, sizes, and configurations. They can also be custom-built for specific applications. Regardless of the space size or application requirements, there is an industrial blower suited to meet those needs. The versatility of fan blade configurations further enhances their ability to handle varying airflow and pressure conditions.
Creating a safe and health-conscious work environment is increasingly important, with many standards set by OSHA. To comply with these regulations, manufacturers often seek industrial blowers that meet OSHA standards. These blowers are specifically designed to support airflow purification and control, ensuring adherence to safety guidelines.
The popularity of industrial blowers can be attributed to their durability and ability to endure harsh conditions. In demanding industries, these blowers improve working conditions and productivity while withstanding the rigorous environments in which they operate.
Ventilation is a critical concern in any workplace. For harsh conditions, ventilation systems ensure proper airflow to maintain a cool environment. In electronics, ventilation prevents contamination of delicate parts. Industrial blowers enhance ventilation by removing dust, fumes, smoke, and contaminants, creating a safer and more pleasant work atmosphere. They effectively replace stale air with fresh air in enclosed spaces.
Many industrial processes generate toxic fumes or smoke that must be properly managed to avoid environmental issues. Industrial blowers assist in mitigating these problems by using various methods to disperse dangerous fumes and smoke, complying with environmental regulations.
Manufacturers of industrial blowers adhere to the standards set by the Air Movement and Control Association (AMCA). AMCA classifications categorize blowers based on their types and applications, ranging from basic factory floor models to advanced systems for handling and controlling hazardous fumes.
Industrial blowers contribute to healthier work environments by protecting against respiratory issues. Their fans, impellers, and blades are designed to ventilate and cool large spaces, control humidity, and create a clean air workspace. This helps prevent respiratory diseases and maintains overall worker health.
Excess moisture in a room can lead to unpleasant odors. Industrial blowers help maintain constant airflow, preventing the buildup of foul smells and promoting hygienic conditions.
Given the large volume of air handled by industrial blowers, a collection system is essential. Depending on the operation, this could involve receptacles, bags, filters, or other collection devices. The air stirred by blowers necessitates some form of dust and particulate collection to protect workers. The type and size of the collection system depend on the blower's size and the operational space.
Industrial blowers operate at high speeds to move significant volumes of air, resulting in low to medium static pressure from the radial air movement.
Industrial blower motors are designed to be robust and reliable due to their high horsepower and operating speeds. This durability minimizes overloads and damage, making these motors some of the most dependable equipment available. This reliability makes industrial blowers a productive and safe investment.
The automotive industry extensively utilizes industrial blowers for paint booth ventilation and drying parts and accessories. These blowers are crucial for maintaining airflow and ventilation in production lines and storage areas.
Industrial blowers play a key role in heat recovery systems, where they are integral to the air handling unit, which also includes an air exchanger, air filter, motorized damper, and bypass damper.
In environments with hazardous gases, industrial blowers are crucial. Explosion-proof blowers are built to withstand chemical exposure and corrosion, with components made from stainless steel, fiberglass-reinforced plastic, or polypropylene to prevent sparks during the exhaust process.
High temperature industrial fans are primarily used in emergency situations, such as smoke removal during fires. These fans must be capable of handling high temperatures and are made from materials like aluminum, carbon steel, and stainless steel. Aluminum fans can withstand temperatures up to 250° F, while carbon steel and stainless steel can handle temperatures of 750° F and 1000° F, respectively.
Industrial blowers, like all heavy-use machinery, are designed to endure constant operation and deliver optimal performance. Components such as louvers, dampers, motors, diffusers, flanges, ports, and blades are in continuous use and may experience wear and fatigue over time, impacting the blower's efficiency.
To prevent equipment failures and downtime, it's crucial to conduct regular inspections and address common repairs as recommended by manufacturers.
Industrial blowers are engineered to maintain high pressure and consistent airflow through ducts and outlets. Issues such as broken fan belts and faulty couplings can significantly affect airflow, leading to decreased efficiency.
Additionally, a malfunctioning check valve, which ensures unidirectional airflow, can impair the blower's performance. Simpler issues, such as holes or leaks in piping and duct systems, can also disrupt airflow.
Excessive heat can damage an industrial blower and reduce its efficiency. Overheating can be caused by several factors, including dirty air filters, excess oil in the gearbox, clogged inlets, and a malfunctioning impeller.
Dirty filters force the blower to work harder to achieve the required airflow, while clogs in valves and inlets can generate additional heat. Both excessive and insufficient oil levels can increase mechanical pressure, contributing to overheating.
Industrial blowers are substantial motors that need proper lubrication to ensure the smooth interaction of their components and prevent friction. Adequate lubrication is essential to avoid corrosion and potential mechanical failures. Signs of insufficient lubrication include rust, noisy operation, vibrations, and oil spills on the floor.
Signs of inadequate lubrication include rust, noisy operation, vibrations, and oil spills. If lubricant leaks are suspected, it's advisable to consult with the blower manufacturer and have a technician address any issues promptly.
Vibrations in an industrial blower can result from various issues, such as loose belts, excessive speed, misaligned shafts, an unstable base, or loose or faulty bolts. Loose tension in a belt drive can lead to vibrations and inadequate fan performance. Commonly, vibrations are caused by loose or unsecured fasteners.
Loose belt tension can lead to vibrations and inefficient fan operation. Often, vibrations are caused by unsecured fasteners. Major repairs to axial or centrifugal blowers should be performed by a certified technician to avoid further complications and ensure proper repair.
A centrifugal blower is an air moving device that uses an impeller to pull air into a tube like structure and release it at a 90o angle. The impeller is a set of blades inside the blower that rotates at a high rate to pressurize and move air...
An industrial fan is a highly efficient, heavy duty air flow device that is constructed from exceptionally durable materials and components to withstand stringent environments and operate longer to provide constant air flow and pressure. The strength of industrial fans is due to the materials used...
An industrial air compressor is a mechanical device used to generate pressure in compressible fluids or gases. The most common being air. A variety of compressors are used in the industry to provide functions such as...
Air filters are devices used to remove airborne particles, pollutants, and microorganisms hazardous to health and the ecosystem. In industrial facilities, air filters preserve the quality of products and materials and protect critical equipment from damage...
A HEPA filter is a high efficiency pleated air filter capable of capturing extremely small particulate matter down to particles that are the size of a micron (µ), or a micrometer, which is 1/1000th of a meter...
