This article will take an in-depth look at round/wheel brushes.
The article will bring more detail on topics such as:
This chapter will cover the basics of wheel brushes, including their design and functionality.
Wheel brushes are designed as circular tools used primarily for deburring during the initial phases of surface preparation and for polishing during the final stages. These brushes work in a linear motion and are usually mounted on grinders, lathes, drills, or automated machinery. This setup allows wheel brushes to operate at high speeds, effectively cleaning grime and achieving a polished finish on surfaces.
An arbor is a spindle or shaft used to secure a gear or wheel in place, with an arbor hole commonly cast or drilled into the wheel hub. The manufacturing process for wheel brushes generally involves inserting material into pre-drilled or molded holes in the wheel hub, fastening it with metal staples, folding the material over, and then forming the bristles. The arbor hole, which is centrally located in the wheel hub, allows the arbor to pass through and hold the wheel brush in position.

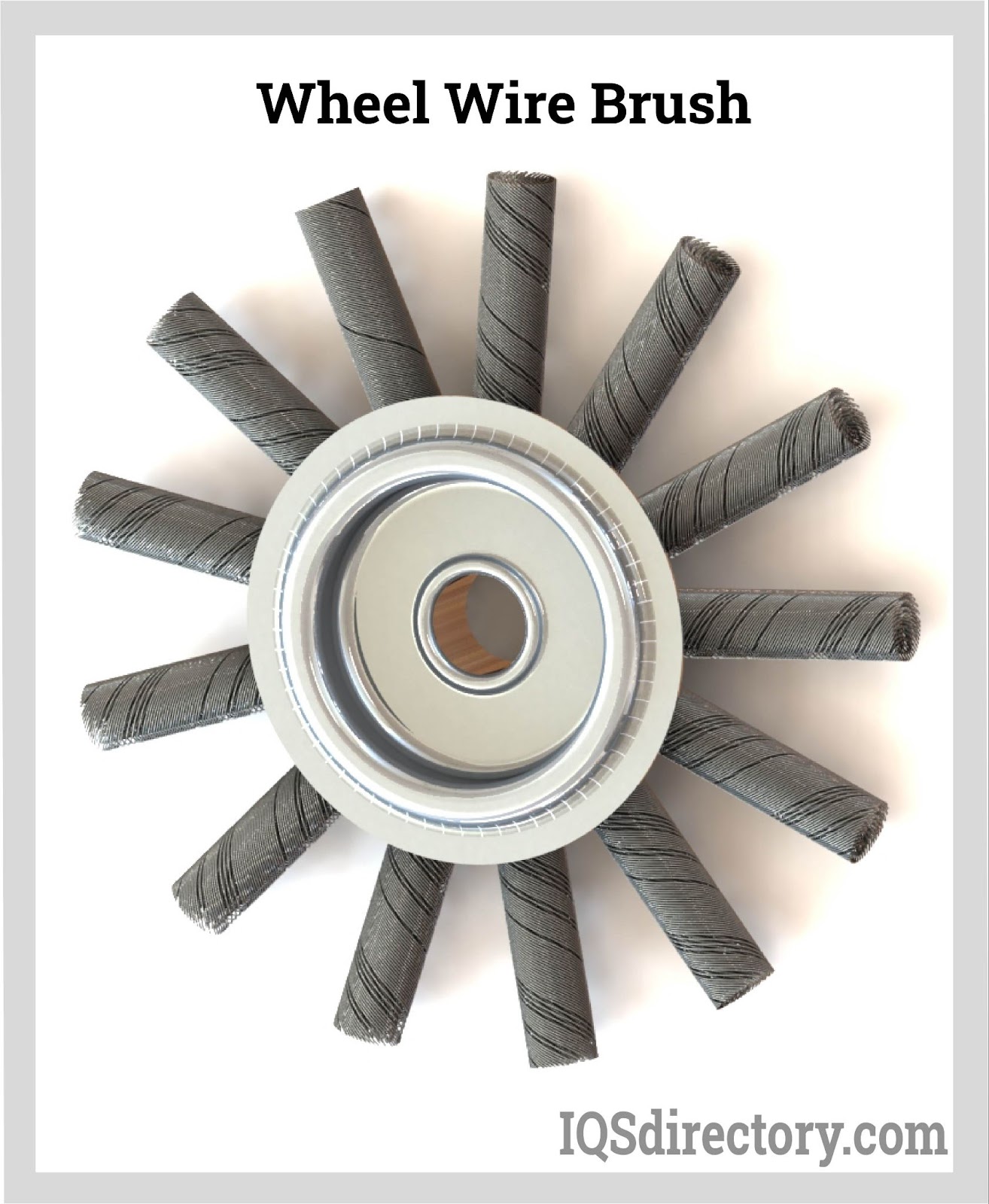

The fundamental design of a wheel brush consists of the wheel hub and bristles. For wheel wire brushes, wire filaments usually measure between six and eight inches in length. Wheel brushes provide straight-line cleaning, making them ideal for surface finishing, cleaning, polishing, deburring, and removing paint. A wide variety of wheel brushes are available from manufacturers, which can be used individually or combined for specific applications.
Wheel wire brushes sometimes utilize arbor mountings to work with grinders or robotic finishing equipment. Wheel brush wires can be crimped or knotted and constructed of steel, stainless steel, or brass. The conventional wheel wire brush includes a two-inch arbor hole and a choice of wire diameters.
Round brushes are commonly linked with tasks such as painting and hair grooming. Unlike powered tools, these brushes are generally used manually. They are particularly effective for creating loose waves and for blow-drying hair. The fully circular design of round brushes allows for easier styling of the hair underneath, enabling the creation of curls or waves based on the brush's size.
On the other hand, in the early stages of the surface finishing process, deburring and polishing of parts is accomplished with wheel brushes. Wheel brushes are the brushes that get coupled to and operated by grinders, lathes, drills, or automated machinery and give a straight-line brushing motion. Wheel brushes can spin at high rates.

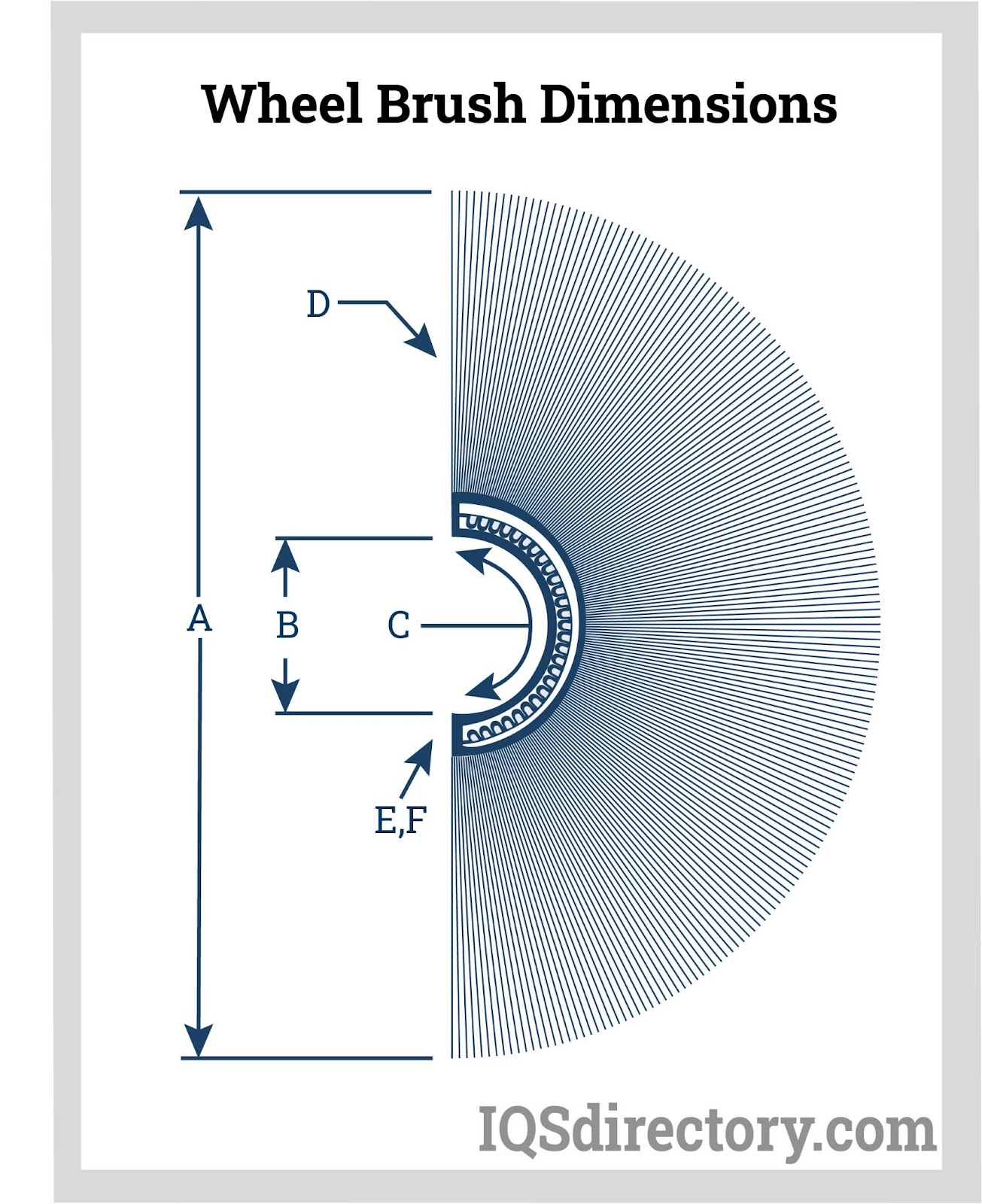

The fundamental design of a wheel brush consists of the wheel hub and its bristles. At the core of the wheel hub is the arbor hole, which is the central opening where the arbor, a spindle or shaft that secures the brush, fits. This arbor hole is typically machined or cast into the wheel hub to accommodate the spindle.
Wheel brushes are typically constructed by placing a material over pre-drilled or molded holes in the wheel hub, securing it with metal staples, folding the material, and then forming the bristles. Common materials for wheel brushes include wire, impregnated wire, and abrasive nylon. Wheel brushes can feature either crimped or knotted wire designs. Crimped wire brushes break cleanly as the bristles wear down, which helps extend the brush’s lifespan.
Knotted or twisted wire brushes use wire that has been twisted to varying degrees, enhancing the control over brushing action and increasing cutting efficiency. To boost abrasiveness, wire bristles are often coated with polymers like polypropylene. Typical metals used for wire in wheel brushes include steel, stainless steel, bronze, aluminum, nickel silver, copper, and titanium.

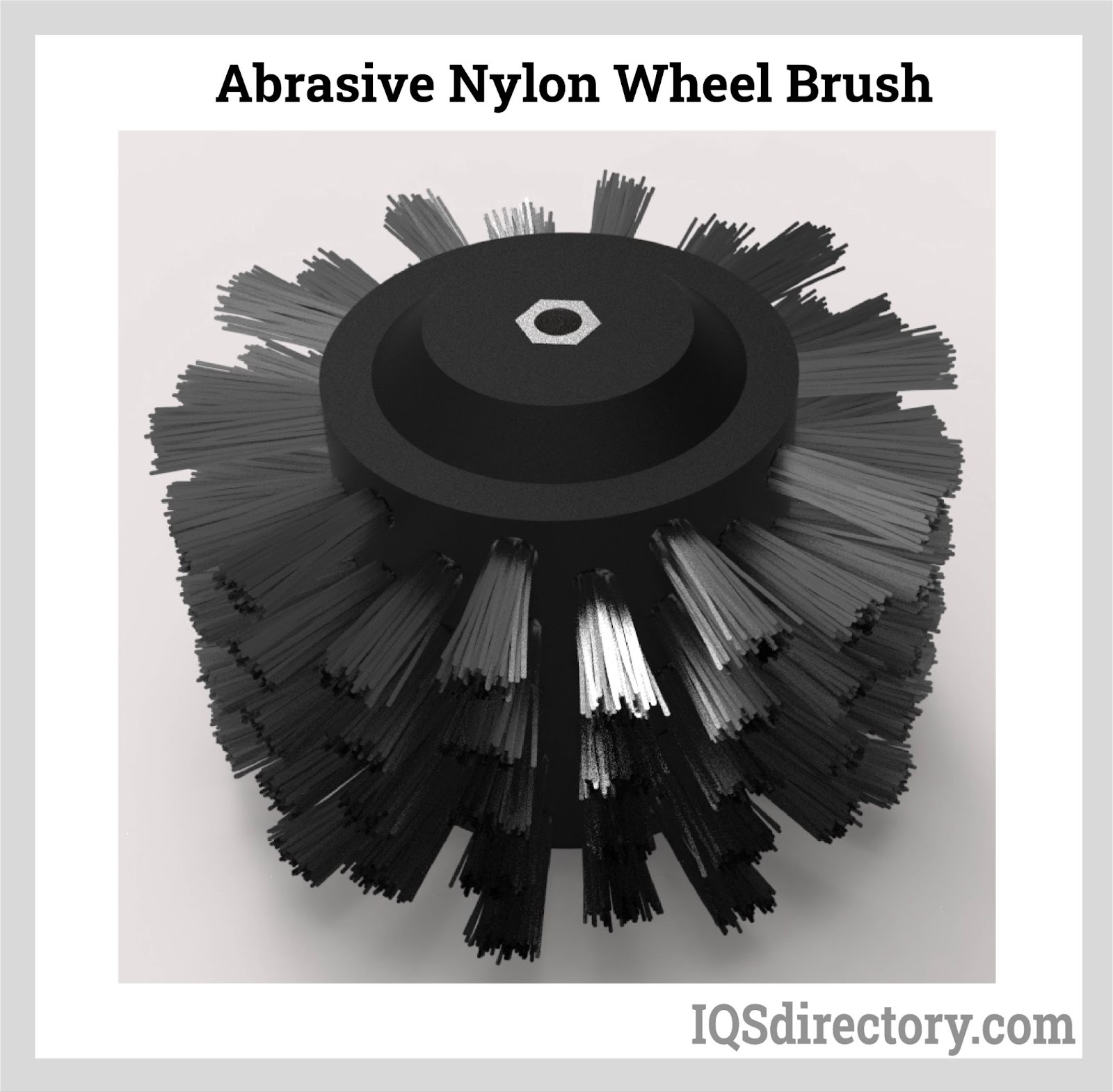

Abrasive nylon wheel brushes feature nylon bristles that are impregnated with abrasive particles such as silicon carbide, diamond, and aluminum oxide to enhance their cutting and finishing capabilities.
Even though wires can flex, they don't always reach every corner and crevice of a workpiece effectively. The brush's orientation also plays a crucial role in its performance. For instance, if someone uses a cup brush to clean a flat surface and then moves to an adjacent corner, they might think the brush is working perfectly as it bends to fit into tight spaces. However, upon lifting the brush, they may find that the corner still has residual debris, despite the surrounding area being clean. A second attempt to clean the corner might still be unsuccessful.
Choosing a brush specifically designed for the task is essential. A brush with filaments that can access all the nooks and crannies of the surface is necessary. Moreover, effective brush performance is not only about selecting the right type but also about using the correct power brushing technique. Factors such as speed, pressure, and orientation are critical, and while time is less of an issue when these factors are precisely controlled, they are crucial for achieving optimal results.
Speed is a commonly misunderstood aspect of a wheel brush's performance, largely due to misconceptions about the brush rating system. Each brush comes with a specified Maximum Safe Free Speed (MSFS), which indicates the highest RPM at which the brush can safely operate when spinning freely. For instance, a utility brush designed for use with a low-RPM tool like a power drill may have an MSFS rating of 2,000 RPM. This rating ensures safety but does not prescribe the ideal speed for specific tasks. While a wheel brush can safely operate at speeds up to 20,000 RPM, this does not necessarily mean it is the optimal speed for every application.
No matter how well-suited the brush is or how well-tuned the speed, the brush won't function properly when put under a lot of strain. The most frequent reason for wire brush issues is still too much pressure.
People often mistakenly think that applying excessive pressure to a brush will improve its performance when material isn't being effectively removed. In reality, this approach can lead to the opposite effect: it causes the brush wires to overheat, leading to premature wear and breakage.
Users often resort to a sweeping motion rather than a peening action to remove burrs, which reduces the brush's effectiveness. This leads them to apply even more pressure, causing the power tool to strain. A clear sign that a user is pressing too hard is the groaning noise from the tool. Additional indicators include early wear on the tool, discoloration of the wires due to heat, and premature wire breakage.
Improper brush orientation can lead to similar problems. Operators often angle the brush as they approach the workpiece, causing the tips of the wires to splay out when using a cup brush. Holding the brush at an angle helps ensure that the wires make complete contact with the surface. To enhance surface contact and reduce excessive flaring, some brushes are designed with rings or bridles. For more demanding cleaning tasks requiring increased contact, a double-row cup brush—featuring two rows of twist-knotted filaments—can be used.
When the initial three factors are finely tuned, the significance of time diminishes considerably. Nonetheless, time remains a critical element in task completion. In a workshop, some tasks can only be addressed after other preliminary tasks have been completed. This scheduling constraint is especially relevant in finishing processes.
Choosing the right wire brush from the many available options can be challenging. It's important to consider several factors to avoid making a poor choice that could lead to delays or damage to the surface being worked on.
Choosing the correct wire brush involves not only selecting the appropriate wire type but also considering the wire arrangement, which can be twisted, knotted, crimped, or straight. Twisted and knotted wires are particularly effective and provide extensive coverage, making them ideal for heavy-duty tasks such as welding clean-up and major corrosion removal. These arrangements are commonly used in cup and end wire brushes.
Straight wires are less effective for covering large areas compared to twisted or knotted wires, as they do not provide broad coverage. Crimped wire offers more flexibility and improved cleaning action compared to straight wire, but it is generally suited for lighter applications only.
Choosing the correct size of a wire brush depends on the dimensions of the surface that needs to be cleaned, prepared, or finished. Handheld brushes are suitable for smaller tasks and surfaces but fall short for larger areas. For detailed work in tight spots, wheel and end wire brushes are more effective than smaller, manual brushes. Although compact, toothbrush-sized wire brushes can handle minor tasks without motorization, they are less efficient for more extensive or demanding jobs.
For large, flat surfaces, rotary and cup brushes are ideal, especially when dealing with rust, corrosion, slag, or other heavy materials. The type of filament also plays a crucial role; bronze or aluminum filaments may not be robust enough for thorough impurity removal in such scenarios.
The length of the filaments greatly influences the abrasiveness of a wire brush. For tasks that require a softer, less aggressive brushing action, longer and more flexible filaments are preferable. Conversely, shorter and stiffer filaments are better suited for applications that need more intense and aggressive brushing.
Cross-contamination is a significant concern when using wire brushes. For instance, using a carbon steel brush on stainless steel can introduce carbon particles, leading to oxidation and rust on the stainless steel. To avoid this, carbon steel brushes should be reserved for carbon steel surfaces, while stainless steel or aluminum brushes should be used for stainless steel or aluminum materials to prevent contamination.
On carbon steel, a user can apply a stainless steel brush. But one shouldn't use that stainless wire for stainless steel once it comes into contact with carbon steel.
To ensure that operators use the correct brush for each material, fabricators can implement identification systems or color-coding. For example, different colors can signify different types of brushes—one color for stainless steel, another for carbon steel, and so on—helping to prevent cross-contamination and ensure proper usage.
The shape and design of a brush are typically tailored to its specific application. For instance, a stringer bead wheel brush is ideal for cleaning pipe welds and similar seams between passes. Cup brushes excel at removing rust, paint, and other substances from larger surfaces. For reaching into tight spaces such as holes, brushes with narrow ends are particularly effective.
The reasoning for brush choice may be traced back to how brushes operate. Narrow end brushes will flare out when operated at a fast pace on a flat surface. As a result, the wire tips do not make direct contact with the surface and perform inadequately. Cup brushes feature a wire design that flares only slightly at the proper RPM, which makes them effective in cleaning surfaces. When using an end brush in the same circumstance, the wires will flare out greatly and reduce the effectiveness of cleaning.
The diameter of wheel or brush brushes is influenced by the surface feet per minute (SFPM) needed for the application and the size of the available power tools. In practice, the choice of diameter and the required SFPM are closely related.
Thicker wires, such as those with a diameter of 0.025 inches, are stiffer and more aggressive but tend to have lower fatigue resistance. In contrast, thinner wires, like 0.014 inches, offer greater flexibility and durability but are less aggressive. Since thicker wires are more susceptible to breaking, it's advisable to use the smallest wire diameter that is still effective for the task.
Crimped wires offer a gentler brushing action compared to twisted or knotted types, which are more aggressive. While crimped wires are suitable for light tasks such as removing minor surface oxidation or rust, more severe scaling requires the use of knotted or twisted wire brushes for effective cleaning.
Increased wire density can extend the lifespan of a brush by providing more wire tips for effective work. However, a higher wire density can reduce the brush’s flexibility and ability to conform to various surfaces. This trade-off may benefit certain applications by prolonging brush life but could be less advantageous for tasks requiring greater adaptability.
Brushes with shorter wires extending from the hub tend to be stiffer and more aggressive in their cleaning action. Encapsulated wire brushes are a good example of this, as only the wire tips are exposed around the edge of the hub.
In contrast, longer wires are beneficial for reaching into intricate component geometries and tight spaces. For instance, when cleaning threads, a brush with longer wires is often preferred because these extended wires can reach into the depths of each thread's valley.
This demonstrates one of the key advantages of wire brushing: it removes material without altering the shape of the threads, effectively cleaning them without modifying their form.
Wheel brushes come in several styles, such as crimped wire, knotted wire, and nylon, tailored to different needs and specific requirements for each brush type.
Crimped wire brushes consist of metal wire that has been crimped to create ridges along its length, enhancing its ability to dislodge dirt and debris. These brushes are versatile tools ideal for tasks such as cleaning, deburring, and polishing. Available in various sizes and shapes, crimped wire brushes can adapt to many applications, especially in tight or hard-to-reach areas where other brushes might struggle.
Crimped wire brushes are effective for removing burrs and sharp edges from metal surfaces. When choosing a crimped wire wheel brush, consider factors like the surface type, brush size, shape, and bristle material. These brushes can be wavy or bent and are typically made from gray steel, stainless steel, or brass-coated steel.
The crimping process isolates metal filaments, reducing wire fatigue and breakage caused by flexing and vibrations. As the brush is used, small bits of wire break off, revealing fresh cutting edges. This method ensures cleaner breaks and consistent brushing action, as the cutting occurs at the wire tips.
The choice of wire type depends on both the material being worked on and its shape. Narrow brush faces are ideal for reaching into corners, crevices, and irregular surfaces, while wider brush faces are better suited for continuous brushing over larger areas.

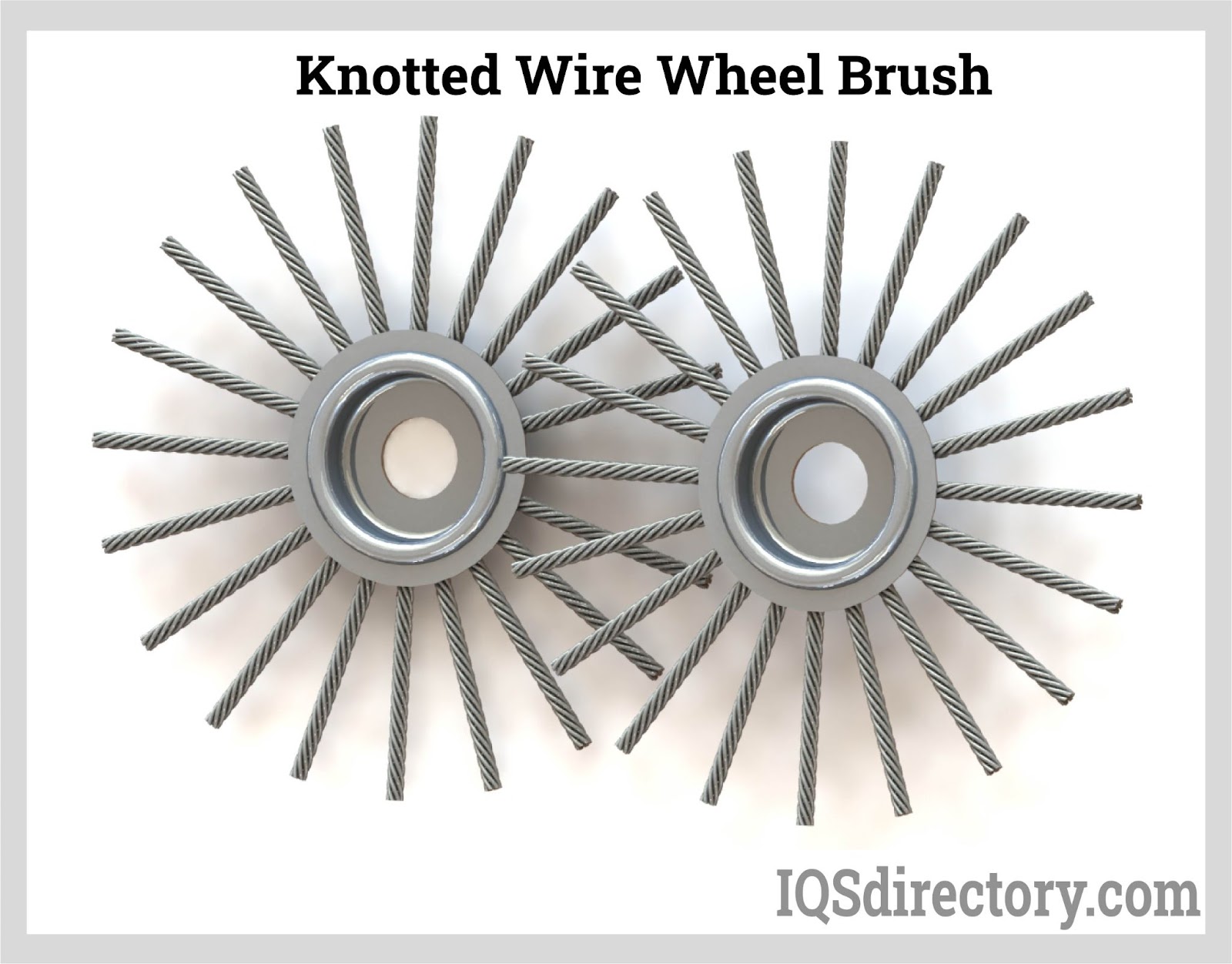

Knotted wire wheel brushes feature metal wire ties or loops, typically made from carbon steel or stainless steel. These brushes are designed for heavy-duty applications, providing intense brushing action and enduring twisting and high-impact movements. Twisted tuft brushes have their wires twisted for about two-thirds of their length, with the remaining portion flared gently. For applications requiring substantial brushing power, larger wire sizes may have the loops twisted along their entire length. Cable twist brushes, often used in oil pipelines and fields, are a type of twisted wire wheel brush that excels in demanding conditions.
Stringer bead brushes are specifically designed for painting narrow channels and grooves and preparing pipe surfaces before welding. Unlike crimped wire wheel brushes with narrower faces, stringer bead brushes feature longer bristles that can more effectively reach into uneven corners and tight crevices.
Stringer knotted wheel brushes are characterized by their minimal flexibility and high-impact brushing capability. They are particularly suited for cleaning root and hot pass welds in pipe joining tasks. These brushes are ideal for applications requiring an aggressive brushing action in confined areas where a narrow, rigid brush with limited surface contact is beneficial.

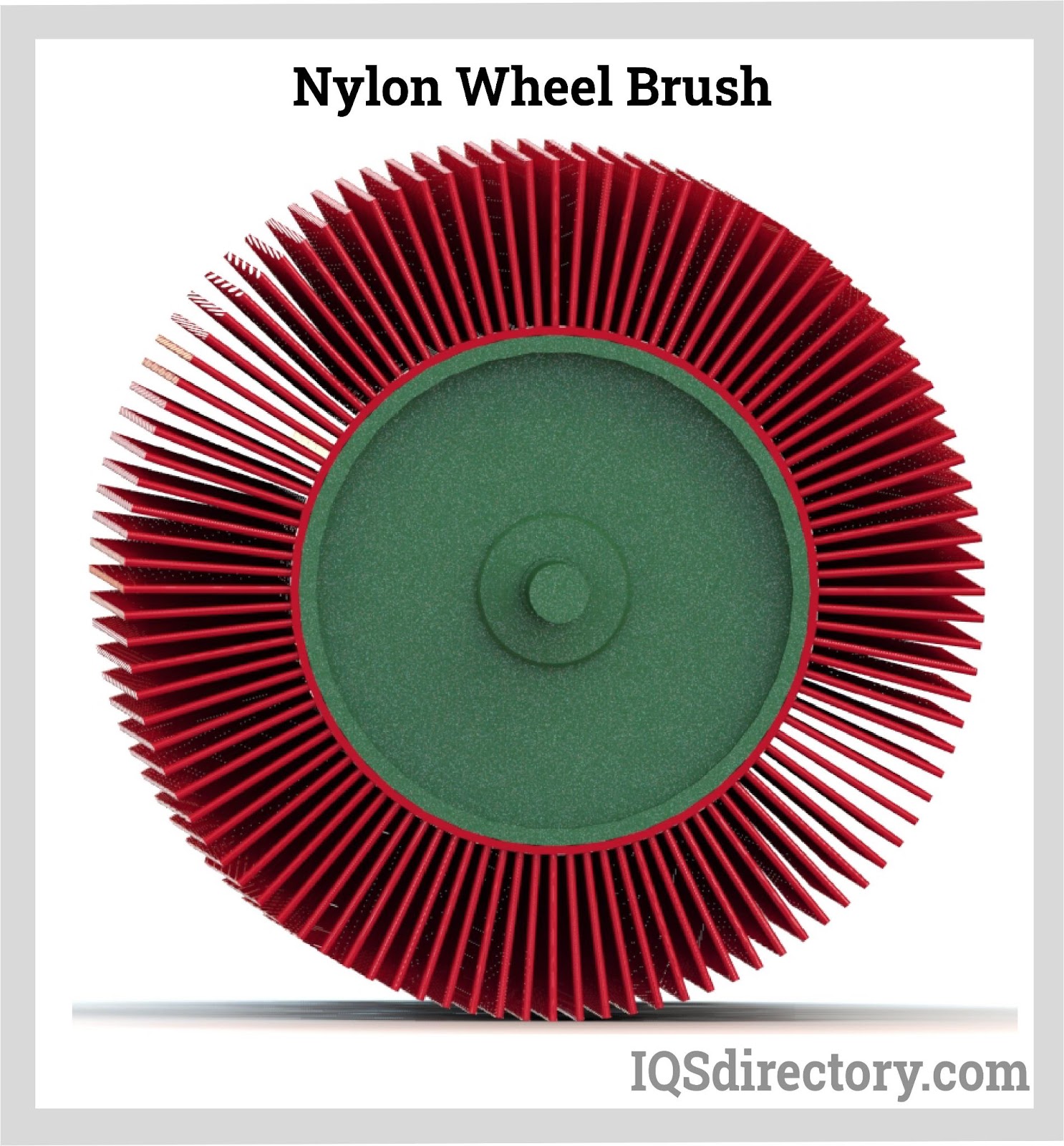

Nylon wheel brushes are well-suited for light deburring tasks, offering a gentle yet effective brushing action. Known for their resistance to solvents and high abrasion durability, these brushes are ideal for cleaning, polishing, and surface finishing. Nylon filaments provide a non-reactive and safe alternative to traditional wire brushes. They come in various diameters and can feature copper or steel centers, with options for shank attachments or without.

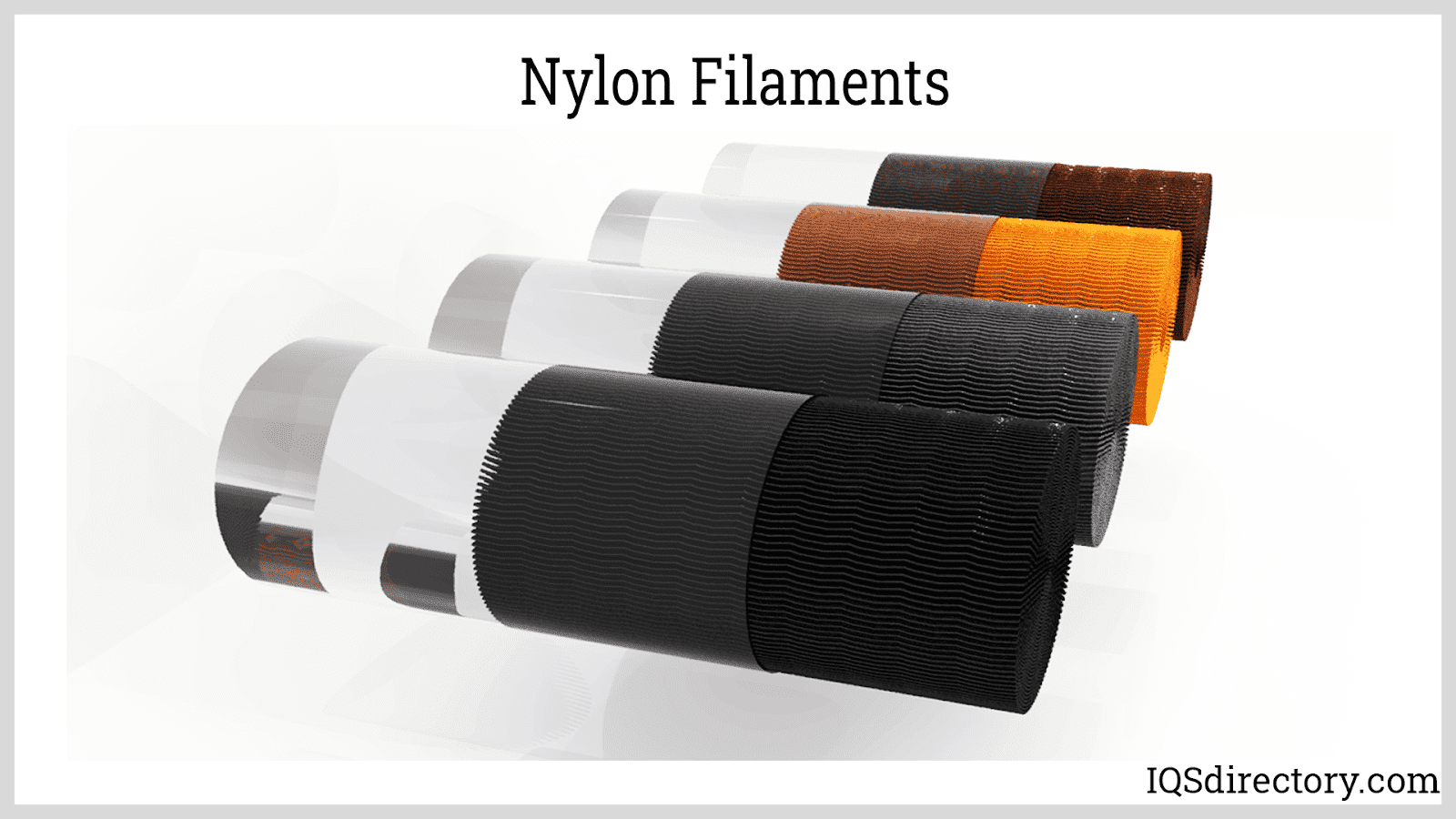

Nylon brushes are used in a wide range of applications, from cleaning your teeth to removing rust, paint, filth, and pollutants. Because of their numerous grades, grit kinds, combinations, and mechanical qualities, nylon brushes are widely used. Designers utilize nylon as the foundation for brush engineering because it can tolerate repeated use without losing strength.
Nylon can be shaped and molded into various styles while retaining its core properties. In the firearms industry, nylon brushes play a crucial role in maintaining the cleanliness, safety, and reliability of weapons. They are used for gentle cleaning or scrubbing to remove stubborn residues, metal flakes, and other debris. Additionally, abrasive nylon brushes are employed in aircraft manufacturing to deburr aluminum engine heads, level engine components, and smooth hydraulic parts.
Polyester filament is suitable for brush applications where polypropylene or nylon might not be ideal. Compared to polypropylene, polyester absorbs less water and matches nylon in terms of dry stiffness modulus. However, it surpasses nylon in wet stiffness. Additionally, polyester has a higher softening and melting point than polypropylene and offers better memory or bend recovery, making it a durable choice for various applications.
Encapsulated wire brushes are designed for tasks such as heavy deburring, surface blending, surface preparation, and the removal of rubber and plastic flash, as well as weld preparation. These brushes feature wires secured by a synthetic elastomer that gradually wears away with use, exposing a fresh length of wire. Encapsulated wire brushes are ideal for relatively flat surfaces or when controlled brushing is required, and they perform optimally at temperatures below 180°F.
To achieve comparable results when replacing a standard wire brush, opting for a smaller wire size in an encapsulated wire wheel brush can be effective. Encapsulation is available in medium and hard durometers and can be found in wheel-brush, cup-brush, and end-brush formats, with options in steel and stainless steel wire. Brass or bronze wire fillings are also available upon special request.

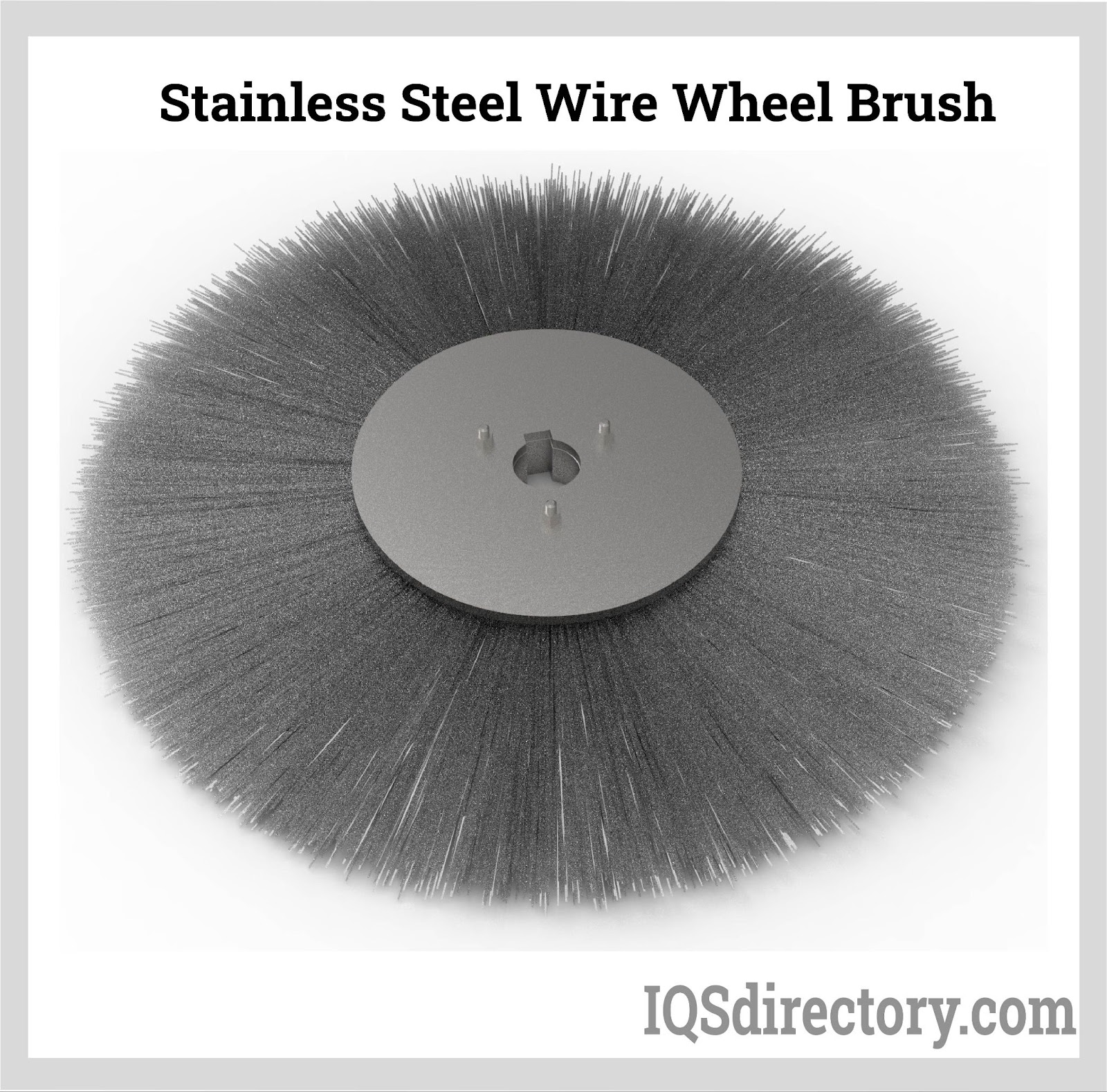

Stainless steel wire brushes are ideal for working with stainless steel and aluminum components. They are also suitable for applications involving direct food contact, high-temperature environments, and conditions where the brush may be exposed to moisture or high humidity frequently.
Stainless steel wire brushes can handle continuous operating temperatures up to 600°F. For temperatures above this threshold, more specialized materials like Inconel® (600) are recommended.
Brass wire, being softer than steel or stainless steel, provides a gentler brushing action that is less likely to damage harder metals. Typically made from alloy 260, which consists of 70% copper and 30% zinc, brass wire is ideal for use on brass or copper workpieces. Additionally, brass wire does not produce sparks when striking other metals, making it suitable for use in hazardous environments, similar to bronze wire.
Brass wire is an excellent conductor of electrical energy (28% IACS) and, when used in a brass wire strip brush, is effective for reducing static electricity. It performs well in environments with continuous operating temperatures up to 300°F and is relatively resistant to corrosion. Brass wire wheel brushes are commonly used for:
Bronze wire is more robust and rigid compared to brass wire. Often made from Alloy 510 phosphor bronze with 95% copper and 5% tin, it benefits from enhanced fatigue and tensile strength due to the tin addition, compared to C-260 brass wire. Bronze wire does not spark when contacting other metals, making it suitable for hazardous environments.
Bronze wire is a decent conductor of electrical energy (15% IACS) and, when used with a bronze wire strip brush featuring a brass channel backing, is effective for static reduction. It performs well in continuous temperature settings up to 400°F and has good corrosion resistance. Common applications for bronze wire brushes include:
Certain abrasive nylon wheel brushes feature abrasive grit embedded within the nylon filaments. Available in various grits and arbor setups, these brushes can be used individually or combined on a common drive shaft to create a broad brush. Ideal for light deburring and decorative metal finishing, abrasive nylon wheel brushes are versatile for both wet and dry tasks. They often eliminate the need for additional abrasive compounds during use.
Abrasive nylon wheel brushes come in various grit types, including:
Natural fiber industrial brushes, such as Tampico wheel brushes, are ideal for deburring delicate surfaces in both wet and dry conditions. These brushes are commonly used with abrasive or polishing compounds for more intensive tasks. Tampico brushes are versatile, suitable for scrubbing, washing, and dusting in various applications. Their fibers can be treated to enhance stiffness and tackiness, making them effective for use with grease sticks and abrasives.

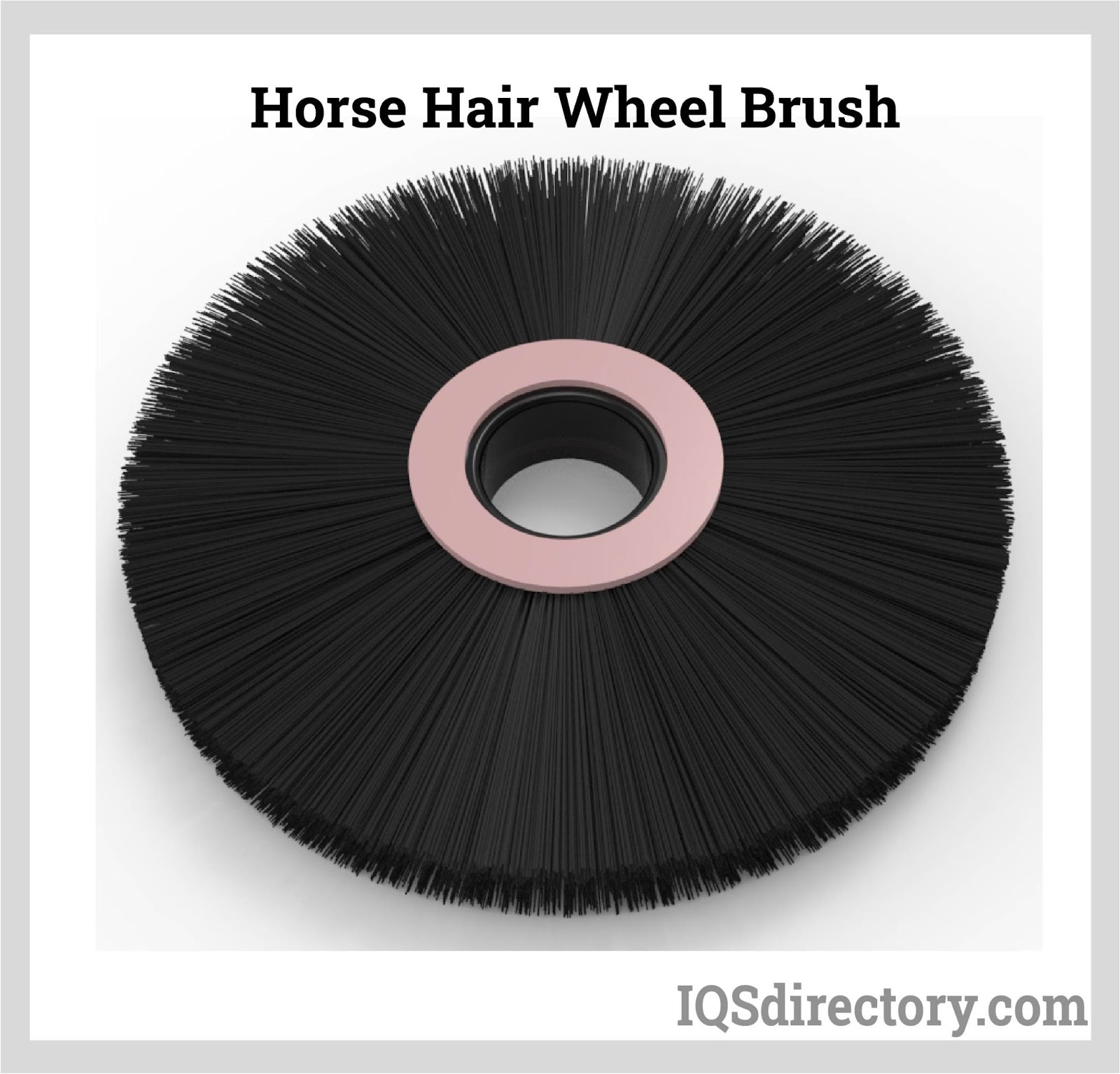

Horsehair brushes are ideal for fine dusting, cleaning, and polishing, available in both stiff black and soft dark gray options. They can withstand temperatures up to 400°F when wet. These brushes are flexible and effective for removing light to medium rust, stains, and small burrs from delicate surfaces without leaving debris that could corrode the workpiece.
Shaft-mounted wheel brushes offer a more delicate brushing action, making them ideal for cleaning, rust and paint removal, smoothing, fettling cast seams, and mild deburring. They excel at cleaning, polishing, and finishing weld joints, corners, and other hard-to-reach areas. Featuring a standard 6mm shaft attachment, these brushes are easily compatible with any hand drill for convenient use.
Shaft-mounted wheel brushes are ideal for tasks such as paint removal, slag cleaning, weld splatter elimination, surface finishing, and polishing. These brushes are widely used across various industries for effectively tackling tough, thick metallic surfaces and floors, ensuring thorough cleaning and particle removal.

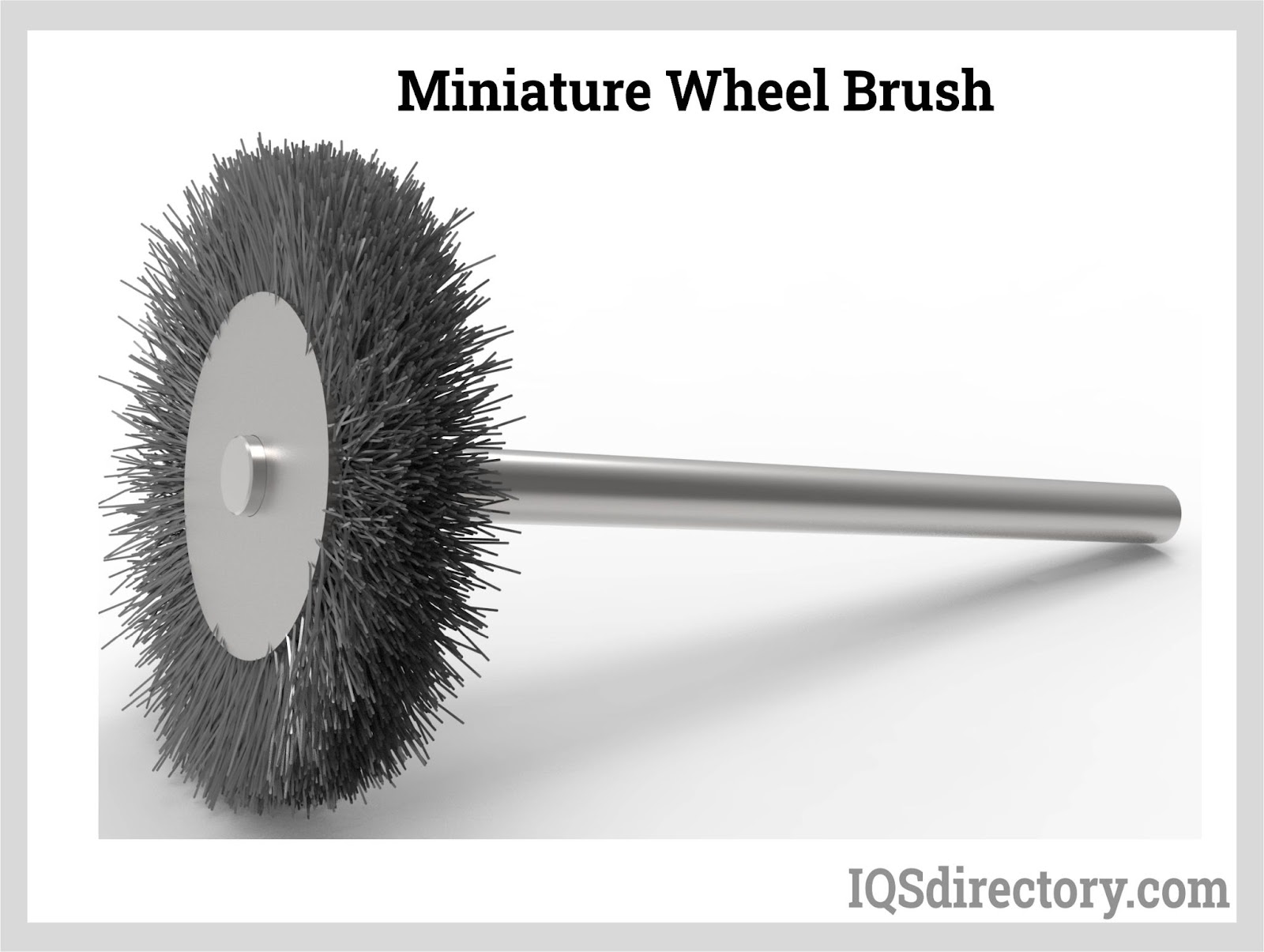

These small wheel brushes feature medium to strong bristles, making them well-suited for precision tasks in hard-to-reach areas. They are designed to handle intricate cleaning and finishing with accuracy.
Steel wire wheel brushes are versatile, cost-effective, and widely available, making them the most common type of wire brush. Steel wire, known for its durability and strong cutting action, offers a long fatigue life. While ideal for use on steel and iron, steel wire brushes can also be used on materials like wood, aluminum, brass, and copper. However, when brushing softer materials, there's a risk that the brush may inadvertently remove some of the base material along with the intended coating or contaminants.
Steel wire is effective for operating temperatures up to 275°F and can handle occasional exposure to higher temperatures. For sustained temperatures above this threshold, stainless steel wire is recommended. Steel wire is not suitable for:
This chapter will cover the applications and benefits of wheel brushes.
Wheel brushes are used for more than just deburring and polishing. They are also used for surface finishing, weld blending, rough surface preparation, preparing weld seams, and removing corrosion, paint rust, scale, adhesive residues, carbon, and burrs. Wheel cleaning brushes are very beneficial in aluminum extrusion, turbine blades, aluminum wheels, transmission valve bodies, bench grinders, robotic finishing equipment, hand-held grinders, and pump gears.
Wheel brushes, with their circular design, are ideal for accessing difficult-to-reach areas. They come in various sizes, from small diameter brushes to large, wide-faced options that can be used individually or in groups. These brushes are commonly used in automotive, ventilation, refrigeration, aerospace, medical, optical, textiles, and electronics industries. Cup brushes, similar to wheel brushes, are strip brushes looped laterally to create circular shapes, which are then mounted on metal cups. Other applications include:

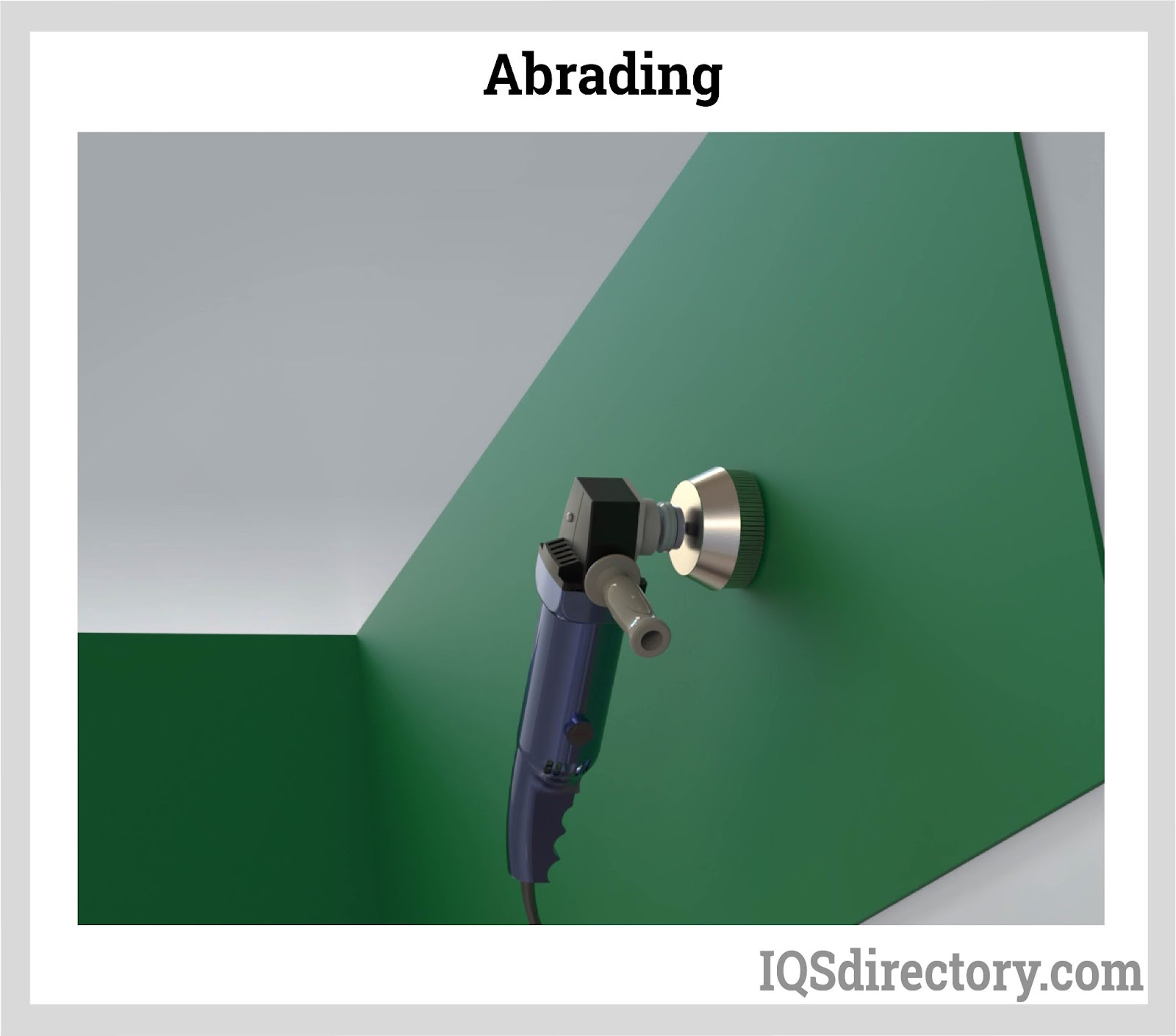

One of the most distinguishing characteristics of wire brushes is their abrasive roughness. While not all wire brushes are designed for finishing and cleaning, there is a specific category developed for abrading and removing paint, rust, particulate matter, and metal filings from primarily metal substrates. These wire brushes slice into the surface, effectively removing any material they contact.
After abrading, a milder wire brush is typically employed to smooth the surface. Abrading or abrasive brushes are designed to create deep incisions in a metal surface before applying a coating or thick paint, helping to smooth out what the abrading has removed. This process prepares the surface for further polishing.
Most abrasive brushes are intended for electric use. However, there are models with wood or plastic handles that allow for manual removal of wallpaper, paint, and rust. Although these hand-held brushes do not cut as deeply as their electric counterparts, they can still be used cautiously on drywall and wood.
Acid brushes are small brushes designed for applying glue, liquids, or chemicals, and are ideal for quickly cleaning small areas. While most acid brushes feature stainless steel-crimped filaments, they can be made with a variety of filament materials.
Pipe brushes are used by plumbers to clean pipes and other hard-to-reach areas. Their diameters are equal to or larger than the pipe diameter, allowing them to fit snugly against the inner surface. These brushes are effective for cleaning pipes and can also help push or break up obstacles within pipelines. The flexible wire variant can bend with pipe curves and conform to the shape of the pipe.

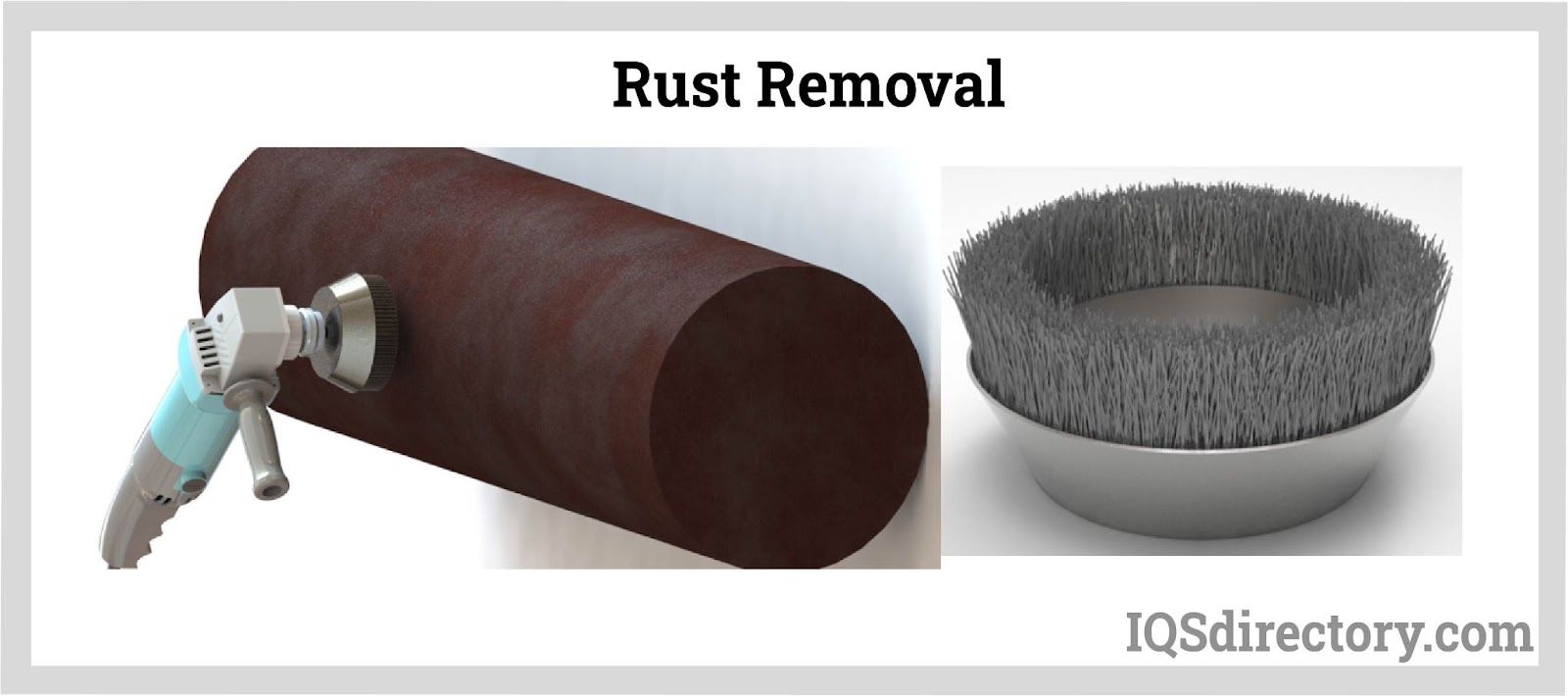

Rust removal is a common application for cup and wheel wire brushes. Powered wheel wire brushes are particularly effective at eliminating rust from hard-to-reach areas, as they are abrasive enough to penetrate cracks and small spaces. Cup brushes, available in various sizes and shapes, are ideal for removing flaking rust and paint from large surfaces.
Cup brushes come in various sizes, diameters, and hollow varieties, making them versatile for any rust cleaning need. To avoid contaminating a stainless steel surface, use a brass filament cup or wheel wire brush. Brass filaments offer similar cutting capabilities to carbon steel but are less abrasive, making them suitable for this purpose.
Hand wire brushes can be used for rust removal, but they are not ideal for large or heavily encrusted surfaces due to their limited cutting power and the significant effort required. For cleaning a variety of surfaces, including rust on machines, cars, and fences, powered cup and wheel wire brushes are more effective and efficient.
Wire brushes are not only effective for cleaning and removing debris but also excel in preparing surfaces for finishing. The primary goal of wire brush cleaning is to prepare a surface for subsequent protective coatings. While blasting may be employed for large-scale surface cleaning and preparation, some areas may still require additional attention to ensure the surface is ready for finishing.
In such cases, a portable cup or wheel wire brush is used for detailed work. Some surface roughness is often necessary to ensure that the applied protective material adheres properly. The choice of wire brush for surface preparation depends on the substrate material and the aggressiveness of the application. The length of the filaments should be selected based on the level of abrasion needed for the surface.

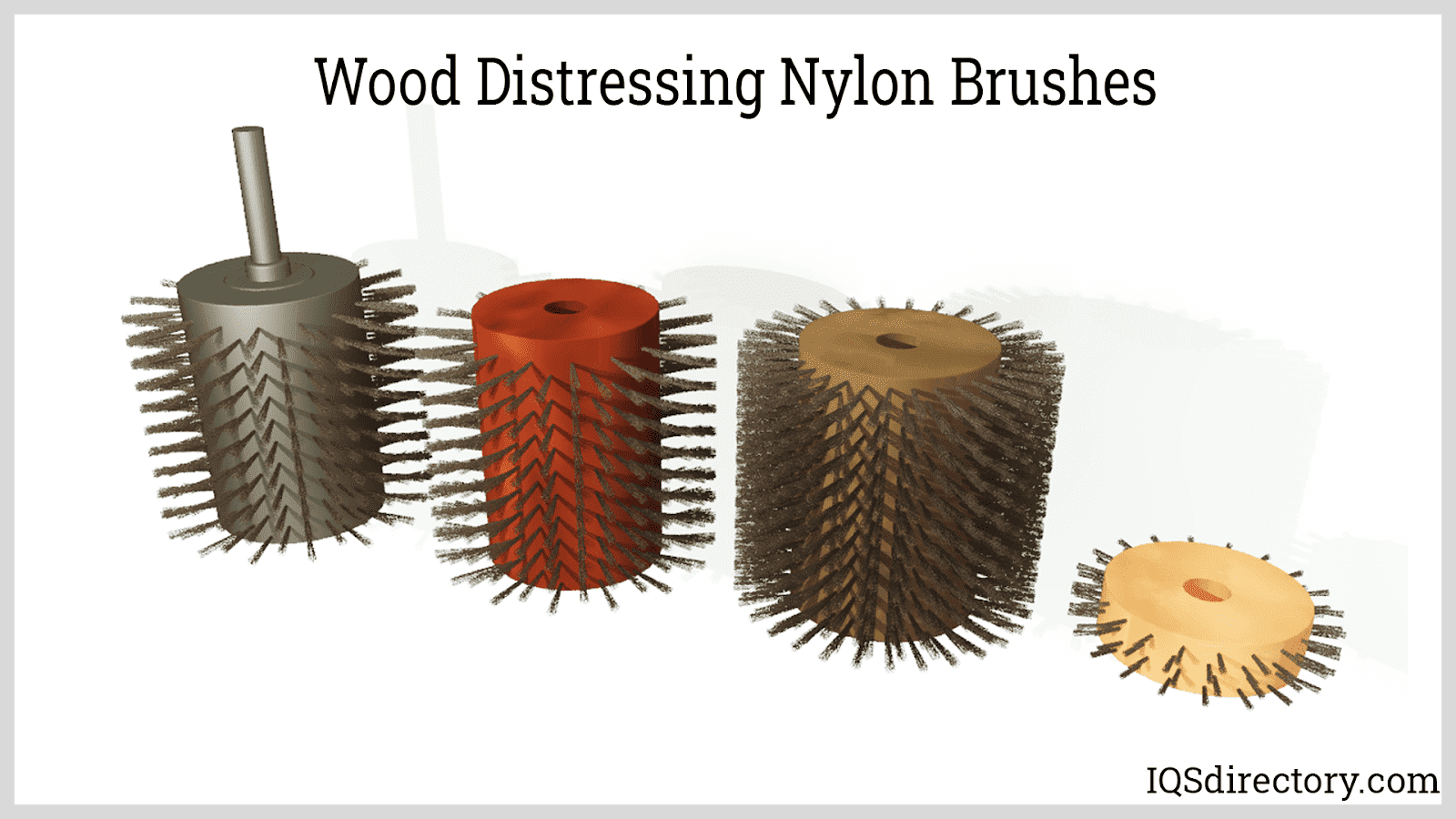

Distressing wood is a technique used to wear away the softer, lighter areas of the wood grain while leaving the denser parts intact. This process creates an aged appearance, mimicking the look of wood that has weathered over time. To achieve this effect, a portable wire brush or a wire brush with stiff nylon filaments can be used, with the latter providing a softer, sanded finish.
The wood distressing achieved with wire brushes can vary based on the type of filaments used. For instance, wire brushes with aluminum filaments, available in different grits, can be utilized to sand the surface effectively. These wire brushes provide results similar to those of sandpaper.

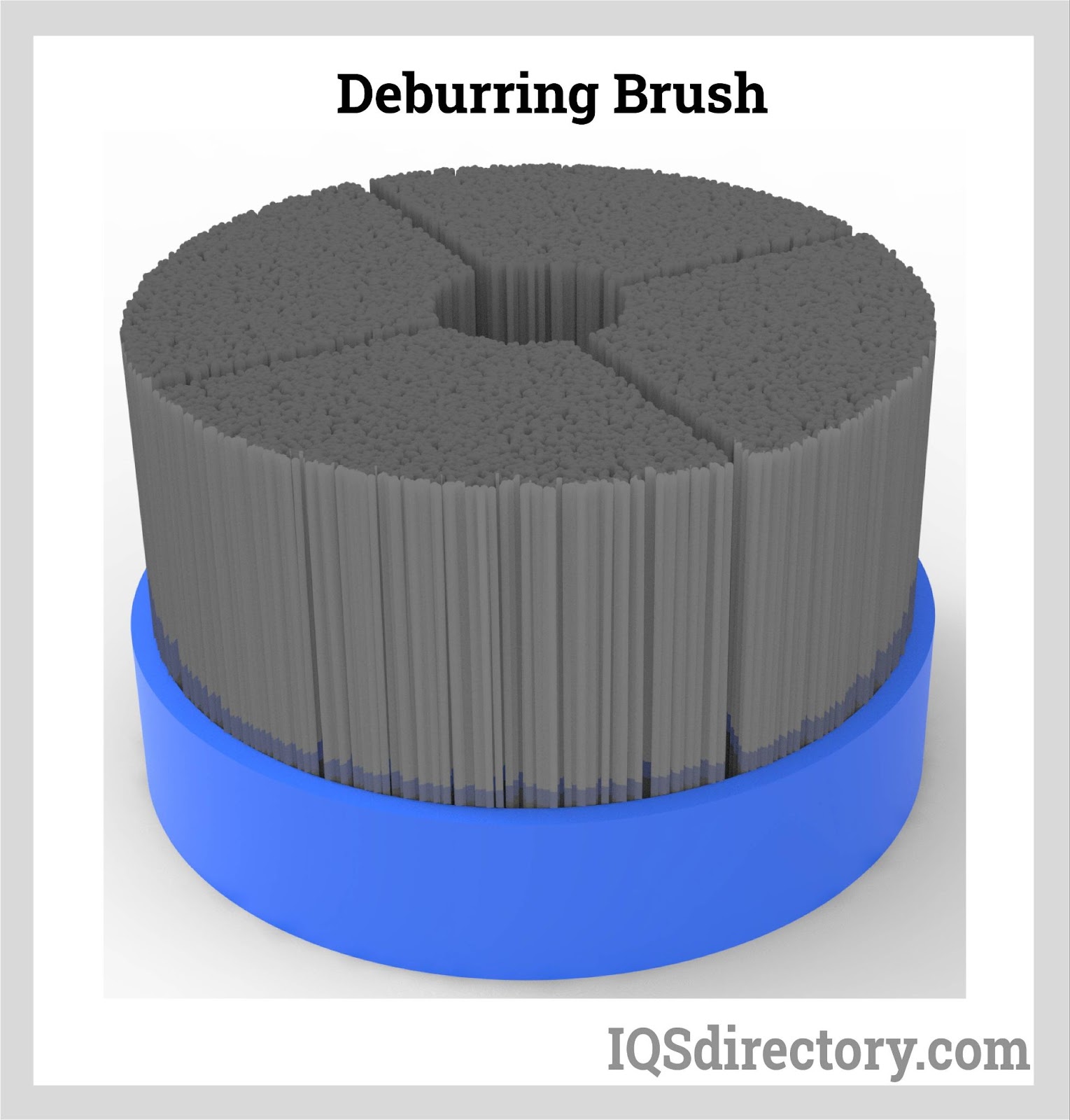

Deburring is used for a variety of purposes ranging from smoothing metal holes and molded parts to completing cutting procedures. Wire brushes are a very convenient and cost-effective technique to deburr and clean metal components. Wire brushes are less expensive to use than other equipment for chamfering (cutting a groove into the right angle or an item to reduce the risk of cuts or scrapes), and they last longer. There are a few constraints to using wire brushes for deburring processes.
Deburring thin-walled tubing with a wire brush is feasible without altering the tube's dimensions. Unlike other deburring methods, wire brush deburring does not leave micro burrs on the treated surfaces.
One of the ongoing issues with manufacturing processes is the generation of static electricity during assembly operations. While static electricity is not harmful to workers, it attracts dust, grime, and other debris to finished items, complicating their removal. Wire brushes can be employed in assembly procedures to mitigate static electricity. These brushes pick up static charges and channel them to the ground, eliminating their effects. Various wire brushes, available in different lengths and filament diameters, can be tailored for this purpose.
Wire brushes have a variety of applications in welding. Metal surfaces often require pre-welding preparation to remove contaminants such as oil, dirt, and grime. Rust, corrosion, and coatings that might interfere with the bond of the metals or be volatile also need to be addressed.
After welding, the welded surface must be smoothed, oxidized, and free of imperfections and foreign particles, similar to the pre-welding process. While grinding is used to remove roughness and weld spatter, wire brushes are essential for smoothing and evening the surfaces. Various wire brushes are available to prepare and smooth welding surfaces.
Wire wheel brushes are versatile and durable enough for all prep and post-welding tasks, but cup wire brushes are better suited for larger areas and less detailed work. End wire brushes, with their thin, crimped wires, are ideal for lighter surface cleaning in hard-to-reach areas such as T-joints. Additionally, handheld wire brushes can be used to remove slag between welding operations when less intensive methods are needed for smaller tasks.
Maintaining the surface of the oven in crematoriums is crucial for its ongoing operation. To clean the oven chamber without causing damage, brass wire brushes are used. Brass is less abrasive, making it ideal for preserving the chamber's integrity. Straight brushes are most effective for this purpose and come in various widths, with twelve inches being the most common.
Wire rotary brushes are used to remove grime, grease, embedded dirt, and thick-crusted substances from concrete surfaces. While hand wire brushes attached to mop handles can accomplish the task, using a large rotating brush with a floor scrubber usually provides the quickest and most effective results. Rotary wire brushes, made of heavy gauge carbon steel, strip concrete surfaces of any build-up from shipping or industrial activities.
The operation of a rotary wire brush is similar to using a harsh cleaning solution, but without the risk of toxicity. High-abrasiveness floor brushes can be used for scraping, scrubbing, scouring, and stripping, addressing surfaces contaminated by dirt, grease, and oil. Floor scrubbing brushes come in various diameters, typically ranging from 13" to over 20".
Wheel brushes offer several advantages over other brush designs:
Wheel brushes are circular brushes that are often used for deburring items during the beginning stages of surface finishing and polishing them during the final stages. Wheel brushes brush in a straight line and are typically attached to and operated by grinders, lathes, drills, or automated machinery. This equipment permits wheel brushes to spin at high speeds, resulting in the desired motion and effectiveness. Wheel wire brushes are utilized with grinders, robotic finishing equipment, and arbor mounting. Wheel brushes are available in a variety of styles, including crimped wire wheel brushes, knotted wire wheel brushes, and nylon wheel brushes, depending on the area of need and the standard of each brush type. Wheel brushes are commonly used in the automotive, ventilation, refrigeration, aerospace, medical, optical, textiles, and electronics industries.
A bottle brush is a brush with flexible and pliable bristles connected to a long stem or handle made of plastic, wood, or wire. The bristles of a bottle brush can run about halfway up the handle and form a shape similar to a tube or be clustered at...
A brush is a tool with bristles made of hair, wire, metal, synthetic fibers, or various natural materials that are attached to a handle made of wood, plastic, wire, or metal. Some varieties of brushes are adapted to be connected to power tools for heavy duty work such as...
Cylinder brushes are also known as "coil brushes," "rotary brushes," or "spiral brushes." Cylinder brushes are formed by rolling a metal strip around a cylindrical rod (or mandrel) until it reaches a designated interior brush diameter...
A nylon brush is a brush that has nylon polymer filaments that are exceptionally tough, strong, flexible, and have excellent elasticity. The various types of nylon filaments, which are durable and abrasion resistant, are the most commonly used fiber for the manufacture of brushes...
A wire brush is an abrasive tool that has stiff bristles made from a variety of rigid materials designed to clean and prepare metal surfaces. The filaments of wire brushes are small diameter pieces of inflexible material that are closely spaced together as a means for cleaning surfaces...
A common representation of a brush is a handle with some form of bristles and is the one that most people have in mind when thinking of a brush. Writing a description of brushes is more challenging since there is such a wide variety of types, styles, uses, and designs...
