This article has complete and concise information regarding shipping tubes and their use.
You will learn:
A shipping tube is a long container used for mailing long items that are rolled or folded to fit in the tube. They are constructed of various types of materials with Kraft paper being the most common and widely used. For extra protection and safety, items placed in shipping tubes may be reinforced with bubble wrap or foam.
Although the most common type of shipping tube is cylindrical, they also come in rectangular, square, and triangular shapes to fit the needs of the items being shipped.
They are the perfect choice for protecting blue prints, posters, pictures, and confidential paperwork. There are several varieties of shipping tubes including ones with sealed ends and end caps, snap seals, telescoping, and exceptionally large diameters.
The winding process for the production of shipping tubes was developed at the beginning of the twentieth century and was used to create spiral cans. The method was expanded into the production of longer tubes during World War II when metals where in short supply.
Although paper is the most common type of shipping tube material, they are also made from other materials depending on the types of shipping needs. All manufacturers provide designs that can be customized to fit the needs of a particular form of document, product, or material. The main characteristic of shipping tubes is their stability and strength, which is necessary for them to survive the shipping process.
The body of a shipping tube is made of recycled linerboard that is rolled to the desired thickness for the tube. The outer layer or ply is made of kraft paper, which is stronger due to its low lignin content and high sulfur ratio. Multiple layers of paper are used to increase the strength, durability, and resilience of shipping tubes, making it possible to use them multiple times.

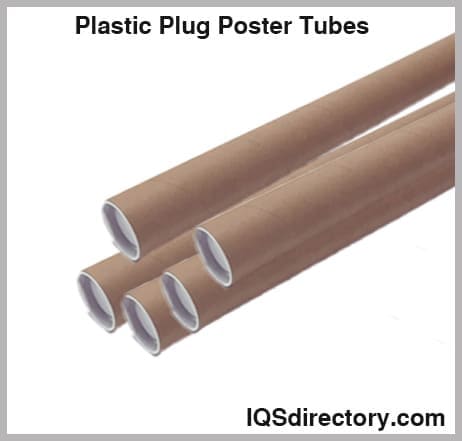

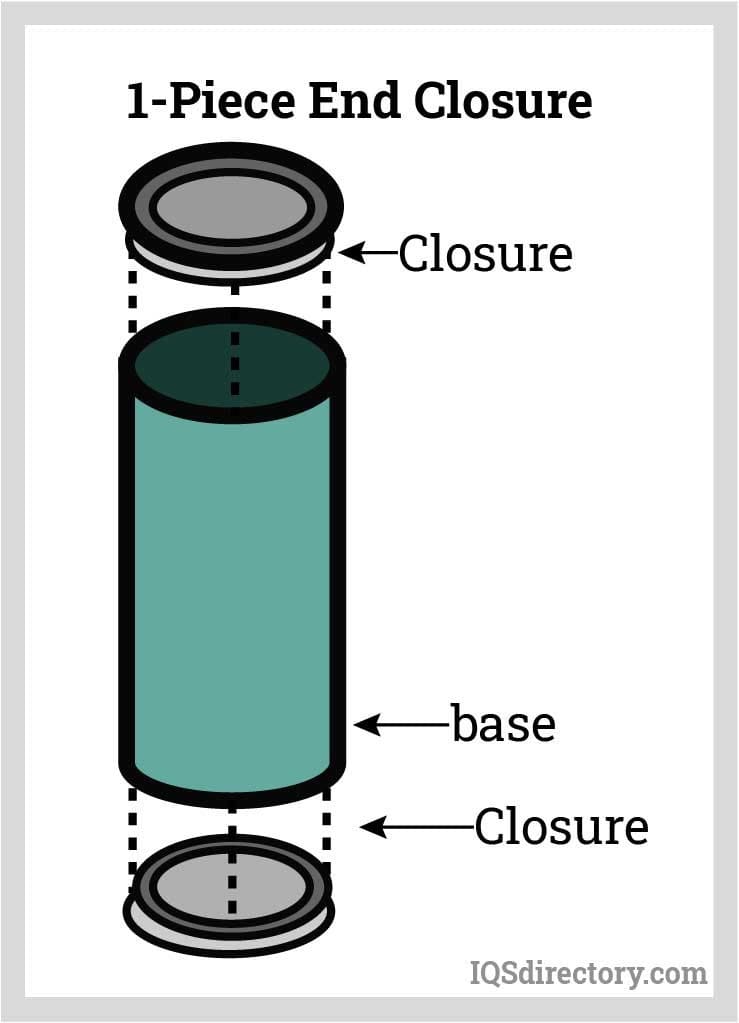

Shipping tubes are secured with metal or plastic caps or plugs, which are designed to snap snuggly into the ends of mailing, packaging, and shipping tubes. They have finger pull tabs for easy removal. Caps and plugs are sturdy and resilient enough to be used multiple times but retain their ability to securely fit and not pop out during shipping. Regardless of the size and shape of a shipping tube, caps and plugs are manufactured to be easily inserted into the ends for a tight flawless fit.
Adhesive is used to secure the cap and plug to the body of the paper shipping tube. This adhesive is usually a water-activated gum adhesive that is applied to the cap and plug before they are attached to the body of the tube.

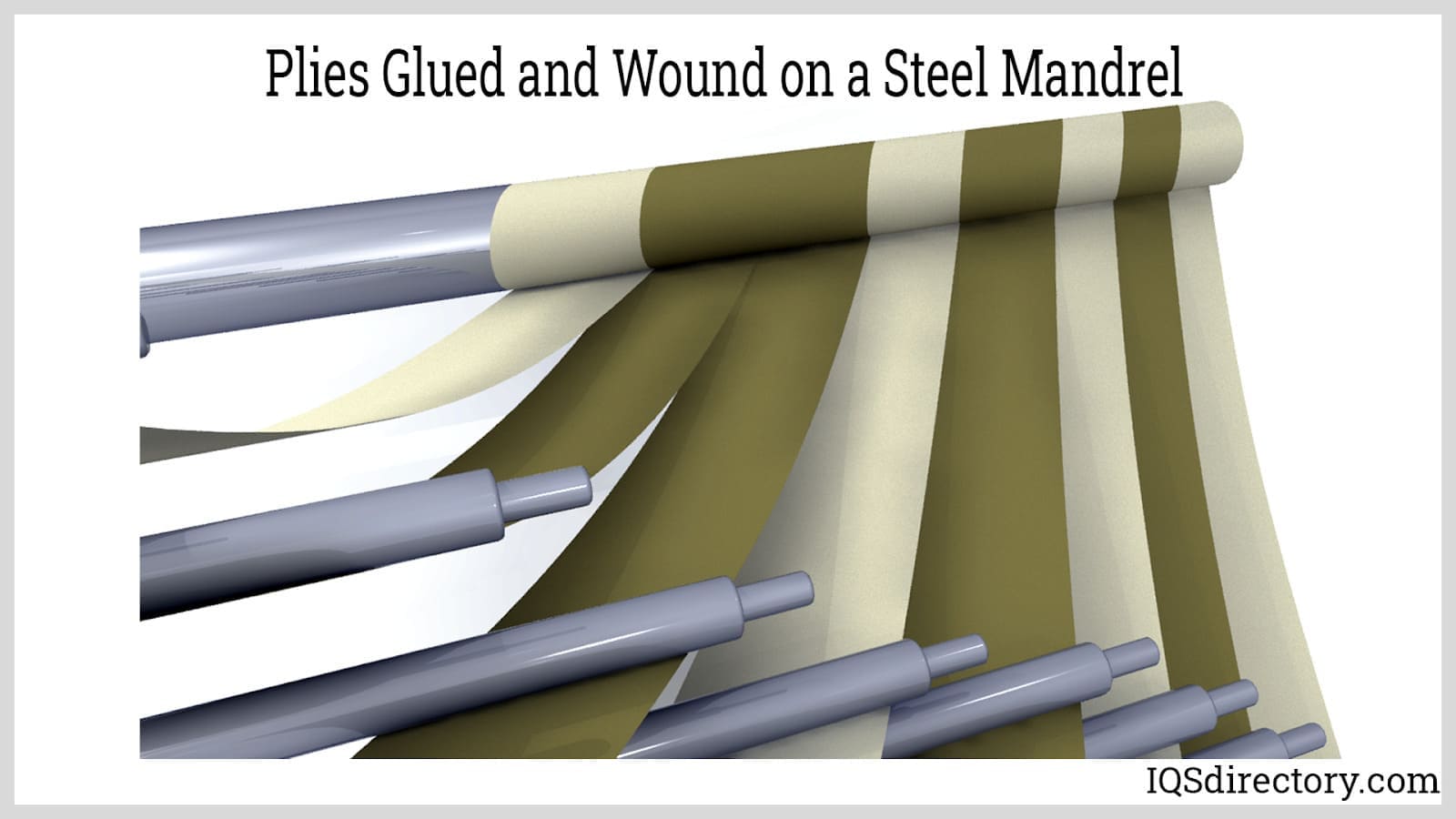

Paper shipping tubes are created by wrapping paper around a mandrel, then cut, formed, inserted with a cap and plug, and finished. Each of these steps are explained in greater detail below.
Creating the mandrel is the first step in the creation of a paper shipping tube.The mandrel for a paper shipping tube is typically made by wrapping a layer of kraft paper around a metal rod or tube. The paper is then glued in place, creating a solid core around which the body of the shipping tube can be formed.
The next step in creating a paper shipping tube is cutting the body of the tube to the desired length. This is typically done using a machine that can cut large rolls of paper to the appropriate size.
Once the paper has been cut to size, it is fed into a machine that forms it into a cylinder. This machine rolls the paper into a tube and applies adhesive to one side to hold the paper in place.
Once the tube has been formed, the cap and plug are inserted into the ends of the tube. These are typically applied by hand and are secured with the water-activated gum adhesive.
Finally, the paper shipping tube is inspected for quality control purposes and may be trimmed to the correct length or have additional labeling or printing added before it is shipped to the customer.
By understanding how paper shipping tubes are created and the components that make up the tube, businesses can make informed decisions about the types of tubes they need for their specific products and shipping needs.
Paper shipping tubes may be created from various types of materials with paper being the main type. Of the selection of paper, highly durable kraft paper that is used to make cardboard boxes is the most popular shipping tube material. Other types of papers include recycled paper, white paper, coated paper, foil-laminated paper, polyethylene-coated paper, and virgin paper.

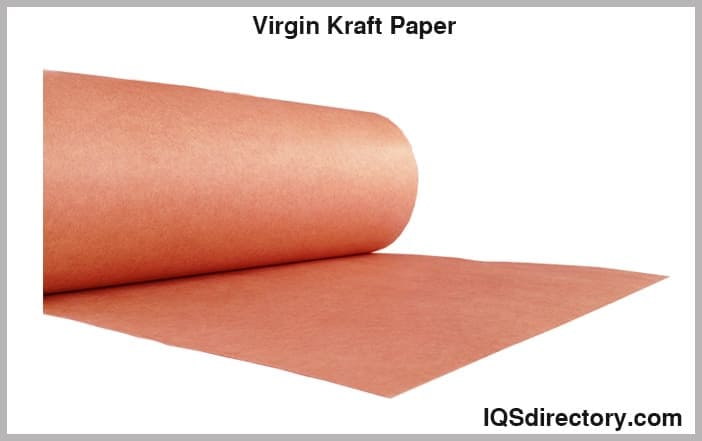

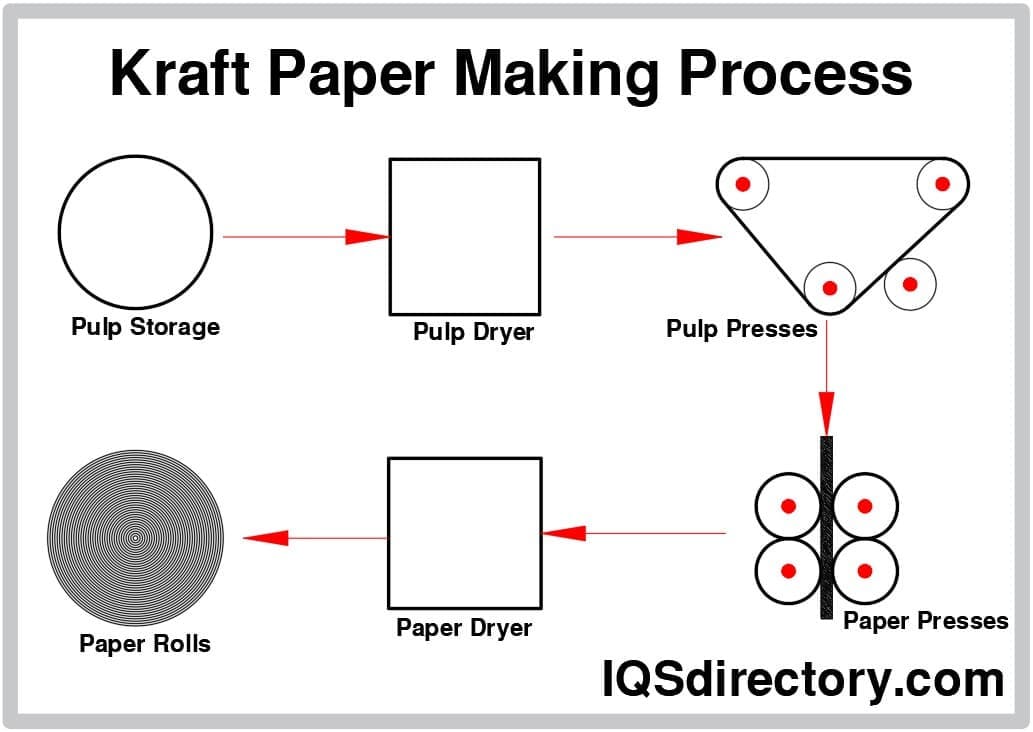

Kraft paper is a popular choice for paper shipping tubes due to its high strength and durability. It is made from wood pulp and is known for its natural brown color.
Recycled paper is an eco-friendly option for paper shipping tubes. It is made from post-consumer waste and has similar strength and durability to virgin paper.
White paper can be used for paper shipping tubes when a more polished and professional look is desired. However, it is generally not as strong as kraft paper.
Coated paper is a paper with a coating of a polymer or compound to improve its strength, durability, and water resistance. Coated paper can be used for shipping tubes when additional protection is needed, such as in humid or wet conditions.
Foil-laminated paper is a paper with a layer of foil laminated to one side to provide additional protection from moisture and light. Foil-laminated paper is commonly used for shipping tubes that will be exposed to extreme conditions during transit, such as international shipments.
Polyethylene-coated paper is a paper coated with a layer of polyethylene to improve its water resistance. This type of paper is commonly used for shipping tubes that will be exposed to moisture during transit.
Virgin paper is made from wood pulp harvested from responsibly managed forests and is the most durable paper material for shipping tubes.
By understanding the different types of papers used in paper shipping tubes, businesses can choose the right type of paper for their specific needs and ensure that their products are shipped safely and securely. It's important to consider the properties of each type of paper, such as strength, durability, and water resistance, when selecting the best option for your shipments.
One of the wonderful aspects of shipping tubes is the wide variety of them that are available. Manufacturers strive to create the perfect tube to fit the shipping conditions using the parameters and guidelines of their customers. In the twenty-first century, the constant advancements in product and part designs require new and unique shipping choices, including specially crafted shipping tubes.

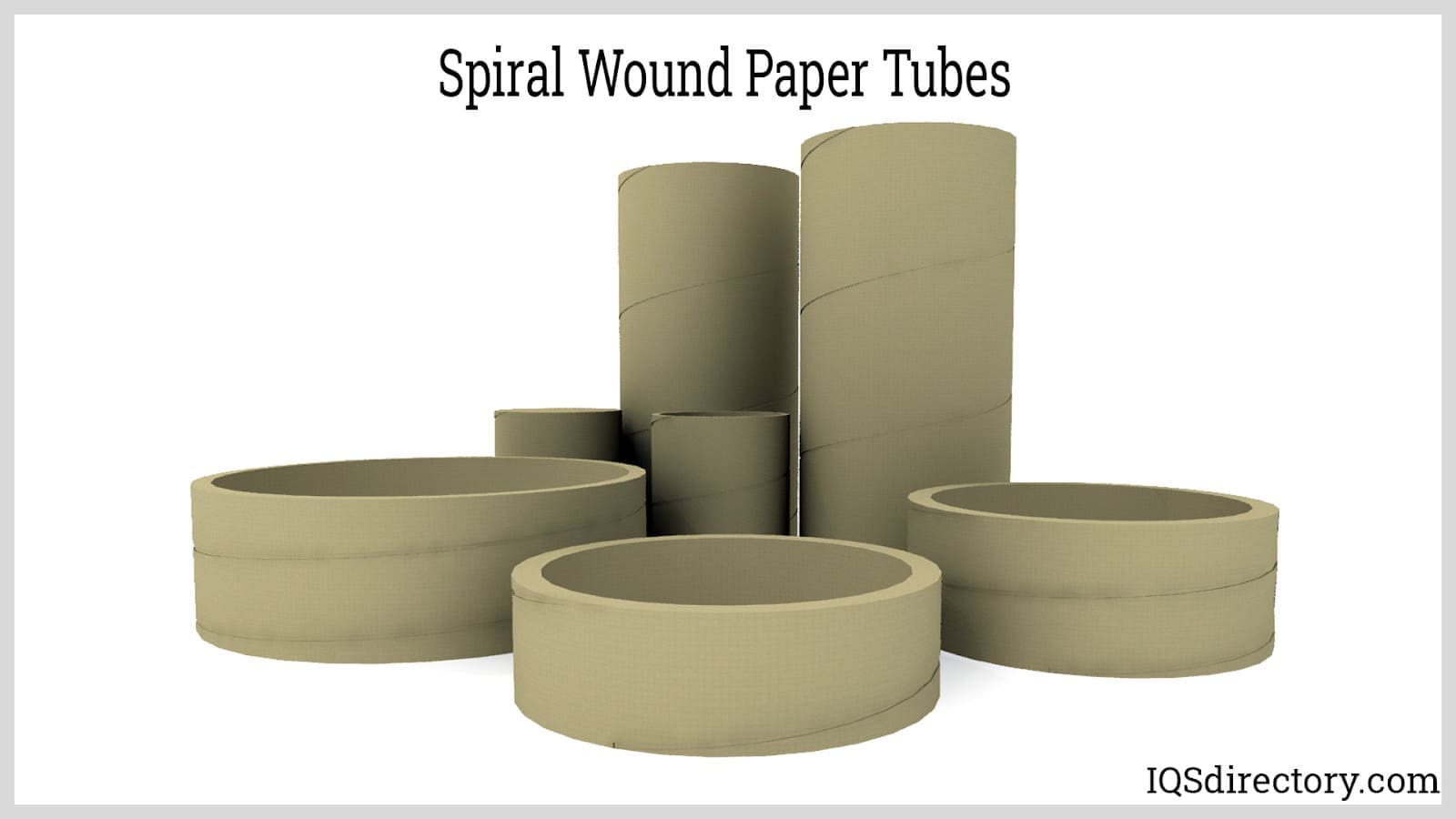

Spiral wound tubes are made by winding multiple layers of paperboard together in a spiral pattern. These tubes are highly durable and can withstand heavy weights and rough handling, making them suitable for shipping heavy items like metal rods and pipes.

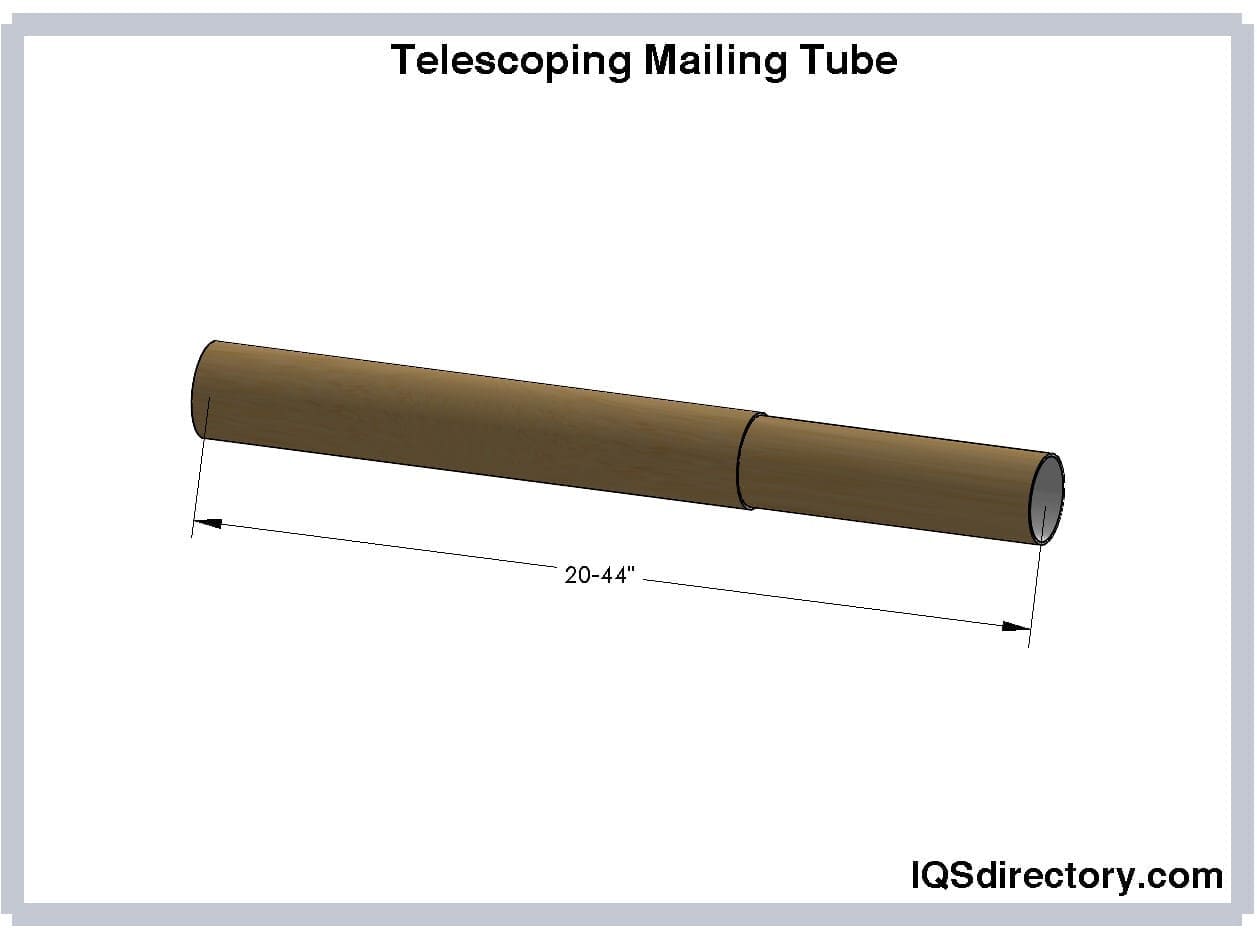

Telescope tubes consist of two parts, an outer tube and an inner tube that slides inside the outer tube. This design allows for easy adjustment of the length of the tube and makes them suitable for shipping items of varying lengths, such as posters, maps, and blueprints.

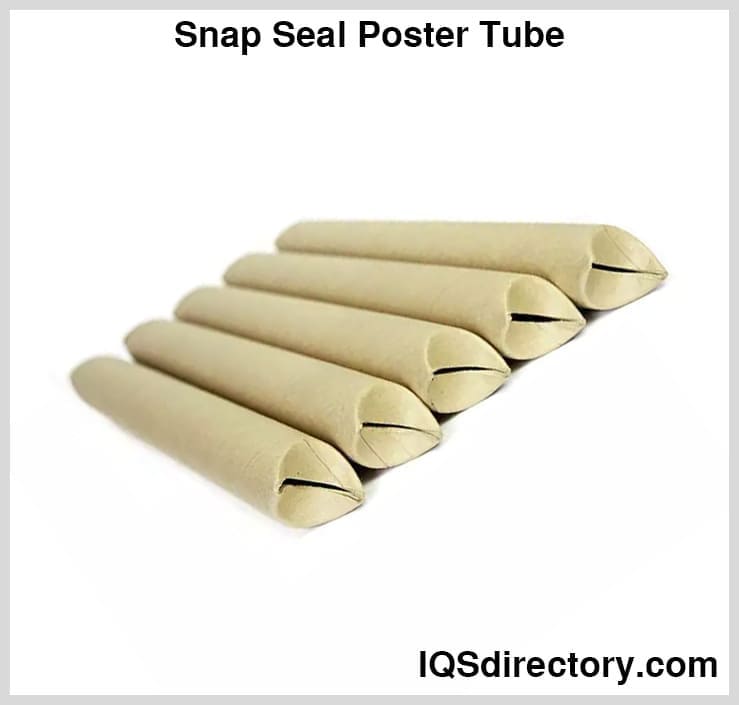

Snap-seal tubes feature end caps that snap securely into place without the need for additional tape or adhesives. These tubes are easy to use and ideal for shipping small, lightweight items like pens, pencils, and other office supplies.
Mailing tubes are a type of paper shipping tube specifically designed for mailing documents and other flat items. They are lightweight and easy to use, making them a popular choice for businesses that need to ship marketing materials, artwork, and other flat items.
Composite tubes are made from a combination of materials, such as paperboard and plastic, to provide additional strength and durability. These tubes are ideal for shipping heavy or fragile items that require extra protection.

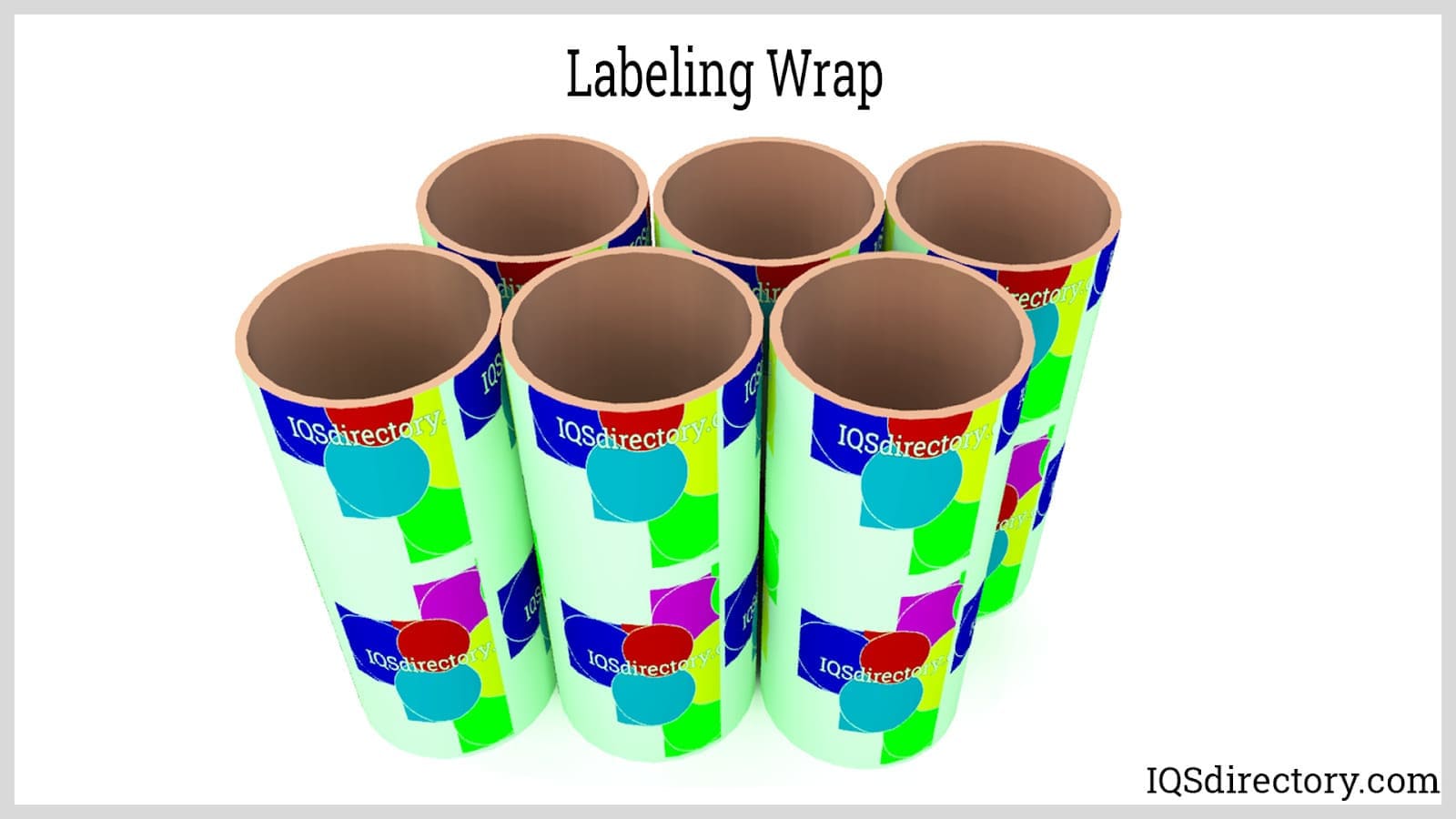

Custom printed tubes can be printed with logos, branding, and other marketing messages. These tubes are a great way to promote a business or product while providing safe and secure shipping for the items inside.
Colored paper shipping tubes can be used to add a pop of color to shipments or to help differentiate between different products or shipments.
Industrial paper cores and tubes are used in various industrial applications, such as the textile industry for winding yarn, the construction industry for holding concrete forms, and the film industry for holding film and photographic paper.

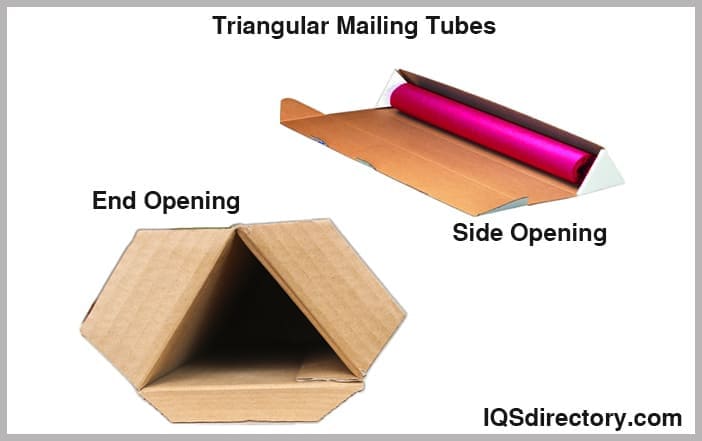

Triangular tubes have a triangular shape and are ideal for shipping rolled-up posters, maps, or blueprints.
Square shipping tubes lay flat when stored and unfold when ready for use. They are made of the same sturdy cardboard material as other shipping tubes but have four flat surfaces of varying dimensions. When unfolded, square shipping tubes have a flap at one end and an overlapping closed end. The square design keeps them from rolling while in transit and makes it possible to refold them when not in use. Square shipping tubes have locking tabs that keep them together without the use of glue or tape.
By understanding the different variations of paper shipping tubes and their applications, businesses can choose the right type of tube for their specific needs and ensure that their products are shipped safely and securely.
The process for selecting a shipping tube is an important choice especially in regard to the nature and type of materials that are being shipped or protected. The thickness of shipping tubes as well as their diameters vary in accordance with the size of the material. Blue prints are normally shipped in bundles with several prints connected, which requires a large diameter shipping tube while posters, large photos, and banners can be placed in smaller diameter shipping tubes.
The size of the shipping tube should match the dimensions of the item being shipped. It's important to measure the item accurately to ensure that the tube provides a secure fit.
The strength of the shipping tube should be appropriate for the weight and fragility of the item being shipped. A stronger tube should be used for heavier or more delicate items.
Paper shipping tubes are available in different materials, such as cardboard, kraft paper, and fiberboard. The choice of material will depend on the specific needs of the item being shipped.

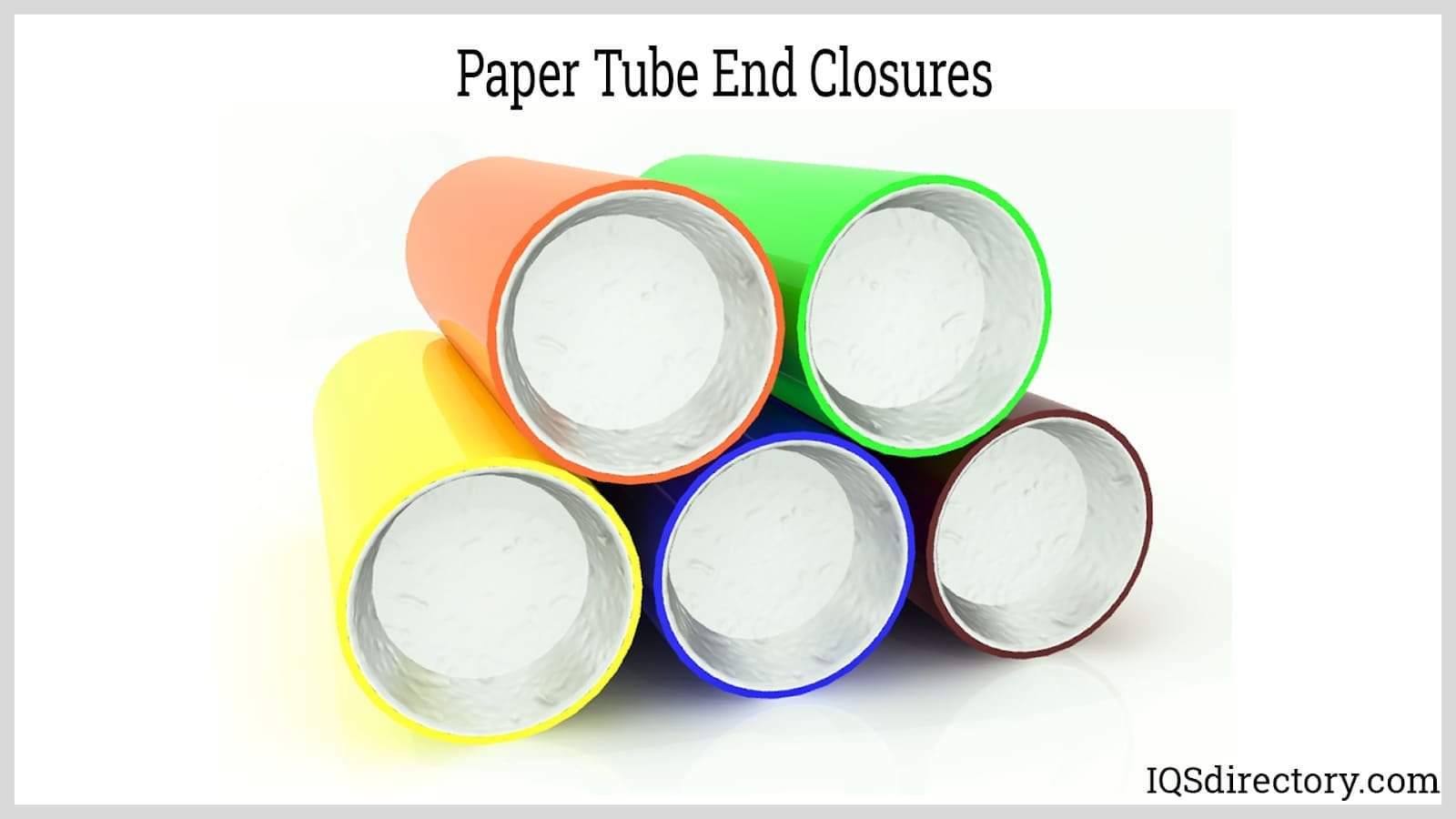

End caps or plugs are used to seal the shipping tube and prevent the contents from falling out during transit. They should be made of a strong material that can withstand the rigors of shipping.
The interior of the shipping tube can be lined with cushioning materials, such as bubble wrap or foam, to protect the contents from damage during transit.
Shipping tubes should be labeled with handling instructions and any necessary warnings, such as "fragile" or "this end up," to ensure that they are handled properly during transit.
Consider the environmental impact of the shipping tube. Choose tubes made from eco-friendly materials and ones that are easily recyclable.
The cost of the shipping tube should be factored into the decision-making process. While paper shipping tubes are generally less expensive than other packaging materials, businesses should consider the overall cost of the tube, including any custom branding or labeling.
The quantity of shipping tubes required should also be considered when making a decision. Businesses that require large quantities may be able to negotiate a lower price per unit.
By carefully considering these factors, businesses can select the right paper shipping tube for their specific needs, ensuring that their products arrive at their destination safely and securely.
In one study, a shipping tube company compared the cost of shipping a poster tube made of plastic versus a poster tube made of paper. The results showed that the paper tube was environmentally friendly and less expensive to produce and ship, which made it a cost-effective option.
Another study compared the durability of shipping tubes made of paper versus those made of plastic. It found that paper tubes were as durable as the plastic tubes and had the additional benefit of being recyclable and a sustainable option. Paper shipping tubes for large format prints in the print industry paper are an effective way for protecting prints during shipping and are more cost-effective than other packaging options.
A study completed for the food industry compared plastic versus paper tubes for packaging frozen fruit. It was found that paper tubes are able to maintain a product's quality and freshness during shipping and are environmentally friendly and a cost-effective solution.
Another study examined the use of paper shipping tubes in e-commerce for shipping clothing. The study found that the paper tubes were a more sustainable and cost-effective option compared to plastic bags and boxes. Paper tubes protected clothing during shipping and were easier to customize with branding and graphics.
One study compared the effectiveness of paper tubes versus plastic tubes in protecting sensitive electronic equipment during shipping. It was found that paper tubes are just as effective as plastic tubes in protecting equipment and are environmentally friendly and cost-effective.
These case studies and others like them demonstrate the viability of paper shipping tubes for all types of products and assemblies. Paper shipping tubes are environmentally sustainable, durable, cost-effective, and provide superior product protection.
The stability, resilience, and durability of shipping tubes has made them the perfect method for preventing large sheet materials from getting wrinkled, crushed, or torn during shipment. In addition, they are used by libraries and archives as a way for storing ancient precious documents in a sealed container. They can be easily placed on a shelf, categorized, labeled, and save for easy retrieval.
Paper shipping tubes are commonly used for mailing and shipping a variety of items such as posters, blueprints, maps, and documents. They offer protection from bending, creasing, and tearing during transit, ensuring that the contents arrive at their destination intact.
Paper shipping tubes can also be used for storing rolled-up items like carpets, rugs, and vinyl flooring. The tubes offer a secure and durable storage option that protects the items from dust, moisture, and other potential damage.

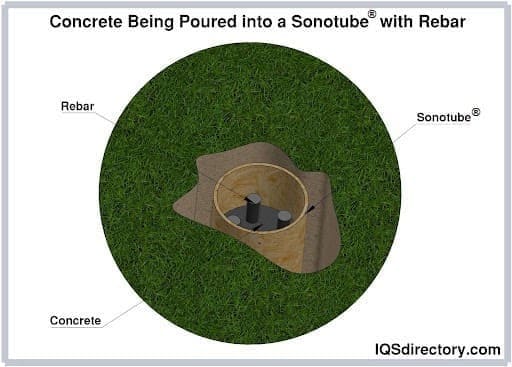

Paper shipping tubes can be used as concrete form tubes for creating pillars, posts, and footings. The tubes provide a temporary mold for the concrete to set in and can easily be removed once the concrete has dried.
Paper shipping tubes can be used in a variety of arts and crafts projects such as making paper mache sculptures, building model rockets, and creating DIY kaleidoscopes. The tubes provide a sturdy and durable material for creating 3D shapes and structures.
Paper shipping tubes can be used for storing and transporting medical and pharmaceutical products such as syringes, needles, and medical tubing. The tubes offer a safe and hygienic way to store and transport these items, protecting them from contamination and damage.
Paper shipping tubes can be used for packaging and storing food and beverage items such as coffee, tea, and spices. The tubes offer airtight storage that helps to maintain the freshness and quality of the contents.
Paper shipping tubes can be used for packaging and storing cosmetic items such as lip balms, lotions, and creams. The tubes offer a sustainable and eco-friendly alternative to plastic packaging and can be easily recycled.
Paper shipping tubes can be used for packaging and storing textiles such as fabrics, ribbons, and lace. The tubes offer a durable and protective storage option that helps to prevent the items from wrinkling or creasing.
Paper shipping tubes can be used for creating DIY toys such as telescopes, binoculars, and kaleidoscopes. The tubes provide a sturdy and lightweight material that can be easily decorated and customized.
Paper shipping tubes can be used for protecting and transporting plant cuttings, seedlings, and saplings. The tubes offer a safe and secure way to transport these items without damaging the delicate roots and stems.
Paper shipping tubes are an excellent packaging solution for delicate items as they can be customized to fit the exact dimensions of the item, lined with cushioning materials, labeled with handling instructions, and sealed with end caps or plugs.
The United States Postal Service (USPS), e-commerce companies, and shipping companies have multiple regulations and standards regarding packaging of materials for shipment. Most shipping companies have approved shipping tubes for sale and supply large shippers with shipping tubes that meet shipping stipulations. The various regulations are for the protection of the shipper and their insures to protect them from paying for lost or damaged items.
The Federal Trade Commission's Green Guides provide guidelines for marketers to make truthful and non-misleading claims about the environmental attributes of their products, including shipping tubes.
The CPSC regulates products that pose a potential risk to consumers, including packaging materials. Businesses should ensure that their paper shipping tubes comply with CPSC regulations to avoid potential penalties and legal action.
The FDA regulates food packaging to ensure that it is safe for human consumption. Paper shipping tubes used for food packaging must comply with FDA regulations, including those related to food contact materials.
The EPA regulates the disposal of packaging materials to prevent environmental damage. Businesses should ensure that their paper shipping tubes are disposed of properly to comply with EPA regulations.
OSHA sets safety standards for workplaces, including regulations related to handling and storing packaging materials. Businesses should ensure that their employees are trained on OSHA regulations to prevent workplace injuries.
In addition to these US laws and regulations, businesses that export or import paper shipping tubes should be aware of international laws, regulations, and organizations including:
ISTA provides testing and certification services for packaging materials, including paper shipping tubes, to ensure that they can withstand the rigors of international shipping.
The IMDG Code provides regulations for the transport of dangerous goods by sea, including regulations related to packaging and labeling. Businesses that ship hazardous materials in paper shipping tubes must comply with the IMDG Code.
The IATA provides regulations for the transport of goods by air, including regulations related to packaging and labeling. Businesses that ship goods in paper shipping tubes by air must comply with IATA regulations.
The FSC is an international organization that sets standards for responsible forest management. It aims to promote environmentally appropriate, socially beneficial, and economically viable forest management practices. FSC certification ensures that the paper used in the manufacturing of paper shipping tubes comes from forests that are managed in a responsible and sustainable manner.
Sustainability certifications are a way for businesses to demonstrate their commitment to environmental and social responsibility. For paper shipping tubes, a widely recognized sustainability certification is given by the Forest Stewardship Council (FSC).
To obtain FSC certification, a paper shipping tube manufacturer must undergo a certification process that involves being audited by an independent third-party auditor who assesses the manufacturer's forest management practices to ensure FSC's standards. The standards cover the conservation of natural resources, protection of wildlife and habitats, respect for indigenous peoples' rights, and adherence to local and international labor laws. Once certified, a company can display the FSC logo on their products and marketing materials.
Other sustainability certifications for shipping tubes include Sustainable Forestry Initiative (SFI) certification, Programme for the Endorsement of Forest Certification (PEFC) certification, and Cradle to Cradle certification. The SFI promotes responsible forest management practices for paper products, including shipping tubes. PEFC ensures that paper products come from forests that meet environmental, social, and economic standards. Cradle to Cradle assesses a product's environmental impact during its lifecycle to ensure shipping tubes are designed for maximum sustainability and safety.
Sustainability certifications are an important way for businesses to demonstrate their commitment to environmental and social responsibility. Despite the many options presented pertaining to certification for paper shipping tubes, however, FSC certification is one of the most widely recognized and respected sustainability certifications, and it can be a valuable selling point for companies that prioritize sustainability.
There is an endless list of benefits and reasons why shipping tubes have become a popular part of product movement and storage. What shippers look for in a shipping container is durability at the right price, which is a major component of shipping tubes. Packaging designers and engineers have spent years perfecting the process for producing shipping tubes. They pride themselves on developing custom made shipping tubes that meet the unique requirements of unusual applications.
Paper shipping tubes offer excellent protection for the contents they carry. They prevent bending, creasing, and tearing during transit, ensuring that the contents arrive at their destination intact.
Paper shipping tubes can be customized to fit the exact dimensions of the item being shipped. This ensures a secure and snug fit, preventing any movement or shifting during transit that could potentially damage the item.
Paper shipping tubes are lightweight, making them a cost-effective shipping solution. They also help to reduce the carbon footprint associated with shipping as they require less energy to transport than heavier materials.
Paper shipping tubes are made from renewable resources and are easily recyclable. They are an eco-friendly alternative to plastic packaging, which can take hundreds of years to decompose.
Paper shipping tubes can be used in a variety of industries and applications, including mailing, storage, construction, arts and crafts, medical and pharmaceutical, food and beverage, cosmetics, textiles, toys, and agriculture.
Paper shipping tubes can be printed with custom designs, logos, and branding, making them an excellent marketing tool for businesses.
Paper shipping tubes are generally less expensive than other packaging materials such as plastic, metal, or wood, making them a cost-effective option for businesses.
Paper shipping tubes are strong and durable, able to withstand the rigors of transit and storage without breaking or tearing.
Paper shipping tubes are easily recyclable, making them a sustainable and environmentally friendly packaging option.
Shipping tubes are a marvelous invention that have greatly improved the quality of shipping products. As with all types of products, there are factors that have to be considered when using shipping tubes such that they offer optimum performance. Regardless of how sturdy paper can be made, it is still paper and susceptible to a certain amount of damage.
Paper shipping tubes are susceptible to moisture damage, which can weaken the tube and compromise the contents inside. This can be a particular concern for items that are sensitive to moisture.
While paper shipping tubes are recyclable, they have limited reusability. Once a paper shipping tube has been used, it cannot be reused for the same purpose as it may no longer provide adequate protection.
Paper shipping tubes are generally available in a limited range of sizes and shapes. This can make it difficult to find a tube that is suitable for larger or irregularly shaped items.
Paper shipping tubes provide some protection for the contents inside, but they may not be as secure as other packaging options. For example, paper shipping tubes may be easier to cut or puncture than plastic or metal containers.
While paper shipping tubes are generally less expensive than other packaging materials, the cost can add up over time for businesses that use them frequently. Additionally, customizing paper shipping tubes with branding or logos can increase the cost further.
Additionally, the creation of paper shipping tubes can have environmental impacts, such as deforestation and energy consumption. It's important for businesses to carefully assess these considerations before deciding what type of paper shipping tube to purchase, or if paper shipping tubes are the right packaging solution for their needs. By weighing the pros and cons, businesses can make an informed decision that best meets their specific requirements.
The future of paper shipping tubes is bright, as more businesses and consumers are becoming aware of the environmental impact of plastic packaging and more paper shipping tubes manufacturers realize the importance of such environmental considerations. As e-commerce continues to dominate the market, shipping tubes are destined to become an important factor in future shipping needs.
With the rise of e-commerce, there is a growing demand for sustainable and cost-effective packaging solutions. Paper shipping tubes are an ideal solution as they can protect products during shipping while also being easy to customize and recyclable. In the future, we can expect to see an increased use of paper shipping tubes in the e-commerce industry.
As technology and manufacturing techniques improve, we can expect to see more innovative designs for paper shipping tubes. For example, companies may develop new ways to fold and seal paper tubes, making them more secure during shipping. Additionally, advancements in printing technology could allow for high-quality graphics and branding to be printed directly onto the tubes.
While paper shipping tubes are currently used for a variety of applications, there is potential for them to be used in even more industries and applications in the future. For example, paper tubes could be used for shipping hazardous materials, as they are more eco-friendly than plastic or metal containers.
Technological advancements are also making paper shipping tubes more durable, water-resistant, and customizable. As a result, paper shipping tubes may become more widely available in different sizes, shapes, and materials, providing more options for businesses and consumers in the future.
