This article takes an In-depth look at Sump Pumps
You will learn more about topics such as:
Battery-powered sump pumps function similarly to other types of sump pumps. They activate when the water reaches a set level, using a float to pump out the water. The key difference is that battery-operated models continue to work even during a power outage.
When the power goes out, the switch activates the battery backup system, ensuring the sump pump continues to operate without interruption. During storms that disrupt power lines, the backup battery system provides the necessary power. The sump pump's performance remains unaffected by the loss of electricity.
When deciding to buy a battery-powered sump pump, consider two key factors. Properties below the water table often face excess water issues and depend on a reliable sump pump. For optimal protection, having a battery-operated sump pump is both crucial and wise.
Rural and wooded areas often experience frequent power outages. In these situations, a battery-operated sump pump is crucial for safety and should be considered as a backup measure. Sump pumps are essential household tools that are often overlooked until they fail and flooding occurs.
Battery-operated sump pumps come in various capacities, from small units to those capable of handling sewage from septic tanks. The crucial factor in choosing the right pump is the size of the sump pit. Smaller pits, while less costly, can stress the pump and lead to burnout. Additionally, consider how frequently the power goes out and the types of storms in your area.
A battery sump pump can be a crucial safety feature, protecting against water damage and unexpected expenses, regardless of other decision factors.
In facilities with sump pumps, having a backup sump pump is crucial to protect against water damage from heavy rain, power outages, and spring snow melt. Primary sump pumps need electrical power to operate and manage water levels. If power is lost, basements can flood, leading to severe damage and costly cleanup to prevent toxic mildew growth. A 12-volt battery backup sump pump system provides a reliable power source during outages, ensuring continued protection. These backup systems use heavy-duty batteries to serve as a power reserve and safeguard for the primary sump pump.
While backup sump pumps may not match the power of primary pumps, they can still deliver enough power during an outage to keep the system running. These pumps are housed in a water-sealed case to avoid battery shorts, and they feature alarms to alert you when they are activated.
12-volt battery sump pumps provide additional protection during power outages and complement primary sump pumps. They serve two main functions: First, they act as a backup when the primary pump can't handle rising water levels, boosting pumping power. Second, they keep working during power outages, ensuring continued operation.
Chemical sump pumps, also known as chemical-resistant sump pumps, are constructed from materials that resist corrosion and are built to manage corrosive and toxic liquids. Unlike standard sump pumps, every component of a chemical-resistant sump pump—including the impeller, casing, motor frame, outer cover, strainer stand, bend, flange, and sealed parts—is made from materials that can withstand the specific chemicals being pumped. These pumps are also designed to endure the pressure and temperature associated with handling such chemicals.

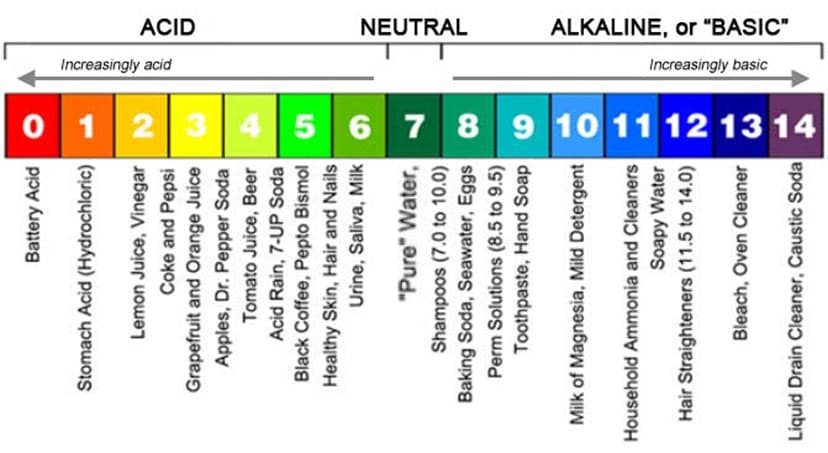

The composition of a chemical sump pump depends on the pH level of the fluids it handles. The pH scale ranges from 0 to 14, with 0 to 6 indicating highly acidic substances, 8 to 14 representing alkaline or basic substances, and 7 being neutral, like pure water. The pH scale measures acidity or alkalinity. For example, vinegar and lemon juice are acidic, while laundry detergent and ammonia are alkaline.
Chemical sump pump manufacturers specify the pH levels their pumps can handle. Most chemical sump pumps are designed to handle a wide range of chemicals. These pumps are typically made from precipitation-hardened (PH) stainless steels, which include chromium, nickel, and iron, as well as smaller amounts of copper, molybdenum, niobium, titanium, and aluminum.
Vertical sump pumps are designed for manufacturing operations, handling clean or slightly contaminated liquids, slurries, and liquids with large solids. Unlike submersible pumps, the motor for vertical sump pumps is positioned at the top, while the pumping head remains submerged in the liquid. These pumps feature a separate discharge pipe and support column. Versions of vertical sump pumps include those with a line shaft and slide bearings or a cantilever design without bearings.
Vertical sump pumps are designed to remove liquids from tanks or wells. They come in various shapes, sizes, and capabilities to meet diverse needs, all featuring a vertical design. These pumps are suitable for high or low-temperature environments and can handle liquids with varying pressures, including corrosive, flammable, and challenging substances like acidic chemicals.
Vertical sump pumps feature impellers and part of their casing submerged in the fluid being pumped, while the main power mechanism remains above the fluid. The fluid first enters the suction bell and then moves to the initial stage impeller, which increases its velocity for entry into the next impeller. Vertical sump pumps are known for their durability, high efficiency, and exceptional reliability.
A diaphragm switch, or atmospheric pressure switch, is a specialized device for activating a sump pump. It can be installed either vertically or horizontally. Vertical switches are positioned at the top or bottom of the pump, requiring more space and making them suitable for larger pits. In contrast, horizontal switches are mounted on the side of the pump and are ideal for smaller pits with limited space due to their compact size.
The safety of diaphragm switches stems from their design. Unlike traditional sump pumps that rely on floats, which can become obstructed by pipes or the pit walls, diaphragm switches use pressure to operate. As water levels in the pit rise, the pressure on the switch increases. When the water level reaches a certain point, it compresses the diaphragm switch’s bladder, activating the pump. Once the water level drops and the pressure decreases, the switch deactivates, turning off the pump.
Diaphragm switches are primarily used in tight, congested spaces where there's little room. Unlike floats, diaphragm switches aren't adjustable and require precise installation.
A common sump pump is typically a centrifugal pump. When the float activates the motor, an impeller, which is a screw-type device, spins and pushes water toward the sides of the pipe. This spinning action creates a low-pressure area in the center of the pipe. Water from the sump pit is then drawn into this void and is pushed by the impeller through the pipe and out of the building.
A combination sump pump provides all the features of a traditional sump pump with added protection. It features a primary pump and a backup pump for extra security in case the main one fails. This system is convenient and easy to install. It also includes a battery to power the backup pump if the primary pump stops working.
When the primary system fails, an alarm triggers the backup pump to seamlessly take over. Typically, the backup system remains active until the primary is fixed or power is restored. A combination system features a primary sump pump, a backup sump pump, a controller, and a battery case.
When choosing a combination system, several factors are crucial. First, ensure a dependable sump pump switch is installed to activate precisely when needed. Next, install the alarm correctly to ensure seamless communication between the primary and backup systems. New technology now offers smart sump pump systems that integrate all components. These systems can alert you to issues with the float switch, alarm, primary or backup sump pumps, and other critical parts.
A common issue with sump pump systems is neglecting them until they break down. Regular inspections and maintenance of the sump pump are crucial to ensure its proper functioning.
A floor sucker sump pump is ideal for areas lacking a built-in sump pump system. Unlike standard sump pumps, it is portable and can be repositioned as needed. It's designed to remove excess water from floors and crawl spaces. While it doesn't offer protection, it's useful for draining water from flooded areas.
The pump sits directly on the floor without connecting to a sump pit or drain. It removes water from an already flooded floor. While automatic versions exist, most operate manually and require monitoring during use. A floor sucker is ready to work as soon as it's in position, needing no additional components. If a sump pump system is in place, a floor sucker can act as an emergency backup, provided you have electricity.
Floor sucker pumps come in automatic and manual options and can be connected to a garden hose. While they're mainly used to protect basements, they’re also effective for removing water from other areas like air conditioning units or fountains. Ideal for any situation with potential water or liquid spillage, these pumps swiftly collect and remove liquids, including water from pool covers.
Installing a sump pump can be costly, especially if one isn’t already in place. A floor sucker sump pump offers a budget-friendly option for removing standing water during or after a storm. High-quality models can be found for under $200 and typically include hoses and accessories. The price varies based on horsepower, ranging from 1/4 to 1/6 HP, and the length of the power cord. However, you can easily address cord length with an industrial-strength extension.

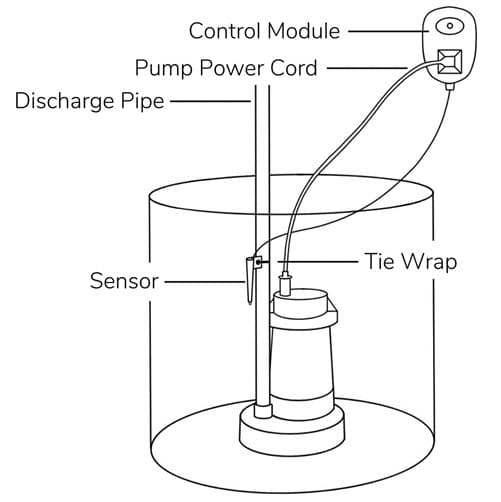

An electronic sump pump switch functions like an electrical appliance: it plugs into the nearest outlet, with the pump connected to the switch, and the switch then plugged into the outlet. These switches represent the latest advancement in sump pump technology, with most models being introduced within the last five years.
Electric sump pump switches are popular because they lack moving parts, making them easy to use. Unlike traditional switches with diaphragms or floats, these electronic switches use a sensor to monitor the water level in the pit. When the water reaches the sensor, it activates the pump. When the water level falls below the sensor, the pump is turned off.
Among sump pump switches, electronic models are compact and highly reliable. Their performance depends on a stable power source and a pump with an amp rating that matches the switch’s requirements. With no moving parts, electronic sump pump switches usually outlast the pump itself.
Pedestal sump pumps are installed in a water collection pit above the water line. They sit on a pipe to stay above the incoming water level. A water sensor or float gauge measures the water in the sump pit. When the water reaches a certain level, the system kicks in to pump out the excess water.
A sump pump’s primary role is to keep areas prone to water damage dry. They’re crucial in regions with heavy snowfall and rain, serving as a safeguard against flooding and the associated costs of water damage. Among the various types, a pedestal sump pump is the most cost-effective.
Pedestal sump pumps offer a key benefit: they can automatically remove large amounts of water with minimal effort. When the sump pit fills, the float triggers the pump, efficiently clearing the excess water. Typically, areas prone to excess water already have a sump pump in place.
In areas with heavy snowfall and rainfall, a sump pump is essential for safety. A pedestal sump pump is often the top choice. Installation involves cutting a hole at the lowest point in the foundation to install a sump pit. Choosing the right pit size is crucial. While smaller pits are cheaper, they may cause the sump pump to overwork, potentially leading to motor burnout.
Sump pumps often get overlooked until they break down, but regular checks are crucial. Ensuring your sump pump is working properly can prevent major issues. Many problems are easy to fix with minimal effort, including issues with electrical connections, water intake and discharge, or the float mechanism. Regular maintenance can help you avoid significant damage.

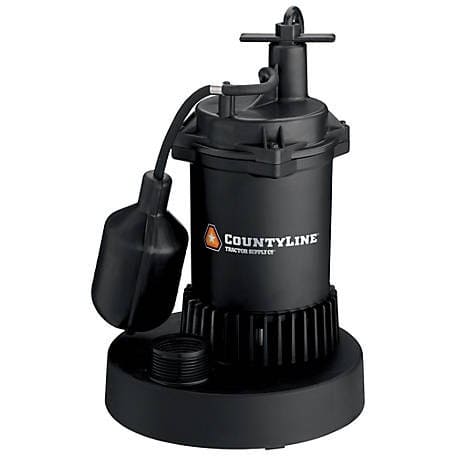

A submersible sump pump sits in the sump pit and operates while fully submerged in water. True to its name, it functions underwater and features a motor enclosed in a watertight casing. This design is favored for its quiet operation and minimal noise.
A submersible sump pump uses a sensor to detect when water in the sump pit reaches a high level. An impeller, which is a rotor blade designed to boost water flow, pushes the excess water out through a connected pipe. The water is then redirected away from the property into a sewer or drainage system.
While all sump pumps are designed to remove excess water, submersible sump pumps offer distinct advantages over non-submersible ones. Submersible sump pumps use direct pressure through a pipe or hose to expel water, making them more effective than suction-based methods. This approach covers a greater distance and ensures more efficient water removal.
A submersible sump pump doesn’t need priming to start working, unlike non-submersible pumps that need water added. This feature allows the submersible pump to activate immediately upon installation. Additionally, because submersible sump pumps don’t require priming, their motors are better protected against burnout or damage. In contrast, non-submersible sump pumps require priming, which can lead to a higher risk of motor burnout.
Among the different types of sump pumps, submersible pumps handle the largest volume of water. With a battery backup, they offer strong protection against flooding and water damage.
Regularly checking your sump pump is crucial, just like with any key household device. Fortunately, submersible sump pump systems require less maintenance, so you won’t need to inspect them as often.
Water-powered sump pumps are a reliable choice during power outages, which is crucial during severe storms. These pumps operate using the home's water supply instead of electricity. They can pump two gallons of water out of the sump pit for every gallon of water used. Like other sump pumps, a float mechanism triggers the pump when water reaches a certain level.
Because a water-powered sump pump relies on water as its energy source, it doesn’t waste water or energy. The water used for power is redirected to storm sewers or absorbed back into the earth, leaving no by-products, waste, or excess.
The water sump pump operates using water pressure. When the water level in the sump pit rises, the float in the pit triggers a valve through a base pump ejector. This action creates suction, pulling water up from the pit and expelling it outside. The pump keeps working until the float returns to its normal position and the pit is fully drained.
Water-powered sump pumps are built to be corrosion-resistant and require minimal maintenance due to their few mechanical parts. They can run continuously without a time limit. Even during extended power outages, these pumps will keep functioning for days or weeks, provided there is a water supply.
To ensure a water-powered sump pump works efficiently, the home's water pressure should range from 40 to 90 PSI. For the best performance, use copper pipes for the sump pump connection. While PVC and other types are acceptable, they might not perform as well. Avoid or replace galvanized piping. The sump pump connects directly to the municipal water system, just after the meter.
Sump pumps provide essential protection, safety, and peace of mind. Excess water can cause severe damage to keepsakes, furniture, carpets, and valuables. Installing a sump pump helps prevent such disasters. The process starts with digging a sump pit to collect and drain the water.
In a foundation, water often collects in low spots. To effectively plan a sump pit, locate the lowest area in your basement or crawl space. This is where water runoff will naturally accumulate.
While the low spot is often the main concern, it’s important to consider one more factor. Depending on the property’s construction, there could be drain lines or utility lines near or within the low spot. When planning a sump pit, proceed carefully, keeping an eye out for potential blockages or utilities.
The pit should be positioned away from any openings. This placement prevents temperature drops from freezing the system and stops debris or excess water from entering the sump pit. Even though sump pumps operate with basic mechanisms, protecting them from external factors is crucial.
To ensure proper function and maintenance, keep at least two to three feet of clear space around the sump pit. This allows easy access for testing and servicing the pump. It also protects valuable items from potential damage if the pump malfunctions.
The standard sump pit measures two feet wide and two and a half feet deep. Ensure the pit is free from roots, large rocks, or other obstructions, similar to drains or utility lines. The hole should match the size of the liner. You may need to rent a jackhammer to cut through the concrete floor.
The sump pump liner, or basin, is a round plastic container with perforations. These holes allow water rising from the soil to collect in the liner while keeping gravel and debris out of the sump pit. Although plastic is the most common material used, liners are also available in fiberglass and cast iron.
The liner must be level and fit snugly into the pit. Fill any gaps or voids with dirt to secure the liner. Ensuring the liner remains level during installation is crucial. Improper installation can lead to damage to the sump pump from debris or dirt. A properly installed sump pit liner ensures your sump pump operates smoothly for years.
The last step in the installation process is to smooth the edges of the sump pit. This accomplishes two things: it ensures a tight fit for the liner, preventing it from shifting during operation, and it makes maintenance and inspection of the pump easier.
A sump pit is a water reservoir positioned below floor level, where the pump body and intake system are installed. Most sump pit liners, ranging from 20 to 30 gallons, are available at local stores. These liners are typically made of durable polyethylene plastic, resistant to corrosion, acid, alkali, and frost. It’s best to avoid smaller liners under 20 gallons. Although they may be cheaper, they can cause the sump pump to overwork and eventually fail.
For a new installation, you'll need to cut a hole in the concrete foundation floor, which may require renting a jackhammer. Ensure that the top edge of the sump pit, where the lid will sit, is slightly lower than the floor level. This setup helps effectively collect water from issues like a broken pipe or a leaky hot water tank. Seal and smooth the broken concrete around the sump pit edges with pre-mixed mortar to ensure a permanent seal for the lid.
Sump pumps typically feature a 1 ¼" threaded connection for PVC pipes but can be adapted to fit a 1 ½" pipe thread using an adapter. The 1 ½" pipe thread is a standard size and widely accessible. To stop water from flowing back into the sump well when the pump turns off, attach a check valve. This valve can be easily installed with clamps and a screwdriver.
To ensure a solid, watertight connection, clean and prepare the PVC. Sump pumps are typically connected to a ground fault circuit interrupter (GFCI), which should be checked regularly for faults. Use heavy-duty, industrial-grade extension cords that can handle the sump pump's electrical load. The outlet must be on a breaker of the correct size and on a separate circuit to avoid overloading from other connections.

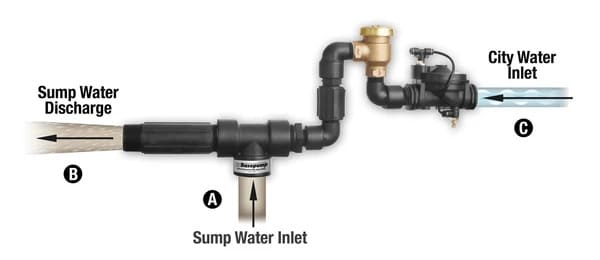

A water-powered sump pump uses city water as its power source. Water from the main supply flows through a narrow area, increasing its speed and creating a pressure drop. This pressure drop pulls water from the sump pit. The combined city and sump pit water is then expelled through a discharge line. No electricity is needed, and the pump operates automatically. It's a reliable backup during power outages, as it relies on municipal water pressure when electric sump pumps are offline.
A correctly installed water-powered backup sump pump can safeguard your home even in the harshest conditions. One major advantage is its low maintenance, as it lacks a motor and features a straightforward design.
A water-powered backup sump pump is installed above the main sump pump and operates alongside it when needed. Different types of water-powered sump pumps are available, so choose one based on your specific needs and situation.
As environmental protection efforts grow, a water pressure backup sump pump offers an energy-efficient solution. It runs on water pressure, eliminating concerns about battery disposal, gas, or other environmental impacts from electricity generation. Its easy installation makes it an ideal choice for a backup sump pump.
In regions with significant water issues, installing a sump pump is essential. These devices are typically placed in the lowest part of the foundation and are designed to activate when water in the sump pit reaches a certain level. When considering the purchase of a property, it’s crucial to inspect for visible water damage and to check whether a sump pump is installed. Properties in areas prone to heavy rainfall and snow runoff are especially susceptible to flooding and water damage.
The ideal sump pump is a submersible model that remains below the water level in the sump pit and can be covered with a lid to minimize noise. The airtight lid helps prevent moisture from escaping. Submersible sump pumps activate when the water level in the sump pit rises, efficiently pumping the water out through a pipe connected to the pit.
The most durable sump pumps feature a cast iron core, known for its sturdiness and long lifespan. While plastic-core sump pumps are more affordable, they lack the durability of their cast iron counterparts. Additionally, cast iron sump pumps can dissipate heat buildup into the surrounding water, further extending their operational life.
A well-designed sump pump features an intake without a screen and includes an impeller capable of handling solids up to half an inch in size. The impeller increases the pressure of the water entering the sump pit, pushing it away from the pump and the surrounding buildings.
The switch on a sump pump is crucial and must be specifically designed for reliable performance during emergencies. Mechanical switches are generally preferred over pressure switches for optimal functionality. The float, which sits in the sump pit water, triggers the switch when the water level rises too high. It should be sturdy to prevent clogging or failure to shut off properly.
In areas where electrical outages are a concern, installing a backup sump pump is a wise precaution. These pumps run on battery power, ensuring operation even during power failures. They provide essential protection, especially in regions prone to heavy rain or snow. Many backup systems are equipped with an alarm that activates the secondary pump and alerts you if the primary sump pump fails.
Combination packages are available that include both a primary and backup sump pump, along with an alarm system, controller, and battery casing. These comprehensive packages offer a secure and convenient solution for managing flooding issues.
A sump pump is a crucial, yet often overlooked, piece of disaster prevention equipment. When it fails, it can lead to substantial damage, costly repairs, and higher insurance premiums. Investing a bit of time and money in maintaining or upgrading your sump pump is a wise and cost-effective way to prevent such issues.
A common preventative measure is to keep a replacement pump on hand in case the primary pump fails. However, having a spare won't help if you're away during a power outage or if the pump fails while you're asleep during a storm. A sump pump backup system offers a more reliable solution, as it automatically activates if the primary pump fails, regardless of the reason.
A primary sump pump often fails due to power outages caused by downed power lines, electrical storms, or other disasters. Additionally, power supply issues can arise from circuit overloads, tripped Ground Fault Circuit Interrupters (GFCIs), or accidental unplugging of the system.
As sump pumps age, they often wear out and cease to function effectively. Inexpensive, undersized sump pumps, which struggle to handle the volume of water from heavy rain or rapid snowmelt, generally have a short lifespan. Despite their appealing initial cost, these pumps are typically made from less durable materials, feature smaller motors, and become less efficient over time. During heavy water influx, their motors may burn out or fail to pump water efficiently.
A low-quality float switch can malfunction. Wide-angle tethered float switches, which float freely around the sump basket, may become obstructed, sink, or fail to operate correctly. They can spin around the sump basket, increasing the risk of getting trapped against the pump, discharge pipe, or power cord. When this happens, the switch cannot activate the pump. Like inexpensive sump pumps, cheap float switches are prone to wear out or cause motor burnout.

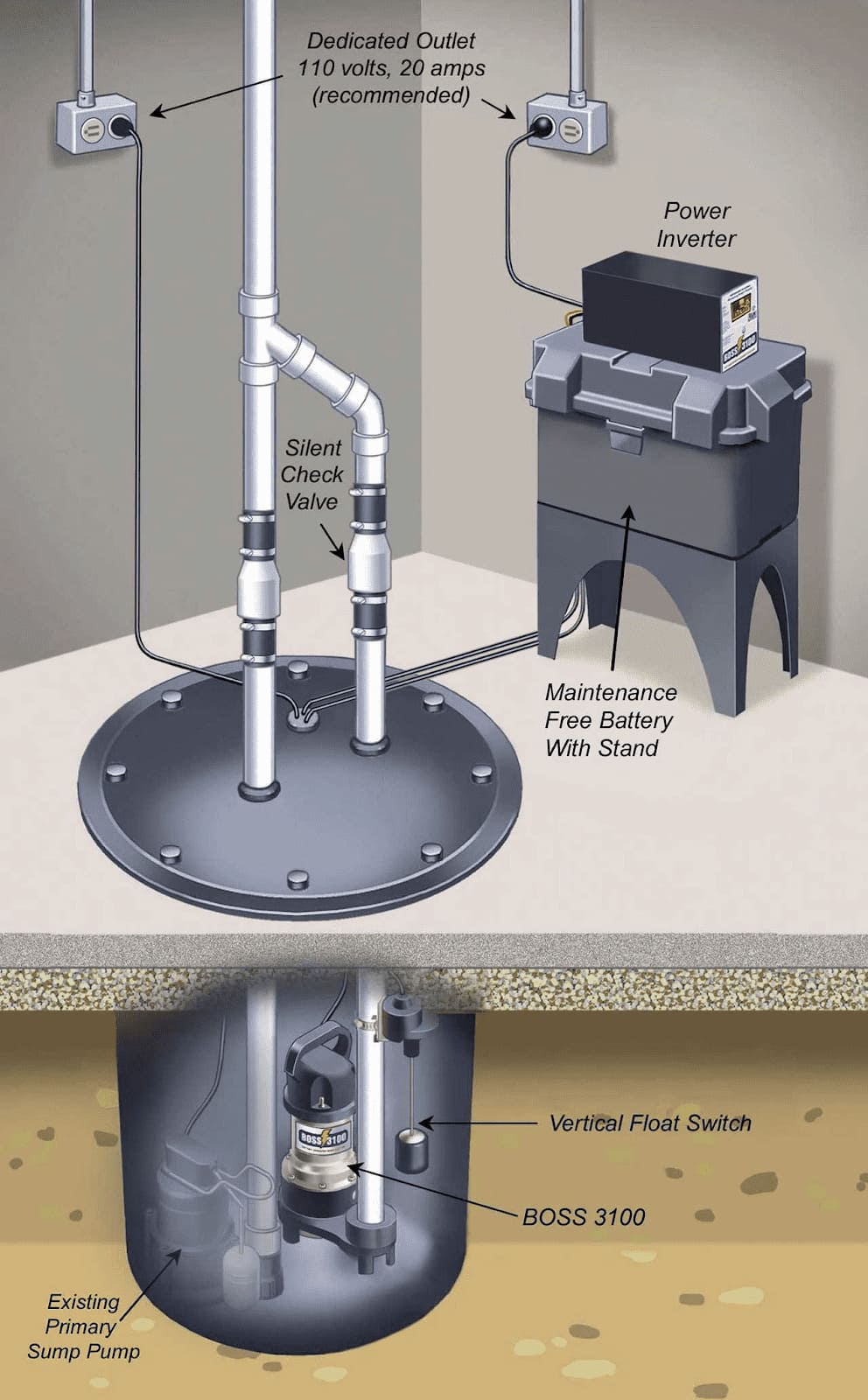

A backup battery power supply offers automatic power to a sump pump during emergencies. This is particularly crucial in areas prone to frequent power outages, such as remote regions. Backup batteries need minimal maintenance and guarantee that the sump pump will continue to function under all conditions.
When the power goes out, the primary sump pump's alarm system will trigger a signal to the backup battery, which then automatically supplies power to the pump. When installed correctly, this system operates seamlessly without requiring manual intervention. The sump pump itself acts as the first line of defense against water damage, while the backup battery serves as an additional layer of protection. This setup ensures that the sump pump remains operational without any interruption.
There are various types of sump pump backup batteries, and the right choice depends on your pump's requirements. For residential sump pumps, you'll need a battery with enough capacity to meet the demand of larger units. Most backup power supplies are designed for 1/3 to 1/2 HP pumps and are straightforward to install.
The primary types are:
We often overlook sump pumps because they typically run without any issues. However, installing a backup battery system to provide power during emergencies is a wise precaution against potential problems.
Properties in areas with heavy rainfall or melting snow often have a sump pump to manage water buildup and prevent flooding. These devices are designed to operate automatically when the water level in the sump pit—usually located in a low corner of the basement—reaches a preset height. While sump pumps are essential for property protection, they are often neglected until they fail and flooding occurs.
A sump pump's primary purpose is to safeguard property from expensive water damage repairs, making it a crucial safety device. To ensure it functions correctly, regular maintenance steps must be followed.
Because the mechanism of a sump pump is relatively simple, most repairs are straightforward and cost-effective. However, if the motor requires replacement, it might be more economical to install a new sump pump rather than repair the motor. Experts generally recommend replacing a sump pump every ten years, regardless of its condition.
Sump pumps are crucial for protecting homes from water damage and unexpected disasters. Like all equipment, they require regular maintenance to ensure optimal performance. Annual maintenance checks can save time, reduce stress, and prevent costly repairs.
A centrifugal pump is defined as a hydraulic machine that changes mechanical energy into hydraulic energy by the use of centrifugal force acting on the fluid. This is a machine that uses rotation to enforce velocity on a liquid...

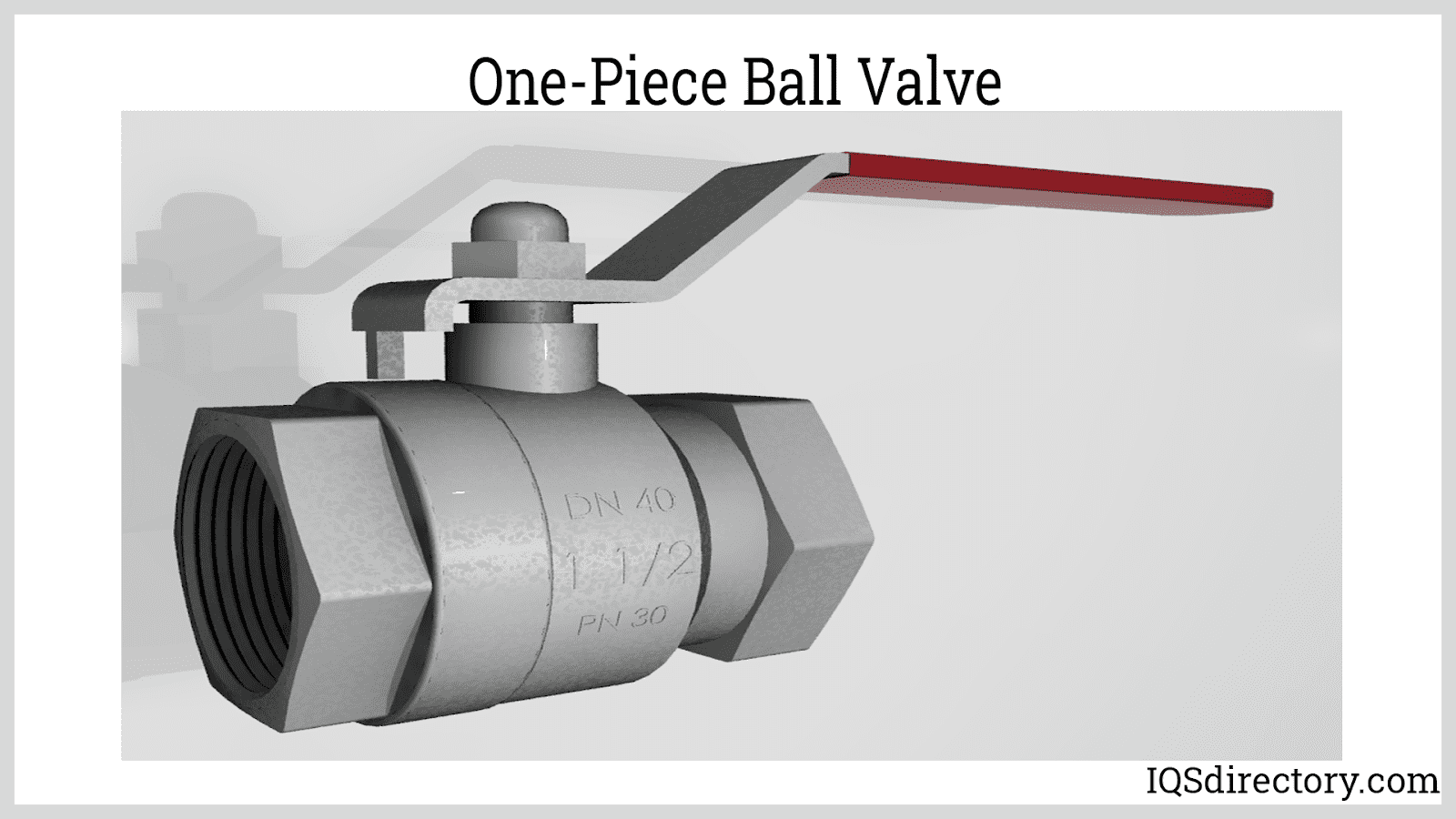

A ball valve is a shut-off valve that allows or obstructs the flow of liquids and gases in a piping system by rotating the ball having a bore inside the valve for 90°. The ball is mounted against two seats and has a stem that connects it to the operating and control mechanism that rotates the ball...

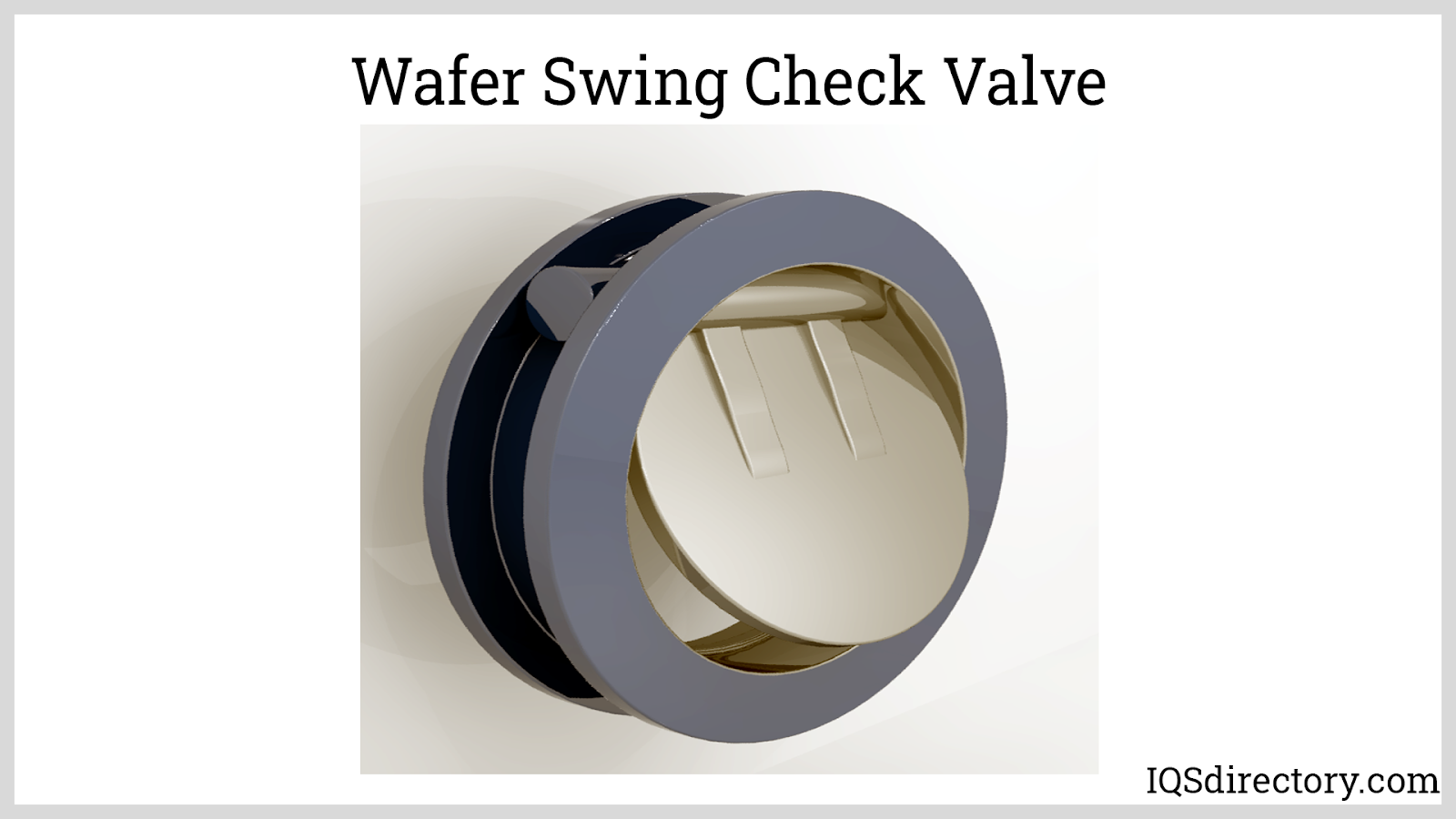

A check valve is a safety device designed to allow fluids and gases to flow in one direction. Under pressure, fluids enter the valve at the inlet and exit through the outlet. Uninterrupted flow continues until the pressure drops, or the pump is shut down...
