This article contains information regarding ceramic insulators and their use.
You will learn:
Ceramic insulators are insulating materials crafted from clay, which can be red, brown, or white and typically have a porous texture. These insulators effectively separate electronic components and offer excellent dielectric properties, including high resistance to electrical currents and minimal energy loss. They are not only easy to clean but also resist staining and accumulation of residues. Ceramics have been a preferred choice for electrical insulation for a long time due to their superior ability to withstand electrical stress.
Ceramic insulators gained popularity starting in the 1950s due to their cost-effectiveness and durability in various weather conditions. By the 1970s, ceramic insulators had completely supplanted glass insulators, which had ceased production in the 1960s. Although a small number of glass insulators remain in use today, they represent only a minor fraction compared to their ceramic counterparts.
Ceramic insulators are utilized in a broad range of electronic systems, including power distribution networks and mobile devices. These materials are chosen for their excellent insulating properties and robust mechanical durability. Ceramic insulators are commonly found in power lines, coaxial cables, and circuit boards, where they play a crucial role in preventing issues such as electromagnetic interference, fire risks, power surges, and electrical shorts. Their widespread adoption is attributed to their heat retention capabilities and ease of manufacturing into diverse shapes and sizes. In numerous applications, ceramic insulators are essential for maintaining electrical stability and safety.

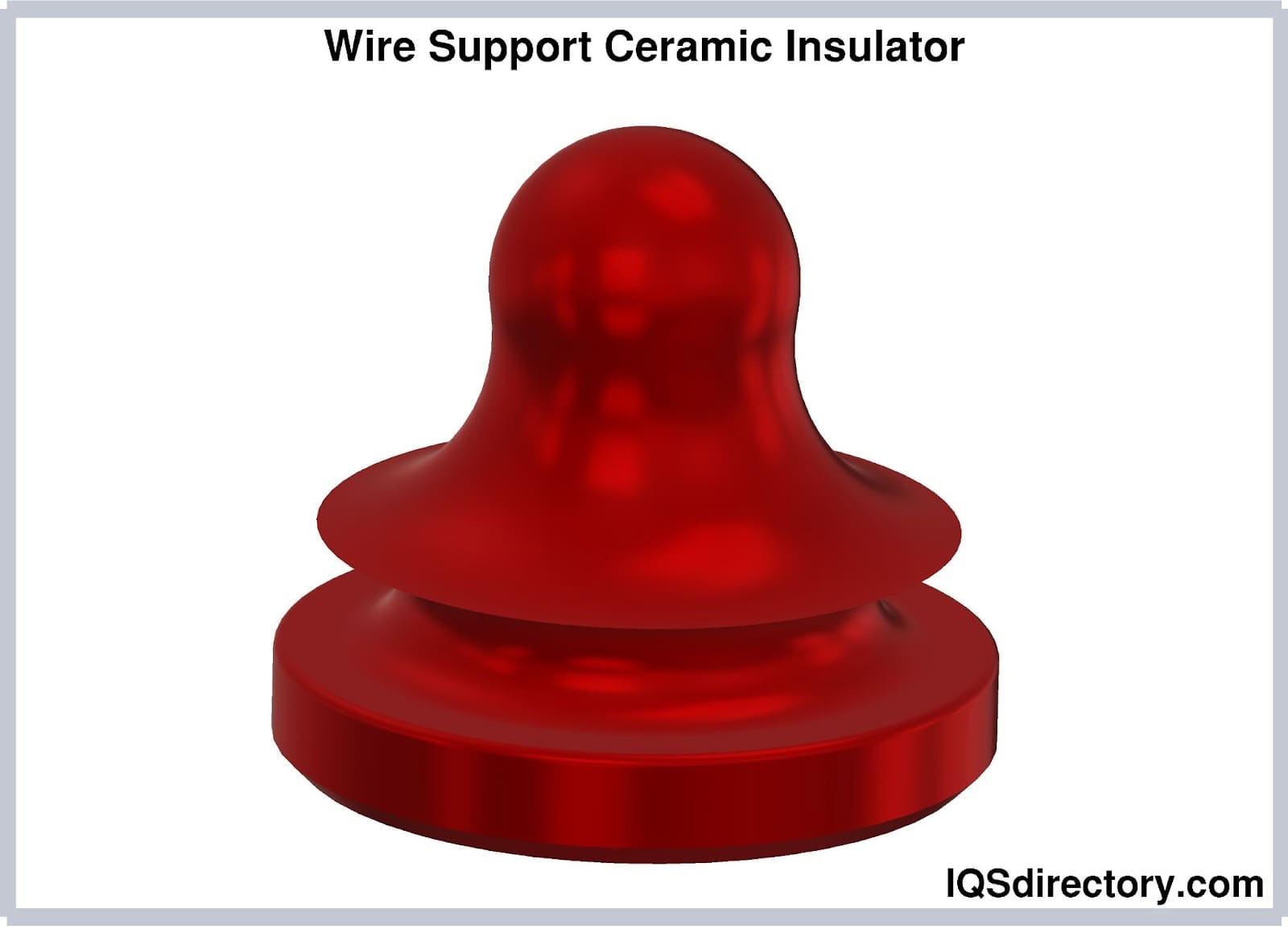

Ceramic insulators are commonly employed to hold wires on utility and telephone poles. These insulators often feature an umbrella-like shape that shields the wires and the lower portion of the insulator from precipitation such as rain or snow. Known for their durability and weather resistance, ceramic wire support insulators are among the earliest designs and have been used for many years due to their robust performance in harsh environmental conditions.

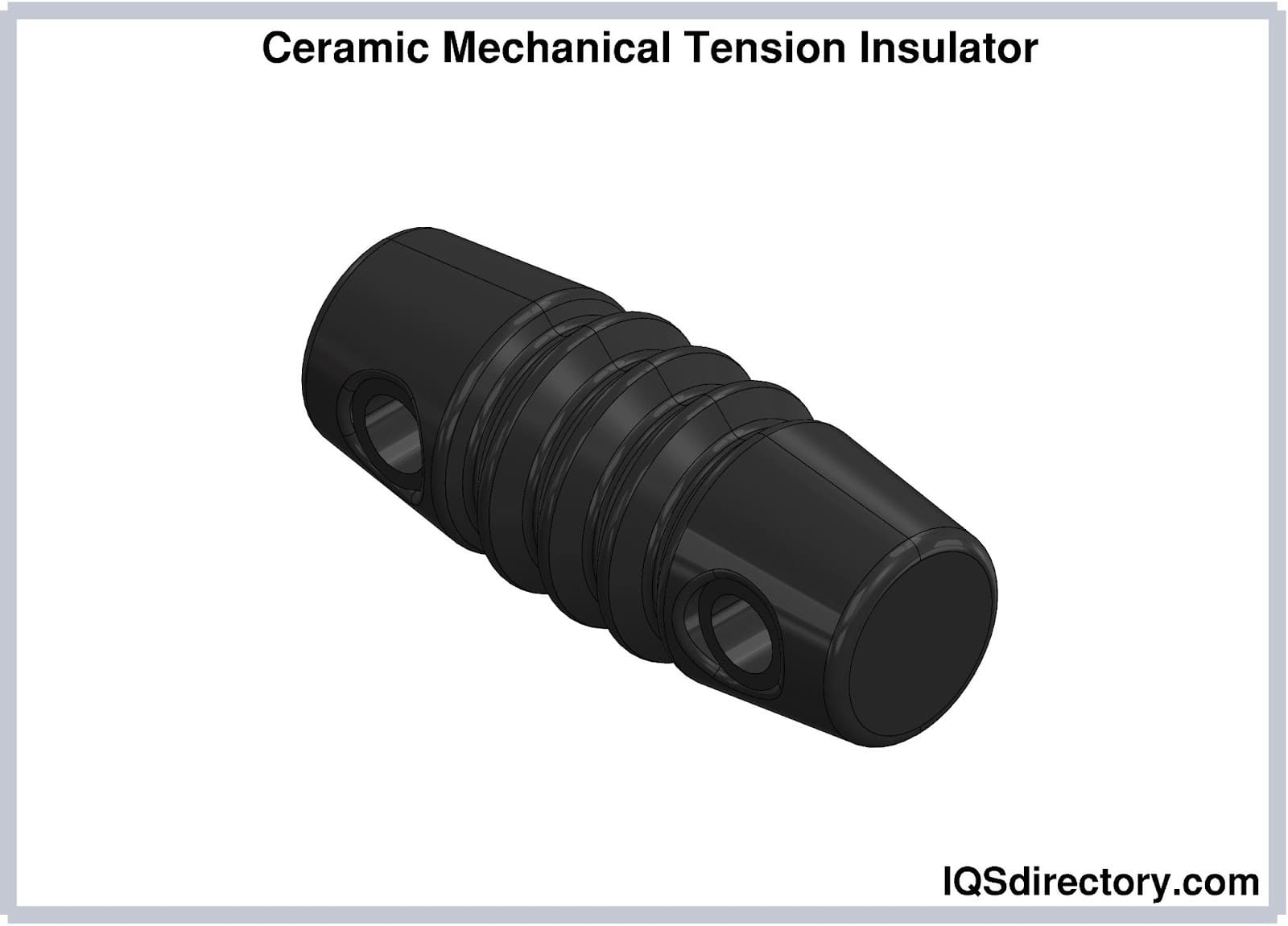

Mechanical tension ceramic insulators are specifically engineered for environments where wires or cables exert pulling forces on the insulator. Similar to support insulators, they are used with overhead wiring, radio antennas, and power lines. These insulators can be positioned between two power lines to ensure proper separation. Mechanical tension ceramic insulators are ideal for keeping wires aligned and under tension, ensuring they remain straight and secure.

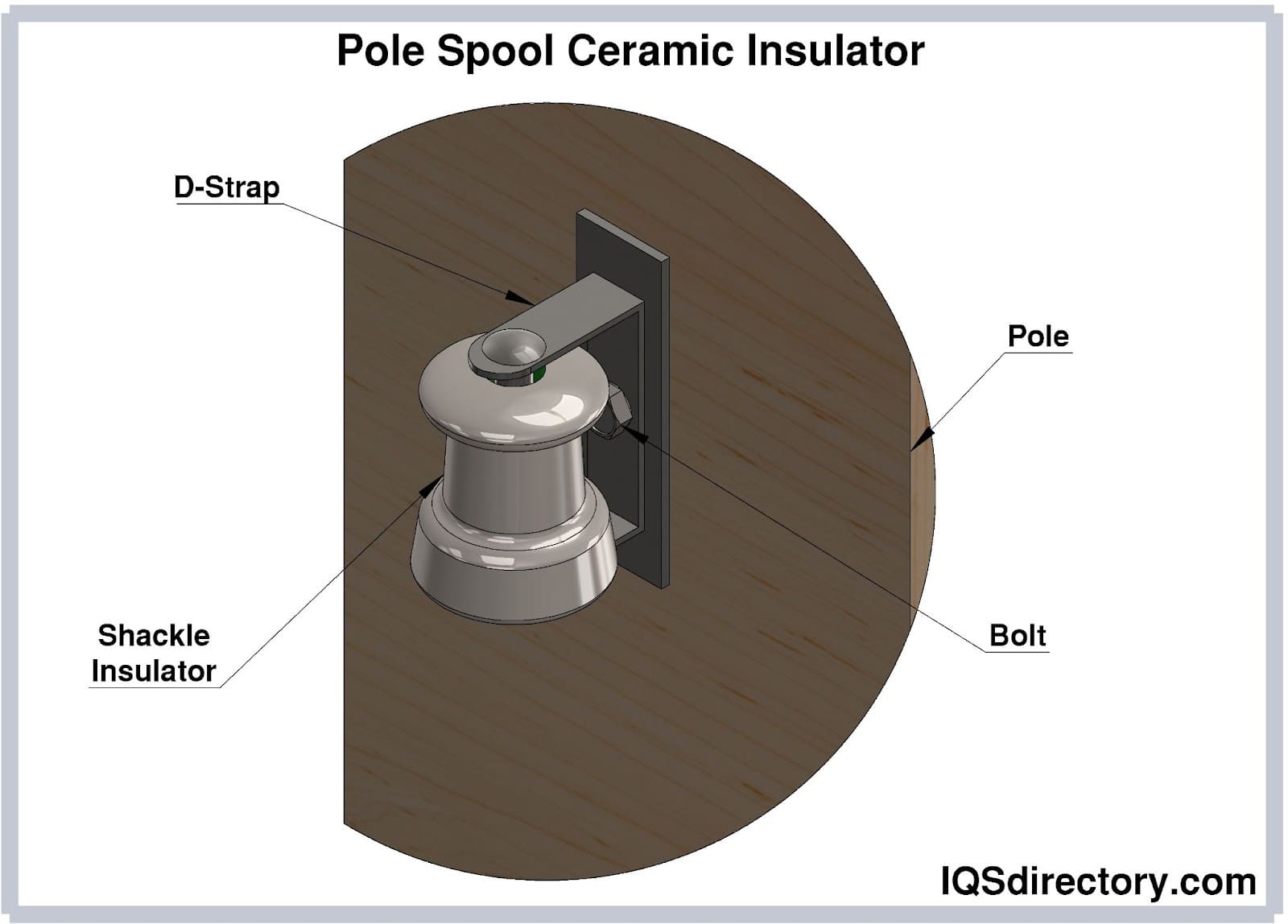

Pole ceramic insulators consist of a spool insulator mounted on a bracket, with a small rod passing through the center of the insulator to connect its top and bottom. These insulators are secured to walls, poles, or other surfaces using a bolt located in the center of the bracket. They are designed to accommodate changes in the angle of the connecting line, allowing them to adjust and adapt accordingly.

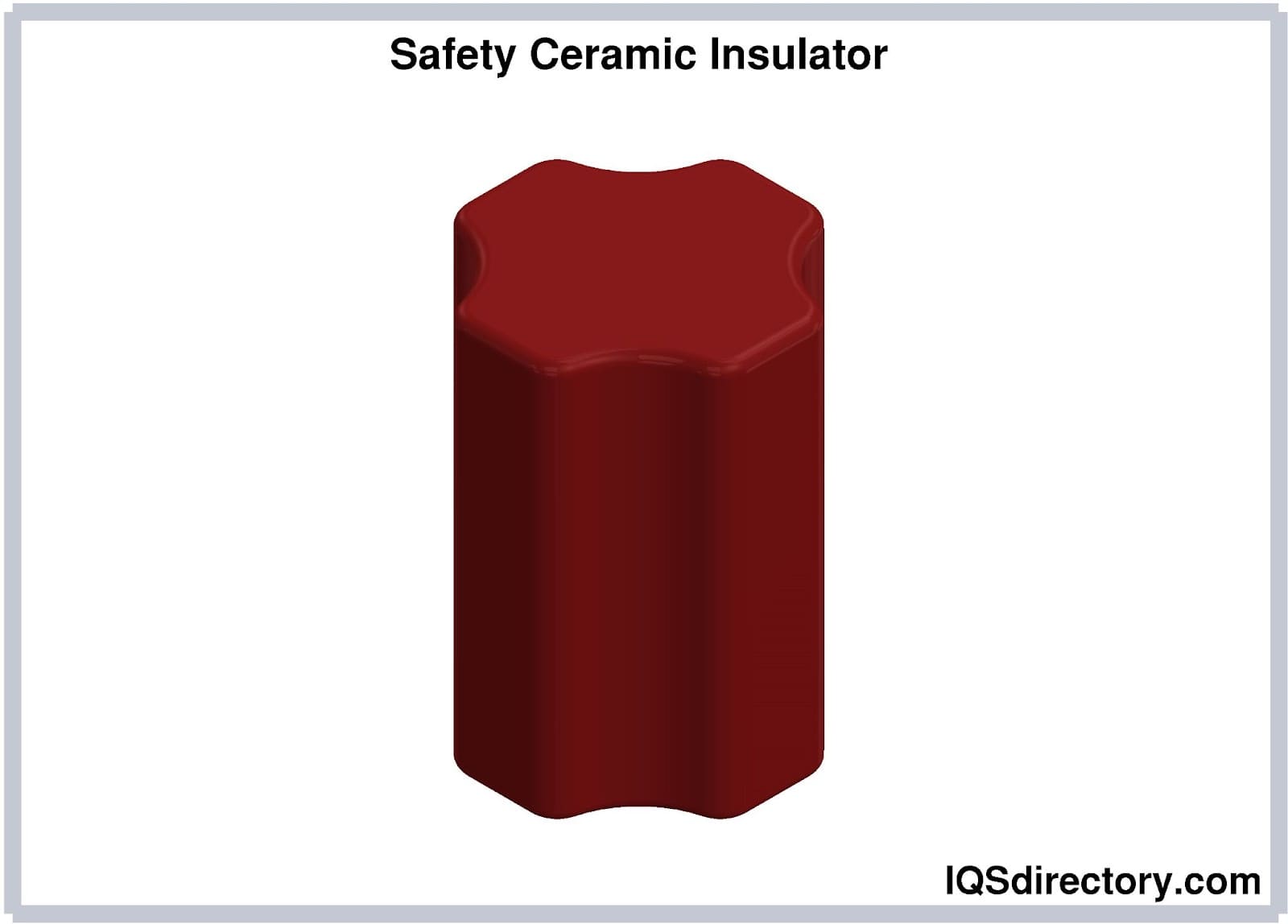

Insulators primarily serve to regulate the flow of electrical current and prevent it from grounding. Safety ceramic insulators play a crucial role by remaining in place and providing insulation if wires become severed and fall. They are strategically installed to ensure that the wires do not come into contact with the ground. The configuration of safety ceramic insulators can vary based on the specific requirements of the application.
In the event of a pole falling, the ceramic insulator helps ensure that the lower portion of the system remains de-energized, preventing any voltage from being present.

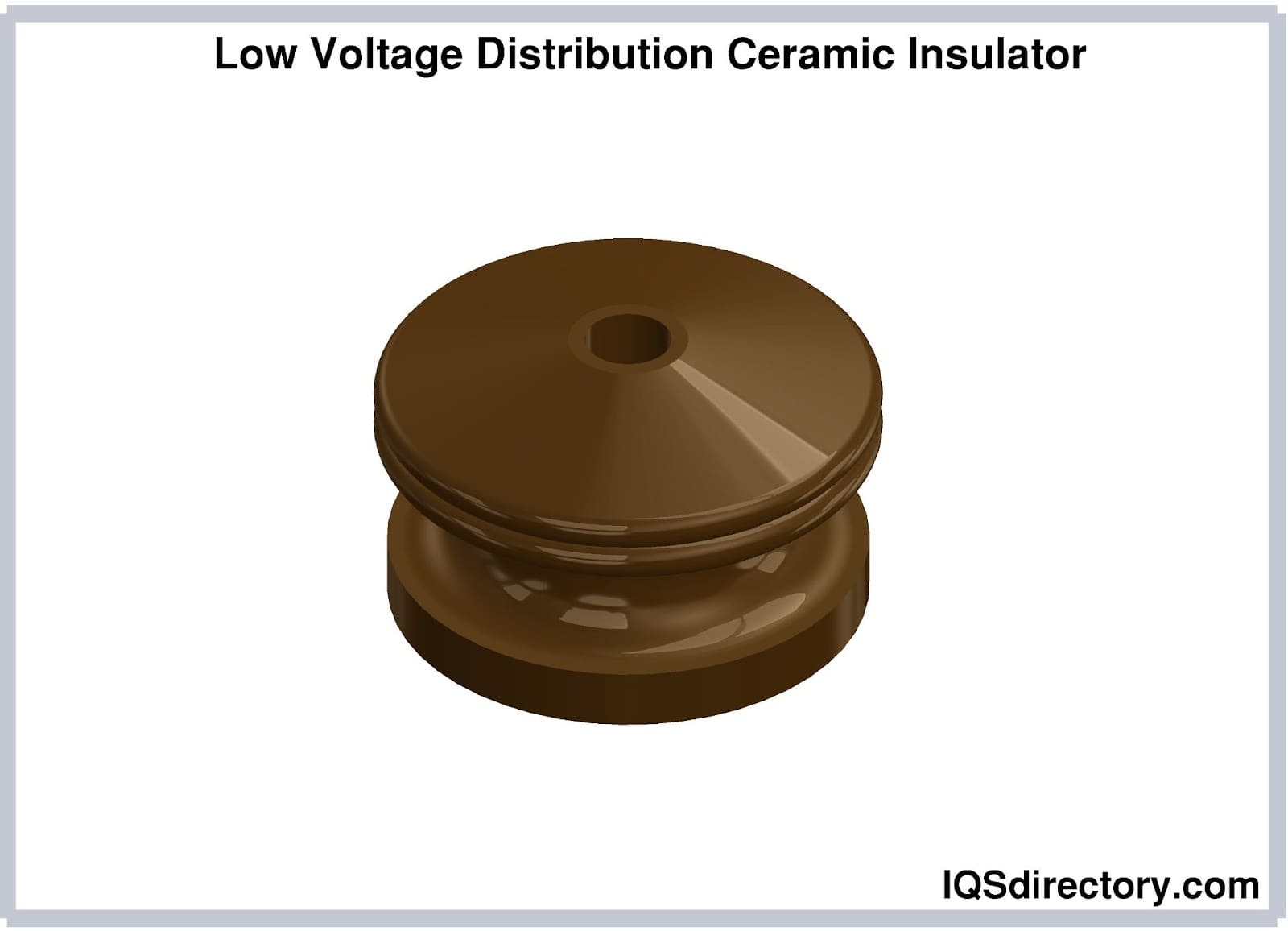

Low voltage distribution ceramic insulators are mounted either vertically or horizontally, typically secured with a bolt or attached to a cross arm. Their design often resembles that of pole ceramic insulators. These insulators are employed in overhead lines handling medium to low voltage levels.
The extensive use of low voltage distribution ceramic insulators is attributed to their dependable performance and reliability.

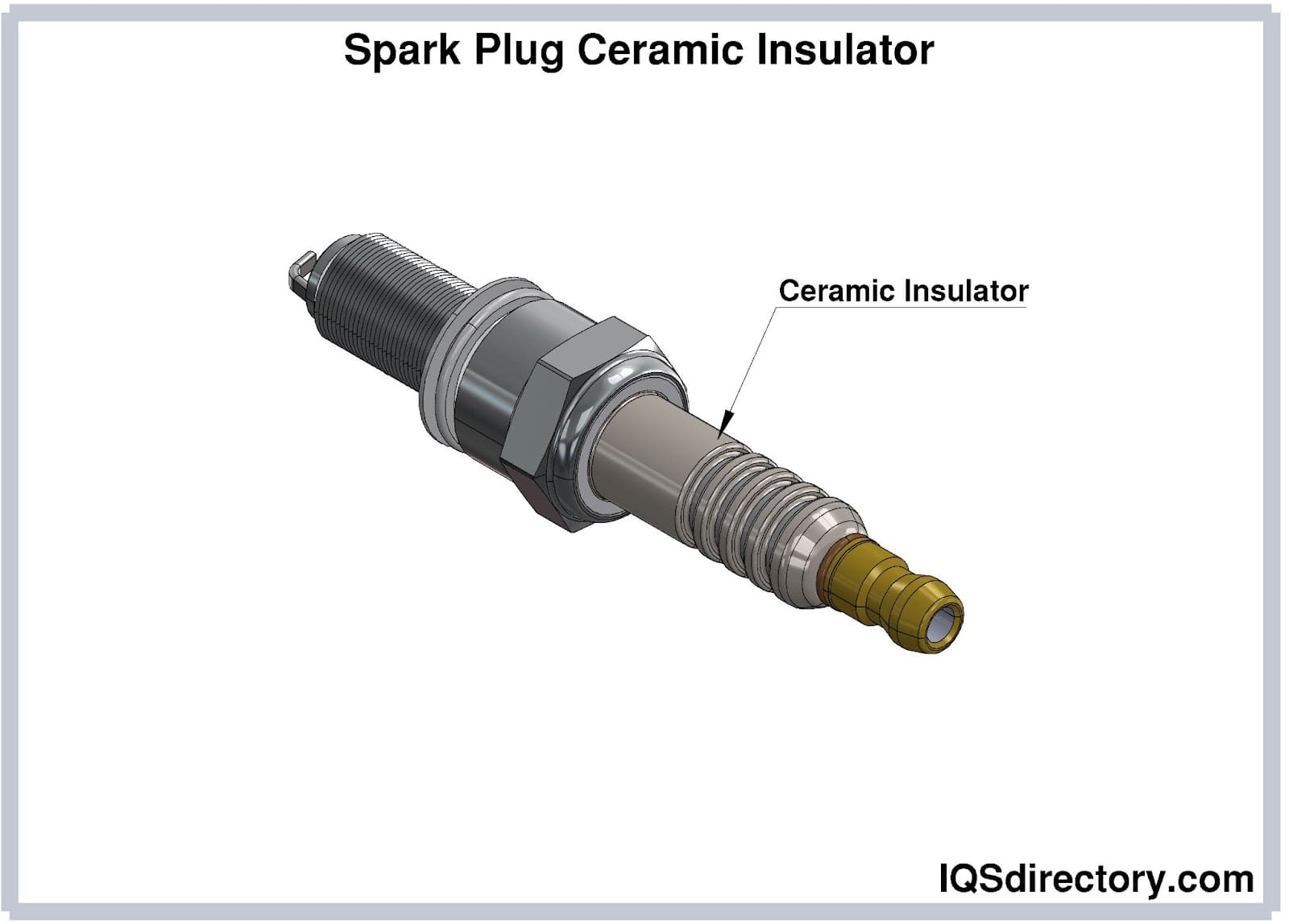

Ceramic insulators in spark plugs are designed to channel the high voltage needed to create a spark across the gap, which ignites the fuel-air mixture. These insulators ensure that the electrical current travels from one end of the spark plug to the other without causing flashover to the surrounding components. The choice of ceramic materials for spark plugs is due to their high melting point and minimal thermal expansion, which are crucial for reliable performance under extreme conditions.

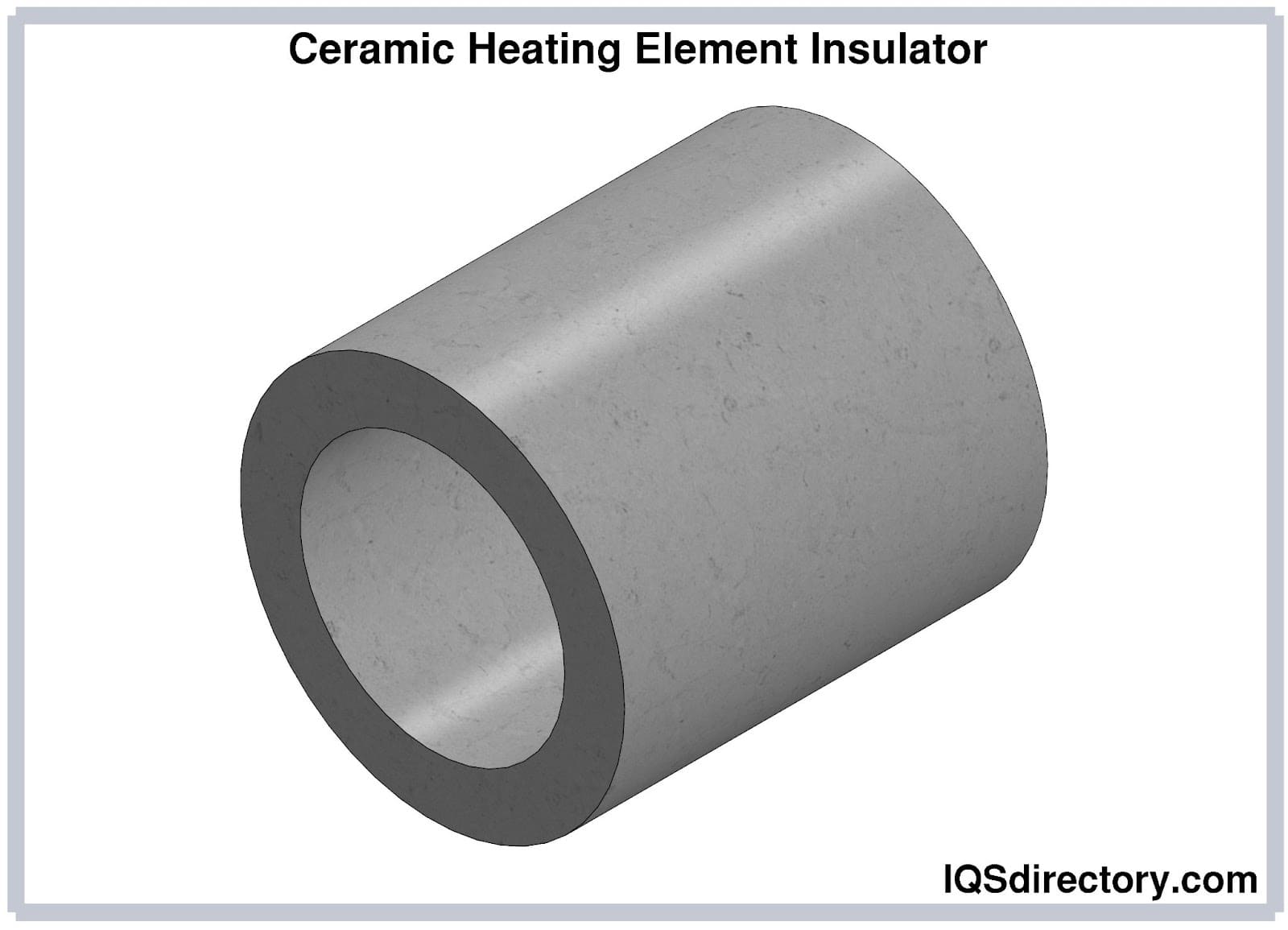

Ceramic insulators are widely used in applications where there is high heat. They support heating elements in ovens, heaters, and furnaces. Ceramic's resistance to abrasion and long life and its ability to hold its shape and size under pressure makes it the perfect insulation material for heated applications.
Ceramic insulators are commonly used in heaters to support and electrically isolate the heating elements.

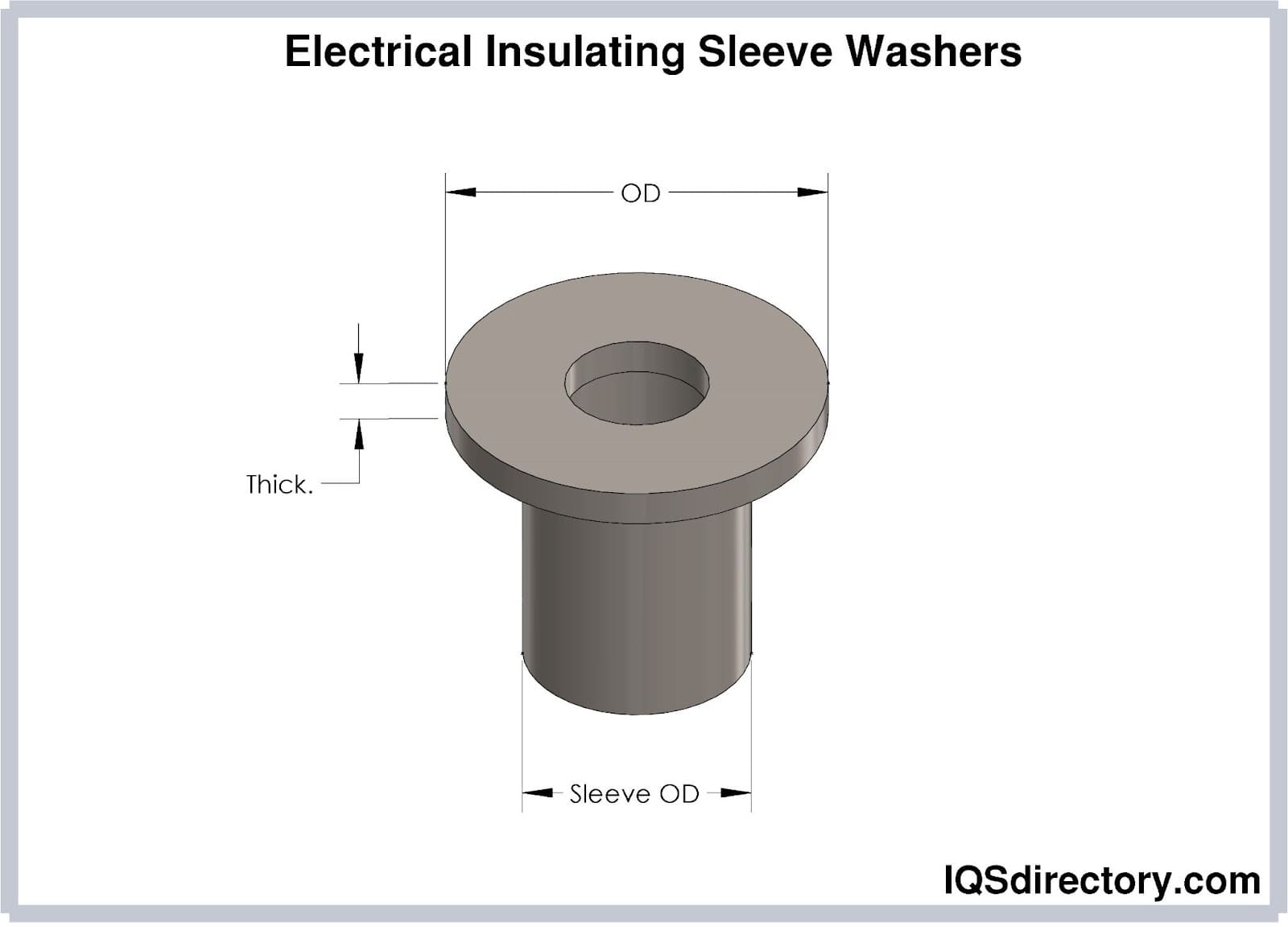

Electrical insulating ceramic sleeve washers, sometimes referred to as shoulder or insulating washers, are designed to block electrical current and prevent galvanic corrosion. They share many of the advantageous properties of standard ceramic insulators and can endure temperatures up to 3000°F. Additionally, their specialized design allows them to resist exposure to hydrochloric and nitric acid gases.
The diverse applications of ceramic insulators have led engineers to create various configurations to meet specific needs. While ceramic insulators are used in numerous ways, they generally fall into a few fundamental categories.
The most frequently used types of ceramic insulators include pin, suspension, strain, and shackle insulators. In addition to these, there are other specialized varieties that perform similar functions but with distinct design features.

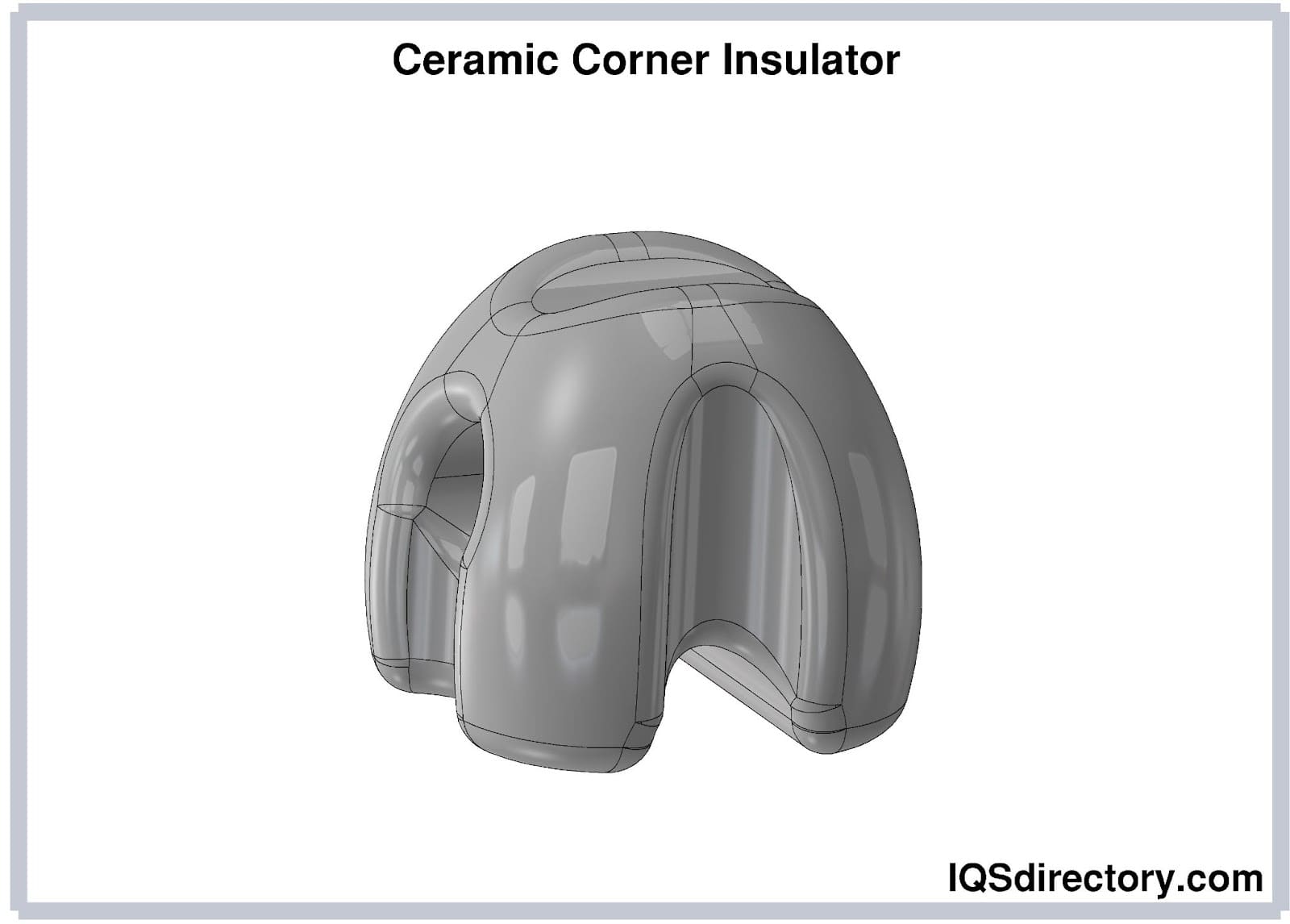

Corner post ceramic insulators are engineered to handle the tension in fence lines, whether from pulling forces at anchor points or changes in direction. They are also used at fence line termination points. Available in a variety of shapes and sizes to suit different applications, corner post ceramic insulators often feature grooves designed for wire insertion.

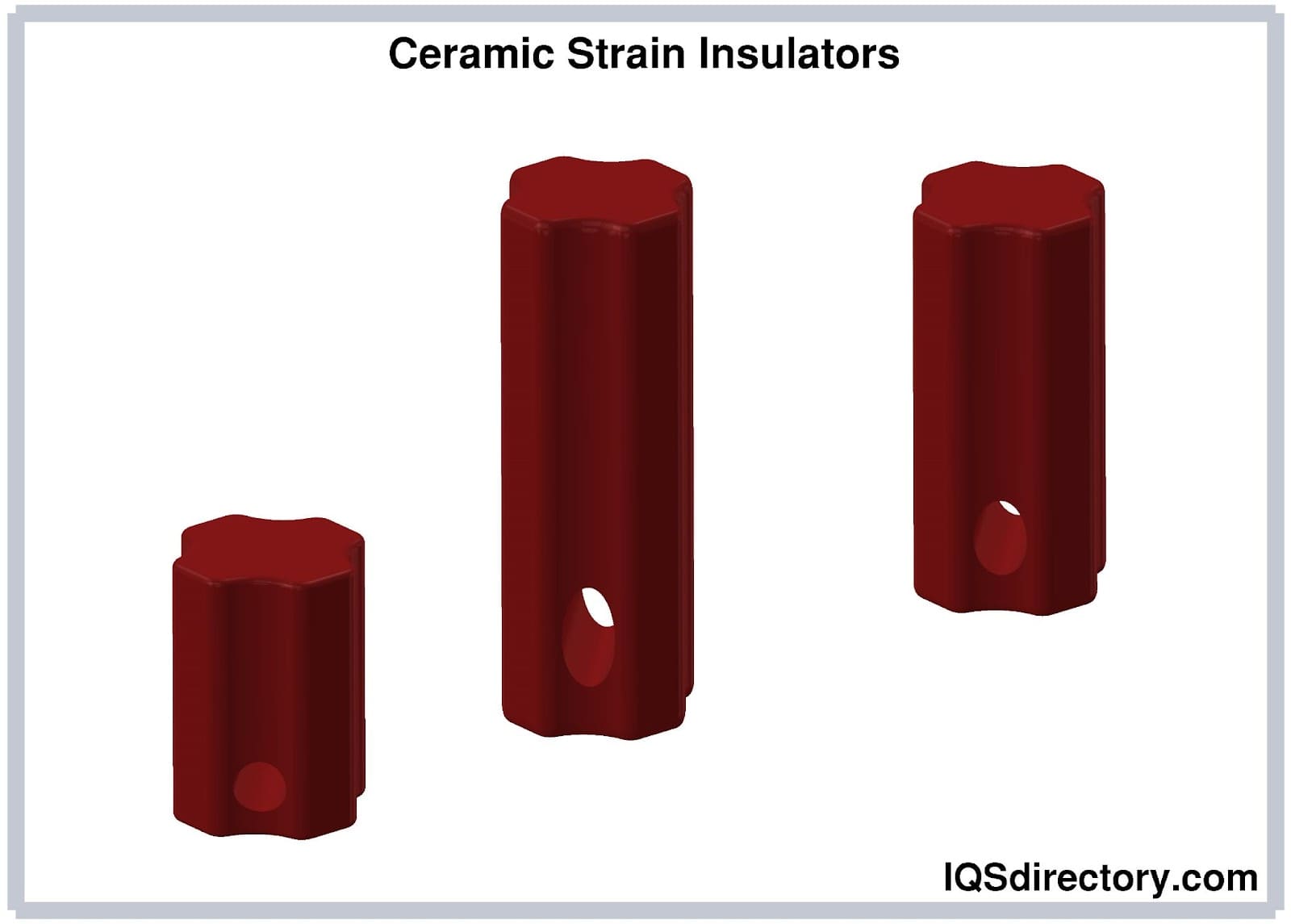

Strain ceramic insulators are designed to endure the mechanical stress exerted by suspended electrical wires or cables. They are crucial for supporting overhead antennas and power lines where significant tension is present. These insulators are typically installed between wire segments to provide isolation on poles or towers.
The design of strain ceramic insulators enhances the spacing between cables and improves the load-bearing capacity of the insulator. For both radio antennas and power lines, strain ceramic insulators are essential for managing the physical tension of the wires.

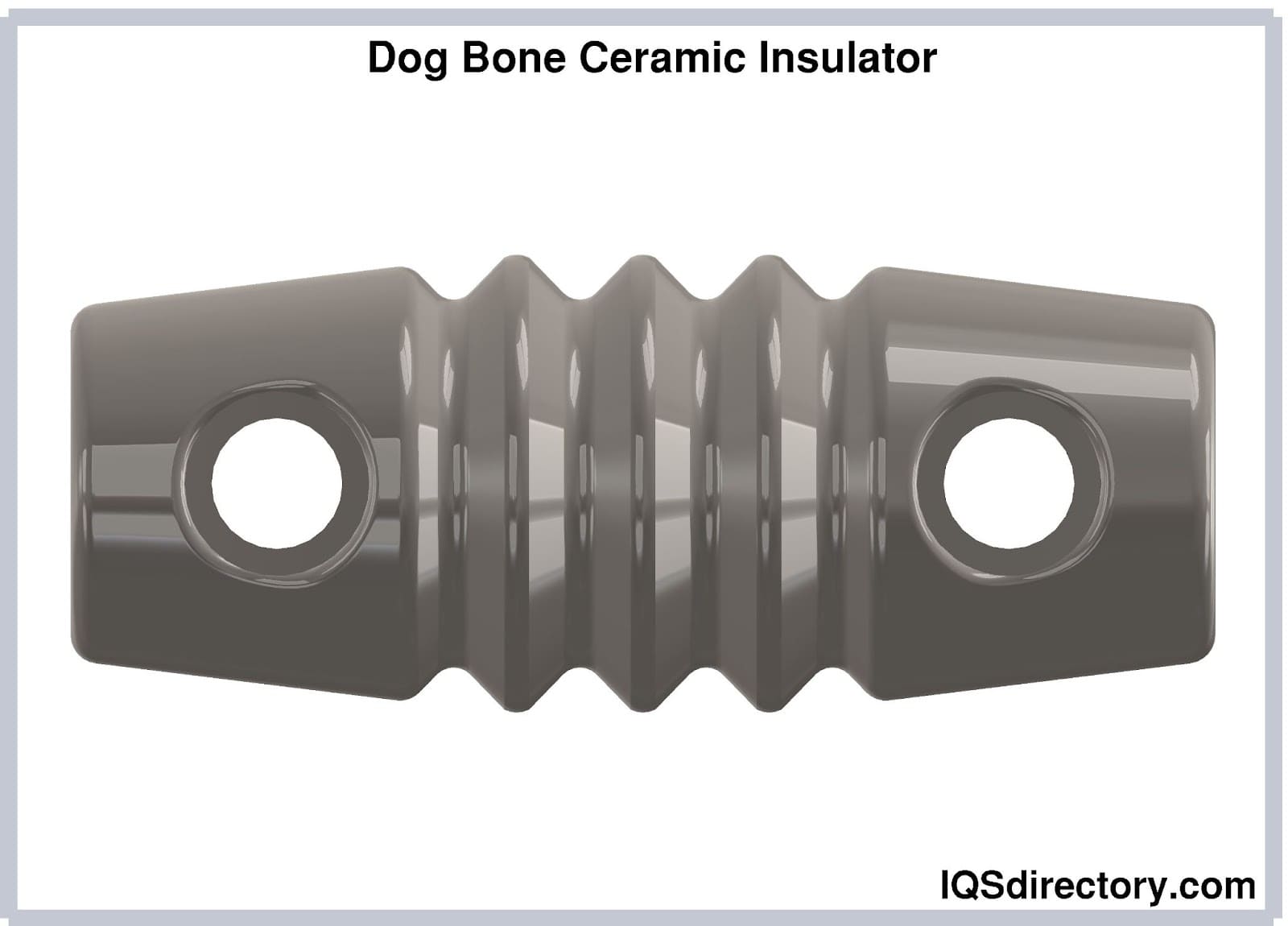

Dog bone ceramic insulators are a type of strain insulator used to mount and insulate electrical and antenna wires. They feature a ribbed design to minimize radio frequency (RF) leakage. Typically, these insulators have a cylindrical body ranging from two to three inches in length, with perpendicular holes at each end. The ribbing is positioned between the holes, as illustrated in the image below.
Various materials can be used to manufacture dog bone insulators, but ceramic is preferred due to its durability and long service life, which reduces the need for frequent replacements.

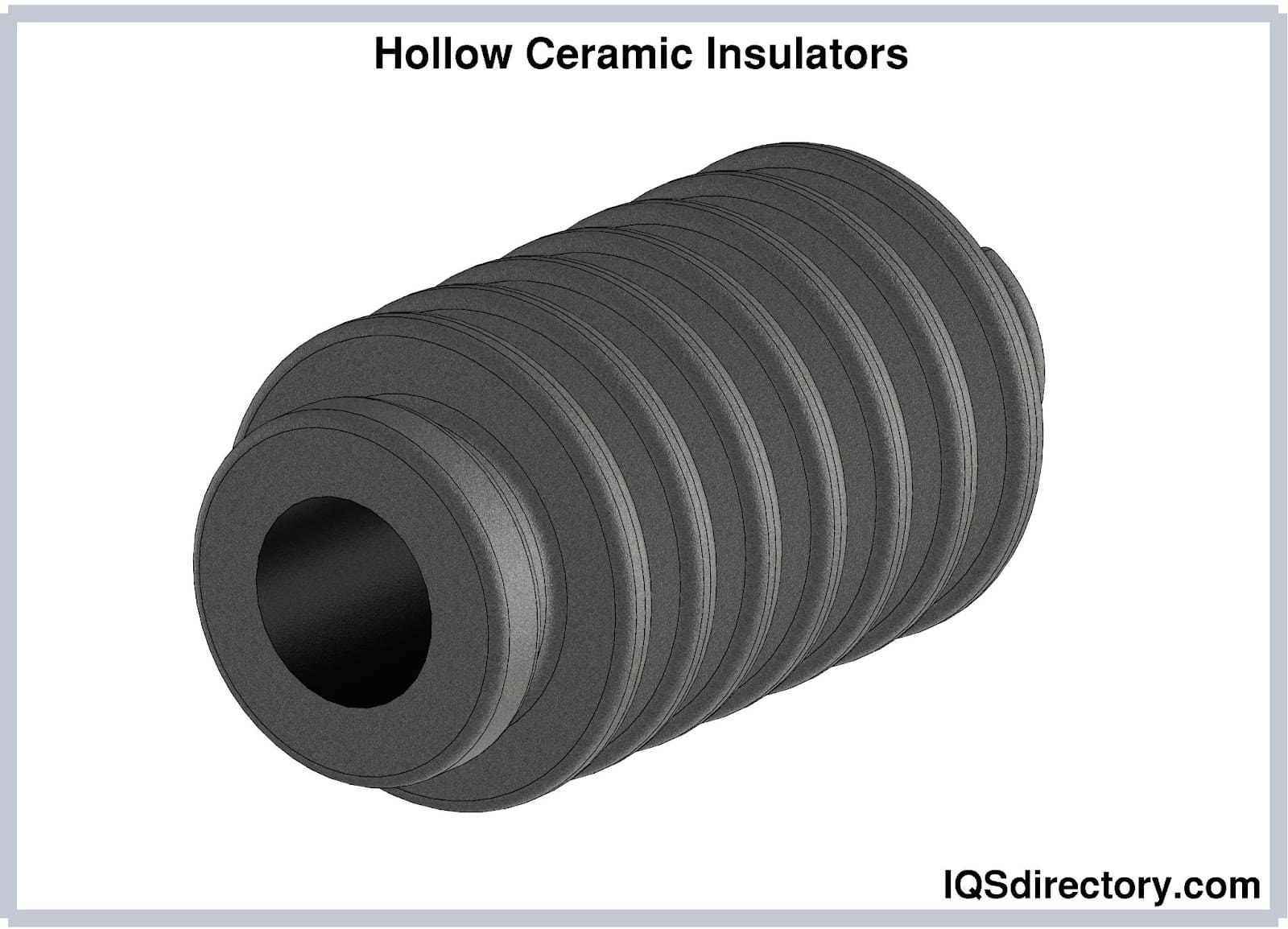

Hollow ceramic insulators are employed in bushings for power and instrument transformers, as well as in wall bushings, circuit breakers, surge arresters, and cable terminals. They come in various shapes, including cylindrical, conical, or round, and are available in different diameters. These insulators are known for their high mechanical strength and excellent electrical insulation properties.

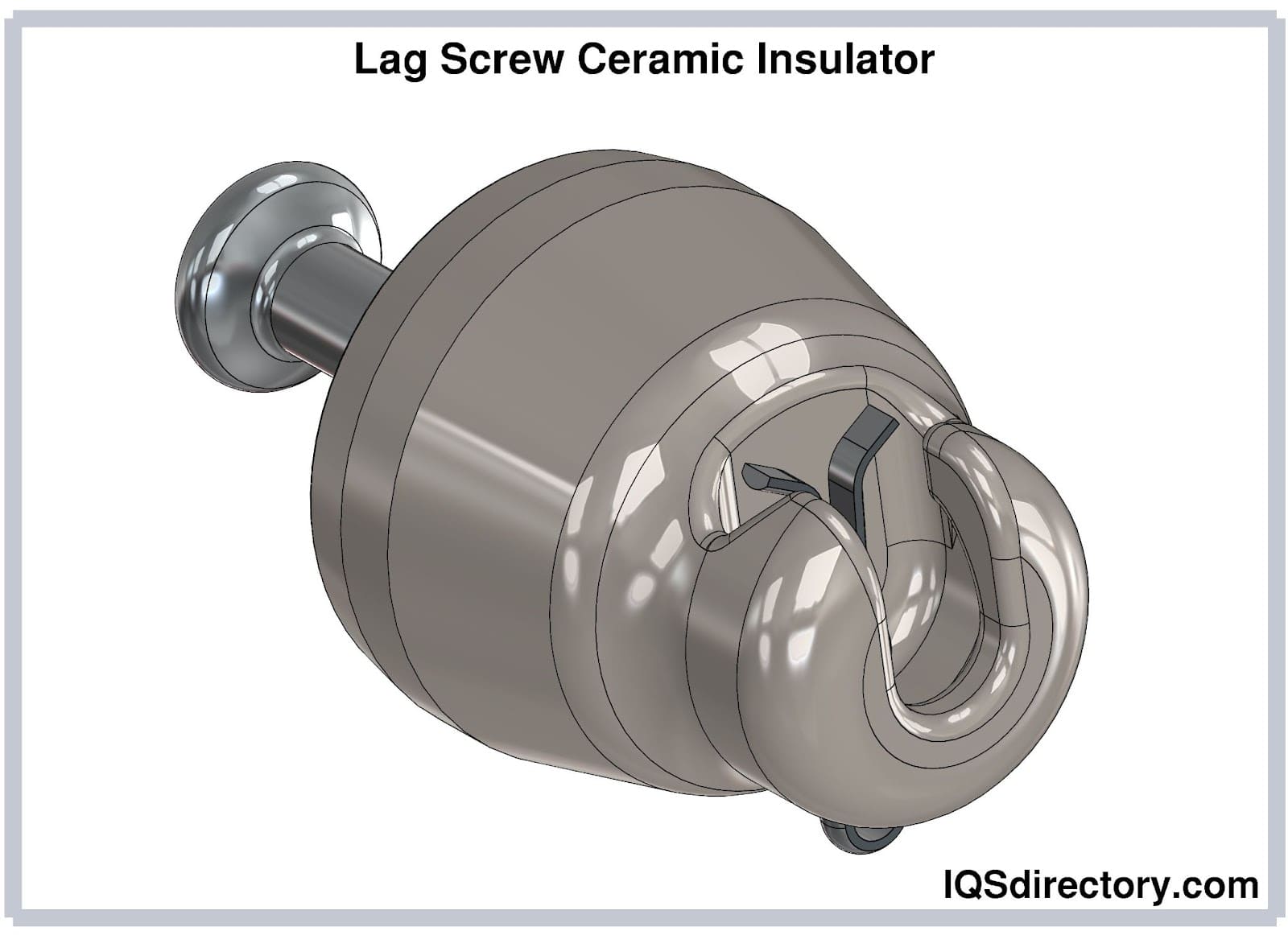

Lag screw ceramic insulators are designed to connect electrical wires to posts, preventing energy loss to the post itself. They feature a ceramic body attached to a wood screw, facilitating straightforward installation. Typically used on wooden posts, lag screw ceramic insulators are valued for their durability and strength, making them well-suited for outdoor applications along fence lines.

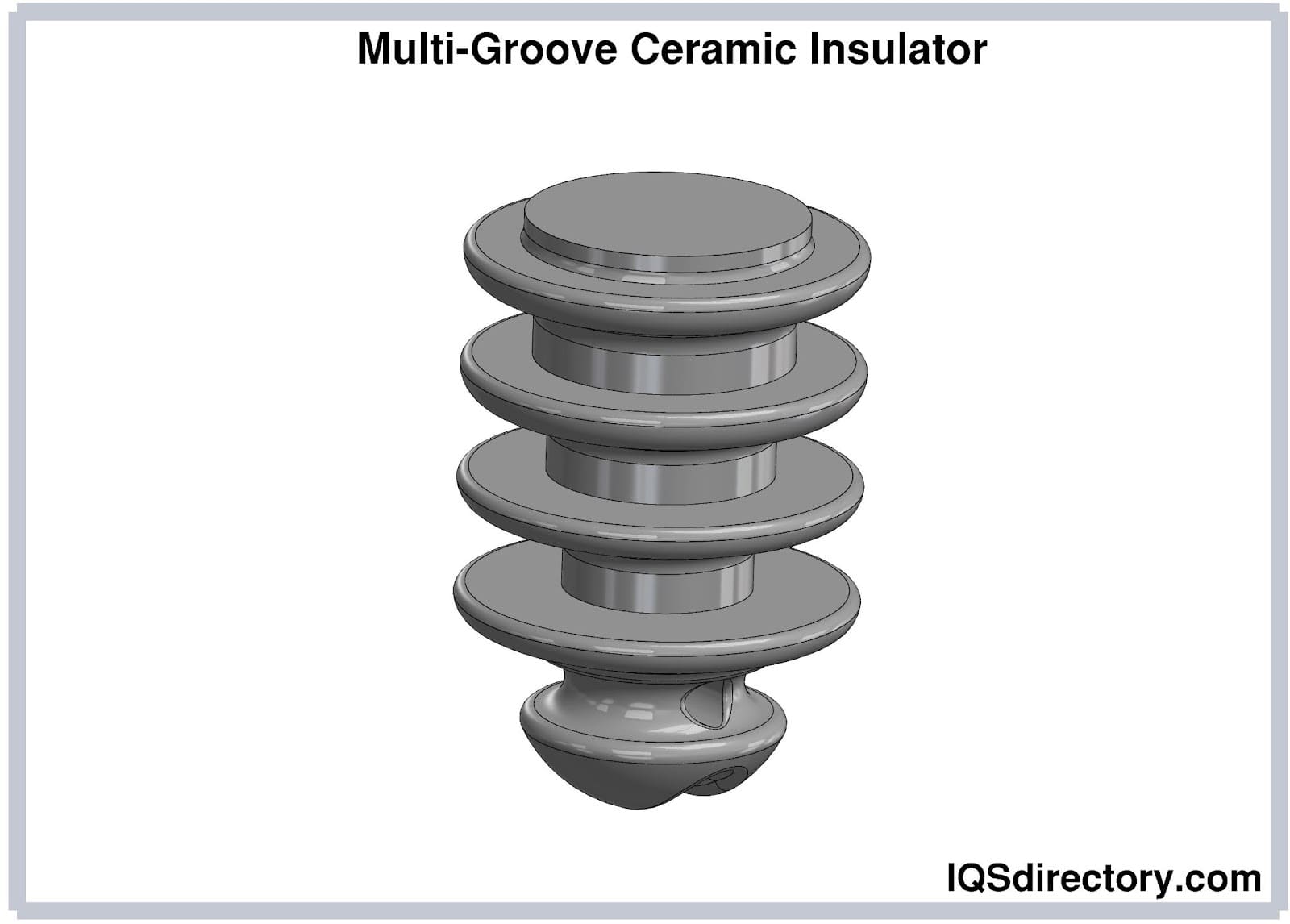

Multi-groove ceramic insulators are a variation of insulators used on wood posts to fasten electrified wires without losing energy to the posts. They can be used with steel or aluminum wire and are exceptionally durable and dependable with superior insulating performance. The multi-groove post ceramic insulators design protects against arcing and loss of electricity. They are attached by placing a screw or nail down the center hole of the insulator.

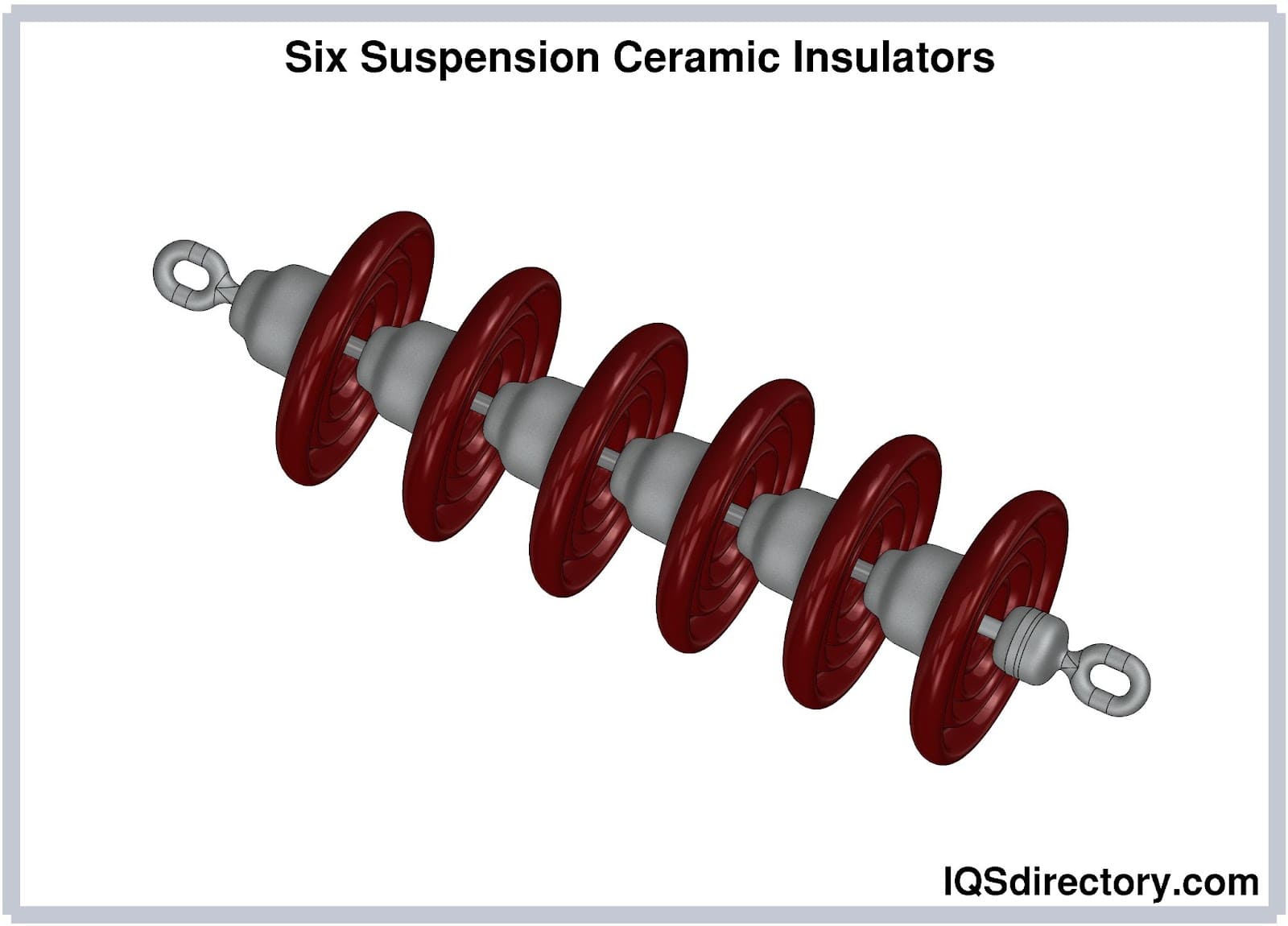

Suspension ceramic insulators are suspended from the cross arms of towers or other support structures to support power conductors. They consist of a series of ceramic discs stacked on top of one another, known as a string. These strings are connected by metal links to create a complete suspension system.

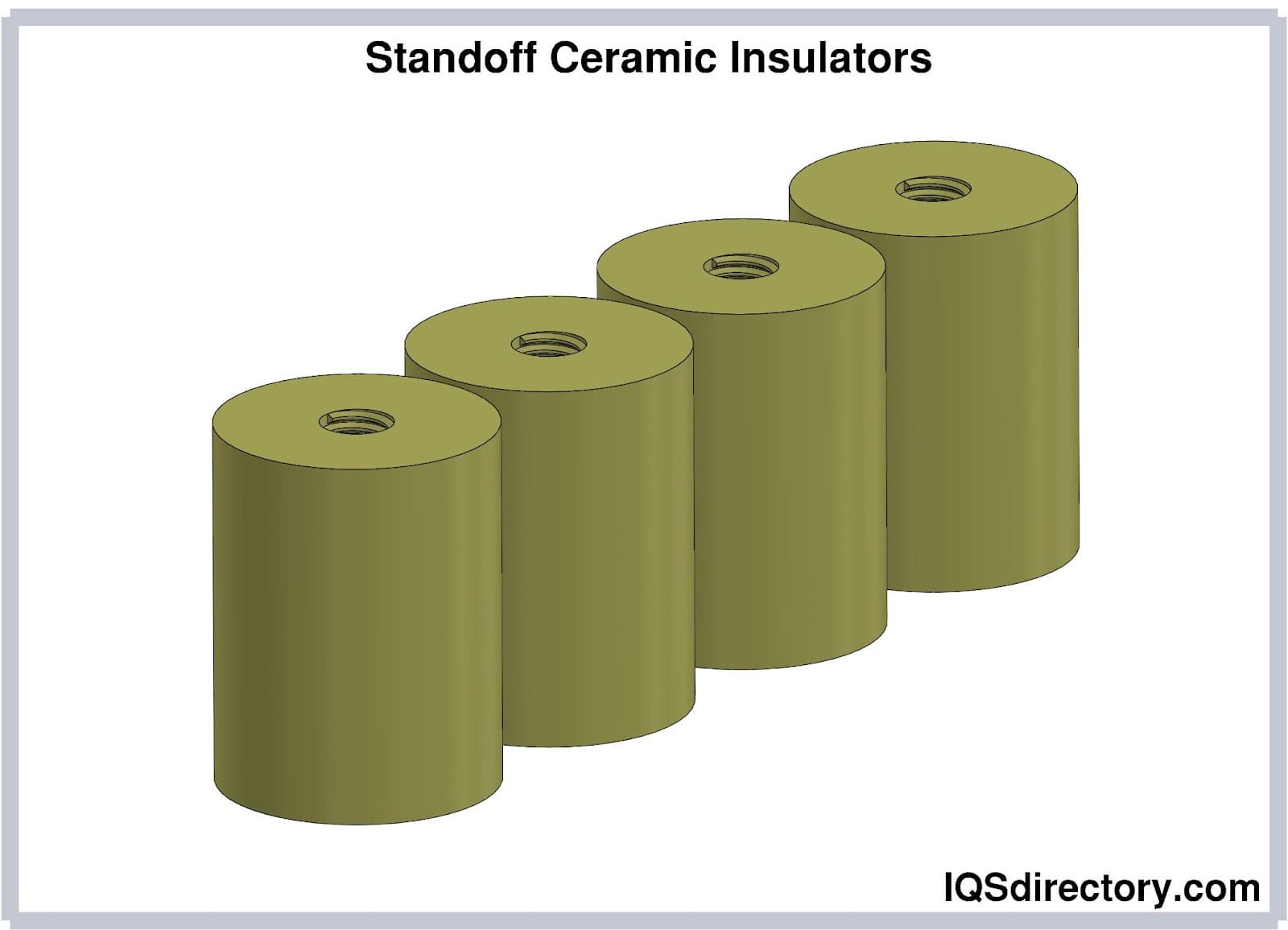

Standoff ceramic insulators prevent electricity from jumping between parts and confine current to the correct path. They are found in all kinds of situations but are commonly found as current regulators in transformers. Standoff ceramic insulators protect against power damage and reduce energy waste.
Like many ceramic insulators, standoff ceramic insulators can endure high temperatures produced by low-speed resistors. They are particularly well-suited for mounting fuses or heavy-duty cables. Standoff insulators are available in various cylindrical shapes, including round, square, or rectangular designs.
Ceramic insulators are designed to secure electrified wires, preventing arcing, power loss, or unintended connections between wires. They are more robust than many other insulating materials and maintain their integrity under harsh and demanding conditions. The variety of types, designs, and sizes available ensures that ceramic insulators can meet the requirements of virtually any application.
Manufacturing ceramic insulators involves using porous clay, which may be red, brown, or white. The insulators are shaped using molds and various forming techniques, followed by a heat treatment process that solidifies their structure and enhances durability.
The raw materials for the manufacture of ceramics cover a wide range of diverse and unique compounds because there are so many different applications for ceramics. For example, the production of insulators for high temperature and advanced electronics applications includes materials that contain carbon, nitrogen, silica, and sulfur.

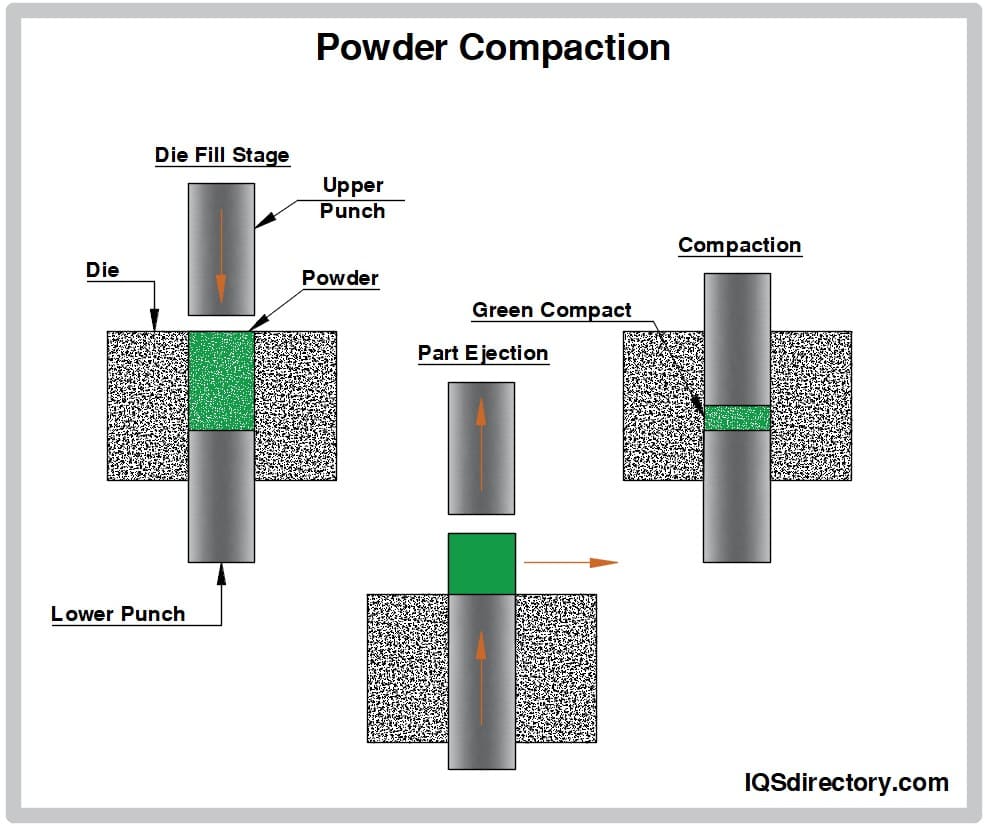

The compression process for manufacturing ceramic insulators can be either dry or wet forming. Dry forming is typically used for simpler shapes, where powdered material is placed into a flexible mold and compacted by applying pressure to achieve the desired shape. In contrast, wet forming involves methods such as extrusion or casting, where the material is dampened to facilitate shaping.
Depending on the manufacturer and the intended use of the ceramic insulator, glazes may be applied to the compressed component. These glazes provide additional protection and enhance the longevity of the insulator. Various types of glazes, tested for durability and strength, can be used to meet specific performance requirements.
The firing or drying stage is a crucial phase in the manufacturing process, integral to the design and engineering of the ceramic component. Engineers account for potential shrinkage during firing, which can affect the final dimensions. During this process, the glaze is baked onto the surface of the component and hardened. Firing typically occurs at temperatures ranging from 2850°F to 3100°F (1570°C to 1704°C). The shrinkage factor is generally estimated at around 20%.
The machining process refines the ceramic component to meet precise tolerance and design specifications. After firing, the ceramic material becomes very hard, necessitating the use of diamond-tipped cutting tools for shaping. The extent of machining required varies depending on the type of component. Tolerances are set according to the standards needed for the specific electrical application in which the component will be used.
Ceramic insulators play a crucial role in modern infrastructure. Fortunately, numerous manufacturers produce machinery for creating these insulators. Below, we highlight five brands of machines used in the production of ceramic insulators in the United States and Canada, along with specific models and their distinctive features:
Features: The PH Series Presses from SACMI USA Group are hydraulic presses specifically designed for the production of ceramic insulators. These presses provide precise control over pressure, speed, and stroke, allowing for the creation of intricate ceramic shapes with high density. They include advanced automation features, customizable pressing parameters, and are compatible with a range of ceramic materials.

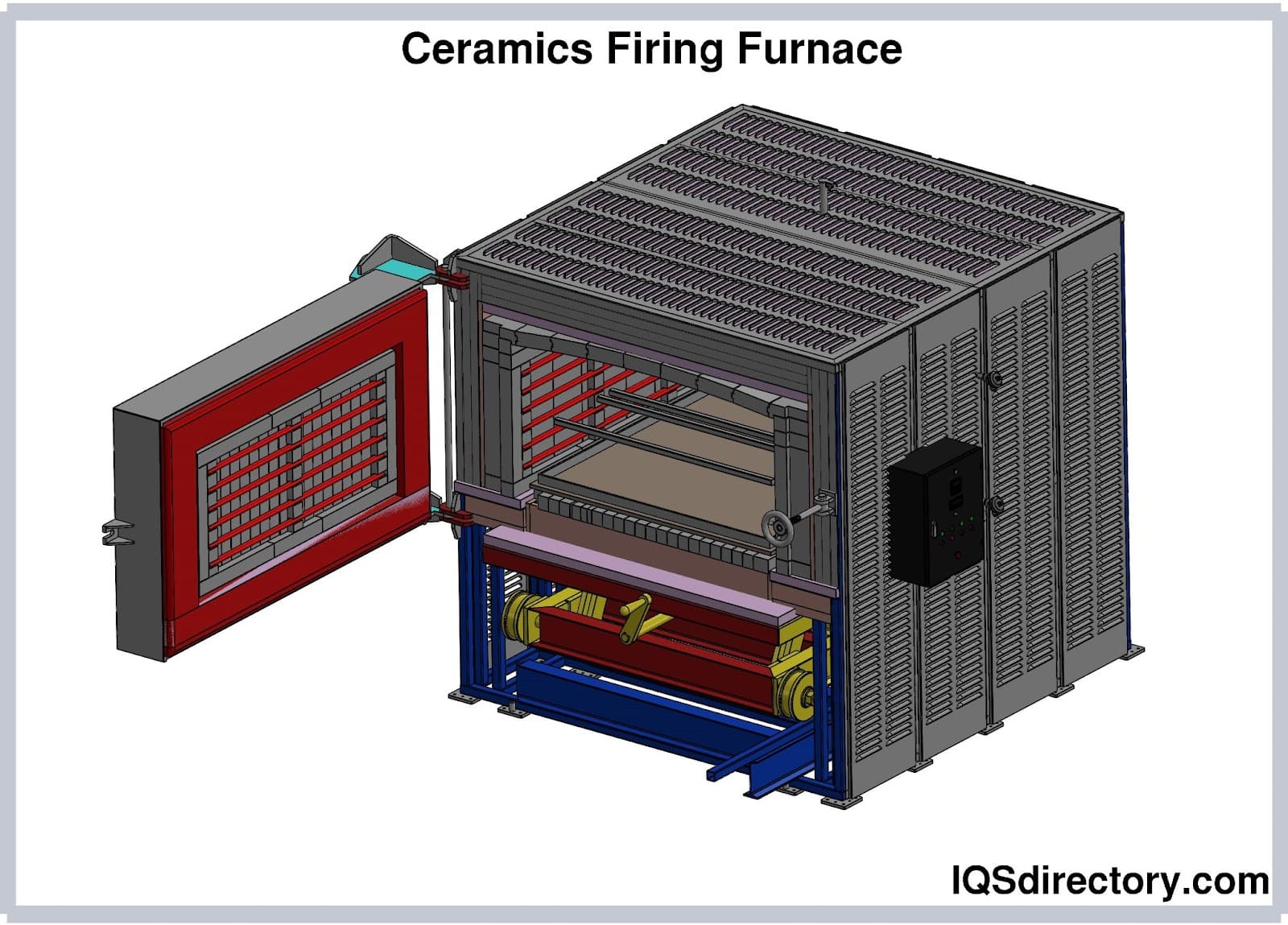

Features: The Easy-Fire Ceramic Kiln from L&L Kiln Mfg., Inc. is a versatile kiln designed for ceramic insulator production. It provides programmable firing profiles, precise temperature control, and even heat distribution to ensure consistent firing outcomes. The kiln comes in various sizes and configurations to meet diverse production requirements.
Features: Harper International specializes in pusher furnaces for ceramic insulator production. These furnaces offer controlled atmospheres and high-temperature conditions essential for the firing process. They provide precise temperature control, consistent heating profiles, and adjustable residence times. Designed for high throughput, Harper’s pusher furnaces can handle various sizes and shapes of ceramic insulators.
Features: Keith Company produces rotary kilns designed for ceramic insulator manufacturing. These kilns feature continuous, controlled firing processes that ensure excellent temperature uniformity and precise atmosphere control. They offer flexibility in kiln length and diameter, allowing for customizable setups. Keith Company’s rotary kilns are engineered to deliver consistent and efficient production of ceramic insulators.
Features: Ferro-Ceramic Grinding Inc. specializes in precision ceramic machining systems for producing ceramic insulators. Their systems provide advanced CNC machining capabilities for shaping and finishing ceramic components with stringent tolerances. These systems utilize high-precision tools, sophisticated control software, and custom fixturing options to meet specific ceramic insulator requirements.
Please note that availability and specific models may change over time. It is recommended to consult with the respective manufacturers for the most up-to-date product information.
Insulators are exposed to a wide range of atmospheric conditions and must be robust enough to endure these challenges. They are subjected to various stresses, including lightning strikes, pollution, bird damage, ice, snow, extreme temperatures, altitude variations, and other environmental and accidental factors.
The durability and strength of ceramic insulators have established them as a preferred choice for protecting electrical wires and lines. Their reliability makes them ideal for critical applications where long-lasting performance is essential.
Although ceramic materials are derived from powders, they possess remarkable hardness. In fact, ceramic insulators are approximately four times harder than stainless steel. This exceptional hardness contributes significantly to their durability and long-term performance.
Along with their exceptional hardness, ceramic insulators maintain their finish and appearance over time. Their wear resistance and hardness work together to provide resilience and durability, which are crucial for long-term sustainability.
Components designed to protect electrical wiring must retain their mechanical properties under various conditions. Ceramic insulators are highly effective at preserving these properties, ensuring consistent performance and reliability.
This quality is a key reason ceramic insulators are selected for various electrical wiring and circuits. Their high dielectric strength and low electrical loss ensure outstanding performance under a range of conditions.
Because ceramic insulators contain no metal, they are resistant to rust and corrosion. This property allows them to be used on fence posts, power line crossarms, and other outdoor electrical installations without being affected by environmental conditions.
Ceramic insulators typically exhibit increased conductivity with rising temperatures, while simultaneously reducing energy consumption.
Alumina ceramic is an industrial ceramic that has high hardness, is long wearing, and can only be formed by diamond grinding. It is manufactured from bauxite and can be shaped using injection molding, die pressing, isostatic pressing, slip casting, and extrusion...
Ceramic machining refers to the manufacture of ceramic materials into finished usable products. Machining involves the continual removal of material from the workpiece, in this case, ceramic material...
Zirconia Ceramics, or zirconium dioxide ceramics, are exceptionally strong technical ceramic materials with excellent hardness, toughness, and corrosion resistance without the brittleness common to other ceramic materials...
