This article will take an in-depth look at copper sheets.
The article will bring more detail on topics such as:
This section will explore the definition of copper sheets, their properties, and the various alloys associated with them.

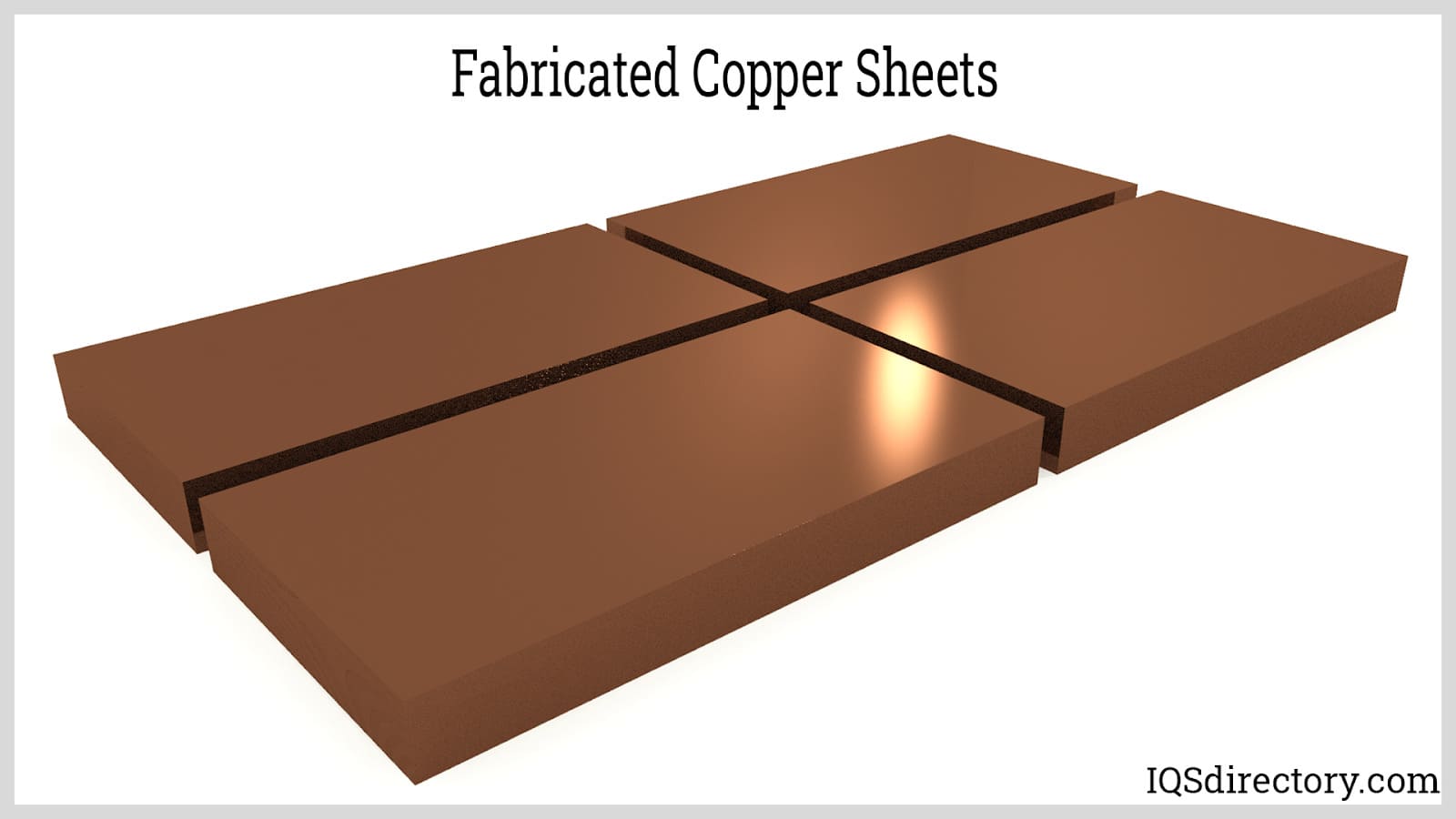

Copper sheets are known for their exceptional malleability and workability, coupled with excellent electrical and thermal conductivity and resistance to corrosion. Copper (Cu) is a reddish, highly ductile metal found in Group 11 of the periodic table and can occur naturally in its pure metallic form.
Key properties of copper sheets include:

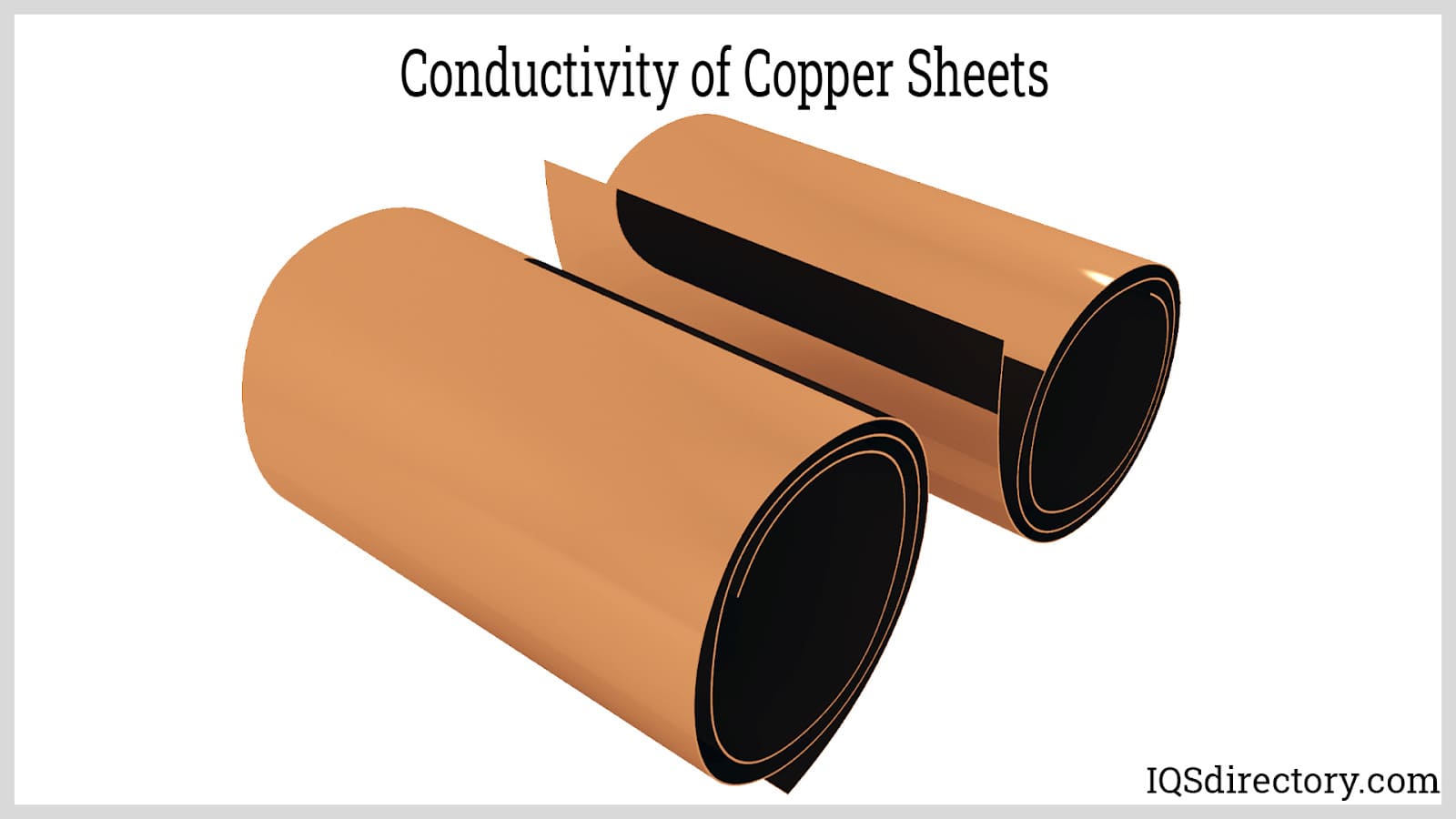

Copper stands out with the highest electrical and thermal conductivity among major metals. Its alloys are exceptional conductors due to their superior conductivity, combined with strength, formability, and corrosion resistance. These properties make copper ideal for use in connectors and various electrical and electronic components.

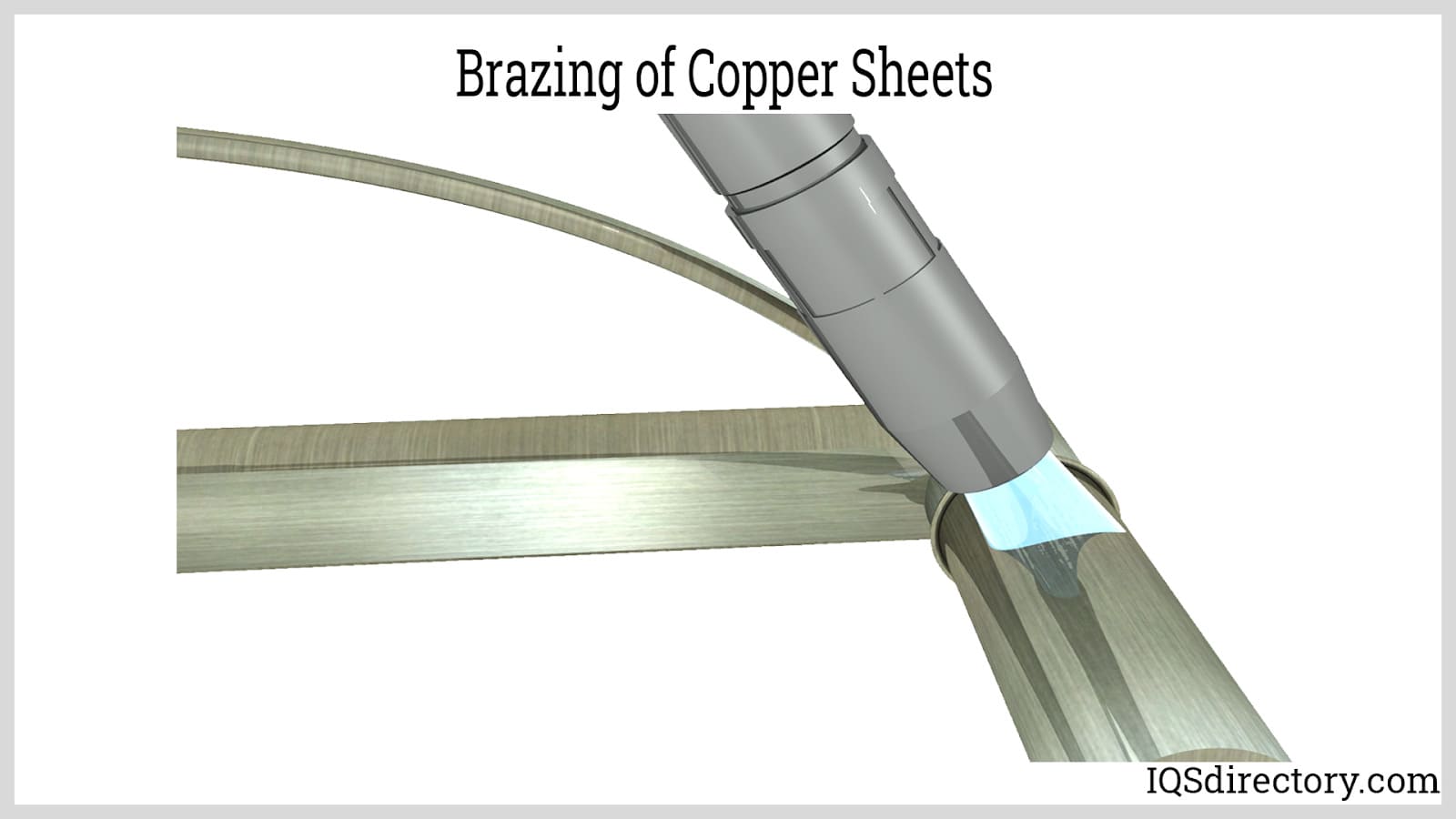

Soldering, brazing, welding, bolting, riveting, crimping, and adhesive bonding are all typical ways of joining copper and copper alloys. Typical soldering and brazing applications include the installation of plumbing fittings and components. Copper and copper nickel welded tubes are commonly used in water delivery systems, heat exchangers, and air-conditioning units, and welding processes are commonly used.
Copper's softness, malleability, and excellent formability make it suitable for architectural applications. Strengthened through the addition of elements to create alloys such as brass, phosphor bronze, and copper-nickel, copper alloys exhibit tensile properties that surpass some aluminum alloys and approach those of stainless steels. These versatile alloys are also valuable in the miniaturization of electronic components.

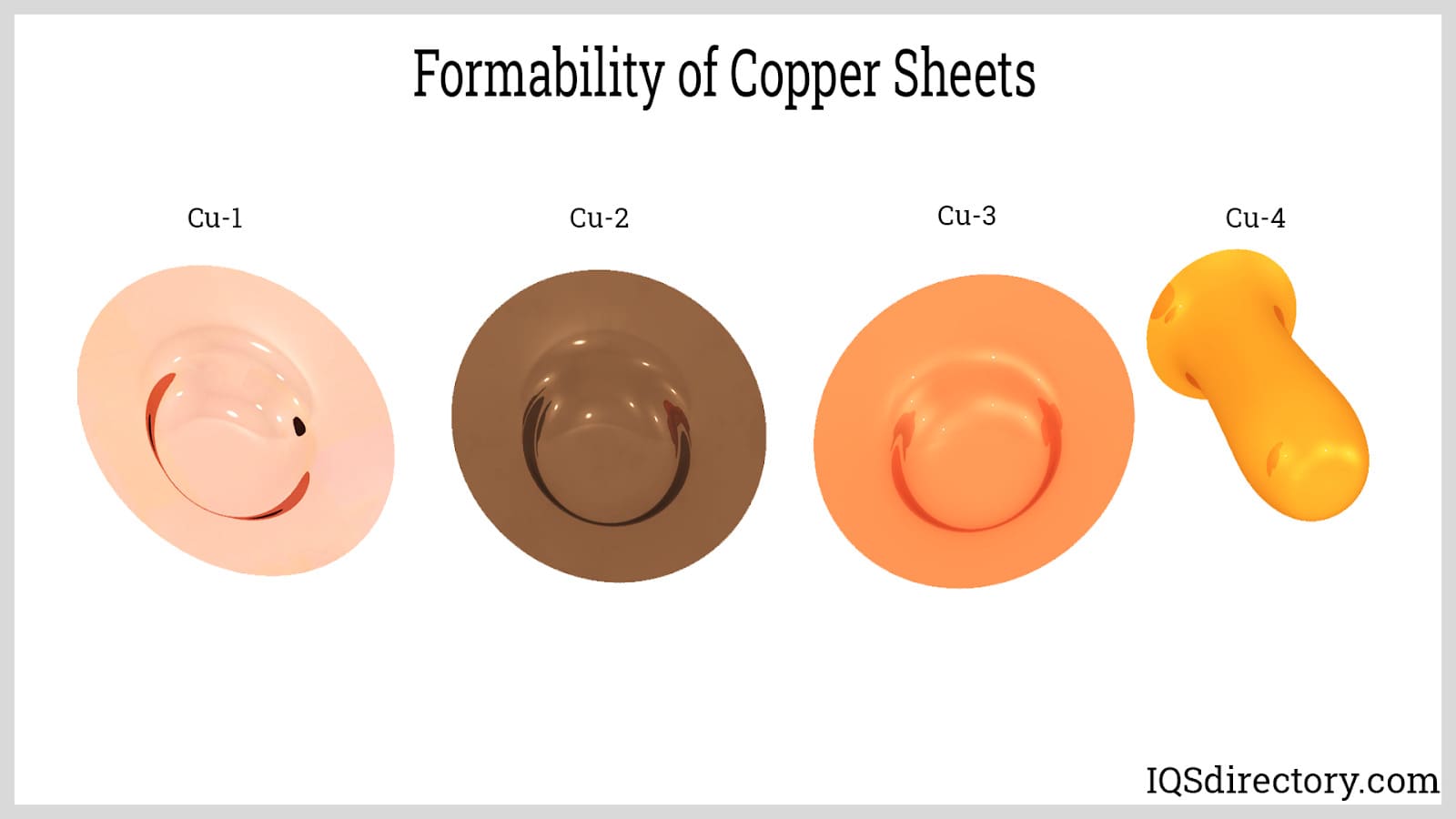

Copper's exceptional formability is demonstrated by its ability to produce micron-sized wire with minimal softening anneals. Copper alloys generally gain strength according to the type and quantity of the alloying elements. Increased cold working enhances the strength of brasses, bronzes, nickel silvers, and copper-nickels. Standard manufacturing processes for items such as bathroom fixtures and household objects include deep drawing, coining, stretching, and bending. Copper-nickel tubes are usually crafted from strips and assembled into customized condenser bundles.

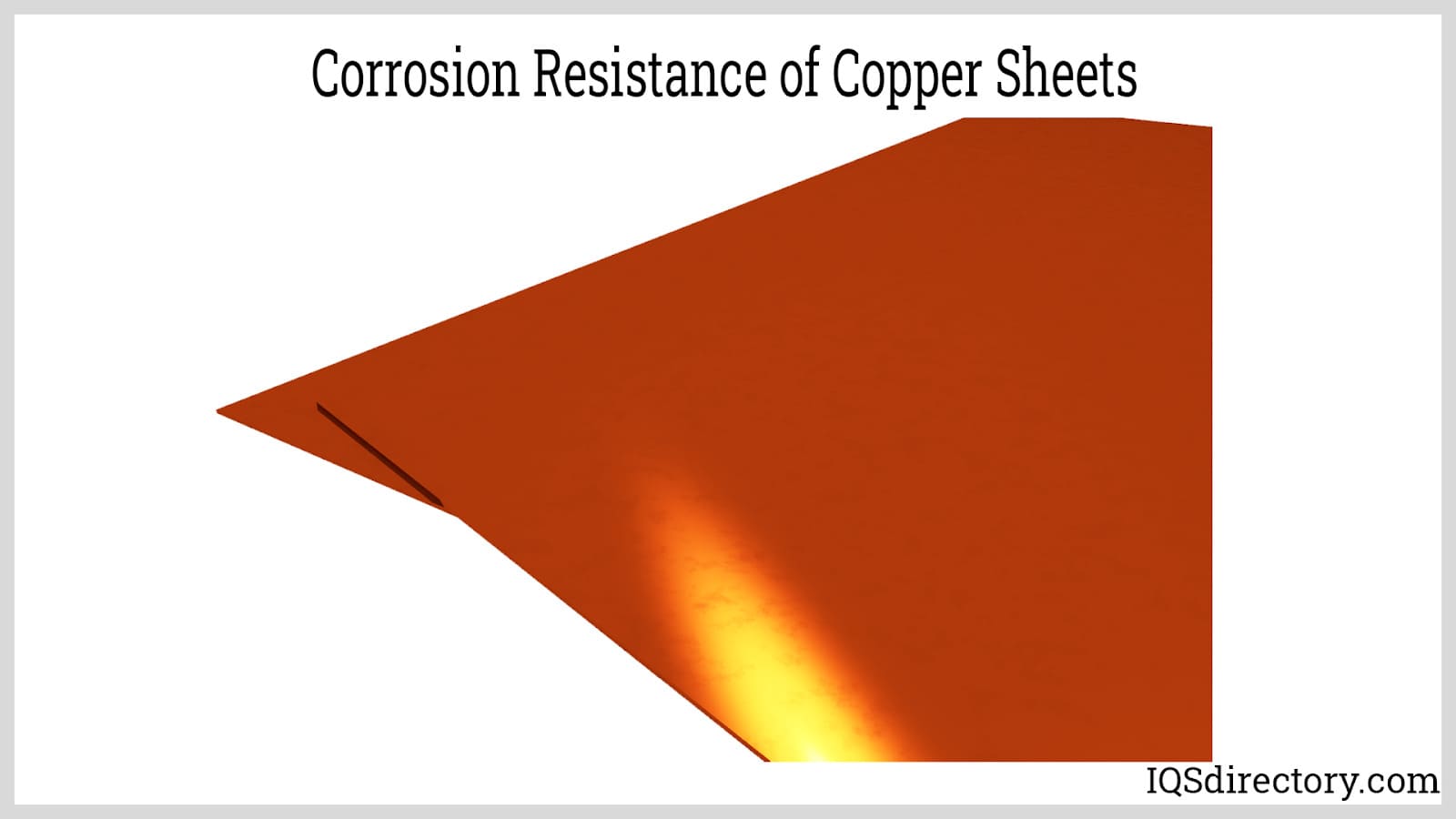

Thanks to its outstanding corrosion resistance, copper and its alloys are utilized across various environments and applications. Architectural elements made of copper, brass, and bronze are commonly found both indoors and outdoors. Copper alloys exhibit minimal corrosion in clean air, water, and deaerated non-oxidizing acids. Many artifacts made from copper alloys have been unearthed in nearly pristine condition even after thousands of years in the ground. Copper roofing, for instance, corrodes at a rate of less than 0.015 inches (0.4 mm) over 200 years. These alloys are also highly resistant to numerous salty, alkaline, and organic compounds. They are ideal for use in freshwater supply lines, plumbing fixtures, heat exchangers, and condensers.
The color differences in copper alloys primarily result from variations in their chemical composition. Pure copper displays a reddish color, but the addition of other elements can alter its hue to yellow, bronze, silver, or gray. Exposure to air can lead to the development of patinas on these colors. The extent of this color change depends on the specific alloy composition and the nature of the surrounding environment.

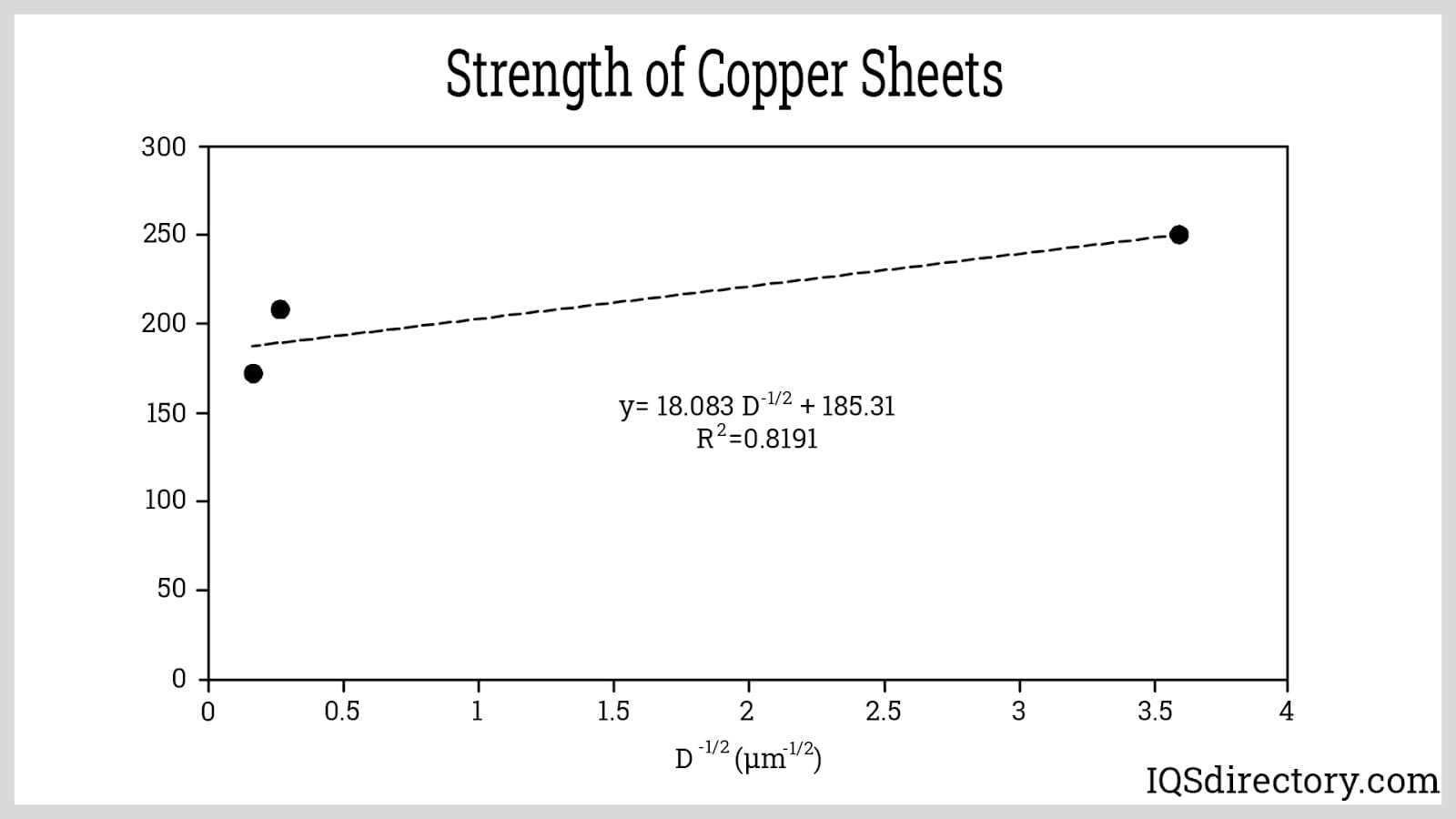

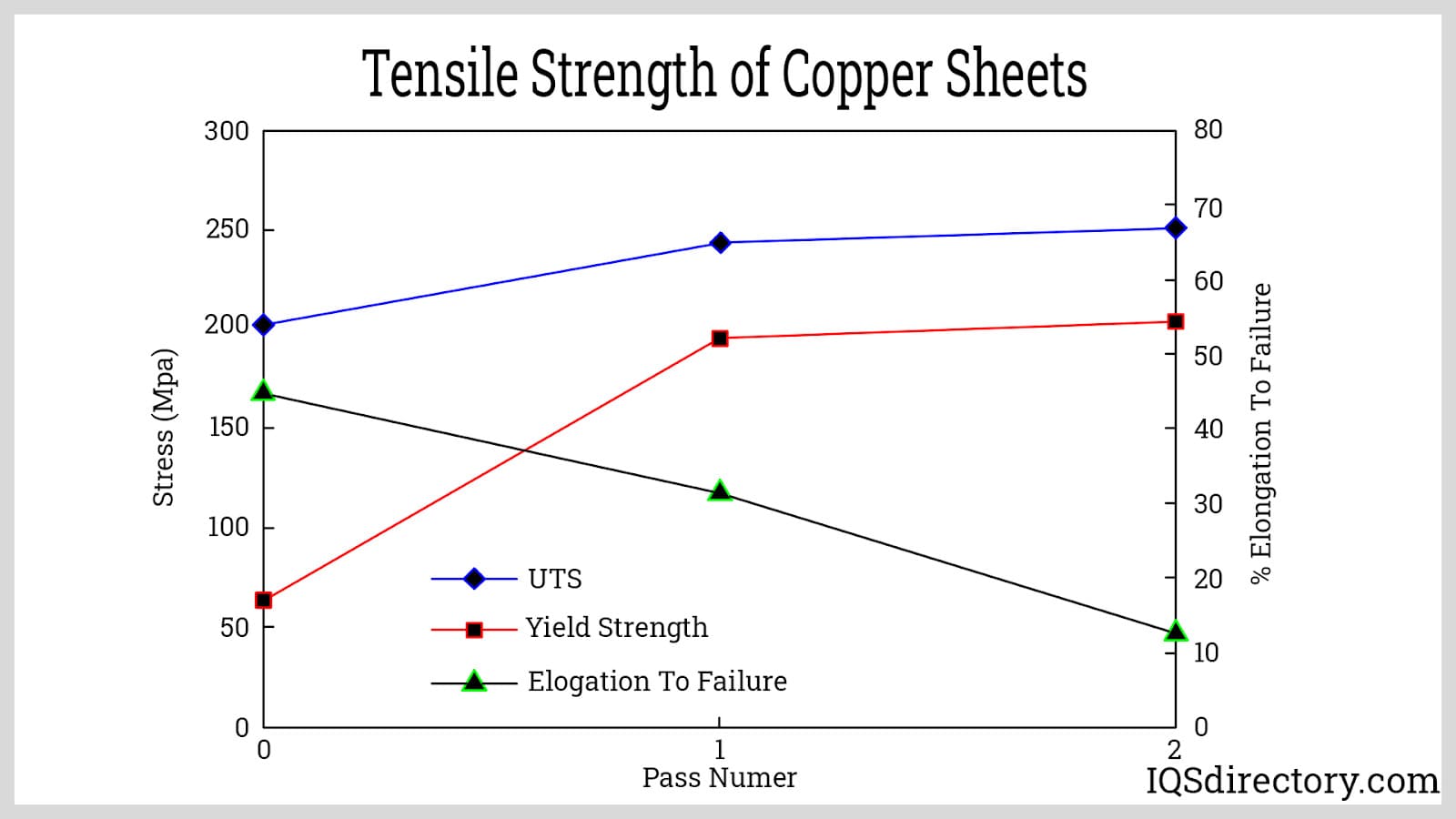

Strengthening copper alloys is commonly achieved through cold working or by adding solid solution elements that enhance strain hardening. The relationship between yield strength and tensile strength in annealed copper is inversely related to grain size. When alloying elements are introduced, copper exhibits increased tensile and yield strength, along with improved work hardening rates. For instance, in brasses, higher zinc content results in greater tensile and yield strength. Alloying produces a range of property combinations, balancing strength and work hardening.
Copper alloy forgings offer several advantages, such as enhanced strength, precise tolerances, and cost-effectiveness. Brass forgings are commonly used in valves, fittings, refrigeration components, and products for gas and liquid handling. They are also employed in industrial and decorative hardware. Most copper alloy forgings are produced using closed die methods. Common forging alloys include high-copper grades like C10200, C10400, and C11000, which are known for their excellent ductility, as well as high-strength alloys with a high-temperature ductile + phase structure.
Although metals like aluminum, brass, stainless steel, and titanium are also utilized for sheet metal production, copper is preferred for certain applications due to its superior conductivity. This attribute makes copper sheeting highly valuable in the electrical appliance and construction sectors.
Beyond its traditional roles in plumbing and decoration, copper is also utilized in wiring, motors, medical equipment, and industrial machinery. The production of copper sheets involves several key steps, including:
Mining of the Ore: Copper in its purest form is extremely difficult to come by in nature. It is usually found in copper ores in conjunction with other compounds. Various chemicals are used during processing to extract the copper and purify it to its purest form. Before it can be displayed in or on homes, these minerals have to go through a long process:

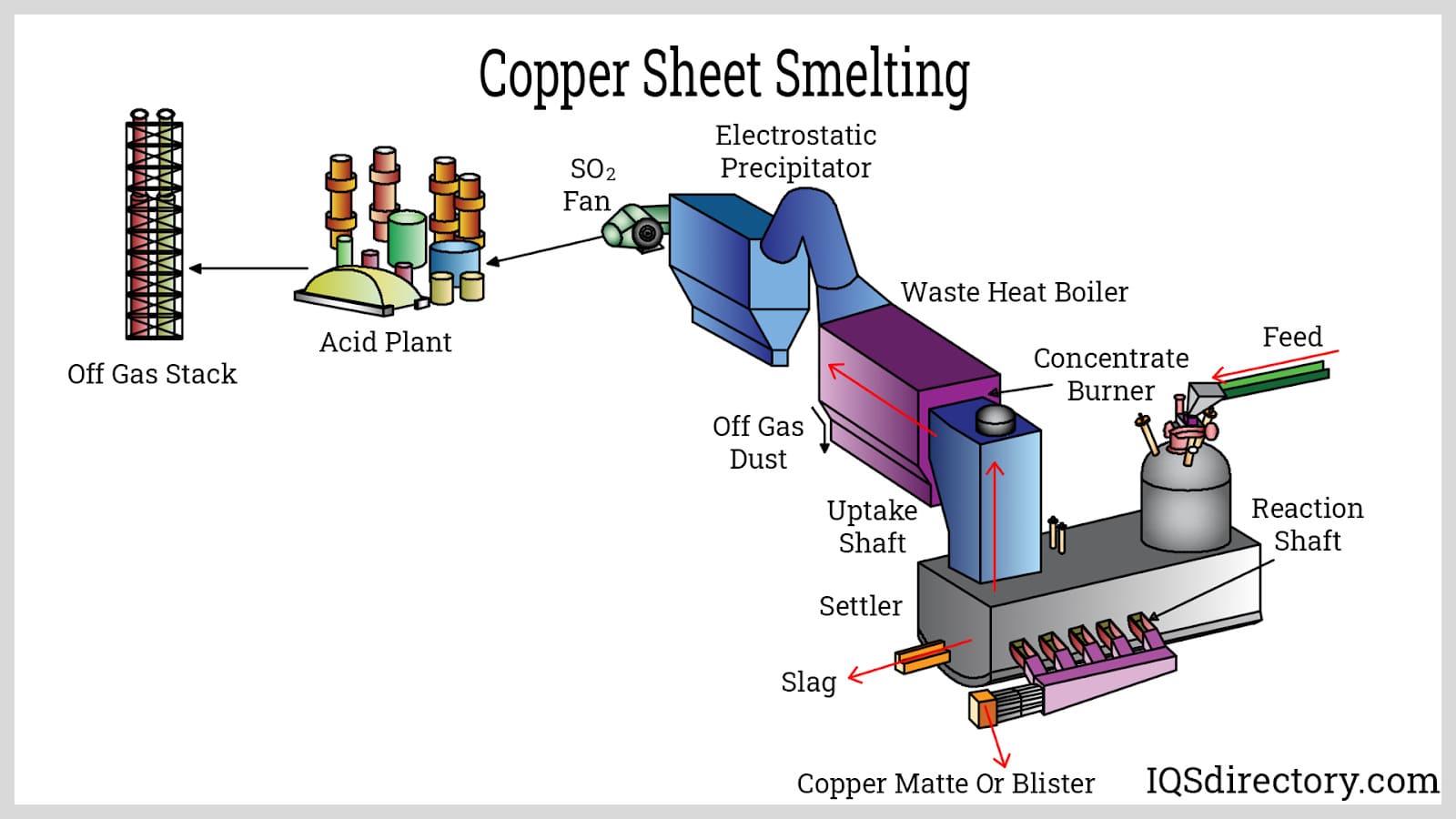

Smelting: Smelting is a technique that removes sulfur and iron from copper through a series of chemical reactions. When copper concentrate is placed in a furnace, it mixes with a flux melt and collects at the bottom of the hot furnace. The majority of other metals, including iron, become highly concentrated and form slag, which is skimmed off the surface. Matte is the concentrated copper and other metals at the bottom of the furnace, which is purified to over 99 percent copper by weight in a second process called the converter.

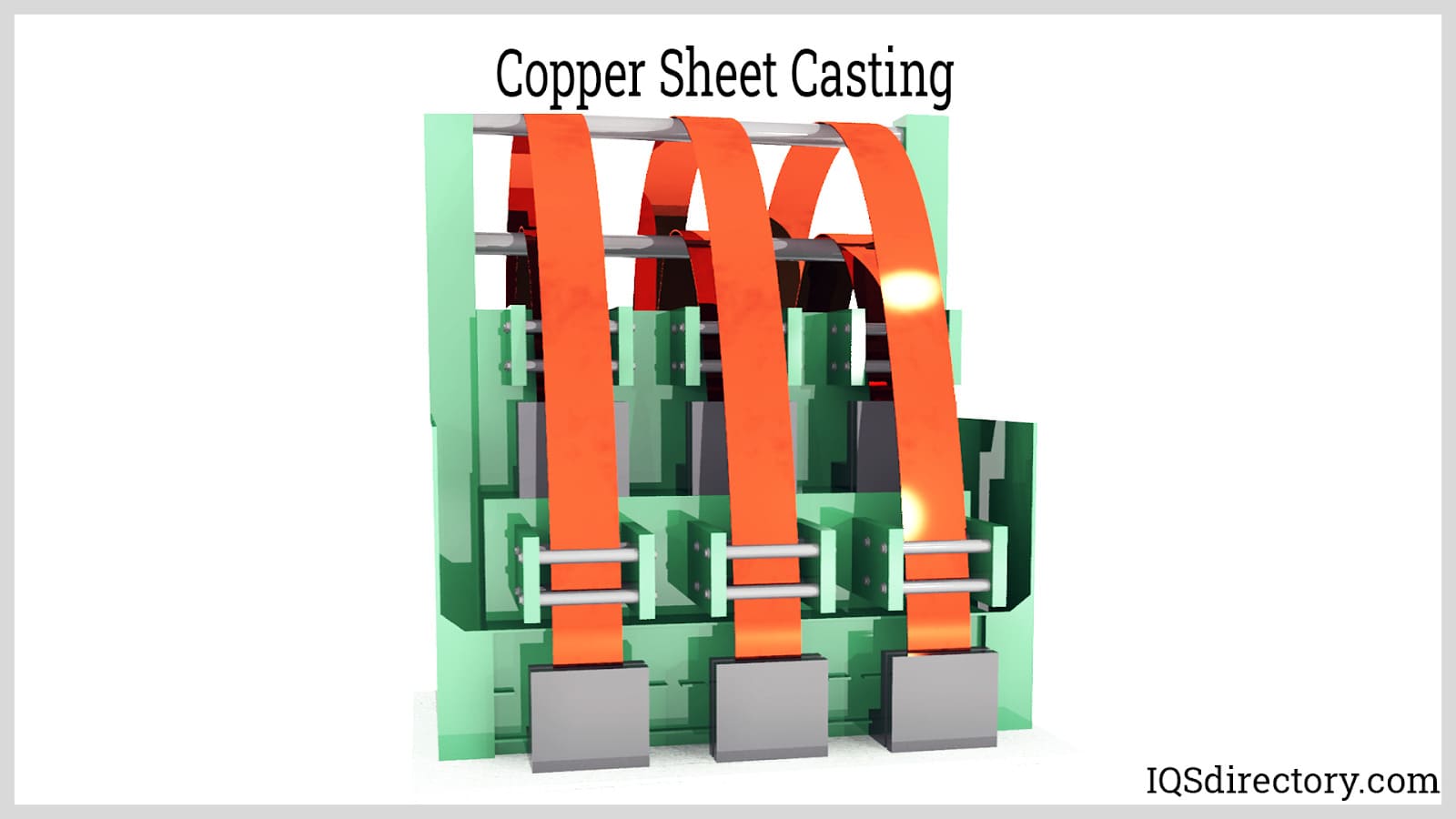

Casting: The copper is cast into a variety of shapes once the blocks of copper cathodes are melted, including rods, billets, cakes, and ingots. The bulk copper is then formed into thin sheets of metal, which are then formed into the big copper rolls.

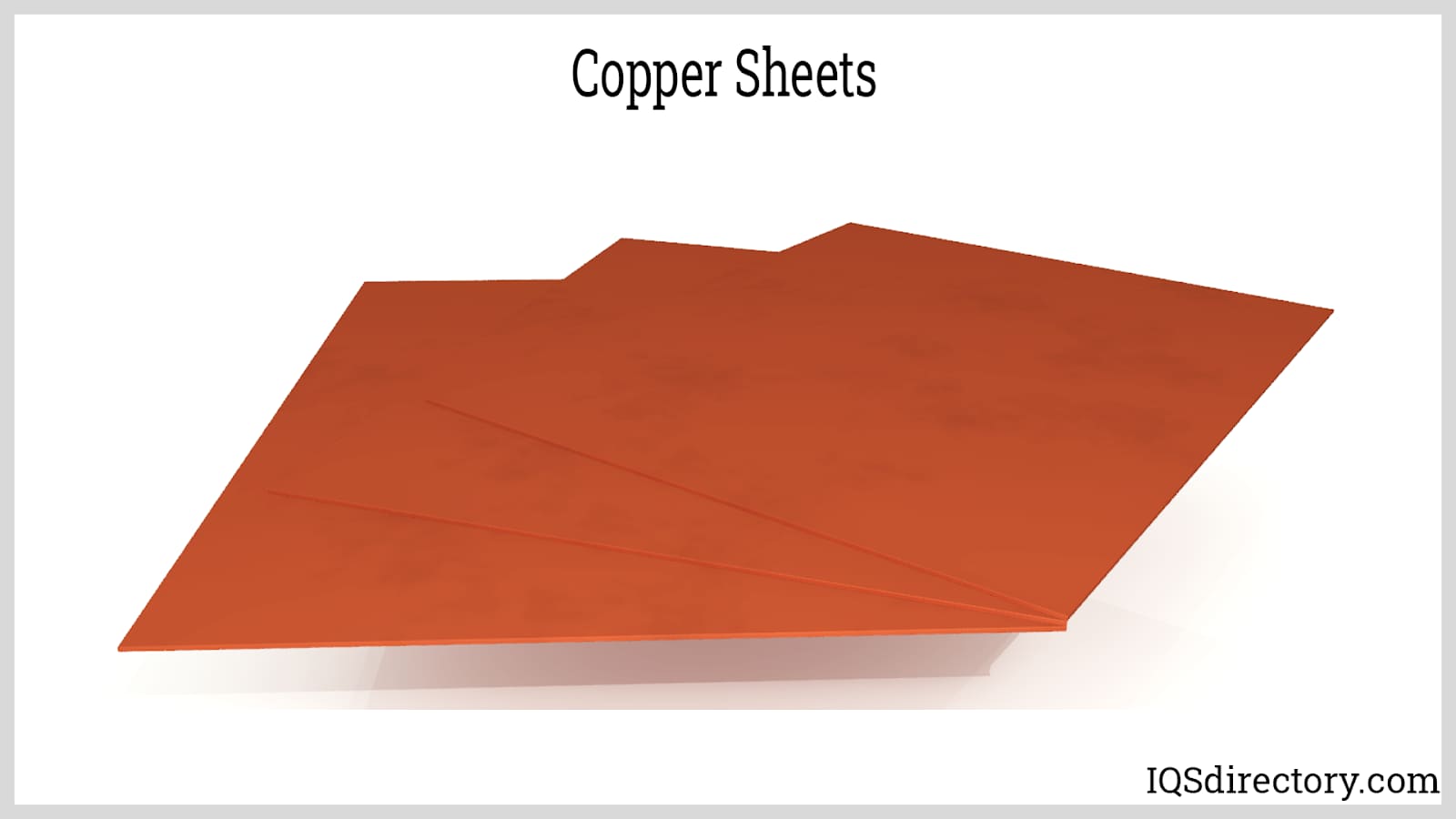

This chapter will explore the different types and orientations of copper sheets, how they are manufactured, and important considerations when selecting copper sheets.
In the industry, copper sheets come in various orientations and types, including:
With a thickness of just 0.001 inches, this ultra-thin copper foil sheet is easy to handle and can be easily cut or punched into different shapes. It is commonly used in arts and crafts, as well as in electrical and manufacturing applications.

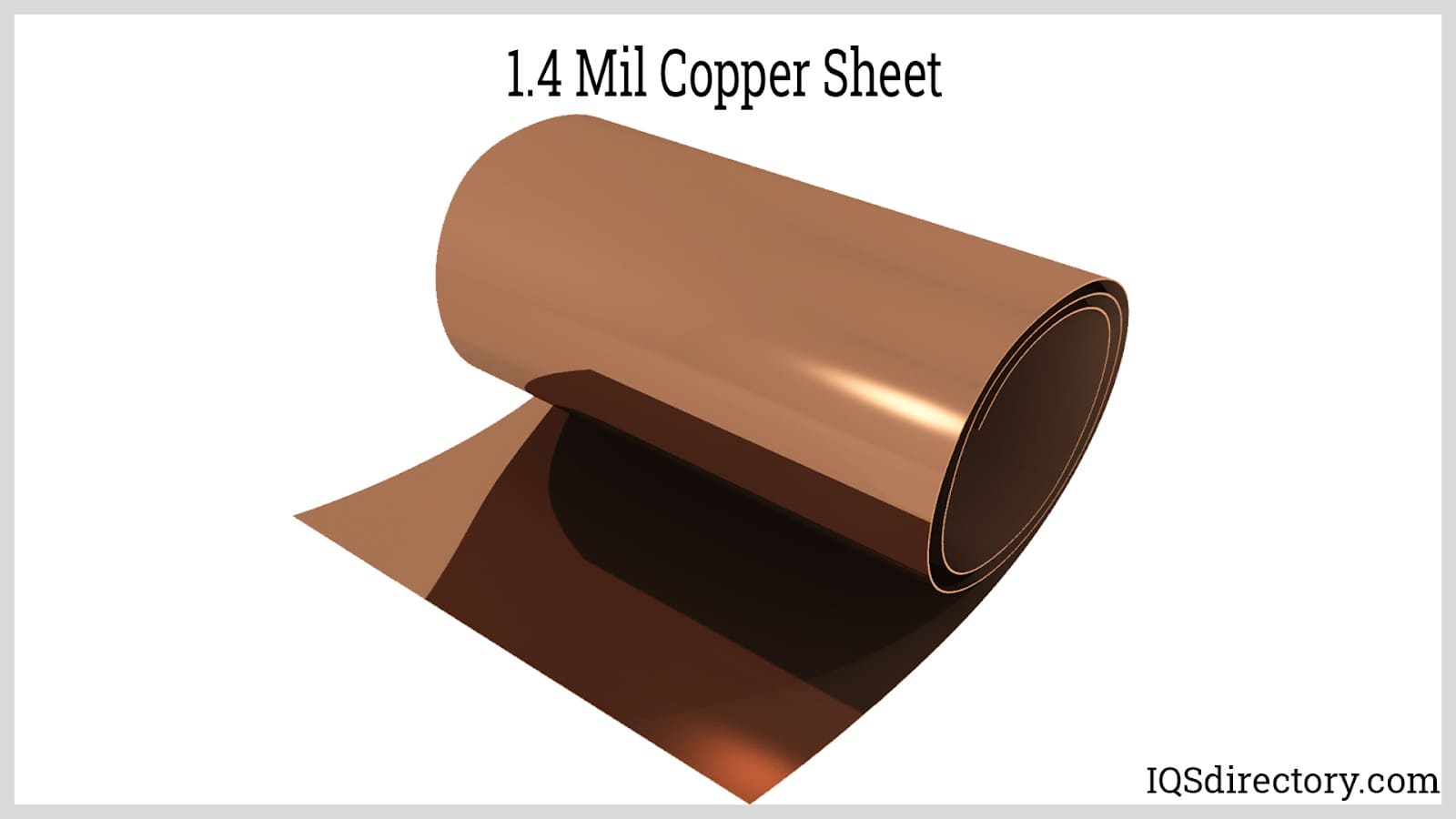

This copper foil sheet, measuring 0.0014 inches thick, is about twice as thick as standard household aluminum foil. It is easy to cut and tear by hand but can wrinkle easily. It is used similarly to the 1 mil copper sheet, in arts and crafts, electrical, and manufacturing fields.
This gauge of copper measures 0.005 inches in thickness and features a glossy, polished finish. Although it is not easily torn by hand, it can be cut with scissors without difficulty. Copper sheets of this thickness are often used for embossing, die-cutting, various craft projects, and numerous other applications.
With a thickness of 0.008 inches, this robust copper tooling foil is suitable for a diverse range of arts and crafts, as well as home improvement and construction tasks. It can be cut with scissors and tends to retain its shape better than the 5 mil variety, though it will still bend under pressure.
With a thickness of 0.010 inches, 10 Mil copper sheets are significantly thicker than typical household aluminum foil, being about 14 times more substantial. At this thickness, copper begins to exhibit structural integrity, allowing it to be molded or shaped using heavy-duty scissors or a utility knife. It can be manipulated and cut effectively with these tools.
16 Mil copper sheets, measuring 0.016 inches in thickness, offer increased rigidity compared to thinner options. These sheets are commonly used in artistic and craft applications due to their durability. They are available in various sizes, making them suitable for sculptures, jewelry, and similar projects.

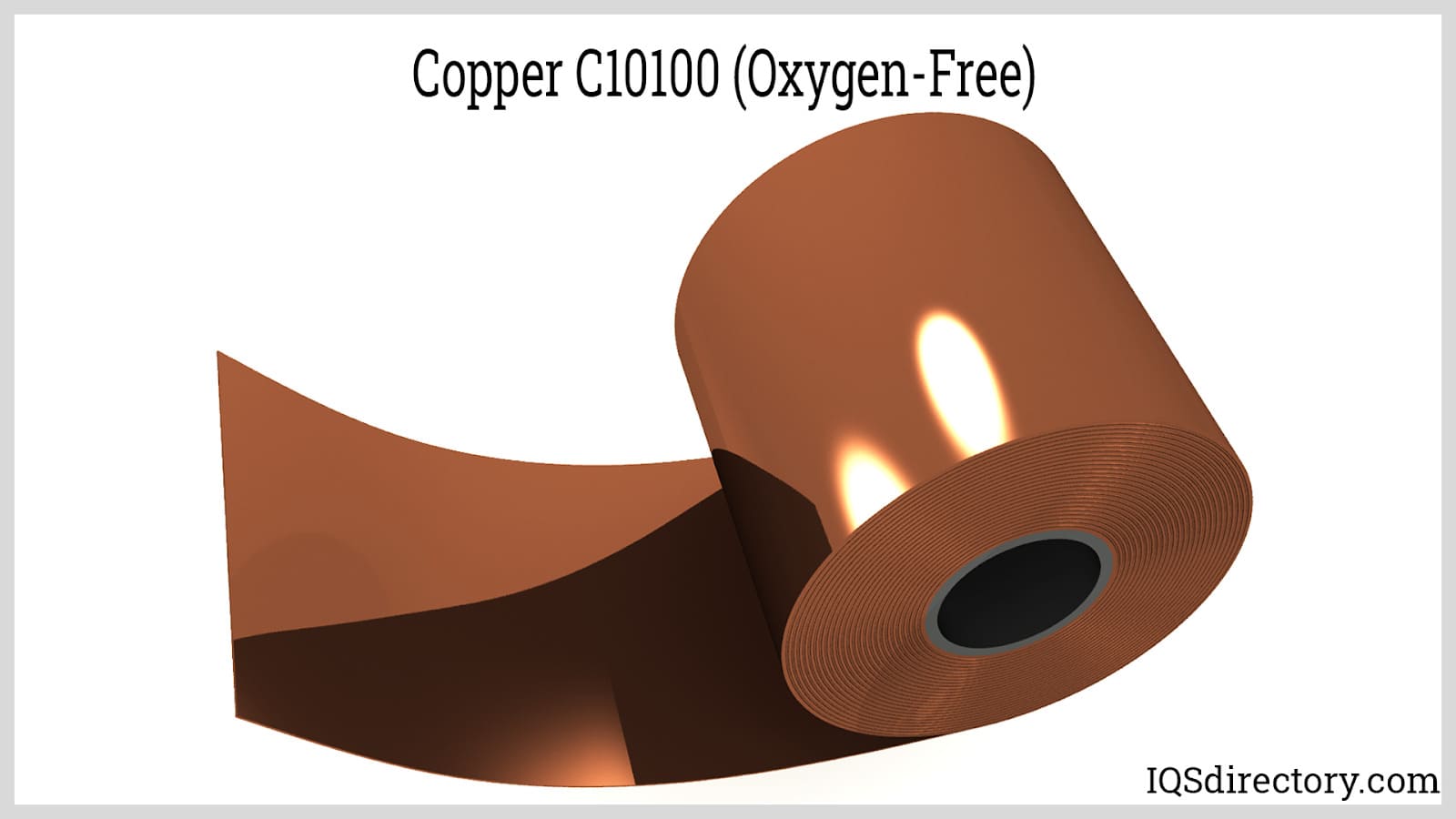

Pure copper is noted for its softness, excellent electrical and thermal conductivity, and resistance to corrosion. Copper's different grades vary in purity and impurities, affecting its properties. Oxygen-free copper is preferred for applications that demand high conductivity and ductility. Here are some copper alloys:

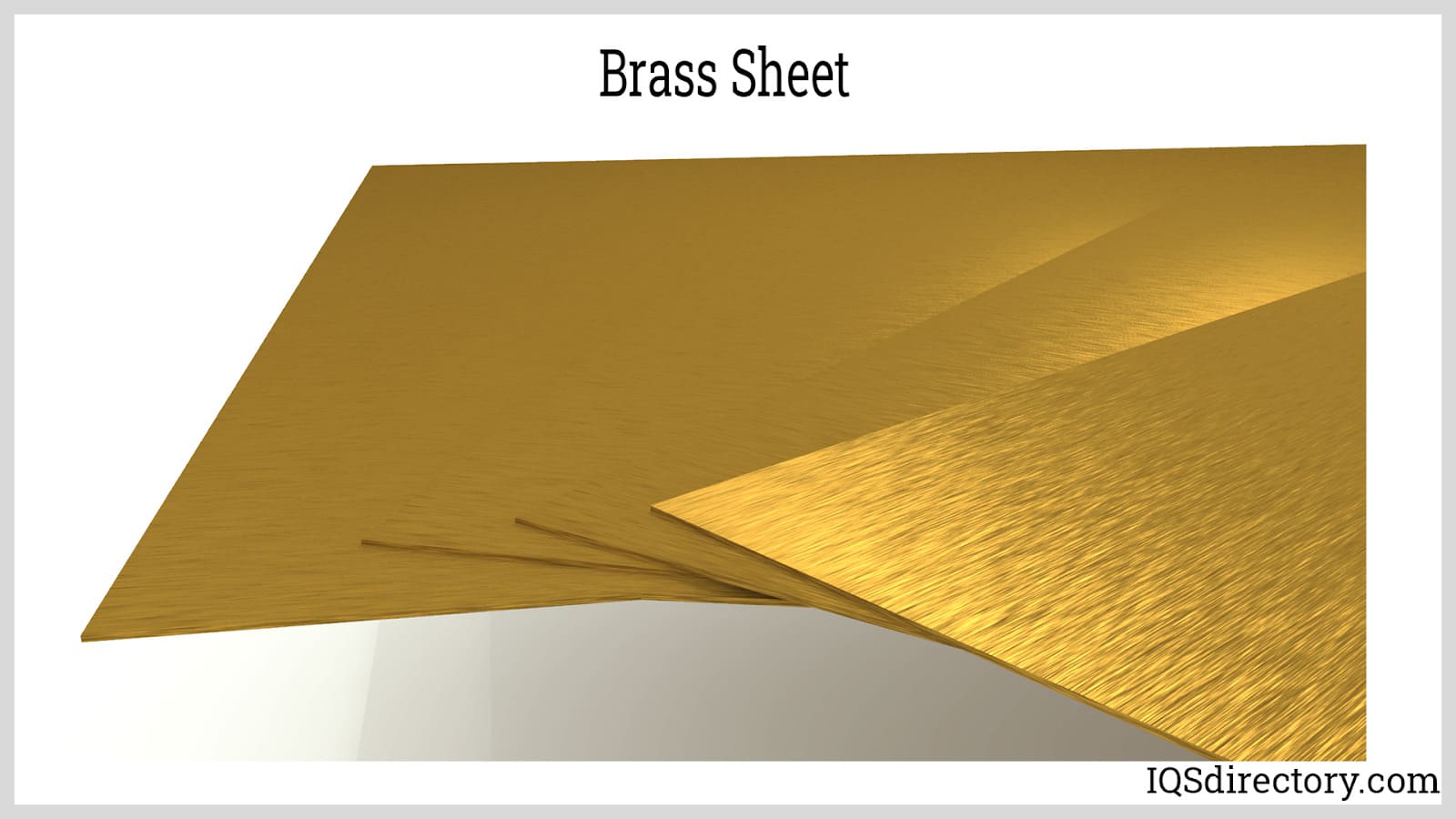

Brasses are copper-zinc alloys with good strength and ductility, and the ability to be cold worked, qualities that improve with increased zinc concentration up to 35 percent. Brass comes in a variety of colors, ranging from red to bright yellow, depending on the quantity of zinc in the alloy. Brass alloys with specified zinc concentrations are known as gilding metals, commercial bronze, jewelry bronze, red brass, and cartridge brass. Brasses with a zinc content of 32 to 39 percent have excellent hot working properties but restricted cold workability.
Brass alloys with over 39% zinc, like Muntz Metal, offer higher strength but reduced ductility compared to those with lower zinc content. Brass is known for its ease of forming, cold-worked strength, and resistance to corrosion. It's used in a variety of products including plumbing fittings, decorative hardware, architectural trim, low-pressure valves, gears, and bearings.
Alloys made from copper, zinc (2% to 40%), and tin (0.2% to 3%) are known as tin brasses. This family includes admiralty brasses, navy brasses, and free-machining tin brasses. These alloys are used in high-strength fasteners, electrical connectors, springs, marine hardware, pump shafts, and screw machine parts. Compared to standard brass, these tin brasses offer better corrosion resistance and reduced dezincification while maintaining high strength and electrical conductivity.
Copper nickel alloys, which contain between 2% and 30% nickel, are prized for their excellent resistance to corrosion and thermal stability. Adding elements like iron, chromium, niobium, or manganese can further enhance their strength and resistance to corrosion. These alloys are particularly resistant to oxidation in steam and moist air, and they are highly resistant to stress corrosion cracking. Higher nickel content alloys are well-suited for marine environments and are used in various applications including electrical components, condenser tubes, and marine fittings.
C18150 is a type of chrome zirconium copper known for its superior strength at elevated temperatures and enhanced wear resistance compared to standard chrome copper. It is ideal for applications requiring high mechanical strength and good electrical conductivity, such as resistance welding electrodes, control arms, and electrical contacts. The availability of wider plates makes it easier to work with and cut into flat bars.
This type of copper alloy, known for its exceptionally high conductivity, is essential for applications like electrical switchgear, circuit breakers, and resistance welding equipment.
This copper alloy is utilized in a range of electrical applications including switchgear, bus bars, ground straps, and circuit breakers, thanks to its superior electrical conductivity. It is also used in electrolytic tank heads, pole line hardware, and heavy-duty electrical connectors.
C63000 Nickel Aluminum Bronze is chosen for its exceptional mechanical properties and resistance to corrosion. It performs well under high compressive stress, resisting wear, abrasion, and deformation. This alloy minimizes friction, galling, and seizing, extending component life and reducing maintenance. It finds applications in heavy machinery, aerospace, military, and marine industries, including valves, pumps, and various corrosion-resistant parts.
This section will cover the uses and advantages of copper sheets.
Copper can be formed into numerous shapes and sizes, with sheet copper being the most prevalent. Due to its versatility, copper sheets find a wide range of applications. Regardless of their thickness, copper sheets are consistently valuable in various uses.
Crafts: Copper has a lovely reddish brown color that comes out well with any decor. A stripe of copper along trips or even freestanding copper furniture is a beautiful accent to any home or office, whether a rustic or modern aesthetic.
Here are the key benefits of using copper sheets:
Copper offers superior electrical and thermal conductivity compared to silver, making it crucial for various electrical applications. It is used extensively in electrical wiring, heating elements, electromagnets, semiconductors, heat sinks, microchips, and welding electrodes.
Additionally, copper plays a vital role in superconductors, which are fundamental to advanced technologies. Superconductors, which exhibit no electrical resistance, enable the creation of faster digital circuits, MRI machines, particle detectors, electric motors, and even railguns.
Due to its low reactivity, copper is ideal for applications such as pipes (for irrigation, distillation, and fuel gas lines) and electrical cables, as it resists corrosion effectively. When exposed to the atmosphere, copper forms a green patina of copper oxide, which protects the metal from further oxidation and corrosion.
Copper possesses biostatic properties, preventing the attachment and growth of organisms on its surface. This makes it useful in marine hardware to deter barnacles and mussels from sticking to ship hulls. Additionally, copper's antibacterial properties contribute to its effectiveness as a biofouling agent.
Copper is highly recyclable and retains approximately 90% of its original value, making it a cost-effective alternative to mining and processing new copper, which also impacts the environment. While copper is plentiful in the Earth's crust, its availability is finite, and recycling helps extend the lifespan of this valuable resource.
Copper is a soft, ductile, and malleable metal that bends and stretches easily without breaking. Copper is a versatile metal for construction and manufacturing because of this. Copper pipes, which can readily be bent to fit around corners, are a good illustration of this adaptability. Copper wiring is created by stretching copper rods through specialized machines that thin the metal into fine wires, whereas copper sheets are created by rolling the metal through heavy rollers. Copper is often used for coinage, simple tools, and even decoration due to its relative cost-effectiveness and ease of working.
Copper pipes inhibit bacterial growth, ensuring a cleaner water supply. Additionally, the absence of lead in the production process eliminates the risk of lead contamination. Copper plumbing systems are known for their durability and, unlike steel pipes, they are resistant to corrosion.
Here are some drawbacks of copper sheets:
Factors to consider when selecting copper sheets include:
When deciding on the type of copper sheet needed for the project, keep in mind that copper sheets come in a number of alloys. Alloys give different features depending on properties, hence the type of alloys are chosen according to the application of the copper sheet. Bronze or brass are frequently used in copper alloys, giving the sheets additional physical qualities.
For instance, C22000 Commercial Bronze consists of 90% copper and 10% zinc. It provides excellent malleability, ductility, strength, and hardness, along with resistance to galling and corrosion. This alloy is particularly suitable for architectural applications. Although there are more than 400 types of copper alloys available, most copper sold in the United States comes in just a handful of forms.
Copper sheets are available in various thicknesses and gauges. When purchasing copper sheets, it's important to understand the measurement of gauge and thickness. Interestingly, a higher gauge number indicates a thinner sheet. For example, a 24-gauge copper sheet is 0.0215 inches thick, whereas an 11-gauge sheet is 0.1250 inches thick.
Copper can be finished in various ways, affecting its appearance. When polished with a synthetic finish, copper achieves a reflective, mirror-like shine. In contrast, copper exposed to air forms a green patina due to oxidation. This natural corrosion process can be accelerated through chemical treatments applied to the copper's surface.
Tempering involves applying heat to achieve specific metallurgical properties in thin sheet metal within the copper industry. The mechanical characteristics of copper alloys can vary depending on the thermal and mechanical processing applied during manufacturing or afterward. Copper temper designations range from Soft (H01) to Hard (H02), with several intermediate grades available based on production standards. Soft temper copper is preferred for applications like etching and sculpturing due to its ease of cutting and shaping, while harder tempers are better suited for more demanding, heavier applications.
One of the most encouraging aspects of using copper for these goods is that the resources no longer have to come straight from mine deposits. Today, recycled copper accounts for more than half of all copper utilized. The quality is the same, but these resources are far more environmentally friendly and sustainable. Copper is one of the easiest minerals to recycle, and this method is becoming increasingly common. Recycled copper is made by recovering old used recycled products and melting and casting into completely new materials that have the same integrity as freshly mined copper and can last for generations. Recycling is far more energy efficient and cost effective than mining new core from the earth, allowing businesses to lower carbon impact while offering better rates to customers.

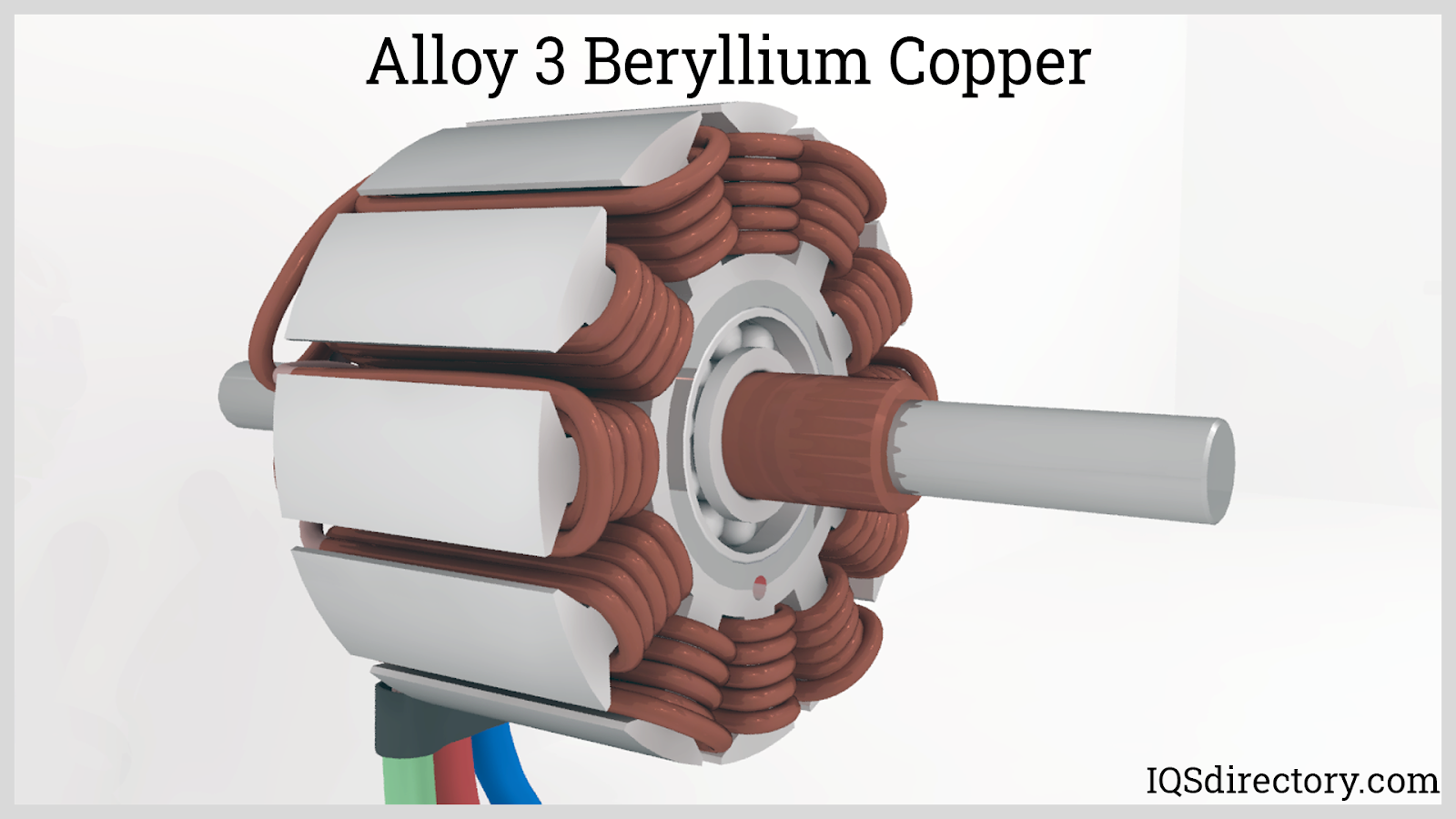

Beryllium Copper is a versatile copper alloy that is valued for its high strength and hardness, combined with good electrical and thermal conductivity. It is a non-ferrous, non-magnetic, and non-sparking metal alloy...
