This article takes a detailed look at gantry cranes.
You will learn more about topics such as:
A gantry crane is an overhead crane that has one or two beams supported by freestanding legs and moves on wheels, a track, or rail system carrying a bridge, trolley, and hoist. Workshops, warehouses, freight yards, railroads, and shipyards use gantry cranes as their lifting solution as a variation of overhead or bridge cranes.
Gantry cranes are versatile overhead lifting solutions designed to handle both small and heavy-duty loads. Their variety allows for customization to fit various lifting applications. The main advantage of gantry cranes is their ability to lift loads efficiently and safely, which enhances productivity and reduces time and costs.
Gantry cranes are categorized into single and double girder types. Single girder cranes are suited for smaller lifting applications, while double girder cranes are designed for high-capacity and more demanding tasks. Double girder designs, with their greater capacity and performance capabilities, tend to be more expensive.
While the common design features an “A” frame, gantry cranes are also available with L-shaped and U-shaped legs. Regardless of the girder type, all gantry cranes are engineered for heavy workloads and extended use, making them a preferred choice for heavy lifting tasks.
The lifting capacity of gantry cranes can range from a few hundred pounds to several hundred tons. They offer an efficient and cost-effective solution for lifting and moving equipment, materials, and tools of varying sizes and weights.
Gantry cranes are utilized in warehouses, shipping docks, and railroad yards. Outdoor models are equipped with weather protection features such as wind proofing, rain covers, and lightning protection. Additionally, gantry cranes can be designed with fixed or adjustable height and span to meet the specific requirements of different facilities.
Gantry cranes come in various styles with different load and lifting capacities, making them versatile for industrial applications. The key differences among gantry cranes are based on girder configuration, crane size, hoist trolley, and hoist type.
While many gantry cranes are designed as permanent, stationary lifting mechanisms, there are also portable and mobile versions. These mobile gantry cranes can be moved to the location of the items to be lifted. The wide range of gantry crane types allows them to be customized for specific conditions and lifting requirements.
Gantry cranes are categorized based on their configuration, design, and weight capacity. These factors are interconnected and play a crucial role in determining the specific type of gantry crane suitable for a particular application.
The full gantry crane is the standard configuration, featuring a cross beam, legs, and a hoist. It can run on wheels, rails, or tracks. Depending on their size, full gantry cranes can be either mobile or stationary.

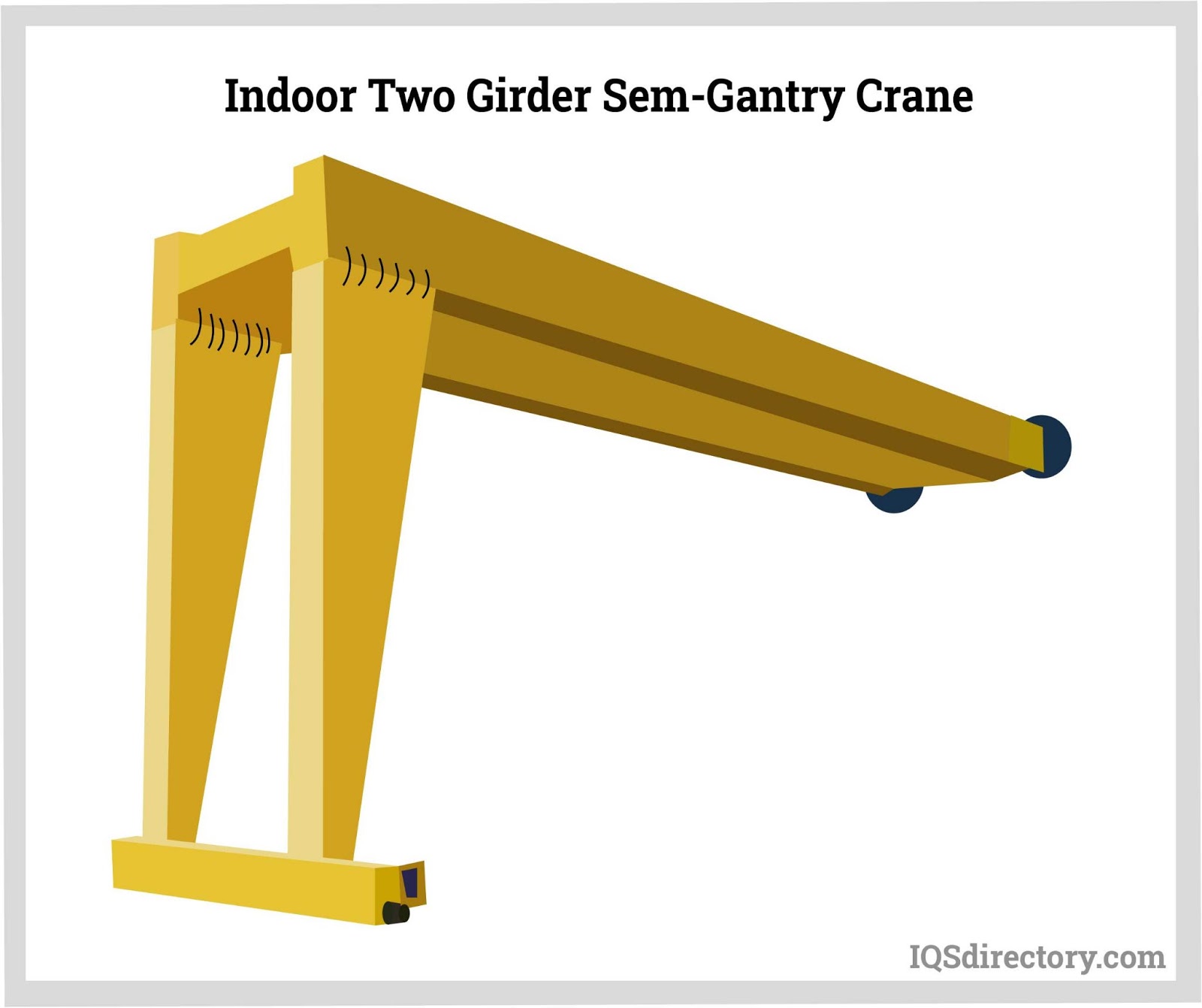

A semi-gantry crane features one leg and utilizes a wall-mounted I-beam to support the other side. Its composition includes a bridge, crane mechanism, trolley, and hoist. Combining elements of both overhead and gantry cranes, semi-gantry cranes can be installed both indoors and outdoors. Often, they are positioned below an overhead crane to enhance work efficiency without disrupting the operation of the overhead crane.

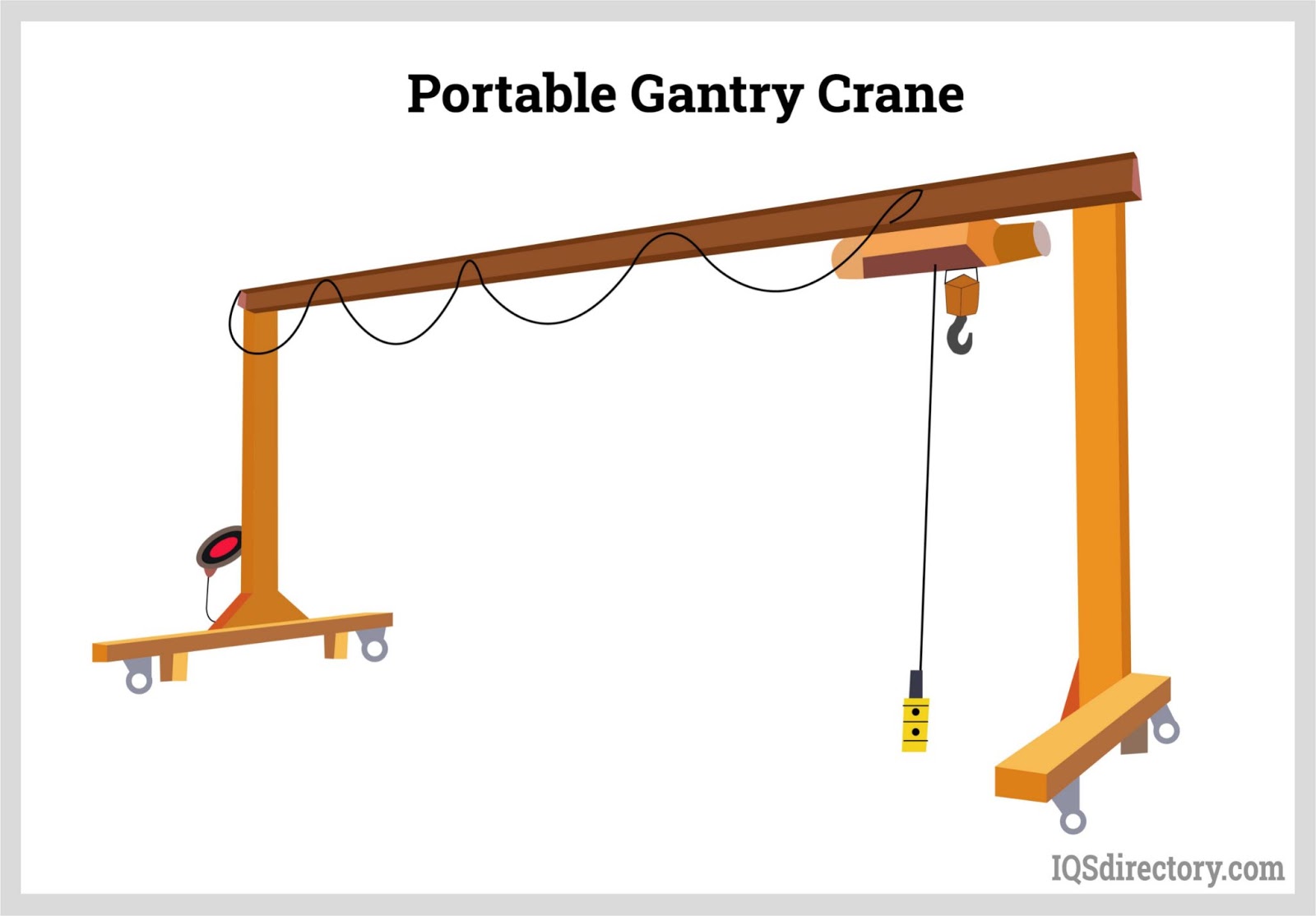

Portable gantry cranes are lightweight and mounted on rubber wheels or casters. They typically have a lifting capacity ranging from half a ton to five tons and come in various heights and spans. Offering an economical solution for infrequent lifting needs, portable gantry cranes provide the same efficiency as permanent cranes. They can be easily moved to different locations within a facility to lift or position materials as needed.

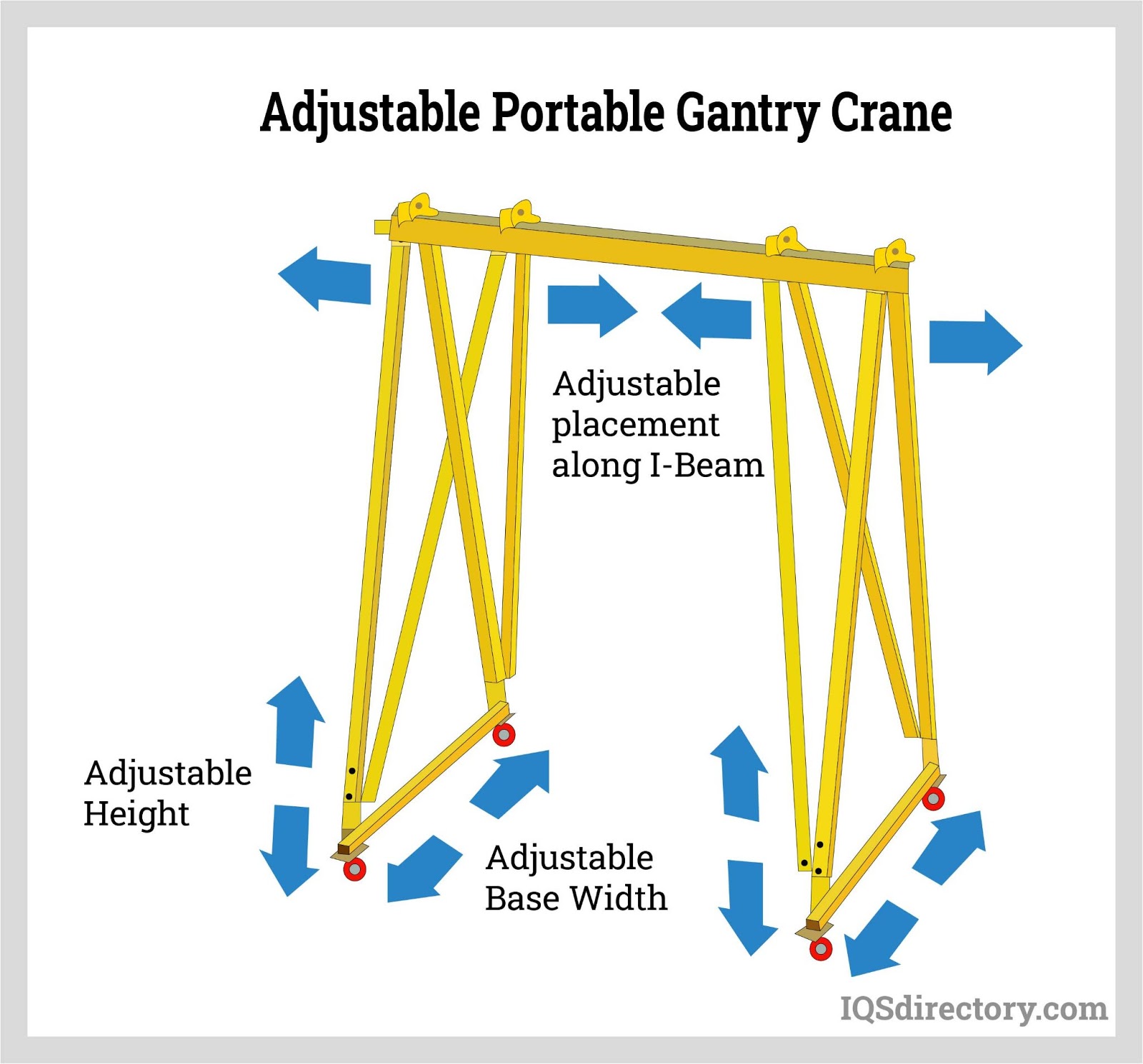

Adjustable cranes come in various types, including portable and fixed models, and allow for modifications in height, width, and horizontal beam length to accommodate different loads. The primary benefits of adjustable cranes are their flexibility and convenience. While small, adjustable gantry cranes are common, larger, permanent single girder models are also available. Many gantry cranes, regardless of their type, feature adjustable aspects and characteristics to enhance their versatility.

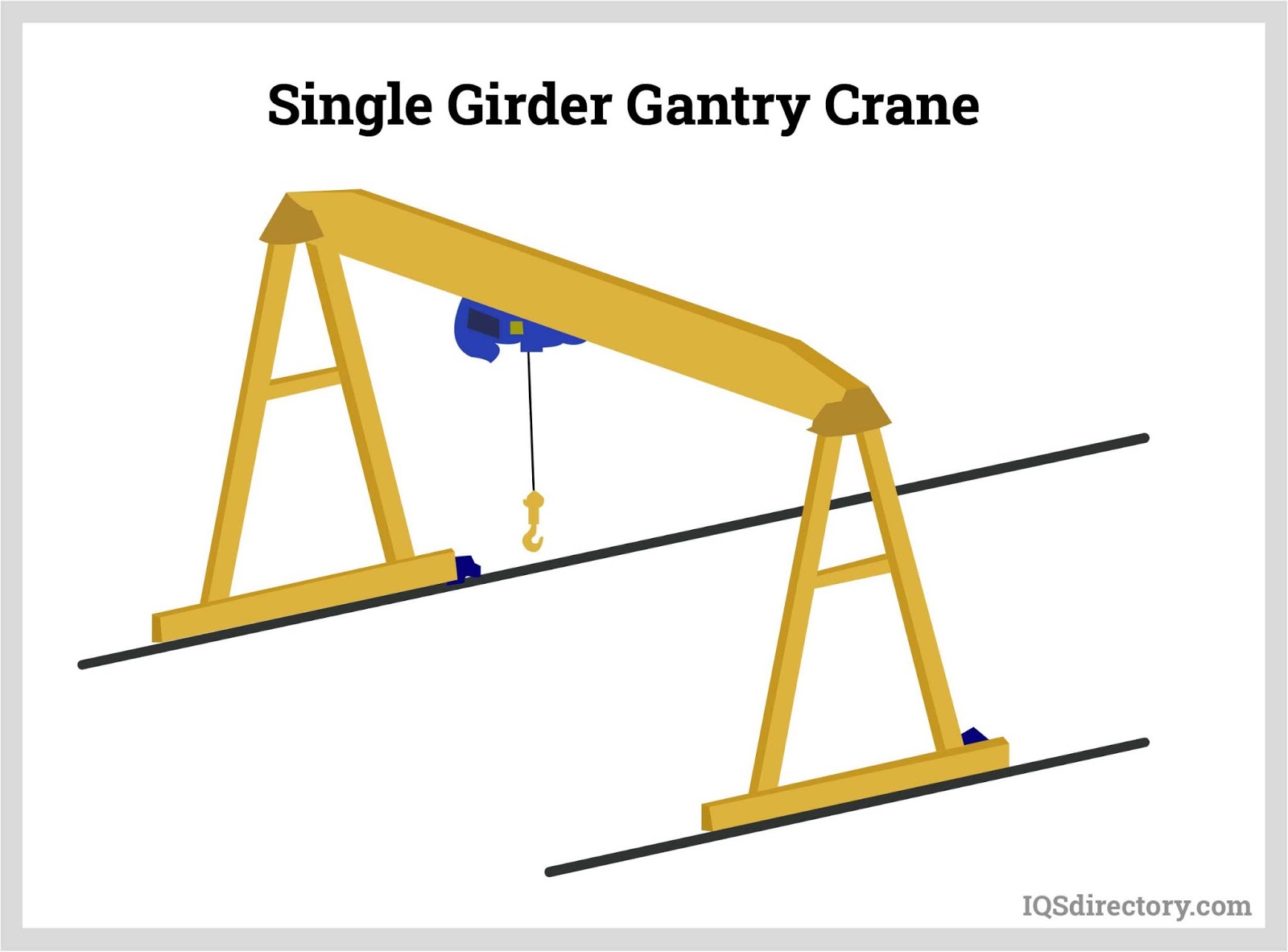

A single girder gantry crane features one bridge beam with a hoist trolley that operates along the lower portion of the crane. Its components include the main beam, support legs, cross beam, crane drive, controls, and hoist. Single girder gantry cranes can be equipped with various types of lifting hoists, including European models, depending on the specific work requirements. They can be configured as either semi-gantry or full gantry cranes and can be adapted to fit different working conditions.
A double girder gantry crane features two girder beams forming the bridge, which can accommodate either a top-running or under-running trolley. Designed for extremely heavy-duty applications, double girder gantry cranes offer a high bearing capacity, large span, and excellent stability. They can lift loads reaching hundreds of tons and are available in both semi-gantry and full gantry configurations, often with A-frame legs.

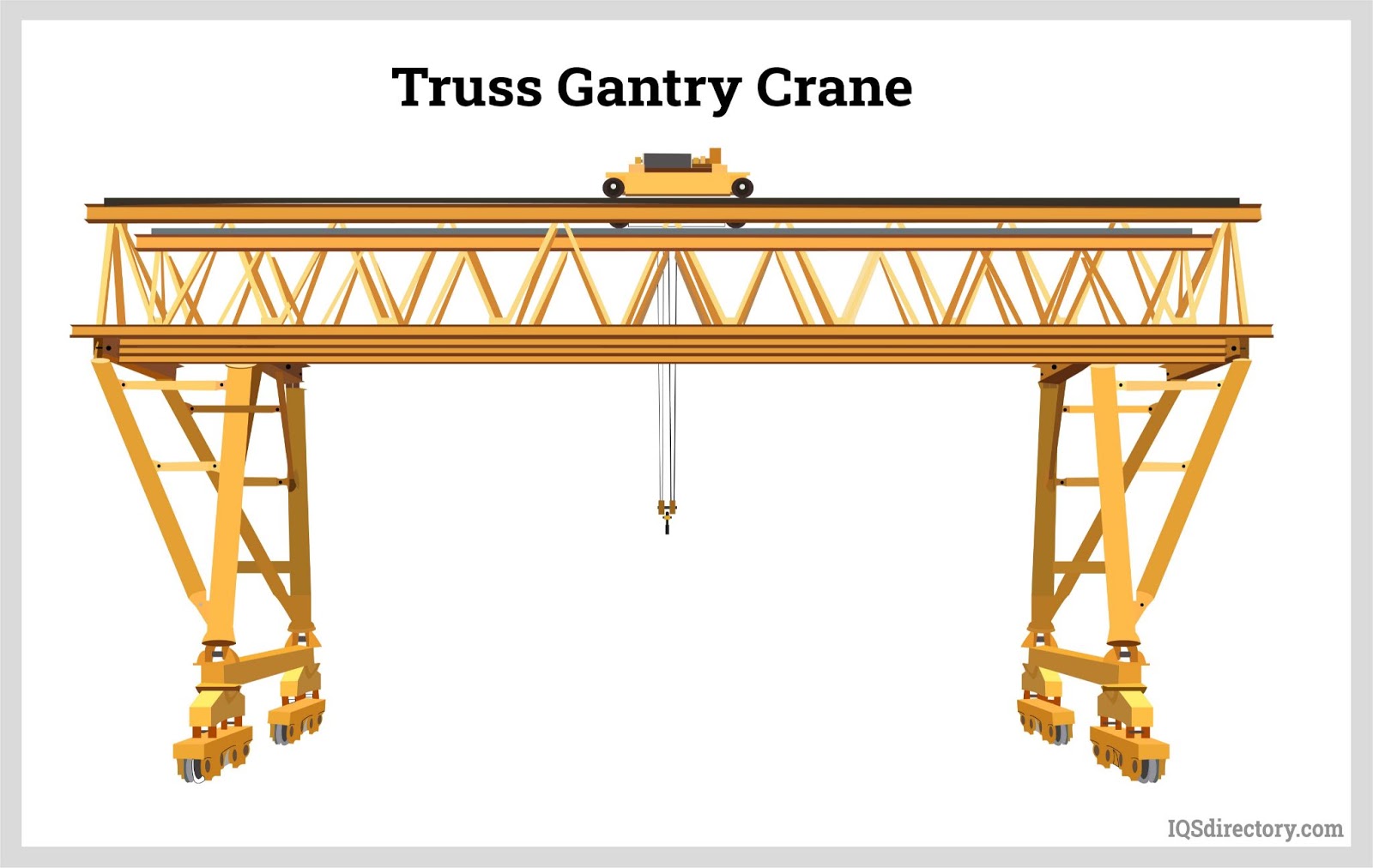

A truss gantry crane features a girder, legs, and cross beams constructed from interconnected shafts. The trolley runs on top of the truss girder and may include a driver's cabin. These cranes are lightweight with reduced wheel pressure, and they can lift loads ranging from five to one hundred tons. Truss gantry cranes come in various lifting heights and spans and can be configured as any type of gantry crane, regardless of the specific design of the girder and frame.

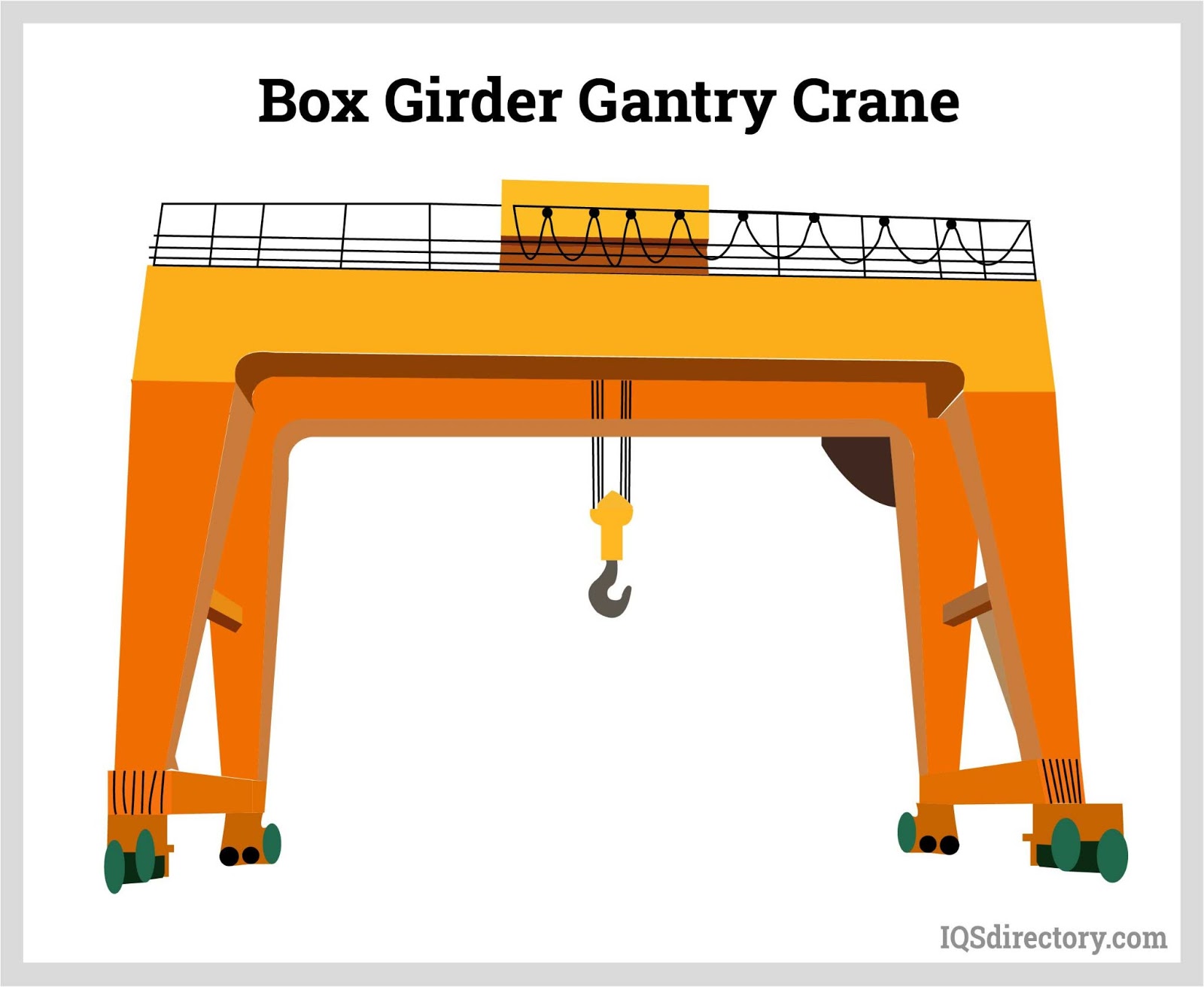

A box gantry crane features a four-sided box structure as the crane bridge, with the hoist trolley attached to the bottom of the box. This design allows for a longer bridge span and greater load capacity. Box gantry cranes can be configured as single or double box types, with the double box design suited for extremely heavy-duty lifting. They are typically installed in locations where an overhead crane cannot be used. The box-style girder is mounted on A-frame columns that rest on heavy-duty wheels.

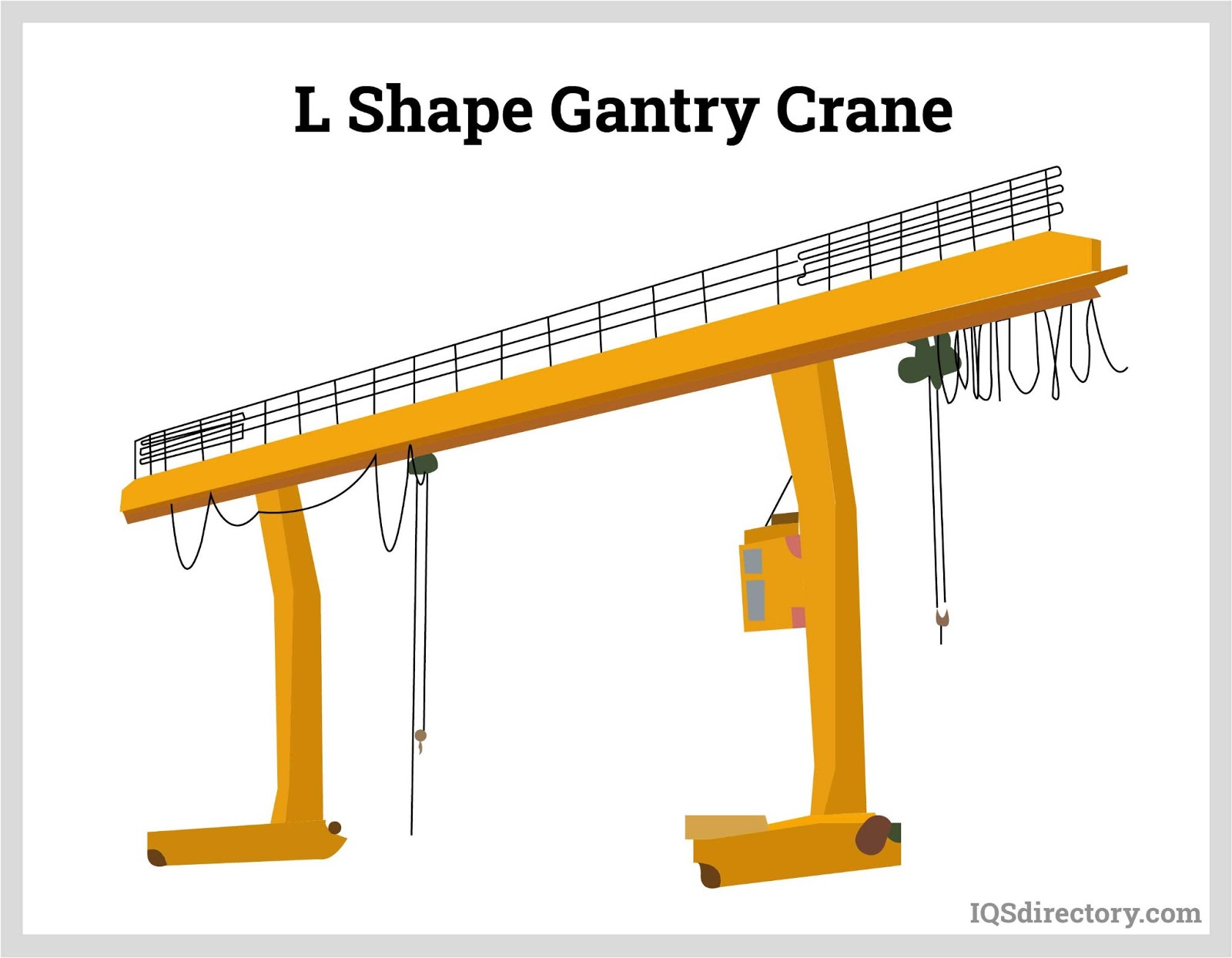

The L-shaped gantry crane features a single beam and uniquely designed L-shaped legs. This design allows it to handle extended loads efficiently. It's commonly utilized in freight yards, railroad stations, and storage facilities. With a load capacity ranging from five to fifty tons, it offers low dead weight and minimal wheel pressure. Additionally, it can be equipped with a soft start mechanism for extended travel, ensuring smooth and stable operation.

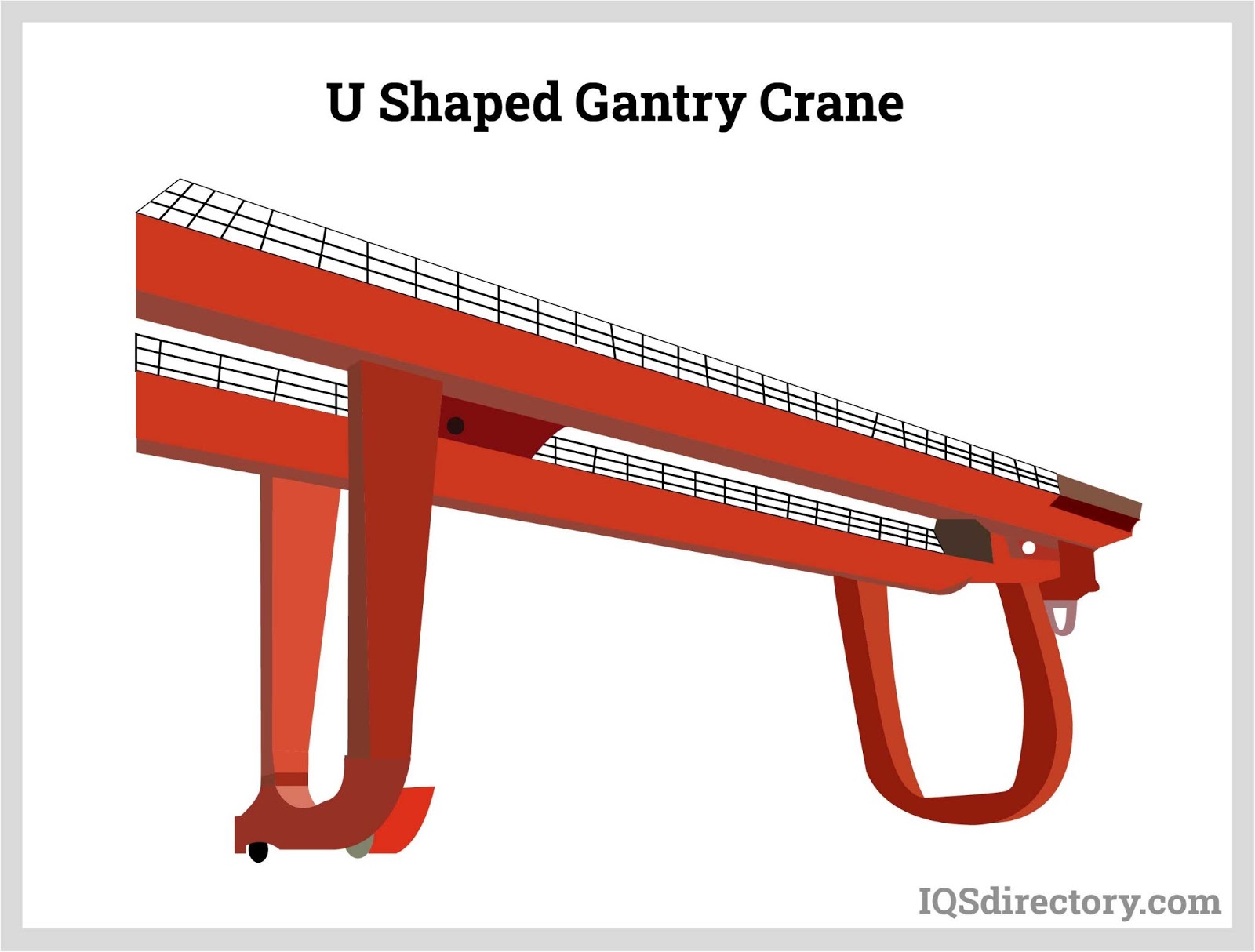

The U-shaped gantry crane is a type of double girder crane with support legs designed in a "U" configuration. This shape provides additional clearance between the legs and the girders, making it ideal for lifting large and heavy loads. The crane's trolley moves between the girders and can be equipped with either one or two hoists. Moreover, the girders can extend on one or both sides to create cantilevers, facilitating easier loading and unloading. U-shaped gantry cranes operate on fixed rails with minimal resistance.

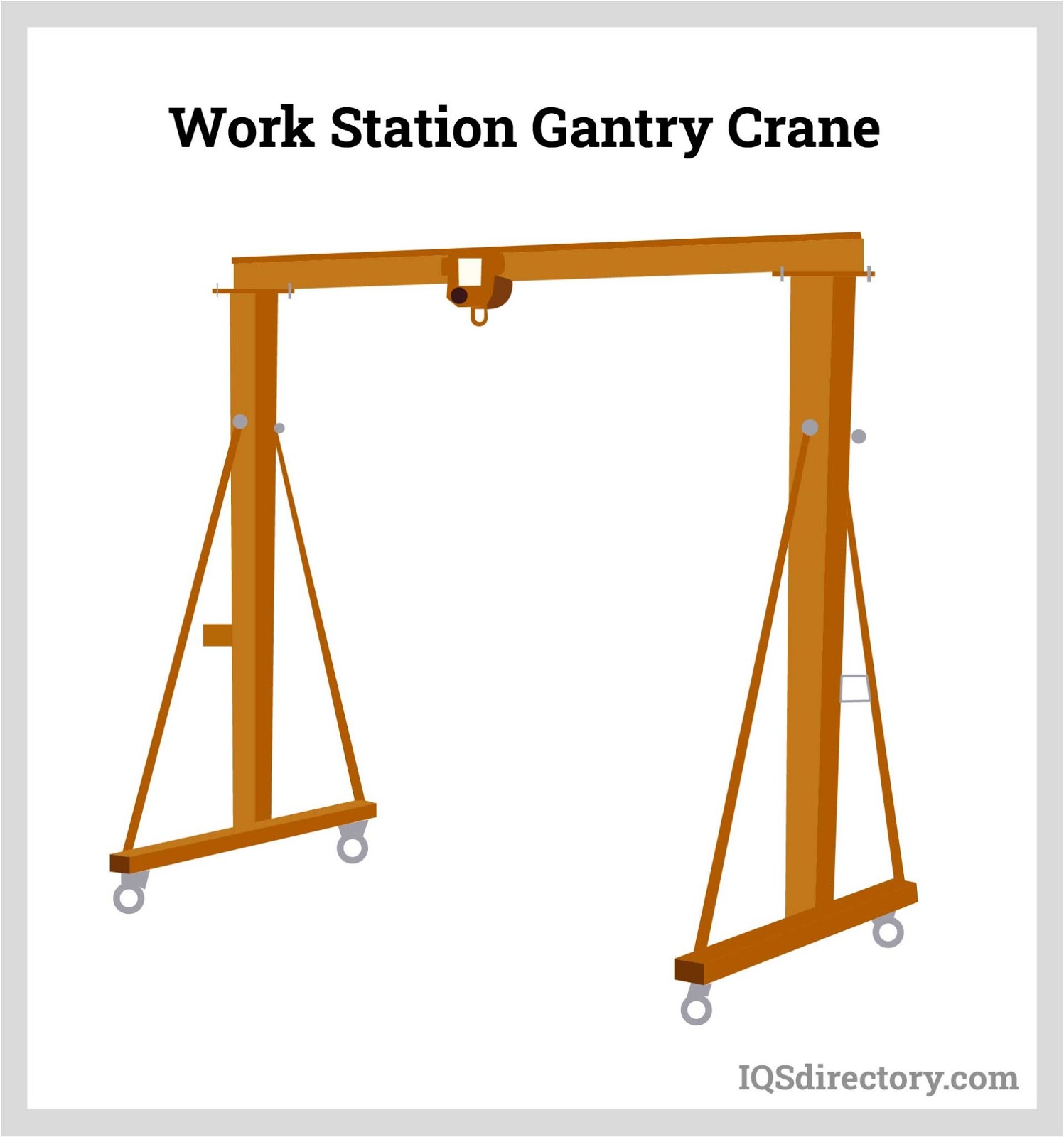

Workstation gantry cranes are compact and intended for handling lighter loads and materials. They are designed to be portable and mobile, allowing for the movement of workpieces to and from a workbench for various tasks. Despite their mobility, these cranes remain stable and fixed when loaded. They utilize a wire rope or chain mechanism for lifting and transporting items. Selecting a workstation crane depends on the specific tasks and the necessary lifting capacity.
Gantry cranes are engineered to manage various load sizes, ranging from a few hundred pounds to several hundred tons. Light-duty gantry cranes typically support loads between one and ten tons and are available in single girder configurations, with options for both fixed and adjustable setups.
Heavy-duty gantry cranes, on the other hand, are capable of handling loads from thirty tons to over two hundred tons and are usually designed with double girder systems mounted on rails.
Very small and used in warehouses, workstations, garages, and workshops where light lifting is required. They have a single girder and are portable.
Light duty cranes are commonly used in cargo yards, freight yards, ports, workshops, and warehouses. They are available in both single and double girder configurations and come in semi-permanent or portable designs.
These cranes are suitable for small to medium lifting tasks and are ideal for locations where the building structure cannot support an overhead crane.
Designed for lifting both large and small loads, these cranes are versatile for indoor and outdoor use. They are available in both single and double girder designs, with the single girder often featuring an L-shaped configuration.
These cranes are designed for medium to heavy lifting needs and come in various designs, sizes, and configurations to accommodate different applications.
These represent the start of exceptionally heavy-duty cranes, typically featuring double girder designs for enhanced strength and capacity.
Regardless of its size—whether a compact mobile unit or a large shipyard crane—a gantry crane's components fall into three main categories: mechanical, structural, and electrical. All gantry cranes feature girders or beams that are elevated above the ground or floor and run parallel to it.
Though some gantry cranes can be attached to a building, all of them have legs that can be a straight beam, truss beam, or A frame. The girders, beams, and legs are the essential parts of a gantry crane and differentiate them from overhead or bridge cranes.
A gantry crane's structure comprises its primary girder or beam and its supporting legs. For a semi-gantry crane, the setup includes a single beam and one leg. The beam serves as the primary load-bearing component. The dimensions, length, and quantity of beams can differ based on whether the crane is designed for light or heavy-duty use and the load's weight. Regarding the legs, one side is fixed, while the other is adjustable to minimize deadweight and accommodate any span variations.
The trolley facilitates horizontal movement of the hoist along the crane's girder and can be mounted either on top or underneath. There are three main types of trolleys: low headroom, standard headroom, and double girder.
Trolleys equipped with spacing washers can be modified to fit the beam by adding or removing washers. Screw adjustment trolleys use a screw mechanism for fine-tuning. Additionally, wheel bumpers are employed to prevent collisions with other equipment, while side guide rollers help to stabilize the trolley and prevent swaying.
The hoist on a gantry crane is a winch system mounted on the trolley, designed to lift and lower loads vertically while moving horizontally with the trolley. Chain-driven hoists can handle loads up to five tons, whereas wire rope hoists are capable of lifting five tons or more.
Reeving refers to the arrangement of the wire rope or chain along with the hoist's blocks and drum. Different reeving configurations affect the headroom, lifting speed, and load capacity. Headroom is the vertical distance between the beam and the hook. The terms single or double indicate the number of ropes or chains used.
A festoon system refers to the wiring setup that supplies power to the trolley and hoist. Electrical power is transmitted from the busbar or receiving station to the bridge panel, which then distributes it to operate the crane. Cables carry the power from the panel to the hoist and bridge drives, enabling the movement of the hoist, trolley, and bridge. Gantry cranes can be powered by direct AC, induction AC, or synchronous methods.
An example of a festoon system utilizing round cables is illustrated in the diagram below.
The controls of a gantry crane allow the operator to manage the crane's movements and hoist functions directly. Various control methods are available, ranging from wired or remote controls for smaller cranes to cabins or booths where the operator can either ride on the crane or remain in a designated observation area.
Recent trends in gantry crane operations have shifted towards operating from the ground rather than from a cabin. In these setups, operators use a pendant or remote radio control equipped with buttons, levers, or other control mechanisms to maneuver and position the crane.
Gantry cranes are versatile lifting devices equipped with a trolley and hoist, designed to handle heavy materials and loads. Their widespread use is attributed not only to their impressive lifting capacity but also to their diverse range of sizes, from compact models suitable for workshops to large-scale versions used in shipyards.
The adaptability of gantry cranes makes them an essential asset for both small and large industrial operations. They are often preferred over overhead cranes when the latter cannot meet specific operational requirements.
Gantry cranes play a crucial role in industrial manufacturing, where they are used to lift and transport materials, supplies, and products. They are particularly vital in the automotive, steel, and aerospace industries due to the specific requirements of their production processes. In the automotive and aerospace sectors, gantry cranes are often involved in the installation and positioning of engines.
In small engine repair shops, the engines to be repaired have to be lifted and positioned so that the technician can view all parts of the engine. Large overhead cranes and simple winches are either impractical or insufficient to do the job. For this reason, repair shops depend on portable gantry cranes that have the load capacity to lift an engine and the mobility to reposition it.
Shipyards are the primary environments where large, heavy-duty cranes are extensively utilized. These cranes are essential for handling extremely heavy loads and ship components. From the massive engines powering the ships to the cargo they transport, everything in a shipyard is substantial. The flexibility and mobility of gantry cranes make them ideally suited for these tasks. Shipyard operations require various heavy-duty gantry cranes to manage shipbuilding, repairs, unloading, and material handling effectively.
The versatility of gantry cranes is a key factor in their widespread use in warehousing operations. Although overhead cranes might seem like a suitable choice for warehouses, many warehouse structures cannot support them. Instead, warehouses often utilize various types of gantry cranes tailored to the specific loads being handled. Typically, these cranes need to be mobile to efficiently transport heavy loads from unloading areas to loading zones.
In the construction industry, gantry cranes are highly valued for their mobility and load capacity. Construction projects often require equipment that can be quickly assembled and disassembled as crews move in and out of sites. Gantry cranes meet these needs effectively, as they can be set up for specific tasks and then dismantled once the job is complete. Their flexibility and ability to be repositioned make them an ideal choice for lifting operations on construction sites.
Construction gantry cranes are typically used to lift heavy items such as concrete blocks, large steel support beams, and substantial quantities of lumber. These cranes are usually robust, heavy-duty designs with either single or double girders to handle the demanding lifting requirements of construction projects.

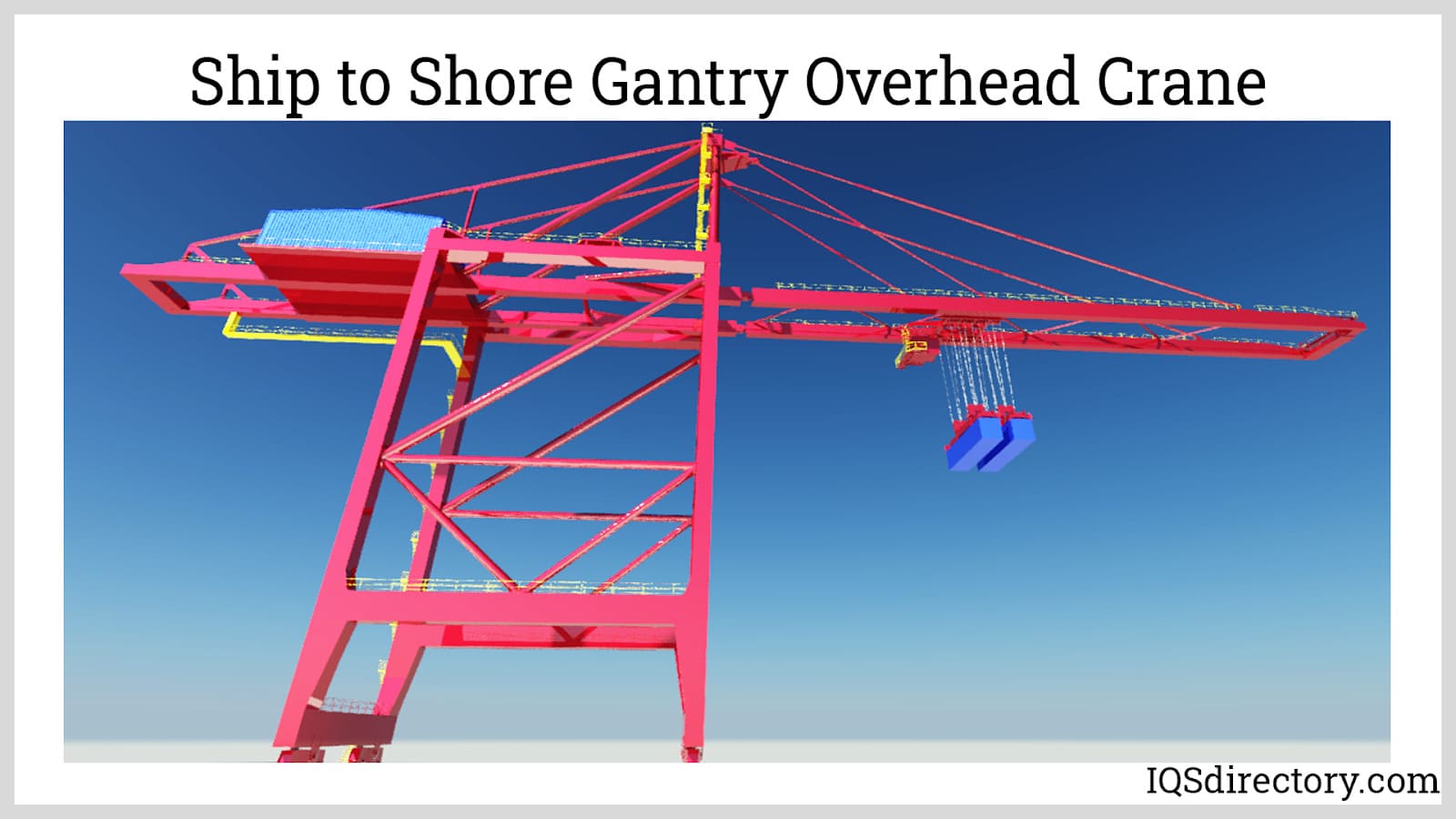

Shipping containers, which are the size of a semitrailer and exceptionally heavy, are a crucial component of the supply chain and are transported by planes, trains, and ships. Unlike older, smaller containers that could be handled by forklifts, these large, boxcar-sized containers are managed with mobile gantry cranes. These cranes efficiently lift and position the containers for placement on trucks or trains.
The load capacity, mobility, and versatility of gantry cranes make them well-suited for handling shipping containers. Their ability to simplify and safely execute container movements significantly enhances the efficiency and safety of the loading process.
Classifying gantry cranes helps customers choose and install the most suitable crane for their specific needs. Proper classification ensures both safety and extended operational life of the crane. Overloading or misusing a crane beyond its classification can lead to dangerous conditions, inefficiency, and unnecessary costs.
Various standards exist for classifying and evaluating cranes based on their performance. The Crane Manufacturers Association of America (CMAA) provides classifications based on factors such as load intensity and the number of lift cycles, including the weight to be lifted, the lifting method, and the frequency of lifting operations.
Class A cranes operate at slow speeds with extended periods of inactivity between lifts. These cranes are used in applications such as public utilities, motor rooms, and transformer stations, where precise equipment handling is required.
Class B cranes handle varying duty cycles and loads, from no load to occasional full loads, performing two to five lifts per hour with an average lift height of ten feet. These cranes are commonly found in assembly operations, repair shops, service buildings, and warehouses that handle light loads at slow speeds.
Class C cranes manage loads that average about fifty percent of their capacity, performing five to ten lifts per hour with a lifting height of fifteen feet. Most cranes are rated as Class C, serving manufacturing facilities and machine shops.
Class D cranes are used continuously with heavy workloads, making ten to twenty lifts per hour at heights of fifteen feet. They operate quickly and are found in environments with heavy equipment and materials, such as foundries, fabrication industries, steel storage, train and shipyards, and lumber mills. They operate at about 65 percent of their full capacity.
Class E cranes frequently lift their full rated load, averaging twenty or more lifts per hour with minimal restrictions on lifting height. They operate at high speeds with motor stops up to 600 per hour and a bearing life of 20,000 hours. The Occupational Health and Safety Administration (OSHA) mandates that Class E cranes undergo regular inspections, which may be daily, monthly, or quarterly, with specific guidelines for these inspections.
Class F cranes represent the most robust gantry cranes, designed to handle full capacity loads continuously under the most demanding conditions. Although similar to Class E, Class F cranes are distinguished by their need for constant operation. Typically, Class F cranes are custom-designed to meet specific application or facility needs, optimizing performance. These cranes must adhere to rigorous frequency, use, and load specifications, making their design and fabrication complex.
The use cycle of a gantry crane begins with its initial lift preparation. The crane’s level of utilization influences its use cycle and classification. Factors affecting the service life of the crane include economic, technical, and environmental considerations, each impacting the crane’s longevity.
