This article takes an in-depth look at Diaphragm Valve.
Read further and learn more about topics such as:

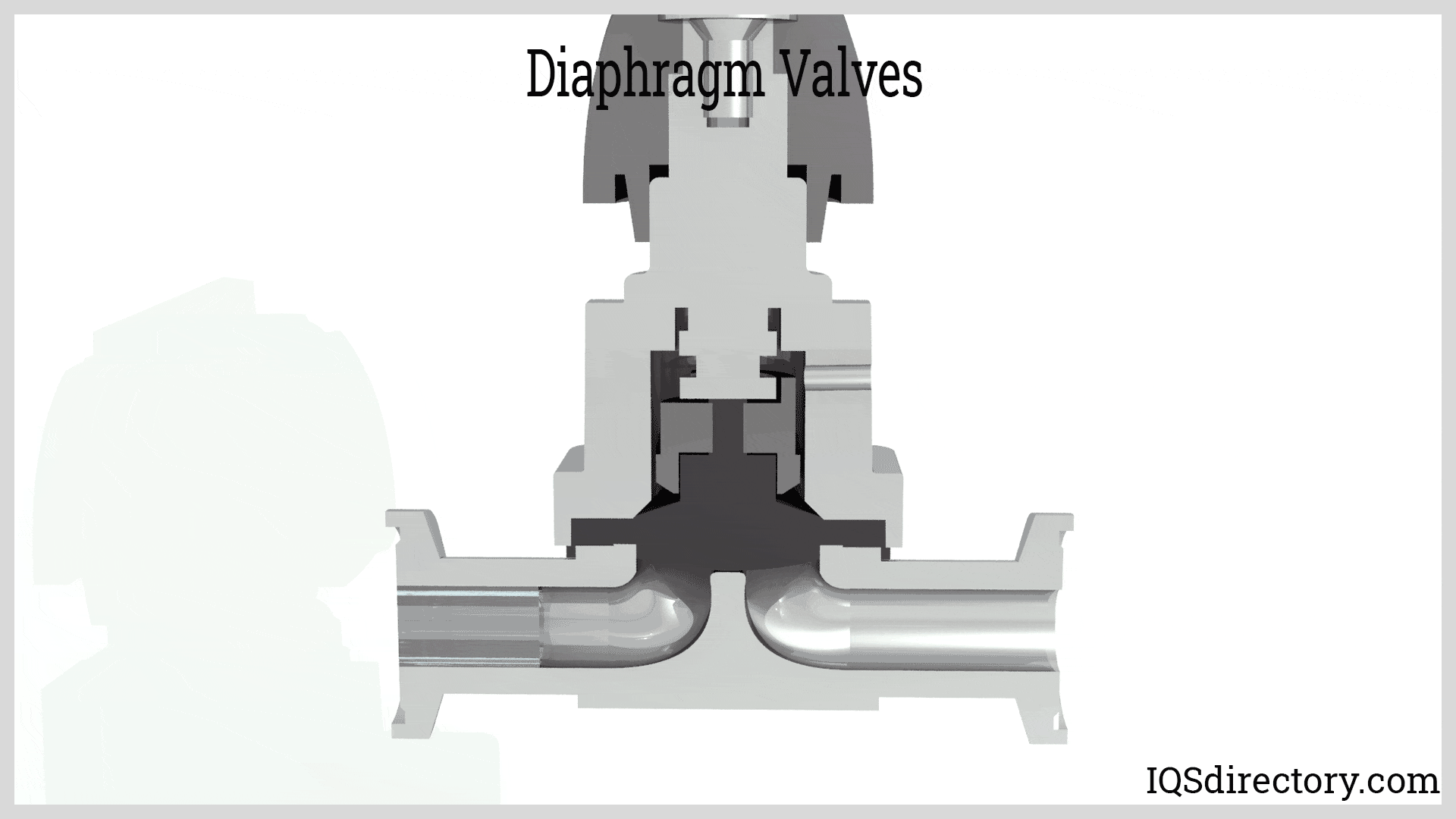

A diaphragm valve, also known as a membrane valve, features an elastomeric diaphragm that seals against a seat to control the flow of fluids. This flexible diaphragm serves as a flow control device, either obstructing, regulating, or isolating fluid flow.
The diaphragm valve operates by adjusting the position of the diaphragm to regulate the fluid flow rate. When the diaphragm presses firmly against its seat, the valve is closed and the flow is halted. These valves utilize linear motion to manage and control the flow of fluids through a linear movement mechanism.
Named after the flexible disc that blocks flow upon contact with the valve seat, diaphragm valves rely on this pressure-responsive diaphragm to exert the necessary force for opening, closing, or modulating the valve's function. Unlike pinch valves, which use a liner in the valve body, diaphragm valves utilize the diaphragm for their operation.
Diaphragm valves are well-suited for managing a variety of media, including liquids, gases, and semi-solid substances such as slurries, colloids, sludges, and brackish water. Their design makes them particularly effective for handling fluids that contain solid particulates.
One of the advantages of diaphragm valves is their straightforward construction. With minimal internal contact, they experience limited build-up of sediments and biofilms, which helps maintain their performance. This characteristic makes diaphragm valves highly valuable in industries such as food and pharmaceuticals, water and sewage treatment, electronics manufacturing, and pulp and paper production.

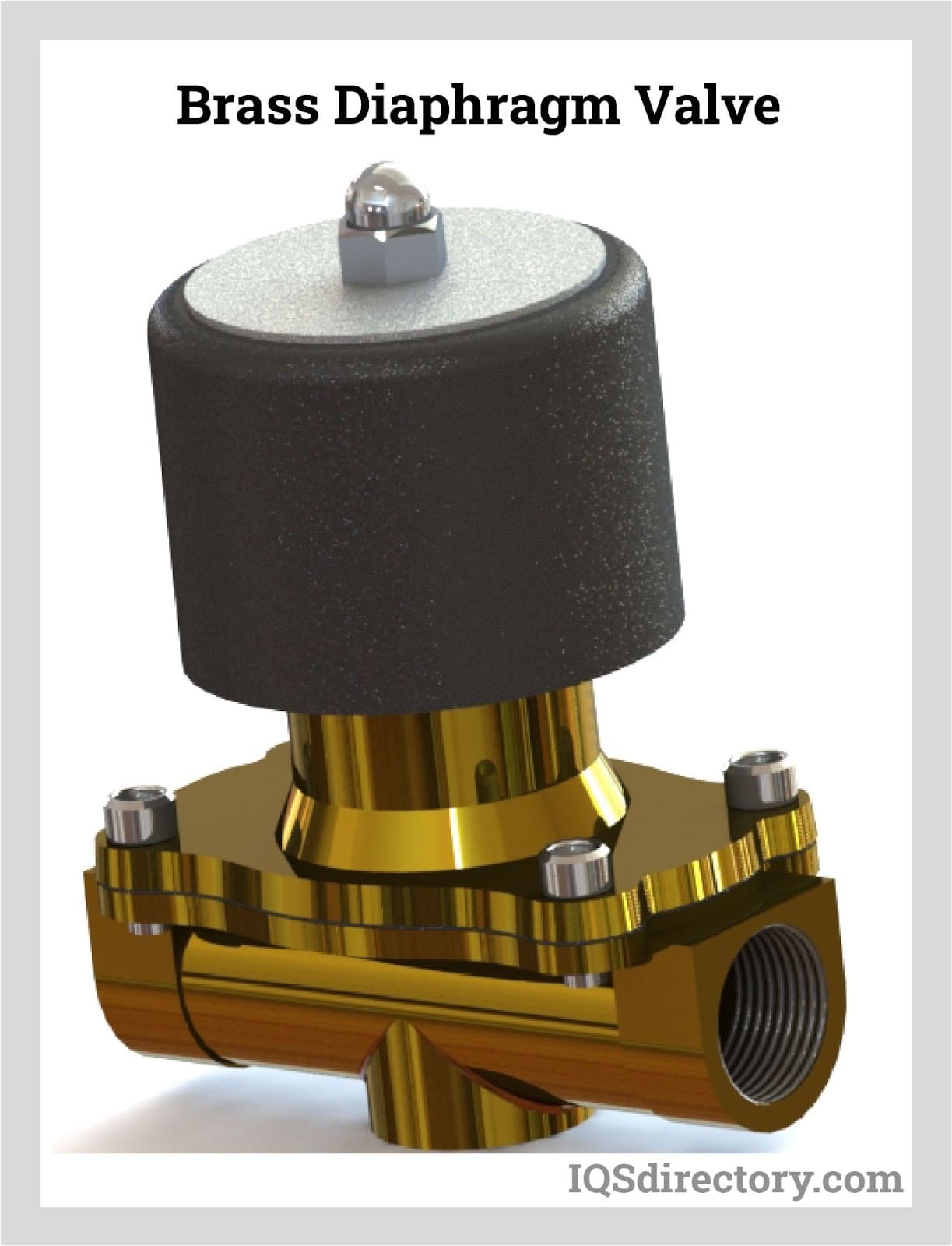

Diaphragm valves have a stem, bonnet, compressor, diaphragm, and actuator that are made from plastics, wood, brass, and steel. The choice of materials is dependent on the purpose and function of the valve since more durable materials are required for stressful and demanding applications.
The diaphragm, a critical component of these valves, is typically crafted from flexible materials such as plastics or rubber. Ethylene propylene diene monomer (EPDM) combined with polypropylene is commonly used due to its durability and resilience.
The bonnet is a key part of a diaphragm valve, covering its top and protecting components such as the compressor, stem, diaphragm, and other non-wetted parts. This component is attached to the valve body with bolts and often features quick-opening and lever-operated designs. Bonnets are interchangeable with standard bonnets found on conventional weir-type valve bodies. For vacuum applications, diaphragm valves may have bonnets up to 10 cm in size, while larger applications utilize evacuated and sealed bonnets.
By bolting onto the top of the diaphragm valve, the bonnet safeguards the compressor, stem, diaphragm, and other non-wetted elements from external influences and damage.
Sealed bonnets are used with a sealing bushing for non-indicating diaphragm valves while a seal bushing and O ring are used with indicating types. The sealed type of bonnet is a necessary part of diaphragm valves that handle dangerous liquids and gasses. If there is diaphragm valve failure, hazardous substances will be sealed in the valve and not released.
The valve body is the part of the diaphragm valve that directly interfaces with the pipeline, allowing fluid to pass through it. The size and shape of the flow area within the valve body can vary depending on the type of diaphragm valve.
Both the valve body and bonnet are made from durable, rigid materials that resist corrosion to ensure long-term reliability and performance.
The diaphragm is constructed from a highly flexible polymeric material that moves downward to seal against the bottom of the valve body, thereby controlling or blocking fluid flow. When the valve needs to open fully or increase the flow rate, the diaphragm lifts to allow fluid to pass underneath. However, the material and design of the diaphragm impose limits on the valve’s maximum operating temperature and pressure. Additionally, the diaphragm's mechanical properties can degrade over time, necessitating periodic replacement.
The diaphragm serves to separate the non-wetted components—such as the compressor, stem, and actuator—from the flowing media. This separation reduces the risk of solids and viscous fluids affecting the valve's internal mechanism, thereby protecting the non-wetted components from corrosion. Moreover, this design prevents the lubricant used in the valve’s operation from contaminating the fluid in the pipeline.
The compressor in a diaphragm valve drives the diaphragm's movement. It consists of a disc connected at one end to the stem and at the other to the diaphragm. This component supports the diaphragm valve by transmitting the forces from the stem during its linear motion, thereby enhancing flow control and throttling.
As the handwheel is turned, the stem moves up or down, and this motion is conveyed to the compressor. Consequently, the compressor shifts, causing the diaphragm to move accordingly to regulate the fluid flow.
The stem in a diaphragm valve is a vertical shaft that connects to the compressor, enabling it to exert linear motion. This motion drives both the compressor and diaphragm, thereby controlling the valve. The stem transmits the motion from the actuator to the valve components. Diaphragm valves may feature either piston-type or threaded-type stems. Piston-type stems involve a piston assembly within the bonnet, with the valve stem often serving as the piston rod; this type relies on linear force from fluid pressure. Threaded stems, on the other hand, use a stem nut for operation and require torque for movement, as well as lubrication for smooth operation.
Threaded stems in diaphragm valves can be configured with either a rising or non-rising mechanism:
The valve actuator is responsible for moving the stem, compressor, and diaphragm simultaneously. It supplies the necessary torque or linear force to adjust the fluid flow rate swiftly. The actuator type depends on the design of the valve stem. Various types of actuators are utilized in diaphragm valves, each suited to different operational needs.

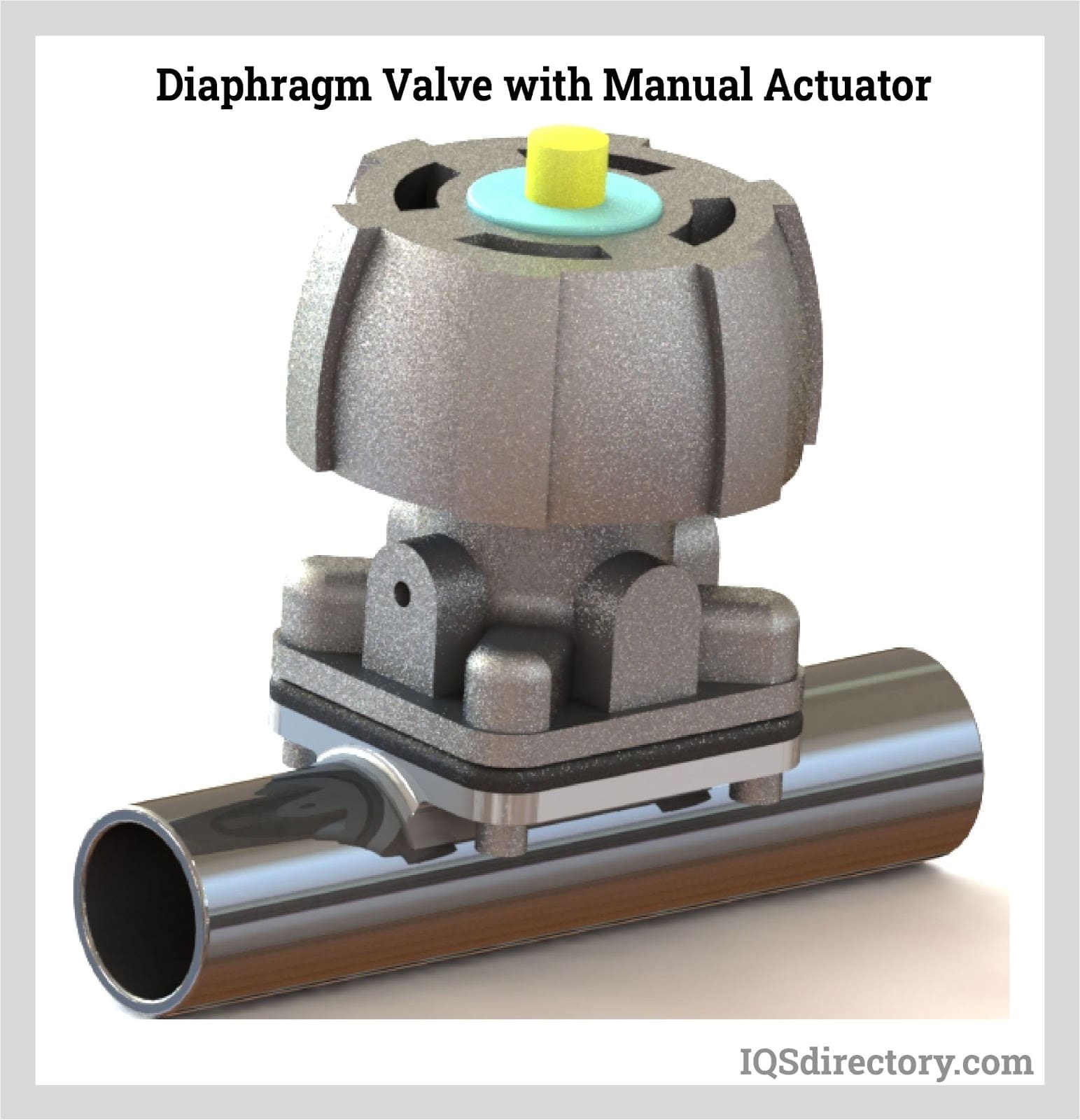

Manual actuators use a handwheel or a crank in which an operator applies torque. This torque is necessary to rotate the threaded stem and consequently move linearly to modify the fluid flow rate. However, these actuators have slower control speeds and require more effort to operate. Gearheads can be installed to amplify torques and enhance the opening or closing speeds. Lockability, stroke adjustment, position indication, and electrical feedback switches are the features that can be installed on manual actuators.

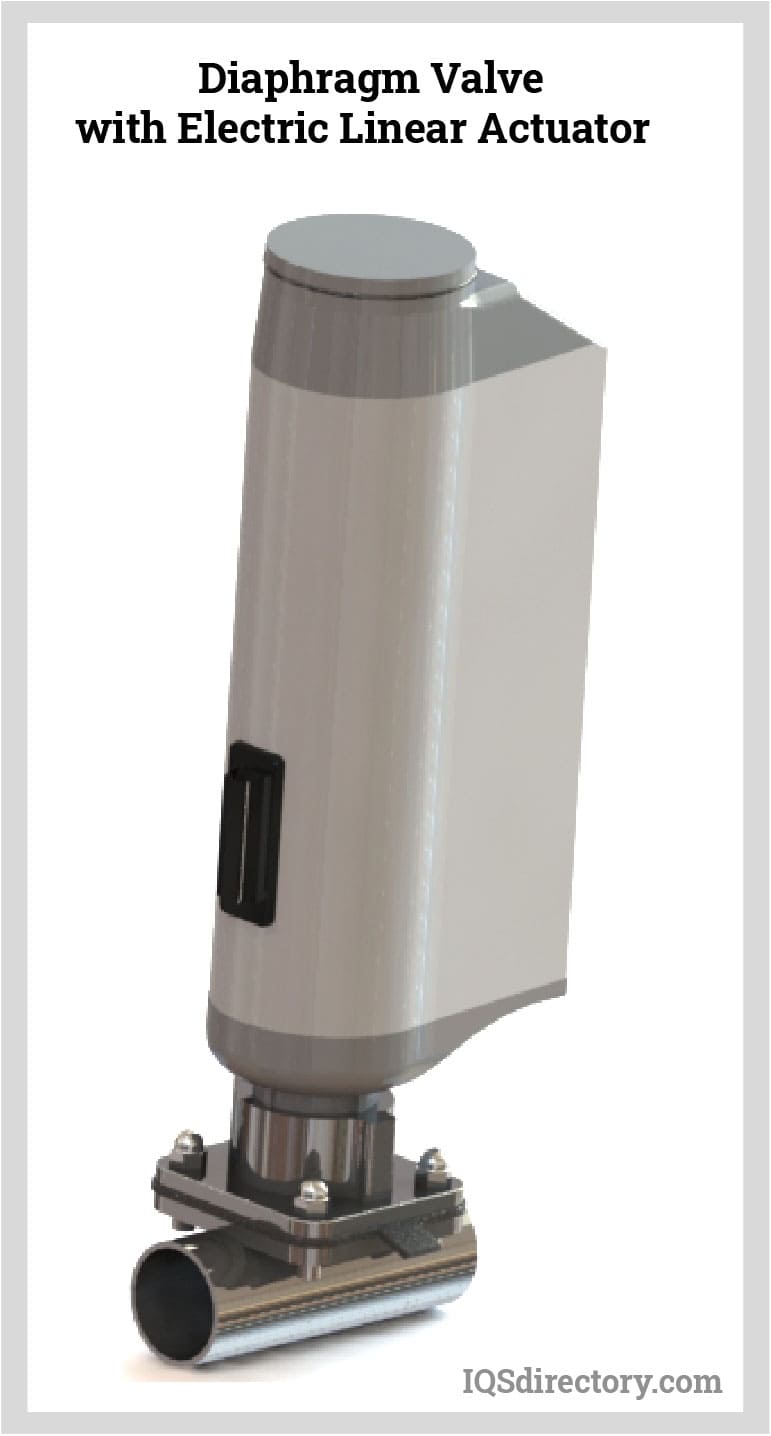

Electric actuators utilize a motor in modifying the fluid flow rate. The electric motor is connected to the gear train to reduce the speed and increase the torque. These valves can operate reversibly; they can open a diaphragm valve from a closed position and vice versa.

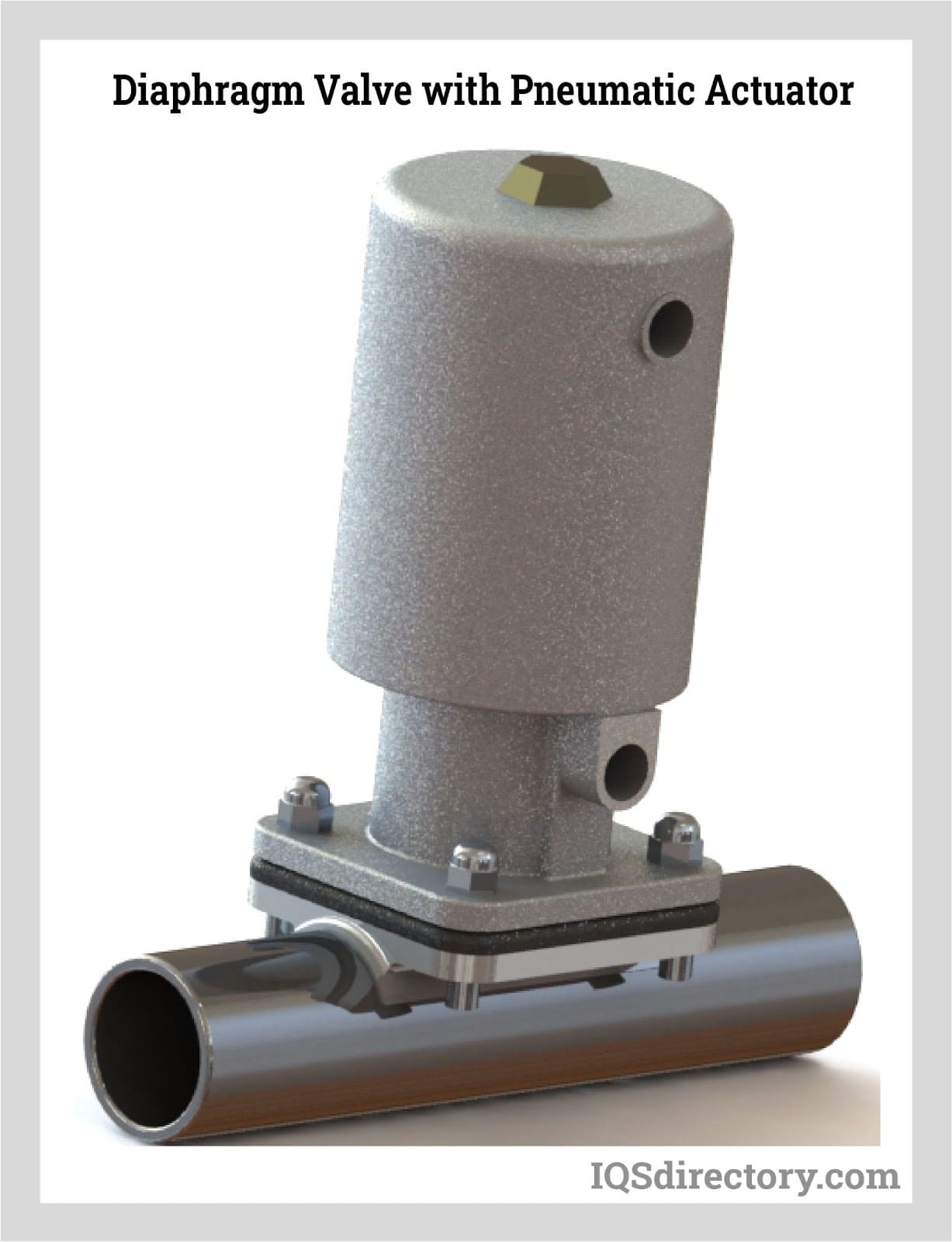

Pneumatic actuators utilize air pressure to move the piston inside the valve bonnet, with its piston rod connected to the compressor. Air pressure is supplied in the chamber on either side of the piston. When air is supplied in the upper chamber of the piston, it causes the piston rod to move down and lower the fluid flow rate or close the valve. Otherwise, when air is supplied in the lower chamber, it causes the piston rod to move up and increase the fluid flow rate. O-rings are present in the piston rod and the piston to prevent air leakage across both chambers. Pneumatic actuators provide fast-acting control in throttle diaphragm valves and for on and off applications.
Position indicators are visual aids used to show the status of the diaphragm valve, indicating whether it is open or closed. These indicators may include lights, switches, or stem markers. Some valves are equipped with piston indicators to indicate flow direction. Common terms for position indicators include limit switch, beacon, position transmitter, and switch box.
The roles of valve position indicators are:
Diaphragm valves can be connected using various methods to accommodate different piping systems and ensure proper sealing. Available connection types include butt welding, flanged, screwed, threaded, clamped, grooved, and solvent cemented options.
Threaded connections involve internal or external threads that are screwed into or over the valve end. This method is common and provides a secure seal.
Compression fittings create a tight seal without threads or soldering. The seal is achieved by tightening a screw, which compresses a washer against the pipe.
Bolt flange connections use bolts to apply compressive force on a flange, similar to compression fittings. Stud bolts or machine bolts can be used for this type of connection.
Clamp flanges secure around a pipe using a spring-hinged flange, creating a tight connection.
Tube fittings provide a direct, straight connection between the valve and the pipe.
Butt welds join the valve and pipe without overlapping, with types including single and double-sided, and partial or full penetration, designed for specific purposes.
In a socket weld, the pipe is inserted into a recessed area of the valve and fillet welded. This method is leak-proof and used in high-pressure pipelines. Pipes should be cleaned before welding to ensure a secure fit.
Metal face seals, also known as duo cone seals, consist of two metal rings and two large O-rings. One set of O-ring and metal ring is installed in the valve housing, while the other set is brought together to create an axial load between the metal rings, forming a seal. The O-rings create a face seal on each side of the fitting.
Diaphragm valves primarily come in two types: straight and weir diaphragm valves. The main distinction between them lies in the design of the valve body and diaphragm.
The weir-type diaphragm valve is among the most commonly used designs. It features a raised lip or saddle where the diaphragm makes contact to form a seal. This design reduces the travel distance of the diaphragm from fully open to fully closed, which in turn reduces the stress placed on the diaphragm during operation. As a result, the diaphragm can be made from a thicker material, making it suitable for applications involving high pressure or vacuum conditions.
Weir diaphragm valves excel in controlling fluid flow, even at low flow rates, and are often used in throttling applications. They may employ a two-piece compressor system that creates a small opening at the center of the valve. Initially, the inner compressor lifts the central part of the diaphragm during the early stages of stem movement, rather than the entire diaphragm. Once the inner compressor is fully raised, the outer compressor lifts along with it, allowing for more precise flow control.
For handling dangerous fluids, bonnet assemblies are recommended. These assemblies cap the valve to prevent any leakage if the diaphragm fails. Additionally, diaphragm valves are self-draining, making them a good choice for food processing applications.
Weir diaphragm valves are suitable for handling gases and clean, homogeneous liquids. However, they may not be ideal for fluids with sediments or high viscosity, as these can accumulate on the saddle. They are also capable of conveying corrosive, hazardous, and abrasive substances.
Straight-through diaphragm valves feature a flat-bottom valve body, designed to minimize flow resistance and allow fluid to move in a direct path. To achieve a fully closed position, the diaphragm must seal against the bottom of the valve body. This design necessitates a more flexible diaphragm material and requires more frequent replacements due to its shorter service life.
These valves are well-suited for handling semi-solid media such as slurries, sludges, and viscous fluids where minimal obstruction is important. Additionally, straight-through diaphragm valves can accommodate bi-directional flow, as the absence of saddles allows for unobstructed flow reversal.
Diaphragm valves can be categorized based on their specific applications as follows:
Sanitary diaphragm valves are essential in industries demanding high standards of fluid purity and cleanliness, such as the winemaking, dairy, beverage, food, and pharmaceutical sectors. These valves ensure an aseptic environment for the fluid, preventing the growth of bacteria, fungi, and viruses. They come in various designs to manage liquids, gases, and semi-solid media.

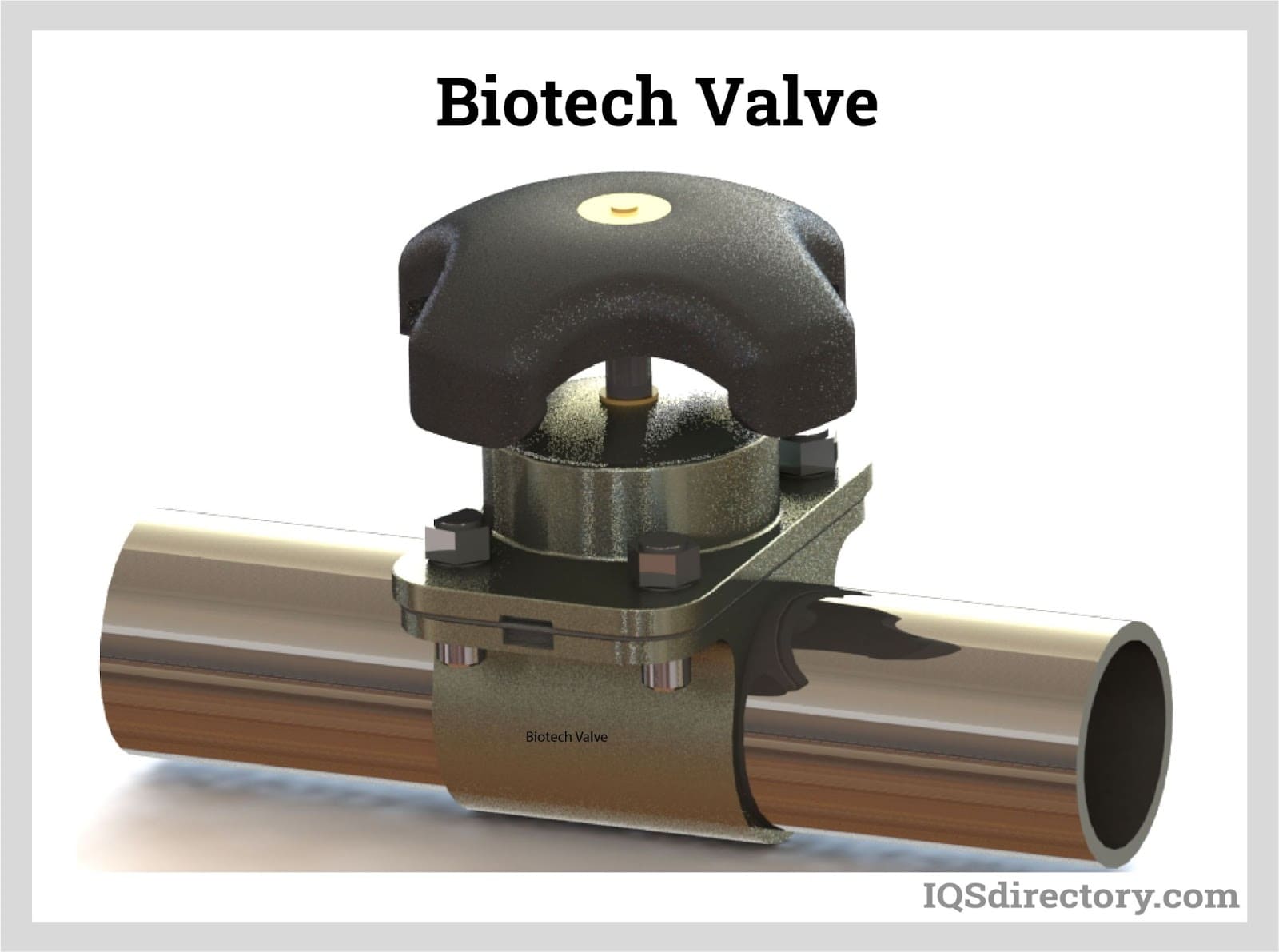

Biotech diaphragm valves are designed to handle fluids with microorganisms, cells, and other biological materials. Commonly used in pipelines connected to bioreactors, fermenters, filtration and chromatography skids, and freeze-thaw equipment, these valves are crucial in biotechnology applications. They are employed in fields such as medicine, agriculture, pharmaceuticals, and food science.
Hygienic diaphragm valves are designed to minimize areas where fluids can stagnate, making them essential in handling products meant for human consumption. These valves are crucial for Cleaning In Place (CIP) and Cleaning Out of Place (COP) processes and are widely used in food and beverage processing lines.
Process valves are utilized to control the flow rates of both liquid and gaseous fluids. Diaphragm valves serve various functions as process valves, including throttling, shut-off, and isolation.

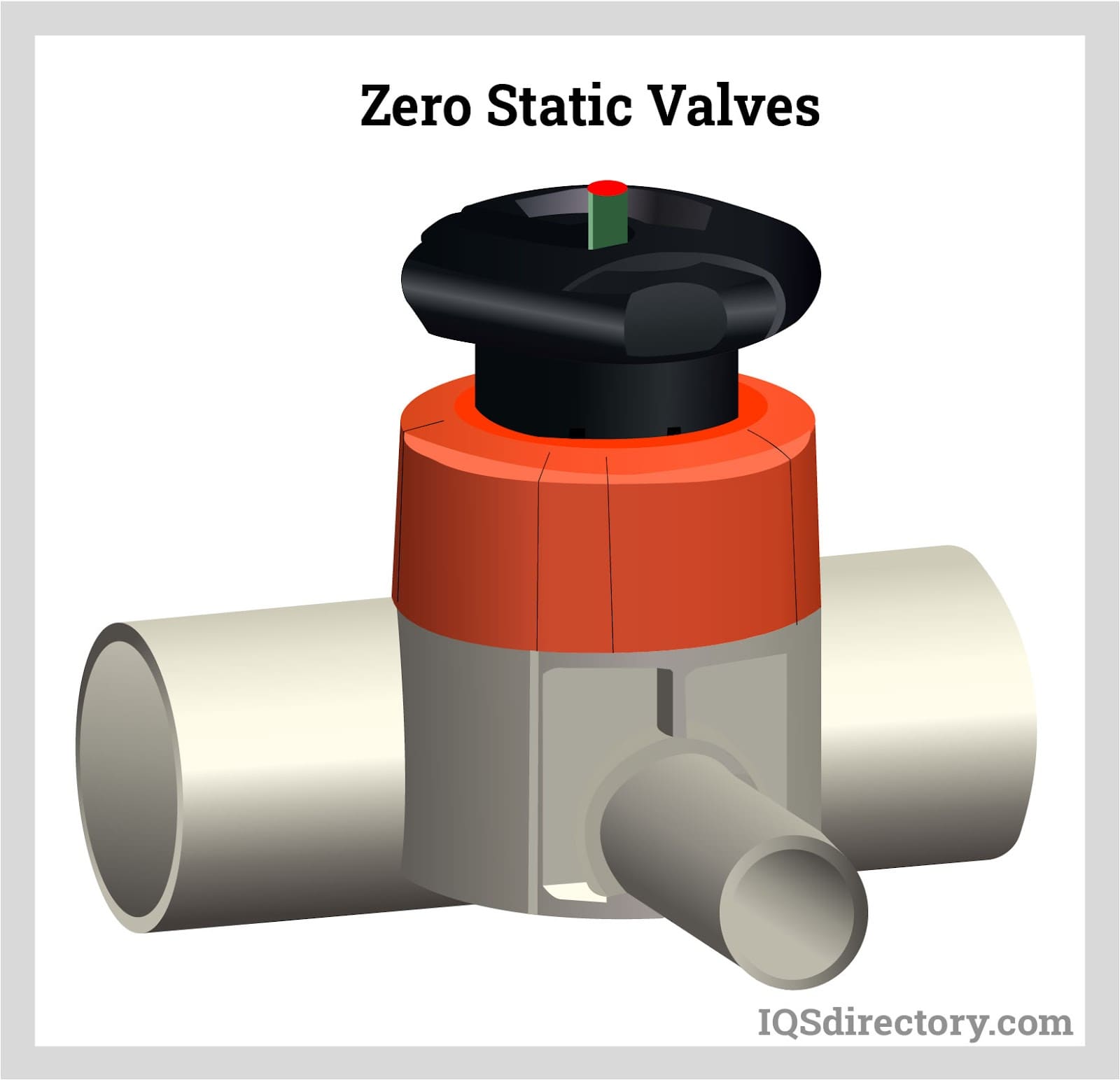

Zero static valves are vital in the pharmaceutical industry for managing process fluids with minimal impact on critical systems like Water for Injection (WFI) or Purified Water. These multi-port valves facilitate the transfer, drainage, sampling, or diversion of fluids while eliminating dead legs to prevent contamination and stagnation. The bonnet of zero static valves positions the weir directly on the pipeline's inner diameter.
The diaphragm in a valve is usually constructed from flexible, elastomeric materials. These materials, while versatile, impose limitations on the temperature and pressure ratings of the diaphragm valve. High temperatures and pressures can weaken these materials. Therefore, selecting the appropriate diaphragm material depends on factors such as the operating temperature and pressure, the nature of the fluid being handled, and the frequency of valve operation.
Ethylene Propylene Diene Monomer (EPDM) is a synthetic, general-purpose elastomer. It has good corrosion resistance and is suitable for handling acids, alkalis, and alcohols. It is also resistant to ozone. However, it is not compatible with oil and petroleum products. EPDM is also suitable for steam sterilization. EPDM diaphragms operate between -20°F to 230°F.
Polytetrafluoroethylene (PTFE), commonly known as Teflon, is a synthetic fluoropolymer renowned for its exceptional resistance to corrosion and chemicals, making it ideal for handling strong acids, alkalis, and solvents. Its rigidity provides a robust sealing force, though it necessitates greater operational effort. PTFE diaphragms function effectively within a temperature range of -300°F to 3000°F. For enhanced compressive strength, wear and abrasion resistance, and pressure tolerance, PTFE is often reinforced with glass fibers.
Neoprene is a synthetic rubber commonly used as a diaphragm material in wastewater pipelines. It has good corrosion and abrasion resistance. It can handle fluids with entrained oils, as wells as acids, alkalis, petroleum, explosives, and fertilizers. Neoprene diaphragms operate between -20°F to 200°F.
Butyl rubber is known for its low vapor and gas permeability, making it ideal for gaseous media. It can also withstand steam sterilization and a range of acids and alkalis. Butyl rubber diaphragms operate effectively between -4°F to 248°F.
Nitrile rubber is a versatile material with high strength and abrasion resistance. It handles gases, fuels, fats, oils, alcohols, and petroleum well but is not suitable for acetones, ketones, ozone, and some modified hydrocarbons. Nitrile rubber diaphragms function between -14°F to 134°F.
Natural rubber offers good abrasion resistance and can manage moderate acids and alkalis. It is used in abrasives, dilute mineral acids, and brewing processes. Natural rubber diaphragms operate within -40°F to 134°F.
Viton, a fluorocarbon elastomer, boasts excellent resistance to most chemicals, solvents, and oils, even at high temperatures. However, it is not suitable for steam sterilization or handling ammonia and polar solvents. Viton diaphragms operate between -20°F to 300°F.
The valve body and bonnet are constructed from robust materials to ensure the protection of the diaphragm valve components. While the bonnet can be made from materials with slightly lower corrosion resistance due to its isolation from the wetted portion of the valve, the valve body often features a smooth lining to prevent clogging and gumming from sticky or viscous fluids.
Similar to the diaphragm material, the valve body must be corrosion-resistant and capable of withstanding sterilization processes. For enhanced sanitation, materials with antimicrobial properties, such as brass and bronze, may be selected. Additionally, the valve body can be lined with antimicrobial materials to further improve hygiene.

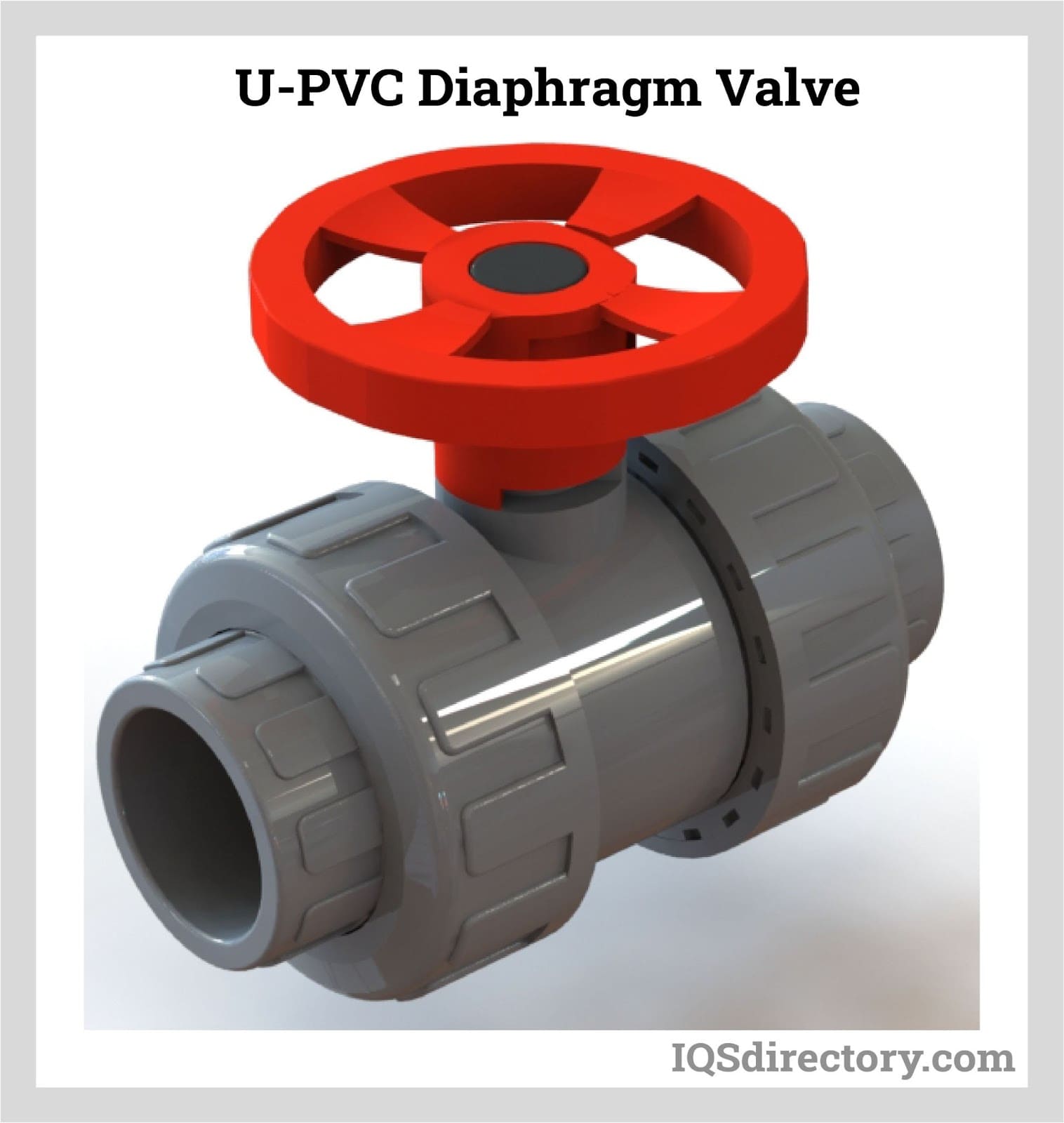

Common materials used for diaphragm valve bodies include stainless steel, cast iron, ductile iron, cast steel, brass, bronze, PVC, U-PVC, and CPVC.
The following considerations are important when selecting and operating diaphragm valves:
The valve flow coefficient (Cv) measures a valve's capacity to permit fluid flow. Defined as the "volume of water at 60°F (in US gallons) that will flow through the valve per minute with a pressure drop of 1 psi across the valve," it is crucial for selecting the right valve size for the desired flow rate. The Cv is calculated using the formula:
Cv = Q√SG/ΔP
The valve flow coefficient (Cv) quantifies how well a valve allows fluid to flow through it. Defined as the volume of water (in US gallons) flowing through the valve per minute with a 1 psi pressure drop across it at 60°F, Cv is crucial for determining the appropriate valve size to achieve the desired flow rate. The formula is:
Where Cv represents the valve flow coefficient, Q is the flow rate in gallons per minute, SG is the specific gravity of the fluid, and ΔP is the pressure drop. The Cv value increases with both the valve opening and stem travel.
Pressure drop denotes the reduction in pressure from the valve's inlet to its outlet. If the pressure drop across the valve is minimal compared to the total system pressure drop, the flow rate difference will be small until the valve is fully closed. In such cases, a diaphragm valve with a quick or fast-acting mechanism is ideal.
Rangeability measures a valve’s ability to handle varying flow rates, expressed as the ratio of the maximum to minimum controllable flow rates. It depends on the actuator's size and precision, as well as the design of the valve body, diaphragm, and compressor. A higher rangeability indicates a valve's capacity to manage a wider range of flow rates effectively.
Proper valve sizing is essential for diaphragm valves used in throttling applications. This process involves calculating the volume of fluid passing through the valve, taking into account factors such as flow rate, inlet and outlet temperatures and pressures, specific gravity, and fluid viscosity. Accurate sizing ensures that the valve meets the required capacity and pressure drop specifications. Techniques such as using the pipe geometry factor are commonly employed in sizing diaphragm valves.
The advantages of diaphragm valves include:
The disadvantages of diaphragm valves include:
