Here is the most complete guide on the internet about
You will learn:
Plastic caps and plugs are two distinct ways for sealing the ends, tops, and openings of tubes and containers. Caps are placed over the opening, and plugs are inserted into the opening. Due to the many varieties of containers, tubes, and cylinders, caps and plugs come in various sizes, colors, and shapes to fit the needs of any application, including custom designs. There are countless uses for caps and plugs, and they can be found in industrial, commercial, and home products, with special ones approved for use in food production.
The four varieties of polyethylene are used to make the majority of plastic plugs and caps, which are chosen for their ruggedness and strength. The type of material chosen is dependent on how a plug or cap will be used, since plastic materials for plastic containers can be less durable than plastics used for industrial masking and hydraulic pipes.
Various types of plastic plugs and caps are available, including those with threaded and non-threaded designs, which ensure a secure and airtight seal with containers. Some plugs are multifunctional, serving as both a plug and a cap when they feature threading and a flange.
Manufacturing caps and plugs involves a detailed process to ensure they meet precise specifications for their intended applications. The most frequently used methods for producing these items are dip molding and injection molding. These techniques are favored for their efficiency in producing large volumes quickly.

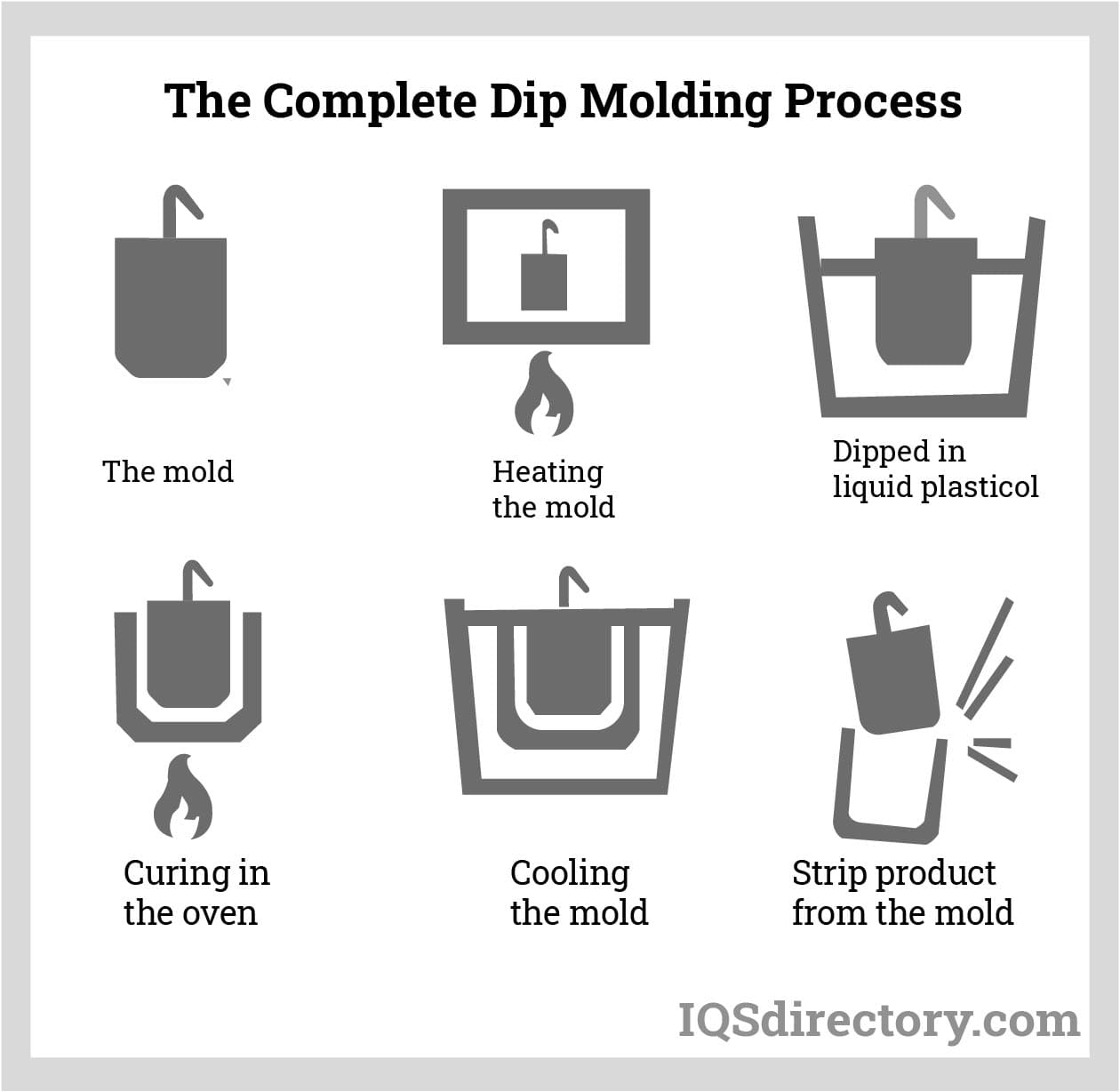

Dip molding involves immersing a mold into molten plastic. As the mold is submerged, the plastic coats the mold's surface, forming a negative replica. This method is particularly efficient for manufacturing caps and plugs, allowing multiple units to be produced simultaneously in one cycle.
The dip molding process begins with creating a mold, which defines the precise dimensions of the plug or cap. These molds are typically made from steel or aluminum and are produced through a casting process. The mold serves as the foundational tool for shaping the final product during the dip molding operation.
To ensure accurate molding of the cap or plug, the mold is heated in an oven to a specific temperature tailored to the design requirements. Both the heating temperature and the duration of the dipping process influence the final wall thickness of the product.

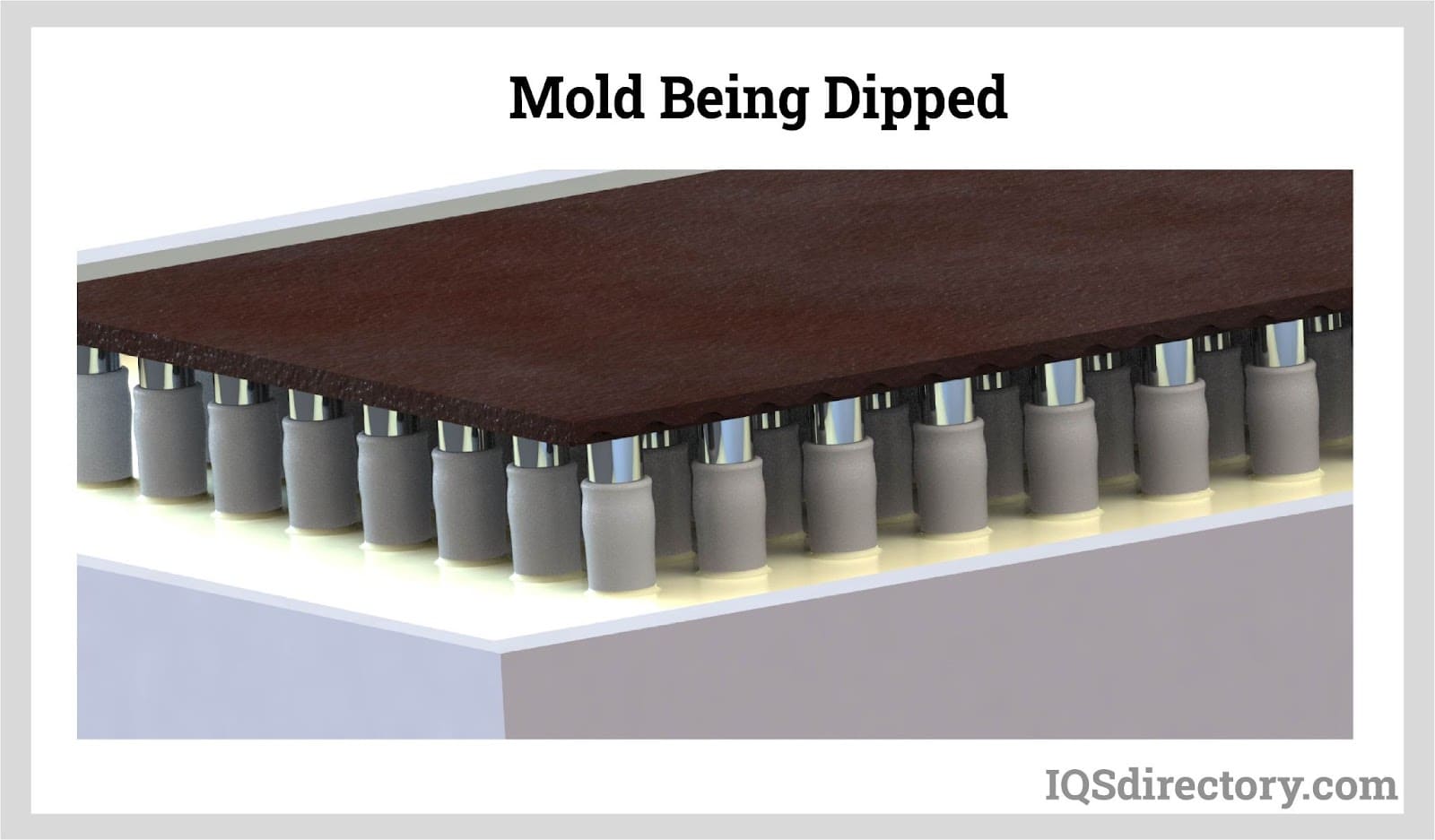

After being heated to the desired temperature, the mold is transferred to a dip tank filled with plastisol, a type of plastic material that solidifies into a solid object. The dipping rate is meticulously calculated based on the mold's shape and dimensions. Adjusting the dipping speed can help achieve a more consistent and smooth surface on the final product.
The wall thickness of a dipped mold increases as the time increases and can vary from several seconds up to a couple of minutes. Once the dip has reached the time limit, it is carefully removed at the appropriate speed. As is common with several molded products, the molded pieces are moved to a curing oven where the plastisol can harden and form.
Once the molding process is complete, the frame, mold, and products are submerged in water to facilitate cooling and removal from the mold. The cooling is carefully managed to retain some residual heat, which helps in the easy detachment of the molded items from the mold.
Products are extracted from the mold either manually or with the aid of pressurized air. To expedite this process, many manufacturers apply an FDA-approved release agent.
Injection molding differs from dip molding in that it starts with PET resin pellets placed into a hopper connected to a barrel with helical screws. This method is cost-effective and ideal for large-scale production runs, offering high precision with consistent dimensions, shapes, thicknesses, and surface finishes. Its key advantage is its ability to adhere to strict tolerances, which is essential for producing threaded plugs or caps.
The most significant cost in the injection molding process is the development of the mold itself. This mold is meticulously designed, engineered, and machined to precisely match the final product's specifications. Using computer-aided design (CAD) software, intricate and complex molds are created with multiple die cavities that produce exact replicas of the product. Unlike dip molding, injection molds can efficiently generate numerous finished items, regardless of their complexity.

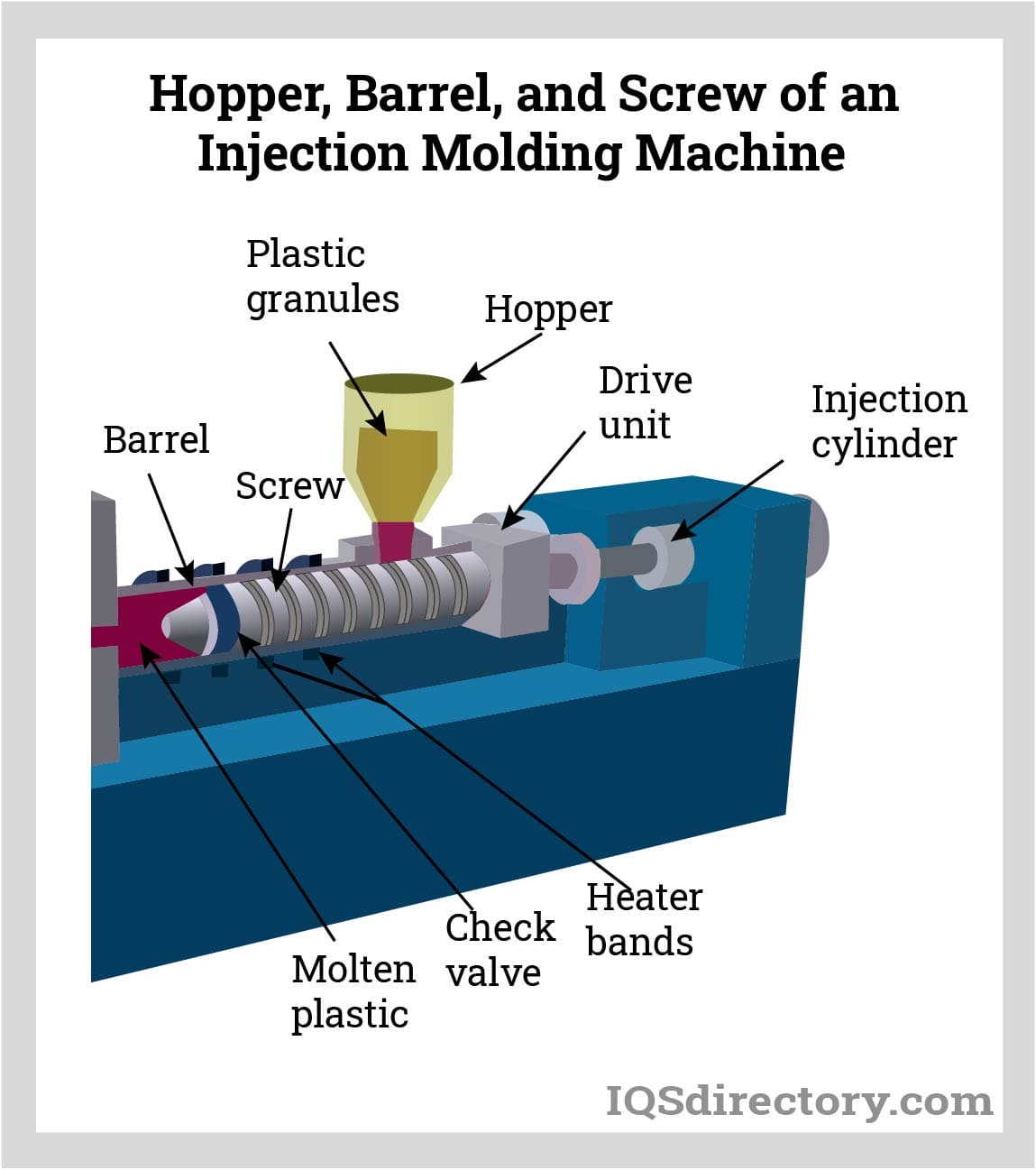

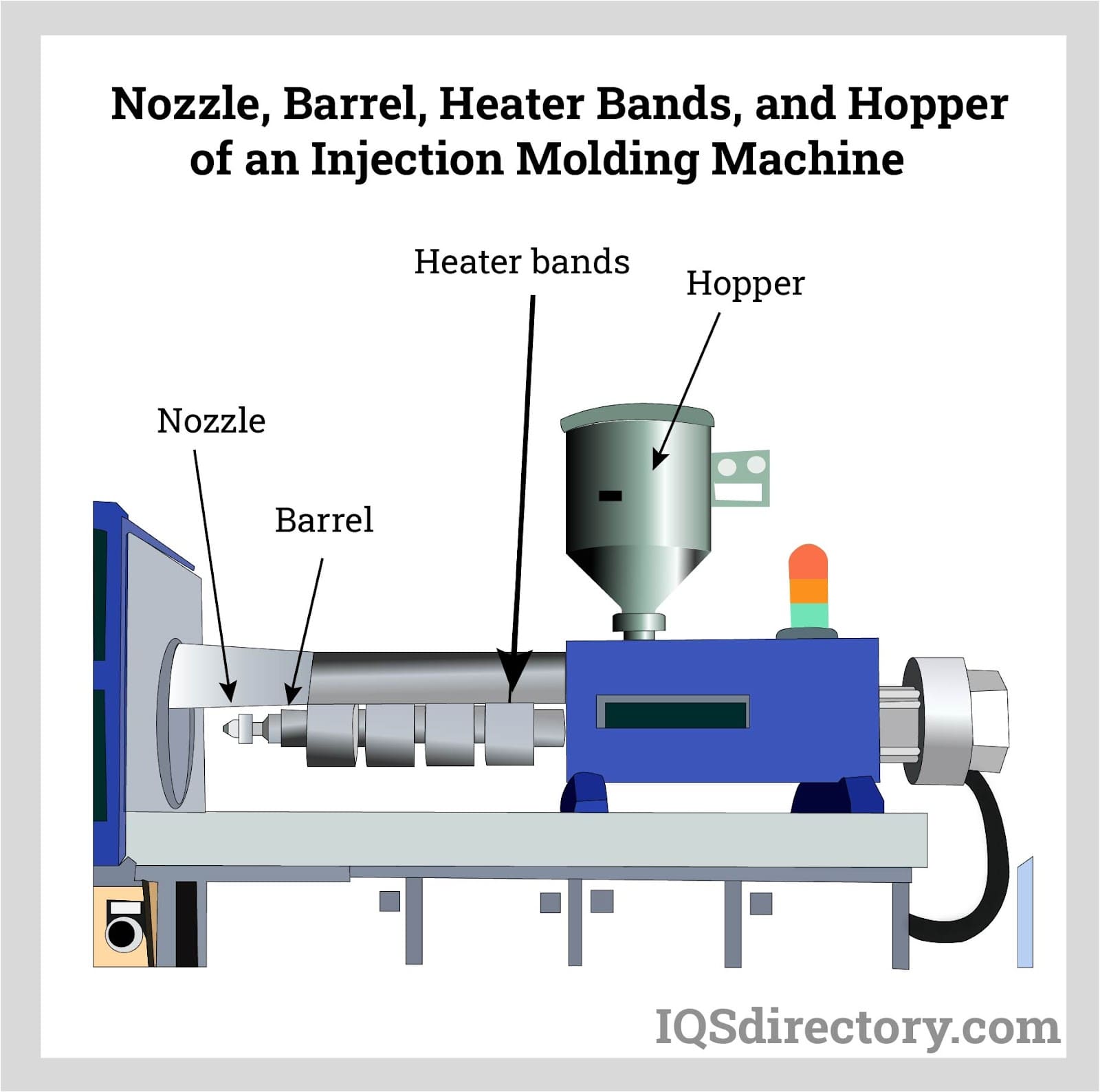

Injection molding starts with the hopper, which feeds raw PET pellets into the heating barrel. While traditional hoppers were cone-shaped, modern designs now feature advanced, electronically controlled systems that precisely manage the resin flow into the barrel.
Inside the barrel, a helical screw pushes the resin pellets towards the nozzle at the end. As the pellets travel, they are heated by bands surrounding the barrel. Unlike dip molding, the resin doesn’t melt into a liquid but softens to a pliable state, allowing it to be forced through the nozzle and into the mold.
As the PET pellets move through the barrel, they are subjected to compression and high pressure, causing them to soften before reaching the nozzle. The pressure pushes the softened plastic into the mold, which is typically made of steel, stainless steel, or aluminum and is precisely shaped to match the caps or plugs. This high pressure ensures that the plastic fully fills the mold, achieving the correct wall thickness and shape.
After the mold is fully filled, it moves to the cooling stage, which is crucial for the manufacturing process. Adequate cooling is essential to ensure that the molded caps or plugs solidify correctly, avoiding deformation or damage. Cooling typically accounts for around 70% to 80% of the entire injection molding process. Effective cooling design can significantly enhance production efficiency and reduce cycle times.

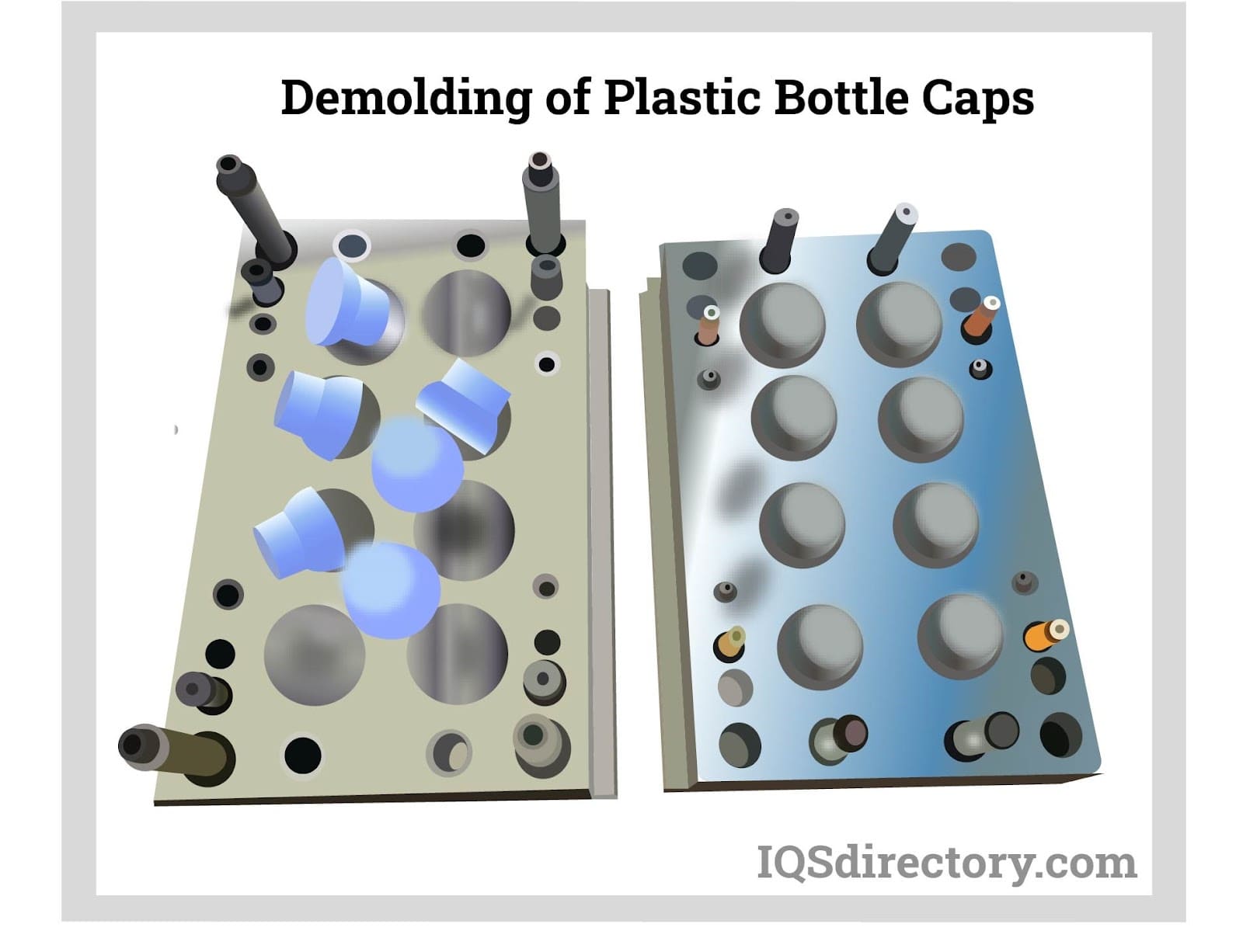

Similar to cooling, the demolding process requires careful handling to prevent any deformation or damage to the molded caps or plugs. The type of demolding process used—whether stripper or ejector—depends on the design of the caps or plugs. Ejector systems are more commonly used as they ensure a smooth and stable release of the finished products.
Plastic cap production machinery plays a crucial role in modern industry, providing accuracy and efficiency in manufacturing caps that are vital for sectors like packaging, industrial coatings, and toys for children. This overview will explore various types of machines available in the U.S. and Canada, highlighting specific models and their distinctive features, functionalities, and advantages.
The SACMI CCM Series includes continuous compression molding machines tailored for producing plastic caps. These machines are engineered for high-speed manufacturing with accurate control over cap weight, size, and quality. They feature cutting-edge compression technology, which enhances material efficiency and reduces energy consumption. Additionally, their modular design facilitates straightforward customization and scaling, while the intuitive controls and detailed monitoring systems aid in optimizing the production process.
The Husky HyCAP Series integrates injection molding with hot runner technology to manufacture plastic caps efficiently. These machines deliver high output, precise control over cap dimensions and weight, and impressive cycle times. Designed with a compact footprint, they facilitate space-efficient setups and are equipped with advanced cooling and ejection mechanisms to boost production effectiveness. The HyCAP Series also allows for quick tool changes and accommodates a range of cap designs with its versatile capabilities.
The Nissei ASB Series consists of injection stretch blow molding machines designed for the production of plastic caps. This series provides exact control over the molding process to ensure consistent quality and uniformity of caps. With their compact design, these machines are ideal for production settings with limited space. The ASB Series supports the use of multi-cavity molds for increased production volume and features energy-efficient components, along with straightforward maintenance and user-friendly operation.
The KraussMaffei Netstal ELION Series represents a line of all-electric injection molding machines designed for manufacturing plastic caps. Known for its exceptional precision and energy efficiency, this machine features a rapid and accurate clamping unit that shortens cycle times. It includes sophisticated control systems for optimized injection and mold filling processes. Additionally, the Netstal ELION allows for swift tool changes and integrates seamlessly with subsequent production stages.
The Sumitomo (SHI) Demag IntElect Series includes all-electric injection molding machines ideal for producing plastic caps. This series is renowned for its high accuracy, speed, and energy efficiency. It boasts a compact and ergonomic design that fits well into limited spaces. Advanced injection and control technologies are incorporated to ensure optimal performance. The IntElect Series also facilitates quick and precise mold changes, enhancing overall production efficiency.
For the latest information on specific models and their features, please consult the manufacturers or their authorized distributors, as model availability and specifications may vary.
Plugs and caps serve similar purposes but operate in distinct ways. Both can be threaded or unthreaded and used to cover the opening of a container. The main difference lies in their placement: caps cover the external rim of a container, while plugs fit inside the container's opening.
While both plugs and caps are often seen as comparable, their specific methods of sealing and accessing the container result in different design and configuration options.
Tamper-evident caps feature a small plastic ring at their base that detaches when the cap is twisted or turned. These caps are manufactured using the same methods as standard caps but are secured to containers with a shrink sleeve machine. The remaining plastic piece on the bottle after removing the cap is known as a tamper-evident band.
Tamper-evident caps are particularly important in the pharmaceutical industry, serving as a clear indicator that a bottle's seal has been compromised.

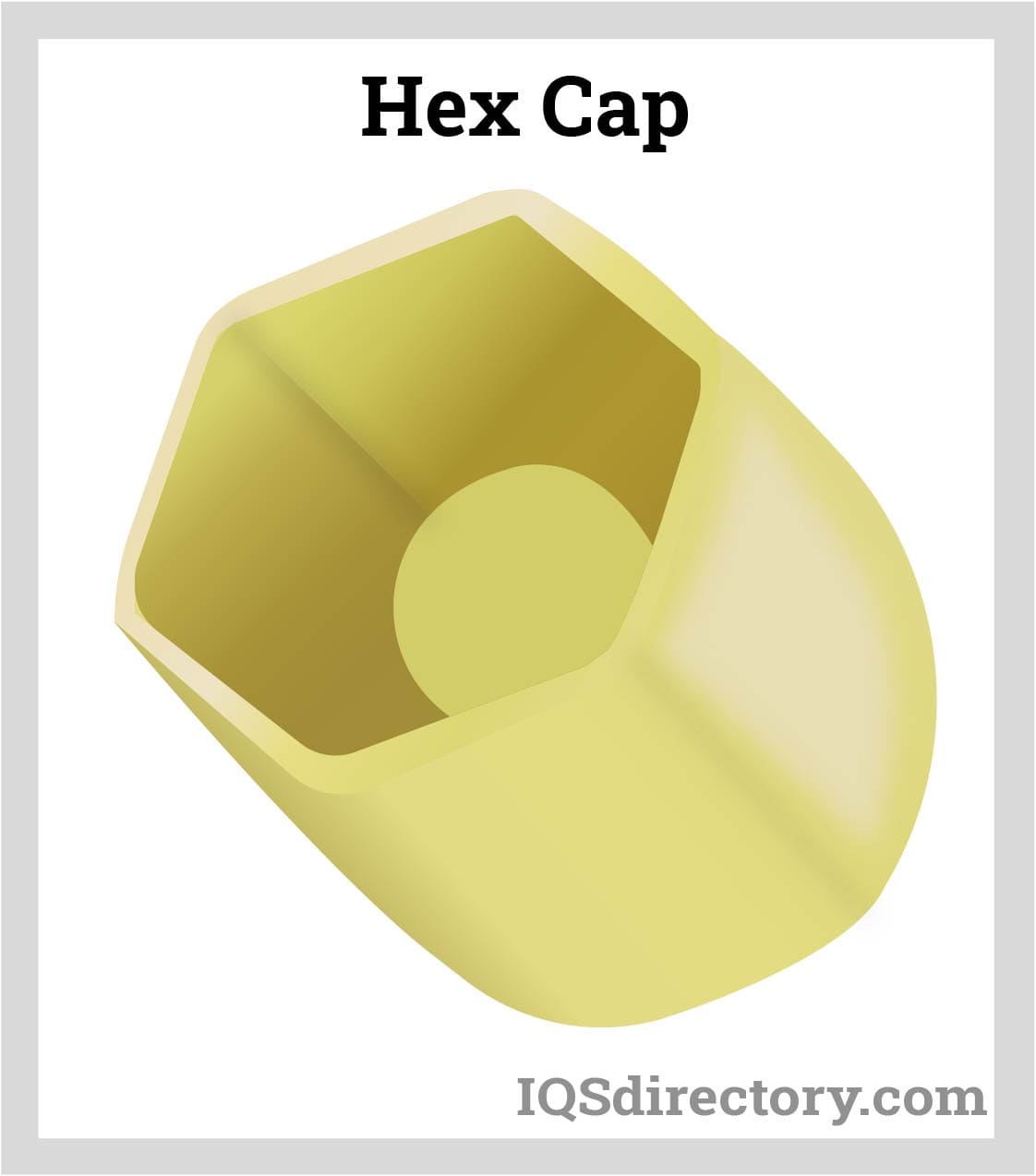

Hex caps are designed for use on six-sided projections, providing both protection and a polished finish. These caps are applied easily and create a secure, permanent fit. Among different cap types, hex caps are noted for their exceptional durability and longevity, thanks to their robust, thick walls.

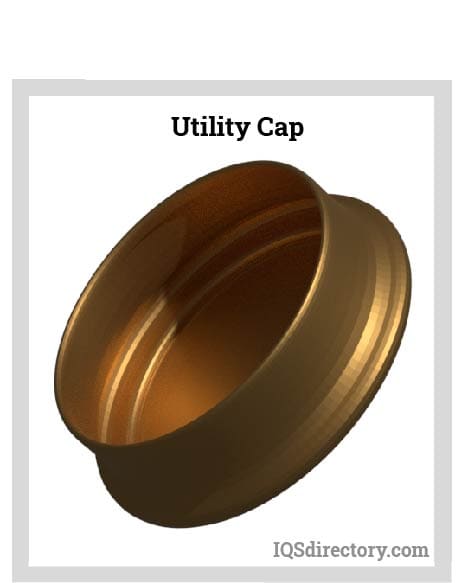

Utility caps are intended to shield threaded connectors from potential damage. These non-threaded plastic caps slide effortlessly over the threads of an extending pipe, coming in various sizes to ensure a secure and snug fit. Made from low-density polyethylene (LDPE), utility caps can endure temperatures ranging from –94°F to 175°F (–70°C to 79°C).
Threaded plastic caps provide a simple and effective way to seal ends or openings and can feature either ribbed or smooth surfaces. Available in various diameters, they cater to diverse application needs. Their design allows for repeated sealing and unsealing, ensuring that the contents remain secure and fresh over time.

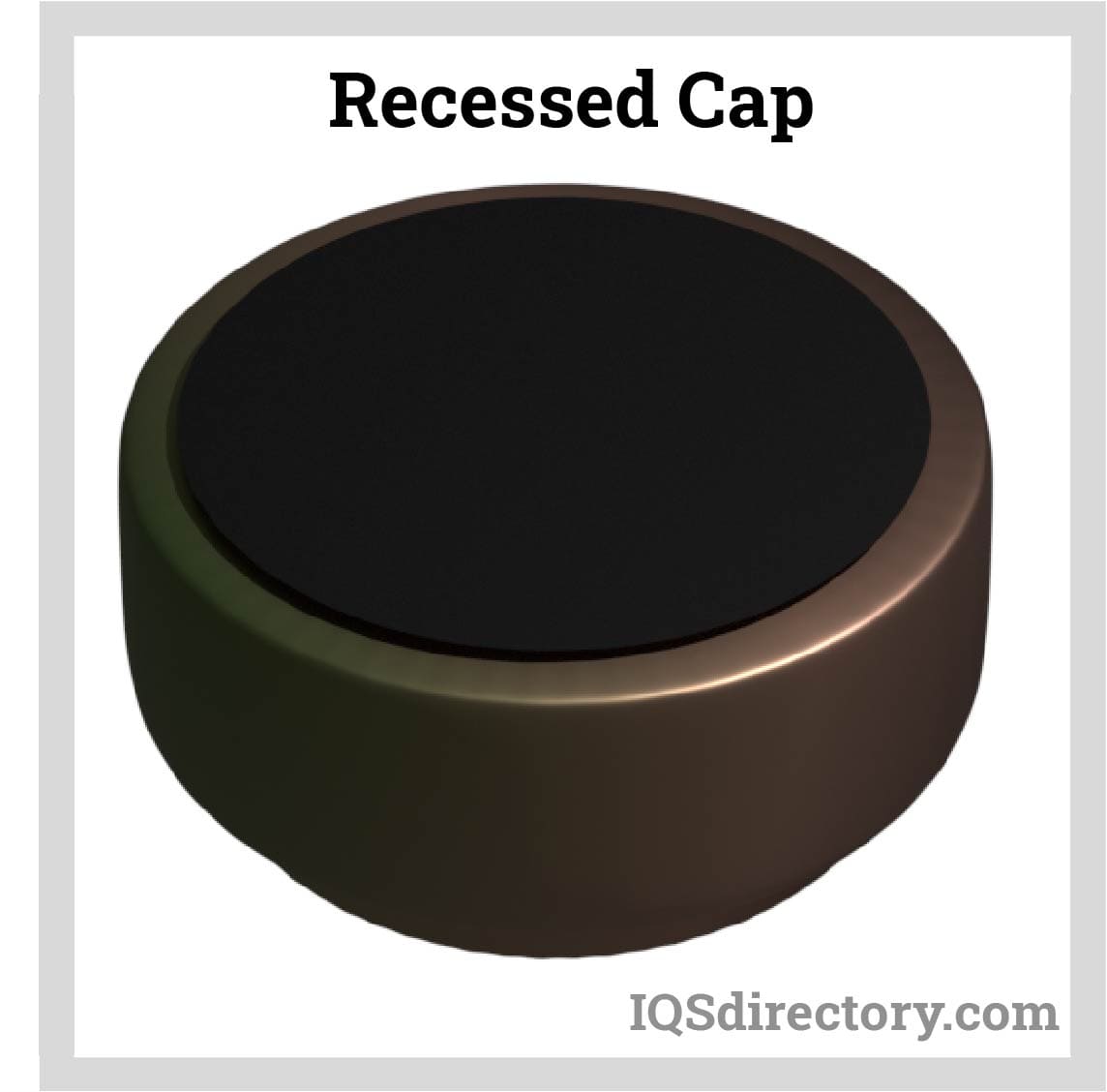

Recessed end caps safeguard the edges of pipes from damage. Constructed from linear low-density polyethylene (LLDPE), these caps maintain their durability across a temperature range from –94°F to 194°F (–70°C to 90°C).

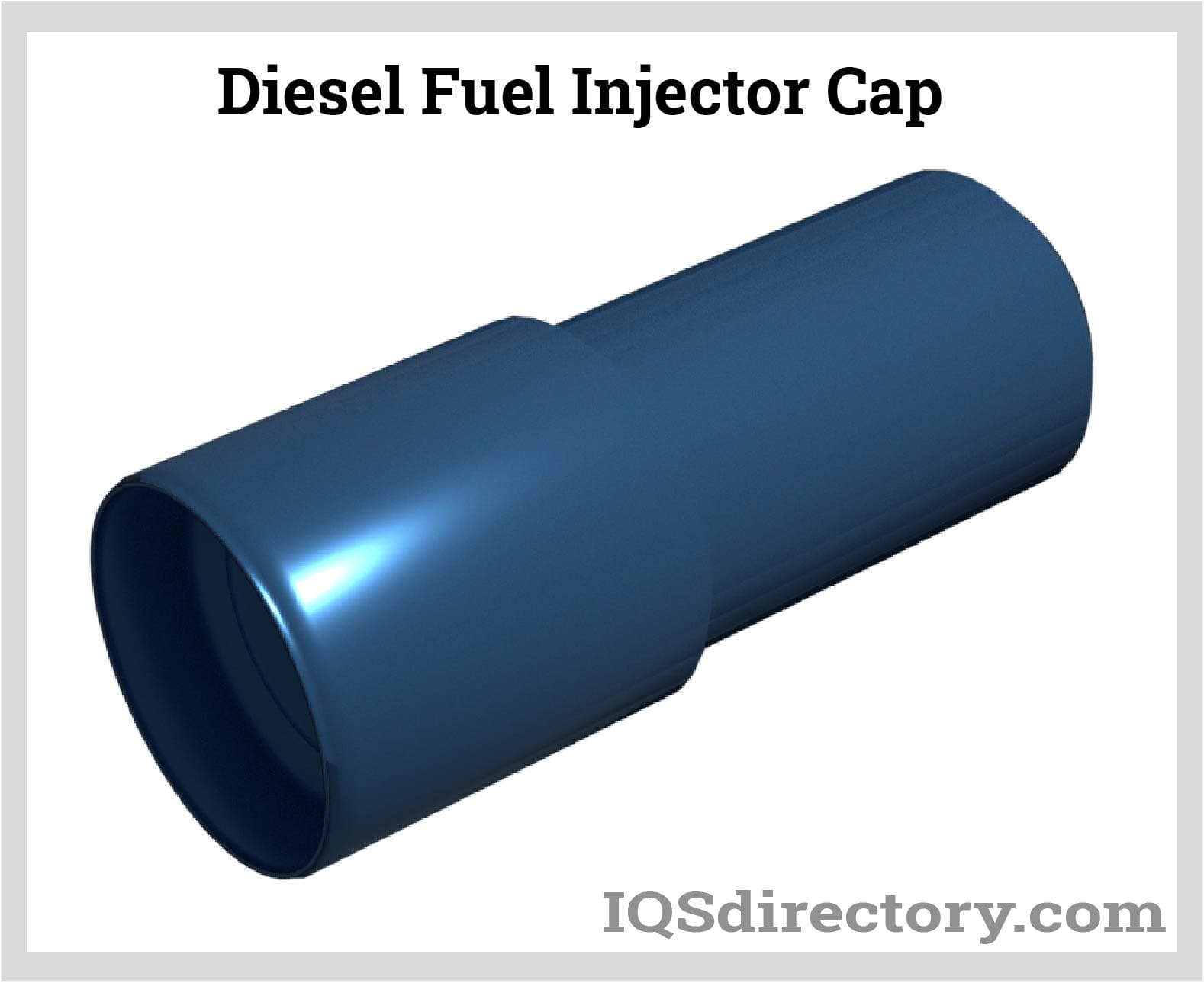

Diesel fuel injector caps are engineered to shield injectors from damage during shipping and to prevent moisture and contaminants from entering. Made from LDPE, these caps offer a cost-effective and efficient solution for protecting injectors.

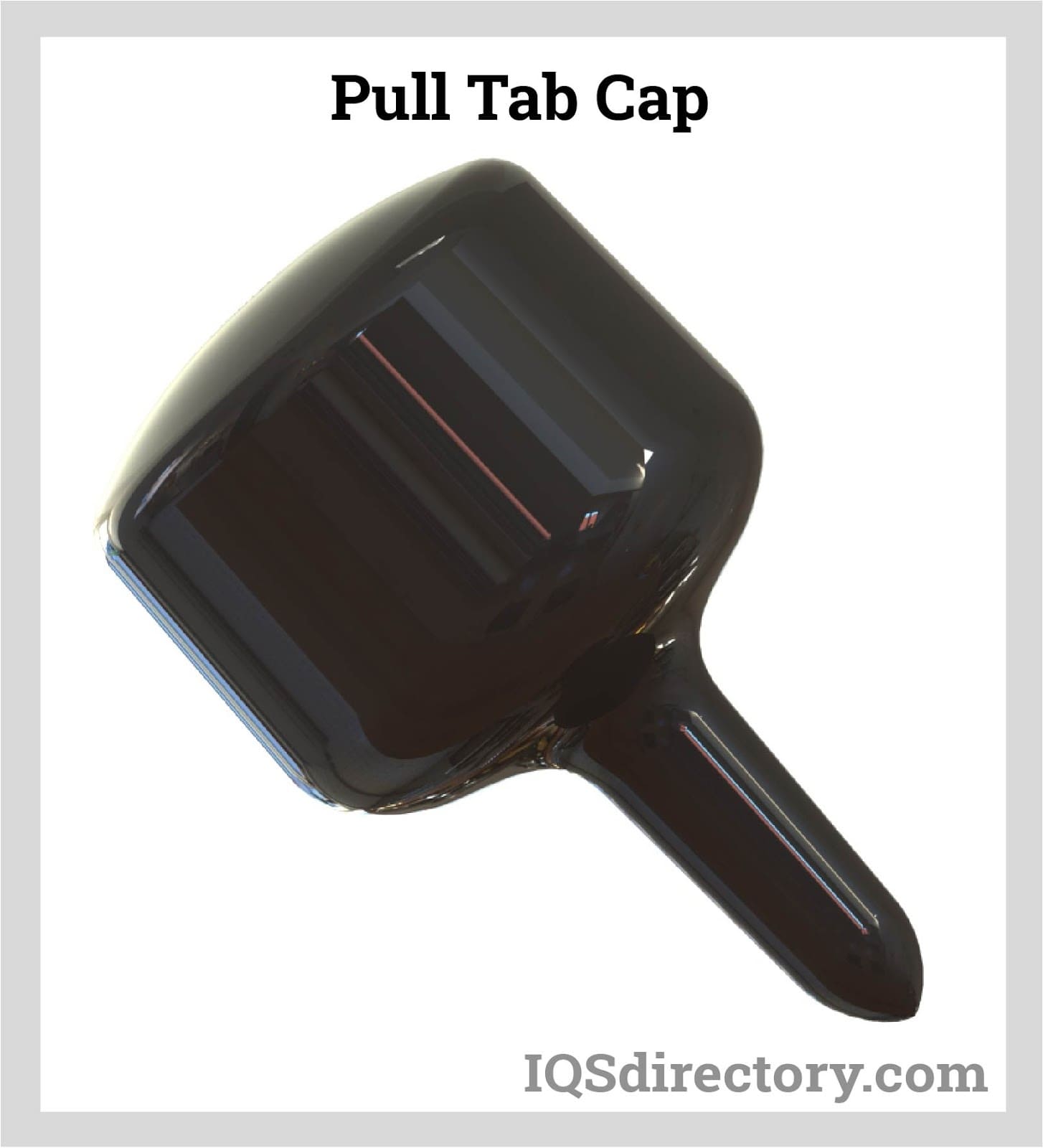

Pull tab caps feature a long tab at the center of their top, enabling easy removal by hand without the need for tools. These caps are designed to protect threads during processes such as painting, plating, and powder coating. Their distinctive design and robust construction allow them to endure temperatures of up to 500°F for intermittent use and 300°F for continuous exposure.
Tear tab caps are similar to pull tab caps in that they feature an extended piece of plastic for quick removal. However, unlike pull tab caps, the tab on tear tab caps is positioned on the side. Pulling the tab tears away a portion of the cap, facilitating easy removal.
The eight types of caps discussed are just a fraction of the many options available from manufacturers. There is essentially a cap designed to suit any application, no matter the conditions or environment. Furthermore, manufacturers often collaborate with customers to develop bespoke, customized caps for specialized or unique needs.
Plastic plugs are a protective tool for butt weld ends on valves, pumps, and heat exchangers. They are designed with characteristics and properties to meet the needs of any application, regardless of how stressful or hazardous the conditions may be. Aside from their industrial use, plastic plugs are used for capping the ends of patio furniture, fence posts, and shipping tubes.
Plastic plugs provide a tight and secure seal, effectively protecting the contents of containers or pipe ends and preventing spills and losses. Unlike caps, which cover the outside of an opening, plastic plugs fit snugly inside the container or pipe opening and are typically inserted with force to ensure a secure fit.

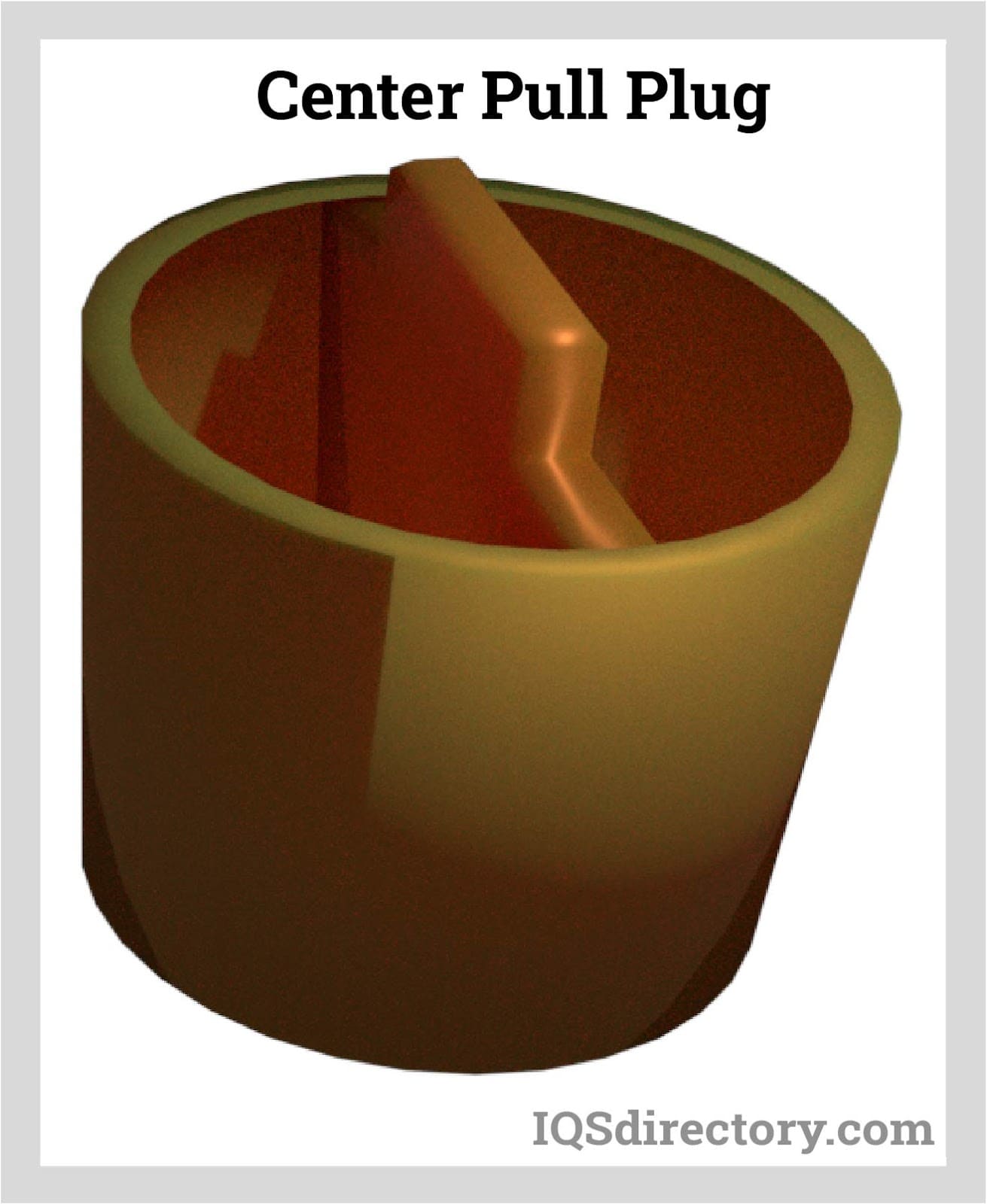

Center pull plugs operate similarly to pull tab caps but feature a pull tab positioned in the center of the plug. They are particularly useful in situations where two adjacent openings need to be sealed but space constraints prevent the use of a flange. Their tapered design facilitates easy installation, and they are available in various sizes to accommodate different openings.
Suspension plugs offer durability and strength for supporting heavy rolls. They provide the necessary stability and robustness to hold rolled materials securely when suspended from rolling racks or wall-mounted brackets.
Core plugs are designed to support heavy rolls and fit snugly into both ends of a roll. They are commonly used in craft and butcher paper rolls. Their tapered design allows for easy installation and removal, facilitating roll changes. By fitting flush with the roll's end, core plugs enable convenient stacking of rolls or standing them upright.

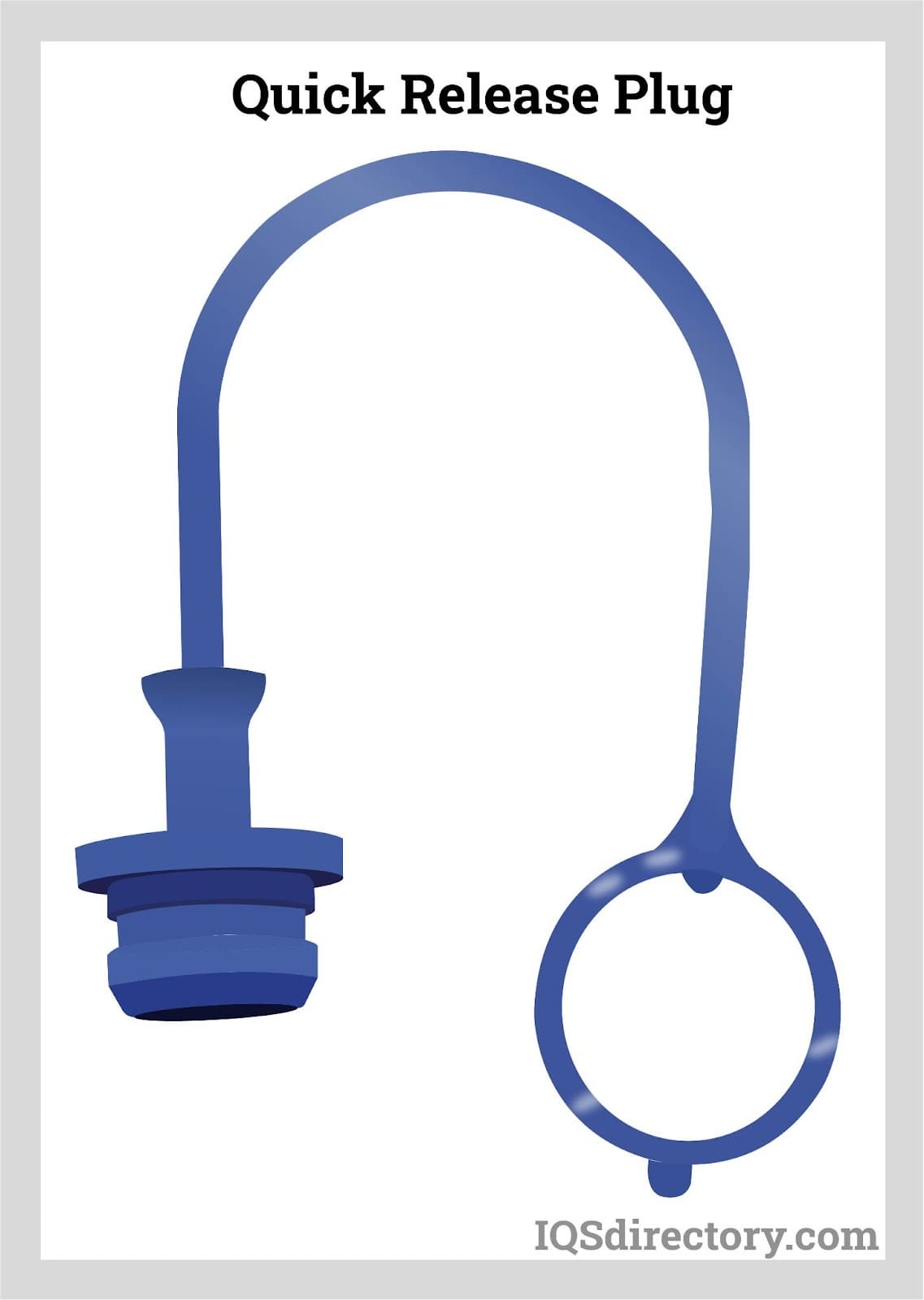

Quick release plugs simplify the process of connecting and disconnecting airlines from compressors or air tools. These plugs are designed to create a secure seal without the need for sealants or tapes. Attached to hoses, they guard against dirt, moisture, and corrosion. Quick release plugs operate effectively in temperatures ranging from –40°F (–40°C) to 275°F (135°C) and meet ISO 7241-1 standards for quick couplings.
In a female threaded fitting, the threads are located on the interior, allowing a male fitting to be screwed in securely. This design creates a tight seal between pipes without requiring PVC glue. To close off such connections, a threaded plastic plug is used to effectively seal the end of a pipe, preventing the entry of dirt, moisture, and contaminants. Threaded plugs are also useful for sealing lines during pressure testing.

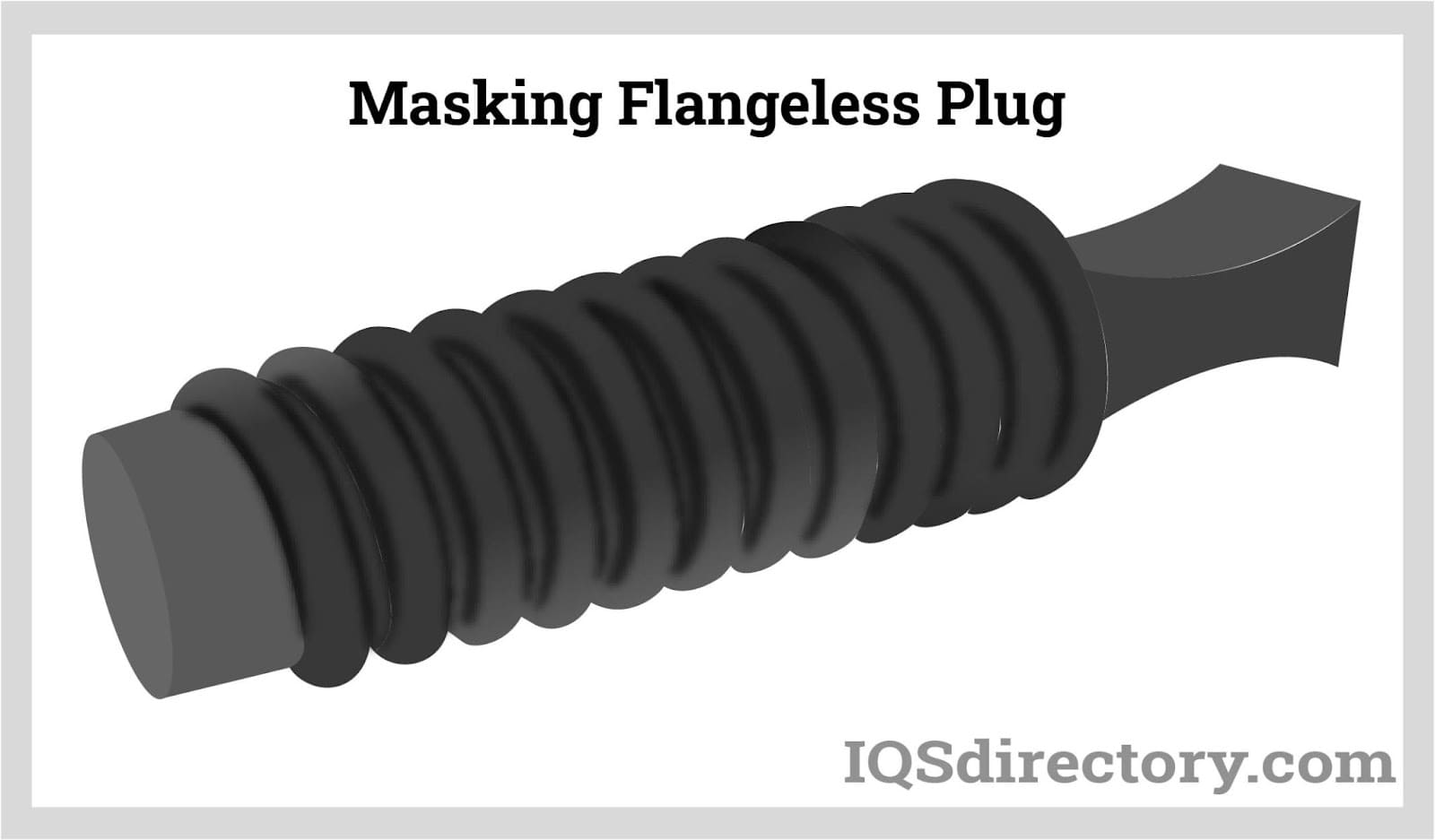

Masking flangeless plugs are designed to cover threaded holes with a tapered hollow shank that allows them to fit into various hole sizes. They effectively mask the hole while leaving the surrounding area exposed. Made from polyvinyl chloride (PVC), these plugs are durable, abrasion-resistant, and chemically resistant.
The most prevalent type of plug is round and tapered, suitable for a broad range of applications. However, certain situations necessitate square or rectangular plugs, which are crafted from the same materials as their round counterparts. Like round plugs, square and rectangular plugs are valued for their durability and strength, making them versatile for various uses.
Square plastic plugs are primarily used to seal and protect the ends of square tubes. They are commonly found on chair legs, display cases, metal products, and plastic shipping tubes, providing a polished look. Made from flexible and soft LDPE, square plastic plugs come in sizes ranging from half an inch (1.3 cm) to just under 5 inches (12.7 cm).
Rectangular plastic plugs serve similar purposes as square plastic plugs, offering both aesthetic enhancement and sealing for metal tubing. They are designed to fit various applications, including stands for computers, office equipment, display cases, and other rectangular attachments. Built to support weight, these plugs are made from durable and robust polyethylene. Some models feature ribbing to improve their grip on the internal walls of tubing.
A critical factor for rectangular and square plugs is their wall thickness, which influences their durability and resistance to wear. Wall thickness for plastic plugs is measured in gauges, similar to metals, with lower numbers representing thicker walls and higher numbers indicating thinner walls. Plastic plugs typically range from 3 gauge (0.259 inch or 6.58 mm) to 20 gauge (0.035 inch or 0.89 mm). As with metals, the wall thickness affects the plug's functionality and lifespan.
The few types of plugs mentioned are just a tiny fraction of the vast selection available from manufacturers. Whether for hydraulic lines, piping, or other applications, there is a plastic plug suited for nearly every need, including custom designs for specialized requirements. Plastic plugs are crucial in modern production, having been refined and adapted to meet diverse environmental and operational conditions.
Manufacturers of plugs and caps have a range of plastics at their disposal, each offering unique properties suited to various applications. Polyethylene is one of the most commonly used plastics due to its versatility and durability, making it well-suited for products that experience frequent use.
The choice of plastic is made during the design phase, based on customer specifications or environmental requirements. Selecting the appropriate plastic ensures that the plug or cap can withstand the intended conditions and provide long-lasting performance.
LDPE is a flexible plastic known for its high impact strength and ability to endure temperatures as low as 32°F (0°C). Due to its cost-effectiveness, LDPE is often the preferred choice for manufacturing plugs and caps. It is commonly used to provide protection during the transport of products and equipment.
HDPE is recognized for its excellent chemical resistance and low permeability to gases and moisture. As one of the most versatile plastics, it offers a strong strength-to-density ratio and is impact resistant with a high melting point. Its textured surface provides a secure grip, making HDPE an ideal choice for manufacturing caps and plugs.
PVC is a high density plastic that is resistant to deformation due to impact. It is exceptionally durable and resistant to weathering, making it ideal for outdoor applications. It has exceptional strength and endurance and is a long-lasting, low-maintenance plastic capable of performing for years without needing to be replaced. With low thermal conductivity, PVC can be used in high temperature applications without melting or losing strength. It has excellent dielectric strength, which makes it ideal for applications where nonelectrical conductivity is necessary.
Nylon is renowned for its strength and durability, with a crystalline structure that provides stiffness and resistance to abrasion. It is widely used in making various types of plugs, including threaded sealing and solid locking plugs. Nylon is particularly well-suited for blanking plugs, thanks to its excellent aesthetic qualities.
Polypropylene is normally used to manufacture caps due to its impact strength, cost effectiveness, and pliability. It is a tough material that does not suffer from stress cracking and has such excellent fatigue resistance that it keeps its shape after being subjected to torsion. Since it is a nonelectrical conductor, PP caps are widely used in electrical applications.
TPR (thermoplastic rubber) is an excellent material for manufacturing caps and plugs, combining the flexibility of rubber with the moldability of plastic. Like rubber, TPR remains flexible and maintains its shape under various conditions. It is commonly used for masking applications due to these beneficial properties.
While simple plastic caps and plugs may appear to be mere, inconsequential pieces of plastic used for covering holes or serving as stoppers, their importance should not be underestimated. In industrial settings, these components play a critical role in protecting equipment from damage and contaminants. Closing off a pipe, plugging an opening, or capping a line can be essential to the efficiency and safety of complex operations. Thus, plastic caps and plugs are integral to maintaining the integrity of larger, more intricate systems.
Contaminants entering hydraulic systems can cause significant damage. While contamination can occur during operation, much often originates during shipping, as hydraulic lines may be unprotected. Caps and plugs are essential for safeguarding hydraulic systems both during operation and, more critically, during shipping and setup. They provide crucial protection against debris and contaminants, ensuring the system remains in optimal condition.
Plastic caps and plugs play a crucial role in ensuring the safety of children's toys. They cover sharp edges, rough corners, and exposed screws and bolts to prevent injuries. Additionally, these caps and plugs serve as finishing touches for toys by covering unnecessary holes or openings. Round, square, and rectangular plastic caps are frequently used on toys to enhance safety and provide a polished appearance.
During painting operations, parts that need protection are typically covered with paper or other protective materials. When painting around openings, it's crucial to shield these areas from paint. Using wads of paper to block openings is often inconsistent and can slow down the painting process.
To improve efficiency, masking plugs are utilized. These plugs are tapered to fit snugly into any opening and feature a large tab for quick and easy installation. They can be inserted and removed with minimal effort, ensuring a smooth and continuous painting process.
Furniture, playground equipment, tools, and store displays often feature exposed pipes, tubes, and cylinders that can give them an unfinished appearance. Plastic caps and plugs are used to cover these openings, providing a sleek and uniform finish that enhances the overall look of the product.
Shipping tubes are commonly used to transport blueprints, maps, artwork, and other documents. Their sturdy and durable design makes them ideal for protecting sensitive materials. However, the rigid cardboard exterior is challenging to shape for covering the ends of these long tubes.
To address this, exterior plastic caps—whether threaded or unthreaded—are employed to securely cover the ends of shipping tubes. Custom-manufactured to precise dimensions, these plastic caps can be designed for either permanent or temporary use, depending on the requirements.
Plastic plugs are frequently used to seal shipping tubes and come in a range of sizes, designs, and shapes. Often, a plastic plug is used to seal one end of the tube permanently, while the other end is covered with a cap or removable plug.
During shipping, protrusions on products are vulnerable to damage from shifting and movement, potentially leading to bent ends, damaged openings, and other types of harm. Shock-absorbing caps offer an effective solution for protecting these sensitive areas, ensuring that products arrive in optimal condition. Their flexibility allows for the customization of wall thickness, diameter, and shape to perfectly suit the needs of the product.
Traditionally, rubber has been used for bumpers due to its resilience and strength. However, in some cases, the cost and durability of rubber may be more than necessary. For such situations, plastic caps and plugs are a cost-effective alternative that can offer similar resilience. Additionally, plastic caps and plugs can be customized in shape, configuration, and design to meet a wide range of protective needs, adapting to various environments effectively.
