This article takes an in-depth look at dynamometers.
You will learn more about topics such as:
A dynamometer is a device used to measure force, tension, weight, or pull forces. It assesses torque, force, speed, and power required to drive a motor by simultaneously evaluating torque and rotational speed.
While dynamometers are commonly used to measure engine torque, their applications have expanded to include measuring weight and tension. They are essential for monitoring tension on telephone lines, suspension bridges, elevator cables, and ski lifts.
As tension measuring devices, dynamometers play a crucial role in ensuring the safe use of lifting rigs, cranes, and cables by tracking loads and preventing overloading. They are available in various designs to meet different application needs and are often preferred over crane scales due to their ease of installation and transport.
Calibration is vital for a dynamometer's accuracy and precision. Therefore, dynamometers are equipped with various calibration methods and are designed to endure the diverse environments in which they operate. This durability makes them essential tools for evaluating pull and push forces.
In a dynamometer, applying force to a flexible metal ring causes it to bend, thereby measuring the applied force. This measurement is crucial in automobile production for determining horsepower, power absorption, and rotational speed. In construction, dynamometers help monitor and assess the tension and pull force on structural components to ensure strength and load capacity.
One of the key advantages of dynamometers is their versatility across various applications. Whether used for measuring torque or pull force, dynamometers are known for their exceptional accuracy and reliability.
To understand how a dynamometer works, imagine a spring mounted in two parts: one end anchored to a base and the other end connected to the force being measured. As the force stretches the spring, a reading appears on a scale. This basic principle is akin to a spring balance but measures force in units of Newtons (N).
While this simple model can provide basic readings, it lacks the capacity to measure the power of a 250 hp engine. For such tasks, a more advanced and robust device is needed, often resembling an electric motor or gas engine, designed to handle greater power and complexity.
A large dynamometer functions as a variable load connected to the drive of an engine or motor. As the motor operates, the dynamometer absorbs the produced power, providing data on the motor's torque and power. This absorbed power is dissipated through electromagnetism to manage the significant energy generated.
In today's technology-driven world, dynamometer data is typically processed by a computer. Various software options are available to collect and analyze these readings. While DOS-based software is becoming less common, some versions are still in use. The most prevalent software today is Windows-based.
The software provides readings that include:
Dynamometer software enables the measurement, recording, observation, and assessment of various data from an engine. Manufacturers and producers often rely on dynamometers for fundamental data readouts. The more comprehensive the measurements and quantifications, the higher the quality of the final product. Consistent testing is crucial, as inconsistencies in the process can lead to variations in results. By compiling extensive data, any potential fluctuations and variables can be accounted for, ensuring more accurate and reliable outcomes.
When used as a force gauge, a dynamometer measures both pull and push forces. There are two main types of dynamometer force gauges: digital and mechanical. A digital dynamometer features a load cell that converts force into electrical signals, which are then displayed on an LCD screen. In contrast, a mechanical dynamometer uses a strain gauge to deform under applied force, which is then converted into an electrical signal.
Dynamometer force gauges measure forces in units such as Newtons, pounds, or Pascals. These highly accurate devices can measure a wide range of forces, from very small to very large.
During the design process, engineers need to determine the appropriate size for an engine or electric motor to operate a machine. For this purpose, a driving dynamometer is used. This type of dynamometer measures the power, force, and speed of the motor or engine through integrated monitors and meters.
While dynamometers are commonly associated with motors, engines, and mechanical devices, they have also found applications in other fields for measuring power and force. Despite their modern applications, dynamometers were originally invented over 220 years ago to measure the pulling force of horses, highlighting their longstanding importance in engineering and manufacturing.
Emission testing involves measuring the emissions and power output of a motor while it is operational on the road. The results from this testing are compared to those obtained from chassis tests. For this purpose, a portable dynamometer is used, which is equipped with devices to measure emissions, performance, and driving conditions. The collected data is then transferred to a chassis dynamometer, which replicates the road test conditions, including real-time compensations for factors such as grades, wind, temperature, and altitude.
Motor testing using a dynamometer occurs in a controlled environment. The vehicle is positioned on roller beds, which simulate driving force to the wheels, with the motor's torque being the primary source of power. Data recording and collection devices are attached to the vehicle to ensure accurate and precise readings about the motor's performance. This controlled setting allows for the regulation of force distribution and speed through various methods. Measurements are taken at static power and constant velocity to ensure consistency.

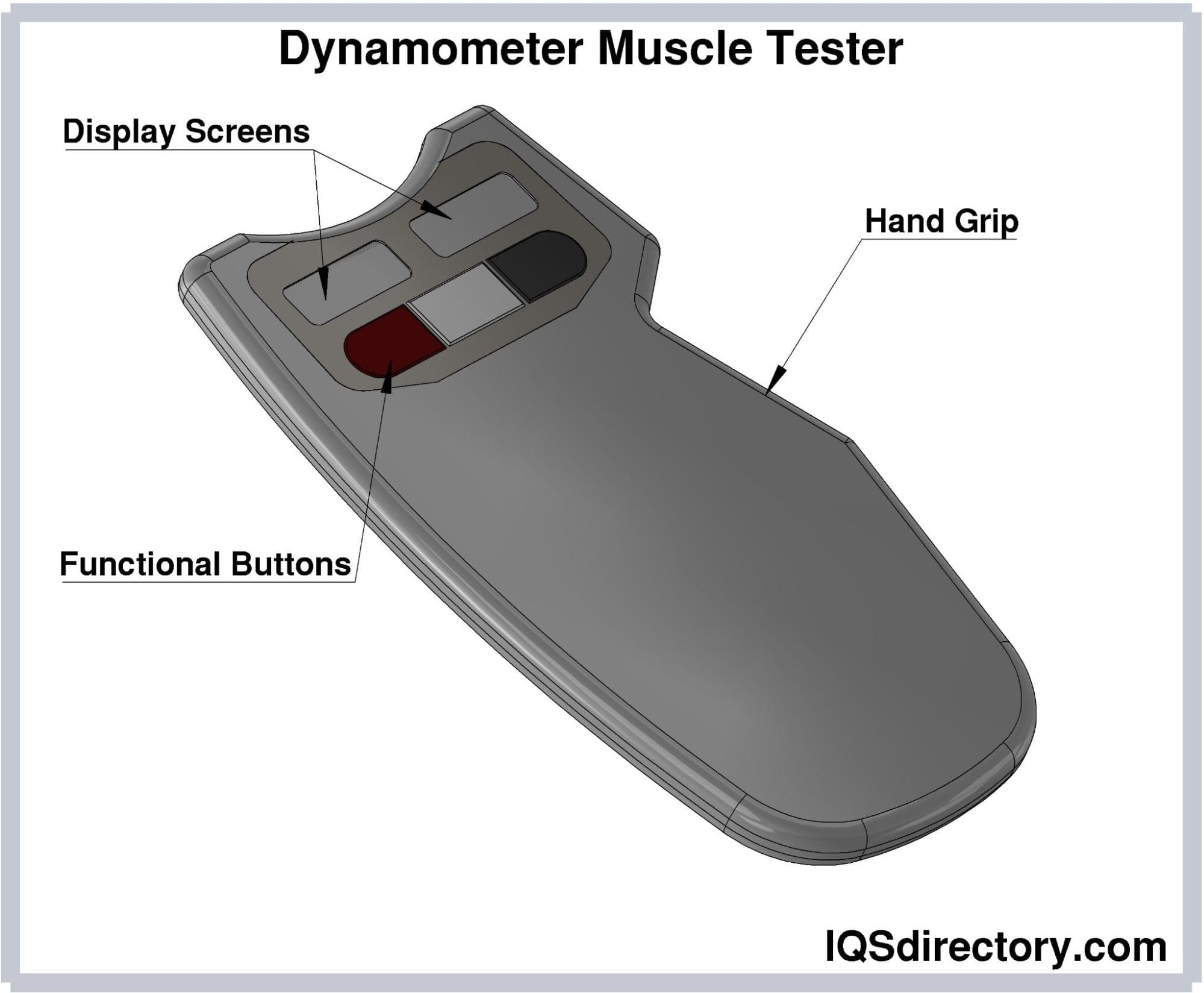

In the medical field, practitioners assess muscle strength to evaluate a patient's mobility and self-care capabilities. Handheld dynamometers provide valuable data on a patient's ability to maintain a standard position. This testing often involves measuring the length-tension relationship of a muscle, which compares maximum tension with muscle length. For optimal results, the muscle is tested at its maximum length-tension position.

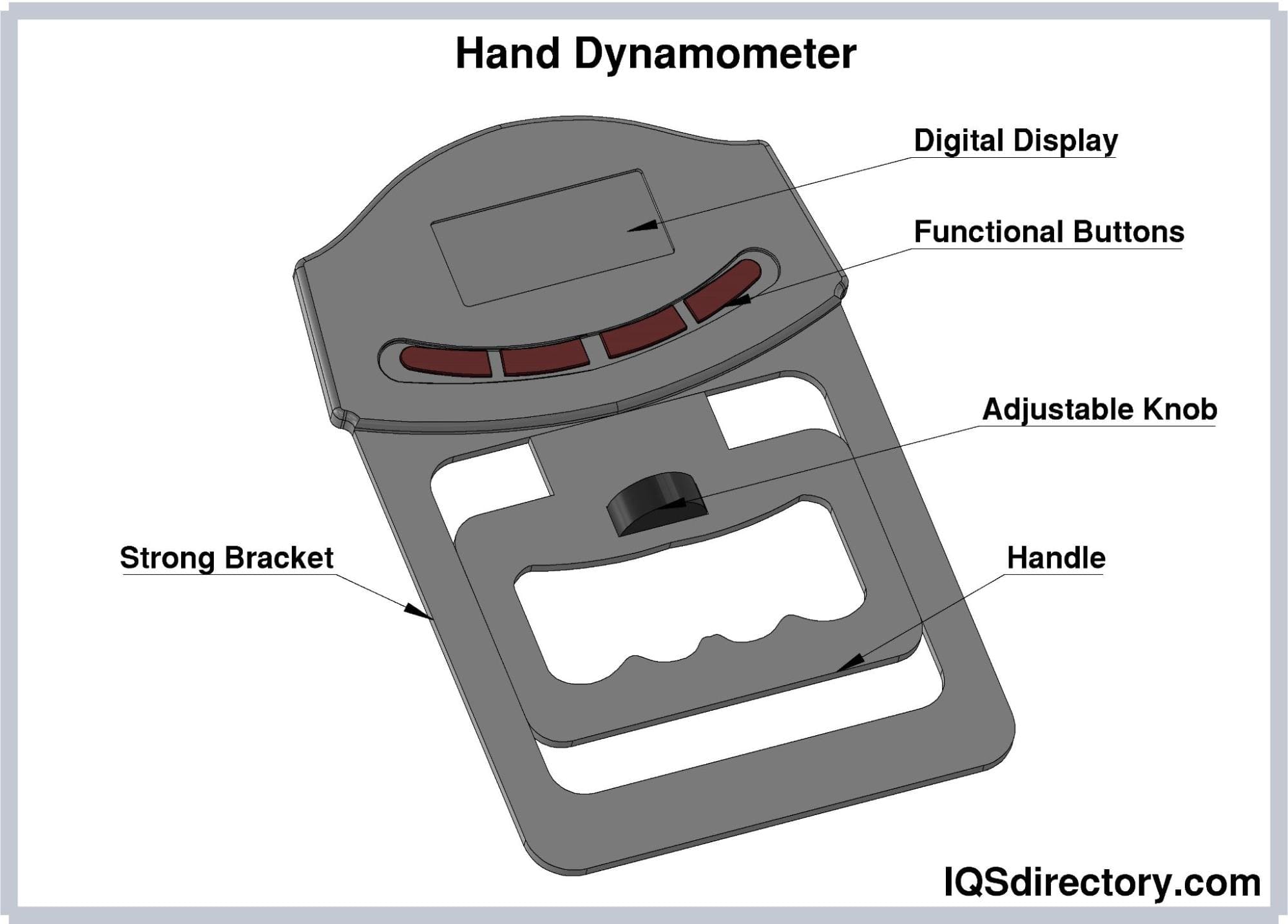

A specialized dynamometer called a hand strength tester measures muscle strength in the hands. This tool is particularly useful for assessing conditions such as carpal tunnel syndrome, nerve and tendon damage, and various neuromuscular disorders. Hand strength dynamometers are employed for diagnosing diseases, evaluating treatments, and tracking muscle strength improvements during recovery.
A speedometer is a type of dynamometer that utilizes electromagnetism to measure speed. It operates using a metal disc connected by a cable to the car’s wheels. As the wheels turn, the disc causes a magnet to rotate within a metal cup. The rotating magnet generates eddy currents that create a magnetic drag, slowing the magnet down. This interaction causes the metal cup to rotate, which, in turn, moves the needle on the speedometer or produces a digital readout to indicate the vehicle’s speed.

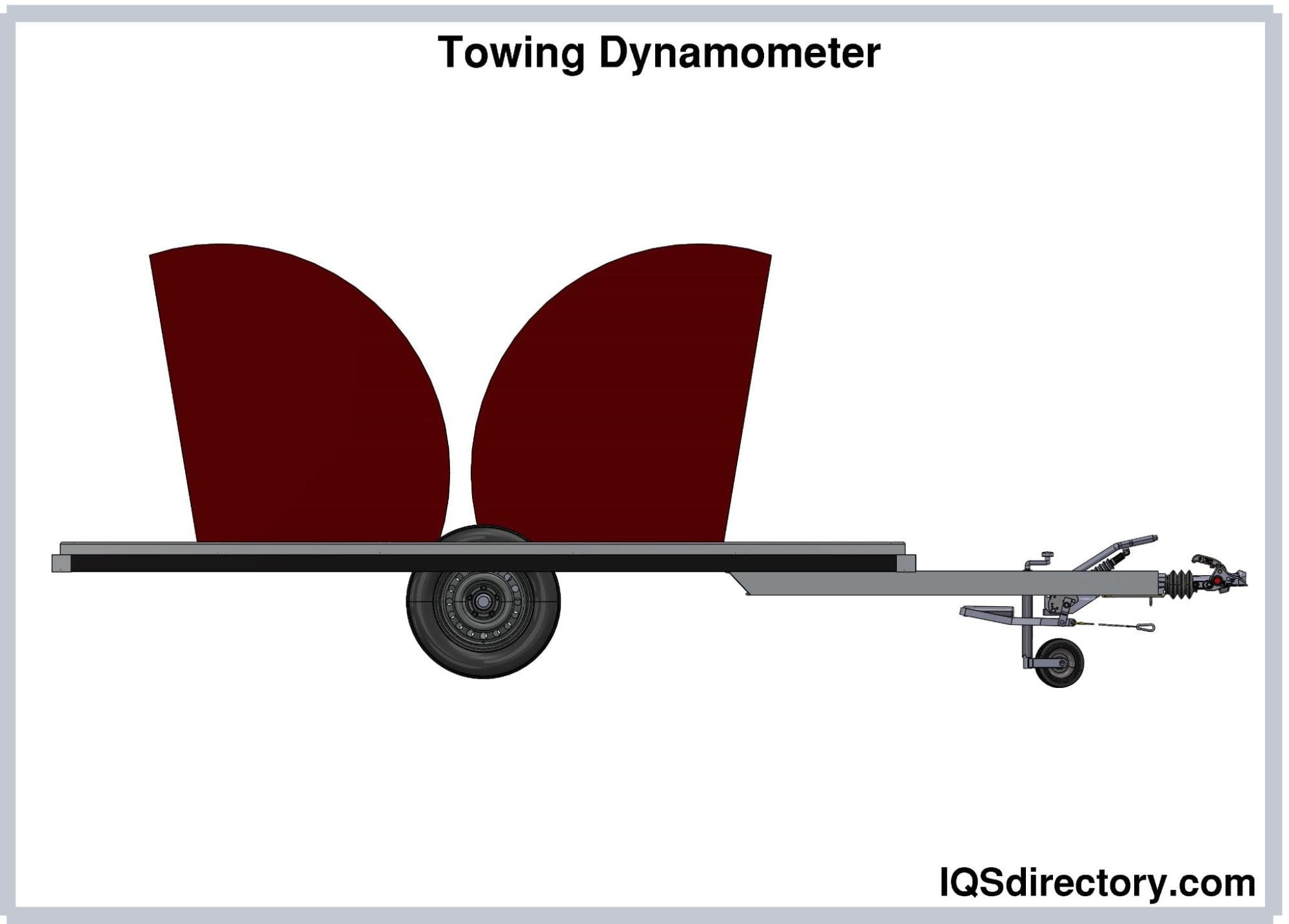

A towing dynamometer is a specialized trailer hitched to a vehicle for performance evaluation. It features an eddy current absorber integrated with an axle system to dissipate energy. Measurements are captured using a load cell situated on the trailer’s drawbar. This equipment helps analyze vehicle performance and make necessary adjustments for optimization.
Testing electric motors with a dynamometer follows a procedure akin to that used for other types of motors. The dynamometer measures various parameters such as torque, force, power, and rotational speed of the electric motor. It performs both comprehensive and variable tests to assess the motor’s optimal performance.
One method of evaluating electric motors involves using a water flow system proportional to the load, which introduces resistance into the motor. By adjusting the water flow rate, the dynamometer can absorb the power produced by the motor during acceleration and deceleration phases.

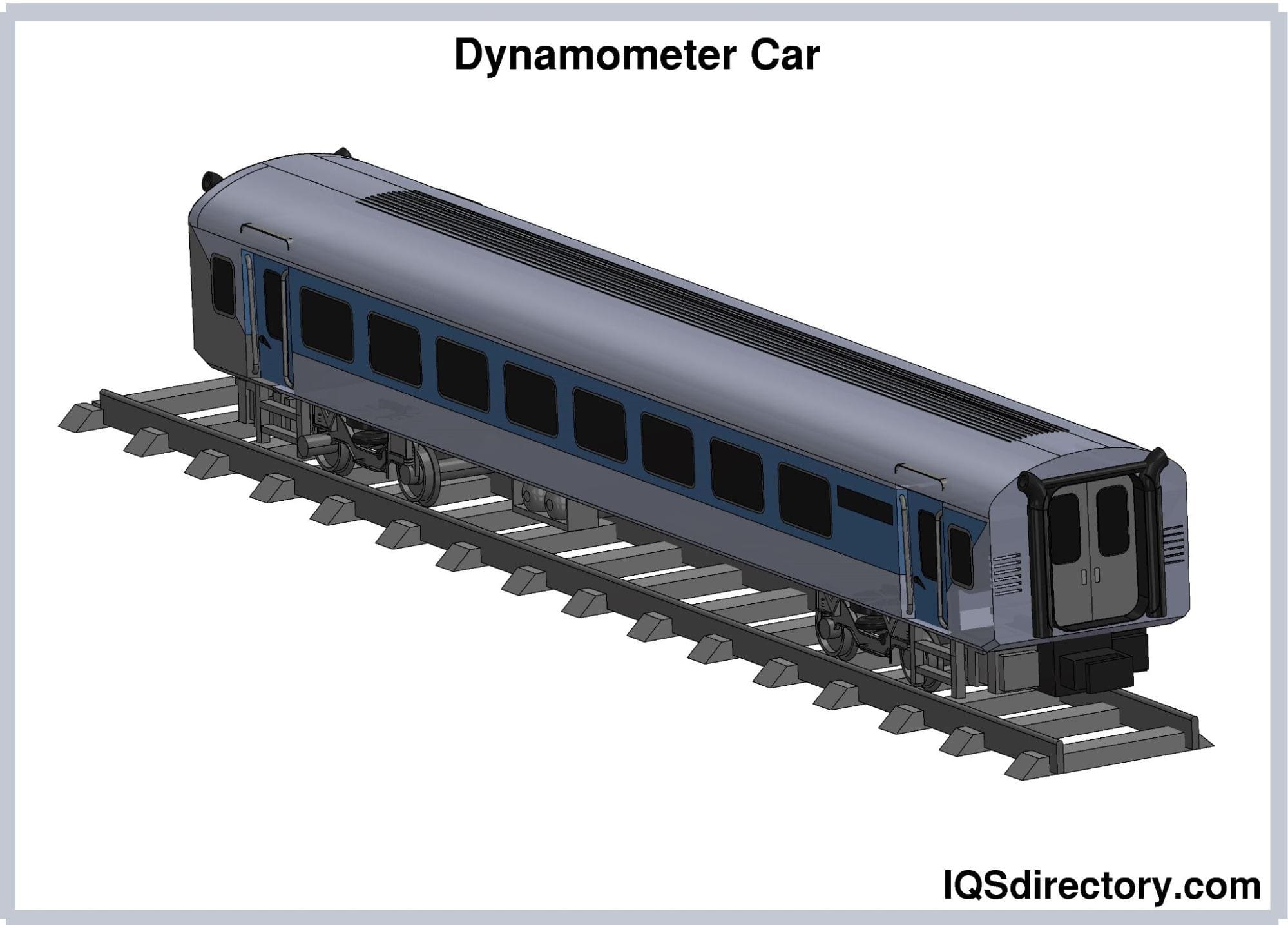

A dynamometer car is used to test various components of a locomotive. Its primary function is to gauge the locomotive's power output, including metrics such as pulling force, power, brake pipe pressure, and drawbar pull. The key data points—force and speed—are utilized to assess the locomotive's performance and efficiency.
PTO testing involves using a dynamometer connected to an engine's output shaft to evaluate various parameters. Similar to other engine tests, it measures speed, torque, power, and fuel consumption. PTO dynamometers are designed for easy connection and disconnection, providing precise and detailed readings that help reduce maintenance expenses and enhance equipment reliability.
Electric vehicle motors undergo various tests with a dynamometer to assess their performance metrics. Key aspects measured during these tests include rotor current, temperature rise, continuous electrical operation, maximum speed, and over-speed capabilities.
Each dynamometer used for testing electric vehicle motors is tailored to match the engine's specific parameters. This ensures that the testing is accurate and relevant to the motor's unique specifications.
A tension dynamometer gauges the maximum tension an object can withstand before failing. In chain lifts, it provides real-time tension readings to avoid overloading the equipment. This allows for precise monitoring of tension levels during operations.
These dynamometers are particularly suited for straight-line rigging and lifting tasks. Their compact and lightweight design makes them more convenient than crane scales, facilitating easier setup. Their portability also makes them ideal for load testing and elevator certification.
Dynamometers come in various types designed to attach to machines and apply braking forces to measure rotations per minute (RPM). The primary categories are absorption (or passive) dynamometers and universal dynamometers. Absorption types are used for driving tests, while universal types serve both absorption and driving purposes.
While these broad categories cover many dynamometer types, each includes specialized models tailored for specific testing needs. The extensive range of devices within these categories provides detailed information and data for various applications.
Among the specialized tests, the static tension test is notable. This test evaluates a material's breaking point and elongation under constant force or load, applied while the material remains stationary. Static tension measurements are crucial in rigging and lifting operations, and can be conducted either vertically or horizontally using devices such as clamp-on tension meters for horizontal measurements and clip-on dynamometers for vertical measurements.
The Prony brake dynamometer, conceived by Gaspard de Prony during the early days of the industrial revolution, is one of the most basic types of dynamometers. It consists of brake pads that apply pressure to a spinning wheel connected to a motor. This friction between the pads and the wheel helps reduce its speed. The main function of the Prony brake dynamometer is to gauge the braking power.
Tension dynamometers are commonly used instruments for measuring the tension in cables on suspension bridges and for adjusting the tension in electrical and telephone lines. They are crucial for determining how much tension a cable can handle before it breaks, providing precise measurements of its strength.
These dynamometers typically feature shackles, hooks, and pins to connect them to scales and cables. They operate similarly to strain gauges by using a load cell to assess force, load, and tension. Unlike tension meters that measure the tensile force in wires, tension dynamometers show the force exerted between two shackles aligned along the same axis. Various load cells and measuring devices are incorporated into these instruments.
Available in compact and portable designs, tension dynamometers are noted for their high accuracy and ease of use. They are commonly found in diverse settings, such as construction sites, foundries, oil rigs, and anywhere heavy lifting equipment is used. These devices help ensure that lifting machinery operates within safe tension limits and prevents overloading or excessive strain on cables and guy wires.

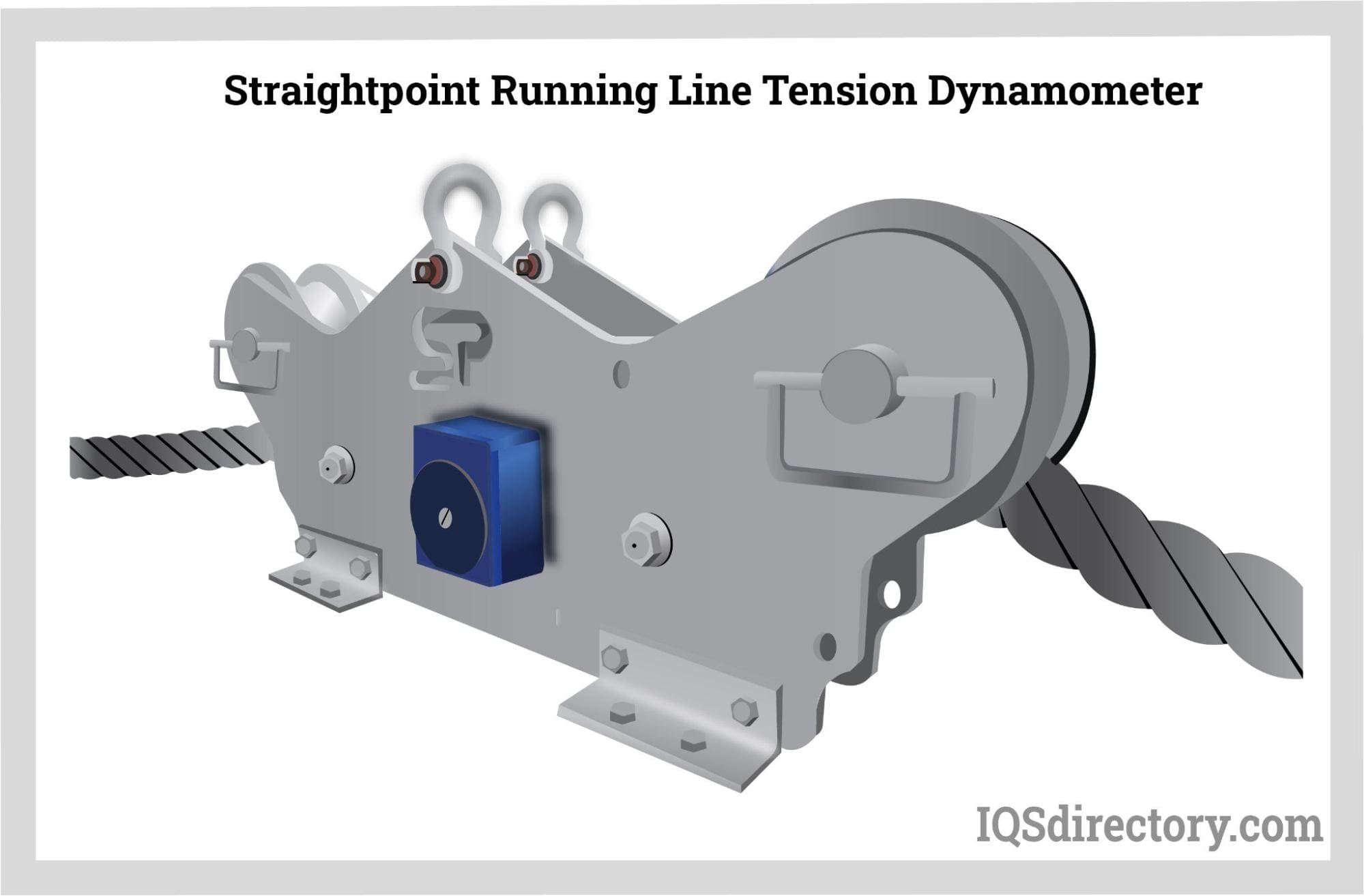

Wire tension meters, also referred to as wire rope tension meters or yarn tension meters, are specialized types of tension dynamometers featuring a load cell and wire tensioner for monitoring tension. These versatile devices can be adapted to various wire qualities and manufacturing processes. By maintaining consistent tension, they ensure high-quality coil windings and efficient processes while minimizing the risk of wire failure or breakage.
Wire tension dynamometers come in two main types: static and dynamic. Static models provide fixed tension measurements, while dynamic models offer readings during active operations. These tools are well-suited for varying conditions and wire types, ensuring precise and consistent coil windings.
Dillon AP dynamometers are designed to measure tension, traction, and weight on cables used for bridges and adjusting guy wires, ropes, and wires. They are favored for their accuracy, with a tolerance of +/-0.5% of full scale. The capacity ranges from 500 lbs. to 100,000 lbs. (200 kg to 50,000 kg) and are available with 5 in (125 mm) or 10 in (250 mm) dials, which denote different models.
At the heart of the Dillon AP dynamometer is a steel flexing beam encased in an aluminum housing, with a dial protected and cushioned by a rubber gasket. There are three versions of Dillon dynamometers: AP, EDjunior, and EDXtreme, with the AP model being the most versatile and widely used.
Assembling a Dillon AP dynamometer is quick, requiring only AA batteries for power. Developed by W. C. Dillon, these mechanical dynamometers are specifically designed to measure tension in telephone wires. The unit is positioned on a line, with the dial zeroed before applying force, and the gauge movement provides a precise and accurate reading.
A tensiometer measures soil moisture by assessing the negative pressure, or tension, which reflects how much effort plant roots must exert to extract water from the soil. This tension indicates the force required by plants to pull water through soil pores. Larger pores allow for easier water extraction and require less force, while smaller pores necessitate greater force, increasing the tension as the soil dries.
As the soil loses moisture, plants need to exert more force to extract water, resulting in higher tension values and indicating water stress. Tensiometers feature a porous ceramic tube filled with water, which interacts with the soil. When the soil dries out, water moves from the tube to the soil pores, creating a vacuum within the tensiometer. This vacuum is measured by a gauge, which provides readings in kilopascals or centibars.
The tensiometer's measurement process remains unaffected by variations in soil texture, temperature, or salinity. While tensiometers are effective in signaling when irrigation is needed, they do not measure the exact quantity of water required. For optimal accuracy, tensiometers should be installed in multiple locations within a field, chosen according to the irrigation methods and system types used.
An eddy current dynamometer measures the torque and power of the prime mover, which is a motor or engine. The rotor turns by the force of the prime mover shaft, and voltage is applied to the stator housing. Magnetic flux is generated, which is cut off by the rotor. An eddy current that is opposite to the change in the magnetic flux is generated in the rotor.
The rotor aims to manage and decrease rotational speed, while the prime mover keeps the speed consistent through its torque. An eddy current dynamometer measures this torque. Eddy current dynamometers are utilized in various applications, such as turbines and mining or drilling machinery.
A hydraulic dynamometer has semicircular vanes placed in a rotor and stator. Water flows in a toroidal vortex around the vanes and creates a torque reaction in the dynamometer casing that is resisted by the dynamometer and measured by a load cell. The construction of a hydraulic dynamometer is similar to a fluid flywheel that measures the frictional force between impeller vanes and a moving fluid.
Absorption dynamometers generate torque by applying constraints to a rotating shaft via mechanical, fluid friction, or electromagnetic methods. These torque-inducing elements are set up in pairs to prevent the impact of transverse loads. Known for their precision, absorption dynamometers are ideal for applications requiring continuous load transmission.
Absorption dynamometers are designed to measure and absorb power. Various types, including eddy current, hydraulic, and Prony dynamometers, utilize power absorption principles for their measurements.
A driving dynamometer assesses the requirements for a motor needed to operate an engine or electric motor. It consists of a motor equipped with measurement meters and monitors connected to the device under test. The data from these instruments provide insights into the power, force, and speed being utilized.

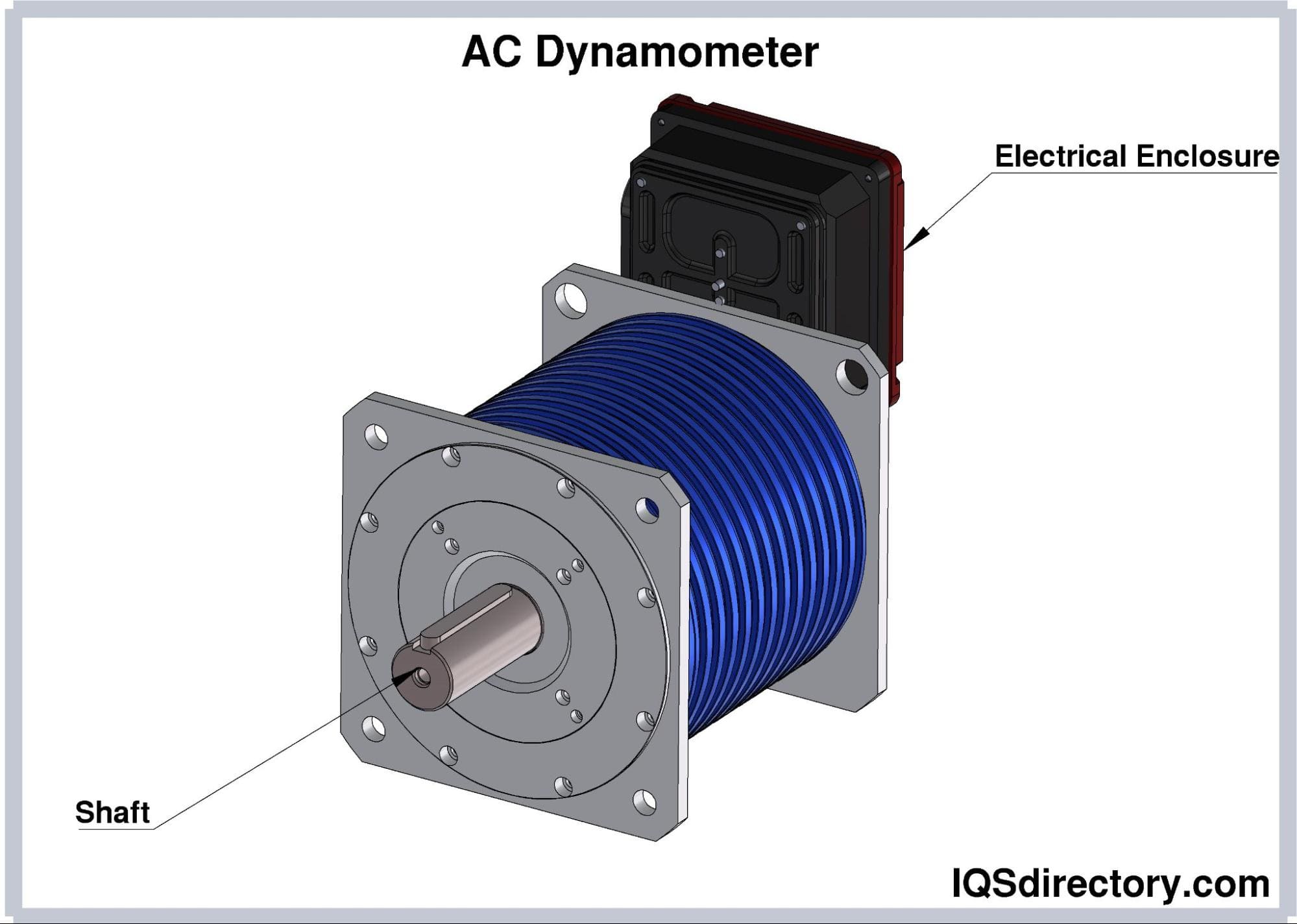

An AC dynamometer applies power to an engine and absorbs power, such as braking force, from the driveshaft. This permits the dynamometer to simulate the external forces on the engine. AC dynamometers can use direct current (DC) as well as AC and can be a load or prime mover to measure rotational power and torque. The prime mover can be an electric motor, or a turbine driven by wind, water, or steam. It is a simple testing device that can provide a range of torque values.
AC dynamometers offer an efficient way to compare actual performance against design specifications. They play a crucial role in advancing product development by improving marketable products and extending their lifespan and performance.
Water brake dynamometers are suited for high torque, low-speed diesel engines used in mining, marine, and naval contexts. They can accommodate engines with both clockwise and counterclockwise rotations. These dynamometers, a type of hydraulic absorption device, connect to the engine’s crankshaft and use water to create braking force.
Inside the dynamometer, a rotating blade directs the water to generate braking force against the crankshaft. The engine's power is determined by the amount of heat produced, which correlates with the volume of water used—the greater the water flow, the higher the braking force required.
Fluid dynamometers operate similarly to water brake dynamometers but utilize either water or oil to drive the crankshaft. Like water brake dynamometers, the turning of the impellers generates heat, which is measured by the dynamometer. Gears connected to the dynamometer's shaft transmit the recorded data to a device that gauges the force.
A universal dynamometer differs from an absorption dynamometer in that it can measure both absorption and driving characteristics of the device under test. While it absorbs force and power, it also drives the engine to assess factors such as friction and pump losses, among others.

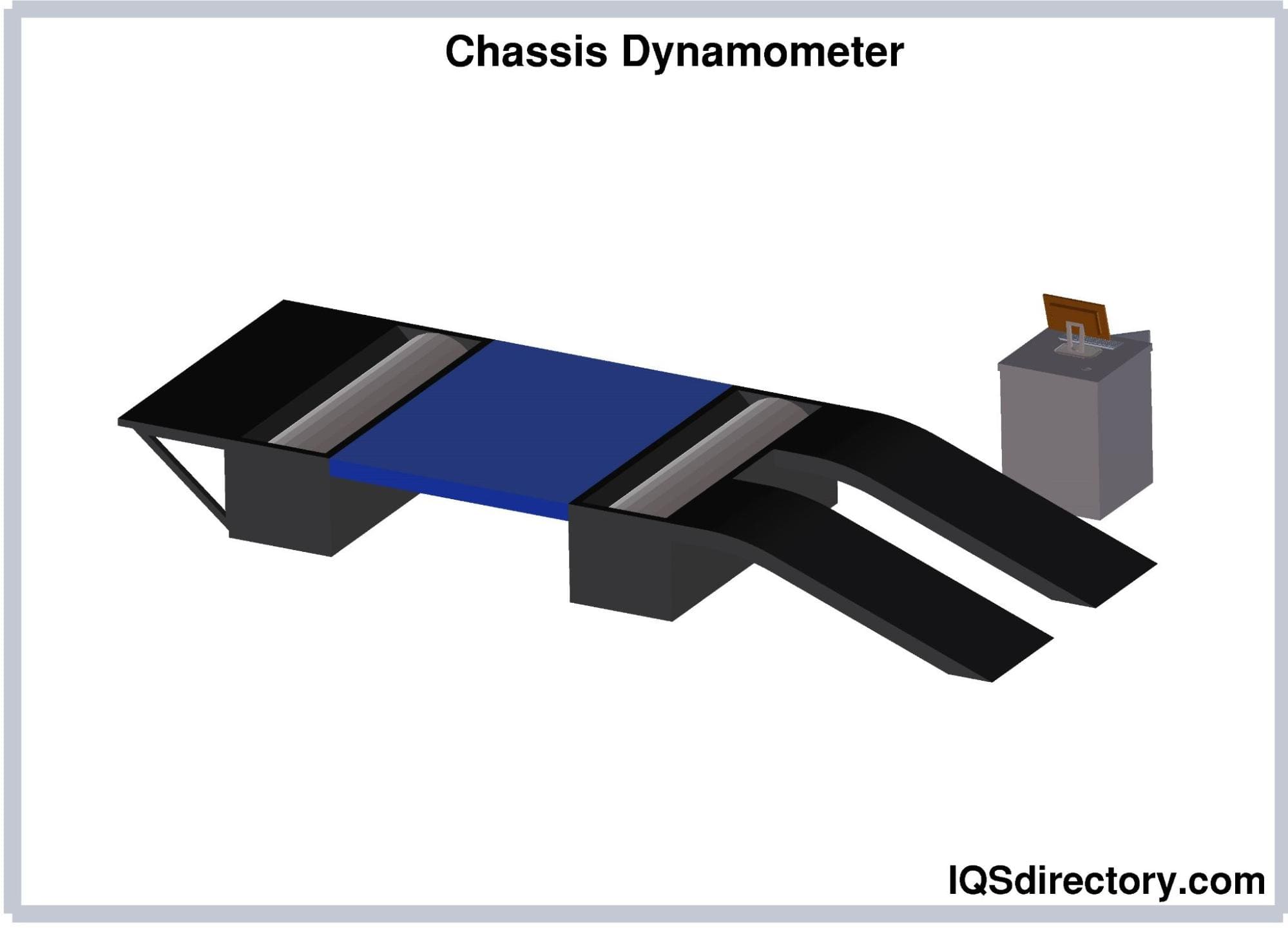

Chassis dynamometers are torque measuring devices that measure what is produced by the movement of a vehicle's wheels. They are available in fixed configurations or portable units. The purpose of chassis dynamometers is to simulate road conditions, including all the forces that attack a vehicle during operation.
The test involves accelerating, braking, and decelerating the vehicle to gather the required data. Various chassis dynamometer designs are available to evaluate different driving conditions and challenges.
The primary types of chassis dynamometers are:

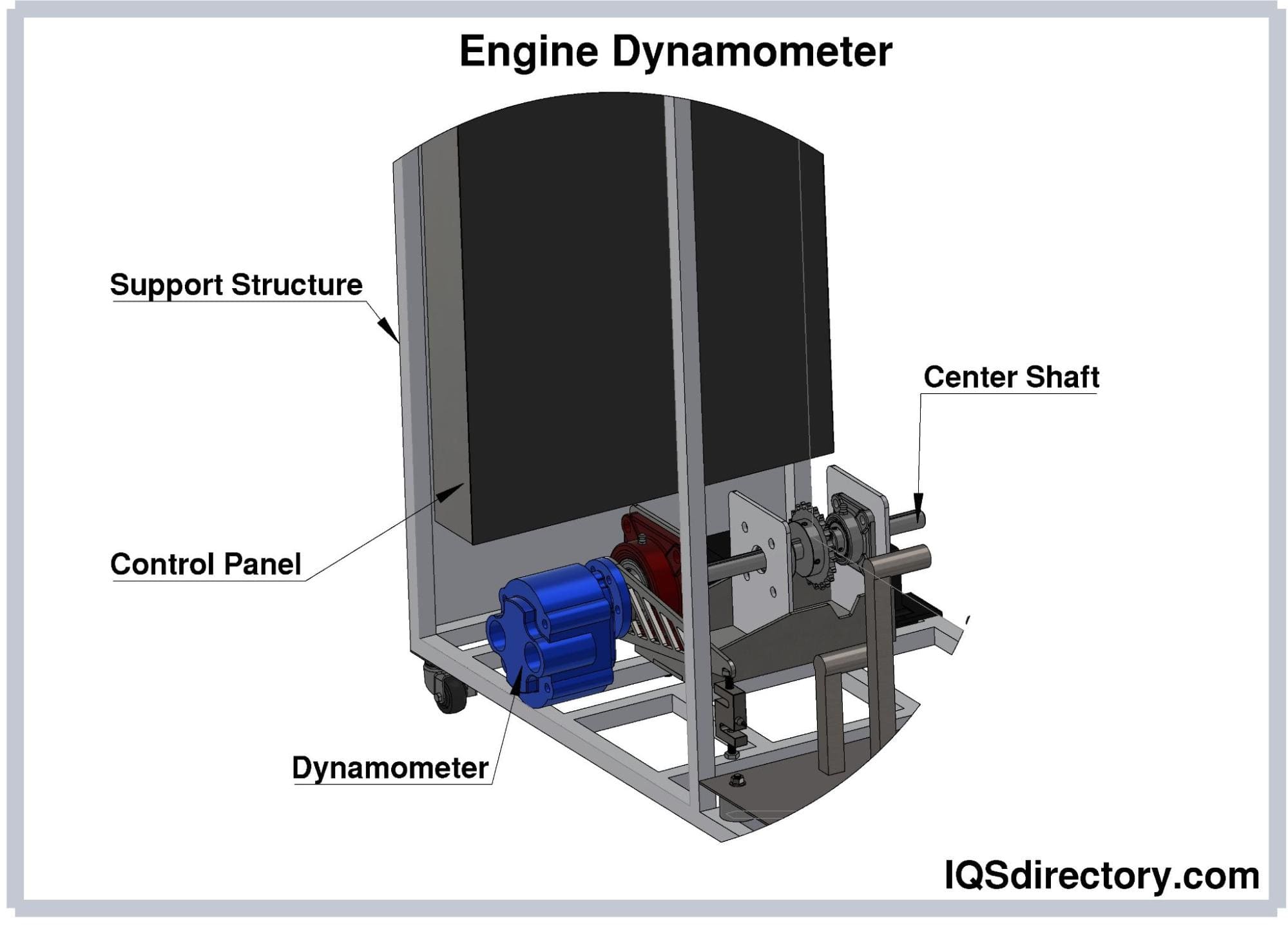

The process of using an engine dynamometer is slightly more complicated than the use of other dynamometers. The size, weight, and performance of the engine are the determining factors related to selecting a proper dynamometer. Unlike chassis dynamometers, engine dynamometers test and tune engines.
Engine dynamometers generate extensive data and require a computer interface for recording and displaying the results. The key distinction between different types of engine dynamometers lies in their application: street engines versus heavy-duty engines, like race cars or trucks, due to significant differences in torque. These dynamometers are utilized to measure dynamic force and torque.
A rope brake dynamometer measures engine power using a rope wound around a drum connected to the output shaft. One end of the rope is linked to a spring balance, while the other end is attached to a loading device.
In this dynamometer, power is absorbed through the friction between the rope and the drum. To manage the heat generated by this friction, a cooling mechanism is required. Although rope brake dynamometers are relatively simple to construct, they often provide less accurate data due to variations in the friction coefficient.
A crane hook dynamometer is a type of tension load cell dynamometer used for under-hook crane weighing, proof load testing, and crane calibrations. They come in various forms and sizes, including models capable of measuring forces exerted by large ship-loading cranes and spanning several feet.

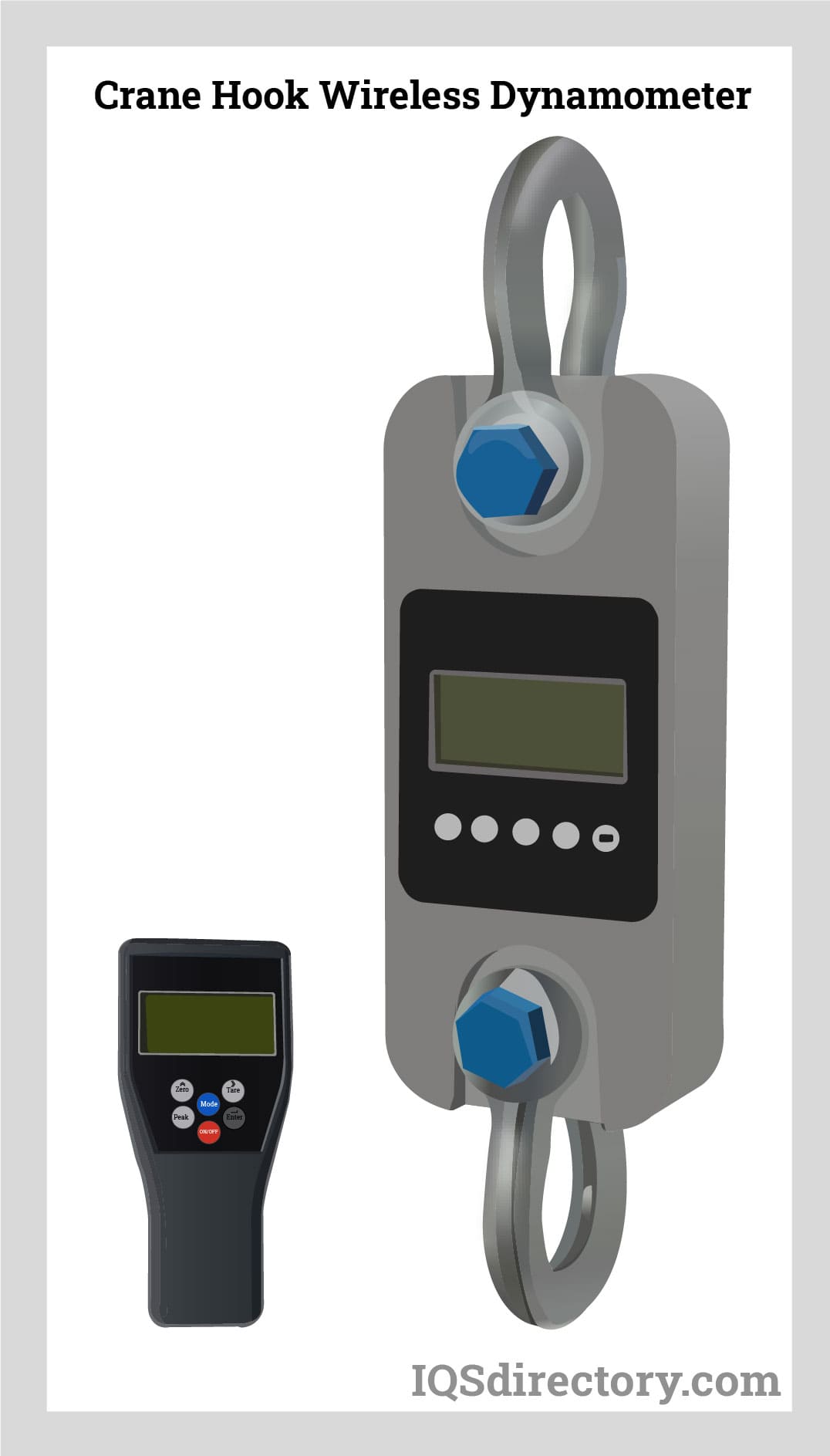

Crane hook dynamometers are available in both wired and wireless versions, with some featuring a handheld device for digital readings. Connected to the crane’s hook, these dynamometers use a microprocessor to ensure high precision. The handheld wireless indicator simplifies and enhances the convenience of calibrating the device.
These tension dynamometers convert force readings into electronic signals, aiding in preventing overloads, monitoring rig tension, and evaluating loads.
A dynamometer's fundamental functions are to measure torque, force, and power. These tasks are carried out through specific procedures: step test, sweep test, and transient test. Each procedure is chosen based on the type of data required.
A dynamometer is equipped with a data acquisition system comprising a commander and a workstation. Like other modern testing equipment, it connects to a computer that sends commands to the workstation. After the commands are executed, the workstation operates the dynamometer and collects the programmed data, which is then sent back to the command computer.
Step tests are conducted by brake dynamometers where an engine runs at a constant RPM for a set duration. Data is collected at each RPM level before increasing to the next. This method benefits from minimal acceleration effects, reducing the influence of inertia and the dynamometer on torque measurements.
The sweep test involves accelerating the engine at a steady rate, such as 100 RPM per second, to closely replicate real driving conditions. Success in this test depends on maintaining a constant and precise acceleration rate, which is managed by the dynamometer’s control system.
The inertia sweep test aims to closely simulate actual driving conditions. Although it may not provide identical data to on-road driving, it effectively measures the engine's inertial resistance.
The loaded sweep test has two versions, which are simply fixed and controlled. With the simple fixed test, the engine accelerates at its own rate. Power is determined by the power required to accelerate the dyno. As the name indicates, the controlled version of a sweep load test controls the acceleration rate.
The transient test is designed to assess various driving patterns a vehicle may encounter, including throttle changes and speed fluctuations.
Variations of the transient test include cold starts followed by hot starts. Its primary goal is to measure emissions in accordance with Federal Test Procedure (FTP) standards. During FTP testing, the load factor should be maintained between 20% and 25% of the engine's maximum power.
Typically, the first data point analyzed from a dynamometer is the peak power. While this figure is crucial, it is more significant to evaluate the average power across a useful RPM range. This useful range is defined by the minimum RPM of the engine at full throttle.
Managers and supervisors in industry are focused on ensuring optimal performance from their equipment. Regular inspection, assessment, examination, and testing of machines and engines are essential. A dynamometer is an excellent tool for evaluating the power and capabilities of critical equipment, ensuring that processes run smoothly and efficiently.
A dynamometer scientifically measures the speed, torque, and power of engines, machines, and powered tools. Its applications span various industries, including the collection of data on motors, engines, pumps, and generators.
A key function of a dynamometer is delivering precise and accurate data. It is particularly useful for optimizing fuel use and identifying fuel waste. The data obtained helps in fine-tuning and adjusting machinery and motors cost-effectively.
While testing devices are invaluable, their effectiveness depends on the quality of data they provide. Dynamometers offer high-quality, precise, and accurate data, clearly and concisely. They can assess both large and small equipment and are available in portable models.
Dynamometer manufacturers offer a broad range of sizes to suit various applications. Water brakes are suited for large engines, whereas eddy current brakes can measure engines up to 250 hp. The diverse options ensure that you can find a dynamometer tailored to your specific needs.
The key attribute for any industrial instrument is the ability to withstand and endure the conditions where they are used. Dynamometers are solidly built from metal alloys. Producers are well aware of the conditions where their devices will be used and plan them to be durable and strong.
Testing engines involves general parameters for adjustments and maintenance. Lifting and rigging operations have distinct requirements compared to engines and motors. Specialized dynamometers provide data essential for making lifting and rigging operations efficient and safe.
The benefits are:

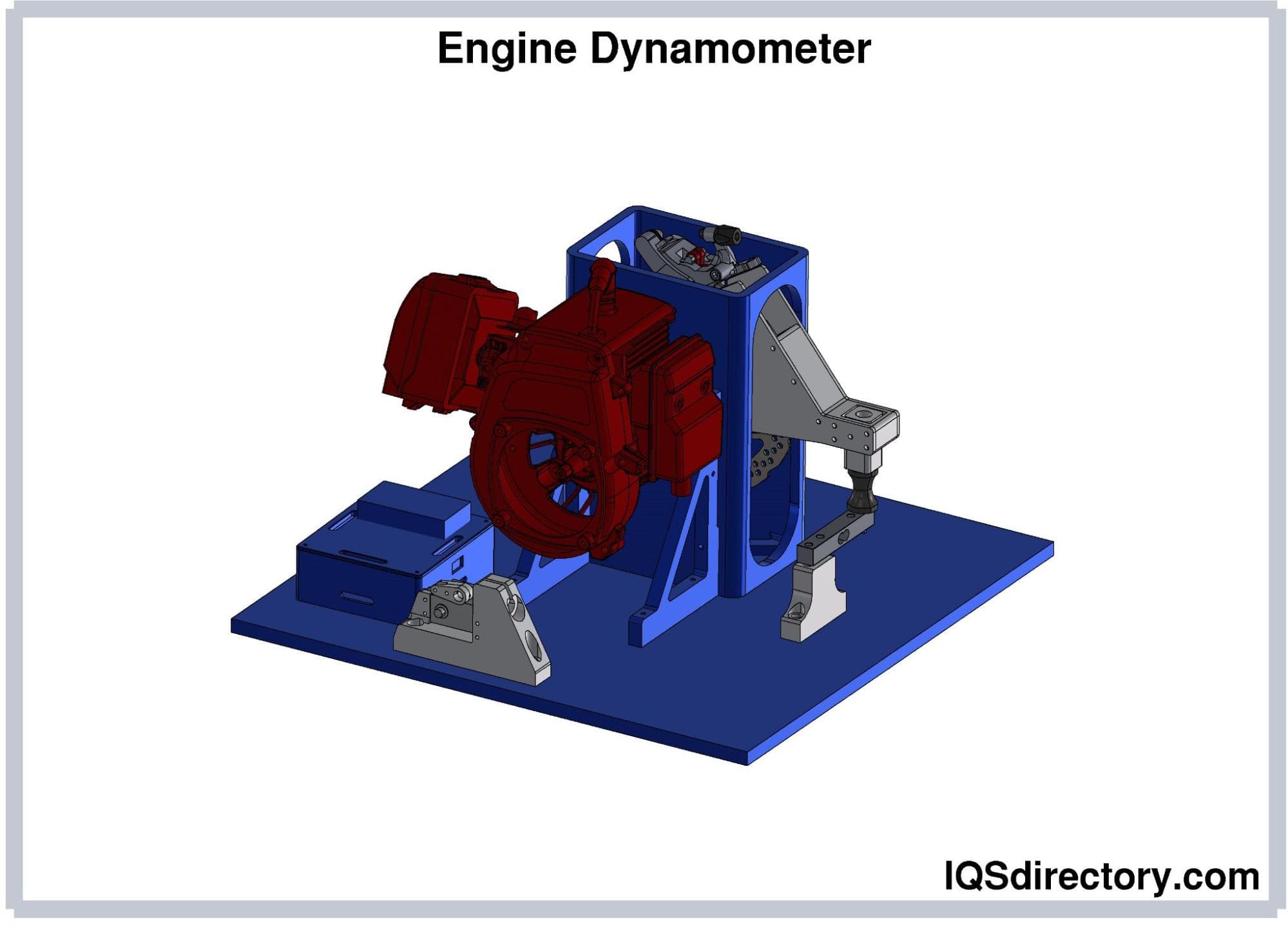

An engine dynamometer is a device used to test an internal combustion engine that has been removed from a car, ship, generator, or any other accessory that uses one. The goal is to verify performance before reinstalling the engine in the equipment...
A calibration service is a service aimed at detecting the inaccuracy and uncertainty of a measuring instrument or piece of equipment. In calibration, the device under test (DUT) is compared to a reference of known value to determine the deviation of the measurement from the true value...
Force calibration is a necessary process used for testing materials used for manufacturing equipment, machines, and other devices. All forms of metals and other materials can expand and contract during their use...
Force sensors are transducers that transform mechanical input forces like weight, tension, compression, torque, strain, stress, or pressure into an electrical output signal whose value can be used to...
A load cell is a transducer which converts mechanical energy (tensile and compressive forces) into electrical signals. There are different transducer operating principles that can be utilized to convert forces...
A load pin is a sensor utilized to measure force or weight in various research, control, measurement and testing applications. The load pin force sensor converts a force into an electrical signal. The load pins provide...
A platform scale is a scale that measures the weight of objects loaded on a flat platform. The function of the platform is to transmit the weight of the object to the internal measuring device and to support the object during weighing...
A strain gauge, or strain gage, is a sensing device used for measuring strain experienced by an object. It is made from a long, thin piece of conductor bonded to an elastic backing material called a carrier...
At the heart of every weighing device is a sensor called a load cell. When an item is put on a load cell, it senses the force of the gravitational pull of the weight, which an electronic circuit processes to display...
