This article will take an in-depth look at head gaskets.
The article will bring more detail to topics such as:
This section will explore the role of a head gasket, its operational mechanics, and the process of its production.
The head gasket is a crucial component in an internal combustion engine, acting as a barrier between the cylinder heads and the engine block. It prevents the escape of combustion gases and coolant leaks, which is vital for generating the power needed to propel the vehicle. By keeping gases confined to the combustion chambers, the head gasket ensures they are properly directed through the exhaust system.
Head gaskets are typically made from materials like multi-layer steel or composite substances, designed to endure the extreme temperatures and pressures of engine operation. Their main role is to prevent the mixing of combustion gases with coolant and to keep coolant out of the combustion chambers. Moreover, a head gasket plays a key role in maintaining engine compression, contributing to smooth and efficient engine performance.
Contemporary head gaskets are constructed with multiple layers of steel combined with an elastomer material. The addition of elastomer enhances the gasket's durability and extends its lifespan. Modern head gaskets offer improved reliability compared to older designs, minimizing leakage risks and eliminating potential environmental or health hazards.
The gasket's sealing function is crucial for maintaining the pressure of the fuel vapor ignited by the spark plugs within the combustion chamber. This pressure is essential for the pistons, which need to operate under high pressure to ensure proper firing and engine performance.
By effectively sealing the chambers, head gaskets prevent the mixing of oil and coolant. Any contamination between these fluids could lead to reduced engine efficiency and performance.
Below are the primary functions of the head gasket and an explanation of how each function is achieved.
The primary role of the head gasket is to manage intense pressures and temperatures within the engine. This essential function demands meticulous maintenance of the coolant within the combustion chamber. By ensuring proper operation, the gasket contributes to the engine's smooth performance. To achieve this, head gaskets are designed with extensive research and crafted from top-quality materials to ensure optimal results.
Due to exposure to high temperatures, the head gasket plays a crucial role in managing the oil and coolant within the engine. It helps prevent overheating damage by effectively sealing the coolant passages situated between the cylinder head and the engine block.

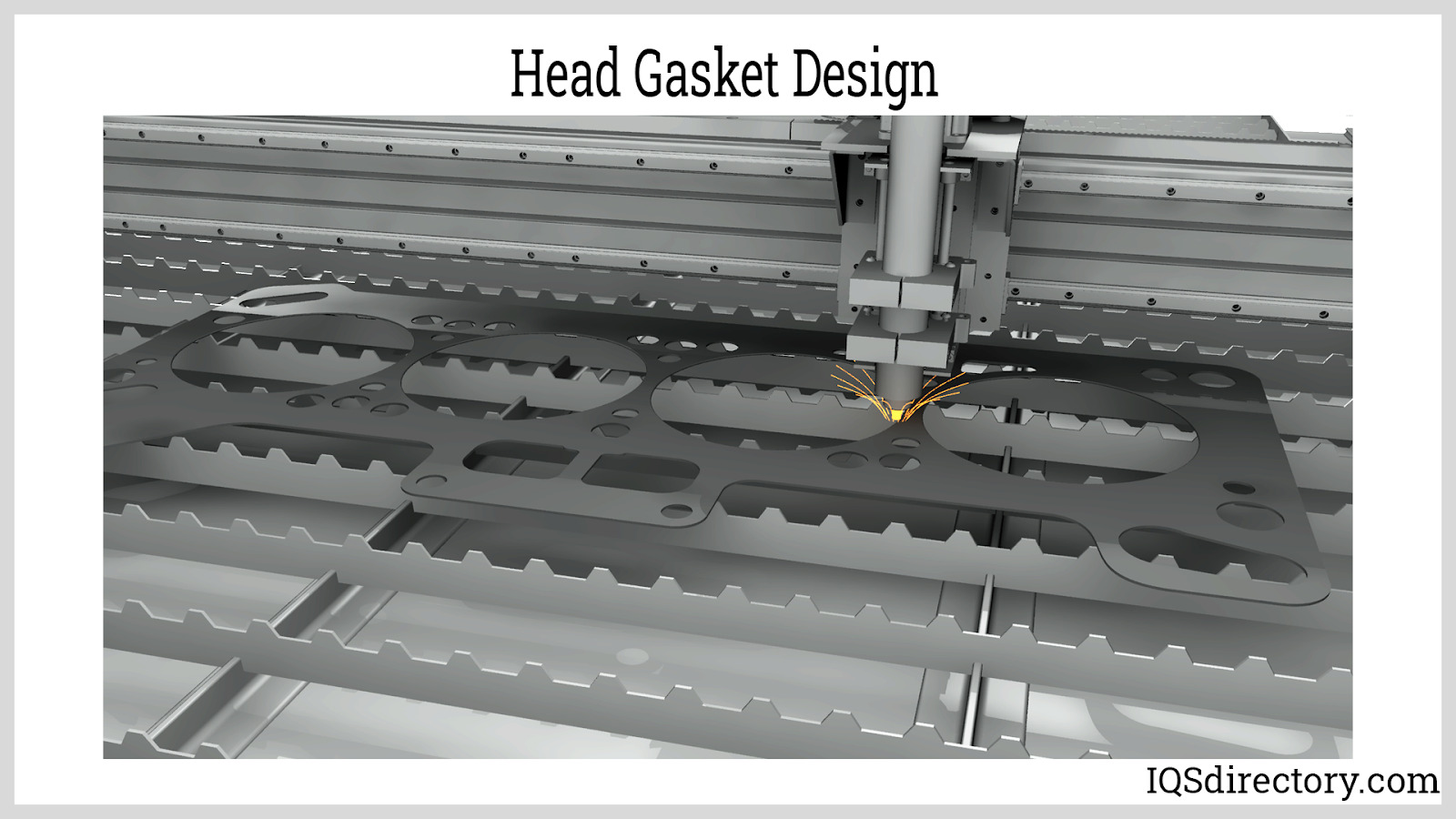

In traditional manufacturing of cylinder head gaskets, soft asbestos fiber sheets are combined with synthetic rubber and applied to both sides of a metal carrier sheet. These soft material layers are treated with polymer to enhance their durability. This process ensures effective cooling and lubrication, as well as providing a secure seal around the cross-sections, especially after the combustion chamber openings are reinforced with sturdy metal rims.
To enhance the sealing efficiency of the cylindrical head gasket, its surface is coated to improve adhesion and prevent the natural tendency of asbestos to adhere to the opposing metallic surfaces of the cylinder head and engine block. However, this traditional manufacturing process is costly and can sometimes produce less desirable outcomes.
Most conventional saturation methods have limitations concerning the longevity of the soft material. Consequently, elaborate measures are taken to ensure a durable gas seal around the rim borders of the combustion chamber openings. These measures aim to minimize the penetration of impregnating agents beneath the rim borders as much as possible.
Applying a surface layer to micro-seal the gasket adds an extra manufacturing step and can lead to noticeable wear marks on the metal-rim borders. This wear occurs because the cylinder head and engine block perform related sealing functions during engine operation.
The effectiveness of the gas seal can be compromised by the grooves created by surface coatings along the combustion chamber borders, parallel to the sealing plane. Consequently, the goal for newer designs is to create gaskets that outperform existing models, offering simpler manufacturing processes and improved durability.
Recent innovations have shown promising results. One test demonstrated that new saturating materials provide better performance at higher temperatures around the metallic rim borders, enhancing gasket stability. These materials also address the issue of asbestos sticking to metal surfaces and improve the micro-seal, eliminating the need for additional surface coatings.
The interaction between the initial impregnating material and free OH ions within the inorganic fibers, primarily asbestos threads, significantly enhances the hydrophobic and anti-adhesive properties of the soft material layer.
The second test revealed that the saturating material undergoes polymerization with volatile groups from the initial impregnating material, resulting in a composite product. This new material endows the gasket with optimal properties such as temperature stability under stress, effective cross-sectional sealing, elasticity, and resistance to cooling agents and lubricants. Additionally, it enhances the anti-adhesive surface characteristics and improves the sliding attributes on the head gasket surfaces.
This advanced impregnation method reduces absorption in the sealing plane due to the relative movement between the cylinder head and the engine block during engine operation. Consequently, this innovative gasket design eliminates the need for the previous surface coating used for micro-sealing.
For cylinder head gaskets, any excess saturating materials are removed before polymerization, ensuring that the metallic border rims around the combustion chamber openings remain mostly smooth and parallel to the sealing plane. This approach prevents the formation of grooves during engine operation, maintaining optimal sealing performance.
It is recommended that the initial impregnating material be a poly-siloxane with a molecular weight between 2,000 and 4,500, ideally in the range of 3,000 to 3,500, with methyl hydrogen poly-siloxane being the preferred choice within this range. This type of saturating material is particularly effective in reacting with the OH groups present in asbestos.
Additionally, these poly-siloxane materials have low viscosity, which means that solvents previously used to facilitate their infiltration into the soft material can be avoided. Eliminating such solvents helps prevent issues like the formation of micropores. Alternative substances, such as Si--H groups in silicon oil, have proven to be effective as initial impregnating agents.

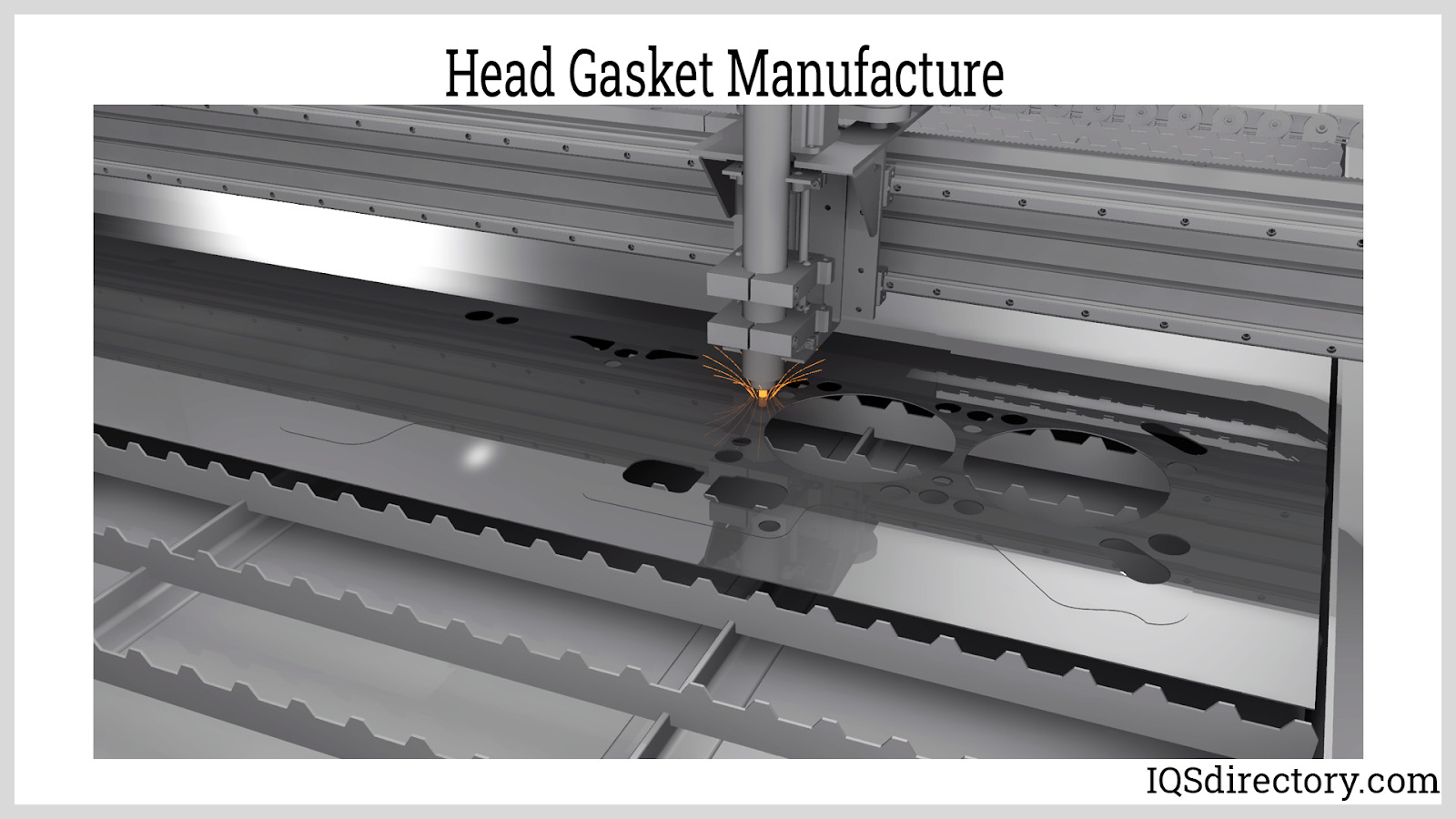

Various machines are essential for producing head gaskets today. They play a crucial role in manufacturing critical sealing components for vehicle engines, ensuring effective sealing, preventing leaks, and sustaining engine performance. Below, we highlight different brands that provide machines for head gasket production, along with their notable features:
FEL-PRO, a well-known name in automotive sealing solutions, provides a specialized machine for head gasket manufacturing. This equipment features tailored processes and components to produce high-quality head gaskets that meet the exacting standards of the automotive industry.
Victor Reinz, a leader in sealing technology, offers a robust system for head gasket production. This system combines cutting-edge machinery, specialized tools, and precise manufacturing techniques to deliver high-quality head gaskets with dependable sealing performance.
MAHLE, a trusted brand in automotive parts, supplies a dedicated head gasket manufacturing line. This line incorporates automation, advanced quality control systems, and streamlined manufacturing processes to produce head gaskets that fulfill the stringent requirements of contemporary engines.
Cometic Gasket, known for its high-performance gaskets, provides equipment specifically designed for head gasket production. Their machinery features precision machining, expertise in materials, and rigorous quality control to ensure superior sealing performance.
Elring, a prominent manufacturer of automotive sealing solutions, offers an assembly machine for head gaskets. This machine integrates automation and precise assembly techniques to guarantee accurate alignment and consistent compression, ensuring reliable sealing under diverse operational conditions.
Keep in mind that the specific models and features of these machines may differ. For the latest information on head gasket production equipment available in the United States and Canada, it is advisable to consult the respective manufacturers or industry sources.
Head gaskets are generally classified into four main categories, which are detailed below.

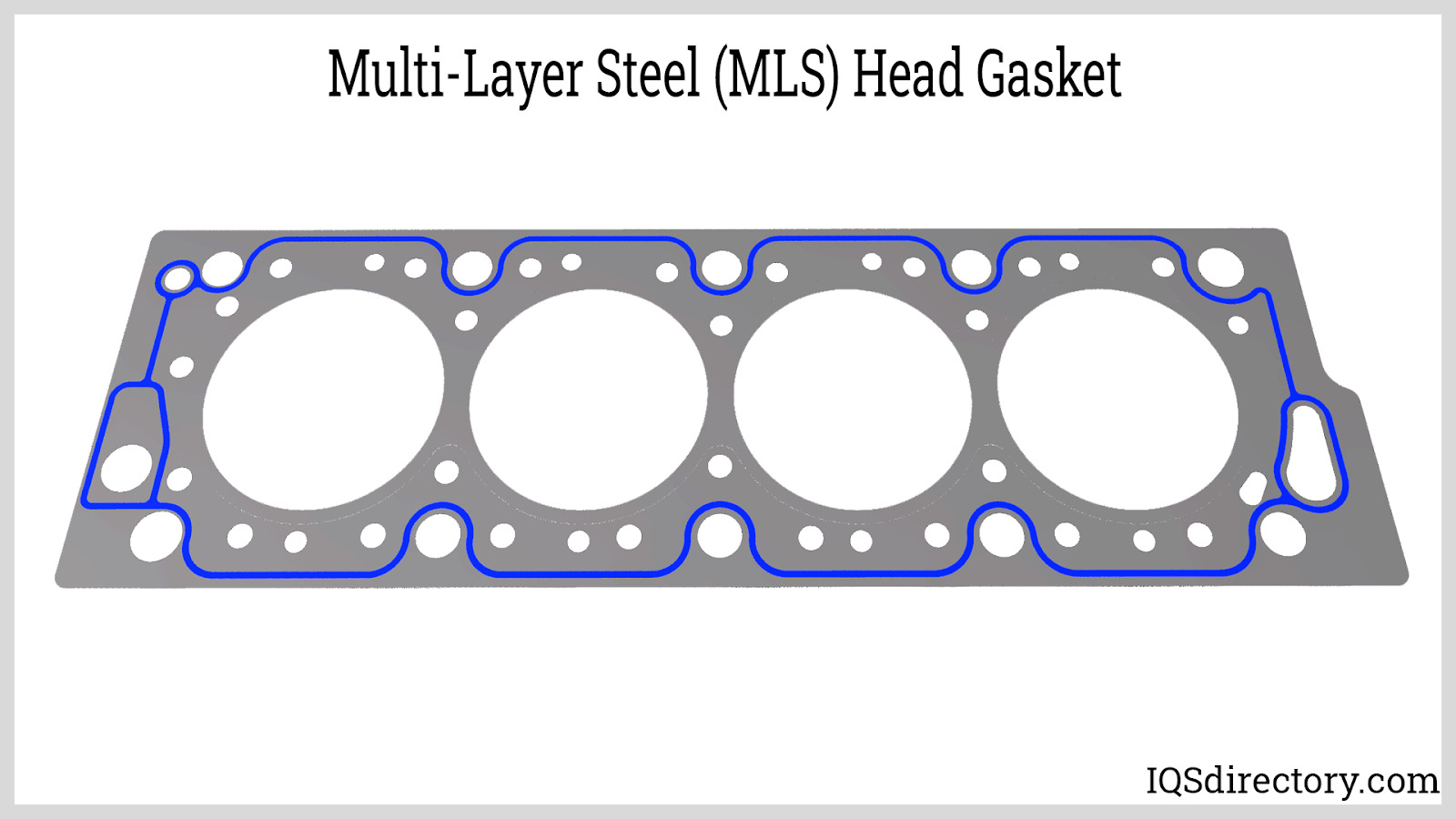

Multi-layer steel (MLS) head gaskets are the most widely used type, commonly found in almost all vehicles. They consist of several steel layers, each coated with an elastomer or synthetic adhesive. The steel layers vary in thickness and coating, making MLS gaskets highly durable. They are particularly suited for high-performance engines due to their robustness.
Multi-layer steel head gaskets can feature two to three layers of steel, or sometimes four to five layers. They are favored for their ability to withstand higher pressure levels compared to other types of head gaskets.
The multi-layer steel head gasket has a greater capacity for sealing. Two to five sheets of spring or carbon steel are sandwiched with the sealing material to create multiple layers, which are then used as head gaskets. Beads around combustion chambers and oil/coolant tubes boost the local sealing pressure (macro sealing) for better sealing of liquids and gasses and full- or partial-surface elastomer coatings offer additional sealing tightness (micro sealing)

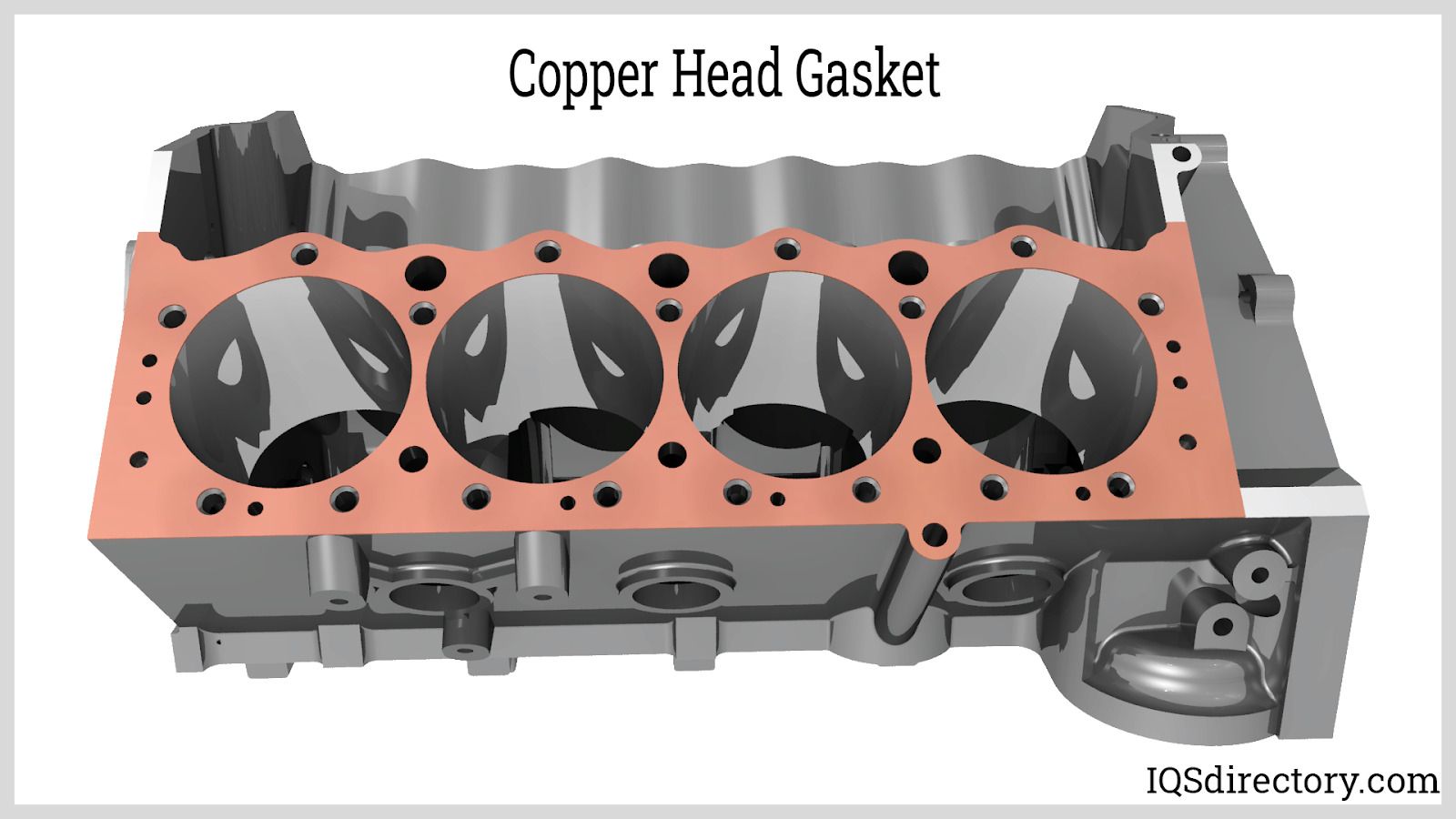

.Solid copper head gaskets are a popular alternative to steel gaskets due to their superior strength and leak prevention capabilities. However, their copper construction means they require additional effort to ensure a secure fit in vehicles.
To install copper head gaskets accurately, mechanics use a specialized tool known as an o-ringing device, which ensures the gasket is properly positioned.
Copper head gaskets have been successfully used for more than 50 years and have helped achieve numerous performance records for competitive engines. Copper head gaskets have proven to seal where others can fail when used in conjunction with stainless steel O-rings for combustion chamber sealing. But in order to fit the O-rings, the block and/or cylinder head must undergo special machining with copper head gaskets. As a result, switching from a composite or MLS head gasket to a copper head gasket is not a straightforward process. Instead, the choice to use copper should be decided when organizing the engine's "construction."
Copper head gaskets can be manufactured to a variety of bore sizes and thicknesses, offering more customization compared to MLS head gaskets, which typically come in fewer bore diameters and limited thickness options. For example, copper head gaskets can range in thickness from 0.5 mm to 2.3 mm.
Copper head gaskets are made to be used in all types of high-performance applications that need extra sealing or consume a lot of compression. Regardless of the application, there is no gasket material that seals better or is more resilient than solid copper. Top Fuel, Circle Track, or even Street…these copper head gaskets are drop-on compatible and precision CNC-cut from solid copper sheets with accurate bore and stud hole alignment. They won't compress since they are solid, so there is no need to re-torque them, and they won't blow out because they are solid.
Copper head gaskets can be reused across multiple engine rebuilds with proper handling and installation. They can be used with or without stainless steel o-ring wire in the block. For street use, a small bead of silicone around each water passage hole on both sides of the gasket is sufficient. Except for the Hemi and TFX engines, all cylinder bores are typically round and do not require notching for valve clearance.
While copper head gaskets may have a higher initial cost, their superior sealing capabilities and reusability make them a valuable long-term investment. Made from "dead soft" copper, these gaskets are flexible and suitable for a range of applications.
Composite head gaskets, which were first introduced in the 1980s, are now rarely used. Originally made from graphite, these gaskets did not offer as much leak protection as other materials. Today’s composite head gaskets are crafted from a blend of materials such as graphite, asbestos, or Kevlar and are often used in older engines. However, like their 1980s predecessors, modern composite head gaskets tend to be less durable compared to other types of head gaskets.
Historically, "composite" head gaskets were the most common type. Also known as "paper" gaskets, they were made from a combination of fiber layers, foil, and occasionally rubber or silicone, compressed together. Typically, these gaskets included a metal ring around each cylinder to seal the combustion chamber. Although they were very cost-effective to produce, performed adequately in low-output engines, and could tolerate somewhat rough surface finishes, composite gaskets were found to have a short lifespan and limited ability to manage the combustion conditions of high-output engines.
As a result, many manufacturers have discontinued composite head gaskets, making them less readily available today.

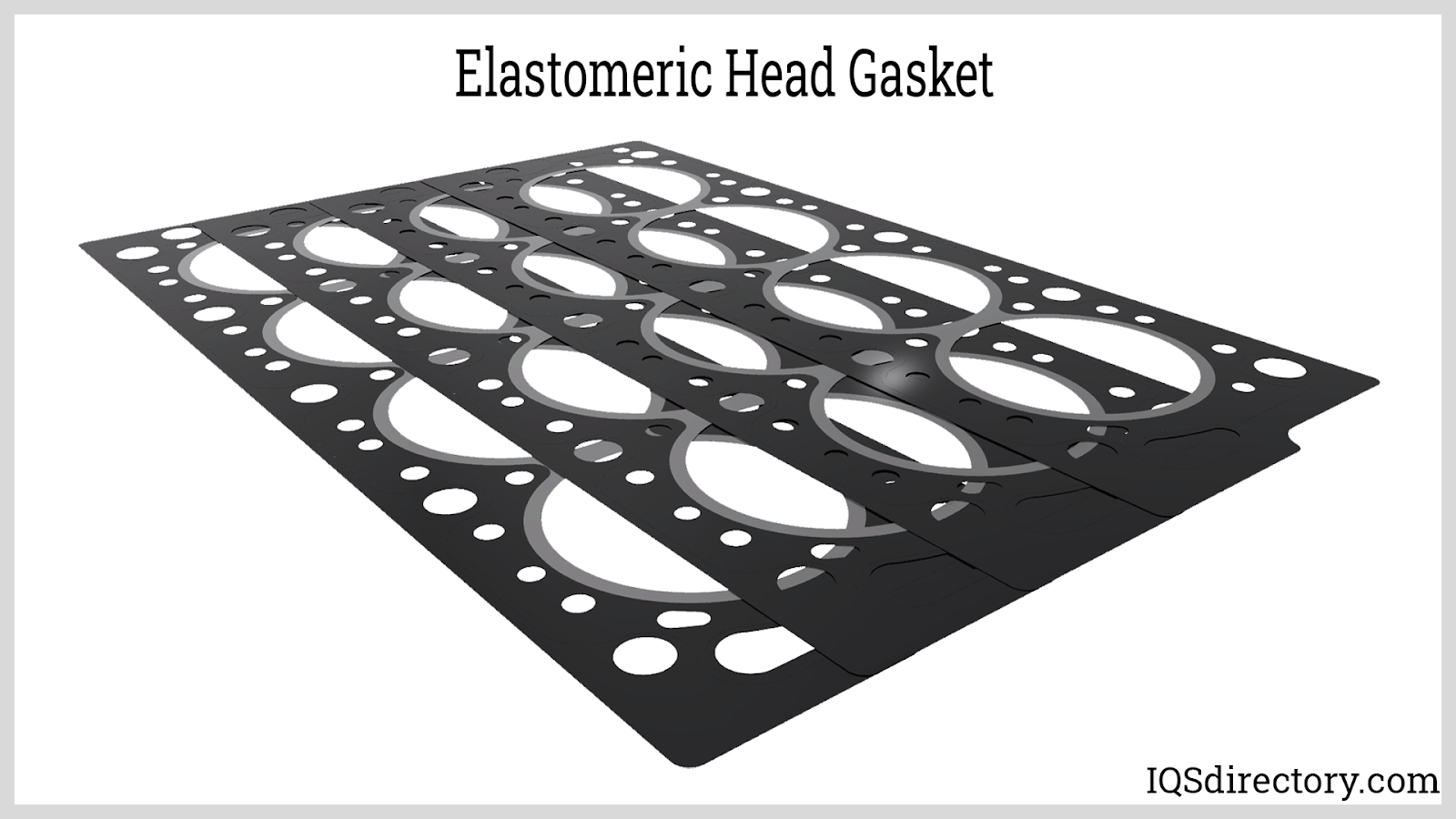

The final type of head gasket is the elastomeric head gasket. This gasket features a steel core embedded with elastomeric beads. It consists of a large, flat sheet of hardened steel lined with elastomeric beads similar to rubber. These beads are crucial for sealing coolant and oil passages, thereby protecting the engine from damage caused by leaks.
Elastomeric gaskets can be made from materials such as rubber, silicone foam, fluorosilicone, silicone sponge, and cellular urethane. These materials provide a robust seal between surfaces and are designed to perform reliably under demanding conditions. Elastomeric gaskets have unique characteristics compared to other sealing materials. They compress smoothly when flange fasteners are fully tightened, maintaining material elasticity. This allows the gasket to rebound to its original shape when surfaces are separated, ensuring excellent compression between mating surfaces. Additionally, the rubber-like material conforms to any irregularities in the surfaces, enhancing seal performance and eliminating leakage possibilities.
The chemical composition of elastomeric gaskets provides several significant environmental advantages. The molecular structure of elastomers offers exceptional flexibility, while the chemical bonds prevent cracking or brittleness even with temperature fluctuations. This means the material remains resilient under both high heat and low temperatures, without melting or becoming brittle. Additionally, elastomeric gaskets maintain their functionality when exposed to corrosive substances and acidic fuels.
Elastomeric gaskets are useful in a variety of applications, such as producing ruggedized equipment, testing and measuring devices, portable data devices, analytical instruments, and numerous other high-tech devices; elastomeric gaskets can be water jet cut, die cut, laminated, manufactured, or custom molded into various shapes. These gaskets are used on airplanes as seals for doors, windows, molded plates, access panels, and engines; furthermore, they are commonly used for fairing or as nacelle seals, fire barrier seals, and other purposes on both commercial and military aircraft.
Elastomeric gaskets are characterized by their flexibility, elasticity, and softness, combined with high mechanical and chemical resistance. Materials such as Viton, fluoro-silicone, and fluoroelastomer are commonly used to manufacture these gaskets. These materials ensure a robust seal, effectively resisting vibration, oil, heat, and pressure.
The head gasket is a crucial component of an engine. It plays a vital role in the engine's efficient operation by forming a direct seal between the engine block and the cylinder heads.
While it's a common misconception that cylinder head gaskets merely provide a seal between the engine and the cylinder head, their role extends further—such as sealing the combustion chambers.
The head gasket creates a seal between the cylinder heads and the engine block. During combustion, it prevents the high pressures generated inside the cylinder from escaping through the gaps between the cylinder head and the block.
Head gaskets seal the channels that transport coolant and oil between the engine and the cylinder heads, preventing leaks. They also help to direct and, in some cases, regulate the flow of these fluids. The gasket's non-porous nature ensures that fluids do not spill or leak within the engine.
Modern engines often use iron for the engine block and aluminum for the cylinder head. "Bimetal Stress" refers to the different expansion rates of these metals, which can cause uneven stress where they connect. Head gaskets must accommodate this differential movement, allowing the metals to expand and contract without damaging the gasket, which could lead to leaks.
Head gaskets facilitate the transfer of heat between the engine block and cylinder heads. They are made from materials with excellent thermal conductivity, allowing heat to move freely between these components. This helps distribute the engine's heat more evenly and reduces the concentration of hot spots.
Some head gaskets function as shims or spacers between the engine block and the cylinder head, affecting the cylinder's overall volume and, consequently, the compression ratio. Thicker gaskets increase the cylinder volume and lower the compression ratio, while thinner gaskets decrease the volume and raise the compression ratio.
This chapter will cover the reasons behind head gasket failure, symptoms of a blown gasket, steps for replacing a head gasket, ways to prevent gasket failure, and the reasons why operating an engine with a blown gasket is not advisable.
One of the most common causes of a cracked or blown head gasket is engine overheating. This is often due to insufficient coolant in the radiator, typically caused by a leak. The material of the gasket can affect its durability under high temperatures; for example, aluminum expands more rapidly when heated.
Metals with higher thermal expansion rates are more sensitive to heat. When these materials expand and deform at elevated temperatures, it can negatively affect their shape. This deformation can compromise the cylinder head's structural integrity and prevent the head gasket from sealing effectively.
It's crucial to replace a blown head gasket as soon as possible. Continuing to drive with a damaged gasket can cause severe and permanent damage to the engine. The gasket is essential for maintaining pressure, which is vital for proper engine performance.
A significant indicator of a blown head gasket is a noticeable decrease in engine power. This occurs because the gasket fails to seal properly, allowing pressure to escape.
Moreover, leaks may develop in coolant and oil channels where they shouldn't be. If coolant enters the combustion chambers, it can lead to engine overheating, mix with the engine oil, and reduce the cooling system's effectiveness.

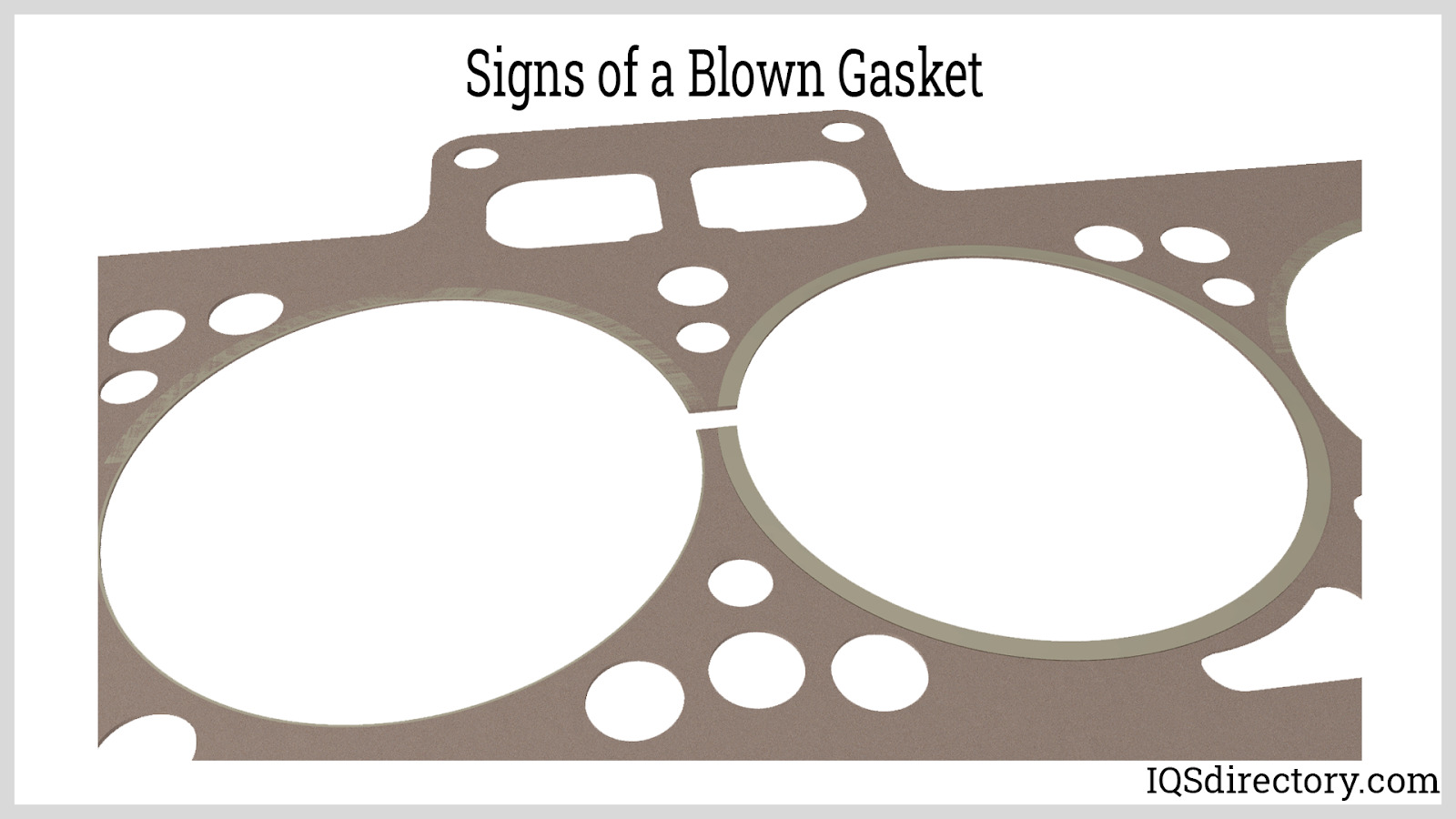

There are several symptoms that might indicate a blown head gasket. While these signs can provide useful hints, a definitive assessment of the head gasket's condition requires a compression test conducted by a mechanic at an auto repair shop.
Signs of a blown head gasket include:
Modern car engines have numerous coolant passages within the cylinder head. These channels are crucial for coolant flow and heat dissipation. When the head gasket is intact, it seals these passages, preventing coolant from leaking into the combustion chambers. However, if the gasket is damaged, coolant may seep into the cylinders.
Excessive oil consumption may be indicated by bluish-white exhaust smoke and erratic idling. Modern cylinder heads feature both coolant and oil passages. These channels, cast into the cylinder head, facilitate oil flow to and from the valve train. The head gasket seals these passages. If your vehicle is consuming too much oil, it may be due to a head gasket leak affecting the passage seals.
A blown head gasket can cause coolant and oil to mix. When coolant contaminates the engine oil, it diminishes the oil's lubricating properties, potentially causing severe damage to engine components like bearings, cylinders, and pistons. Check the oil quality with the dipstick; dark, bubbling oil or any signs of water indicate a serious issue. If you detect such problems, stop driving immediately and have your engine inspected.
A head gasket failure can result from severe engine overheating, which may be caused by a clogged radiator, coolant leak, or malfunctioning fan. Additionally, a blown head gasket itself will contribute to engine overheating.
When a head gasket fails, hot exhaust gases might enter the cooling system, or coolant may leak into the cylinders and vaporize. Either scenario leads to engine overheating. Driving with an overheating engine can cause the alloy cylinder head gasket to warp and potentially damage the catalytic converter, significantly increasing repair costs.
If the head gasket fails to release the compressed air or fuel, it will cause a drop in pressure within the cylinder. This loss of compression can lead to rough engine idling and a notable decrease in engine performance. Additionally, such failures are often accompanied by noise from an exhaust leak.
One of the most frequent signs of head gasket failure is the presence of a milky sludge, sometimes humorously referred to as a “milkshake,” under the oil filler cap or dipstick. This occurs when coolant mixes with the oil.
Although this symptom alone is not definitive proof of a head gasket failure, it is a strong indicator that the engine needs disassembly to locate the source of the contamination. Contaminated oil, mixed with antifreeze, can lead to rapid wear on the engine bearings with each use.
Repairing this issue typically involves at least one engine oil flush, a new oil filter, and often a complete disassembly of the engine’s lower end to prevent bearing damage and remove any contaminants from the oil.
A common symptom of a faulty head gasket is the emission of large clouds of sweet-smelling white smoke from the exhaust. This results from antifreeze entering the cylinder and converting to steam during combustion. Leaks from oil passages into the cylinder may also cause blue smoke.
These symptoms indicate seal failure and disruption in combustion pressure within the cooling system. If the radiator hose bursts or the dipstick is improperly secured, it could be the cause.
If a head gasket fails between a water or oil passage and the exterior of the engine, it can cause coolant or oil leaks. While not the most severe form of head gasket failure, it still requires attention.
These leaks may not immediately affect engine performance but can lead to issues over time. Insufficient coolant levels can result in serious engine damage, and leaking oil could enter the exhaust, producing foul-smelling smoke and possibly leading to a fire hazard.
Understanding the high cost of replacing a seemingly inexpensive head gasket requires examining its position within the engine. Pistons move up and down in the cylinder bores of the engine block. These pistons are connected to rods, which link to a spinning crankshaft that powers the vehicle. The head gasket is situated at the top of the engine, where it seals the space between the engine block and the cylinder head. Valves within the cylinder head regulate the intake of air and fuel and the expulsion of exhaust gases.
The head gasket is compressed between the engine block and the cylinder head. It seals the combustion process and prevents coolant and oil from mixing as they move between the engine block and the cylinder head. While head gaskets themselves are not particularly costly, the expense comes from the labor required to access and replace them, as it involves the major task of removing the engine's head.
Overheating can cause the metal in the engine block and head to expand beyond its limits, potentially leading to head gasket failure. Another common cause is engine pre-ignition or detonation, where combustion occurs out of time with the piston's position. This misalignment stresses the valves, pistons, and head gasket. Ironically, overheating can increase the likelihood of pre-ignition and detonation. The sound of engine pinging or knocking can be a warning of such damage.
Replacing a head gasket is typically beyond the capability of the average do-it-yourselfer. Although a head gasket failure alone is rare, it often indicates that other engine components may also need replacement. Inspecting the engine head may reveal additional damage. To prevent head gasket failure, maintain the cooling system in good condition and ensure the engine is well-tuned and operating properly.
Replacing a head gasket is a complex and time-consuming task that should be performed by a trained mechanic with the appropriate tools and expertise.
Here are some general guidelines for changing a head gasket. Always refer to a service manual for specific vehicle procedures.
Step 1: For safety, disconnect the battery before starting the head gasket replacement process to avoid accidental electrical discharge.
Step 2: Drain the coolant from the engine to prevent spills during the repair.
Step 3: Accessing the head gasket can be time-consuming. Mark and index all components before removal. It is often more efficient to remove the exhaust manifold, head, and intake as a unit. A service manual is an essential tool in this process.

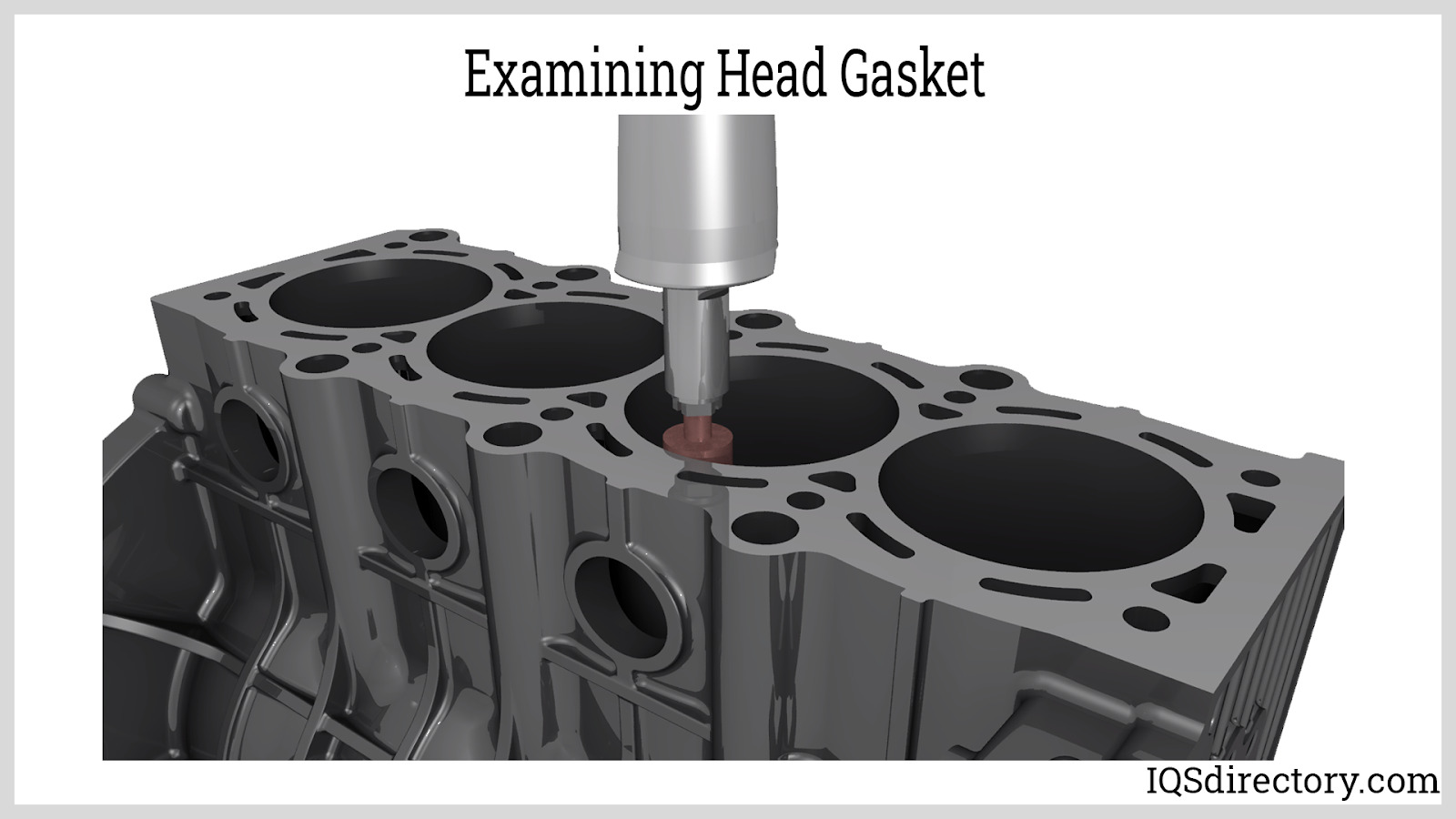

Step 4: Check the flatness of the head and block surfaces. Use a machined straight edge and a feeler gauge to detect any deviations. The service manual will provide the necessary specifications for your engine. If the block or head does not meet these specifications, they must be sent to a machine shop for repair, where they can also be inspected for cracks.

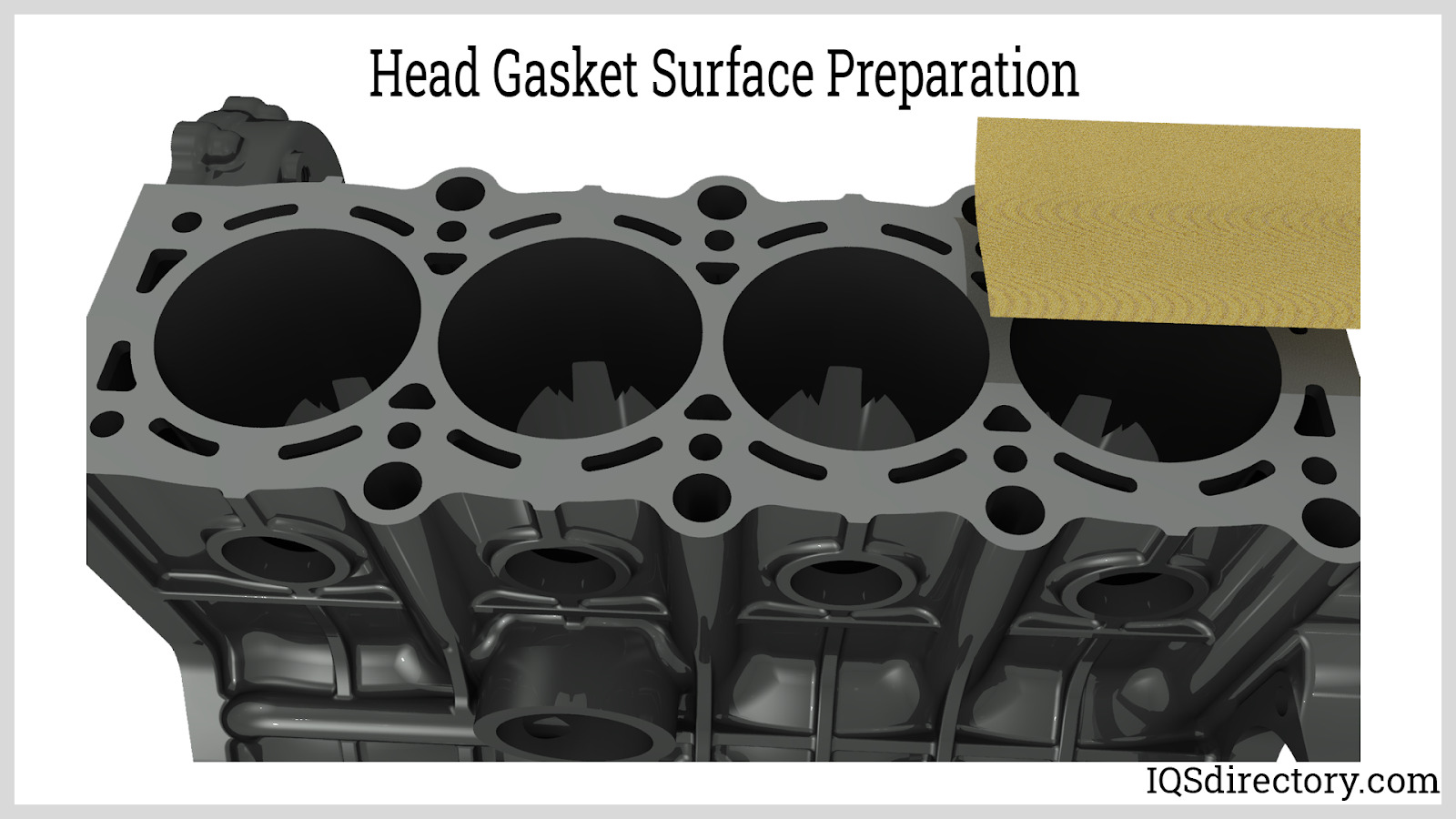

Step 5: Prepare the surface for reassembly. Avoid using tools that could remove metal or scratch the deck of the block or the head's mounting surface. Although a power tool with a scrubber pad might seem like a quick solution, it can create surface irregularities that may lead to sealing problems later.
Step 6: Clean out any debris and prepare the threads by using a tap or thread chaser on the head bolt or stud holes. Remove any remaining debris with compressed air. Proper head bolt torque is crucial; any interference could lead to inaccurate torque readings.

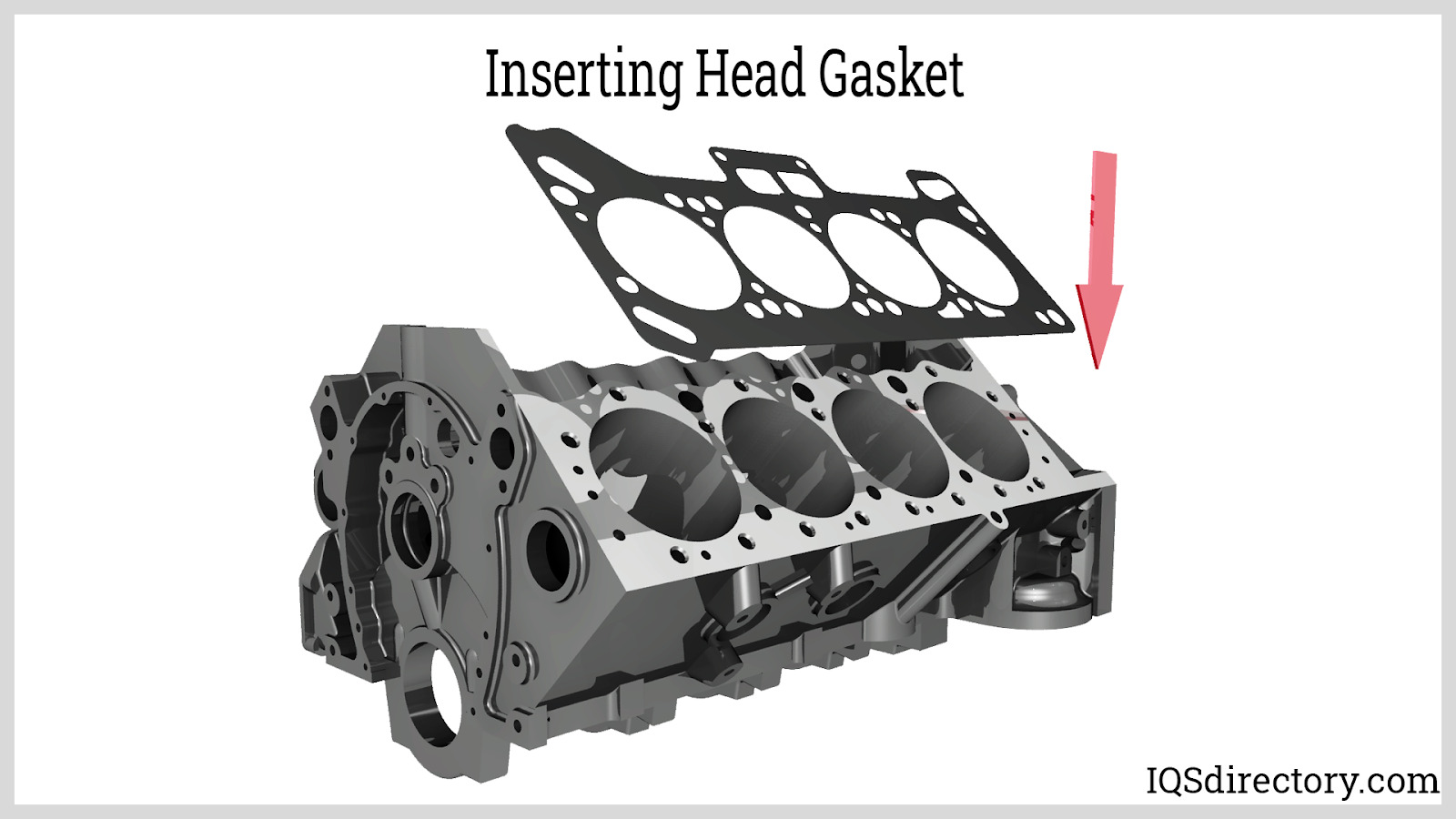

Step 7: Install the head gasket in the correct orientation. Avoid using sealant unless the manufacturer specifically recommends it. Head gaskets that require sealant are usually provided with it, and the service manual will detail where and how it should be applied.
Step 8: Ensure proper head gasket sealing by following the correct bolt tightening sequence and torque specifications. Replace bolts if necessary, and coat the threads with engine oil before installation. Always adhere to the prescribed tightening sequence and torque instructions.
When dealing with head gaskets, an ounce of prevention is far better than a pound of cure. Since head gasket failures often result from engine overheating, the best way to prevent such issues is to ensure your cooling system is in good working order.
Regularly check for leaks, ensure that the radiator is functioning properly, and confirm that the coolant is at the appropriate level. Additionally, make sure that the electric fans are operating correctly and that the thermostat is set to the right temperature.
Most manufacturers recommend changing the coolant periodically to preserve its anti-corrosive properties. Refer to the service schedule for the recommended coolant replacement interval. If you suspect a head gasket failure, test the cooling system for combustion gases. This test will indicate whether combustion gases have leaked into the cooling system, suggesting a blown head gasket. However, it will not reveal other potential issues with the head gasket. Therefore, the absence of combustion gases in the cooling system does not guarantee that the head gasket is in good condition.
In some cases, head gaskets fail simply due to poor design and lack of robustness for the specific application.
As a head gasket serves as a critical seal, its failure leads to an immediate drop in engine pressure. This loss of pressure means that the pistons in the combustion chamber will not fire with the required force, resulting in a noticeable reduction in power.
When a head gasket fails, oil and coolant can start leaking into inappropriate areas of the engine, such as the combustion chamber. This contamination allows coolant to mix with motor oil, diluting it and impairing its ability to lubricate critical engine components like the camshaft and crank bearings. Without proper lubrication, bearing damage can occur rapidly, potentially leading to the need for a complete engine rebuild.
The head gasket is an essential component of an internal combustion engine that plays an important role in preventing engine damage. A blown head gasket can cause serious engine problems, including overheating, oil contamination, and loss of power. Recognizing the symptoms of a blown head gasket and addressing them promptly prevents further engine damage.
Replacing a head gasket is a complex process that requires a high level of mechanical expertise and should only be performed by a trained mechanic. Understanding the function of head gaskets, their types, the symptoms of a blown head gasket, causes, and how to replace them assists vehicle owners in keeping their engines in good working order and helps avoid costly engine repairs.
