A worm gear is a type of staggered shaft gear that facilitates motion between shafts by utilizing threads cut into a cylindrical bar, allowing for speed reduction. This gear system consists of two main components: the worm and the worm wheel. The reduction in speed is achieved by the interaction between the number of threads on the worm and the number of teeth on the worm wheel.
Worm gears offer benefits such as noise and vibration reduction, along with a compact design. Due to the significant heat they produce, they are constructed from hardened metals to ensure durability and performance.
A worm gear is one of the most compact gearing systems available. It can be installed in very small spaces while still delivering high-ratio speed reduction. When properly mounted and installed, worm gear systems ensure smooth and quiet operation.

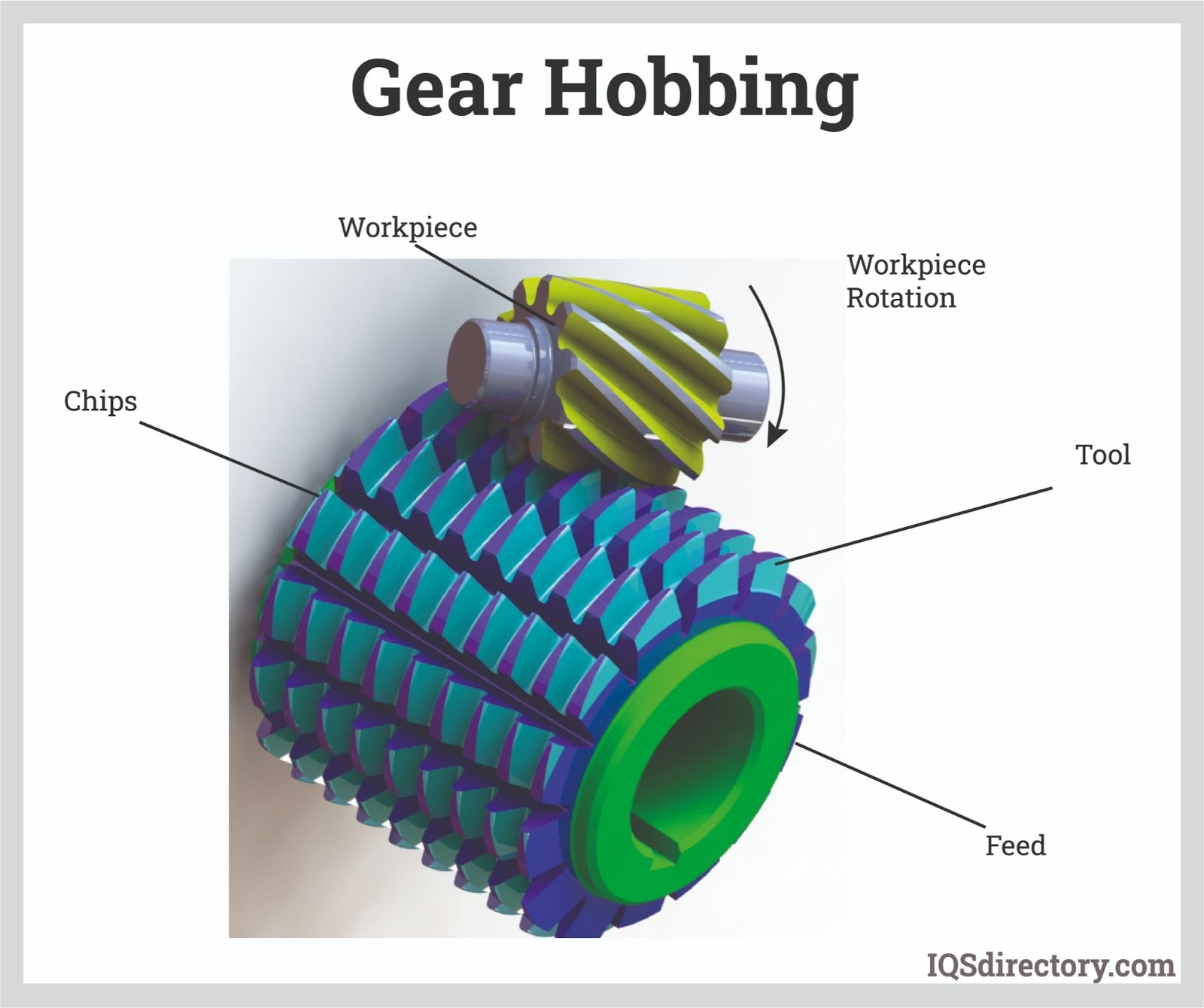

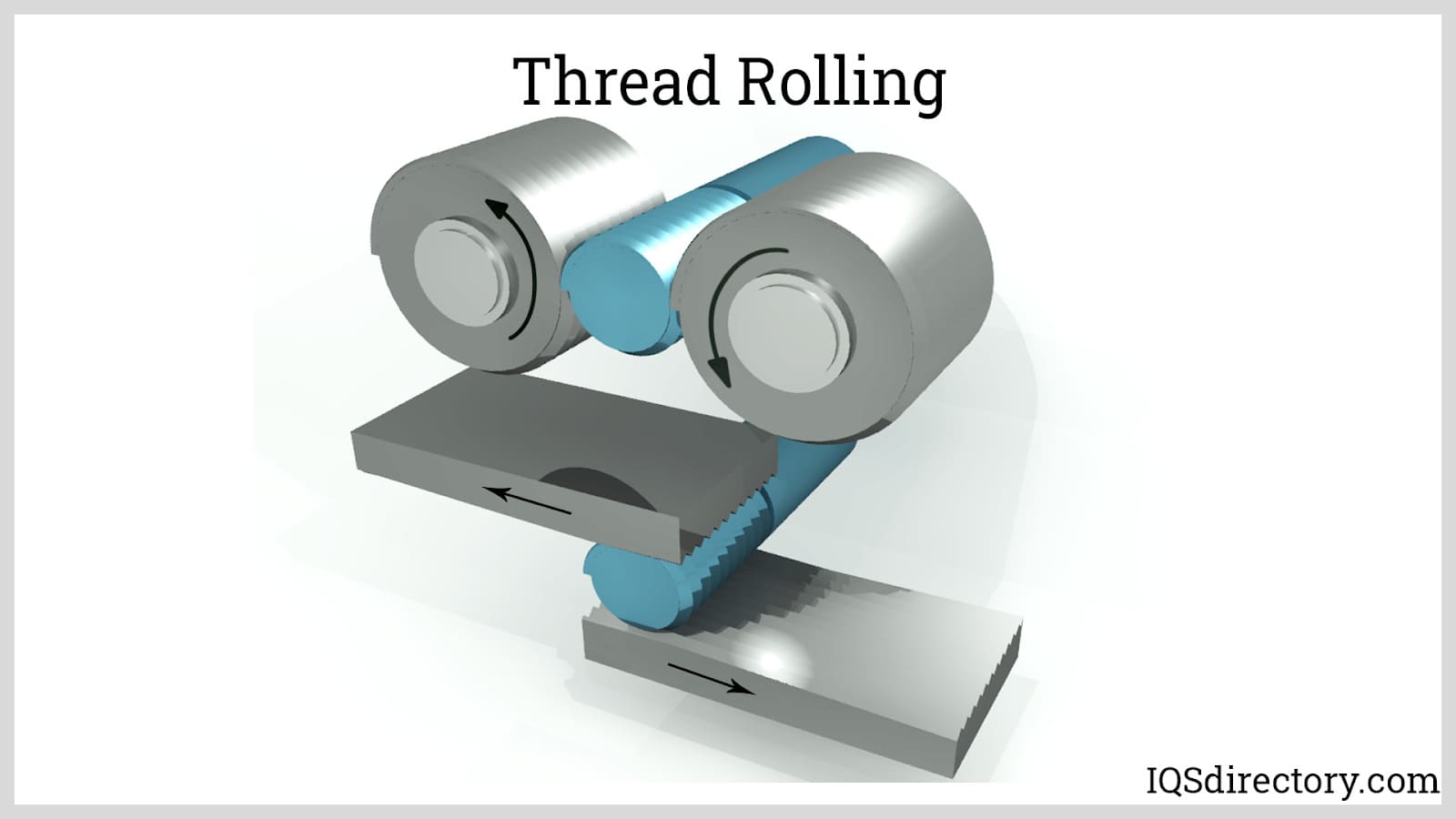

The common method for manufacturing worm gears involves hobbing, a process that uses a cutting tool or hob. This cutting tool resembles the gear that the worm gear will eventually pair with. Worm gears can also be produced through turning, hobbing, milling, or grinding.
Hobbing is a method for producing gear teeth using a set of customized bits that are designed to make the correct pitch for the gear‘s application. Hobbing is a cold working forging process where a punch with the correct geometry is pressed into the workpiece.
The tool used, known as a hob, is crafted from hardened steel and forms a helical hob cutter. The combination of pressure and cold forging ensures highly precise dimensions and excellent surface quality within the cavities.
Hobbing machines are fully automated and available in a wide range of sizes, allowing them to produce gears of various dimensions, from extremely small to large. These machines consist of two main components: one spindle to hold the workpiece and another to hold the hob.

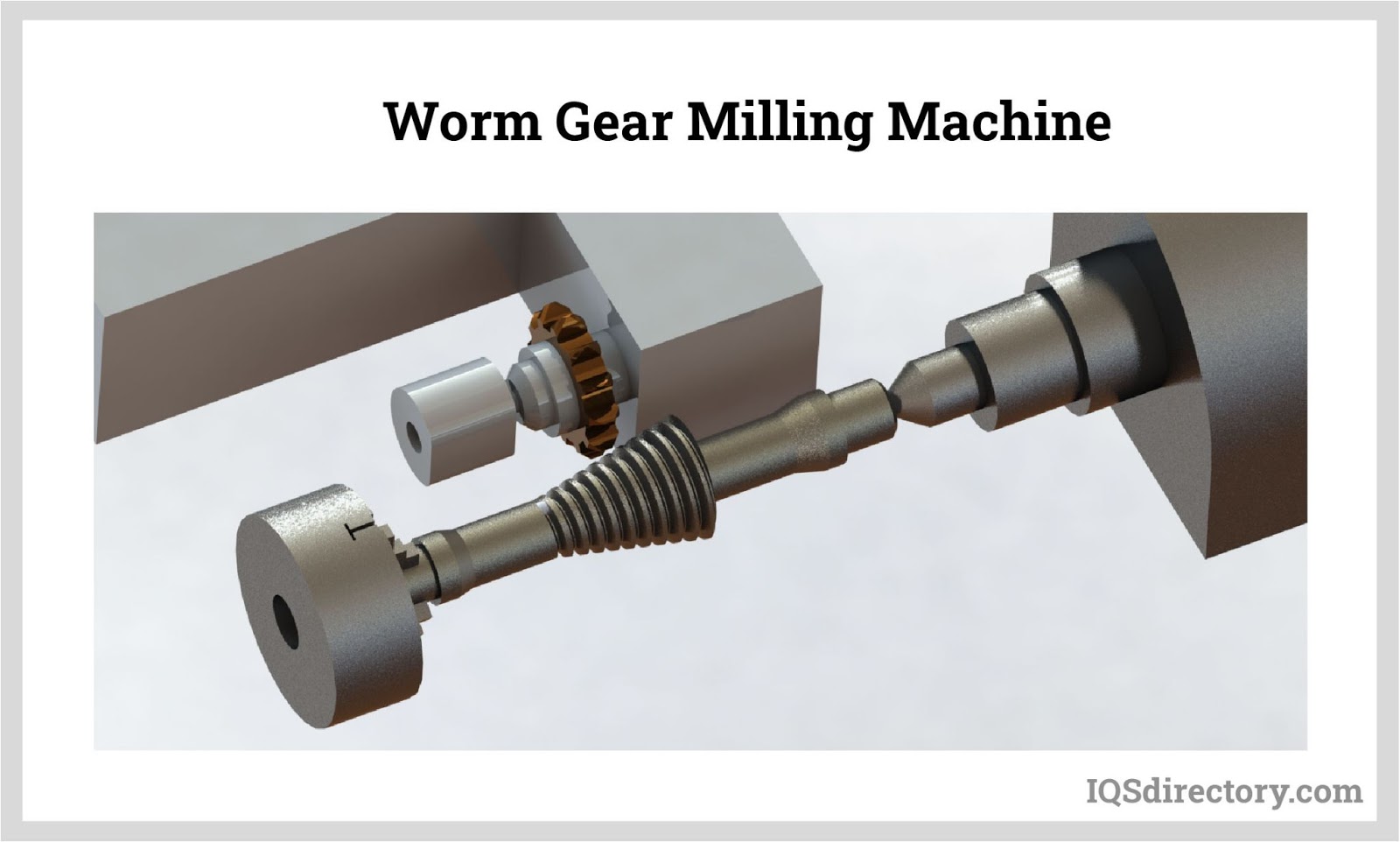

During the milling process, gears are cut using a gear cutter on a milling machine or jig grinder, often with the help of an indexing or rotary table. The gear teeth are formed by a rotating multi-edge cutter, which shapes the teeth to match the cutter's profile. The cutter moves axially along the length of the gear tooth to the precise depth required. After cutting the teeth, the cutter retracts, and the gear blank is repositioned for the next cut.
The precision of the cut relies on the cutter's accuracy. Indexing is essential to ensure that all teeth are properly cut.

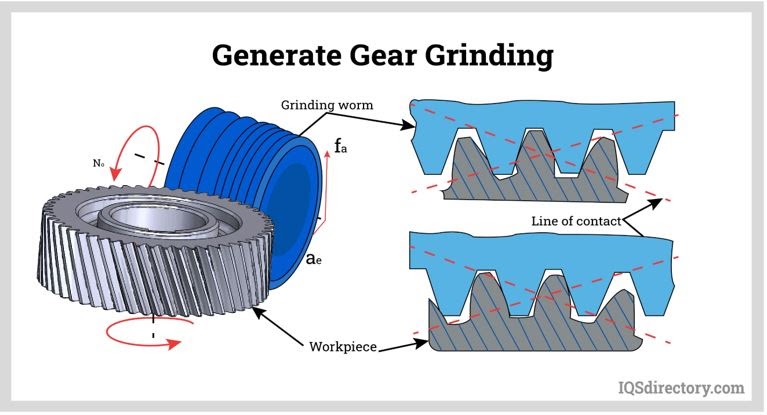

Grinding uses several cutting edges at high speed and removes material at a fast rate to produce superior finishes and precise geometries. The process is ideal for hard materials; grinding of hard materials is referred to as hard finishing. A grinding machine is a multi-axes piece of equipment with bonded grinding worms called threaded wheels.
The threaded wheels are composed of an abrasive material that is tougher than the metal being ground. The infeed X is adjusted to the correct depth using a vertical feed rate Z, while a lateral shifting motion Y moves the abrasive wheel slightly in tandem with the vertical feed rate.
Worm gears feature helical gears designed to transfer power and motion between two non-intersecting shafts. They come in three helical gear formations: spur, left-hand, and right-hand. The manufacturing of worm gears involves either left-hand or right-hand helical gears. The use of helical gears in worm gear assemblies is essential due to their ability to handle the non-parallel nature of the setup.
One of the key advantages of worm gears is their capacity to provide gear reduction and torque multiplication within a compact space. A worm gear system consists of a large worm wheel with a shallow thread, which engages with a perpendicular, non-intersecting gear.
For worm gears, precise positioning and assembly of the teeth are crucial because a strict tooth design is essential for proper meshing between the wheel gear and the worm gear. Variations in performance depend on how the gears engage with each other.
There are two primary types of worm gears: cylindrical (or straight) and cone (or double enveloping). Worm gears can also be categorized based on their face shapes: straight, hobbed, and concave. Among these, cylindrical worm gears are the most common and widely utilized.

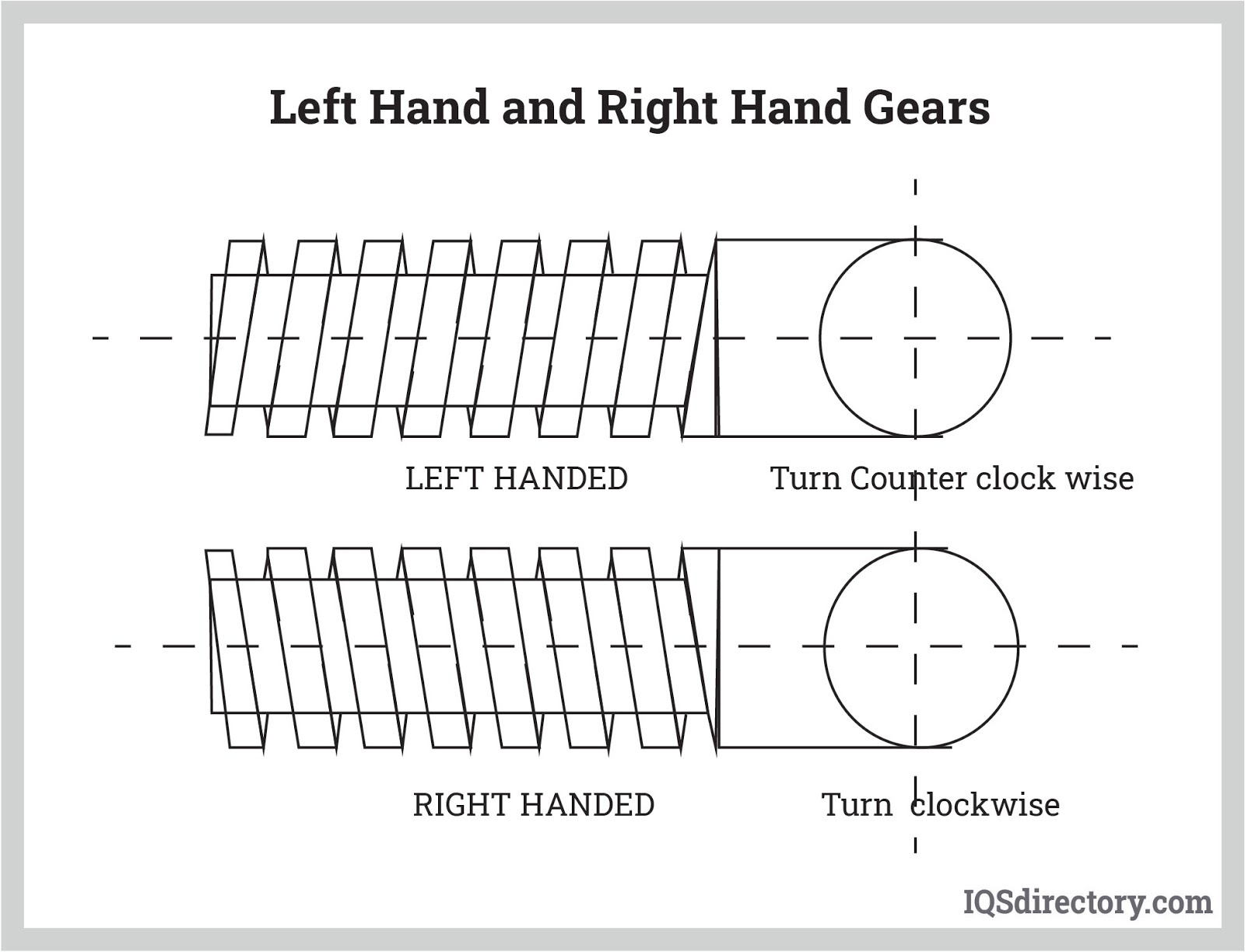

In worm gear assemblies, it's crucial that the axial pitch of the worm matches the circular pitch of the larger gear. This alignment is the initial step in the assembly process. Circular pitch refers to the distance between the tooth points along the pitch diameter of the gear, while axial pitch is the distance between the teeth points along the axis of the worm. Additionally, the threads of the worm can be either left-handed or right-handed.
The lead of a thread is the distance a point on the thread moves in one full revolution of the worm. The lead angle is the angle formed between the tangent to the thread helix at the pitch of the cylinder and the plane perpendicular to the worm’s axis.
Non-throat worm gears lack the throat or groove typically machined around the worm or worm wheel. Instead, they feature helical gears with a straight worm, resulting in tooth contact at a single point during operation. Both gears in a non-throated configuration are designed without a throat. This single contact point contributes to high wear and tear on the gear. As such, non-throated worm gears are best suited for handling small loads and are relatively simple to manufacture.
A single-throated worm gear features incurvate helical teeth designed to mesh with the worm, creating a contact line. This design allows the worm gear to handle higher power levels with less wear. In this configuration, only one set of threads on the worm engages with the worm wheel. Because there is only a single point of contact, which generates considerable friction, the worm needs to be significantly harder and stronger than the worm wheel.

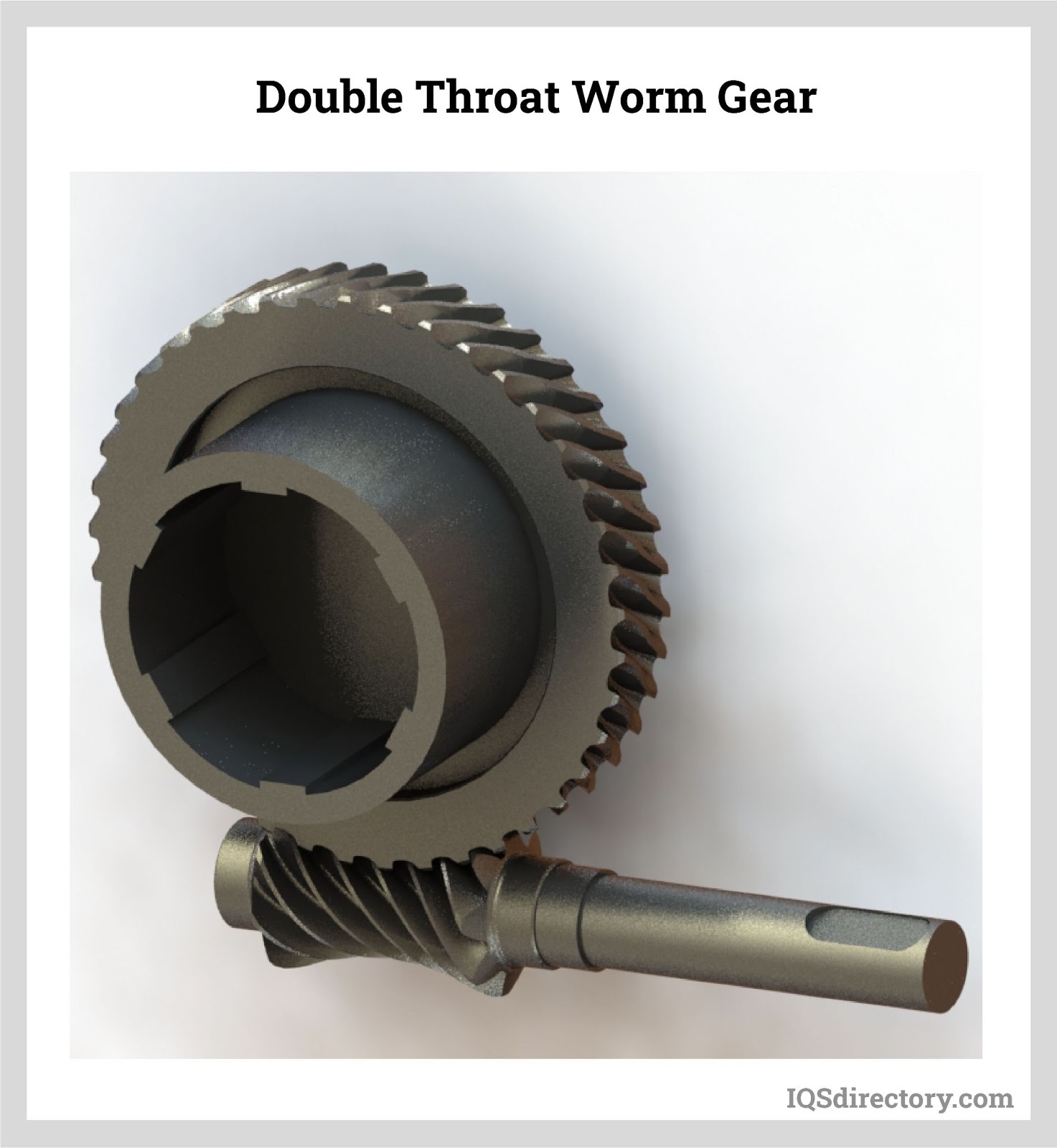

The primary difference between single throat and double throat worm gears lies in their shape. Double throat worm gears feature a concave design on both the gear and the worm screw. This design enhances the contact between the gear teeth and the worm threads, resulting in improved engagement and efficiency.
Double throat worm gears are designed to handle high loads effectively. Their double throat design ensures a secure and precise connection between the worm and the gear, optimizing performance and durability.
Accurate mounting of a worm gear assembly is crucial for its optimal performance. It is essential to ensure multiple contact points to prevent excessive stress on the lead angle and avoid overloading.

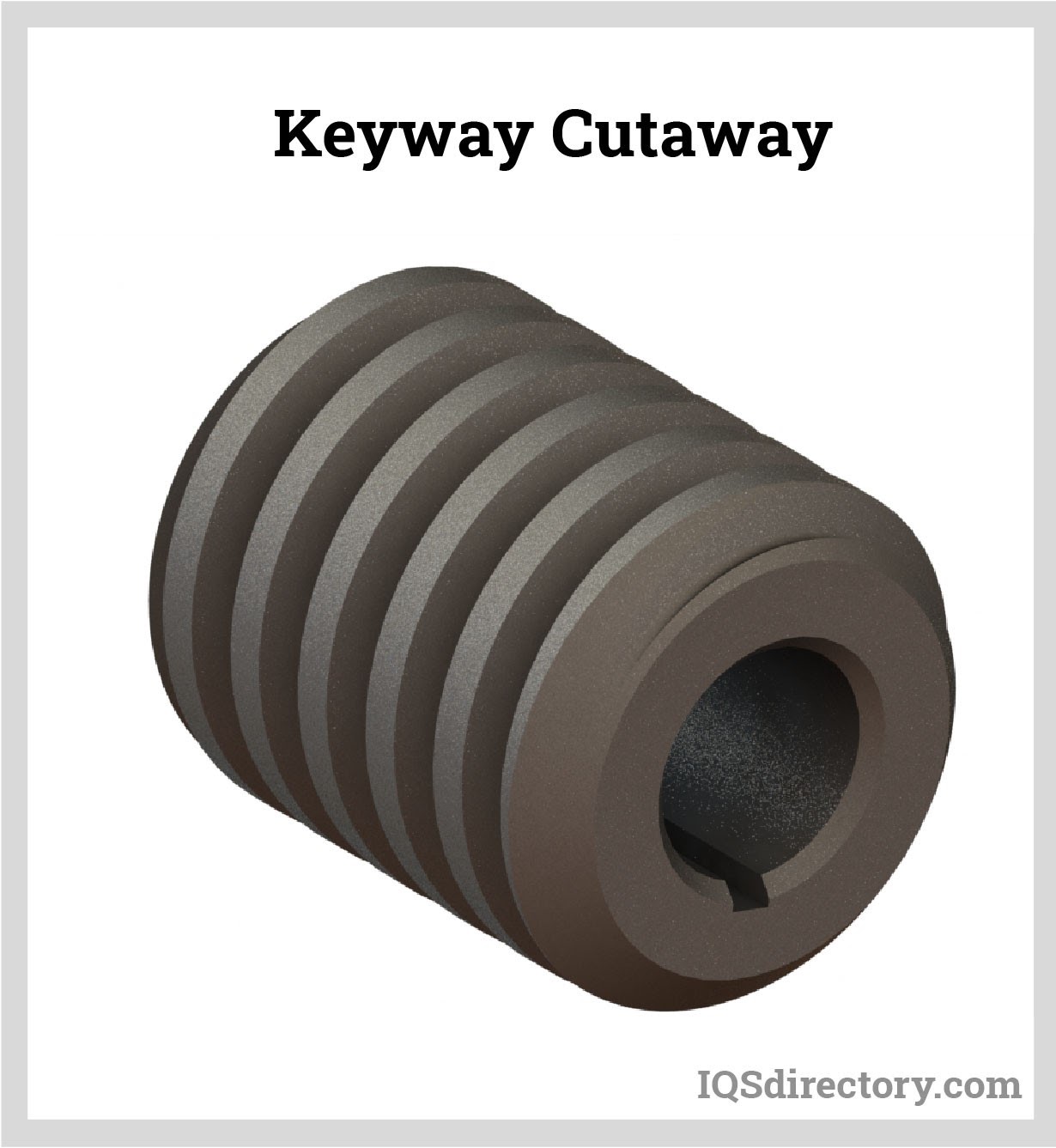

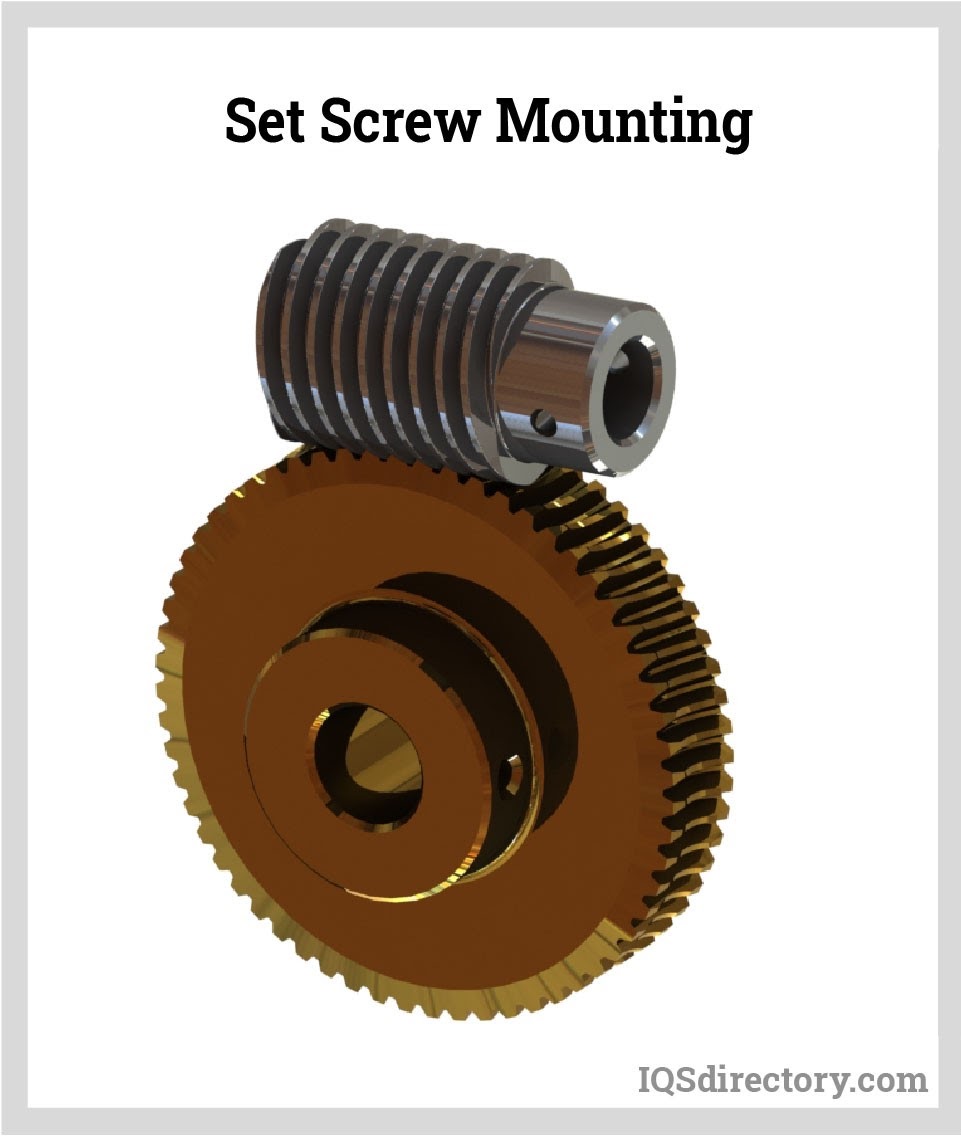

Keyway mounting involves creating one or more square cutouts in the gear's bore. These keyways prevent the shaft from rotating and facilitate the transfer of torque.
A hole for the set screw is drilled into the hub, allowing the gear to be secured by inserting and tightening the set screw.

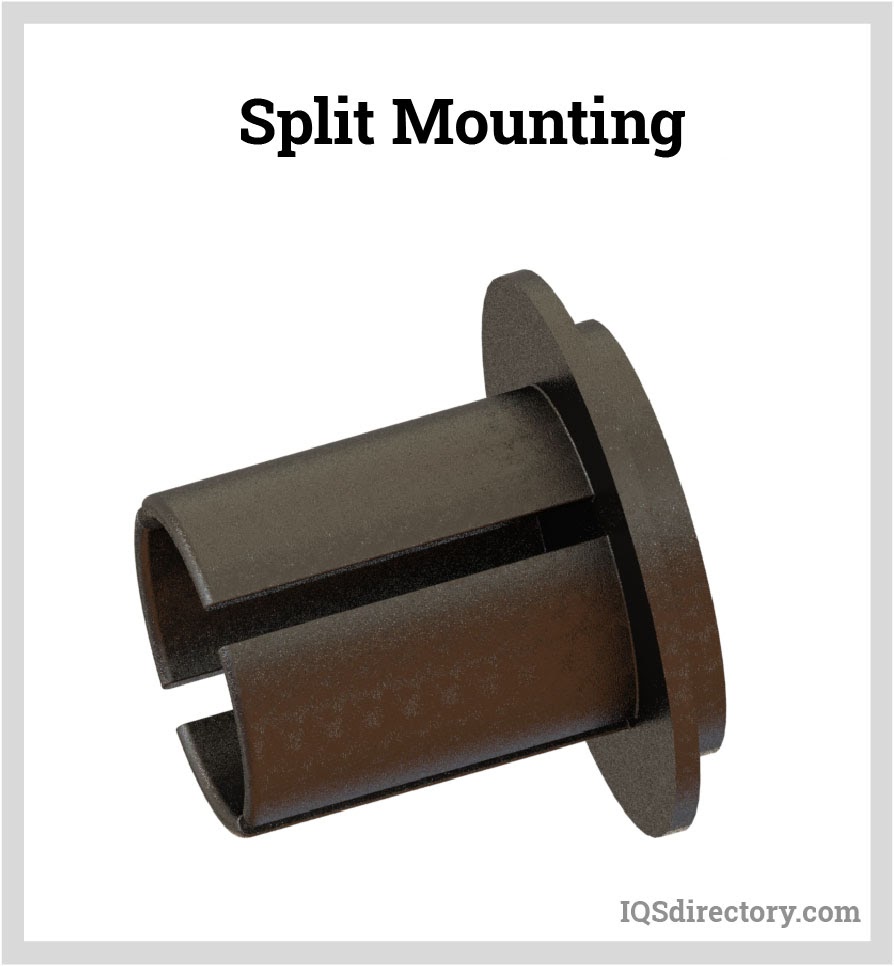

A split mounting operates similarly to a set screw mounting but involves using screws and a clamp. The clamp type can vary, but each features a hole designed to fit over the hub of the worm gear. The hub is either split or notched so that when the clamp is positioned over it and tightened, the separated pieces of the hub are squeezed together, securing the hub in place.

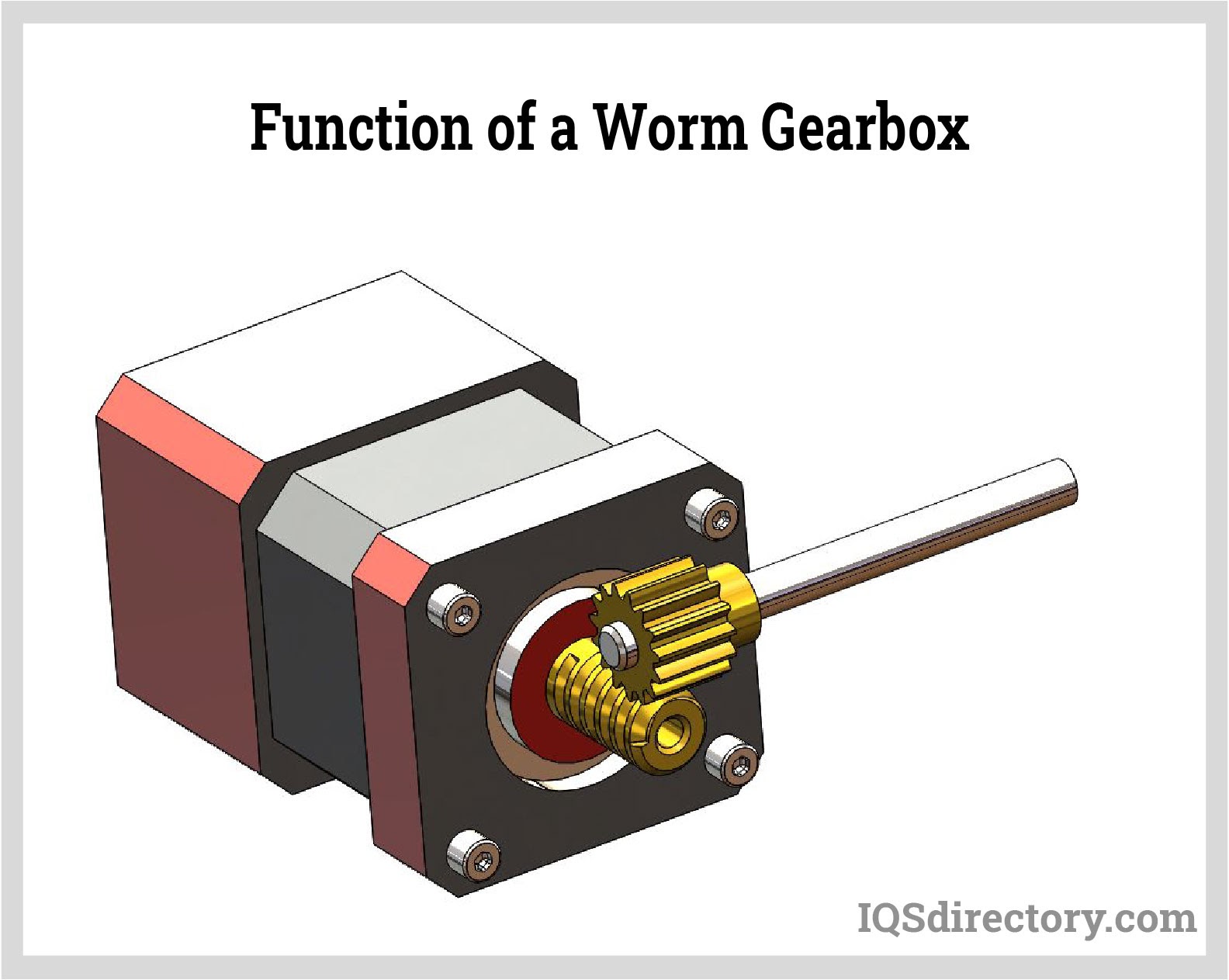

A gearbox is used to change the torque or output speed of a motor. A worm gearbox has the basic design of a worm with a threaded worm gear shaft and a wheel gear. As the worm gear rotates against the worm wheel, a load is rotated by the worm wheel.
The number of threads, or starts, in a worm gear corresponds to the number of teeth it has. The speed of transmission is calculated by dividing the number of teeth by the number of threads. Threads can vary from one to several. In a single-thread design, the worm gear moves one tooth per revolution. In a two-thread design, it advances two teeth per revolution. To ensure optimal performance, the number of threads in the worm gear must match the mating gear.

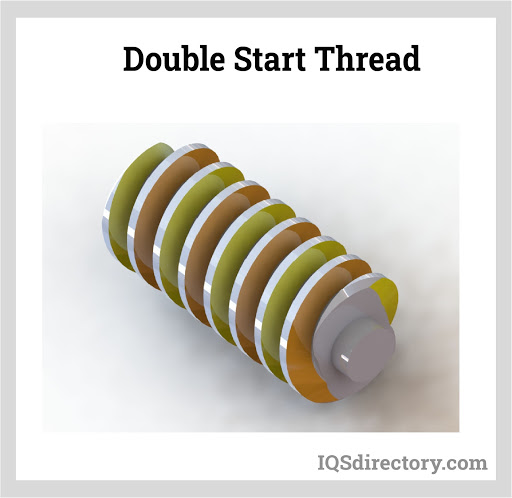

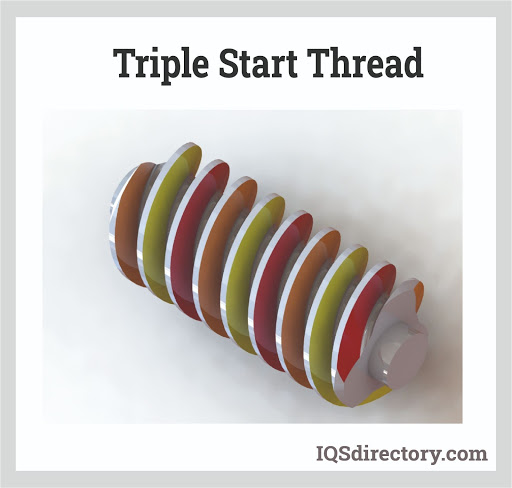

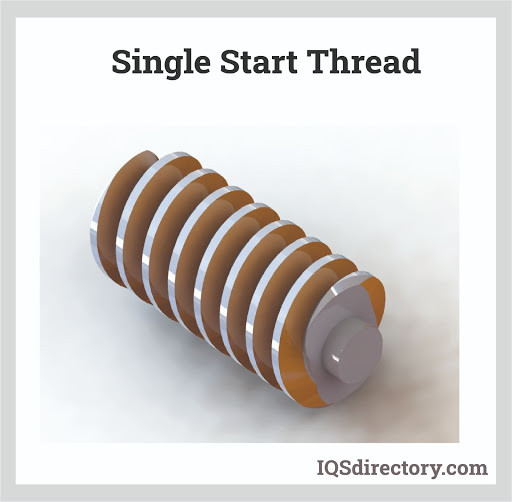

For very high helix angles, there is typically only one thread. In contrast, smaller helix angles may feature two, three, or even more threads.
Worm gears are highly versatile due to their availability in various sizes and configurations. Their range of dimensions, shapes, and designs makes them suitable for a wide array of devices and machines.
The interaction between the wheel gear and worm gear creates a sliding action that results in low output speed and high torque. This gear arrangement is both efficient and specialized, enabling it to handle specific tasks with precision.
Worm gears offer two key benefits: efficient motion transfer and unidirectional operation. Unlike most gear assemblies, worm gears transfer motion at a 90-degree angle. Additionally, their design ensures that they only move in one direction. Attempting to reverse the motion will cause the worm gear to lock up and halt, preventing any change in direction.
In applications where noise is a concern, worm gears are an excellent choice. Unlike other gears that generate high-pitched whines at elevated speeds, worm gears operate with exceptional quietness. Their noiseless performance makes them a preferred option for use in public spaces.
The distinctive design of worm gears allows them to stop quickly, making them ideal for elevator operations. While they can't serve as the sole component of the braking system, they effectively complement other braking elements to enhance overall safety.
Worm gears are commonly used in various applications primarily due to their compact design, which requires minimal space. Their small footprint makes them ideal for situations where efficiency is essential but space is limited.
Worm gears are constructed from two distinct metals: a harder metal for the worm and a softer metal for the wheel. This design allows the worm gear to effectively absorb shock loads encountered in construction equipment and other heavy-duty applications.
Off-road and construction vehicles require varying amounts of torque for each wheel to adapt to different terrains. This need for torque variation arises from the diverse surfaces the wheels encounter. Worm gears play a crucial role in these vehicles by allowing them to navigate and drive over uneven ground with reduced risk of damage.

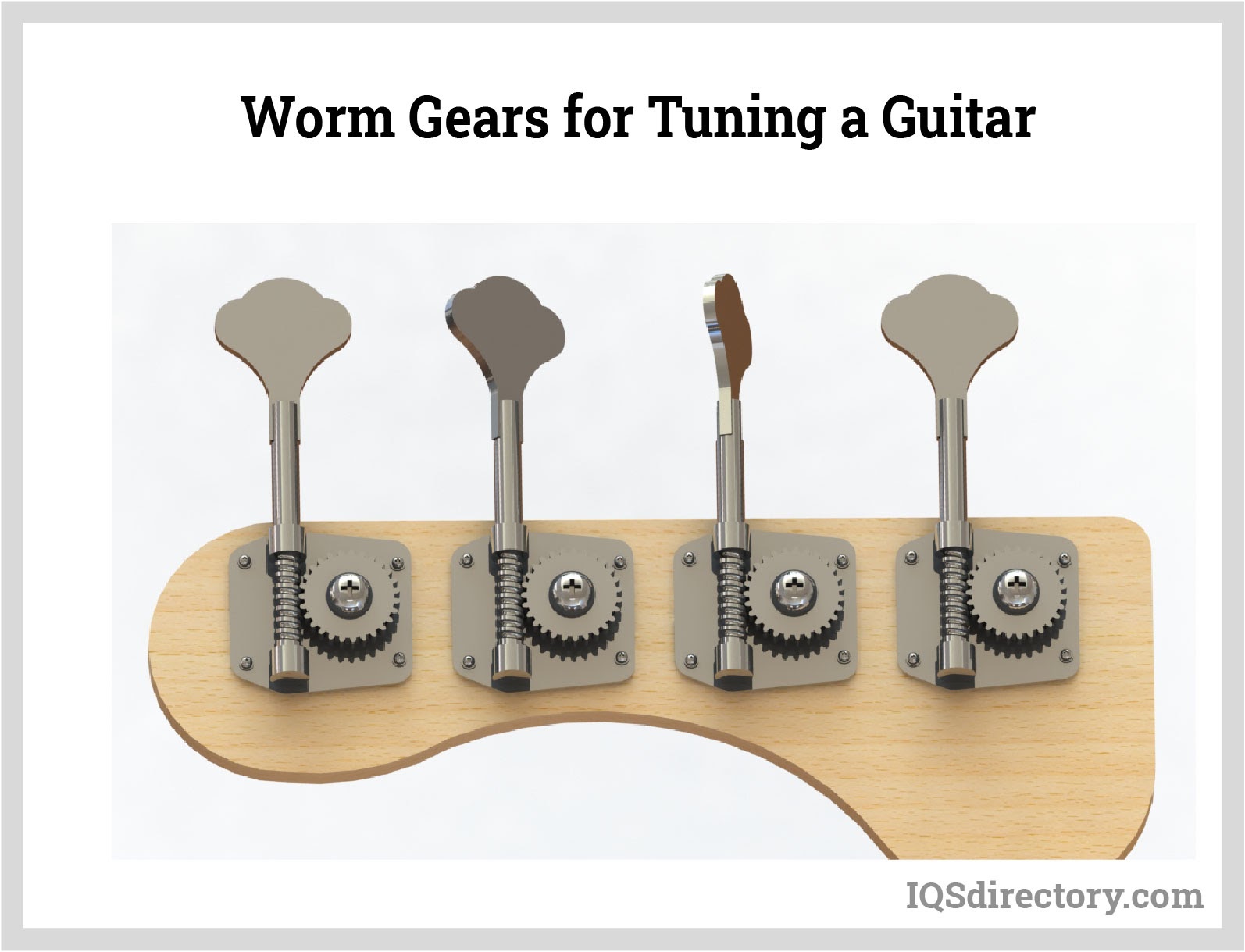

The simplest worm gears are often found in stringed instruments. Positioned on the instrument's head, these worm gears facilitate easy tuning and adjustments, allowing musicians to raise or lower the pitch of a string with precision.
Another feature of worm gears in lifts or elevators is their non-reversibility, which acts as a fail-safe braking mechanism in case the primary braking system fails.
Worm gears are frequently used in conveying systems because they provide unidirectional motion and can lock in place when movement ceases. When a conveyor is turned off, it must remain stationary. Worm gears effectively lock in position when motion stops, ensuring that the conveyor does not slip or move forward.
Automatic doors move both right and left, and their motion needs to be halted once they reach the desired distance. This stopping mechanism is controlled by a worn gear that regulates the end of the door's movement.

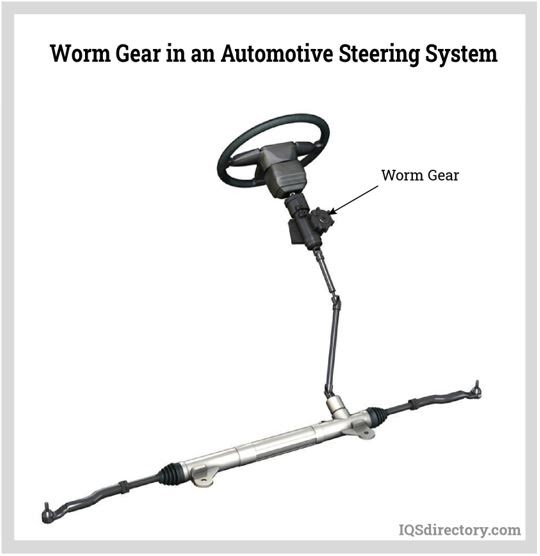

In an automotive steering system, the worm gear is linked to the steering wheel via the steering column. The effectiveness of steering wheel movement relies on the exact gear ratio of the worm gear mechanism.
Worm gears are used for gear reduction, and they can achieve reduction ratios ranging from 20:1 to 300:1. This amount of stress placed on worm gear assemblies requires metals that are capable of withstanding the reduced speeds or increased torque. They are normally made of steel, iron, or bronze with a harder more durable metal used for the shaft of the worm.
Originally, worm gears were crafted from wood and used in hand-crank mechanisms for shipbuilding. However, with advancements in technology and metallurgy, contemporary worm gears are now manufactured from stronger and more durable materials.
Bronze is commonly used to manufacture worm wheels because of its excellent mechanical properties. Bronze is an alloy of copper, and its composition can vary depending on the additional elements mixed with the copper, such as nickel, zinc, tin, or aluminum. Worm wheels are often made from tin bronze or aluminum bronze because these alloys offer superior strength and resistance to fatigue, friction, and wear.

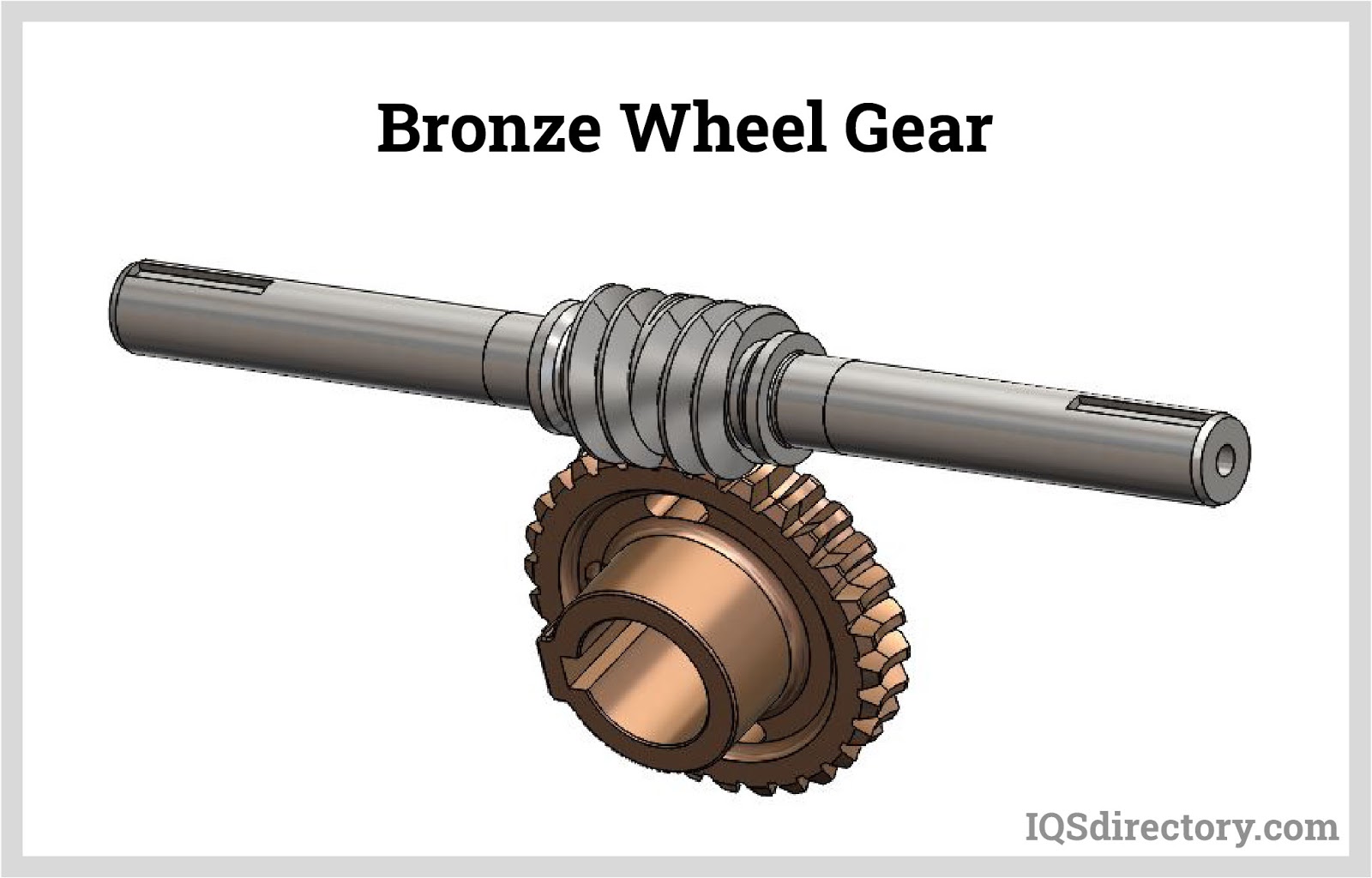

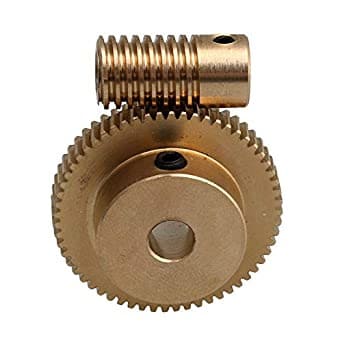

Similar to bronze, brass is used to manufacture the wheel gear due to its softness, which helps prevent wear on the worm gear shaft. Brass worm gear configurations are suitable for light loads, as brass can only withstand lower amounts of stress.

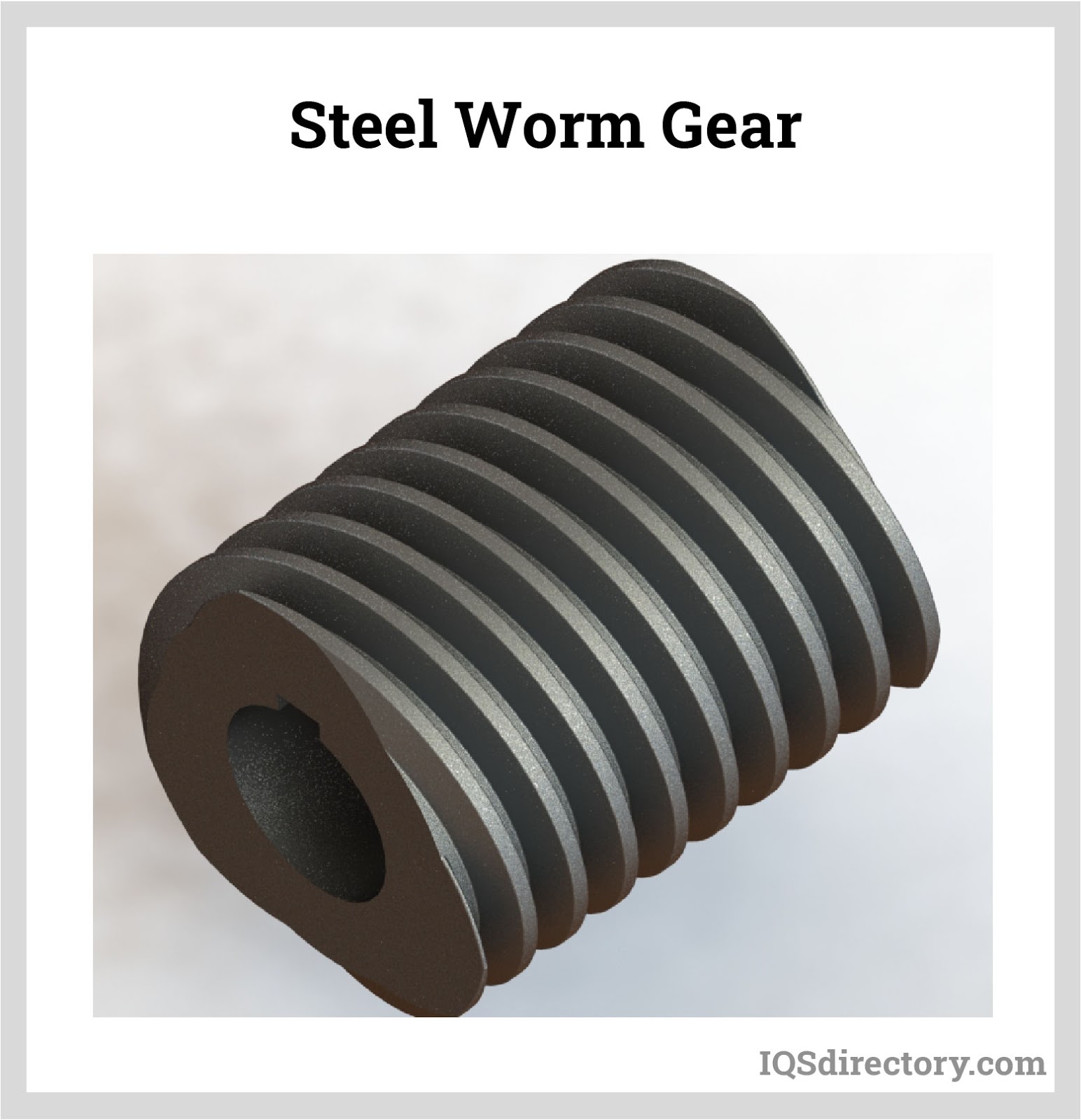

While both steel worm gears and worm wheels are available, the typical setup involves a steel worm gear paired with a bronze or brass worm wheel. Steel is chosen for its durability, tensile strength, and long-lasting performance. However, a combination of steel worm gears and steel worm wheels is more costly and demands significant time and effort for repairs when failures occur.

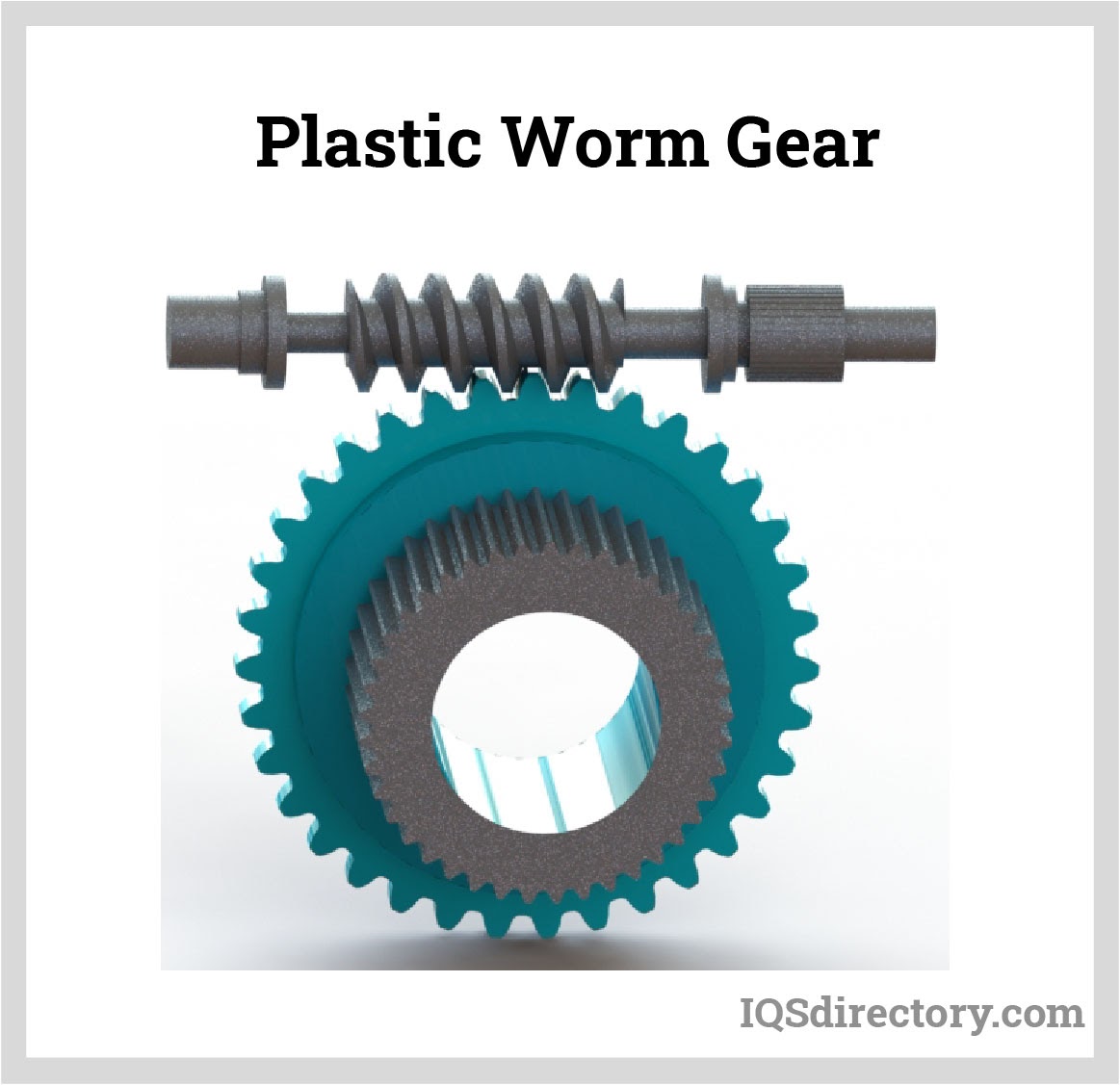

Plastic worm gears are ideal for handling very light loads, including applications in automotive components and robotics. When combined with metal worms, these gears operate more quietly and eliminate the need for lubrication. Additionally, plastic worm gears are lightweight and offer resistance to corrosion and chemicals.

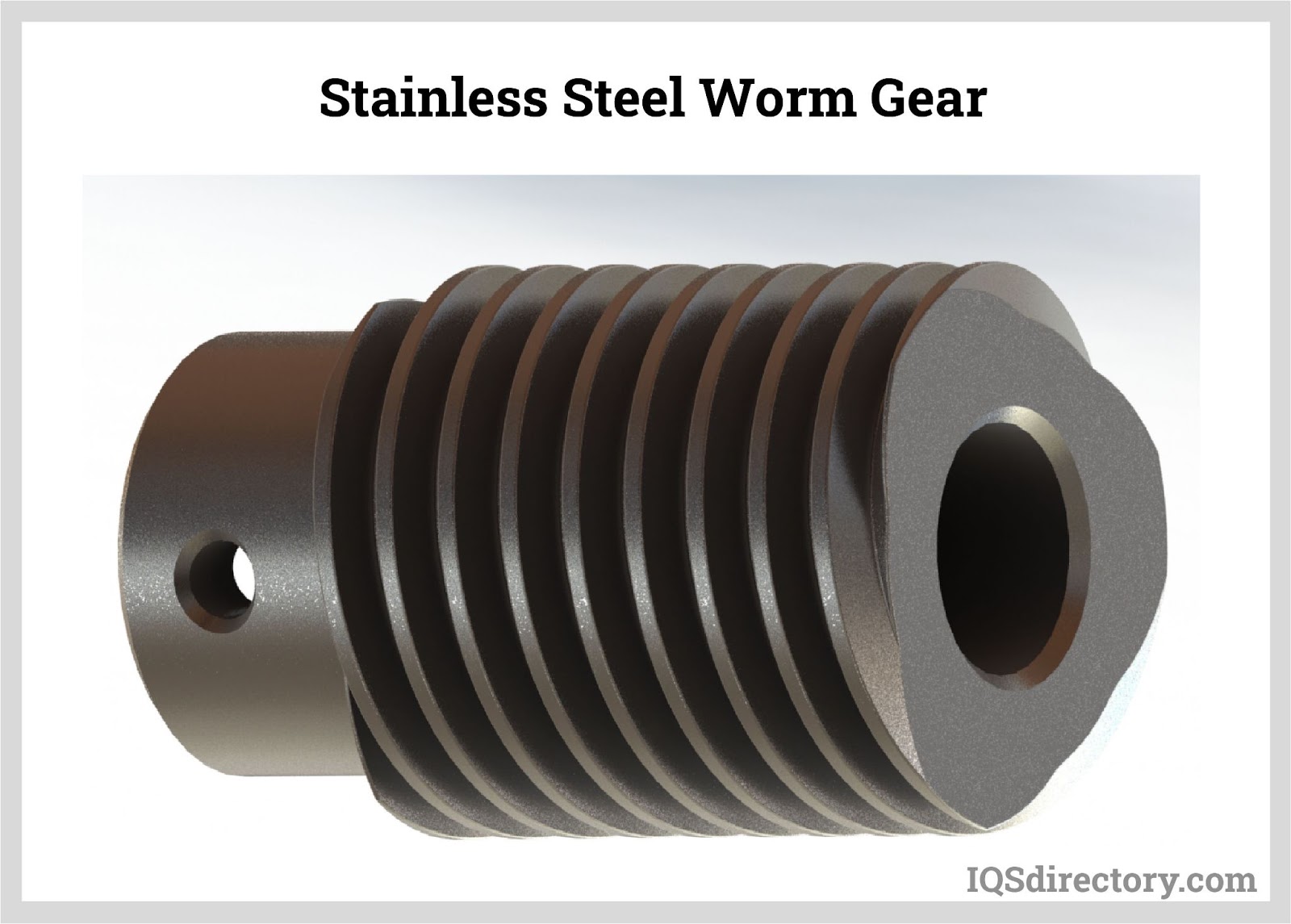

Stainless steel worm gears are crafted from 303 and 316 grade stainless steel, making them highly suitable for damp and wet environments due to their resistance to rust and corrosion. These gears are commonly utilized in settings where cleanliness is crucial, such as in food and beverage manufacturing. Their smooth surfaces and exceptional durability make them easy to clean, ensuring they maintain high performance and reliability in sanitary conditions.
Worm gears experience significant stress, torque, and motion, necessitating the use of lubricants to ensure effective lubrication between metal surfaces. Mineral-based lubricants, derived from mineral oil—a byproduct of crude oil—are commonly used with worm gears. The primary purpose of these lubricants is to safeguard the worm drive from friction, corrosion, and operational inefficiencies, thereby enhancing the gear's performance and longevity.
A lubricant cannot prevent gear wear indefinitely. However, using a blend of natural and synthetic additives can offer enhanced protection and extend the lifespan of worm gears.
The viscosity of a lubricant ensures that the worm gear does not come into direct contact with the wheel in the worm gear assembly. The choice of lubricant depends on the load and size of the gearing.
Lubricating worm gears presents challenges due to their design. The primary issue arises from the sliding motion of the gears, which tends to remove the lubricant.
The sliding action of worm gears necessitates the use of metals with low friction coefficients. Typically, the worm wheel is made from a yellow metal like bronze or brass, while the worm gear is crafted from a hardened metal such as steel.
Compounded oil features a mineral base combined with rust and oxidation inhibitors and includes four to six percent acidless tallow or synthetic fatty acids. This formulation allows the oil to adhere to cylinder walls, withstanding temperatures up to 180°F (82°C). When operating conditions exceed the film strength of the bulk oil, the additives create a protective barrier between the interacting surfaces.
The viscosity of the lubricant is influenced by factors such as the worm's size, type, speed, and operating conditions. Typically, classes 7 and 8 compounded oils from the American Gear Manufacturers Association (AGMA) are used.
Under high pressure and temperature conditions, EP (Extreme Pressure) oil reacts with metal surfaces to create a chemical layer that helps prevent wear and welding. These lubricants are particularly effective in situations involving shock or vibration, providing excellent protection for steel components. EP gear oils, similar to compounded oils, have temperature limits and are classified under AGMA grades 7 and 8.
Two types of synthetic gear oils have found success with worm gear applications: polyalphaolefin (PAO) and polyalkylene glycol (PAG). PAO and PAG have excellent lubricity qualities and characteristics.
PAO is versatile and suitable for both low and high temperature applications and works well with mineral oils. Unlike standard synthetics, PAO does not damage seals or paint and includes an anti-wear mineral additive to enhance its protective boundaries. The primary drawback of PAO is its higher cost.
PAG offers similar capabilities to PAO but features a higher viscosity index compared to other synthetic fluids. While it possesses anti-wear properties, it lacks extreme pressure (EP) additives. PAG is not compatible with other fluids and can damage paints and seals.
