This guide covers everything you need to know about self-drilling screws.
You will learn:
A self-drilling screw features a design similar to a drill bit, with a tip that allows it to create its own hole. As the name suggests, these screws do not need a pilot hole to function as fasteners. They are engineered to work with materials such as soft steel, wood, and various metals.
Selecting the appropriate self-drilling screw involves considering several factors based on its intended use. Key considerations include the thickness and type of material being joined, as some screws are tailored for specific materials. Additionally, the drill load, or the amount of force exerted on the drill during installation, is an important factor to consider.
When choosing to use a self-drilling screw, it’s essential to first assess the materials being joined. Key factors for ensuring the effective operation of a self-drilling screw include the types of points, such as the flute design, length, and the presence of wings.
The self-drilling screw is a versatile and efficient tool that has been used for many years to join materials. By eliminating the need for a pilot hole, these screws allow for quick and effective connections, boosting both productivity and performance.
The diverse types of self-drilling screws make them suitable for a wide range of construction and fabrication tasks. Whether it's for metal roofing or final assembly work, these screws are invaluable in manufacturing, fabrication, and production processes.
There is a common misconception that self-tapping and self-drilling screws are identical, but they actually differ in their design. The distinguishing feature is the point: self-drilling screws have a pointed end shaped like a twist drill, while self-tapping screws, which are designed to form or cut threads, may have pointed, blunt, or flat tips.
Self-drilling screws used for metal roofing are uniquely designed with a built-in washer to create a secure seal when fastening. Like other self-drilling screws, they feature a drill bit-shaped point that simplifies and speeds up the insertion process.
Before the advent of self-drilling screws, builders needed to drill pilot holes prior to screw insertion. The introduction of self-drilling screws has streamlined this process by eliminating the need for pilot holes, significantly cutting down on job time and enhancing efficiency. The entire task can now be completed in a fraction of the time required by the pre-drill method.
Metal sheets are used to frame a wide variety of products. To speed up the production process and ensure tight connections, self-drilling screws are used as fasteners. The drill-like tip of self-drilling screws is preferred over other methods of fastening due to its efficiency. Industries that use self-drilling screws for metal fastening include automobile construction, building, and furniture manufacturing.
Self-drilling screws are engineered to effectively penetrate metals ranging from 20 to 14 gauge.
In the medical field, particularly for orthopedic surgery, organ replacement, and tissue and muscle repair, self-drilling locking screws are utilized. They are favored for their rapid insertion capabilities compared to other fastening methods. Proper use requires precise length calibration and ensuring biomechanical stability.

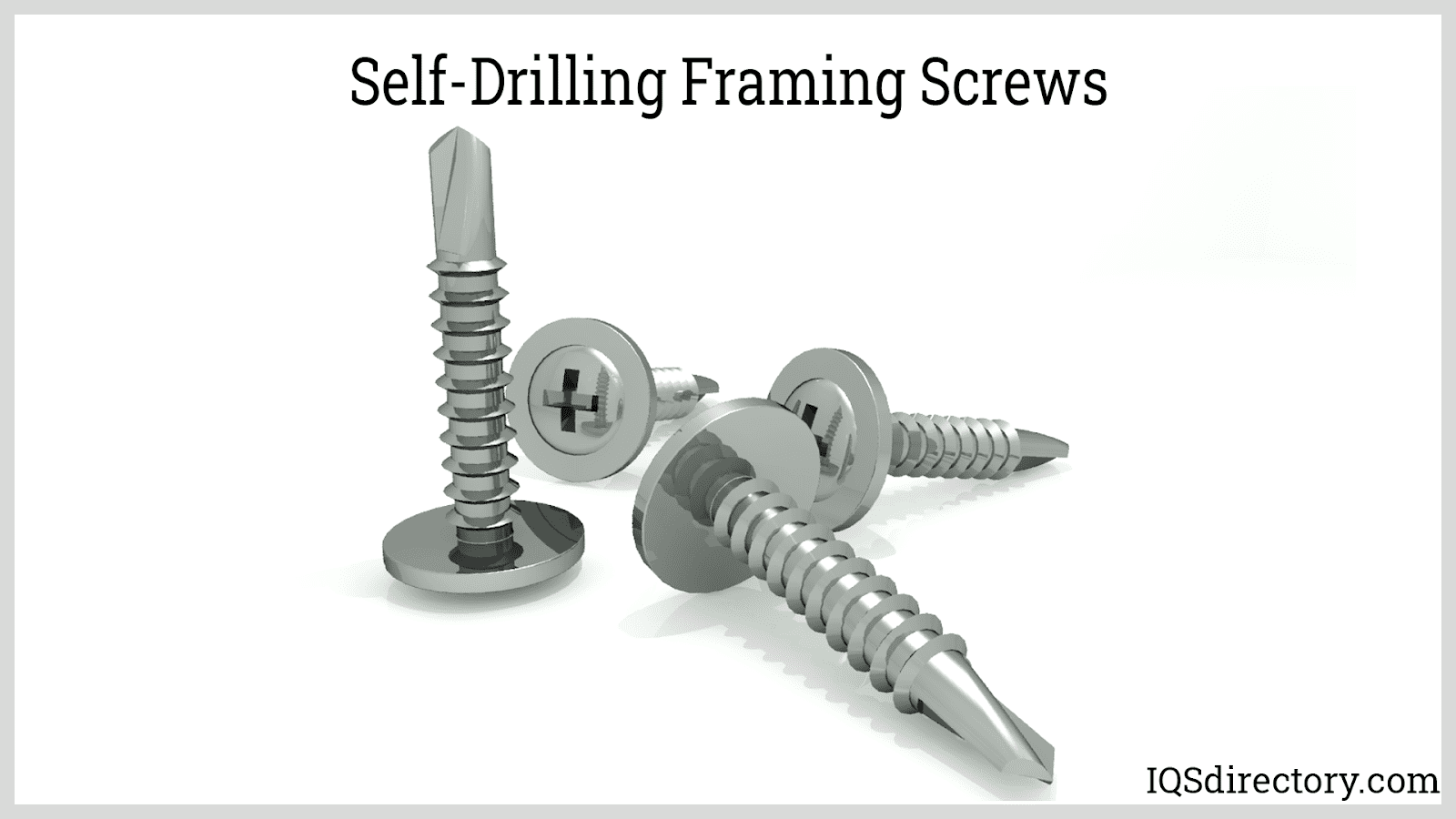

Self-drilling screws used for framing are designed to cut through heavy-duty metal studs. They feature specialized heads that reduce driving torque while maintaining strong holding power. Capable of penetrating metals up to 0.125 inches thick at an RPM of 1500, these screws are available in various metals to suit different operations and applications.
Whether working with metal lath or heavy gauge metals ranging from 12 to 20 gauge, self-drilling screws are effective for connecting and framing structures.

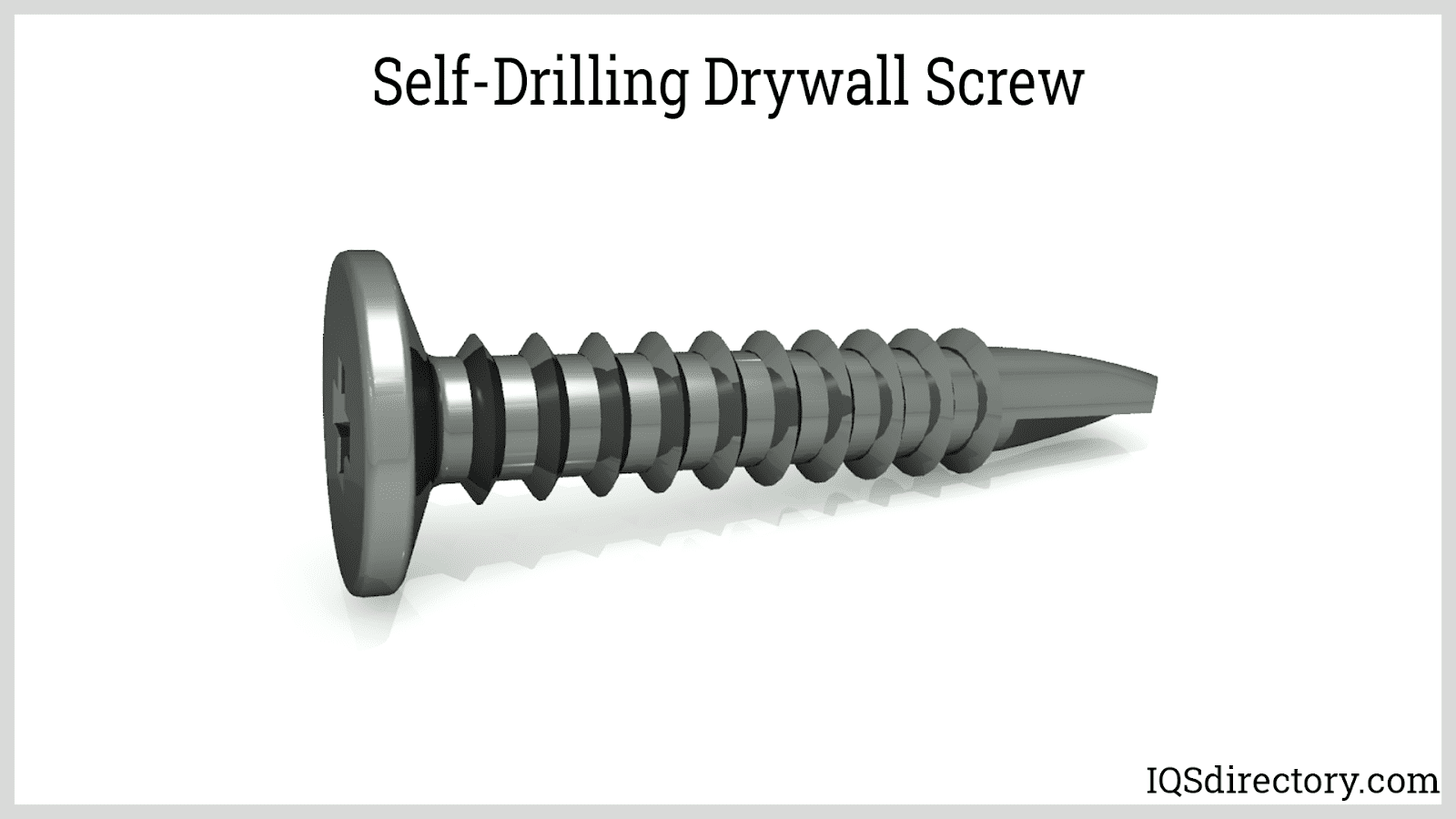

Drywall self-drilling screws are distinguished by their countersink heads, which embed neatly into the drywall without tearing the paper or causing head pops. Typically coated for interior use, these screws come in diameters of 6, 7, 8, and 10. They are versatile, allowing attachment to both wood and metal studs, and feature rolled threads for enhanced strength and holding power.

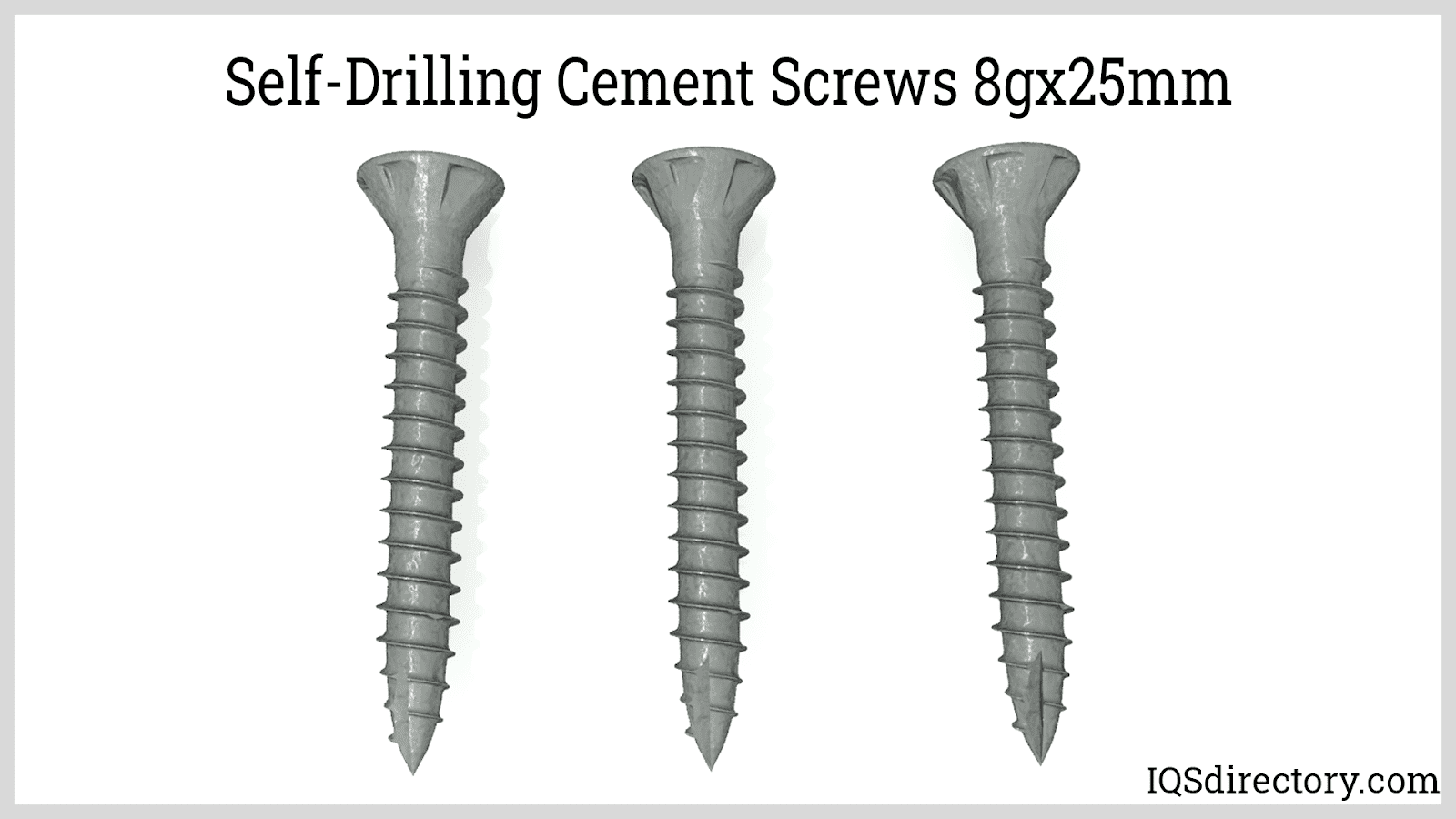

Concrete self-drilling screws are designed to work with concrete, brick, and block materials. Unlike other materials, drilling a pilot hole is necessary for these screws to engage properly with concrete. They come in two main size groups: standard sizes of 3/16 and 1/4 inch, and larger diameters of 3/8, 1/2, 5/8, and 3/4 inch.
Concrete self-drilling screws are available in various head styles, including flat head Phillips and slotted hex. Flat head screws are used when a countersunk finish is required, while hex head screws remain above the surface for applications where a protruding head is acceptable.

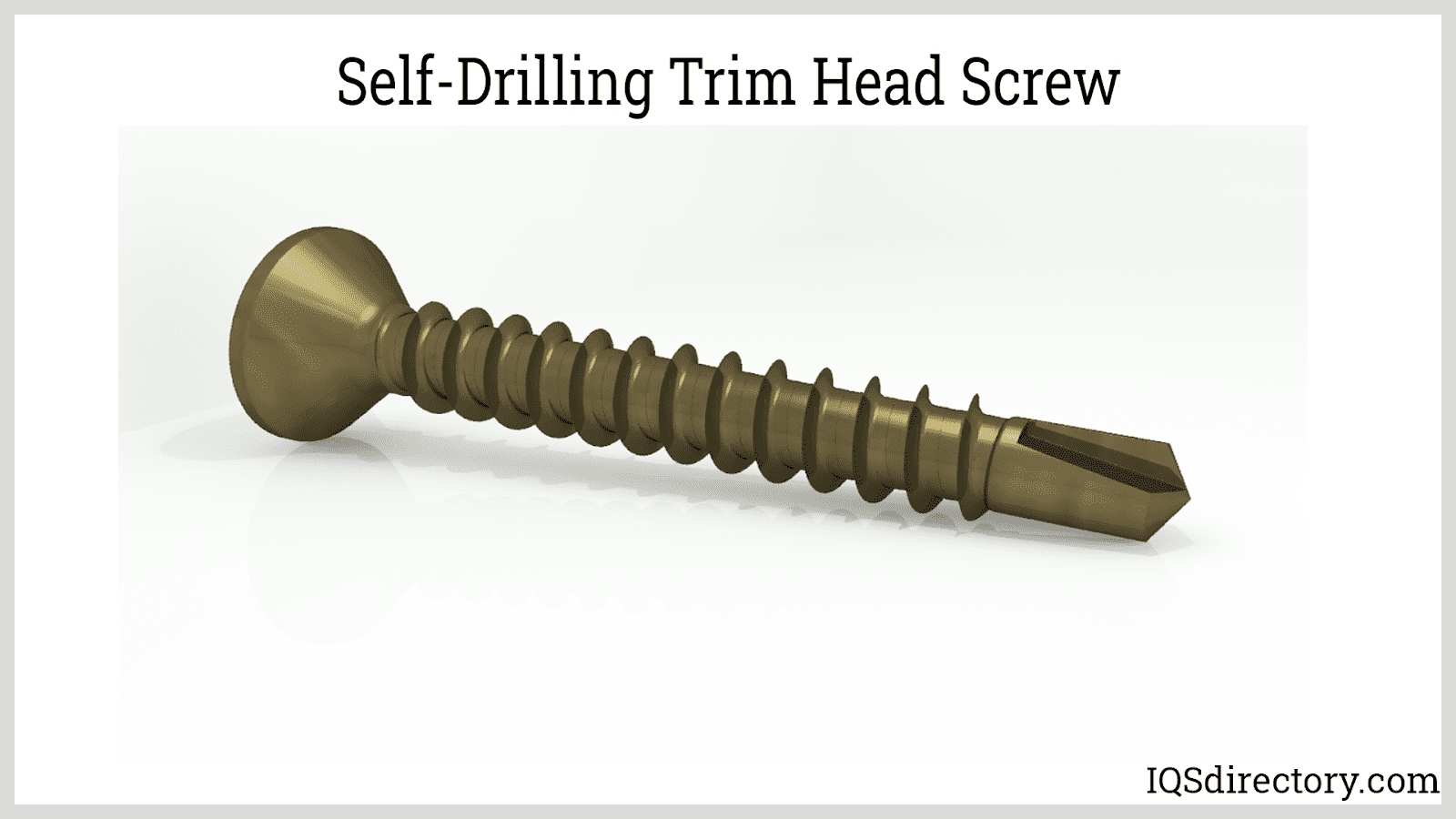

Trim head screws are notable for their small heads, which resemble finishing nails. This design allows them to countersink themselves, making them ideal for attaching molding and trimming cabinetry with a clean, unobtrusive finish.
A necessity for the production and manufacturing of self-drilling screws is the use of high quality and high tensile strength metal wire. This single factor ensures that the screws will perform according to their specifications and be able to maintain a firm tight connection.

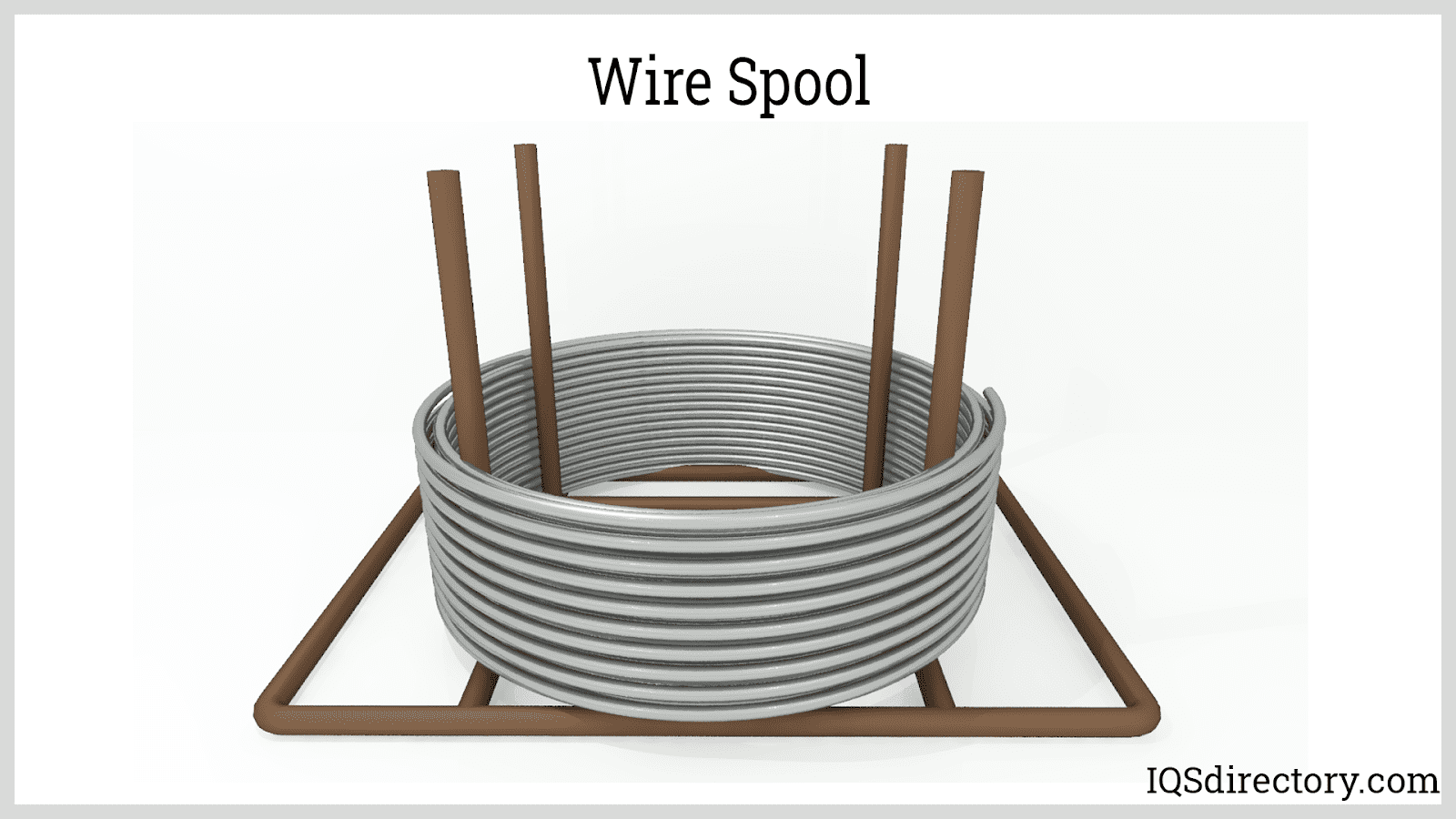

Self-drilling screws start as wire, which varies in diameter based on the screw gauge. The wire is selected to be harder than the material it will join, with 410 stainless steel being the most common due to its resistance to corrosion and rust. Heat-treated versions, up to 40 Rockwell C, are used to ensure the drill point can penetrate tougher metals.
The production process begins with straightening the wire before cutting it to the required length.
The wire is fed into a heading machine, where it is cut to the specified length, transferred to a die, and then preformed.

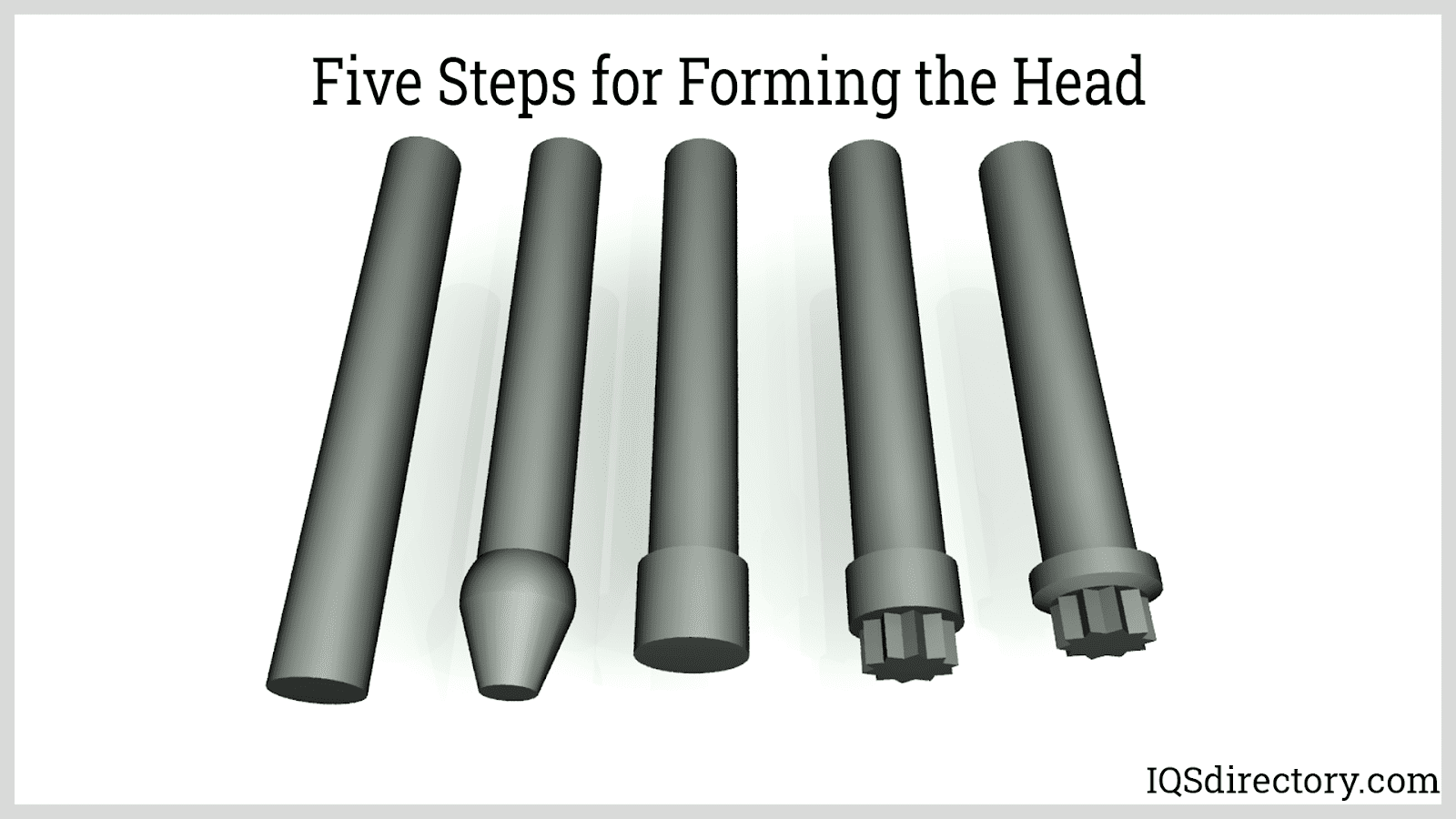

After the wire is cut to the desired length, it is fed into a die. Different types of dies are used to shape the head of the screw.
A single-die machine features one die and utilizes two punches to shape the screw. The die serves as a mold with the screw’s shape, while the punch applies a forceful impact to press the blank wire into the die. This combined action of the die and punch forms the screw's head.
The multiple-blow process operates similarly to the single-die method but involves several blows instead of just one. This technique uses multiple impacts to shape the screw head.
Several methods are used to form screw threads, including cutting or grinding, rolling, molding, casting, and additive processes. For self-drilling screws, the drill bit head is crucial and can come in point sizes numbered 2, 3, 4, and 5, with higher numbers indicating longer tips.

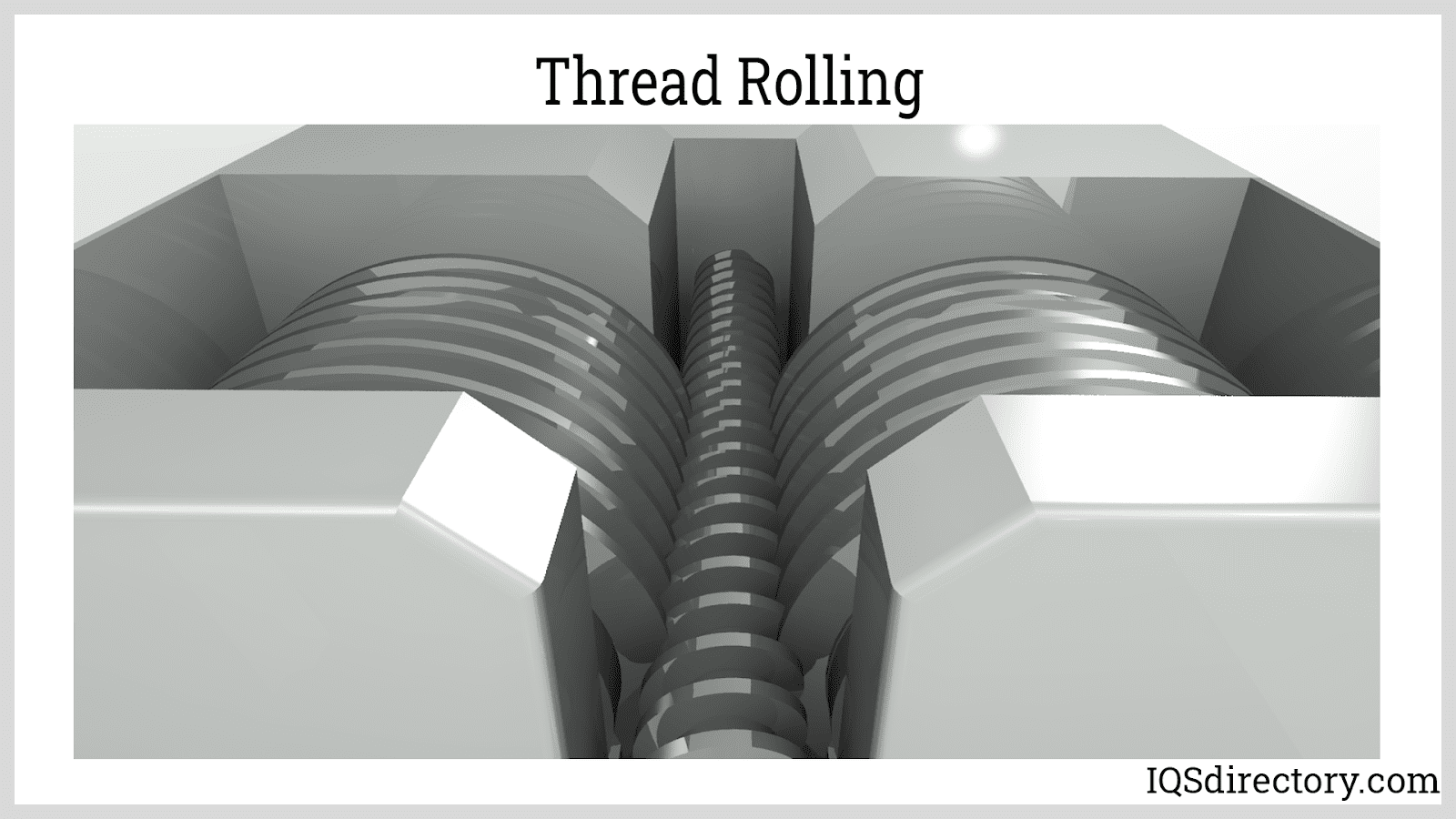

In the die method for creating thread patterns, which involves a deformation process, the workpiece is positioned between adjustable dies with grooves that define the desired thread depth. As pressure is applied, the workpiece is rolled, imprinting the thread pattern onto the wire.

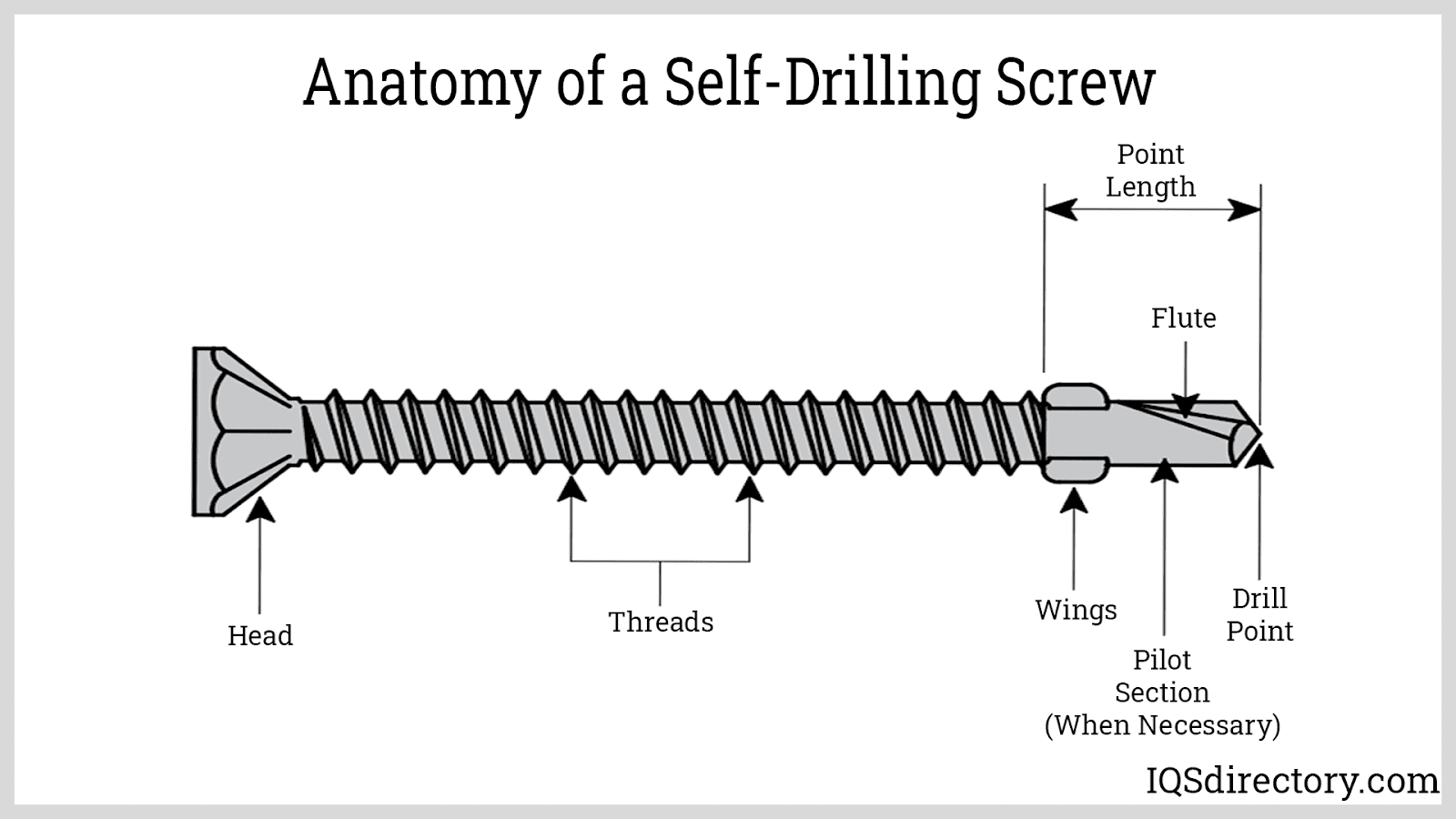

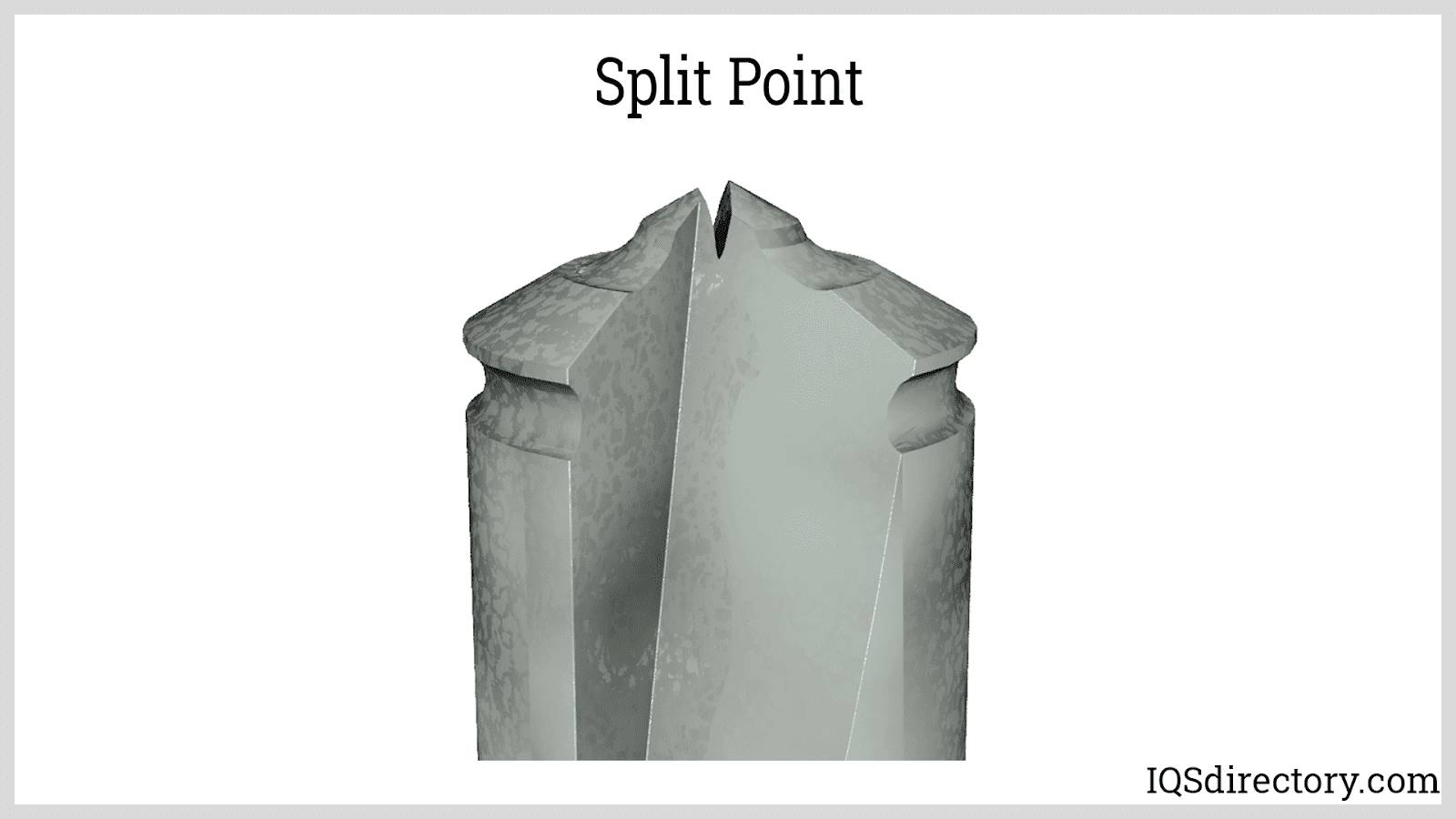

The drill point of a self-drilling screw resembles a drill bit and is engineered to both create the initial hole and form the mating threads. Unlike self-tapping screws, which need a pilot hole, self-drilling screws eliminate this requirement due to their drill bit tips. This design makes them more versatile, enabling them to work with a broader range of materials.
For drilling into thicker, heavy-duty materials, self-drilling screws feature points with wings that help widen the hole and provide a smoother path for threading.

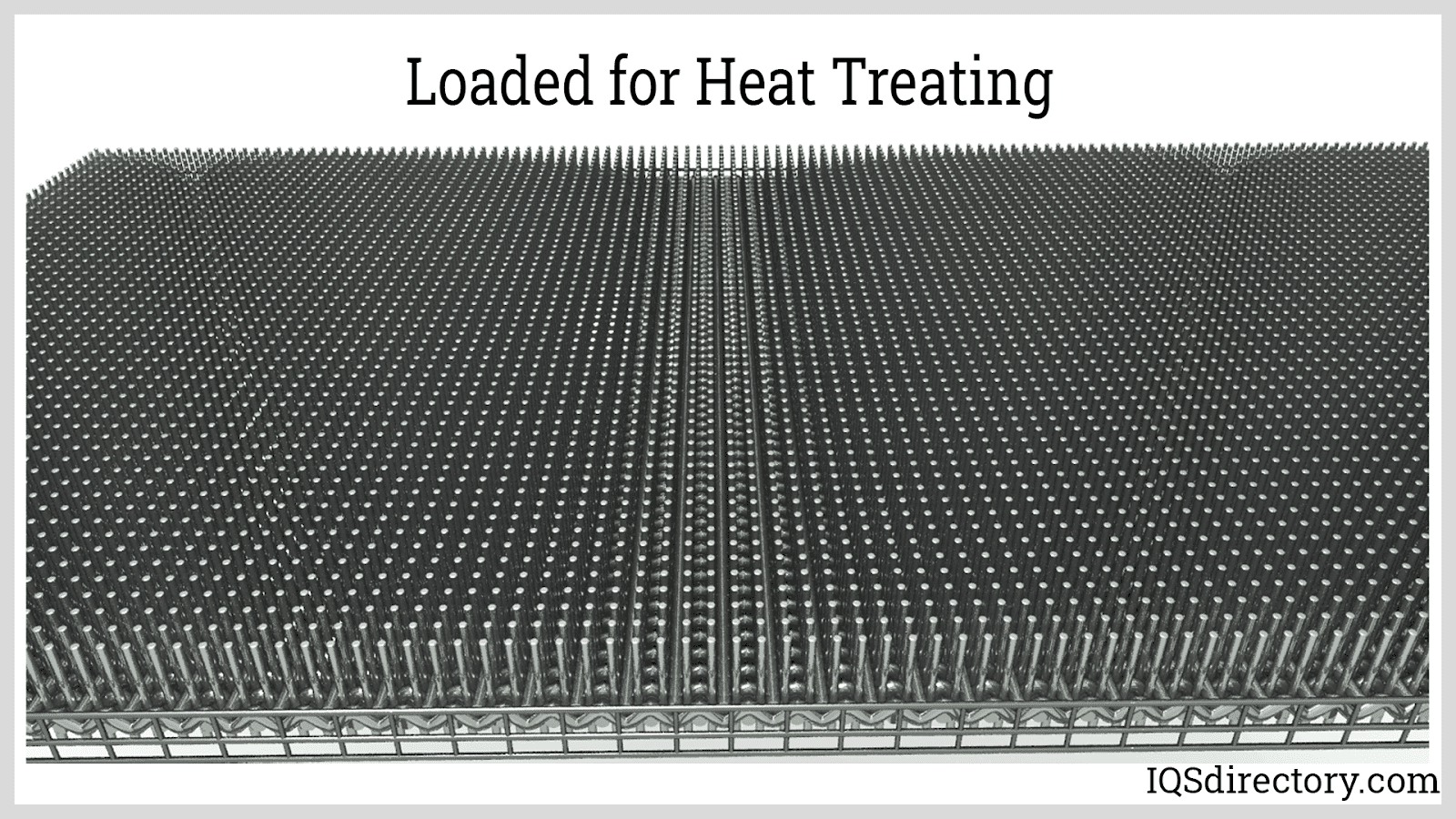

In the final stage of production, the finished self-drilling screws are arranged vertically or in bulk for heat treatment. They are passed through a quenching furnace where they are heated to eliminate contaminants, followed by oil quenching to enhance their hardness.
Different metals require specific heat treatment methods. For instance, carbon steel undergoes case hardening, where chemicals are applied to the surface and the metal is heated to a high temperature. Since case hardening can reduce the machinability of the screws, it is conducted as the last step in the manufacturing process.
Following heat treatment, the coating and plating process is performed, where a layer of zinc, chromium, nickel, or other materials is applied to the screw’s surface. This protective coating guards against rust and corrosion. Coating and plating can alter the major and pitch diameters of the screw multiple times, necessitating precise and accurate control of the process.
Self-drilling screws come in various types tailored for different connecting needs. Differences among them include head type, wire material, diameter, length, and the materials being joined.

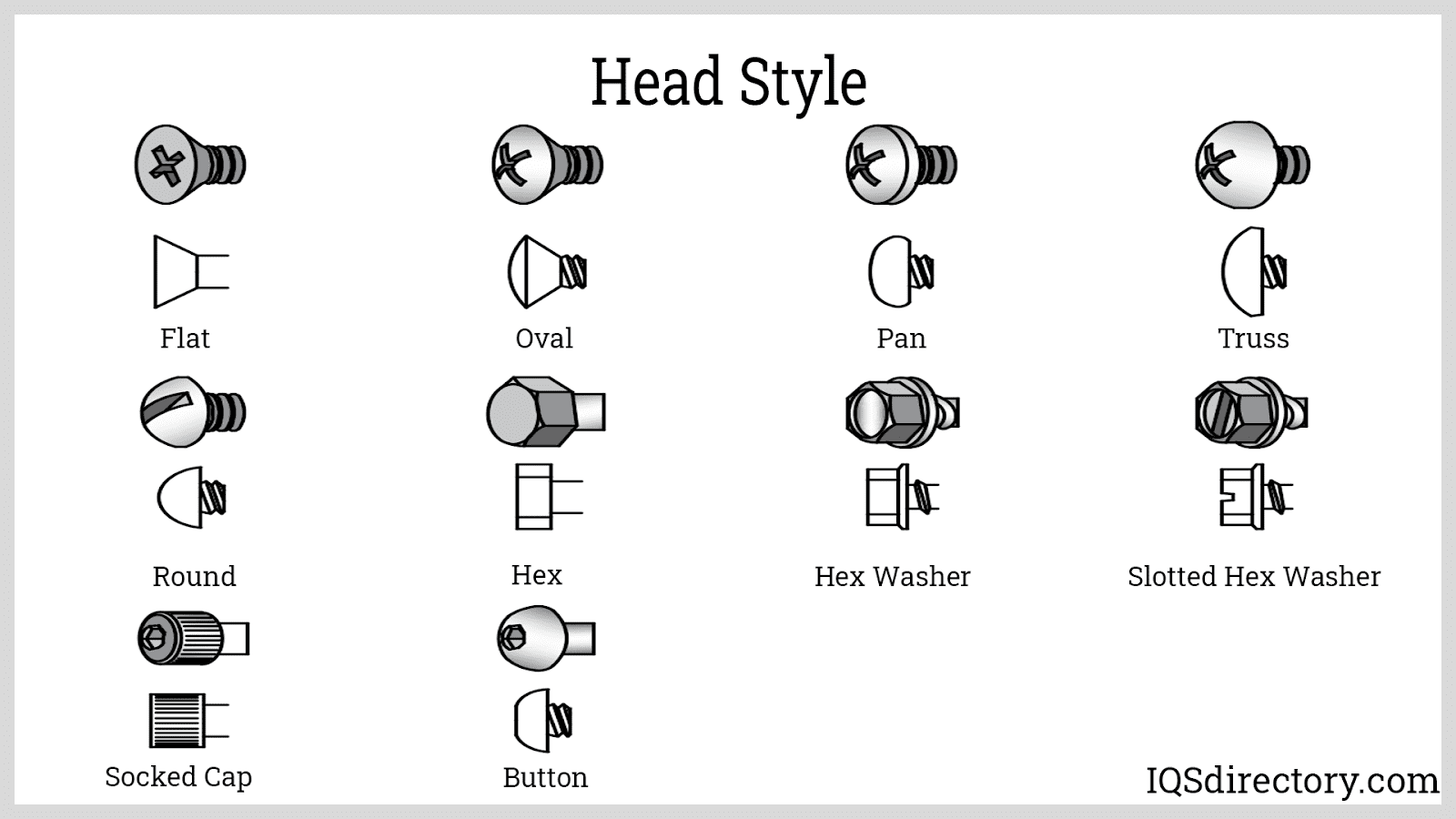

One key distinction among self-drilling screws is the head type, which can vary from flat, pan, and truss to undercut, wafer, oval, and trimmed styles. Another important factor is whether the head is designed to countersink.

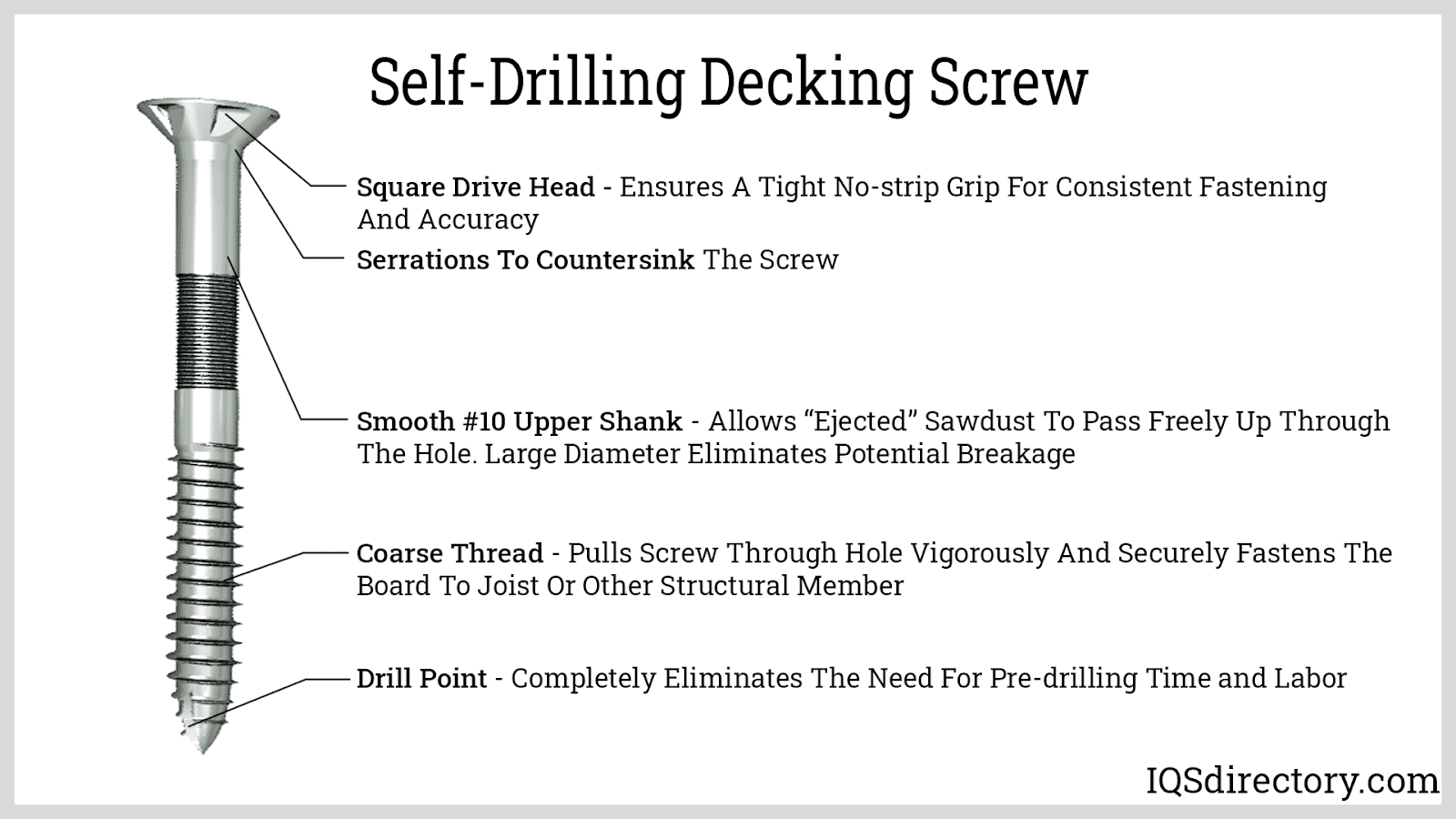

Bugle head screws are designed to sit flush with the surface and are commonly used for securing wood, plywood, and OSB. They feature a #2 square drive and a #3 drill point.
Cement board screws are specifically designed for fastening cement board, dense wood, and light gauge steel. They feature a distinctive ribbed design and a countersink head that sits flush against the surface. These screws also have wings that help clear the surface material, preventing premature thread engagement.
Eye lag screws, also known as eye hole screws, are utilized for securing wires in drop ceilings. These screws feature a loop at the end that is designed for attaching ropes, wires, or cables. Although they are larger than regular screws, they have standard threading. Installing eye lag screws typically requires a specialized driver bit.
Flat head self-drilling screws are designed to sit flush with the surface, leaving no protruding head. They can be concealed with a screw covering, creating a smooth, unblemished surface. Like other screws, flat head screws may include wings that cut through the material to ensure proper hole clearance and prevent debris from accumulating on the shank. As the screw is driven deeper, the wings eventually break off.
Hex head self-drilling screws are widely used due to their compatibility with socket heads on hand drills and their availability with Phillips or slotted heads. Variants of hex head self-drilling screws include those with flanges, washer heads, and washer heads with bonded washers.
Washer head self-drilling screws are popular for their efficiency and ease of use. They have a broad screw head and come in sizes from 1/4 to 14x1.
Truss self-drilling screws feature an extra-wide truss that evenly distributes pressure to minimize the risk of crushing thin materials. Constructed from stainless steel to prevent corrosion and rusting, they are commonly used in food, pharmaceutical, and sanitary environments. These screws have a smooth finish and are self-draining to prevent bacterial growth.
Oval self-drilling screws are designed to provide a finished appearance. They are beveled under the head to be countersunk and are typically used on metal surfaces. Unlike flat head screws, oval head self-drilling screws feature a domed head that projects slightly above the surface, adding a distinct, finished look.

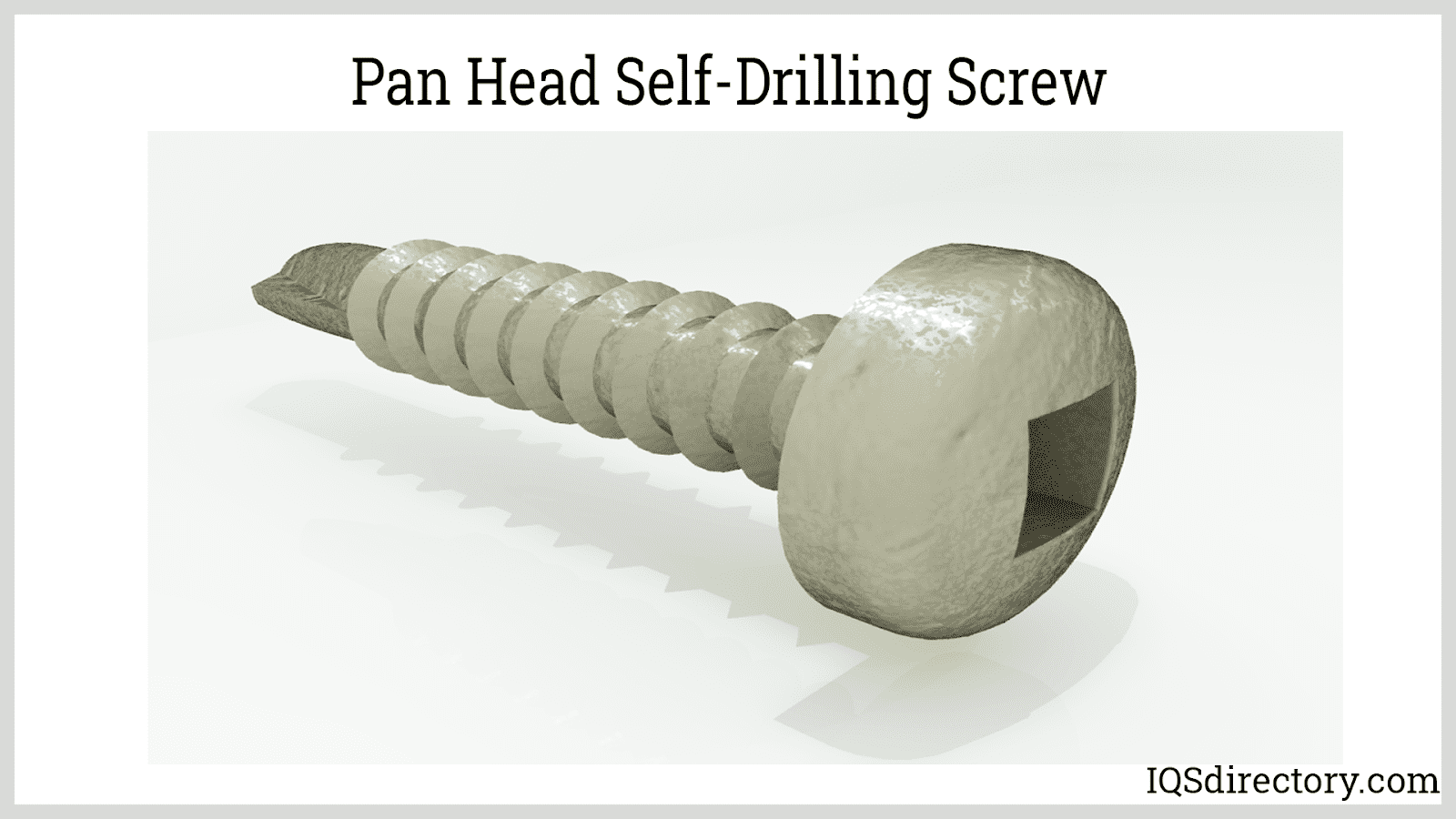

Pan head self-drilling screws feature a slightly flat, rounded head with chamfered edges and cannot be countersunk. They are designed with a moderate height and diameter, offering a flat load-bearing surface. The high outer edges of pan head screws provide excellent tightening torque.
The head of a button head self-drilling screw resembles a dome with a large diameter. They often feature a hex drive, which helps in easy driving and reduces the likelihood of slipping or stripping.
This type of self-drilling screw is similar to a pan head but features a thicker, flat bearing surface that is 10% larger and a deeper drive slot. They are often used for electrical connections, as their wide heads are effective for securing terminals and wires.

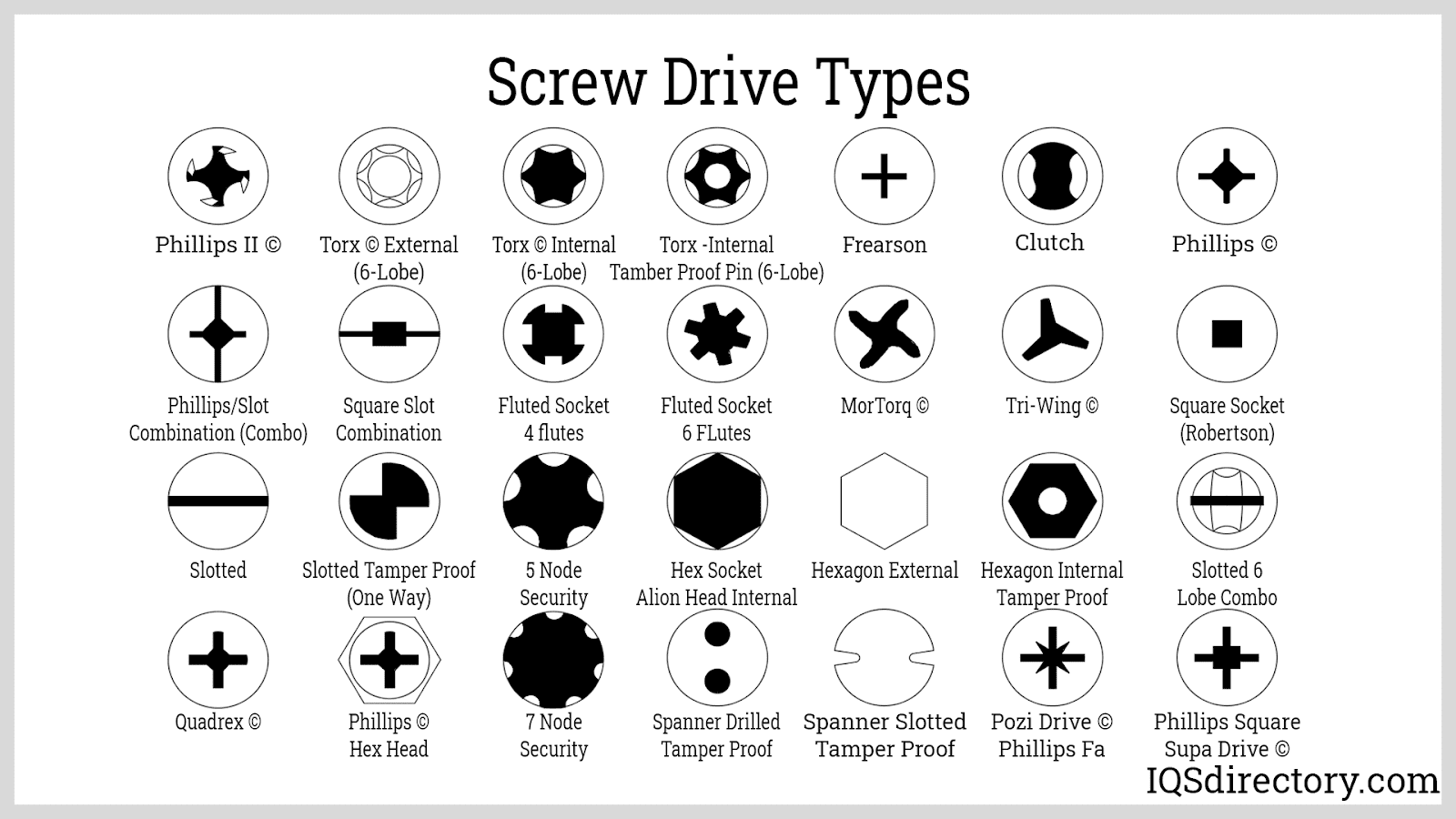

The ten drives mentioned above are just a few examples used in the manufacture of self-drilling screws. The diagram below offers a more comprehensive view of the various drives available to producers.
When working with self-drilling screws in construction and manufacturing, there are several important factors to keep in mind. Choosing the right self-drilling screw is crucial for achieving a secure and efficient connection.
Like any other tool, optimal results with self-drilling screws are obtained by adhering to specific guidelines. The materials used in the screws and the speed of application are critical; improper use can lead to failure during installation.
The tip of a self-drilling screw, which is attached to its flute, is typically crafted from carbon steel. This material may not handle high temperatures as effectively as high-speed steel, which is commonly used for drill bits. To minimize wear, it is advisable to use a drill motor when applying these screws.
Coatings can be applied to screws to enhance their strength and protect them from rust and corrosion. For instance, a zinc coating on steel provides effective corrosion resistance.
The stability of the drill point's temperature is influenced by factors such as motor RPM, applied force, and the hardness of the material being worked on. Higher RPM and increased force generate more heat during drilling. Reducing the applied force can help the screw's point penetrate the material more easily. Additionally, lowering the RPM can improve the performance of self-drilling screws and allow for greater applied pressure.

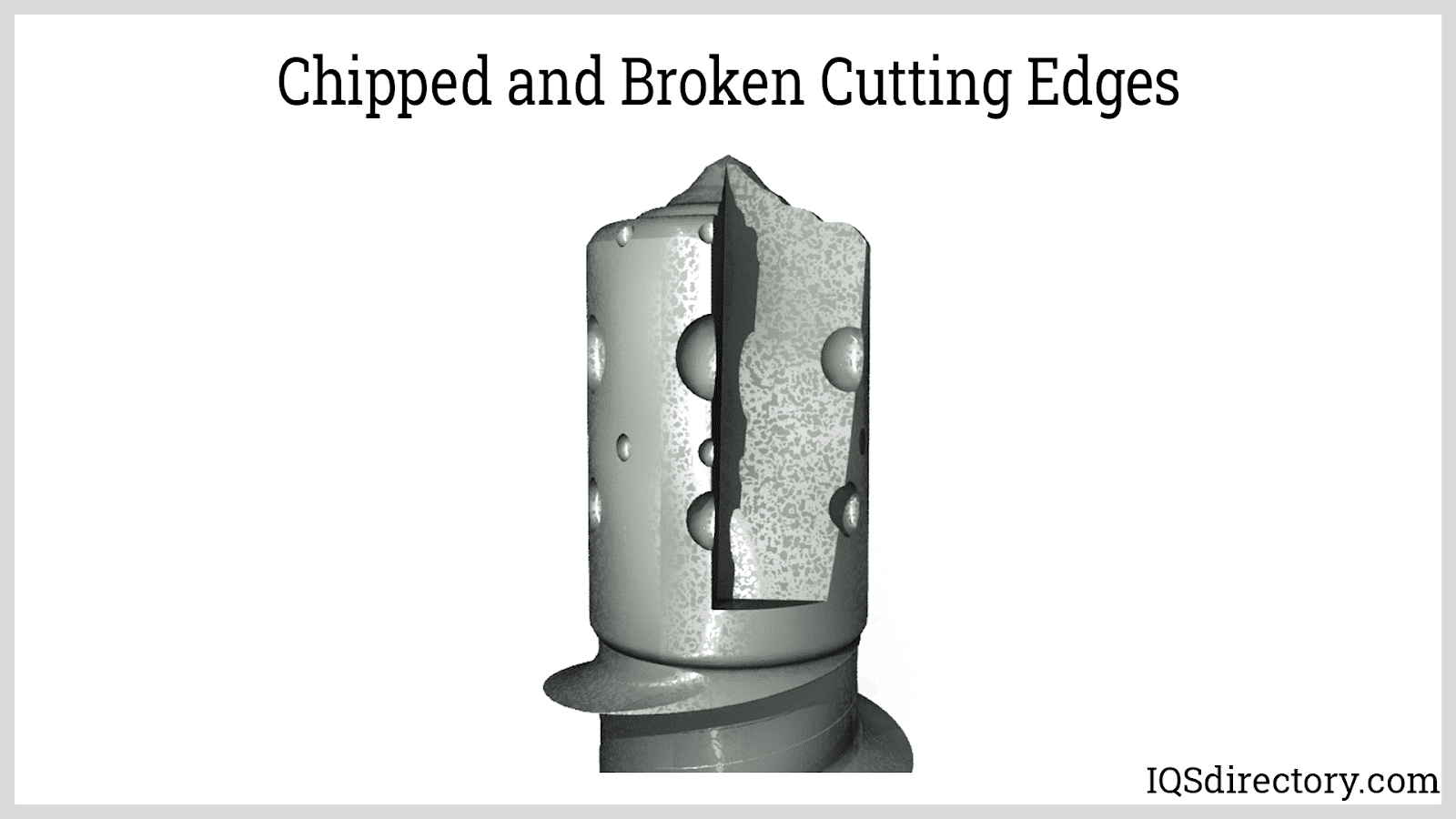

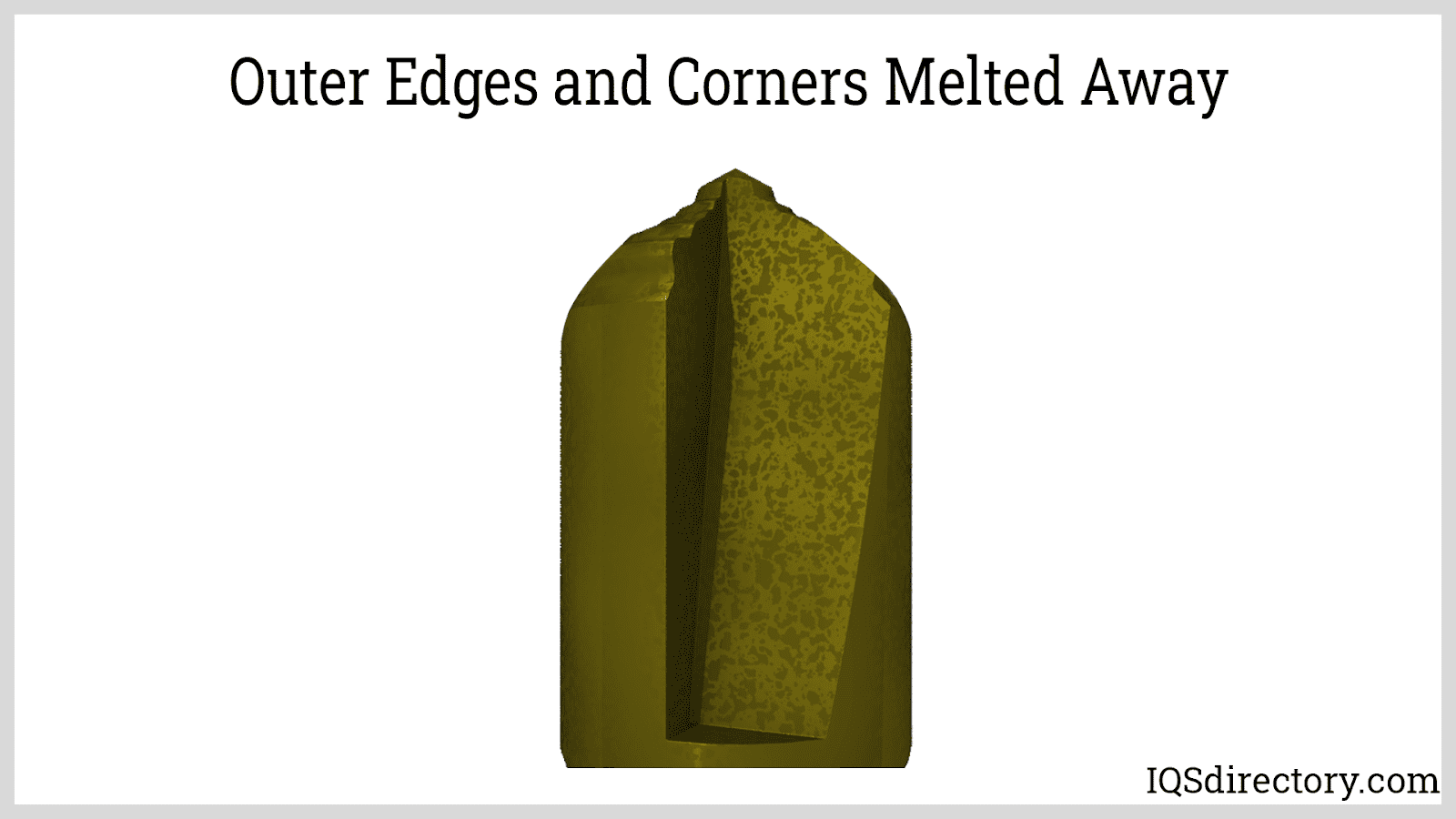

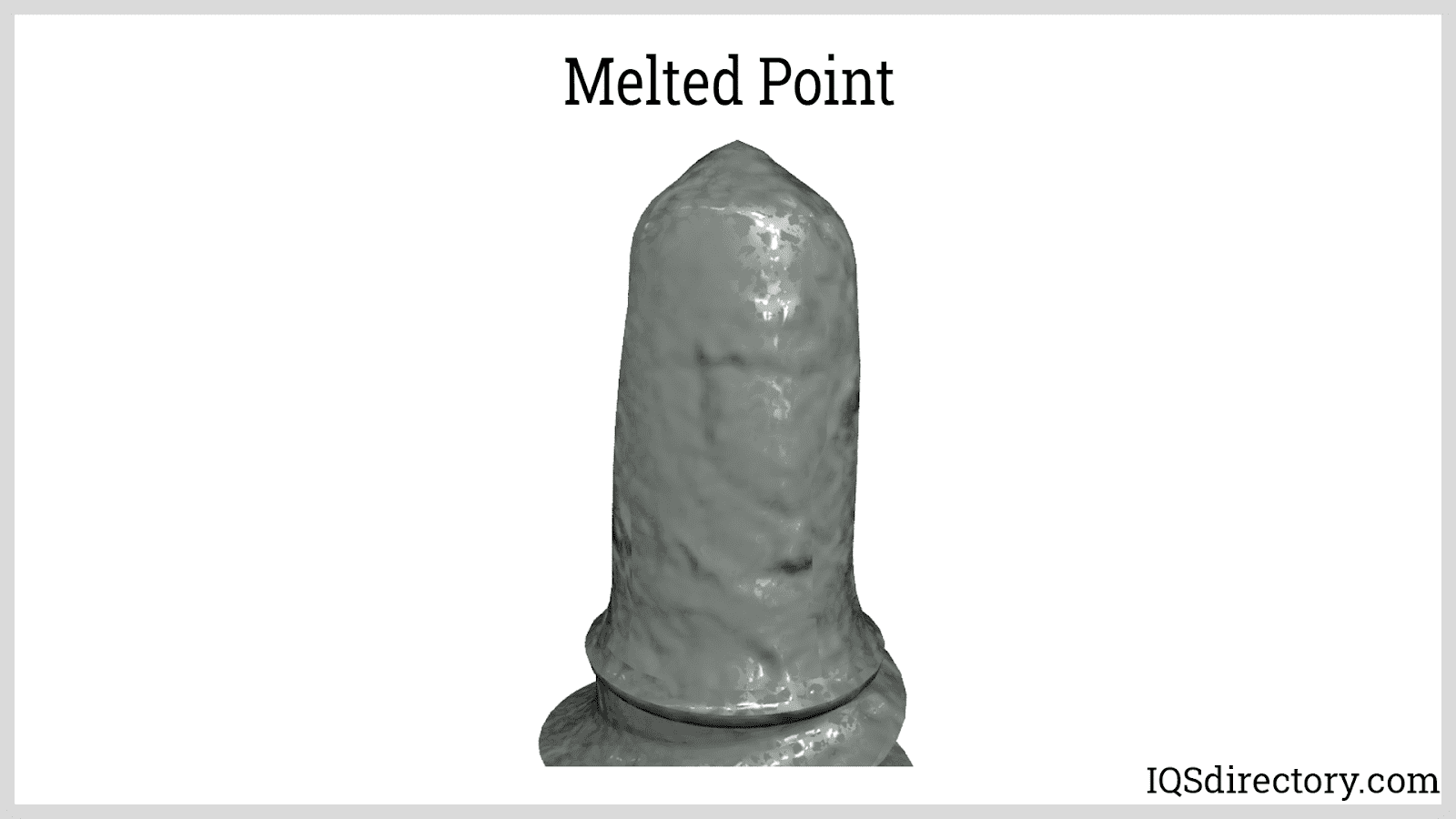

Drilling creates friction, which in turn generates heat. Excessive heat can cause a drill point to wear out rapidly. To manage this, you should adjust both the amount of force applied during drilling and the RPM settings on the drill motor.
Several factors affect drilling temperature, and each can be managed during the process. Adjusting the RPM settings on the drill motor to match the material type and the specifications of the self-drilling screw can help control the heat generated.
A common mistake when using self-drilling screws is applying excessive force to drive the screw into the material. This extra force can lead to increased heat buildup, which may affect the performance and lifespan of the screw.
When using self-drilling screws, the material into which they are being installed is a critical factor. Choosing the appropriate screw for the specific material can help minimize issues, including those related to heat generation during the drilling process.
Minimizing the applied force can alleviate many issues related to joining materials. Self-drilling screws are engineered to efficiently penetrate and connect various materials quickly. Their design, shape, and configuration are specifically crafted to work seamlessly with certain materials, eliminating the need for excessive pressure or force.
A frequent mistake in construction or manufacturing is rushing the process, which often involves increasing the drill motor speed to achieve higher RPMs. Each self-drilling screw is designed to be installed at a specific speed, as outlined by the manufacturer. Using the screw at a speed outside these recommendations can lead to failure.
For stainless steel self-drilling screws, it is generally advised to use RPMs between 600 and 900. Some manufacturers also apply coatings to their screws to enhance their resistance to torque and improve performance.
Every type of self-drilling screw comes with specific guidelines to ensure effective use. These guidelines are based on thorough testing by designers and engineers to ensure that the screws meet quality and performance standards.
Misuse is a common cause of self-drilling screw failure, despite extensive testing under various conditions to identify optimal usage practices. Many issues can be prevented or identified early in the process.
To ensure a self-drilling screw is functioning correctly, it is advisable to test it on the material intended for connection. The following information offers diagnostic insights to help identify the cause of any failures and provide solutions for correction.
Excessive force is a primary cause of self-drilling screw failure. To achieve optimal results, it's important to allow the screws to perform as intended. Engineers and designers have meticulously developed self-drilling screws to function effectively under the right conditions without requiring additional force. Disregarding these guidelines can lead to failures and wasted time on the job.
Feeding the self-drilling screw into the material too quickly can cause issues. This can be easily avoided by reducing the speed.
Each drill bit, including self-drilling screws, is designed to operate at a specific cutting speed for optimal performance. Using them at RPMs beyond their recommended range can lead to overheating, melting the tip, and damaging the cutting edges or corners. To address this, ensure you use the appropriate self-drilling screw for the task and adjust the drill motor speed to the correct setting.
Improper use of a tool often leads to failure, and this applies to self-drilling screws as well. Excessive force during drilling places undue stress on the screw, causing it to work harder and potentially break. By managing and reducing the amount of force applied, the screw can operate effectively and perform its task without issues.
The melting point of any material is influenced by the friction, stress, and force applied, which applies to the materials used in self-drilling screws as well. When the tip of a self-drilling screw experiences stress, it generates friction and heat. As the temperature rises, the tip can melt and lose its effectiveness in cutting.
Factors contributing to this issue include excessive force, using an unsuitable screw for the material, or inadequate chip clearance. To address these problems, select the appropriate screw for the material, opt for one with a longer pilot section, and reduce the amount of force applied.
If a drill bit struggles to cut into a material, it usually indicates that the material is too hard for the bit. To prevent this issue, it is crucial to select a self-drilling screw that is suited for the specific material. Suppliers and manufacturers provide guidelines on the packaging and online regarding the appropriate screws for different materials. By reviewing these recommendations carefully, you can avoid such problems.
Self-drilling screws require careful handling to maintain their effectiveness. Dropping them, exposing them to abrasive materials, or leaving them in harsh conditions can dull their cutting edges. It is advisable to inspect the screws at the start of a job to ensure they are in good condition and not damaged.
