This article will take an in-depth look at scissor lifts.
The article will bring more detail on topics such as:
This section will explore the details of scissor lifts and their various parts.

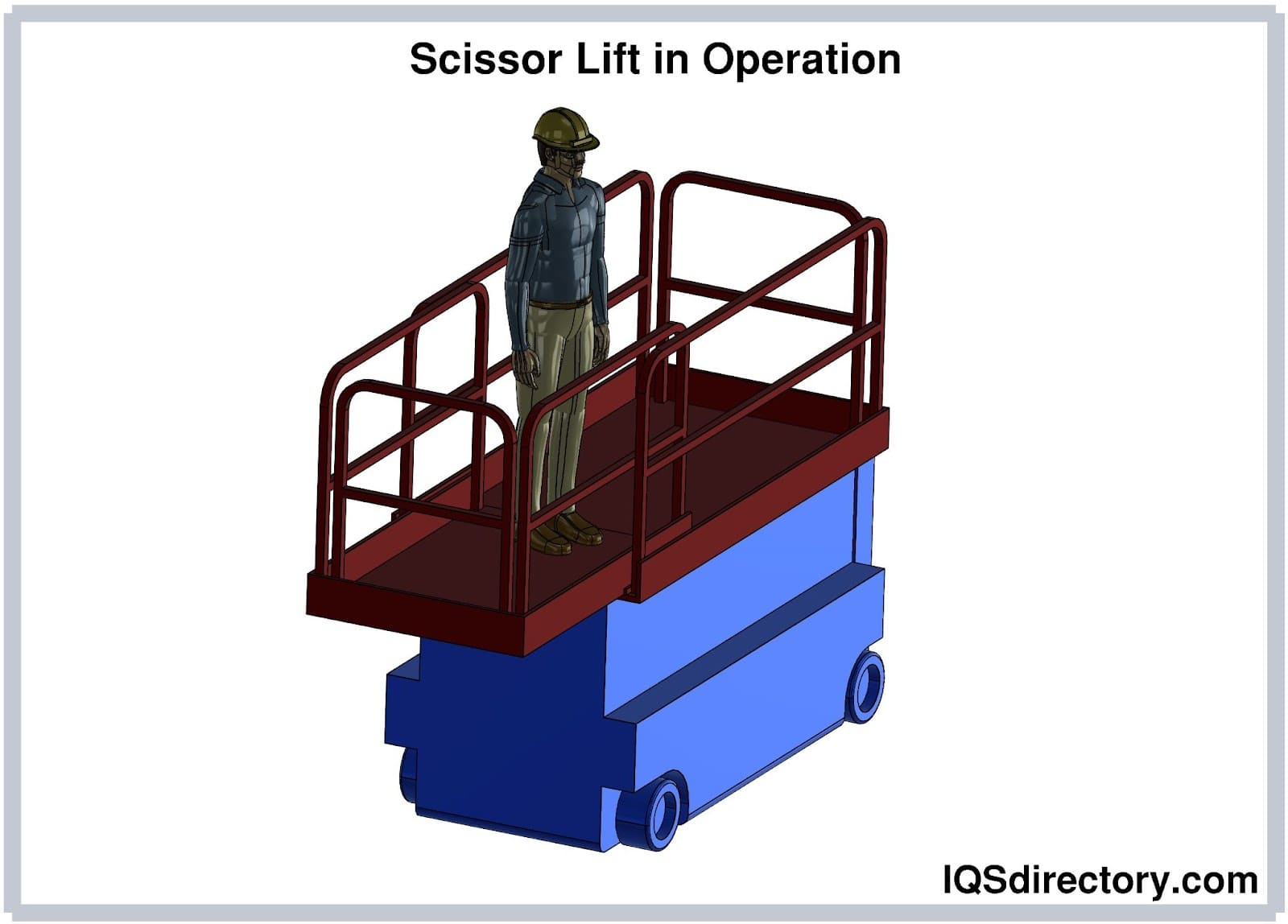

Scissor lifts are a form of elevated work platform frequently employed in construction and building upkeep to elevate workers and equipment to necessary heights.
The scissor lift consists of both a power system and a control system that work together. These systems are interdependent, with the control system receiving its power from electricity, diesel, or compressed air. The operation involves driving a pressure pump to increase pressure within the hydraulic cylinder, transferring hydraulic oil into the lift cylinder, and using this pressure to elevate the support arms, all driven by 220V or 380V electricity.
A scissor lift is a type of mechanical device designed to lift or lower items using electric power. It is primarily used in industries and tasks that require working at height, including sectors like manufacturing, chemical processing, municipal services, electric utilities, and logistics.
The key components or parts of a scissor lift are:

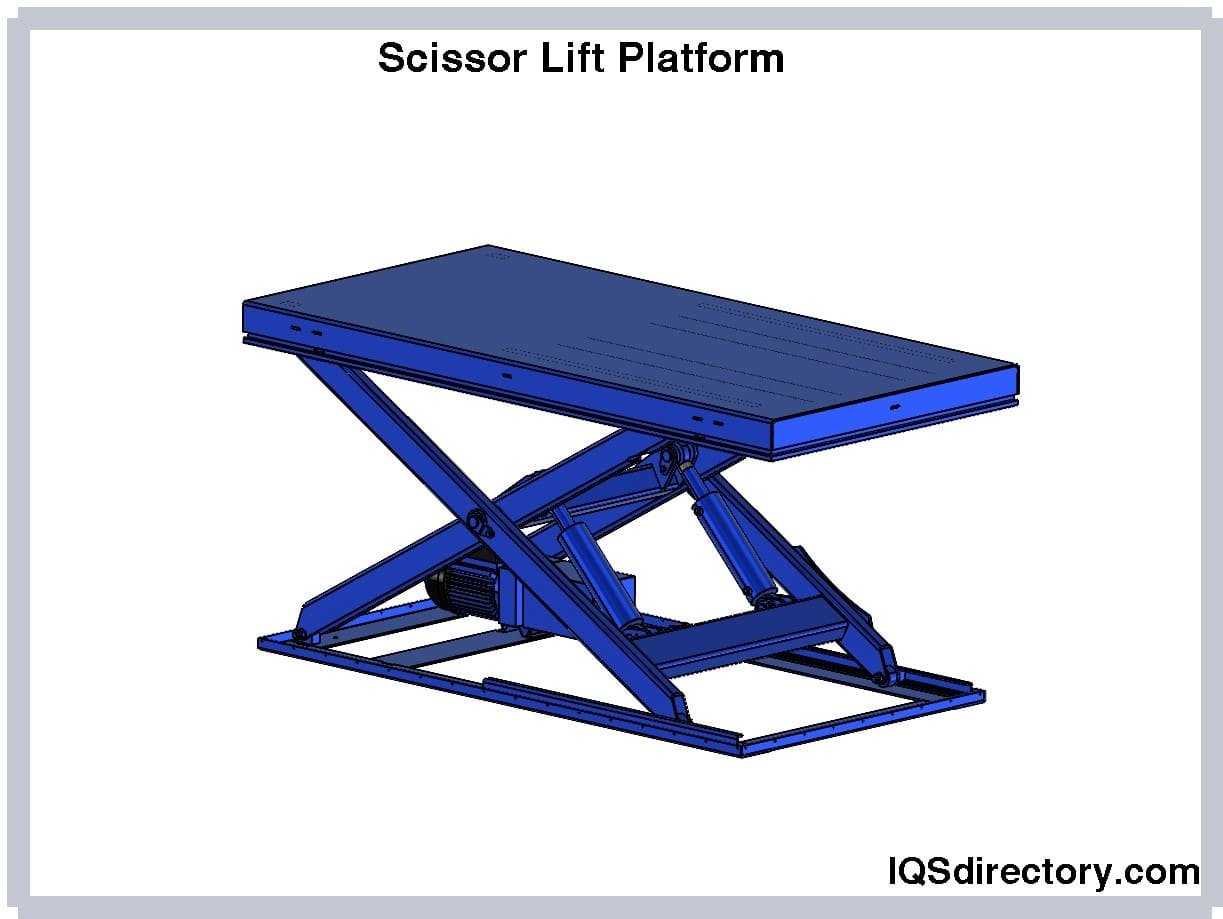

A scissor lift mechanism's platform can be a variety of sizes, forms, and materials. The platform, also known as a lift table, is the working area that supports the load of workers or work objects being raised or lowered by the scissor lift. For fall protection, most units that transport personnel have a platform with guardrails around the perimeter. Lifting and lowering goods and inanimate things are common uses for platforms without rails.
The scissor lift features a pantograph arrangement of metal struts that form an X-shaped pattern, linking the platform to the base. The maximum height the lift can reach is influenced by the length and quantity of these struts. As the struts compress and extend, they move the platform up and down. The power for this movement can come from different sources, depending on the specific requirements of the application.

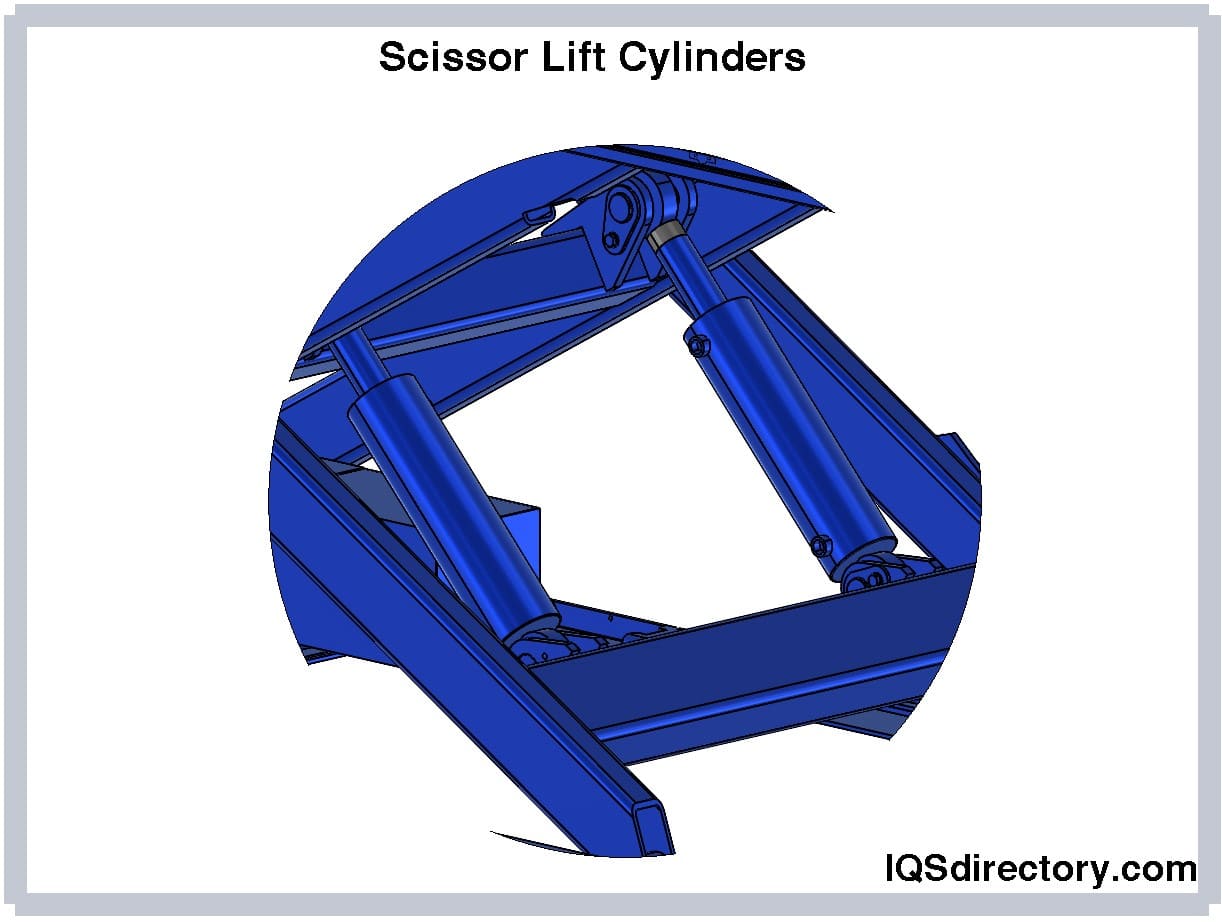

Scissor lifts typically incorporate one to four cylinders for compression or expansion. These cylinders may be filled with hydraulic fluid in hydraulic models or compressed air in pneumatic systems, depending on the design and operational needs. By adjusting the pressure within these cylinders, the lift mechanism raises or lowers the platform and scissor legs.

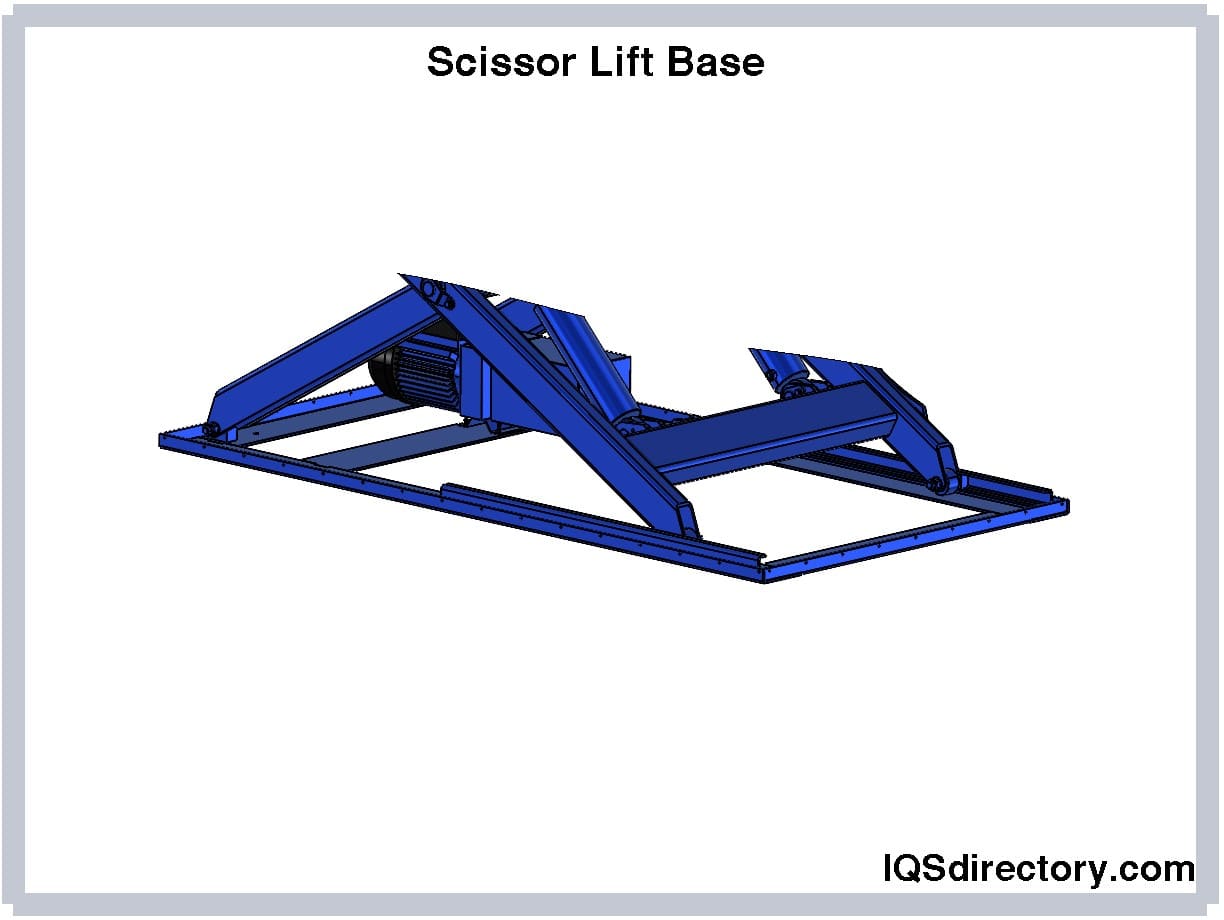

The scissor lift mechanism is supported by a sturdy base constructed from durable, rigid brackets. Tracks direct the rollers located at the bottom of the scissor legs within this base. Together with strong support from the base, these rollers ensure smooth and stable movement during elevation and descent. The design and dimensions of the base can vary depending on the specific model and intended use of the scissor lift.

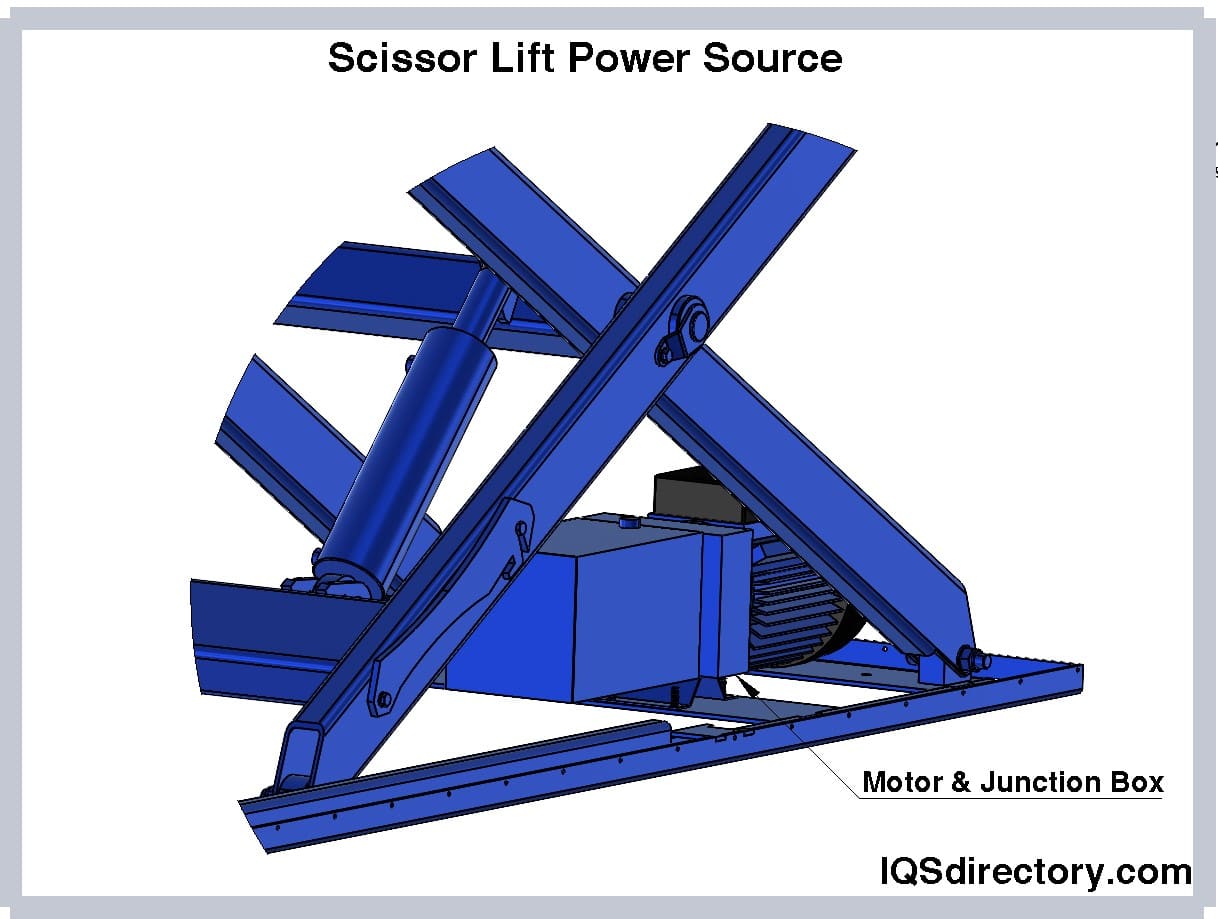

Scissor lifts can be powered by a range of sources, including self-contained engines that use different fuels or external power units. The choice of power source depends on the operating environment and specific requirements of the scissor lift.

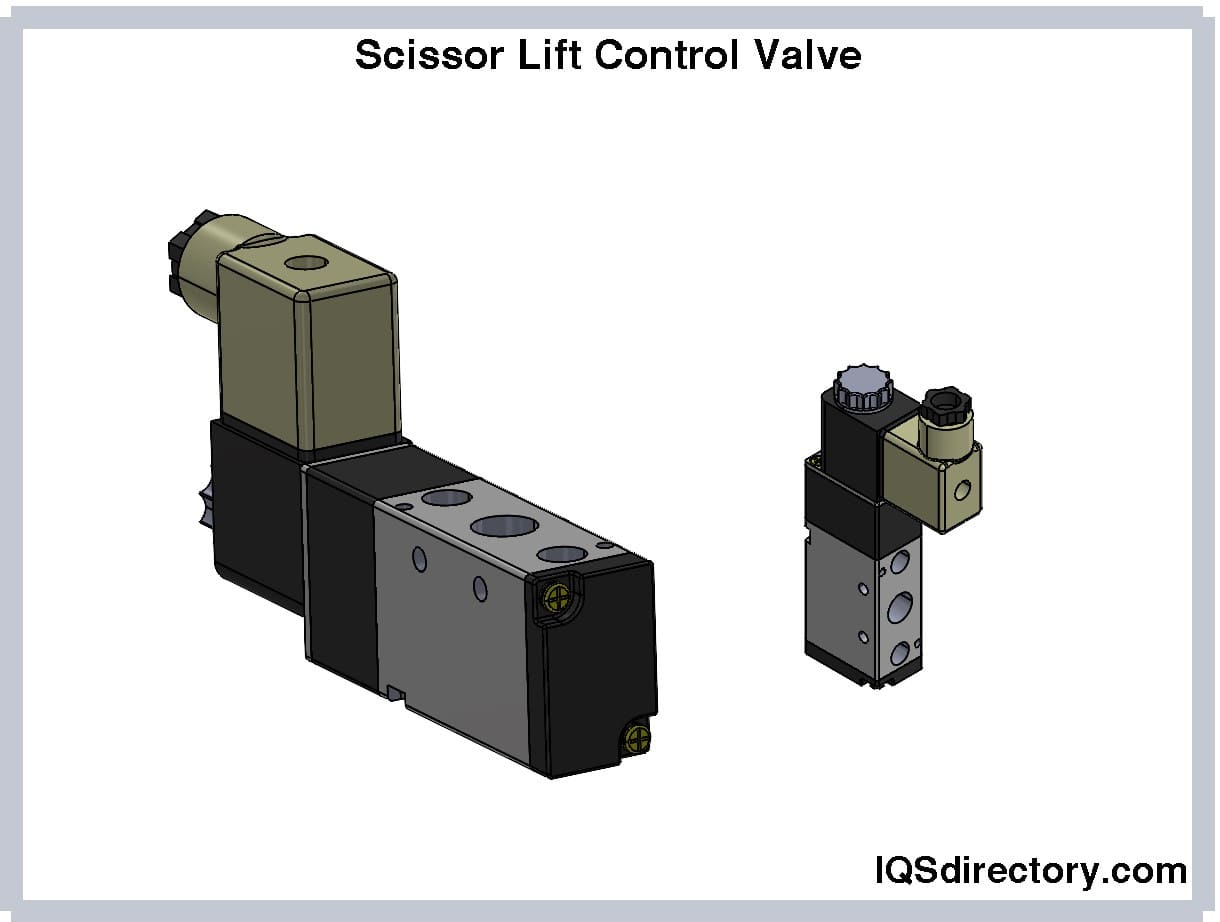

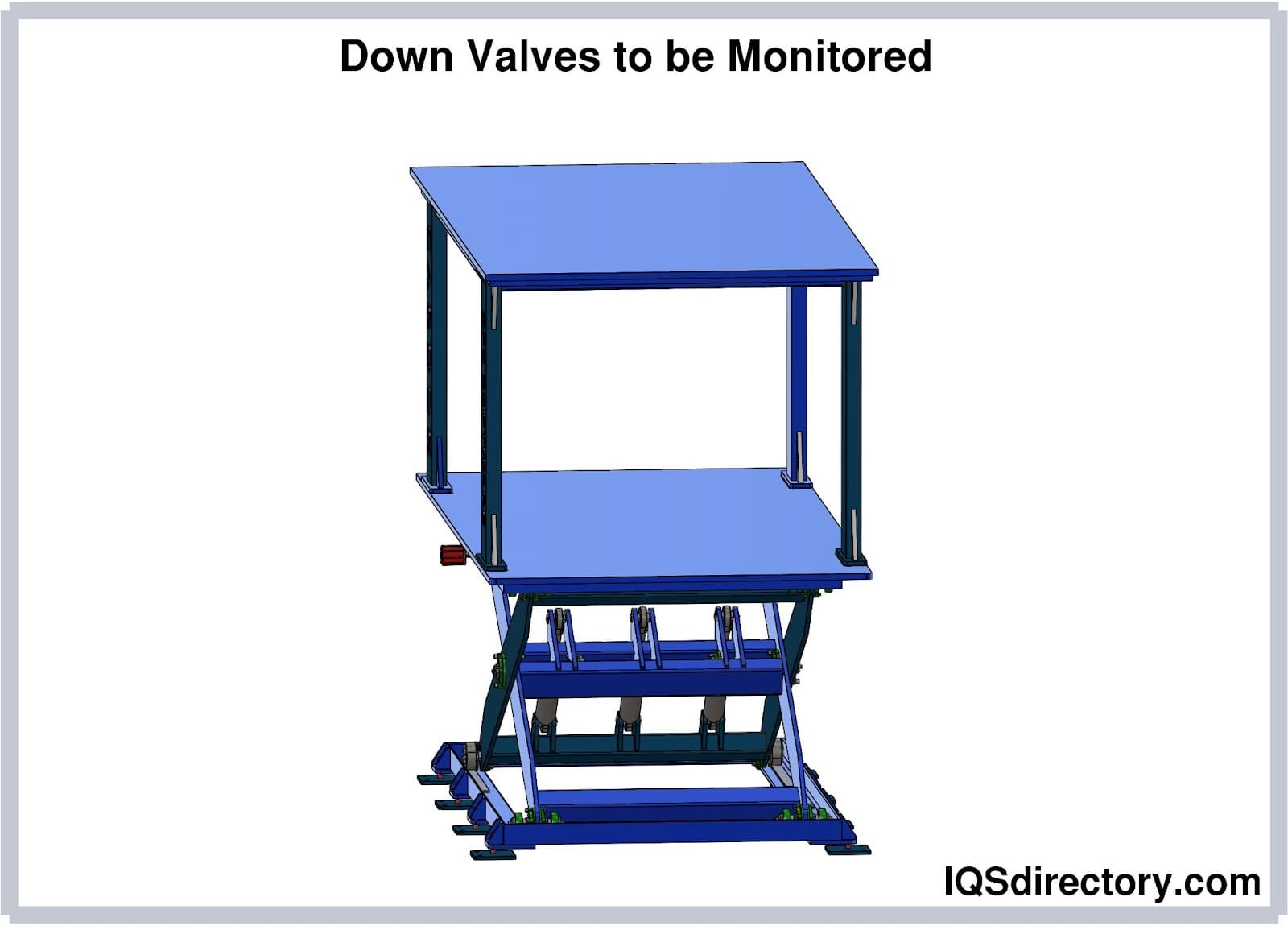

The down valve regulates the return of compressed air or hydraulic fluid to its reservoir, influencing the speed at which the platform descends. This valve, which controls the rate of descent, is linked to the power supply.
The flow control valve manages the rate at which fluid or compressed air enters or exits the reservoir cylinder, thereby regulating the speed of the scissor lift's ascent and descent.
Scissor lifts come in four structural varieties: scissor cylinder type, aluminum alloy (column) type, crank type, and chain type. These lifts are user-friendly, versatile, and well-suited for various home-related tasks, offering excellent stability.
The various types of scissor lifts are as follows:
Hydraulic scissor lifts can be used indoors and outside and powered by either an electric motor or compressed air. From cylinder to cylinder, the hydraulic liquid is pushed or drained, allowing the scissor lift to raise or drop as needed. Warehouses, construction sites, and infrastructure projects are all good places to use hydraulic scissor lifts. The scissor lift operator turns on the power supply. Filling the cylinder(s) with hydraulic fluid begins with the use of a valve to control the flow of fluid or air (or compressed air in a pneumatic system).
The scissor lift control system directs hydraulic fluid or compressed air from the reservoir to the operating cylinders. To lift the platform, the hydraulic cylinder extends, causing the scissor legs to spread apart. To lower the platform, the operator returns the fluid to the reservoir or reduces the air pressure in the cylinder, which causes the scissor legs to retract and bring the platform down.
The term "scissor" refers to the cross-braced mechanism between the base and the elevated platform, resembling the action of a pair of scissors. Fixed installation lifts are often used to transfer items from vehicles to a building's receiving areas across different floor levels. Conversely, mobile hydraulic scissor lifts are compact, lightweight devices designed for moving goods or large objects within a factory or workshop.

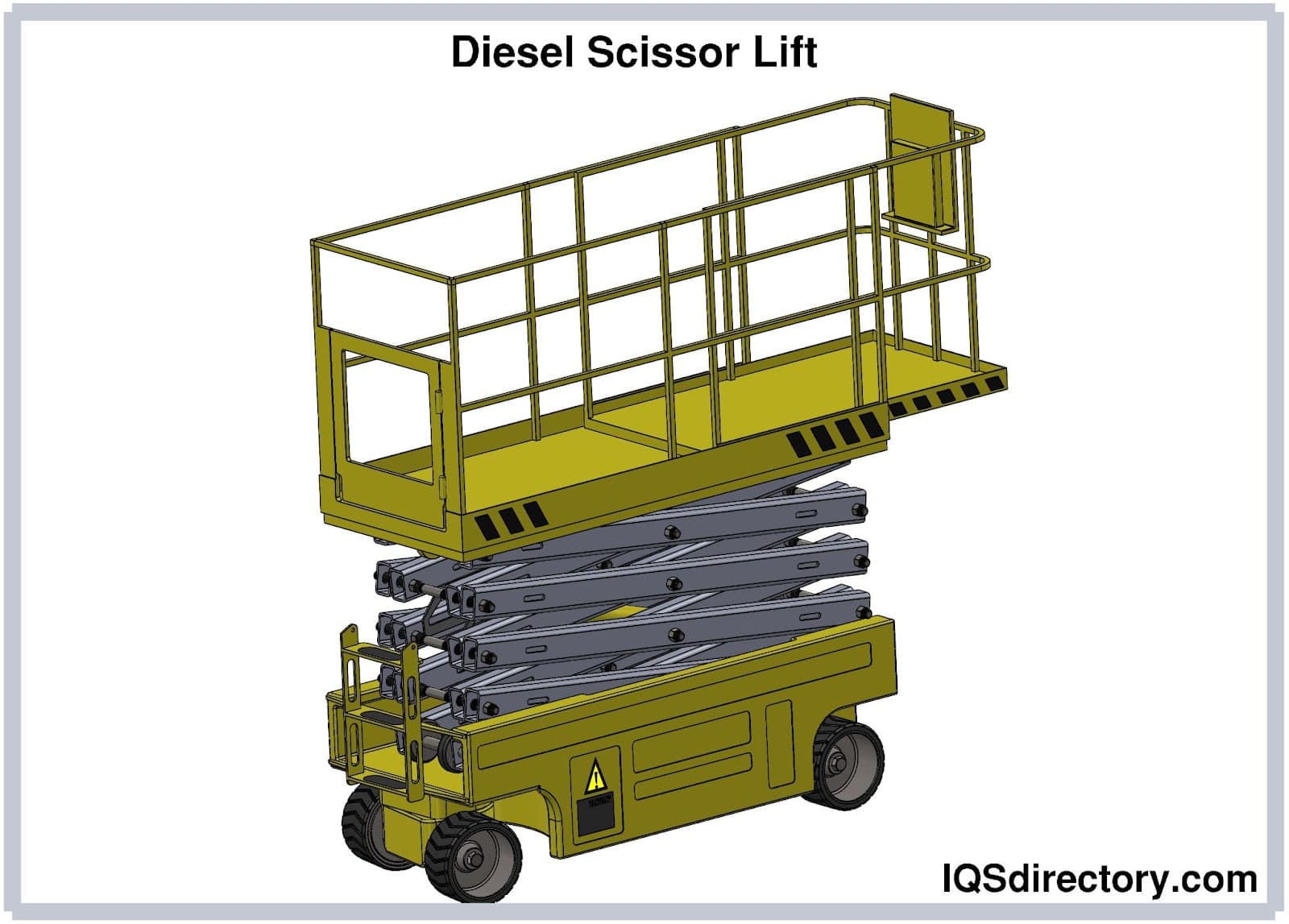

Diesel scissor lifts are powered by traditional diesel engines, which are less environmentally friendly compared to electric models due to their noise and exhaust emissions. These lifts typically feature larger platforms and are ideal for outdoor construction sites, well-ventilated indoor environments, or locations where engine noise is not a major concern. Diesel fuel is generally more economical than gasoline and provides substantial torque at low RPMs.
Heavy-duty diesel scissor lifts are designed with larger platforms and higher load capacities. Some models feature hybrid powertrains for use in enclosed environments. These lifts are among the most robust available, making them well-suited for demanding tasks. They are commonly used on outdoor job sites, with certain versions, such as those designed for rough terrain, capable of handling uneven surfaces. Additionally, many diesel scissor lifts offer expansive deck areas and significant platform capacities, allowing operators to handle large and heavy equipment with ease.

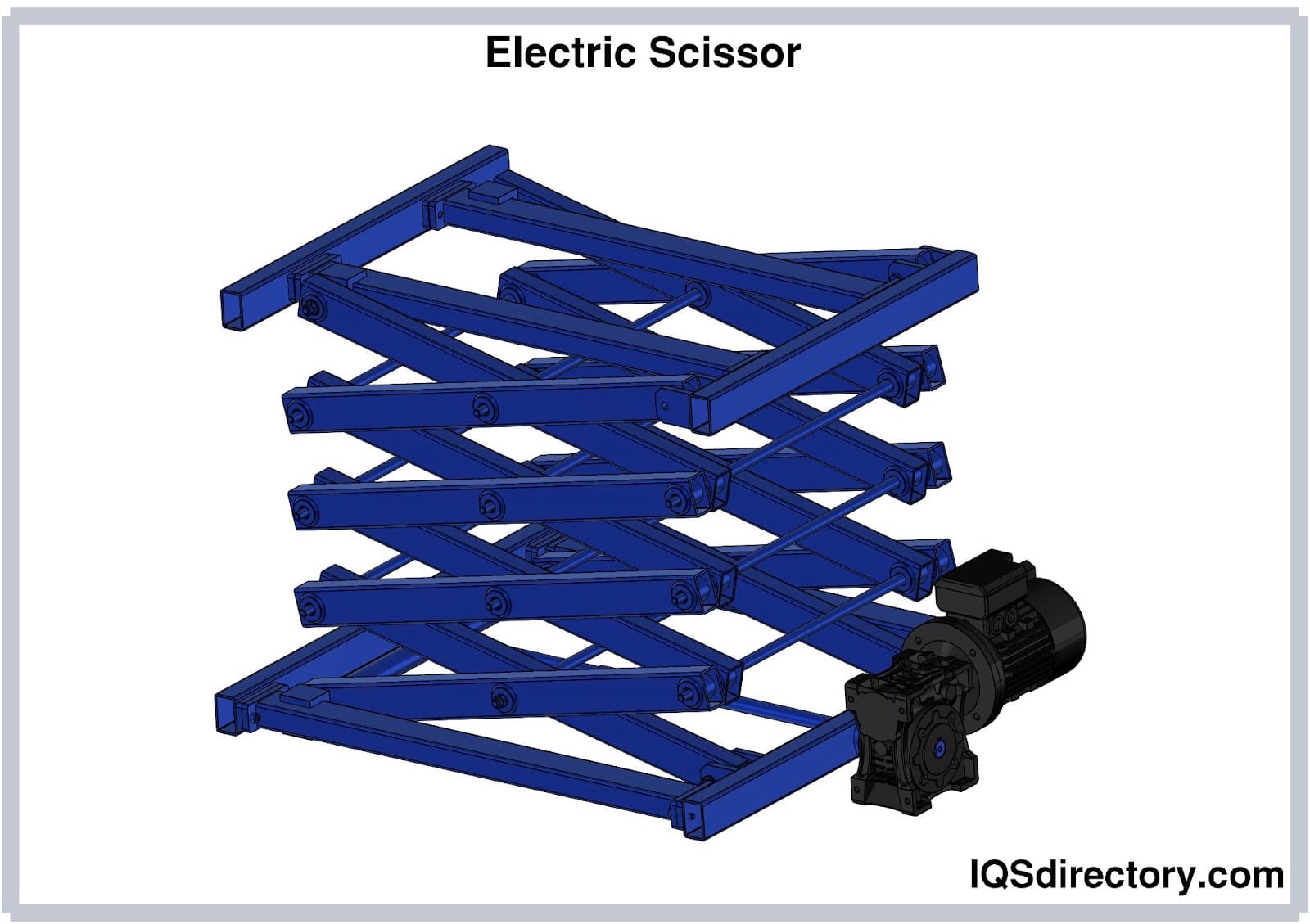

Electric scissor lifts are more environmentally friendly, operating on battery power instead of a combustion engine. They are ideal for indoor use due to their quiet operation and zero exhaust emissions. Typically, electric models are more compact and feature narrower platforms compared to their diesel counterparts. To avoid damaging floors, they often come with non-marking tires. While they are generally used for smaller tasks and have lower load capacities compared to diesel, gas, or propane-powered lifts, they are well-suited for indoor environments.
Smaller scissor lifts can be easily transported or towed between job sites. For specific uses, they can be mounted on automated guided vehicles (AGVs), flatbeds, or railcars. Their all-steel construction and twin shear scissor stack ensure both rigidity and durability for long-term operation. Electric scissor lifts are designed for reliable performance, utilizing high-quality components and deep cycle batteries that last throughout the duration of the job.

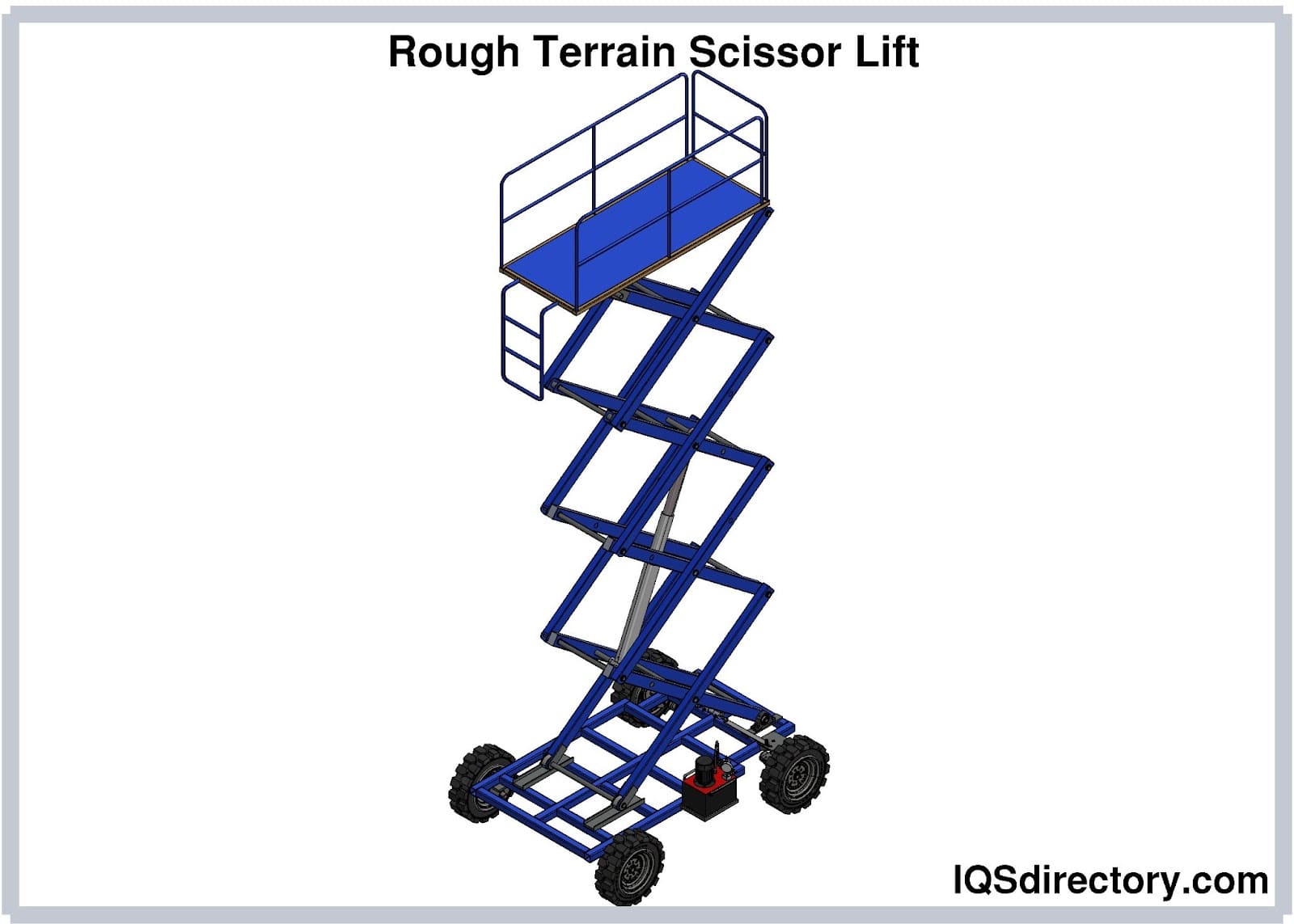

Rough terrain scissor lifts are specialized elevated work platforms designed to handle challenging outdoor environments. Typically powered by diesel, petrol, or LPG engines, these lifts provide the extra power needed to navigate rugged surfaces and lift heavier loads. They feature enhanced traction and higher travel speeds, facilitating safe movement across large construction sites. These machines are primarily used to elevate personnel and materials from uneven ground, making them ideal for demanding conditions where they enhance productivity through improved traction, gradeability, and operational speed.
Gradeability refers to the maximum slope a rough terrain scissor lift can ascend compared to its operating angle, which is the steepest gradient the machine can handle while in use. In the accessibility industry, gradeability indicates the steepest incline a machine can climb or descend. Rough terrain lifts are equipped with high-performance tires and four-wheel drive (4WD) to deliver the necessary power for navigating steeper gradients effectively.

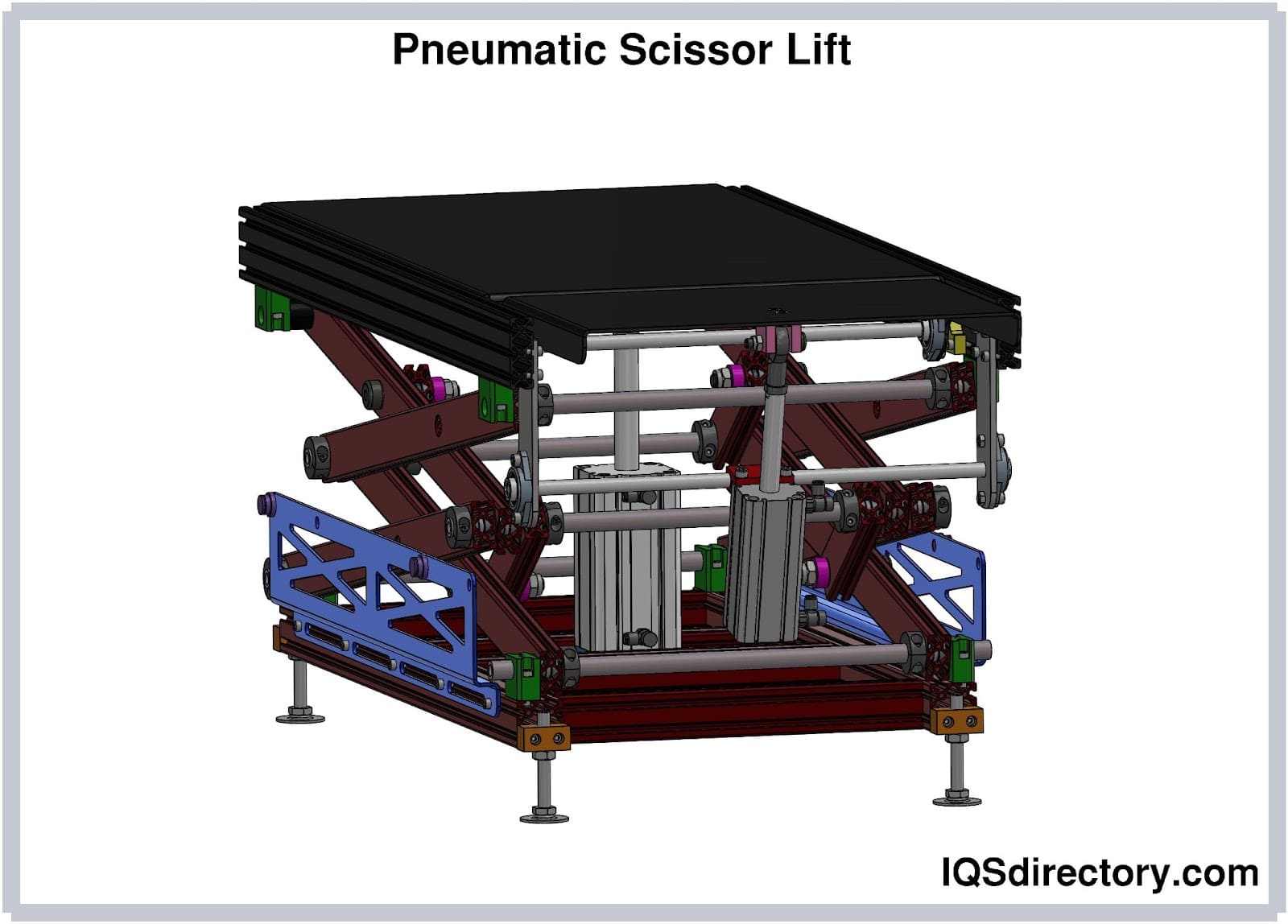

Pneumatic scissor lifts are driven by air rather than electricity or hydraulics, resulting in a very clean and low-maintenance lift. They are great for operations that aim to be ecologically friendly and reduce their carbon footprint because they use air pressure to raise and lower the lift. The airbag or numerous airbags used in the scissor lift operating system are commonly configured as single, double, or multiple, depending on the size of the scissor lift and its use. The unit is elevated and positioned by an air compressor for working or simple loading and unloading.
Pneumatic lifts offer an eco-friendly alternative for smaller-scale and indoor use, as they do not emit harmful gases. The Pneumatic Scissor Lift, constructed from durable steel, positions pallets within easy reach of the operator, enhancing convenience and efficiency. Being entirely pneumatic, it is straightforward to operate, with no electrical or hydraulic systems involved. The platform is controlled by a lever that adjusts the height of the load to suit the worker’s needs. Smooth rotation is facilitated by ball bearing center pivots.
This chapter will explore the various applications and advantages of scissor lifts. It will also cover important factors to consider when choosing scissor lifts, including aspects of inspection, maintenance, and common issues encountered with these devices.
The applications of scissor lifts are:
The advantages of scissor lifts are:
Scissor lifts are highly effective for palletizing and loading tasks. They also allow for the adjustment of the work surface to the optimal height, which helps in reducing cycle times and enhancing loading efficiency.
Heavy lifting often results in back injuries, leading to lost time. Scissor lifts provide a means to elevate goods to the necessary height, minimizing the need for repetitive lifting from pallets to tables. By placing the pallet at the correct height, scissor lifts reduce the strain of lifting both vertically and horizontally. Proper use of scissor lifts, following safety guidelines, can significantly reduce the risk of injuries related to heavy lifting.
Scissor lifts offer adjustable heights to accommodate the preferences of different operators. They not only streamline repetitive stacking and loading tasks but also improve ergonomics. By reducing the need for bending and twisting to reach table height, scissor lifts, or lift tables, enhance vertical lifting and handling of materials and personnel. They boost productivity while minimizing the risk of on-the-job injuries. Scissor lifts are versatile, serving as pallet positioners, lifting devices, or cargo transfer tools, making tasks quicker and safer.
With some models capable of reaching up to 32 feet, scissor lifts enable employees to access hard-to-reach areas. The lift's height and load capacity are linked to its overall weight; therefore, heavier lifts can reach greater heights and handle more weight.
These lifts are designed for ease of use, with straightforward controls that minimize operator fatigue. This simplicity means operators can be trained quickly, enabling the lift to be put to work in a short period.
Scissor lifts are among the smallest aerial work platforms available. This compact size is advantageous in confined spaces, such as event venues or densely packed warehouses where access to elevated areas is limited.
Compared to other aerial work platforms that require more floor space, scissor lifts are relatively compact. They are easy to store, as the space needed is approximately equivalent to the size of the lift-able platform.
Scissor lifts can be customized to meet specific industry requirements. Modifications might include adding tilters to reduce the risk of falls or incorporating turntables to allow the lift to rotate while elevating the platform.
Scissors are undoubtedly the most cost-effective and versatile option among all other options. A single vertical lift may service a full warehouse. Hydraulic lifts also require nearly no energy, enhancing their efficiency.
The disadvantages of scissor lifts are:
The considerations when selecting scissor lifts are:
Operator Controls - The lift's controls should be simple and precise. The easier the lift is to move, the less time the operator will spend situating it.
Simple features like tilt warnings and anti-rollback help to prevent tragic tragedies. When the platform is raised, some scissor lifts automatically reduce maximum travel speed to help minimize tip-overs when the operator is in a hurry.
Certain failures are inevitable with fixed elevators. If not addressed promptly, these issues can lead to considerable inconvenience for users and adversely affect job efficiency. Common problems experienced with these lifts include:
Failure of the down valve causes the lifting platform to not drop: When the down button is pressed, check to see if the down valve has electricity. Check whether the solenoid valve spool is jammed or damaged if there is no electricity; if there is electricity, try to eliminate it. There is a problem with the descending speed control valve. If the adjustment is invalid, replace the descending speed control valve with a new one.
Routine daily inspections of electric scissor lifts often involve checking for visible leaks (such as oil or battery fluids) and looking for any foreign objects.
Below are the maintenance recommendations for scissor lifts as outlined by the Occupational Safety and Health Administration (OSHA). For complete compliance, refer to the manufacturer’s factory-issued manuals.
Inspect the following areas for any indications of issues:
For scissor lift owners, batteries often represent a significant and costly concern. Poorly maintained batteries can deteriorate more quickly and require earlier replacement. Therefore, regular monitoring and upkeep are crucial to ensure batteries remain fully charged and at proper water levels. Following these battery maintenance practices will help maximize their lifespan:
To facilitate easier monitoring and maintenance, an advanced battery monitoring system can be utilized. This system remotely assesses the battery charge and usage, providing diagnostic insights into both the battery and charging system. Using proprietary algorithms that continuously learn and adapt, it can forecast when maintenance tasks, such as adding water, are needed. This forecasting considers factors like usage patterns, ambient temperature, maintenance history, and other variables. The system records charge history and details on the machine controller, and a hardware module enables wireless connectivity and interaction. Combined, these components deliver real-time data including precise state-of-charge, battery depletion tracking, fluid level monitoring, and charging history. Access to this detailed battery information benefits machine owners and operators by enhancing uptime, reducing maintenance and replacement costs, and saving time through more efficient, proactive monitoring.
A scissor lift is a piece of mechanical equipment that promotes or unloads items by using electric energy as a source of power. It is mostly utilized in high-altitude homework-related sectors and disciplines, such as enterprises, the chemical industry, municipal administration, electric power, and transportation. Selecting the right scissor lift should consider the different types, applications, and benefits.
A hydraulic lift is a device for moving objects using force created by pressure on a liquid inside a cylinder that moves a piston upward. Incompressible oil is pumped into the cylinder, which forces the piston upward. When a valve opens to release the oil, the piston lowers by gravitational force...
A lift table is a platform capable of holding materials and raising, lowering, and adjusting them to any height to meet the needs of an application and the user’s requirements. Lift tables are supported by a strong, rigid, and stable base frame placed flat on the floor, in a pit, or equipped with casters or wheels...
A hydraulic system is based on Pascal‘s principle of fluid pressure, which hypothesizes that a change in pressure in a fluid is transmitted to all points of the fluid in all directions. With a hydraulic lift, an electrically powered pump pushes fluid into a cylinder at the base of a lifting jack system that lifts the platform up and down...
