This Article takes an In-depth look at Hydraulics and Pneumatics
You will learn more about topics such as:
Understanding the mechanical distinctions between hydraulics and pneumatics is crucial. Both systems are integral to many industries and essential for performing various tasks. The choice between them depends on the specific requirements and the environment in which they are used. Although they are versatile and can operate in various settings, their effectiveness may be influenced by weather conditions and terrain types.
The main distinction between hydraulics and pneumatics lies in the substances they use. Hydraulics operate with a pressurized fluid to drive mechanical actions. This system relies on incompressible fluids, typically oil, to transfer force from one point to another without changing volume under pressure. The force applied can be significantly amplified as the fluid moves through the system, potentially generating up to nine times the original force. Hydraulic systems usually consist of a network of pistons, where a simple setup might include two pistons, with increased complexity and force as more pistons are added.
Pneumatic systems, on the other hand, use gas instead of liquid. They consist of interconnected components where compressed air, supplied by a compressor, flows through a series of hoses and is regulated by valves. Similar to hydraulic systems, compressed air in a pneumatic cylinder is converted into mechanical energy. In some cases, inert gases that don’t undergo chemical reactions are used for specific tasks within pneumatic systems.
Hydraulic systems offer several advantages, with their ability to generate substantial force being a key benefit. Below are some of the main advantages:
Hydraulic systems find numerous applications, such as in hydraulic lifts, brakes, and various components of aircraft. Since their inception in 1882, hydraulic technology has evolved significantly, becoming a crucial element in many industries.
Similar to hydraulic systems, pneumatic systems offer several advantages, including:
Pneumatic systems were initially used for message delivery, where notes were transported in containers through air-filled tubes. Today, pneumatics have a wide range of applications, from brakes and dental drills to vacuum pumps and sewer systems. Their versatility and widespread use are largely due to the low cost of manufacturing these systems.
It can be challenging to differentiate between hydraulics and pneumatics since both rely on pressure and a medium to operate. Both systems are cost-effective, safe, and self-contained with minimal moving parts. A notable feature of these systems is the strong advocacy from their proponents.
In both hydraulics and pneumatics, a pump acts as the actuator, with valves controlling the process to convert pressure into mechanical movement. Each system generates more force than the initial input. Although they both utilize pressure, they differ in their mediums: hydraulics use liquids such as oil or water, while pneumatics rely on gases, primarily air.
In hydraulic systems, the medium used is incompressible, meaning its volume remains constant regardless of applied pressure. These systems are generally large and complex, requiring substantial space for fluid reservoirs and bulky components to generate the necessary pressure, which makes them more costly compared to pneumatic systems. Hydraulics can handle heavier loads due to their size, but they are slower to start and operate because of the viscous nature of the oil and the energy required to move it through the system.
Pneumatic systems, on the other hand, use air or inert gases as their power source. They are cleaner and more suitable for environments where hygiene is critical, such as in the pharmaceutical and biotech industries. Pneumatic systems are typically simpler and less expensive, often only needing a basic on/off switch. They are compact and easier to store due to the absence of a large fluid reservoir. Additionally, pneumatic systems can expel the used gas into the environment, and their operation is faster with smaller cylinders due to the quick flow of air with minimal resistance.
Each system, whether hydraulic or pneumatic, is tailored for specific applications. Generally, there is little overlap between the two due to their distinct designs, sizes, and operational processes. Below is a summary of the key differences between hydraulic and pneumatic systems.
Hydraulics: utilizes a liquid medium, typically oil.
Pneumatics: relies on inert gases or air.
Hydraulics: operate slowly because of their complex mechanisms.
Pneumatics: function more quickly due to the use of air or gas as their medium.
Hydraulics: Maintenance and installation can be costly and time-consuming.
Pneumatics: Installation and maintenance are straightforward, thanks to their simple operating system.
Hydraulics: operate at pressures ranging from 3000 to 5000 psi.
Pneumatics: typically operate at pressures between 100 and 150 psi.
Hydraulics is scientifically defined as the study of fluids in motion, particularly their ability to perform complex tasks. When pressure is applied to a liquid within a confined space, it is transmitted uniformly throughout the space. Hydraulic systems utilize this principle to amplify force. This allows a relatively small force to lift or move thousands of pounds by leveraging the pressure exerted on the fluid.

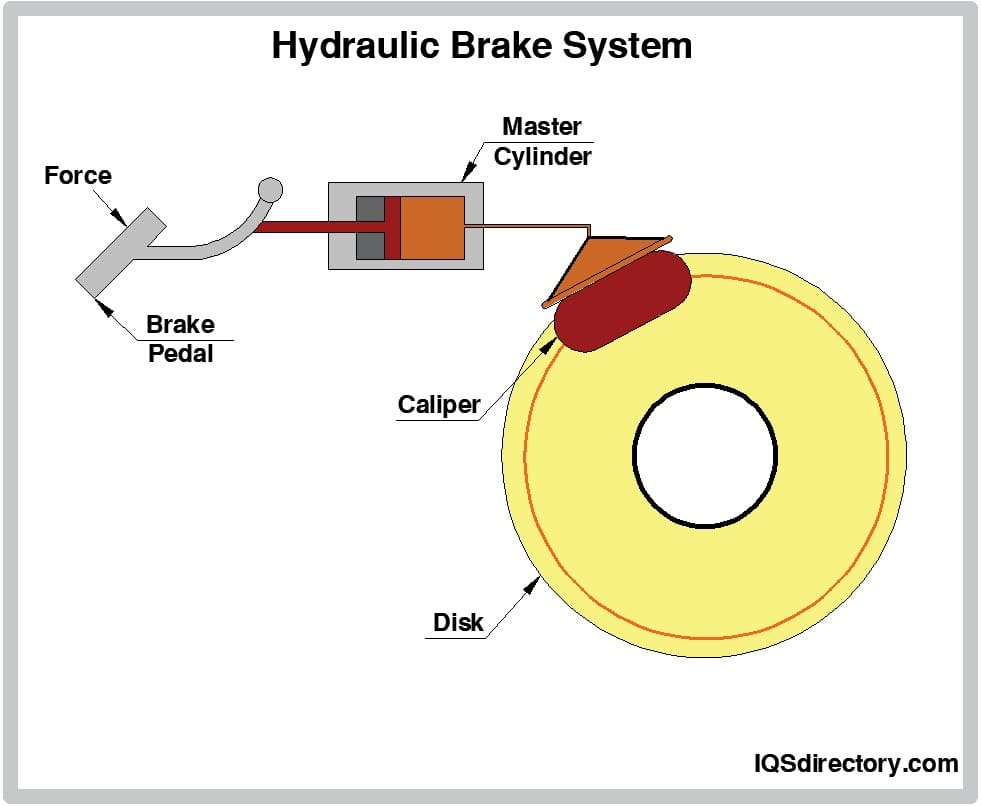

A common everyday application of hydraulics is in braking systems. In these systems, pressure applied to the brake pedal activates hydraulic fluid, which then engages the drum shoes or disc calipers. The mechanical force from the pedal is converted into hydraulic pressure within the master cylinder, thereby facilitating effective braking.
These hydraulic principles are applied in various devices, such as airplanes, where they help slow the aircraft during landing, and in trash compactors found on garbage trucks. The space program also utilizes hydraulics due to their ability to function effectively in zero-gravity environments. Since their invention, hydraulics have become essential across numerous industries, with their applications expanding significantly.
A defining characteristic of hydraulic systems is the type of fluid they use, which is determined by its viscosity. Most hydraulic systems employ fluids with low viscosity to ensure smooth flow and efficient operation.
Common types of hydraulic systems include gear pumps, screw pumps, and fixed displacement vane pumps. Each utilizes a rotary mechanism designed for minimal tolerance between moving parts. Generally, hydraulic devices operate at low rotational speeds.
Gear pumps are widely used hydraulic pumps featuring a pair of interlocking gears within a casing. These gears apply pressure to the fluid, transferring it from one area of the pump to another to generate force. They are known for their reliability and consistent flow rate.

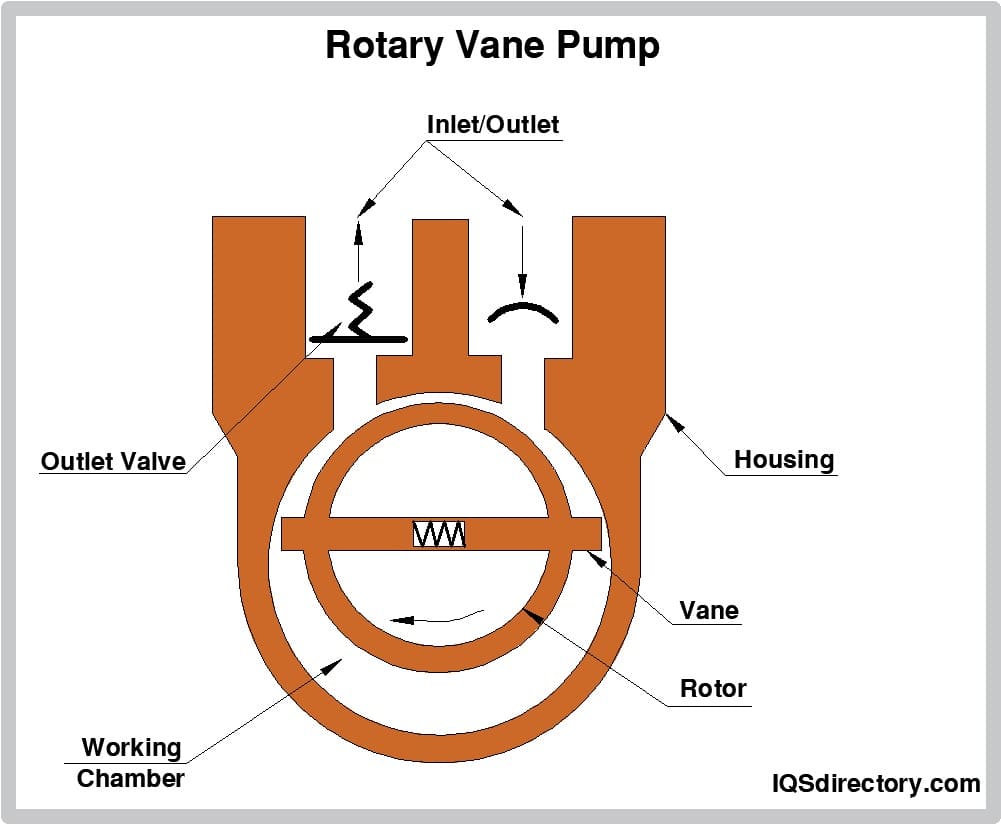

Rotary vane pumps consist of adjustable vanes within a sealed housing. As the rotor spins, the vanes adjust to maintain contact with the inner surface of the housing. Fluid is drawn into the housing and expelled as the vanes and rotor turn. These pumps are most effective with low viscosity fluids, and some engineers consider rotary vane pumps to be more efficient compared to gear pumps.
Screw hydraulic pumps feature interlocking spiral gears within a cylinder. This mechanism operates similarly to the Archimedes' screw, where oil is moved along the cylinder by the gears' meshing teeth.
While gear, rotary vane, and screw hydraulic pumps are common types, they represent just a few of the many varieties available. Other types include radial piston, axial piston, and gerotor hydraulic pumps, each engineered to perform distinct functions.
When manufacturing hydraulic pumps, selecting the appropriate materials is crucial, based on the pump type. It’s essential to choose metals with adequate thickness to withstand the generated pressure. Typically, steel or iron is used, with the gauge being an important consideration.
The hydraulic pump’s mechanism and fluid are contained within a tube or housing, which must be fully sealed. This seal is verified through testing prior to component installation. Basic hydraulic pumps are housed in cylinders, as seen in screw and rotary vane pumps. Gear-type hydraulic pumps also feature a housing, with its size determined by the required workload and the dimensions of the gears.
Pneumatic systems utilize compressed air to transport solid objects through a network of tubes. They were first introduced in the late 19th century and gained widespread use throughout the 20th century. Mid-century, they were commonly used in retail environments to send customers' bills and payments to a central location, a system still visible in drive-through banking services today.
Since the 1950s, the appeal of pneumatic messaging systems has diminished with technological advancements. However, they remain valuable in scientific applications and specialized testing. In the 21st century, there are ongoing experiments exploring pneumatic train systems that use magnetic levitation within enclosed tubes.
Pneumatic systems generate controlled energy using compressed air and are employed across various industries. These systems depend on air compressors to draw air from the environment and store it under high pressure in a receiver. The air is then distributed through pipes and valves, typically at pressures ranging from 6 kg/sq. mm to 8 kg/sq. mm, with maximum forces reaching up to 50 kN. The energy from the compressed air is harnessed by a piston or vane to perform work.
Recently, pneumatics have found diverse applications. Given the increasing focus on environmental sustainability, pneumatics are increasingly favored over hydraulics because their operation produces only air as a byproduct, making them a more eco-friendly option.

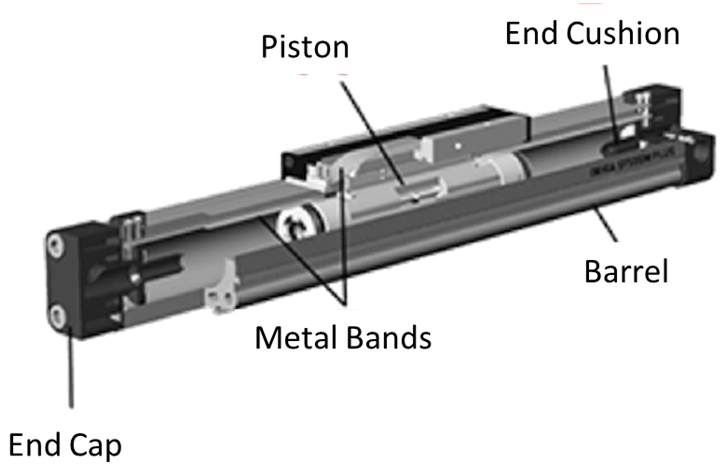

Rodless pneumatic cylinders differ from traditional ones in that they move the load parallel to the piston rather than using a rod. While they offer the same stroke length as rod-equipped cylinders, they require less space and provide consistent force in both directions of the stroke. The entire stroke mechanism is contained within the cylinder’s body, resulting in a more compact footprint.
As with other pneumatic systems, proper sizing is crucial for rodless pneumatic cylinders. Incorrect sizing—either too large or too small—can lead to inefficiencies and higher costs. To select the appropriate rodless cylinder, it's important to consider factors such as load size, stroke length, cycle rate, actuator orientation, and mass velocity. These elements will help determine the actuator's thrust capacity based on the applied air pressure.
Rodless pneumatic cylinders come in three types: magnetic, cable, and slotted. These classifications refer to how the piston is attached to the carrier, with slotted connections offering the most secure attachment. Each end of a rodless pneumatic cylinder is equipped with cushions to absorb impact and prevent harsh stops.
Rodless pneumatic cylinders eliminate deflection issues associated with traditional cylinders that use a rod, which can experience lateral load deflection. This design advantage allows rodless cylinders to achieve much longer strokes without compromising performance.
Moreover, rodless pneumatic cylinders are more environmentally friendly because they are sealed to prevent leakage of lubricants or moisture from the compressed air. In contrast, traditional pneumatic cylinders can expel moisture and lubricants as the rod extends.

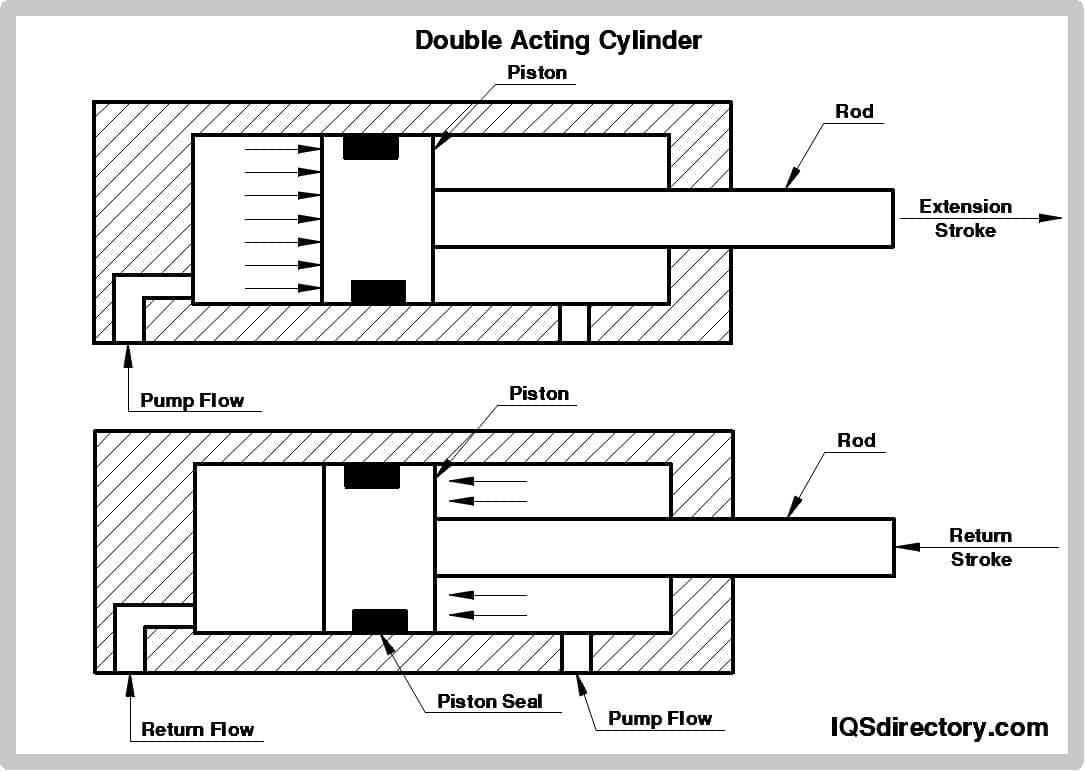

Pneumatic systems generate force by using compressed air, which is stored under pressure and released through valves. As the air is released, it expands until it reaches atmospheric pressure. Pneumatic systems are particularly suited for environments where high power is not required and space is limited. There are four primary types of pneumatic systems: dilute phase, dense phase, vacuum-based, and pressure-based.
Dilute-phase pneumatic systems move powders or particles through high-velocity gas streams. Unlike dense-phase systems, they do not require precise calibration. This method is ideal for handling dry bulk materials cost-effectively. In this system, materials such as grain are introduced into a high-velocity gas stream via a rotary airlock valve and transported through pipes. It is commonly used in grain and cereal conveying systems.
Dense-phase pneumatic systems operate at a line pressure calibrated to the material’s properties, enabling solid materials to be transported at lower velocities and sometimes in a semi-fluid state. This system is effective for transporting abrasive materials without damaging the equipment. To facilitate material flow and prevent blockages, air busters are installed along the pipes to keep the material moving.
Vacuum-based pneumatic systems operate by drawing materials towards them. This type of system is ideal for transferring materials to a central location and can efficiently lift items from open containers. Vacuum systems are less prone to leaks, making them suitable for handling hazardous materials.
Pressure-based pneumatic systems distribute objects to multiple locations using diverter valves that regulate the air flow within the system. Operators can control these systems by adjusting the pressure settings. Pressurized systems are capable of transporting heavier materials over longer distances, with pressure managed by a rotary airlock valve.

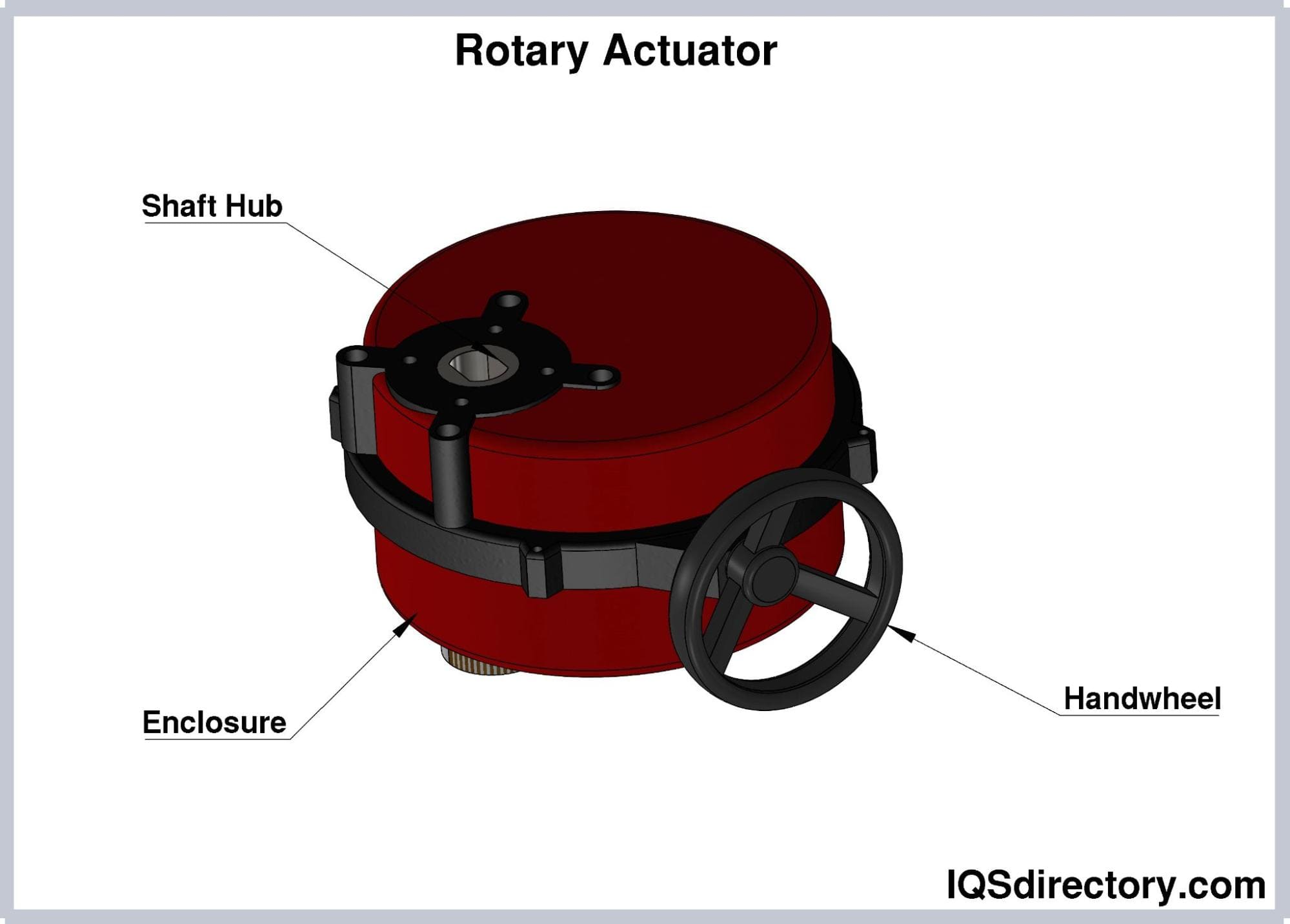

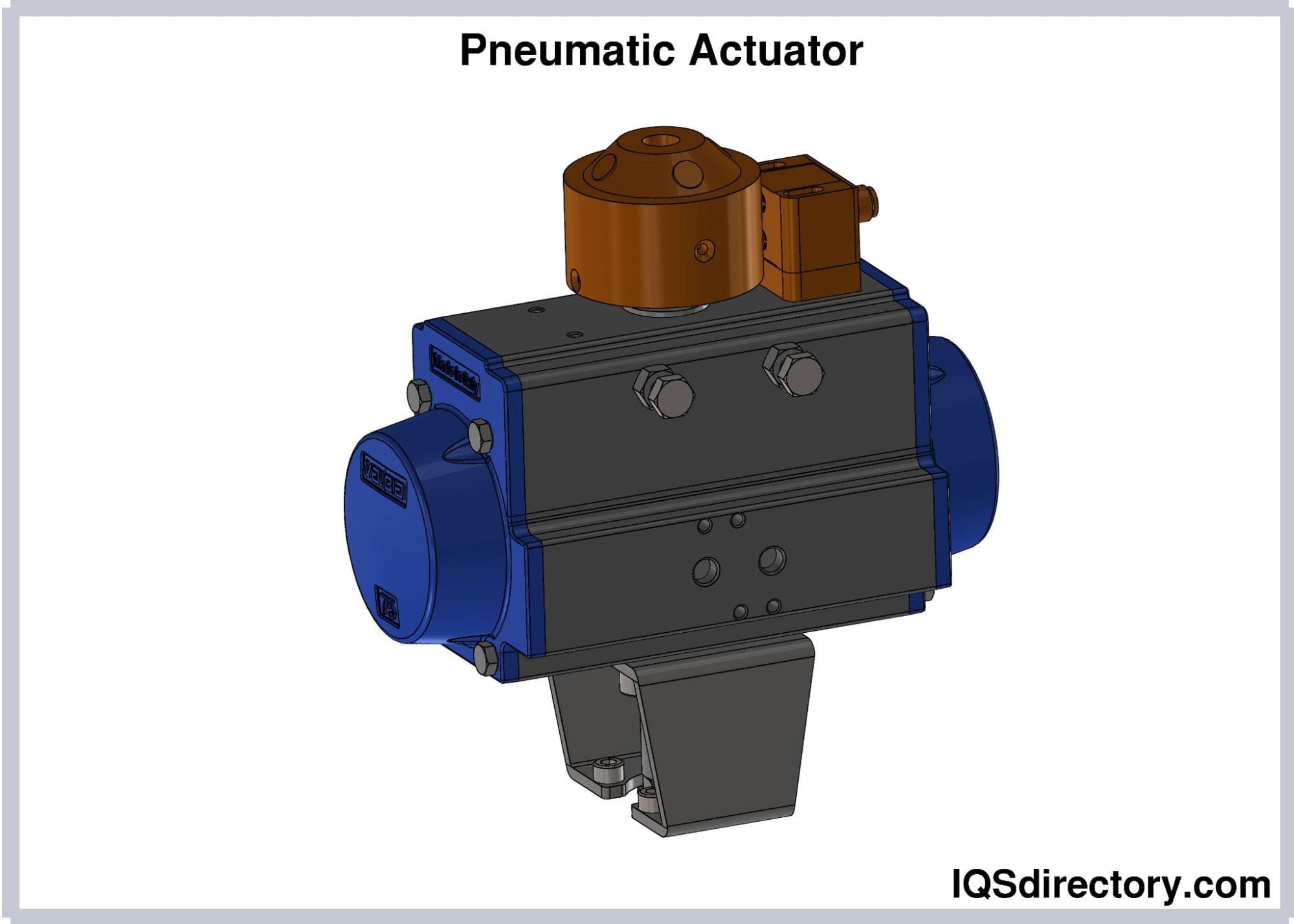

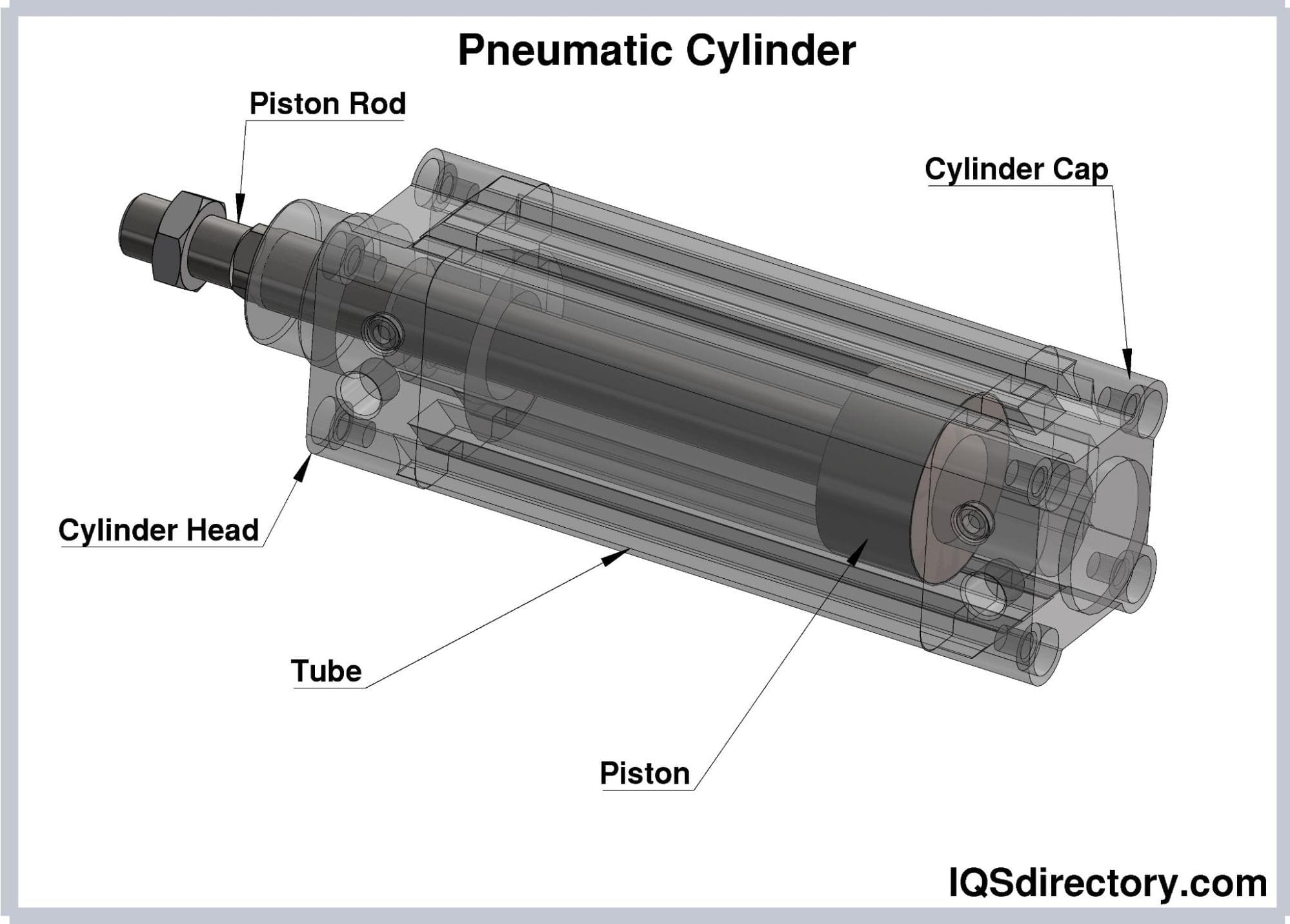

Cylinders, rotary actuators, and air motors generate the force and energy required for material movement and processing in a pneumatic system. Essential components for controlling and operating the system include air service units connected to the air compressor and valves that regulate air pressure, actuator movement, and direction. The system can be categorized into two main components: air pressure generation and the consuming system.
Key components of a pneumatic system include the compressed air transport and distribution network, which consists of an air compressor, electric motor, pressure switch, check valve, storage tank, pressure gauge, auto drain, air dryer, filters, air lubricator, pipelines, and various types of valves. The air-consuming section features an intake filter, compressor, air take-off valve, auto drain, air service unit, directional valve, actuators, and speed controllers.
Upon activation, the intake filter removes impurities from the ambient air as it is drawn into the compressor. The compressor then converts mechanical energy into the potential energy of compressed air. The choice of compressor depends on the required delivery pressure and air flow. Compressed air is stored in a receiver tank to stabilize the pulsating flow from the compressor and to cool and condense any moisture. Additionally, the receiver helps dissipate the heat generated by the compressed air.
Proper maintenance is crucial for pneumatic systems, including regular lubrication of cylinders and valves. Most systems introduce a fine oil mist into the compressed air to lubricate moving parts. The recommended oil viscosity ranges from 20 to 50 centistokes.
Hydraulic and pneumatic systems fall under the domain of fluid power engineering, a field dedicated to understanding the behavior of fluids. Hydraulics harness the power of pressurized liquids to generate, control, and transmit force, while fluids in this context encompass liquids, gases, and plasmas.
Choosing between hydraulic and pneumatic systems requires a careful evaluation of the benefits each offers, as each type is designed to fulfill particular operational needs.

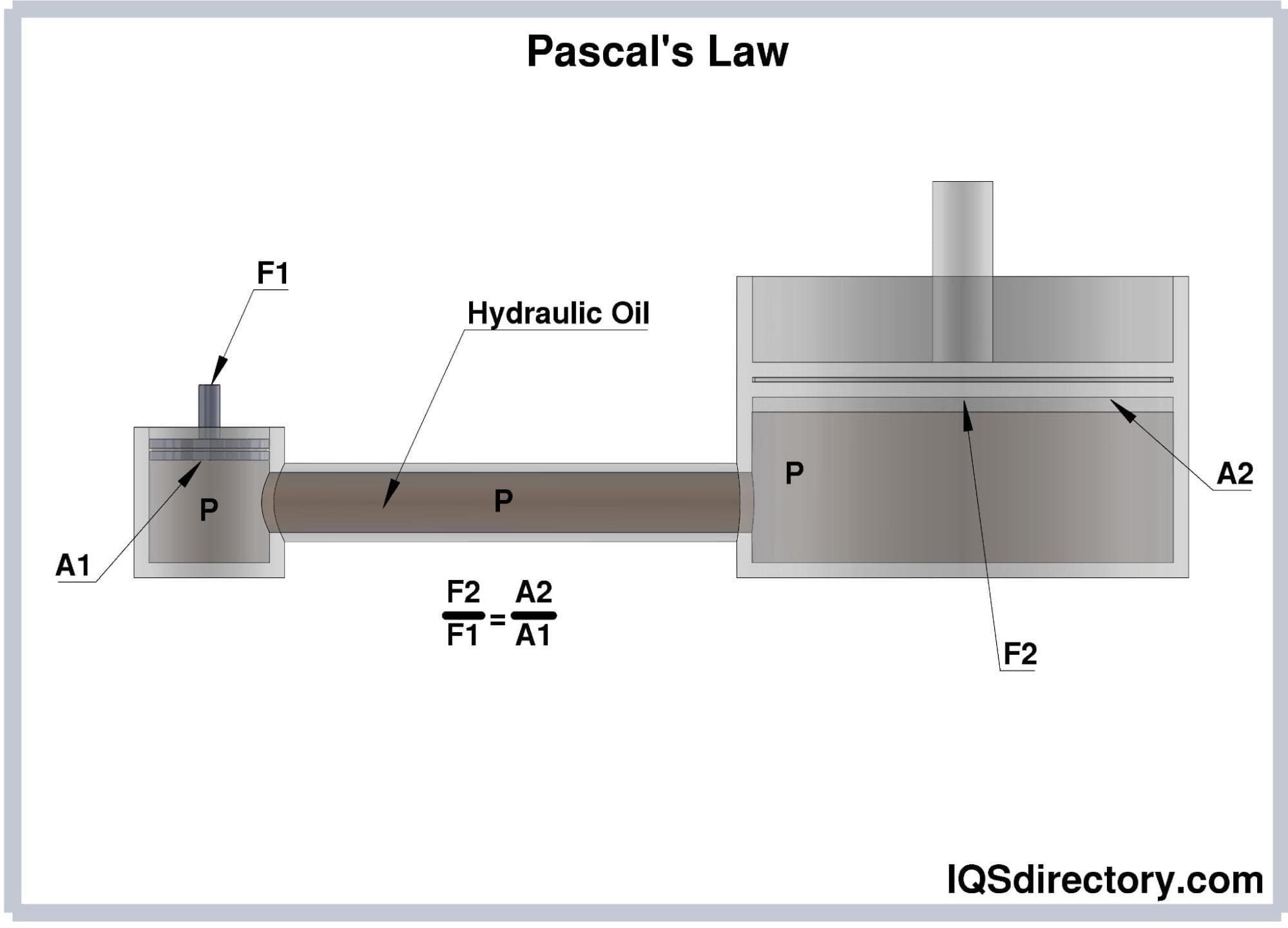

The principles of hydraulic systems are based on Pascal’s law, which states that pressure applied to a confined fluid is transmitted equally throughout the fluid. Hydraulic systems typically employ piston and cylinder mechanisms, although gear-based systems are also used. The advantage of the cylinder configuration lies in its ability to generate significant force from a relatively small amount of torque.
Adjusting the fluid volume in a hydraulic system provides limited control over the amount of force. In contrast, motor-driven systems offer enhanced control and precision. Currently, motor-driven systems are preferred over rotating systems because they provide operators with greater control and flexibility.
Most cooling systems are designed with rotating hydraulic components. Hydraulic systems generally occupy less space than motor-driven alternatives, making them more convenient for certain applications.
Pneumatic systems use gases, typically pressurized air, to generate force. These systems commonly operate at around 100 psi, though some can achieve pressures between 3000 and 5000 psi. Pneumatics are generally designed to manage lighter loads and often include a spray of lubricant to ensure smooth operation.
Central to every pneumatic system is an air compressor, which compresses air to increase its pressure. This compressed air is transported through hoses and valves to an actuator. An essential component of the system is the filter, which prevents contaminants from entering the pneumatic system.
The choice of air compressor is crucial for the efficiency of a pneumatic system. There are three primary types of air compressors: reciprocating, rotary screw, and rotary centrifugal. Selecting the right compressor is a critical initial step in setting up a pneumatic system, with piston compressors being particularly popular and widely utilized.
When deciding whether to use a pneumatic system as a power source, several factors need to be considered. Hydraulic systems offer higher power density but come with a higher cost, whereas pneumatic systems provide greater speed and are more cost-effective. While these factors are important, other considerations should also be evaluated before making a decision between pneumatics and hydraulics.
Selecting the right size for a pneumatic system is crucial for optimal performance. A system must be appropriately sized to meet the specific requirements of the application, as both undersized and oversized systems can lead to inefficiencies. Attention to detail is essential, including considerations such as tubing and hose sizes.
After installing a properly sized pneumatic system, making the right adjustments is key to minimizing costs. Often, the pressure required to move a load is different in each direction. By fine-tuning the pressure settings for each direction, operational costs can be reduced. Small adjustments and fine-tuning can significantly improve the system's efficiency and lower operating expenses.
The primary distinction between hydraulic and pneumatic systems lies in their operating costs. Pneumatic systems have historically been considered more cost-effective, with an electrical efficiency of around 10% compared to mechanical or motor-driven systems. However, the need for regular maintenance can impact efficiency and productivity significantly. A notable cost factor is the number of air compressors needed; using a single compressor to support 50 to 100 systems is generally more economical than multiple motor-driven systems.
Hydraulic systems often come with a high initial cost, including installation expenses for permanent setups. The key to managing these costs lies in the system's longevity, which can be extended through regular maintenance and proper care. Like pneumatic systems, hydraulic costs can be reduced by using a central power source to drive multiple machines. This approach not only lowers overall costs but also minimizes noise, reduces horsepower requirements, and improves machine performance.
The fundamental difference between hydraulic and pneumatic systems is their capacity for work and force. Hydraulic systems can handle heavier loads and perform more work compared to pneumatic systems, which are better suited for lighter tasks. Ultimately, the choice between hydraulic and pneumatic systems should be based on the intended application, with efficiency being the primary consideration over cost.
