This article will give a detailed discussion on door latches.
After reading, it is anticipated that one should comprehend the following:

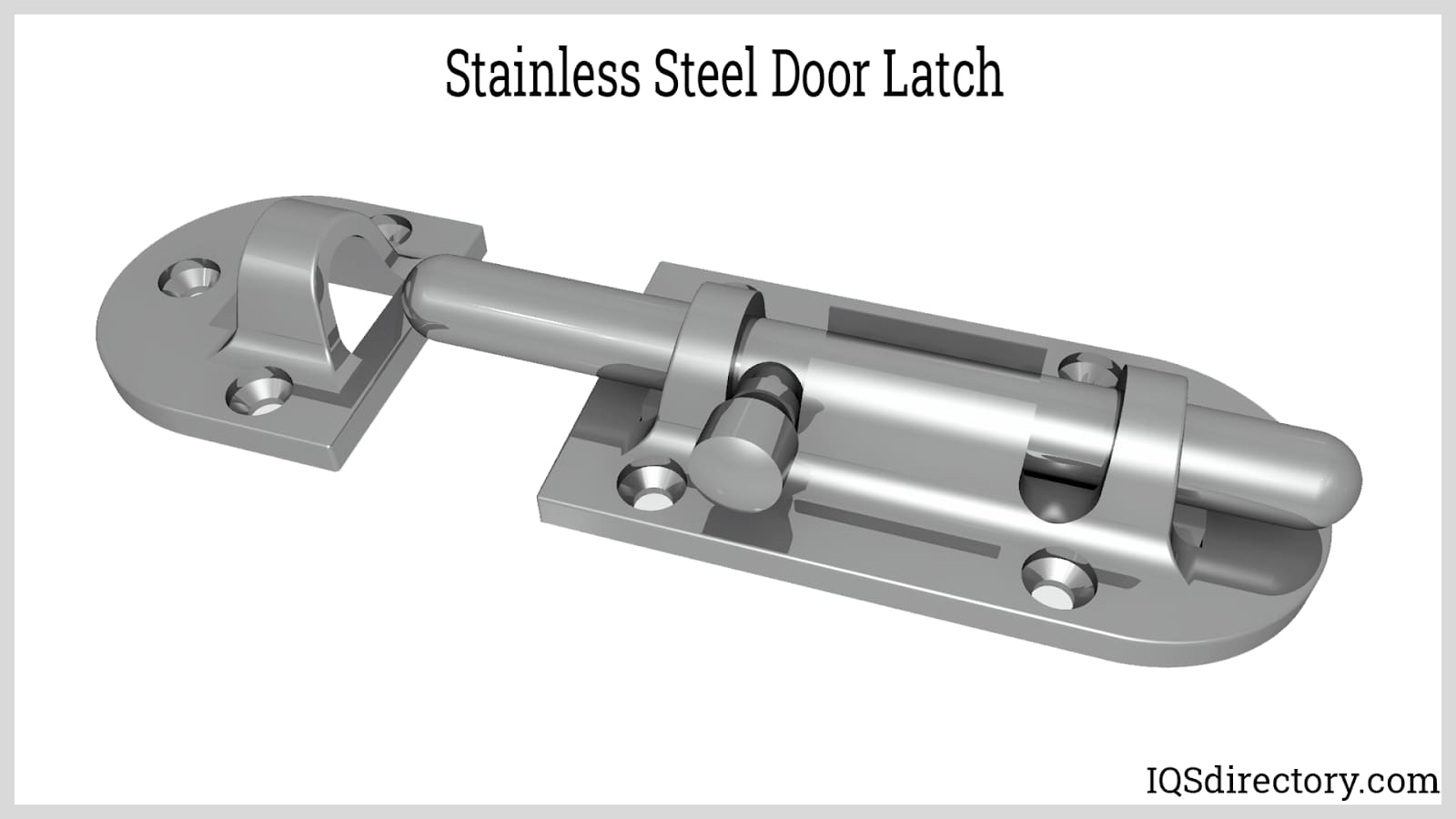

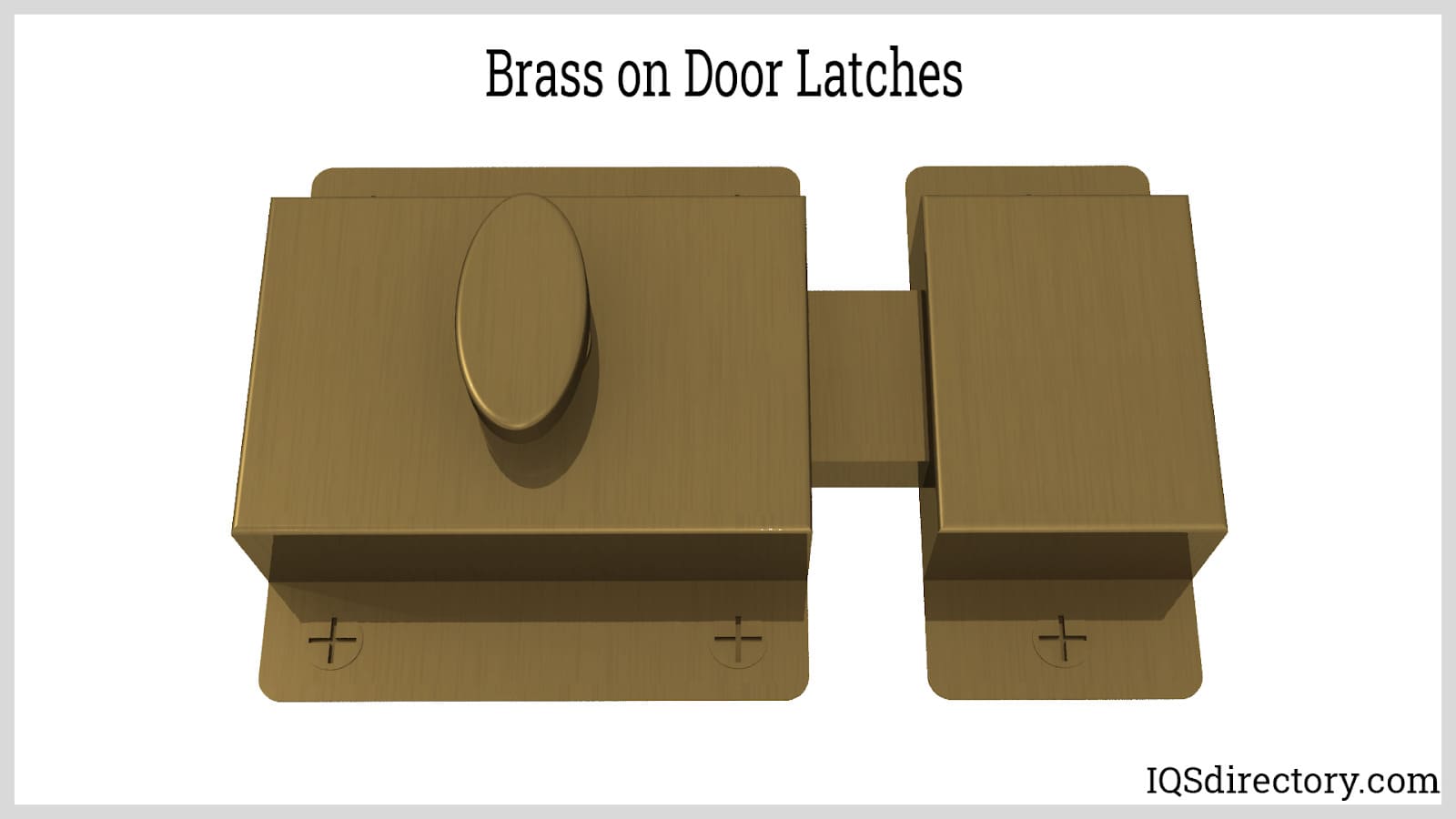

A door latch is a mechanical device designed to secure two surfaces or objects, ensuring a strong, safe, and reliable connection. The latch component is typically affixed to a flat surface, engaging with a corresponding piece of hardware on a second surface to achieve a secure latch.
The variety of door latches is extensive, differing in terms of the metals used, their design, function, and operational mechanisms. Door latches are prevalent in any scenario where surfaces need to be firmly connected, contributing to their widespread utility and importance.
A notable category of door latches includes commercial door latches, which can be either mechanically or electronically operated. These latches are specifically designed for use in offices, businesses, and industrial environments, where they must endure more rigorous conditions compared to residential latches. Commercial door latches are constructed from robust materials to ensure superior security and durability.
Door latches are a key component of mechanical fastening systems used to keep doors, enclosures, and cabinets securely closed. Manufacturers offer a diverse range of standard latch designs that are suitable for various types of doors. Additionally, they provide custom latching solutions for specific conditions that standard latches may not accommodate.

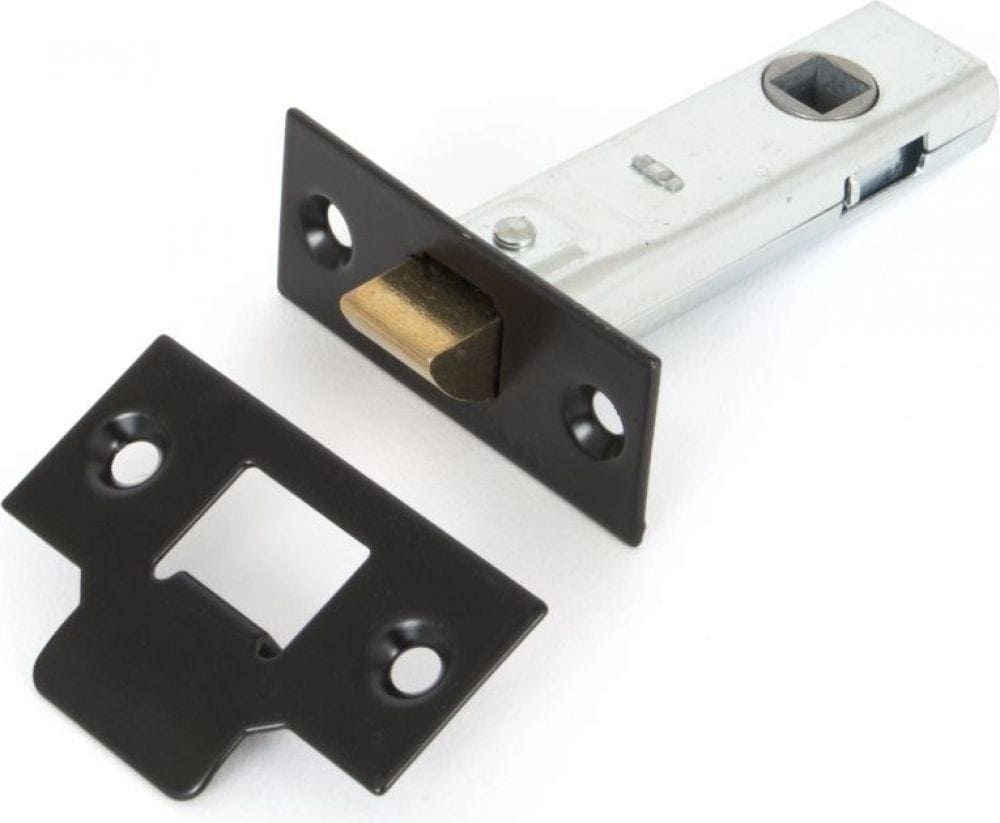

A tubular latch, often made of iron and installed within a mortise in the door, allows the door to be operated with a handle or knob. It features a rectangular tube that houses a spring-loaded follower and a latch bolt with a triangular end. This design enables the latch bolt to retract when the door opens and automatically return to position as the door closes.
The main purpose of a latch is to provide security, and tubular latches do just that because a mortise lock is more difficult for anyone to force open than other conventional cylindrical latches. This added security is because tubular latches are installed within the door rather than only on the doorknob. Even with a crowbar, it would still require significantly more force to pry open mortise lock door latches.
The aesthetic appeal of tubular latches is another important benefit. Their design can significantly enhance the look of a door, adding a touch of elegance. Whether using mortise or cylindrical latches, they contribute to a classic and refined appearance for various door types.
Tubular latches are available in various sizes, offering flexibility for different door dimensions. They can be customized to fit both larger and smaller doors, addressing any sizing issues that may arise with cylindrical locks. This adaptability ensures that tubular latches can be tailored to meet diverse needs effectively.

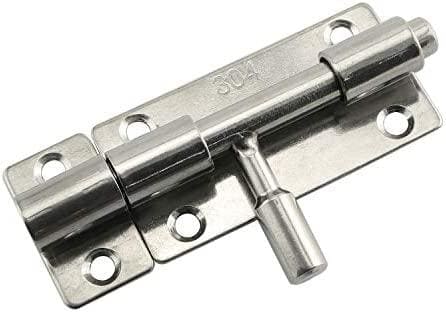

A bolt latch is a mechanism used to secure a door and prevent it from being opened. Unlike chain or hook latches, which rely on a holder for fastening, a bolt latch features a metal bolt that can range from a deadbolt to a standard door knob latch. The bolt latch is one of the oldest and most commonly used types of door security devices.
Bolt latches have been used for as long as doors have existed. One of the most basic types is the crossbar latch, which consists of a bar that slides into slots on the door to keep it closed. This type of latch is commonly found in various locations, including public restrooms.
The latch works by having the rotating or sliding bolt engage with a stationary component, securing the door in place. Both parts are anchored to supporting surfaces such as the door and its frame to ensure stability and security.
Spring bolts and deadbolts are the two main types of bolt latches. First, a spring bolt is secured by a spring clip. When the spring is released, after being squeezed to open the bolt, it snaps back into the locked position and latches itself when closed.
Deadbolts operate without a spring mechanism and are engaged or disengaged using a key. They offer greater security compared to spring-loaded latches, especially if equipped with a deadbolt plunger. This additional plunger near the deadbolt makes it more resistant to picking or tampering attempts.
Many gates are equipped with latches that feature a hook and eye mechanism. These latches are both effective and easy to use, particularly in outdoor settings. Commonly known as "barn door hooks," they consist of two distinct components. One part, the hook, is attached to the gate, while the eye is secured to the gate frame. When the hook is inserted into the eye, it keeps the gate securely fastened.

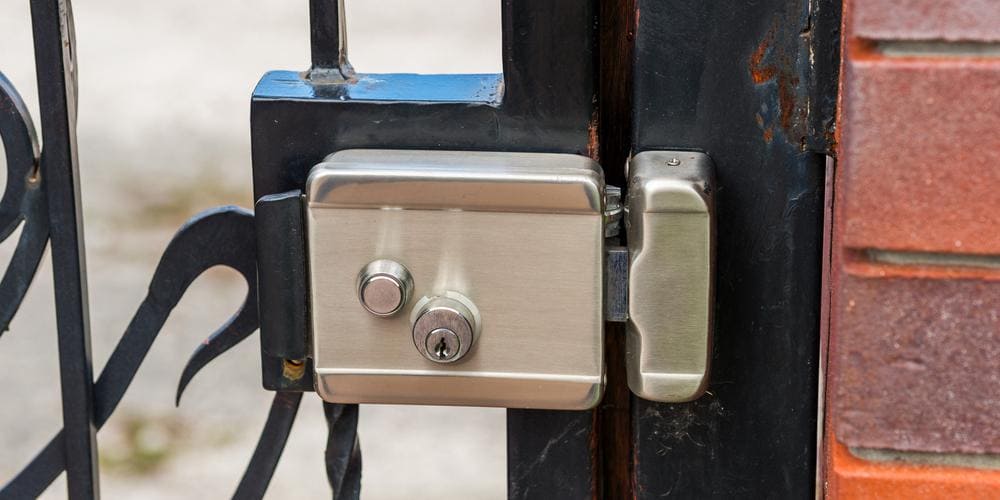

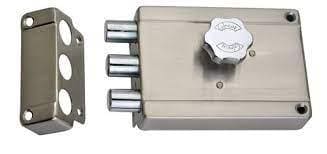

Rim latches have been a staple in door locking and latching mechanisms for centuries. Historically, they were used when doors were too thin to accommodate a mortise (tubular) lock or when a latch needed to be mounted on the door's surface rather than embedded in its edge.
Today, rim latches are made from a variety of materials, including iron, composite materials, brass, and nickel, and they are available in multiple finishes. While originally crafted from iron, modern rim latches offer a range of materials and finishes to suit different aesthetic and functional needs.
The components of a classic rim lock include the body, keeper, escutcheon, and privacy latch. Designed for installation on the side of the door that swings inward, a traditional rim lock features a simple latch mechanism along with a deadbolt. This lock can be engaged and disengaged from both sides of the door using a key. An escutcheon on the opposite side hides the keyhole. The latch is operated by a door knob that integrates both mortise and rim features. Rose plates, which are the decorative disks around the door knob, can be loose; the rose plate on the side with the lock may be removed, while the one on the opposite side remains in place. Because these rose plates can be easily removed with a screwdriver, rim locks are typically used on interior doors where high security is not a primary concern.
Rim latches offer a straightforward and cost-effective solution for securing bathroom doors. They are relatively easy to install and come in a range of styles, from traditional and vintage to modern. Some rim latches also feature an optional deadbolt, providing an added layer of security.

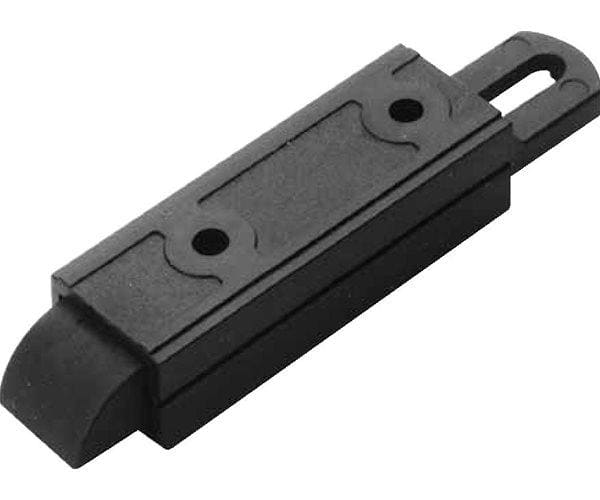

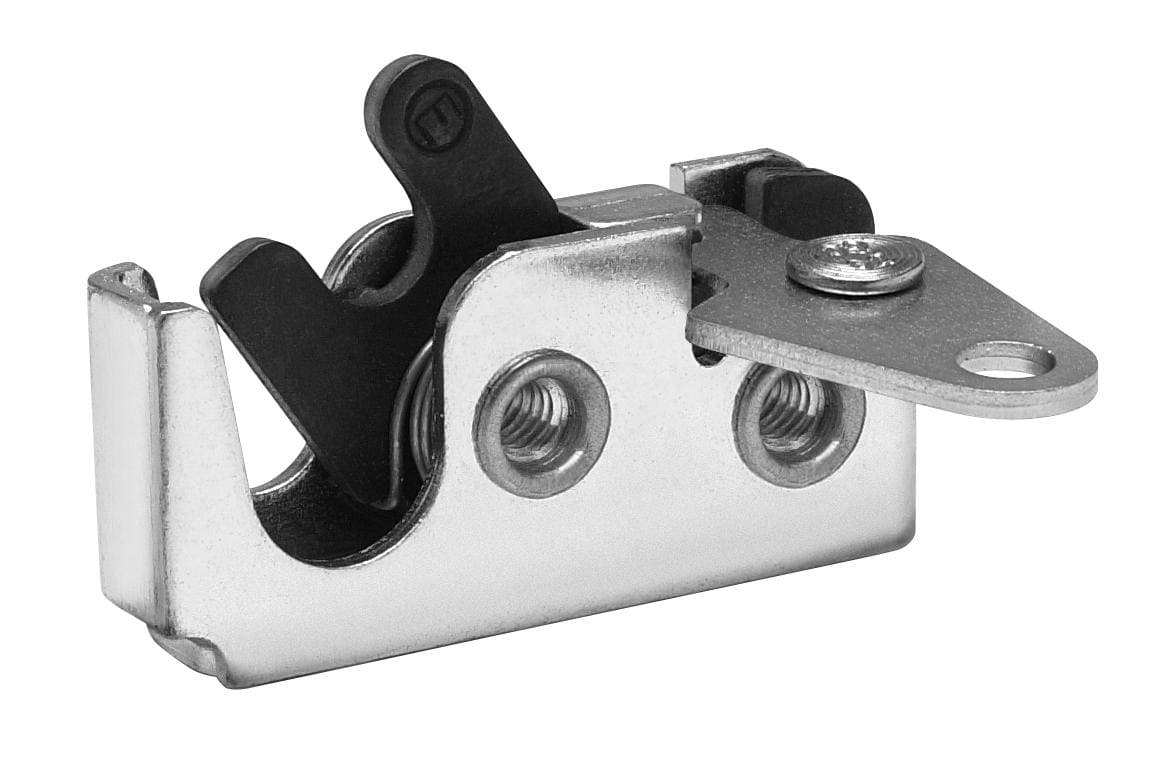

Slam latches, also known as push-to-close latches, are designed for doors that require an automatic latching mechanism when the door closes. They feature a cam that engages with a striker on the door frame. The cam, which often has rounded or chamfered edges, allows it to retract smoothly upon contact with the striker. It is spring-loaded and can be activated by twisting or sliding when triggered.
Featuring a robust design, slam latches are built to endure frequent use without significant wear. They are commonly employed in high-traffic environments such as commercial and industrial settings, where their durability and reliability are essential.
This slam latch is a compact, non-locking model that offers ease of installation and operation. The latch features a pin housed within the latch body and includes an actuation knob that allows you to easily engage or disengage the latch.

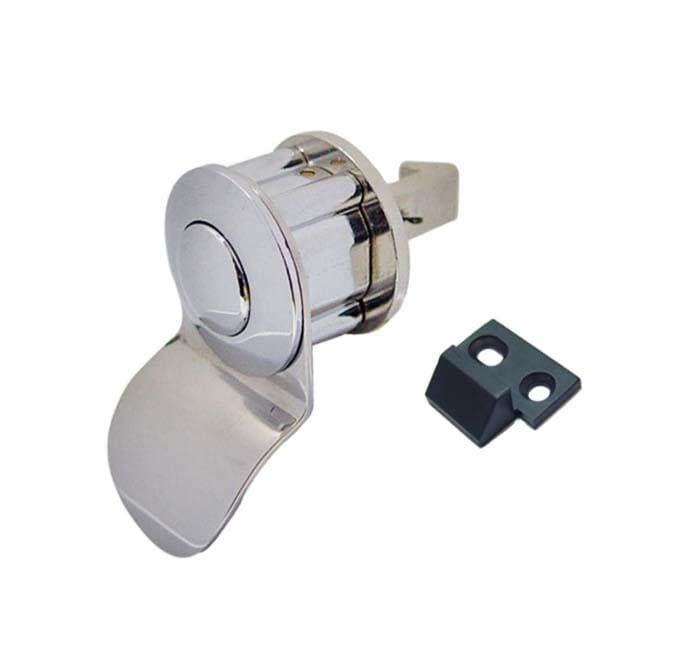

This slam latch employs a mechanism similar to that of a single-point slam latch. It is operated by a push button, which retracts the safety pin to enable quick access. The push-button slam latch features curved safety pins that facilitate easy closing of the door by simply slamming it shut. These latches are designed for quick and easy installation with single-hole mounting, similar to cam latches, and can accommodate various panel thicknesses.
Multi-point slam latches function similarly to single-point slam latches, but they feature multiple slam bolts rather than just one. While their installation is somewhat more involved than that of single-point models, they offer enhanced security. The actuation mechanism usually consists of a T-handle or turning knob, which facilitates operation.
Also known as a finger-pull latch, this type of slam latch uses a mechanism similar to a single-point slam latch to secure the door without requiring force. However, it requires manual operation to open. Designed for use on non-locking doors, these latches can be operated from either side, making them versatile for various applications.
Surface-mounted latches, also known as flush pull latches, operate similarly to other slam latches. They use a paddle mechanism to retract the pin from the locking element. These latches are typically comprised of two parts and include integrated stops to facilitate self-closing doors. They are generally installed using threaded fasteners and can also be incorporated as flush-mount components in side panels and sliding doors.
This type of latch is one of the most versatile and is typically installed on doors rather than panels. It can be fitted to any door thickness that does not exceed the length of the slam latch. Unlike other slam latches, this model incorporates a key mechanism for locking and unlocking.
In these door slam latches, the bolt and locking elements are usually separate components that are surface-mounted and welded in place. Rotary slam latches are commonly found in storage areas or refrigeration chambers, where their robust design and locking features are particularly useful.

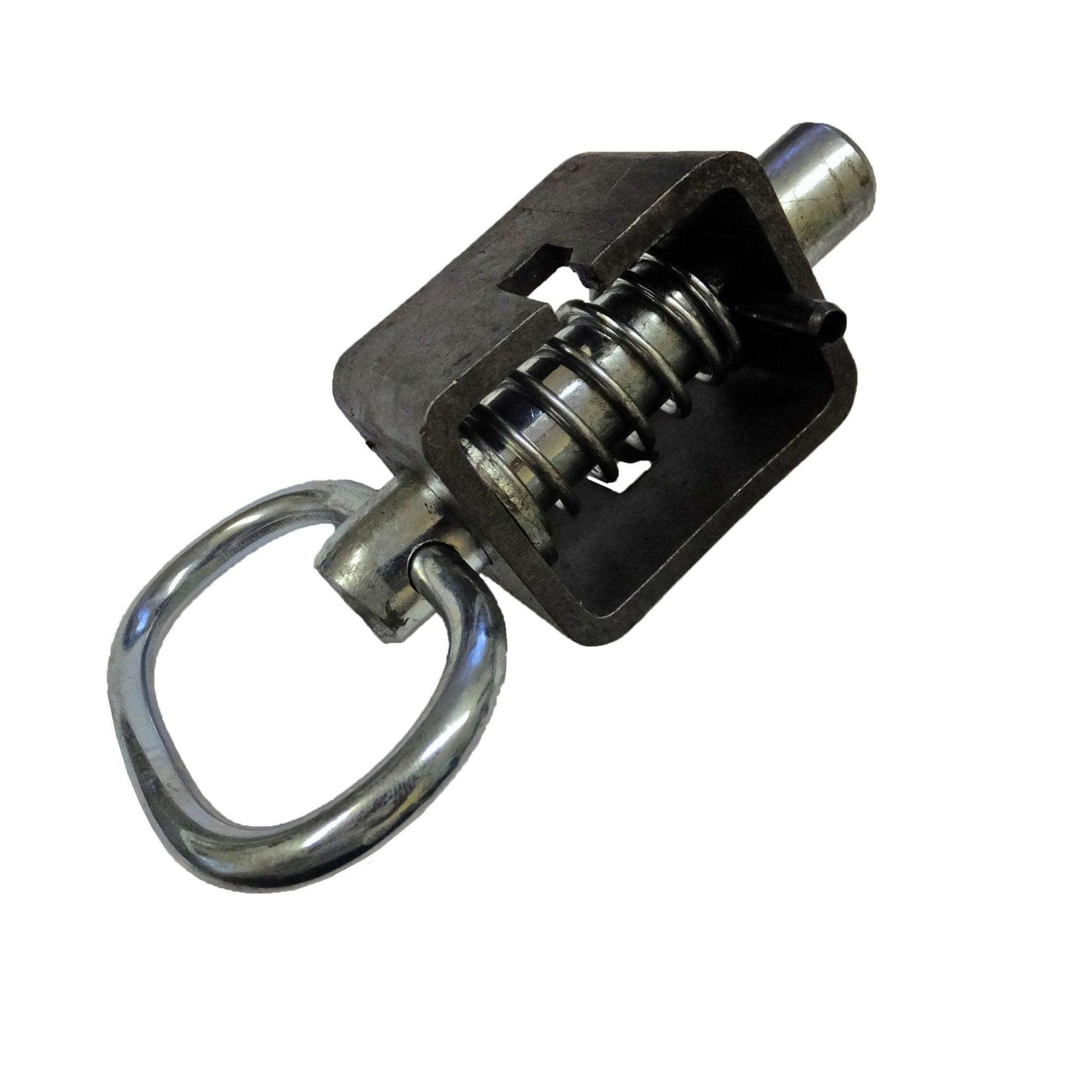

Like a bolt latch, a spring latch has a spring to enable automatic bolt extension. In addition, a spring is used in some systems to keep the bolt retracted. There are various construction options for spring latches. An L-shaped bolt, a plunger with a tiny hole for a clip or pin, is part of a basic spring latch. Two-holed lips are built into the device’s back plate to grip the plunger. A spring is inserted between the lip and pin to hold the plunger in an extended position.
Spring toggle latches are known for their straightforward and quick installation process. They offer high operational reliability and an efficient setup, enabling precise and swift function. Their locking mechanism minimizes the force needed for various applications, enhancing overall performance.
Spring toggle latches can accommodate workpieces of varying heights. The over-center draw latches' design allows for adjustments if the angle between the latching point and base is 12 degrees or less. They are suitable for diverse applications and are ideal when the catch plate must be positioned away from a flat surface or at an angle. Over-center spring latches allow for adjustments in the catch plate distance by rotating the threaded screw loop. They are particularly useful for frequently opened panels and other applications requiring flexible positioning.
The market offers a diverse range of spring latches, with spring toggle latches being one of the many commercial options available. These latches differ based on features such as handle positioning, handle design, and pressure ratings. Options include both manual and automatic models, and they come with various coatings like chrome, nickel, zinc, and stainless steel to enhance corrosion resistance. The positive locking action of these latches improves safety by securely holding tools and workpieces in place, allowing for significant force application.
This robust holding strength contributes to safer equipment maintenance and use. The spring-lock design enables a single lever pull to activate multiple power latches via the same electrical circuit, streamlining operations.
Spring toggle latches are designed to reduce operating stress, thereby enhancing efficiency. Their ease of adjustment helps minimize strain injuries, fatigue, and other issues. Typically made from mild steel or 304 stainless steel, these latches are suitable for various applications, including machinery, HVAC systems, industrial enclosures, and cabinets. They are compatible with industrial cleaning equipment and packaging processes. Hand-operated spring latches are particularly effective for securely locking and pulling components together, making them a popular choice for both household and recreational uses.

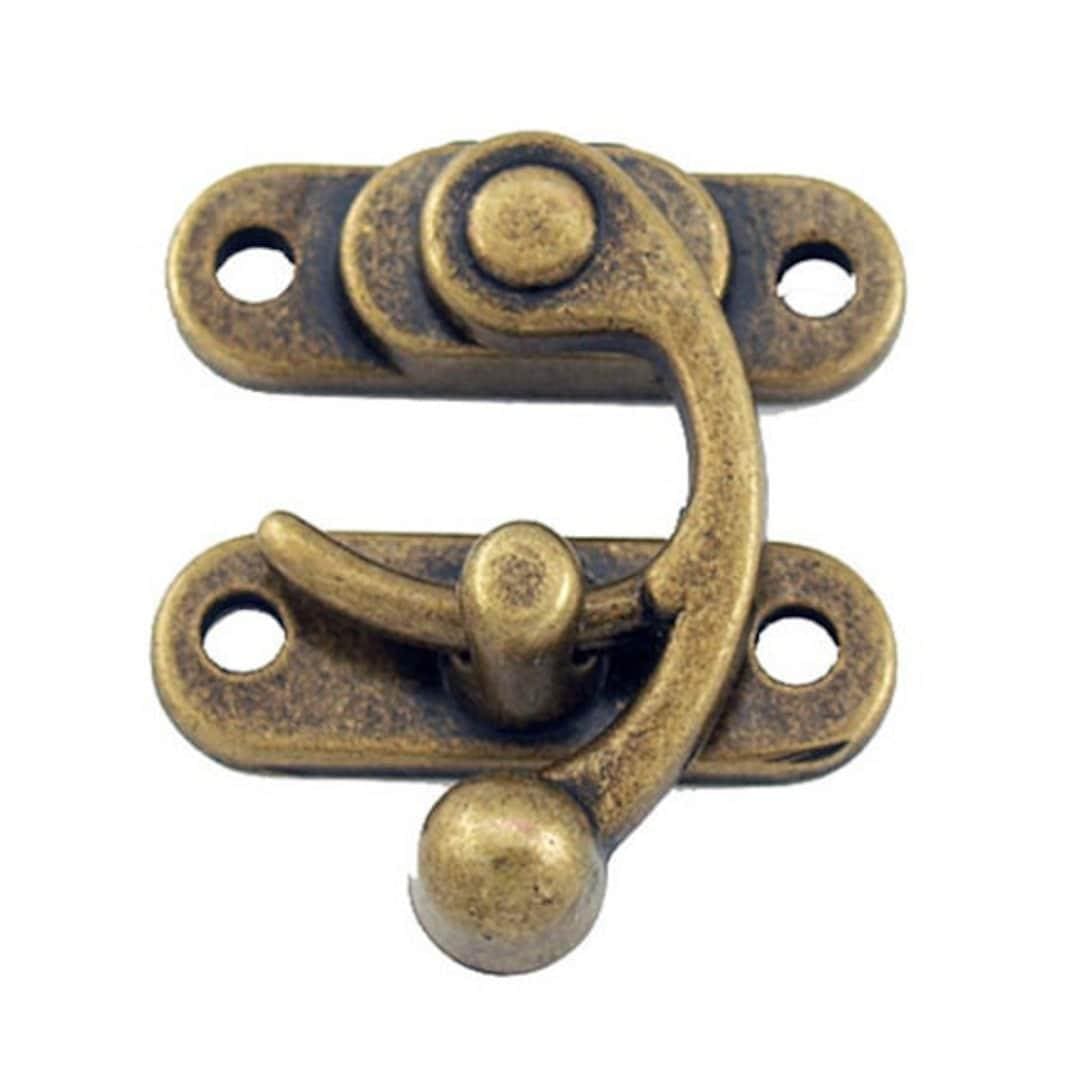

Swinging latches are designed to prevent accidental unlatching by closing when a bar in the strike plate is pushed. These push-to-close latches automatically engage when the door is shut, thanks to their spring-loaded mechanism that keeps the bar extended. The bolt’s edge, which strikes the striker, is rounded to facilitate smooth retraction. The bar can be released by pressing the button on the striking plate. Swinging latches can be mounted on either the right or left side of a door, providing flexibility in installation.

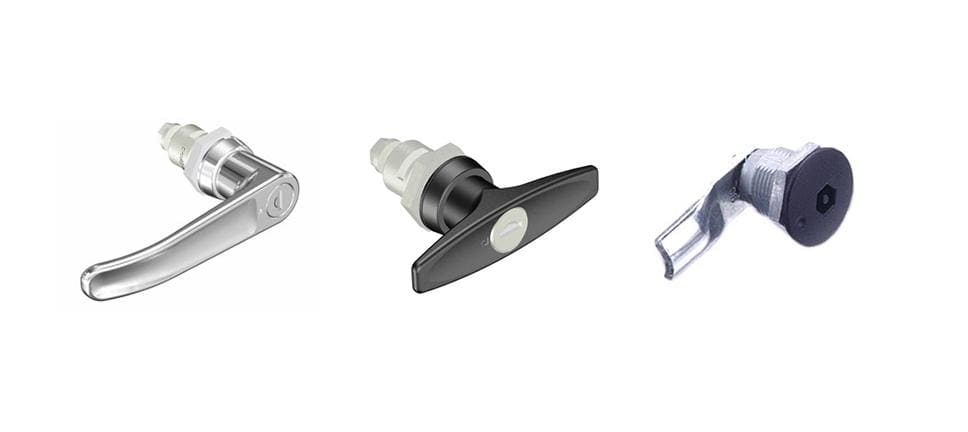

A cam latch is a simple locking mechanism used to secure access to panels and entry points. It features a rotating latch that locks or releases when actuated, and is mounted to a housing. Commonly found on cabinet doors and furniture drawers, cam latches operate by turning a knob or key located on the opposite side of the door. These latches are quarter-turn devices, similar to other knob-activated latches. Unlike some locking mechanisms, cam latches do not require a strike plate, box, or a drilled hole in the frame to accommodate the arm. Instead, they secure the door or enclosure by blocking only one side. Due to their design, they are not suitable for doors that require swinging or movement past the frame.
A magnetic door latch consists of a ferromagnetic strike plate and a magnetized catch body. This type of latch offers a practical and efficient latching solution for furniture doors or light-duty, low-traffic doors. It enables automatic and convenient latching for furniture doors. In some designs, a door magnet and a frame magnet are used. These are ideal for doors that experience minimal traffic and handle light workloads.
Usually made of non-ferromagnetic metal or plastic, the magnetic door latch has a hollow body. The non-magnetic body is equipped with a bar magnet. Steel plates are affixed to the bottom and top sides of the bar magnet to focus the magnetic flux. The striker plate makes contact with the steel plates. The door edge is where the strike plate is fastened, and the door jamb or frame is where the magnetic door latch is fixed. These latches come in surface-mounted and hidden varieties. They physically touch the magnet and the metal strike plate when the door is closed. This technique is necessary to maintain a powerful magnetic attraction.
The most common magnetic latches are surface-mounted door latches. They can be installed on the frame's header for single- and double-door openings, or on the strike jamb for single-door openings. While they can also be mounted on the pull side, surface-mounted magnetic door latches perform best when installed on the push side of the opening.
As suggested by their name, this type of latch hides the magnetic components within both the door and the frame. Known as "shear latches" because they are not surface-mounted, these latches operate with a "shear" force rather than a linear pull. They can be installed inside the door and frame, on the floor, or at the bottom of the door.

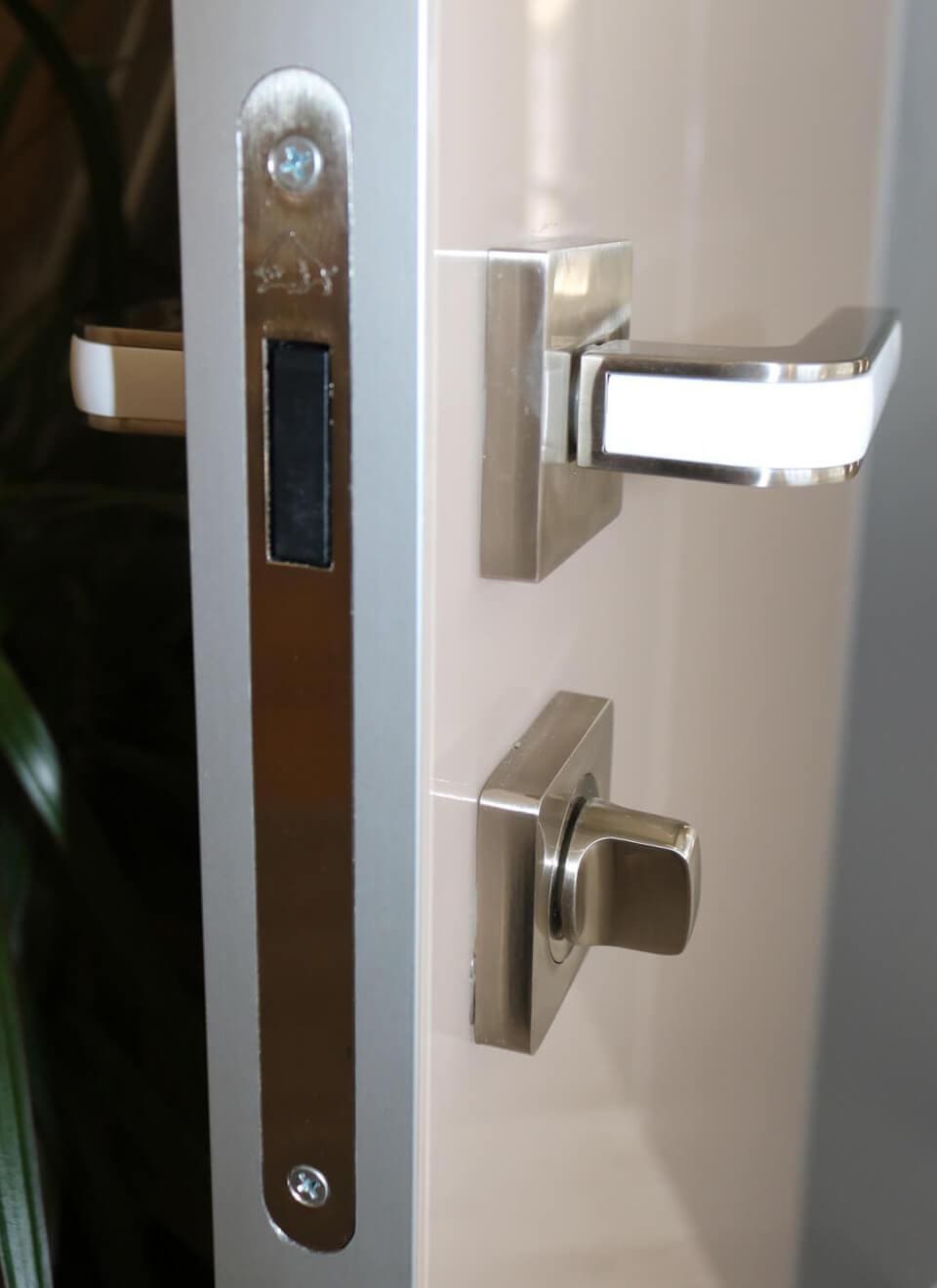

Fail-safe latches require power to unlock. During a power outage, the door remains securely closed and inaccessible. These latches are crucial for areas that must remain secure at all times, such as IT suites, server rooms, storage areas for sensitive data or valuable equipment, and research labs.

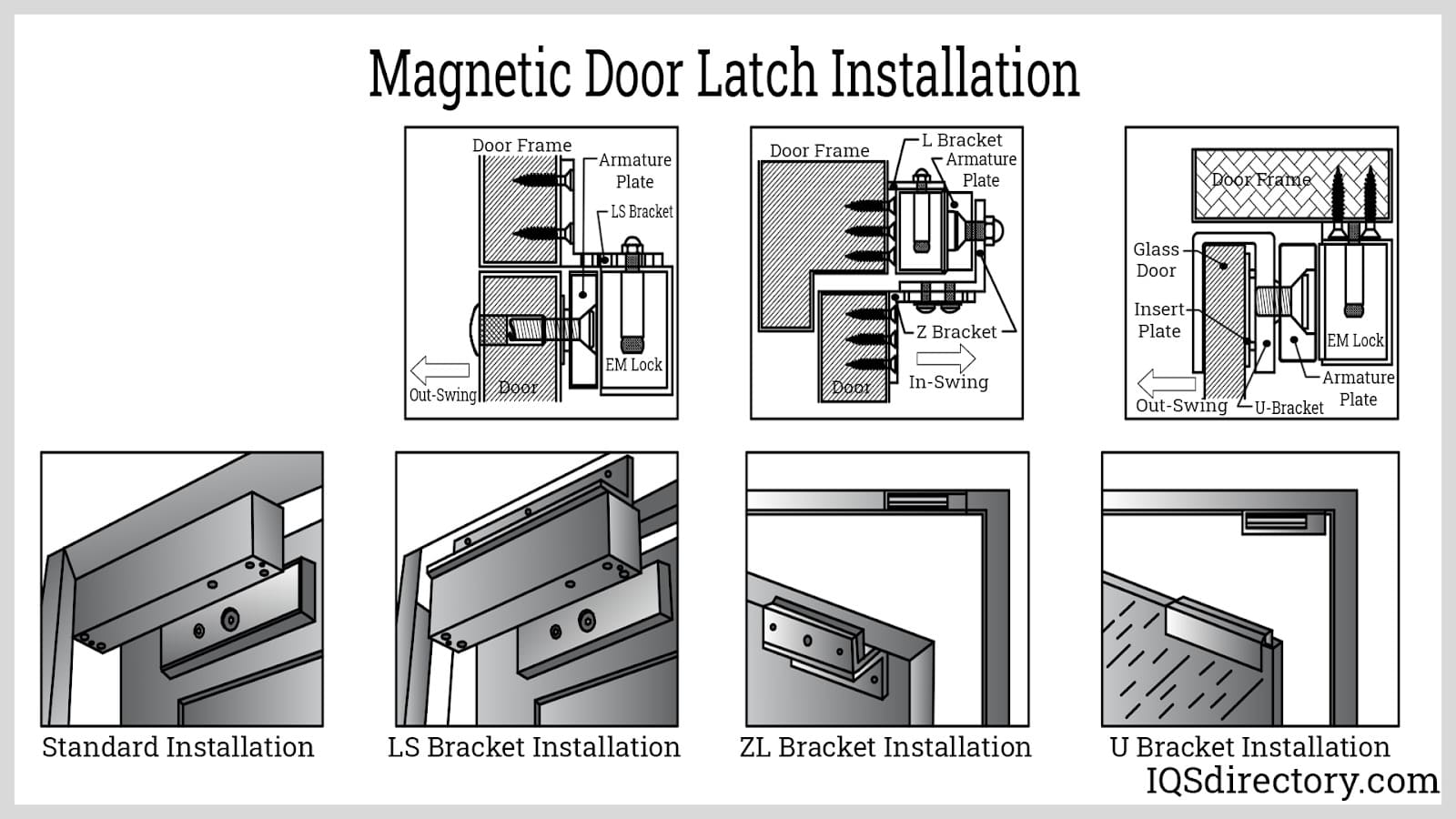

An electromagnetic lock operates on the principle of electromagnetism. When powered, it uses magnetic force to secure a door. For optimal performance, the holding force and load should be collinear, with the lock and armature plate aligned face-to-face. Electromagnetic locks rely on the magnetic field created by current flowing through one or more wire loops, or solenoids, to generate a force strong enough to keep the door closed.
Magnetic latches consist of an electromagnet and an armature plate. When activated, the electromagnetic lock generates a magnetic field that attracts the armature plate to the electromagnet with sufficient force to prevent the door from opening. The electromagnet is mounted on the door frame, while the armature plate is attached to the door. The strength of the electromagnetic force, which can range from 250 kg to an impressive 1000 kg, affects the cost of the lock. Electromagnetic door latches are fail-safe, requiring power to remain locked, making them suitable for use in emergency exits and high-security areas.
Gate latches secure gates and huge doors, as the name implies. A gate latch is intended to keep a fence or wall's gate closed and secure. While some latches require a key to lock, others can be secured using a padlock or another object. Any area may be made more secure and difficult to access with gate bolts and latches, which are perfect for anyone with small children, pets, or livestock. Compared to cabinet latches, they are substantially thicker and stronger. Cabinet latches and architectural design elements can both be used in their manufacture. Heavy-duty industrial latches, barrel bolts, and bars are typical shapes for gate latches. Slam and spring latches are also employed occasionally. They are produced using heavier-gauge sheets or plates of metal and are created through more intense compression.
Stainless steel, particularly grade 304 and galvanized steel, is frequently used to make gate latches. These materials are suited for applications that call for high strength and corrosion resistance. Every manufacturing, commercial, or residential industry uses gate latches.
High-tech engineering polymers and stainless steel are specially designed to create gate latches that are exceptionally durable and resistant to harsh weather conditions. Both stainless steel and engineered plastics are known for their resilience and long-term performance, ensuring reliable functionality over time.
Gate latches are available in a wide range of styles and specifications to meet diverse needs. They come in various designs suitable for different types of fences, including chain link, metal, vinyl, and wood. Each model is compatible with left-hand, right-hand, out-swinging, and in-swinging gates. Gate latches offer versatile solutions for both commercial and residential applications at affordable prices, ensuring they meet the demands of any setting.
Unlike residential latches, industrial latches are designed to be more robust, durable, and long-lasting, providing secure connections for safety and security. They are used in enclosures, doors, windows, storage units, and tools. Due to their specialized applications, industrial latches often require customization to accommodate specific panel thicknesses, materials, sizes, and types of enclosures.
While there are some similarities between industrial and residential latches, the primary distinction lies in the materials used for industrial latches. These materials are selected for their ability to withstand harsh, demanding conditions. In many cases, industrial latches serve as security measures to protect sensitive instruments, equipment, and tools.
Tool box latches are used for securing tool boxes, tool chests, storage containers, and cabinets. They come in various types, including keyed, combination, and cylinder locks, and are chosen based on the size of the container and the value of the tools stored.
Heavy duty adjustable draw latches feature a rigid fastener that allows for tension adjustment after installation. They are designed to accommodate a range of industrial applications. The ratchet mechanism in these latches ensures that a secured door or enclosure remains closed and prevents accidental openings.
Industrial slam latches, while structurally similar to their residential counterparts, are typically larger and built to resist weathering and corrosion. They are designed to secure large, heavy doors and withstand challenging environments.
The various types of industrial slam latches are:
Compression latches are designed to hold doors, openings, enclosures, and panels securely closed by generating a force that compresses a gasket, creating a tight seal.
These latches are a type of cam latch, featuring a standard base and cam lever. The key difference from traditional cam latches is the addition of a gasket that is compressed against the door frame.
The popularity of compression latches stems from their effectiveness in protecting interiors from moisture, dust, vibrations, and electromagnetic interference (EMI). The consistent force applied by the gasket along the frame prevents the intrusion of ambient air. Compression latches can be operated by a key, cam lever, or T-handle.
A basic type of industrial latch is the spring-loaded bolt latch, which features a compressed spring to hold an L-shaped or eye bolt securely in place. These latches can be installed on left- or right-hand doors and are specifically designed for industrial use to prevent enclosures, doors, and panels from accidentally opening due to vibrations.
Paddle latches are equipped with recessed handles that sit flush against the surface and can come in both locking and non-locking variations. Unlike slam latches, they are not designed for slamming due to their robust construction and internal spring mechanism. The spring within the paddle latch applies continuous pressure to the pin or deadbolt, preventing it from moving with forceful slamming.
In a paddle latch, the spring mechanism is housed and connects to a latch bar positioned on the inner side of an enclosure. This strong spring ensures that the deadbolt remains firmly in place, making it difficult to shift without deliberate effort. This design requires more force to engage the paddle lever compared to other types of latches.
Different models of industrial paddle latches include:
Trigger latches are designed to be flush-mounted on doors, panels, or enclosures, functioning as a type of compression latch. Their name reflects the operation mechanism, which resembles a gun's trigger. To open the latch, you push or pull it, causing the latch to release and the trigger to lift, allowing for easy door access.
When in the closed position, the trigger latch mechanism sits flush against the surface of the door or panel. These latches are available in both locking and non-locking variations, with the locking models featuring a key mechanism. The grip ranges for trigger latches can vary, with some accommodating a range of 6 to 24 millimeters, while others offer a range from 13 to 46 millimeters.
With the wide variety of door latches available, their applications are equally diverse. Here are some fundamental uses for these latches:
Door latches are commonly found in doors and various openings. They also play roles in items such as clamps, cargo containers, seat belts, straps, and even refrigeration units. Their utility extends across multiple sectors including automotive, machine tools, metalworking, construction, ventilation systems, industrial machinery, air conditioning, and gardening equipment. Below, we delve into a few of these applications in more detail.

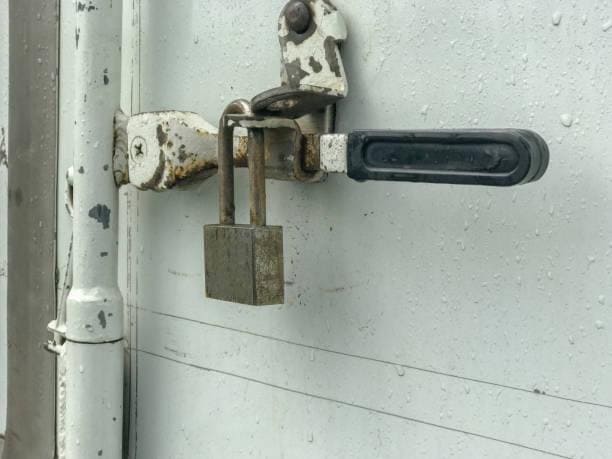

Door latches and gaskets are frequently used on trailers and cargo containers for various functions. Door latches can be attached to the corners or one side, depending on how much force is required to keep them closed.
In manufacturing, door latches can securely fasten electronic circuit boards. They also play a crucial role in machinery, where they are used to secure large components like gears or power takeoffs to their shafts, including locking mechanisms for engine camshafts. Additionally, they are ideal for use with equipment made from zinc alloys or those finished with bright chromate coatings.
In large freezers and cold storage rooms, door latches ensure that perishables are kept safe and secure.
