Graphite crucibles are indispensable containers for melting and pouring different types of metals, including gold, silver, aluminum, and brass. They are highly valued for their superior thermal conductivity, resilience to elevated temperatures, and minimal thermal expansion under harsh conditions. Their ability to endure rapid temperature changes makes them a top choice in metal casting processes. Moreover, graphite crucibles exhibit exceptional resistance to chemical wear from both acidic and alkaline solutions, ensuring their durability over time.
Graphite, derived from natural crystalline carbon, is processed by combining it with fire-resistant materials such as clay or carbon dioxide, which enhances its suitability for high-temperature applications.
Synthetic graphite is produced by processing petroleum byproducts, like pitch and coke, which are byproducts of refining oil. This form of graphite is notable for its high fixed carbon content, minimal impurities, and low levels of sulfur, culminating in outstanding performance across various uses.
Graphite crucibles maintain purity by not contaminating the molten metals due to their integrated graphite material, which remains intact without loosening. The quality of a graphite crucible hinges on its manufacturing process, affecting characteristics such as structure, density, porosity, and strength.

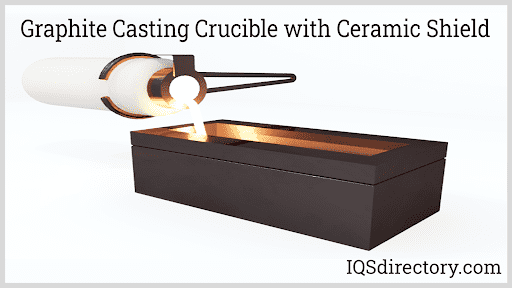

Graphite crucibles are highly suited for metal casting applications due to their inert nature and outstanding thermal properties. These specialized containers play an essential role in the melting and refining of ferrous and nonferrous metals—ranging from aluminum, copper, gold, silver, and platinum to steel and brass—across numerous foundries and metal processing industries. Graphite crucibles are renowned for their excellent heat conductivity, allowing for the rapid, even melting of metals, which significantly improves smelting efficiency and reduces overall cycle time in manufacturing processes. Their natural resistance to chemical attack and corrosion protects against oxidation and contamination, ensuring consistent material purity and minimizing metal waste. As a result, graphite crucibles deliver exceptional durability, longevity, and reliability, making them indispensable for both small-scale artisan jewelers and large industrial metal foundries alike.
During the metal casting process, precise temperature control is crucial to lower the tensile and yield strengths of various metal alloys, making them easier to work with. Since melting points differ widely between materials such as gold, copper, iron, and specialty alloys, successful casting not only depends on reaching the appropriate alloy temperature but also requires the crucible’s heat resistance and thermal shock stability. Graphite crucibles provide high thermal stability, retaining their structure and mechanical strength at temperatures exceeding 1600°C (2912°F), making them ideal for processing a broad spectrum of precious and industrial metals in both vacuum and atmospheric conditions.

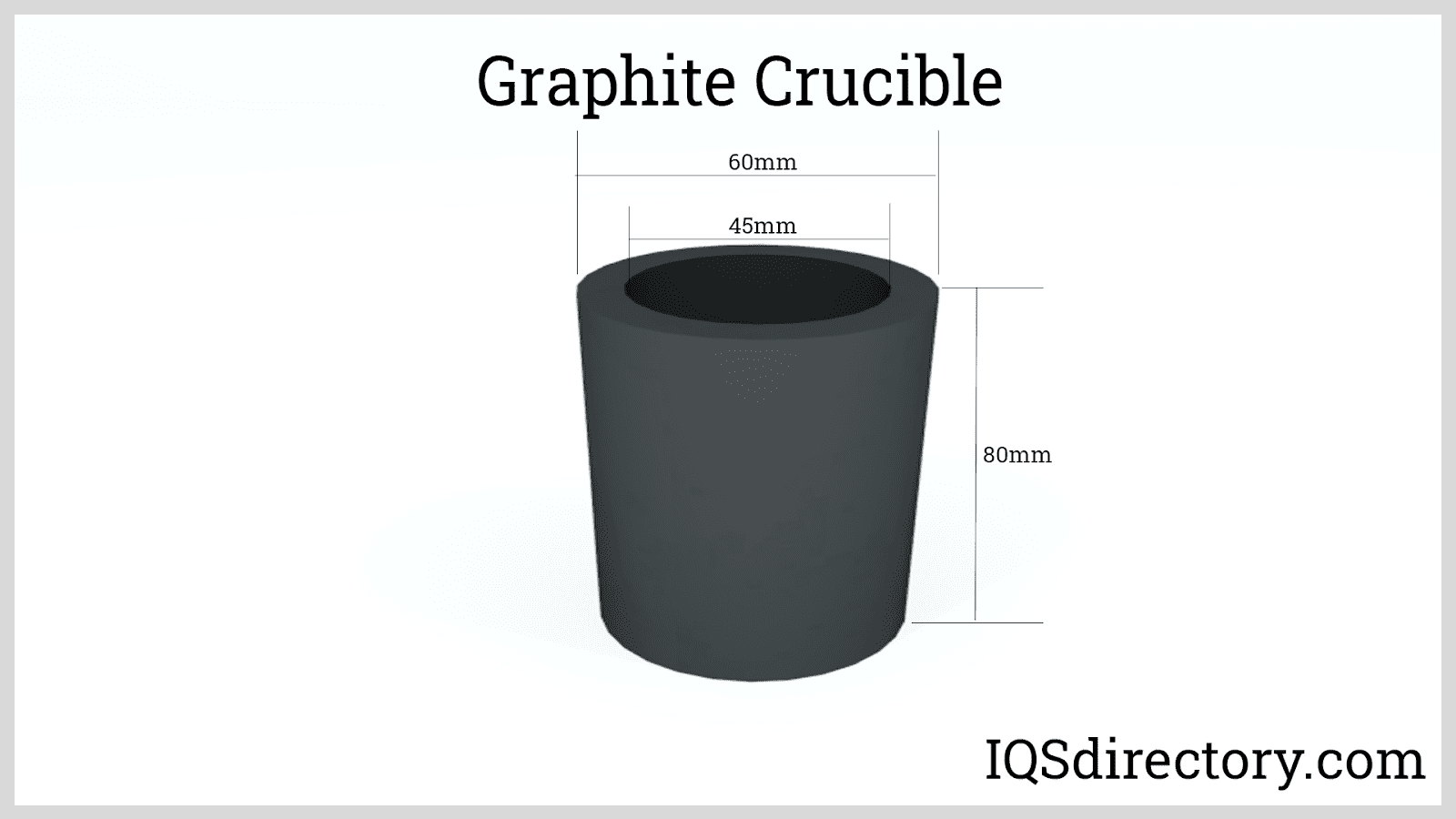

Graphite crucibles are manufactured in an extensive array of shapes and sizes, typically classified using a letter system beginning with "A." These classifications are further defined by detailed subcategories based on precise measurements—such as inner diameter (ID or d), outer diameter (OD or D), height (H)—as well as overall volumetric capacity and crucible wall thickness. The shape and design of a crucible, such as the illustrated cylindrical form with a flat base and no spout or lid, are tailored for specific handling techniques and compatibility with melting and pouring equipment.
To meet diverse industrial requirements, graphite crucibles come in a wide variety of configurations—ranging from simple cylindrical and cup-shaped forms to more complex designs with integrated spouts, reinforced rims, or fitted lids for enhanced pouring accuracy and spill prevention. Certain models incorporate extra features, such as lifting grooves or handles, to improve ergonomics and operator safety during metal handling procedures. These customizations enable metalworkers to optimize the crucible for alloy type, melting volume, and heating method.
Over time, graphite crucibles have become indispensable tools in modern metalworking and metallurgy. Available in capacities from small vessels the size of a teacup (useful for jewelry casting or laboratory research) to massive containers holding several tons of molten material, they are often integrated directly into industrial furnace systems. Consistent material quality in continuous casting, investment casting, and specialty alloy production heavily relies on the robust performance of graphite crucibles in these demanding applications.
Graphite crucibles are exceptionally versatile, being utilized in fuel-fired, electric resistance, and induction furnaces, as well as for manual and automated processes involving the transfer, holding, and pouring of molten metals and alloys. Crucibles must be carefully engineered to meet the specific temperature, chemical, and mechanical challenges posed by unique melting environments, such as oxygen-rich atmospheres, vacuum induction melting, or applications demanding high-purity metallurgical output.

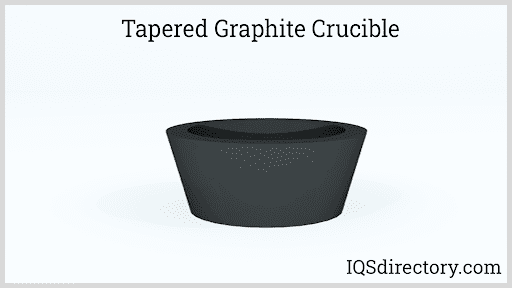

A fuel fired furnace is powered by gas, oil, propane, or coke and requires a graphite crucible capable of withstanding the maximum amount of energy or BTUs from the furnace. Gas, oil, and propane-fueled furnaces use crucibles designed to withstand the burner flame around the tapered shape of the crucible, which allows for the even distribution of heat. Fuel fired furnace applications commonly use graphite crucibles for alloy steel, bronze, brass, and cast iron melting, prized for their toughness and ability to withstand repeated thermal cycling. Choosing the right crucible minimizes oxidation, prevents slag buildup, and ensures consistent pour quality in foundry operations.

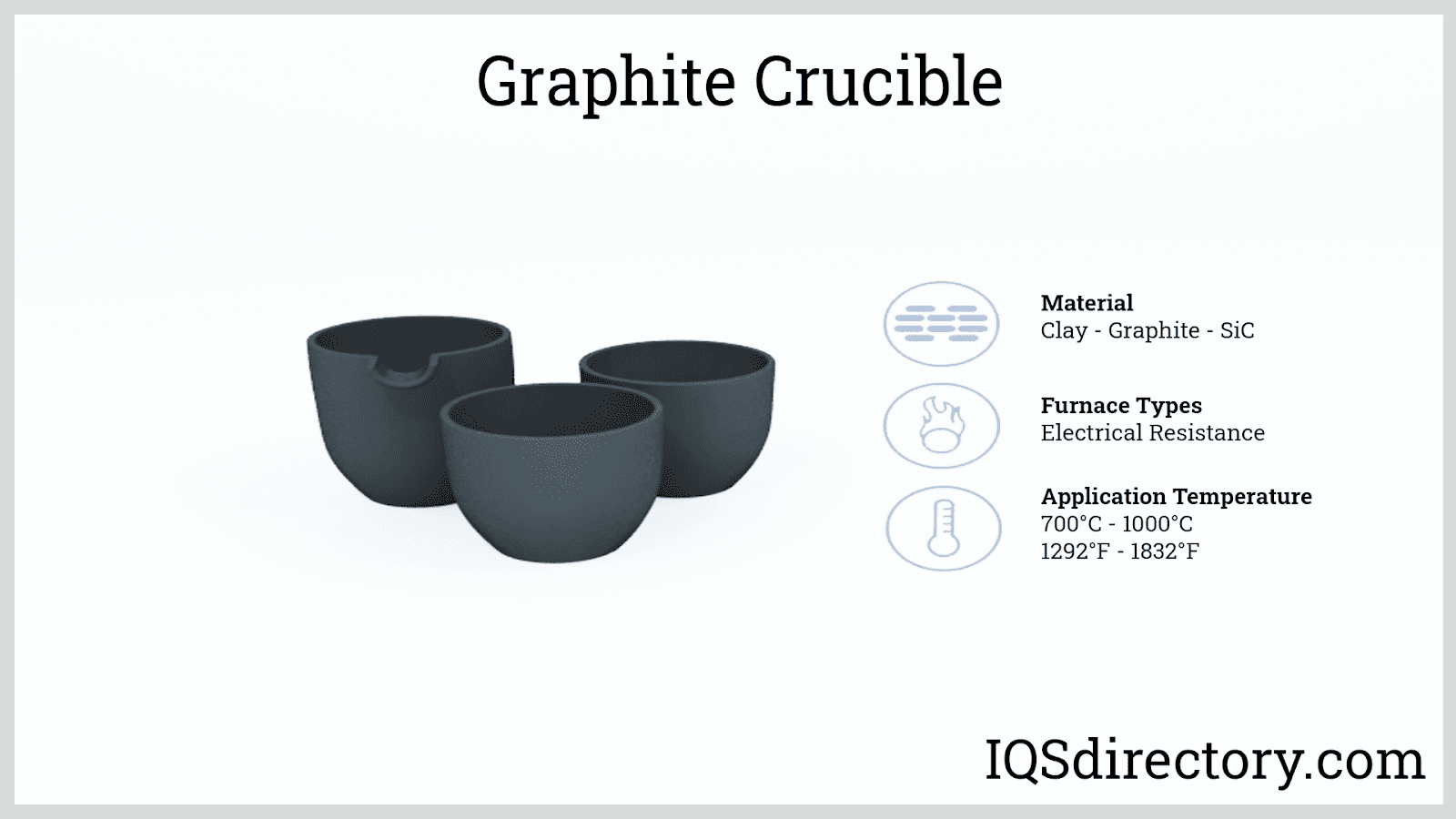

Electric resistance furnaces require graphite crucibles that are specially engineered due to their slower heating rate compared to fuel-fired furnaces. In these furnaces, advanced crucibles are manufactured with a high concentration of synthetic graphite in the carbon binder matrix to maximize both energy efficiency and thermal conductivity, reducing energy costs and increasing process control. Typically, these basin-shaped crucibles are strategically arranged around the heating elements to ensure even temperature distribution throughout the molten metal. This setup is ideal for applications in which minimizing metal contamination is essential, such as the manufacturing of aluminum, copper, and precious metal alloys. Additionally, electric resistance furnaces are often chosen for laboratory-scale research and precision casting processes, owing to their temperature accuracy and lower emissions.
Choosing graphite crucibles for fuel-fired and electric furnaces is generally more straightforward than for induction furnaces. In induction heating systems, crucibles not only melt the metal charge but also serve as key components in managing electromagnetic field interactions. Selecting the right graphite or hybrid crucible—potentially blended with high silicon carbide or clay—depends on the furnace’s operating frequency. Low-frequency induction furnaces often require crucibles reinforced with silicon carbide for enhanced electrical and thermal conductivity, while high-frequency induction furnaces may use clay graphite to resist intense magnetic forces and prevent overheating. The proper crucible selection is critical to avoid degradation, ensure energy efficiency, and maintain high-purity metal processing, which is vital for steelmaking and specialty alloy production. Users should always match crucible type to both charging material and melting technology for maximum safety and productivity.
Crucibles for furnaces are designed in a "A" shape, enabling them to be easily lifted with tongs for removal and pouring of molten metal. These removable crucibles are favored for batch processing in both industrial and artisan metalworking, providing flexibility in alloy changes and efficient manual pouring. Workers can load crucibles either inside or outside the furnace, optimizing workflow and reducing downtime. Ergonomic design in removable crucibles helps to improve operator safety, decrease spill risk, and facilitate maintenance for high-volume casting operations.

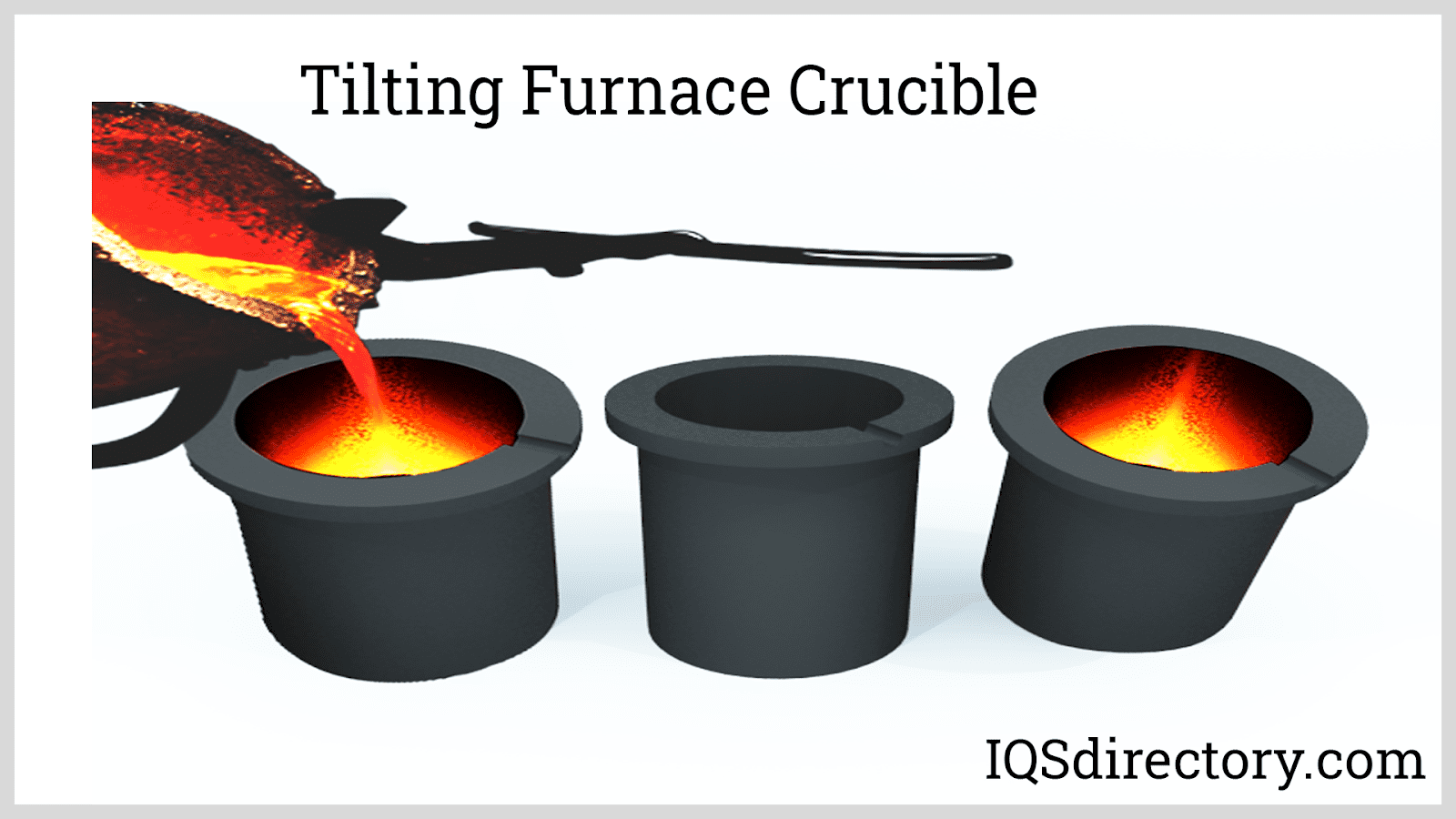

In a tilting furnace, the graphite crucible remains stationary while the furnace housing tilts to pour out molten metal. This design is often used in continuous casting foundries and large-scale metal production, reducing manual handling and improving operator safety. Tilting furnaces—suitable for induction or electric operation—enable efficient melting of a broad range of metals, including steel, iron, copper, brass, gold, platinum, silver, nickel, and palladium alloys. This versatility makes tilting crucible furnaces ideal for high-repeatability production environments demanding rapid melt cycles and precise temperature management.

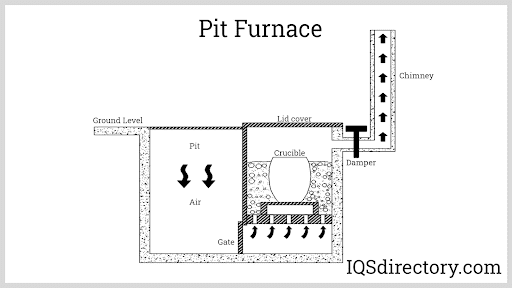

A pit furnace is situated below ground level to provide natural insulation and process safety. In this configuration, the graphite crucible is carefully lowered into the furnace chamber and surrounded by coke to serve as both a fuel and an insulator. This traditional melting method is commonly used for large-volume melting of precious and base metals—including lead, copper, and silver—thanks to its stable thermal environment and reduced heat loss. Once the charge is fully melted, the crucible is hoisted out for pouring or further processing. Pit furnaces remain relevant in specialized manufacturing where controlled atmospheres and steady, even heating are required for quality metal casting.
The type of metal you intend to melt is a critical factor in selecting the appropriate crucible. Graphite crucibles are favored in metal casting and foundry applications due to their high thermal conductivity, strong resistance to chemical corrosion, and ability to withstand repeated exposure to extreme temperatures without deforming or degrading. The crucible's design and the engineered construction must endure the melting temperature and unique chemical properties of each metal, ensuring longevity and reliable performance, even in industrial-scale operations. Chemical compatibility and physical interactions between the crucible material and the molten metal are key considerations, as are safety, efficiency, and control over the melting process.

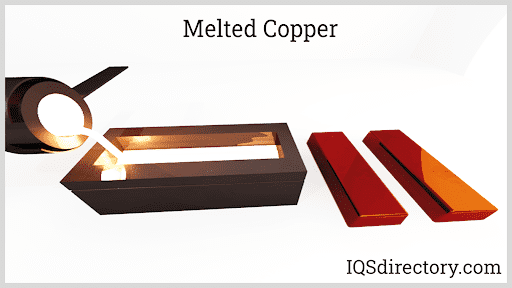

Copper and copper-based alloys are often melted in industrial fuel-fired furnaces, and silicon carbide graphite crucibles are the preferred choice thanks to their outstanding resistance to thermal shock and excellent lifespan. This type of refractory crucible supports melting and refining copper and its alloys, such as bronze and brass, ensuring consistent heat transfer and minimizing contamination. Proper crucible selection is important in non-ferrous metallurgy, where the purity of the copper is paramount in producing high-quality castings for electrical, plumbing, and industrial applications.

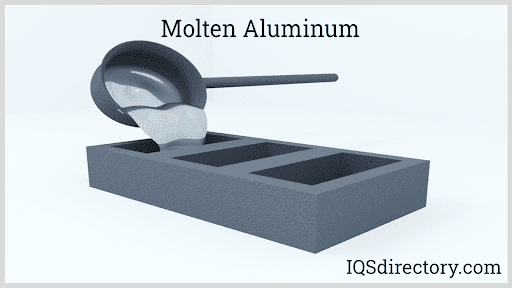

When processing aluminum or aluminum alloys, industries commonly use crucibles made from carbon- or ceramic-bonded clay graphite and silicon carbide. Aluminum’s melting range—extending from 400°C (750°F) to 1600°C (2912°F)—necessitates a crucible material that combines high thermal conductivity, superior strength, and resistance to oxidation. Aluminum melting processes in die casting, foundries, and recycling operations rely heavily on graphite crucibles to provide clean melts and enhance metal yield. Graphite’s low wettability with molten aluminum makes it especially effective for producing high-purity metal and reducing dross formation during aluminum smelting.

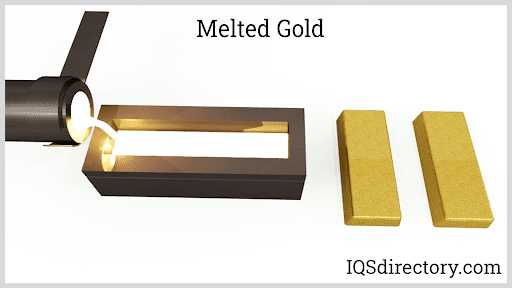

Gold melting requires graphite crucibles fabricated from highest-grade graphite to guarantee thermal shock resistance, dimensional stability, and oxidation resistance at elevated temperatures above 2000°C (3632°F). The non-reactive properties of graphite ensure that gold is not contaminated during melting and casting, which is crucial for jewelry manufacturing, bullion production, and refining applications. Graphite crucibles are favored by precious metal foundries because they provide a smooth pour and enable consistent recovery of high-purity gold with minimal loss or inclusions. Their efficiency also extends to induction furnaces and electric arc melting systems used for gold refining and laboratory testing.
Similar to gold, graphite crucibles for melting silver are designed to withstand temperatures surpassing 2000°C (3632°F), providing robust oxidative resistance, minimal reactivity, and low thermal expansion. Silver smelting operations—including alloy production, jewelry making, and recycling—require crucibles that do not introduce impurities and that tolerate frequent cycling between hot and cold conditions without cracking. The consistent performance and chemical stability of natural graphite crucibles make them ideal for precious metals refining, where product integrity and melt quality are top priorities in producing fine silver bars or industrial-grade alloys.
Brass features a relatively low melting point, making it susceptible to oxidation if not heated properly. Rapid and controlled heating using a graphite crucible is essential to prevent oxidation and preserve alloy integrity. Thanks to their exceptional heat conduction and durability, graphite crucibles enable precise temperature management for melting, casting, and recycling brass. These qualities are particularly in demand in manufacturing brass fittings, musical instruments, and decorative hardware, where quality, consistency, and contamination prevention are critical.
In addition to copper, aluminum, gold, silver, and brass, graphite crucibles are extensively used for melting a variety of non-ferrous and precious metals such as platinum, palladium, and nickel-based alloys. Their robust resistance to corrosive slag and high temperatures makes them a versatile solution across multiple industries, including automotive, aerospace, electronics, and jewelry manufacturing. Graphite crucibles are also suitable for research laboratories that require small-batch processing of specialty alloys or experimental metals. When selecting a graphite crucible for any application—small-scale laboratory melting, large foundry production, or precious metal recovery—consider factors such as crucible size and capacity, compatibility with your furnace type (e.g., induction, resistance, or fuel-fired), and the frequency of use. By matching the crucible features to the specific needs of your metal melting process, you optimize efficiency, minimize metal loss, and maintain product quality, ensuring reliable, high-performance results every time.
Graphite crucibles can be crafted from either natural or synthetic graphite, with the production methods reflecting the distinct properties of each type. Natural graphite crucibles are made using clay graphite ceramic bonded or silicon carbide carbon bonded graphite, which leverage the refractory characteristics of silicon and graphite to effectively conduct heat while preserving structural integrity.
The creation of synthetic graphite entails processing materials such as petroleum coke, pitch coke, and carbon black. This production process includes several steps: preparing the powder, forming shapes, baking, impregnating with pitch or densifying, and finally, graphitization.

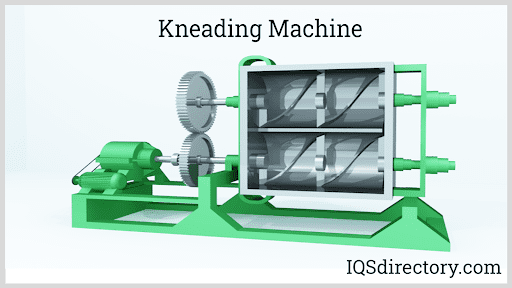

Before production commences, the raw materials are converted into powder through crushing and milling. The powder is processed to achieve the desired particle size distribution and mixed into a paste with coal tar pitch or petroleum pitch acting as a binder.
Shape forming can be accomplished using three techniques: extrusion, vibromolding, and isostatic pressing.
During the baking stage, the components are subjected to heat treatment at temperatures ranging from 900°C to 1200°C (650°F to 2200°F). This process leads to the thermal decomposition of the binder into carbon and other byproducts. The carbonization process then binds the powder particles together. Due to the larger volume of the binder compared to the carbon, pores are created, with their size dependent on the quantity of binder used.
Pitch impregnation is a technique aimed at reducing the porosity of the carbon components. This process involves using a material with lower viscosity than the initial binder, allowing the impregnating substance to penetrate and fill the voids left by the removed binder.
Graphitization involves heating the parts to very high temperatures, between 2700°C and 3000°C (4900°F to 5450°F). This stage transforms the carbon within the parts into crystalline graphite, altering the material’s physical properties. Additionally, this extreme heating leads to the evaporation of impurities such as binder residues, gases, oxides, and sulfur.

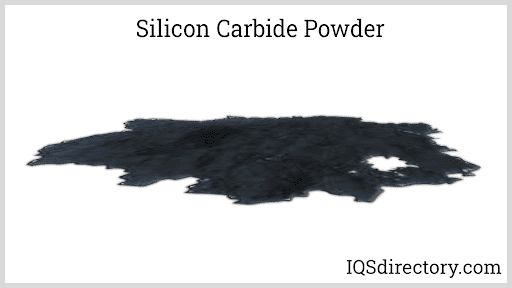

Silicon carbide is produced through the Acheson process, where silica sand and carbon are subjected to high temperatures in a furnace. This process results in the formation of a solid mass or powder of silicon carbide.

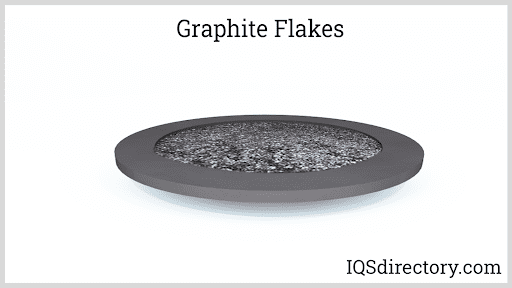

Graphite is extracted from either open-pit mines or underground mines, depending on where the graphite deposits are located.
Silicon carbide and graphite are combined with additives like ferro silicon or ferro manganese and mixed with bonding agents in a kneading mill.
Graphite crucibles can be shaped through various methods such as hand molding, rolling, rotary molding, or compression molding. The choice of forming technique influences the crucible's structure, density, porosity, and overall strength.
During the coking process, the molded crucibles are transferred through an oven that achieves temperatures of 1000°C or 1800°F.
To safeguard the internal structure of the crucible and extend its lifespan, glazing is used. This process involves a vacuum and pressure chamber where impregnation chemicals are applied to fill the crucible's pores. The chamber is heated to ensure thorough penetration of the chemicals.
To protect the crucible from heat-induced burning of carbon binders and graphite, a glass-like glaze is applied to both its exterior and interior. This glaze acts as a barrier against oxygen, chemicals, and thermal shock, ensuring durability and resistance to damage.

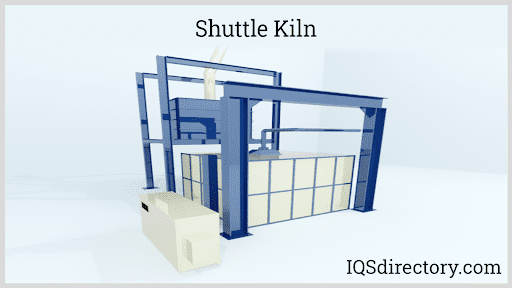

Glazed graphite crucibles are then subjected to firing in large kilns. The kilns use gases to heat the crucibles to temperatures specific to the type of crucible and glaze, ranging from 1000°C to 1350°C or 1800°F to 2450°F.
The last stage of the manufacturing process involves thorough testing to confirm that the graphite crucible satisfies customer requirements. This testing covers aspects such as quality, durability, dimensional accuracy, and thermal performance.
Prior to or following the testing phase, crucibles are coated with paint for identification and finishing purposes before they are dispatched.
Graphite crucibles are produced using several molding techniques, including vibration molding, isostatic pressing, and compression molding. The choice of manufacturing method affects the crucible's quality, impacting its structure, density, porosity, and mechanical strength.
Isostatic pressing involves molding graphite crucibles by applying uniform pressure to powdered material through powder metallurgy techniques. This method ensures that the powder is compacted evenly to achieve the desired density and microstructure. The process can be executed either cold or hot. Crucibles made via isostatic pressing exhibit outstanding properties, including uniform distribution of characteristics throughout the material without grain direction, or anisotropy.
The high density and fine particle size of crucibles produced by this method result in a robust and machinable graphite tool that offers excellent resistance to high temperatures, effective electro-conductivity, and self-lubricating features in controlled settings.
Compression molding is similar to isostatic molding in that it involves applying significant pressure to a fine powder. In this process, hydraulic pressure is exerted on graphite powder within a steel mold to form the crucible. Compression molding offers benefits such as a straightforward process, reduced production time, high efficiency, lower labor costs, minimal shrinkage, and superior product quality.
Crucibles manufactured through compression molding feature a fine grain structure, making them a viable alternative to more costly isostatically pressed graphite crucibles. However, the main drawback of this method is the limitation on the size of the crucibles that can be produced.
Vibration molding is employed for creating large crucibles and involves using a paste-like graphite mixture. This mixture is placed into a mold, and a metal plate is placed on top. The mold is then vibrated to compact the mixture. Following the compaction process, the molded crucible is baked for two to three months at temperatures near 1000°C. To prevent cracks or defects, the temperature is carefully regulated. Once the baking process is complete, the crucible attains the required hardness.
Proper handling and maintenance of a graphite crucible are crucial for its performance and longevity. While issues with a crucible might appear to be related to its use, many problems actually stem from how the crucible is handled, operated, and cared for. Adhering to basic operational practices and maintenance procedures can significantly extend the lifespan of a crucible.
Proper handling of a crucible starts upon its arrival. Newly delivered crucibles should be carefully examined for any chips, cracks, or abrasions.

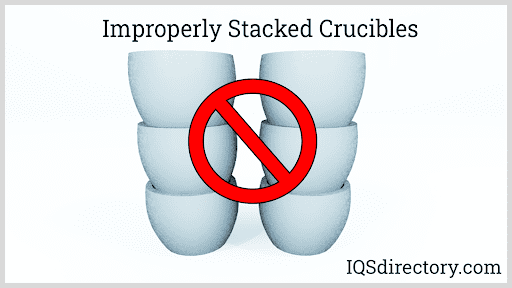

Avoid stacking crucibles inside one another, as this can cause cracking.
Moisture is detrimental to graphite crucibles. They must be kept in dry, well-ventilated areas to prevent exposure to moisture.
To prevent thermal shock, preheat the crucible if it has cooled between uses. Rapid heating can cause cracks due to thermal shock.

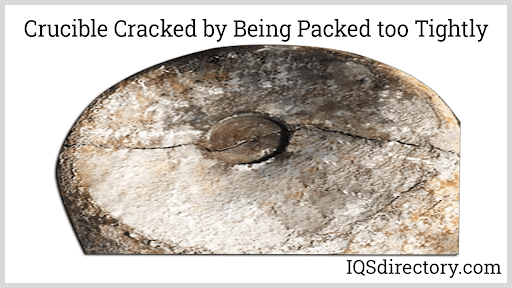

When charging a crucible, begin with smaller materials before adding larger ones. Avoid tightly packing the materials as they may expand and damage the crucible.
While crucibles are built to withstand chemicals, flux can still cause damage if added before the materials are fully molten. Adding flux to solidified material can lead to erosion of the crucible's surface.

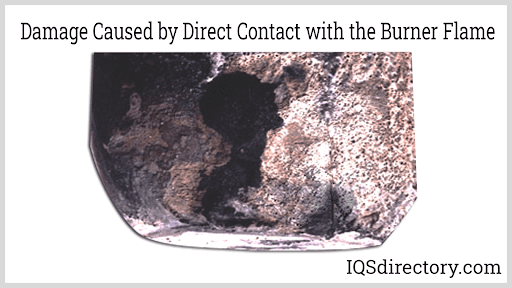

Fuel-fired furnaces typically use a direct flame burner that may introduce excess air. This excess air, combined with the direct flame, can lead to oxidation damage on the crucible's surface. Additionally, maintaining the melted metal at a low temperature for prolonged periods can also contribute to oxidation.
Accumulation of dross or slag can reduce thermal conductivity, necessitating higher furnace temperatures. This buildup also absorbs flux, which can increase the chemical attack on the crucible’s surface. Regularly removing dross can help mitigate this issue.
Cleaning a crucible involves eliminating chemical residues from processing. Hydrochloric acid is used to dissolve most compounds except for carbon-based ones. For carbon residues, nitric acid is employed. After the acids have done their work, potassium pyrosulfate, sodium carbonate, or borax can be used to melt and remove the cleaning agents.
Crucibles are designed to withstand specific temperature ranges, which vary depending on the material being processed. Surpassing these temperature limits can cause significant damage or destruction to the crucible. To prevent this, it is essential to monitor the crucible closely during use.
| Crucible | Maximum Temperature Limit |
| (G) Graphite Carbon | 3000°C or 5432°F |
Before using a crucible, it should be preheated to 500°F (260°C) for a duration of two hours and then allowed to cool gradually. This procedure helps to eliminate any residual moisture and reduces the risk of cracking.

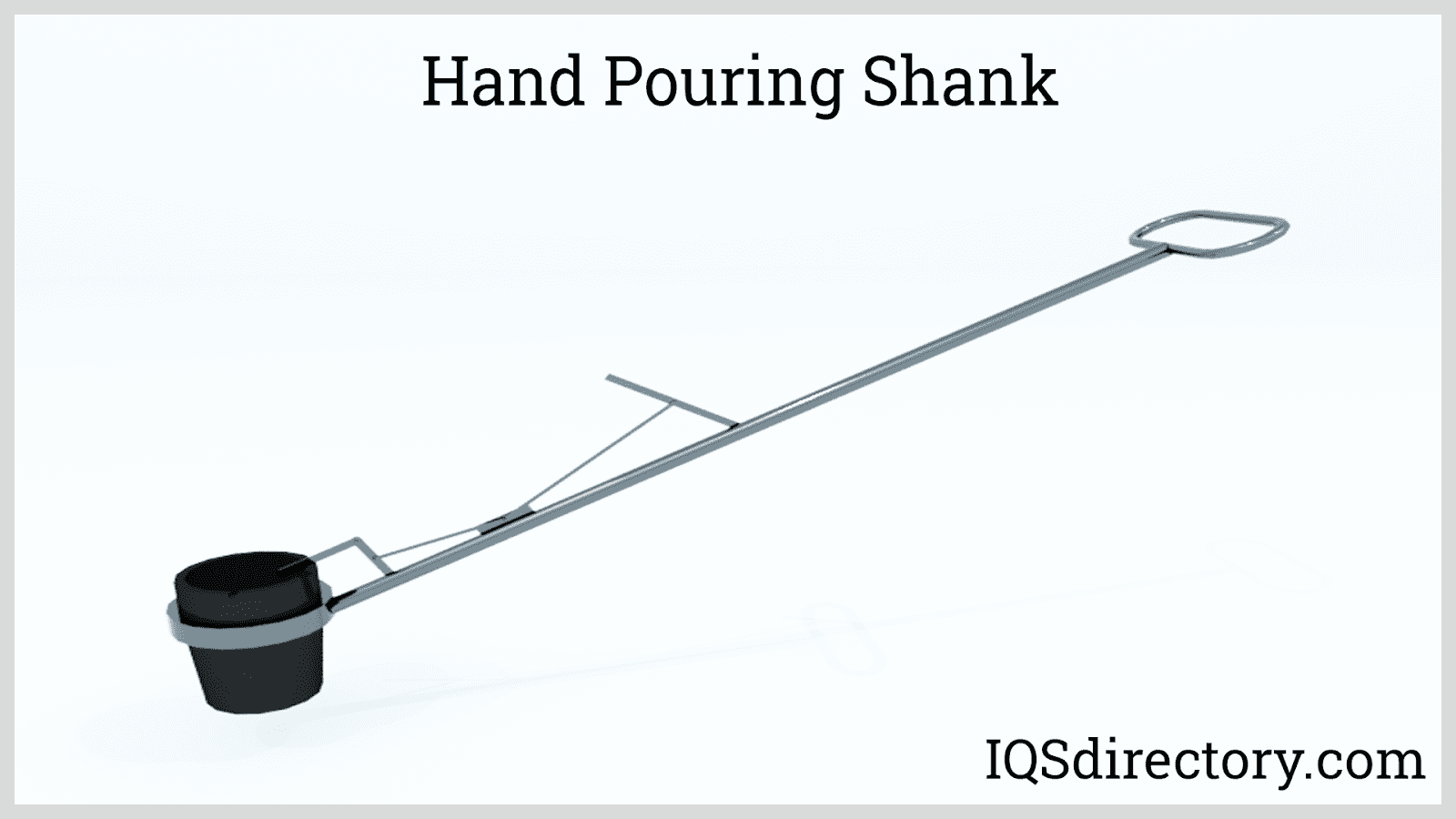

Tongs should be compatible with the shape and design of the crucible and must not exert pressure on the sides of the crucible.
Graphite can be obtained through mining or artificially created from petroleum byproducts resulting from the oil refining process. Naturally occurring graphite, sometimes referred to as plumbago, black lead, or mineral carbon, appears in lamellar layers with a grey to black sheen. It has a greasy texture and can be found in various forms, including flaky, crystalline, and amorphous. The quality of graphite is determined by its physical characteristics.
Synthetic graphite is produced by heating amorphous carbon materials, such as calcined petroleum coke and coal tar pitch, at high temperatures. These materials contain carbon that can be transformed into graphite. The material’s porosity significantly influences its thermal expansion, which varies based on the integrity of its polygranular structure.
Unlike natural graphite, synthetic graphite is less crystalline but features a higher carbon purity. There are two main types of synthetic graphite: electrographite and graphite blocks. Electrographite is created in electric furnaces, whereas graphite blocks, also known as isotropic graphite, are produced from coke with a different structure compared to that used for electrographite.
Synthetic graphite generally outperforms natural graphite due to its superior purity, which makes it more consistent and controllable. This property makes it ideal for specialized applications across various industries. The physical and chemical characteristics of synthetic graphite are influenced by its production process.
The production of synthetic graphite powder involves heating petroleum coke or petroleum pitch to temperatures sufficient for graphitization. In some cases, the powder is also obtained by screening lathe turnings from electrodes and nipples.
This type of graphite is utilized in a range of sectors including electronics, military applications, aerospace, defense, and nuclear energy.
Graphite electrodes are employed in the steel production industry to facilitate the melting of scrap iron and steel.
Certain specialized grades of synthetic graphite are utilized as matrices and neutron moderators in both nuclear and fusion reactors.
Thanks to its durability and longevity, synthetic graphite is used in a variety of commercial products. These include fishing rods, golf club shafts, bicycle frames, sports car panels, the fuselage of the Boeing 787, and pool cues.
Natural graphite resembles mica, comprising layers of flat molecules interconnected by Van der Waals forces, which are weak interactions between atoms and molecules. These weak forces contribute to graphite's softness, allowing it to wear away through friction.
Graphite exists in two primary forms: hexagonal and rhombohedral. While both types share similar properties, they differ in their graphene layer arrangements. Each form can be transformed into the other through processing.
Due to its excellent thermal stability and high electrical and thermal conductivity, graphite is well-suited for use in electrodes and high-temperature refractory applications. However, one limitation of graphite is its tendency to oxidize at temperatures exceeding 700°C.
Graphite formation occurs through reactions involving carbon compounds with hydrothermal solutions, magmatic fluids, or the crystallization of magmatic carbon.
Applications of graphite include refractory materials, batteries, steel production, brake linings, foundry facings, and lubricants.
Although the substance used in pencils has long been called lead, it is actually a type of clay graphite.
Crucible manufacturing started with clay graphite but has evolved to include alumina graphite and silicon carbon graphite. Graphite is also utilized in bricks for lining steel blast furnaces.
As portable electronics have become more prevalent, graphite has seen increased use in battery production and manufacturing, being used twice as extensively as lithium carbonate.
Graphite is employed to enhance the carbon content in molten steel and serves as a lubricant for dies.
In brake lining production, graphite has replaced asbestos.
A graphite coating is applied to mold linings to facilitate the removal of cast parts. Its resistance to high temperatures aids in separating parts after they have cooled.
Graphite machining is a method for shaping, forming, configuring, and cutting graphite material to produce a wide selection of parts and components for industrial applications. The success of graphite machining is dependent on the types of tools used...
Rods are thin, straight rods made of plastic, metal, ceramic, or organic substance. They are relatively simple to construct and can serve a variety of functions depending on their composition and size...
Alumina ceramic is an industrial ceramic that has high hardness, is long wearing, and can only be formed by diamond grinding. It is manufactured from bauxite and can be shaped using injection molding, die pressing, isostatic pressing, slip casting, and extrusion...
A ceramic insulator is a non-conductive insulator made from red, brown, or white porous clay that provides a bridge between electronic components and has high dielectric strength and constant and low electrical loss. They are easy to maintain and...
Ceramic machining refers to the manufacture of ceramic materials into finished usable products. Machining involves the continual removal of material from the workpiece, in this case, ceramic material...
Friction materials are substances that produce friction between solid surfaces in order to control or stop forward or backward motion. The materials used to produce friction materials include organic and non-organic substances such as resin, ceramics, fibers, and metals...
Glass cutting is a method of weakening the structure of glass along a score line that can be broken by applying controlled force; this separates the glass into two sections along the score line or fissure. Regardless of the application, the cutting of glass is...
Quartz is one of the most abundant and widely distributed minerals in nature. Quartz is the only stable polymorph of crystalline silica on the Earth‘s surface. It is found in all forms of rocks: igneous, metamorphic and sedimentary. It becomes concentrated in...
Zirconia Ceramics, or zirconium dioxide ceramics, are exceptionally strong technical ceramic materials with excellent hardness, toughness, and corrosion resistance without the brittleness common to other ceramic materials...
