This Article takes an In-depth look at Mechanical Components
You will learn more about topics such as:
What are Mechanical Components?
How Mechanical Components Are Made
Actuators and Positioning Systems
Bearings and Linear Guides
Mechanical Transmission
Standard Mechanical Components
What are Mechanical Components?
Mechanical components form the backbone of machines and work-producing devices. Despite technological advancements and the replacement of older parts with modern methods, mechanical components remain central to every piece of equipment, ensuring reliable and cost-effective performance. Essentially, these components convert input force through a combination of elements like gears, bearings, and rotaries to achieve desired outputs.
In well-functioning equipment, mechanical components minimize friction and support loads for both linear and rotary motion. They are engineered to alter input and output speed ratios, each serving a specific purpose to enhance efficiency and provide precise control.
Though often overlooked, mechanical components are crucial in engineering. From everyday vehicles to sophisticated industrial machinery, these seemingly minor elements are essential for smooth and cost-effective operation.
How Mechanical Components Are Made?
Mechanical components come in many types, including springs, bearings, actuators, clamps, and snap rings, each crafted to precise specifications. Despite their commonality, these components are specifically designed to fit into their designated roles within a piece of equipment.

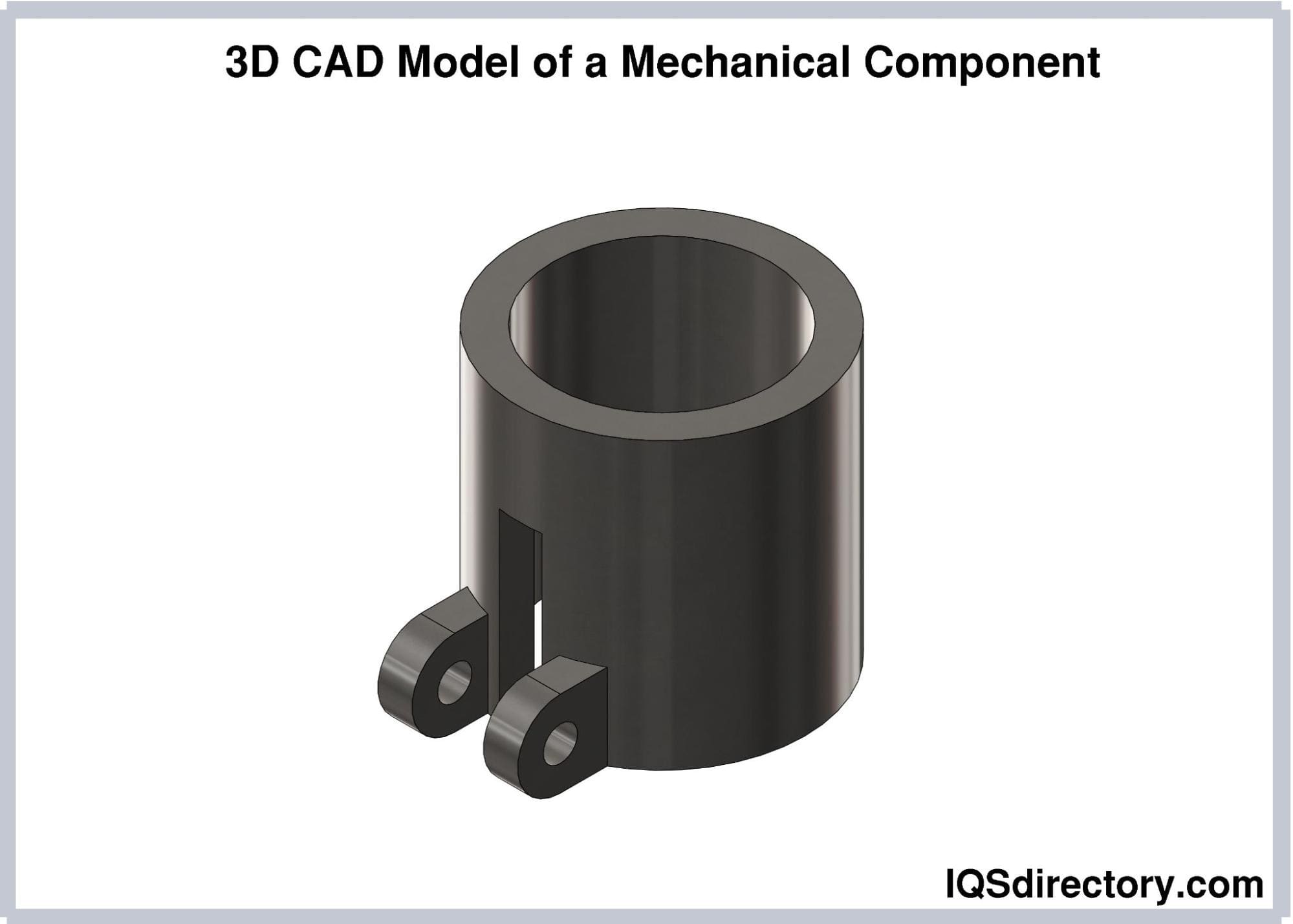

The process starts with creating a CAD design, which outlines each component's measurements, function, and placement. Selecting a component requires ensuring it meets the design's overall standards. Components are available in various shapes and sizes and may need customization from standard forms to suit specialized applications.
The dimensions of a bearing or spring are crucial; even small deviations can turn a well-functioning machine into one that requires frequent repairs. Skilled engineers carefully calculate torque and stress during the design phase to select the right materials for production. These calculations are based on the force-to-output ratio. Modern technology enhances this process by enabling simulations that test stress on components, which helps determine the most suitable materials and methods for creating each critical part.
Mechanical components are crafted from various materials, including high-grade steel and different plastics. The choice of material is influenced by the component's function, importance, and specific requirements. Components subjected to high torque and stress typically need to be robust, while some components, like certain springs, may come in standard dimensions. Others might require custom fabrication. What's crucial is ensuring that special components are designed for easy replacement, repair, and cost-effectiveness.
The material selection for mechanical components depends on factors like usage, component type, resistance needs, and expected torque. For instance, ball bearings are commonly made from chrome or stainless steel to endure wear and stress. Actuators, on the other hand, may be manufactured from high-density plastics, aluminum, or thermo bimetals with specialized coatings or electroplated surfaces.
Springs are typically manufactured from various steel alloys. Common types include high carbon steel, oil-tempered low carbon steel, chrome silicon, chrome vanadium, and stainless steel. While these are prevalent, springs can also be made from materials like copper, bronze, or titanium, depending on specific functional requirements and applications.
Snap rings are generally crafted from steel, although some may incorporate copper. They often feature different finishes to enhance corrosion resistance. The choice of material depends on the intended use of the snap ring and the level of wear it needs to withstand.
Threaded inserts are predominantly made from brass due to its durability and reliable thread life. However, alternatives such as aluminum and various steels are also available. These inserts are used to reinforce plastic components, necessitating high reliability and longevity.
The selection of material for a mechanical component is guided by its intended use and integration within the overall design. Metals are commonly chosen for their durability, but each component must be evaluated individually to ensure it meets the specific needs of the application.
What are actuators and positioning systems?
Actuators
An actuator is a mechanism that generates force to move or control other devices. Electrical actuators, which rely on electrical current to create force, are particularly notable for their ease of integration with electrical control systems.

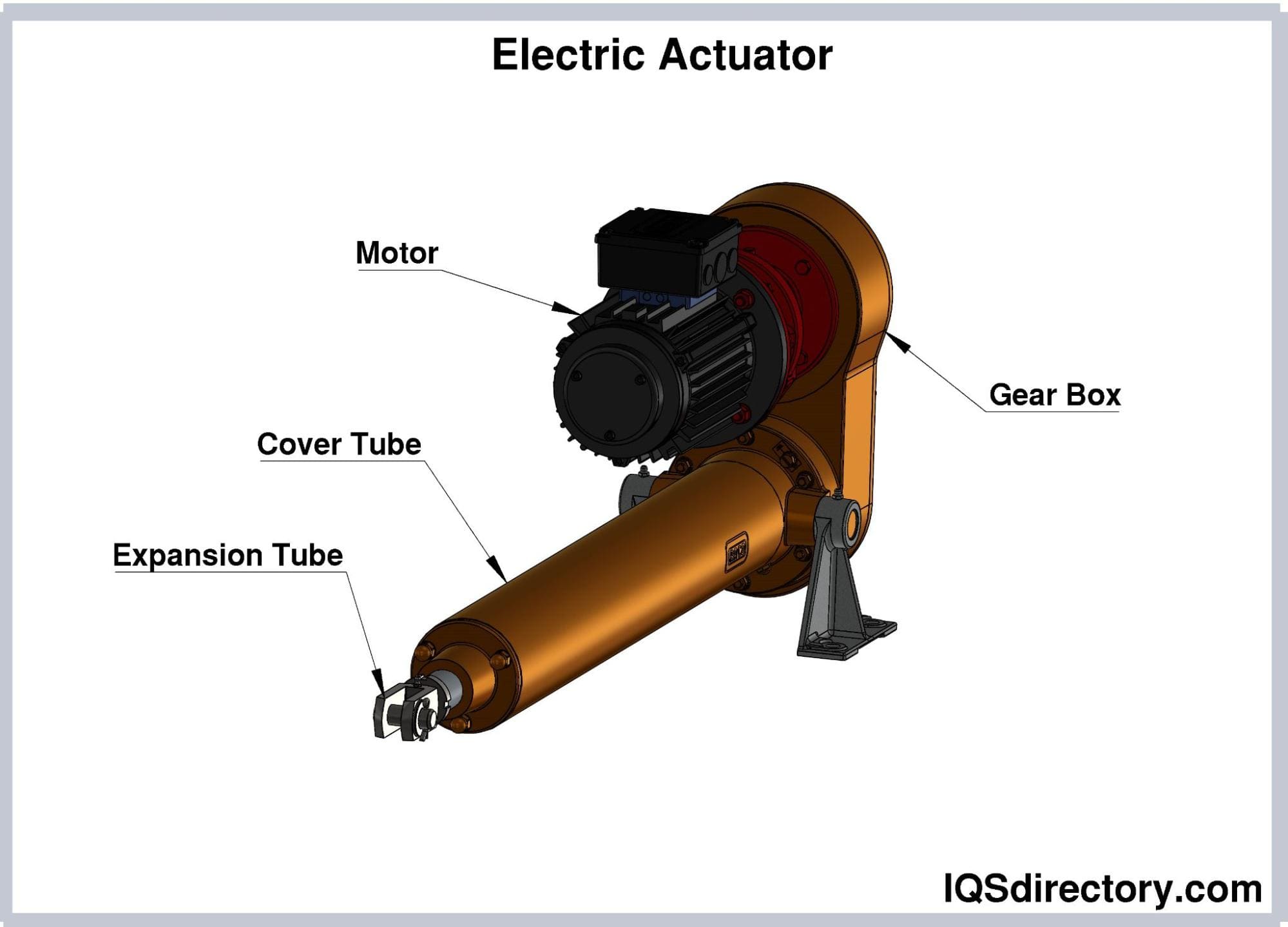

Advantages of electric actuators include:
Easier to diagnose in case of electrical or mechanical faults
Cleaner
Ease of control
Choosing the right electric actuator involves evaluating performance metrics such as energy efficiency, angular acceleration, angular speed, and overall acceleration. While these factors are crucial, it is also important to consider the actuator's durability, operating conditions, and the weight of the load it needs to move.
When selecting an actuator, it is essential to carefully evaluate its technical specifications. Consider factors such as temperature ranges, actuator weight, disposal volume, power type (AC or DC), dynamic performance, control range, and the nature of the movement (linear or rotational) before installation.
Electromagnets
Unlike permanent magnets, electromagnets generate a magnetic field through electric current, which defines their functionality.
Electromagnets can be adjusted to focus and direct their magnetic effects, making them ideal for creating controlled magnetic fields within specific areas.
Commonly found in electric motors, generators, relays, and scientific devices, electromagnets are crucial for applications such as lifting heavy metal objects in industries. They also play a role in fire doors, circuit breakers, and magnetic recording devices like tape and video recorders, where they help store information using magnetized particles.

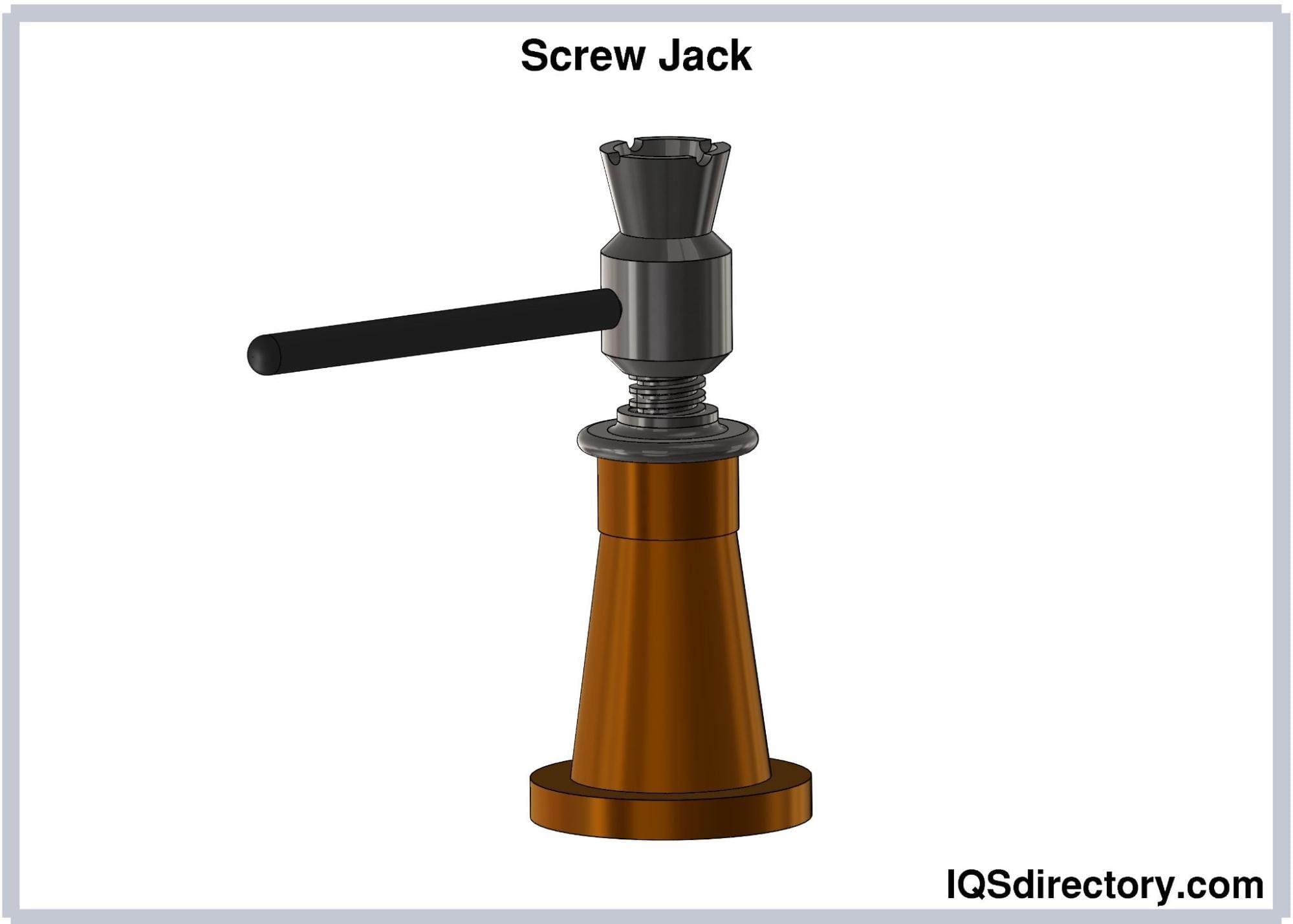

Screw Jacks
A screw jack functions by rotating a leadscrew to elevate heavy loads. It amplifies force, allowing it to lift from a few kilograms to hundreds of tons and enabling movement in various directions. Screw jacks are particularly useful for precise control and positioning of large weights, such as lifting vehicles, adjusting aircraft stabilizers, and providing support for heavy structures like building foundations.
Screw jacks are designed to be self-locking, ensuring they remain stationary even when the applied force is removed. This feature prevents backward movement, even under heavy loads. They can be operated through electric, hydraulic, or pneumatic means, depending on the required precision.
A screw jack typically employs either a machine-cut lead screw or a rolled/ground ball screw to convert rotational motion into linear motion. This conversion is achieved by the worm screw engaging with the lead screw via the worm wheel, which facilitates the energy transfer and work generation.
Linear Actuators
An actuator transforms an energy source—such as electrical current or pneumatic/hydraulic pressure—into mechanical movement. A linear actuator specifically converts this energy into straight-line motion, responding to commands from a control system.
Linear actuators are commonly used in various applications, including industrial machinery, computer peripherals, printers, and disk drives. A familiar example is the mechanism that opens a DVD tray. These actuators use lead screws to achieve linear motion, providing a versatile range of options and directions.
Linear actuators come in several types, including mechanical, hydraulic, pneumatic, piezoelectric, and electromechanical. Hydraulics and pneumatics can enhance output capabilities by utilizing pressurized gases or liquids to generate linear motion.
When selecting a linear actuator, it is crucial to consider factors such as travel distance, speed, force, accuracy, and lifespan. Actuators are designed to handle high speeds, high forces, or a combination of both, depending on the application.
Telescopic linear actuators are particularly beneficial in constrained spaces as they can extend significantly beyond their resting length. Known for their straightforward design and high-speed performance, linear actuators have few moving parts, making them easy to maintain and cost-effective. Their extension and retraction capabilities are consistent and predictable.

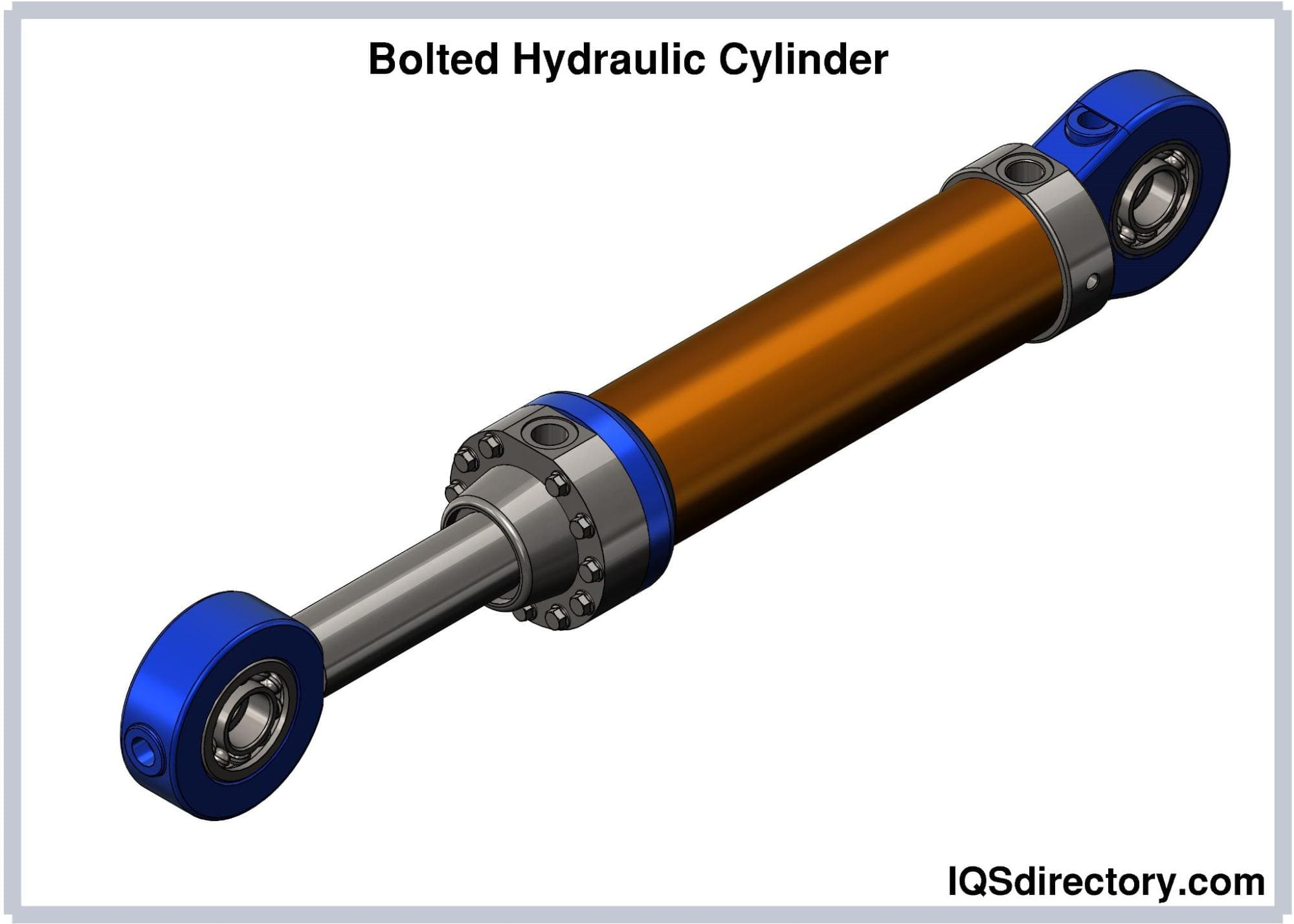

Hydraulic Cylinder
Hydraulic cylinders, also referred to as linear hydraulic motors, are integral components in various engineering vehicles and industrial machinery. They derive their power from a pressurized fluid contained within the cylinder. Typically, this fluid is an incompressible oil that maintains its viscosity even under pressure. The applied pressure is transmitted through the fluid, which then amplifies and focuses the force. For instance, hydraulic cylinders on large earth-moving equipment control the machine's linkages, allowing for enhanced movement and lifting capabilities in multiple positions.
Hydraulic cylinders consist of a cylindrical chamber housing a piston and piston rods, which are sealed at both ends. One end acts as the fixed base, while the other end features the piston rod extending outward. To maintain pressure, the cylinder is equipped with sliding rings and seals. The operation of the piston is managed by a hydraulic pump that regulates the fluid flow into the cylinder, facilitating smooth movement of the piston.
Hydraulic cylinders commonly come in two main styles: 'Tie Rod' and 'Welded Body'. Tie Rod Cylinders are designed to be disassembled for maintenance and repairs, whereas Welded Body Cylinders feature welded end caps and are tailored to specific dimensions and requirements. Typically more compact and customizable, welded cylinders are frequently used in heavy-duty construction equipment such as bulldozers, earth movers, and various large machinery.
What are bearings and linear guides?
Needle Bearings
Needle roller bearings are specialized mechanical components that utilize small cylindrical rollers to reduce friction between rotating surfaces. They operate based on a roller-style element that minimizes friction in rotational applications. These bearings feature cylindrical rollers with a length greater than their diameter, allowing them to support significant loads despite their compact cross-sectional height.
Contemporary needle bearings consist of three main components: the shaft, needle rollers, and the outer casing.
The distinctive design of needle bearings, with their narrow cross-section, allows them to support substantial loads while maintaining a lightweight profile. This characteristic results in minimal inertia forces, making them ideal for use in engine components such as transmissions, rocker arm pivots, pumps, and compressors. Their ability to handle oscillatory motions and fit into compact, lightweight designs makes needle bearings a valuable choice in various mechanical systems.

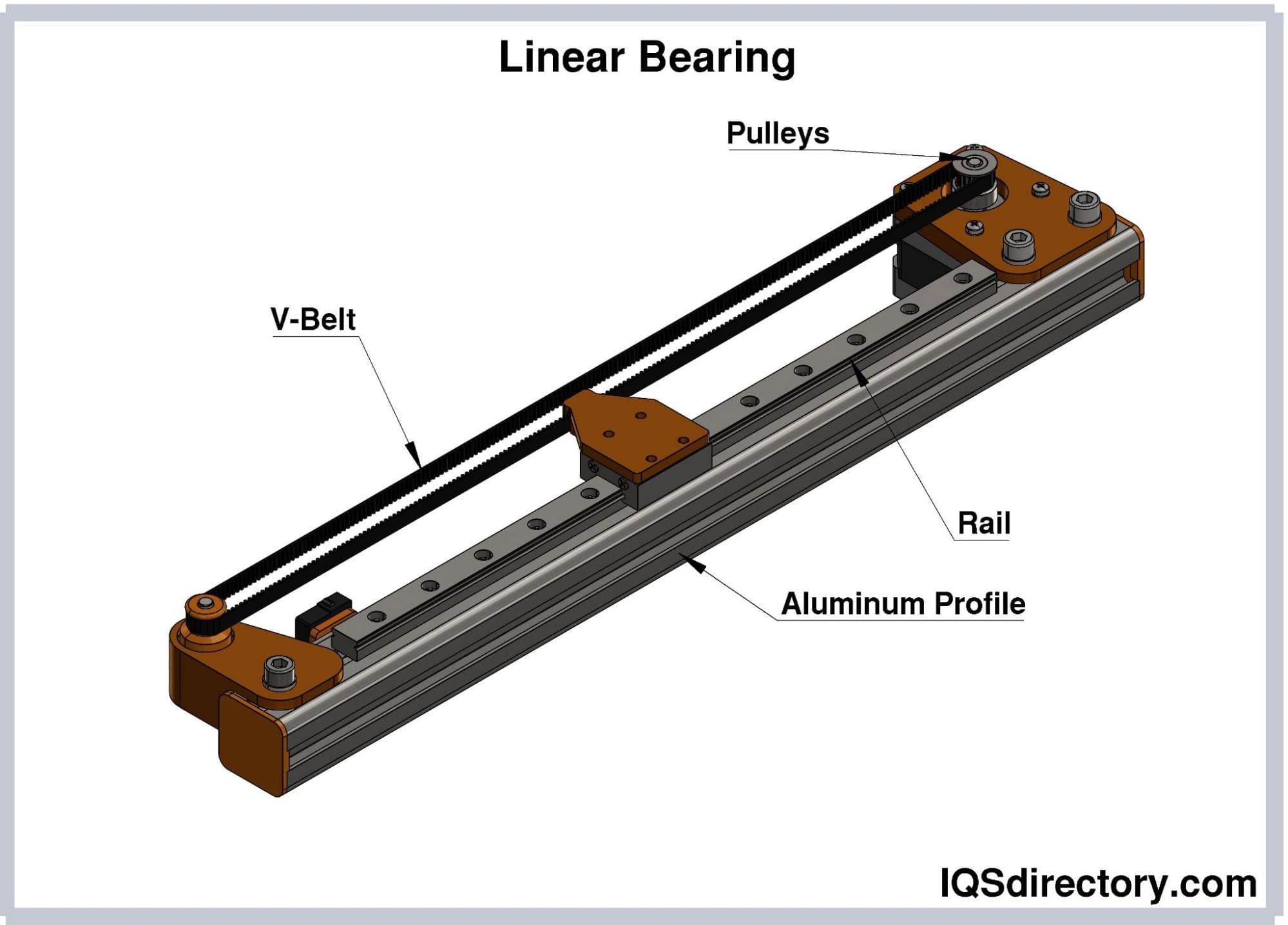

Linear Bearings
Linear bearings, also known as linear-motion bearings, enable motion along a single axis. These bearings are generally categorized into two types:
Motorized – driven by a mechanism
Non-motorized - powered by inertia or hand using a sliding function
These bearings utilize recirculating ball mechanisms to facilitate motion and are capable of supporting heavy loads across various environmental conditions. They offer the benefit of minimized friction and precise control over movement.
Rolling-element bearings feature an outer ring with rows of balls housed within a cage. They provide smooth motion, low friction, high rigidity, and long-lasting performance. Economical due to their ease of maintenance and replacement, these bearings are suited for use with hardened and stainless steel shafts. However, they can be somewhat rigid and are prone to contamination, requiring proper sealant and lubrication.
In contrast, plain bearings operate through sliding motion without the use of ball elements. They are versatile and can be used with materials such as hard-anodized aluminum and certain soft steels. Plain bearings are characterized by their lower rigidity and ability to handle contamination without the need for sealants. Additionally, they can endure a broader range of temperatures and function effectively without lubrication.

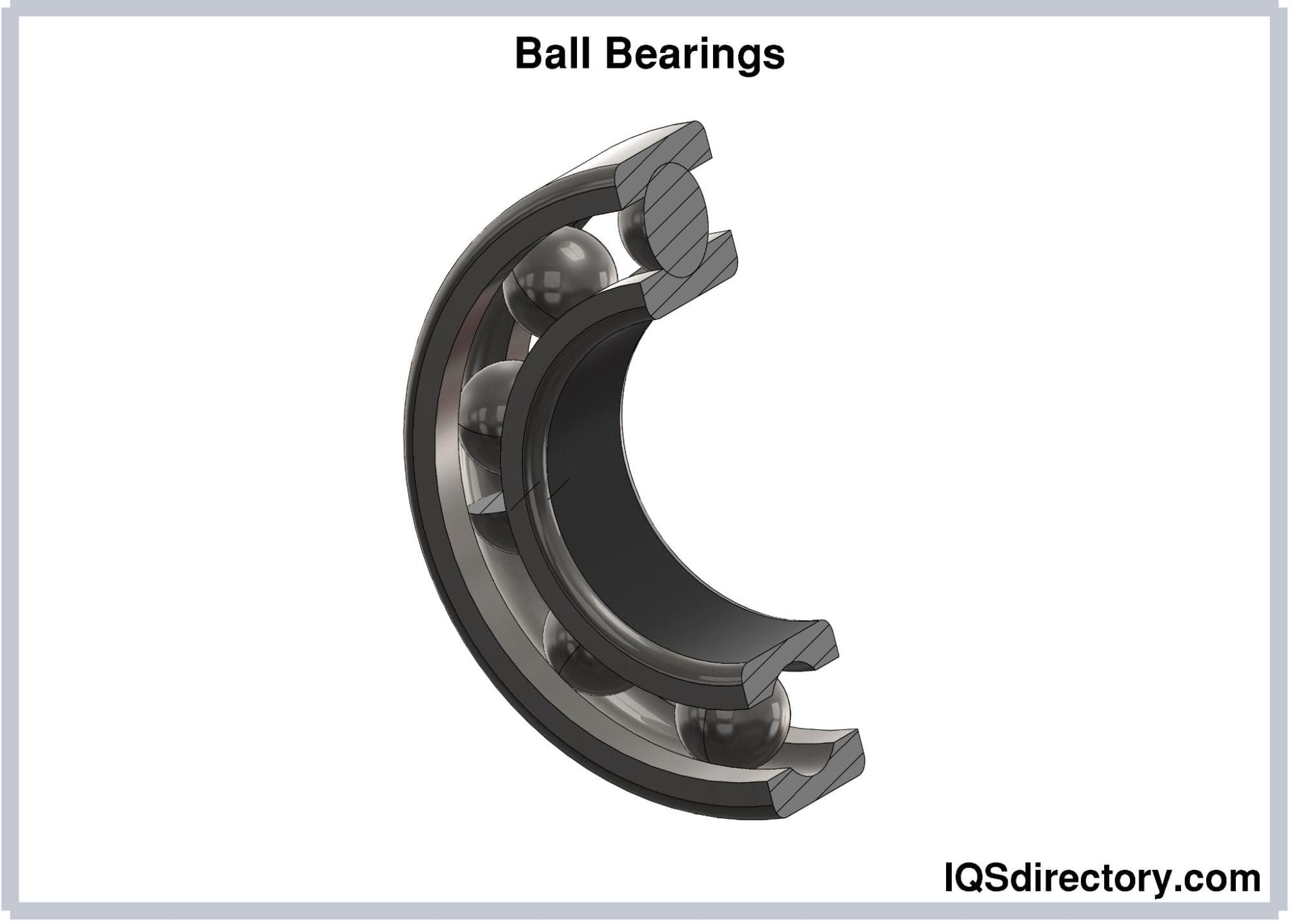

Ball Bearings
Ball bearings use spherical balls to keep the bearing races separated, aiming to reduce friction and enhance the connection between moving parts by substituting sliding motion with rotational movement. They consist of two races, with one race fixed and the other rotating. The balls are lubricated and held in place by a cage, enabling smooth movement as the races rotate.
Ball bearings come in various designs and materials, with steel and ceramics being common due to their resistance to high compression. Proper lubrication is essential to prevent jamming and ensure smooth operation. Each bearing is typically engineered for specific applications.
Angular contact ball bearings feature asymmetric raceways, allowing them to handle higher axial loads as the contact angle increases. They are often used in high-speed applications due to the centrifugal forces generated. These bearings support thrust loads in a single direction and can be designed with different contact angles ranging from 0 to 45 degrees to manage the load effectively.
Axial bearings, also known as thrust bearings, are designed to handle forces aligned with the shaft's axis. In some cases, ceramic bearings—a type of radial bearing—are employed for high-speed applications. These bearings use ceramic rolling elements, which are lighter than steel and help reduce centrifugal forces at high speeds.
Deep groove ball bearings are among the most widely used ball bearings and are found in applications such as electric motors, household appliances, automotive engines, office machinery, and various tools. They feature deep grooves with race dimensions closely matching the ball size. Available in multiple sizes and materials, high-temperature variants can endure temperatures up to 350°C (660°F) and are suitable for demanding environments like the metals industry or industrial ovens.
Ball bearings are manufactured in various sizes to accommodate different loads, ranging from miniature bearings for light loads and small assemblies to larger deep groove bearings designed for heavy loads.
What is mechanical transmission?

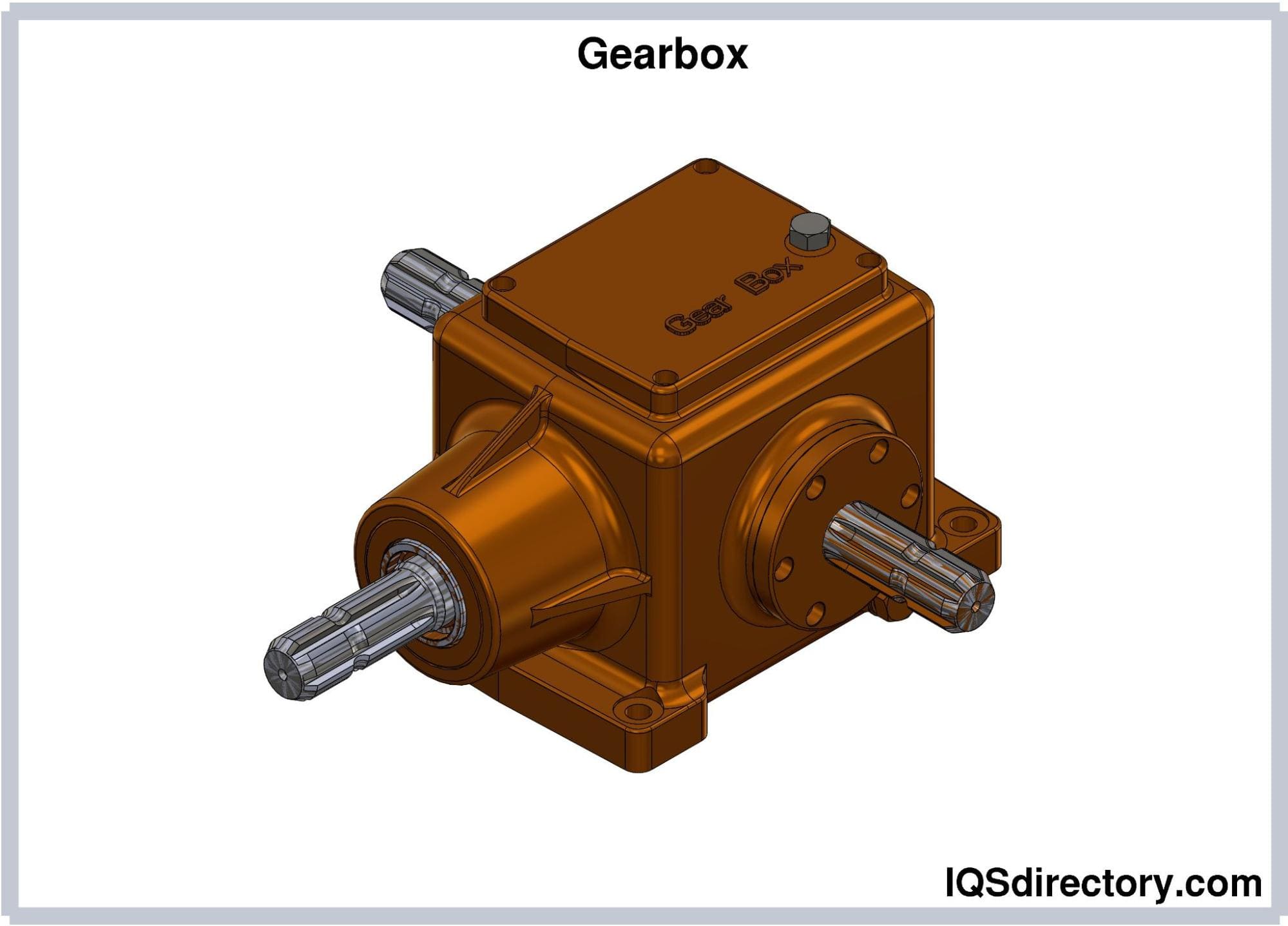

Gearbox
The gearbox is a mechanical component that adjusts speed and torque, effectively altering the speed-torque ratio. For instance, in a manual transmission car, the gearbox manages the power and speed delivered to the drive shaft by shifting gears. Essentially, a gearbox transfers energy between different parts of a machine or vehicle. It is the driver's role to manage the smooth transition of speed through gear changes.
A gearbox provides gear reduction, which enhances torque while lowering speed, allowing for better control at reduced speeds. Modern gear systems use an involute tooth profile to ensure a consistent speed ratio between paired gears.
In industrial settings, spur gears are often used in pairs or clusters to achieve significant gear reductions. Spiral bevel gears are employed when the drive input is at a 90° angle to the output, such as in automotive drive shafts. Some gearboxes are designed for specialized applications, like multi-turn gearboxes used in nuclear power plants, where high torque and exceptional reliability are critical due to the demanding operational environment.
Key factors to consider when selecting a gearbox include:
Input Speed
Output Speed
Output torque
Duration of operation
Application
Operating Temperature conditions
Starting frequency
Gear Ratio - input speed divided by output speed
Gearboxes, like other rotating machinery, rely on lubrication to minimize friction and ensure efficient cooling for smooth operation. Manufacturers typically specify the recommended type of lubricant and the intervals for application. The actual lubrication needs of a gearbox can vary based on environmental conditions, maintenance practices, and operating loads.

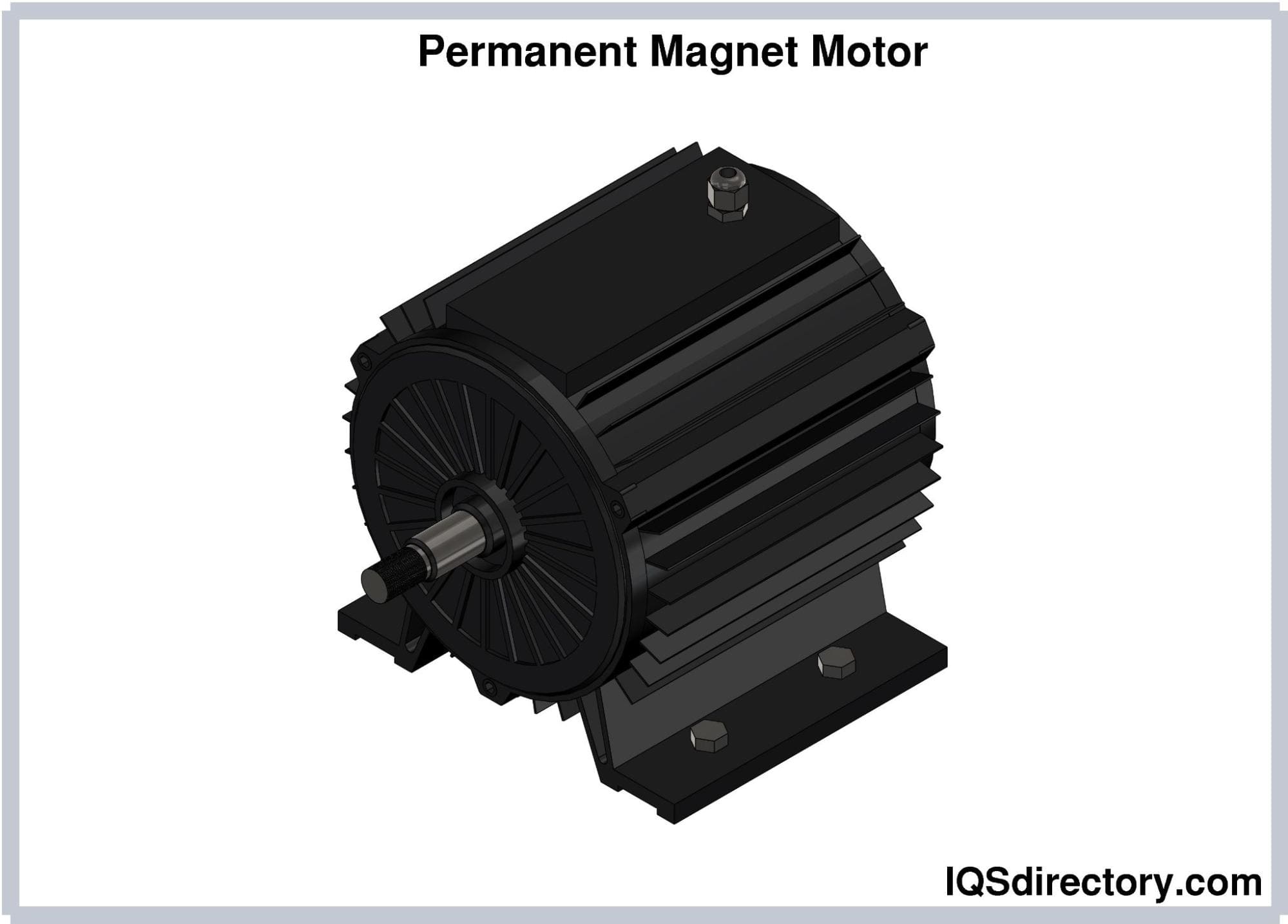

Permanent Magnet Motor
Basic electric motors utilize electricity and a magnetic field to generate rotation. A DC motor operates with a combination of electromagnets and permanent magnets. The interaction between these magnets, where they attract and repel each other, causes the motor to turn. To function, these motors require at least one electromagnet and one or more permanent magnets. Electromagnets need an electric current to become magnetized, while permanent magnets, like neodymium magnets, possess an inherent magnetic field due to their material properties.
The use of permanent magnets in DC motors has facilitated the development of more specialized and efficient designs. Historically, achieving a permanent magnetic field was challenging, which often limited the size and power of motors. However, the advent of neodymium magnets has enabled the creation of very compact and high-performance motors with permanent magnets.
Permanent magnet motors are widely used in various applications, including CD and DVD players, ATM machines, and toys. Despite their versatility and efficiency, the magnetic strength of permanent magnets typically falls short compared to that of electromagnets. For optimal performance, many motors rely on a combination of both types of magnets.
When selecting manufacturers for permanent magnet motors, consider the following criteria:
Flexibility of design
Speed, strength & robustness
Precision movement and quality
Torque output
Thermal efficiency
Vibration Efficiency
Upcoming advancements in motors will focus on developing enclosed motors with lower power ratings. It is crucial for manufacturers and OEMs to collaborate closely to ensure that these innovations are practical and meet real-world needs. For the next generation of motors to be truly beneficial, new products must be designed to be user-friendly and straightforward for end users to understand and operate.
Gear Wheel
Gear wheels are essential components in gear systems, which control speed, direction, and torque through rotational motion. They facilitate the creation of mechanical power and are fundamental to many mechanical devices.
Gear wheels are circular discs with "teeth" or "cogs" that interlock with those of other gears to achieve specific mechanical outcomes. By working in tandem, gears can alter power levels through mechanical advantage or gear ratios, where power can be increased or decreased. For example, if one gear completes two revolutions while another completes only one, the system effectively doubles the mechanical power output. Gears can also multiply mechanical power by up to four times, depending on their configuration.
Gears have a historical legacy dating back to Ancient Greece, where early geared devices were used for astronomical calculations. Over time, gear technology has evolved, enabling a significant increase in mechanical power output through various innovations.
Automobiles are a common application of gear wheels. The process of transmitting power from an engine to the drive mechanism is known as the transmission, where gears play a crucial role. For instance, the gearbox drives components such as the drive shaft and steering wheel.
The primary distinction between external and internal gears lies in the placement of their teeth. Spur gears are straightforward and feature straight teeth, while worm gears resemble screws and helical gears have teeth set in a spiral pattern. Various types and combinations of gears can be arranged in different orientations to accomplish both simple and complex driving tasks.
Gears are widely used in mechanical devices to achieve gear reduction. For example, a small motor that operates at high speeds might generate sufficient power but lack the necessary torque. An electric screwdriver, which requires high torque to turn screws, employs gear reduction to convert the motor's high-speed, low-torque output into a lower-speed, higher-torque output.

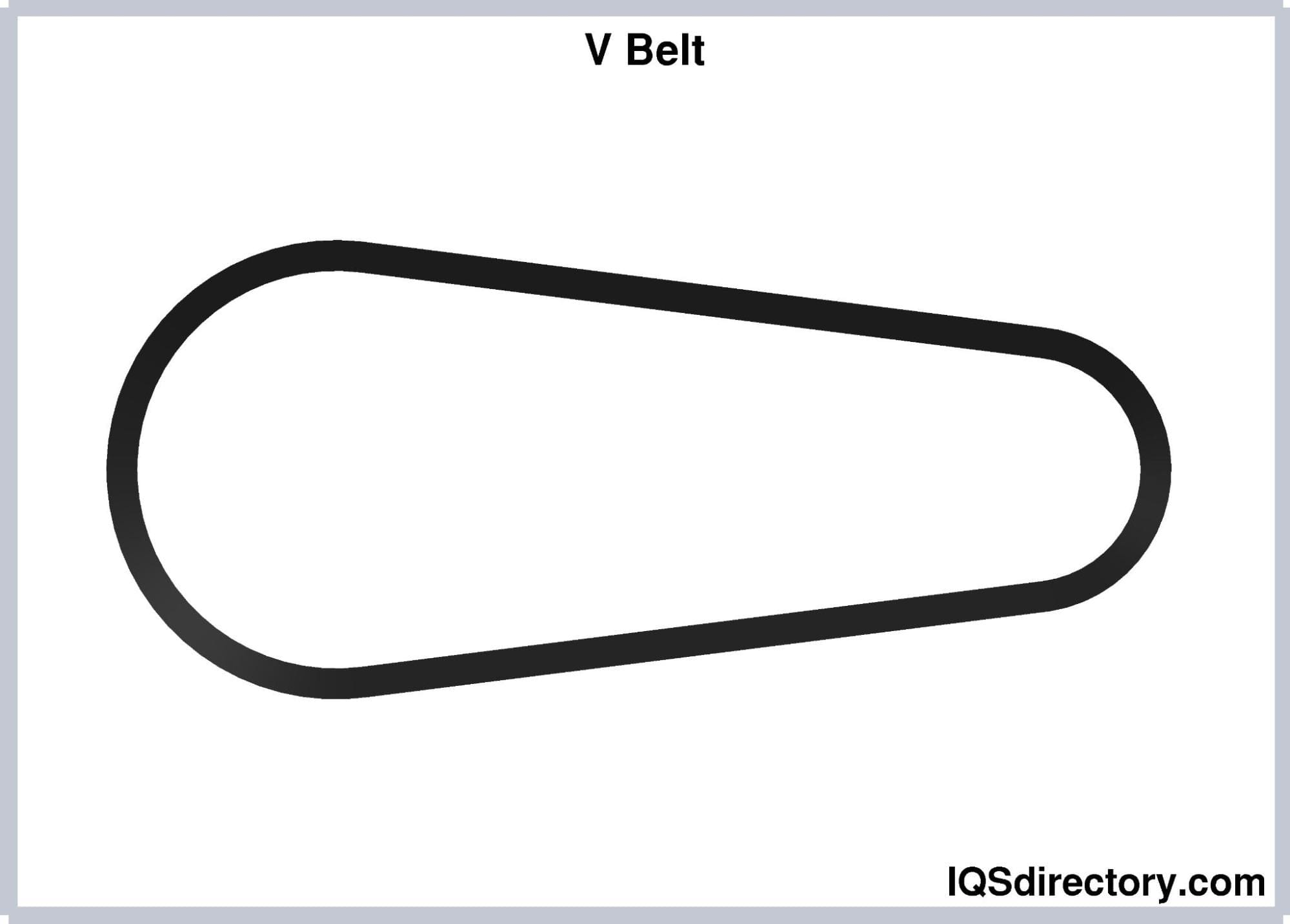

V Belts
Belts connect two or more shafts using a flexible mechanical material to transmit motion and power efficiently. They can be arranged in various configurations, such as crossed or aligned, to drive pulleys. V-Belts, also known as Vee belts or wedge belts, are particularly effective in addressing issues related to slippage and alignment, making them a fundamental component in power transmission systems. They offer a combination of traction, movement speed, load-bearing capacity, and durability.
The name "V-Belt" refers to its trapezoidal cross-section, which is designed to fit snugly into the grooves of a pulley. The wedge shape of V-Belts enhances traction and improves torque transmission. As the load increases, the wedging action becomes more effective, resulting in better performance.
To enhance power transmission, multiple V-belts can be used in parallel to create a "multiple V-belt" setup. V-belts are typically made from rubber or synthetic rubber, offering the flexibility needed to bend around pulleys in drive systems. They are reinforced with various fabric materials to provide added protection and strength.
Although V-belts may seem like simple components, akin to advanced rubber bands, they have evolved significantly since their introduction in 1917. Advances in synthetic materials, cover designs, construction techniques, tensile cords, and cross-sectional profiles have resulted in a diverse range of V-belts tailored for specific applications and performance requirements. Despite their seemingly straightforward appearance, V-belts incorporate sophisticated technology and engineering principles.

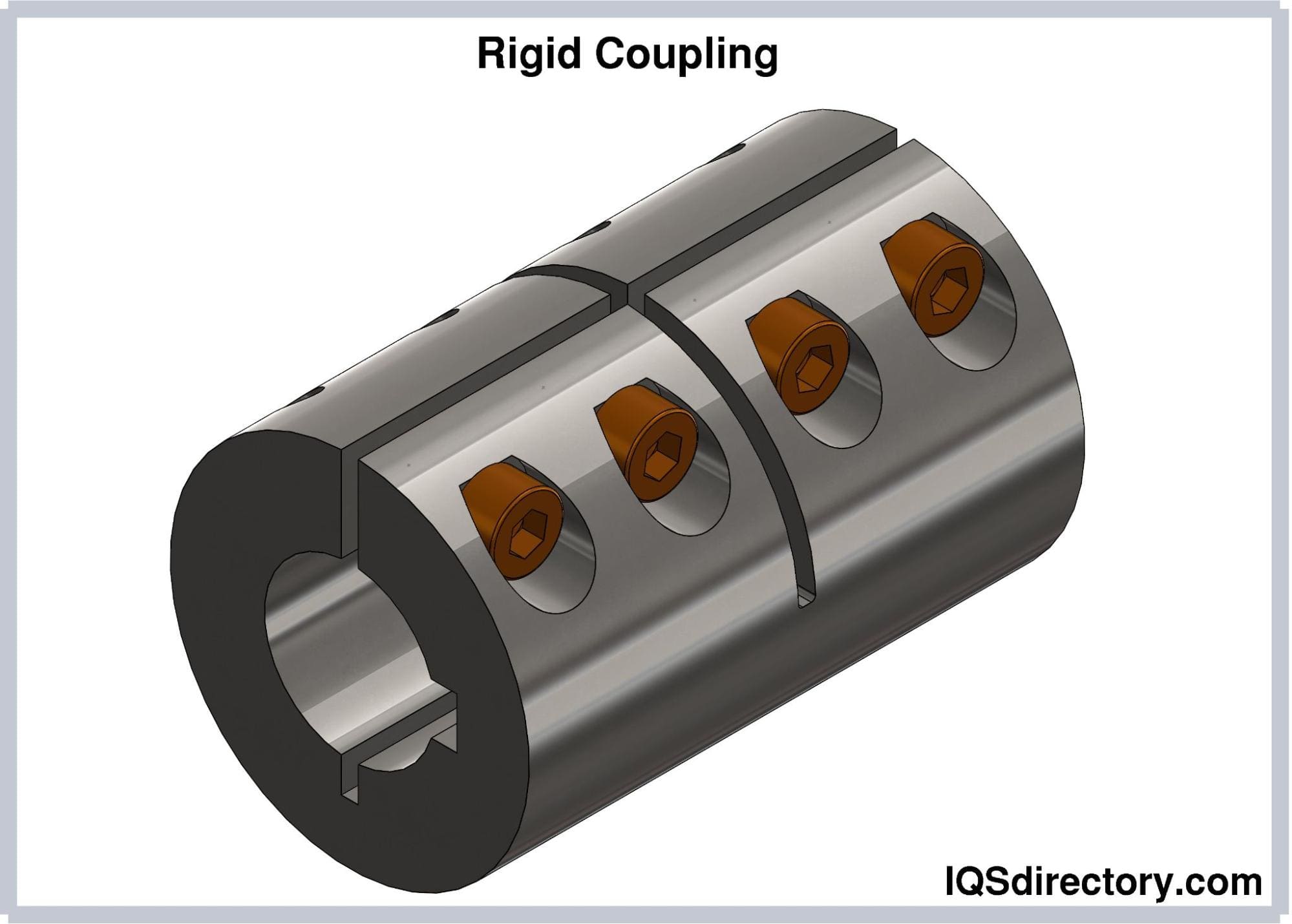

Rigid Couplings
A coupling connects two rotating components while accommodating some degree of misalignment and axial movement. Rigid couplings, in particular, link two shafts within a motor or mechanical system and can also join separate systems, such as a motor and generator, or connect components within a single system. They help to minimize shock and vibrations at the point where the shafts meet.
Rigid couplings are designed to ensure precise alignment and stability between shafts, which enhances machine performance and extends its lifespan. They are an efficient solution for achieving accurate alignment and a secure connection, contributing to the overall reliability of the machinery.
Rigid Coupling Designs:
Sleeve-style couplings are cost-effective and simple to use. They consist of a cylindrical pipe with a bore that matches the size of the shafts. Torque is transmitted through a keyway, and the coupling is secured in place using two threaded holes.
Clamped rigid couplings, also known as compression rigid couplings, differ from sleeve-style couplings in that the sleeve is split on one side. The shafts are connected and keyed to the sleeve, which is then tightened using screws to secure the connection.
The primary function of a rigid coupling is to transfer power between two ends of a shaft.
Common applications include:
Change vibration characteristics
Connect driving and driven parts
Protection against overloads
Connect shafts of separately manufactured devices
Enable disconnection for repairs or alterations
Allow for misalignment of shafts
Produce mechanical flexibility
Reduce shock loads between shafts
Slip when overloads happen
Despite their straightforward definition, couplings are easy to install and maintain, which helps reduce downtime and lower production costs.
Hydraulic Motor
Hydraulics refers to a system that utilizes fluid under pressure within confined spaces, such as shafts or cylinders, to transfer power. This system converts hydraulic pressure into torque, rotation, or mechanical force. Hydraulic motors can operate in both forward and reverse modes, allowing for the reversal of energy transformation. A hydraulic motor includes a hydraulic pump, which comes in various speed configurations. While hydraulic motors convert fluid into mechanical energy, hydraulic pumps convert mechanical energy into fluid power.
Hydraulic motors were developed over 300 years ago and are renowned for their power generation capabilities. They can handle larger loads compared to traditional electric motors, which may suffer damage or burnout under heavy loads. Hydraulic motors are commonly used in construction sites, industrial settings, machinery, loading and unloading bays, and in vehicles like aircraft and cars. They are also essential in industrial applications requiring pressurized conditions, such as injection molding.
For machinery that requires varying levels of torque across different speeds or conditions, gears can be added to the system. The performance of a hydraulic motor can be likened to the difference in power needed to move a tank over asphalt versus mud. With the integration of gears, the hydraulic motor and tank must be equipped with braking capabilities to ensure security, control, and safety across various surfaces.
There are several types of hydraulic motors available, each designed to meet specific requirements for speed and torque.
To choose the right hydraulic motor, consider the following factors:
Density of Power output
Modularity
Economic design or
Space saving
Hydraulic motors are capable of generating more power than many other types of motors of similar size. They are designed to handle larger loads and are frequently used in applications such as aircraft, construction vehicles, and automobiles. A key function of hydraulic motors is lifting heavy loads. Whether incorporated as small components within a complex system or as a single large unit performing a specific task, hydraulic motors are vital in various manufacturing processes.
What are standard mechanical components?

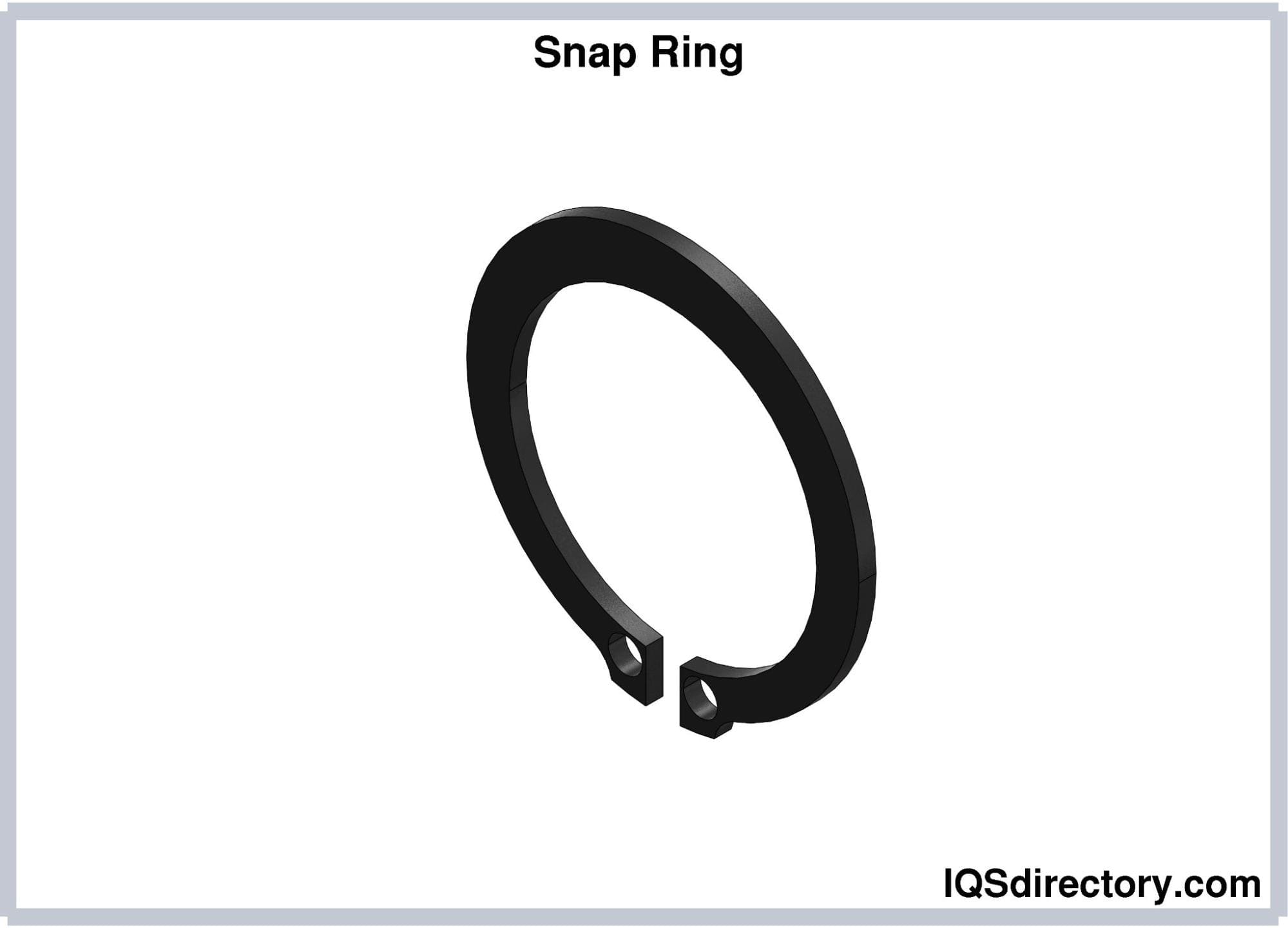

Snap Rings
Snap rings, also known as C-Clips, circlips, or colloquially "Jesus Clips," are named for their distinctive appearance and function. These components are shaped like an open-ended circle or a 'C,' and are typically made from semi-flexible materials. They can be installed into internal grooves or slid over a shaft into external grooves. Snap rings are used in various applications, such as securing circular components like wheels or in bore processes. They serve purposes like providing axial stops and managing slack to minimize machine noise. The term "Jesus clip" humorously refers to the clip's tendency to spring off rapidly during installation or removal, often prompting the exclamation, "Oh Jesus, where did it go?"
Snap rings are categorized into two types: external and internal. External snap rings are designed to fit over a shaft and are installed by sliding them along the axis, featuring a narrow opening. Internal snap rings, on the other hand, are set up axially and have a reduced opening during assembly, fitting into a bore. The primary distinction lies in whether the snap ring fits into a hole (bore) or over a shaft. One of their main functions is securing pinned connections.
To install or remove snap rings, circlip pliers are typically used, though needle-nose pliers can also be effective. The pliers grasp the ends of the open ring and compress them together, allowing the snap ring to be maneuvered out of or into its groove.
Snap rings are versatile components found in various applications. For instance, filter bags may incorporate snap rings to facilitate easy installation into filtration systems. A common example is their use on bicycle wheels, where the snap ring holds the sprocket securely in place on the shaft.
Threaded Insert
A threaded insert, also referred to as a threaded bushing, is a fastener used to join or repair panels by being inserted into a drilled or pre-tapped hole. Once installed, it is secured with a nut, screw, or bolt, creating a permanent connection.
Threaded inserts can be used for:
Fix a stripped threaded hole
Repair a damaged or a worn-out thread
Dispose a thread on a very thin material
Create a threaded hole in a soft material
Simplify the modifications between unified threads and metric ones.
Threaded inserts come in various types, each suited to specific applications. Plastic inserts are typically used with plastic materials and can be installed using thermal insertion or ultrasonic welding techniques. For example, furniture like shelves or cabinets often include threaded inserts to facilitate assembly. In applications involving sheet metal, sandwich panels, or honeycomb composites, threaded inserts help distribute shear, tension, and torque loads effectively.
Due to their availability in different sizes and materials, threaded inserts are highly versatile, easy to install, and reliable.
Types of Threaded Inserts
Helical Inserts
Also known as a screw thread insert, this fastener is larger than the hole it is designed to fit and can securely anchor itself within a tapped hole.
Captive Nuts
Captive nuts are designed for use in thin materials. They feature a knurled base with small ridges, allowing them to be easily installed using an arbor press.
Externally Threaded
External threaded inserts feature threads on both sides and can be installed in a tapped hole to secure various materials, including nylon and Loctite.
While threaded insert sizes are standardized, different brands may offer variations. It's essential to ensure that the threaded insert can withstand conditions such as vibration, corrosion, or high temperatures.
Brass inserts are well-suited for use with wood and particle boards. They are non-conductive, making them ideal for electronic or technical devices that might be sensitive to electrical charges. Brass inserts offer a durable hold and can be easily adjusted or replaced.

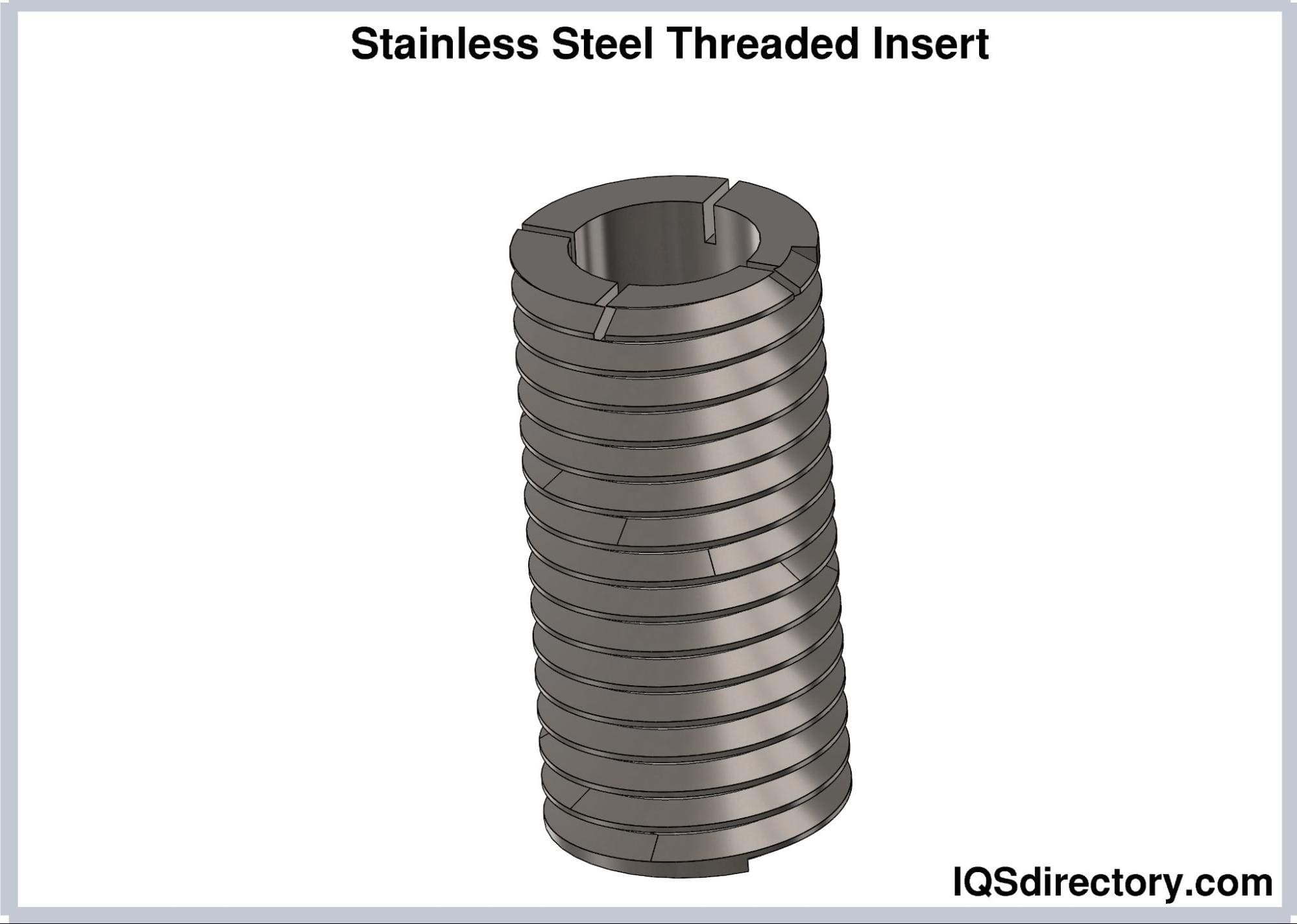

Stainless steel inserts are excellent for use in molding, metalwork, repair jobs, and manufacturing. They are particularly valuable in industries where cleanliness and disinfection are crucial, such as food and beverage production. Stainless steel inserts are also highly resistant to corrosion and rust, enhancing their durability and longevity.
Blind threaded inserts are designed for efficiency, durability, and versatility. They offer strength with reusable threads for use in sheet materials where only one side is accessible.
These versatile and easy-to-install inserts are valuable for a range of applications across different materials, including plastic, wood, and various metals. When chosen carefully, a threaded insert can provide a secure and long-lasting connection.
Shocks
Shock absorbers are designed to manage the effects of bumps, impacts, or jolts by controlling the kinetic energy generated from uneven surfaces. In vehicles, they protect internal components from wear and tear by redirecting disruptive energy away from passengers and the vehicle's mechanics. Typically, the fluid within the shocks converts this energy into heat, which is then dissipated. Other terms used for shocks include "dashpots," which refer to dampeners that use viscous fluids to resist motion, and "dampers," which denote a device that dulls or deadens motion.
Aircraft landing gear employs a sophisticated hydraulic system to enhance safety and comfort during takeoff and landing. This system includes industrial-strength springs to provide a smoother ride and absorb the forces involved.
In private vehicles, shock absorbers play a crucial role in the suspension system and overall safety. Racing vehicles, with their finely tuned shock absorption systems, rely on these components to optimize speed and handling.
For many years, earthquake-prone areas were unable to construct tall buildings due to the risk of structural damage. However, recent advancements in shock-absorbing systems have made it possible to build skyscrapers that can withstand seismic activity. This technology has enabled cities like San Francisco and Los Angeles to develop their skylines.
The choice of shock absorber depends largely on its intended use. Family cars, primarily used on smooth surfaces, require standard shock absorbers for everyday driving. In contrast, off-road vehicles and high-performance models need specially tuned shocks designed for their specific conditions. Ultimately, safety is the primary consideration when selecting a shock absorber.

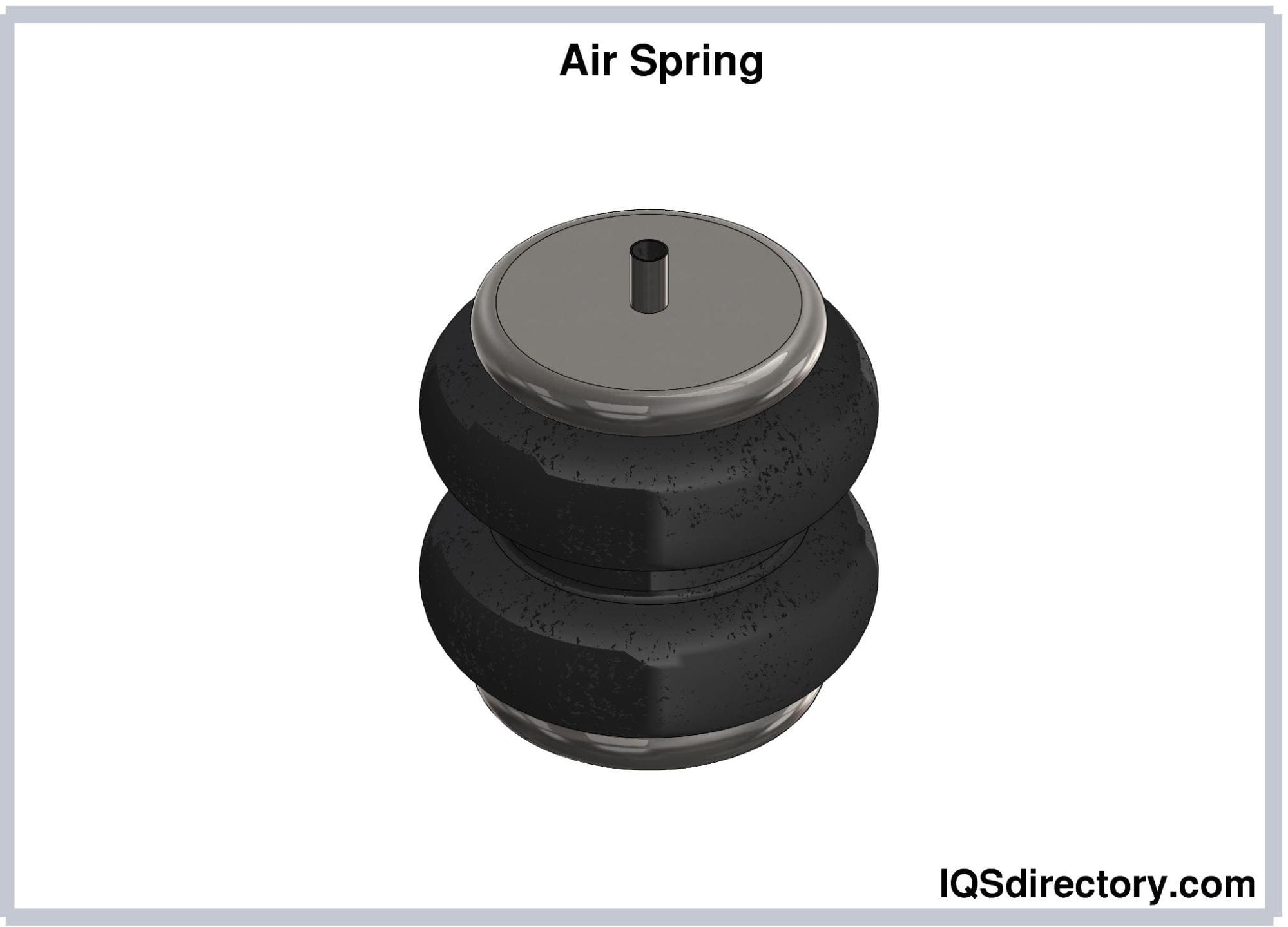

Air Springs
Air springs are integral components of a vehicle's suspension system. They operate using an electric or engine-driven pump or compressor to inject air into flexible bellows made from reinforced rubber. Unlike hydropneumatic systems, which use a combination of fluids and air, air springs rely solely on pressurized air to inflate the bellows and lift the vehicle's chassis. This system absorbs and deflects the kinetic energy generated by bumps and irregularities in the road, minimizing the impact on passengers and protecting the vehicle's systems. Additionally, air springs offer enhanced control over the vehicle's ride height, which can significantly improve performance.
In racing vehicles, air springs allow for a lower ride height, which can enhance stability and handling. Buses also benefit from air springs, as they can adjust their height based on passenger load and lower themselves to assist disabled and elderly passengers.
High-performance vehicles often require air springs to adapt to varying surface conditions. When selecting air springs, the primary consideration should be their intended use. Commercial vehicles demand heavy-duty air springs to withstand their rigorous usage. Similarly, off-road and sports vehicles benefit from air springs that can adjust to diverse terrains.
Air springs play a crucial role in enhancing the protection and safe operation of vehicles. They provide an additional layer of control and allow for adjustments to accommodate challenging conditions.
Friction Clutches
Friction clutches are used to transfer power between moving shaft components and control the transmission of that power. They feature materials similar to those found on disc brake pads. In modern vehicles, the wear on friction clutch materials is minimal because the clutch disc and flywheel are synchronized, reducing friction and wear.
In a car, the friction between the engine's flywheel and the clutch plate generates the power needed to rotate the wheels. The process of engaging and disengaging the clutch allows for control over momentum and speed.
Friction clutches can be categorized as either dry or wet. Dry clutches operate without lubrication, while wet clutches use lubrication to keep the clutch cool and clean, though this may result in a slight reduction in energy efficiency. Push and pull clutches are common types, where the diaphragm spring must be "pushed" to disengage the clutch.
For applications requiring additional torque, such as in high-performance racing or Formula 1 cars, multiple plates are often added to the clutch assembly. This design enhances control and precision during gear changes without increasing the clutch diameter, allowing for greater torque and speed management.
Advantages of friction clutches include:
Smooth engagement with little shock
Can be engaged while the engine is running
Ease of operation
Can send partial power or energy
Another form of safety device
Can be applied and reapplied multiple times
Choosing a good friction clutch involves several factors:
The friction of the contact surface needs to be high enough to hold the load
It should not need any form of exterior force
High performing clutch must be lightweight
Limited amount of heat from the contacting surfaces
Minimum amount of wear
Easily accessible for repair and replacement
Contemporary clutches often feature resin with a copper wire facing or ceramic materials. Ceramic clutches are specifically designed for high-performance applications, such as racing or heavy-duty use. Semi-metallic clutches, composed of steel, iron, and copper, offer durability and heat resistance, making them suitable for managing heavy loads, though they may not perform optimally at high speeds.
Ceramic clutches, which can include components like glass, rubber, carbon, or Kevlar, are ideal for vehicles subjected to intense usage. They are commonly used in trucks and race cars to endure the extreme conditions of their operations.
Organic clutches, enriched with high copper content, enhance heat dissipation and reliability. They are well-suited for standard driving conditions, offering long-lasting performance and smooth engagement.
Organic clutches are designed for vehicles operating under standard driving conditions, offering long life and smooth engagement. These clutches are made from metallic fibers combined with organic materials, making them suitable for a wide range of driving environments, including city traffic.

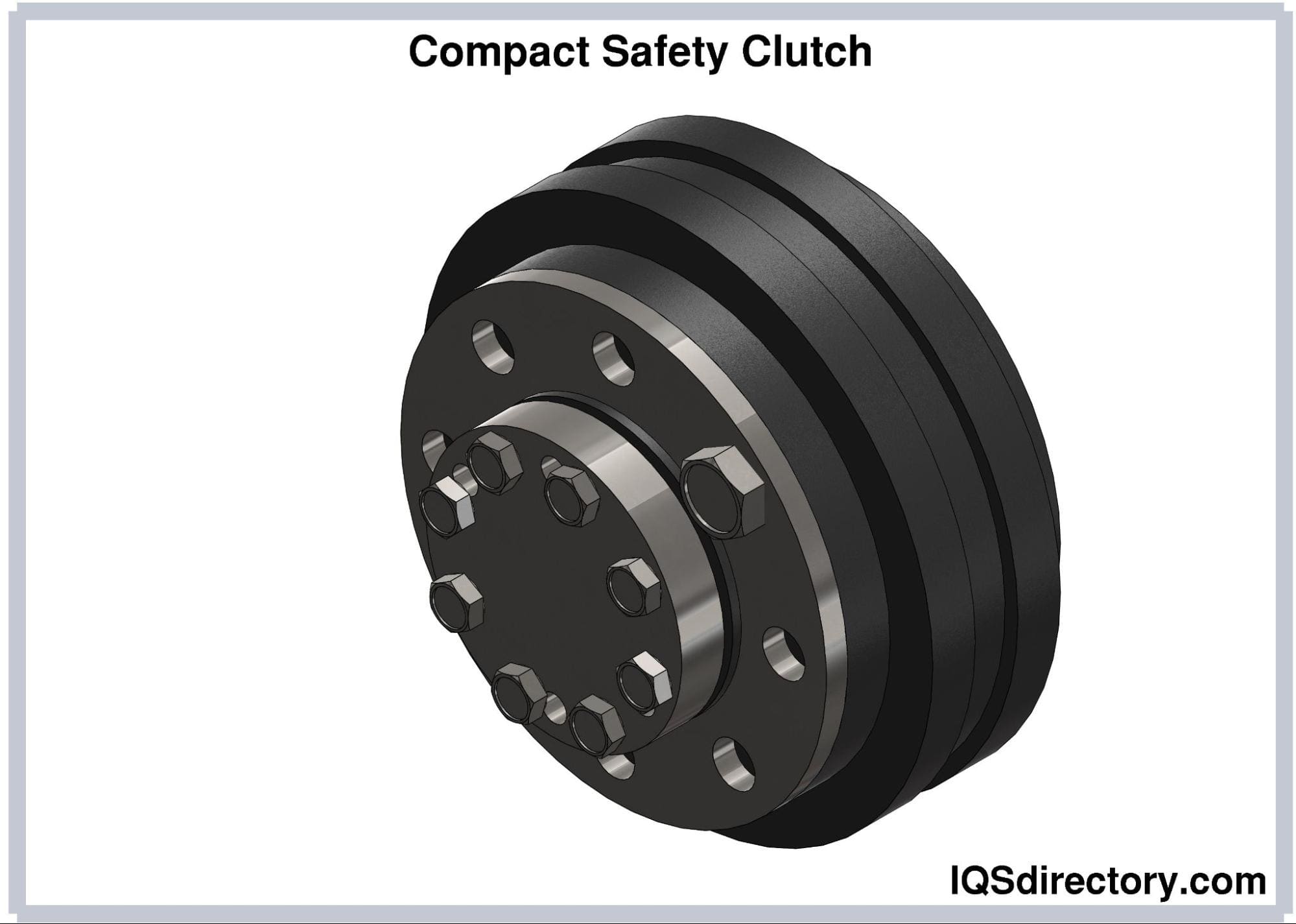

Safety clutches, also known as slip clutches, automatically disengage when they encounter higher than normal resistance. This feature is crucial for protecting both the operator and the machinery. For example, in a lawnmower, the clutch and power disengage if the mower strikes a hard object, preventing potential damage.
The centrifugal clutch operates using centrifugal force and is known for its smooth engagement. It gradually applies engine load as the engine reaches its optimal torque range, making it ideal for small motorbikes, scooters, mopeds, and go-karts. In these applications, the clutch engages only when the engine reaches a sufficient RPM and disengages when the accelerator is released. For instance, chainsaws use centrifugal clutches to ensure they reach an adequate power level before cutting, providing both efficiency and safety by disengaging when power levels drop.
Related Posts
How To Find Manufacturers
Every great idea has a beginning from those created by the genius of Thomas Edison to the visions of J. Robert Oppenheimer. The issue for most grand and majestic ideas is if anyone really needs what exists in someone‘s mind....
Plastic Injection Molding
Plastic injection molding, or commonly referred to as injection molding, is a manufacturing process used in the mass fabrication of plastic parts. It involves an injection of molten plastic material into the mold where it cools and...
Metal Stamping
Metal stamping is a coldworking process that transforms sheets of metal into specific, preset shapes. It uses specialized tooling which involves the stroke of the punch that brings conformational change to the metal sheet...
Rubber Molding
Rubber molding is a process of transforming uncured rubber or an elastomer into a usable product by transferring, compressing, or injecting raw rubber material into a metal mold cavity...
Screw Machined Parts and Products
Screw machined parts are complex pieces that are typically cylindrical and threaded and a screw machined product is a family of automatic lathes for small to medium-sized components. Screws, bolts, pins, fittings...
Aluminum Casting
Aluminum casting is a method for producing high tolerance and high quality parts by inserting molten aluminum into a precisely designed and precision engineered die, mold, or form. It is an efficient process for the production of complex, intricate, detailed parts that exactly match the specifications of the original design...
Roll Forming
Roll forming is a process that uses a set of precisely placed rollers to perform incremental bending to a continuously fed strip of metal. The rollers are mounted in sets on a consecutive stand with each roller...
Polyurethane Molding
Polyurethane molding is the process of fabricating or manufacturing plastic parts by introducing a urethane polymer system into a tool or mold and allowing it to cure. Like any other type of plastic, the excellent processability...
Extruded Aluminium
Extruded aluminum is a continuous piece of aluminum that usually has a constant profile or cross-section throughout its length. It is made by forcing a block of aluminum, called a billet, through a die opening which is smaller than the original cross-sectional area of the billet...
Forging
Forging is a metal working process that manipulates, shapes, deforms, and compresses metal to achieve a desired form, configuration, or appearance outlined by a metal processing design or diagram...
Investment Casting
Investment casting is a metal working process that uses a ceramic shell built over a wax pattern to produce parts with extraordinarily uniform and smooth surfaces. The wax pattern is produced from an aluminum die.The final products of investment casting are without parting lines, mold half marks, or other deformities...
Wire Forming
Wire forming is a method for applying force to change the contour of wire by bending, swaging, piercing, chamfering, shearing, or other techniques. The various techniques for wire forming can produce any type of shape, form, or configuration...
CNC Machining
CNC machining is an electromechanical process that manipulates tools around three to five axes, with high precision and accuracy, cutting away excess material to produce parts and components. The initial designs to be machined by CNC machining are created in CAD...
Plastic Extrusion
Plastic extrusion, also known as plasticating extrusion, is a continuous high volume manufacturing process in which a thermoplastic material -- in a form of powder, pellets or granulates -- is homogeneously melted and then forced out of the shaping die by means of pressure...
Thermoforming
Thermoforming is the process of heating thin plastic sheets to its forming temperature and stretching it over a mold which takes its shape. After cooling and setting of the molded plastic sheet, each part will be separated from its batch to form a single unit or product...
Perforated Metals
Perforated metals are sheets of metal that have had decorative shapes, and holes punched or stamped into their surface for practical or aesthetic purposes. The perforation of metal sheets takes several forms and includes a variety of geometrical patterns and designs...
Metal Etching
Metal etching is a metal removal process that uses various methods to configure complex, intricate, and highly accurate components and shapes. Its flexibility allows for instantaneous changes during processing...
Contract Sewing
Contract sewing is a specialized industry that provides services to manufacturers for production of a wide range of products using highly skilled workers and technologically advanced sewing machines. The strength of the contract sewing industry is its ability to perform any type of sewing services...
Manufacturing ERP and MRP Software
Enterprise resource planning is known as ERP. An ERP system connects all essential business processes into a single database to create a linked business. ERP software and systems that are used to plan, manage, and deliver...
