This article will give detailed information about capacitive touch screens.
The article will give details on the following:
A touch screen is an interactive display that allows users to engage directly with a computer using a pen or their fingers. It serves as an alternative to traditional input devices like a mouse or keyboard, utilizing a graphical user interface (GUI). Touch screens are commonly found in various devices, including computer monitors, laptops, smartphones, tablets, point-of-sale systems, and information kiosks. Some touch screens use an infrared grid to detect finger presence, rather than relying solely on touch-sensitive technology.
Various technologies are used to facilitate seamless interaction with touch screens. Some touchscreen technologies are designed to respond solely to finger input, while others accommodate both fingers and additional tools like styluses.
A capacitive touchscreen display features a layer that holds electrical charges. When the screen is touched, a small charge is diverted to the contact point. Sensors located at the corners of the panel measure this charge and send the information to the controller for processing. Unlike resistive and surface wave screens, which can be used with both fingers and styluses, capacitive touchscreens respond only to finger touches. These high-clarity panels are also resistant to environmental factors.
Infrared touch displays use a grid of infrared beams emitted by light-emitting diodes (LEDs) and detected by phototransistors. When a finger or other object comes near the screen, it interrupts the infrared beams. This interruption allows the device to determine the location of the touch.
A thin metallic coating that is electrically conductive and resistive is applied to a resistive touchscreen panel so that the electrical current changes when it is touched. This change in current is recorded as a touch event and forwarded to the controller for processing. Although resistive touchscreen panels are typically cheaper, they only offer 75% clarity, and the layer is vulnerable to harm from sharp things. Outside factors like water or dust have no impact on resistive touchscreen displays.
Surface acoustic wave (SAW) technology employs ultrasonic waves that spread across the touchscreen display. When the screen is touched, some of the ultrasonic waves are absorbed. This alteration helps determine the touch's location, which is then relayed to the controller for processing. Despite being the most advanced of the three types, SAW touchscreen panels are vulnerable to environmental damage.
A capacitive touch screen is a display that responds to finger pressure for interaction. Devices with capacitive touch screens, such as mobile phones, personal digital assistants, and GPS units, typically connect to networks or computers through versatile architectures. The human body acts as an electrical conductor, altering the screen's electrostatic field when touched, thus activating it. Additionally, certain stylus pens or gloves that generate static electricity can also be used. Examples of devices employing capacitive touch screens include tablet PCs, smartphones, and all-in-one computers.
A capacitive touch screen consists of a glass layer coated with a transparent conductor like indium tin oxide (ITO), which acts as an insulator. The ITO layer is affixed to glass plates that contain liquid crystals. When the screen is touched, an electrical charge is generated, causing the liquid crystals to shift and change orientation.
Touch input technology was initially developed to integrate display output with touch-based input for a more user-friendly experience. Besides capacitive touch technology, which relies on capacitance to sense human touch, there are various other technologies that use different principles to capture user interactions on touch screens.
A basic capacitor takes time to fully charge when subjected to a specific voltage and can discharge when the voltage source is removed and the capacitor is connected to a sink. The duration of this charge and discharge process remains relatively constant when the circuit parameters are unchanged. However, this duration varies when the circuit's capacitance changes. This principle forms the basis of capacitive touch screens.
When a human finger touches the screen, it introduces an additional capacitor into the circuit, increasing the overall capacitance. Human skin acts as a dielectric material, altering the circuit's charging and discharging times. This change in charge-discharge duration is used to detect user interactions.
A dedicated microcontroller typically manages this process, charging the capacitive screen and monitoring changes in the circuit's charge-discharge times. When deviations from the norm are detected, the microcontroller signals the main controller to register the user's touch. The touch screen is made of a transparent conductive layer, such as indium tin oxide (ITO), and an insulating layer of glass. When a finger touches the screen, it forms a capacitor and modifies the circuit's capacitance, enabling touch detection.
There are several types of capacitive touch screens:

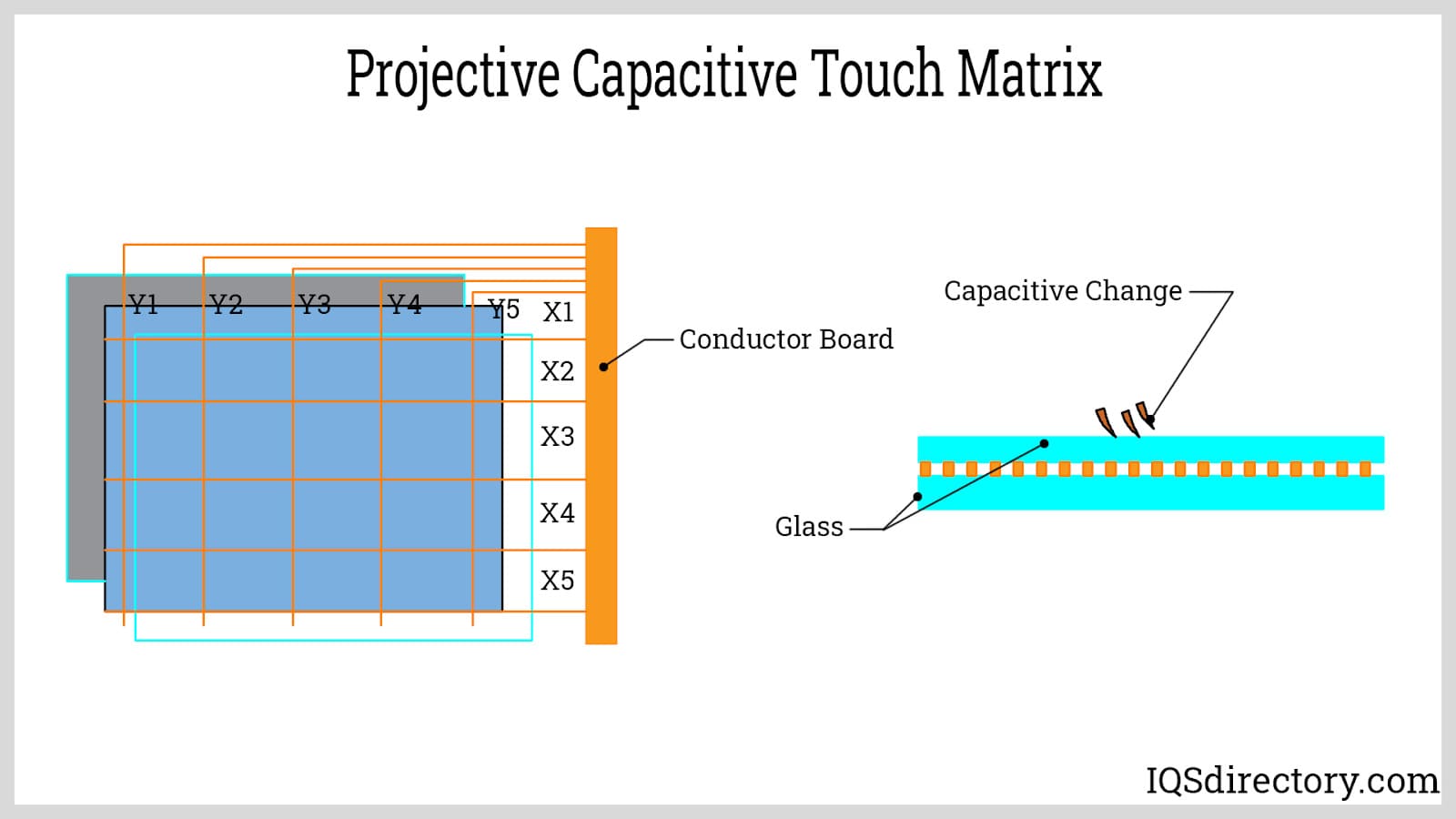

Projected Capacitive Touch (PCT): utilizes electrode grid patterns on etched conductive layers. It is frequently used in point-of-sale transactions and has a reliable architecture.
PCT Mutual Capacitance: Each grid intersection has a capacitor connected by voltage. It makes multi-touch possible.

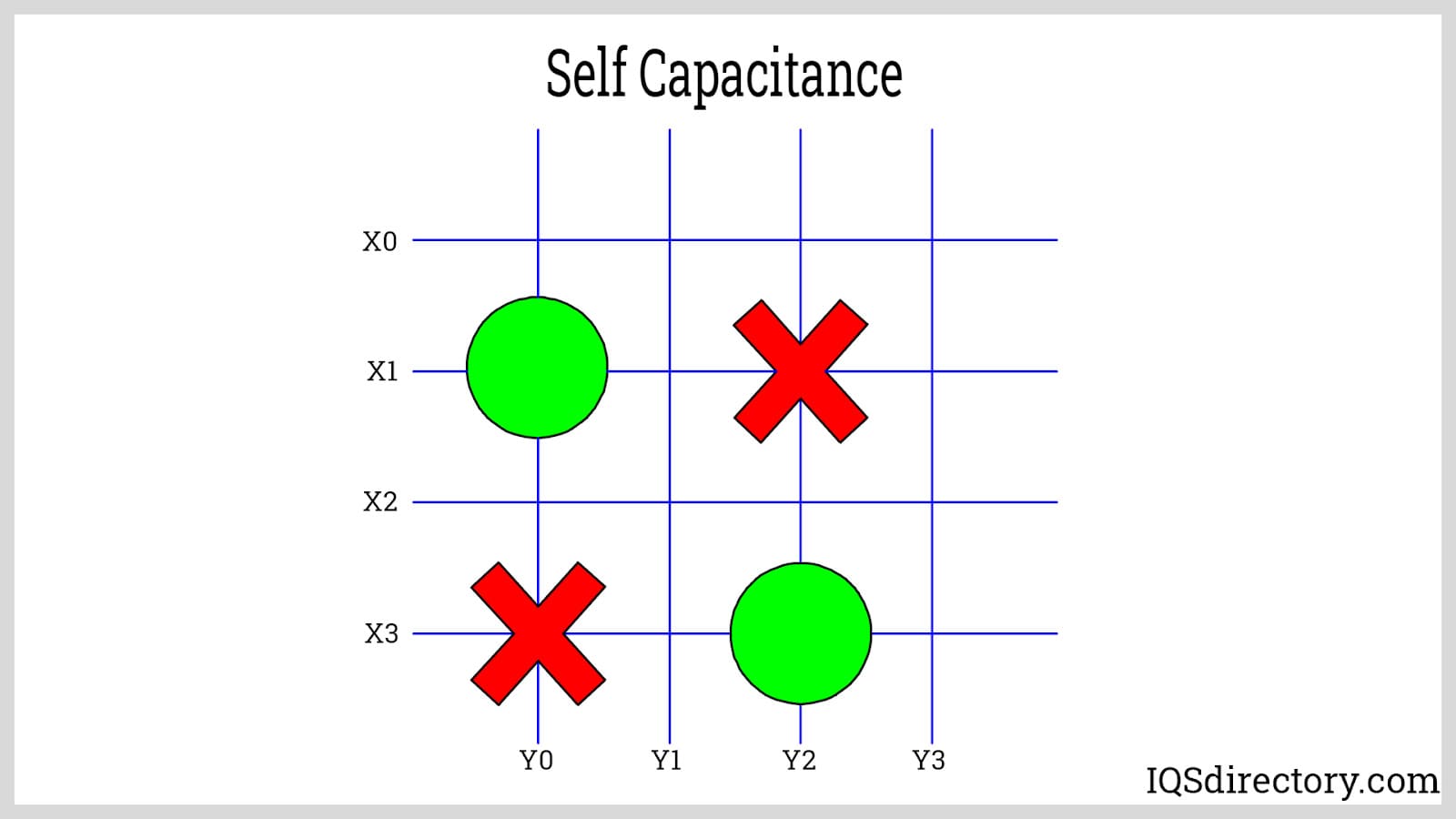

PCT Self Capacitance: The individual columns and rows are controlled by current meters. With just one finger, it works well and offers a stronger signal than PCT mutual capacitance.
Capacitive touch screens leverage the principle that nearby dielectric materials can affect capacitance in the circuit, allowing for the measurement of attributes without direct physical contact with the object. This approach is particularly useful in situations where touching the object is not possible. Essentially, a capacitive touch screen functions as a capacitor circuit that monitors and responds to changes in charge and discharge times. This technology has become the dominant form of touch screen, surpassing resistive technology in popularity. Current statistics indicate that capacitive technology is used in over 90% of all touch screens produced today. Surface capacitive technology is one specific type of capacitive touch screen. It operates on similar principles to other capacitive touch technologies, creating a consistent electric field and detecting touch input based on disruptions in this field. A surface capacitive touch screen has a top layer coated with a conductive material. When the screen is active, a voltage is applied to this conductive layer. When a finger touches or presses the screen, it draws some of the voltage, allowing the touch to be detected and registered.
Capacitive touch screens are known for their long lifespan and durability. Unlike other touch screen technologies, such as resistive screens, which rely on mechanical components that can wear out over time, capacitive touch screens use an electric field to detect touch input. This absence of moving parts in surface capacitive screens contributes to their robustness and extended operational life.
Depending on the model, some surface capacitive touch screens are designed to work with gloves. Typically, capacitive touch screens require a conductive object, like a bare finger, to register a touch command. The screen detects the presence and location of a touch by measuring changes in its electrostatic field caused by the conductive object.
However, many capacitive touch screens do not function well with gloves. Thin gloves may still allow a minimal amount of voltage to pass between the finger and the screen, enabling some degree of touch interaction. In contrast, most capacitive screens are unable to detect touches when gloves are worn, as even light gloves can interfere with the electrical flow needed for accurate touch detection. Fortunately, certain surface capacitive touch screens are designed to overcome this limitation and work effectively even with gloves.
While resistive touch screens detect input by compressing an upper layer against a lower layer, capacitive touch screens operate by measuring changes in the electrical field, or capacitance. Capacitive touch screens are often preferred over resistive ones for smartphones and tablets due to their superior performance. A specific type of capacitive touch technology is projected capacitive touch, commonly known as PCT or PCAP. In these devices, a sheet of glass is embedded with intersecting rows and columns of conductive material. Depending on the manufacturer, this conductive grid can be created by etching patterns into a conductive layer or by layering two different conductive materials. The choice of method has minimal effect on device performance. Projected capacitive touch screens use this grid to distribute a consistent electrostatic charge across the rows and columns. The conductive material of the grid allows for the free movement of this charge, which is essential for detecting touch. Like traditional capacitive screens, projected capacitive screens detect touch by measuring distortions in the electrostatic field caused by the user's body. When a finger touches the screen, it alters the electrostatic field at the point of contact, and this change in capacitance is detected by the grid. The device can pinpoint the touch location by analyzing the distortions in the grid's rows and columns.
Projected capacitive touch screen technology offers cost advantages compared to resistive touch screens. This is largely because the top layer of a projected capacitive screen is made of glass, which reduces manufacturing costs. Furthermore, unlike traditional capacitive screens, projected capacitive screens can detect input from gloved fingers or styluses, enhancing their versatility and usability.

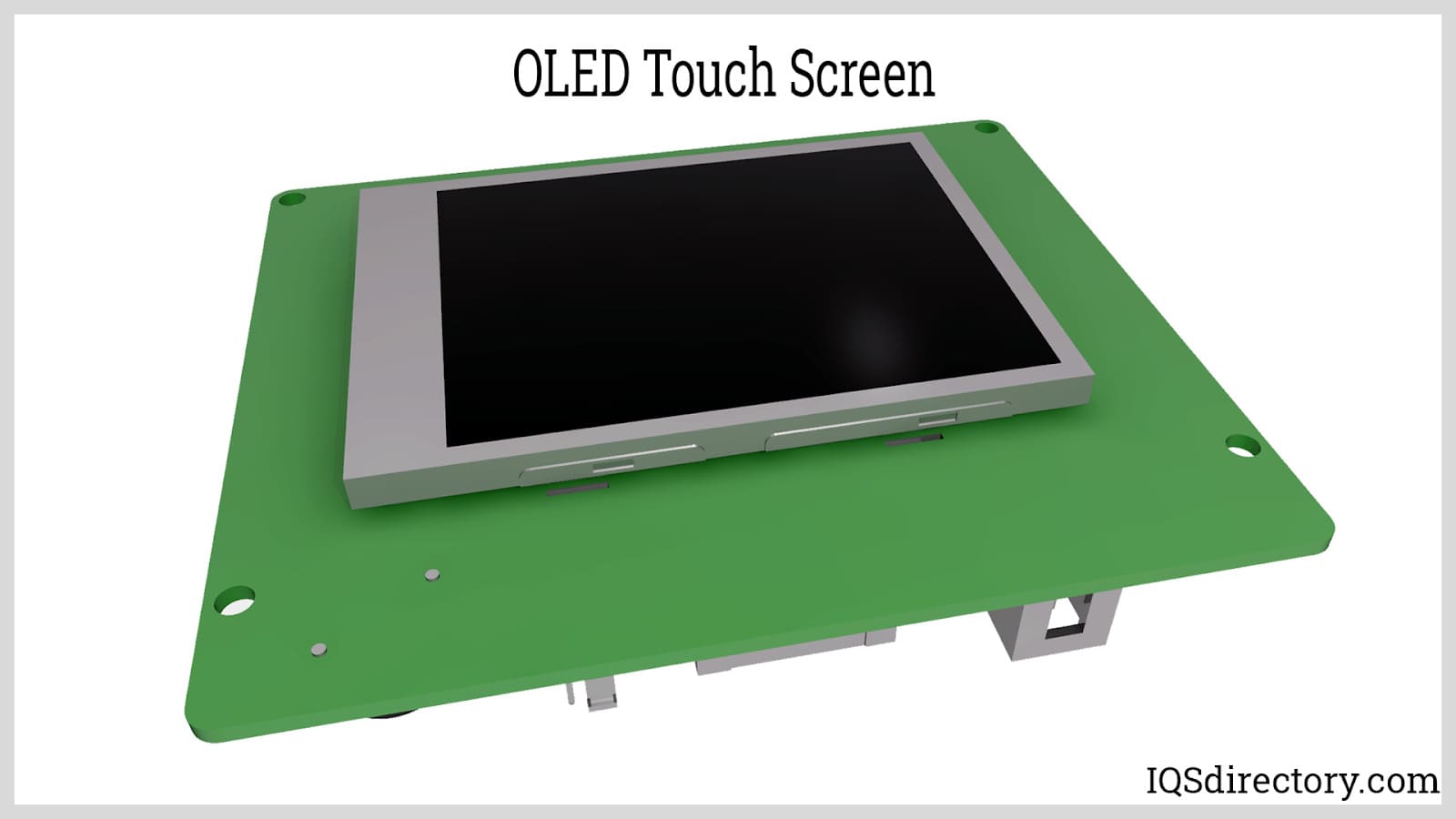

Image Clarity: Compared to most other touch technologies, projected capacitive touch screens typically provide a higher quality image because they are made from clear, uncoated glass with a matrix of small conductors on the back face. As a result, capacitive panels are a suitable fit for OLED and the most recent high-definition and UHD displays.
Projected capacitive touch technology encompasses mutual capacitance touch screen technology. Unlike traditional projected capacitive screens, which operate based on a different principle, mutual capacitance technology creates capacitance across a grid of intersecting columns and rows.
When a touch is detected, some of the electrical current flowing between adjacent columns and rows is redirected to the finger, which decreases the capacitance at the point of contact. This reduction in capacitance at the specific grid intersection is key to detecting the touch.
Mutual capacitance touch screens effectively form a series of capacitors at the intersections of the grid's columns and rows. For instance, a touch screen with 14 columns and 16 rows would contain 224 individual capacitors. Touching the screen alters the capacitance at these intersections, which is used to register the touch input.
Mutual capacitance touch screens enable multi-touch capabilities by creating mutual capacitance within a grid of intersecting columns and rows. This technology allows users to touch the screen at several points at once, facilitating complex gestures. For instance, users can zoom in or out by placing their fingers at different spots on the screen. This multi-touch functionality opens up a variety of interactive options, significantly enhancing the user experience.
Multi-touch functionality is not exclusive to mutual capacitance technology; other touch screen types also support it. Self-capacitance technology, for example, allows for the simultaneous detection of multiple touch points.
Similar to other projected capacitive touch technologies, mutual capacitance provides exceptional touch sensitivity and precision. This high level of performance often makes projected capacitance touch screens a preferred choice over surface capacitive screens, owing to their accuracy and responsiveness.
Projected capacitive touch screens and surface capacitive touch screens have distinct differences despite both utilizing capacitance to sense touch inputs. Each technology employs its own method for detecting touch commands.
Projected capacitive touch screens are known for their advanced processing capabilities and highly sensitive sensors, which enhance touch detection accuracy. However, a notable drawback is their higher cost compared to surface capacitive touch screens. Generally, projected capacitive touch screens come with a higher price tag due to their sophisticated technology.
"Finger capacitance" describes the additional electrical charge that is introduced to a capacitive touch screen when it is touched. When a user places their finger on the screen, the screen absorbs a small amount of electrical charge from the user's body. This charge, though minimal, is detectable by the touch screen and is referred to as finger capacitance because it originates from the user's finger.
To understand how finger capacitance operates, it's important to grasp the basic principles of capacitive touch screens. These screens detect user input by measuring changes in capacitance. When powered on, a capacitive touch screen projects a stable electrostatic field across its surface. The screen then monitors this electrostatic field to detect touch interactions.
When a capacitive touch screen is touched with a bare finger, the electrostatic field changes because the human body conducts electricity. This results in a small electrical charge being transferred from the user's finger to the screen. As a result, the electrostatic field around the touchpoint becomes more pronounced. In simple terms, finger capacitance refers to the extra electrical charge that the finger introduces to the screen's surface.
The concept of "finger capacitance" extends beyond just fingers. Any conductive object can interact with a capacitive touch screen by affecting its electrostatic field. As long as the object conducts electricity, it will create a disturbance in the screen's field.
An example of this is a conductive stylus. While it may look like a regular pen, its distinctive feature is its conductive material. When a capacitive touch screen is engaged with a conductive stylus, the additional capacitance introduced by the stylus is detected by the screen, just as it would be with a finger. This allows the screen to register and process the touch input.
In summary, any conductive object, including fingers and special styluses, introduces an electrical charge to the capacitive touch screen, which is recognized as finger capacitance. This added capacitance allows the touch screen to detect and interpret touch commands accurately.

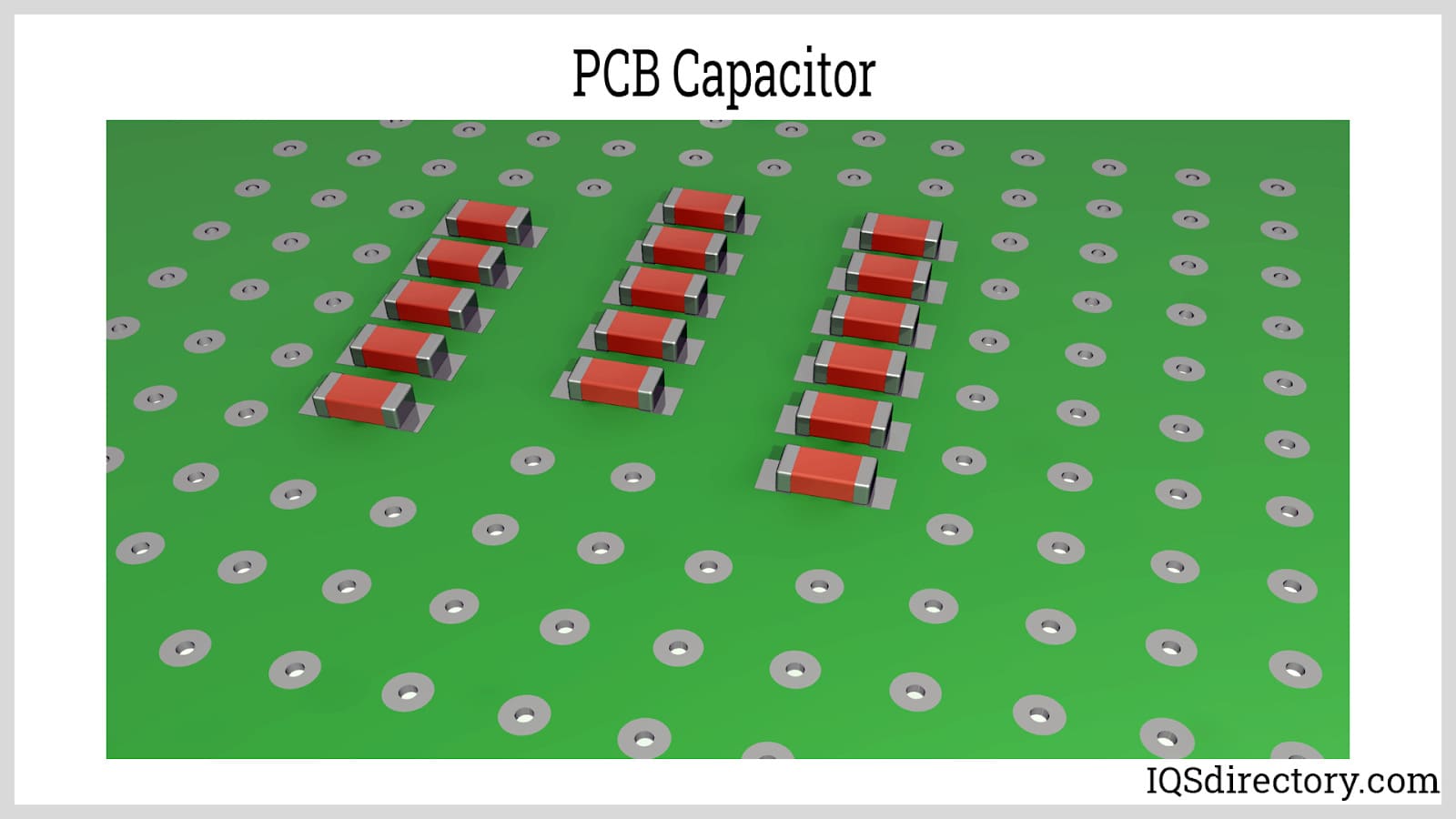

Capacitors come in various types, and while surface-mount packages and LED components are commonly associated with capacitance, the fundamental requirement for a capacitor is simply two conductive layers separated by an insulating material, or dielectric. Creating a capacitor using the conductive layers embedded in a printed circuit board (PCB) is quite simple. For instance, consider the top and side views of a PCB capacitor being used as a touch-sensitive button as an example.
The insulating space between the touch-sensitive button and the surrounding copper produces a capacitor. The touch-sensitive button can be described as a capacitor between the ground and the touch-sensitive signal because the surrounding copper is wired to the ground node.
There is no direct conduction occurring here since the solder mask on the PCB and typically a plastic layer that isolates the device's electronics from the environment act as barriers between the finger and the capacitor. Therefore, the finger is not discharging the capacitor. Additionally, the quantity of interest is not the charge remaining in the capacitor at a specific moment but rather the capacitance at that same
Capacitance changes when a finger is present due to two factors: First, the finger’s conductive properties alter the electrical field, and second, its dielectric characteristics affect the overall capacitance.
There is no direct electrical conduction involved here, as the solder mask on the PCB and typically a plastic layer serve as barriers, preventing direct contact between the finger and the capacitor's conductive plates. Consequently, the finger does not discharge the capacitor. Instead, what is measured is the change in capacitance, not the charge remaining in the capacitor at a specific time.
Even without physical contact, the finger can influence the dielectric properties of the capacitor because its electric field extends beyond the capacitor itself.
Human tissue is an excellent dielectric material due to its high water content. While air has a dielectric constant slightly higher than that of a vacuum (approximately 1.0006 at sea level and room temperature), water has a much higher dielectric constant, around 80. This means that when a finger interacts with the capacitor's electric field, the dielectric constant of the system increases, leading to a corresponding increase in capacitance.
It is well-known that human skin can conduct electricity, as evidenced by the experience of receiving an electric shock. Despite the absence of direct electrical conduction between the finger and the touch-sensitive button, which prevents the finger from discharging the PCB capacitor, the conductivity of the finger is still significant. The finger essentially acts as an additional conductive plate for a supplementary capacitor, making its influence crucial.
In practical terms, the additional capacitor formed by the finger, known as the "finger cap," can be considered to be connected in parallel with the existing PCB capacitor. Although the user is not electrically connected to the PCB's ground, making a true parallel connection somewhat complex, the finger cap still contributes to the overall capacitance.
Because the human body has a high capacity for absorbing electric charge, it effectively functions as a virtual ground. Thus, while the precise electrical interaction between the finger cap and the PCB capacitor might be complex, the key point is that the total capacitance increases. This is because capacitors in a pseudo-parallel arrangement combine to increase overall capacitance.
In summary, the interaction between the finger and the capacitive touch sensor leads to an increase in capacitance, demonstrating how the finger's presence affects the capacitive system.
The previous discussion highlights an interesting feature of capacitive touch sensing: it can detect changes in capacitance even without direct physical contact. Simply bringing a finger close to the sensor can produce a measurable change in capacitance, which is a distinctive aspect of capacitive technology.
Unlike mechanical switches or buttons, capacitive sensing introduces the capability to measure the proximity between the sensor and the user's finger. This adds a new dimension to user interface functionality.
The impact of the two capacitance-altering methods discussed is inversely related to the distance. For the method based on dielectric constants, as the finger moves closer to the conductive areas of the PCB capacitor, more of the finger’s dielectric material interacts with the electric field, altering the capacitance. Similarly, for the conductivity-based approach, the capacitance of the finger cap decreases as the distance between the conductive plates increases.
It’s important to note that capacitive sensing does not measure the exact distance between the sensor and the finger. Instead, it is designed to detect variations in capacitance, which is useful for tracking changes in proximity. This means that while capacitive sensing can effectively monitor whether a finger is approaching or moving away from the sensor, it does not provide precise distance measurements.
One of the significant advantages of projected capacitive touch screens is their durability. These touch displays are well-suited for various business applications due to their resilience. When selected and designed appropriately, projected capacitive screens are resistant to common issues such as dust and moisture. They are also effective at reducing light reflection, resisting fingerprint smudges, and preventing scratches thanks to surface treatments like AG (Anti-Glare), AR (Anti-Reflective), and AF (Anti-Fingerprint). Additionally, when carefully chosen and tailored to specific application needs, projected capacitive touch screens offer enhanced longevity.
Projected capacitive touch screens are highly resistant to scratching due to their robust construction. Even if the surface suffers scratches from an accidental impact, the screen's performance generally remains unaffected. The touch functionality persists as long as the underlying conductive matrix, which is mounted behind the screen, remains intact. This is because the screen will continue to detect changes in the electric field, ensuring reliable operation despite any surface damage.
One of the main reasons projected capacitive touch technology is widely favored in consumer electronics and successfully used in commercial and industrial applications is its high sensitivity. This technology responds exclusively to fingers or conductive pens, minimizing the likelihood of incorrect inputs. Unlike optical or acoustic touch screens, which can be affected by objects unintentionally striking the screen, and resistive touch screens that need significant pressure (e.g., from rain, leaves, clothing), projected capacitive touch screens are less prone to interference from such elements.
Projected capacitive touch screens generally provide superior image quality compared to many other touch technologies. This is because they are typically made from clear, uncoated glass with a matrix of micro-conductors on the rear. As a result, capacitive screens are well-suited for modern HD, UHD, and OLED displays.
Unlike some other touch technologies that require pressure, capacitive touch screens respond to mere touch, generating signals without the need for physical force.
While resistive technology requires traditional calibration, capacitive touch panels require one calibration after manufacture or none at all.
Capacitive touch screens have a longer lifespan compared to resistive ones because their components don't require movement. In contrast, resistive touch screens use a thin, flexible upper ITO film that must bend to make contact with the lower ITO film.
In terms of light transmission and energy efficiency, capacitive technology generally outperforms resistive technology.
The choice between capacitive and resistive technology depends on the type of input. Capacitive screens are ideal for use with fingers, whereas resistive screens are suitable for use with a stylus, whether plastic or metal. Although capacitive screens can also work with a stylus, it must be specifically designed for compatibility.
The inductive capacitive technology is commonly applied in small to medium-sized touch screens and supports gesture recognition. Conversely, surface capacitive technology is typically used for larger displays, though it currently does not support gesture recognition and is less suited for such features.
