This article takes an in depth look at Metal Etching.
You will learn more about topics such as:
Metal etching is a process that removes metal to create complex, intricate, and highly accurate components and shapes. Its versatility allows for immediate adjustments during the process. Because it uses minimal force or heat, the properties of the etched material remain unchanged, ensuring that the workpieces are free from stress or imperfections.
Etching is an excellent method for creating components with thicknesses ranging from 0.0005 inches to 0.05 inches (0.00127 cm to 1.27 cm). This makes it a highly cost-effective solution for manufacturing small parts at a very low cost.
Metal etching involves removing excess material from a workpiece through a chemical reaction. This technique, which has been used for centuries, originally served to make weapons, tools, and jewelry. Today, it is used to produce precise components for aircraft, automobiles, and satellites.
Metal etching stands out from other metalworking methods due to its speed, exceptional accuracy, and reliability. The etching tools experience minimal wear and tear, thanks to the low mechanical stress of the process.
The different types of etching include acid, photochemical, laser, and electrochemical. Acid metal etching is done in an acid bath, dipping, or flow coating. Photochemical etching uses light and chemicals to remove material. Laser etching melts the surface of the workpiece. Electrochemical etching uses a sodium based solution with electrical pulses to remove material from the substrate.
Wet etching refers to techniques that use chemicals or etchants to selectively remove material based on patterns created by photoresist masks. The process involves the diffusion of the etchant, a chemical reaction with the material, and the removal of byproducts. It is an isotropic process, affecting all exposed areas of the metal’s surface uniformly.
The type of metal to be etched influences the acid etching process since some metals etch quicker than others. Nickel and steels take far longer to etch than softer metals such as bronze or copper.

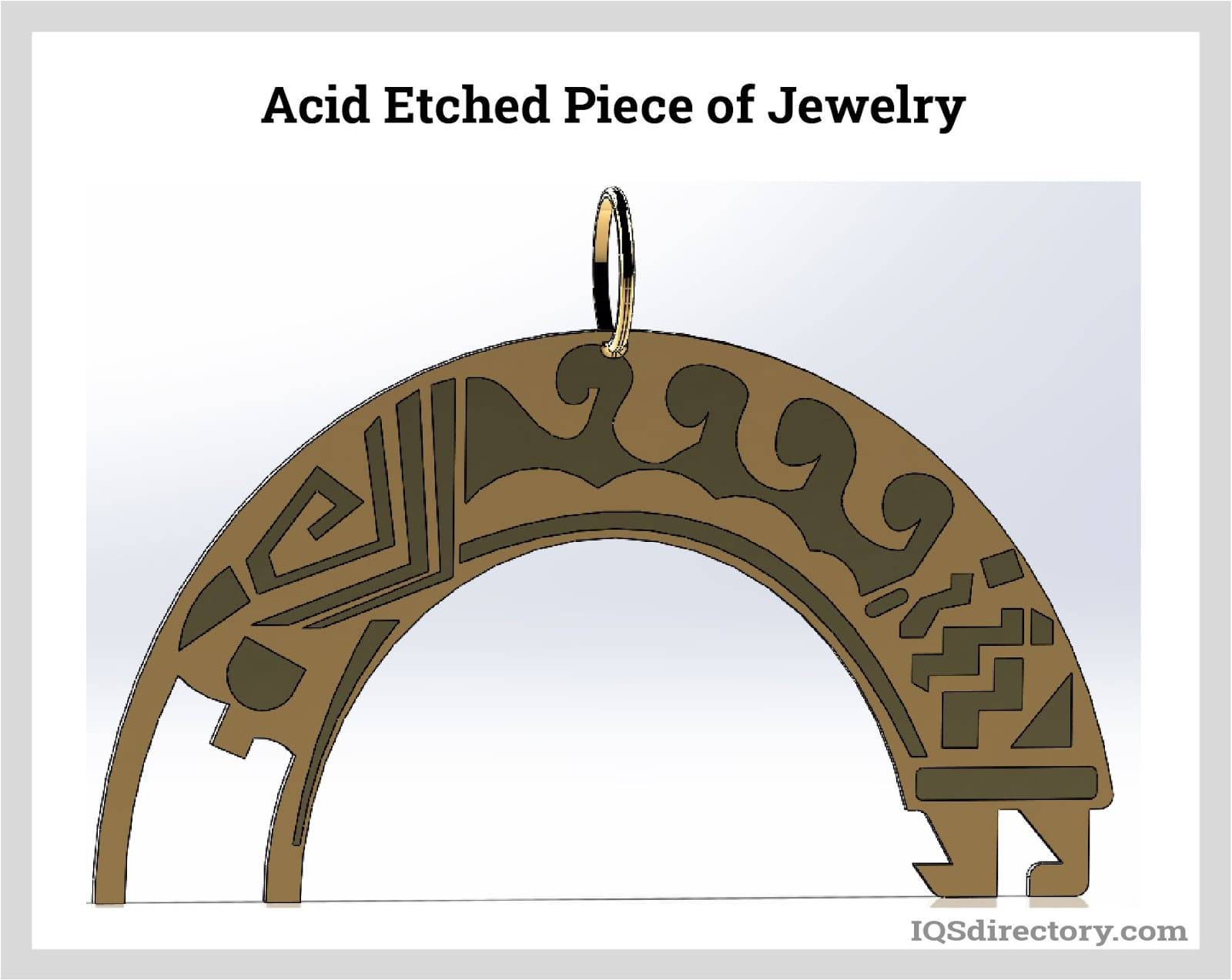

While any metal can be etched, attractive metals are often preferred due to their desirable characteristics and properties. Common metals used in etching include:
Before a metal can be acid etched, it must be thoroughly cleaned to remove contaminants, particles, oil, or chemicals from its surface. Common cleaning agents include solvents, deoxidizing agents, and alkaline solutions. Proper cleaning is essential to prepare the surface for effective etching.
Effective cleaning is crucial to ensure that film or screen printing ink adheres properly to the metal surface. Any oil stains or oxide films must be completely removed, with degreasing methods chosen based on the type of oil stain present.
The maskant, also known as the masking agent, is applied to the surface of the workpiece. It is composed of inert materials, such as isobutylene-isoprene copolymers and neoprene elastomers, which retain their integrity when exposed to chemical reactions.
The maskant can be applied using either dipping or coating methods. Dipping involves immersing the workpiece in the maskant, while coating involves spreading the maskant over the surface. The effectiveness of the maskant application is highly dependent on the cleanliness of the workpiece.
There are several methods for applying the image to the workpiece. One method involves carving the pattern directly into the maskant coating. Alternatively, the maskant agent itself can be used to shape the image. In both cases, the image is transferred onto the metal sheet.
When the image is carved into the maskant, it results in a recessed pattern. Conversely, when the maskant agent is used to shape the image, it produces a raised pattern on the metal surface.

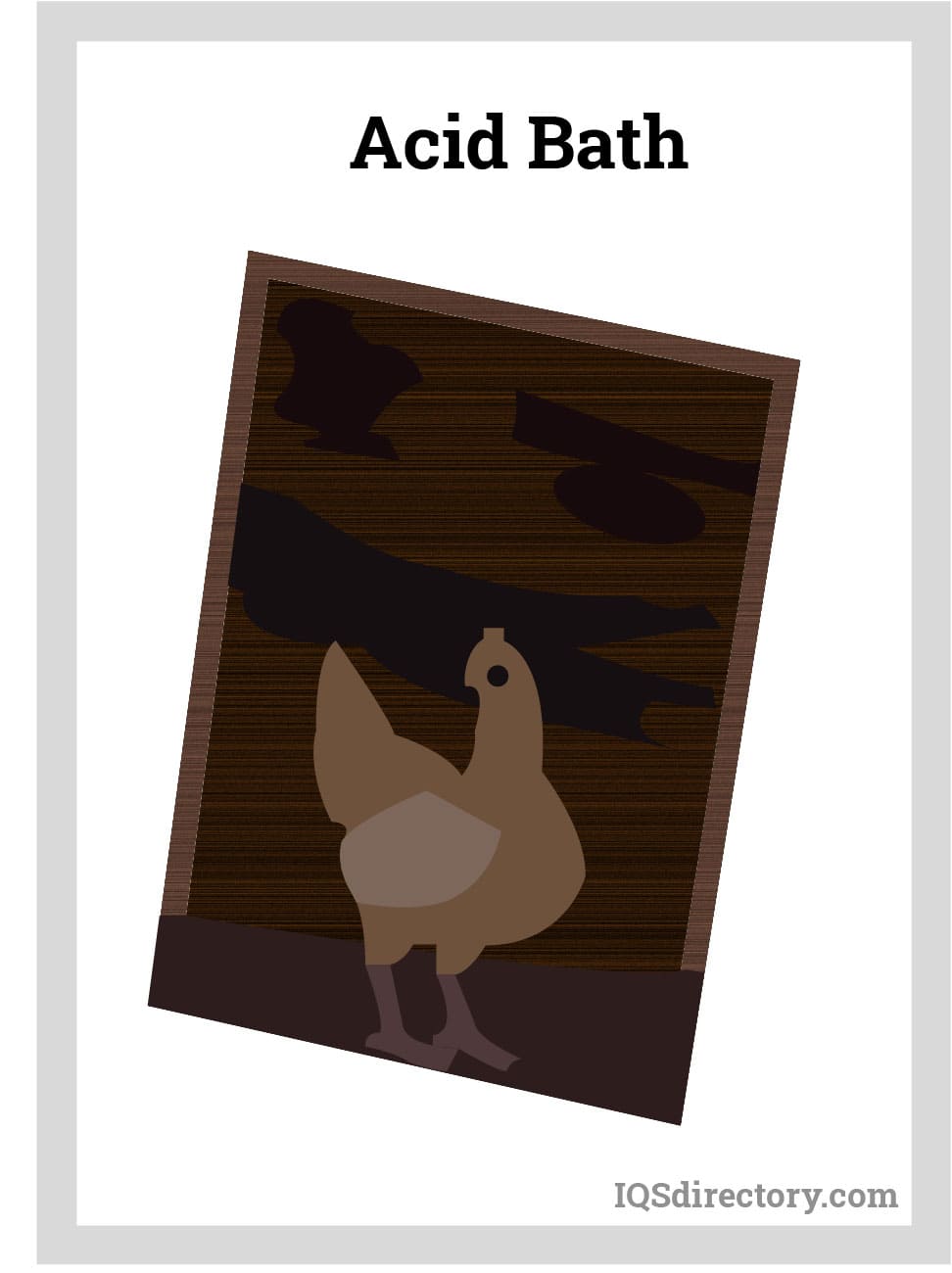

After the image is applied to the maskant, the etchant or acid is introduced. This can be done either by spraying the acid onto the workpiece or by immersing the workpiece in an acid bath. Typically, ferric chloride is used as the etchant due to its corrosive properties. The duration of exposure to the etchant depends on the type of metal and the complexity of the design being created.

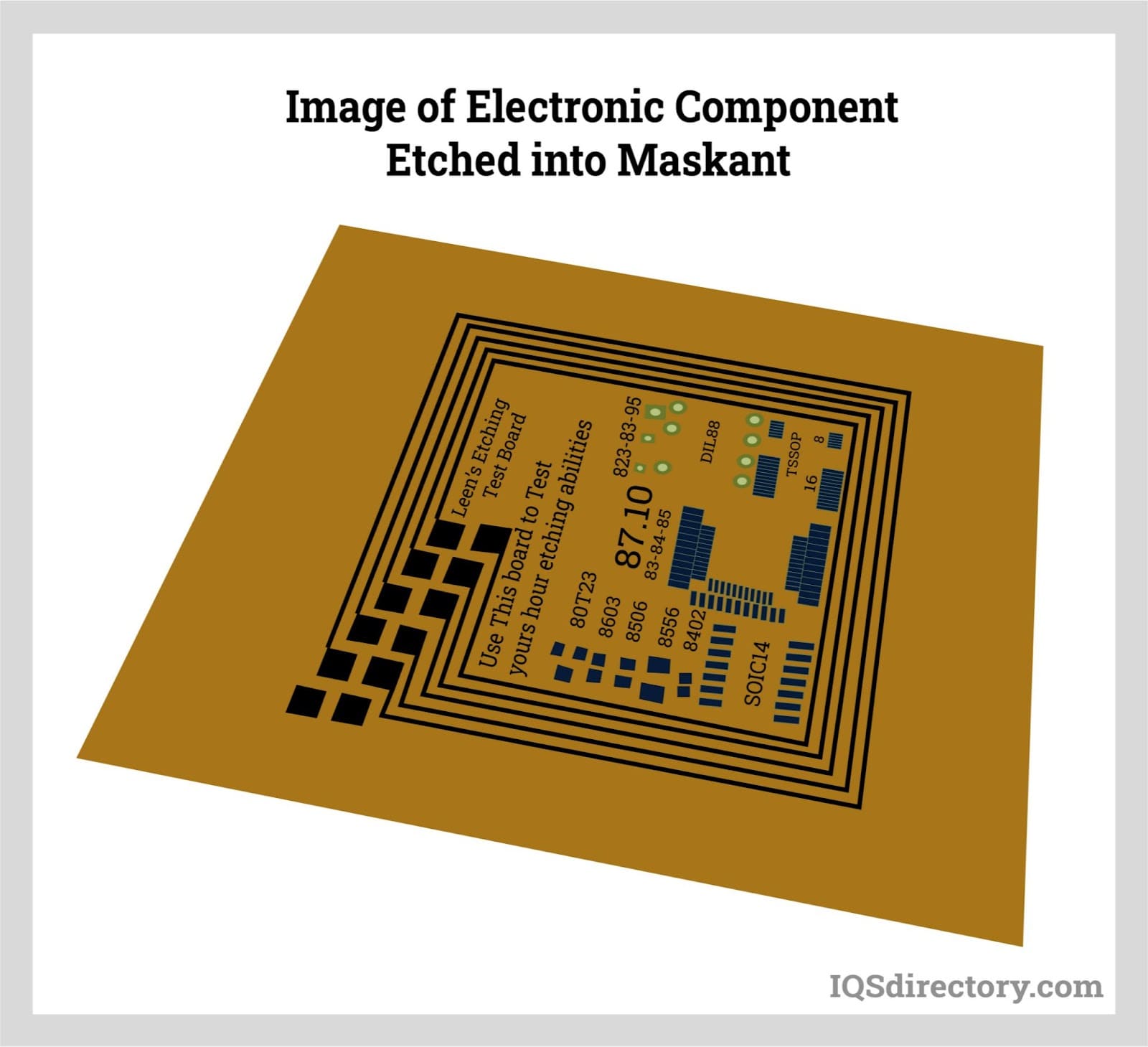

As illustrated in the image below, the pattern has been carved into the maskant, and the workpiece is being lowered into the acid bath. The acid will remove the exposed metal areas, revealing the etched design.
During the removal process, both the maskant and etchant are washed off the workpiece to reveal the final part. Various solutions and solvents are used to ensure the removal of these materials without damaging the workpiece. In some cases, if the workpiece is resilient enough, the maskant can be manually scraped off.
A common method for removing the etchant is to immerse the workpiece in water. Additionally, a deoxidizing bath may be needed to remove any oxides from the surface. Although deoxidizing may not always be necessary, it is recommended as a standard procedure for all acid etchings.
The photochemical metal etching process begins with creating a design using CAD software or Adobe Illustrator. While the design is the initial step, it is not the end of the computer calculations involved. After the design is completed, the metal's thickness is assessed, and the number of pieces that can fit on a sheet is calculated to optimize production costs. Additionally, the sheet's thickness must be evaluated to determine part tolerances, which are based on the dimensions of the parts.
Etching companies frequently use Adobe Illustrator to design their patterns. This software has been a go-to tool for over thirty years, enabling artists and designers to create precise vector graphics. Adobe Illustrator features digital drawing tools that are ideal for producing illustrations, logos, and other artwork.

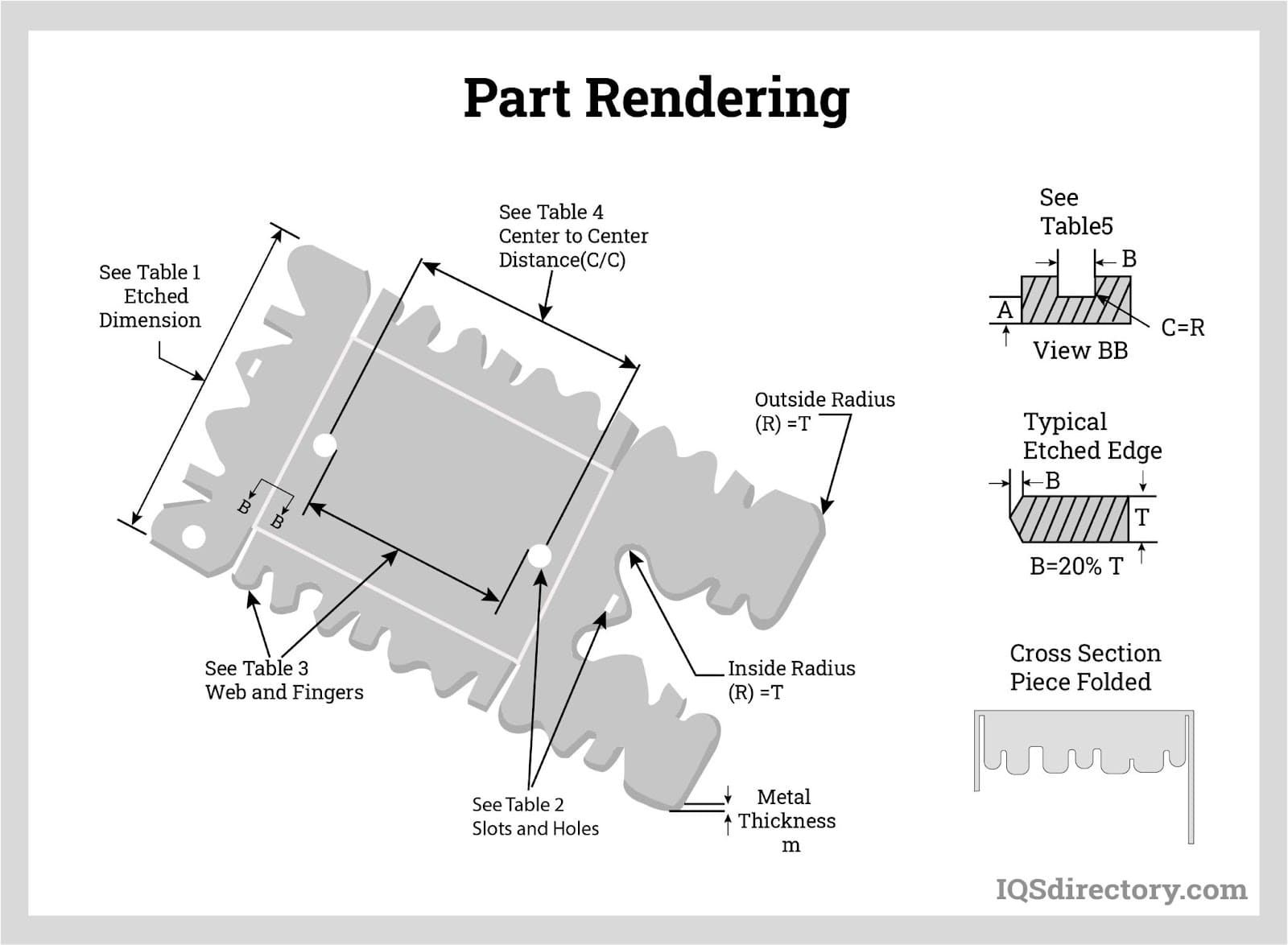

In Adobe Illustrator, the design process involves meticulous planning of the material to be etched and the depth of cuts, taking into account the kerf size. Once the design is complete, it is sent from Adobe Illustrator to the etching machine for production.
Similar to acid etching, the metal must be thoroughly cleaned before processing. Each metal piece is scrubbed, washed, and rinsed with water pressure and a mild solvent to remove oil, contaminants, and tiny particles. This ensures a smooth, clean surface for the photoresist film to adhere properly and securely.

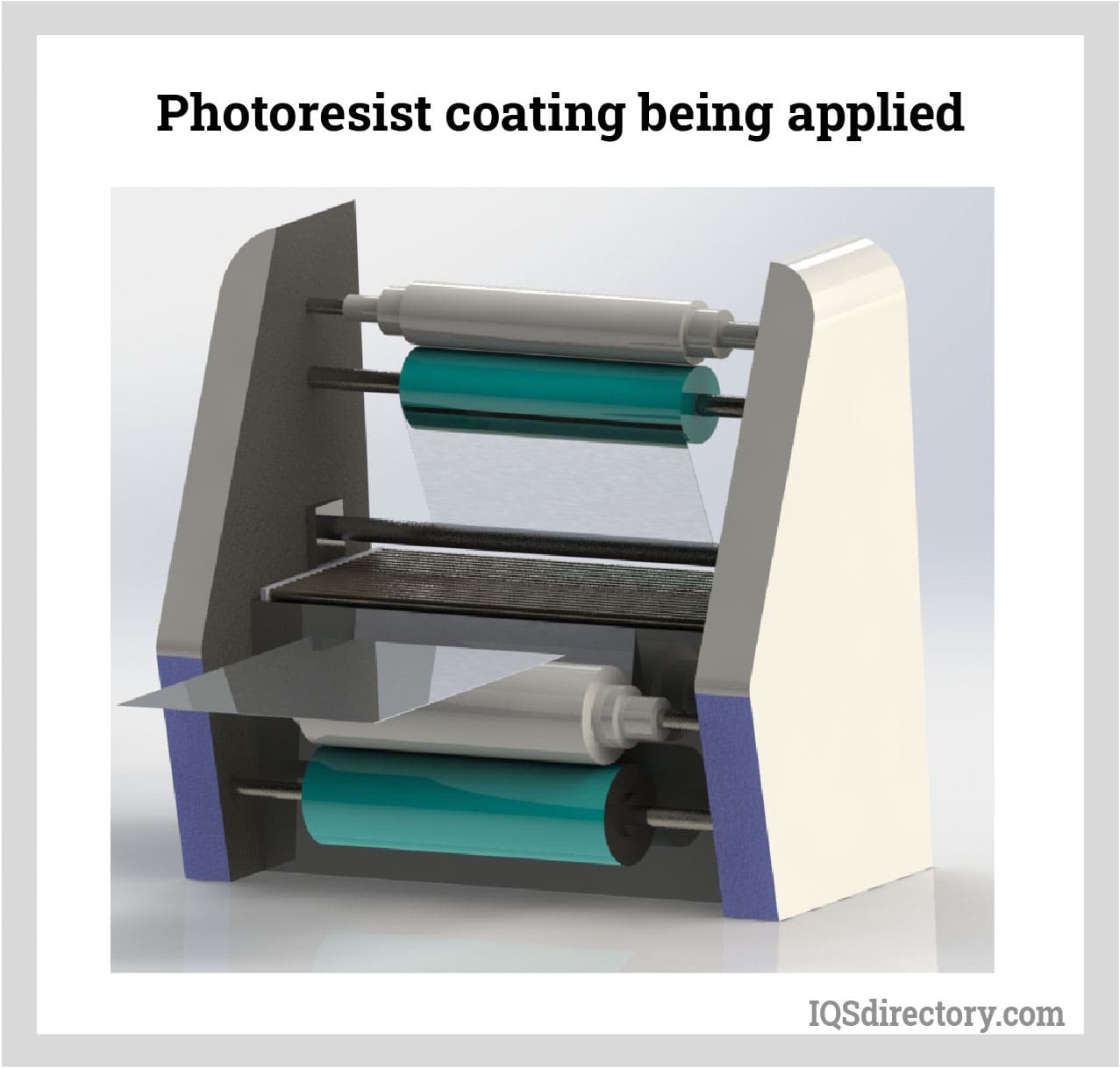

Lamination involves applying the photoresist film to the metal sheets. The sheets are passed between rollers that evenly coat them with the laminate. To prevent unwanted exposure to UV light, this process is carried out in a room illuminated with yellow lights. Proper alignment is ensured by holes punched in the edges of the sheets. To avoid bubbles in the laminated coating, the sheets are vacuum-sealed, which smooths out and flattens the layers of laminate.

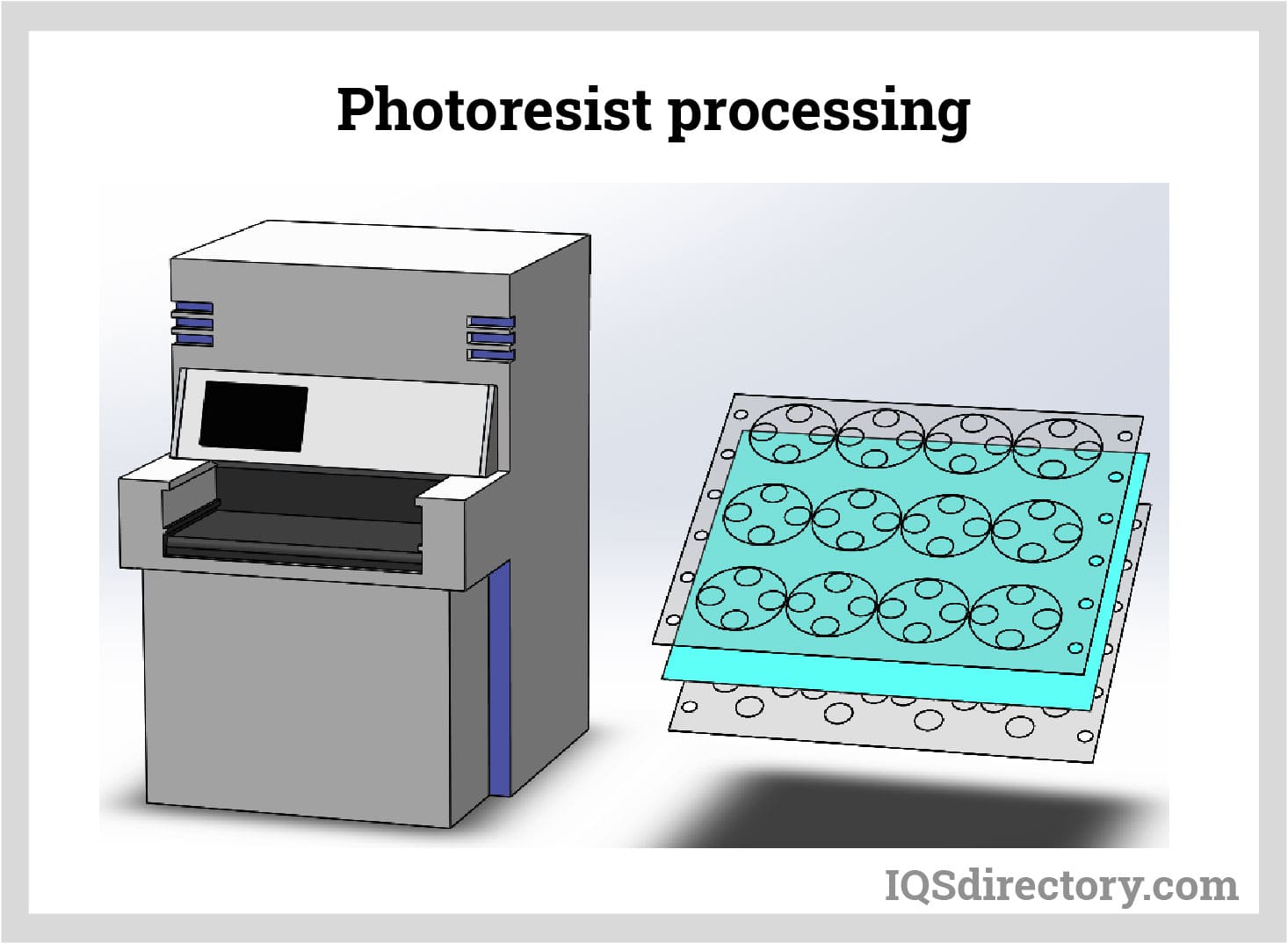

During the photoresist processing, images from CAD or Adobe Illustrator renderings are applied to the photoresist layer on the metal sheet. The designs are transferred to both sides of the metal by placing the images over and under the sheet. Once the images are positioned, the metal sheets are exposed to UV light, which permanently sets the images. The UV light hardens the photoresist in the areas where it shines through the clear parts of the laminate, while the black areas of the laminate remain soft and unaffected.

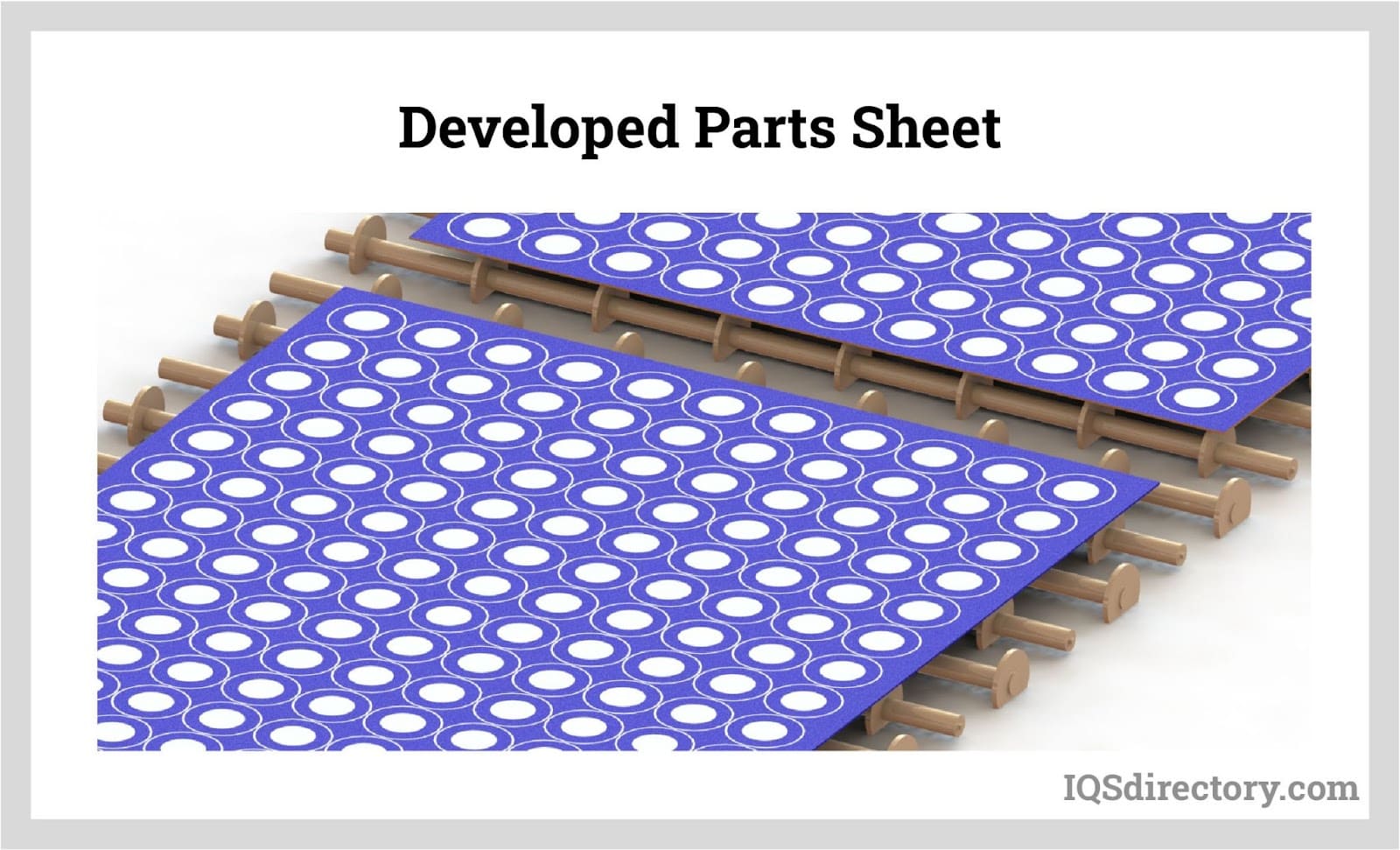

After photoresist processing, the sheets are transferred to a developing machine where an alkali solution, typically sodium or potassium carbonate, is applied. This solution washes away the soft photoresist film, exposing the areas to be etched. The process removes the soft resist, leaving behind the hardened resist that protects certain parts. In the image below, the hardened areas appear in blue, while the soft areas are gray. The exposed metal, not covered by the hardened laminate, will be removed during the etching process.

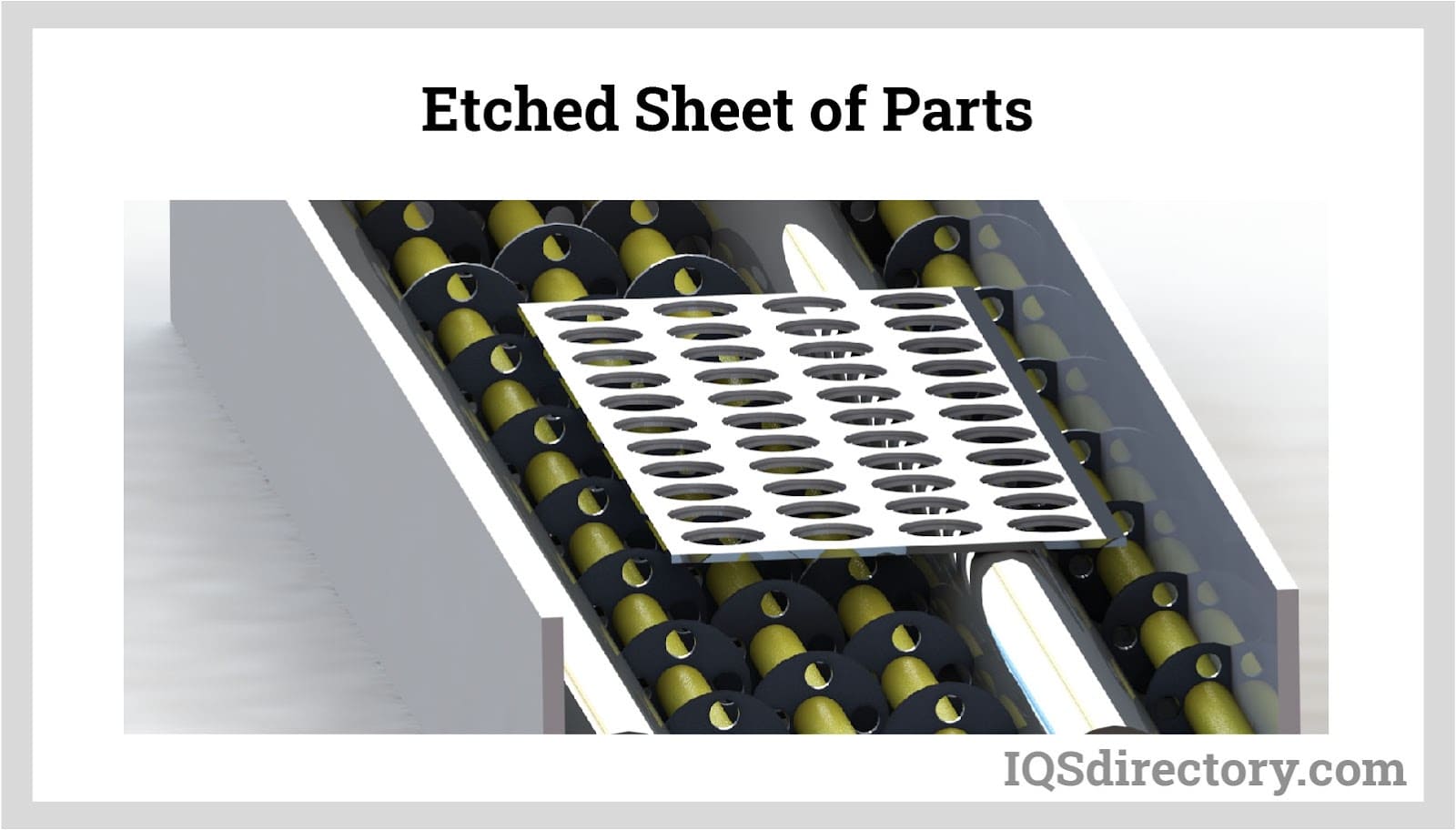

Similar to the acid etching process, the developed sheets are placed on a conveyor that moves them through a machine where etchant is applied. The etchant dissolves the metal in the exposed areas, leaving the protected sections intact.
In most photochemical etching processes, ferric chloride is used as the etchant and is sprayed onto the sheets from both the top and bottom of the conveyor. Ferric chloride is preferred because it is safe and recyclable. For etching copper and its alloys, cupric chloride is used instead.
The etching process must be carefully timed and controlled based on the type of metal being etched, as different metals require varying etching durations. Effective photochemical etching depends on precise monitoring and control throughout the process.
The stripping process involves applying a resist stripper to eliminate any leftover resist film. Once the stripping is finished, the resulting part is displayed in the image below.
Unlike photochemical and acid etching, laser etching marks, shapes, and engraves images directly onto the surface of parts and products. This process uses significant energy to melt the substrate of the workpiece. A concentrated beam of energy targets a small area, causing the surface metal to melt and expand.
The laser beam is pulsed, releasing bursts of energy at precise and monitored intervals. For instance, a 100 W laser emits 100,000 pulses per second, with each pulse delivering one millijoule (mJ) of energy and reaching a peak of 10,000 W.
When the beam hits the metal surface, the energy is absorbed and converted into heat. This heat must be sufficient only to melt a thin micro layer—approximately 0.001 inches or 0.00251 cm thick—and cause it to expand. The laser etching process affects only a small area of the surface, creating a finely textured impression.
There are two main types of laser etching machines: flatbed (or plotter) and galvo. The key difference between these methods lies in how the laser is applied to the material.

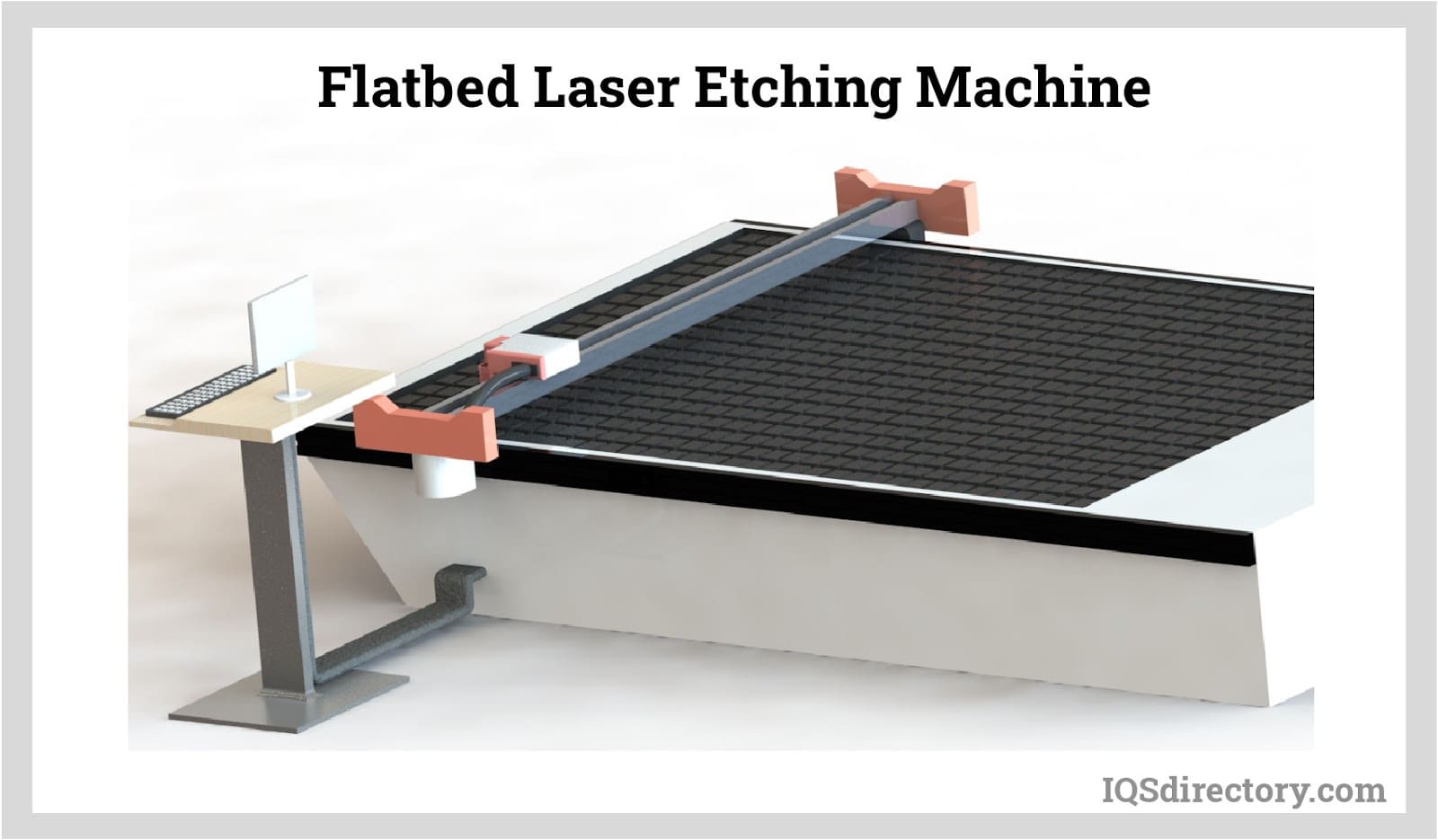

In a flatbed laser system, the laser beam is guided by mirrors aligned with the X and Y axes of the flatbed, directing it to a lens where it is focused. The X and Y movements adjust the beam's position. The primary limitation of this process is the size of the machine.

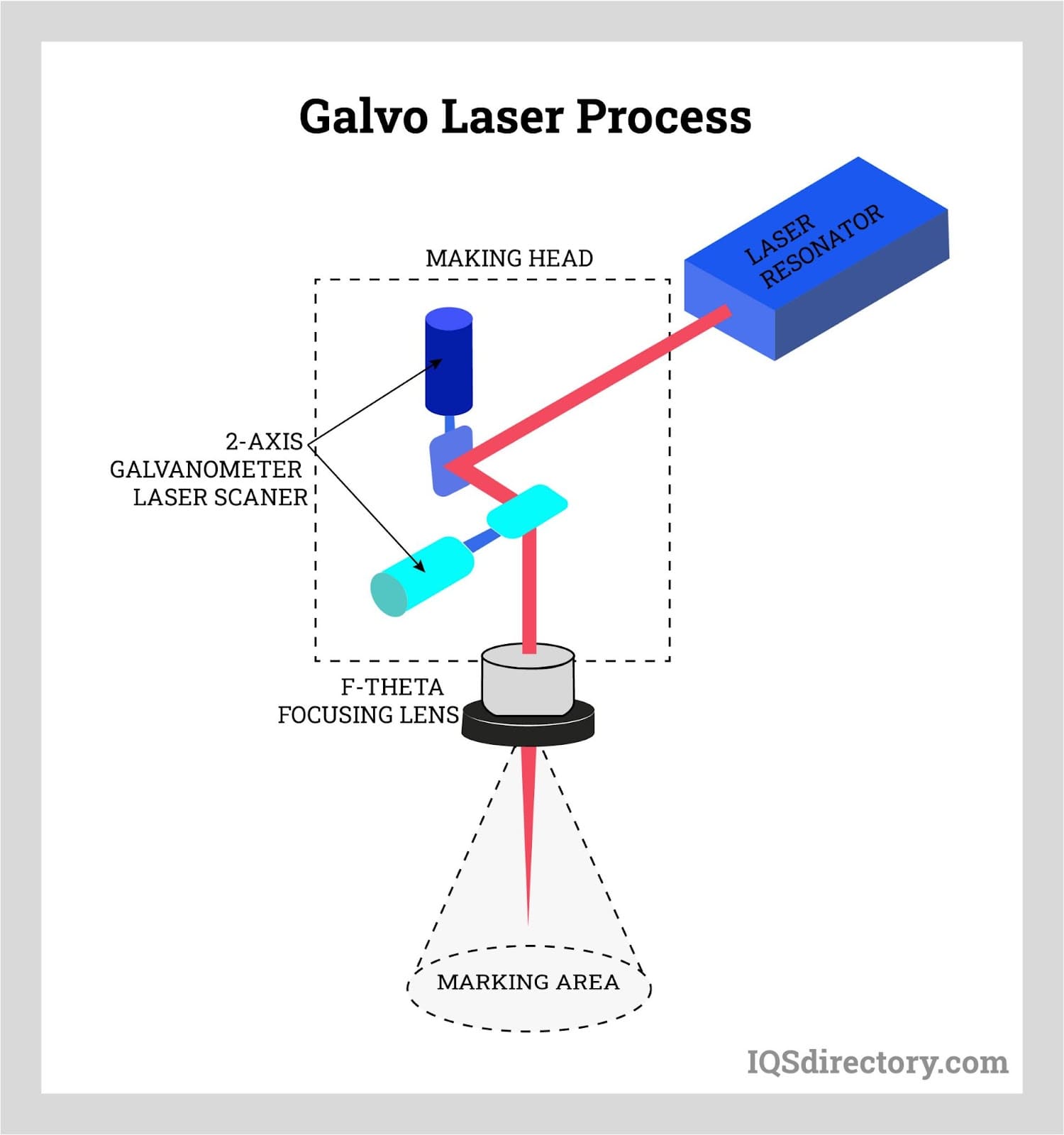

The galvo process also employs mirrors to direct the laser beam, but it differs in how it does so. In galvo systems, high-speed oscillating mirrors adjust the beam's direction by rotating and altering the mirror angles. This method is particularly suited for rapidly marking fine, intricate details. Galvo lasers can handle various geometries and operate at speeds of several feet per second.
Before the advent of laser etching, acid etching was the primary method used. Laser etching has since replaced acid etching due to its cost-effectiveness, the simplicity of using only a laser etching machine, and its minimal waste production. Below is a list of common metals used for laser etching, along with their melting points.

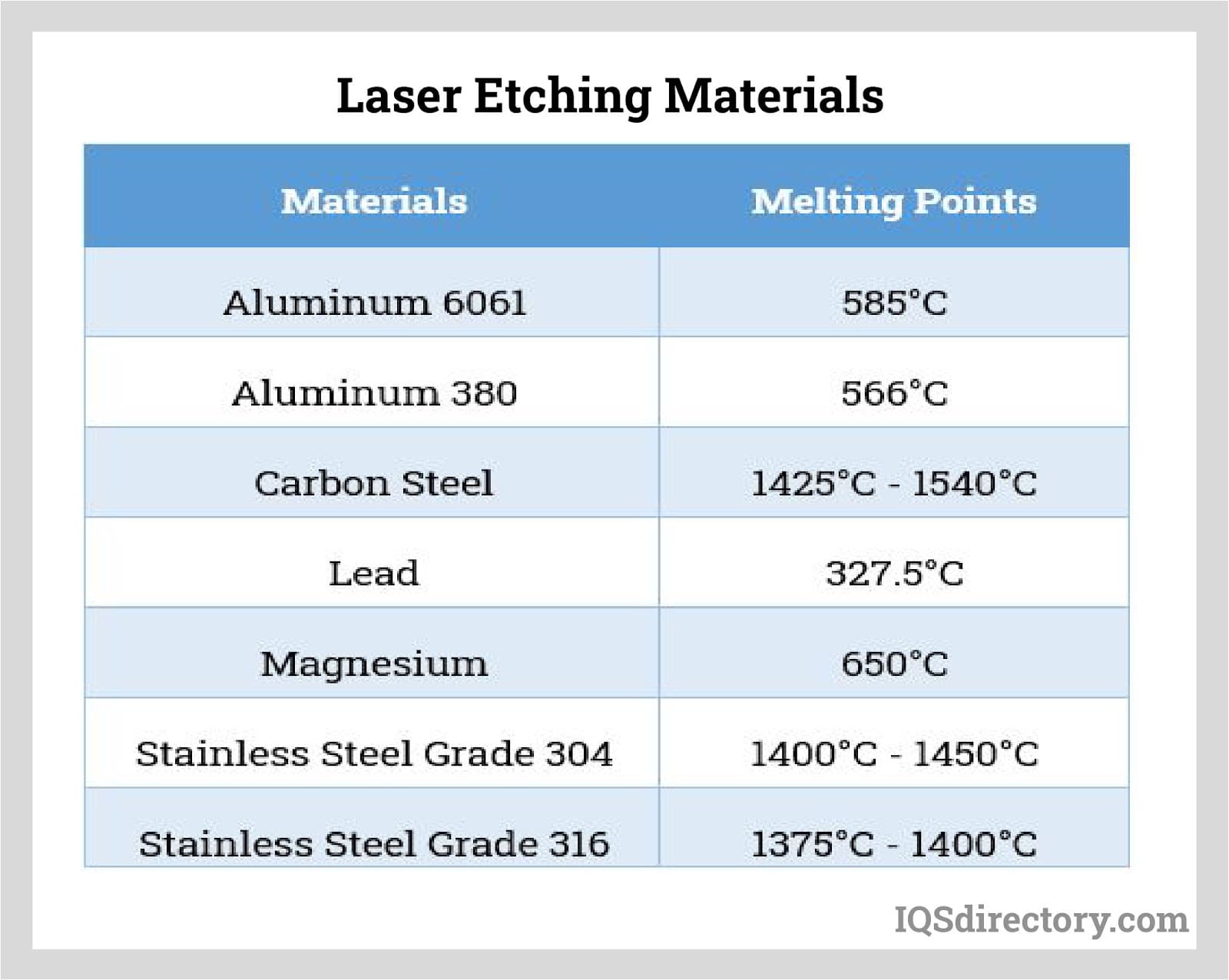

| Laser Etching Materials | |
|---|---|
| Materials | Melting Points |
| Aluminum 6061 | 585°C |
| Aluminum 380 | 566°C |
| Carbon Steel | 1435°C - 1540°C |
| Lead | 327.5°C |
| Magnesuim | 650°C |
| Stainless Steel Grade 304 | 1400°C - 1450°C |
| Stainless Steel Grade 316 | 1375°C - 1400°C |
The difference between lasers is based on the type of medium used to generate the beam. Various mediums produce lasers with different wavelengths and absorption bands. In industrial applications, lasers can operate in either continuous or pulsed modes.
Solid state lasers utilize glass or crystal as their medium to generate the laser beam.
Gas lasers operate by passing an electric current through a gas medium to produce the laser beam.
Liquid lasers employ a liquid medium combined with a dye and solvent to create the laser beam.
Semiconductor lasers, or diode lasers, use electrical energy to produce laser light.
Metal vapor lasers are a type of ion laser that vaporizes metals to generate the laser beam.
Excimer lasers are ultraviolet lasers that emit powerful pulses of light.

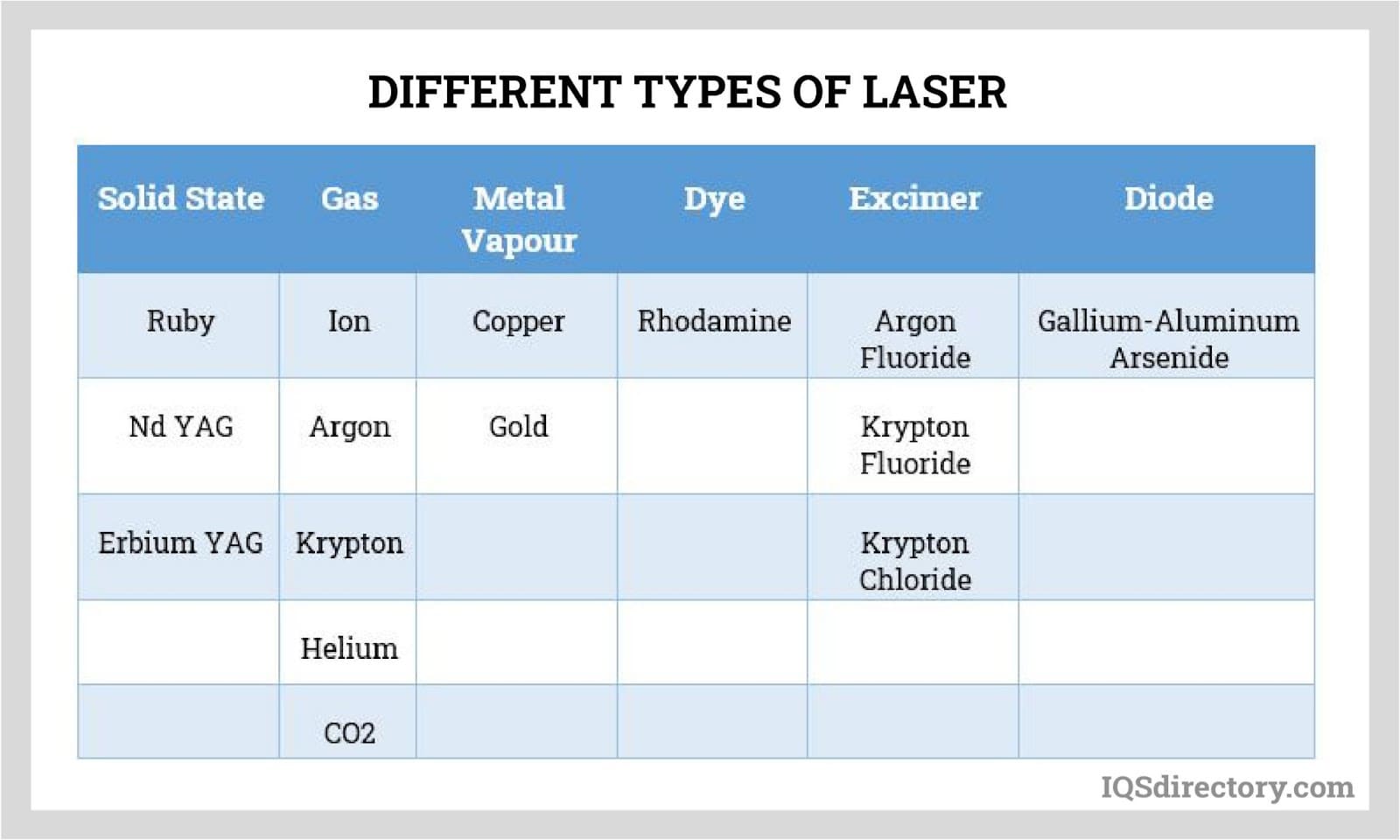

| Different Types of Laser | |||||
|---|---|---|---|---|---|
| Solid State | Gas | Metal Vapor | Dye | Excimer | Diode |
| Ruby | Ion | Copper | Rhodamine | Argon Fluoride | Gallium-Aluminum Arsenide |
| Nd YAG | Argon | Gold | Krypton Fluoride | ||
| Erbium YAG | Krypton | Krypton Chloride | |||
| Helium | |||||
| CO2 | |||||
Electrochemical metal etching can be applied to any electrically conductive material. It operates without heat, preserves the metal's microstructure, and excels at highlighting fine details in the workpiece. Additionally, electrochemical metal etching is a cost-effective and efficient etching method.
Similar to photochemical etching, electrochemical etching starts with designing a CAD or Adobe Illustrator file. Once the design is finalized, it is printed on a transparency to create a stencil for the etching process.

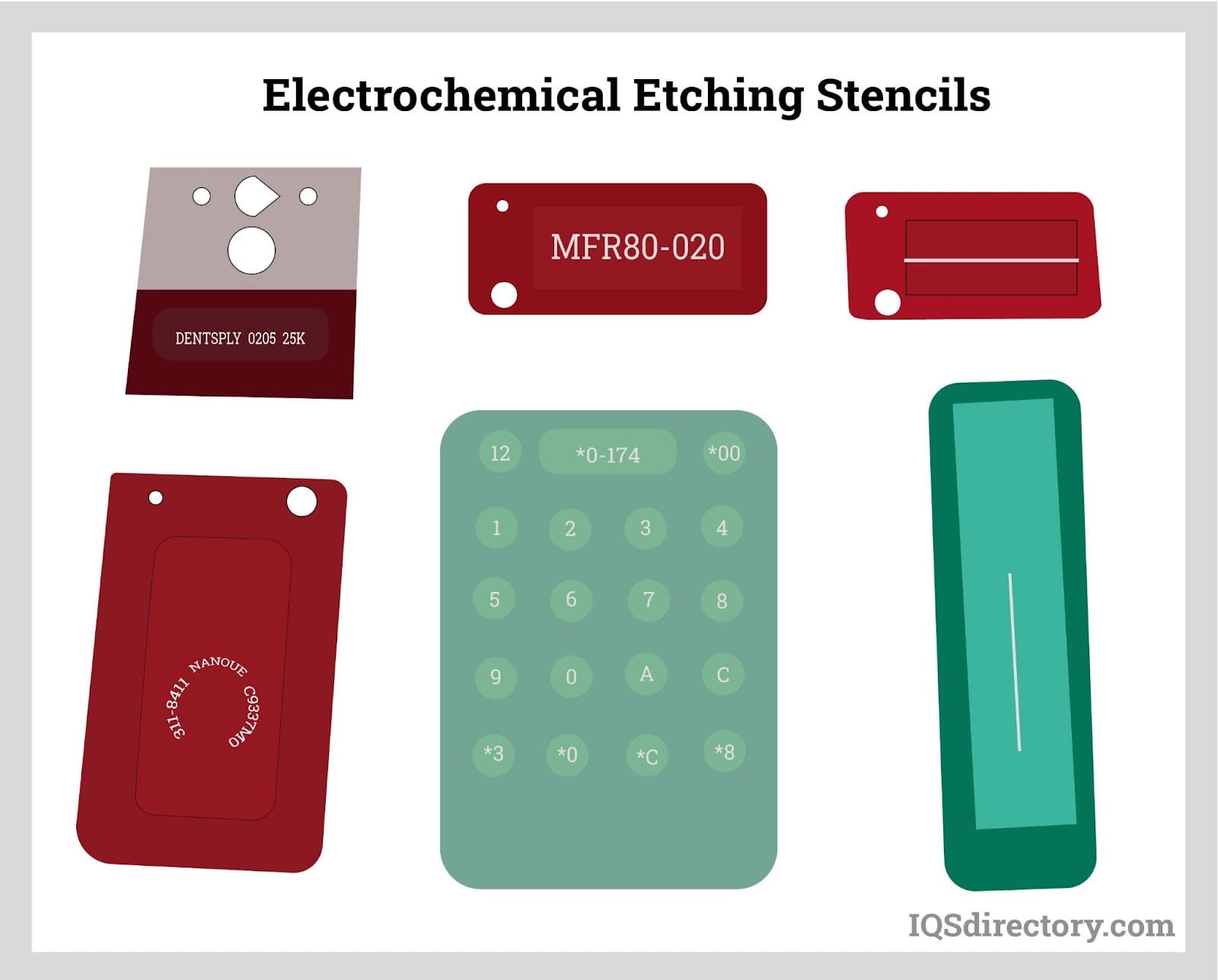

The stencil is created from a photosensitive material that captures and imprints the image from the transparency. Electrochemical stencils are crafted from highly durable materials, suitable for both manual operations and automated electrochemical etching machines. They consistently produce sharp, clear images across hundreds of impressions.
The transparency is placed against the stencil, allowing the image to be imprinted onto it. After exposure, the stencil is treated with a developing solution to reveal the imprinted markings.

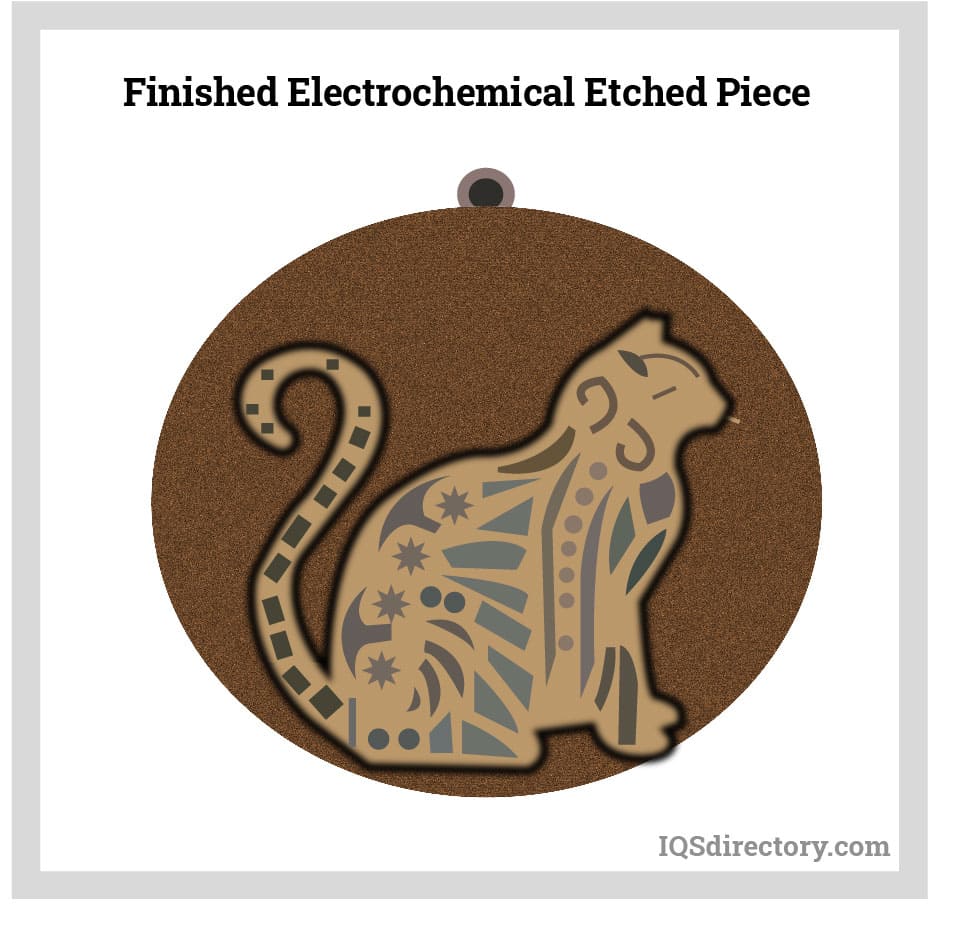

The etching process involves using sodium-based solutions combined with low-voltage electrical pulses. The electrical current dissolves the metal, which is then collected on a cloth pad called a monopod. As the metal is removed, an oxide forms in the etched area, providing high contrast, a sharp image for easy detection, and protection against corrosion.
Shallow etching in electrochemical metal etching is a rapid process, often completed in less than a second. The resulting image appears dark, with the darkness varying depending on the type of metal being etched.
Deep etching with electrochemical metal etching employs direct current (DC) to remove metal ions, allowing for the creation of parts and components with etching depths ranging from 0.001 to 0.003 inches (0.00254 to 0.00762 cm) or greater. This process uses pulsating power and may require multiple passes to achieve the desired depth.
Metal etching machines are essential in today’s industry, offering precise and efficient marking, engraving, and etching on a wide range of metals. They support various sectors, including manufacturing, automotive, jewelry, and medical devices. These machines play a critical role in product identification, customization, traceability, and branding, enhancing quality control, compliance, and aesthetics in the modern industrial landscape. Below, we discuss several leading machines in this field.
Features: The Fusion Pro 48 is a CO2 laser engraver and cutter renowned for its high-quality etching on various metals. It boasts a large working area and precise engraving capabilities, accommodating a wide range of metals including stainless steel, aluminum, and brass. Advanced features include the IRIS™ Camera System for job recognition and the Laser Dashboard™ for intuitive control and monitoring.
Features: The Gravograph M40 Gift is a compact and versatile engraving machine ideal for both beginners and professionals. Although it is primarily designed for non-metal materials, it also performs effectively on softer metals such as aluminum. Its popularity stems from its user-friendly interface, dependable performance, and ability to etch intricate designs on small items, making it a favorite for gift customization and jewelry applications.
Trotec SpeedMarker Series
Manufacturer: Trotec Laser
Features: The Trotec SpeedMarker series offers a range of laser engraving machines tailored for metal marking and etching. These fiber laser systems are praised for their high-speed performance and superior marking quality on metals like stainless steel, titanium, and aluminum. They come equipped with user-friendly software and options such as galvo-driven laser heads for precise marking.
Features: The PLS6.150D is a versatile CO2 laser system designed for metal etching and more. It is favored for its robust CO2 laser source, ample working area, and ability to produce detailed, high-quality etchings on metals. The machine also includes advanced features like Rapid Reconfiguration™ for fast and efficient setup changes.
Features: The DuraMark DM1100 is designed for industrial-grade metal marking, utilizing a fiber laser source for exceptional durability. Its robust construction makes it ideal for heavy-duty use in manufacturing environments. The machine delivers high-speed marking and is capable of handling various metals, including stainless steel, aluminum, and copper.
Note: Ensure you verify the current availability and updated features of these machines, as the information provided reflects the market status up to September 2021. Before purchasing, conduct thorough research, read customer reviews, and consult industry experts to select the most suitable machine for your metal etching requirements.
Metal etching is a process used to create intricate and complex designs on metal products. It is widely employed across various industries, including computer components and electronics. The versatility of metal etching makes it suitable for a range of applications, from household items to defense and military equipment.
This technique allows for the production of a diverse array of parts without compromising the metal's structure or tolerance, which can be a limitation of other metal forming methods. Metal etching preserves the inherent characteristics and properties of the metals used, regardless of the specific piece being produced.

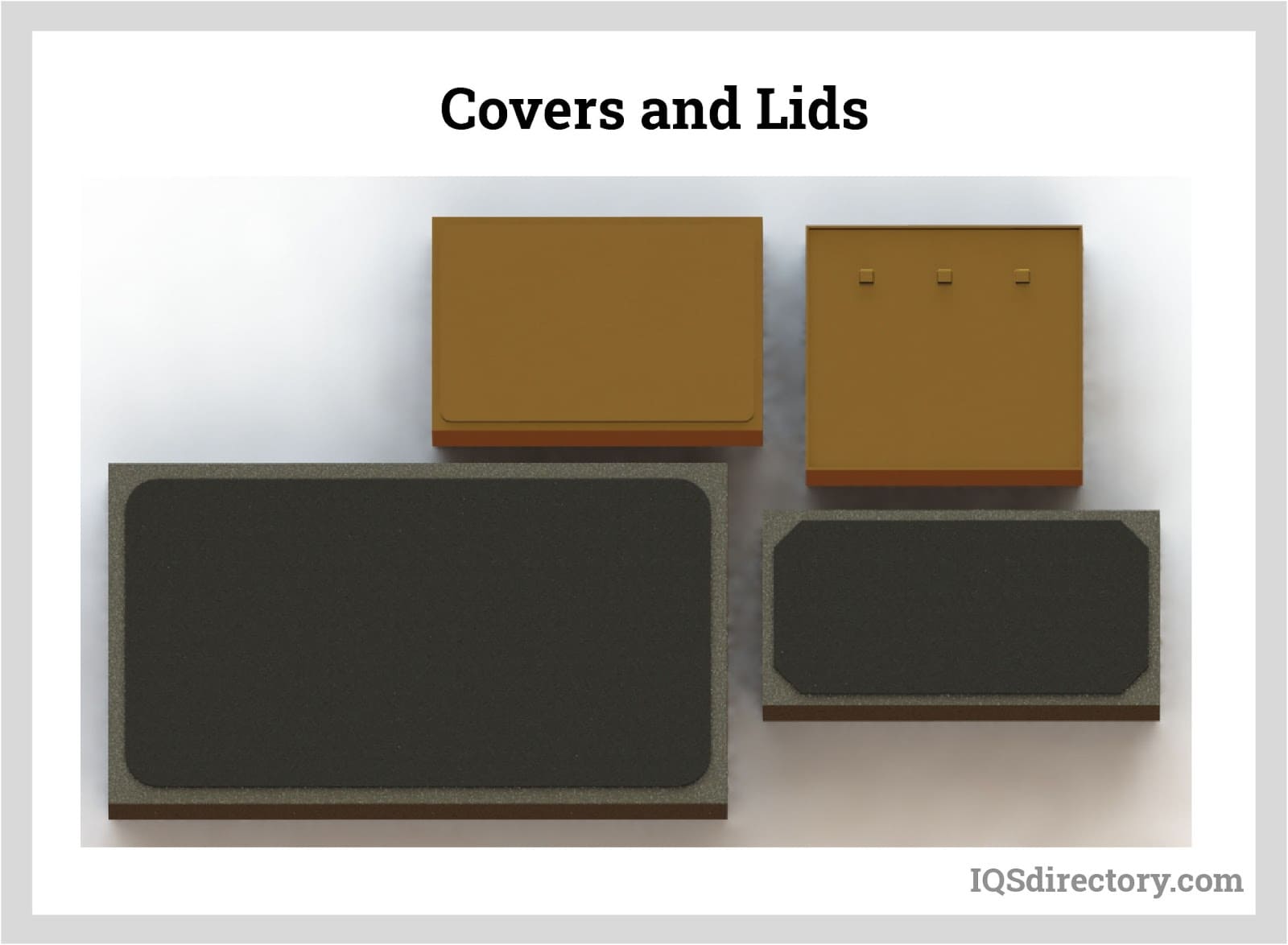

For metal covers and lids, it is crucial that they lay flat to ensure a tight and precise fit. Etching is an ideal method for producing these components because it does not stress or deform the metals, allowing for the maintenance of required dimensional tolerances.
Electrical connectors, designed for various environments, must be made from materials that can endure harsh conditions. The etching process produces these connectors with precision, free from stress and burrs, using high-performance metals known for their superior strength-to-weight ratios. Connectors can be manufactured with a remarkable accuracy of ±0.025 mm (0.001 in).
Metal etching is extensively utilized in the medical field for producing a range of prosthetics and surgical tools. The process is also used to create extremely fine metal screens for sensors, monitoring devices, and surgical needle threaders.

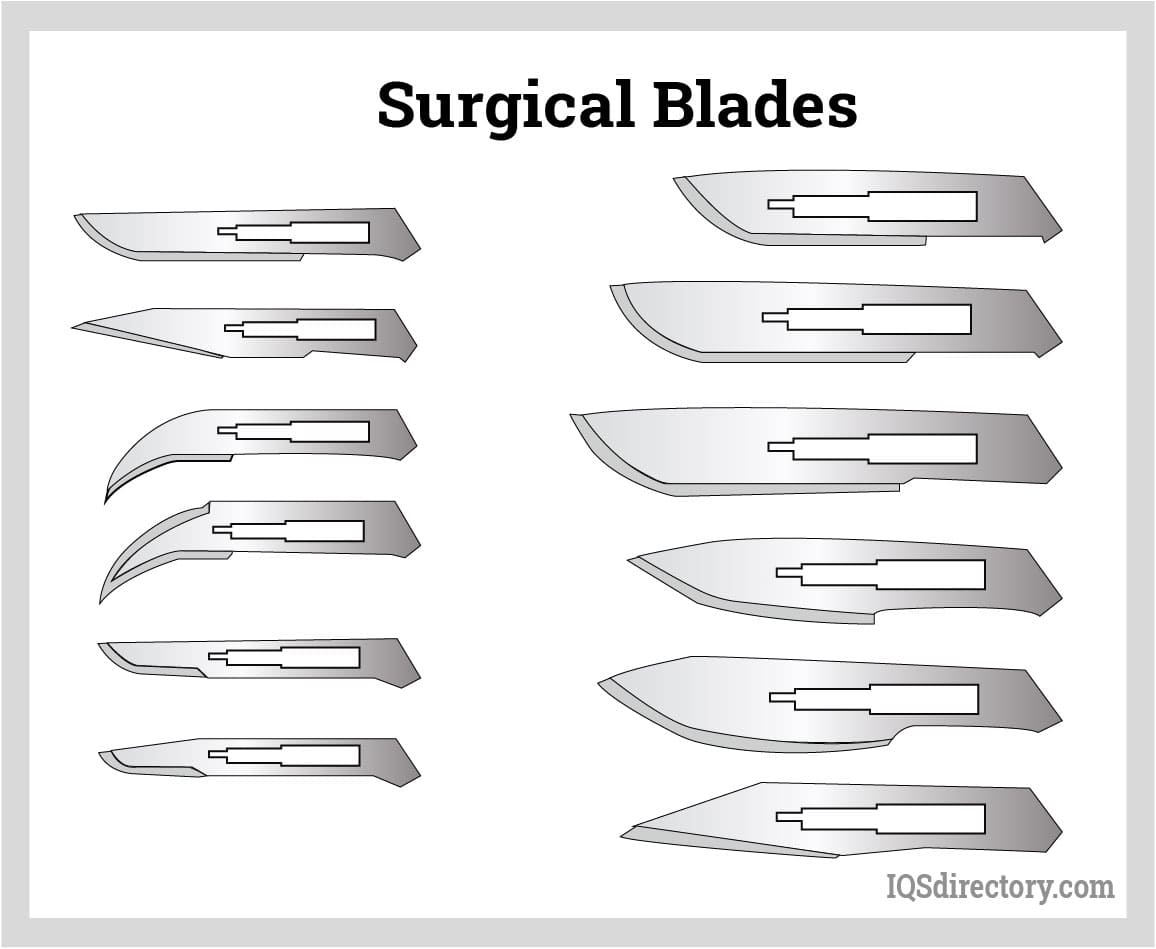

Metal etching is particularly well-suited for manufacturing surgical blades that require precision down to the micrometer (μm) level. The high dimensional accuracy achieved through etching ensures that these blades meet the stringent standards of the medical industry.

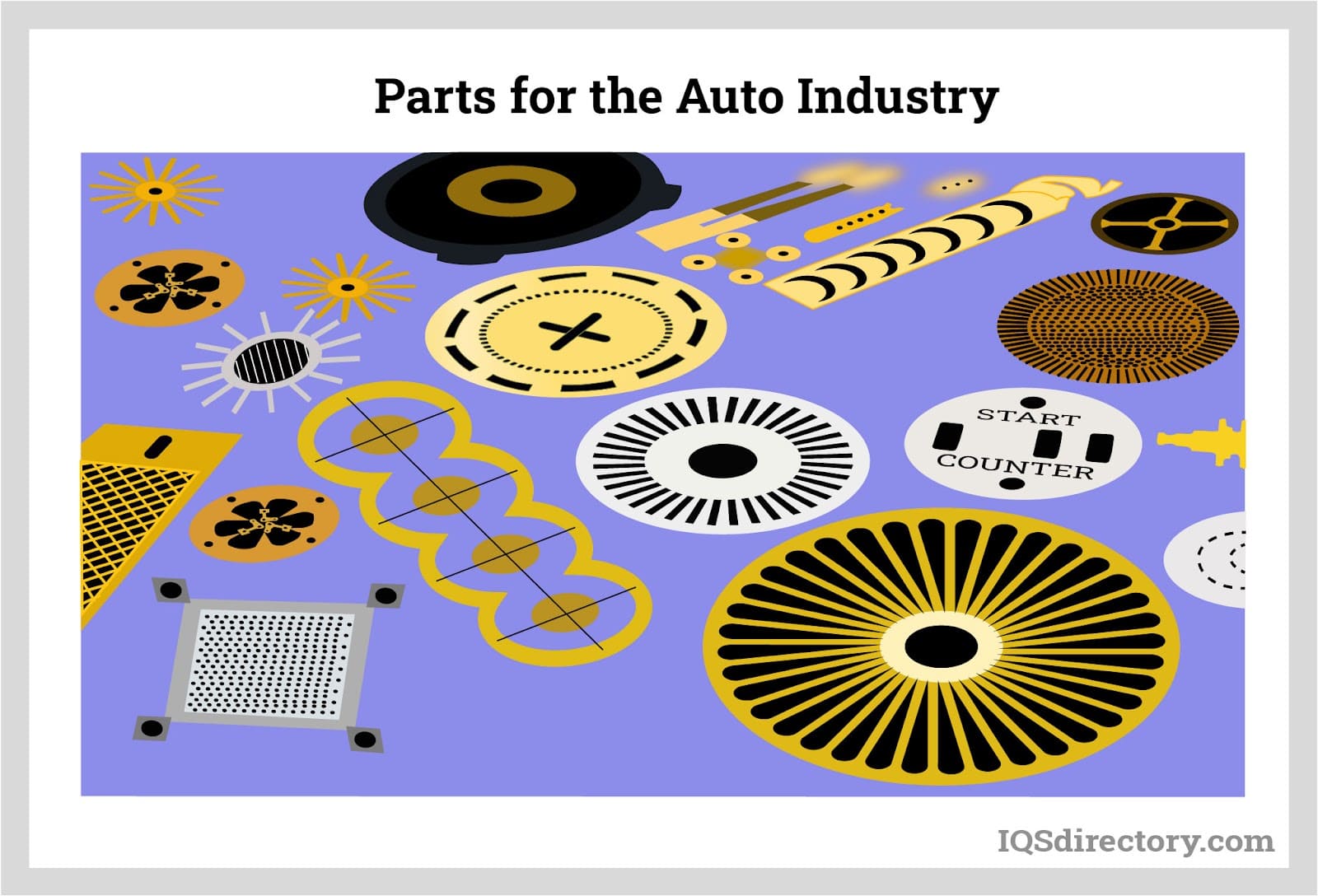

Modern automobiles, unlike their older counterparts, require a variety of precisely manufactured components such as electrical parts, clutch springs, encoder disks, fuel cell plates, and nameplates. These components must meet exceptionally accurate tolerances to adhere to stringent weight and noise requirements. The automotive industry depends on metal etching to achieve the high level of precision and detail needed in every aspect of vehicle design and engineering.

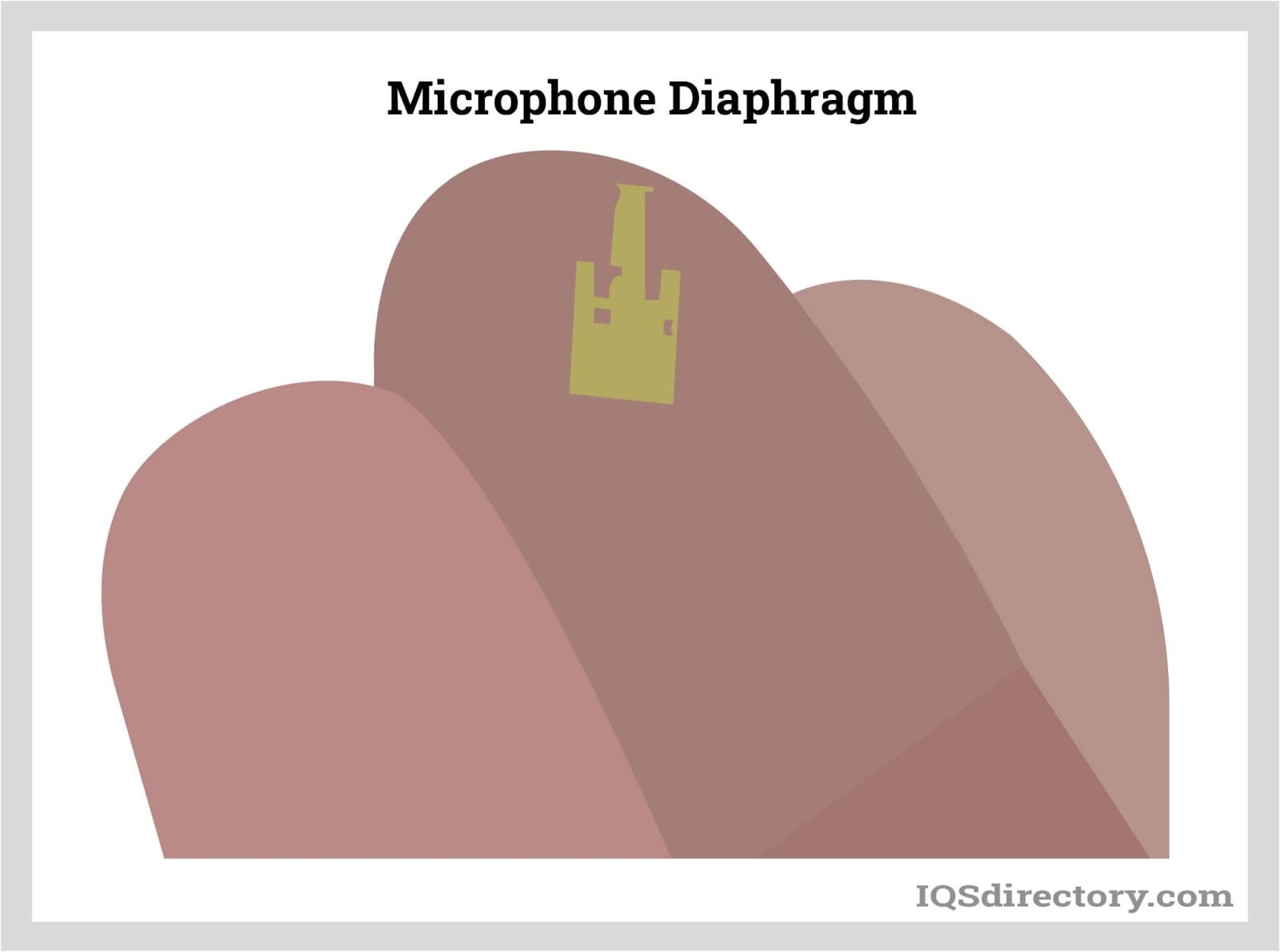

The diaphragm of a microphone converts vocal waves into electronic signals. As microphones have become smaller, so have the diaphragms, posing a challenge for manufacturers. Metal etching has emerged as the ideal solution, capable of producing and etching even the smallest components with precision.

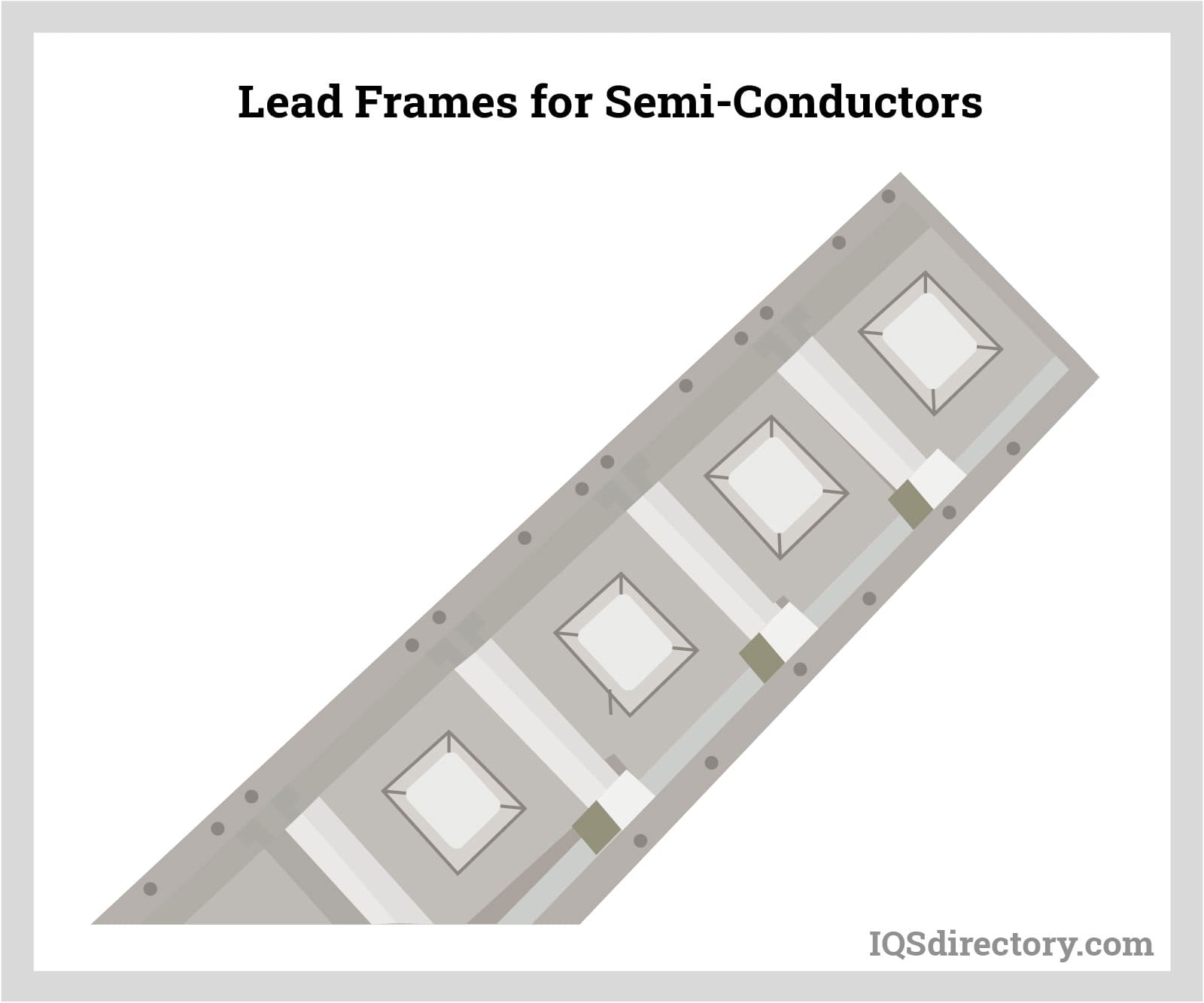

As modern technologies continue to shrink, there is an increasing need for components that match these decreasing sizes. With many new products being micro-sized, the demand for metal etching manufacturers to produce these tiny components has surged. This is particularly evident in the production of micro springs.

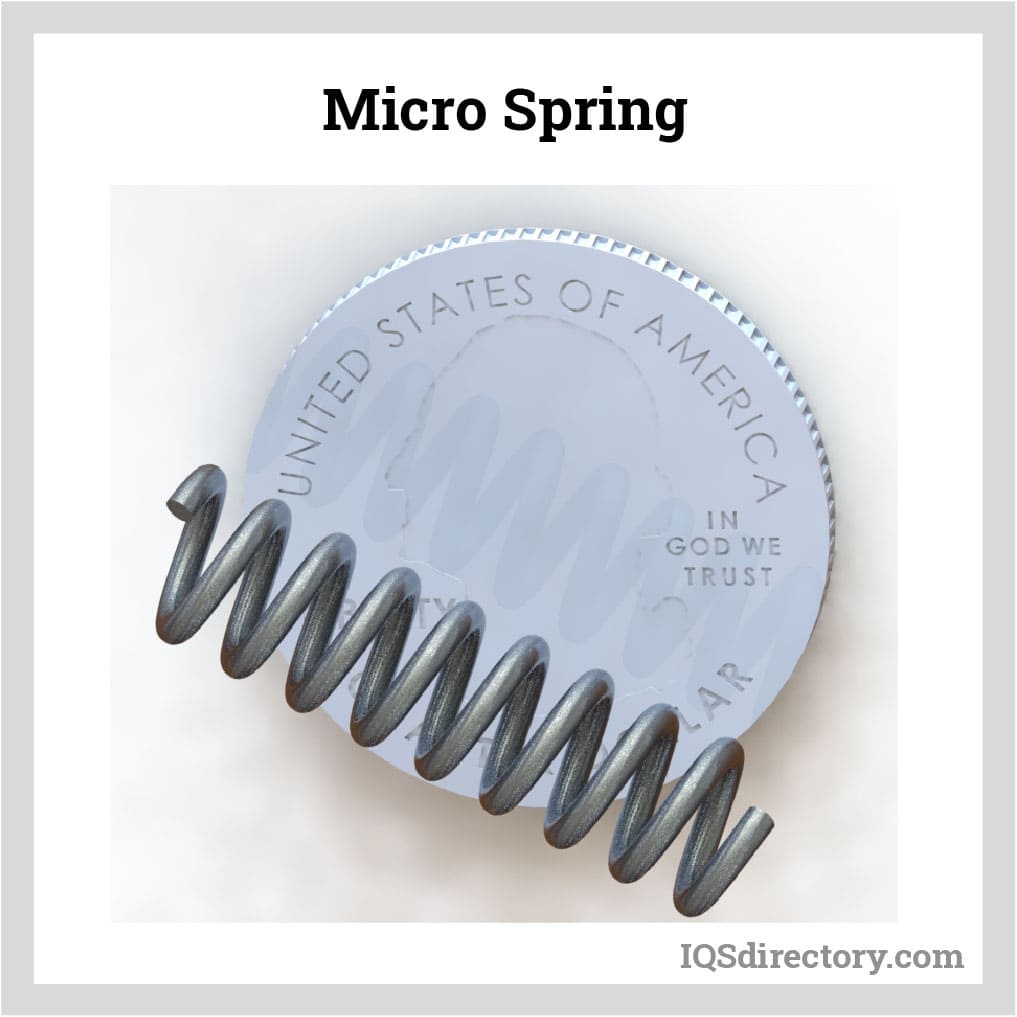

Micro springs are crucial across various industries, from medical instrument manufacturers to firearms producers, as they provide essential tension and control. As products have become smaller, so have the wires used in these springs, which now have diameters as small as 0.002 inches (0.05 mm) to meet the specifications for miniature applications.

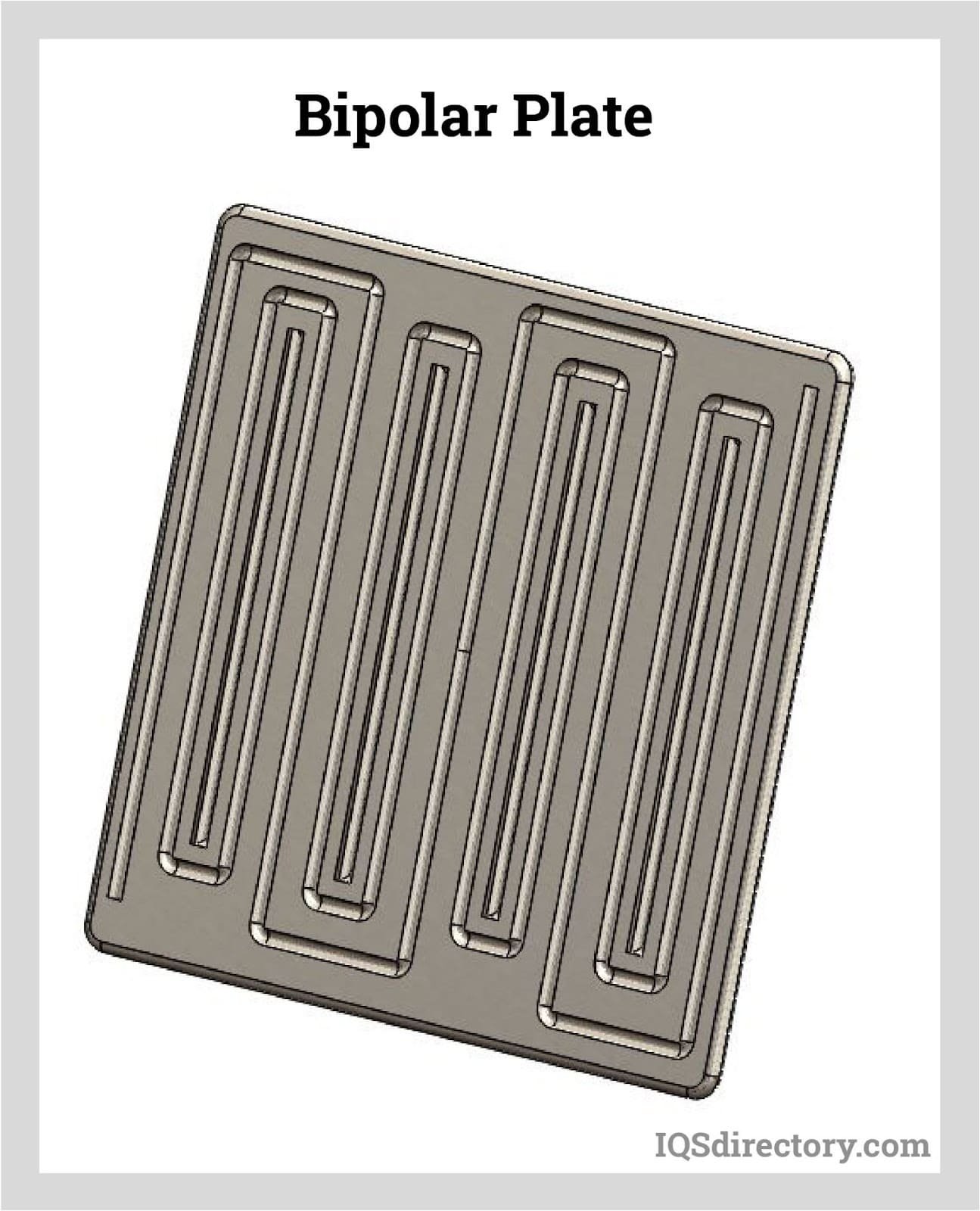

Fuel cells are constructed by stacking bipolar plates with intricate channels that facilitate the flow of liquids and gases. While traditional CNC machining can be used to produce these plates, it often introduces stress and burrs, and the process can be slow, costly, and inefficient. Metal etching offers a superior alternative by producing the plates with all their complex features in a single, smooth operation. This method also provides designers with the flexibility to adjust and modify the size and shape of the plates as needed.

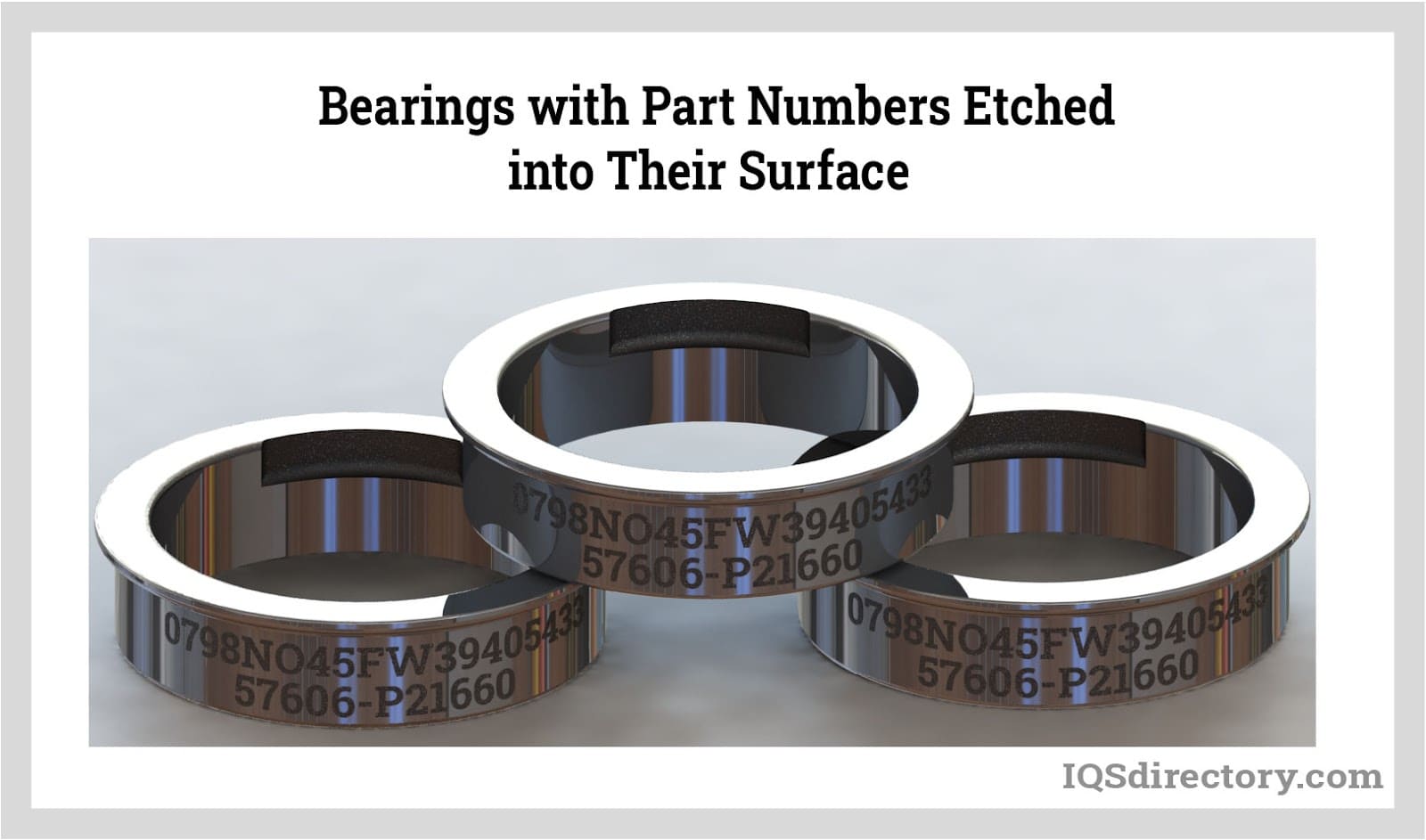

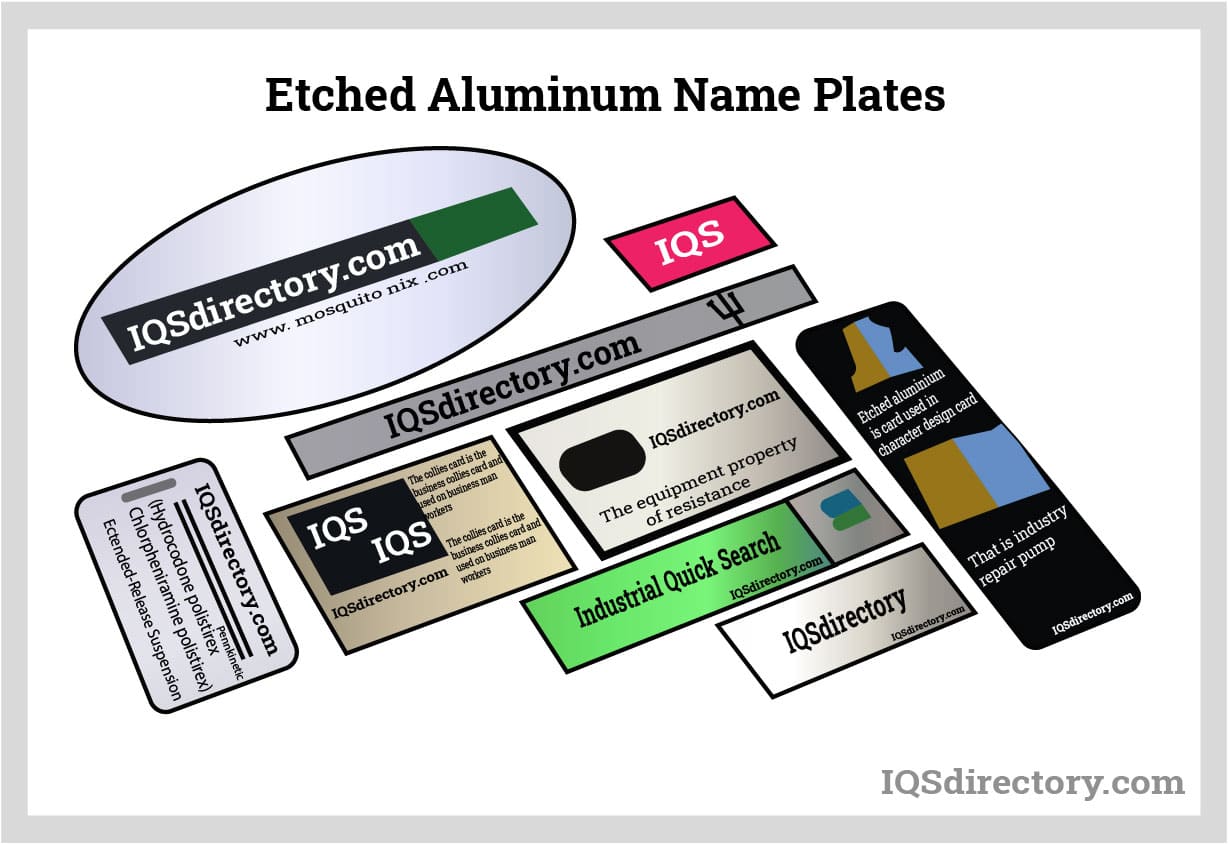

Metal etching is commonly used to place identifying marks on equipment, parts, machinery, products, and components. Given its versatility across different types of metals and its application through various processes, adding numbers and descriptions to parts is a straightforward and minor aspect of the etching process.
Common metals used for etching nameplates include copper, aluminum, brass, and stainless steel. Metal etching is preferred over engraving because it can handle complex and intricate designs with precision. Additionally, metal etching is effective for machining stainless steel. Photochemical etching is often the process of choice for nameplates due to its compatibility with computer-aided design.
The brief list above represents just a fraction of the thousands of parts, products, components, and items manufactured using the metal etching process. Modern manufacturing relies on metal etching to produce intricate and complex parts with the required precision and tolerances, ensuring timely delivery.
Metal etching is a versatile metal machining method with few limitations on the types of metals it can process. It is a quick and straightforward process to apply. However, as with any manufacturing method, some materials are easier to work with than others, influencing material selection.
Another consideration in material selection for metal etching is the intended purpose of the component. Components subjected to high stress and demanding conditions will require materials different from those used in less strenuous environments.

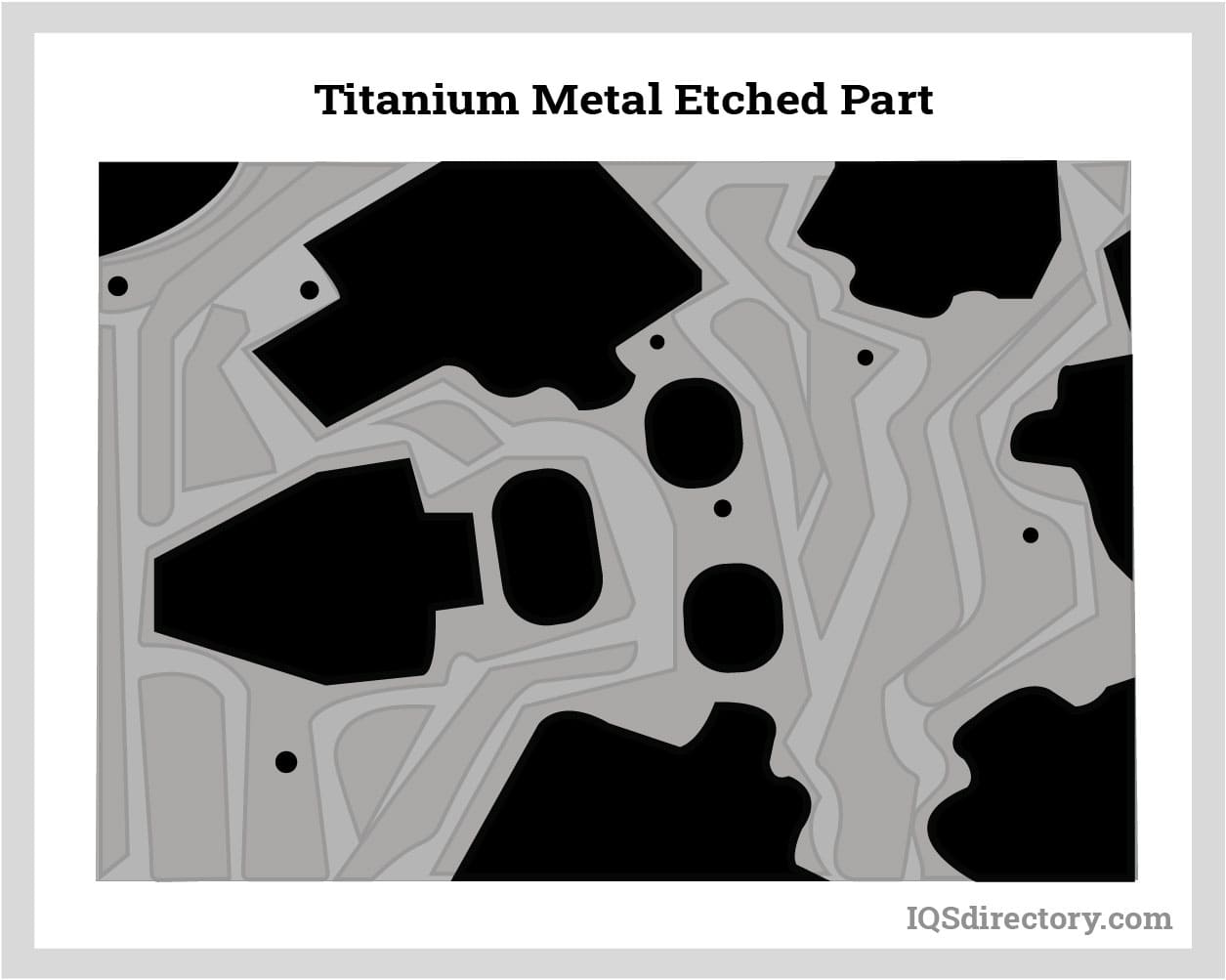

Titanium possesses several advantageous properties such as lightweight, strength, and exceptional fatigue performance. While these characteristics make it ideal for manufacturing parts, titanium can be challenging to machine using traditional methods. Metal etching overcomes these challenges by leveraging titanium’s high thermal conductivity, chemical reactivity, and strength, making it an ideal metal for the etching process.
Aluminum shares many positive properties with titanium, including a high strength-to-weight ratio and corrosion resistance. It also boasts an excellent fatigue limit, making it particularly suitable for producing aeronautical parts.
Like many metals, aluminum is compatible with certain etching processes. It is particularly well-suited for laser etching due to its high surface thermal conductivity, allowing the machine to operate at very high temperatures. In heat-based etching processes, aluminum parts typically exhibit rough, granular surfaces.
Stainless steel can undergo various etching processes effectively. It is particularly suited for laser etching, ensuring that images meet high photo-quality standards.
The primary grades of stainless steel commonly used in metal etching include series 316 and 304.
During photochemical etching, stainless steel readily accepts both the photoresist laminate mask and CAD or Adobe Illustrator images. Ferric chloride efficiently removes excess metal from components, as it does with other metals. Metal etching is widely utilized in stainless steel part production due to its ability to avoid burrs and minimize metal stress.

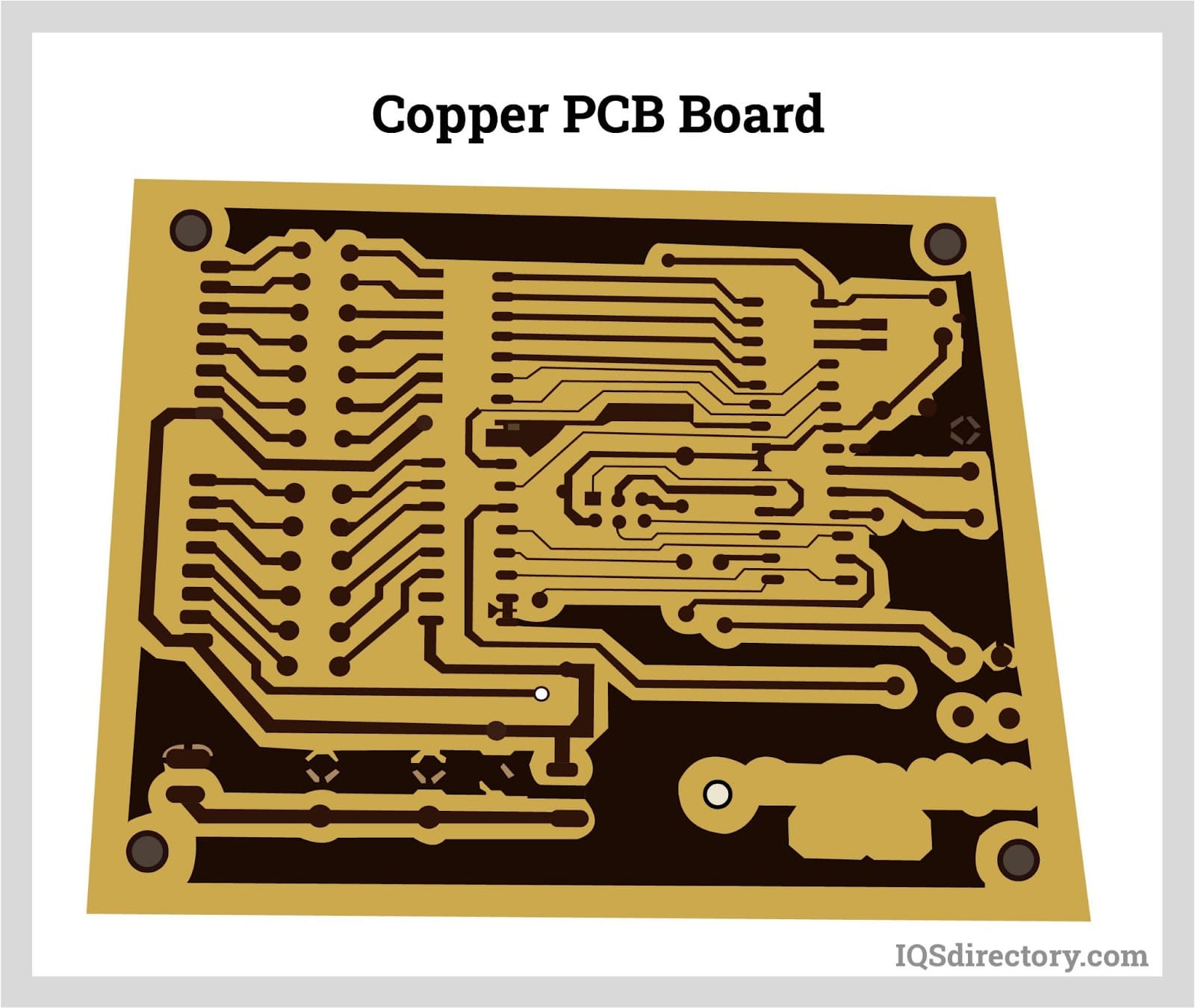

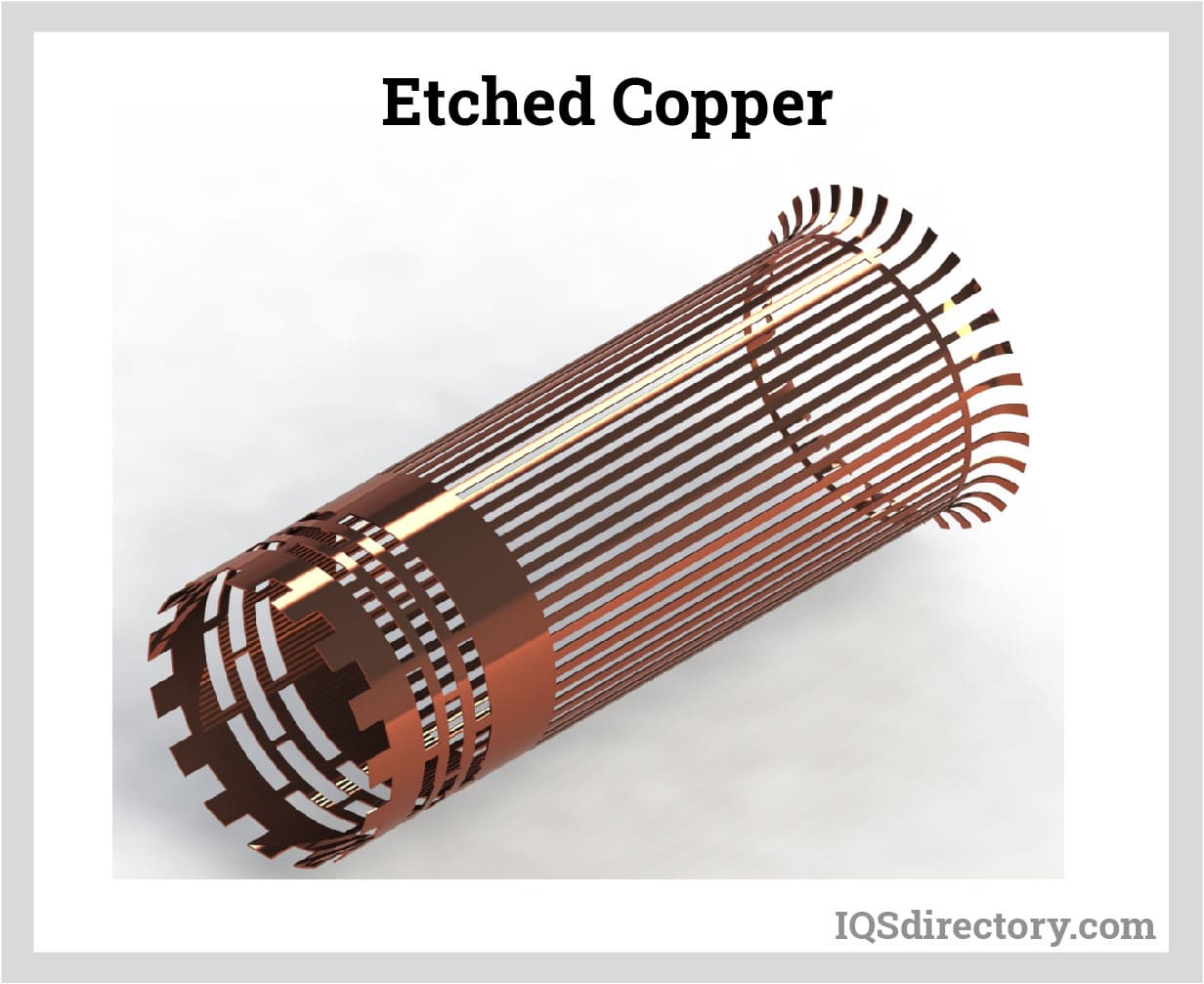

Among different metals, copper alloys are particularly easy to work with as they etch quickly and can be processed using any etching method. Metal etching is preferred for copper alloys because alternative metalworking techniques may distort the metal and impair its properties. Copper alloys are valued for their conductivity, durability, ductility, and malleability, making them suitable for applications in both two-dimensional and three-dimensional electronics.
Nickel alloys exhibit excellent resistance to heat and corrosion, similar to copper alloys. They are easy to etch and widely utilized in electrical applications for their versatility, maintaining properties even at temperatures up to 500° C or 932° F. Nickel alloys are commonly used as shielding materials for electrical components due to their electrical resistance.
In metal etching, nickel can be etched into various designs, shapes, and configurations. Etching is preferred for nickel alloys because it avoids the creation of burrs or thermal stress on the metal.
Inconel is a nickel-based alloy renowned for its exceptional resistance to heat, corrosion, pressure, and oxidation. While these properties are advantageous, they also present challenges in etching and machining Inconel. Specialized metal etching processes have been developed to enable the production of components such as bipolar fuel plates from Inconel.
Inconel finds diverse applications in environments with extreme pressure and heat due to its thick oxide layer that provides robust protection. Series 625 is the most commonly used type of Inconel in the etching process.
Modern manufacturing demands immediate access to parts and components. Traditional mechanical metal forming processes are often time-consuming and require extensive preparation, making them unsuitable for complex production methods. As a result, metal etching has rapidly gained popularity as the preferred manufacturing method.
With product and part designs becoming increasingly precise and computerized, production methods continuously evolve to meet new technical requirements. Despite its long history, metal etching is constantly refined and adapted to meet the current needs of manufacturing.
Much of the metal etching process is digital, allowing for rapid generation. The precision of digital tooling ensures that every component created by the process meets the exact dimensional requirements of the design.
Cost is a significant consideration in modern production methods. The efficiency of metal etching enables accurate production runs without errors or the need for extensive finishing. The digital nature of the process also allows for design adjustments to be made before moving into full production.
Unlike other machining methods that apply heat, force, or mechanical manipulation, which can alter the properties and characteristics of metals, metal etching avoids these stresses. It preserves the metal's inherent properties and performance. Since metal etching does not physically contact the metal surface, it reshapes the metal without affecting its fundamental properties.
Consistency in dimensional tolerances is crucial for the production and manufacturing of metal components and parts. Metal etching ensures production repeatability by maintaining the same digital diagrams and renderings across all production runs. This guarantees that every workpiece, from the first to the last, will be identical.
Mechanical metal fabrication processes often result in irregularities such as burrs, rough edges, and deformities, which require additional finishing. In contrast, metal etching does not introduce these issues. As workpieces are not physically handled by machinery, they emerge from the etching process clean and ready for shipment.
Speed is a critical factor in modern manufacturing, with customers expecting prompt delivery of completed parts. While metal etching may not offer instantaneous results, it does provide rapid turnaround times. The lack of finishing requirements means that products can be processed, produced, and shipped with minimal delay.
The digital nature of metal etching allows for the creation of prototypes for examination before full production. Customers can collaborate with designers or engineers to provide the part's parameters, which are then input into a computer for assessment and evaluation. Once the dimensions are agreed upon, the rendering is seamlessly transmitted to production, ensuring accuracy without the need for reprocessing or errors.
Branding is a key element in marketing strategies and product development. Metal etching facilitates this by enabling easy application of product identification directly onto items, eliminating the need for labels. During the planning phase, you can specify the placement of branding symbols, part numbers, and contact information, ensuring they are incorporated seamlessly into the design.
