Tank Mixers

Chapter One: What is a Tank Mixer?

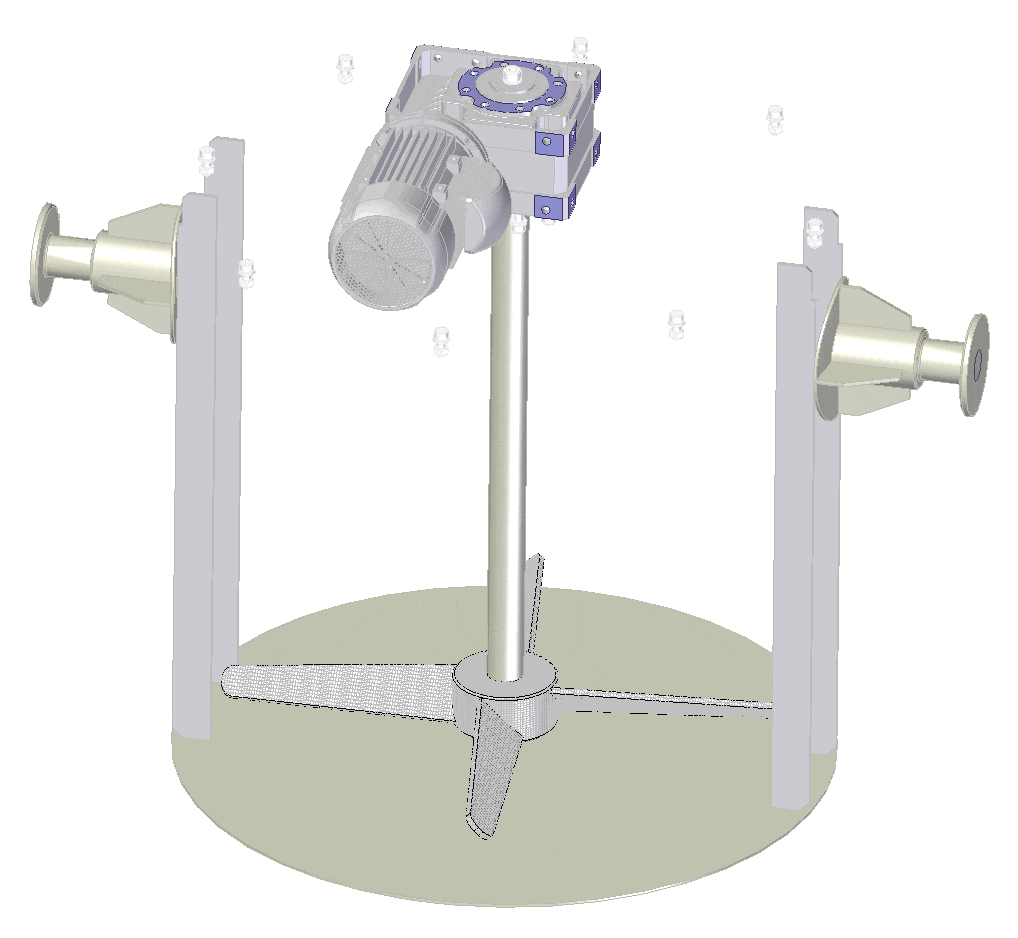

A tank mixer is a device used to blend various ingredients into a single solution within a tank. This equipment is designed to handle wettable powders, liquids, emulsifiable concentrates, and surfactants, producing a uniform and consistent final product. Tank mixers are utilized across several industries, including pharmaceuticals, food and beverage, water treatment, and chemical processing.

Tank mixers are highly valued for their reliability and efficiency. They offer cost-effective solutions for combining diverse ingredients in a single mixing process. Various types of tank mixers are available, each tailored to meet the specific needs of different applications.

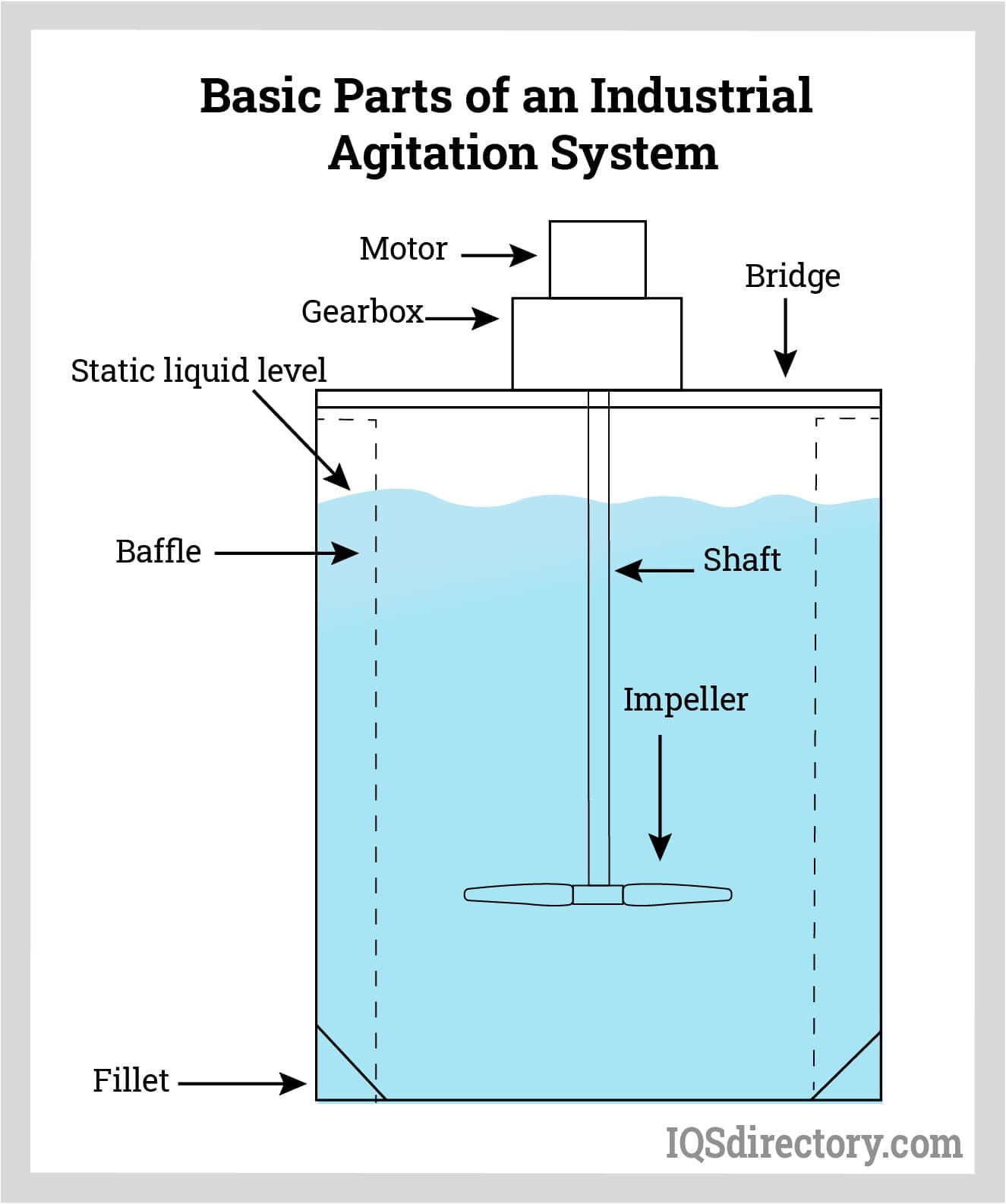

Chapter Two: What are the components of tank mixers?

Tank mixers feature common components that are designed to optimize efficiency and the mixing process. The assembly and configuration of these components can differ based on the type of tank mixer and its manufacturer. Tank mixers come in a wide range of sizes, from portable units to large, stationary tanks, which can be either top-mounted or plate-mounted.

Motor

The motor is the power source that drives the impeller, creating the mixing action in the tank. The motor size and power rating depend on the size and viscosity of the liquid being mixed.

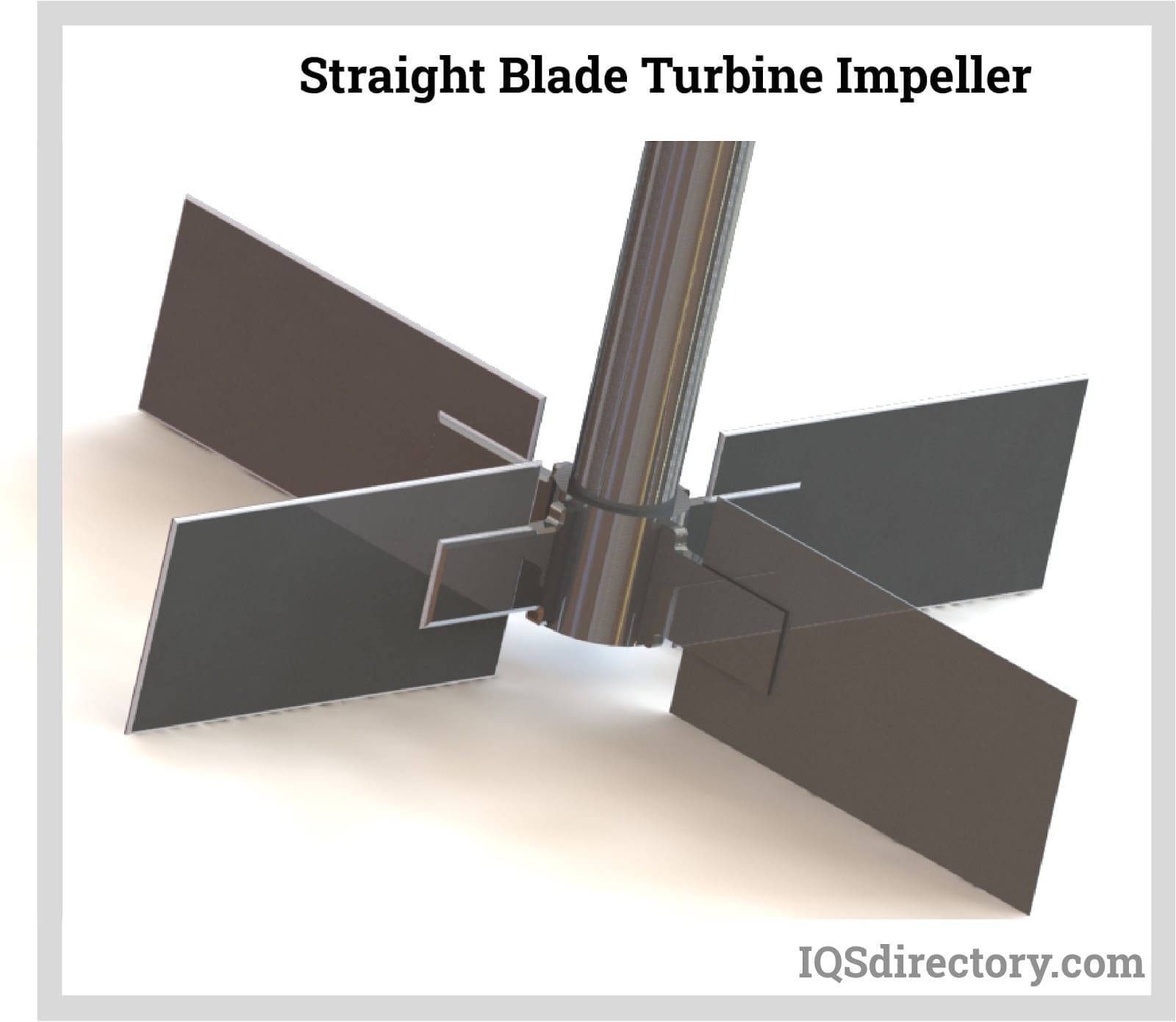

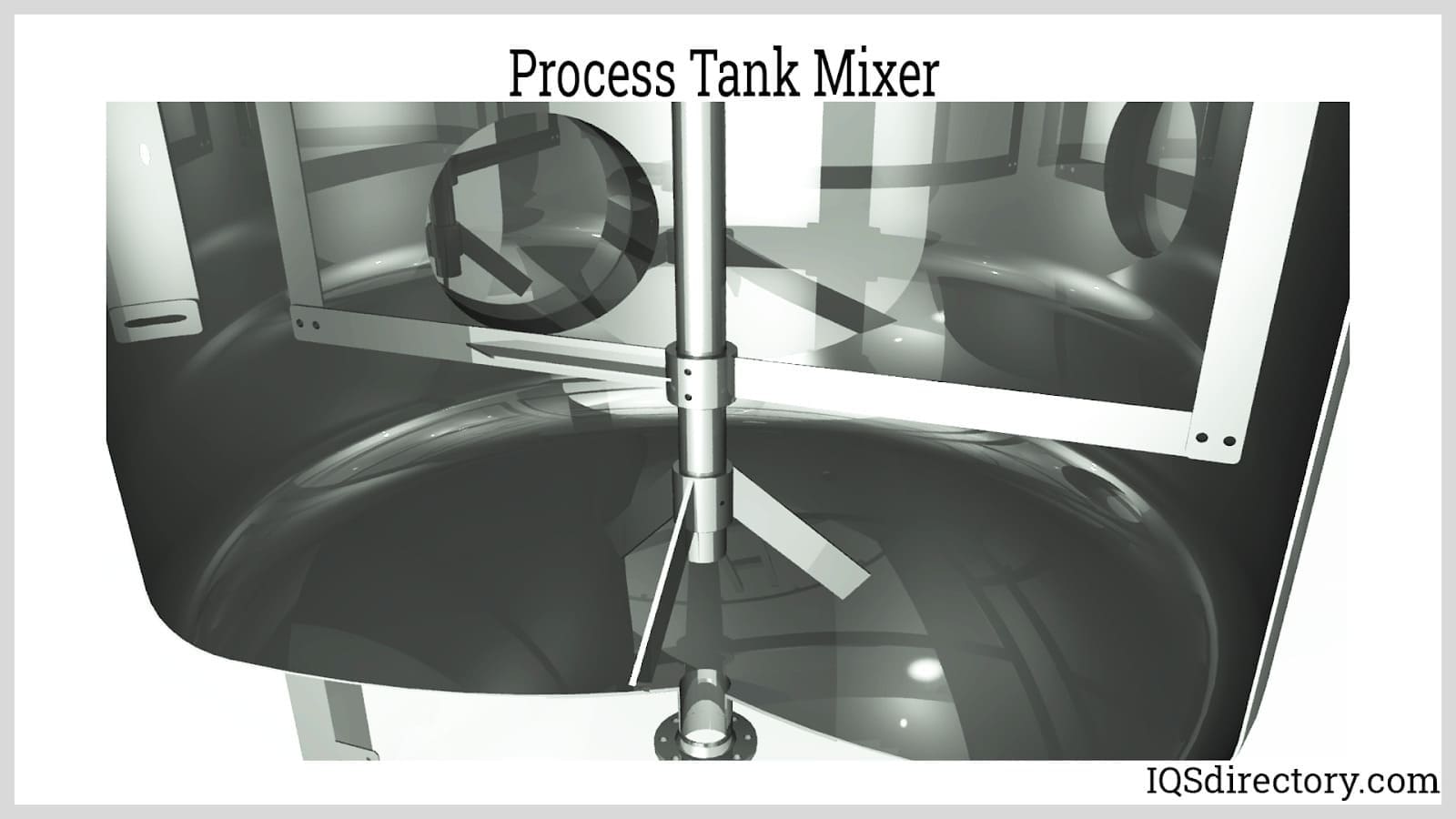

Impeller

The impeller is the rotating element of the mixer responsible for creating the mixing action. Various types of impellers, including propellers, turbines, and high-shear impellers, are designed to accommodate different flow rates and viscosity levels.

Shaft

The shaft connects the impeller to the motor and transmits power from the motor to the impeller. It should be constructed from corrosion-resistant and durable materials to ensure long-term reliability.

Seal

The seal prevents liquid from leaking out of the tank through the gap between the shaft and the tank wall. It must be designed to withstand the temperature, pressure, and chemical properties of the liquid being mixed.

Chapter Three: What are the different types of tank mixers?

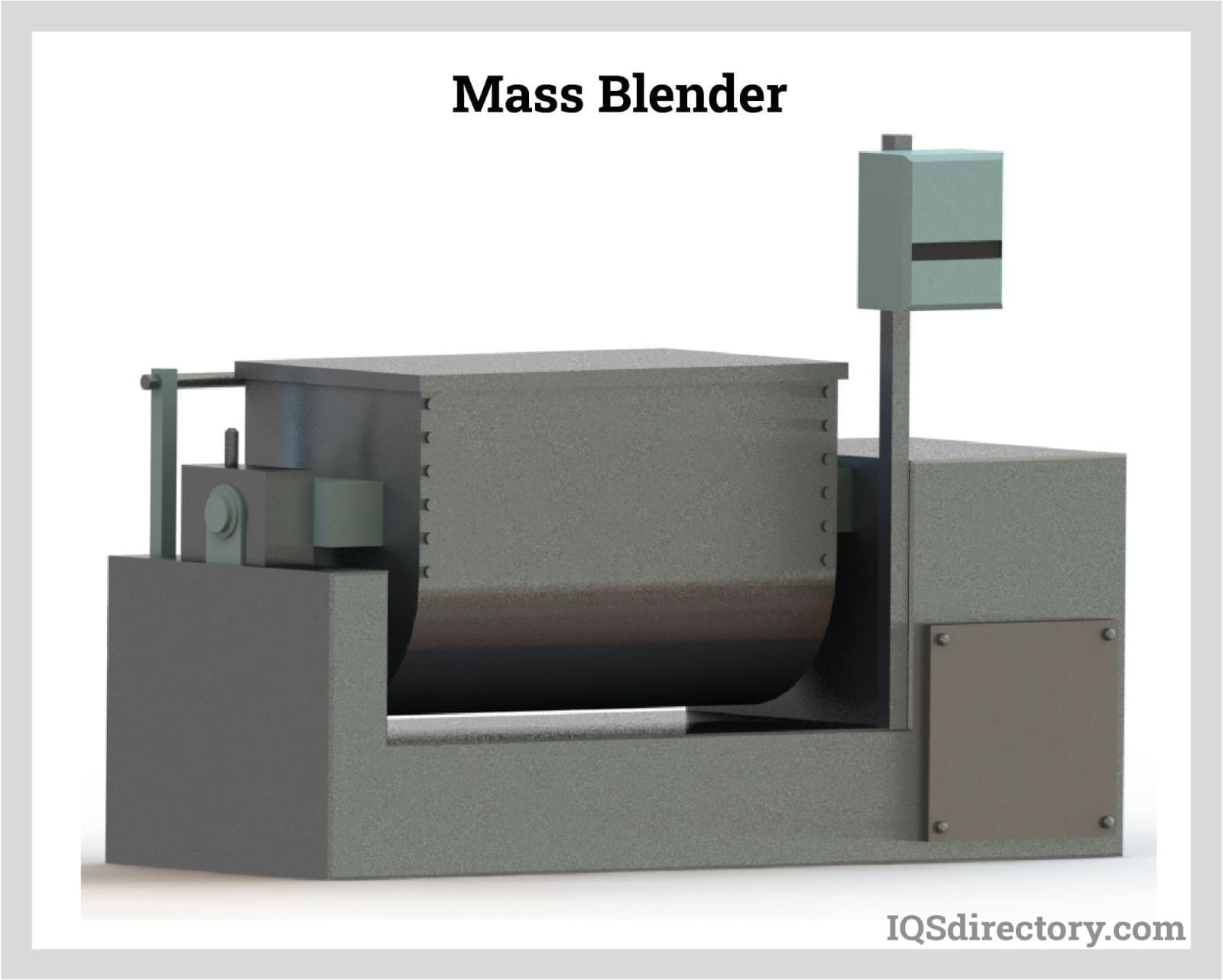

Tank mixers are often custom-designed to address the specific needs of different industries, as each mixing application presents unique challenges. Engineers adapt common tank mixer components to ensure efficiency and ease of operation. This customization results in a variety of tank mixer types, which vary based on impeller type, mixing speed, and the materials being mixed.

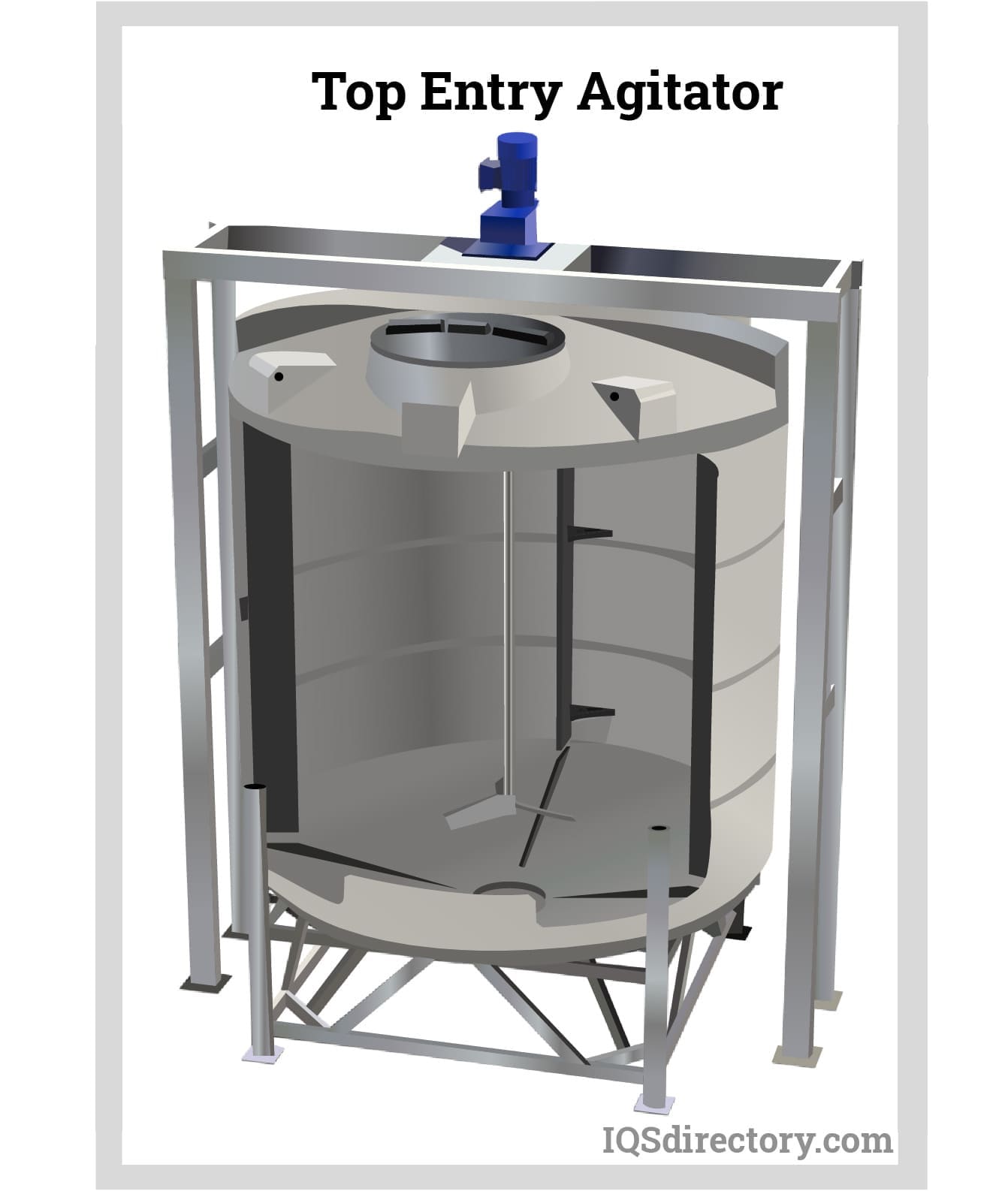

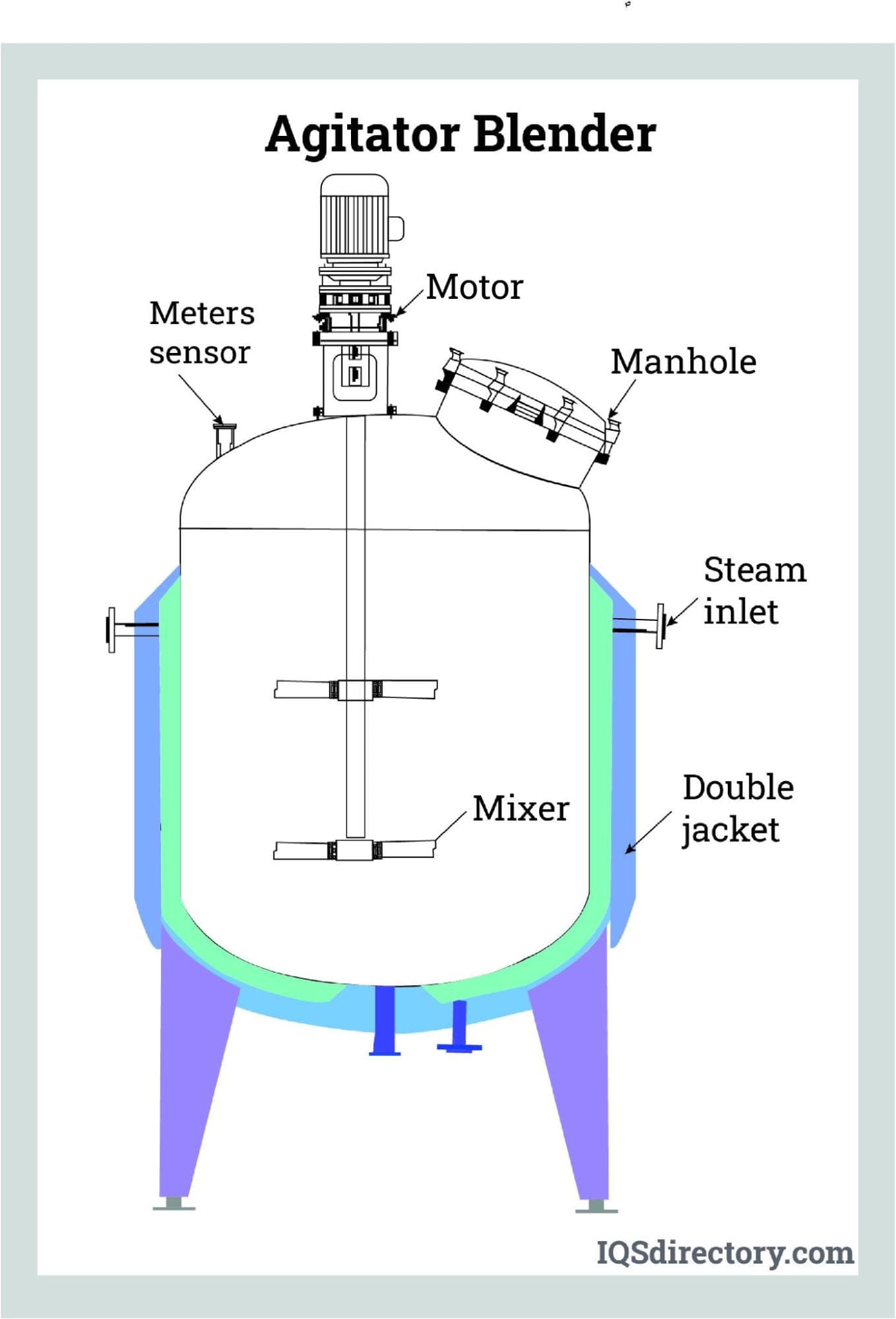

Top-Entry Mixers

Top-mounted mixers are designed for mixing high-viscosity fluids and are installed on the tank's upper section. They come with various impeller types, including propellers and turbines, and often feature a variable speed drive to provide enhanced control over the mixing process.

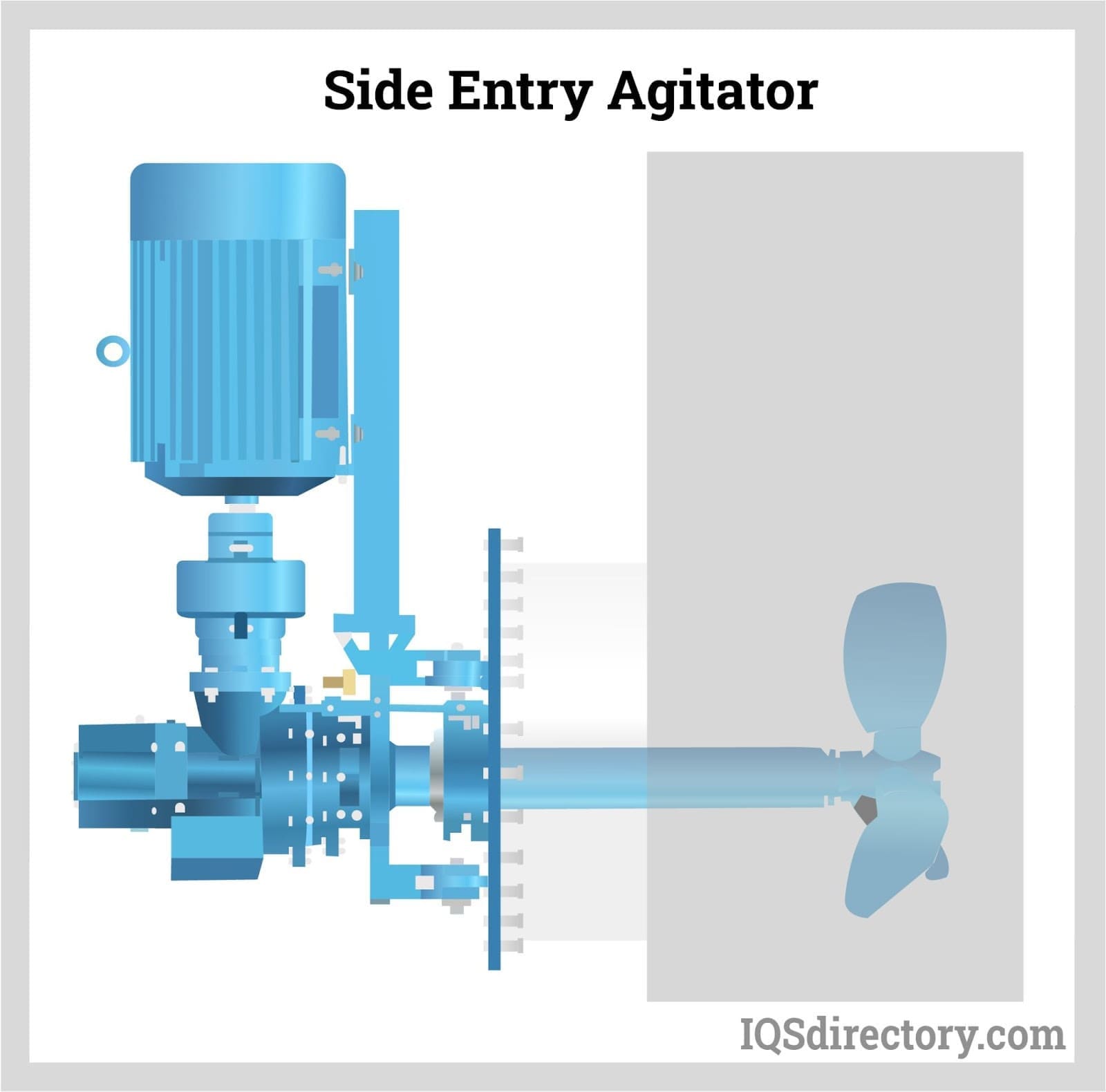

Side-Entry Mixers

Side-mounted mixers are positioned on the tank's side and are well-suited for blending low-viscosity fluids. They come with various impeller types and can be equipped with features for in-tank cleaning.

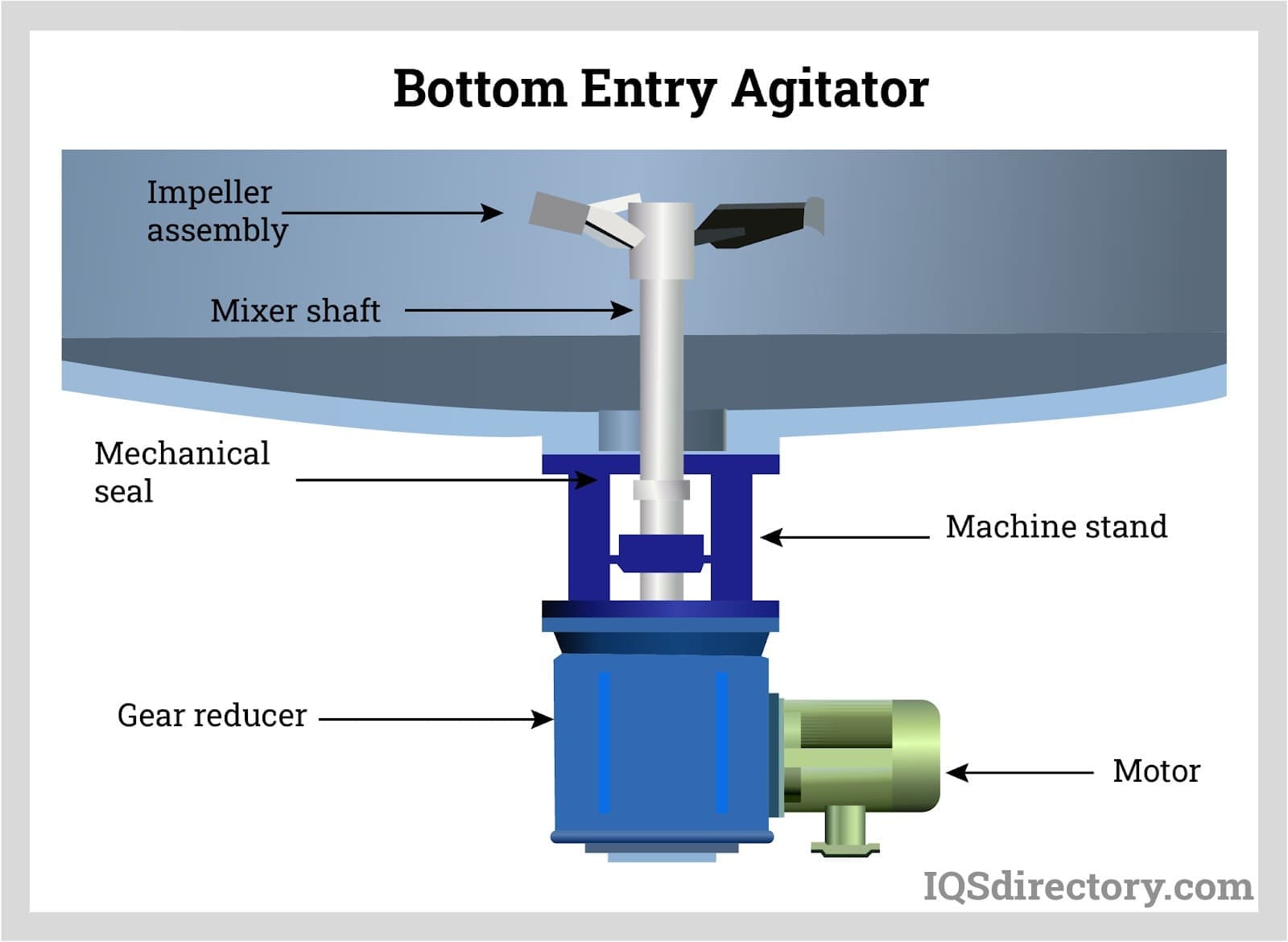

Bottom-Entry Mixers

Bottom-mounted mixers are installed at the base of the tank and are designed for blending high-viscosity fluids, especially those requiring heat transfer. They feature a heating jacket or coil that allows for the heating or cooling of the liquid during the mixing process.

Magnetic Mixers

Magnetic mixers utilize a magnetic coupling to transmit power from the motor to the impeller, eliminating the need for a shaft seal. This design makes them ideal for mixing corrosive and hazardous fluids, and they are also easy to clean and maintain.

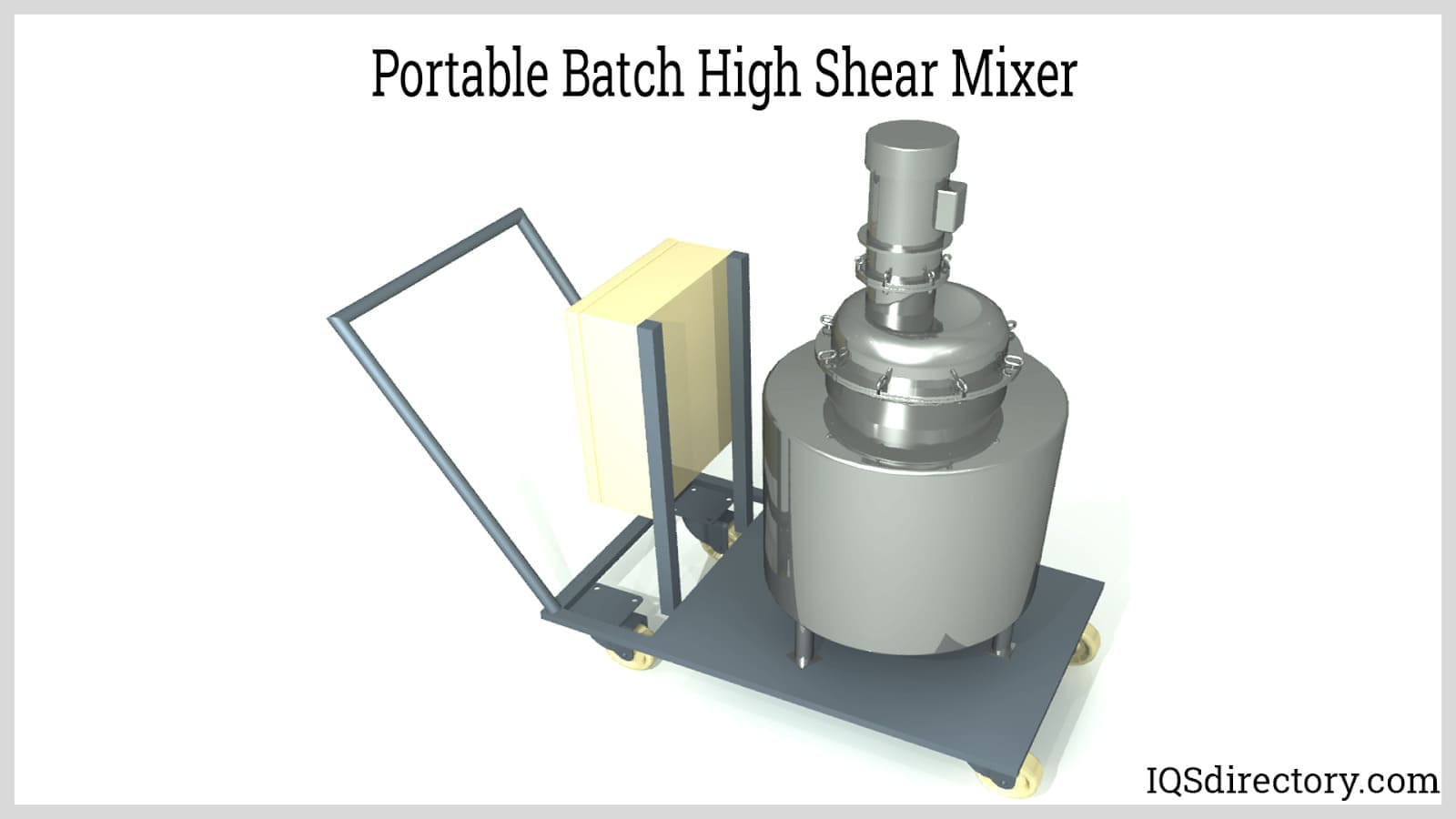

Portable Mixers

Portable mixers can be easily transferred between tanks, making them well-suited for smaller operations or temporary mixing needs. They are available with various impeller types and power ratings to accommodate different mixing requirements.

Static Mixers

Static mixers are stationary mixers that use a series of baffles or elements to mix fluids as they flow through the mixer. They are typically used in low-viscosity applications where the goal is to achieve a uniform mixture without using a mechanical mixer. Static mixers are often used in the chemical and water treatment industries.

Jet Mixers

Jet mixers utilize a high-velocity stream of liquid or gas to generate turbulence within a tank, facilitating the mixing of its contents. They are particularly effective in applications requiring high shear forces, such as homogenizing liquids or dispersing gases. Jet mixers are widely used in industries including chemical processing, pharmaceuticals, and food and beverage manufacturing.

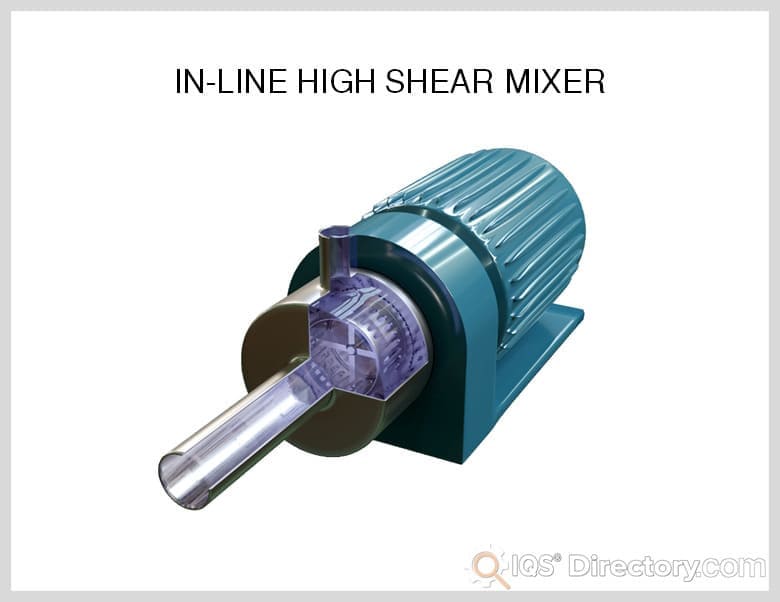

In-line Mixers

In-line mixers are integrated directly into pipelines rather than tanks. They employ a combination of high velocity and turbulence to blend the contents within the pipeline. These mixers are commonly used in industries such as chemical processing, food and beverage, and pharmaceuticals, where maintaining a continuous flow of mixed fluids is crucial.

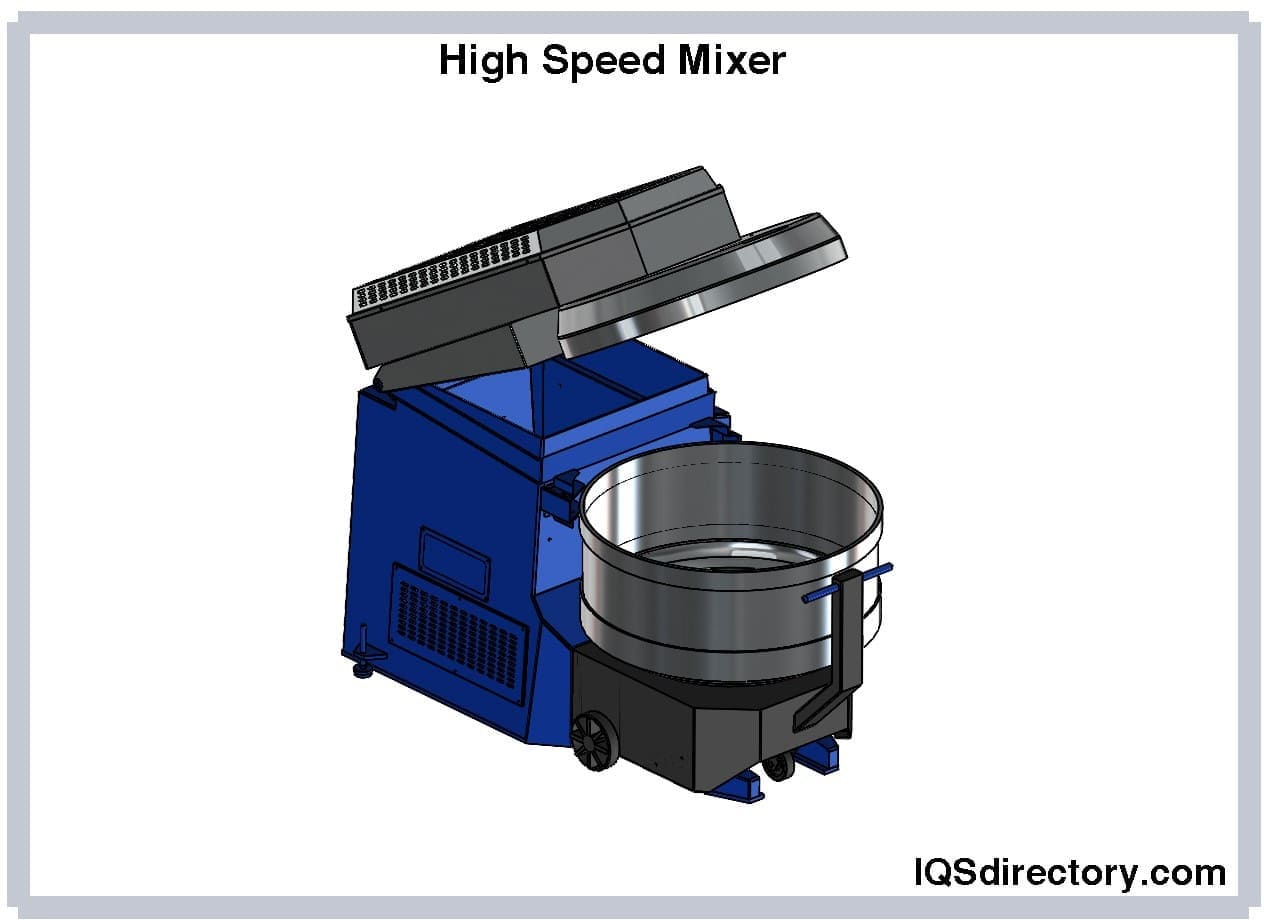

High Shear Mixers

High shear mixers use a combination of high speed and high turbulence to mix the contents of a tank. They are often used in applications where the goal is to achieve a very fine, uniform mixture. High shear mixers are commonly used in the chemical, pharmaceutical, and food and beverage industries.

Each type of mixer is designed for specific applications where it performs optimally. Choosing the right mixer depends on factors such as the viscosity of the fluids, the required mixing intensity, and the size and shape of the tank or pipeline. Matching the mixer to these requirements ensures effective and efficient mixing.

Chapter Four: What factors should be considered when selecting the right type of tank mixer?

Selecting the right type of tank mixer is crucial for achieving optimal performance and efficiency. Several factors need to be considered, including the viscosity and specific gravity of the liquid, the tank's volume, and the required mixing speed and intensity. Understanding the specific mixing problem at hand is essential for making the appropriate choice.

Viscosity of the Liquid Being Mixed

Viscosity measures a liquid's resistance to flow, ranging from thin and watery to thick and sticky. Higher viscosity liquids are more challenging to mix effectively. When selecting a tank mixer, it's important to choose one capable of generating sufficient shear force to mix the liquid efficiently based on its viscosity.

Specific Gravity of the Liquid Being Mixed

Specific gravity is the ratio of a liquid’s density to that of water. Liquids with higher specific gravity typically require more energy to mix than those with lower specific gravity. Therefore, selecting a tank mixer that can deliver adequate mixing energy for the specific gravity of the liquid is crucial.

Volume of the Tank

The tank’s volume influences the choice of mixer. Larger tanks may necessitate more powerful mixers, whereas smaller tanks might be adequately mixed with less powerful equipment. It’s important to choose a mixer that provides sufficient mixing energy for the tank’s volume.

Desired Mixing Speed and Intensity

The required mixing speed and intensity affect the mixer selection. Some applications need high-speed, high-intensity mixing, while others require more gentle agitation. Selecting a tank mixer that meets the specific speed and intensity requirements of the application is key to effective mixing.

Each of these factors plays a crucial role in selecting the appropriate tank mixer. For instance, high-viscosity liquids may need mixers with greater shear force capabilities, while low-viscosity liquids can often be mixed effectively with less powerful equipment. Larger tanks typically require more powerful mixers to ensure adequate mixing energy, whereas smaller tanks might be sufficiently mixed with less robust mixers. Additionally, the specific gravity of the liquid affects mixer selection, as higher specific gravity liquids often need more energy to mix thoroughly. Lastly, the desired mixing speed and intensity influence the choice of mixer, as different mixers are designed to deliver varying levels of mixing energy.

Chapter Five: What materials are used in tank mixers?

Choosing the right materials for tank mixers is crucial as it impacts the equipment's performance, durability, and safety. Key factors to consider include the chemical compatibility of the material with the liquids being mixed, as well as the temperature and pressure conditions the mixer will endure. Common materials for constructing mixing tanks include plastics, glass, rubber, steel, and copper.

Chemical Compatibility

It's essential that the material used for the mixer is compatible with the chemicals being processed. Certain chemicals can react with specific materials, causing issues like corrosion, contamination, or equipment degradation. Reviewing a chemical compatibility chart for any materials used in the mixer is an important step in the selection process.

Pressure and Temperature Requirements

The material chosen for the mixer must be able to withstand the pressure and temperature conditions of the application. Some materials may become brittle or fail under extreme pressure or temperature, while others may not provide adequate insulation for applications requiring heat or cold.

Based on these considerations, commonly used materials for tank mixers include stainless steel, carbon steel, and various plastics such as polyethylene and polypropylene. Each material offers different benefits and limitations, which are explained below.

Stainless Steel

Stainless steel is a popular choice for tank mixers because it is corrosion-resistant, durable, and easy to clean. It is commonly used in food and beverage, pharmaceutical, and chemical processing applications.

Carbon Steel

Carbon steel is a cost-effective choice compared to stainless steel, but it offers less resistance to corrosion. It is typically used in applications where corrosion is not a major concern.

Plastics

Plastics such as polypropylene and polyethylene are lightweight, resistant to corrosion, and economically viable. They are commonly utilized in chemical processing and water treatment applications.

For added protection against corrosion and wear in high-stress environments, coatings like epoxy and ceramic can be applied. When selecting materials for tank mixers, it's essential to consider the specific requirements of the application. Consulting with a supplier or manufacturer can provide valuable guidance on choosing the most appropriate materials to ensure reliable and safe operation.

Leading Manufacturers and Suppliers

Chapter Six: How do you maintain and repair tank mixers?

Scheduled maintenance is crucial for ensuring the optimal performance and longevity of a tank mixer, just like with any industrial equipment. Regular upkeep helps identify potential issues early and prevents more significant damage or failure. Manufacturers recommend following a maintenance schedule to monitor performance variations. Among the various maintenance tasks, lubrication is particularly important due to the constant use of tank mixers.

Regular Inspections

Regular inspections are essential to identify signs of wear and tear, damage, or corrosion. These inspections should also verify proper alignment, adequate lubrication, and the tightness of bolts and fasteners.

Lubrication

Lubrication of bearings, gears, and other moving parts should be performed regularly to ensure proper operation and reduce the risk of premature failure.

Cleaning

Regularly cleaning the mixer is crucial to eliminate any material buildup that could disrupt the mixer's operation or lead to contamination.

Calibration

Sensors and control systems in the mixer should be calibrated regularly to ensure they provide accurate readings and to avoid potential errors.

Replacement of Parts

Worn or damaged parts should be replaced promptly to prevent further damage or malfunction of the mixer.

If repairs become necessary, follow these recommended steps:

The initial step in repairing a mixer is to identify the problem, which may involve troubleshooting to determine the cause. Once the issue is identified, disassemble the mixer to access the damaged or faulty parts. Repair or replace these parts based on the extent of the damage. After the repairs or replacements are completed, reassemble the mixer and test it to ensure it operates correctly.

Testing and Calibration

Post-repair, the mixer should be tested and calibrated to confirm it operates properly and within the correct parameters.

Using high-quality replacement parts and having repairs performed by a qualified technician is essential. Neglecting repairs can result in reduced performance, increased risk of damage or injury, and even equipment failure.

Chapter Seven: What are the benefits of tank mixers?

Custom designs and the adaptability of tank mixers make them a valuable asset for various industrial processes. Their most valuable feature is their durability, which is crucial for production and assembly operations. Consistently performing equipment helps avoid downtime and production delays.

Improved Product Quality

Tank mixers enhance product quality by ensuring thorough mixing and blending of ingredients. This leads to a more consistent product with fewer defects and inconsistencies. Additionally, tank mixers prevent sedimentation and ensure even distribution of ingredients throughout the mixture.

Increased Efficiency

Tank mixers boost efficiency by reducing mixing times and minimizing manual labor. Automated tank mixers can be programmed to mix batches regularly, streamlining production processes and reducing downtime.

Versatility

Tank mixers are versatile and suitable for a wide range of applications across different industries. They can mix liquids and solids, as well as dissolve, disperse, and emulsify ingredients.

Cost Effectiveness

Tank mixers offer a cost-effective solution for mixing and blending processes. They reduce the need for manual labor and minimize material waste. Additionally, they can be designed to be energy-efficient, which helps lower operational costs.

Improved Safety

Tank mixers enhance safety by reducing the need for manual mixing, thus lowering the risk of workplace injuries. They can also be designed to be explosion-proof, helping to prevent accidents in hazardous environments.

Scalability

Tank mixers can be easily scaled up or down to accommodate different production needs. This makes them a flexible solution for companies that need to adjust their production processes according to changing demand.

Easy Maintenance

Tank mixers are designed for easy maintenance, which helps minimize downtime and reduce maintenance costs. Many models are easy to clean, preventing contamination and ensuring consistent product quality.

Consistency

Tank mixers provide consistent results across various batches, which is crucial for companies needing to adhere to strict quality standards.

Reduced Waste

Tank mixers help reduce waste by ensuring thorough mixing and blending of ingredients, which minimizes material waste. They can also be designed to be energy-efficient, further reducing waste associated with energy consumption.

Customization

Tank mixers can be tailored to meet specific application needs. They can handle different volumes and viscosities of liquids and accommodate various types of impellers and mixers.

Chapter Eight: What are the applications of tank mixers?

Tank mixers are integral to any production process involving the mixing or blending of products or materials. In the pharmaceutical industry, they are crucial for combining ingredients into a smooth and uniform mixture. Similarly, in food production, tank mixers play a key role in achieving the desired flavor and taste by effectively blending and mixing ingredients.

Food and Beverage

Tank mixers are extensively utilized in the food and beverage industry for mixing ingredients, homogenizing, blending, and emulsifying food products. They are commonly employed in the production of dairy products, baked goods, beverages, sauces, and other food items.

Chemical Processing

In chemical processing, tank mixers are employed for blending various chemical compounds, including adhesives, paints, coatings, resins, and polymers. They are also effective for dissolving solids into liquids and mixing liquids with different viscosities.

Pharmaceutical Manufacturing

In the pharmaceutical industry, tank mixers facilitate the blending of active pharmaceutical ingredients (APIs) with excipients, as well as the production of suspensions, emulsions, and creams. They are also used for preparing sterile solutions and injectables.

Water Treatment

In water treatment, tank mixers are used to combine chemicals and coagulants with water to aid in removing impurities such as bacteria, viruses, and other contaminants. They are also crucial for mixing chemicals used in pH adjustment, flocculation, and disinfection.

Cosmetics Manufacturing

In cosmetics manufacturing, tank mixers are essential for blending ingredients like oils, emulsifiers, thickeners, and fragrances. They are commonly utilized in the production of creams, lotions, and gels.

Biotechnology

In biotechnology, tank mixers are employed to mix and blend biological materials such as cell cultures, fermentation media, and protein solutions. They are commonly used in the production of vaccines, antibodies, and other biopharmaceuticals.

Petrochemicals

In the petrochemical industry, tank mixers facilitate the blending of various petroleum products, including fuels, lubricants, and additives. They are also used in producing specialty chemicals like surfactants and solvents.

Mining

In mining, tank mixers are used for blending chemicals involved in the extraction of minerals from ores. They are also essential for producing slurry solutions, which are used to transport minerals through pipelines.

Pulp and Paper

Tank mixers are utilized in the pulp and paper industry to blend chemicals for pulping, bleaching, and de-inking paper products. They are also used for mixing adhesives, coatings, and other chemicals involved in paper manufacturing.

Waste Management

In waste management, tank mixers are crucial for blending chemicals used in treating waste streams, including municipal wastewater and industrial effluent. They are also used in producing biofuels and other renewable energy sources.

Chapter Nine: What are the laws and regulations governing tank mixers?

Both international and national governments and organizations have established regulations, guidelines, and standards for the use of tank mixers. As with any industrial equipment, tank mixers require oversight to protect processes, the environment, and workers. These regulations are continually updated to align with technological advancements.

Occupational Safety and Health Administration (OSHA)

OSHA sets and enforces workplace safety standards, including those for tank mixers. Specific regulations include requirements for lockout/tagout procedures, guarding, and personal protective equipment.

Environmental Protection Agency (EPA)

The EPA enforces regulations related to the handling and disposal of hazardous waste, including waste produced by tank mixers.

Food and Drug Administration (FDA)

The FDA regulates the safety of food, drugs, and medical devices, including tank mixers used in their production. The FDA has specific guidelines for the design and construction of mixers in these sectors.

At the state and local levels, there may be additional laws, regulations, and regulatory agencies governing the use of tank mixers. These can vary by state or locality and may include:

State Occupational Safety and Health Agencies

Many states have their own occupational safety and health agencies that enforce standards similar to OSHA's, including those for tank mixers.

Department of Environmental Protection

State departments of environmental protection enforce regulations related to hazardous waste handling and disposal, including waste generated by tank mixers.

Department of Agriculture

In states with significant agricultural activity, the Department of Agriculture may have specific regulations for the use of tank mixers in agricultural production.

Additionally, local fire departments may have regulations regarding the storage and use of hazardous materials involved in tank mixing operations. Companies must be aware of all applicable federal, state, and local regulations to ensure compliance and avoid workplace injuries or environmental hazards.

Chapter Ten: What considerations should be taken into account regarding tank mixers?

As with all heavy-duty equipment, tank mixers require careful monitoring and control for safety reasons. Regardless of their function, tank mixers are production tools that can be dangerous if not properly handled and respected. It is crucial to be aware of conditions that could be harmful or hazardous when operating them.

Creation of Air Pockets

Air pockets can lead to inconsistencies in the final product in various ways. For example, in liquid mixing, air pockets may cause foaming, affecting product quality and consistency. When mixing with gases or air, air pockets can hinder proper blending and cause variations in the end product. Designing tank mixers with features to minimize air pockets, such as specialized impellers or advanced agitation techniques, is essential.

Hazardous Noises and Vibrations

The presence of air pockets can result in excessive noise and vibration as the mixer tries to eliminate them. These conditions can be hazardous to workers, potentially causing injuries or hearing loss. To mitigate these risks, tank mixers should be designed to reduce air pocket formation, and workers should be equipped with personal protective equipment like ear protection to prevent hearing damage.

Viscosity

The viscosity of the product being mixed influences the design and effectiveness of the tank mixer. High-viscosity products may require more powerful mixers or impellers to ensure thorough mixing.

Shear Sensitivity

Some products are sensitive to shear, which can cause damage or degradation. Choosing a tank mixer that matches the product's characteristics is crucial to avoid damage and maintain product quality.

Mixing Time

The time required to achieve thorough blending can vary based on the product and mixer design. Monitoring mixing times is important to ensure that products are blended effectively and efficiently.

Tank Size and Design

The size and design of the tank affect mixer performance. The tank must be designed to accommodate the mixer properly to ensure thorough and efficient mixing.

Cleaning and Maintenance

Regular cleaning and maintenance of the mixer and tank are vital to ensure product quality and prevent contamination. The design of the mixer and tank should facilitate easy cleaning and maintenance.

Power Requirements

Power requirements impact operational costs. It is important to select a mixer that is energy-efficient and suitable for the product being mixed to manage these costs effectively.

Safety

Tank mixers can pose safety risks if not used correctly. Adhering to safety protocols and using appropriate personal protective equipment is essential when operating tank mixers.

Chemical Compatibility

Material compatibility is critical to avoid adverse reactions between the product and the tank or mixer materials. Selecting a mixer and tank that are compatible with the chemicals involved is necessary to maintain product quality and prevent reactions.

Hygiene

In industries such as food and beverage, pharmaceuticals, and others where hygiene is crucial, the tank mixer should be designed to prevent contamination and facilitate easy cleaning to ensure that products remain safe for consumption.

Product Shear

Tank mixers can apply high shear to products depending on the impeller and mixing speed, potentially affecting the final product's quality. Careful selection of the impeller type and speed is required to minimize unwanted shear.

Material Selection

Choosing the right materials for constructing the tank mixer is essential for its durability. The materials should be resistant to corrosion, wear, and tear from the mixed products. Inappropriate material selection can lead to premature mixer failure.

Installation and Maintenance

Proper installation and maintenance are crucial for optimal mixer performance. Improper installation can result in misalignment and premature failure, while inadequate maintenance can lead to equipment breakdown and contamination.

Chapter Eleven: What does the future hold for tank mixers?

Despite their extensive current applications, the future of tank mixers is even more promising. The role of tank mixers is expected to grow with advancements in technology and innovation. Here are some potential developments that could enhance the role of tank mixers in the future:

Smart Technology

Smart technology is becoming more prevalent in industrial equipment, including tank mixers. Future mixers may feature sensors that monitor variables such as temperature, pressure, and flow rate, along with software that adjusts mixing parameters in real-time based on this data.

Improved Efficiency

With increasing demand for sustainable and energy-efficient equipment, advancements in tank mixer design may focus on enhancing efficiency and reducing energy consumption. Innovations might include more efficient motors and new mixing techniques that consume less energy.

More Versatility

To maximize equipment utility, future tank mixers may become more versatile, capable of handling a broader range of viscosities and adaptable to various tank sizes and geometries.

Integration with Other Equipment

As industrial equipment becomes more interconnected, tank mixers may be designed to integrate seamlessly with other machinery such as pumps, filters, and sensors. This integration could enhance processing efficiency and enable better data collection and analysis.

Improved Materials and Manufacturing Processes

Advances in materials science and manufacturing techniques could lead to the development of new materials that are more suitable for tank mixers. This might include materials with enhanced resistance to corrosion, wear, and extreme temperatures and pressures.

Overall, the future of tank mixers will likely be shaped by technological advancements, evolving customer needs, and environmental considerations. As the industry progresses, we can anticipate new and innovative solutions for mixing a diverse range of fluids across various applications.
