Introduction
In this article we will discuss about the following:
What is Viton O-Rings?
Material of Viton O-Rings
Working principle
Types of Viton O-Rings
And much more…

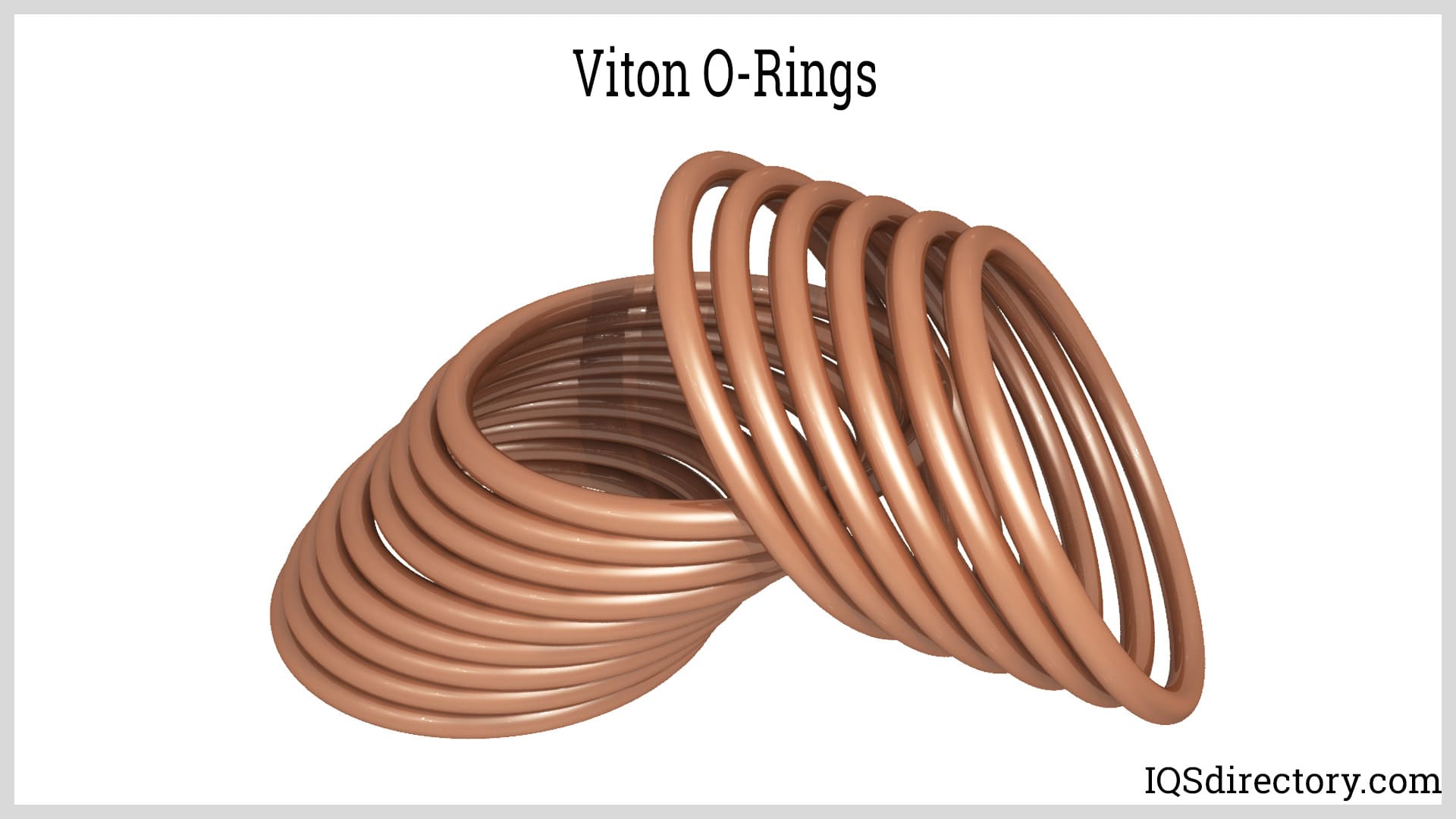

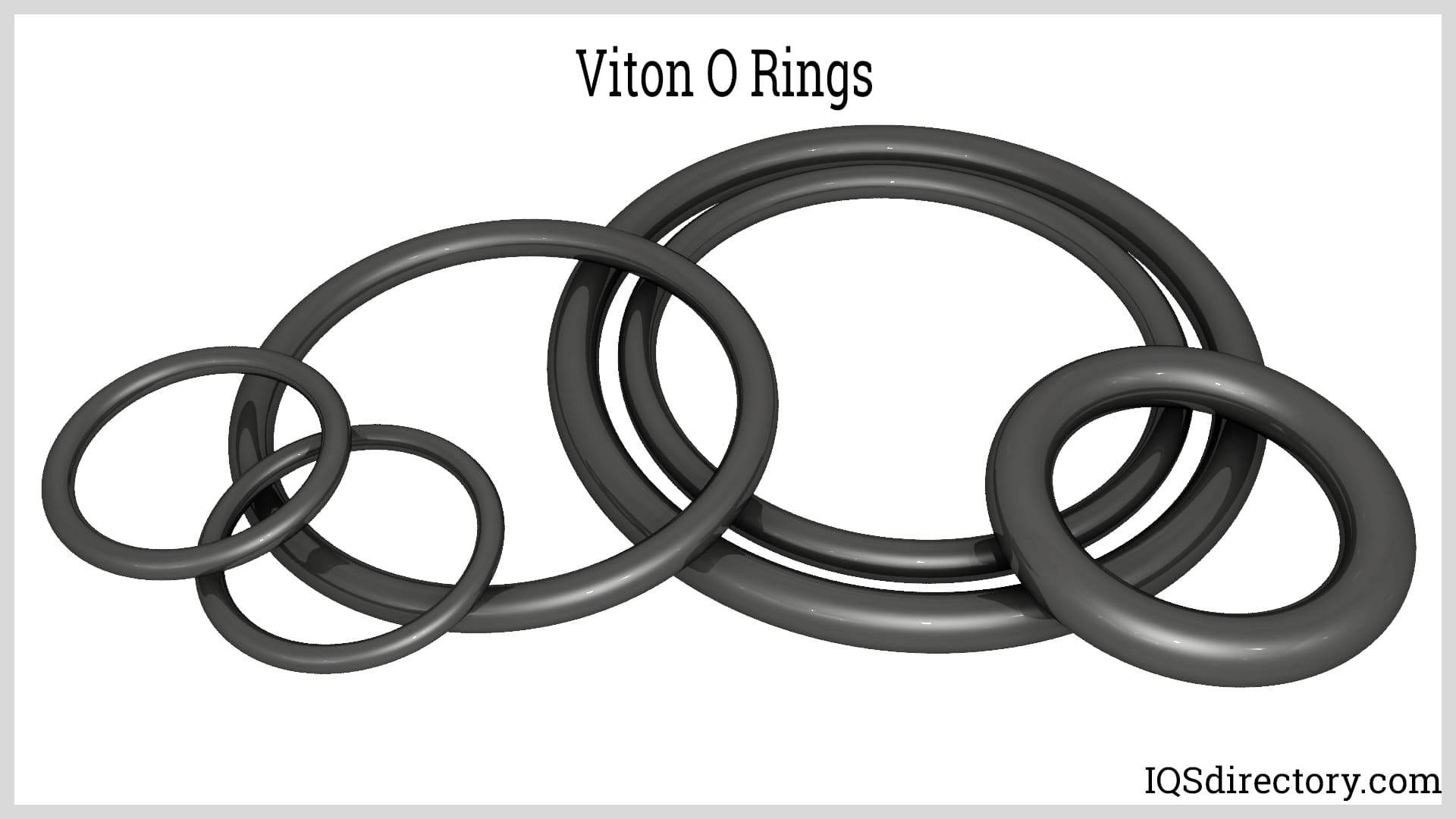

Chapter 1: Viton O-Rings
Viton O-Rings are a type of sealing materials widely used in a large number of industries due to their reliable functionality. Industries such as aerospace and pharmaceutical are prominent users of Viton O-Rings. The primary ingredient Viton plays an important role in giving it superior properties.
O-Rings are essential in industrial fluid and gas operations. The Viton O-Ring stands out as the most reliable seal due to its exceptional properties and resilience. The fluorinated hydrocarbon rubber is designed to endure hostile environments. These hydrocarbons have a great ability to withstand high pressure, heat and weathering. Viton O-Ring is categorized into three grades based on application suitability.
Viton A: Ideal for O-ring manufacturing, with 66% fluorine content.
Viton C: Commonly used to prevent fuel permeation.
Industries such as aerospace, construction, and chemical processing plants employ delicate processes and practices. Usually, conventional sealing processes are used for such delicate processes which frequently results in leakage of hazardous fluids and gasses. In severe cases, catastrophic failures due to equipment breakage can also occur. It is because the sealing material intended to resist liquids and gasses does not provide adequate pressure absorption. Viton O-Rings perform brilliantly under all these circumstances.
Chapter 2: Material of Viton O-Rings

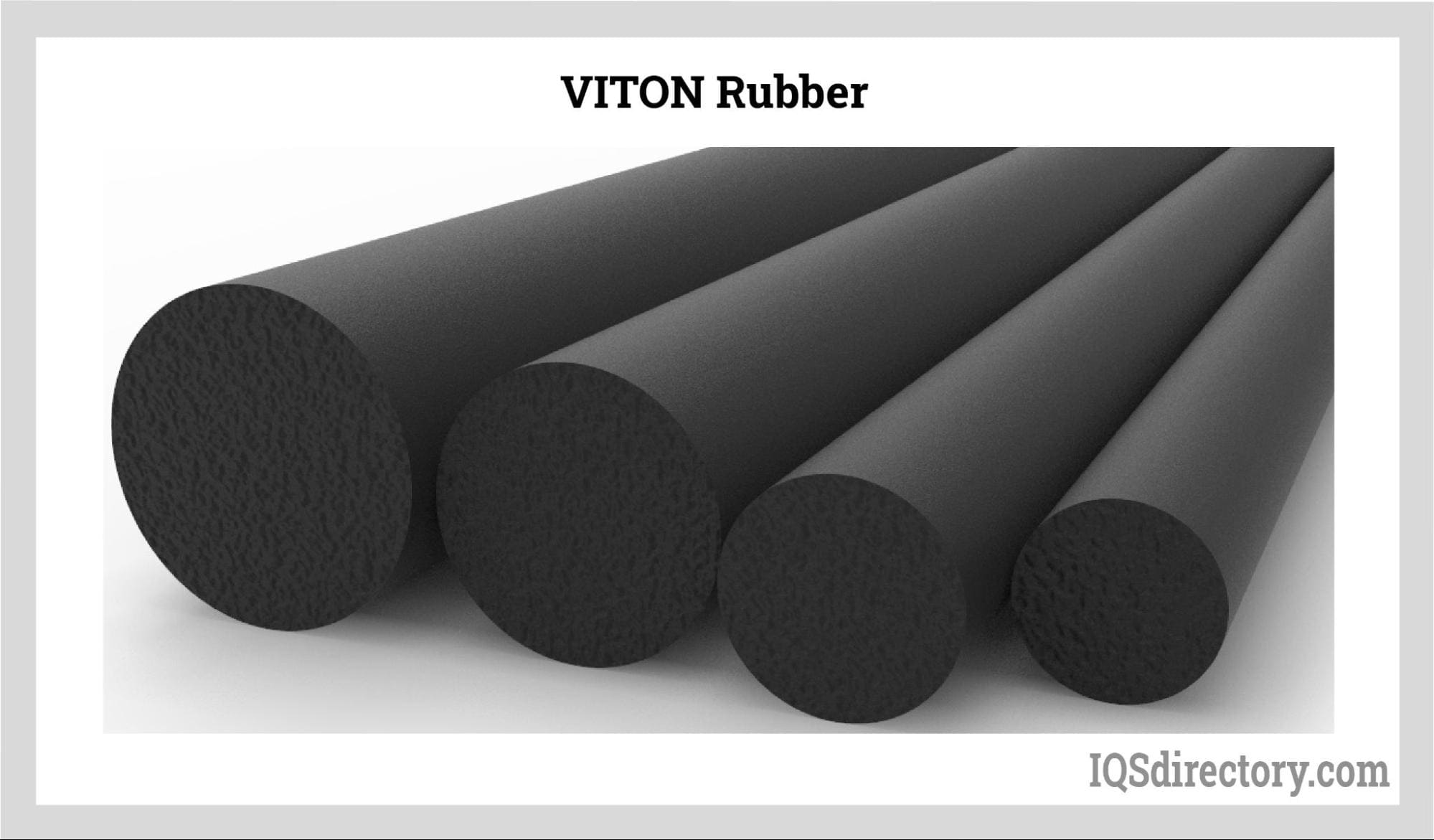

Viton O-Rings are synthetic rubber and fluoropolymer elastomers. The material used for Viton O-Ring manufacturing comprises several materials and as well as additives, is readily available in the market.

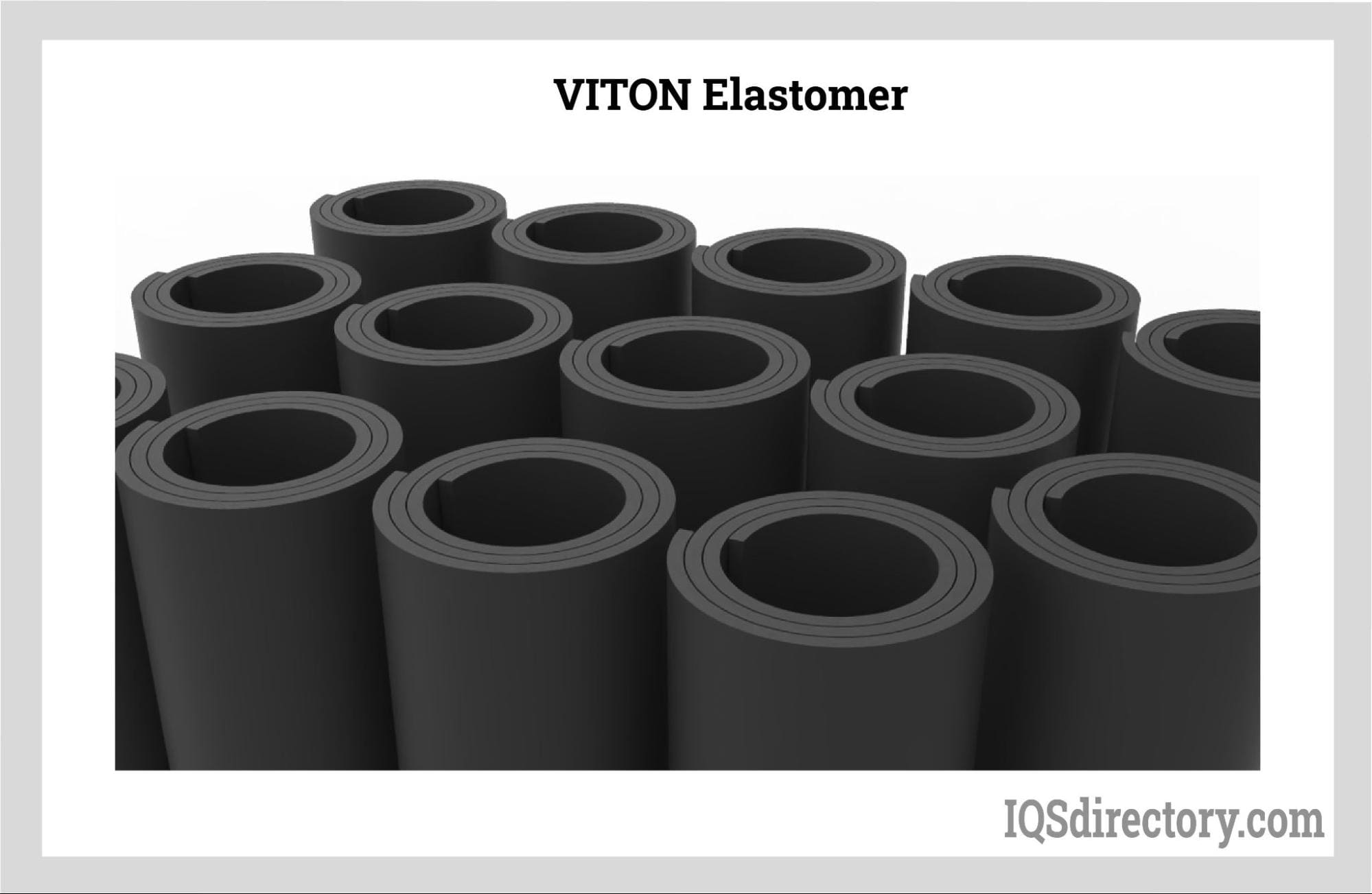

Viton Elastomer
This is the primary element in the production of Viton O-Rings. It is a class of synthetic rubber and fluoropolymer elastomers utilized for their excellent properties and suitability of application. Viton Elastomer is classified into four key components that are explained below.
Vinylidene Fluoride (VDF)
An important monomer in Viton Elastomer that lays the foundational backbone of the polymer chain. Due to this monomer, Viton O-Rings are chemically resistant, and withstand high temperatures.
Hexafluoropropylene (HFP)
HFP is largely employed in the manufacturing of Viton O-Rings to modify the properties of the parent polymer. It also gives the Viton O-Rings, properties of chemical resistance and flexibility.
Tetrafluoroethylene (TFE)
Tetrafluoroethylene is responsible for increasing the fluorine percentage in the Viton O-Rings. It allows it to perform with maximum efficiency in harsh conditions of heat and pressure.
Perfluoro Methyl Ethyl ether (PMVE)
PMVE is often used in the manufacturing of Viton O-Rings. It gives the rings stability and low-temperature flexibility, making it usable in not only high temperatures but also, in cold temperature conditions.
Curing Agents
Curing agents are responsible for cross-linking of the polymer chains with the elastomer matrix. This step occurs during the vulcanization, inducing improved properties in the Viton O-Rings.
Bisphenols
Bisphenols are utilized with bisphenol-curable Viton O-Rings, facilitating the cross-linking of the polymer chains to enhance the mechanical and thermal properties of Viton O-Rings.
Peroxides
Peroxides also play the same role as bisphenols, with the exception that they are used for the Viton O-Rings curable with peroxides to ensure the construction material compatibility.
Filler Material
Filler materials, such as carbon black, calcium carbonate, and silica, are used in the construction process of Viton O-Rings. This is done to improve the properties responsible for the prevention of wear and tear. Filler materials also stabilize its mechanical properties. These materials primarily work on the tensile strength, abrasion resistance, and tear resistance of the Viton O-Rings.

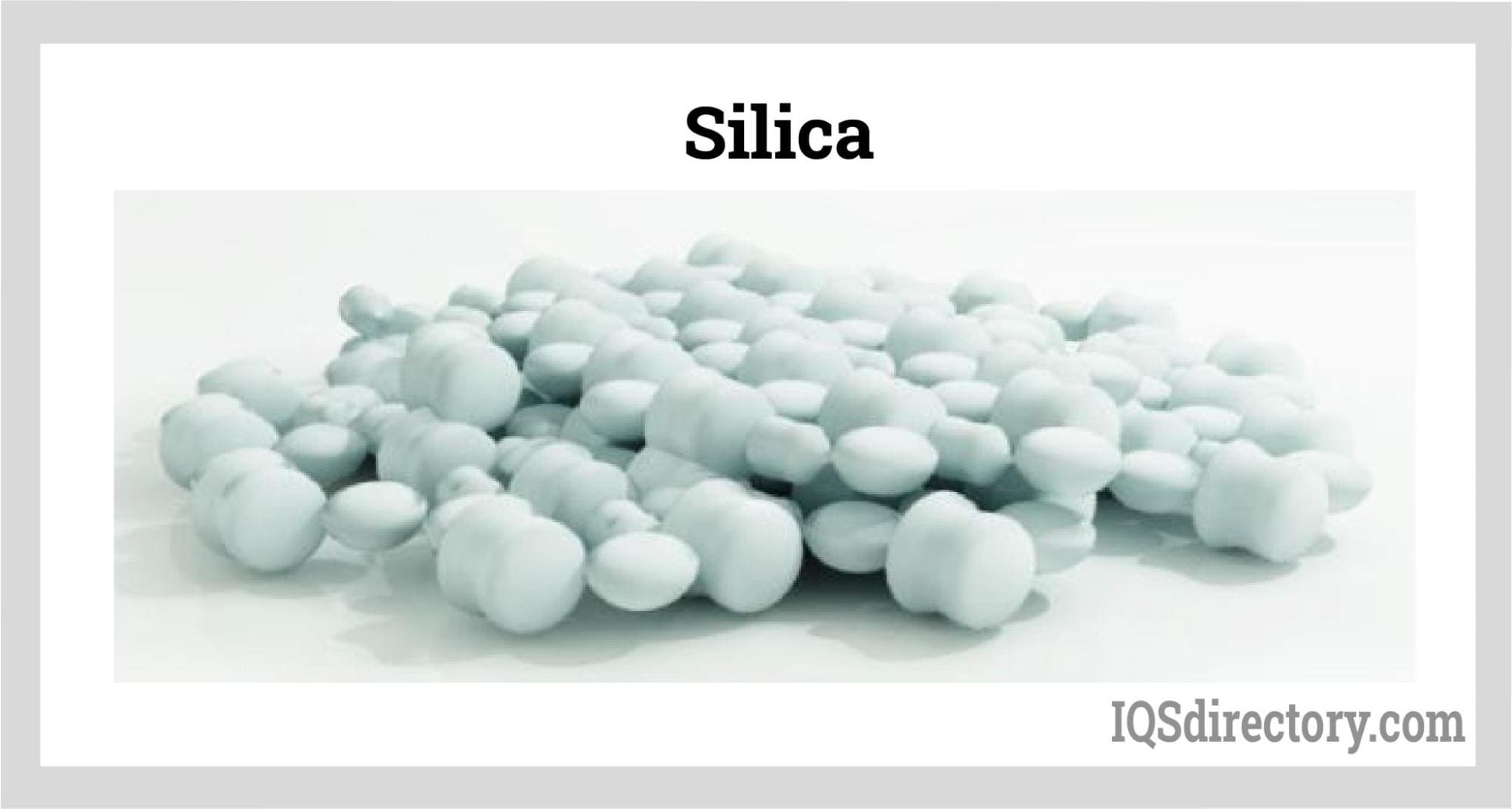

Silica
Silica is used as a filler material to increase the compression set resistance of the Viton O-Rings enabling it to maintain its sealing integrity. Silica imparts strength to Viton O-Rings in elevated temperatures and pressures over a prolonged period of time improving the efficiency of the Viton O-Rings.
Calcium Carbonate
Calcium carbonate is not as much used as other filler materials but it helps in improving the processing characteristics such as flexibility and ease of processing.
Carbon Black
It is the most widely incorporated filler material in the construction process of the Viton O-Rings, because it has the strongest impact on increasing the thermal and mechanical properties as compared to silica and calcium carbonate. Carbon black is responsible for improving the longevity of these Viton O-Rings under the conditions of high friction stress.
Processing Aids
Processing Aids are the materials incorporated in the manufacturing process in order to increase and enhance the processability of the Viton Elastomer compound. When the stiffness of the Viton O-Rings become higher than the required level, processing aids are added to the concoction. This makes it easier to process and mold in the desired O-shape.
Plasticizers
They are usually added in the manufacturing process of Viton O-Rings to improve the flexibility and processability of the product. Plasticizers enable the rings to be more pliable while being manufactured. This makes Viton O-Rings manageable to mold the product in the required O shape.

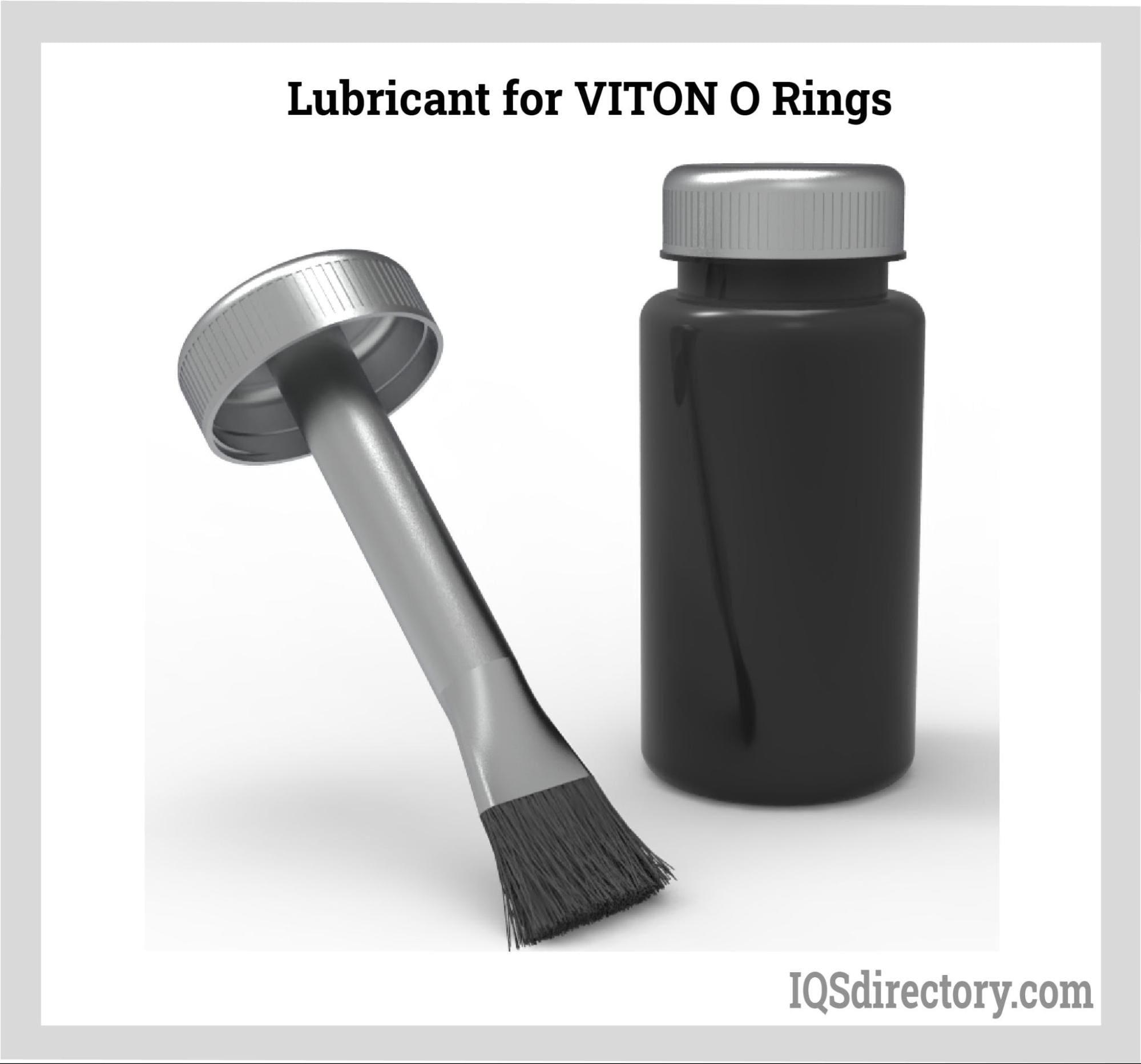

Lubricants
Lubricants assist the manufacturing process of the Viton O-Rings during the extrusion and molding process. It reduces the risky friction between the Viton compound and processing equipment. Using the lubricants, allows the uniform flow of the material in the molds thereby preventing any kind of compromise on the quality of the Viton O-Rings.
Stabilizers
Stabilizers are used in the manufacturing process of Viton O-Rings in order to boost the longevity of the main elastomer. This occurs when it is subjected to tough working environments.
Heat Stabilizers
These types of stabilizers are always used for giving the Viton O-Rings exceptional thermal properties. Over a wide range of elevated temperatures, heat stabilizers enable Viton O-Rings to maintain their sealing performance.
UV-Stabilizers
Ultraviolet rays can be harmful to the Viton O-Rings and can severely impact the overall efficiency. To protect the elastomer from falling prey to any kind of degradation, UV-Stabilizers are utilized. If there is oxidative degradation of the polymer chain in Viton, there is a huge chance that the mechanical properties of the Viton O-Rings will be affected. To handle this, UV-Stabilizers are used as they absorb or reflect the harmful UV radiation. It also acts as a barrier and prevents UV rays from reaching the Viton elastomer.

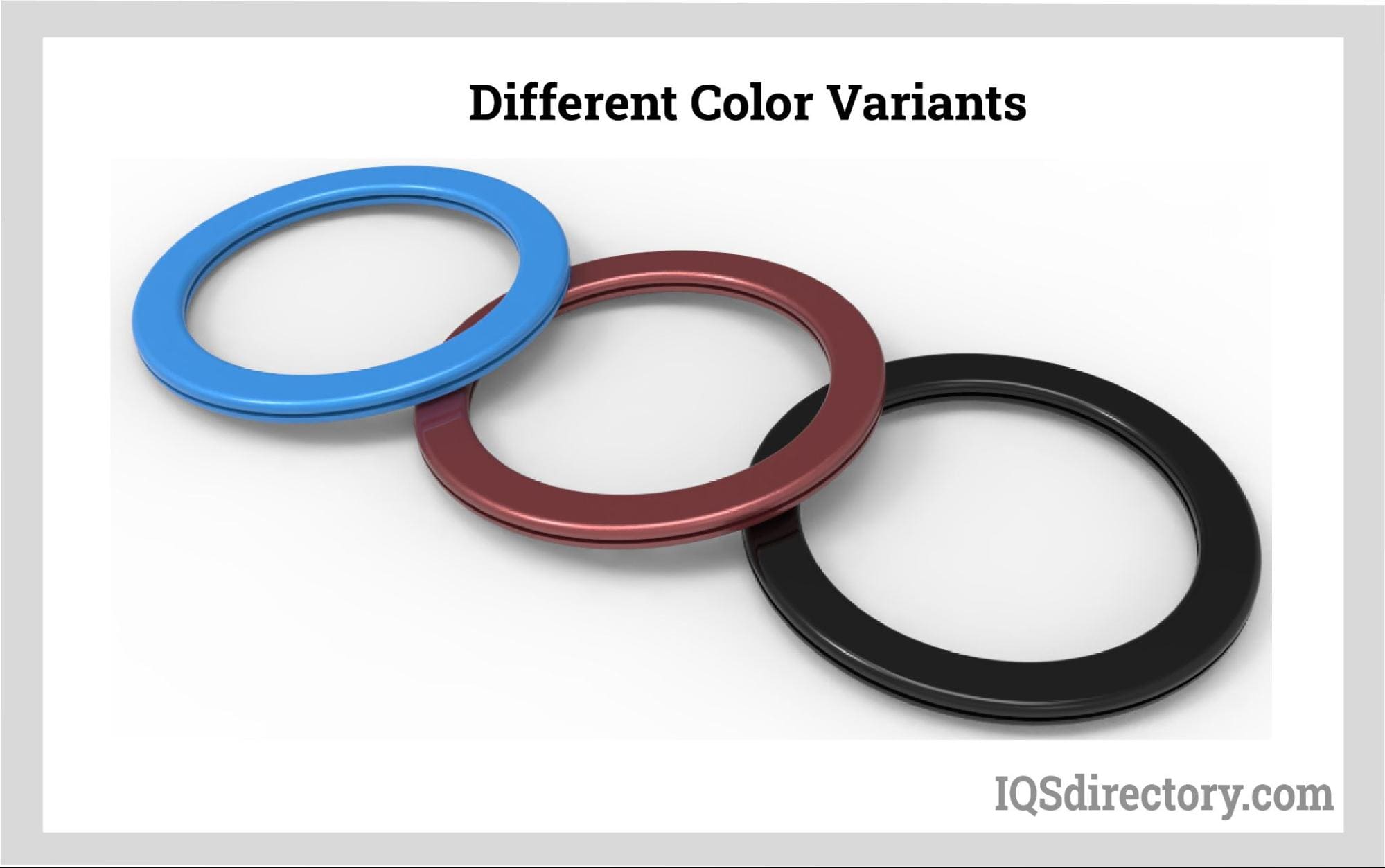

Colorants and Pigments
These two elements are responsible for multiple functions in the manufacturing process of the Viton O-Rings. They assist in visual identification to facilitate inventory management and also enhance the aesthetics of Viton O-Rings. Pigments involved in the construction of these rings also protect them from UV rays.
Iron Oxide
Iron Oxide or Ferric Oxide is a majorly used colorant for the black compound. It contributes to the provision of an aesthetic appeal, uniform coloration, and heat stability to the Viton O-Rings.

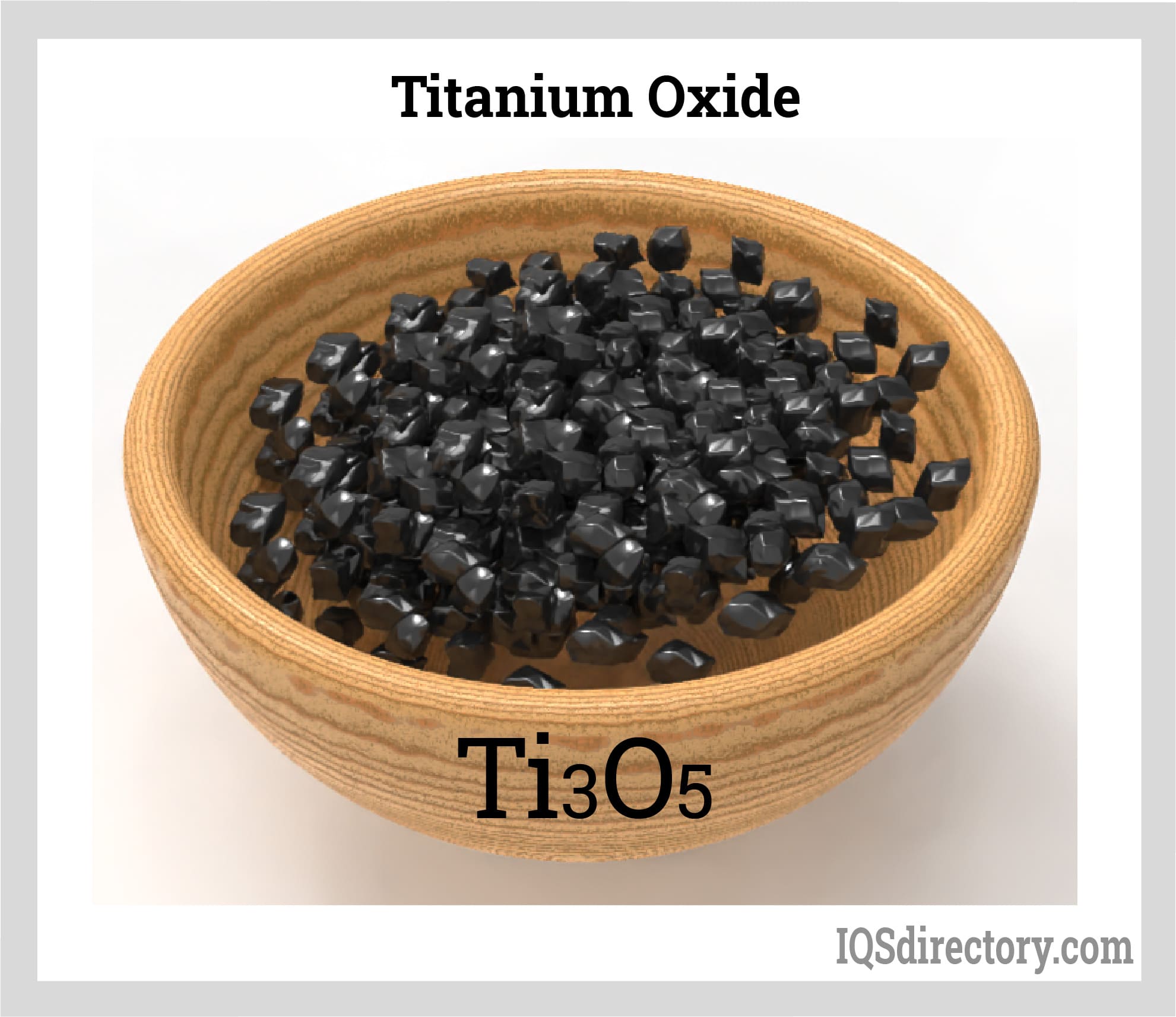

Titanium Oxide
Titanium oxide is used as a pigment when a bright white color is needed in the product. This is why it is used in coordination with other pigments to produce light shades on the Viton O-Rings.
Metallic Oxide
To give a metallic finish and lustrous effect on the Viton O-Rings, aluminum flakes are used in the manufacturing process. Moreover, Zinc Oxide is often utilized as an accelerator in the process of vulcanization. It is done to boost the curing rate ultimately resulting in excellent mechanical properties.
Processing Oils
To enhance the processability, moldability, and ease of working of Viton O-Rings, processing oils are used. Both processing aids and processing oils serve as friction-reducing agents resulting in the reduction of the probability of wear and tear. Furthermore, these oils also allow for a disturbance-free release of the manufactured Viton O-Rings from the mold minimizing the adhesion.
Paraffinic Oil
Paraffinic Oils are employed in the Viton O-Rings manufacturing process to ensure dimensional accuracy and smooth surface finish. They work efficiently to reduce the viscosity of the Viton compound so that the mold cavity is filled uniformly. Compatibility is also an important factor in the usage of paraffinic oils causing them to avoid any kind of compromise on quality.
Naphthenic Oil
Similar to paraffinic oil, naphthenic oil is known to play the same role by providing a smooth surface finish and dimensional accuracy in the Viton O-Rings, moreover, it also ensures proper removal of the finished product from the mold.
Antioxidants
The role of an antioxidant is pivotal in the overall manufacturing process of the Viton O-Rings. Stabilizers are added to prevent oxidative degradation. Antioxidants such as phenolic antioxidants are used specifically for the prevention of oxidative degradation of Viton compounds. Their function is to provide protection when the Viton O-Rings are exposed to heat, air, or any such oxidation-supportive environment. An overall impact of the antioxidants comes in the form of the resulting reliability of Viton O-Rings.
Chapter 3: Construction/Manufacturing Process - Viton O-Rings
The process through which Viton O-Rings are made comprises a series of different processes each serving a distinct purpose. In order to impart the qualities that enable the Viton O-Rings to withstand harsh environments, each step adds value to prepare them for exceptional performance for a prolonged period of time.
Material Preparation
The process of manufacturing is initiated by ensuring the availability of all the necessary equipment and materials. All the required raw material is presented in the measured amounts in order to proceed with preparation.
Preparing the Mix
The main ingredient Viton elastomer is mixed with various additives and fillers in a mixing mill or internal mixer. All the material is added in measured amounts as per the requirements of the production.
Mixing
The second sub step starts with ensuring all the parameters are set correctly i.e. the temperature, pressure, etc. Finally, the mixing process is initiated with the main Viton elastomer getting mixed with stabilizers, fillers, and pigments.
Compounding
The process of compounding normally involves the formation of sheets and strips (as per the requirement) using the Viton compound through an extruder or rolling mill. This process is also known as “forming”,
Setting the Dimensions
The forming process involves the pressing of the Viton compound in a sheet. This enables it to be formed into the O shape of the desired dimensions.
Forming
As soon as the dimensions of the circular O shape are set, the extruder or the rolling mill performs its function. The resulting product is sent to the molding section.

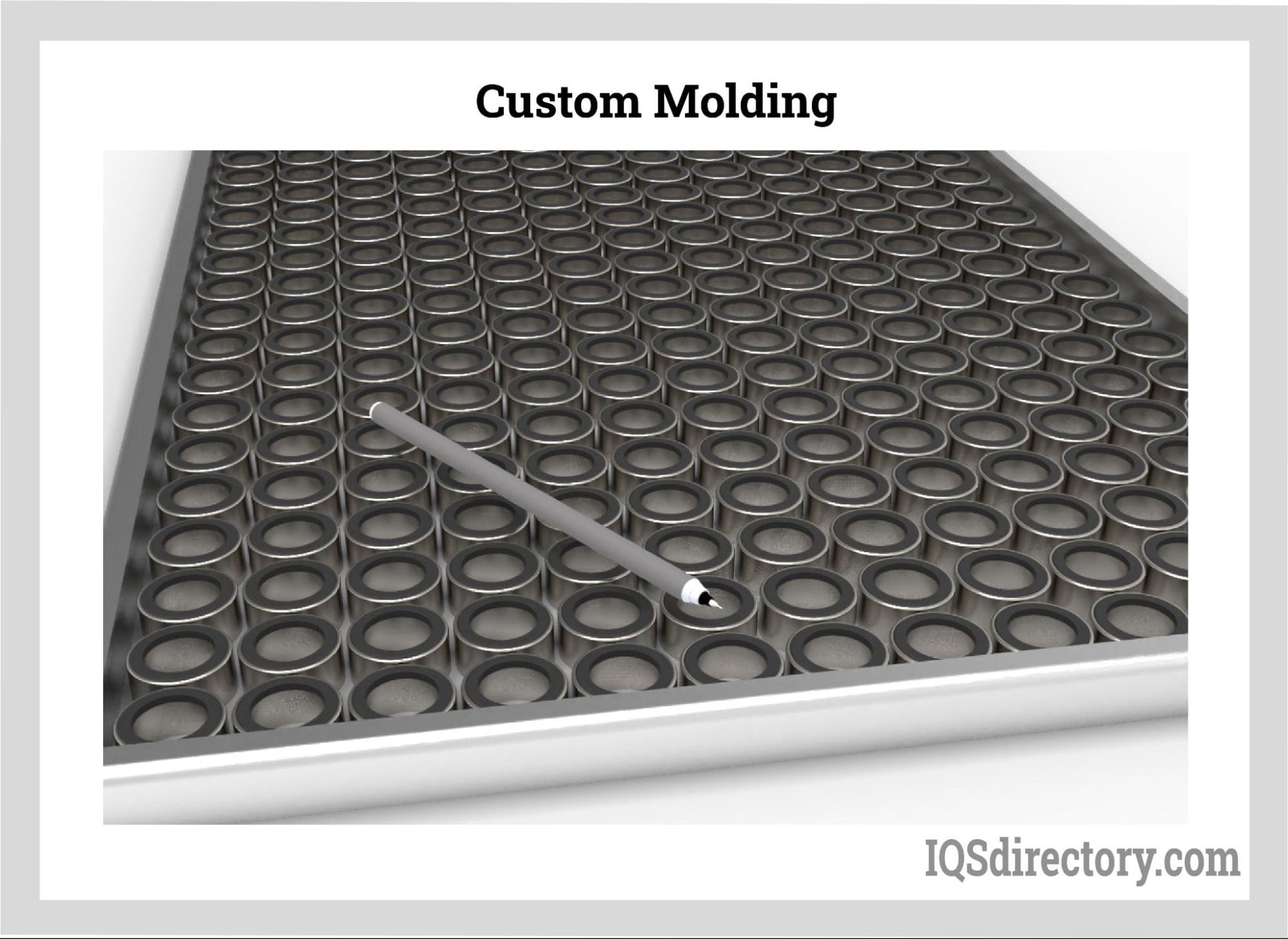

Molding
This is one of the most important and detailed steps in the manufacturing of Viton O-Rings. From the preparation of the mold to the release of the molded Viton O-Rings.
Mold Preparation
Mold preparation involves the thorough cleaning of mold cavities to get rid of any debris, dust particles, or possible contaminants. This is done to keep the Viton O-Rings free from any kind of unintended impurity, hence, not compromising on the quality of the final product. Afterward, the mold is brought to a required temperature.
Filling the Mold Cavities
Once the mold is prepared, the construction material is transferred carefully into the mold cavities. This process requires a lot of attention as it is very important to ensure that the mold cavity is filled completely. Viton cut segments are uniformly inserted so that there are no inconsistencies in the resulting Viton O-Rings.
Vulcanization/Curing
The vulcanization process begins right after the mold cavities are occupied with the Viton cut segments. This process transforms the Viton elastomers into a material with the desired properties such as improved durability and resiliency.
Application of Heat & Pressure
Vulcanization begins with ensuring the mold cavities are properly occupied by the material. The mold is then closed and the required temperature and pressure are applied to it. The heat that is produced in the mold swiftly activates the curing agent in the compound propagating the formation of the three-dimensional network structure.
Curing
The curing agents perform their functions and convert the soft, flexible material into a durable and elastic elastomer. The resulting Viton O-Rings are only possible if extra care is taken in monitoring the temperature, pressure, and time of curing.
Post Processing
Post-processing is an equally important process to ensure flawless Viton O-Rings. It involves surface finish refining, ensuring dimensional accuracy and desired properties in the sealing rings. This phase is classified into two sections.
Cooling and Demolding
The cooling process begins after the vulcanization process is completed. It involves cooling the mold in order to solidify the Viton elastomer. After the mold is cooled for the required amount of time, with extreme caution, the cured Viton O-Rings are removed from the mold. Any minute damage caused to the product being removed can compromise the overall quality of the Viton O-Rings.
Trimming process
The removed product always has excess or extra material attached to it known as flash. During trimming, the extra material is removed from the edges. It is done to make sure the Viton O-Rings are smooth in their composition. De-flashing is also done.
Quality Check/Inspection
As soon as the product is manufactured, the quality inspection is executed in order to ensure that the manufactured product is according to their set standards and protocols. In the manufacturing process of the Viton O-Rings, the final product is made to go through strict quality checks, measuring its dimensional accuracy and performance. Non-destructive and destructive testing is performed on the Viton O-Rings to test the properties such as their tensile hardness, compression set resistance and durability, etc.
The dimensional accuracy of the Viton O-Rings is measured by taking out samples from the different batches. Measuring tools such as vernier callipers, screw gauges, are utilized. Hardness, and indentation tests (also known as destructive testing methods) are applied to the samples to make sure that the finalized product stands strong under harsh conditions.
One specific test for the hardness testing of the Viton O-Rings is performed using the durometer, as it gauges its resistance to indentation and deformation. Tensile testing is employed in order to test the capability of the Viton O-Rings to bear shear and tensile forces. A statistical control method is often employed in order to analyze the performance of the Viton O-Rings over a period of time or over a produced batch.

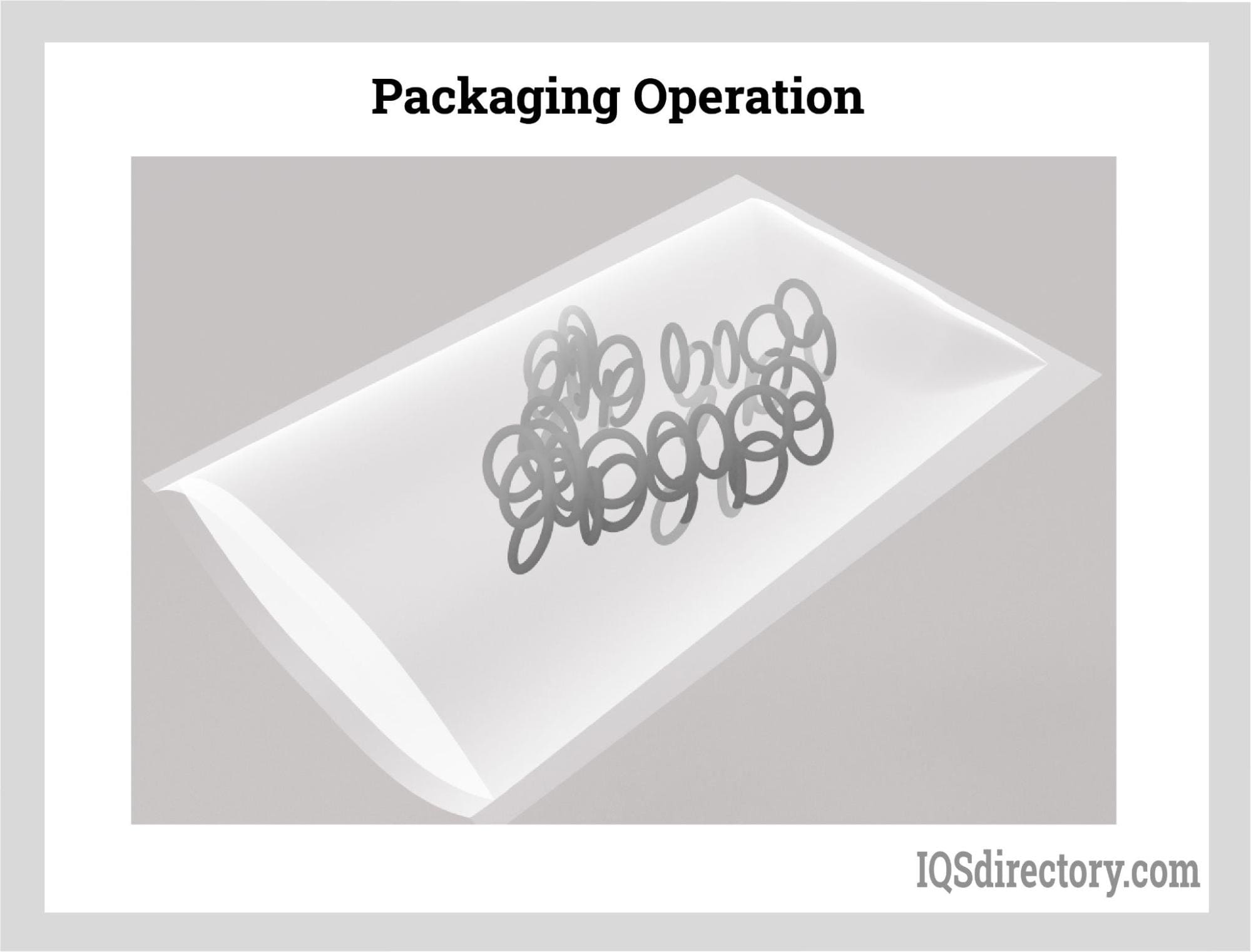

Cleaning & Packaging
The cleaning process follows after all the quality inspection tests are done on the Viton O-Rings. It is done to ensure that there is no debris or contaminants present before they are sent to the packaging department. Lastly, the manufacturing process of the Viton O-Rings concludes with the final product after the thorough cleaning is neatly packaged in measured quantities. Caution is required here too because even the slightest entry of moisture or contaminants can damage the overall quality and functionality of the Viton O-Rings.
Leading Manufacturers and Suppliers
Chapter 4: Working Principle of Viton O-Rings

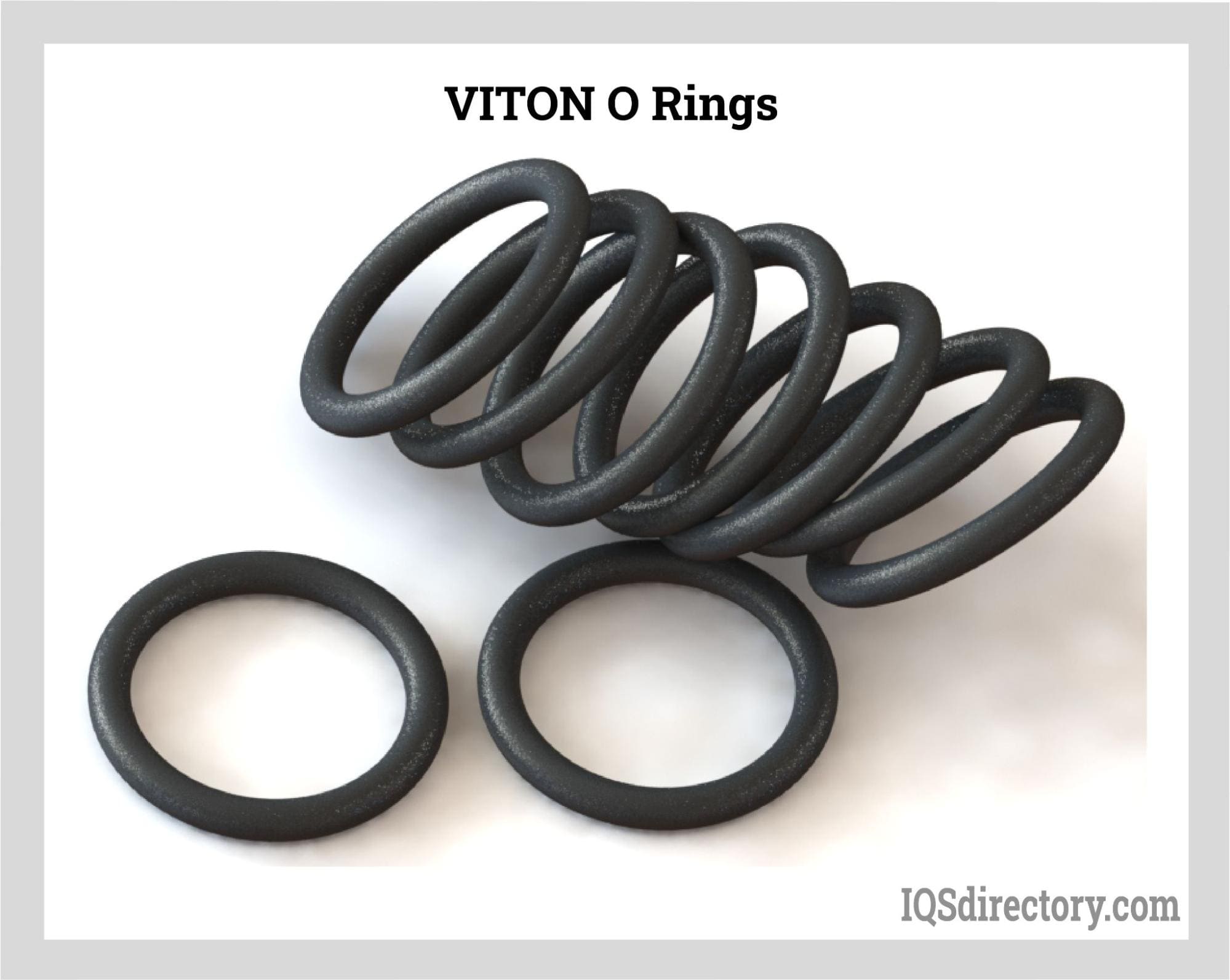

Viton O-Rings have established a vital place in the list of the necessary elements in a plethora of industries. This is due to their exceptional properties of chemical and heat resistance, sealing integrity, and prolonged durability. To understand the working principle of the Viton O-Rings, it is very important to comprehend the functionality dynamics of Viton O-Rings.
Compatibility & Chemical Resistance
One of the defining characteristics of the Viton O-Rings is their ability to execute brilliant chemical resistance. This enables them to become compatible while being exposed to an extensive range of chemicals, and fluids such as solvents, acids, oils, and hydraulic fluids.
This inertness in their behavior stems from the distinct molecular structure of the Viton governed by the presence of the fluorine atoms. This structure enables the Viton O-Rings to resist strong chemical attacks. This is why the Viton O-Rings are able to maintain their sealing effectiveness even in working conditions where corrosive substances are used.

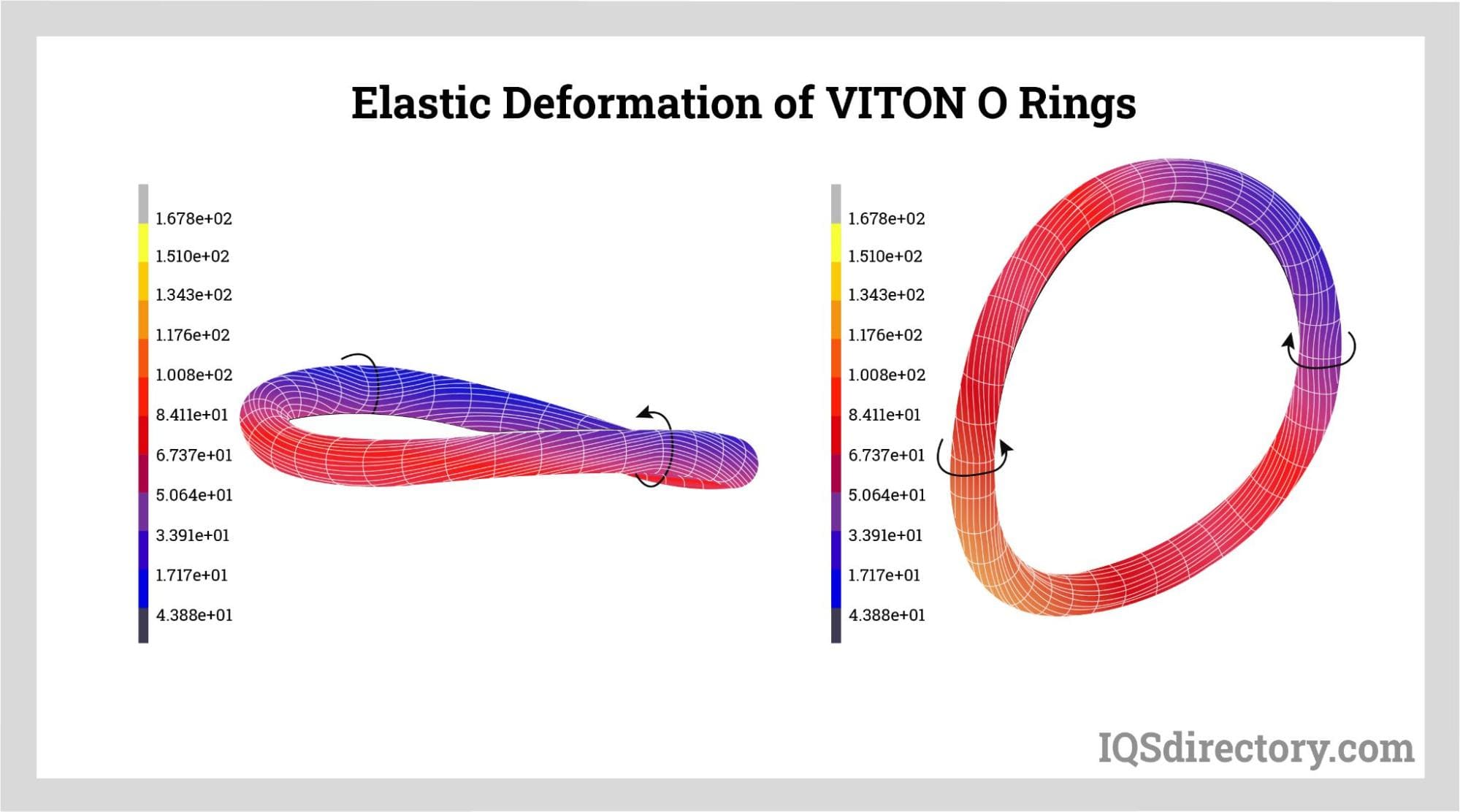

Elastic Deformation Mechanism
Elastic deformation is the primary working principle on which the functionality of the Viton O-Rings is based. These rings when installed between two surfaces execute their ability to deform to entirely seal the two mating surfaces.
The resulting compression of the O-Rings enables them to fill the gap through which the leakage can occur. Radial or hoop stress is induced throughout the Viton O-Ring activating its sealing characteristics and hence forming a tight seal. The elastic deformation property of the Viton O-Rings allows them to compensate for the inaccuracies in the dimensions of the mating surfaces.
Thermal Stability and Performance
The ability of the Viton O-Rings to absorb and nullify the effect of harsh temperatures allows it to be used over a wide range of hot and cold temperatures. The main contribution in employing this working principle is provided by fluoro elastomer composition of the Viton. It renders them inert to thermal degradation and causes the O-Rings to function with all of their mechanical properties intact.
Dynamic Flexibility
When subjected to repeated prolonged movements, fluctuations, and vibrations, the dynamic flexibility of the Viton O-Rings enables them to work with maximum efficiency. Due to this, these sealing rings are employed in a plethora of dynamic working conditions. Even in the continuous movement of the operations of the heavy machinery, Viton O-Rings prevent the leakage of fluids or gasses. This ultimately reduces the risk factor and increases safety.
Customized Specificity & Applications
The robust working principle of the Viton O-Rings allows them to work accurately in general conditions. It also allows Viton O-Rings to perform exceptionally when customized according to some specific working conditions. These are the conditions where the manufacturing process can be molded to tweak its size, hardness, and fluid compatibility. Where longevity, versatility, and adaptability are paramount, Viton O-Rings are the best solution due to their robust working principle.
In summary, it can be understood prominently that the working principle of the Viton O-Rings is based on the amalgamation of elastic deformation, thermal stability, and dynamic flexibility
Chapter 5: Types and Subtypes of Viton O-Rings
Viton O-Rings can be classified into several types and subtypes on the basis of their executable functional characteristics. This classification was mainly done in order to cater to custom-made applications or specific working conditions.
High-Temperature Viton O-Rings
This variant of the Viton O-Rings finds its majority of applications in automotive engines, aerospace systems, and heavy industrial machinery. It demonstrates an exceptional ability to withstand extremely high temperatures and thermal cycling. These types of O-Rings are employed where working conditions are expected to experience a significant rise in the temperature. High-temperature Viton O-Rings are easily able to maintain their mechanical properties in these environments.

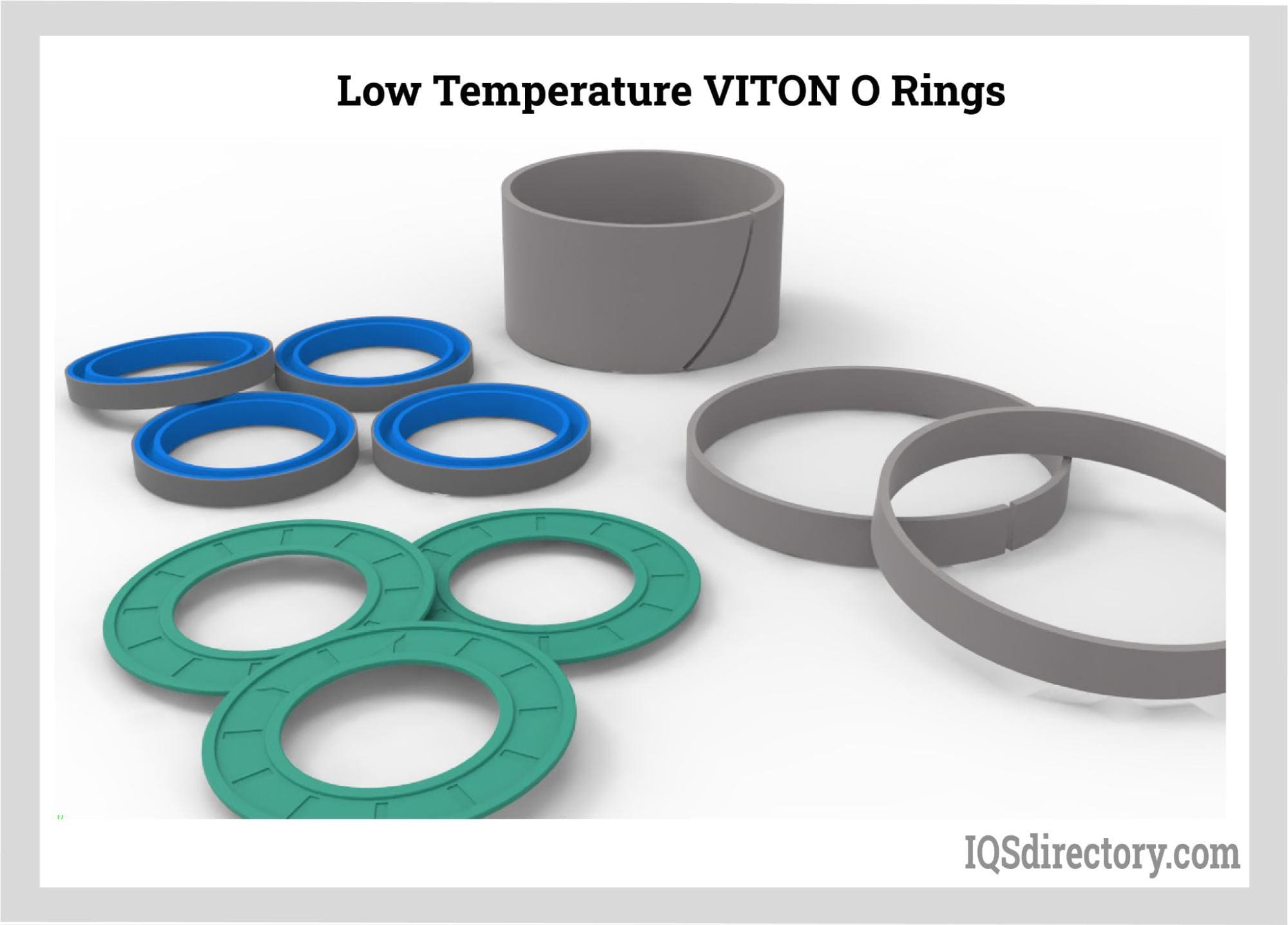

Low-Temperature Viton O-Rings
These types of Viton O-Rings are intended to be used for the exact opposite purpose as compared to high-temperature Viton O-Rings. The conditions where the surrounding temperature can reach extremely low i.e. cryogenic temperatures, these rings exhibit excellent resilience to the chemicals, elasticity, and durability. Even below 0 degrees Celsius, low-temperature Viton O-Rings work efficiently to serve their intended purpose.
Standard Viton O-Rings
This is the most basic variant of the Viton O-Rings available in the market, as it contains properties suitable for general working conditions. These are the conditions such as room temperature and sea level atmospheric pressure. Their generic nature of functionality enables them to be used for a large number of applications involving the handling of oils, solvents, acids, and other corrosive chemicals.

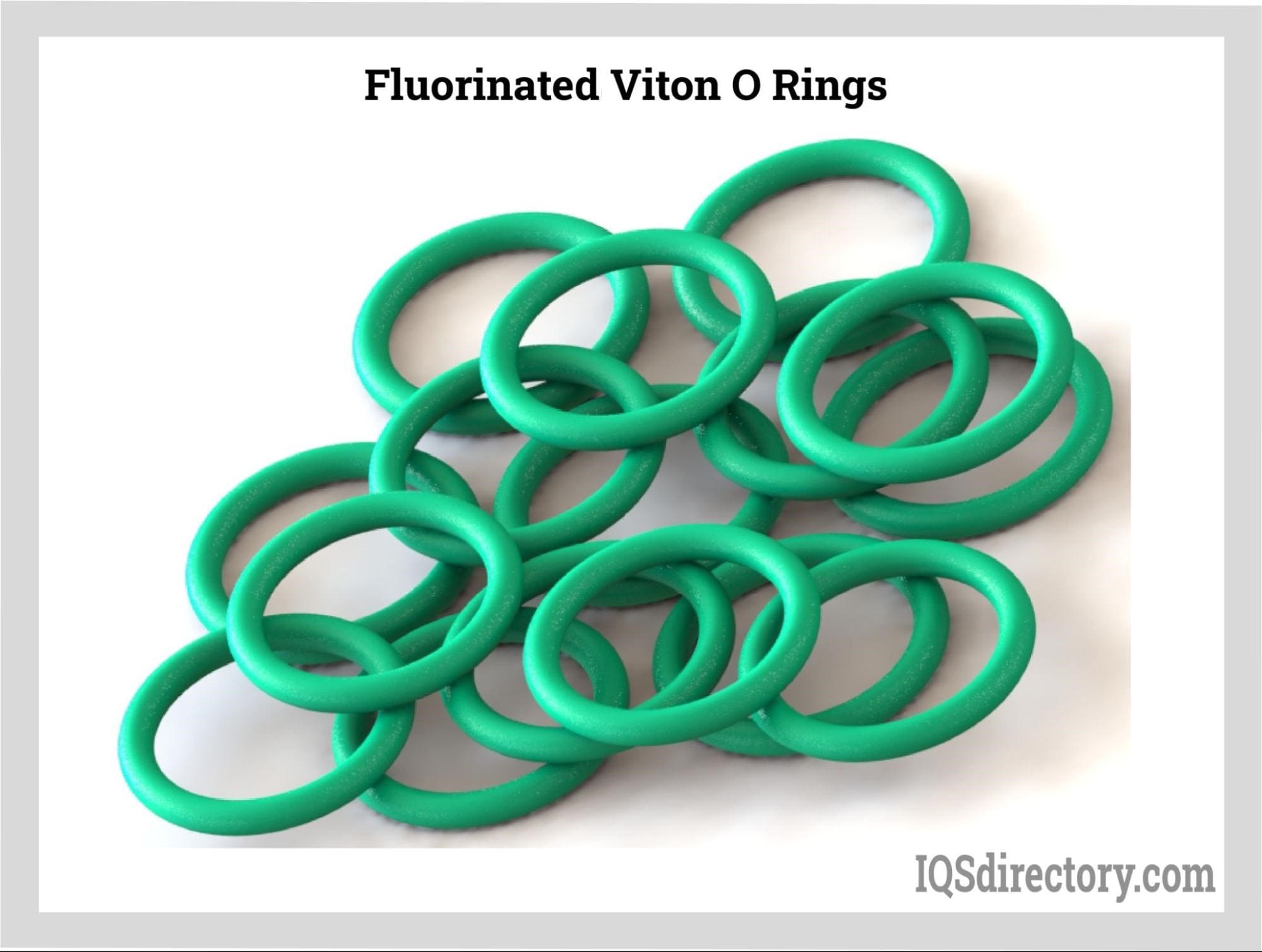

Fluorinated Viton O-Rings
A variant of the Viton O-Rings in which additional fluorine content is added in order to make it more chemical resistant and compatible with risky chemicals and fluids. Fluorinated Viton O-Rings are packed with qualities such as superior resistance to degradation and permeation. It works well in the cases where it is exposed to dangerous substances. These types of sealing rings find their application mostly in the petrochemical and pharmaceutical industries. It is because their sealing integrity is not affected by the presence of the type of substances used in these industries.

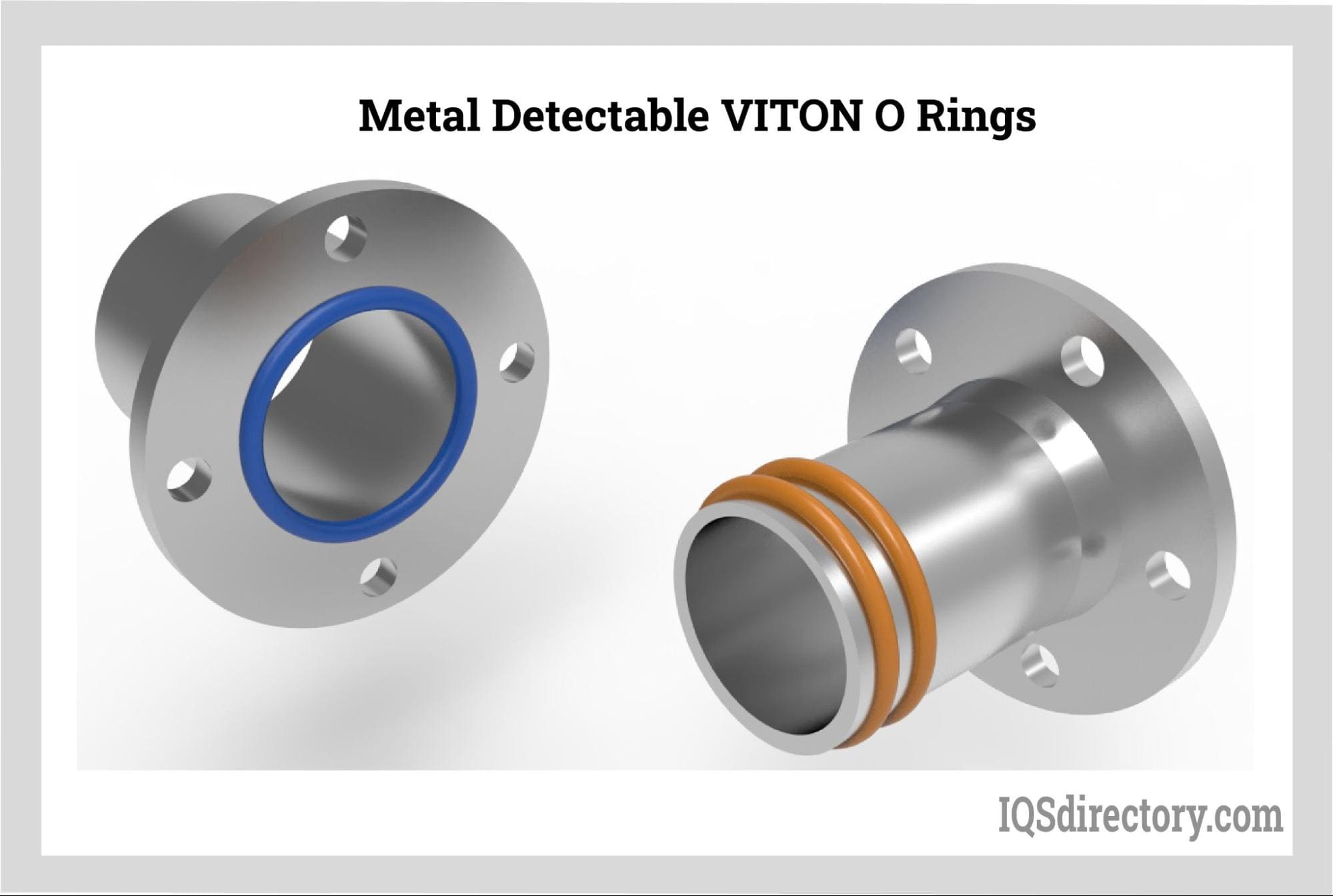

Metal Detectable Viton O-Rings
This is a variant of Viton O-Rings as it is used engineered specifically so that it can be detectable by metal detectors in the food industries. As a precautionary measure, these types of Viton O-Rings are used as they are embedded with fillers and additives. It is done so if any of its fragments is accidentally added to the edible product on the production line, it can be swiftly detected. The food industry is the main application area because of the importance of keeping the product pure and fit for human consumption.
Specialty Viton O-Rings
A subtype of standard Viton O-Ring that is open to customization in its features and properties to make it fit for special circumstances is called Specialty Viton O-Ring. Its sealing integrity and other characteristics are engineered according to the direct instructions from the customers. This enables them to be employable in a wide range of application areas such as aerospace and automotive industries.
Chapter 6: Pros and Cons of Viton O-Rings
Pros
Viton O-Rings provide excellent chemical resistance to dangerous and aggressive chemicals, fluids, and gasses.
These rings are able to withstand harsh temperatures such as extreme heat and sheer cold environments due to the unique molecular structure of Viton elastomer.
Viton O-Rings can execute appreciable compression set resistance when made to undergo compressional forces during its usage.
In the cases where gasses are required to be sealed to prevent any kind of leakage, Viton O-Rings are generally employed due to their exceptionally low permeability.
Viton O ring encompasses superior mechanical properties over a prolonged period of time due to its manufacturing material
These O-Rings are adaptable and may be utilized in a variety of industrial applications, offering dependable sealing solutions across industries and conditions.
Cons
One notable drawback is their comparatively higher cost compared to alternative sealing materials.

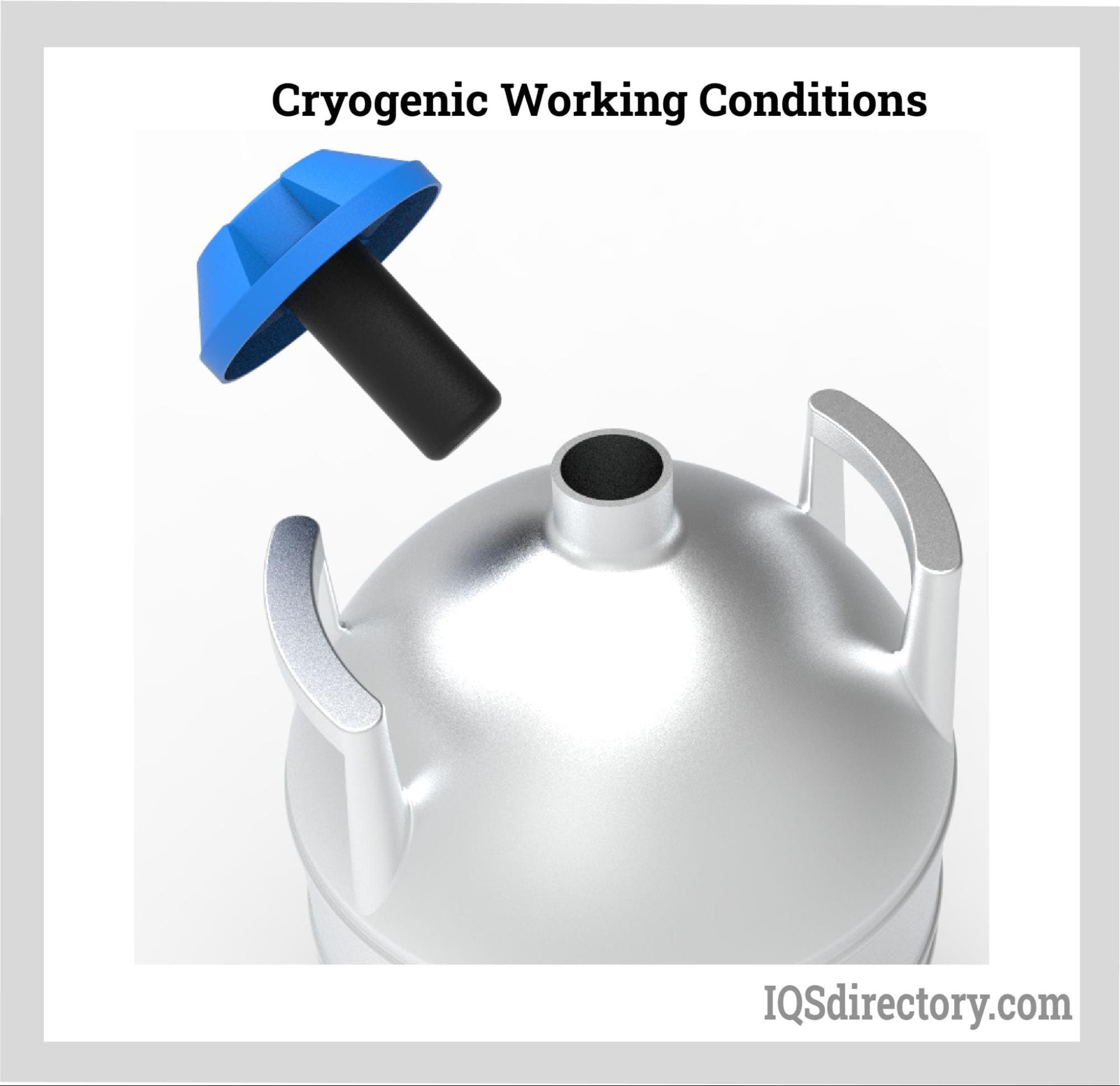

Even though Viton O-Rings are known to withstand cryogenic conditions, they can malfunction when the temperature is set below -26 degrees Celsius.
Steam can pose a threat to the streamlined functioning of the Viton O-Rings as observed experimentally making it prone to structural damage.
If lightweight material is needed to be employed as a sealant, there might be better choices than Viton O-Rings as it is heavier, comparatively.
Viton O-Rings, beneficial in industry, raise environmental concerns when disposed of due to its parent material.
Chapter 7: Impact of Viton O-Rings
Viton O-Rings have revolutionized the category of sealing rings since their inception. These sealing rings, made from Fluoro elastomer, exhibit superior mechanical properties, chemical resistance, and adaptability unmatched by other sealing rings.
Owing to these characteristics, Viton O-Rings have created an ever-lasting impact on industries such as aerospace, automotive, petrochemical, food, and pharmaceutical.
Ever-Lasting Serviceability
Viton O-Rings are able to execute long-lasting services of chemical resistance and inertness, flexibility, elastic deformation, and adaptability. This makes them suitable for usage over a prolonged time. Furthermore, it also roots out the need to replace the sealing rings and conserve the resources.
Cost Effectiveness
Even if in some cases Viton O-Rings can be costlier in their installation or manufacturing, these rings can prove to be extremely cost-effective due to their resilient nature. These O-Rings are reliable sealing material that does not require to be reinstalled frequently, hence saving the cost of replacing them.
Environmental Impact
Viton O-Rings might not be environmentally friendly in some cases of disposal. Contrary to it, the purpose they serve prevents large-scale environmental contamination. The contamination can be via leakage of hazardous gasses, fluids, chemicals, acids, solvents, etc. These rings also promise the safety of the laborers working around these harmful materials.
Room for Technological Advancements
The need to be extra cautious during the handling of aggressive material is catered easily due to Viton O-Rings. This allows the individual to be independent in introducing innovations in the manufacturing processes.
Impact on Compliance
Viton O-Rings are manufactured on strict quality standards and protocols due to the type of material that is involved in its making. This has propagated a sense of compliance with standards in industrial workers all around the globe with regard to supplementary processes and practices.
Conclusion
The large number of benefits provided to the user due to its paramount services in delicate areas of the industrial processes makes it a genuine choice as a sealing material.
Its ability to be adaptable to a wide range of industrial applications due to its functionality allows it to become a firsthand preference.
The extreme care and caution taken in the preparation of these sealing rings impart the special qualities of chemical inertness, resilience, and flexibility.
The working mechanism is a robust one that not only incorporates fluid but also gasses, the leakage of which can prove fatal to the environment and the workforce.
The overall introduction of Viton O-Rings in the world of sealing materials has left an everlasting impact on a lot of factors as discussed in the previous section and has also given a prominent room to bring about innovations in its surrounding processes as well.
