This article will take an in-depth look at depalletizers.
After reading this article, you will understand more about topics such as:
Palletizing is the process of putting items on a pallet. The process of emptying the loaded objects in the reverse pattern is known as depalletizing. A pallet is a flat, square-shaped platform used to transport and safely handle numerous items simultaneously. Depalletizers are useful for unloading pallets after arrival and after reaching the destination. Depalletizers are used to handle pallets in the best possible way. It is possible to unpack various items, including cans, bottles, corrugated cardboard boxes, shrink-wrapped goods, open trays, or boxes, using different depalletizers.
Depalletizers are designed to efficiently transfer products from delivery pallets, ensuring stability and improved handling. They enable the automated removal of goods and materials from pallets, eliminating the need for manual labor and thereby saving time, money, and effort. In distribution and fulfillment operations, depalletizing is a critical task that enhances the speed and reliability of logistical processes. Since pallet unloading can be a demanding and time-consuming job, depalletizers help streamline this process. However, as pallet configurations and arrangements become more complex, depalletizing operations can also become more challenging.
Depalletizers come in various designs depending on the benefits they give, but especially on the material and product that need to be removed from the pallet. Three tested techniques, namely the pneumatic system, the vacuum chamber, and mechanical fastening, are typically used to raise objects that need to be depalletized. Depalletizing can therefore be applied to any product. Modern depalletizers are outfitted with a control system that records product data and the assignment of parameters like speed, acceleration, clamping force, and amount of depression when lifting with a vacuum chamber to provide dynamic, secure, and cautious product handling.
Depalletizers are typically designed to remove entire layers of products from pallets, enabling very high unloading rates. However, there are specialized depalletizers capable of handling mixed pallets, using advanced vision systems to identify and lift specific items. This capability provides enhanced versatility, allowing for individual product removal and separation. By automating the pallet unloading process, depalletizers significantly boost productivity in warehouses and factories, replacing manual labor with increased accuracy and efficiency. They also offer benefits such as improved flexibility, reduced labor costs, and customization options to fit specific lengths, heights, and routes based on local conditions and infrastructure.

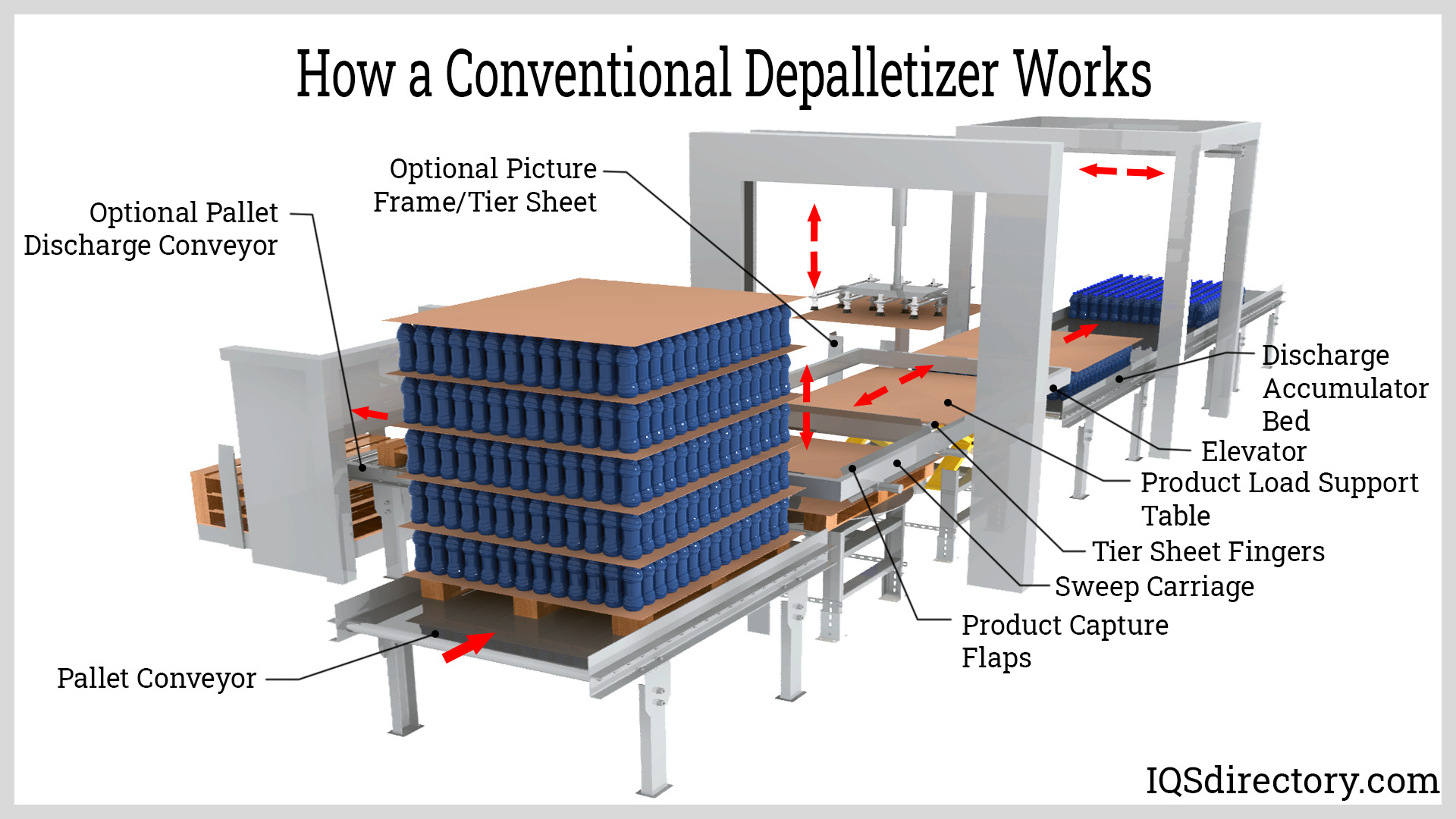

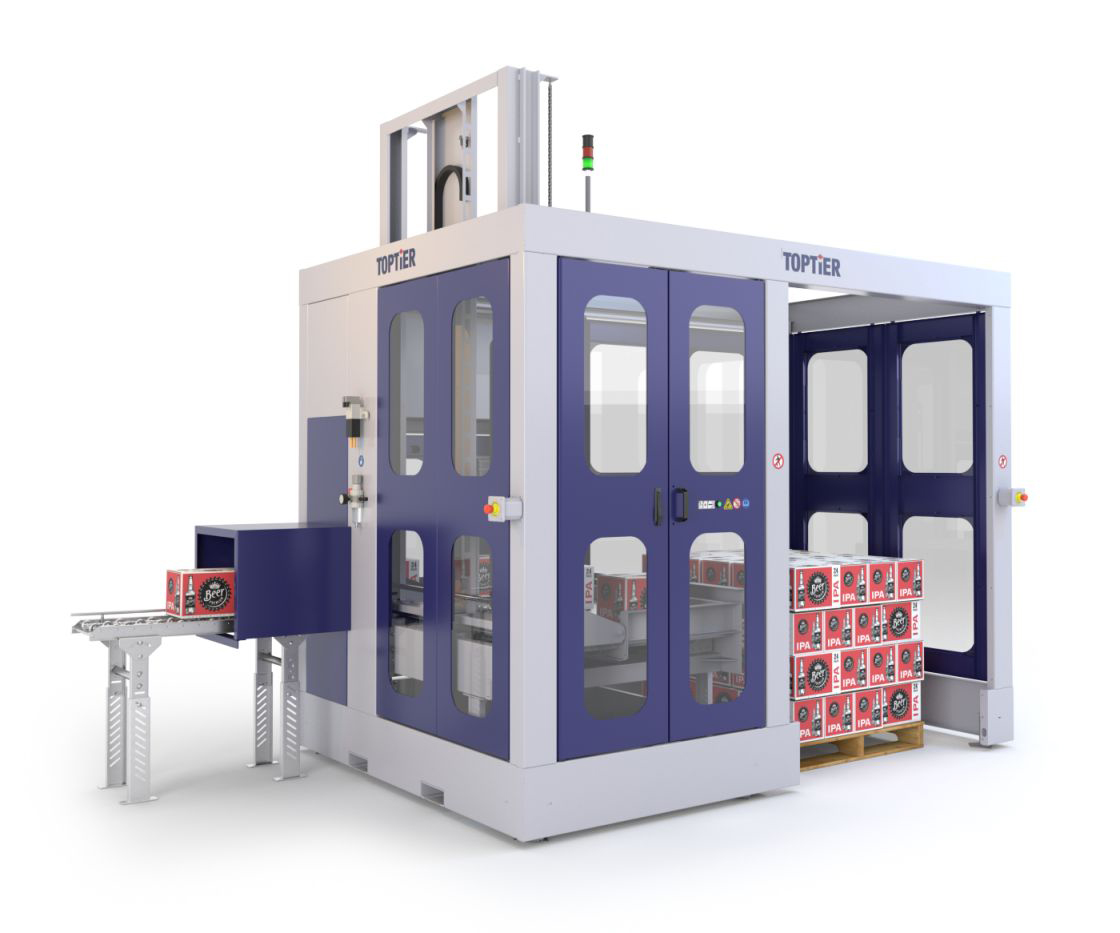

Depalletizers have several common features regardless of their specific application. They include a feed area where items are typically placed by a conveyor belt system, which can vary in elevation. Standard components of a depalletizer include a supply conveyor for delivering loaded pallets, an operating platform where the actual depalletizing occurs, a separating station for transferring the load to another conveyor while stacking the pallets, and a control platform usually managed by a PLC. Automatic depalletizing and order picking can be complex due to the variety of products and packaging types encountered in distribution centers, such as corrugated boxes, shrink-wrapped goods, open trays, or containers. Depalletizers can be customized to meet specific requirements regarding length, height, and routing based on the infrastructure, product types, and local conditions at the customer’s facility.
In essence, a worker or a machine removes the plastic coating from the pallet as it arrives. The depalletizer then removes the items from the pallet one at a time in case depalletizing or all at once after the feeding conveyor has moved the pallet to the depalletizing station. Different depalletizing machines operate according to different principles. Depending on the type of equipment being unloaded, the objects may be taken out using a mechanical arm, magnets, or suction. After emptying the pallet, a conveyor belt moves it (the pallet) out of the way to make room for the following pallet. Finally, the deleted pieces are delivered to the following step of manufacture or shelving.
Leading depalletizer manufacturers offer systems tailored to meet specific customer needs. Selecting the right depalletizer is crucial, as it can significantly influence daily business operations. Key considerations include:
Increasing speed and reliability has always been a primary goal of depalletizer technology. While both traditional and robotic depalletizers are now adept at managing diverse load-building requirements, robotic systems generally cannot match the speed of conventional depalletizers. Traditional models excel in high-speed, repetitive operations, whereas robotic systems offer greater flexibility and precision. A common practice is to set the depalletizer's unloading speed to be 20% faster than the incoming speed. For businesses with slower operations, a manual depalletizer might be a suitable first step toward automation.
Depalletizers face unique challenges when handling different product types, such as bags, pails, and irregular shapes. Conventional depalletizers perform best with packages of uniform size and shape but often require additional support to manage flexible or non-rigid packaging. In contrast, robotic depalletizers are well-suited for handling a wide variety of package forms delicately and autonomously. Thus, robotic systems are ideal for complex packaging types, while traditional depalletizers are more effective for consistently shaped packages.
A major resource in packing operations is floor space. Depalletizers should therefore offer the highest feasible space-to-performance ratio. Due to their design and associated catwalks and conveyors, conventional high-level depalletizers normally take up the greatest floor space; traditional low-level palletizers use around 30% less room. Robotic depalletizers can fit in smaller places depending on the configuration and conveyance requirements. When first talking with suppliers, it should be discussed whether the plant's floor space is an issue and whether a robotic palletizer or a traditional depalletizer with a small footprint will suit the line layout the best.
Conventional depalletizers achieve high safety levels through restricted access protections. Robotic depalletizers, however, often require safety enclosures that are not always integral to the robot's operation but are crucial for ensuring safe operation.
The layout of the production line will determine whether a low-level or high-level depalletizer is appropriate. A high-level depalletizer is advantageous if the goal is to unload pallets at the receiving dock and then move containers overhead to the production line. Conversely, low-level depalletizers can unload containers directly at floor level, which might reduce costs related to overhead conveyors and additional labor, especially if positioned before the bottle cleaner.
Both traditional and robotic depalletizers can accommodate upper and lower floor in-feed configurations. Conventional depalletizers achieve optimal speed with upper-level in-feed, while robotic systems are often located at lower levels and require separate conveyors to transport products from upper levels to the ground.
Investing in a depalletizer can be costly but is often a valuable long-term investment. High-level depalletizers tend to have higher purchase and installation costs due to the need for additional platforms and catwalks. On the other hand, low-level depalletizers, which can be installed on existing line conveyors, generally have lower installation costs.
Conventional depalletizers require regular maintenance, typically manageable by skilled plant mechanics. Low-level depalletizers are easier to maintain on the ground, while high-level machines may present more challenges due to their elevated position. Robotic depalletizers, with fewer mechanical parts and longer duty cycles, still need routine maintenance, particularly for end-of-arm tools. As the use of robots in depalletizing increases, this specialized maintenance knowledge is becoming more widespread.
Depalletizing systems offer various degrees of flexibility, including pallet arrangement programming at the control center. For instance, robotic and hybrid depalletizers can handle mixed-load pallets and various products on each layer for specific shipments. They can also be equipped with different end-of-arm tools to accommodate various sizes and shapes of products.

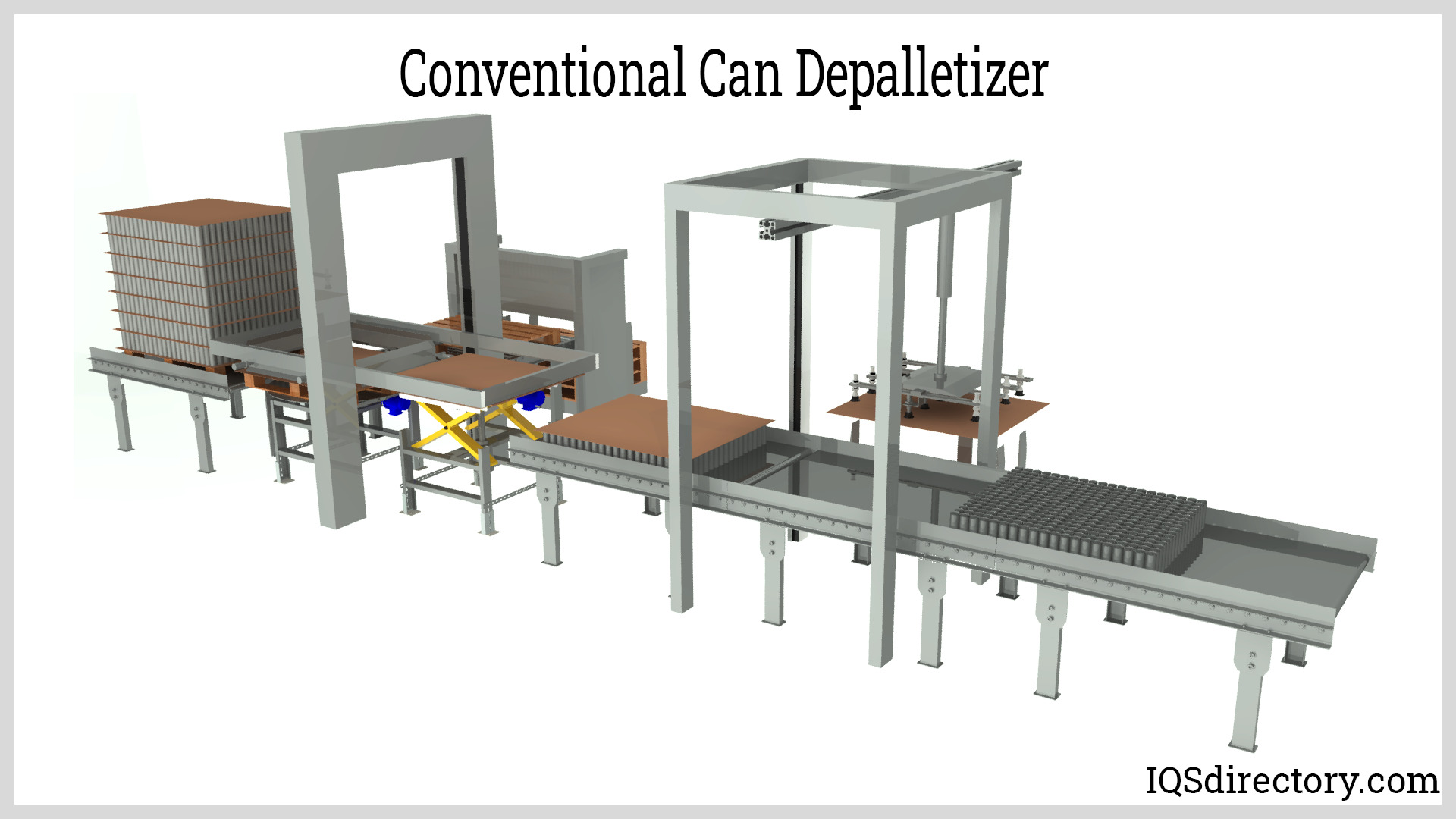

Robotics are typically not involved when mechanical or traditional depalletizers are used to transfer containers from a pallet to another conveyor for storage or packaging. Conventional depalletizers use simple methods such as hydraulics, pneumatics, and sliding mechanisms to remove items from a pallet. These systems can be configured as fully or semi-automatic by incorporating features like sweeper motors or layer pad grippers, or a combination of both. Depalletizers are generally categorized into two types: low-level feeding and high-level feeding.
Most manual or traditional depalletizers employ a bulk depalletizing approach, which involves removing the entire load from the pallet in one go by sliding it off using a sweeping carriage. The pallets are then stacked and discharged via a conveyor. Alternatively, case depalletizing is used when removing one case or box at a time. Depalletizers designed for case removal are the most common type.

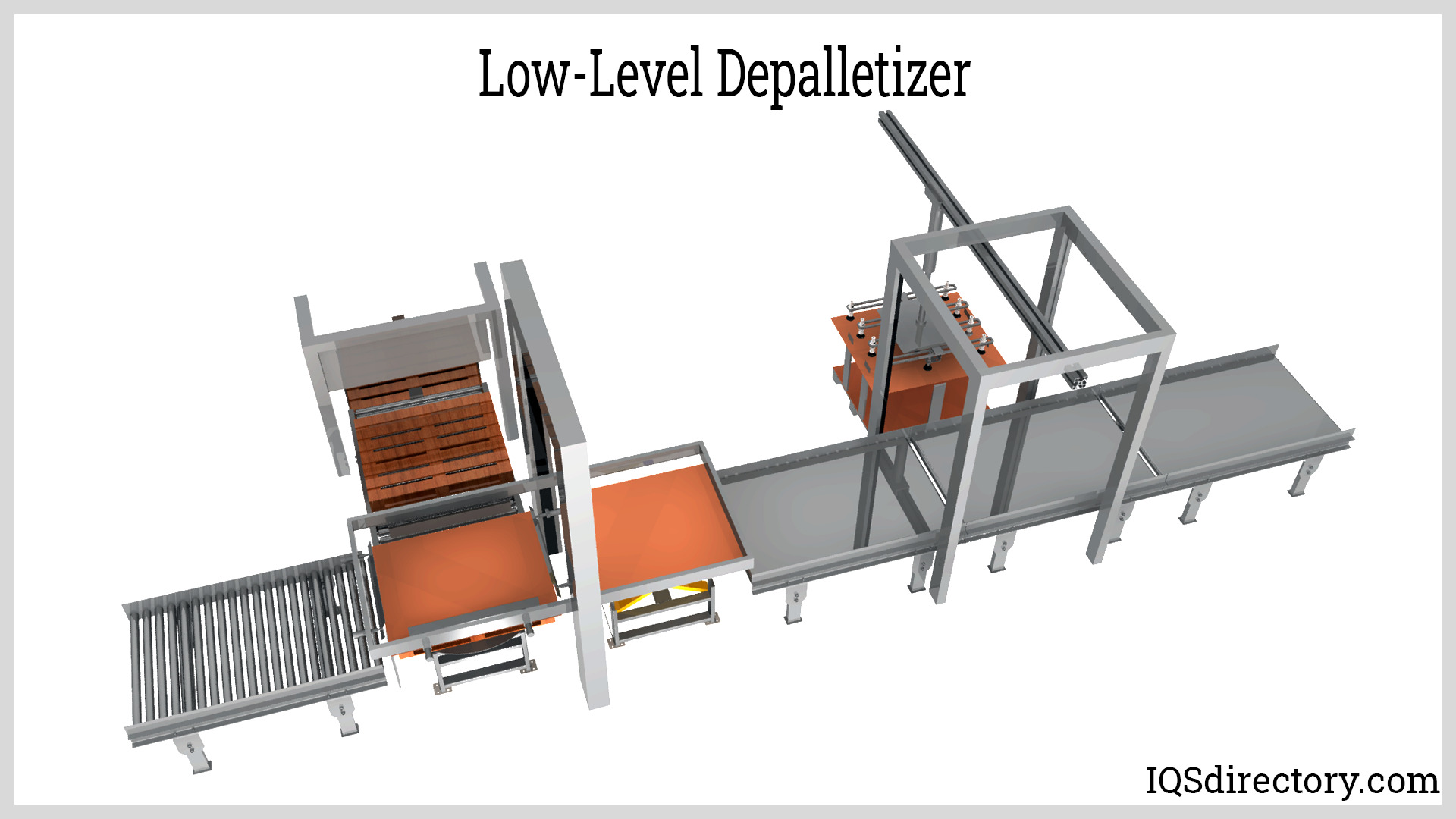

The low-level depalletizer offers a budget-friendly and efficient method for managing large, multi-layer pallets of materials such as corrugated boxes, drums, glass, or plastic containers. Its compact design allows for the easy and secure loading of pallets via a manual pallet lift. After the lift is activated and the stack is adjusted to the proper height, a push paddle moves the load layer onto a conveyor. This type of depalletizer operates at ground level and uses a sweep-off approach to unload containers. It includes specialized top and secondary layer alignment mechanisms to ensure stable container handling. The system is user-friendly, with simple controls available from an operator's control panel. By focusing on ease of use, control, and maintenance at ground level, this depalletizer reduces operational expenses and improves convenience. Its open, clear design enhances visibility on the production floor, and its advanced features allow for precise management of layer movement and discharge. This depalletizer is ideal for consistent, long-term productivity in bottle handling.
Floor-level depalletizers occupy less floor space compared to high-level models, making them more economical and simpler to construct. Their design allows for easier maintenance because most components are accessible at ground level, which simplifies upkeep. Additionally, since many of the moving parts are positioned at eye level, operators can easily observe the machine's functionality. These depalletizers are designed with flexibility, allowing customization to fit specific requirements. They feature a robust construction, use high-quality materials, and are designed with ease of use, reliability, and a compact footprint in mind.
Low-level depalletizers receive pallets directly from the ground, while high-level depalletizers are fed by an overhead hopper. High-level depalletizers are designed for high-speed operations, making them ideal for bottling lines where empty bottles are transferred from a pallet to a conveyor for filling. These machines are often fully automated and can efficiently handle rates of up to four layers per minute. They gently move containers onto a high-level discharge conveyor after neatly removing them from the pallet. Some models offer the versatility to handle various container types, including composite, glass, aluminum, steel, or plastic, without requiring additional components.
Certain depalletizers transfer each layer individually to the production area via a takeaway belt. This design is particularly reliable for packagers needing high-level or ceiling-height discharge of containers. It includes an on-floor control station that simplifies monitoring and reviewing operational data while combining the advantages of high-level bulk depalletizing with the convenience of floor-level equipment. Built for durability and equipped with advanced features for precise control from pallet to discharge table, this depalletizer represents an excellent choice for modern bottle-handling needs.

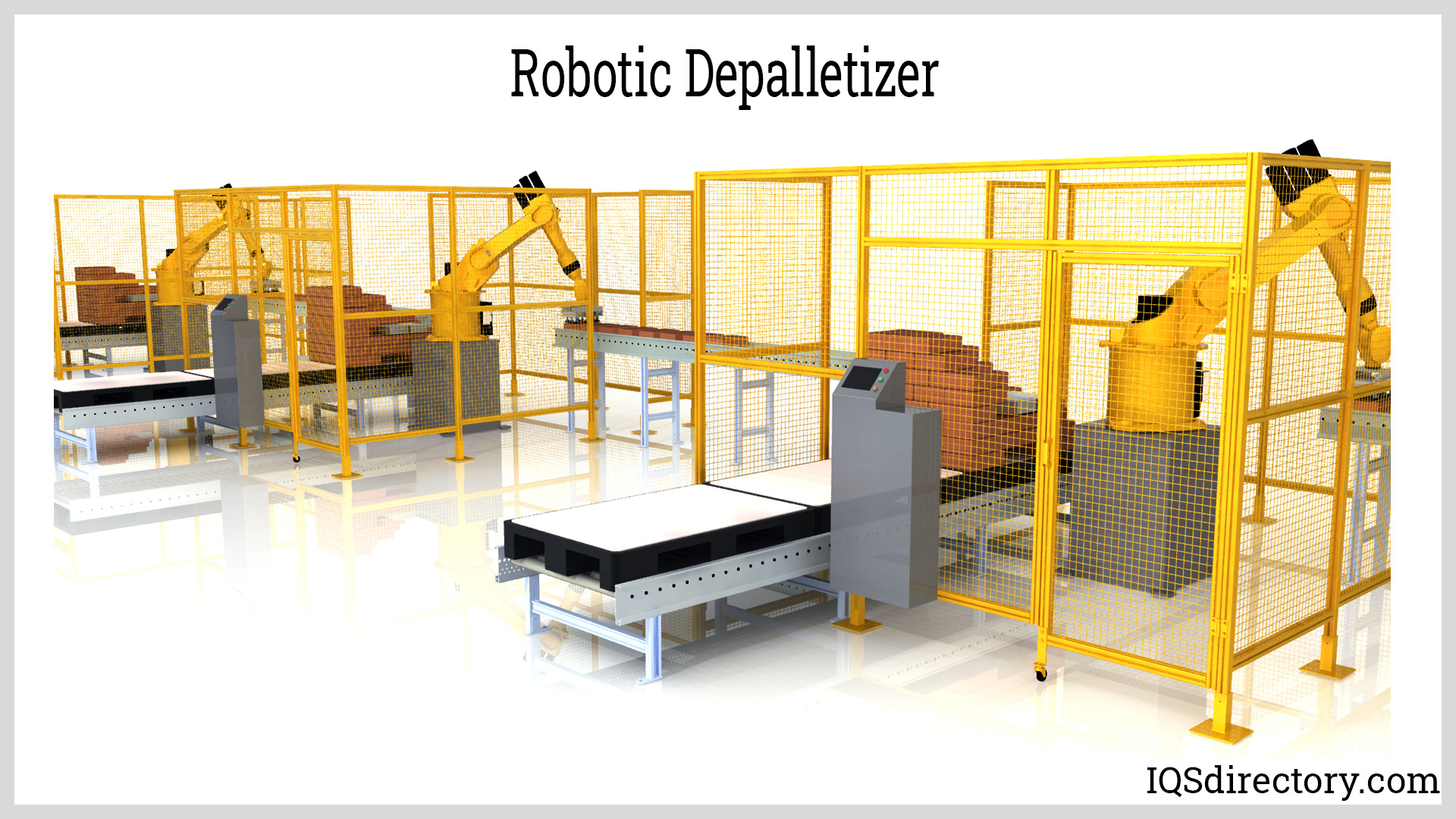

Robotic depalletizers can operate continuously even during disruptions like pandemics, ensuring consistent performance. They are capable of meeting seasonal and increasing consumer demands if the production lines are designed for it. Integrating a robotic depalletizer can enhance production by up to 1,900 cycles per hour. Utilizing these systems effectively reduces labor costs and operational expenses. Robotic depalletizers achieve speeds beyond human capability, handling over 100 cases per minute. Typically, these systems are organized into cells, with each robot functioning independently within its cell, though multiple cells can work together if needed. Additionally, robotic depalletizers can manage much heavier and larger loads with greater precision and reliability than manual labor.

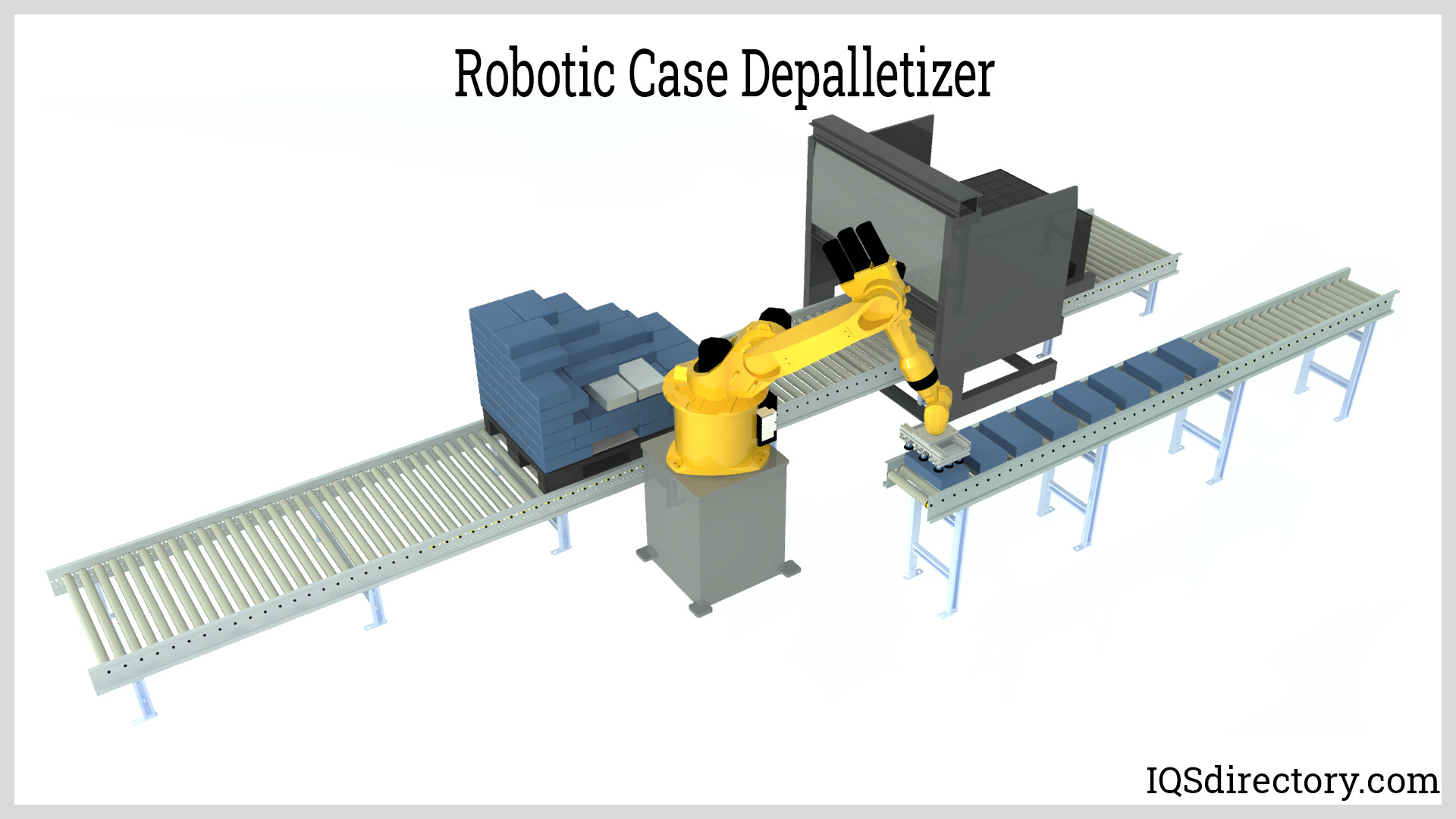

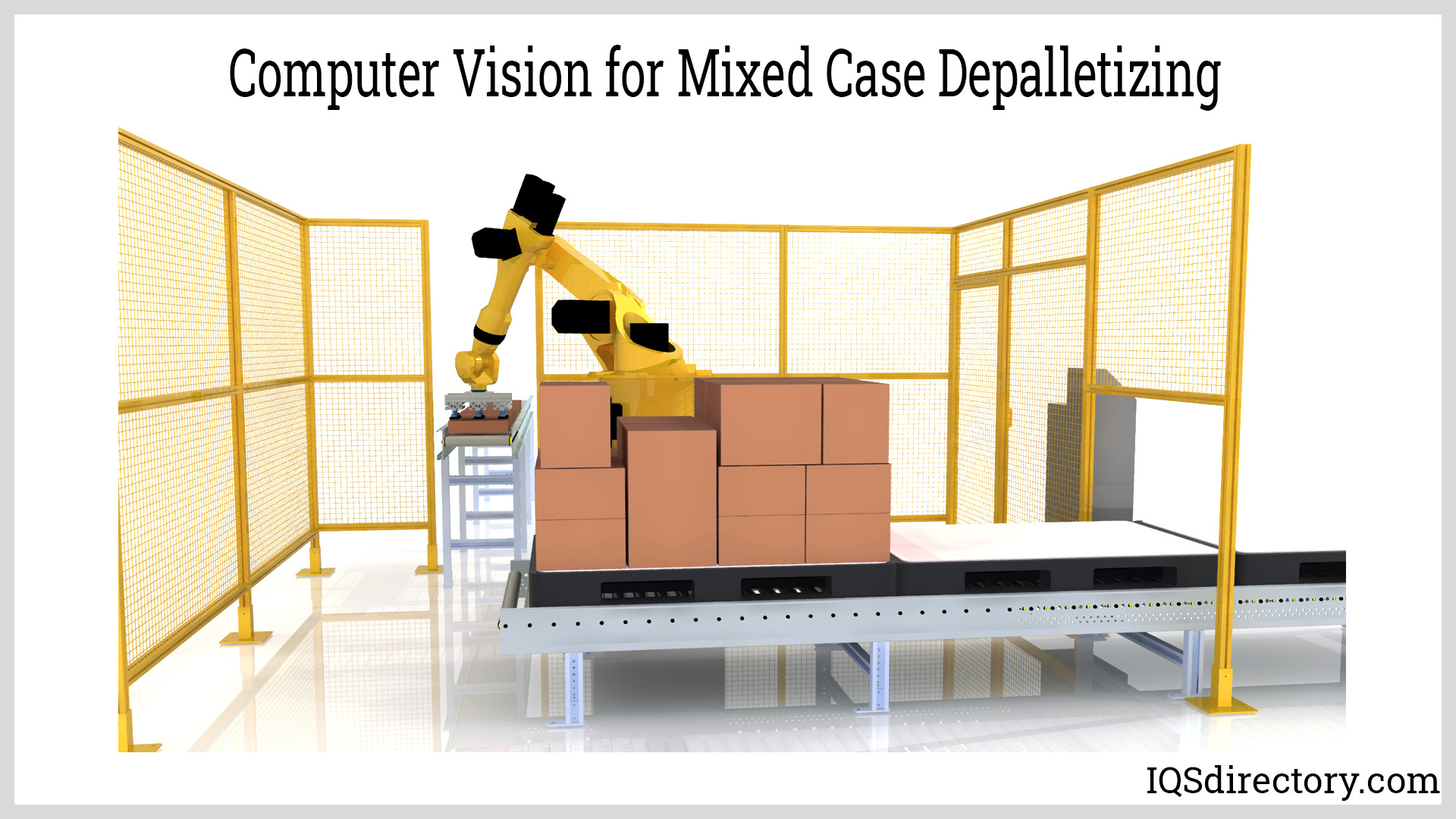

Most robotic depalletizers can handle mixed items, a depalletizing technique that automates the unloading of various products from a single pallet. Mixed pallets increase pallet density, enabling diversified, demand-driven pallets perfect for distribution, food and beverage, and online retail businesses. These loads, sometimes known as "rainbow pallets," might be made up of various products inside a layer or homogeneous layers of any one product. Advanced machine vision and artificial intelligence assist the robot in precisely and safely picking and arranging products for efficient mixed-load pallet unloading. With this state-of-the-art technology, mixed product depalletizing robots can handle both existing items and the integration of new products without any training or programming. Instead, the artificial intelligence program compiles a library of items it has seen and handled over time, coupled with optimal picking data as new things are released. As a result, the entire fleet may continuously learn from one another and work as a single, incredibly effective depalletizing operation. Robotic depalletizers can be defined by the end effector's working principle or by the robot's type.
A robot equipped with an ultrasonic sensor at the end of its arm determines the position of newly arrived loads. This sensor helps accurately locate each layer of the load. After identifying the load's position, the robot removes the top layer pad and top frame, placing them on a stack. The robot then continues to remove each subsequent layer until the entire load is cleared. Once the load is fully depalletized, the robot transfers the empty pallet to a separate stack.
To ensure that an empty pallet is correctly stacked, the robot uses proximity sensors that prevent damage from excessive movement. An alternative option is to use a standard pallet magazine for stacking. The robotic case depalletizer features a variable footprint design, precise package insertion, and gentle handling of products. It efficiently manages different product sizes simultaneously and adapts well to product changes. This flexibility reduces the need for multiple conventional depalletizers, which are usually required for different product lines with extensive changeovers. Additionally, it demands less maintenance compared to traditional systems and offers advanced safety and monitoring capabilities.

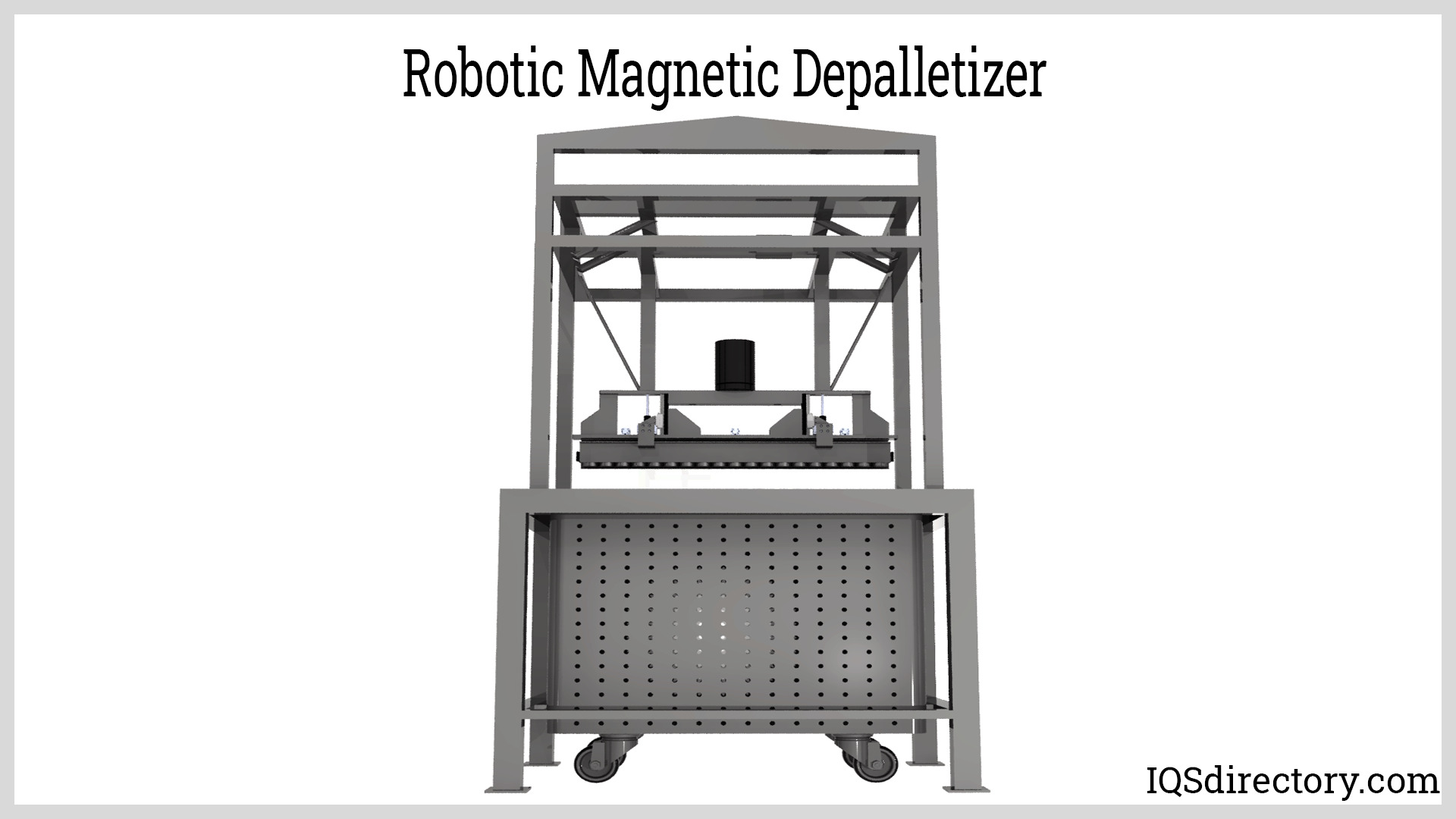

Magnetic depalletizers are designed for handling containers such as cans, bottles, and glass jars equipped with twist-off caps. These systems operate effectively with metal parts that have sufficient ferrous content to ensure optimal magnetic performance. The dimensions and magnetic strength of these depalletizers are tailored based on the specific technical needs of the customer, including magnetic efficiency, size, and weight considerations. They feature an internal magnetic system activated by ejectors or pneumatic cylinders, and their construction typically combines steel and stainless steel. These depalletizers facilitate the swift and efficient loading and unloading of pallets by easily handling layers of various materials, including tinplate cans (both empty and filled), glass jars with twist-off caps, and bottles with metal closures. Depending on the required magnetic field strength and depth, which are influenced by the shape and size of the materials, the magnets used can be either ceramic or neodymium, with configurations that vary in layers and dimensions.

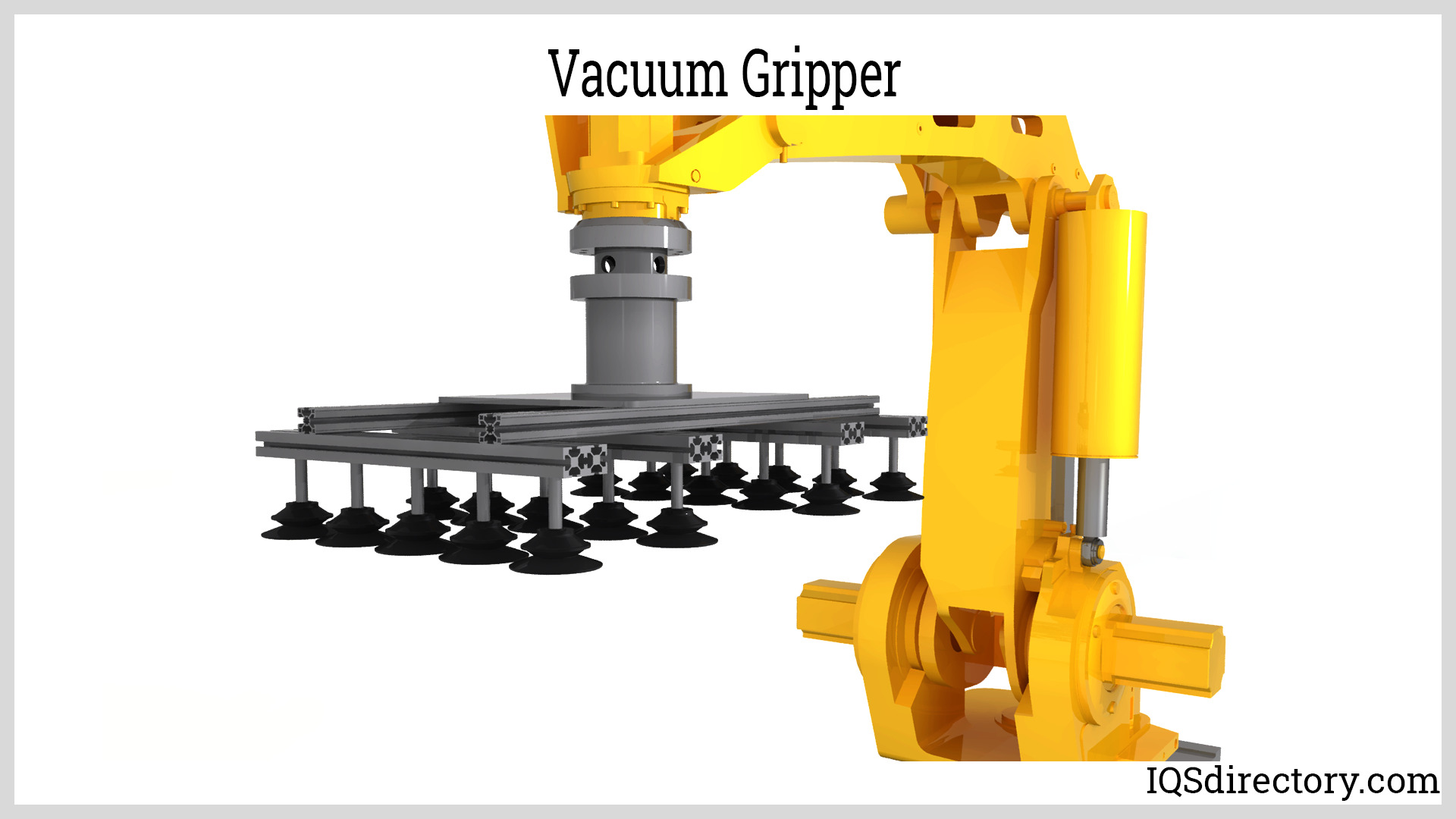

A vacuum end effector can be attached to the end of a robotic arm, using suction to securely grasp items. This type of end effector is commonly used for handling standard slotted containers and can be configured to pick up multiple cases simultaneously or one at a time. Vacuum end effectors are particularly effective for managing flat loads, such as cardboard boxes, making them ideal for various depalletizing tasks.

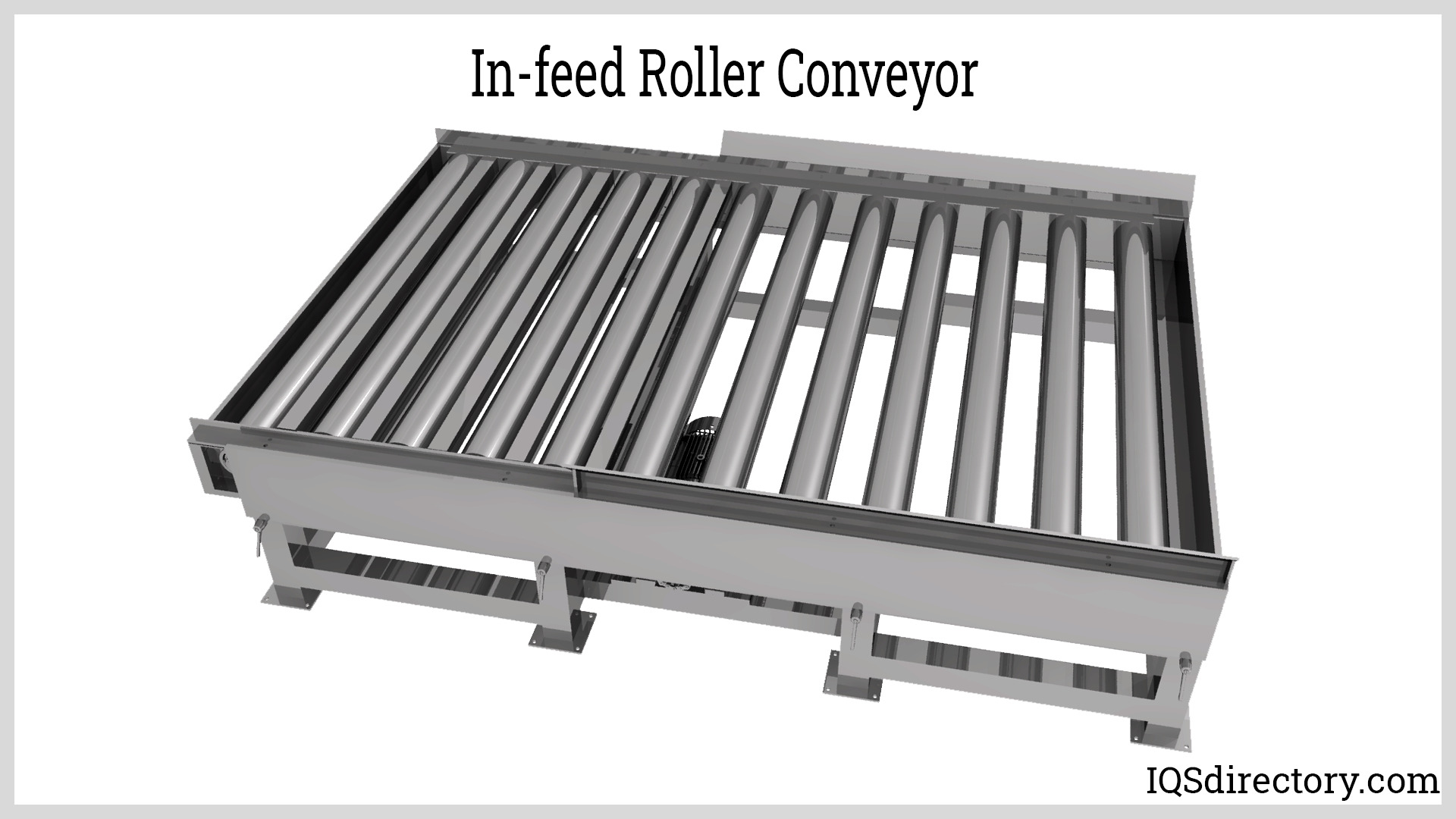

The in-feed conveyor is responsible for receiving stacked pallets and can be designed for front, back, or side in-feed configurations. This feature is essential for both floor-level and high-level depalletizers, ensuring that they accommodate various pallet entry methods.
This component is responsible for transferring the unloaded goods from the pallet. It moves the items to subsequent stations in the assembly line or to a storage area.

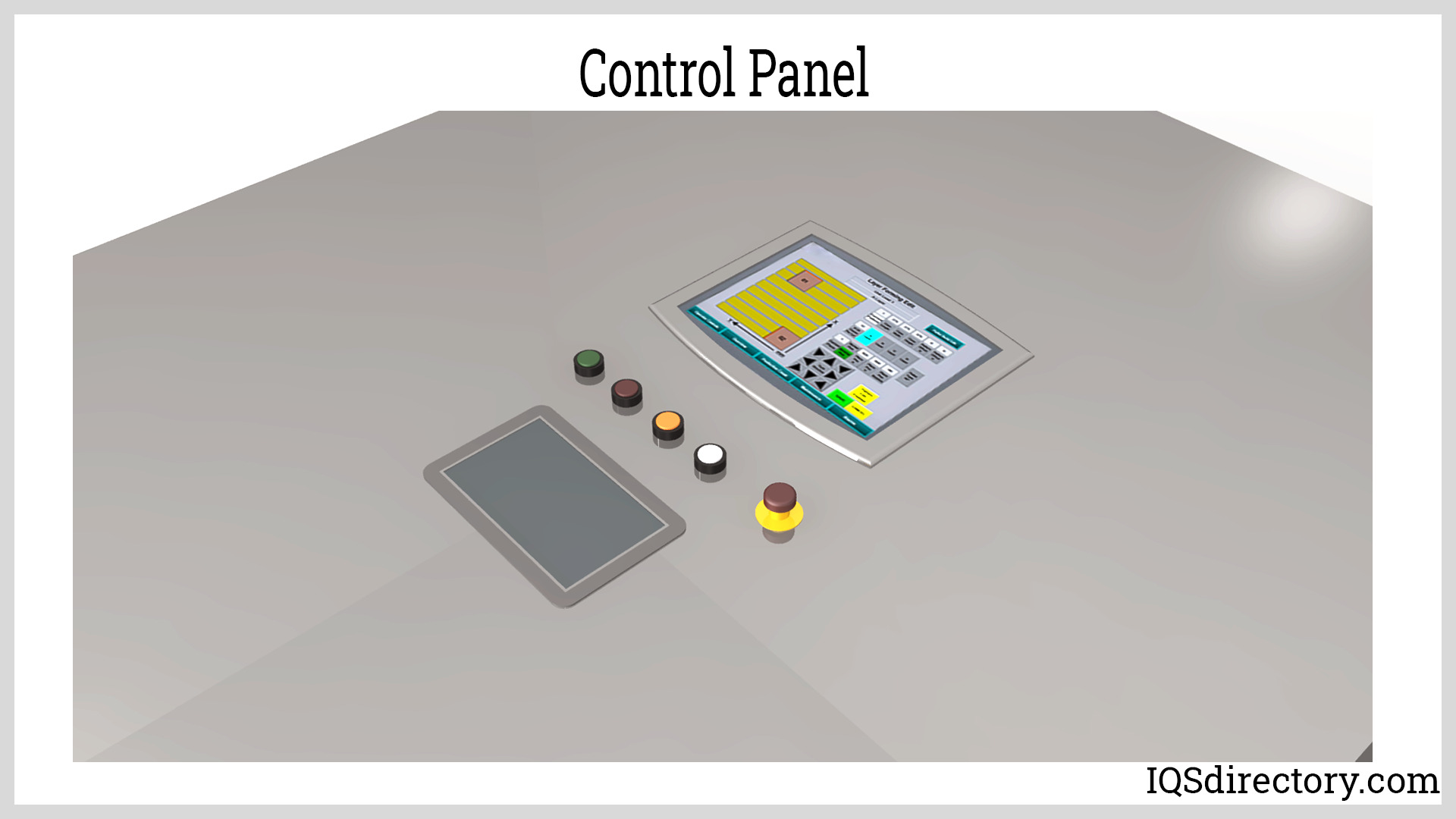

Here, operators troubleshoot, adjust, or reprogram the depalletizer machine and its automatic accessory components. The PLC, which opens and closes circuits according to the machine's programming, serves as the core element of the control panel.

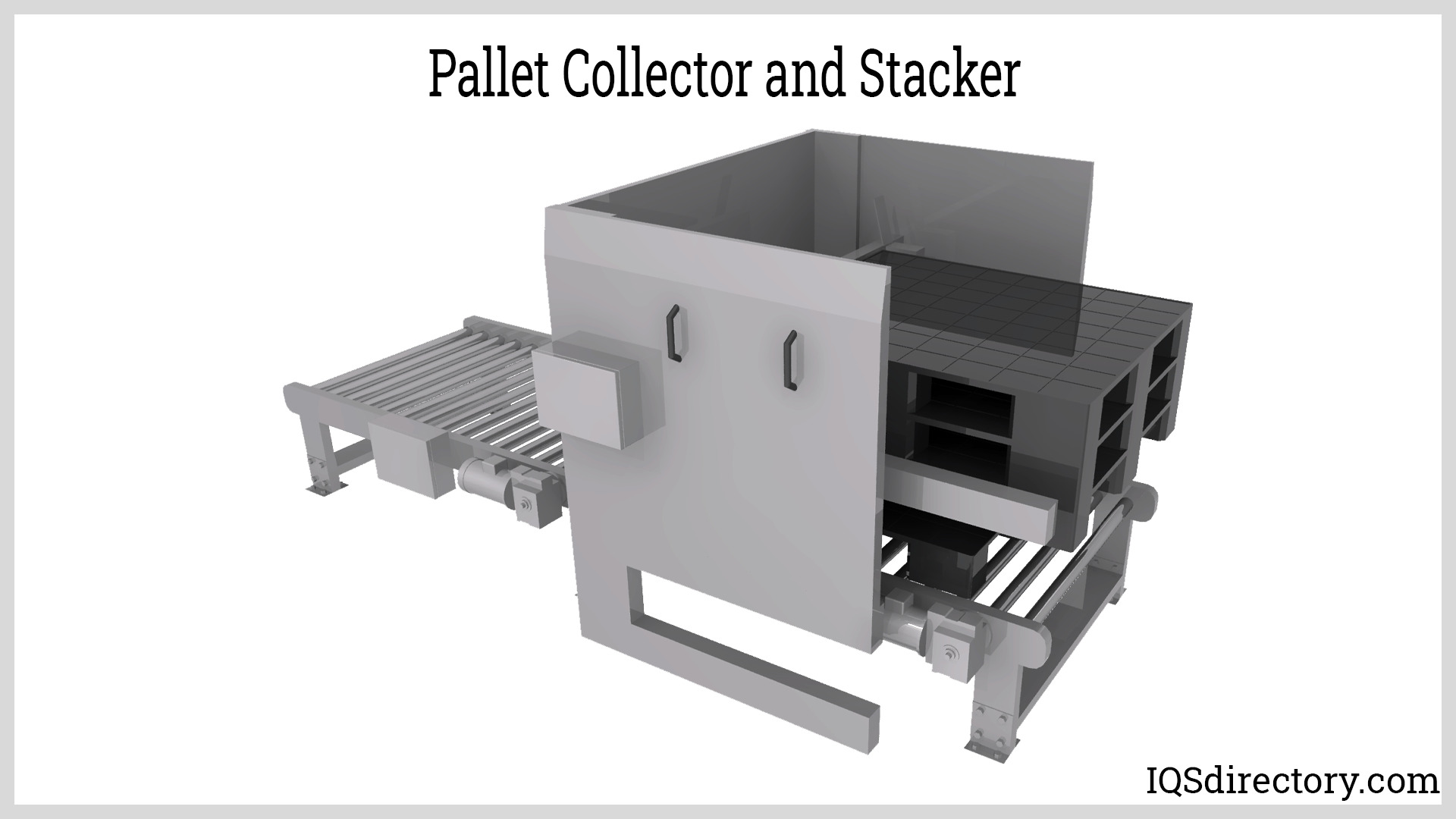

This component is responsible for collecting empty pallets to ensure continuous operation of the depalletizer. After a pallet has been fully unloaded, the empty pallet is gathered and either stacked or transported for further collection.
This equipment, which can be integrated or standalone, is used to check the weights of bagged goods as a quality assurance measure before they are stored and distributed.
These mechanical devices create lateral gaps in the row-forming area to shape the pallets correctly. Programmable logic controllers (PLCs) operate pneumatic valves and cylinders to serve as stops, regulating the orientation of the feeding pallets.

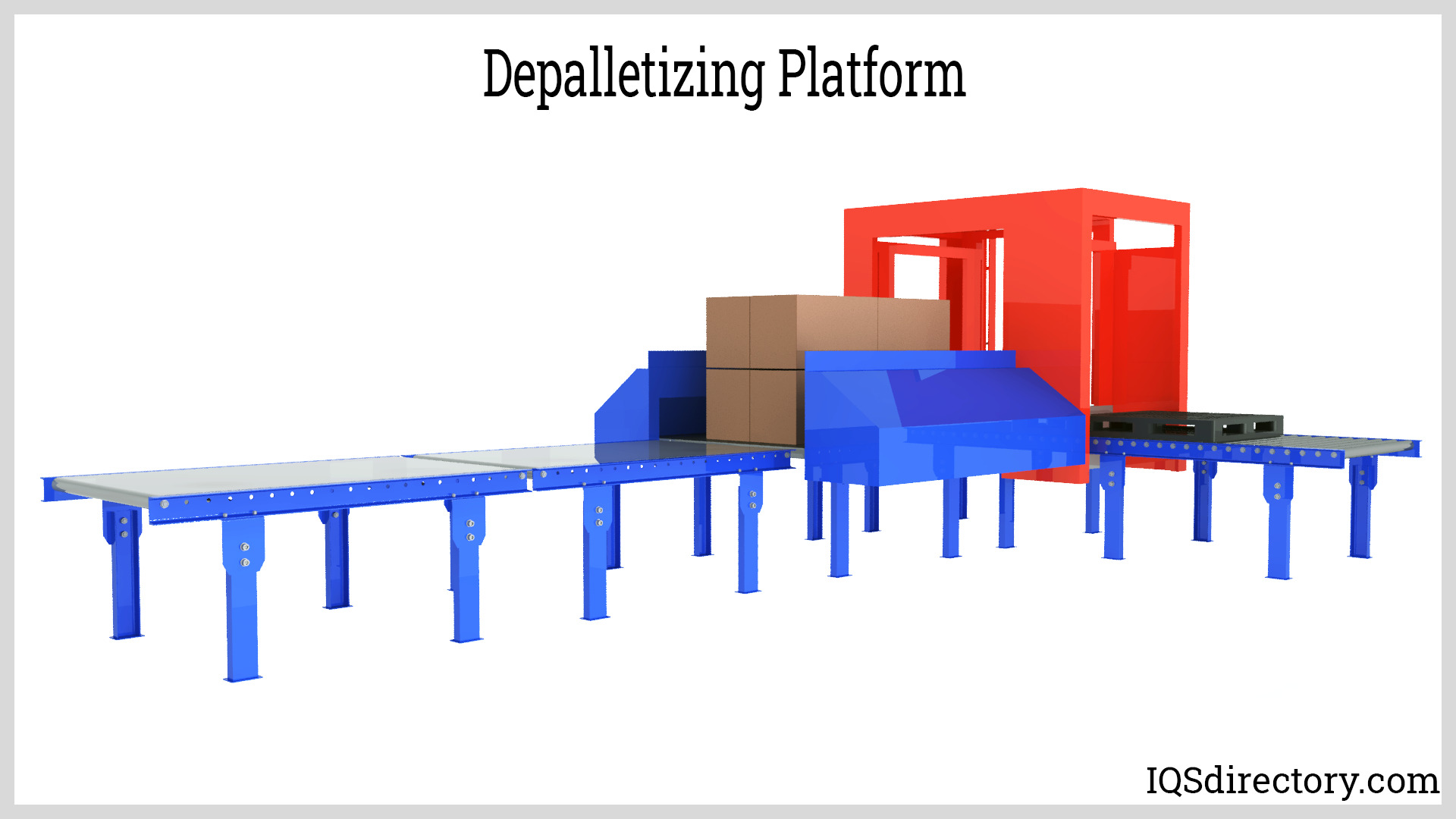

At this station, the load is removed from the pallets. In some depalletizers, two panels keep the items together as they slide onto the offloading conveyor.
This component supports the end effector, enabling linear movement along a single axis. Motion is driven by servo motors using mechanisms such as chain and sprocket drives, rack and pinion gearing, or roller and rail systems. Beams are integral to Cartesian and gantry depalletizers.
Mounted on a fixed base, this component supports the beam or arm and end effector assembly. It allows for vertical movement through hydraulics, servo motors, or chain drives.
Typically featuring a two-link design, these mechanisms enable the end effector to rotate, extend, or fold within the horizontal plane.
These components facilitate the rotational movement of other parts within the system. Depending on the desired versatility, a depalletizer may include multiple joints.

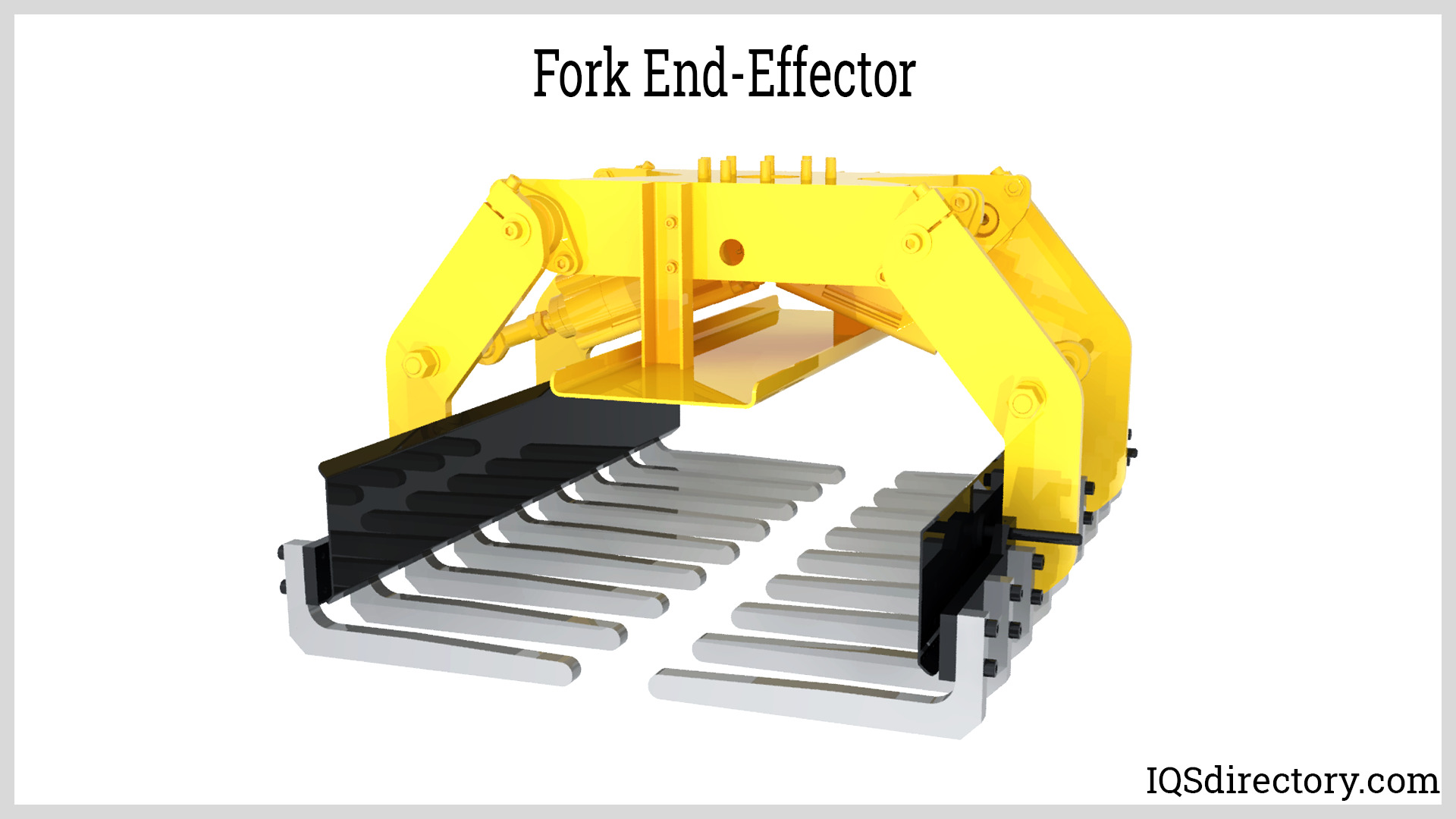

Also referred to as end-of-arm tools, the end effector is a critical component in robotic depalletizers. It is responsible for picking up and correctly positioning the product. It may be designed to handle various items using a single tool.
With the rise of e-commerce, more flexible automation solutions are essential. Depalletizers play a crucial role in warehouse and storage logistics within the supply chain by unloading large quantities of products. Faced with labor shortages, rising costs, and booming e-commerce, warehouse managers are turning to automation to handle palletizing and depalletizing more efficiently. Automation helps enhance productivity, reduce costs, and optimize operations without relying on additional manual labor.
In manufacturing environments, depalletizers are employed to quickly unload bulk materials and streamline production processes. They are particularly useful in handling raw materials, such as empty jars or bottles, and are often equipped with advanced robotic tooling for versatility in managing different separator sheets and boards according to specific production requirements.
In large retail and wholesale environments, depalletizers are used to unload pallets from trucks and place them onto shelves, saving time and improving efficiency. Robotic depalletizers are especially suitable for these tasks, offering long-term benefits through increased automation.
Depalletizers are integral to fulfillment and distribution centers for key tasks such as shipping, retrieval, and storage. Robotic depalletizers excel in rapidly disassembling pallets upon arrival, which is crucial for fulfilling single or mixed-case orders. They are also part of systems that sort and distribute products efficiently due to their ability to handle various product types and profiles.
In the food and beverage industry, depalletizers efficiently handle empty bottles, moving them directly into production lines for filling. Designed specifically for this purpose, low-level depalletizers are recommended for their effectiveness in managing empty bottles and integrating seamlessly into production workflows.
