Discover everything about wastewater evaporators available online. This comprehensive guide covers:
A wastewater evaporator functions by transforming water-based waste into vapor, effectively separating impurities and reducing the total volume of waste materials. This process plays a crucial role in efficient waste management.
The handling of wastewater falls under stringent regulations, ensuring careful oversight and management. Companies producing wastewater evaporators work closely with regulatory bodies to ensure the environmentally safe disposal of industrial waste materials.

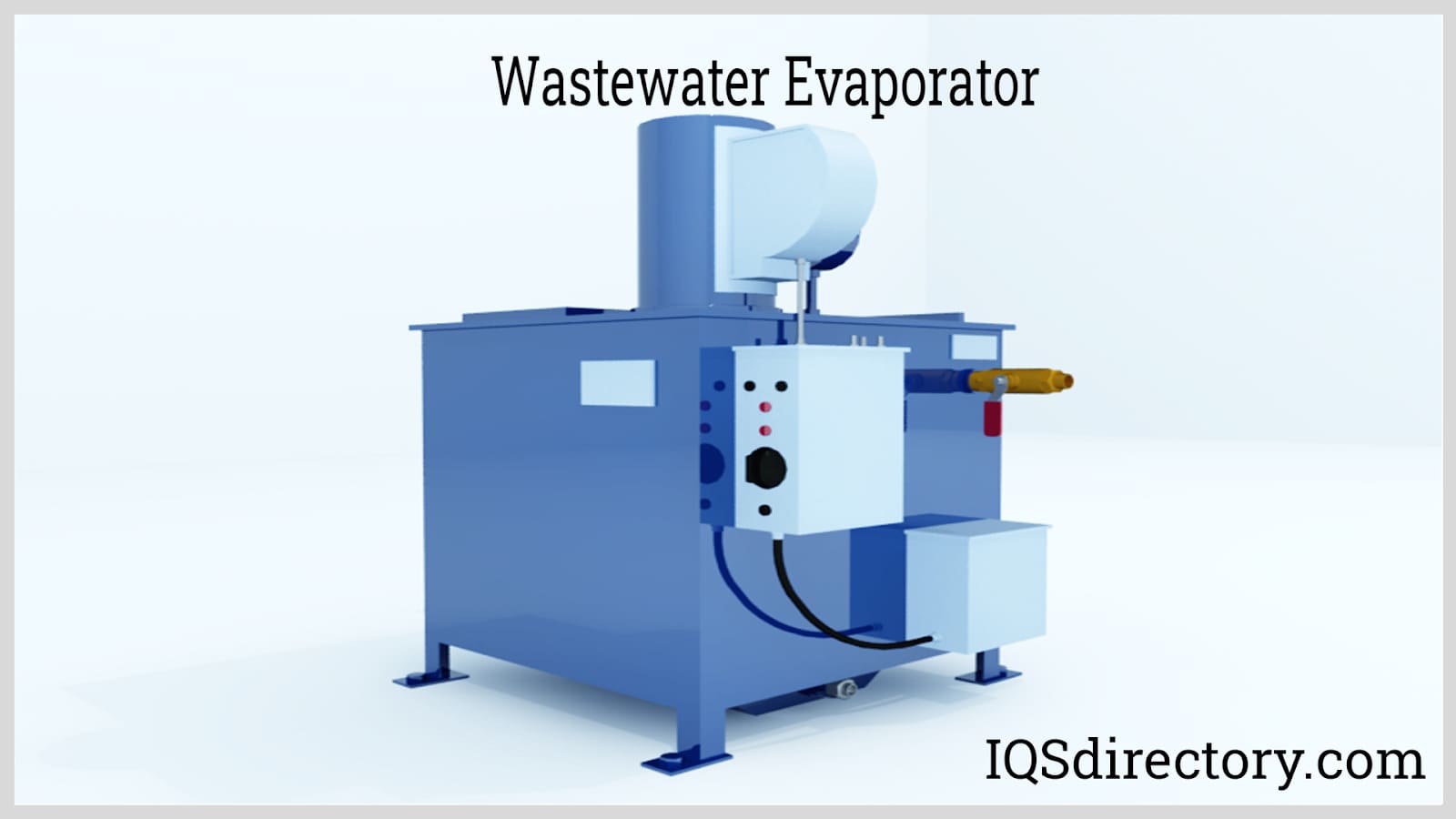

A wastewater evaporator is an advanced industrial wastewater treatment solution that utilizes the principles of thermodynamics and mass transfer to efficiently separate water from various waste materials. In wastewater evaporation, thermal energy is applied to the liquid waste, causing the water within it to reach its boiling point and vaporize. This evaporated water is then removed from the system as steam or water vapor, allowing for a significant reduction in waste volume. Common fuel sources for this process include natural gas, electricity, oil, or steam, making wastewater evaporators highly adaptable across different manufacturing and industrial wastewater treatment applications.
Once water is vaporized during the evaporation process, the resulting water vapor is moved as droplets by a blower or air mover, typically without additional filtration steps. This process is fundamental for facilities needing to manage and treat challenging substances within industrial wastewater, such as organic compounds, heavy metals, oils, salts, and hazardous chemicals.
Modern wastewater evaporators offer an effective alternative to traditional wastewater management methods such as solar evaporation ponds. Traditional solar evaporation requires large areas of land and often struggles with slow operational speeds and increased maintenance. In contrast, mechanical evaporators and thermal wastewater evaporation systems greatly enhance evaporation rates, reduce land usage, and yield a faster, more reliable means of wastewater volume minimization. Consequently, wastewater evaporation is increasingly favored for liquid waste concentration, pollutant removal, and compliance with strict environmental water discharge regulations.

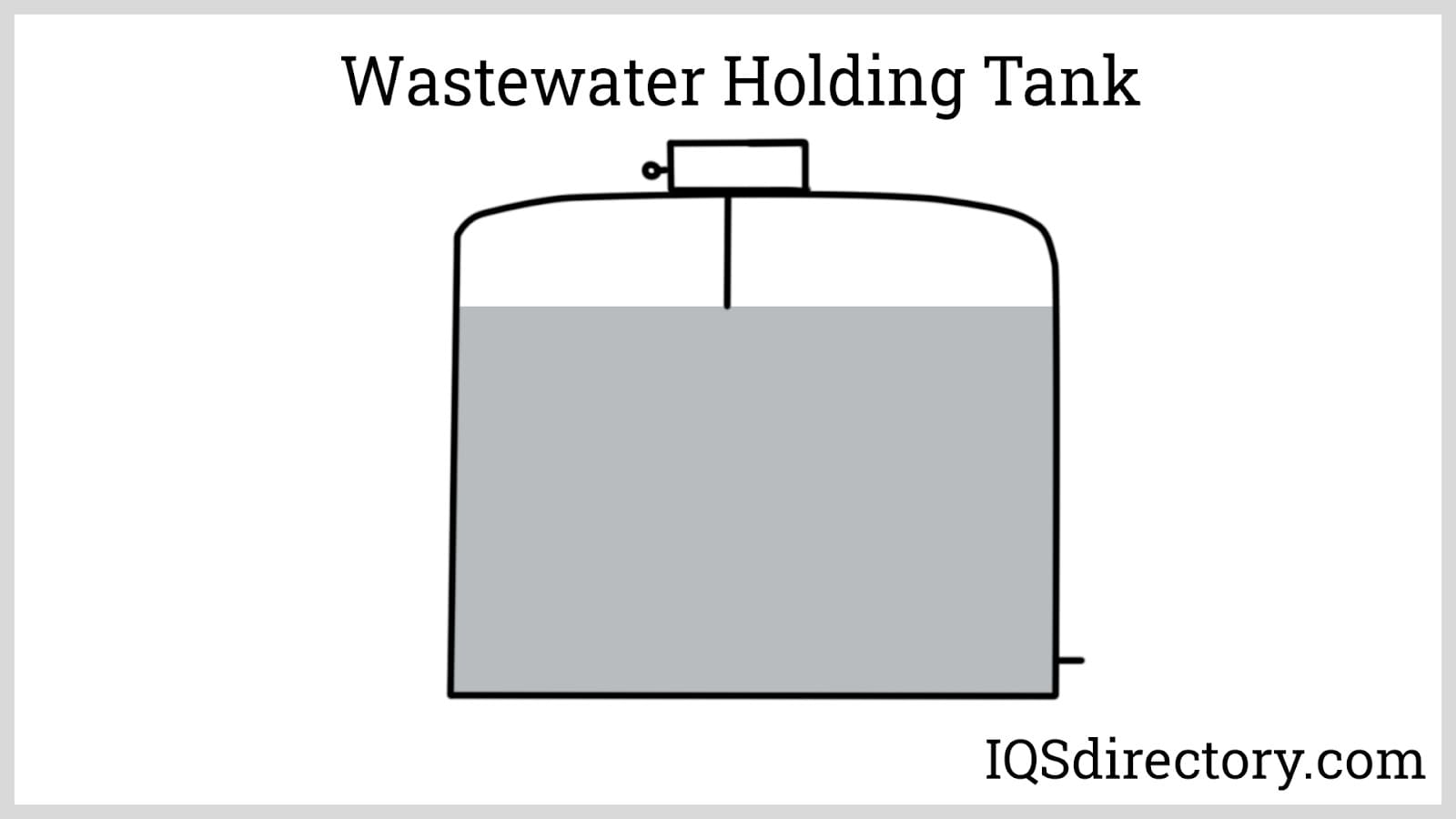

Raw wastewater from various sources—such as industrial process water, rinse water, or contaminated liquids—is first collected in a holding tank. This pre-treatment storage stage allows for consistent metering of wastewater into the main evaporator unit, aiding in efficient batch or continuous operation and improving the overall effectiveness of wastewater treatment plants.

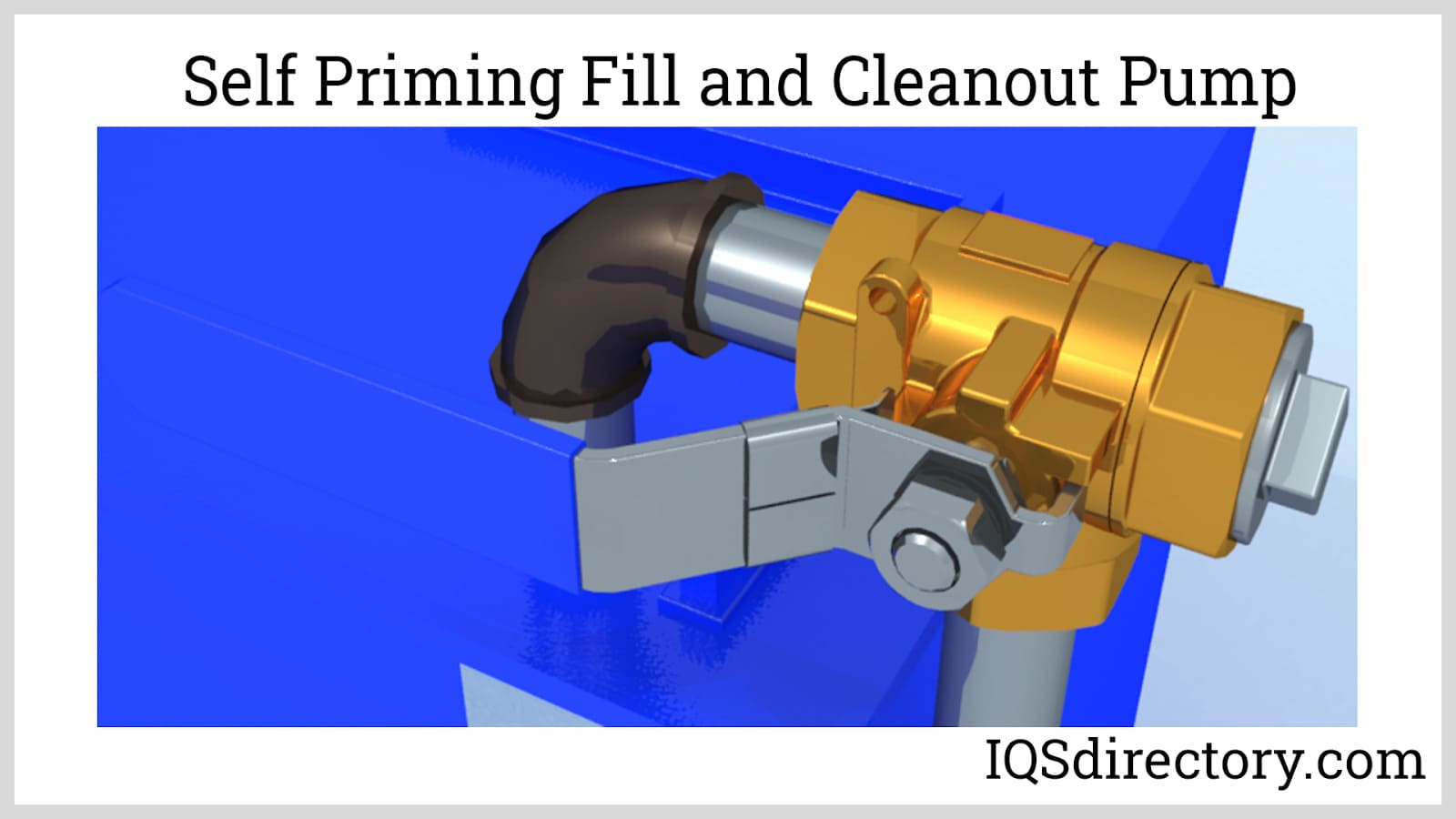

A wastewater feed pump transfers liquid waste into the evaporator chamber. The pump system may be operated manually or configured for automated process control using an autofill system, ensuring consistent water levels and optimal process efficiency. The feed pump selection depends on the viscosity and composition of the wastewater, which can range from high solid content slurries to relatively clear effluent streams.

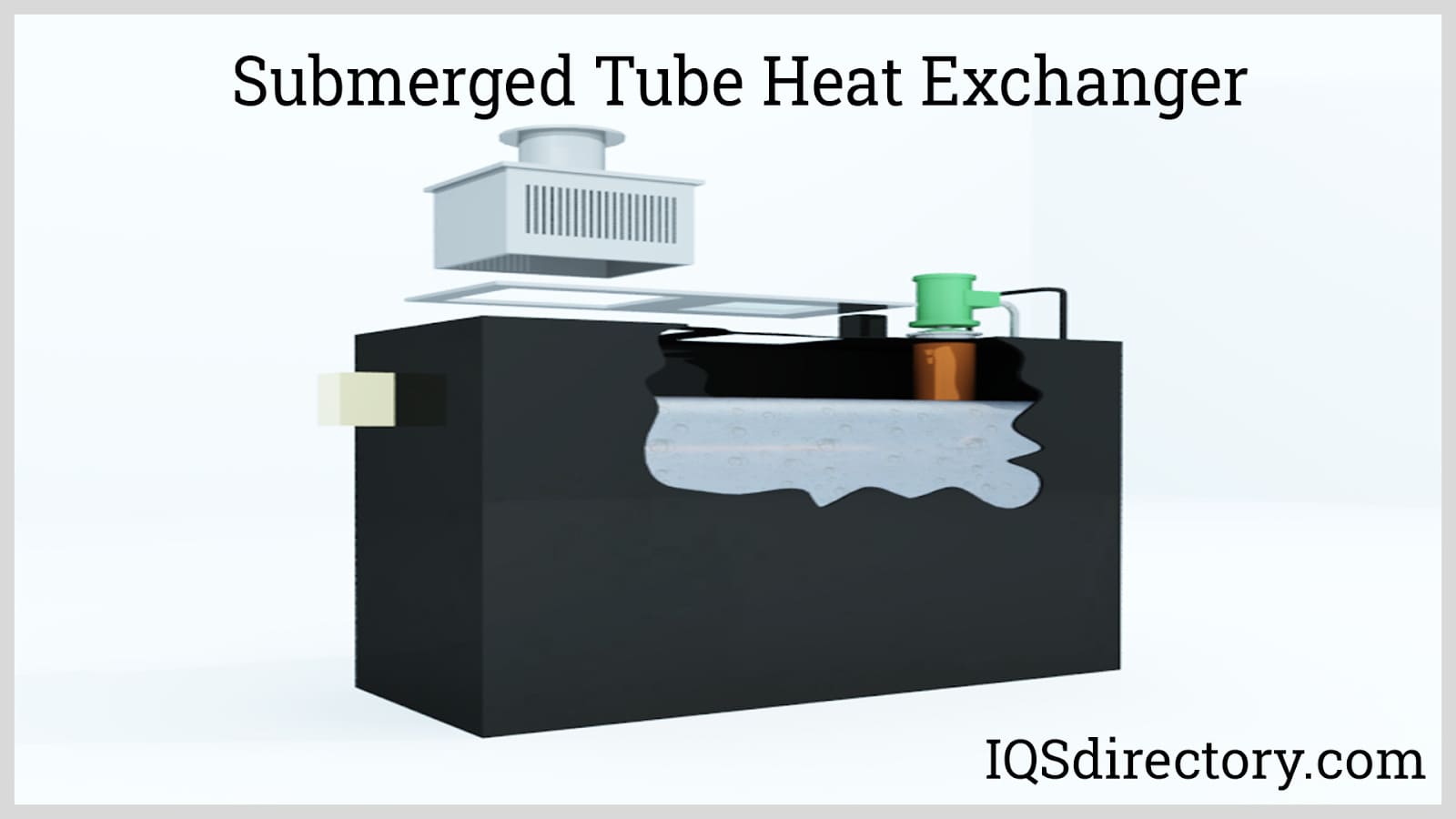

The core of the wastewater evaporation process lies in the application of heat via a robust heat exchanger system. As heat energy is transferred to the wastewater, the liquid reaches a consistently high temperature, typically just below or at its boiling point. This uniform boil facilitates the steady transformation of liquid water into vapor, thereby concentrating dissolved and suspended solids into a smaller volume. Efficient thermal management is critical within the evaporation system, directly impacting process speed and energy consumption.
Once the desired concentration is achieved and the residue approaches the system’s set limit, the evaporator sends a signal for tank emptying and sludge removal—an important maintenance procedure for long-term operational reliability.
The blower system is essential for moving air through the evaporator unit, supporting efficient removal of water vapor and maintaining optimal process temperatures. Some configurations employ forced air or induced draft blowers to maximize evaporation rates and minimize residual odors. The blowing action also aids in controlling process emissions and ensures the safe operation of the system, particularly in direct-fired or indirect-fired evaporators commonly used for industrial wastewater treatment.
Compressors are an integral component in many mechanical vapor recompression (MVR) evaporator systems, boosting the efficiency of the vaporization process. These may include positive displacement compressors, centrifugal compressors, or axial compressors. Wastewater evaporators fitted with compressors often rely on external steam sources—such as a boiler or pre-heated feed tank—to supply the energy necessary for maintaining the evaporation cycle. MVR technology is popular for its ability to recycle and reuse latent heat, drastically reducing total energy consumption and operational costs for facilities treating high volumes of industrial effluent.
The mist eliminator (or mist pad) is indispensable for removing fine droplets, aerosolized oils, and other entrained contaminants from the vapor stream prior to atmospheric discharge or further treatment. Constructed from durable, corrosion-resistant materials such as stainless steel or engineered plastics, these eliminators help ensure compliance with environmental regulations by capturing harmful emissions. Many modern mist eliminators are designed to be self-cleaning, further enhancing system reliability and lowering long-term maintenance costs.

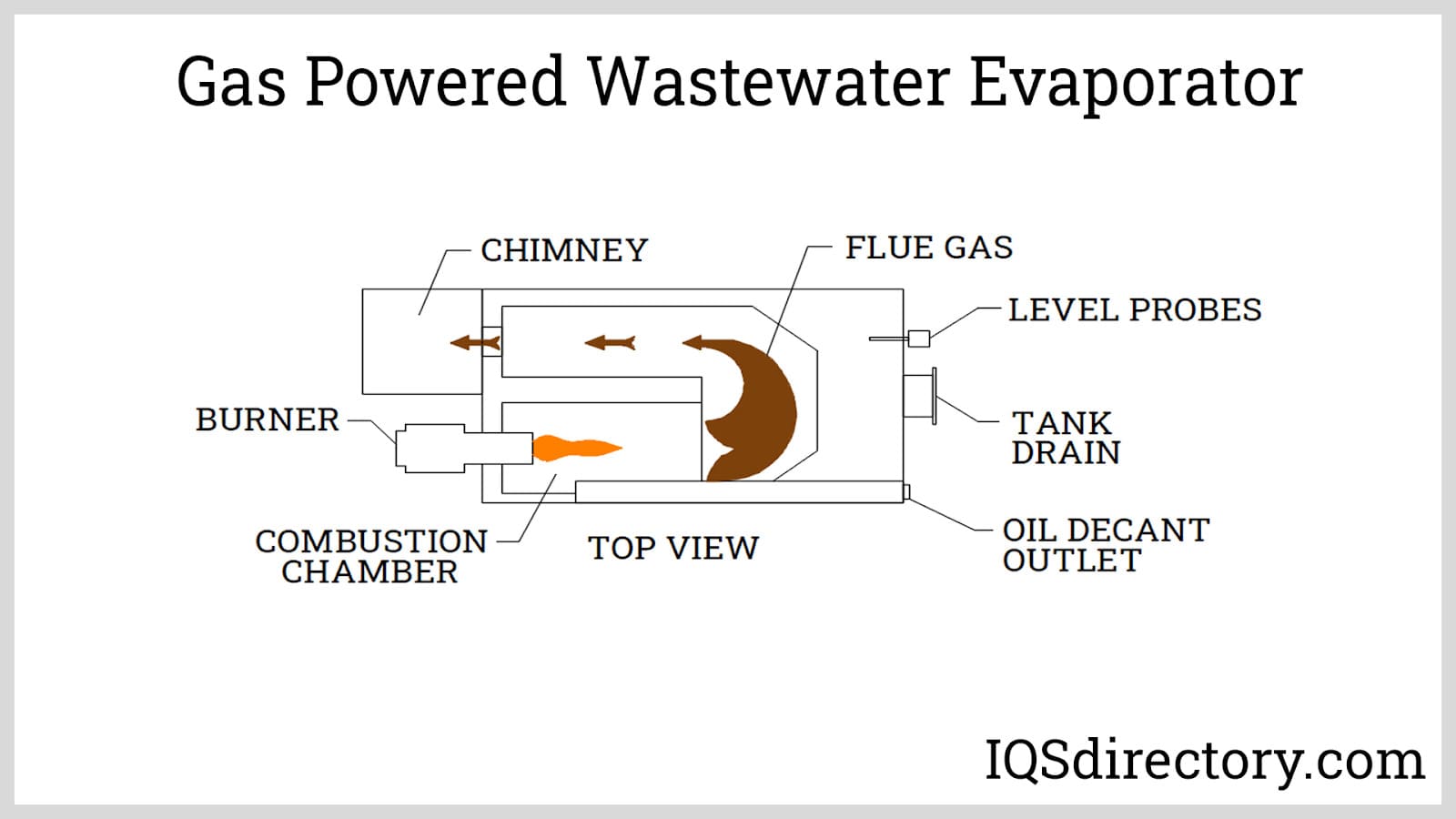

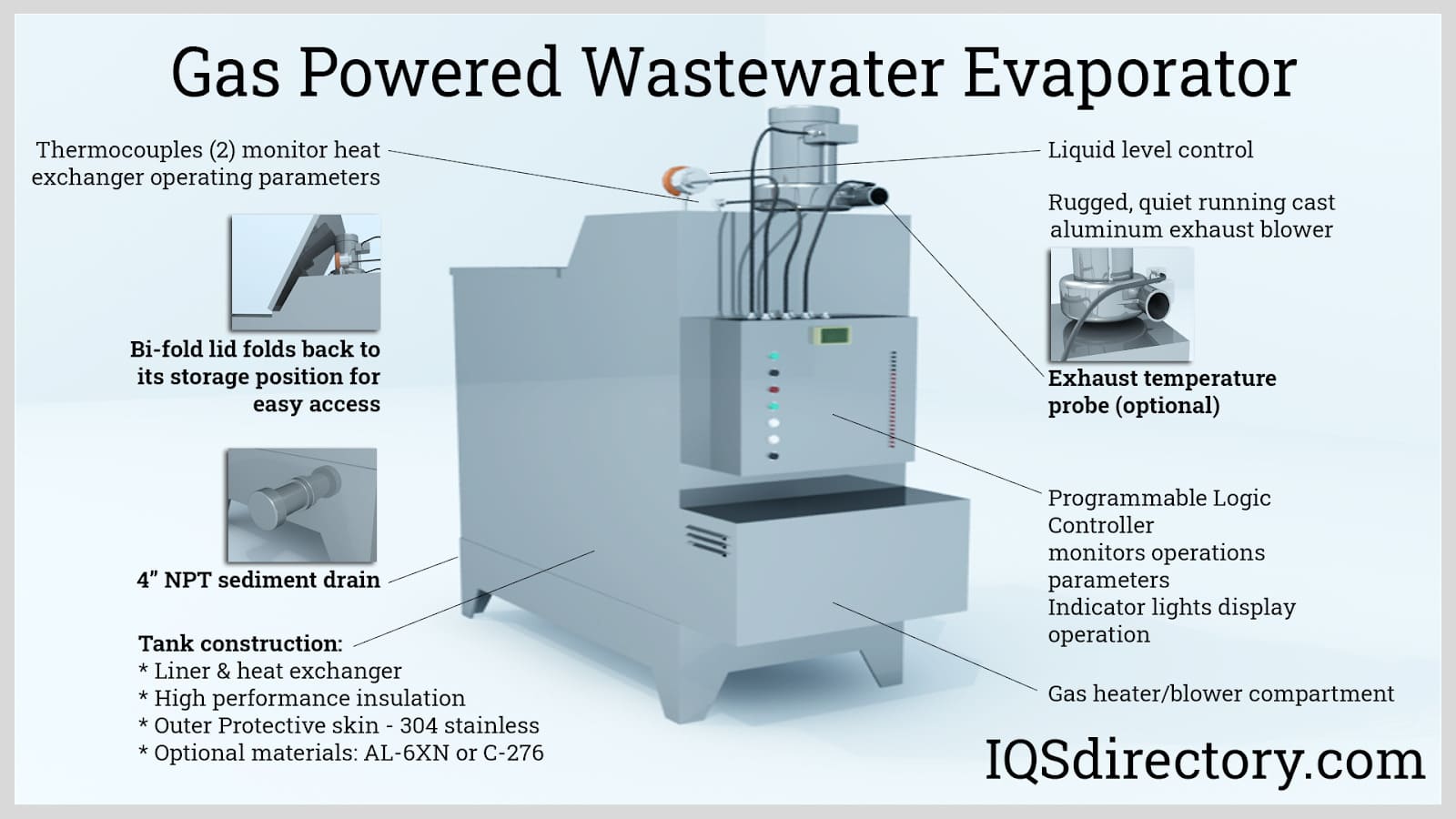

Gas-fired wastewater evaporators utilize a burner system that ignites within a combustion chamber. The generated hot gases are directed via a flue system into the evaporator tank, rapidly heating the wastewater until it reaches boiling point. These systems are favored for their fast heat-up times and suitability for treating oily wastewater, leachate, or process water with high contaminants, often found in manufacturing, automotive, and metal finishing industries.

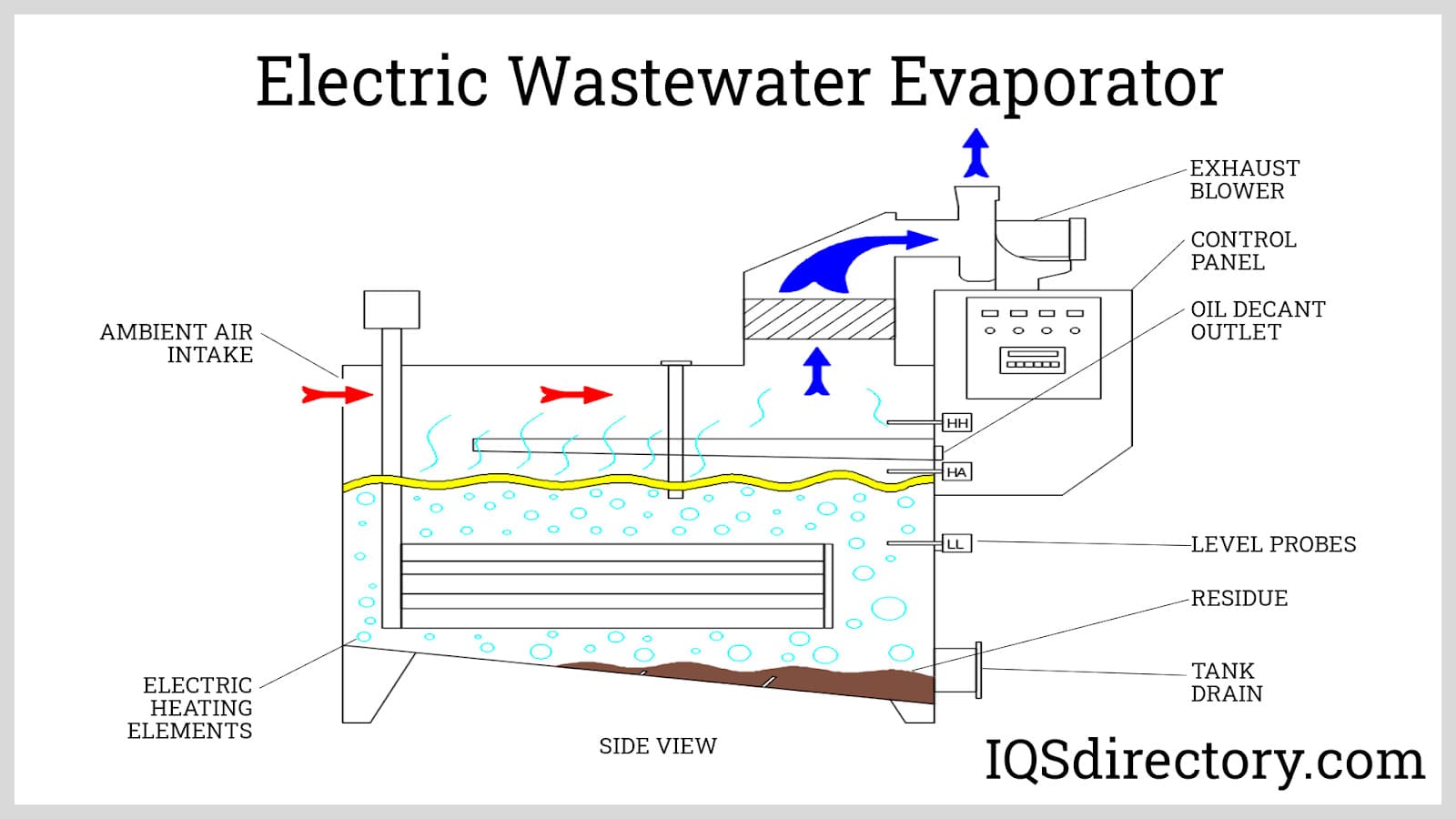

Electric wastewater evaporators leverage electric heating elements or immersed heat exchangers within the evaporator tank. They offer precise temperature control, are easy to install, and require less frequent maintenance compared to combustion-based options. Electric models are best suited for smaller scale operations or situations where the facility lacks access to gas or oil, making them a popular choice for laboratories and pilot plants focusing on cost-effective wastewater reduction.

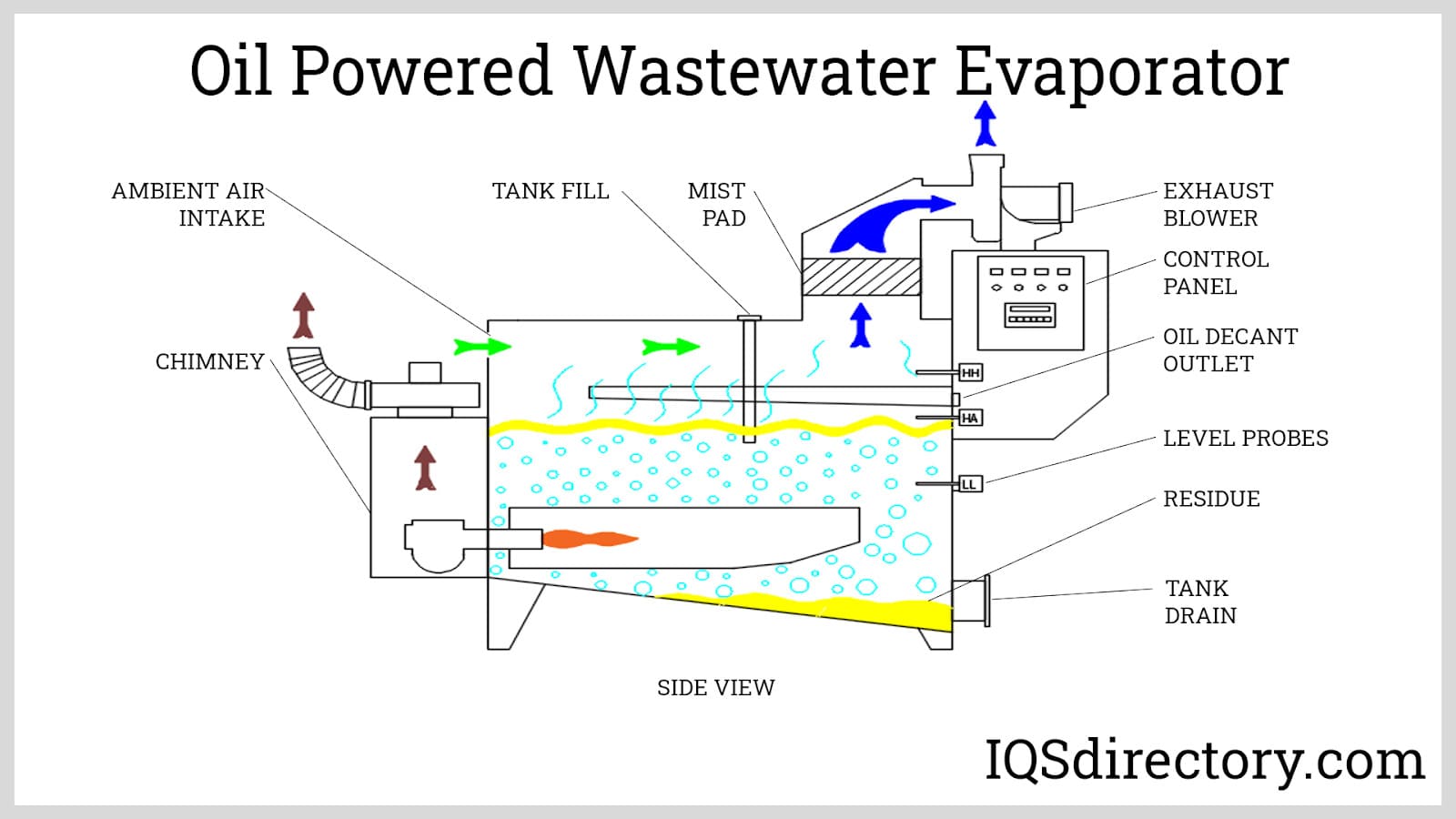

Oil-fired evaporators operate in a manner similar to gas units, utilizing fuel oil as the primary energy source. Oil is combusted within a sealed chamber, and the heated gases travel through tubes inside the heat exchanger. This method is ideal for regions where oil is more readily available or less expensive than natural gas. Oil-powered equipment is also used in heavy-duty applications requiring robust systems to handle corrosive or high-solids industrial wastewater streams.

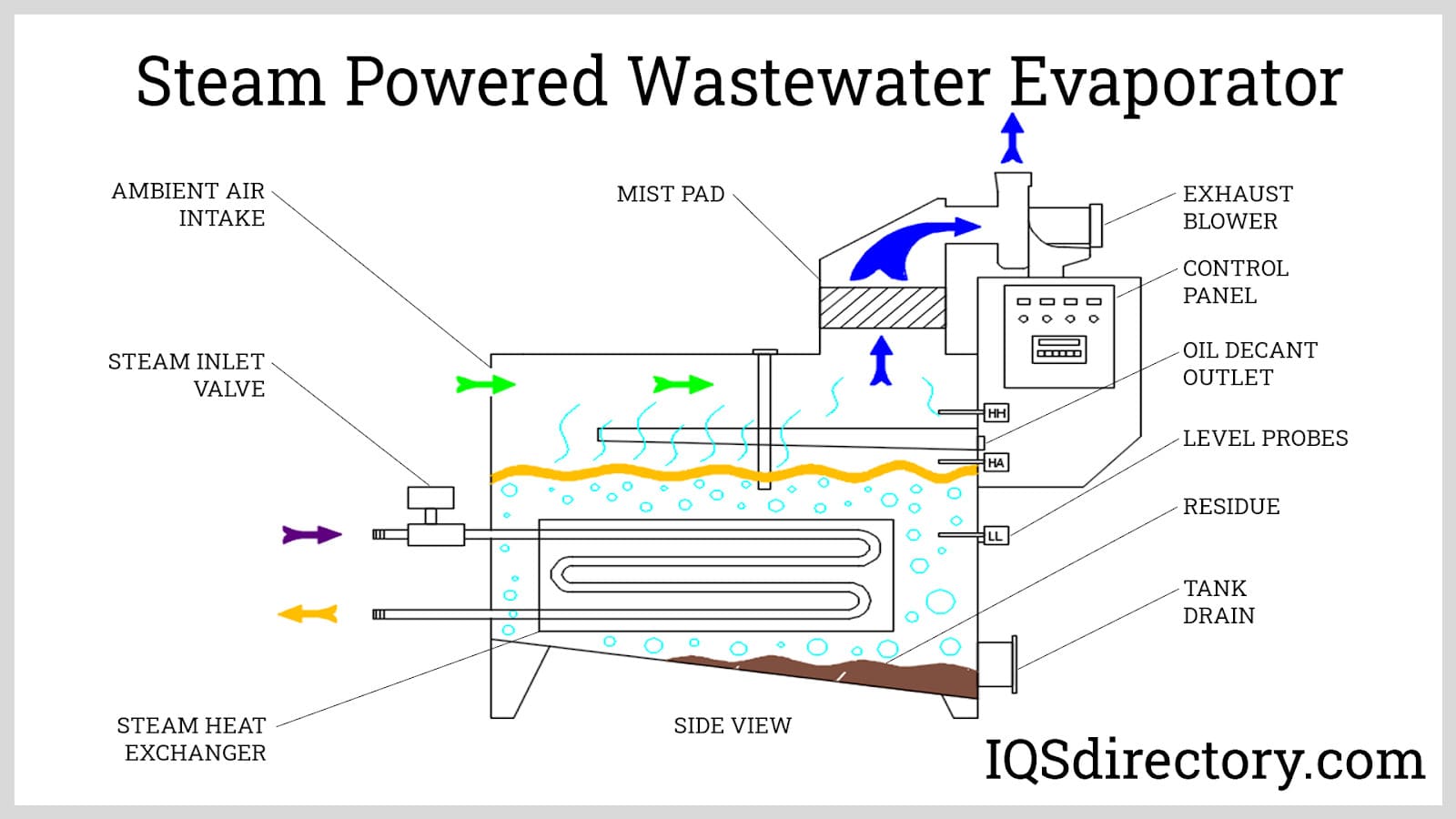

Steam-powered evaporators use direct or indirect steam to heat the coils of the heat exchanger. The latent heat of condensation is transferred to the wastewater, enabling rapid evaporation and increasing system efficiency. Vapor is subsequently discharged through the mist eliminator, and condensate can be captured for reuse or safe disposal. Steam-driven systems are widely adopted in chemical processing plants and food manufacturing industries for their energy efficiency and minimal environmental impact.
When choosing the right wastewater evaporator system, it’s essential to consider several key factors: the composition of the wastewater stream, expected evaporation rates, energy consumption, local discharge standards, and the total cost of ownership. Some systems are designed for zero liquid discharge (ZLD), helping facilities achieve strict regulatory compliance by completely eliminating liquid waste. Advanced automation features, remote monitoring, and modular configurations are also available to help businesses maximize process uptime and reduce labor requirements.
Whether you need to pre-treat industrial effluent, reduce disposal costs, or comply with environmental regulations, investing in a well-designed wastewater evaporator can streamline operations, enhance sustainability, and protect your facility from environmental liabilities.
One of the primary applications of wastewater evaporators is the removal of oily waste from water used in parts washers. However, this is just one of many uses for wastewater evaporators, which are widely employed across various industries ranging from food processing to power generation.

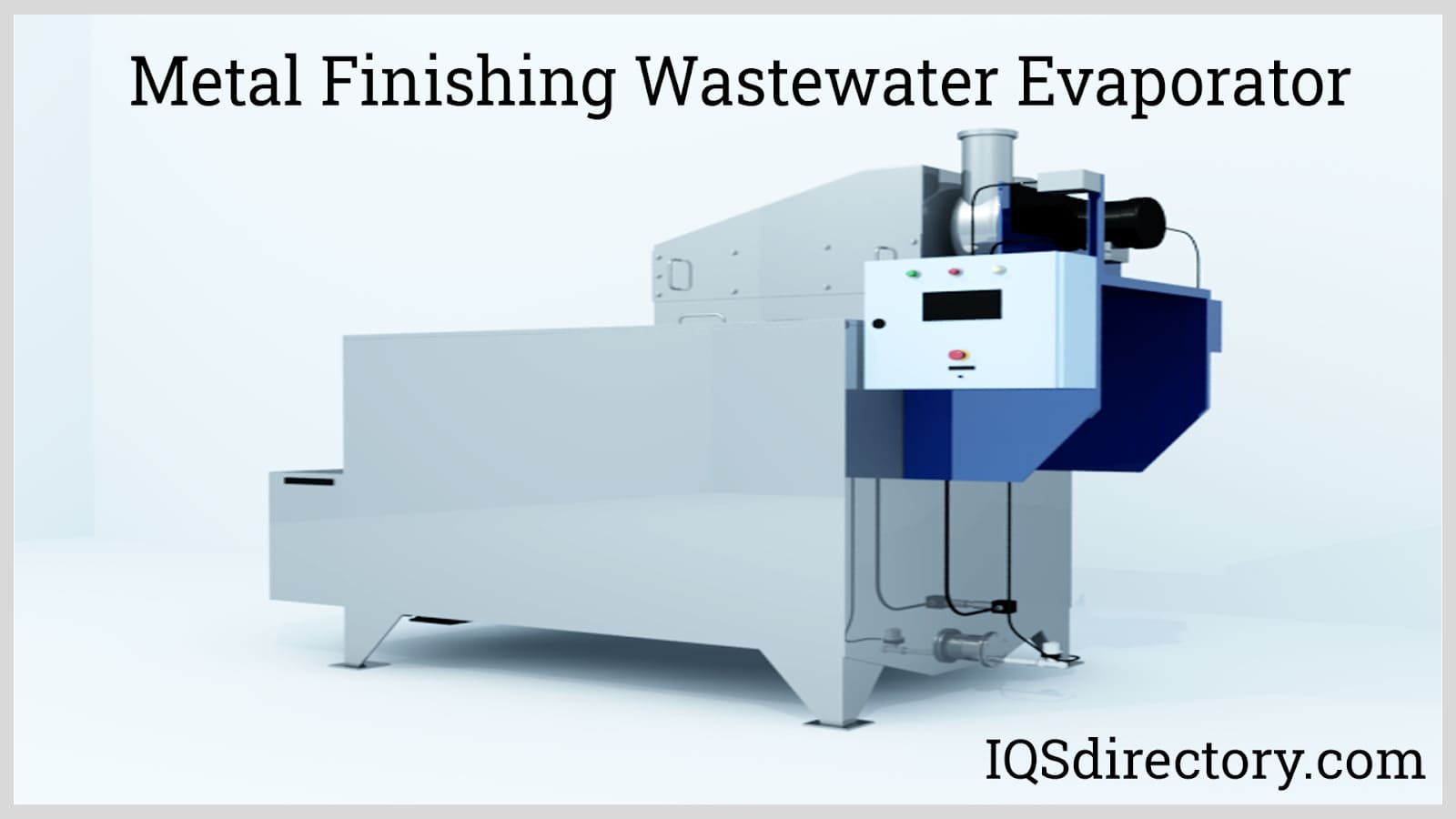

Wastewater from metal finishing processes, such as tumbling, stamping, die casting, and polishing, poses challenges due to the presence of difficult-to-treat chelating agents. Instead of costly chemical treatments or filtration, some companies opt to have this wastewater hauled away, which can be prohibitively expensive. While wastewater evaporators do not entirely eliminate these challenges, they significantly reduce disposal costs.

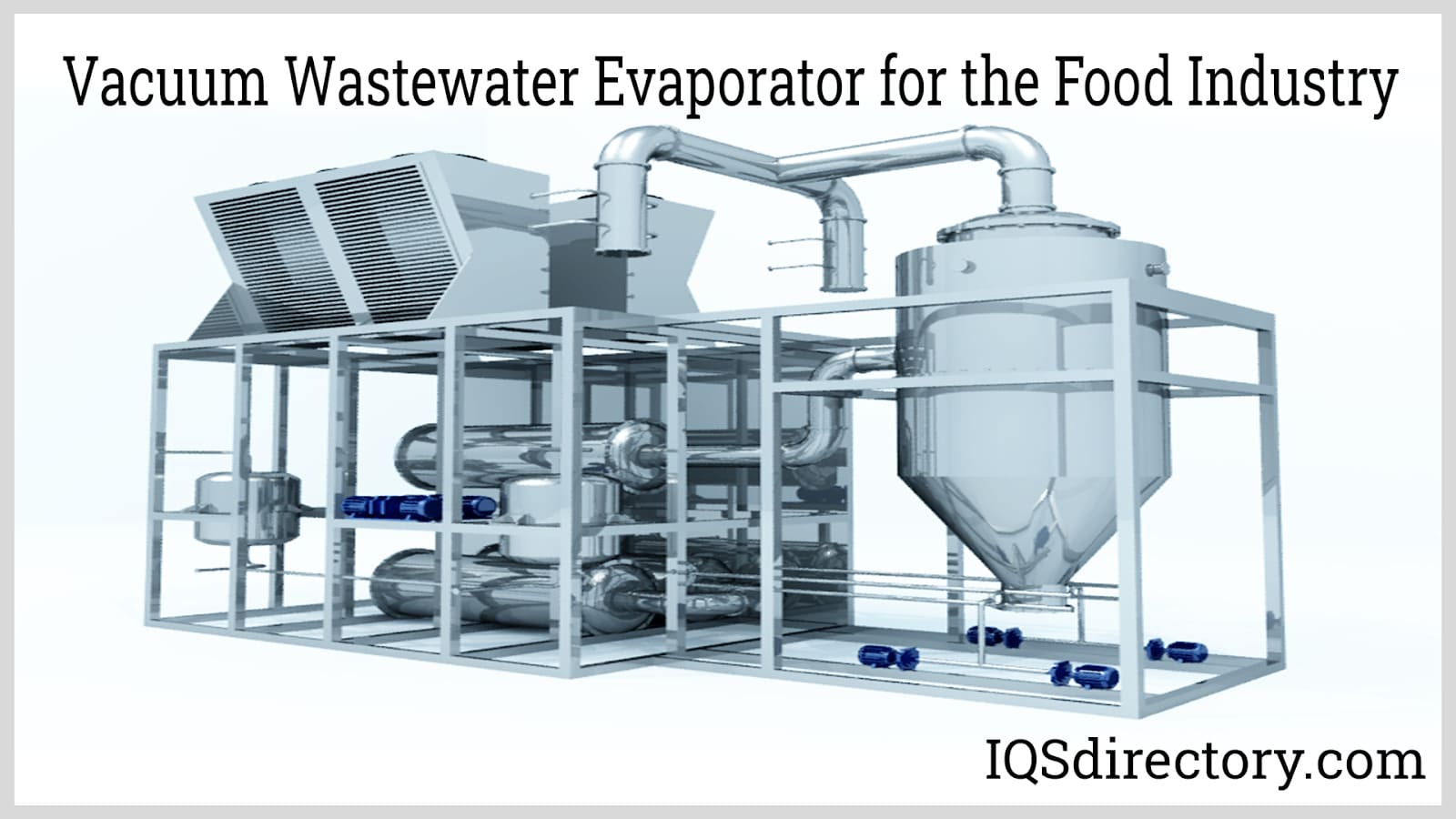

Wastewater evaporators find numerous applications in the food industry. While wastewater from food production is non-toxic and biodegradable, it does contain biochemical oxygen demand (BOD) and solids from various processed foods. Activities like vegetable washing and animal slaughter introduce dissolved organic materials that must be eliminated from water before it can be reused or discharged.

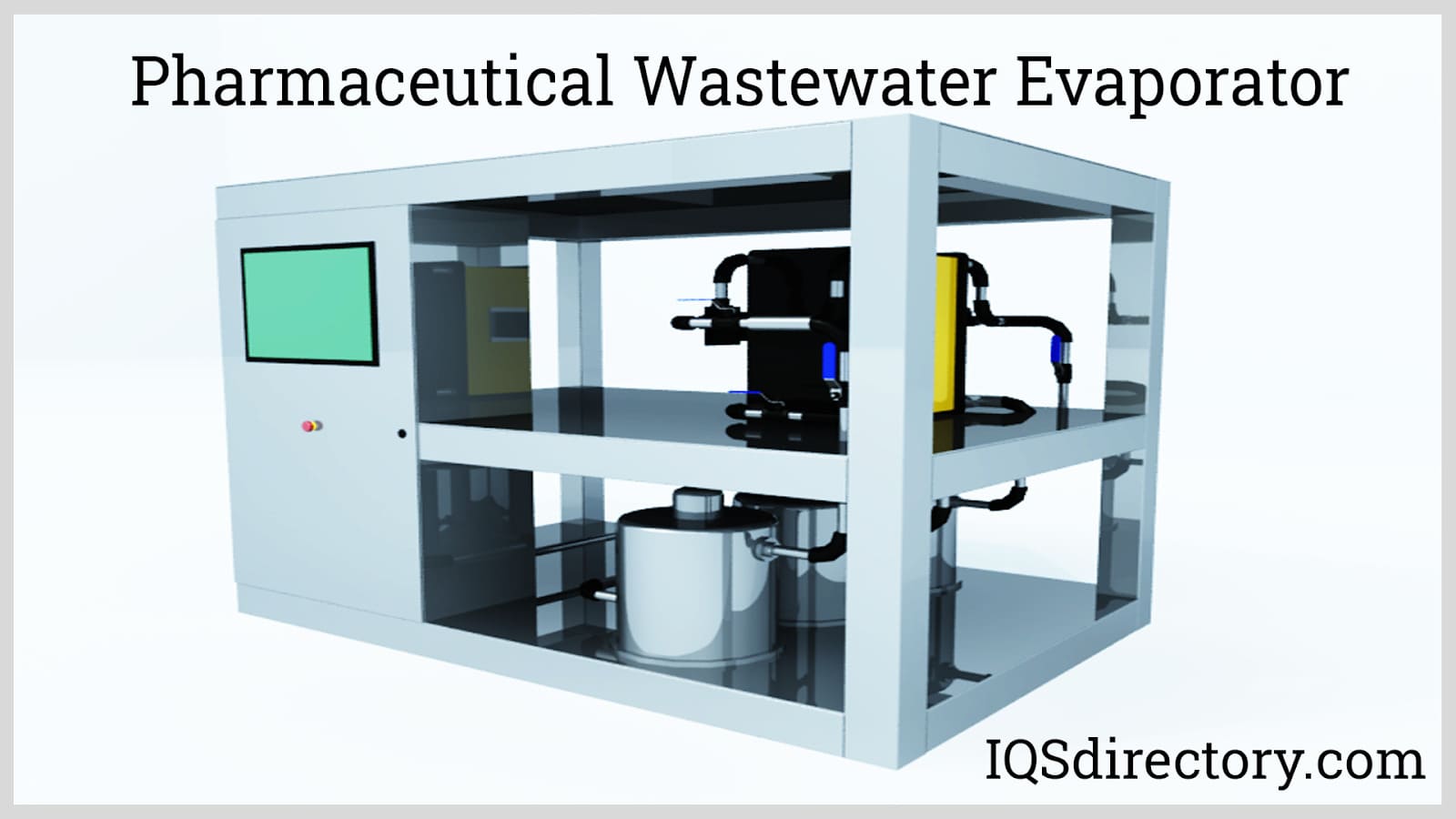

The pharmaceutical industry demands clean water as chemists require pure water for drug manufacturing processes. Regulatory agencies establish stringent purity standards for water used in drug production. Contaminants generated during pharmaceutical manufacturing are hazardous and pose risks, underscoring the necessity of wastewater evaporation equipment.
Water plays a crucial role in paint manufacturing, used in both water-based paints and for cooling ball mills in oil-based paint production. Wastewater from paint production typically contains elevated levels of alkaline substances from cleaning processes and cooling towers. Although the volume of wastewater from paint production is small, it is highly concentrated with pollutants.
Water-based parts cleaning processes produce wastewater that appears brownish-gray or clear with a soapy appearance, containing settled solids and oil residues. Parts used in automotive and other manufacturing applications undergo washing before assembly, and the water used in this process contains pollutants that require removal.
Wastewater in the graphic arts industry originates from processes involving offset and flexo plates, ink, and cylinder etchings.
Machine coolants are essential for cooling tools and parts during machining processes to prevent overheating. Coolants include water-soluble oils, water-soluble synthetics, and pure oils. During normal operations, coolant continuously circulates through the machinery until it requires cleaning. Evaporators are then used to evaporate the water, leaving metals and oil in the evaporator tank.
Landfills contain dissolved organic and inorganic substances, heavy metals, and other compounds. The amount of leachate, which is liquid draining from or through the landfill, depends on the landfill type and age. Leachate wastewater poses significant environmental risks and requires specialized treatment. Treatment methods vary based on location, and wastewater evaporators are particularly suitable for this application due to their ability to adapt to varying wastewater compositions.
The purpose of vaporization is to convert a liquid into vapor. Unlike gas, vapor originates from a liquid and undergoes transformation into a vapor state. When a liquid transforms into vapor below its boiling point, this process is known as evaporation.
Factors influencing evaporation include:

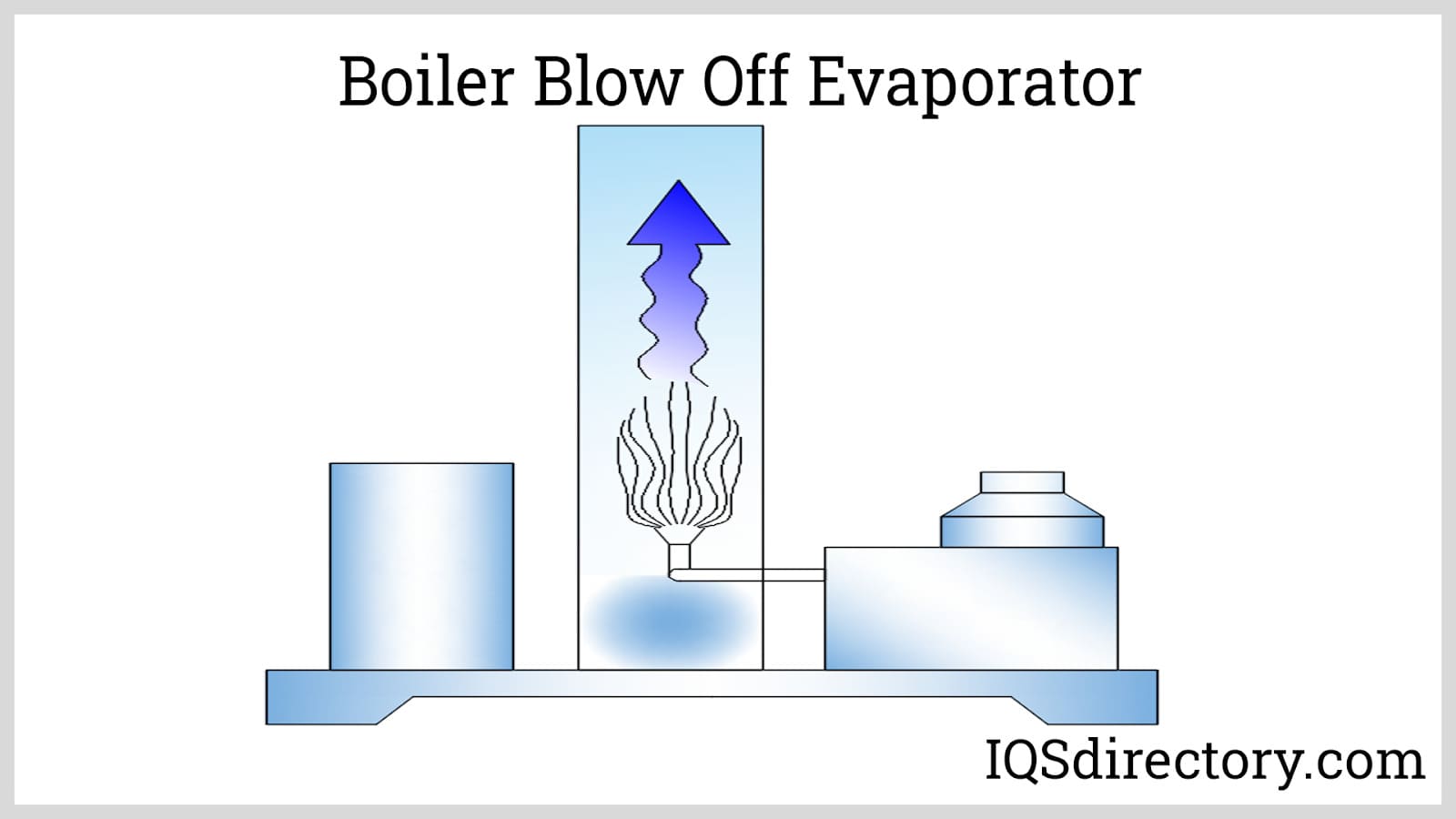

Boiler blow-off evaporators do not collect or remove suspended solids. Instead, solids are dissolved as vapor at 212°F and released into the atmosphere.

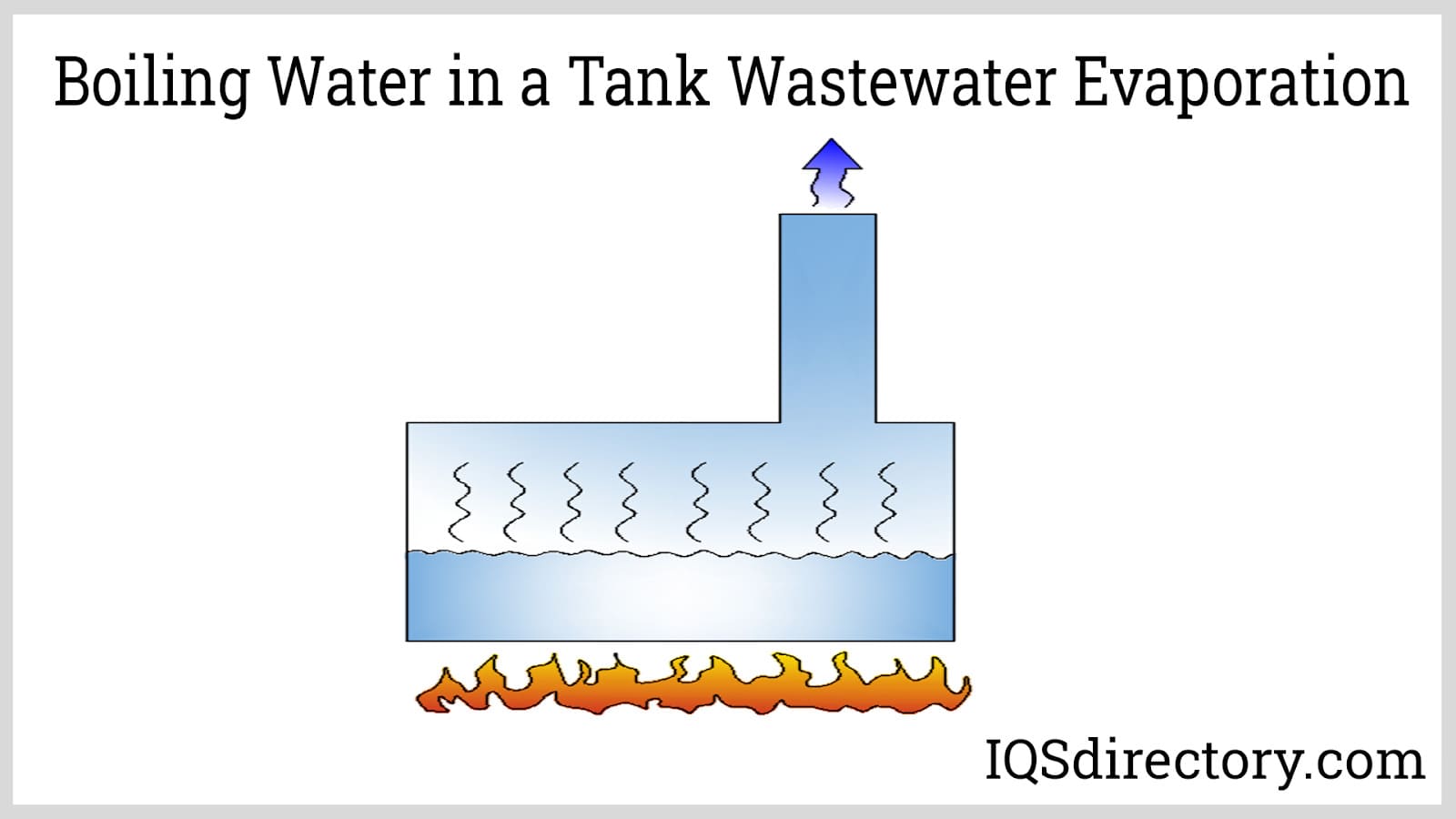

Boiling water evaporation involves heating water to its boiling point and releasing the resulting steam through an exhaust pipe. This method does not effectively remove dried solids.
A forced-air evaporator includes a feed pump, an evaporation tank equipped with a heater, a circulation pump, blower, mixing tube, mist eliminator, and air outlet. Wastewater is pumped into the evaporator tank and heated. The air and wastewater mixture flows through the evaporator tank, passes through the mist eliminator, and exits via the air outlet.

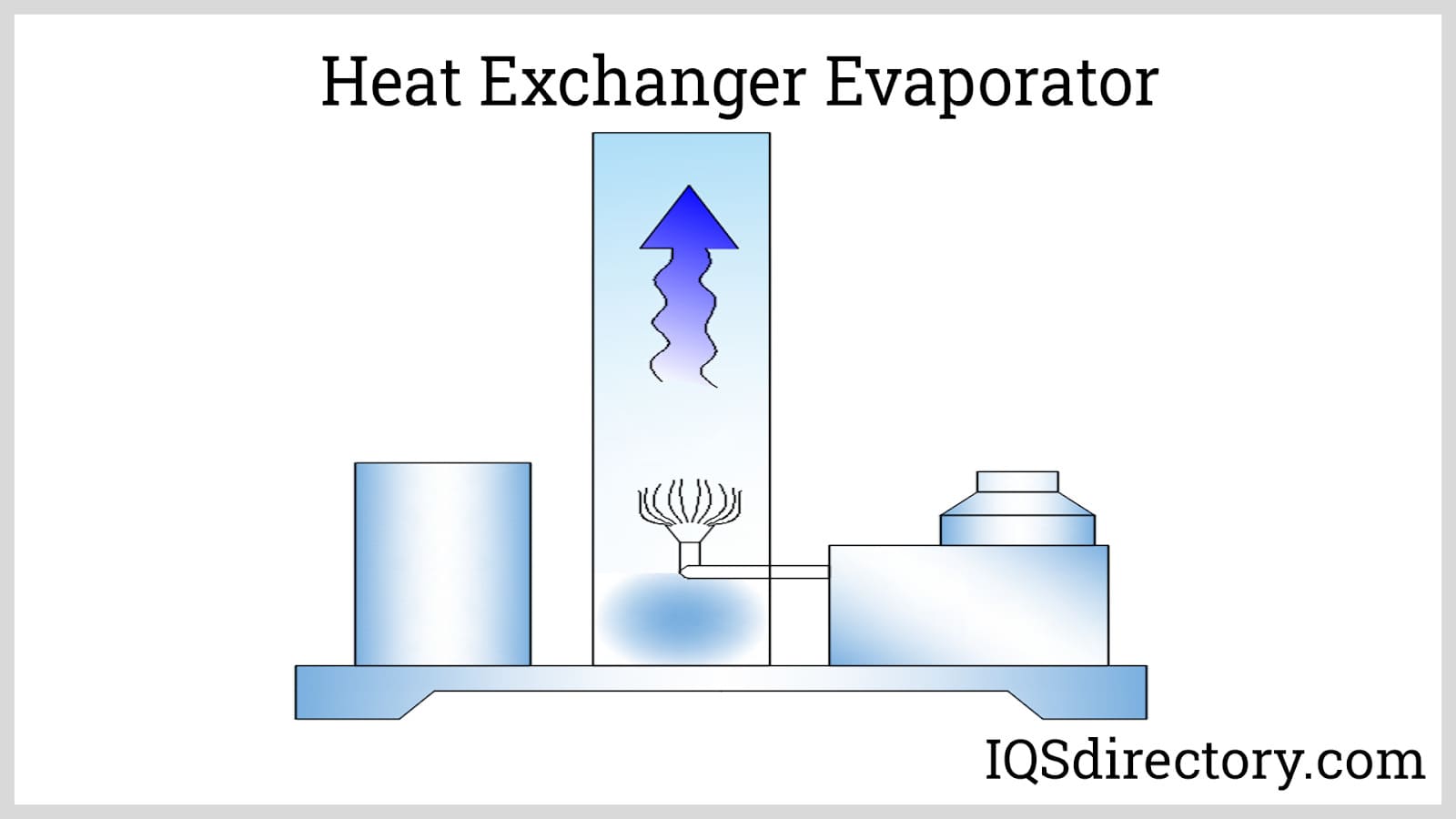

In a heat exchanger, high-temperature oil from an oil-filled coil is pumped into a coil inside a tank containing contaminated waste.

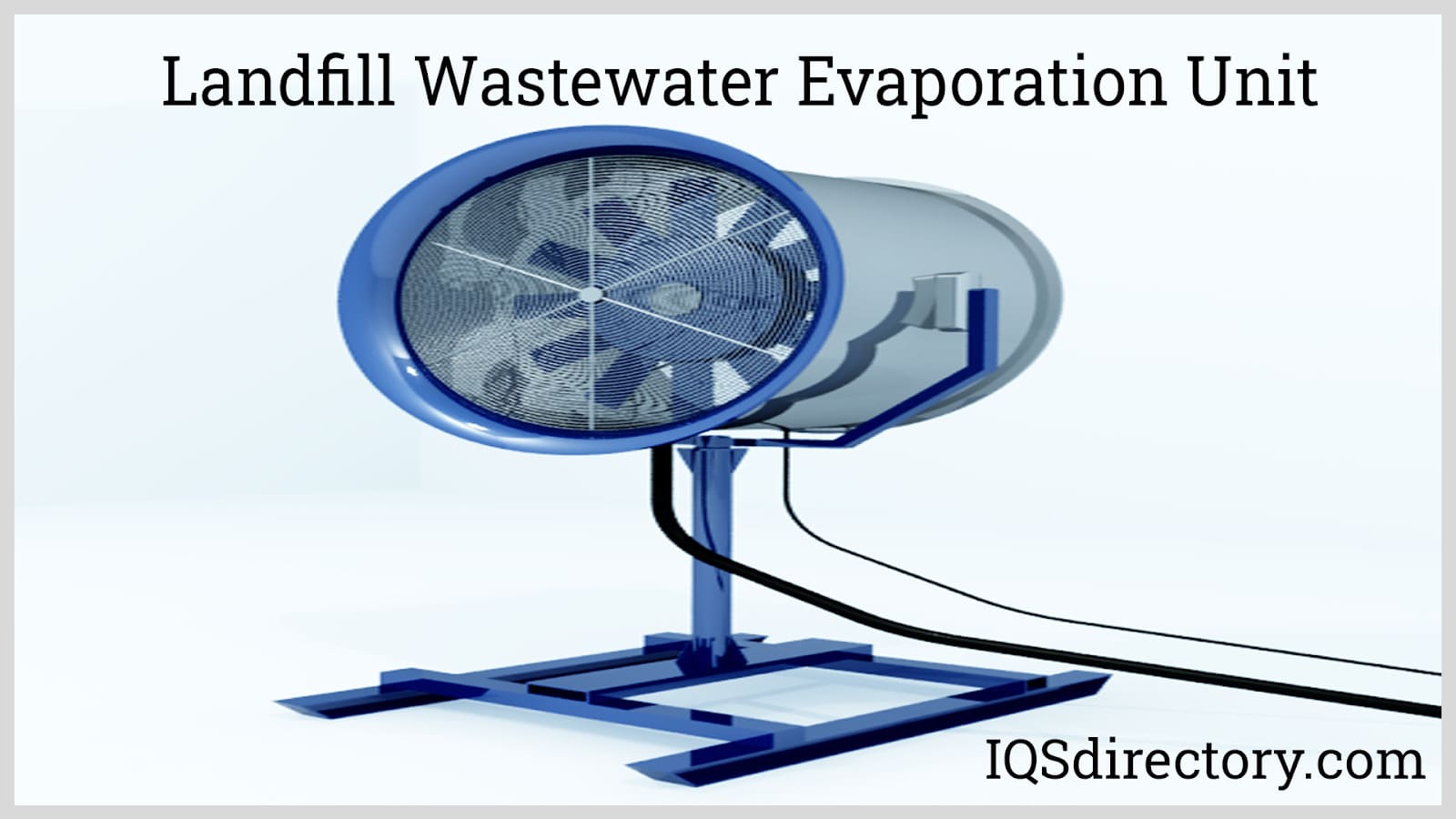

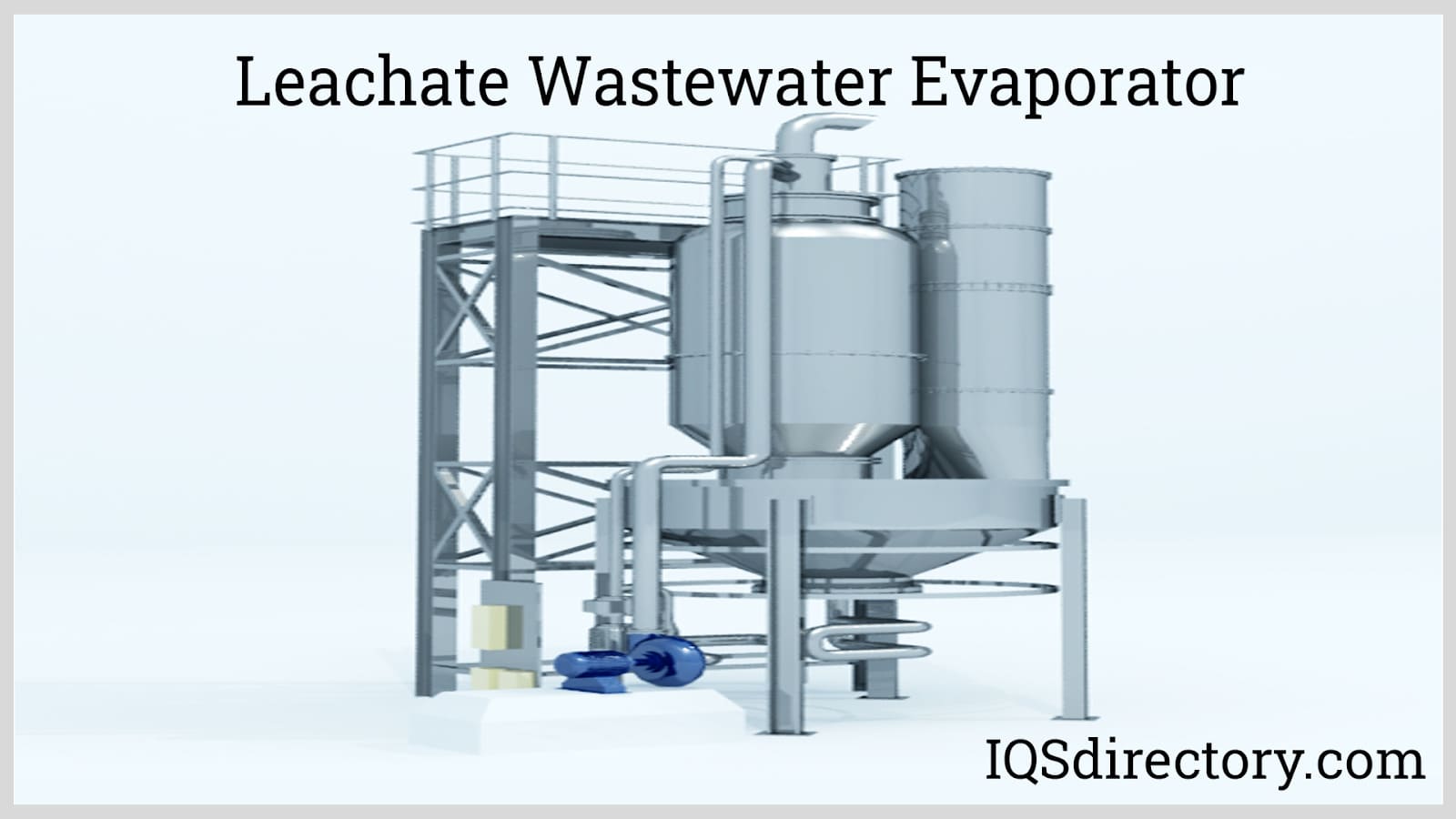

Leachate wastewater evaporators are engineered to decrease leachate volume by extracting water from the leachate and expelling the purified vapors, while retaining sludge and solids.

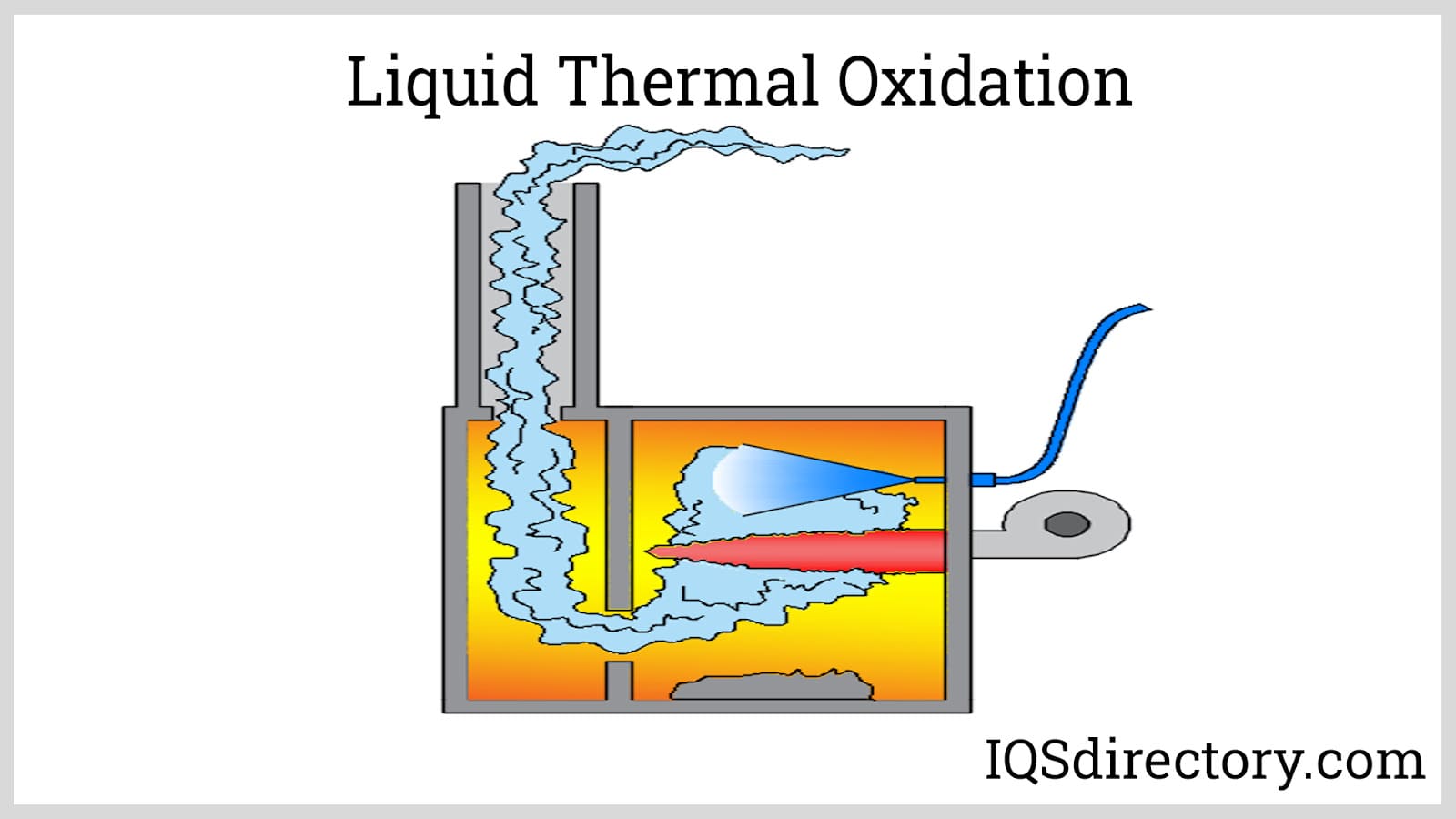

The liquid thermal oxidation method entails spraying liquid waste under pressure near a flame. At 1250°F, all volatile organic compounds (VOCs) are oxidized and dissolved, while solids are transformed into ash. Contaminants are converted into inorganic ash.
Water placed in an outdoor pond naturally evaporates due to solar heat and wind. Natural evaporation requires significant space.

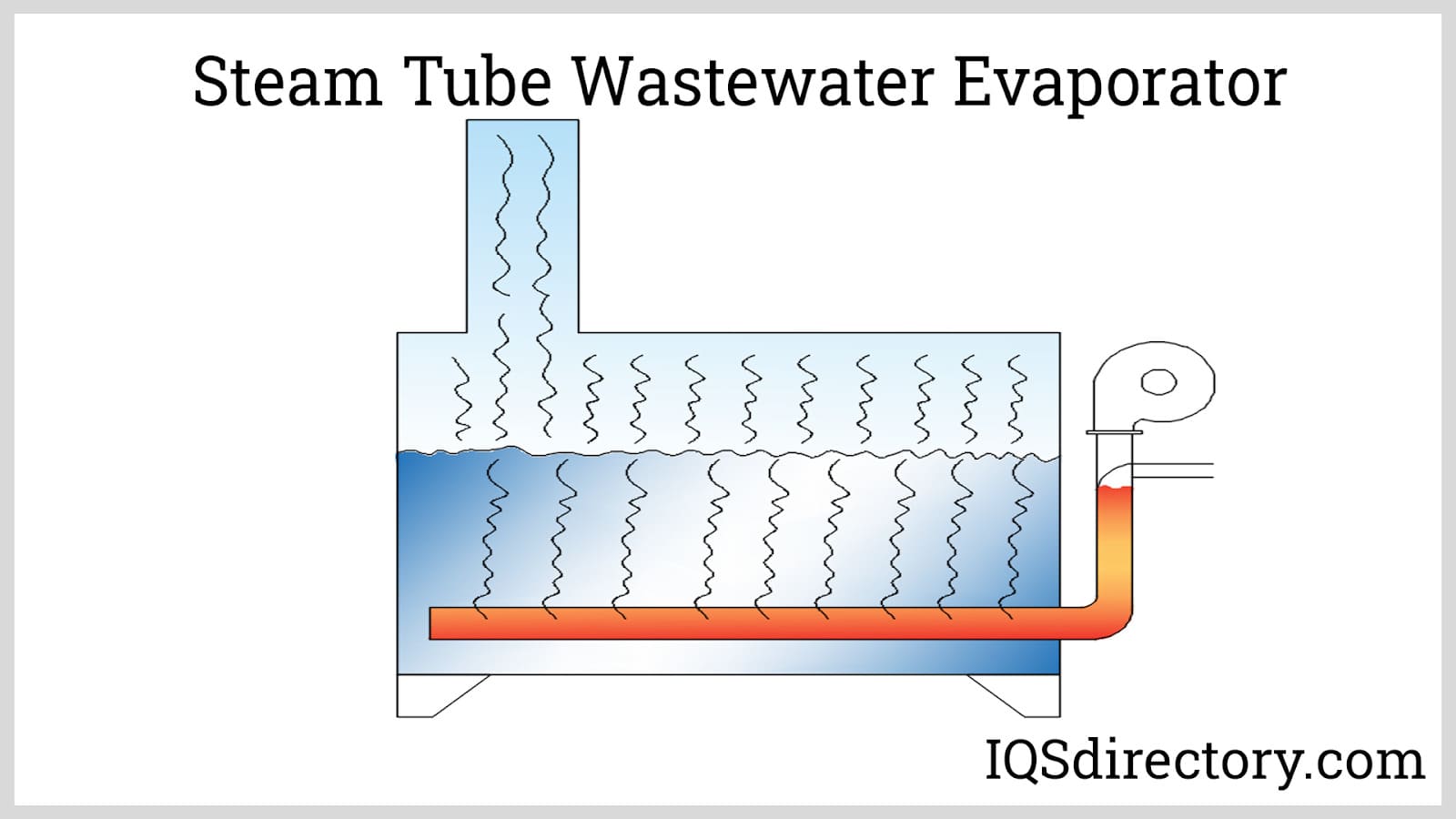

The steam tube evaporator operates on a principle similar to that of the boiling tank evaporator. The key difference lies in passing heated exhaust gases through the wastewater, enhancing heat transfer efficiency.

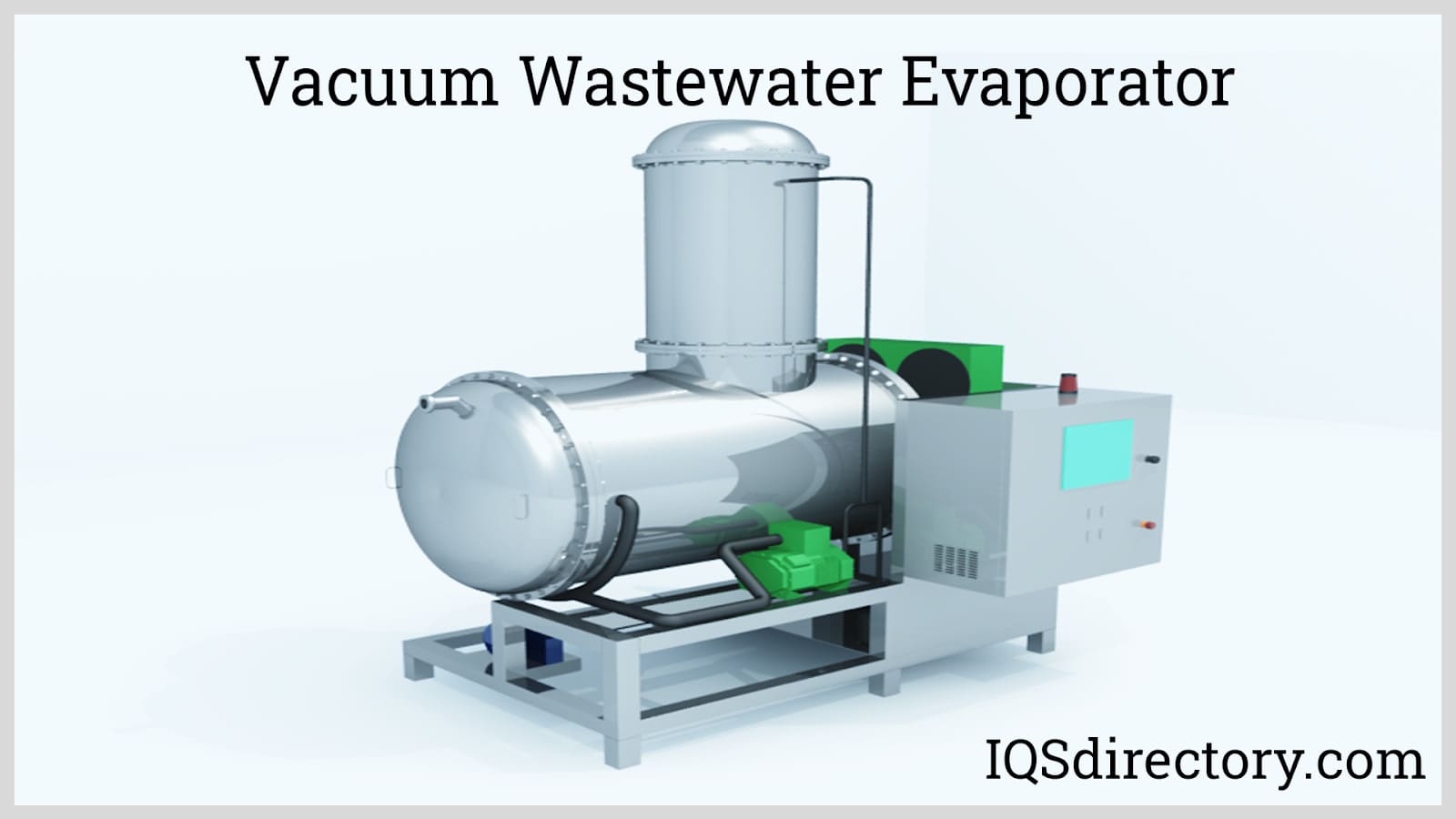

Vacuum wastewater evaporators reduce the pressure inside the evaporation tank below atmospheric pressure, thereby lowering the boiling point of the wastewater. This method eliminates the requirement for high heat and can handle liquids with elevated boiling points. Vacuum wastewater evaporators are recognized as a safe and efficient means of removing contaminants.
Despite various methods for wastewater disposal, wastewater evaporators are steadily gaining popularity due to their environmental friendliness and effectiveness in removing salts, heavy metals, and hazardous materials during water purification processes.
Advancements in technology have heightened the demand for proper wastewater disposal, particularly concerning water-mixed chemicals used in manufacturing sophisticated instruments.
Energy Efficiency: Wastewater evaporators operate on a 1:1 ratio, meaning the energy used to extract water equals the water extracted. Efficiency can be further enhanced by employing multiple effects, such as utilizing steam from one operation for another.
Zero Liquid Discharge: Stringent regulations at national, state, and local levels necessitate minimal industrial wastewater discharge. Wastewater evaporators can achieve zero liquid discharge, exceeding regulatory requirements.
Total Dissolved Solids (TDS): Wastewater processed by evaporators typically yields TDS levels below 10 mg/L, often as low as 2 mg/L. This purity allows the treated water to be reused in manufacturing processes.
Cost Effectiveness: Compared to chemical precipitation systems processing 395 liters per minute (L/m), wastewater evaporators are more efficient at 190 L/m, offering significant cost savings.
Flexibility: Wastewater evaporators are adaptable to diverse industry needs and wastewater conditions. They can be customized to handle various contaminants effectively.
Volume Reduction: A key advantage of wastewater evaporators is their capability to drastically reduce waste volume by removing moisture from materials. This addresses challenges in waste management by minimizing required disposal space.
Integration: Wastewater evaporators can operate independently or integrate seamlessly into existing systems, enhancing operational efficiency and reducing costs in wastewater disposal processes.
Natural Evaporation: Natural evaporation has traditionally been employed to remove water from ponds, leaving hazardous materials behind. While environmentally sound, this method is slow and can potentially contaminate the surrounding environment.
Sewage Discharge: Historically, dirty water was disposed of directly into rivers and streams without full awareness of the environmental consequences. As environmental awareness has grown, regulations now strictly govern the discharge of wastewater into sewers and public waters.
Dumping: Still practiced today, waste disposal involves sending waste to landfills or regulated disposal sites. This method is costly and overlooks the fact that over 70% of waste contains water that could be removed to reduce waste volume.
Filtration: Advances in technology have led to the development of highly refined filters capable of removing even minute particulates. While effective for water purification, filtration systems require constant monitoring and can be labor-intensive.
Reverse Osmosis (RO): Reverse osmosis, an early method for removing contaminants from water, forces wastewater through a semi-permeable membrane. This process traps large particles while allowing small ones to pass through. However, managing the water left behind by the RO process remains a challenge.
Chemical Treatment: Chemical methods for wastewater treatment have been used for over 70 years but have become less effective as regulations for clean water have tightened. Chemical treatments may not safely remove all contaminants and can leave residual chemicals.
Evaporation: Wastewater evaporation is a straightforward, efficient, and cost-effective solution. It requires minimal installation time and can be operational immediately. Manufacturers' engineers assess a company's wastewater samples and program wastewater evaporators to suit specific applications.
Legislation governing wastewater evaporators is shaped by clean water regulations. The initial Clean Water Act (CWA) of 1972, originally the Federal Water Pollution Control Act, entrusted oversight to the Environmental Protection Agency (EPA).
The CWA's objective is to cease untreated water discharge from urban and industrial sources. Over time, EPA jurisdiction expanded beyond cities and factories to encompass sectors like agriculture, logging, paper production, and fertilizer manufacturing.
Administered by the EPA, NPDES issues permits dictating allowable water purity levels from wastewater treatment plants. These permits authorize facilities to release regulated pollutant amounts under strict conditions.
States seeking authority over wastewater management must apply to the EPA through NPDES for regulatory control. Approval necessitates submitting a program report outlining state wastewater management initiatives.
Various states have enacted legislation imposing specific requirements on wastewater processing, varying in stringency.
A wastewater evaporator functions by converting water in water-based waste into vapor, thereby leaving contaminants behind. Utilizing principles of thermodynamics and mass transfer, it efficiently removes water from waste materials. Wastewater evaporators are pivotal in addressing challenges such as removing oily waste from parts washer water, aligning operations with evolving clean water regulations.
