This article takes an in depth look at perforated metals and their use.
You will learn more about topics such as:
Perforated metals are sheets of metal that have had decorative shapes and holes punched or stamped into their surface for both practical and aesthetic purposes. The perforation process can create a variety of geometrical patterns and designs, making it versatile for numerous applications. This adaptability allows perforated metals to enhance both the appearance and functionality of a structure.
While perforated metals are visually appealing, they serve several functional purposes beyond aesthetics. They are effective for diffusing light, allowing it to pass through while reducing intensity. A major use of perforated metals is in noise and sound suppression, which helps create quieter and more comfortable environments. In architecture, perforated metals are often used as decorative accents. Additionally, industries such as food and beverage, chemicals, energy, and acoustics utilize perforated metals for practical applications like filtering sound and fluids.
Various methods can be used to perforate metals. The key factor in the process is the type of sheet metal being used, which is typically thin and flat, making it easy to cut and bend. The thickness of the metal is measured in gauges, with higher numbers indicating thinner sheets.
Although perforated metals can have a wide range of shapes punched or stamped into them, the specific method used is less critical as long as it creates the desired holes. Common perforation techniques include using dies and punches or needles on a roller.
Soft metals such as aluminum and copper are generally easier to perforate, but most metals can be perforated with the right approach. The thickness of the metal is the most critical factor, as it determines the intensity required for punching or stamping. The intended function and specifications of the final product play a significant role in choosing the appropriate metal.
The metal's thickness impacts both the duration of the perforation process and the quality of the end result. Thinner metals are usually more cost-effective and easier to manipulate. The metal's strength is essential based on its application, whether for industrial purposes or decorative use. For decorative metals, their strength is influenced by their functional role, as they may act as structural supports or enhance the visual appeal of a structure.

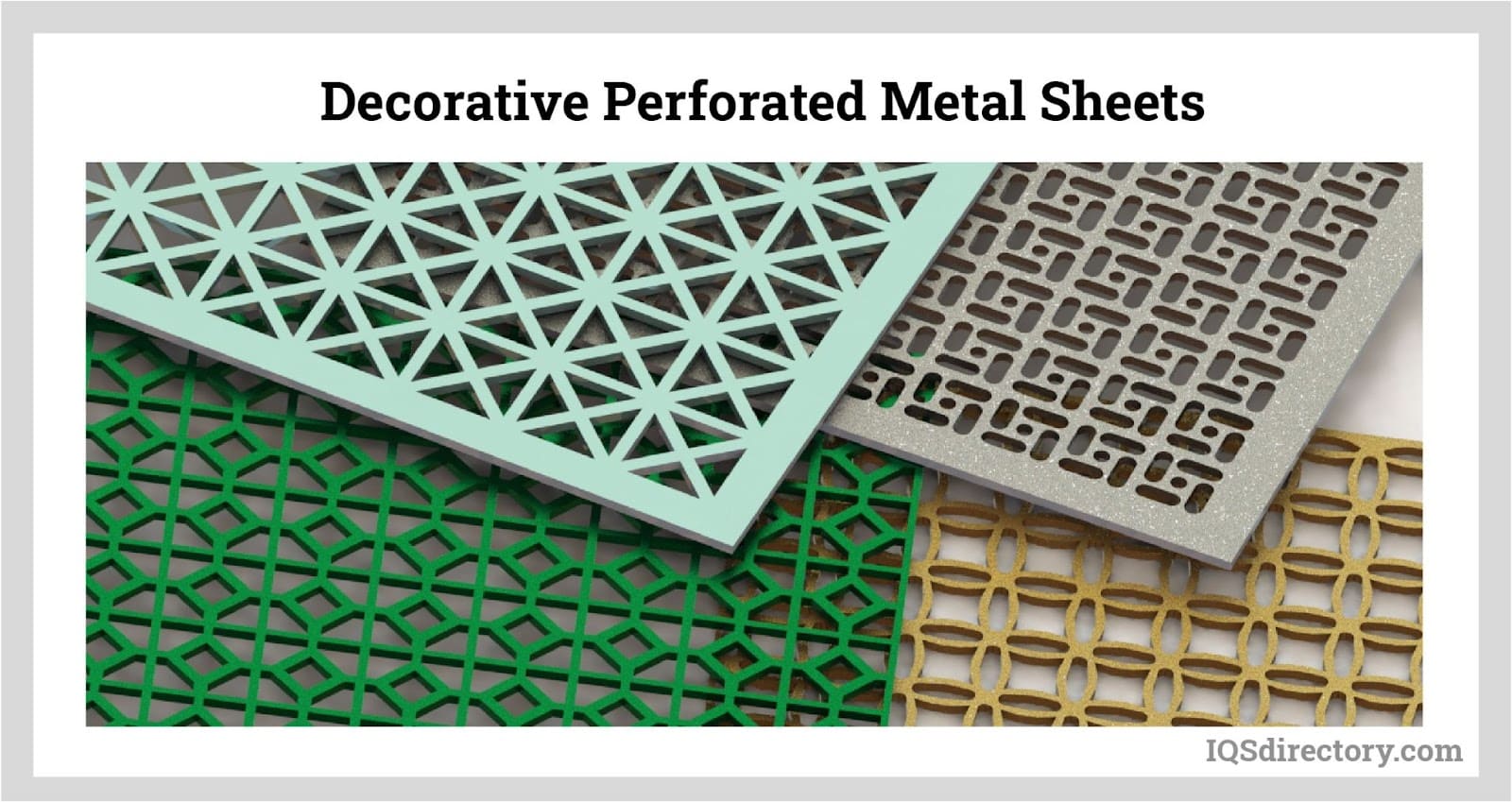

Perforated metal sheets can feature a variety of patterns, each tailored to specific functions. Architectural patterns are often ornate and decorative, enhancing aesthetic appeal, while industrial patterns used for filtration, drainage, and screening are typically more uniform and practical.
Staggered patterns may include end patterns that are either finished or unfinished, with unfinished ends being the norm. An unfinished pattern means the holes at the edge of the sheet are incomplete, allowing sheets to be seamlessly aligned to create a continuous pattern when joined.
The margin in a pattern refers to the space from the edge of the sheet to the first perforation, creating a border around the sheet. In no-margin sheets, the pattern extends right to the edge of the sheet.

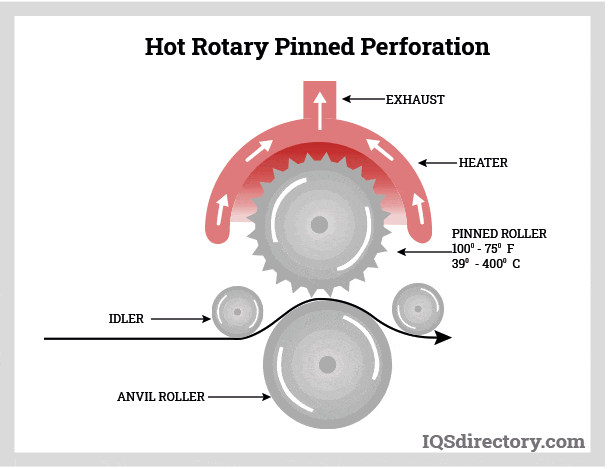

Several methods are available for perforating metals, with rotary pinned perforation rollers being among the most common. These rollers use pins or needles to create the desired shapes in the metal sheet. Rotary pinned perforation can be performed either hot or cold. In the hot process, the pin rollers are heated, resulting in holes with increased tensile strength. Cold rotary pinned perforation is used for thinner, more ductile materials, producing punctures with a distinctive volcanic appearance.
Other perforation methods include laser, plasma, water jet, die and punch, and nibbling. The choice of method depends on various factors, such as the desired speed and type of perforations.
Laser perforation is one of the most advanced and costly methods, offering high precision and accuracy. It provides results comparable to hot rotary pinned perforation but with superior control over size, dimensions, and pattern detail. The main advantages of laser perforation are its consistency and precise control over the final product.
Perforating metals can achieve up to 1,000,000 punctures per minute with remarkable speed, accuracy, and precision. The high-speed punching process generates significant friction due to metal contact, which requires a cooling method for the sheets after perforation. Light oil lubricant is applied to cool the metal sheets as they exit the punching process.

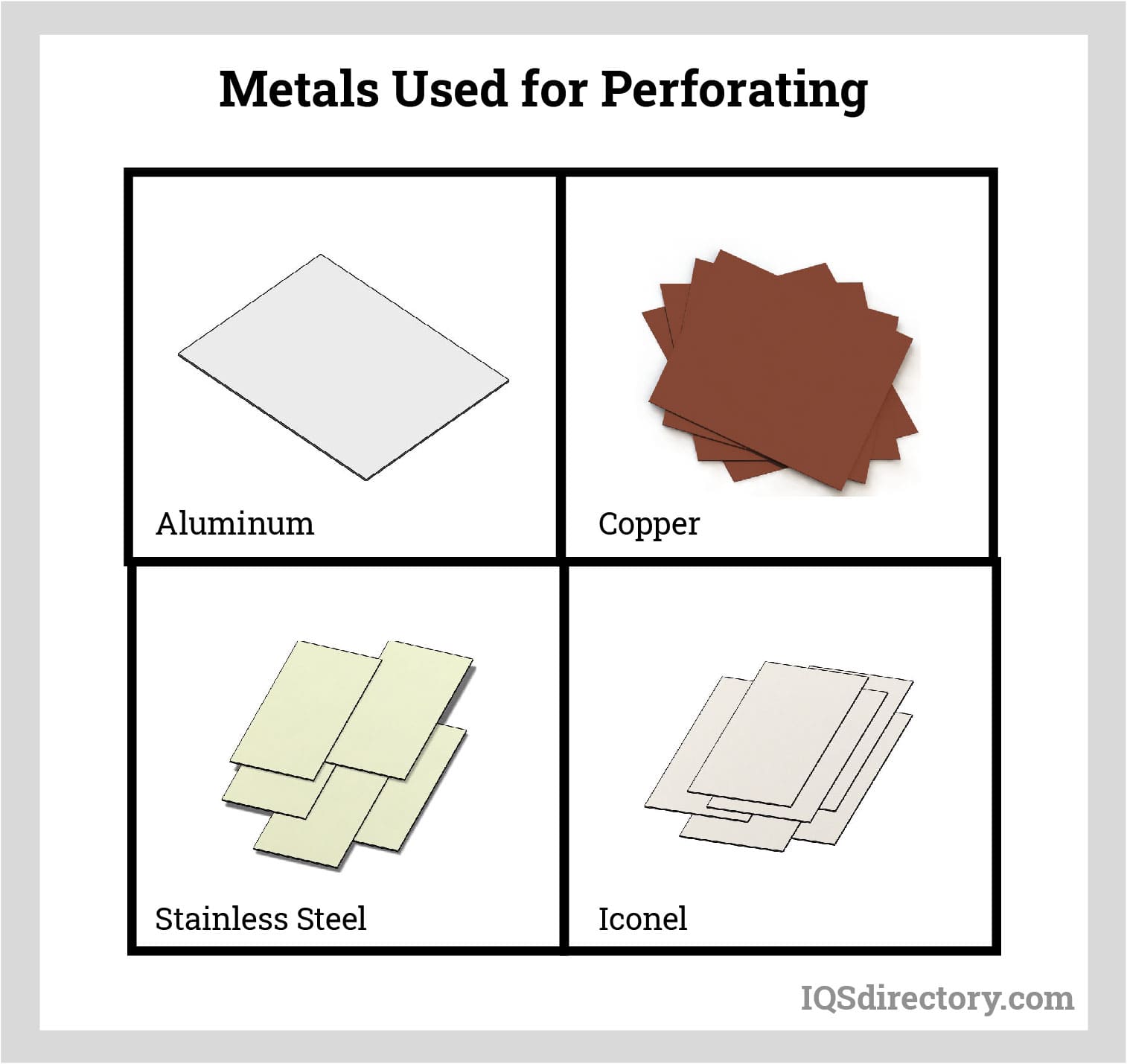

A wide range of metals can be shaped and machined through the perforation process. The selection of metal depends on its intended use. For industrial and structural applications, metals that are sturdy, durable, and strong are preferred.
Lightweight metals, such as aluminum and copper, are easily stamped and punched using the perforation technique. In contrast, harder metals like steel and titanium require more robust methods, but they can still be effectively perforated.

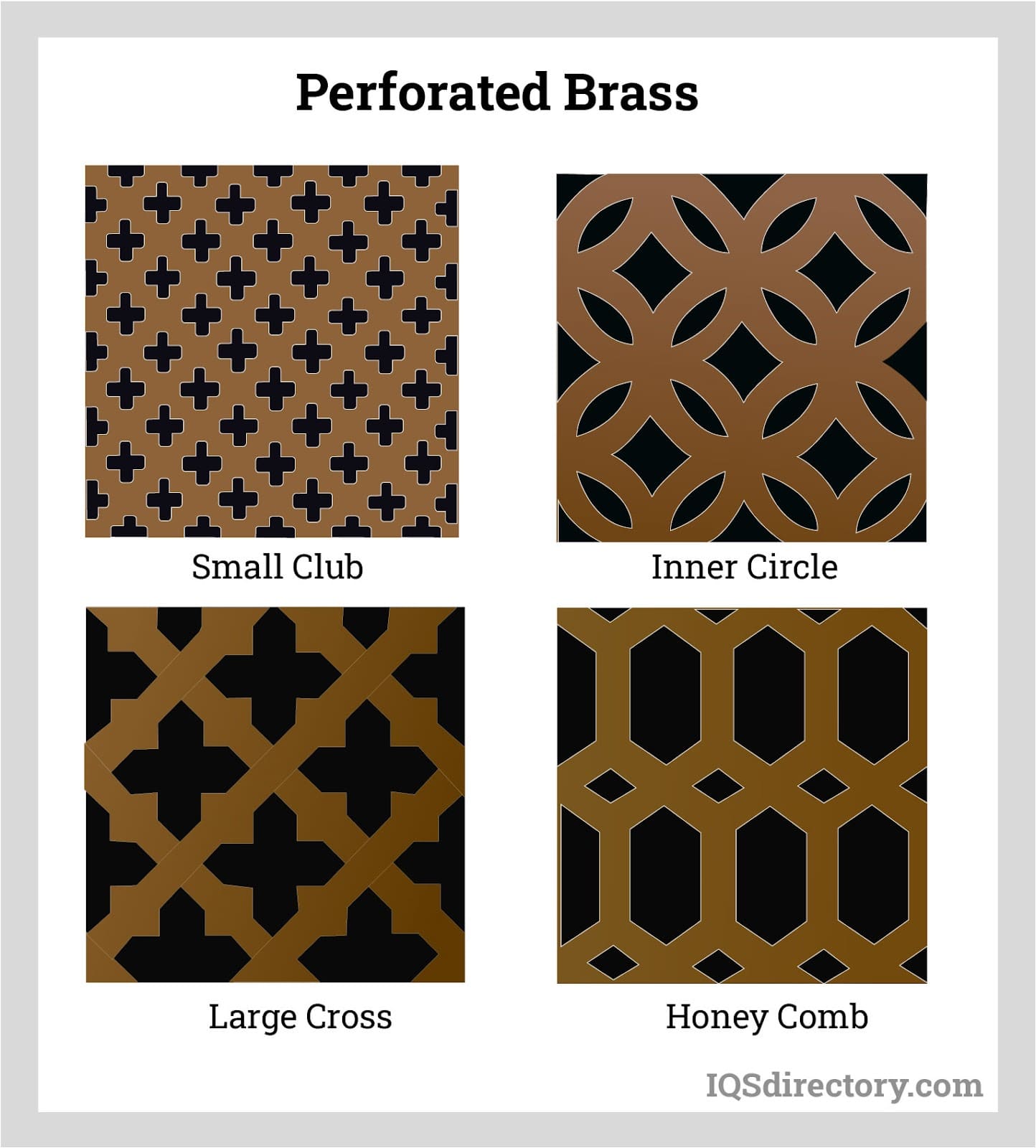

Brass is an alloy of zinc and copper. The combination of the two metals can be adjusted to give brass an assortment of properties, such as increased strength, hardness, and corrosion resistance. Much like copper, brass can easily be perforated. Brass has a very appealing gold like finish, which gives it an exceptional visual appeal. The sturdiness of brass makes it applicable for practical and aesthetic applications.

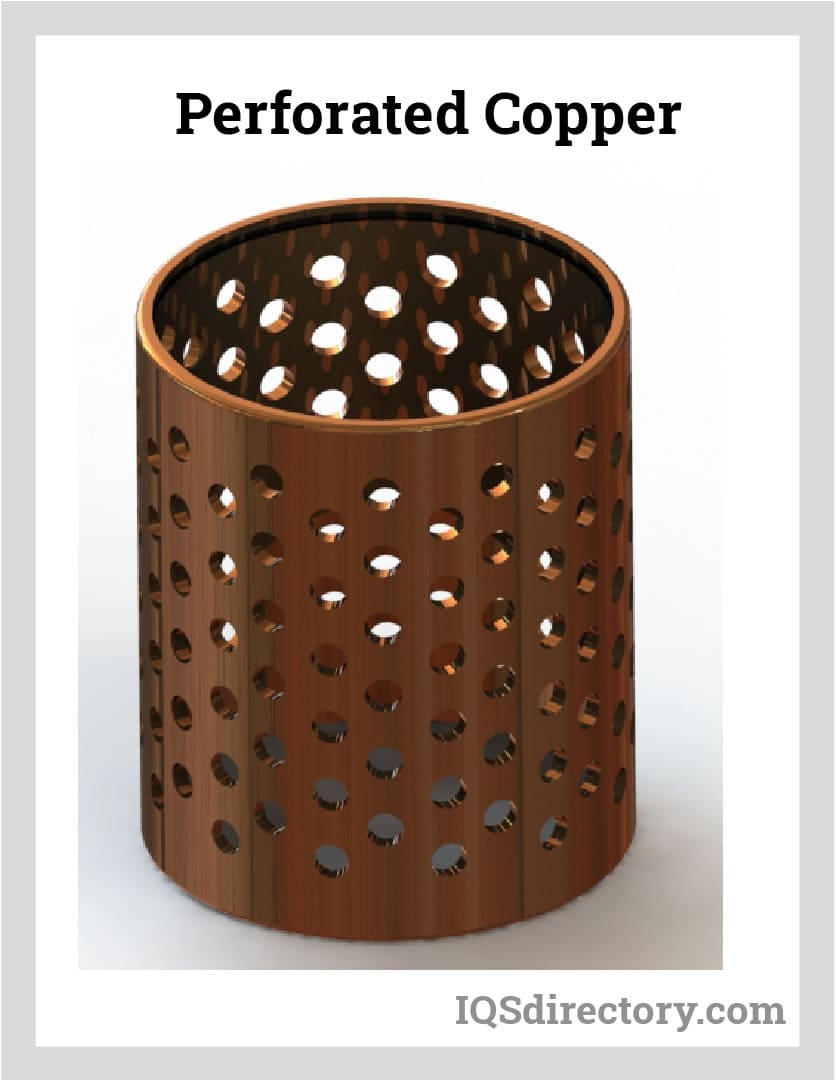

Perforated copper sheets have great visual appeal, which makes them ideal for interior designs and decorative applications. When exposed to the elements, unfinished copper forms a corrosion resistant outer surface of copper carbonate that has a greenish tint. Copper has an unlimited life span and can be easily recycled.

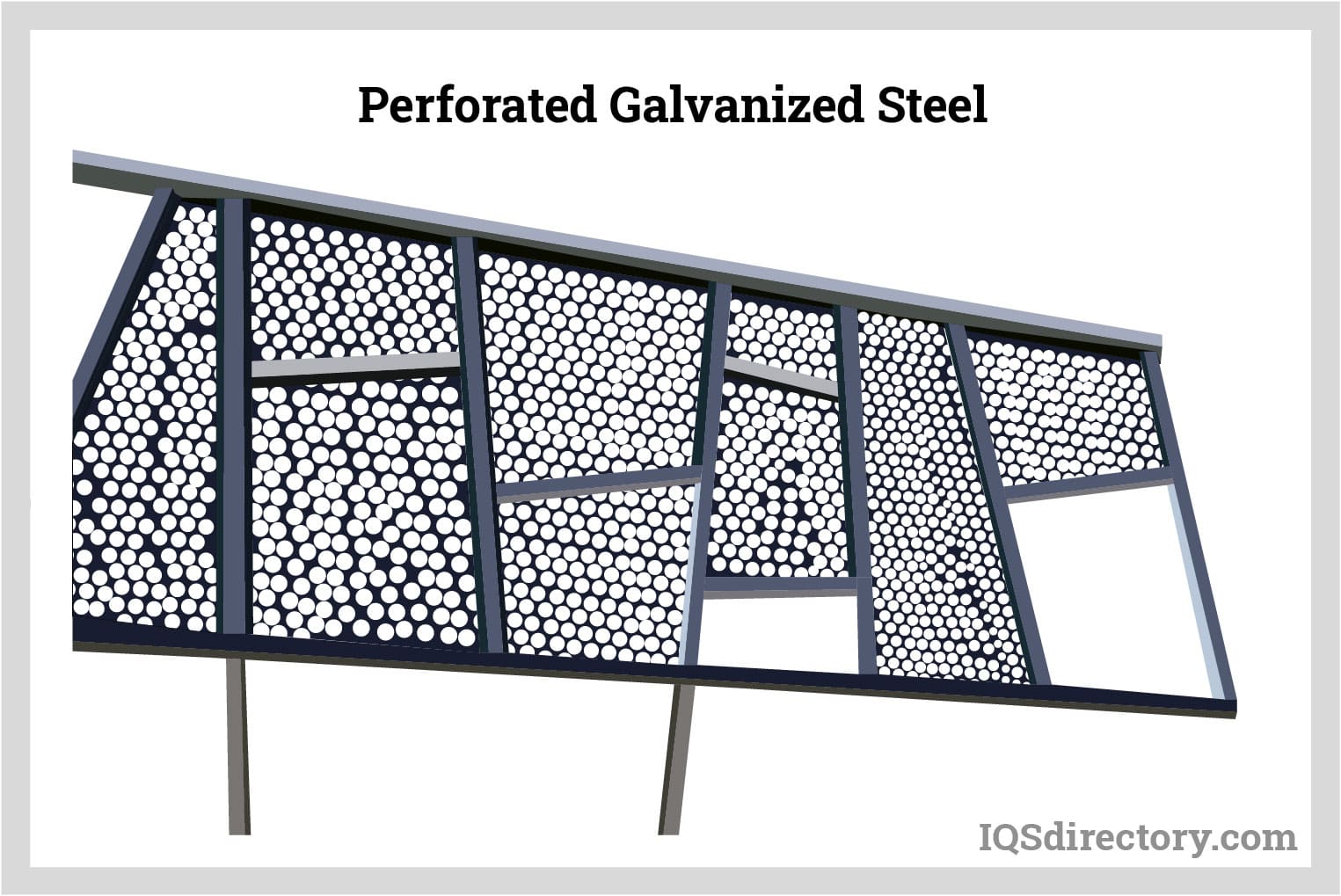

Galvanized steel is a perfect material for use in hostile and harsh environments because it is resistant to corrosion, is economical, and exceptionally strong. Steel is a very strong material but rusts when exposed to the weather. Galvanized steel has a solid zinc coating that blocks corrosive elements such as moisture, water, and humidity. It has the strength of steel with its endurance with the added feature of withstanding rugged conditions.

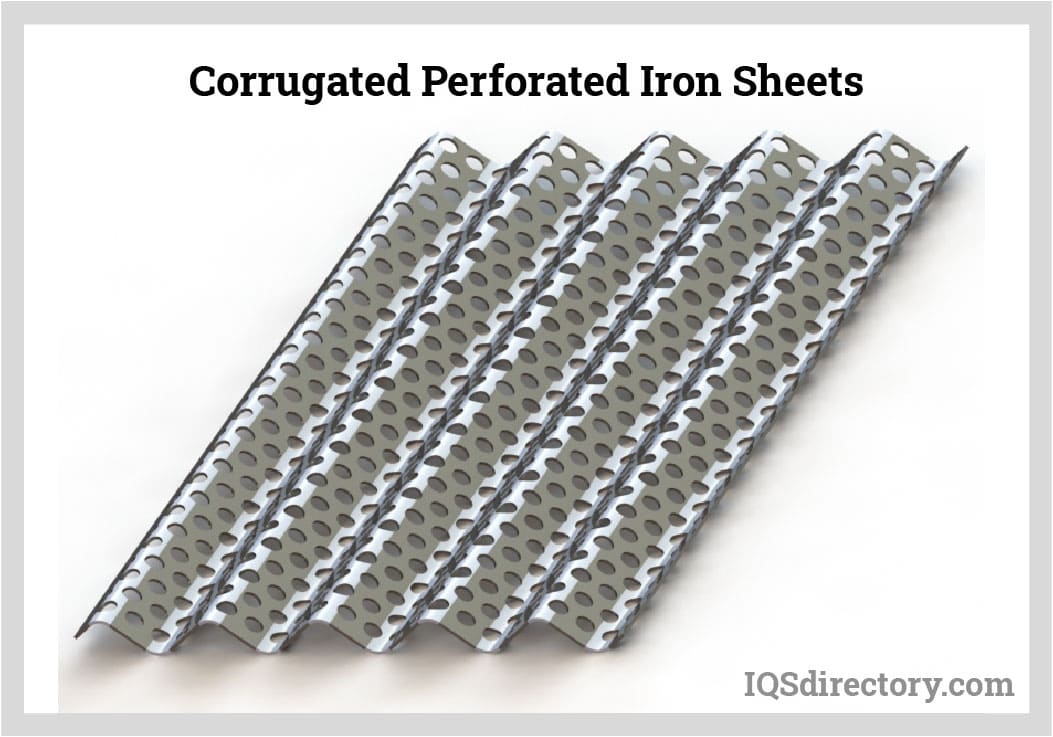

Iron is one of the oldest metals and has been utilized for various applications throughout history. Known for its exceptional strength, iron can withstand significant stress and is commonly used in perforated applications. It has also been adapted to meet the needs of contemporary designs and requirements.

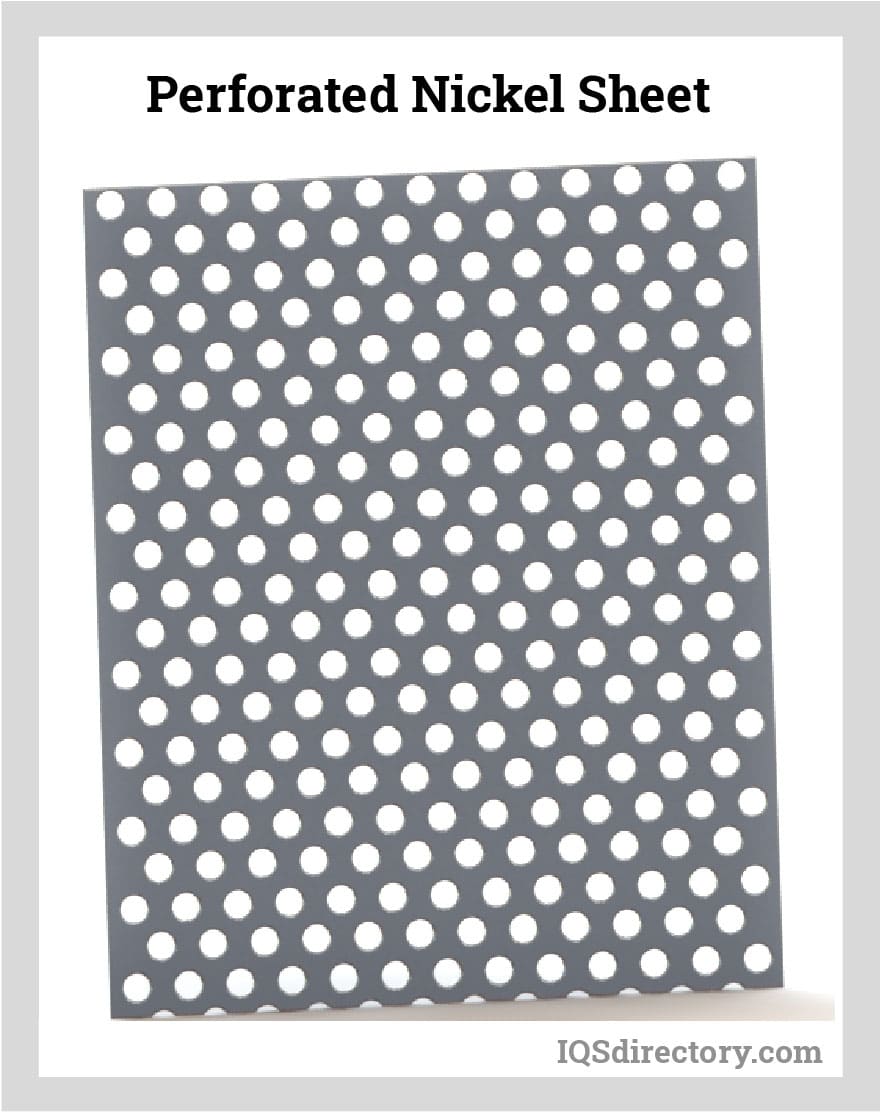

The composition of nickel alloys makes them flexible enough to be used for indoor and outdoor applications. Nickel’s outstanding strength and toughness are superior to most metals and are the reason it is so valued for construction applications. It is capable of withstanding extreme temperatures and is corrosion resistant. Nickel is an ideal metal for wet, humid, and moist environments.

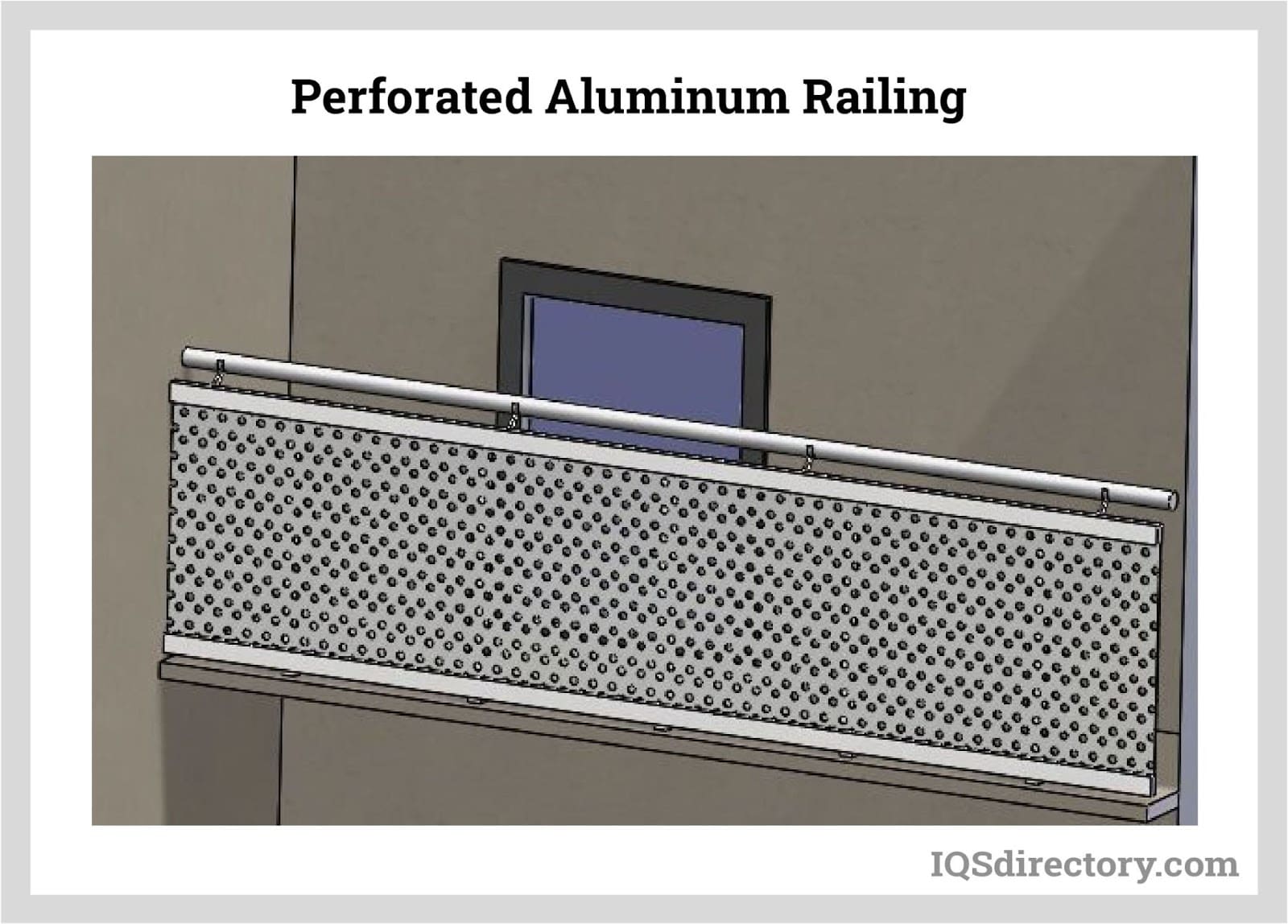

Aluminum offers several appealing characteristics for perforation. Its lightweight and durable nature makes it easy to handle and install. The silvery finish of aluminum adds a visually pleasing touch, making it a popular choice for decorative accents. Widely used in architectural applications, aluminum’s exceptional resistance to corrosion contributes to its longevity and durability.

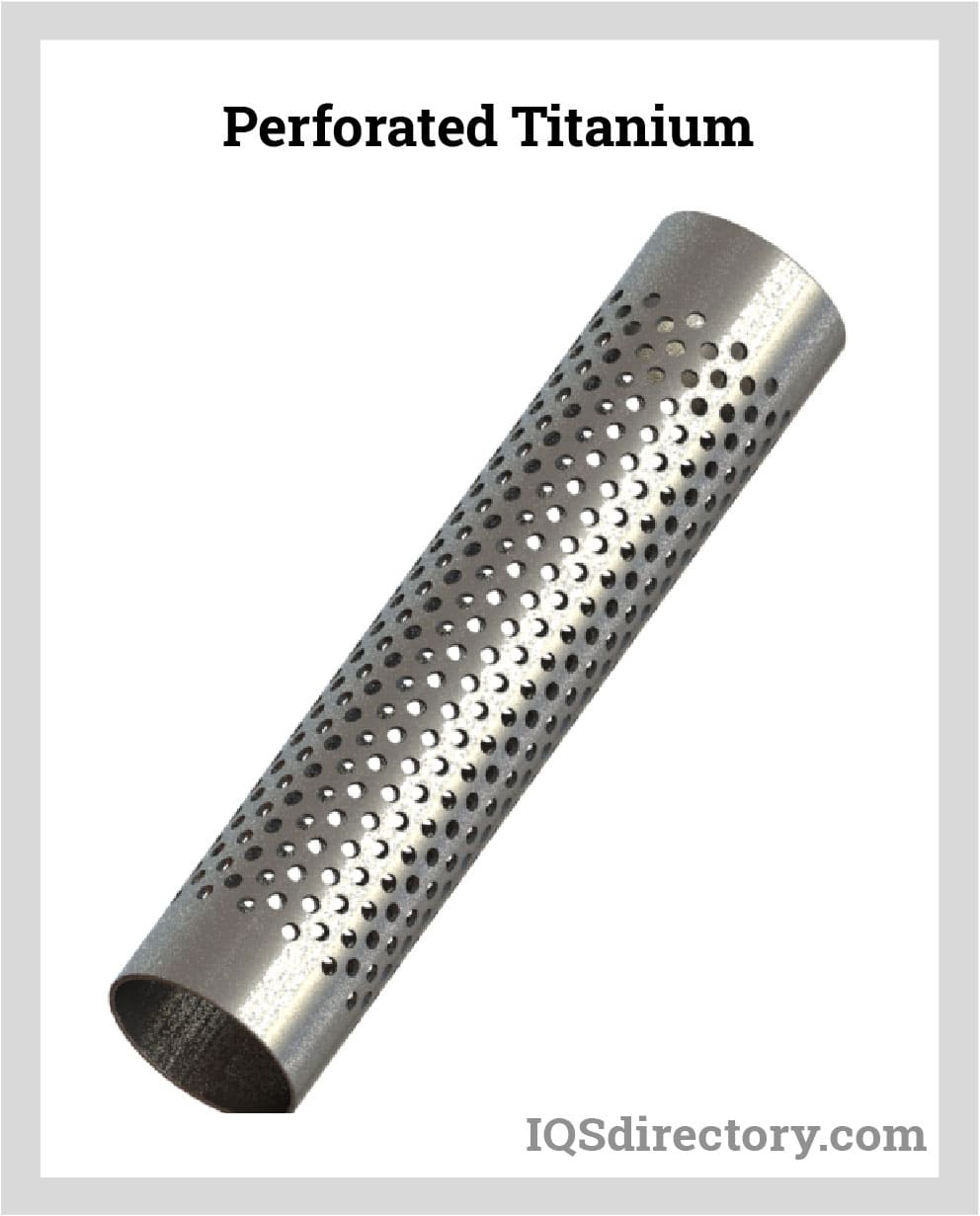

The two grades of titanium used to manufacture perforated metals are TA1 and TA2. Titanium is one of the strongest metals and has an exceptionally high strength to weight ratio. It has an oxide layer that serves as protection against corrosion. Titanium is 40% lighter than steel and 60% heavier than aluminum. The light weight of titanium makes it an ideal metal for structural applications.
Stainless steel is versatile and suitable for nearly any application because of its strength, resistance to corrosion, and attractive appearance. Its corrosion resistance is attributed to the alloying of chromium with steel, which prevents the formation of ferric oxide. The various grades of stainless steel are determined by the percentages of chromium and other metals in the alloy.
The apparent simplicity of perforated metals often belies their wide range of applications. Although perforated metals are essentially sheets punched and stamped with holes, they are far from having limited uses. In reality, they serve various purposes, including protection, sound suppression, decoration, and as eye-catching centerpieces.
The versatility of perforated metals is due to their strength, durability, and adaptability. They can be shaped to fit diverse conditions and applications. Additionally, the variety of metals used in perforation allows designers to select the most suitable material for their specific needs.
Vehicles are essential for transporting people and materials, and they are highly complex and technical machines requiring durable, long-lasting structural materials. These materials must be lightweight yet strong enough to ensure the safety of both passengers and cargo.

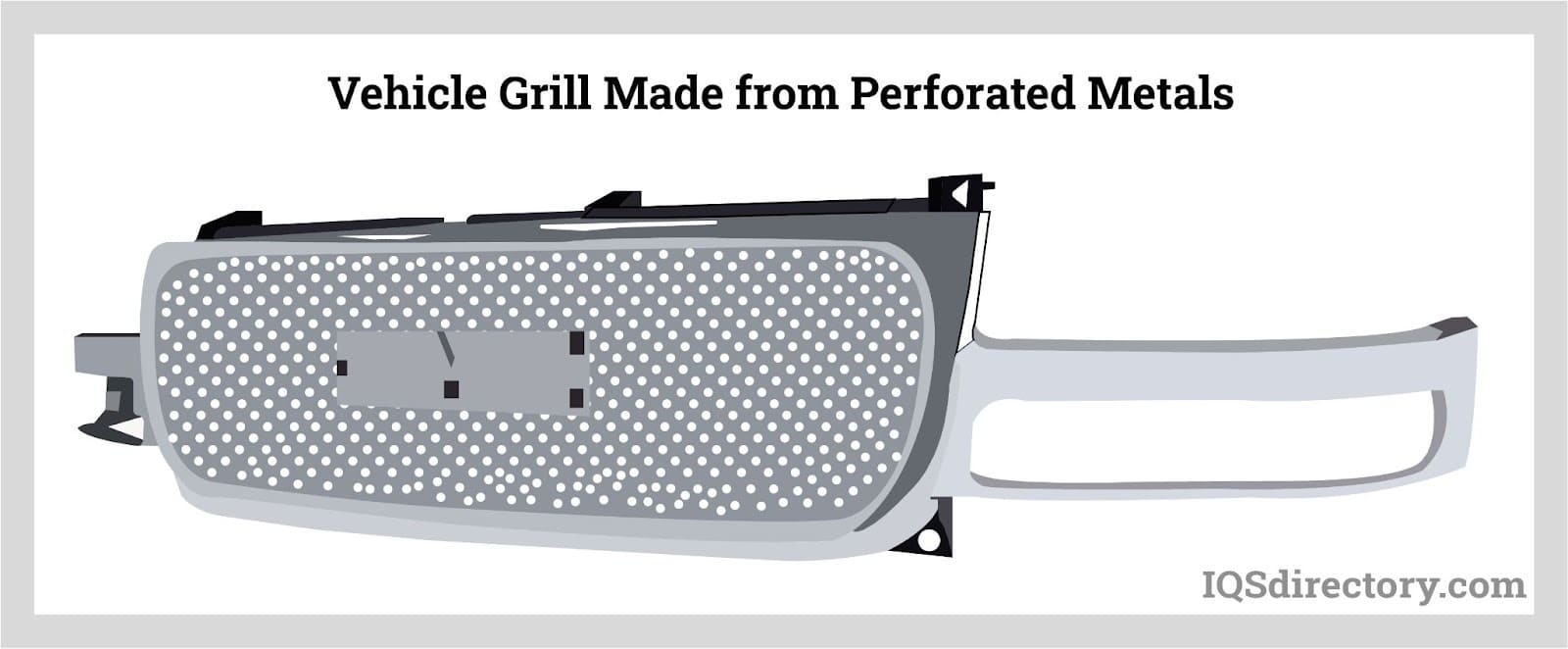

Perforated metals are an ideal choice for manufacturing automobiles and trucks. They offer excellent strength while remaining lightweight, meeting the specific needs of vehicles. Common applications include grilles, muffler guards, heat shields, ventilation screens, and tread plates. Using a single sheet of perforated metal for various vehicle components enhances productivity and application efficiency.

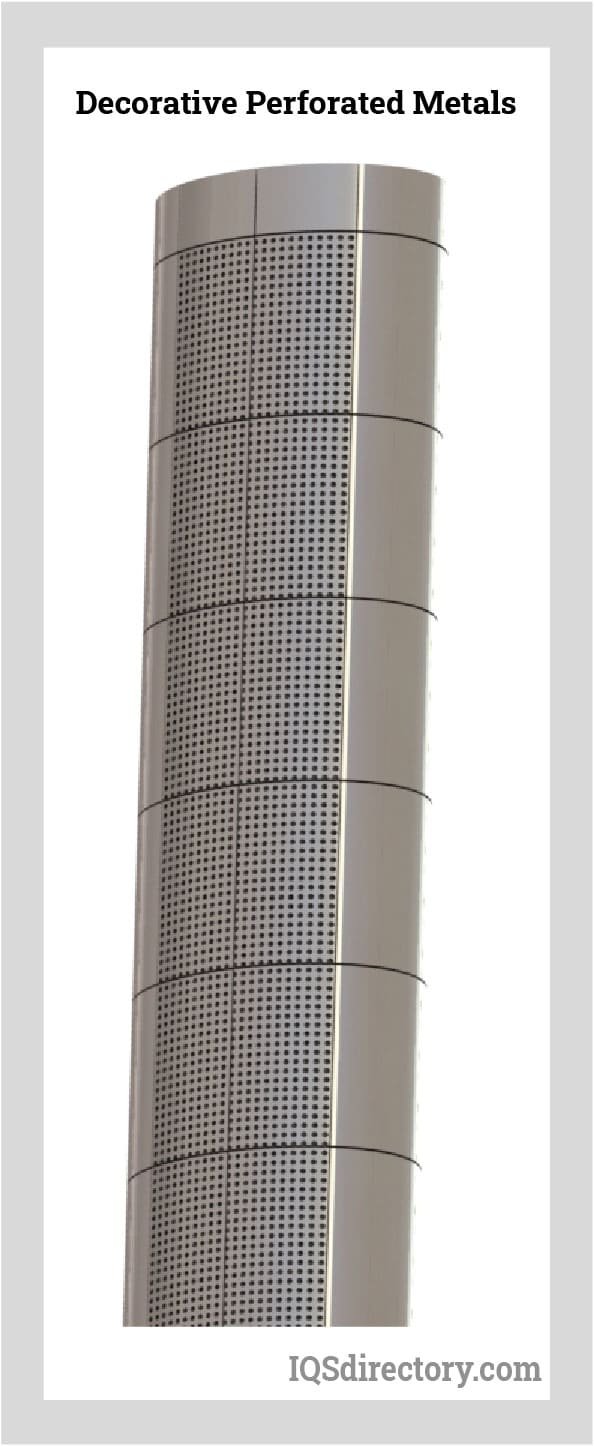

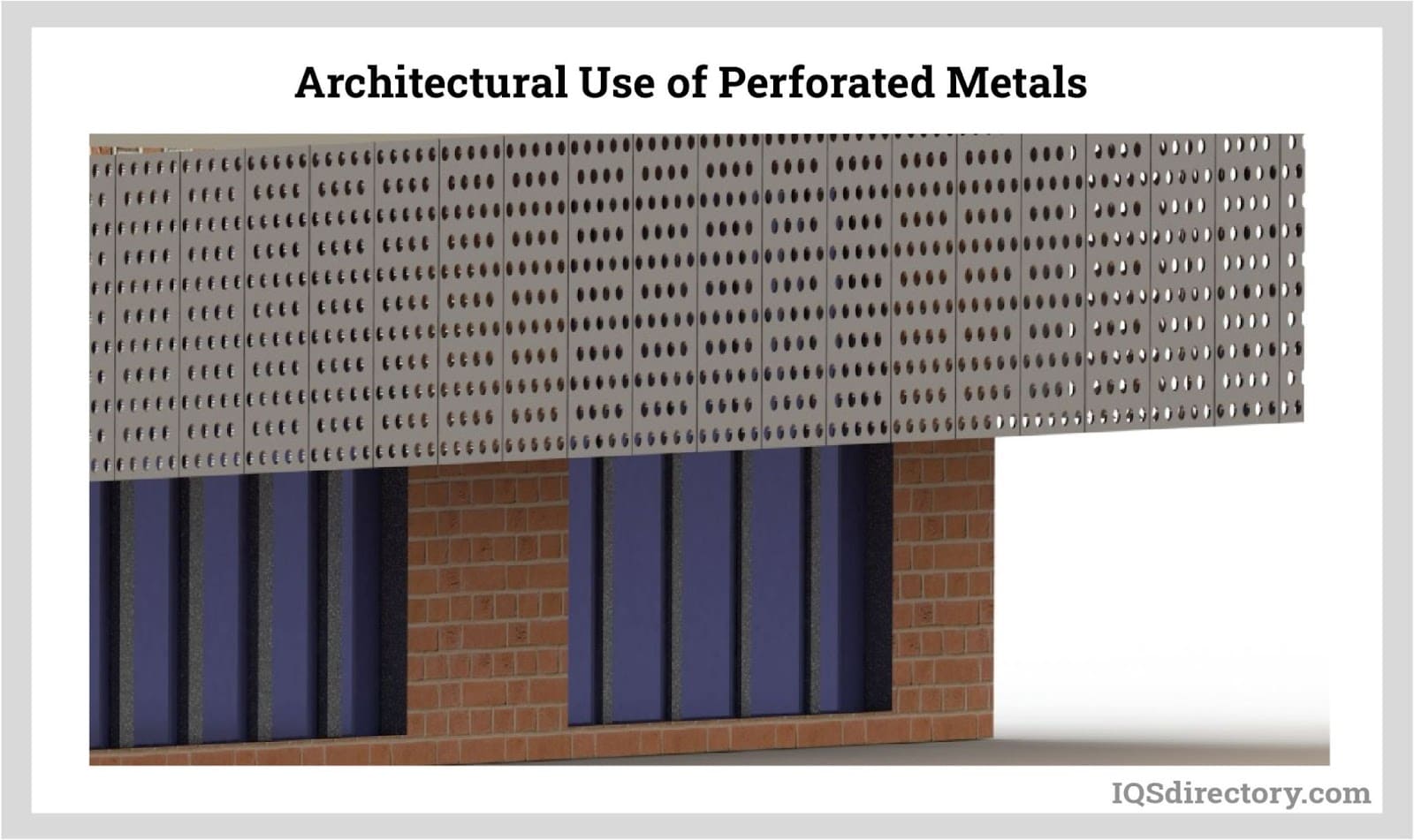

Perforated metals have been utilized in architecture for centuries. Historically, decorative perforations were crafted by hand, a process that could take weeks or even months. Today, thanks to advancements in machining and technology, perforated metals for architectural applications can be produced in minutes and are available in a diverse range of shapes, designs, and configurations.
While the choice of perforated metals in architecture often emphasizes aesthetic appeal, they also offer practical benefits by enhancing a building’s sustainability. For instance, perforated metals can help maintain a building's temperature by absorbing heat while allowing light to pass through, which can reduce both cooling and heating costs.

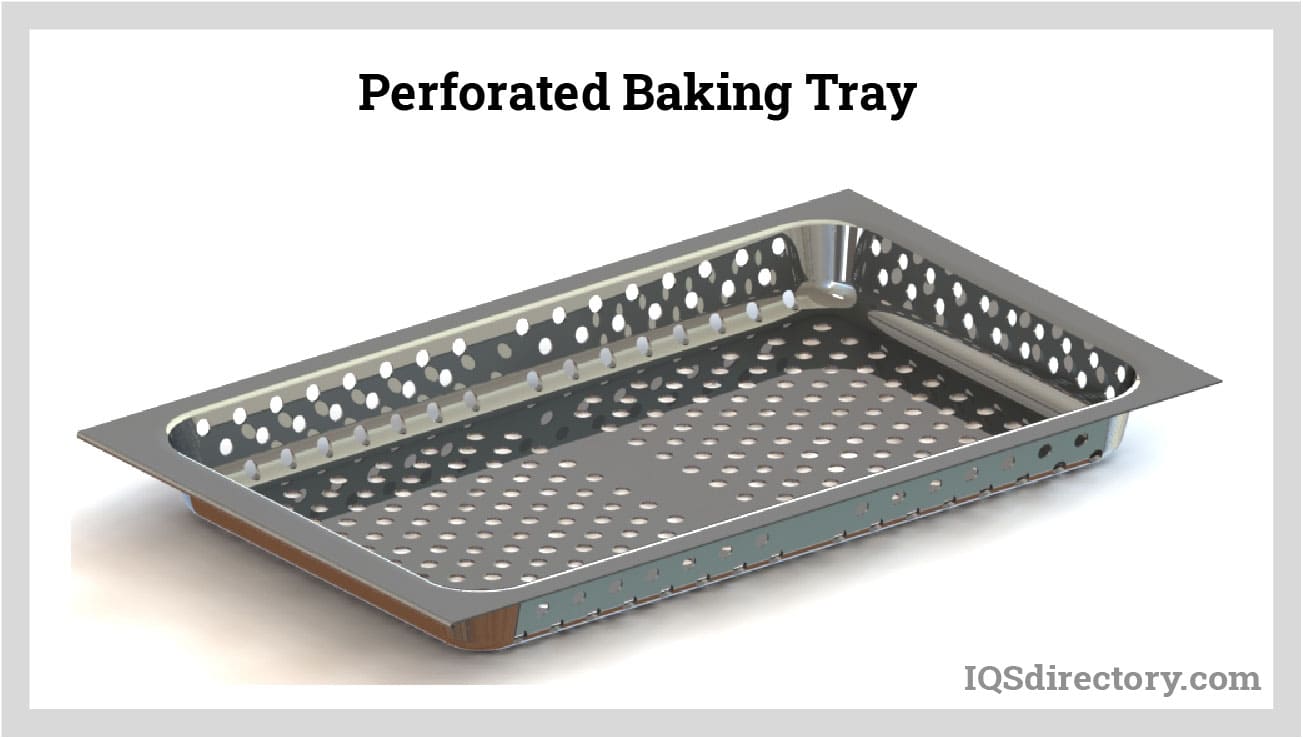

In the food industry, the primary requirement for any material is exceptional cleanliness and hygiene. Perforated metals meet these stringent standards and are widely used for various tasks such as cleaning, heating, steaming, and draining food products during preparation.
In cereal processing, perforated metals are employed to screen raw grains and remove contaminants. They effectively and gently eliminate dirt, shells, stones, and small debris from grains like corn, rice, and legumes, ensuring a clean and high-quality product.
Perforated metals are utilized in two primary ways for noise control: as a facing and in tuned resonant absorption systems. When used as a facing, perforated metals serve as protective and decorative covers for acoustical equipment. They are designed to absorb, reflect, or scatter sound, allowing sound waves to pass through without being significantly diminished for effective acoustic treatment.
For controlling or removing sounds within a narrow frequency range, perforated metals are incorporated into resonant sound absorbers. In these devices, the perforated metal vibrates in response to sound waves. This vibration creates friction, which helps to eliminate the unwanted frequencies.

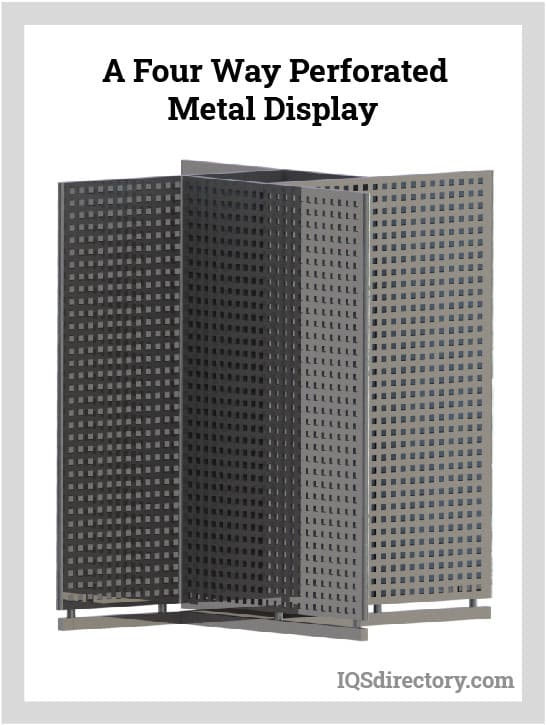

Perforated metals offer a range of characteristics that make them perfect for retail displays. They combine aesthetic appeal with strength and durability. Perforated metal shelving, for example, not only enhances the visual design but also allows for optimal air circulation.
Perforated metals offer exceptional flexibility, enabling quick and effortless adjustments to product placement. Their lightweight and maneuverable nature allows for easy reconfiguration of fixtures and displays. This adaptability makes it simple to redesign a selling floor to highlight specific products or create seasonal displays.
The basic form of perforated metals is the same regardless of the process used to make them. There are several types of machines that have been developed to produce perforated metals from traditional punch presses to highly technical programmed CNC machines.
The method used to produce perforated metals depends on factors such as cost, production time, and the type of metal. While it’s challenging to definitively say that one perforating process is superior to another, certain methods are more commonly employed than others.
Modern perforation relies on a few key manufacturing techniques, each with its own distinct advantages, applications, and benefits. The three primary methods are punch press, rotary pinned perforation, and laser perforation.

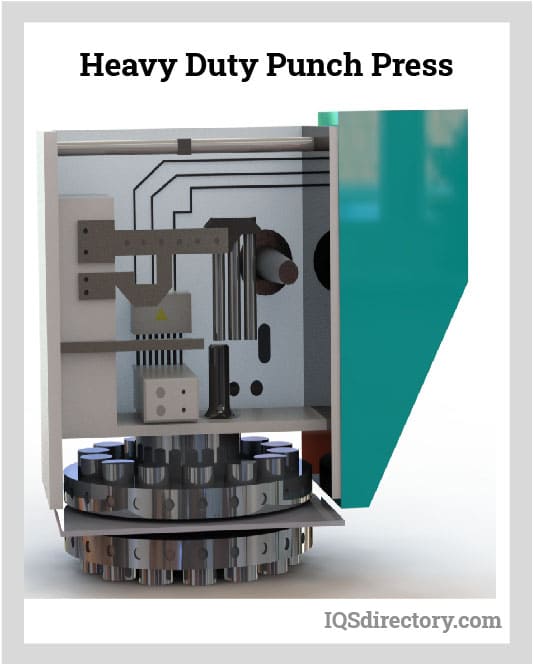

Punch presses utilize interchangeable tools to create a variety of designs and shapes by punching, piercing, or stamping metal. Among the two main types of punch presses, the wide press is the most commonly used for producing perforated metals. The other type is the XY axis machine, which offers different capabilities and applications.
A wide punch press can have metal fed in sheets or coiled rolls. As the material passes through the machine, the ram rapidly descends on the metal, striking it with great force to produce a complete row of holes in one single motion. Wide punch presses can create perforated sheets rapidly in large quantities.

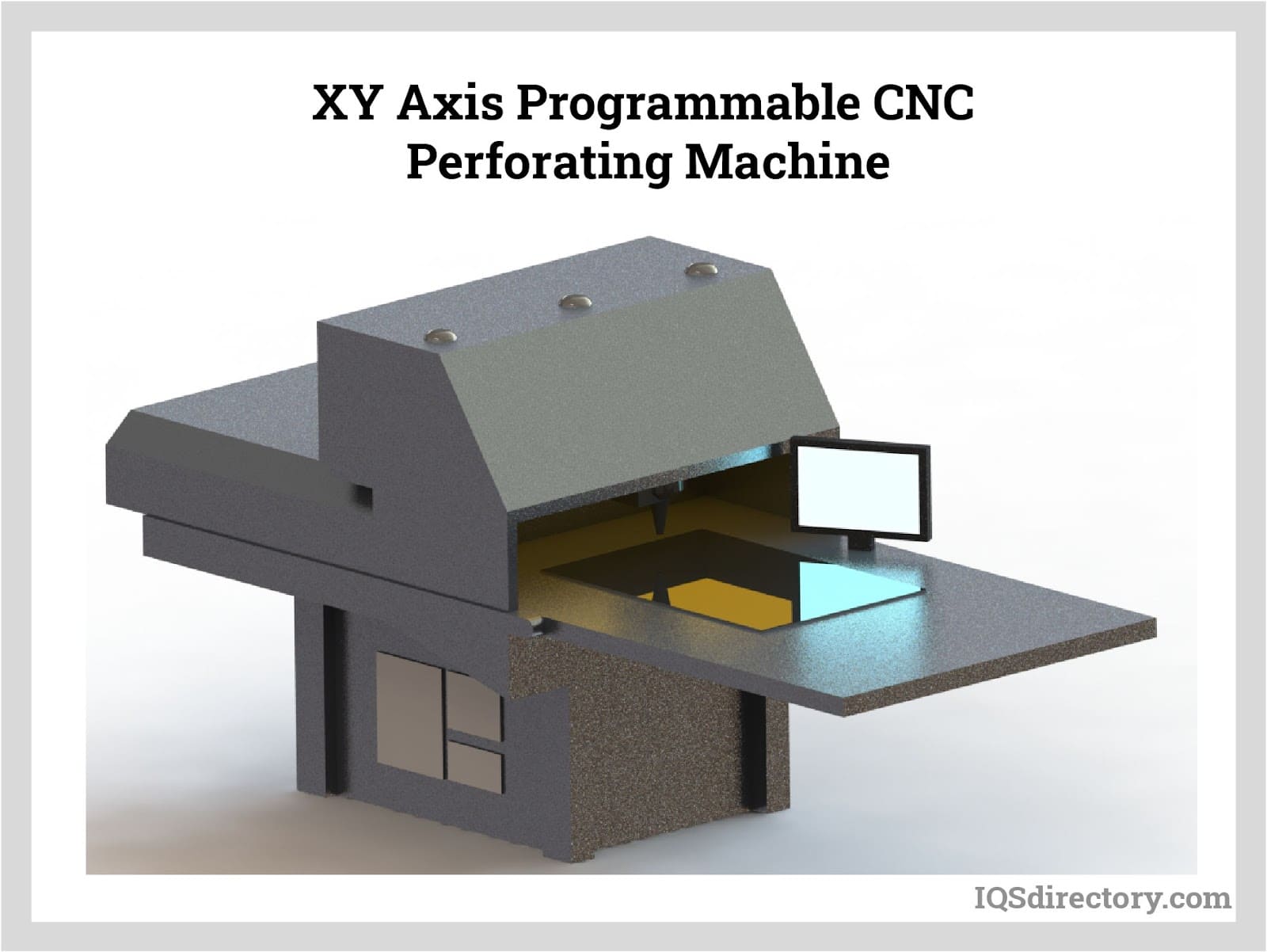

XY axis machines feature a single die or a cluster of dies attached to the ram. In this process, the material stays stationary while the ram moves across it to create the punches. Although the XY axis method is more time-consuming, it allows for the production of various shapes on a single workpiece.
Typically, XY axis punch machines are CNC programmable, enabling precise control over the positioning of the metal sheet and the punching of holes.
A rotary pinned roller perforating machine features a large cylinder with evenly spaced pointed needles around its circumference. As the cylinder rotates, the sheet metal is pressed under the needles, which punch holes into the metal. This method is extremely fast and efficient, rapidly creating numerous holes as the metal sheets pass beneath the roller.
In contrast to rotary pinned roller and punch press methods, laser perforation is a non-contact process that uses lasers to burn precise holes into the metal sheet. This method offers exceptional accuracy and consistency, creating holes with a reinforced ring around them, similar to what is seen with rotary pinned roller hot perforation.
Laser perforation can produce holes as small as five microns in diameter, which is significantly smaller than a human hair. The technique relies on directing a focused beam of light to a very small point on the metal sheet to achieve this level of precision.
In the United States and Canada, a wide range of machines are available for metal perforation. These machines are crucial for the efficient and precise fabrication of metal components used across various industries, including automotive, architecture, food production, and more. They play a significant role in driving technological advancements and supporting economic growth. Below, we explore many of these leading machines in greater detail.
Features: The Trumpf TruPunch 5000 is a widely favored and versatile machine recognized for its high-speed punching capabilities and advanced automation features. It boasts a rapid hydraulic punching head and an extensive selection of tool options, enabling it to efficiently handle a variety of perforation tasks. Its intelligent control system and user-friendly interface ensure straightforward programming and operation.
Features: The Amada EMK 3610 is celebrated for its precision, speed, and dependability. It employs servo-electric punching technology, which enhances energy efficiency and minimizes environmental impact. The machine's automatic tool changer and advanced sheet handling system optimize the perforation process and significantly reduce downtime between tasks.
Features: The Murata Wiedemann Motorum 2044EZ is appreciated for its compact design and innovative tooling capabilities. It utilizes a hybrid mechanical-electrical punching system, which delivers high punching rates with lower energy consumption. Additionally, the machine is known for its sturdy construction, durability, and minimal maintenance needs.
Features: The Finn Power C5 Compact Express stands out for its versatility and efficiency in handling various metal perforation tasks. It is equipped with a rotating turret that has multiple stations, allowing for swift tool changes and extensive perforation capabilities. Its compact size and ergonomic design make it an excellent choice for workshops with limited space.
Features: The LVD Strippit PX-Series is renowned for its high-performance capabilities and exceptional accuracy. These machines utilize a hybrid drive system that combines hydraulic and electric punching to achieve optimal speed and efficiency. Their advanced control system provides intuitive programming and simulation features, allowing operators to preview the perforation process before production begins.
These machines are highly regarded in the metal fabrication industry for their innovative features, automation capabilities, precision, and efficiency. As technology advances, newer models with even more advanced functionalities may become available. It is important to assess your specific application needs and consult with industry experts to choose the most suitable machine for your aluminum perforation requirements.
Perforated metals are indispensable in a wide range of applications due to their versatility and durability. They are easy to work with and install, offering exceptional characteristics that ensure longevity. Designers and engineers often rely on perforated metals for both structural support and aesthetic appeal.
The diverse production methods and the variety of metals available make perforated metals a flexible and practical choice for construction projects. They allow for easy customization to achieve the desired appearance and functionality in the final piece.
Perforated metals are commonly seen in office buildings, schools, stadiums, and other structures, which might suggest they are primarily used as decorative elements. However, their role extends beyond mere aesthetics. Their primary purpose has always been to enhance the visual appeal of a structure, a tradition that dates back many years.
Advancements in technology have expanded the range of options for perforated metals, including various hole shapes, sizes, geometric patterns, and finishes. This versatility allows perforated metals to be tailored to meet the specific needs of any structure, whether for interior or exterior applications. Additionally, their ability to filter natural light helps create visually appealing environments, complementing their structural functions.
The versatility of perforated metals lies in their ability to be bent, shaped, and customized to fit specific applications and designs. They are used in a variety of ways, including sound suppression, infills for railings, barriers above and below railings, column covers, filtration of fluids and light, and window coverings.
One common misconception about perforated metals is that their aesthetic appeal might compromise their durability. Often, materials with visual appeal can be fragile and require careful handling, but this is not true for perforated metals.
Perforated metals are typically made from robust materials such as stainless steel, galvanized steel, and iron. Even when formed into decorative patterns, these metals retain their strength and resilience, allowing them to withstand harsh conditions. This combination of durability and visual appeal is a key reason for their widespread use.
Perforated metals can effectively manage interior lighting and temperature by blocking excessive sunlight, which helps reduce heating and cooling costs. They prevent direct sunlight from overheating a building while still allowing sufficient natural light to reduce reliance on artificial lighting. By controlling solar heat gain, perforated metals contribute to lower energy consumption and offer significant savings on heating and cooling expenses.
Perforated metals are an eco-friendly choice due to their high recyclability and ability to be reused multiple times. This sustainability aspect complements their energy-saving benefits. The focus on sustainability has become a key goal in industrial and manufacturing practices, and using perforated metals aligns well with these environmental initiatives.
Perforated metals are effective in diffusing sound and reducing acoustic emissions. When installed along the edges of ceilings, they help prevent echoes and suppress unwanted noise. They are commonly used as coverings for acoustical equipment, designed to either absorb or reflect sound to improve acoustic performance.
Installed slightly away from building surfaces, perforated metals function similarly to siding but with most of their surface not in direct contact with the building. This spacing allows for pressure equalization between the space behind the perforated metal and the building’s exterior. Pressure equalization is particularly crucial for tall buildings, which are exposed to significant wind loads.
Perforated aluminum consists of an aluminum sheet which has been manually or mechanically pierced or punched using CNC (computerized numerical control) technology in order to produce shapes and patterns of various sizes...
A perforated metal is a piece of sheet metal that has been stamped, fabricated, or punched to create a pattern of holes, slots, and various aesthetic shapes. A wide range of metals are used in the perforating metal process, which include steel, aluminum, stainless steel, copper, and titanium...

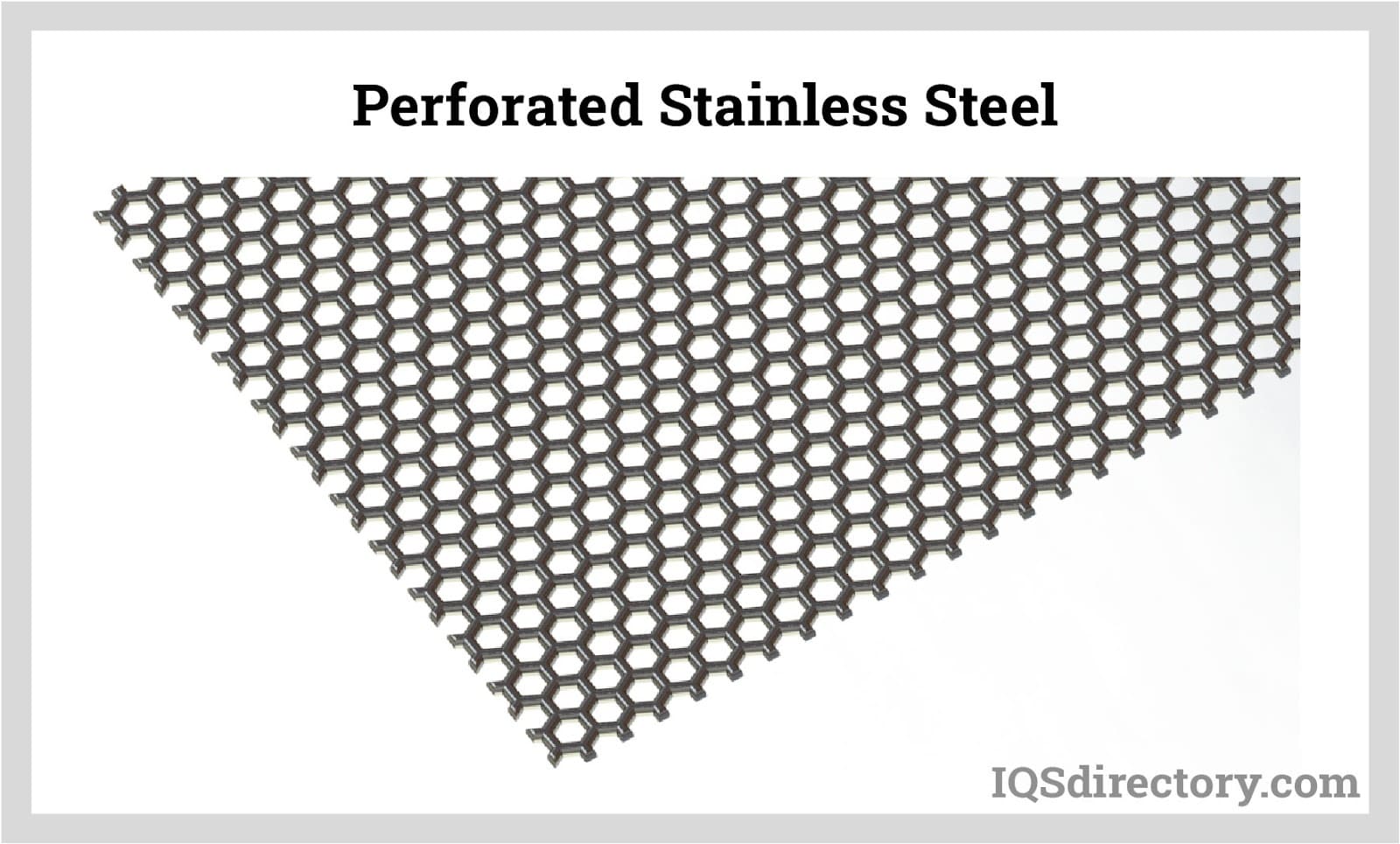

Perforated stainless steel is cut, punched, or stamped to produce a precise pattern of holes or apertures. It is used for functional reasons, such as filtration or ventilation, and aesthetic ones, such as architectural accents...
Perforated metals are sheets of metal that have had decorative shapes, and holes punched or stamped into their surface for practical or aesthetic purposes. The perforation of metal sheets takes several forms and includes a variety of geometrical patterns and designs...
Wire mesh is fabricated by the intertwining, weaving, or welding of wires of various thicknesses to create proportionally equal parallel rows and intersecting columns. Also known as wire fabric, wire cloth, or...
Expanded metal is a sheet metal mesh. It is made by stretching a slitted sheet of malleable metal. The orientation of the slits is perpendicular to the direction of the stretch. The result of such stretching is an array of holes on the slits - to give a mesh form...
Hardware cloth is a woven mesh made by interlacing various sizes of wire to form a metal fabric that can be used for animal cages, fence material, strainers, and filtering screens. The differences between the various types of hardware cloth...
Metal grating is a metal product produced by perforating metal sheets or joining bars of metal to form a grid. They are a metal product that is widely used in various industries as stairs, platforms, scaffolding, and protective coverings...
The phrase "wire mesh" describes two- or three-dimensional structures constructed of two or more metallic wires connected by various techniques. In a wide range of settings, wire mesh products are...
Welded wire mesh is a series of wires that are welded where the individual wires cross. The openings of the mesh varies depending on the type of wire used and the function of the mesh. Regardless of size and wire, welded wire mesh is permanent and...
Wire cloth is a woven (or nonwoven) sheet or web material with a series of openings across the surface. Wire cloth is also known as: Metal Fabric or Metal Cloth; Wire Mesh, Metal Mesh, or Alloy Mesh...
