This article will take an in-depth look at perforated aluminum.
After reading the information below, you will understand more on topics regarding:
Perforated aluminum is created by punching or piercing aluminum sheets using manual or automated methods, including CNC (computerized numerical control) technology. This process allows for the production of various shapes and patterns, which can be tailored to specific requirements. Today, perforated metal panels are widely used in architectural applications such as acoustic panels, decorative lighting fixtures, signage, and industrial filtration screens.The methods for perforating aluminum have evolved from manual techniques to advanced, specialized machinery that ensures precise patterns and sizes according to material type, panel width, and client specifications. Aluminum is one of the lightest commercially available metals, with a density about one-third that of steel or copper. Its high strength-to-weight ratio makes it ideal for applications in the automotive and transportation industries, where it helps in achieving greater payloads and fuel efficiency. However, pure aluminum has limited tensile strength. To overcome this, alloying elements such as manganese, silicon, copper, and magnesium are added to produce alloys with enhanced strength and specific properties tailored to various applications. When exposed to air, aluminum quickly develops a protective layer of aluminum oxide, which gives it excellent corrosion resistance. Although aluminum is less resistant to alkaline substances like lime or soda, it generally withstands most acids well.
Aluminum is easy to install due to its lightweight, strength, and flexibility. Additionally, like stainless steel, aluminum provides excellent visual appeal, making it an attractive choice for applications that require both sound and light diffusion.
The production process for perforated aluminum begins with a flat aluminum sheet, which can be cut and shaped into various forms despite its thinness. In North America, the thickness of sheet metal is measured in gauges, while elsewhere it is typically measured in millimeters. The design for the perforated aluminum is selected based on its intended use, with choices varying in styles, sizes, and hole arrangements. Factors such as the required strength, specific application, and hole pattern influence the functionality and performance of the perforated metal. When designing perforated aluminum, considerations include the size of the holes and the width of the bars (the spaces between holes). The strength of the perforated aluminum depends on finding the right balance between these elements. Larger holes and narrower bars reduce strength, as the material is less dense where the holes are located. To maintain effective perforation and structural integrity, the thickness of the aluminum should generally not exceed the diameter of the holes or the width of the bars.
The rotary-pinned perforation roller is the most commonly used method for perforating metal. However, other devices can also be employed for perforating aluminum. Below, we explore some of these alternatives.

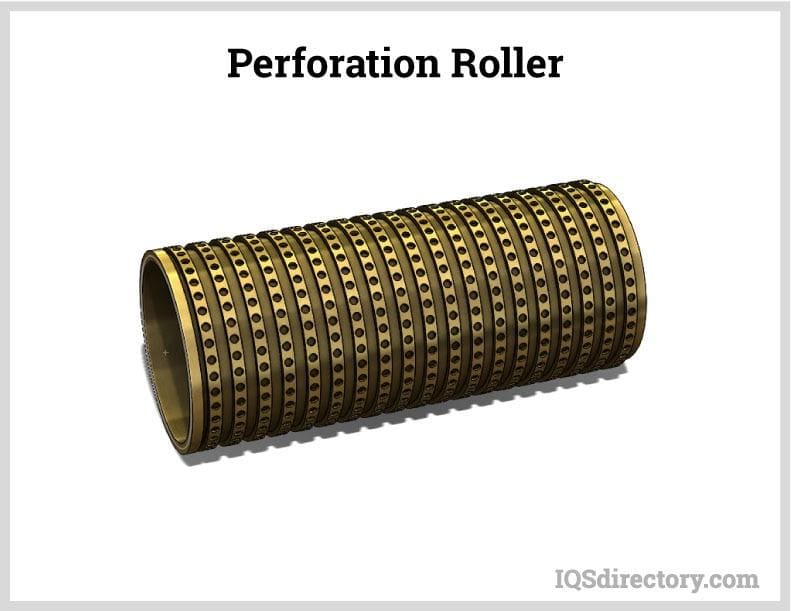

A rotary-pinned perforation roller is a large cylinder equipped with protruding, pointed needles designed to punch holes in metal. As the sheet metal moves across the rotating roller, the needles continuously create holes in the material. In some cases, the needles are heated to melt the metal, forming a reinforced ring around each perforation. This method allows for the creation of holes in various sizes using the pinned roller.

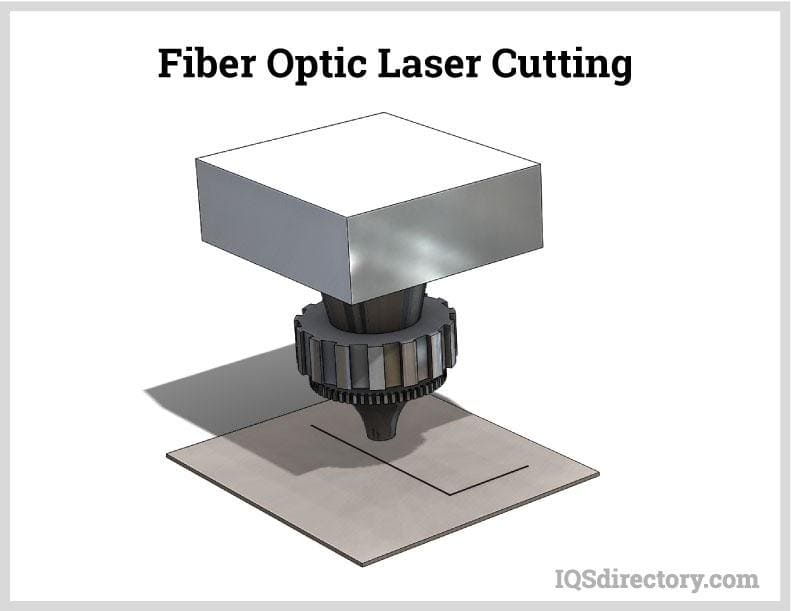

A laser beam uses compressed gas to melt and vaporize aluminum until a hole is created and, by then constantly moving the laser beam over the material in a pattern, a cutting design is formed. With a few exceptions, thermal cutting technology requires drilling a small hole into the aluminum plate before laser cutting. The fundamental idea behind laser perforation is that when a laser beam of a given energy shines on a metal plate, barring any reflections, the energy absorbed by the metal melts the metal to create a metal melting pool. The melting process then quickens as the melting pool deepens and allows for more energy to be absorbed.
Laser perforation is generally categorized into two types based on the method used to create the perforations: blasting perforation and pulse perforation.

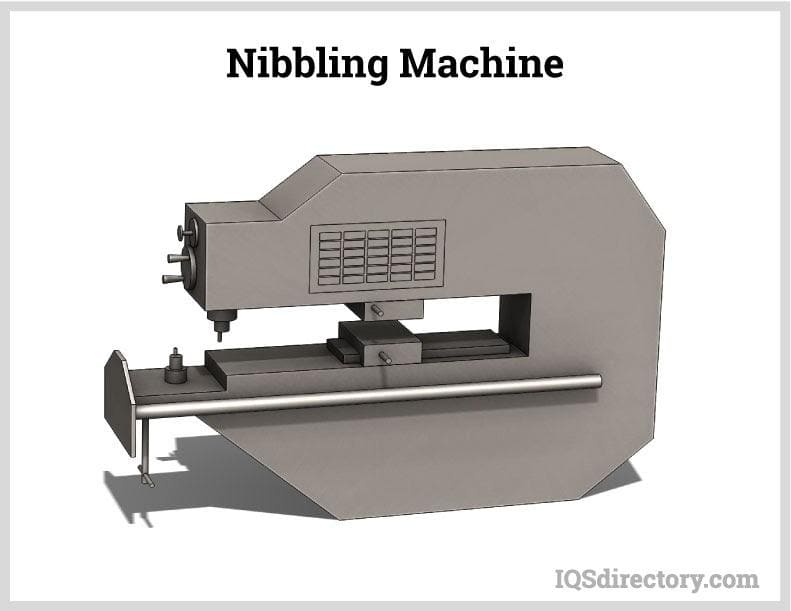

In the manufacturing process known as nibbling, a punch is employed to make successive cuts in a metal sheet. A nibbling machine, powered by an electro-hydraulic motor, performs these cuts with high precision, allowing it to punch, cut, and shape materials accurately. Nibbling machines are versatile and can handle a range of tasks, including punching, slot cutting, and creating rectangular patterns.

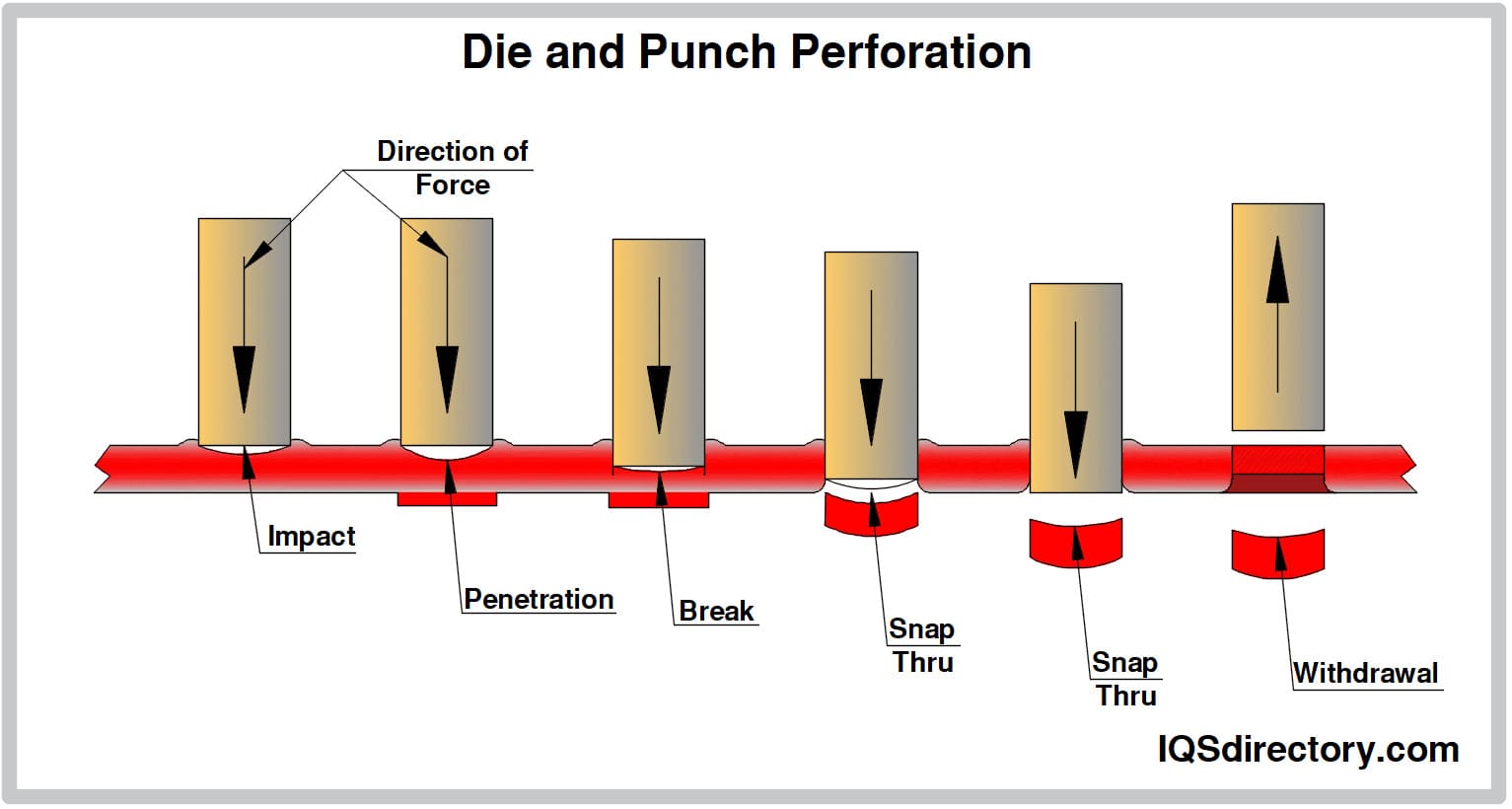

Another simple method for perforating aluminum is punch and die perforation. In this process, the material is positioned above a die that matches the size, shape, and pattern of a punch located above it. The punch is driven down to meet the die, creating a hole in the material. After punching, the metal chips are removed from the die using a vacuum system. This punch and die method allows for efficient perforation of metal screens and panels over large surface areas.
An all-across perforating press is capable of producing up to 1,600 punches per stroke, delivering high speed, accuracy, and cost-effectiveness. These presses can handle materials with thicknesses ranging from 0.002 inches to 0.25 inches and are suitable for workpieces wider than 60 inches. The all-across process allows for the creation of thousands of holes per minute, with the press capable of making up to 600 strokes per second.

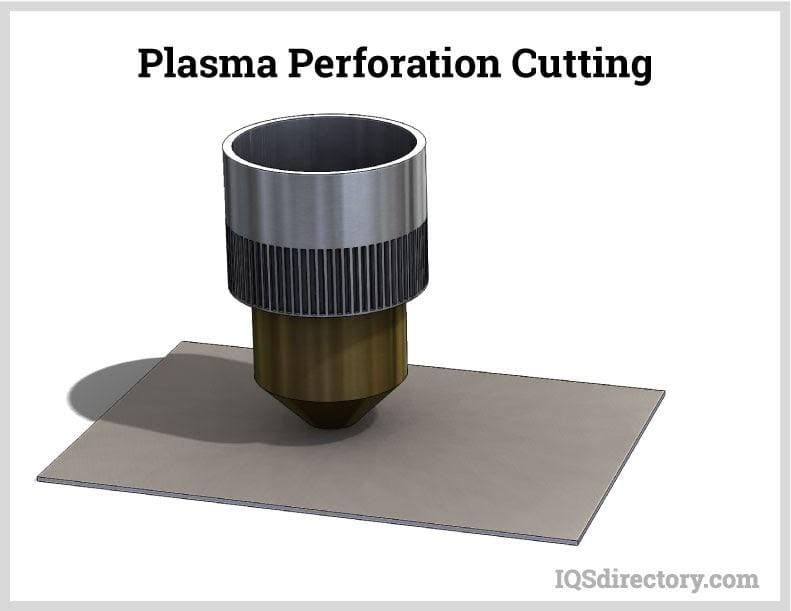

In the plasma thermal cutting process, an electrical arc is used to ionize and heat specific gases, creating a cutting plasma. A tungsten electrode is part of an electrical circuit that includes the aluminum metal sheet being cut. The torch, equipped with a grounding clamp, generates the electrical arc. The tungsten electrode ionizes the plasma, which is then heated to an extremely high temperature to cut through the metal.
At higher temperatures, plasma flows more rapidly. When it reaches the necessary temperature, it moves swiftly enough to cut through metal and create perforations. In plasma cutting, the cutting gas stream of the plasma jet slices through aluminum, effectively clearing away molten metal and oxide from the cut. This process results in high-quality, precise cuts with minimal molten material residue (kerf). Various gases, including hydrogen, nitrogen, oxygen, argon, and even compressed air, can be used in plasma cutting depending on the material. For most aluminum perforating applications, an argon-hydrogen mixture is preferred because it provides the optimal cutting capability.
In the United States and Canada, there are numerous machines designed for aluminum perforation. These machines play a crucial role in modern industry by facilitating the efficient production of perforated aluminum sheets. Such sheets are valued for their lightweight, durability, and aesthetic appeal. Below, we explore several of the most notable perforating machines and the features that contribute to their popularity.
The Metl-Span Perforator is a highly regarded option for aluminum perforation, known for its precision and versatility. It can handle a variety of aluminum sheet thicknesses and create different hole patterns, sizes, and shapes. This machine delivers high production efficiency and accuracy, making it ideal for a broad spectrum of applications.
Cidan Machinery's Pro Z Series, which includes models such as the Pro Z21 and Pro Z30, are popular for aluminum perforation due to their durable construction and advanced features. These machines are equipped with user-friendly touchscreen interfaces, automatic tool changers, and programmable hole patterns, allowing for rapid and accurate perforation of aluminum sheets in various thicknesses.
The Whitney 3400 XP is highly regarded for its versatility in perforating aluminum sheets. It accommodates a broad range of sheet sizes and thicknesses and provides various tooling options for different hole shapes and sizes. With its user-friendly controls and high-speed performance, the Whitney 3400 XP is a favored choice for aluminum perforation.
The Spiro SP 800 is a CNC-controlled perforation machine known for its precision and efficiency. It is commonly used for perforating aluminum sheets, particularly for HVAC ducts and other applications. The machine features an automatic tool change system and computerized controls, which facilitate easy programming and customization of hole patterns, contributing to its popularity in the industry.
The LVD Strippit PX-Series machines, including models like the PX-1530 and PX-2030, are renowned for their high-speed perforation capabilities across various materials, including aluminum. These machines are equipped with advanced punching technology, such as brush tables that ensure scratch-free processing, and offer a diverse range of tooling options for different hole patterns. Their efficiency and versatility make them popular choices for aluminum perforation.
For the most current information on models and features, please verify with manufacturers and suppliers directly. It is crucial to consider your specific application needs and consult with industry experts to choose the machine that best meets your aluminum perforation requirements.

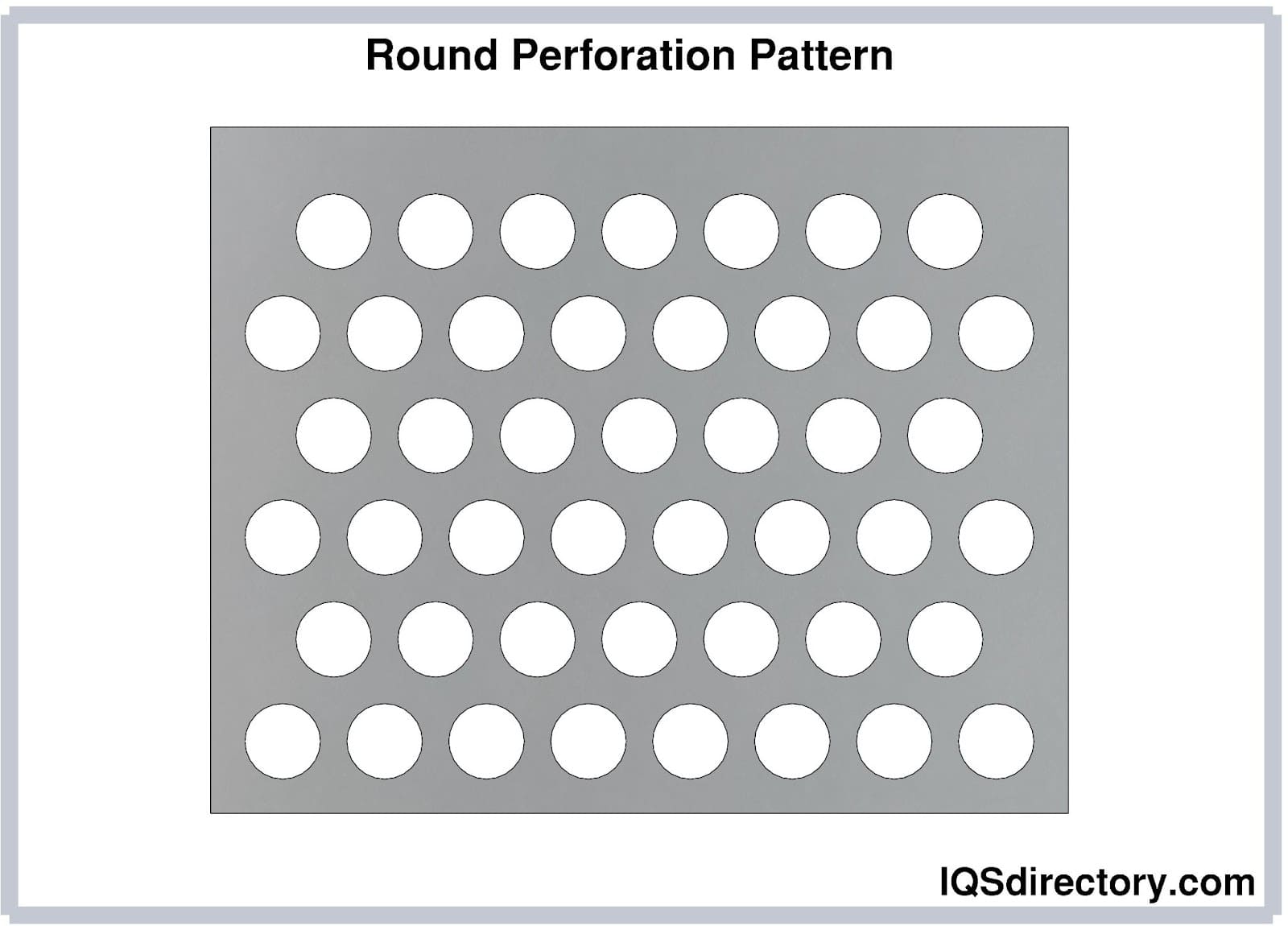

There are two types of round hole patterns: staggered and straight. In staggered patterns, the holes are misaligned, whereas in straight patterns, the holes are arranged in parallel and perpendicular lines. Round hole perforation patterns come in three variations: finished, unfinished, and blank. Finished patterns have complete and evenly spaced margins within the metal sheet's perimeter. Unfinished patterns contain additional solid material within the perimeter, suggesting the potential for more perforations. Blank patterns feature round perforations that extend to the edge of the metal sheet. Round holes are a versatile and cost-effective choice, suitable for various applications including air conditioning and heating systems, as well as decorative architectural designs.
The linear design of square hole perforations provides a modern look and maximizes open space. Available in various styles, hole sizes, and patterns, square hole perforations can be arranged either in straight lines or staggered formations. This design is ideal for applications requiring both ventilation and visibility through the metal sheet. Additionally, square hole patterns offer robust impact resistance and enhanced security against intrusion.
Slotted patterns in perforated metal are created using a slotted die, which punches long rectangular slots with square or half-circle ends into the aluminum sheets. These slots can be arranged in either a staggered or straight pattern. Slotted perforated metals are highly valued in the industrial sector for applications such as material screening and sorting, especially for commodities like seeds and grains. The diameter and length of the slots can be customized based on the specific application needs. Slotted pattern perforated metals offer exceptional strength relative to their weight and allow the passage of liquids, light, and sound.
Hexagonal patterns offer the maximum open space of any perforated aluminum design and are often used in architectural applications requiring continuous airflow. Hexagonal perforated aluminum boasts several advantages, including a high strength-to-weight ratio, visual appeal, and ease of manufacturing. In this pattern, the staggered arrangement places the center of each hexagon on the edge of the adjacent one. This design is commonly used in load-bearing architectural elements such as roofs, facades, fences, steps, and walkways.

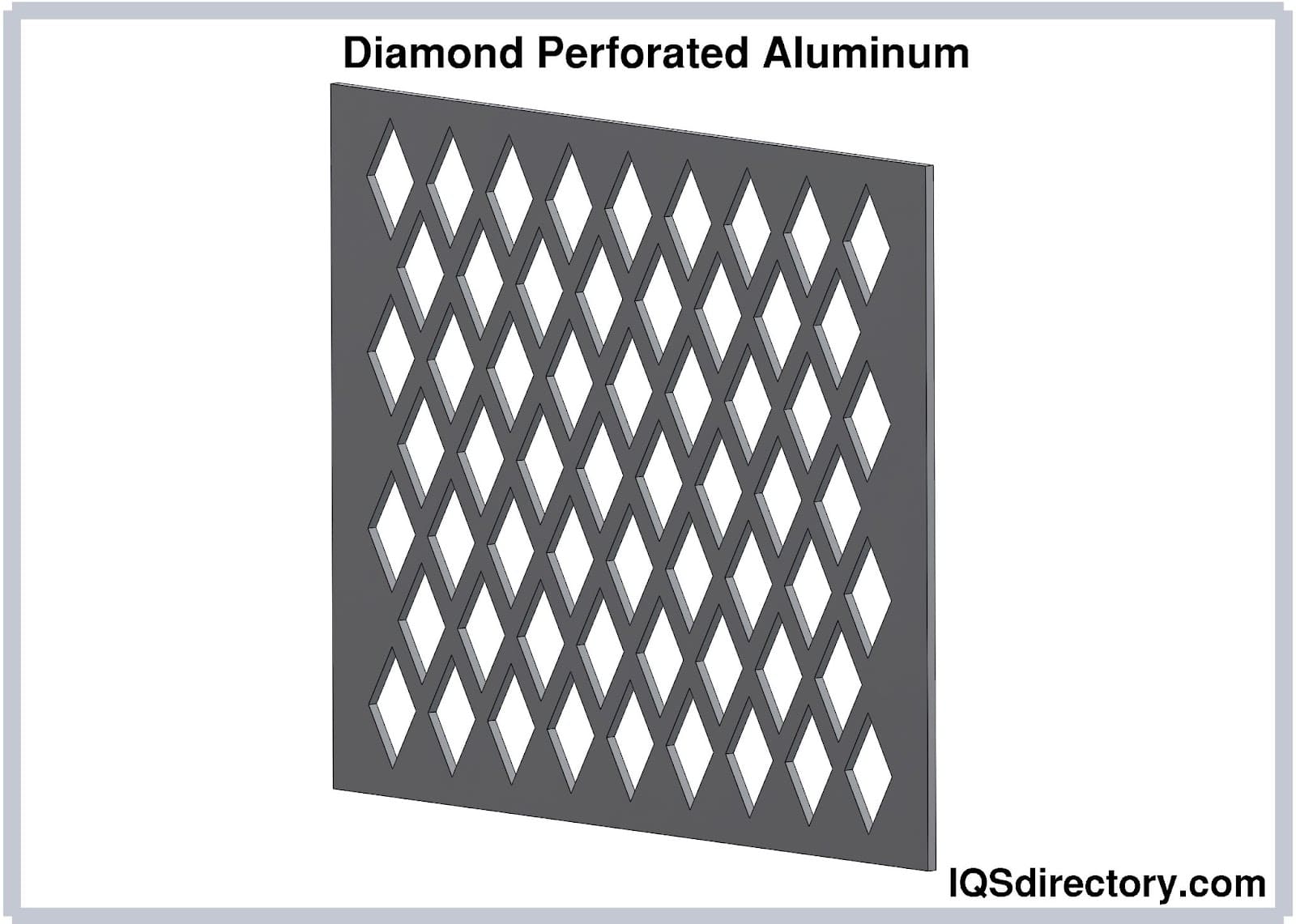

The diamond pattern for perforated aluminum is favored for its durability, resistance to bending, and suitability for continuous use. It is commonly employed in coal extraction and storage filtration systems. Diamond perforated aluminum comes in various styles, with small diamonds designed to restrict airflow and larger diamonds intended to enhance air passage. Additionally, low-gauge diamond-pattern perforated aluminum can be utilized as grating.

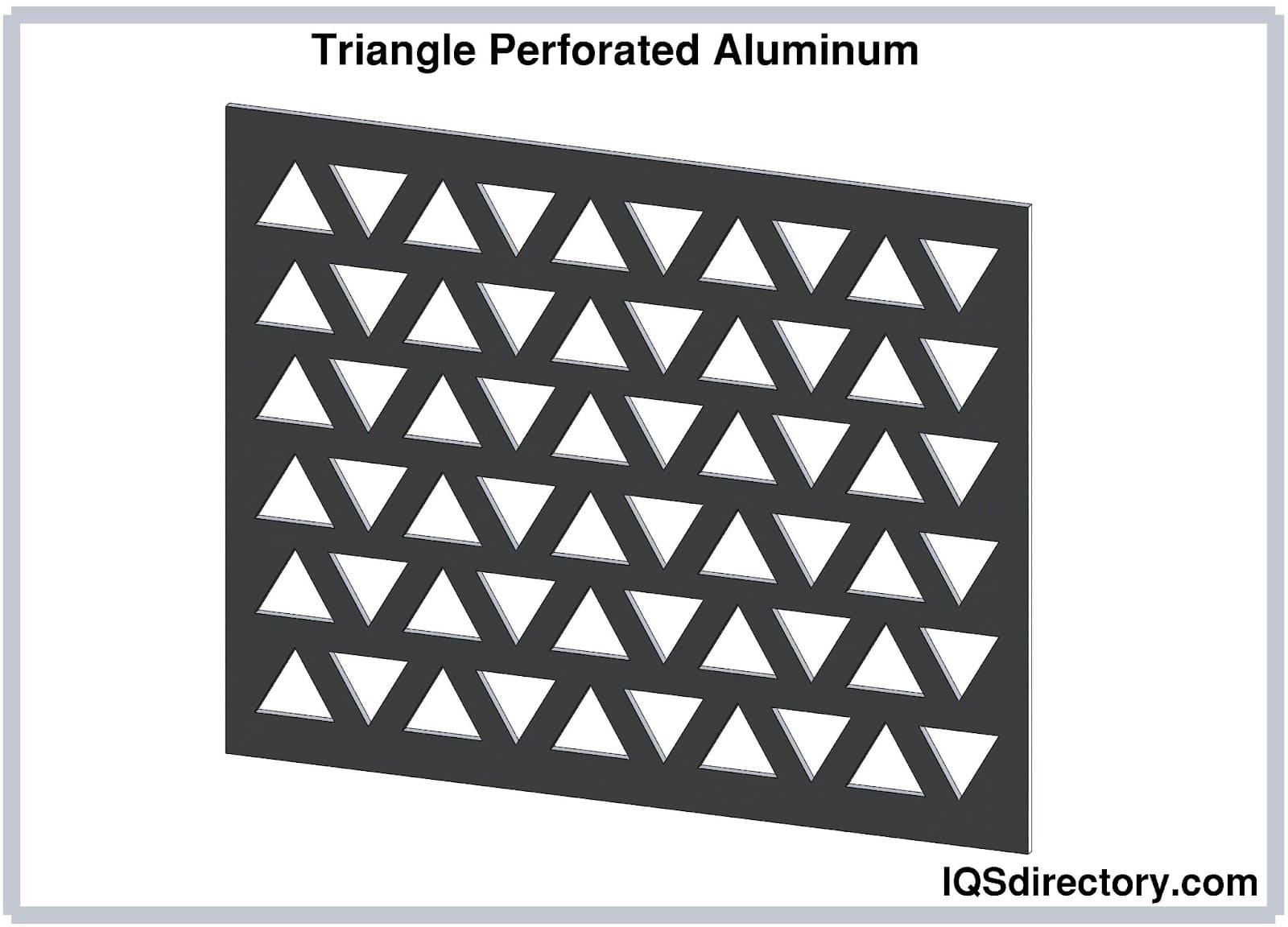

Aluminum sheets with triangle-shaped perforations are valued for their high tensile strength and weight-bearing capacity, making them suitable for both filtration and architectural applications. Triangle hole perforated aluminum is also used in artistic ceilings, speaker grilles, and microporous muffler plates for its sound-absorbing, noise-canceling, and protective properties.
MManganese is added to pure aluminum in the 3003 aluminum alloy to enhance its strength. This alloy consists of approximately 1.2% manganese (Mn), 0.12% copper (Cu), and 98.6% aluminum (Al). 3003 aluminum is versatile, easily weldable, and more cost-effective compared to many other aluminum alloys. While it does not offer the same level of corrosion resistance as 6061 or 1100 aluminum, it is a more economical choice for applications that meet similar design requirements.
3003 aluminum is a widely used, general-purpose alloy. However, it is not suitable for high-temperature applications, such as those involving ovens or grills, and therefore is not appropriate for use in cooking utensils or pot lids.
Alloy 7075 is one of the strongest aluminum alloys on the market. It is best suited for highly-stressed parts because of its strength-to-weight ratio. This grade is formed by annealing (where a metal is slowly cooled after being heated to toughen it, while making it more workable) the metal and heat-treated again afterward to increase its strength further. This alloy is used for spot and flash welding.
Often called "The Workhorse Aluminum," grade 6061 offers significantly better corrosion resistance than 300-series aluminum alloys. It also boasts high heat welding capabilities and superior strength compared to 250-series alloys of the same thickness. Due to its durability and resilience, 6061 aluminum is commonly used in products subjected to frequent use and stress, such as furniture. Additionally, its enhanced strength and corrosion resistance make it an excellent choice for exterior applications, like guttering, in high-humidity environments.
Alloy 2024 is known for its high strength and is one of the most commonly used aluminum alloys. It is favored in applications where a strong strength-to-weight ratio is important due to its excellent strength and fatigue resistance. Alloy 2024 can be produced in an annealed condition and then heat-treated if needed, and it can be machined to a high standard. However, it has relatively low corrosion resistance. To address this issue, 2024 is often treated with an anodized finish or Alclad™, a thin layer of high-purity aluminum that offers superior corrosion resistance.
With a minimum purity of 99%, 1100 aluminum is the purest commercially available form of aluminum. Its exceptional malleability and workability make it an excellent choice for complex forming processes. Additionally, 1100 aluminum is highly adaptable due to its corrosion resistance and weldability. Unlike other metals, it does not harden when treated or heated. Its high thermal conductivity also makes 1100 aluminum ideal for applications where efficient heat transfer is required.
Due to its flexibility, aluminum 1100 can be shaped into a wide range of products. It is commonly used in applications such as chemical machinery, fin stock, dials, railroad tank wagons, and nameplates in manufacturing. Additionally, this versatile and durable alloy is utilized by producers of cooking utensils, rivets for construction projects, and industries involved in plumbing and lighting.
Aluminum alloy 2011 (Al-2011) is renowned for being the most easily machinable of the common aluminum alloys, offering excellent mechanical properties. It is often used for components that require extensive machining, such as those produced by automatic screw machines. Alloy 2011 supports relatively heavy feeds and fast cutting speeds during machining. In addition to its machinability, alloy 2011 boasts exceptional hardness and strength, along with good corrosion resistance.
Among the popular non-heat-treatable aluminum alloys, 5052 aluminum stands out for its highest fatigue strength. It is highly resistant to saltwater corrosion, making it a preferred choice in marine environments. Alloy 5052 offers excellent workability and can be drawn or shaped into complex forms. Additionally, it experiences a moderate increase in strength when annealed, reducing its likelihood of tearing compared to alloys such as 1100 or 3003.
Perforated aluminum serves dual functions in the building sector by providing a pleasing aesthetic appearance and structural support. Perforated aluminum is found in sunscreens, room and open space dividers, and as cladding (a covering material used on the outside of buildings) due to the illumination, ventilation, and other positive traits it exhibits. Perforated aluminum panels are used as ceiling material when ventilation and airflow are essential. Perhaps surprisingly, perforated aluminum is used as flooring and stair treads in locations where there is a possibility of slipping. Despite being lightweight and simple to install, perforated aluminum has outstanding strength and the endurance required to function in challenging environments. Due to its combination of favorable characteristics (cost, strength, conductivity) over alternative materials, perforated aluminum is used to make ventilation grills, cable trays, paneling, and safety protection equipment like gates and fencing.
