Descriptions of perforated plastic sheets, list of perforated plastic sheet manufacturers, and uses for perforated plastic sheets.
You will learn:

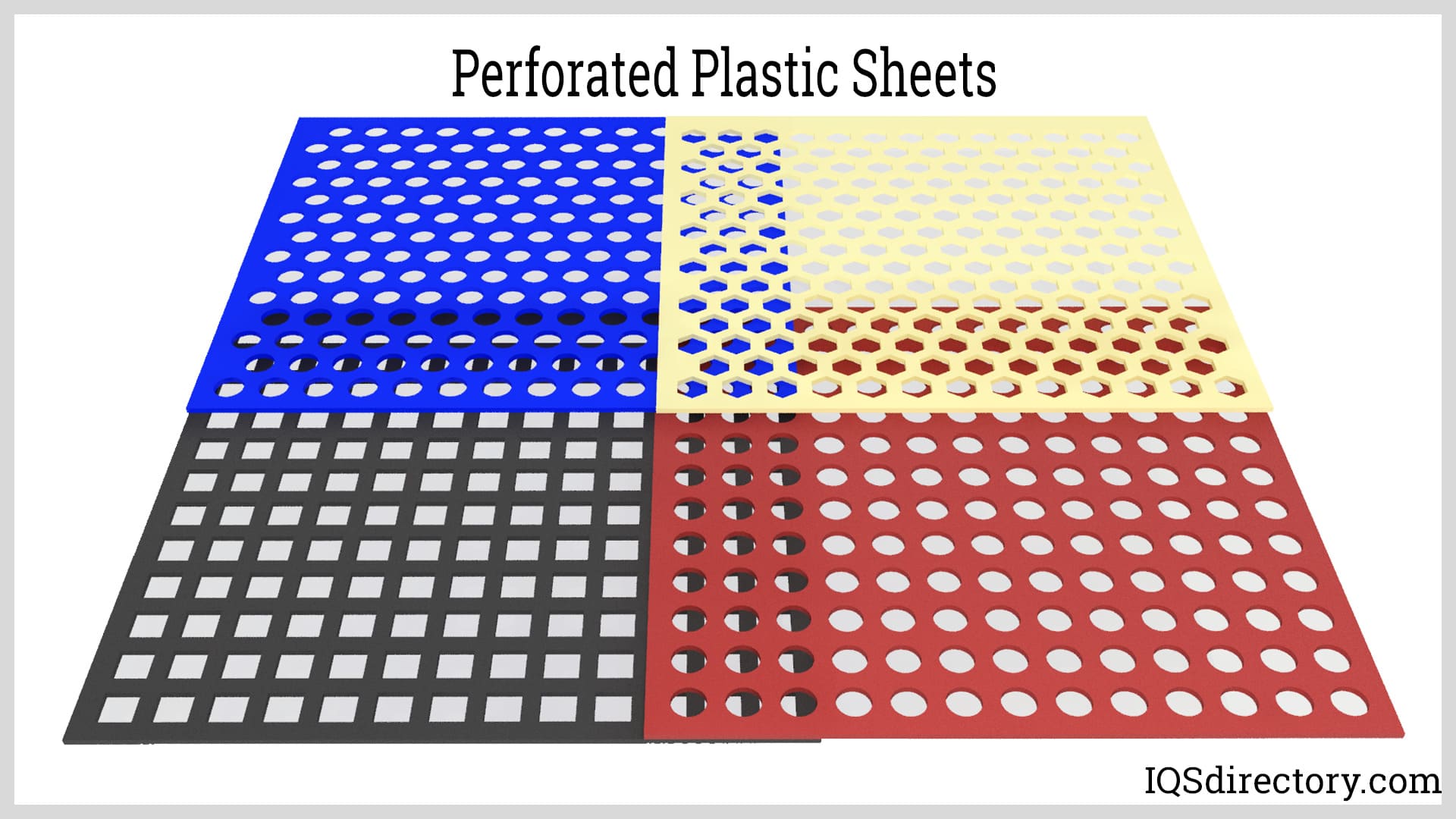

Perforated plastic sheets are sheets of plastic of varying thicknesses that are punctured with holes that have different shapes and sizes. The various types of plastics that are perforated are heat resistant, impact resistant, and chemical resistant materials that are insulated and lightweight for easy installation. Perforated plastic sheets are lighter and corrosion resistant, which makes them ideal for a wide variety of applications. In addition to providing a positive aesthetic appearance, perforated plastic can be used to control air flow, light, the visibility of a location, and noise levels.
Beyond the wide assortment of standard perforated patterns, perforated plastic engineers can create custom designs to fit any décor in accordance with architectural features and ambience. Original patterns and shapes are developed from computer aided designs (CAD), which can be adjusted, changed, and configured for special or specific requirements.
The perforating process is completed using a variety of machines with some presses being able to produce 400,000 holes per minute. Although the machining method for producing perforated sheets is straightforward, planning involves the use of the proper tooling for the pattern, programming the distance between the holes, and selecting the right plastic material.
Equipment that is used to perforate plastic comes in several forms. They are capable of creating any type of design or pattern and can be adjusted for custom or unique patterns. The different types of plastic perforating machines include, hot and cold pin rotary, die punch, electro pneumatic, laser, mechanical register, combination of rotary and die, combination of punch and rotary, and sheet fed.
The type of method chosen to produce perforated plastic sheets is determined by the type of plastic and the type of pattern being produced. In addition, the rate of perforation further influences the type of equipment with some machines capable of producing hundreds of thousands of perforations per minute. In all cases, the patterns placed on plastic sheets have the highest tolerance in accordance with the specifications of design engineers.

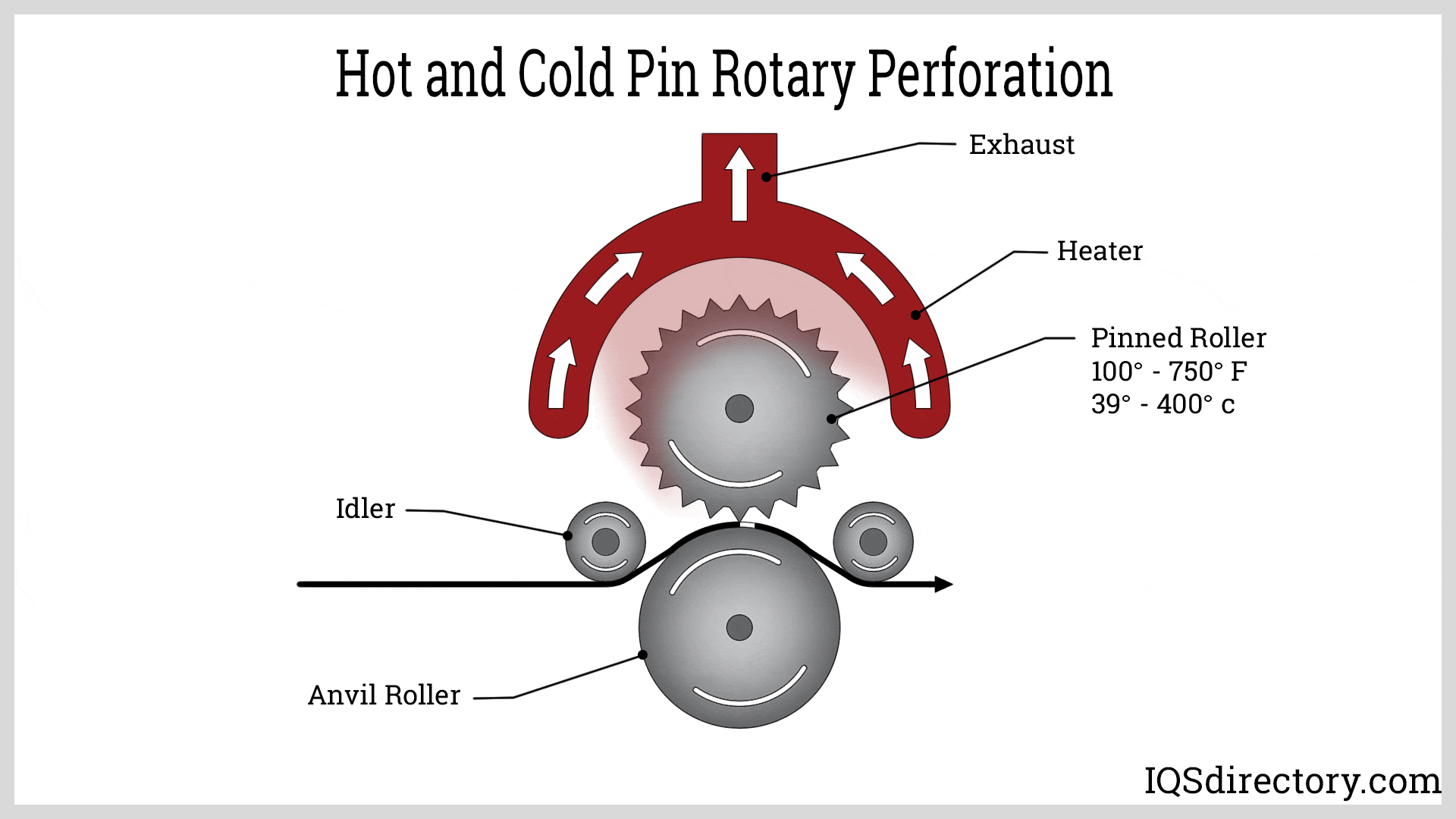

Hot and cold pin rotary perforation use the same methods to place patterns and holes in sheets of plastic. The difference between the two methods is the cauterization features on hot pin rotary perforation machines that cauterize the created holes created by heated pins. The process for pin rotary perforation involves the use of idler rollers that feed sheets of plastic to a rotating anvil roller.
Plastic material is fed to the idler rollers of a hot and cold pin rotary perforator. The idler rollers control the speed of the feed and ensure that the plastic material is flat before passing to the anvil roller, which turns at a smooth and even speed such that the pin roller places the holes in the plastic at the proper spacing. The perforated roller can be equipped with pins or blades for crush slit perforating. The holes placed in the plastic sheets are volcanic or funnel shaped. Pins with rounded or flat tips can create embossing rather than perforations.
With hot pin rotary perforation, the pins are heated to melt holes in the plastic material. The pins are pushed against the anvil roller creating a welt around the melted hole that reinforces the hole. The main benefit of hot pin rotary perforation is laser like holes without the cost of lasers.

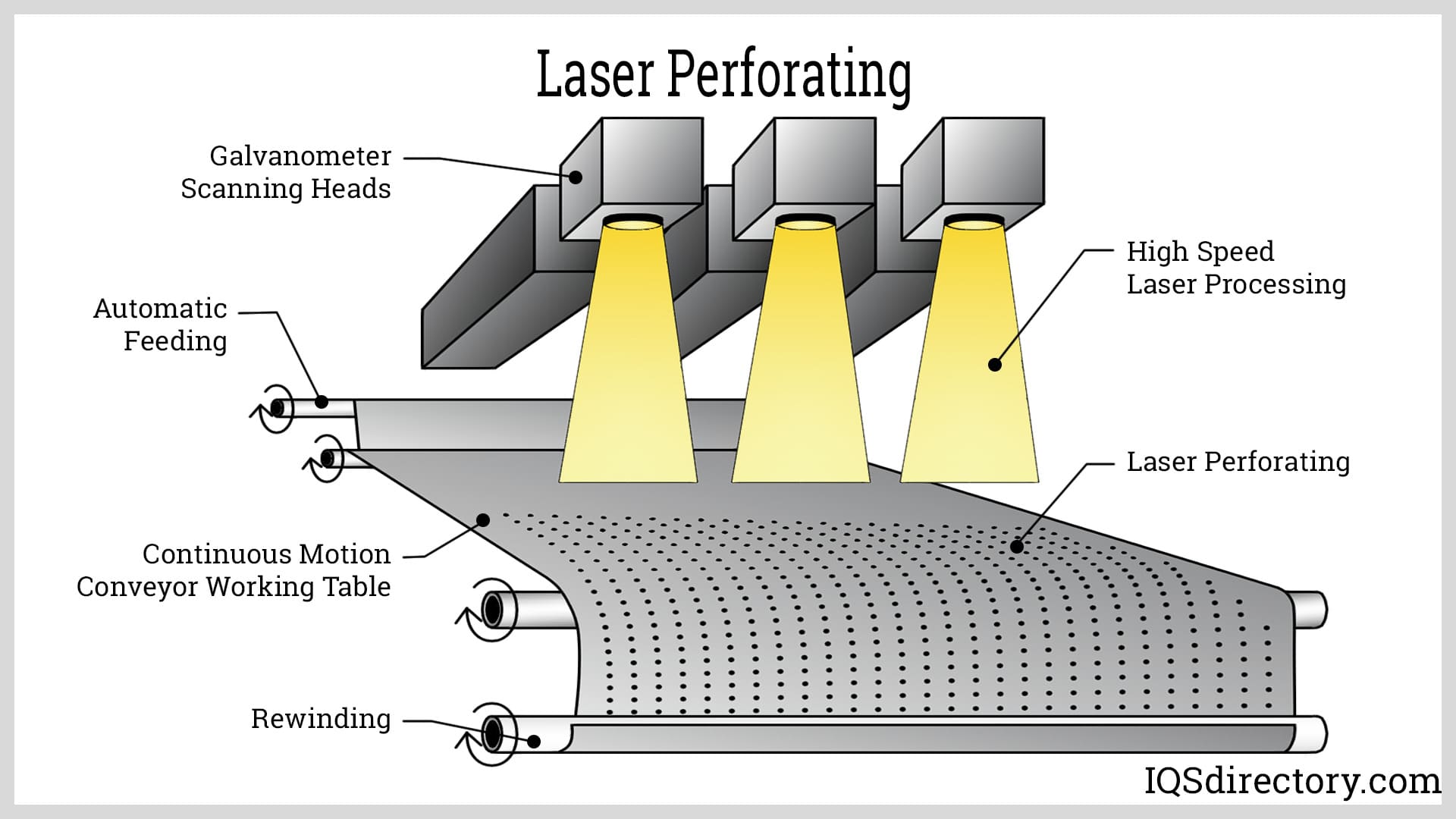

As with other forms of perforation, laser perforation has plastic material fed by feed rollers that control the speed at which the material is exposed to the lasers. The laser perforation process can produce nano sized holes with dimensions of 5 microns (µ) with 50 µ being the standard size. Laser technology is based on focused light in a small space. The accumulated energy vaporizes the plastic material to create exceptionally dimensionally accurate holes without affecting other parts of the plastic material.
Although the laser process is basically the same, not all laser perforating processes are identical and vary according to the size of the holes being made, the thickness of the material, the type of material, and the geometry of the holes. The three most common types of lasers are single pulse, percussion, and clambering. The difference between the methods is the number of pulses that are necessary to create the holes and the movement of the laser during cutting. Single pulse lasers are used on thin materials while percussion, or multiple pulse lasers, are used on thicker plastic materials that absorb more energy.
The decision to use the laser perforating process has to be carefully considered since it is more expensive and requires a great deal of energy. It is generally used for perforations where mechanical contact, such as pins or punching, may damage sensitive plastic materials, or when precision perforations are required.

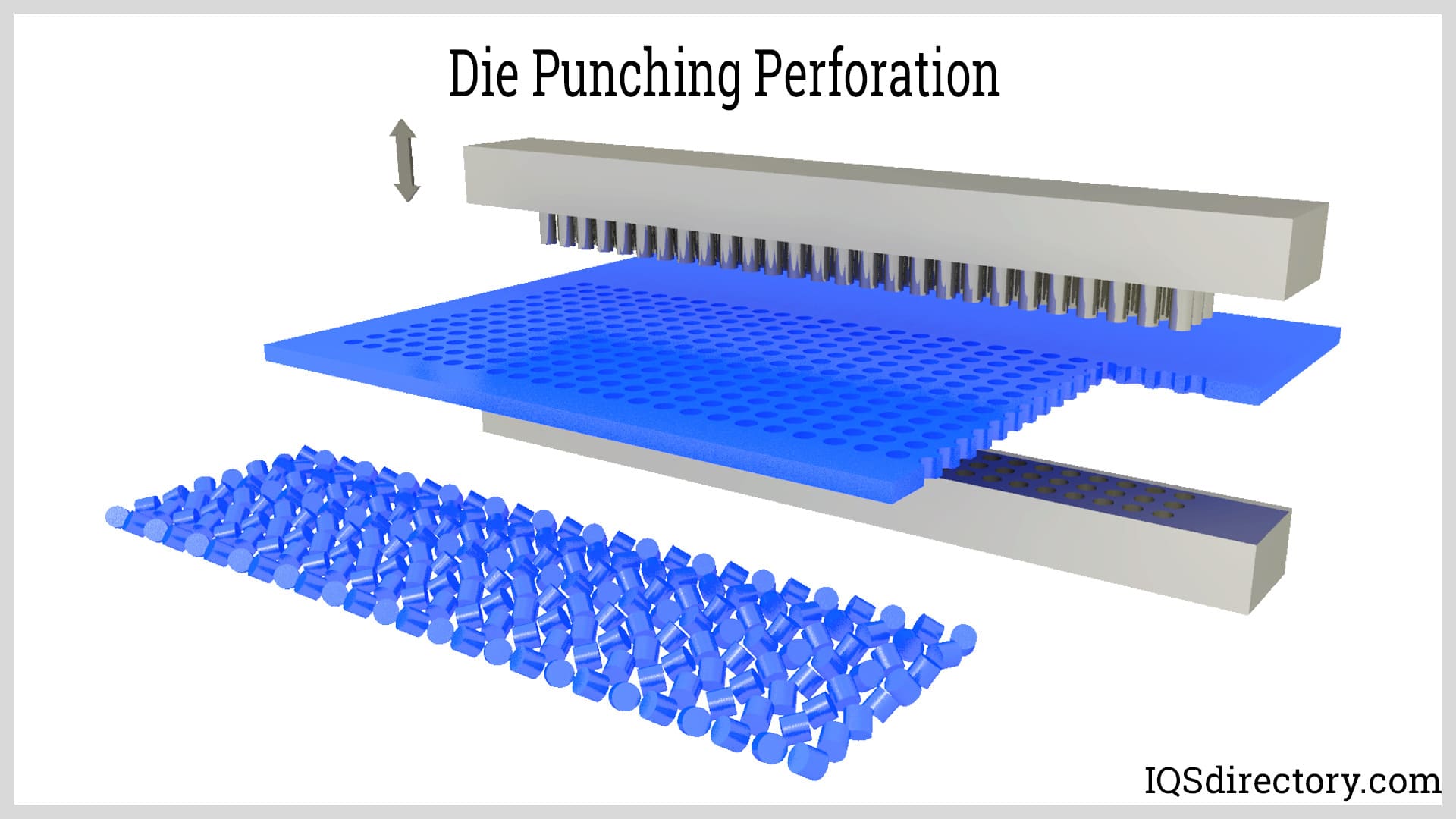

The die punch process is widely used with metals to create shapes and forms. The same process is used to perforate plastic sheets using a rotary punch or flatbed punch. With flatbed punching, the material is fed through a two-part punch that has a male sharp-edged set of pins with the desired shape of the holes that pushes against the female side that shears out the holes. The waste material, chad, from the punching process falls away from the female side of the punch and is collected by a vacuum system. The use of the punch perforation process is ideal for applications that need a high level of porosity.
With plain punch perforation, the male portion of the punching process still contains pins that place the holes in the sheets of plastic. The female portion is replaced by an anvil pad made from material that can endure the impact of the male punch. Unlike the other methods for perforation, punch perforation requires that the plastic material fed to the punch be paused during the punching process such that the perforating unit can punch the holes.

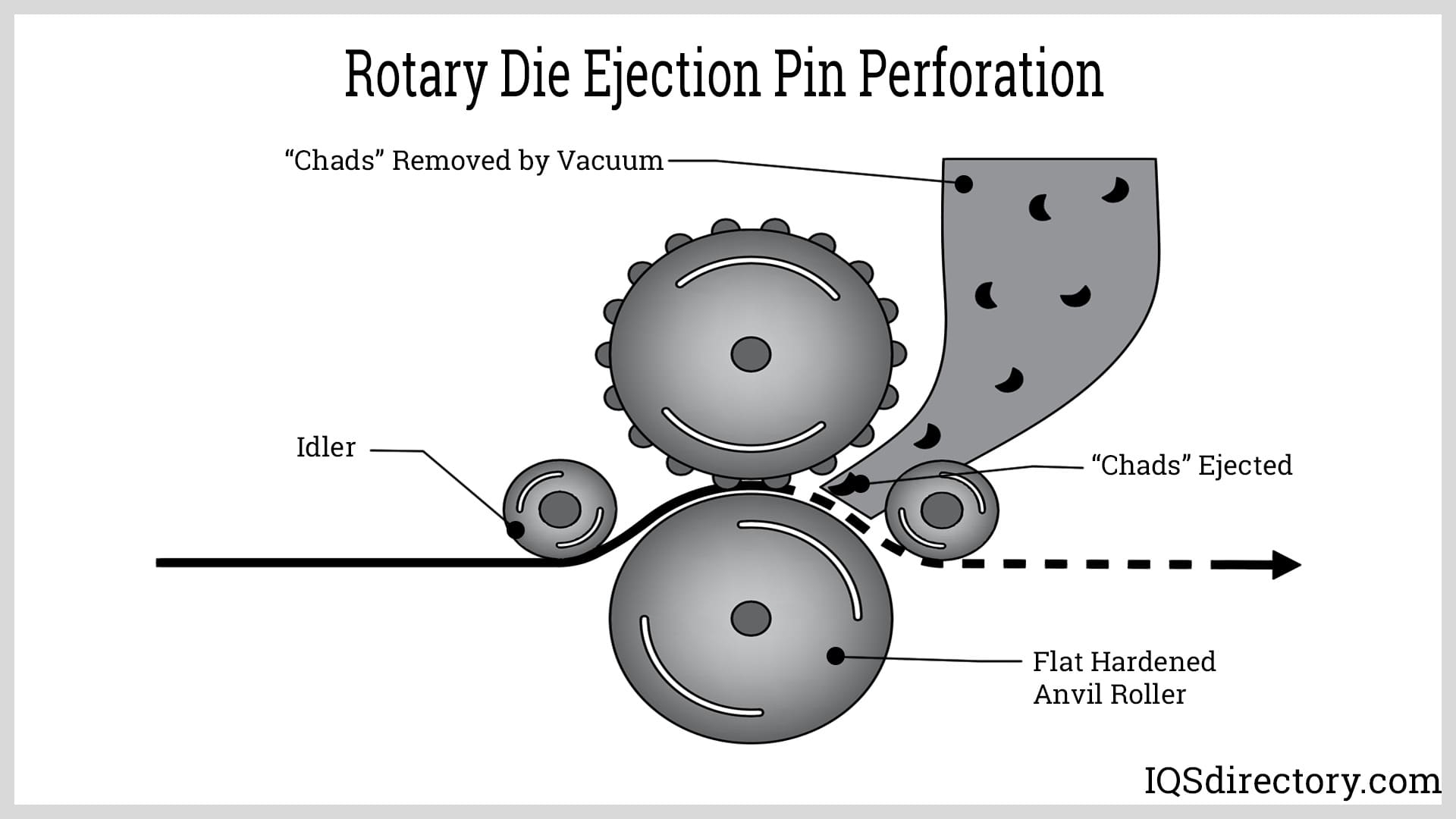

The rotary die ejection pin perforation process uses a specially designed ejection pin that shears the material against the rotating anvil and ejects the chad or waste into a vacuum collection system. The concept was developed to make the perforating process cleaner and faster by avoiding the accumulation of chad. The operation of the process is very similar to hot and cold pin perforation but uses pins that are larger to produce larger holes.
Another form of ejection process is rotary die perforation, which has a similar process as that of rotary die ejection pin perforation. With rotary die perforation, two rollers push together to place the perforation in plastic sheets. The upper roller die has the male portion of the perforation while the lower roller die has the female portion. As the male roller makes contact with the female roller, the chad is sucked through a vacuum to a collection unit that is located below the rollers. As with the rotary die ejection method, the removal of the chad via the vacuum creates a clean and open hole in the plastic web.
The CNC manufacturing process has become an essential part of all forms of production processes. Its exceptional accuracy, efficiency, and adaptability has helped in the improvement of product quality. CNC machining is a programmed process that uses a set of codes to provide guidance and directions for the movement of tools that place holes in plastic sheets. A set of G and M codes that are computer generated are programmed into a CNC machine.
The wide use of CNC manufacturing is due to its accuracy and close adherence to plastic perforation tolerances. The tools used to perforate plastic sheets using the CNC method include drills and lasers. Polypropylene (PP) and high-density polyethylene (HDPE) are plastic sheets that are normally used for perforating, which are ideal for the CNC process since they will not be damaged by the heat generated by the process. Both plastics can withstand 120°C up to 140°C (248°F up to 284°F) and are resistant to the effects of acids.

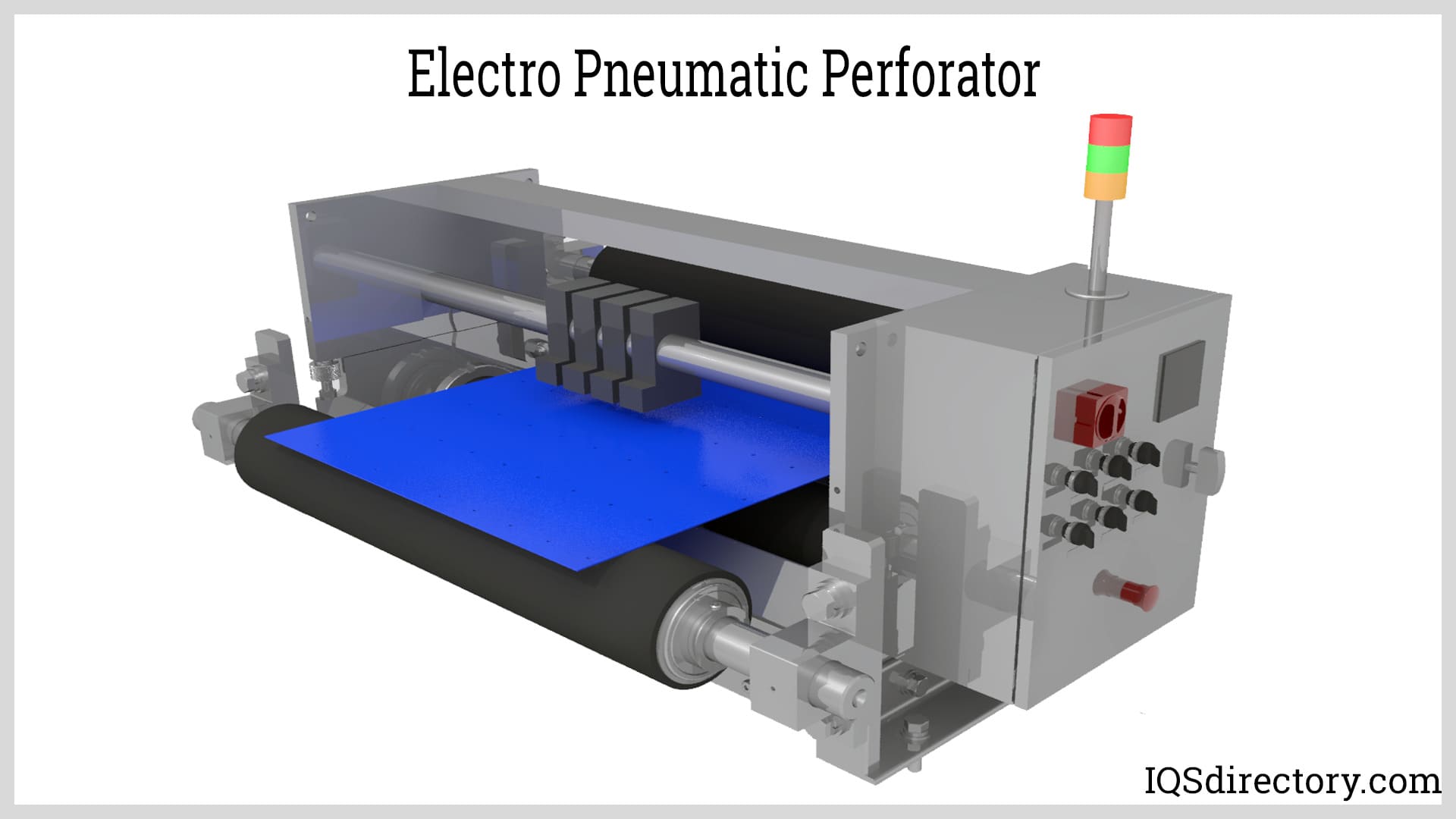

The electro pneumatic method of perforating has a male and female die that are forced together to create the perforation. An electric controlled solenoid that operates at high speed provides the force to bring the two portions of the die together. The electro pneumatic perforation process can be used as a single unit, hammer unit, or gang unit with a system that controls how the punch fires and the pattern of the holes. The speed of the process is so fast that it requires the use of a constantly fed web.
The chad from electro pneumatic perforation falls from the female portion of the die and is collected and reused. Various types of punches used for electro pneumatic perforating are available in different styles and forms. They can work independently or work with other types of equipment including rewinding systems and printing machines.
Mechanical register perforation places the perforated holes in a repeated place by adjusting the perforating roller of a rotary pin perforator. Various methods are used to power the roller of a mechanical register perforator and are used on a wide assortment of materials and have their speed regulated to work with a specific type of material. The process for mechanical register perforation is carefully controlled to ensure the integrity of the perforated material.
There are certain perforated materials that require holes or tear lines to appear on a plastic sheet in a specific location, which is the type of perforation performed by mechanical register perforators. The process is tightly controlled to produce precision perforations in a predetermined part of the plastic sheet.
An advanced method of mechanical register perforation is registered rotary perforation, which is a servo driven system that is capable of performing repeat position perforation using a color marker that indicates the placement of the perforation. A control unit monitors the speed of the web by controlling the speed of the rollers. The input of data allows the mechanism to match the changing speeds of the web.
Thermal perforation is for high density hole patterns that require precisely placed consistent holes. Unlike other forms of perforation, thermal perforation does not have any chad since the chads are consumed by the heat of the process. The process for thermal perforation is similar to that which is used for hot pin perforation in that it reinforces the created holes with welts around the holes. This characteristic increases the strength of the material after perforation.
Although any thickness of material can be used with thermal perforation, the reinforcement created by the process makes it viable for thinner plastic fabrics. This factor helps in lowering the cost of the perforation process.

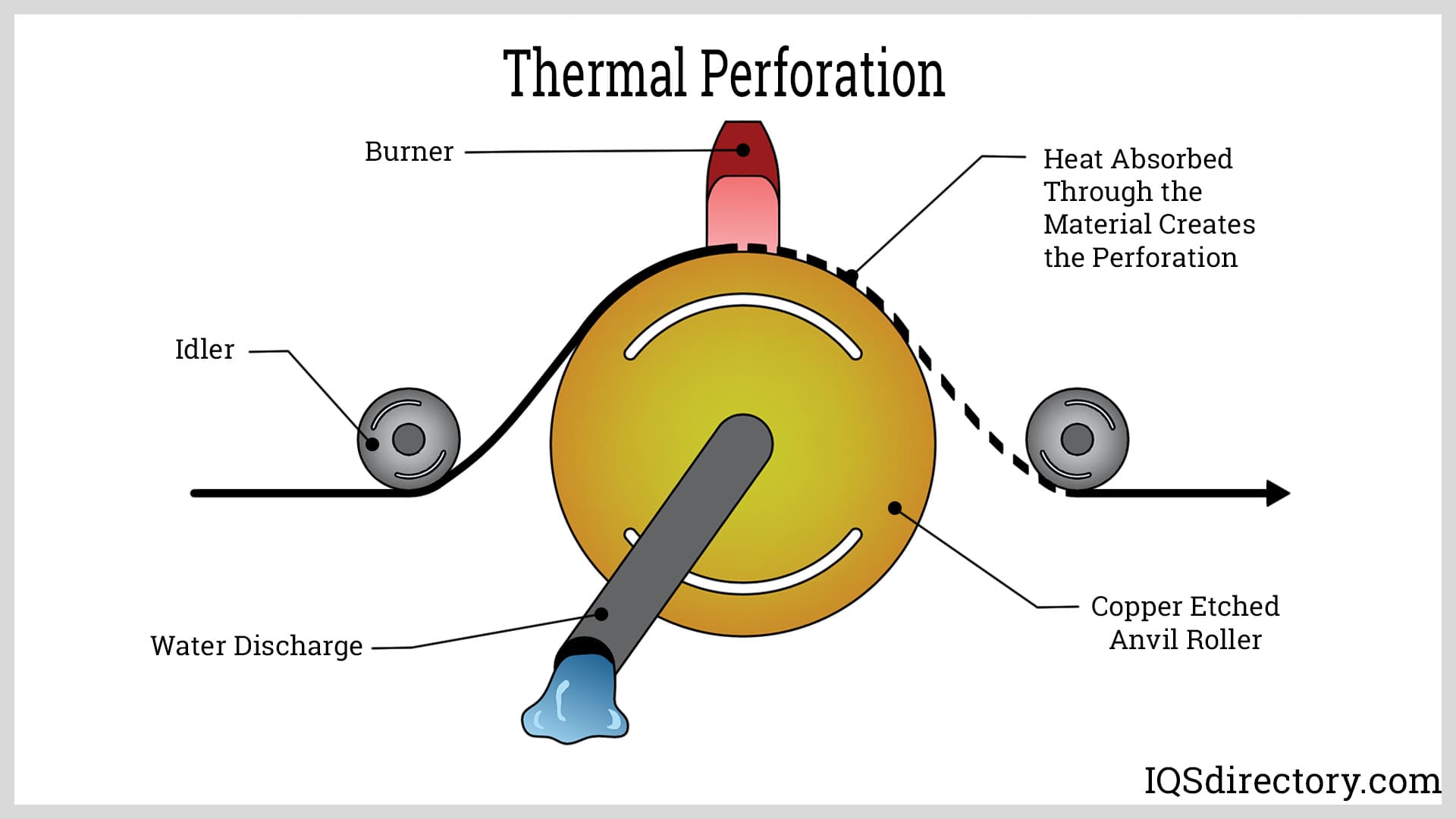

The thermal perforation process uses a water filled copper drum that is placed below an angled burner that blazes over a plastic web that runs beneath the burner. The portions of the drum that are unetched conduct the heat to the material and perforates it. An air pocket is created in the etched portion of the material that insulates and protects the unetched portion of the material. The restriction to the thermal etching process is the type of material, which has to be biaxial, a type of plastic material that has been stretched such that the polymeric chains are parallel to the plane of the film.
As is indicated by the representations of the various methods for perforating plastic sheets, there isn’t any single method for completing the process. The variations in the processes also include the shape of the item to be perforated, which includes tubes and plastic bags. Each of the different methods are designed to meet the requirements of the material and the shape of the item being perforated.
Perforations are described in accordance with the shape of the hole that is cut into a plastic sheet, with round, square, triangles, rectangles, hexagonal, and oblong or slot holes being the most common. In addition to these traditional shapes, there are custom shapes specifically required by a product. Normal or common shapes may be placed together such that a perforated sheet may have squares, rectangles, and triangles. Companies that specialize in perforating work with customers to produce the designed format for an application, product, or process.
The selection process for a perforated pattern is critical and has to be adjusted in order to have the correct pattern for an application. In the initial stages, the choice of a pattern is determined by how it fits and which options are available. Perforated holes fit into four categories, which are round, square, slot, and ornamental or decorative with round being the most common and widely used.

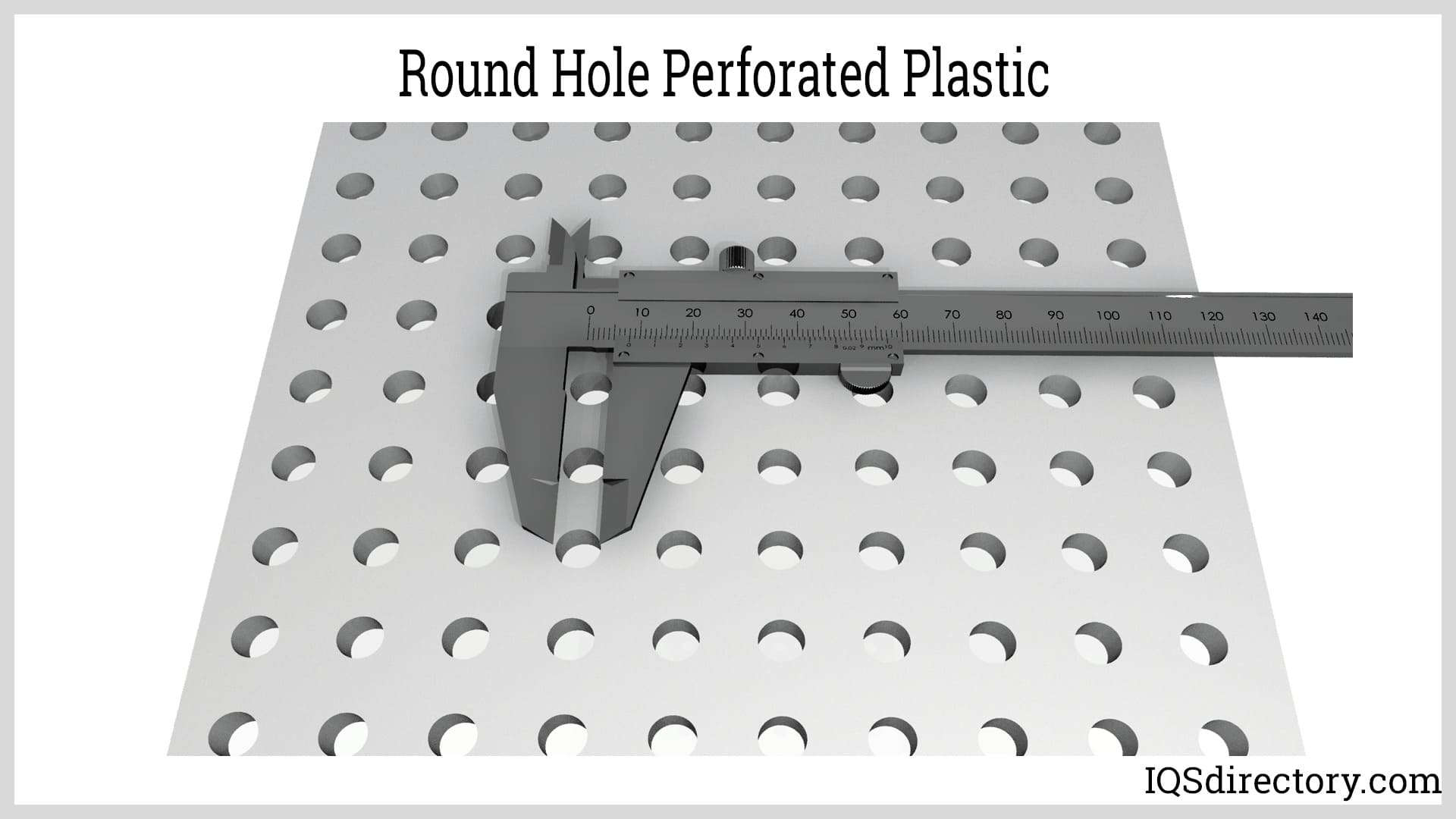

Round holes are the most common, most cost effective, and useful of the various types of perforations. They are added as ornamental touches for aesthetic purposes to existing structures. The wide use of round perforations is due to their adaptability and flexibility. By adjusting the diameter of the holes, it is possible to reach different levels of ventilation. Round hole perforations come in straight row patterns and staggered patterns, which affects the appearance of plastic sheets.

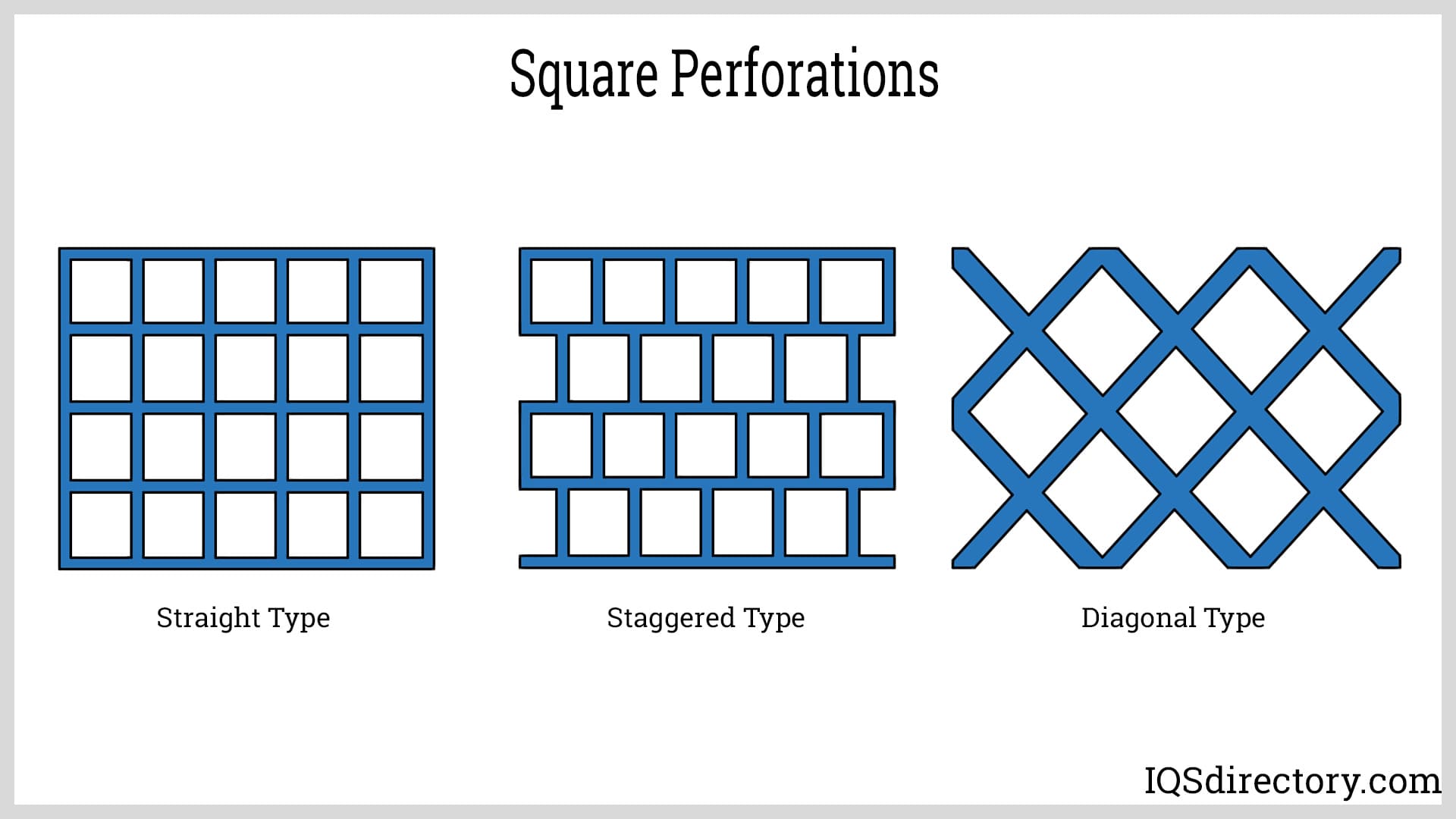

The second most common type of perforation is squares, which are more expensive than round perforations because the corners of the squares strain the corners of the punch. Square holes can be punched in different patterns depending on the desired effect with straight hole patterns creating a uniform and unified appearance while squares arranged on a diagonal have a diamond appearance.
A relative factor that is considered in regard to the use of square holes is the size of the holes, which has to be equal to or larger than the thickness of a plastic sheet. Square holes, like round holes, are used in a wide variety of applications and as protective panels or decorative accents.
Rectangular and slot holes are another form of perforated holes that are an alternative to round and square holes. Sheets with rectangular and slotted holes can be installed horizontally and vertically. The variations in placement of the perforated plastic sheets changes the ambience of a space and its visibility and privacy. Slotted holes have a rectangular shape with rounded ends and have a striking and eye-catching appearance.

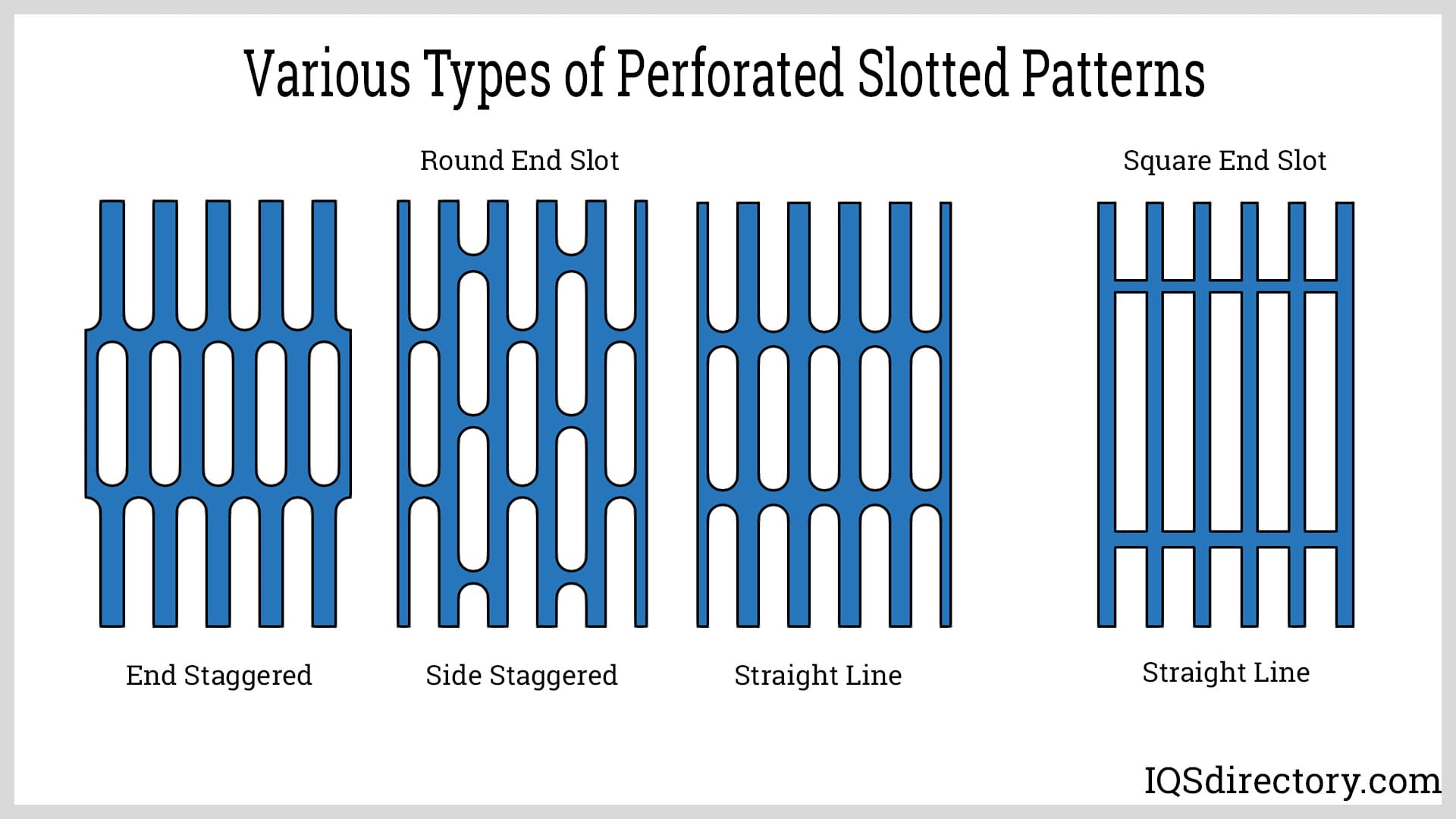

Slotted holes go by various names, such as elongated and oblong holes and in several different types according to their position and ends. They can be staggered or level and have round or square ends. Like square holes, oblong or slotted holes should be equal to or greater than the thickness of the plastic sheet
Hexagonal perforated patterns are created by a hexagonal die. The pattern can provide a great deal of open area for air flow and architectural designs, which makes it an ideal choice for applications that require air flow and light. The hexagonal pattern offers greater strength and stability, a factor that increases its resistance to deformation or damage. The exceptional strength of the hexagonal pattern makes it applicable as acoustical material and partitions.
As can be assumed, the shape of the hole pattern is aesthetically pleasing and can be used as added décor to enhance the appearance of a space. The combination of functionality and appearance makes hexagonal perforations an ideal choice for a variety of applications.

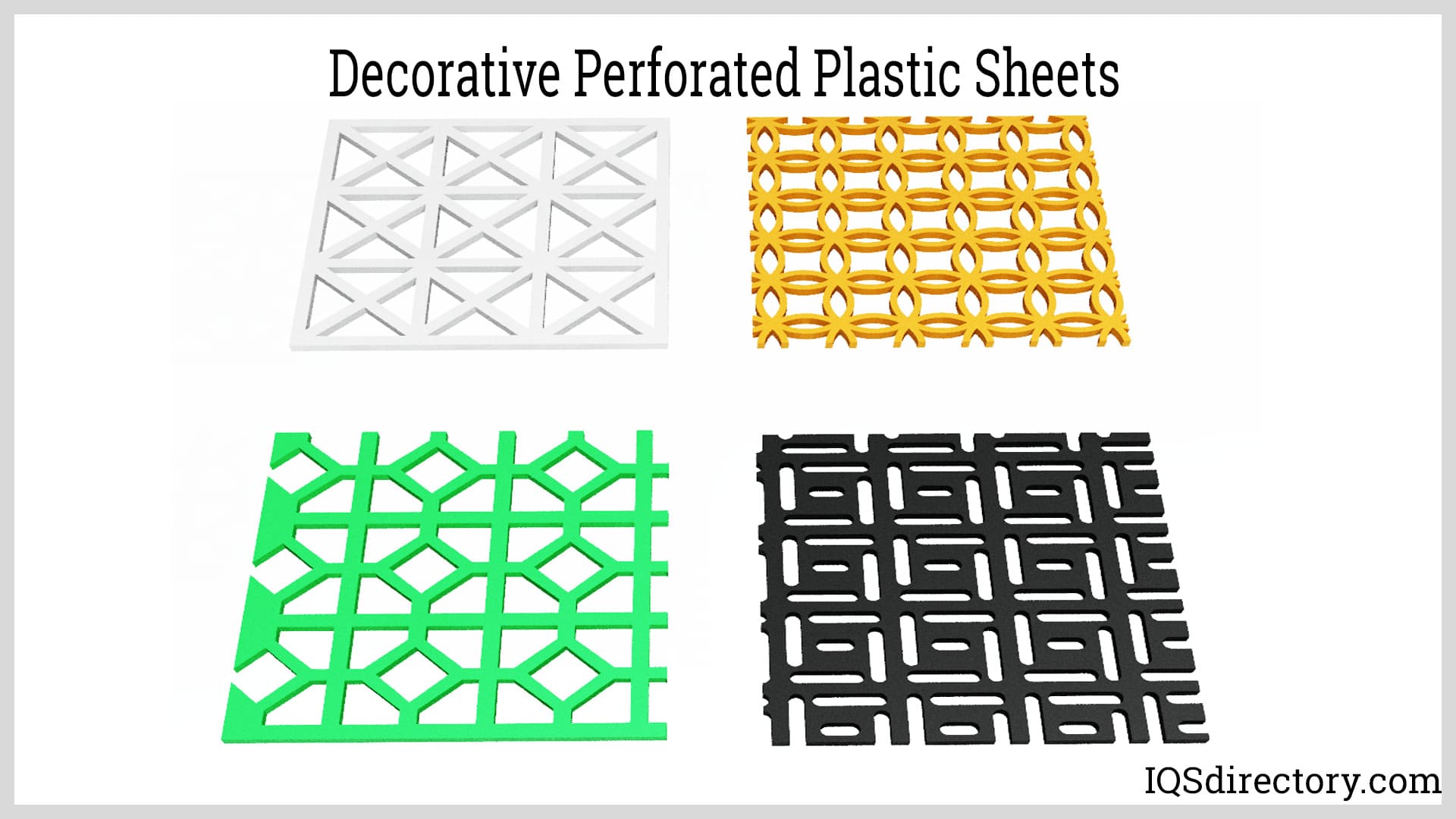

A very common use for plastic perforated sheets is the creation of decorative ones that can enhance the appearance of a location with unique and stylish patterns. The number of decorative patterns is constantly changing as artists and architects develop new and innovative ways to improve the ambience and impression of a space. Although decorative plastic perforated sheets may use traditional shapes, in many cases, they venture beyond round or square holes into a wide assortment of combinations and configurations.

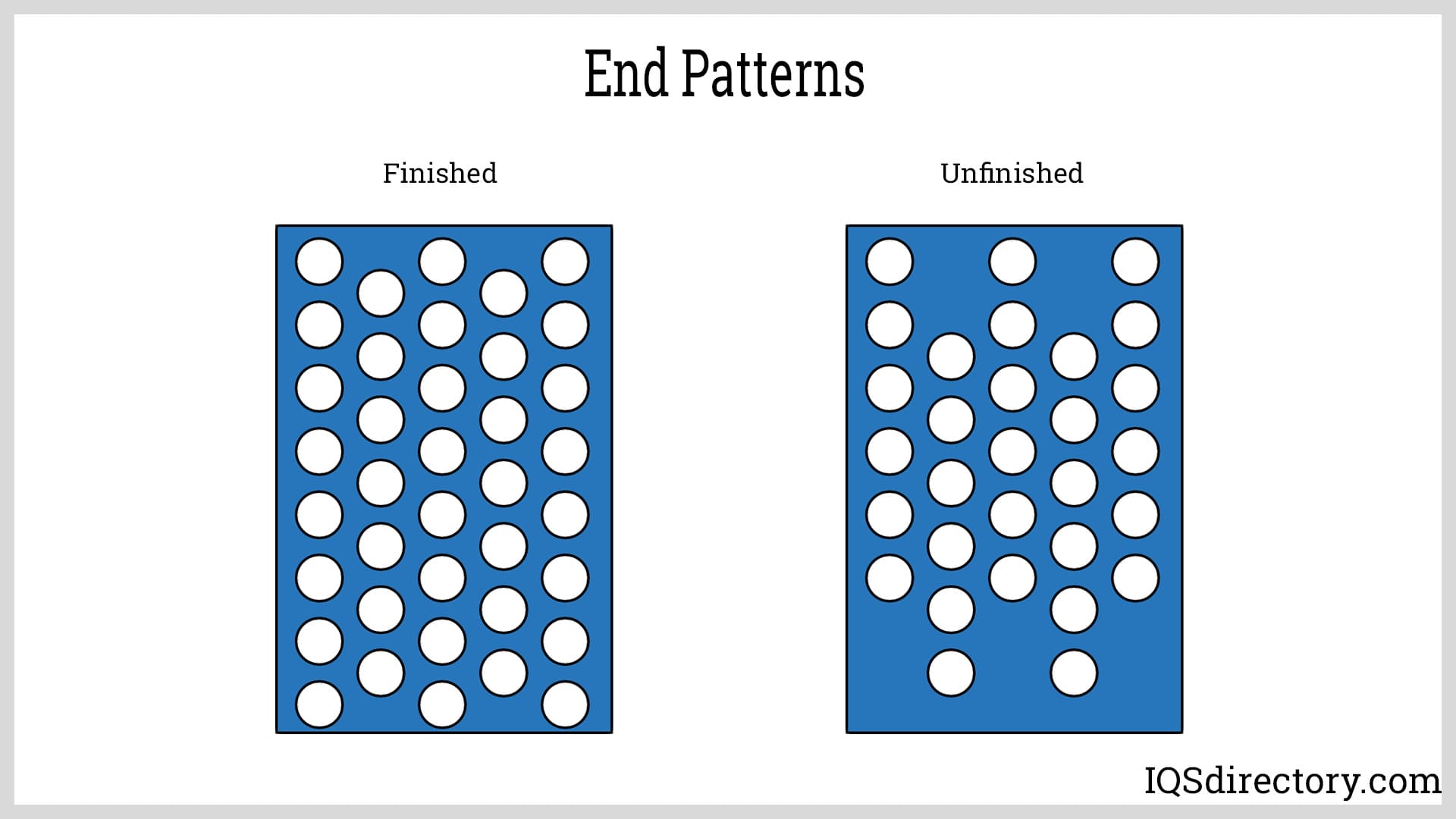

End patterns are the patterns of the perforations at the beginning and end of the plastic sheet. The two forms of end patterns are finished and unfinished with unfinished patterns being a standard type. Unfinished end patterns have the appearance of being incomplete at the end and beginning of the plastic sheet where the perforations are not arranged in accordance with the rest of the perforations on the sheet. Finished end patterns have a completed appearance without any open areas at the beginning and end of the sheet. They are expensive and require special tooling.

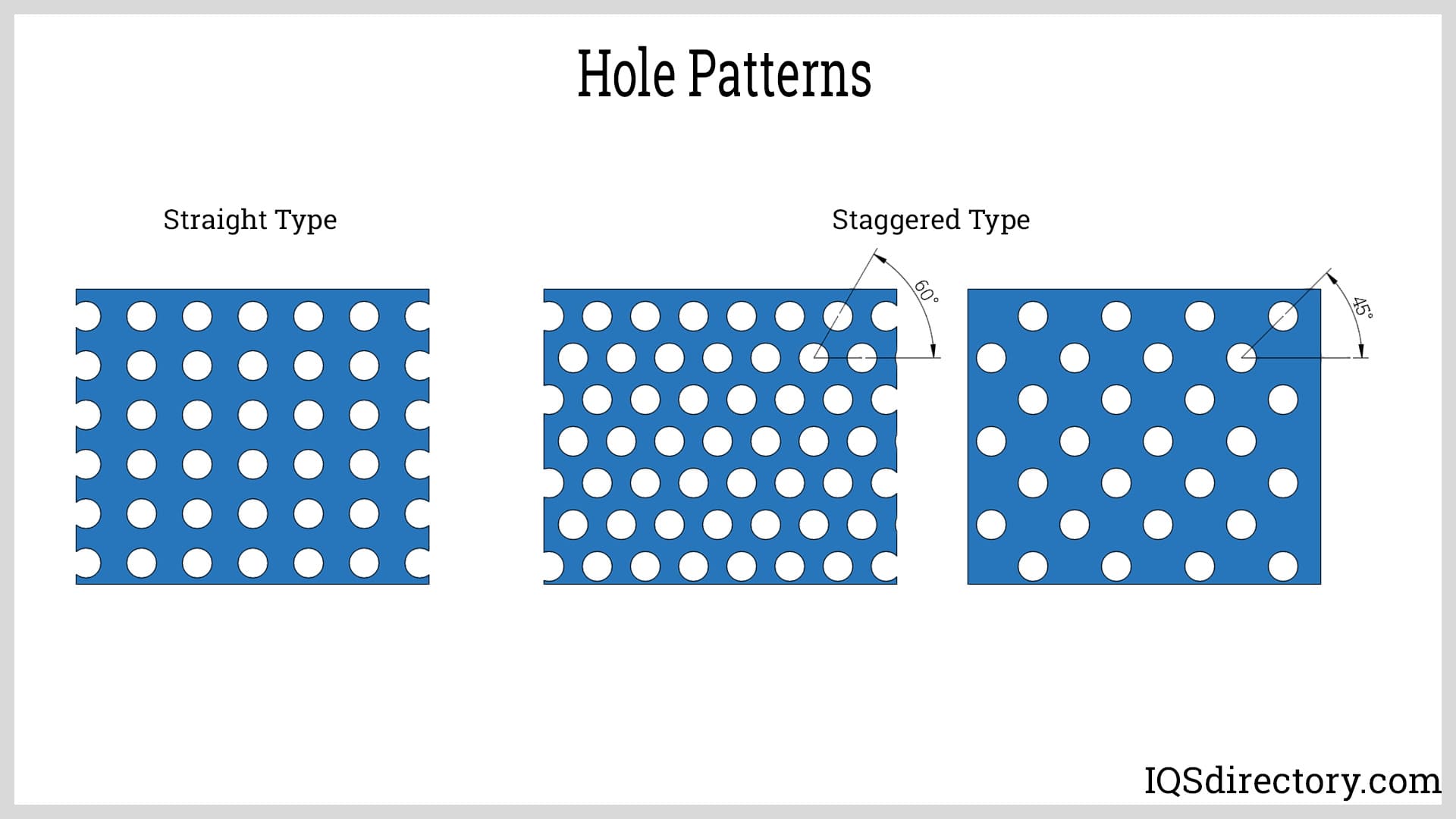

The hole pattern is how the holes are arranged on the sheet and also is used to describe the many different types of patterns, such as round, square, hexagonal, and rectangular. When describing how the holes are arranged on the sheet, there are two basic patterns, which are staggered and straight. The standard pattern for the majority of perforations is a 60° stagger, which is the strongest, most versatile, and cost-effective arrangement pattern. With the staggered pattern, the holes are not in a line or aligned but seem to be disarray.
The straight pattern is very organized and uniform. The holes in the pattern are in straight lines, horizontally and vertically. Straight patterns are commonly used for their pleasing appearance. They are not as strong as staggered hole patterns because of how the holes lineup in relation to each other.
The margin on a perforated plastic sheet is the area around the edge of the sheet and the distance from the edge to the first perforation. Margins can take several forms and depend on the types of perforations with some margins being very wide and several inches or centimeters from the perforation. In contrast, there are versions of perforated plastic sheets that have no margins and the pattern ends at the edge of the sheet.
The characteristics of the plastic materials are the main reason plastic perforations are so widely used. As a lightweight, durable, and sturdy material, plastic can easily fit into a wide range of applications. Any form of plastic can be used for perforation. The determination of the choice of plastic is based on the demands of an application, since lightweight plastics may be unable to withstand the rigors of high use and stressful conditions.
In addition to their other characteristics, plastics are available in a wide range of colors, a factor that makes them adaptable to any type of environment. This particular property enables designers to choose the right plastic material in a color that fits the requirements of a process and its surroundings. The choice of patterns and the percentage of openings increases the number of options for the use of plastic perforations.
Polypropylene is a thermoplastic polymer that has a lightweight structure and resistance to moisture and heat. It is made from a propylene monomer that can be melted, cooled, and reheated multiple times without deteriorating. Polypropylene is made by polymerizing propylene gas in a catalyst system, which controls the temperature, pressure, and reactant concentration that determine the type of polypropylene that is produced.
The two types of polypropylenes are homopolymers and copolymers. Homopolymers have semi-crystalline monomers while copolymer polypropylenes are produced by polymerizing propene and ethene together. Copolymer polypropylene is softer and has excellent impact resistance.
The popular use of polypropylene is due to its low cost and its ability to be recycled multiple times without losing its properties. The high chemical resistance and fatigue resistance of polypropylene is the reason that it is used for plastic perforated sheets. The resistance to the effects of moisture and strength against wear and tear makes polypropylene ideal for use in architecture and construction.
Polyvinyl chloride is a polymer that is made from the vinyl chloride monomer (VCM). It is known for its durability, chemical resistance and low cost. VCM comes from the reacting of ethylene with chlorine using a catalyst, a reaction that produces vinyl chloride gas. The produced monomer is polymerized, where the monomer molecules form long chains of PVC polymer. To give the resulting material specific properties, additives like plasticizers, stabilizers, lubricants, fillers, pigments, and flame retardants are included in the formulation. The additives adapt the properties of PVC to fit the needs of different applications.

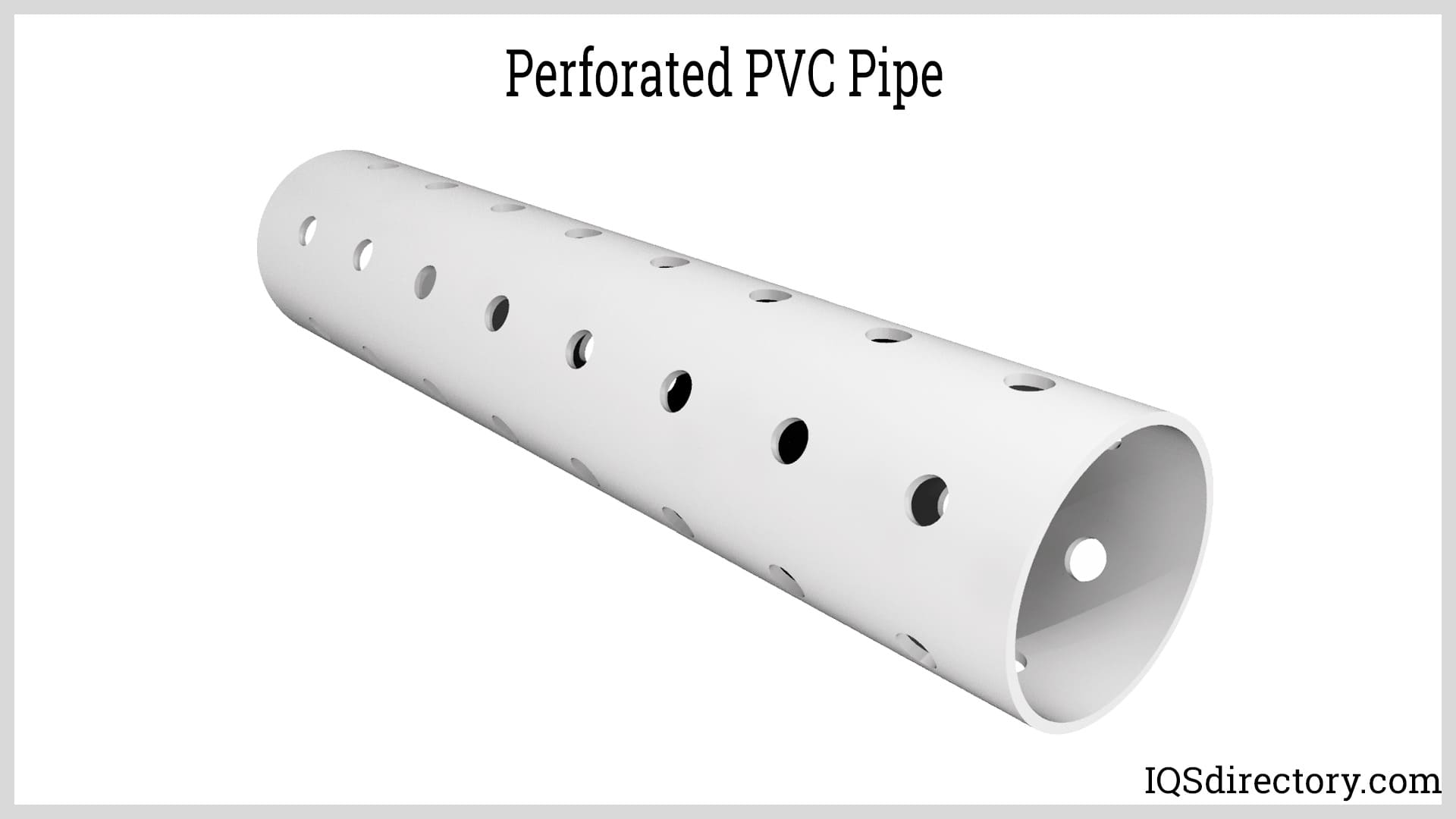

Rigid PVC is used for the production of perforated plastic sheets. The rigidity of rigid PVC is due to its low level of plasticizers. Rigid PVC has exceptional hardness and impact resistance due to its density. It can endure multiple impacts and retain its shape. To make rigid PVC more flexible for perforated applications, plasticizers are added to increase its formability.
High density polyethylene is one of the many forms of polyethylene. It is an extremely strong plastic that is resistant to corrosion and the effects of acids and alkali. As with other forms of plastic, it is a cost-effective material that is very resilient in a wide range of temperatures. HDPE is a thermoplastic polymer made from petroleum that is known for its strength and strength to density ratio.
Approved by the Federal Drug Administration (FDA), National Sanitation Foundation (NSF), and the United States Department of Agriculture (USDA), HDPE has been approved as material that is safe for food products. The use of HDPE in the manufacture of perforated sheets is due to its rigidity, which is only affected by extremely high temperatures. In addition to its other properties, HDPE is resistant to mold, mildew, and rot, a factor that makes it ideal for construction projects. The density range of HDPE is between 0.93 g/cm³ up to 0.97 g/cm³, which gives it high tensile strength.
The use of HDPE in the manufacture of perforated sheets is due to its low cost since it is a more cost-effective solution for high strength projects than other types of materials. It is the perfect combination of strength, malleability, and environmental friendliness.
The perforation process, in its simplest terms, is a process that punches small holes in the substrate of plastic sheets. The perforations are arranged in an organized fashion, staggered or straight, and pierce through a plastic sheet using various methods. There are several processes that are used to produce perforated sheets, with each method chosen for its accuracy, speed, and high adherence to tolerances.
In the 21st century, CNC machining is commonly used for producing perforated sheets while other metal forming methods, such as die and punch methods, are also used. Workpieces are sheared by being pressed between the surfaces of a punch or cut using heat or lasers. In order to understand perforation, it is important to know some of the critical terms regarding the process.

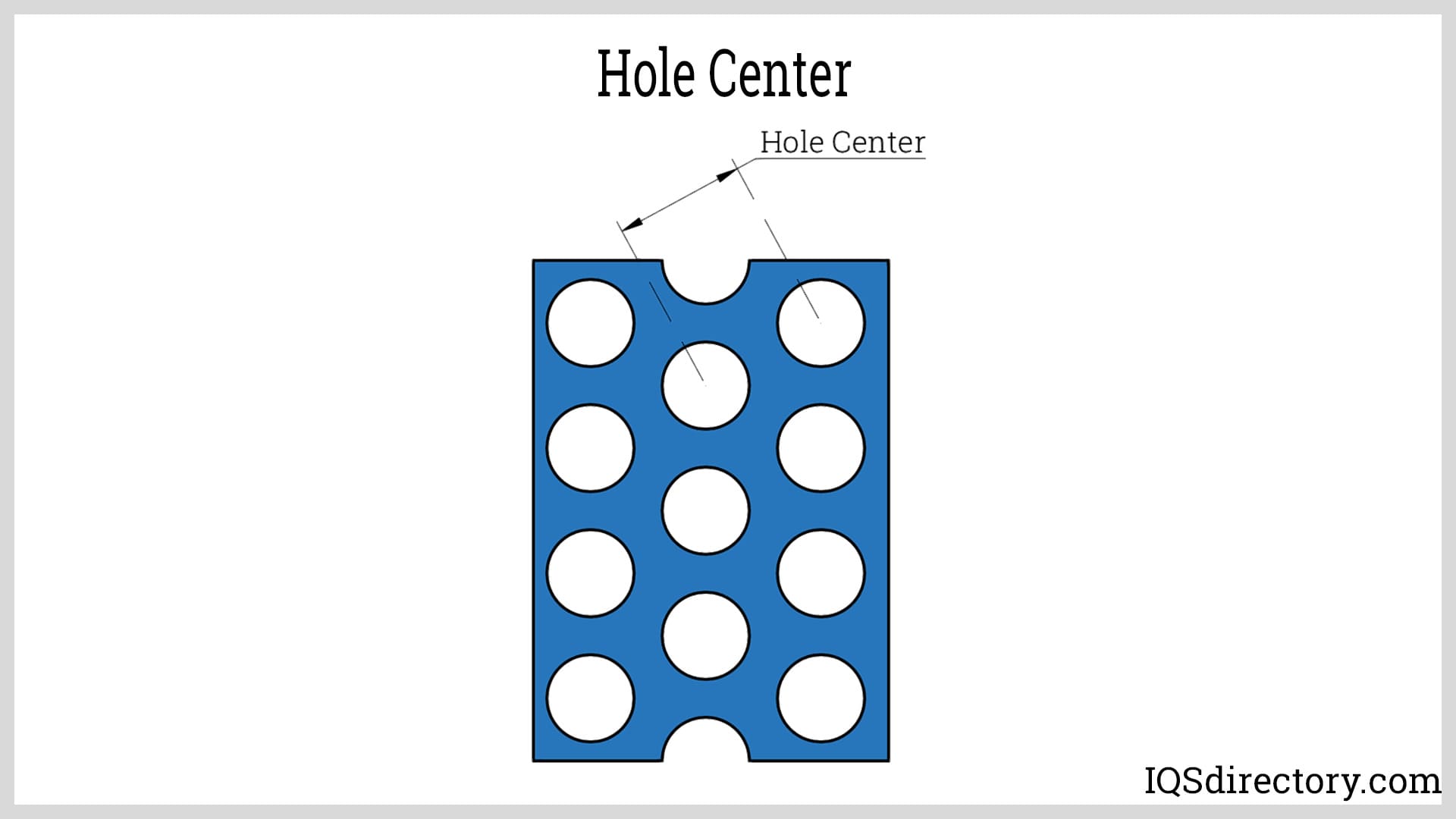

Hole Center – Hole center is the distance from the center of one hole to the center of the nearest adjoining hole. It is one of the measures used in perforating to determine perforation spacing. The hole center determines the feed and production rate for perforated sheets. As plastic sheets get thicker, the center distance should be longer.
There are a wide number of uses for perforated plastic sheets due to their lightweight, flexibility, strength, and pleasant appearance. The many forms of perforated plastic sheets make it possible to adapt them to any application, which is one of the reasons for their wide use. From air flow and lighting to protective packaging material, perforated sheets have become an essential part of industrial applications.
Perforated plastic sheets for ceilings are used as acoustic panels for sound absorption and the trapping of sound. They eliminate echoes and prevent the amplification of music and speech. Plastic perforated sheets have replaced metal as ceiling tiles due to their flexibility and adaptability.
Rolls of perforated plastic sheeting are used to cover products and pallets to protect them against dirt, grim, dust, and debris. The lightweight of the sheets and their strength make them an ideal protective material.
Vented plastic bags are a form of perforation that is designed to keep food fresh during shipping. The multiple holes in the bags allows gases produced by fresh fruits and vegetables to escape and allows for air circulation. With wet items, vented bags prevent the build up of mold and mildew.
The use of perforated paneling covers a wide range of applications from room dividers and walls to structural supports for the architectural appearance of a building. The strength and durability of perforated panels makes them ideal for several construction purposes.
The few uses for perforated plastic sheets that are listed here covers a small portion of their many uses. They have become an essential part of product production, aesthetics, and furnishings. The strength, durability, sturdiness, and adaptability of perforated sheets has made them one of the most reliable products on the market.
