This article takes an in depth look at the uses and applications of perforated steel.
You will learn more about topics such as:
Perforated steel is a metalworking process that involves punching or stamping patterns into sheets of thin, flat-rolled steel. Originally used for filtering coal with manually punched round holes, perforated steel has evolved with various techniques such as rotary pin perforation, die punch perforation, and laser perforation. Today, perforated steel sheets are integral to industrial processes and architectural design, extending far beyond their initial application.
Perforated steel is used for structural support, sound diffusion, light regulation, railing stabilization, and filtration. The strength, durability, and resilience of steel make it an ideal material for perforated sheets. Its versatility allows for easy customization to meet various patterns or designs while maintaining toughness, stability, and strength.
Although perforating steel involves punching or puncturing metal sheets, it requires careful planning and programming to achieve the desired pattern and design. Computer Numeric Control (CNC) equipment is commonly used for this process, as it can be programmed to pass rapidly over a sheet of thin steel, placing holes with precision and accuracy.
Steel is the most common metal used for perforation due to its tensile strength. The gauge of steel, or thickness, varies depending on the intended use of the perforated sheets. Generally, decorative steel sheets are less resilient compared to those used for structural supports or handrails.
Punching is a common method for shaping and forming perforated steel. It includes the use of a punch press that has a specially designed tool and die set. In order to be able to penetrate steel, punch tools are made of tungsten carbide or hardened steel. The pattern is created by placing the steel sheet between the punch tool and the die. Then, the tool moves downward at great force onto the die to create the perfect pattern. It is a very efficient and cost-effective method.
Perforation is one of the most demanding actions performed on a die, as the force applied ranges from a few tons to over 1000 tons. Proper alignment of the press is crucial, as it cannot be corrected by die set adjustments. There are two basic types of steel perforating punch presses: all across and sectional.
All Across Punch Press – All across punch presses quickly and accurately punch up to 1600 holes per stroke. They are used for large runs at high speeds, handling material up to 60 inches wide and 0.002 to 0.25 inches thick. Punch diameters range from 0.024 to 2 inches, and these presses can achieve up to 600 strokes and thousands of holes per minute.
Section Punch Press – Unlike an all across punch press, a section punch press works section by section and is used for thicker steel, up to 25 mm (one inch) thick. The steel sheets are moved along the X and Y axes using CNC programming. Sectional punch presses offer design flexibility and several perforation options.
Metal stamping uses a complex tool and die set to create finished pieces in one step, which allows for faster turnaround times and less expensive mass production. The creation of perforated steel sheets using metal stamping is also referred to as punching since using force creates holes in steel sheets.
The three types of steel metal stamping perforation processes are mechanical, hydraulic, and mechanical servo.
Hydraulic Metal Stamping – Hydraulic metal stamping uses pressurized hydraulic fluid to apply the stamping force to the workpiece. It allows for precise control of the amount of force applied, resulting in more consistent force application. Hydraulic metal stamping machines can exert several thousand tons of force, similar to punch presses.
Mechanical Metal Stamping – Mechanical metal stamping generates force through a flywheel that stores and transfers energy to the punch. This method operates faster than hydraulic stamping and is ideal for large production runs due to its speed.
Mechanical Servo Metal Stamping – Mechanical servo metal stamping machines replace the flywheel of mechanical stamping with a high-capacity motor, enabling the production of complex and intricate patterns quickly and efficiently. These machines use CNC programming to control the speed, position, and motion of each stroke. Mechanical servo metal stamping is technologically advanced and more expensive than other stamping methods.

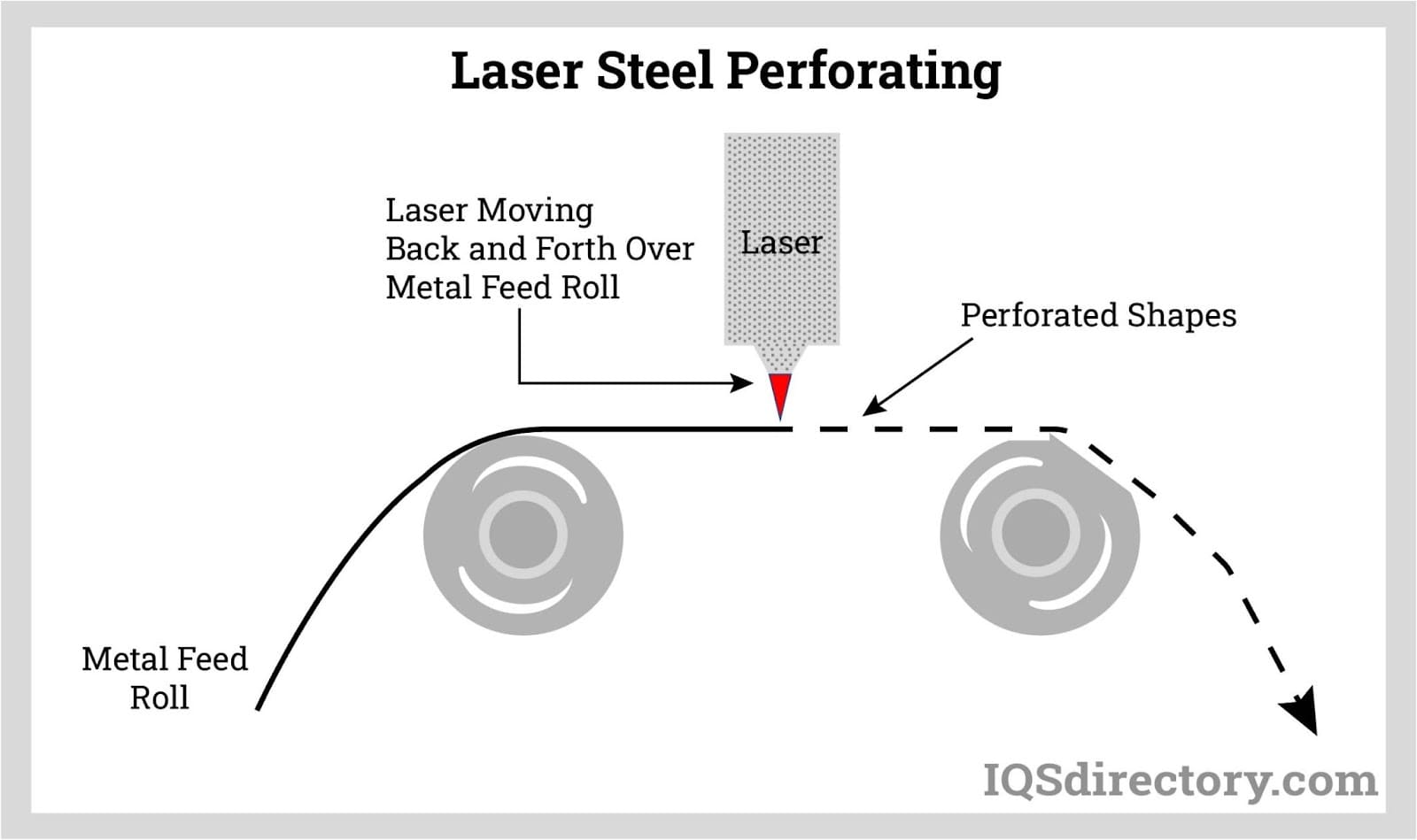

A laser perforating machine acts like an electronic pen for cutting complex and intricate patterns into steel metal sheets. They are capable of producing any type of pattern. Laser perforating is a non-contact form of metal perforating where the laser burns small holes in steel accurately and consistently, leaving a reinforced ring around each puncture.
The focused laser beam of a laser perforating machine is incredibly precise and can be adjusted and programmed for any type of perforation. However, laser cutting is not designed for large runs and is very costly. The term laser is an acronym for Light Amplification by Stimulated Emission of Radiation, and it is a process that uses electromagnetic radiation.

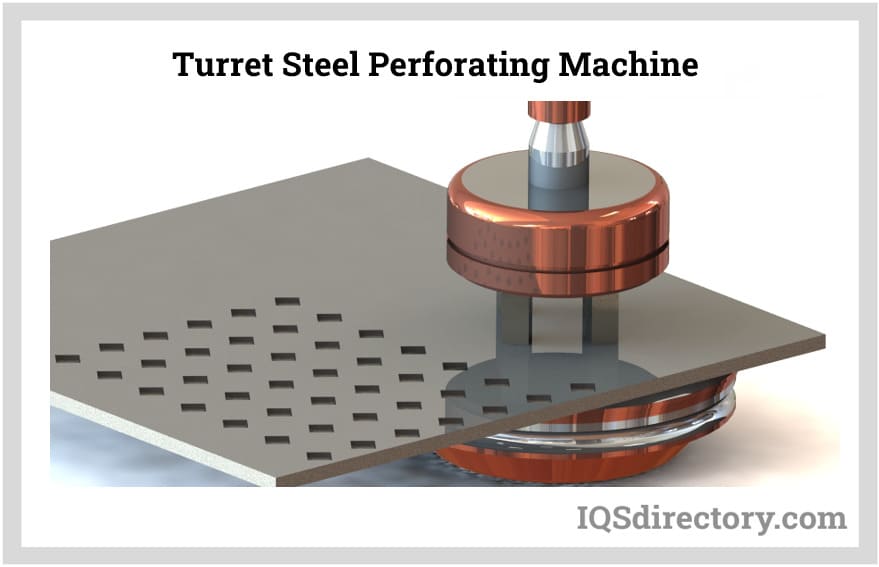

A turret punching machine is an automatic punching machine that has upper and lower turrets onto which a wide variety of punches are loaded. The two turrets are rotatable, allowing them to punch holes of the same size and shape in different positions. A turret punching press features a vertically moving ram to which the turrets are attached. The upper turret is vertically and coaxially aligned with the lower turret, enabling them to create specific shapes.

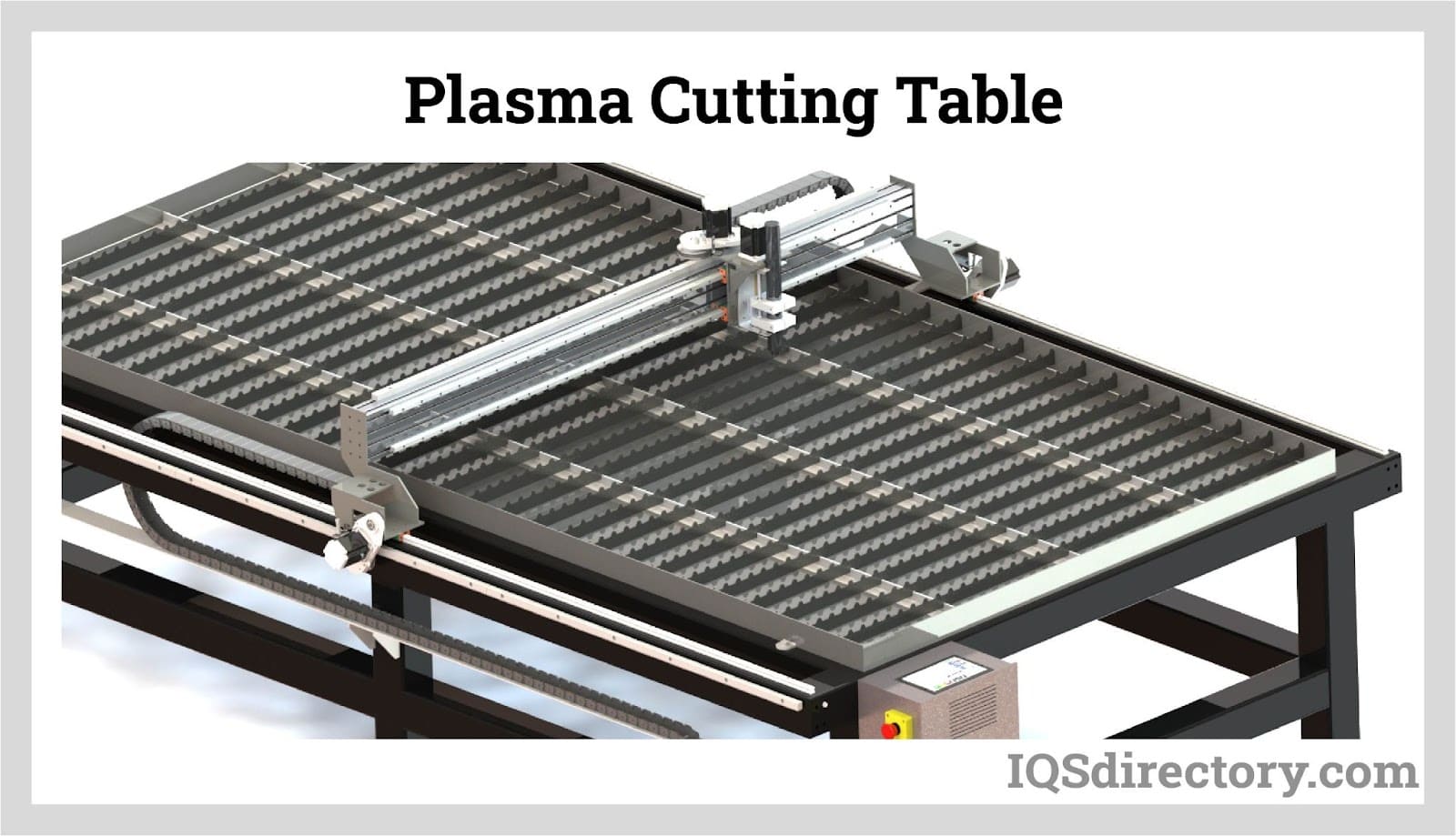

Plasma cutting is a thermal cutting technique that utilizes an electrical arc to ionize and heat specific gases, turning them into a high-temperature plasma for cutting through materials. The process involves a tungsten electrode that creates an electrical arc, which then ionizes the gas flowing through the torch. This ionized gas, or plasma, becomes extremely hot and is directed toward the material to make the cut. The steel metal sheet being cut is part of the electrical circuit, and a grounding clamp is used to complete the circuit and ensure a stable arc.
In plasma cutting, the high-speed jet of ionized gas removes metal to create a perforation. The choice of cutting gas varies based on the type and thickness of the steel being processed. This gas forms the plasma jet, which not only cuts through the steel but also expels molten metal and oxide from the cut area. Plasma cutting is known for its ability to make precise, high-quality cuts rapidly and with minimal kerf, resulting in efficient and accurate processing of materials.

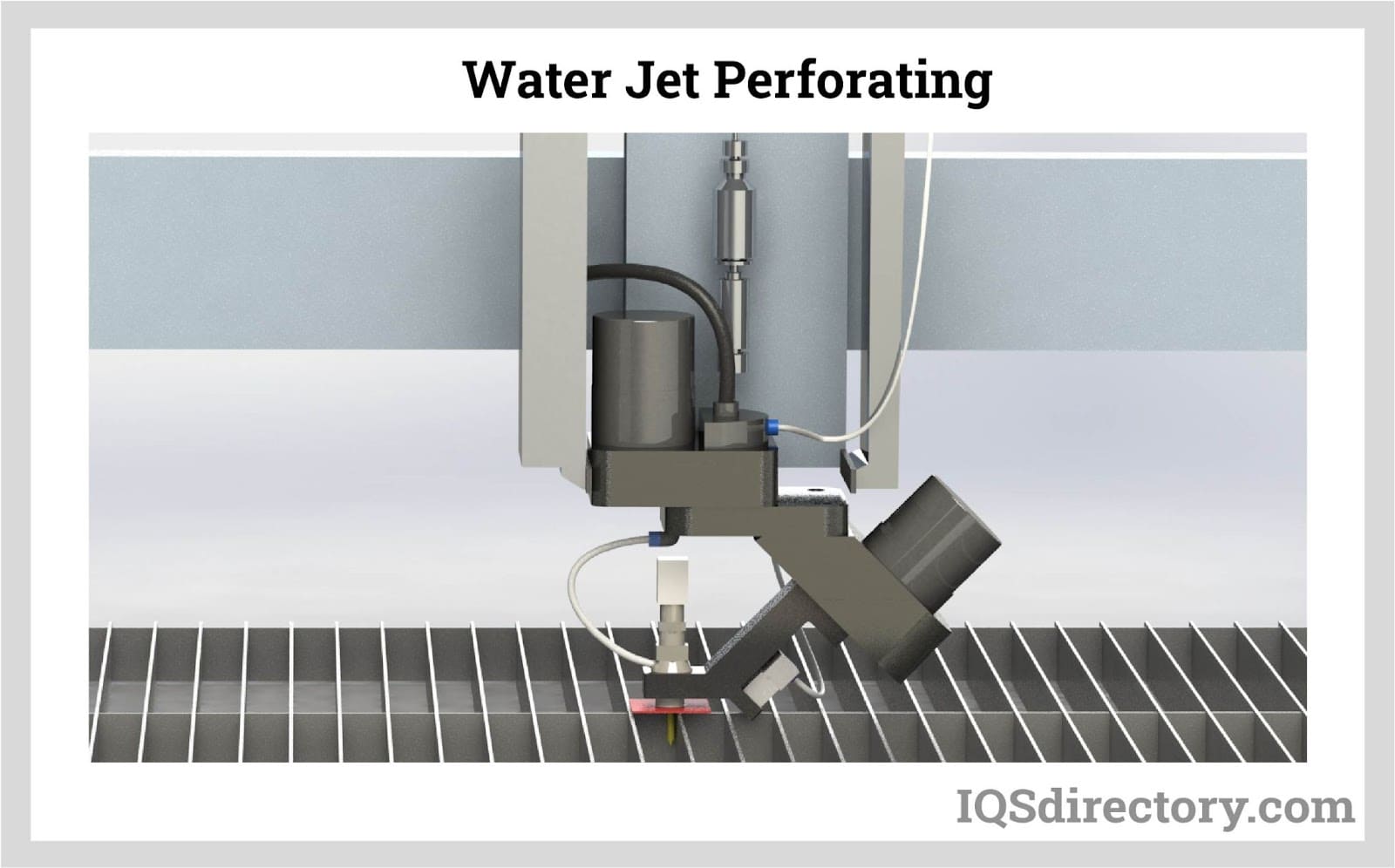

Water jet cutting for perforating steel uses high-pressure water plus an abrasive element such as garnet. The grit sizes are between 50-220 mesh, with 80 mesh being the most common. A typical household water faucet has a water pressure of 60 psi, while water jet cutting has a water pressure of 60,000-90,000 psi, giving it the strength to cut shapes in steel.
The two types of pumps used to create the water pressure are direct drive and intensifier. The difference between the pumps is how they create the water pressure. Direct drive pumps are less expensive and use a crankshaft to move a plunger to create the necessary pressure. Intensifier pumps are more expensive and use a hydraulic ram to create pressure.
Much like a turret punch press, water jet cutters can complete multiple types of cuts in one pass, which significantly lowers the cost and time of cutting especially in regard to complex designs. Water jet cutting can cut through any thickness of steel accurately and efficiently.
Rotary pin perforating involves a cylinder equipped with sharp needles arranged around its circumference. Similar to a printing press or die cutter, steel sheets are fed beneath the rotating cylinder, allowing the needles to create the desired perforation patterns. This method is continuous, with sheets being fed either individually or from a roll. The needles can be either heated or cold; heated pins help to reinforce the perforation edges, enhancing the strength of the holes.
This perforation method is highly efficient, significantly reducing turnaround times. The cylinders spin at high speeds, enabling the process to be completed swiftly and accurately.
The perforating process involves using a tool to create evenly spaced punctures and holes in steel sheets through rapid, successive impacts. While it may seem straightforward—simply positioning the sheets and driving the tool through—there is more to the process.
Successful perforation involves six meticulously planned steps: impact, penetration, break, snap through, bottom, and withdrawal. Mastery of these steps is crucial, including the selection of the appropriate die, tool steels, and punch clearance to ensure the effectiveness of the perforating process.
When a punch first touches a steel sheet, it creates a momentary halt at the point of impact, where the punch encounters resistance from the ram and press. As the compressive force increases, the steel sheet deforms outward at the contact point.
The force exerted by the punch quickly surpasses the steel sheet's resistance, piercing through and slicing into it. At this moment, the gap in the die causes the punched piece to deform, causing it to bulge outward due to the punch's force and form a cavity behind it.
As the steel sheet is stretched to its maximum tensile strength, it begins to fracture along the cutting edge of the punch. This causes a rupture in the newly formed hole and affects the diameter of the cut shape.
The snap-through point occurs when the punch surpasses the steel sheet's tensile strength, causing the slug to detach from the punched hole.
Withdrawal marks the end of the operation, where the punch is retracted from the steel sheet. At this stage, the next sheet is positioned, and the process starts anew.
These steps occur rapidly and efficiently as the steel is aligned, pierced, and perforated. Successful execution relies on meticulous engineering and planning, including designing the die pattern, setting hole distances, and choosing the appropriate steel gauge. Each of these factors impacts the quality, cost, and timing of the finished perforated steel.
The gauge of steel refers to its thickness, with higher gauge numbers indicating thinner steel. Steel gauges are measured based on a standard where a sheet weighs 41.82 pounds per square foot per inch of thickness. The choice of gauge for perforating steel is generally determined by the intended use of the perforated sheets rather than strict limitations on gauge numbers.
Steel types vary by thickness, with foils or sheets under 5 mm considered very light. Steel thicker than 6 mm is classified as structural or plate steel, available in flat sheets or large rolled coils. The gauge measurement system used in the U.S. originated during the industrial revolution in Britain, while most other countries use the metric system, with some having specific variations.
Steel is graded primarily by two systems: the American Society for Testing and Materials (ASTM) and the Society of Automotive Engineers (SAE). ASTM grades steel mainly for construction purposes, whereas SAE focuses on metals for automotive and aerospace applications.
The name "steel" refers to a group of metals that include carbon steel, steel alloys, and stainless steel, which are all used to produce perforated steel sheets. Carbon steel is defined as having a carbon content of 2% by weight and a limited content of any other metals. Iron and carbon are the basic elements of carbon steel. While stainless steel also has iron and carbon, it varies from carbon steel by having a 10% or more chromium content, which gives it its altered appearance and resistance to rust.
In carbon steel, increased carbon content results in greater hardness, but also leads to higher brittleness. Thus, while high carbon steel is more durable than low carbon steel, it is also more prone to cracking. For perforation tasks that require a good mix of hardness and flexibility, mild carbon steel is typically the preferred choice.
Alloyed steels come in various formulations and may include elements like manganese, phosphorus, silicon, copper, nickel, and molybdenum. To guard against rust and corrosion, steels can be galvanized; however, perforation removes this protective layer, making the steel susceptible to deterioration when exposed to environmental conditions.

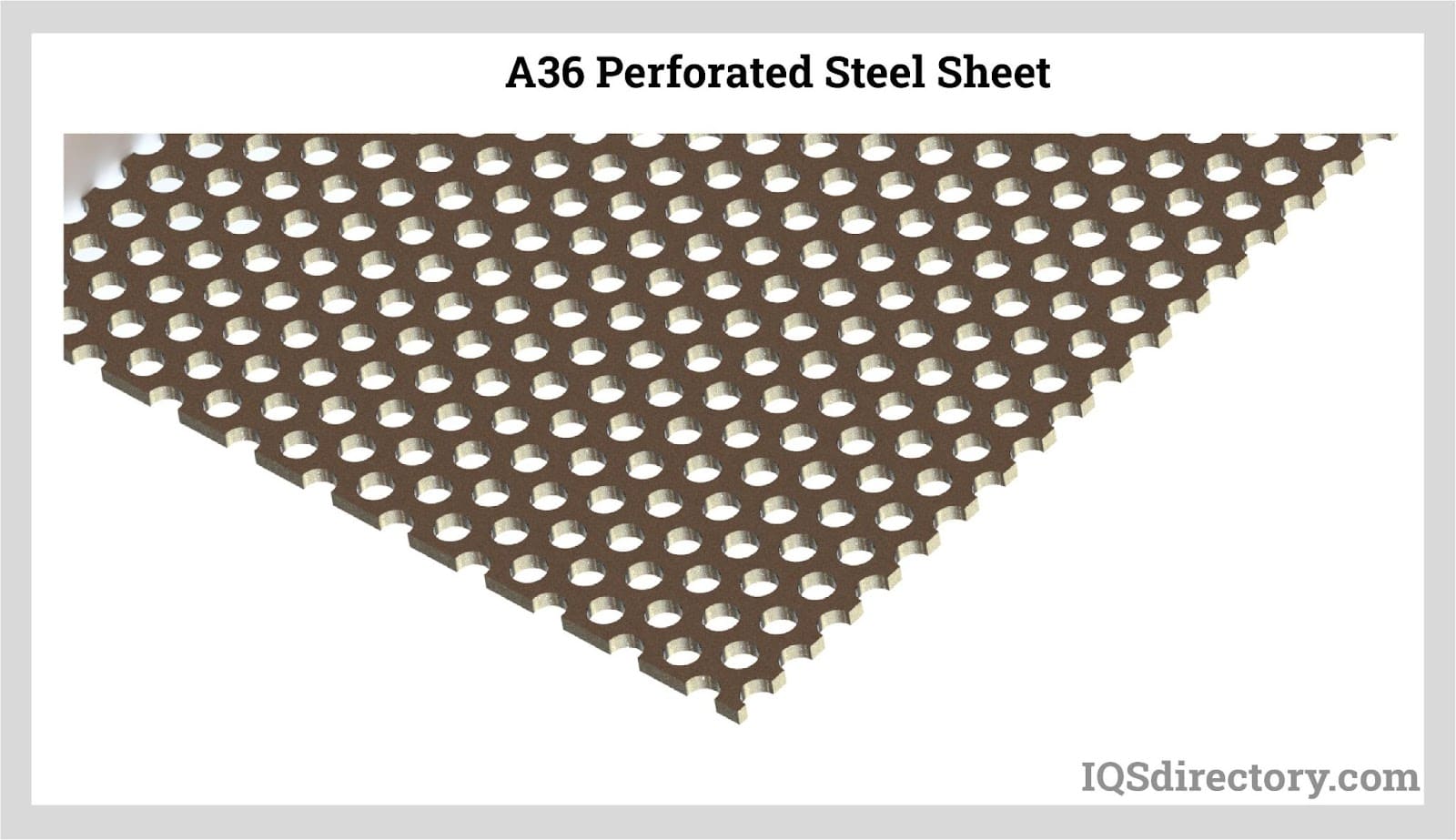

A36 steel, which is a low carbon steel, is commonly utilized as a structural plate. Its ease of machinability and formability makes it a popular choice for producing perforated metals. A36's versatility allows it to be used in numerous applications, thanks to its ability to be readily shaped and rolled.

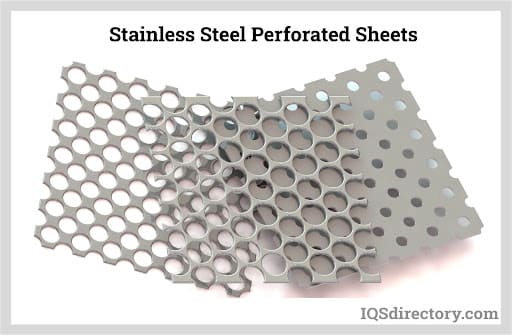

Stainless steel is an excellent choice for perforated sheets due to its strong strength-to-weight ratio and thinner material profiles. Beyond its attractive finish, stainless steel offers superior resistance to corrosion and chlorinated liquids. Its versatility is enhanced by its various grades, each tailored with specific properties to suit different applications.

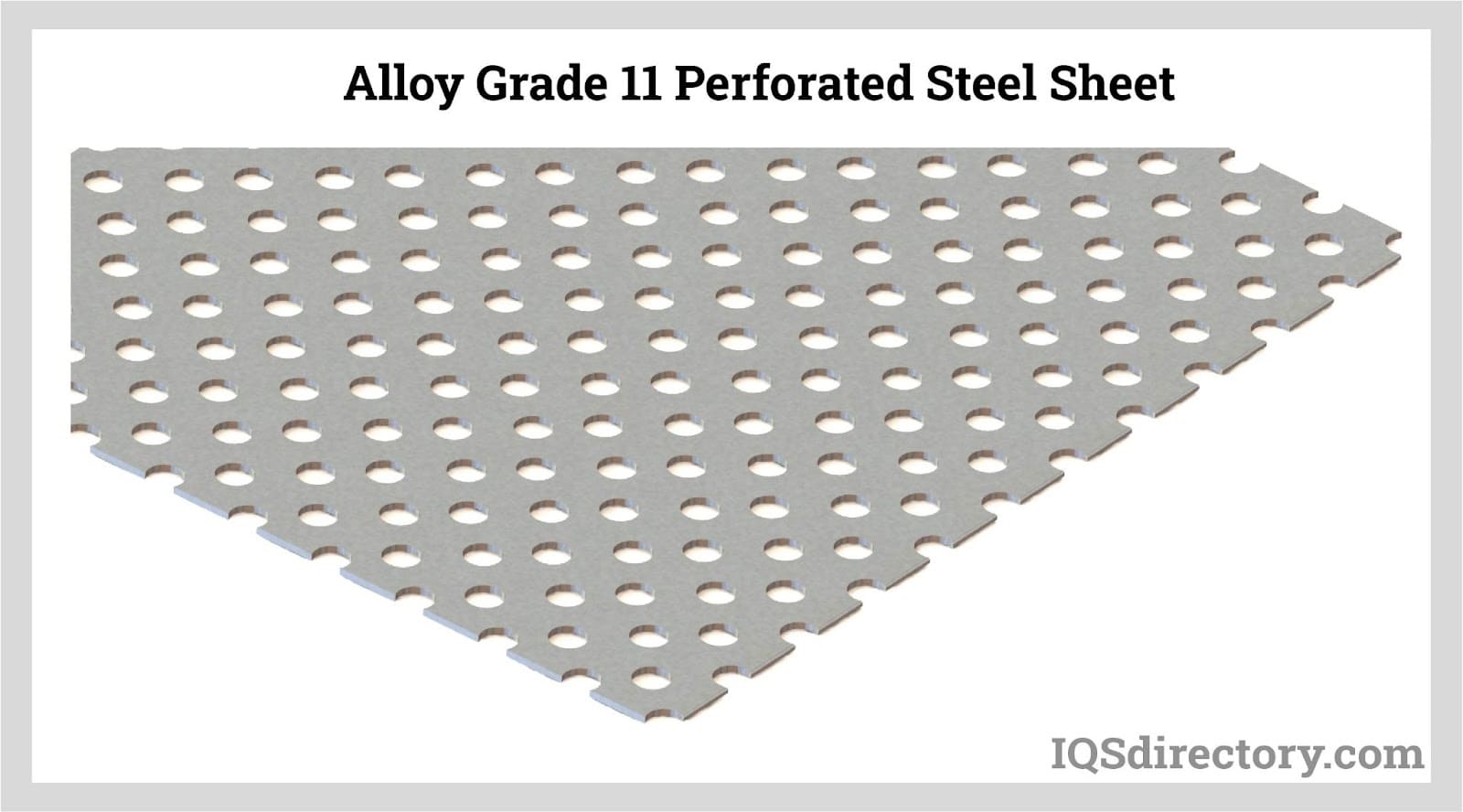

Alloy grade 11 perforated sheets are produced with various alloy combinations to achieve specific hardness and strength levels. Known as ASTM A387 steel, alloy grade 11 can be engineered to offer diverse properties, including varying degrees of conductivity, stress resistance, strength, and thermal conductivity.
Thanks to its exceptional strength and durability, alloy grade 11 perforated steel sheets are suitable for a wide range of uses, from construction and decorative applications to industrial filtration. Its high chromium content enhances its resistance to corrosion and oxidation.
Perforated steel is highly favored for its adaptability and visual appeal, which can be modified through different thickness gauges. It can also be customized with various hole sizes to suit specific applications. Whether used for structural supports in railings or as filters in chemical and petroleum industries, perforated steel offers a range of designs to meet diverse needs. Essentially, there is a perforated solution available for virtually any application.

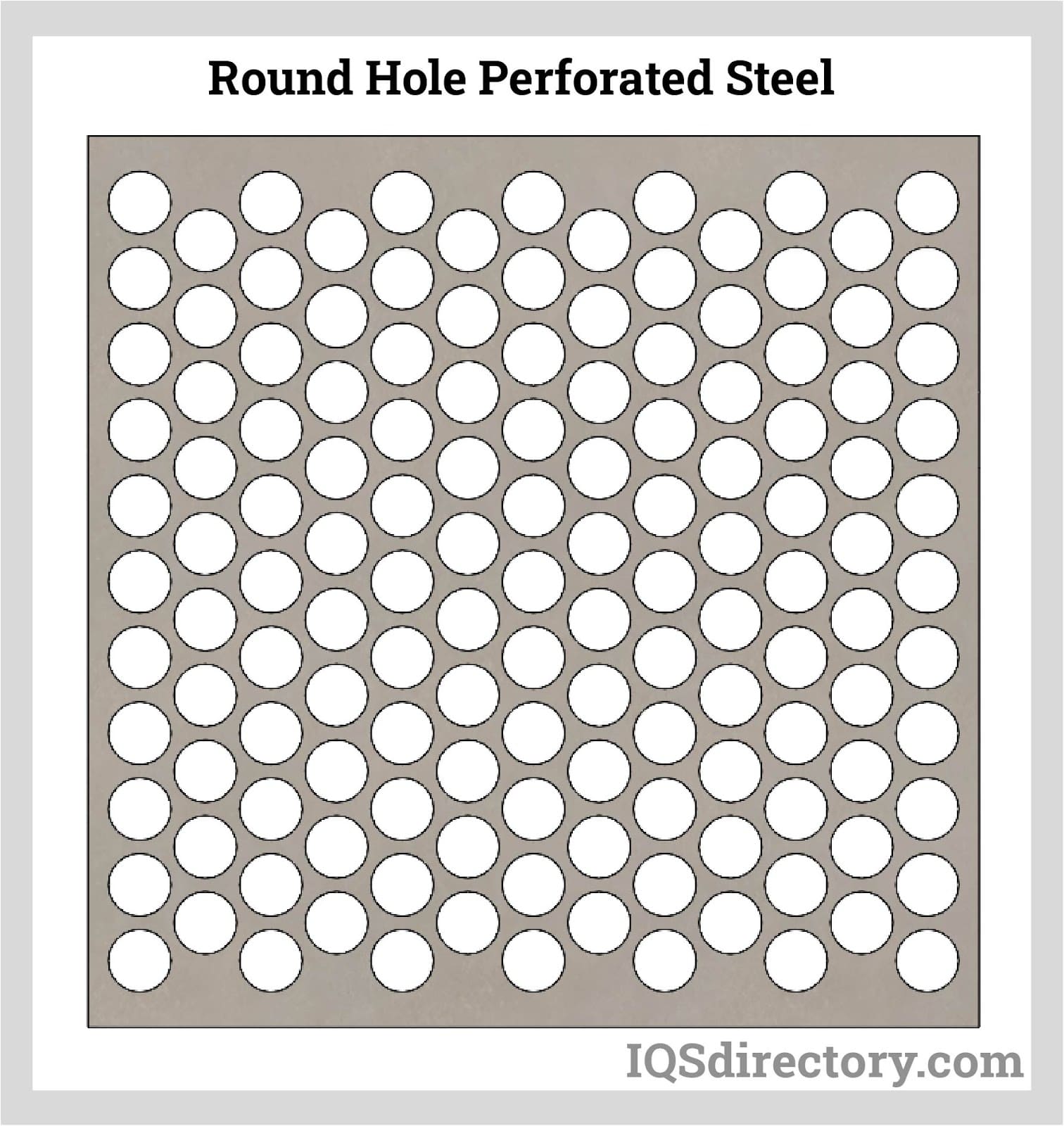

Round hole perforated steel is a prevalent type of perforated metal, available in various diameters, thicknesses, and sheet sizes. The holes are created using a circular die, resulting in a product that is both lightweight and cost-effective. This type of perforated steel can be tailored to meet specific needs and is commonly used in applications such as vents, metal screens, diffusers, dryer drums, and architectural features.

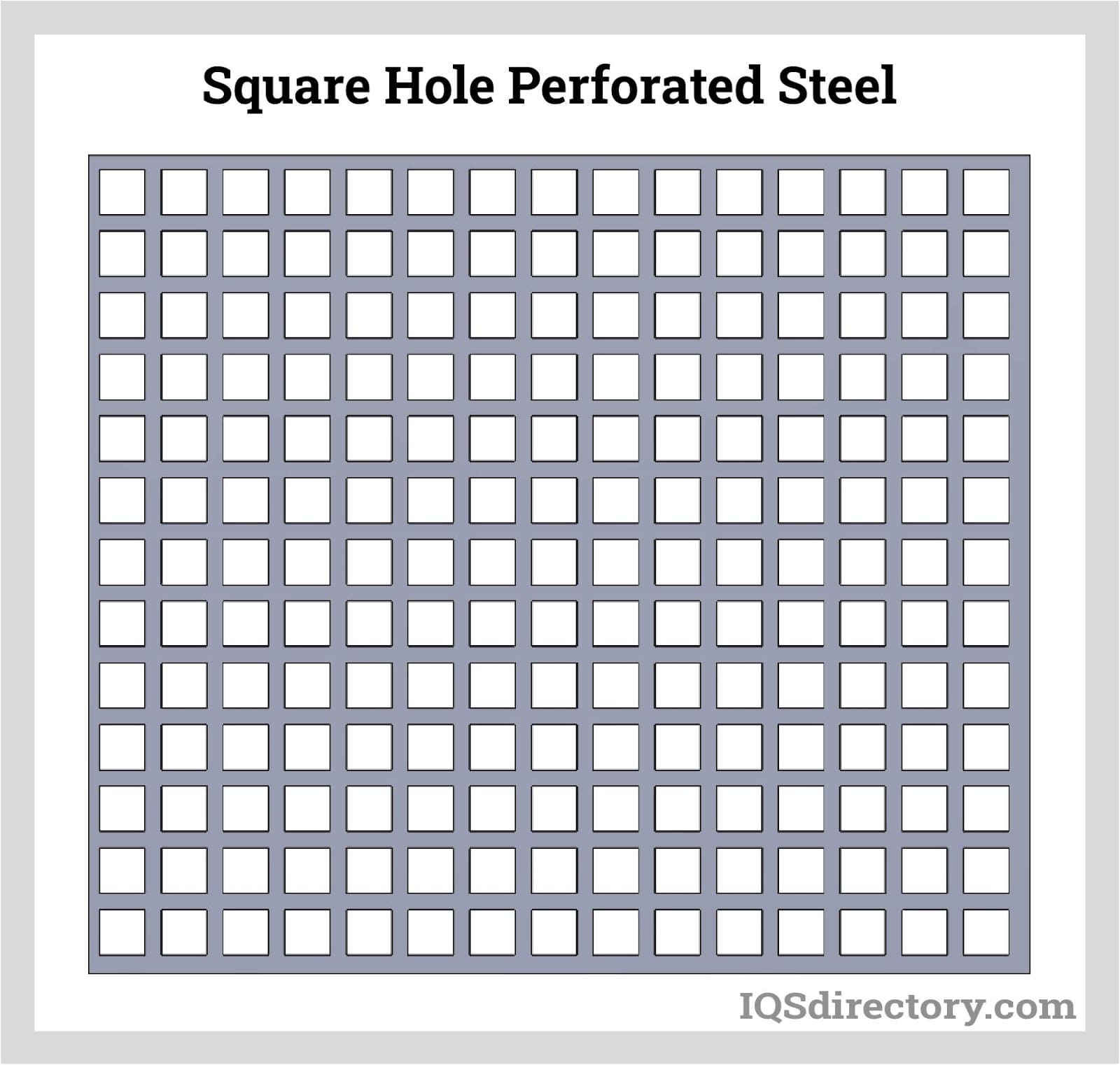

Square hole perforated steel is chosen when larger open areas are required. The holes are created using a square die or by cutting squares, depending on the manufacturing method. These holes can range in size from under an inch to six inches and can be arranged in either straight or staggered patterns. Besides its visual appeal, square hole perforated steel is also utilized for security purposes to protect property.

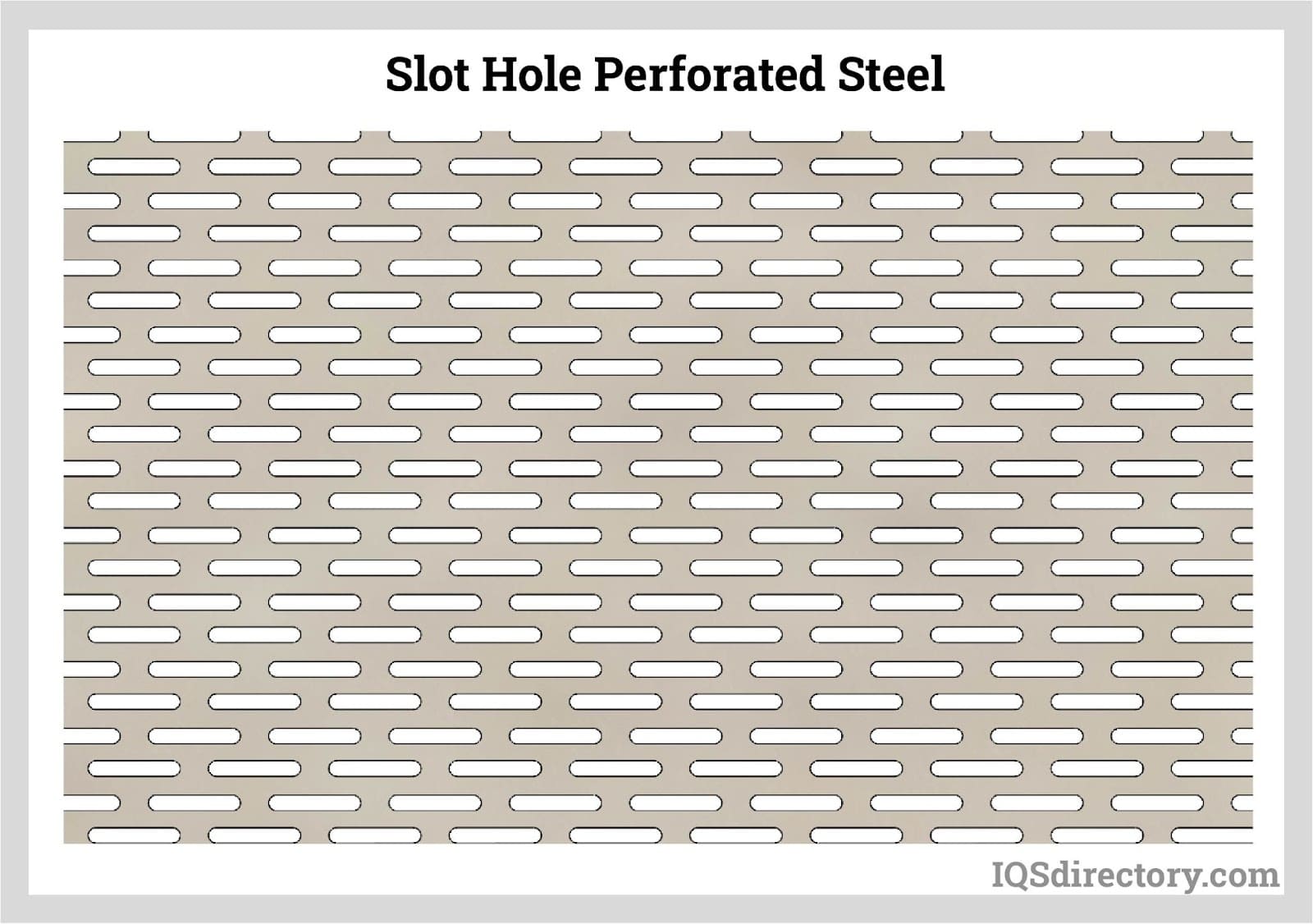

Slot hole perforated steel is produced using dies that can vary in width, length, and can feature either square or rounded ends. The slots can be arranged in various patterns, including end staggered, side staggered, aligned straight, or with custom-shaped margins. These slots typically have long, straight sides with semicircular or square ends. The design of slot holes enhances their durability and resistance to deformation, providing a long service life. Like square hole perforated steel, slot hole perforated steel offers increased ventilation and a larger open area.

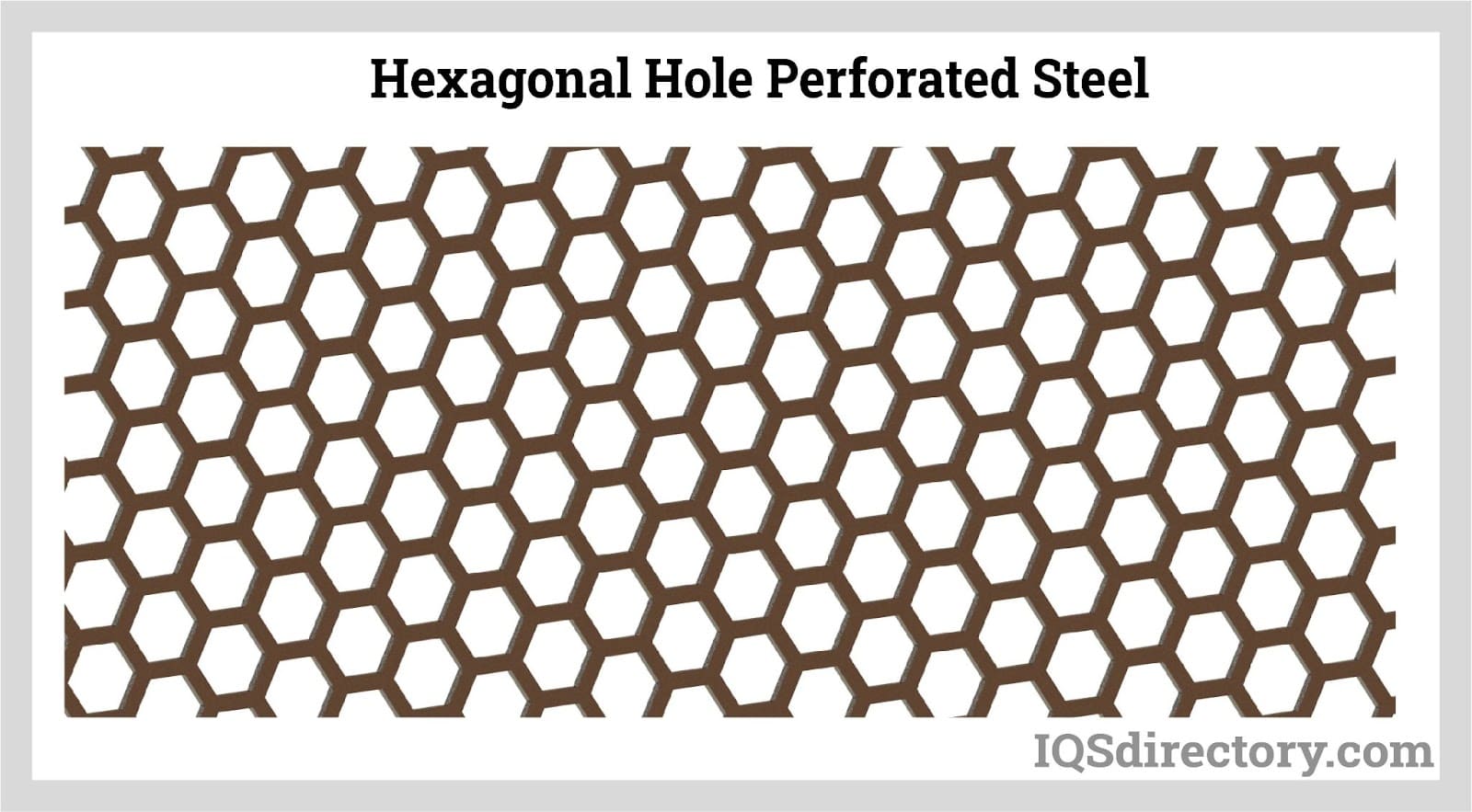

Hexagonal hole perforated steel is favored in the architectural and decorative fields for its distinctive look and elegant design. In addition to its visual appeal, this type of perforated steel boasts a robust structure, high tensile strength, and durability. Hexagonal perforated steel provides more open space for ventilation and airflow compared to slot and square hole perforated steel. Like other perforated steel types, hexagonal perforated steel is available in a range of hole sizes and can be made from both mild carbon steel and various grades of stainless steel.
Triangle hole perforated steel is more time-consuming to manufacture compared to other types of perforated steel sheets. It offers high tensile strength and load-bearing capacity, making it suitable for architectural uses and filtering applications. Additionally, this type of perforated steel is utilized for sound absorption, noise reduction, and protective purposes. It can be seen in applications such as micro-porous muffler plates, decorative ceiling panels, and speaker grilles.

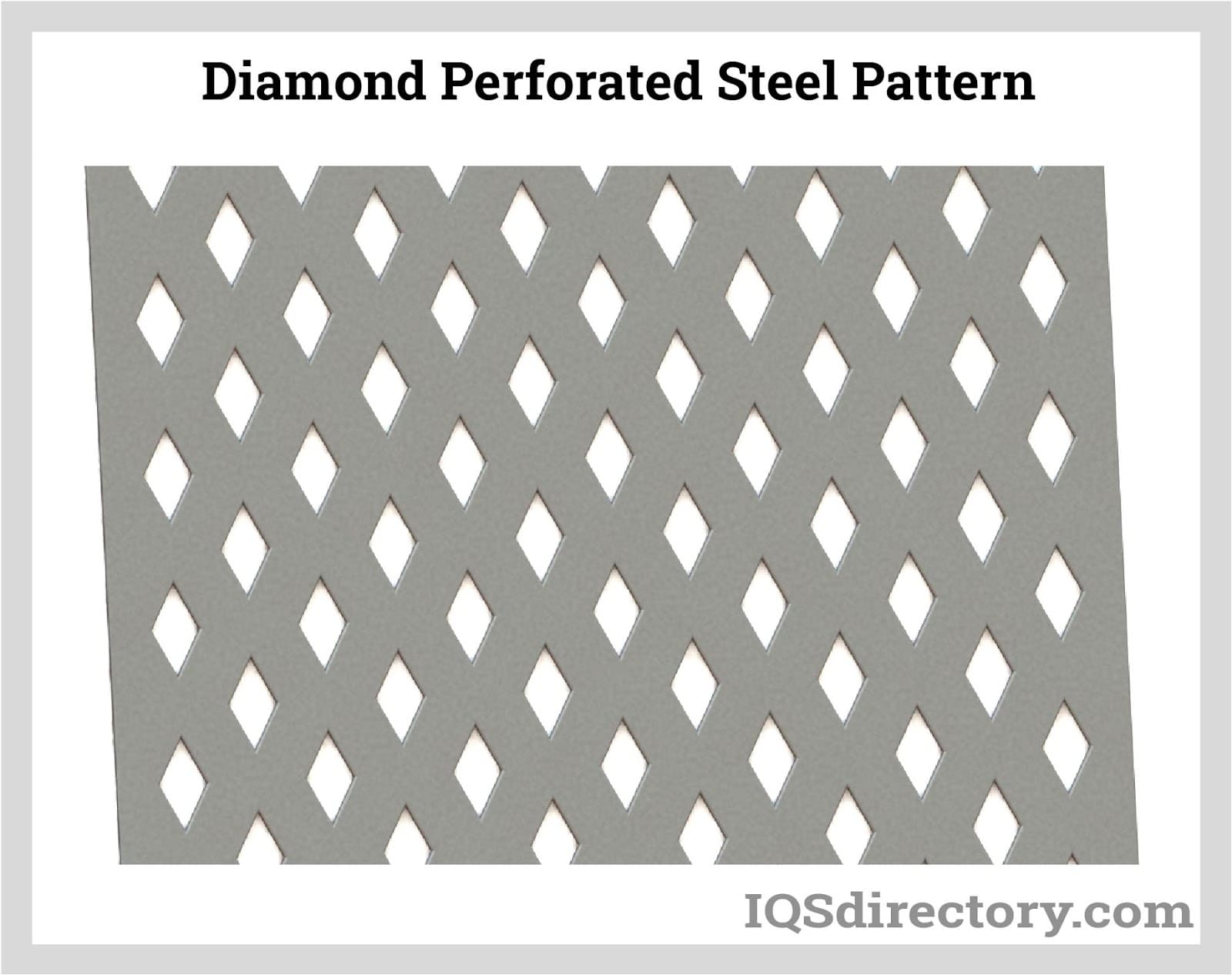

Diamond-patterned perforated steel is well-regarded for its durability, resistance to deformation, and suitability for frequent use. It is commonly employed in filtering applications, particularly in coal storage and mining. Diamond perforated steel comes in various styles, with small diamonds designed to restrict airflow and larger diamonds allowing for easier ventilation. Additionally, low-gauge diamond perforated steel can be utilized as grating.

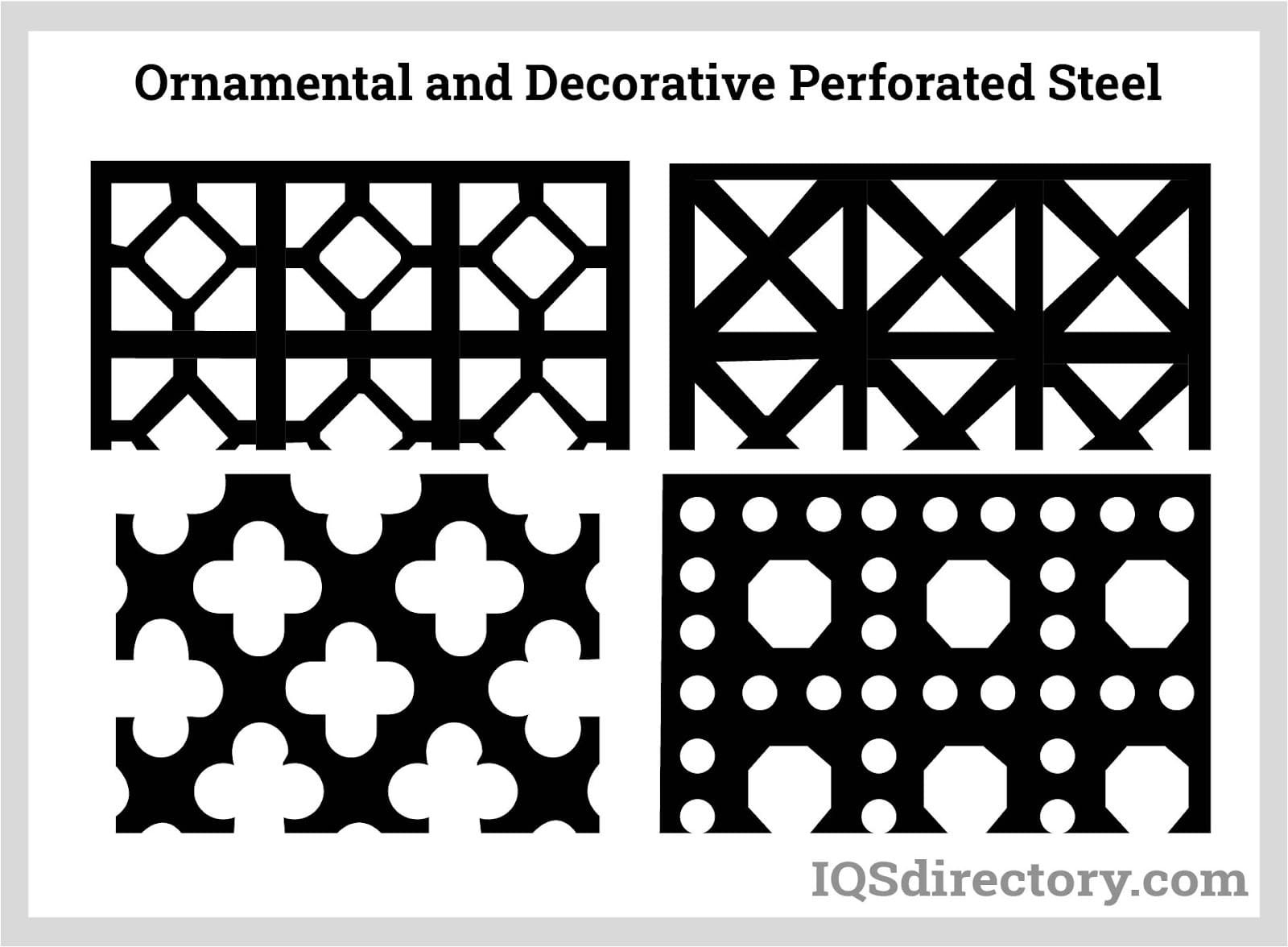

Decorative perforated steel sheets come in a wide array of designs, often featuring intricate patterns such as triangles within squares, interlocking circles, or combinations of circles and squares. They may also include motifs like fleur-de-lis, clover leaves, or patterns with gaps and multiple holes. The variety of designs is virtually limitless, reflecting the creativity of designers. Unlike standard patterns like round, square, and hexagonal holes, decorative perforated steel is primarily used for architectural embellishments and visual appeal.
The aforementioned designs and patterns represent just a few of the typical perforations found in steel. Each year, new and innovative designs emerge, expanding the possibilities with varied forms, patterns, shapes, and configurations. The versatility and functionality of perforated steel continue to inspire engineers to develop a diverse range of designs, enhancing the flexibility and application of this adaptable material.
For many years, perforated steel has served as both a decorative and functional material in architecture. It is commonly used in stairways and railings for support, as well as for safety and heat control in windows and openings. In office environments, perforated steel is utilized for creating dividers, screens, and decorative elements that help define workspaces and add visual interest.
Perforated steel is frequently employed for regulating light and shade. It can function similarly to a wire screen, acting as a barrier or diffusing harsh direct light to create a softer illumination. Additionally, perforated metals can contribute to reducing air conditioning and heating costs by improving thermal management.
Depending on their design, perforated steel sheets can either promote airflow for consistent cooling or restrict airflow to retain heat.
Historically, perforated materials were primarily used to enhance the aesthetics of a space, contributing to a sense of comfort and tranquility. This practice dates back thousands of years, long before the advent of perforated metals. During the medieval period, soft metals were manually perforated for use in armor and protective gear during combat.
Since the industrial revolution, the use of perforated steel has evolved significantly. It has expanded beyond mere decoration to become a key component in structural applications and filtration methods. While it continues to serve as a decorative element, its practical applications in structural support have become increasingly prominent.

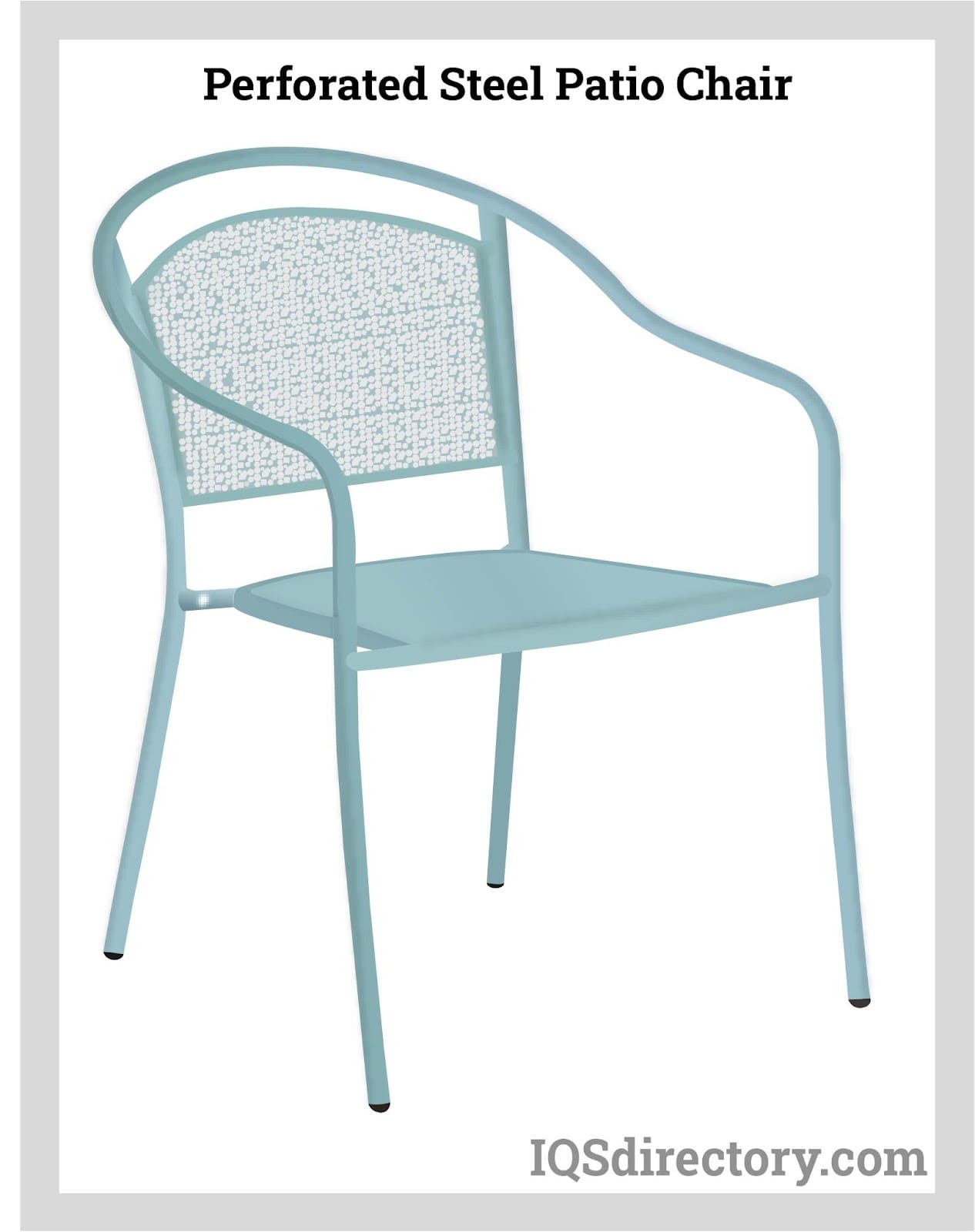

Perforated steel is frequently used for outdoor and patio furniture because it does not retain water and can be easily cleaned of moisture. Typically coated with powder or paint, perforated steel is commonly employed for tabletops, chair seats, and backs in outdoor furniture applications.
Perforated steel baskets fall into two main categories: decorative and industrial. Decorative baskets, often crafted from lightweight steel and coated or painted, serve as aesthetic centerpieces. They are versatile for both indoor and outdoor settings, and can hold plants, art pieces, or decorative objects. The durability of steel ensures that these baskets are both robust and long-lasting.

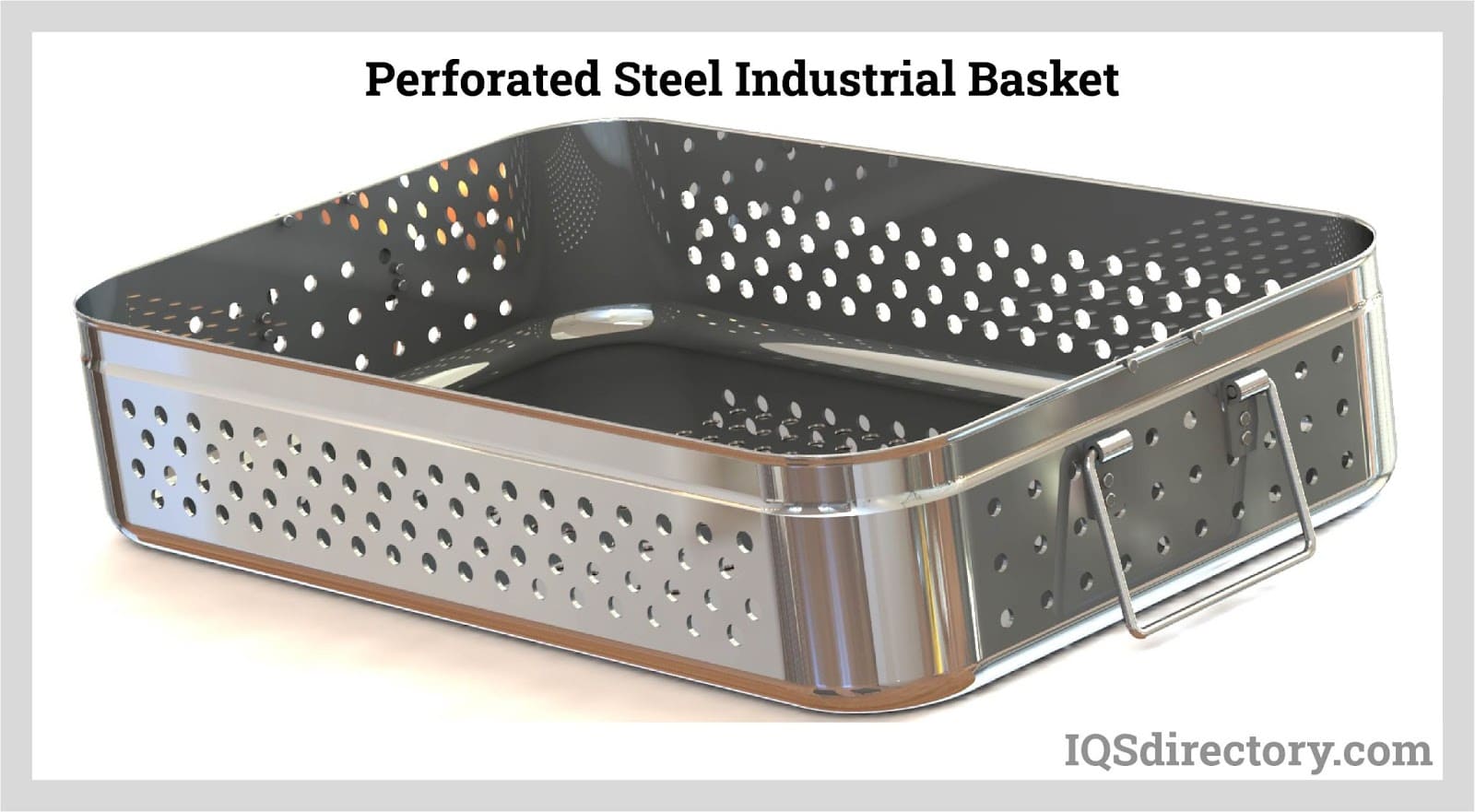

Industrial perforated baskets, on the other hand, are typically made from mild steel and are built to endure the demands of manufacturing environments. These baskets feature various hole patterns, such as round, hexagonal, diamond, or square, with perforations in the sides and bottoms. Some industrial baskets come with handles for use on overhead conveyors, depending on their specific application.
Perforated steel diffusers are employed to manage airflow or diffuse light within building systems. Integrated into ceiling and roofing panels, these diffusers feature various hole patterns designed to either diffuse light or facilitate air movement. Depending on their application, they can serve both decorative and functional purposes.
One of the most important uses for perforated steel sheets is as protective guards and shields for heavy duty machinery. They prevent operators from entering restricted portions of machines and keep chips, access metals, and other materials from being thrown into a work area. The strength and resilience of steel makes perforated machine guards a highly effective and useful tool.
Perforated steel is valued for its flexibility, ductility, and machinability, allowing it to be customized to meet a wide range of requirements. This adaptability is a key reason for its widespread use. Whether exposed to high temperatures, harsh weather conditions, or corrosive substances, perforated steel can be tailored to suit various environments and applications.
The margin on perforated steel refers to the space between the edge of the sheet and the nearest perforation, running parallel to the sheet's edge. The design of these margins varies depending on the perforation pattern and shape. During the design process, margins are meticulously planned to prevent issues such as buckling, distortion, and deformation. The margin dimensions are influenced by the die configuration and the thickness of the steel.
Intermediate margins are sections within the perforated sheet that remain unpunched to form specific designs or patterns. These unperforated areas help define the overall layout and contribute to the sheet's aesthetic or functional attributes.
Selectively unperforated areas, or selective area margins, are intentional design elements within a perforated sheet. These unpunched sections are used to create accents, enhance designs, or achieve specific aesthetic effects in both structural and decorative perforated steel. Selective area margins can vary widely in shape, form, and size, often reflecting artistic creativity and design freedom rather than adhering to a fixed pattern.
A safe side margin occurs when the perforation extends close to the edge of the steel but does not actually reach or cross the edge of the material.

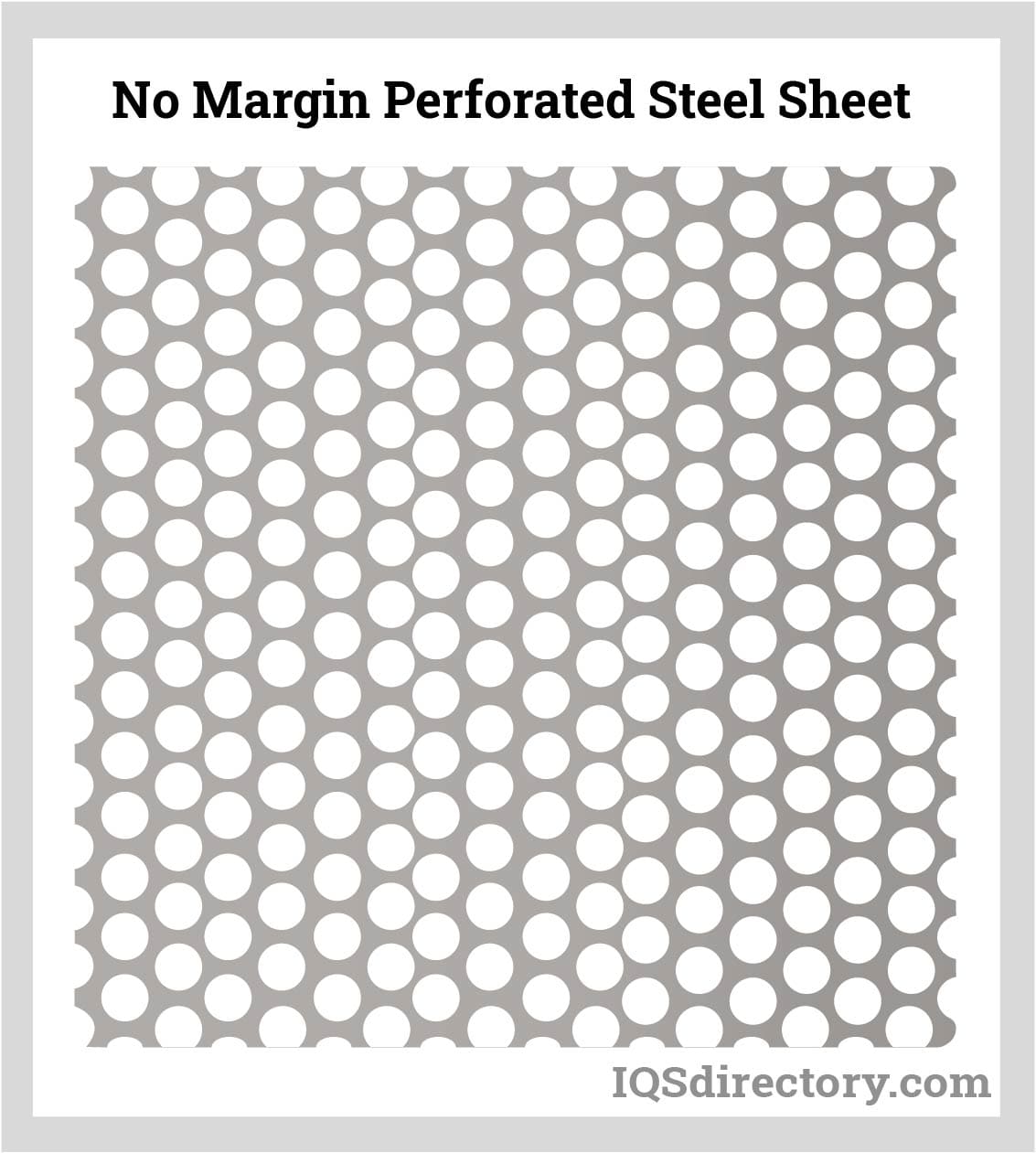

A no margin design is typically employed when perforated steel sheets are assembled to create the appearance of a continuous, seamless panel. In this design, the perforations extend to the edges of the material, resulting in a seamless appearance without a solid border.
There are three types of end patterns for perforated steel: unfinished, finished, and symmetrical. Among these, finished end patterns are the most challenging and costly to produce, while unfinished end patterns are the most common and easiest to work with.
Finished End Pattern – Finished end patterns feature a uniform and complete edge that aligns with the perforation pattern throughout the sheet. The end perforations are solid and seamlessly integrate with the overall design.
Unfinished End Pattern – Unfinished end patterns have a rough, incomplete appearance at the edge, with perforations that do not align with the rest of the sheet. The pattern appears irregular and does not match the perforations in the main section of the sheet.
Symmetrical End Pattern – Symmetrical end patterns ensure that the perforations at both ends of the sheet are identical, with matching starting and ending rows. This creates a balanced appearance on both edges.
The final stage in the perforated steel process involves selecting additional features to optimize the material's functionality. These options may include countersunk holes, mounting holes, notching, corner designs, and corrugation. Corrugation, in particular, is used to enhance the strength of perforated steel sheets.
Perforated aluminum consists of an aluminum sheet which has been manually or mechanically pierced or punched using CNC (computerized numerical control) technology in order to produce shapes and patterns of various sizes...
Perforated metals are sheets of metal that have had decorative shapes, and holes punched or stamped into their surface for practical or aesthetic purposes. The perforation of metal sheets takes several forms and includes a variety of geometrical patterns and designs...
A perforated metal is a piece of sheet metal that has been stamped, fabricated, or punched to create a pattern of holes, slots, and various aesthetic shapes. A wide range of metals are used in the perforating metal process, which include steel, aluminum, stainless steel, copper, and titanium...
Perforated stainless steel is cut, punched, or stamped to produce a precise pattern of holes or apertures. It is used for functional reasons, such as filtration or ventilation, and aesthetic ones, such as architectural accents...
Wire mesh is fabricated by the intertwining, weaving, or welding of wires of various thicknesses to create proportionally equal parallel rows and intersecting columns. Also known as wire fabric, wire cloth, or...
Expanded metal is a sheet metal mesh. It is made by stretching a slitted sheet of malleable metal. The orientation of the slits is perpendicular to the direction of the stretch. The result of such stretching is an array of holes on the slits - to give a mesh form...
Hardware cloth is a woven mesh made by interlacing various sizes of wire to form a metal fabric that can be used for animal cages, fence material, strainers, and filtering screens. The differences between the various types of hardware cloth...
Metal grating is a metal product produced by perforating metal sheets or joining bars of metal to form a grid. They are a metal product that is widely used in various industries as stairs, platforms, scaffolding, and protective coverings...
The phrase "wire mesh" describes two- or three-dimensional structures constructed of two or more metallic wires connected by various techniques. In a wide range of settings, wire mesh products are...
Welded wire mesh is a series of wires that are welded where the individual wires cross. The openings of the mesh varies depending on the type of wire used and the function of the mesh. Regardless of size and wire, welded wire mesh is permanent and...
Wire cloth is a woven (or nonwoven) sheet or web material with a series of openings across the surface. Wire cloth is also known as: Metal Fabric or Metal Cloth; Wire Mesh, Metal Mesh, or Alloy Mesh...
