This article contains everything you will need to know about Printed Plastic Bags and their use.
You will learn:
A plastic bag is a thin, flexible pouch made from plastic film, non-woven fabric, or plastic textiles. Also known as polybags or pouches, plastic bags are used for a variety of purposes, including containing and transporting goods such as household items, food, medical equipment, powders, chemicals, waste, and stationery.
Plastic bags are produced from various polymers, with polypropylene and polyethylene being the most common. The shape, size, closure, seams, color, and style of plastic bags depend on the material used. Although thin, plastic bags are strong, waterproof, and maintain their shape during use. Most bags are sealed at the seams, with some being glued with adhesives for secure closure.
Polyethylene plastic bags are known for their rigidity and strength, with densities varying from low to high, medium, and linear. Polypropylene bags are crystal clear, offer excellent tensile strength, and are resistant to chemicals and heat. Customized or printed plastic bags are designed to meet specific client requirements and serve as effective advertising tools for businesses. Many companies use printed bags to promote their brand by including logos, names, locations, or contact details.
Various polymers are used in the manufacture of printed plastic bags, each offering distinct properties.
Polyethylene, produced through the polymerization of ethylene, is a key member of the polyolefin resin family. This lightweight and versatile synthetic resin is used to manufacture a wide range of products, including clear food wraps, detergent bottles, shopping bags, and automobile fuel tanks.

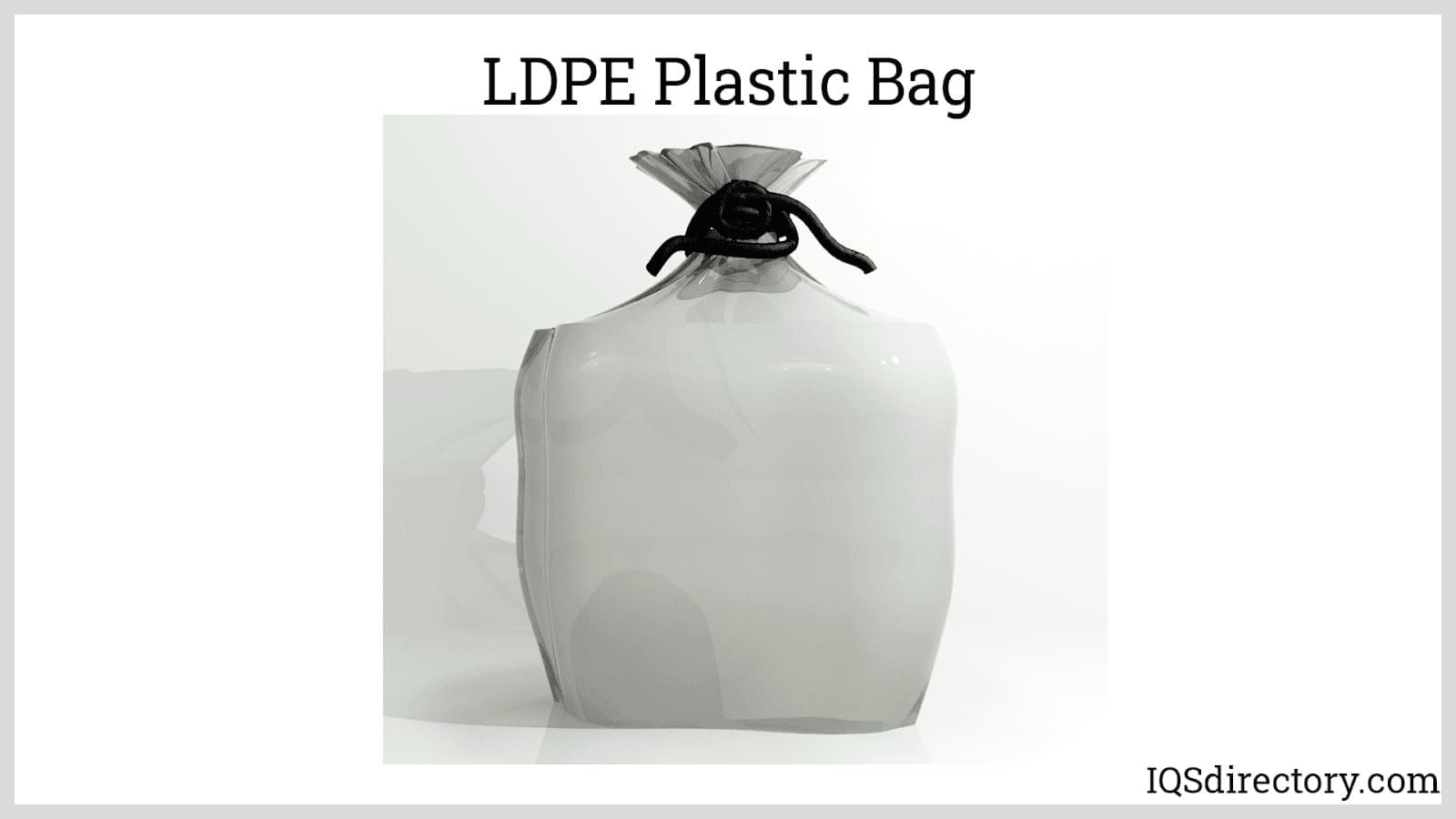

Low-Density Polyethylene: It is a strong, flexible, and water-resistant material that is used for making grocery bags or retail bags.

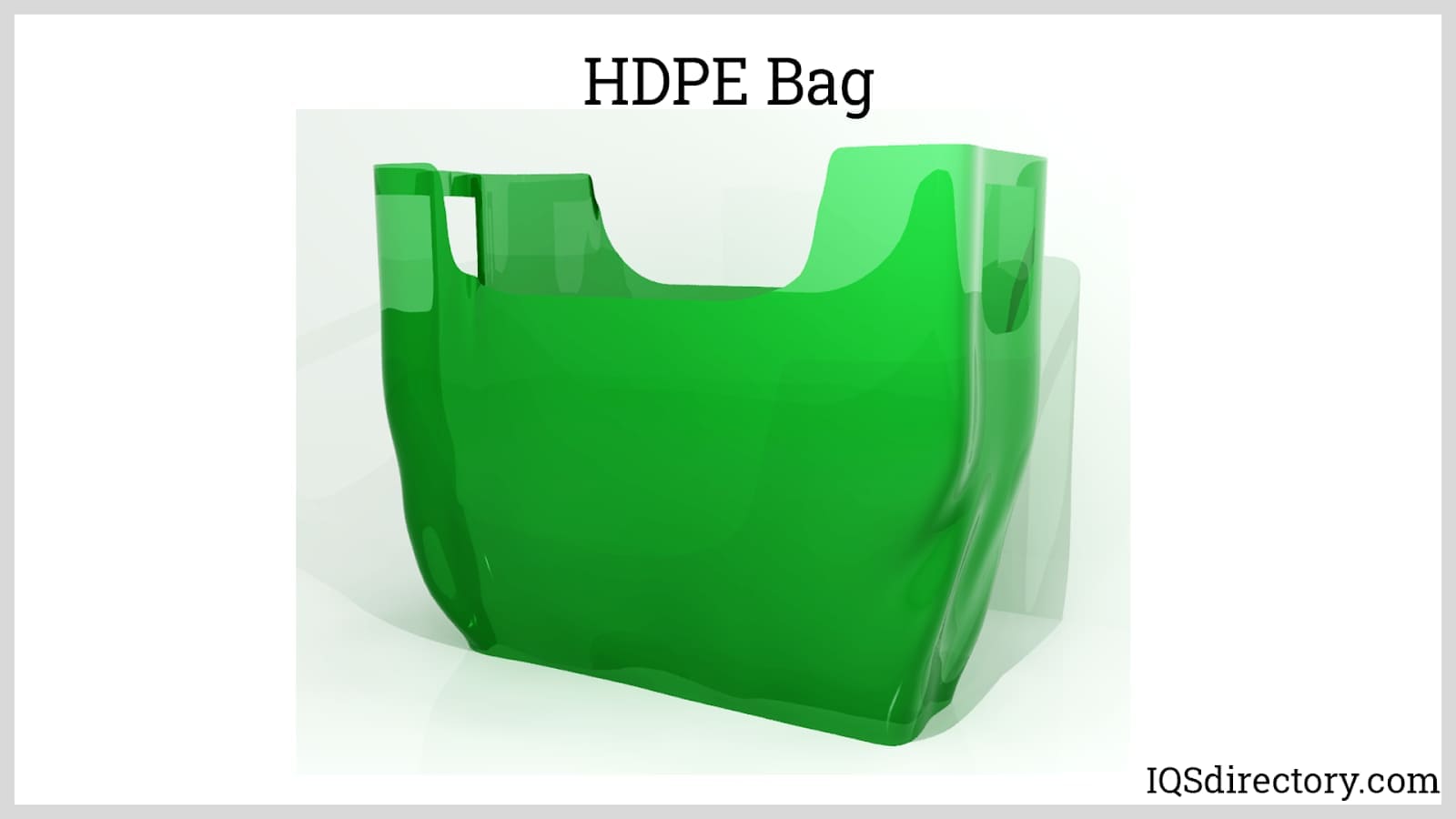

High-Density Polyethylene: It is a hard, and durable material that can hold goods for a longer time. Usually used for making luggage bags or trash bags.

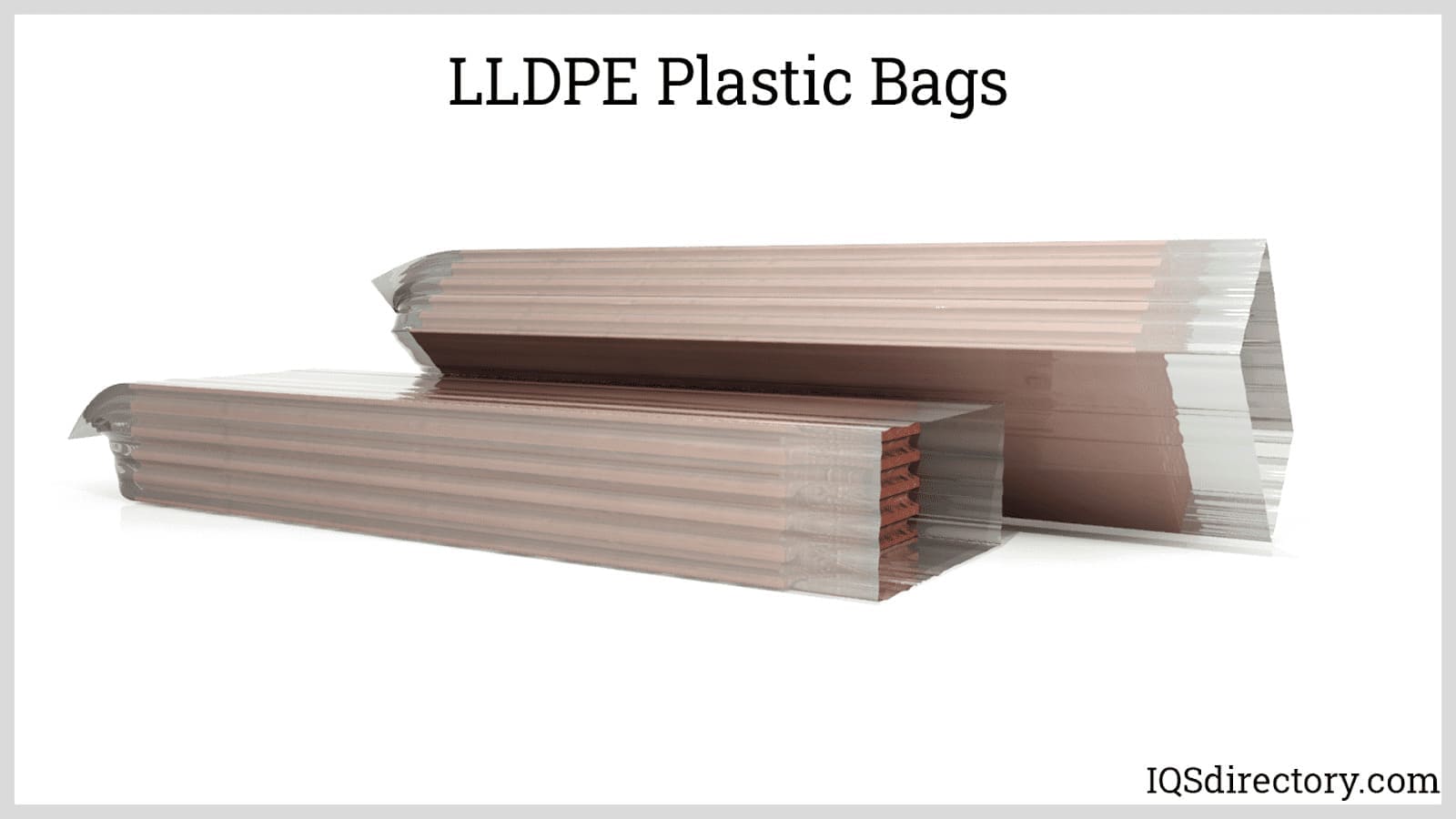

Linear Low-Density Polyethylene: The bags made from LLDPE material are almost the same as that of low-density polyethylene, but this material is much stronger and is puncture resistant. Also, this material is less costly and more environment-friendly as compared to low density polyethylene. It is used to make lighter gauged gusseted bags.

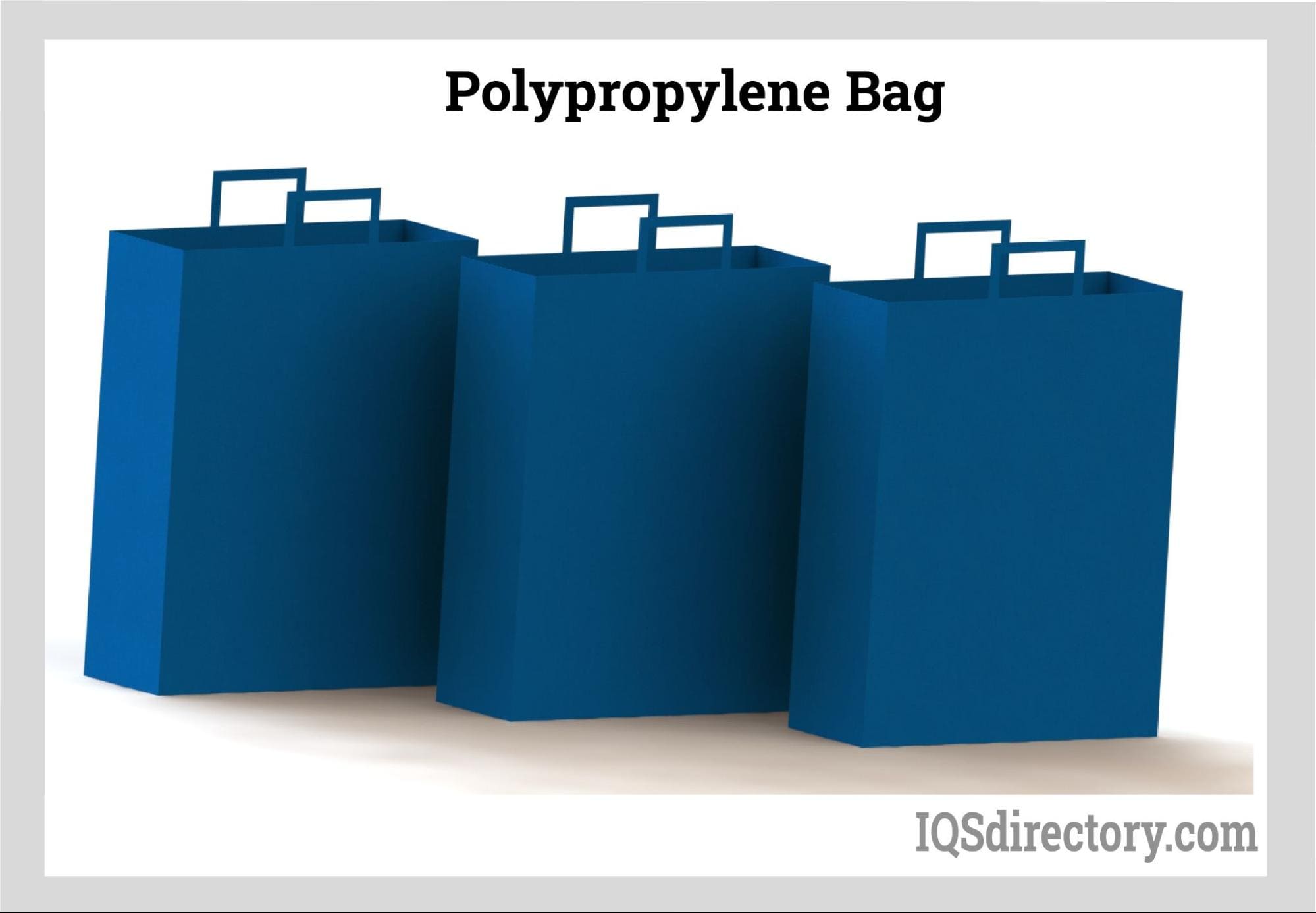

Polypropylene is a versatile thermoplastic polymer produced through the chain growth polymerization of propylene monomers. This polymer is mechanically robust and somewhat harder than polyethylene, offering excellent chemical and thermal resistance. Recyclable, polypropylene is used in various industries, including clothing, medical applications, food packaging, and adhesive tapes. Polypropylene bags are crystal clear, have high tensile strength, and are resistant to heat and chemicals. They are widely used around the world, as they help reduce carbon footprints and minimize land waste. Common examples include tote bags, shopping bags, and t-shirt bags.
Vinyl is a man-made synthetic material, created by combining ethylene and chlorine to produce polyvinyl chloride (PVC) resin, commonly known as vinyl.
Vinyl is known for its strength and durability, offering excellent resistance to moisture, humidity, UV light, stress, and flames. It is environmentally friendly and easily recyclable, with a long lifespan and lower production energy and resource requirements compared to other polymers used in packaging. These properties make vinyl ideal for manufacturing medical instruments, toys, flooring, wall coverings, window frames, floor mats, dashboards, and more.

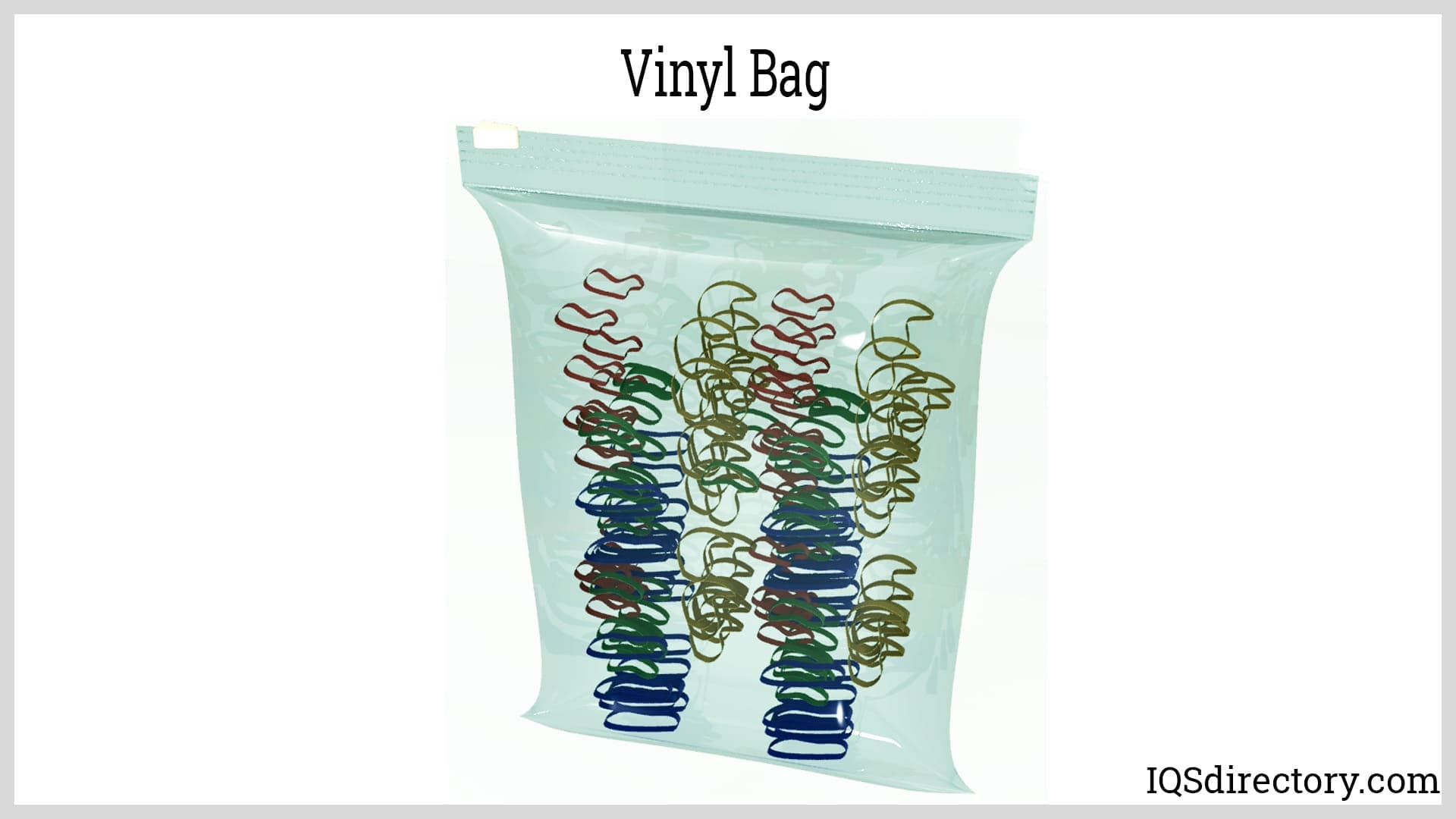

Plastic bags made from vinyl are well-suited for storing and shipping products. These clear bags allow visibility of contents without opening, and are glossy, durable, flexible, and lightweight. These characteristics make vinyl an excellent choice for storing valuable items.
Due to its cost-effectiveness and versatility, PVC is widely used in bag manufacturing. Examples of vinyl bags include makeup pouches, comforter bags, blanket bags, and accessory bags.

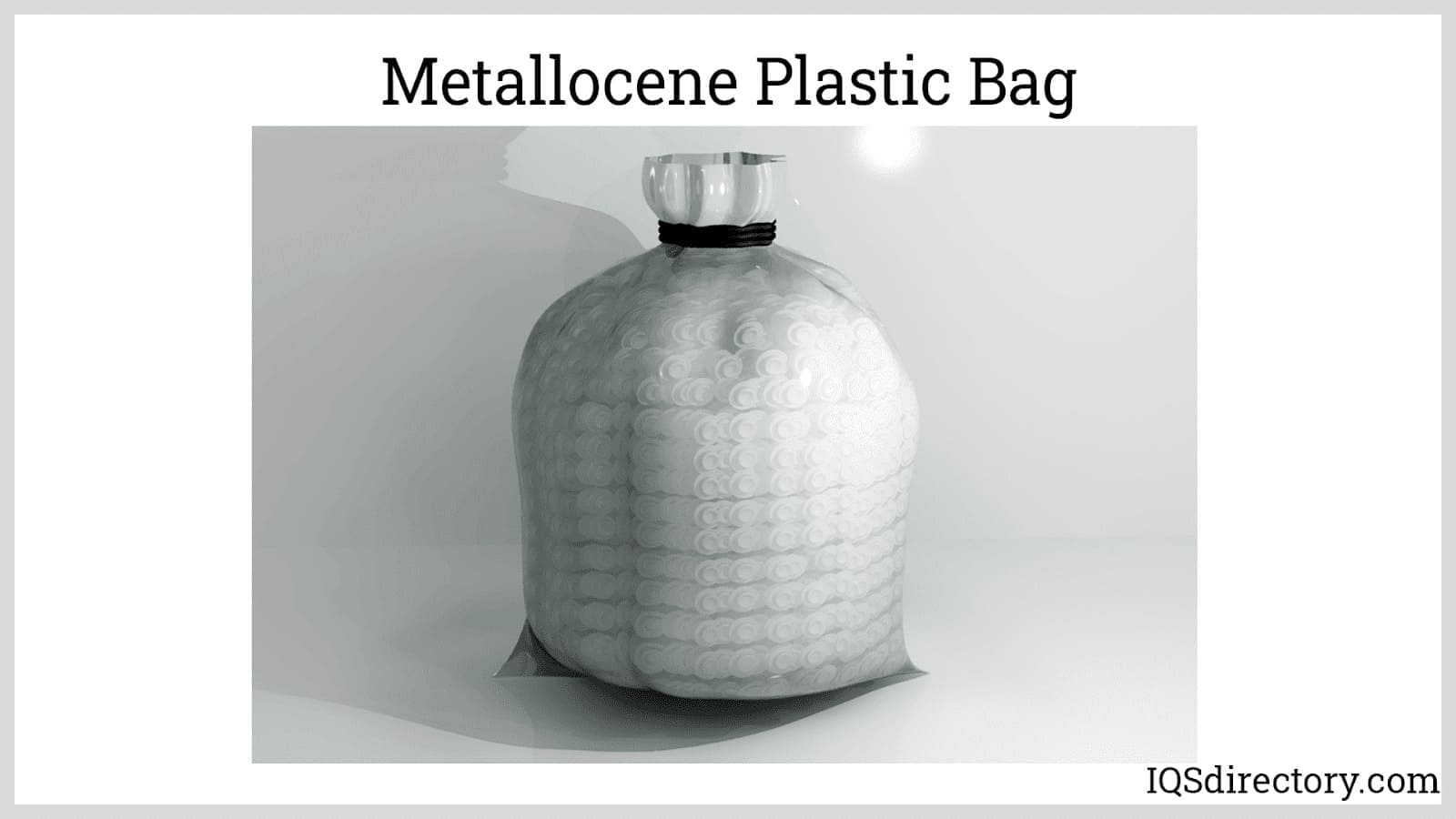

Metallocene refers to tiny particles of positively charged metal ions encased by carbon atoms. It is not a monomer but a catalyst used to produce resins with pure, consistent, and specific polymer chains. Due to its unique polymer chains, metallocene material offers exceptional properties, including high impact strength, outstanding clarity, and low haze. It is highly tear-resistant and durable, making it suitable for various applications. Metallocene comes in two density types: a softer lower-density version and a more resilient higher-density version. Because of its high cost, it is often mixed with LDPE and LLDPE during manufacturing to create a poly-film that seals firmly and quickly.
There are five distinct methods for manufacturing printed plastic bags, each tailored to specific types of materials. Any of these methods can be employed to produce plastic bags, depending on the material requirements.
Blown film extrusion is a versatile and efficient method for producing high-quality films suitable for various applications, including industrial, packaging, and agricultural uses. The process involves extruding a tube of molten polymer through a die, inflating it to form a thin film, cooling it, and then winding it onto rolls.

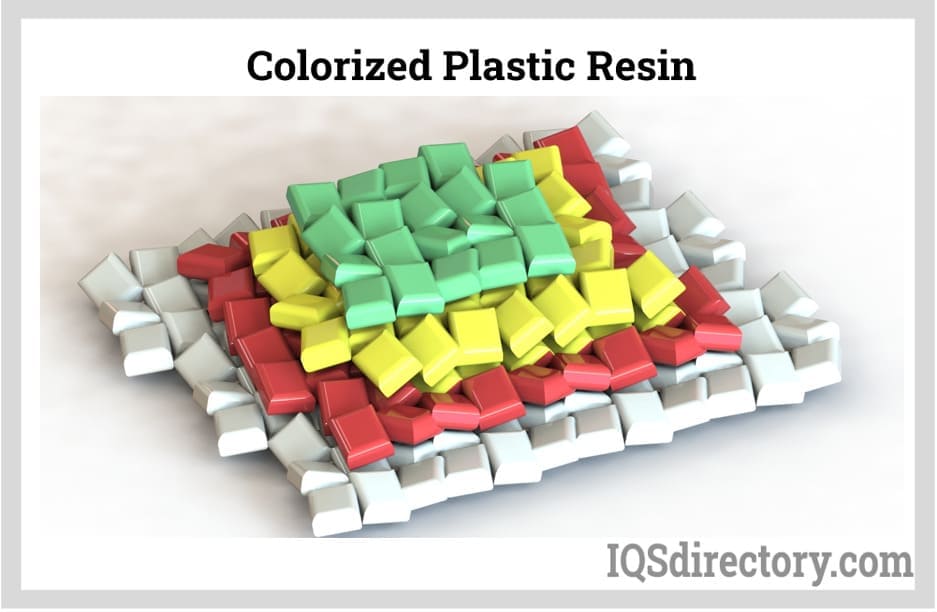

The process begins with selecting the appropriate polymer resin, with polyethylene and polypropylene being the most commonly used. These resin pellets are mixed with colorants, stabilizers, and other additives to enhance the film's properties.

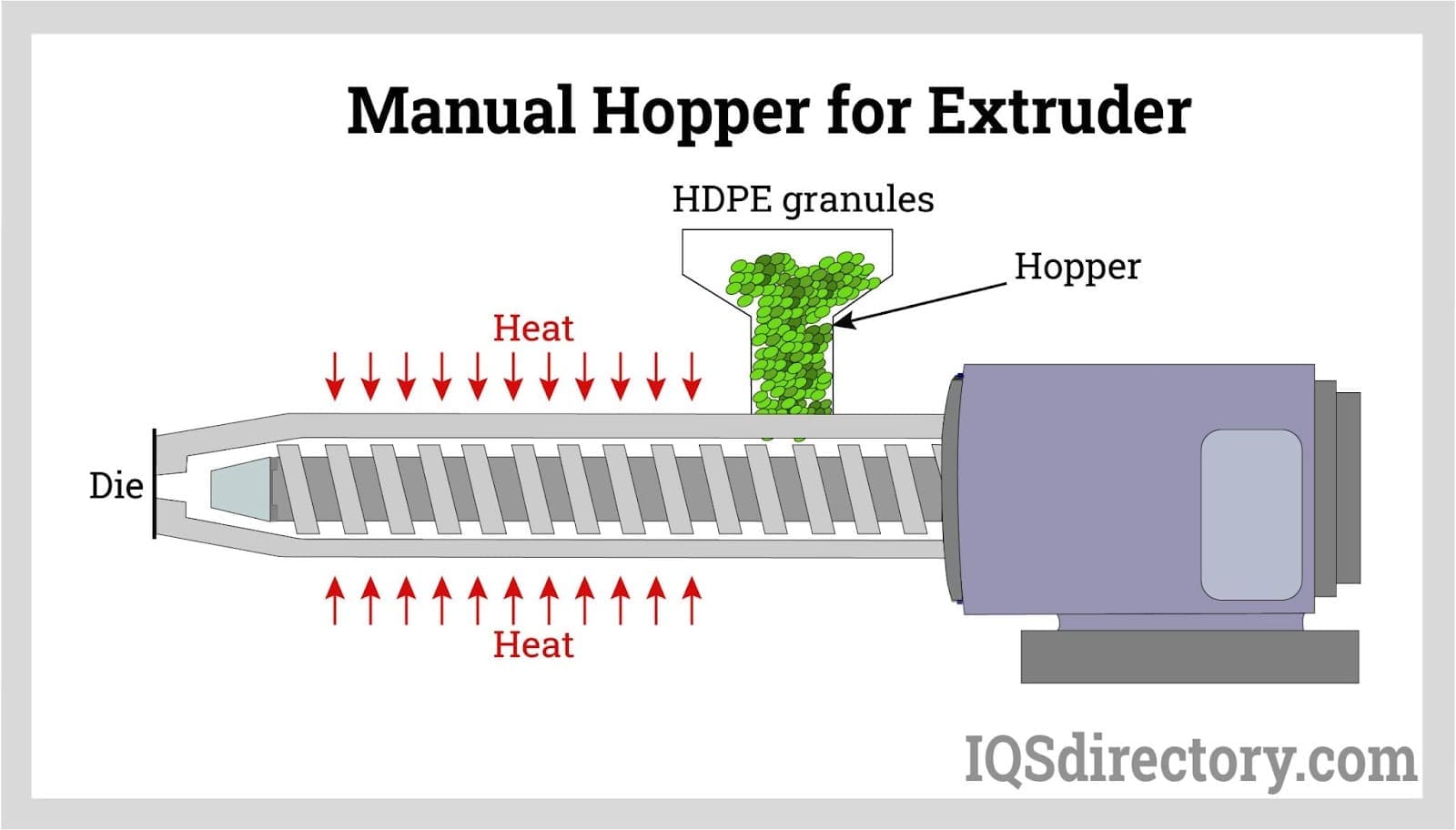

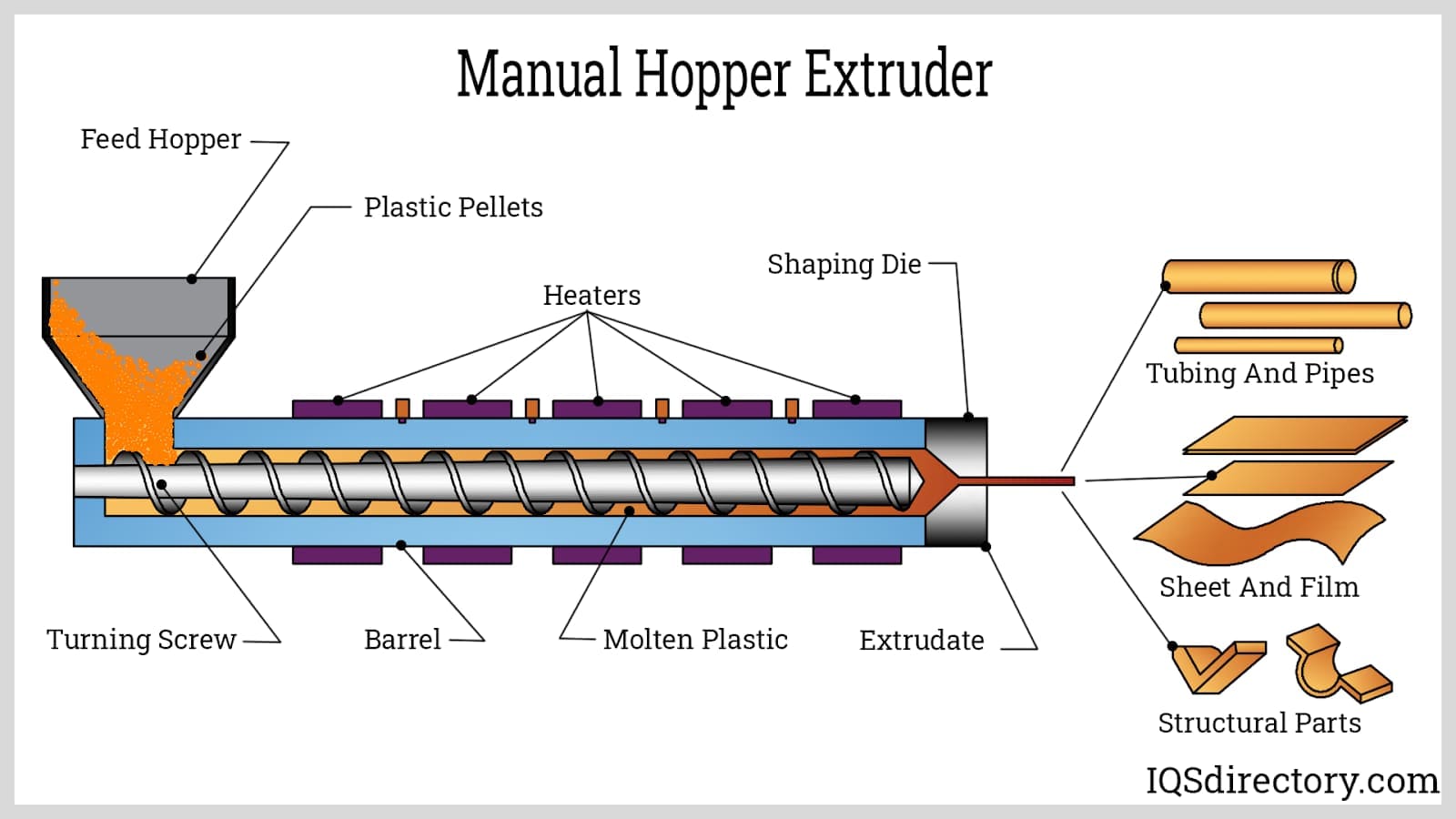

A hopper plays a crucial role in the extrusion process by ensuring a steady flow of material. Pellets are fed into the hopper, which then directs them to the extruder. Positioned above the screw, the hopper facilitates the movement of material along the heated tube. Material feeding can be accomplished through various methods, including manual, vacuum, or spring feeding.
Pellets from the hopper are transported into the extruder, which consists of a barrel and a large screw. The barrel melts the pellets, while the screw continuously pushes and mixes the molten material. The barrel features multiple heating zones that ensure gradual and uniform melting of the polymers, with temperatures typically ranging from 150°C to 250°C, depending on the type of polymer.
During extrusion, the molten polymer is pushed through a circular or annular die. This die shapes the polymer into a continuous tubular form and impacts the film's quality and thickness. The die has a central hole through which air is blown into the molten tube. As the tube exits the die, the air inflates it, creating a bubble. This bubble stretches and thins the polymer into a film.
The film is cooled by an air ring positioned just above the die, which blows cool air onto the film to solidify it. Maintaining the precision of the air ring and bubble stability is crucial, as any disturbance can lead to defects in the film. The film then passes through a collapsing frame, which flattens it into a double-layer sheet. This flattened film is subsequently pulled through nip rollers that control its speed and tension.
The next step involves winding the film onto large rolls, with controlled winding necessary to prevent wrinkles. Slitting of the film can also be performed at this stage if required. A quality check is conducted to identify defects such as uniformity issues, pinholes, wrinkles, or uneven thickness. Additional processes, such as lamination or printing, may be applied based on specific requirements.

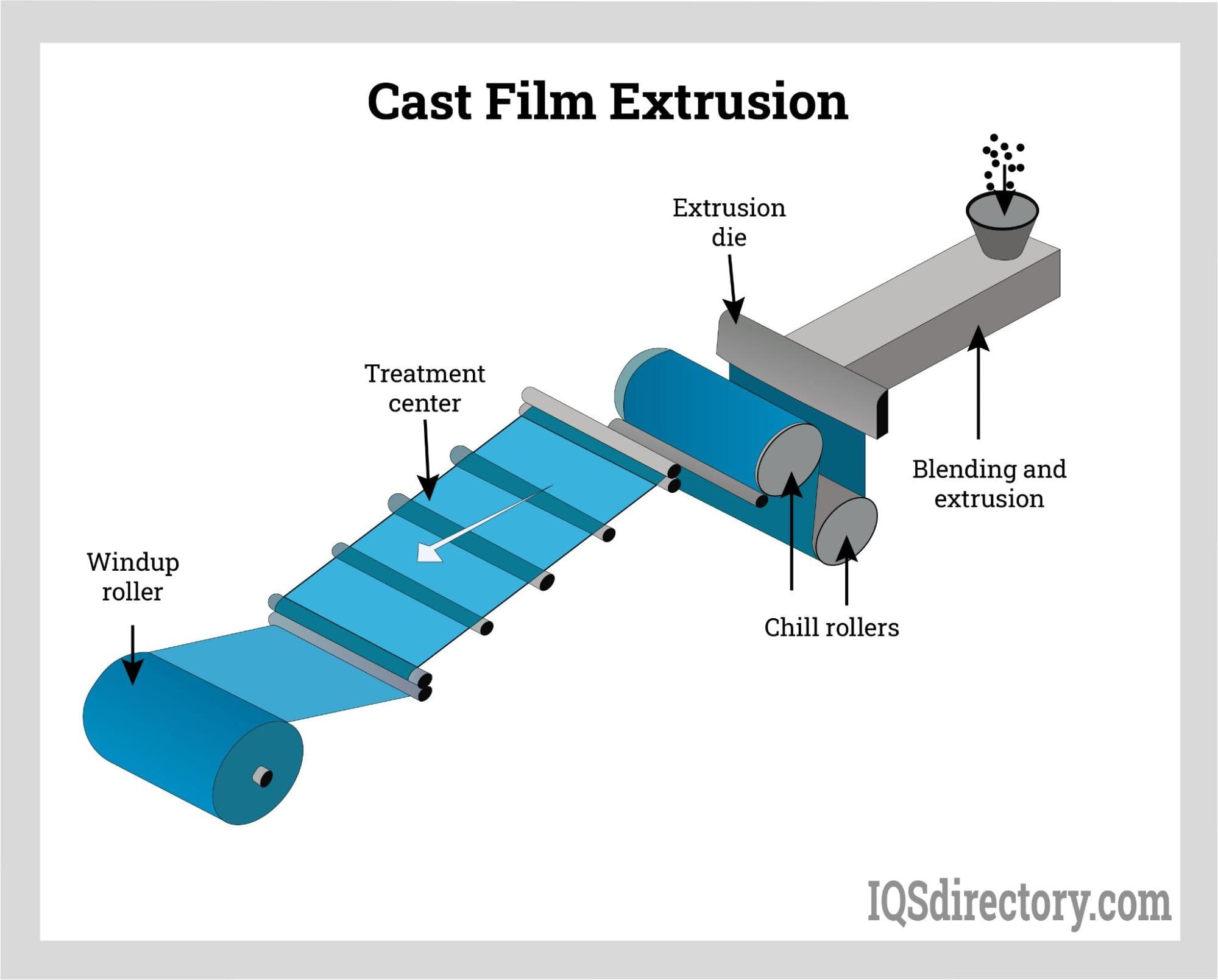

Cast film extrusion is used to produce thin plastic films with excellent clarity and uniform thickness. The process closely resembles blown film extrusion, with the primary difference being in the cooling system.
Cast film extrusion begins with selecting the appropriate polymer, such as polyethylene, polypropylene, or polyethylene terephthalate. The pellets are fed into the hopper of the extruder, where additives or colorants may be introduced to enhance specific properties.
The polymer pellets are then transported into the extruder, where they are heated and homogenized in a heated barrel by a rotating screw. The pellets melt in the barrel, and the rotating screw helps create a homogeneous mixture. The molten polymer is forced through a flat die, shaping it into a thin, wide sheet. The thickness of the sheet is determined by the die gap and extrusion speed.
The heated thin sheet is rapidly cooled by either a chilled roller or a water bath to solidify it. The primary chill roll cools the film quickly and guides it forward, ensuring properties such as clarity and mechanical strength.
After cooling, the film edges are trimmed to ensure uniform thickness. A quality inspection checks for defects such as pinholes or thickness variations. The film is then treated with high-frequency discharge, known as corona treatment, which increases the surface energy of the film and improves its adhesion properties. This treatment is beneficial for printing or lamination. Finally, the film is wound onto large rolls. If needed, the film can be slit and converted into bags, wraps, or other products.
Sheet extrusion is a manufacturing process used to produce continuous flat plastic sheets, widely utilized in industries such as packaging, automotive, and consumer goods. The raw materials commonly used include polyethylene, polypropylene, polystyrene, and polyvinyl chloride. Additives like colorants or plasticizers can be incorporated to modify the material's properties.
In the process, resin pellets are loaded into the hopper and fed into the extruder’s barrel. The barrel features various heating zones that maintain controlled temperatures to ensure uniform melting of the pellets. The molten plastic is continuously mixed in the barrel to achieve a consistent mixture and to eliminate any unmelted particles. The melted plastic is then forced through a die, which shapes it into flat sheets.
The die determines the final shape and width of the sheets. The extruded sheets are then passed through a series of cooling rollers, known as calender rolls, which control the sheet's final thickness and surface finish. After passing through the calender rolls, the sheets are cooled further using air or water. Proper cooling is essential to prevent warping and to achieve the desired mechanical properties. The cooled sheets can then be cut or trimmed as needed for easier handling and transportation.

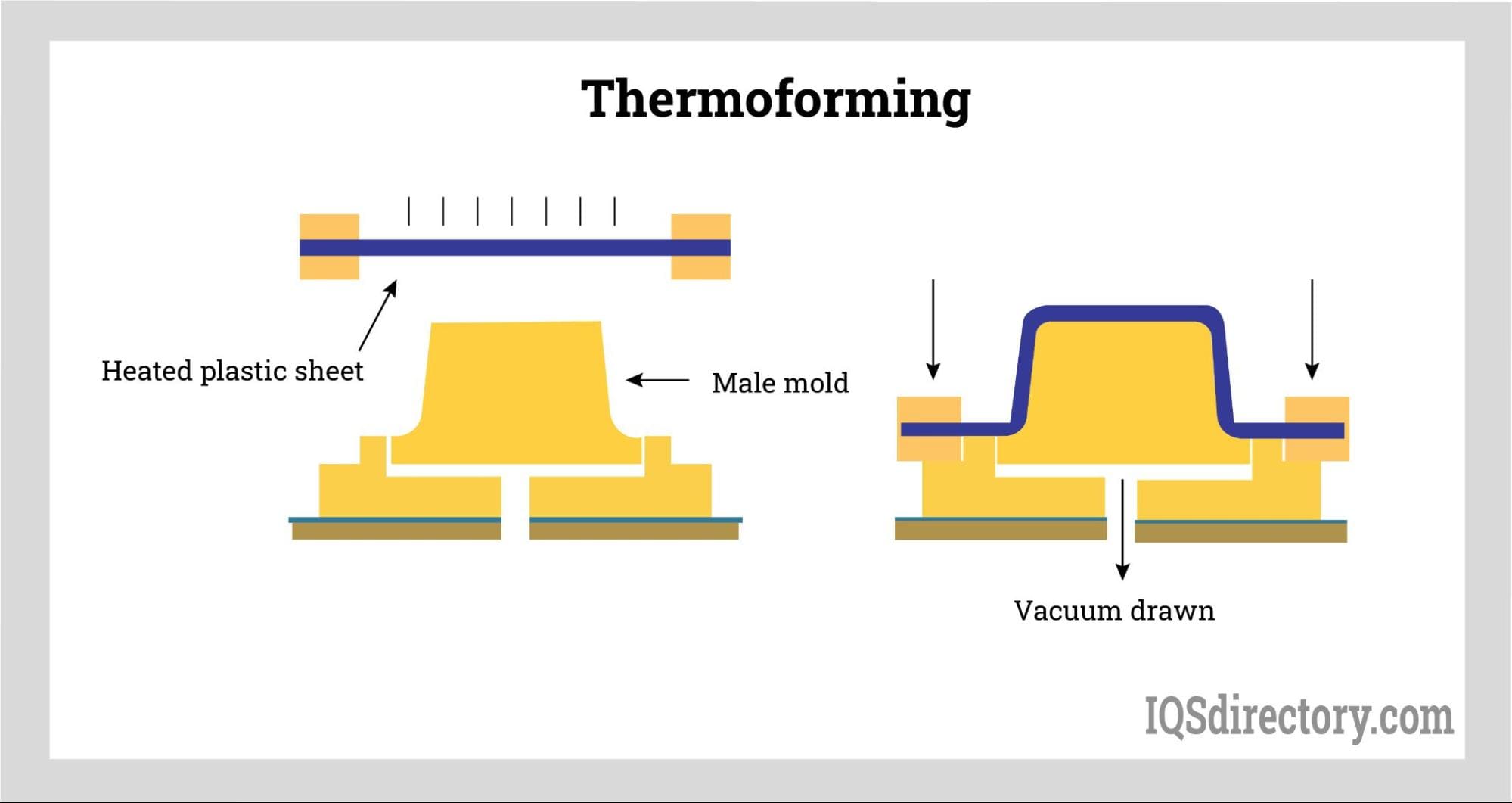

Thermoforming is a versatile and efficient plastic manufacturing process. The plastic sheets are heated in an oven until they become soft and flexible. The softened plastic is then molded into shape using vacuum, pressure, or mechanical force. After shaping, the plastic is cooled within the mold to maintain its form. Once cooled, any excess material is trimmed to achieve the desired dimensions and finish. Thermoforming is commonly used for creating products such as toys, blister packs, medical device enclosures, and automotive components.

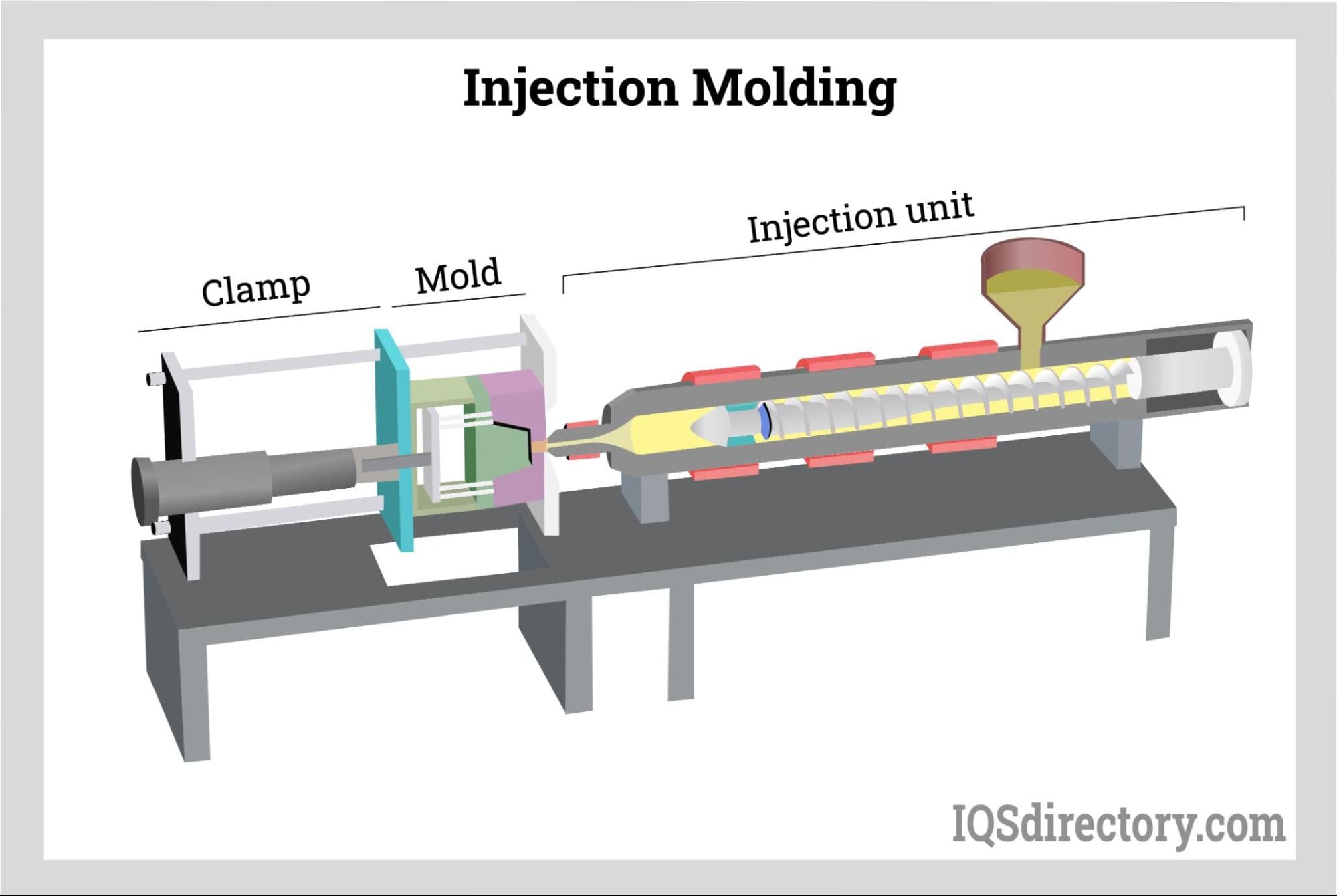

Injection molding is a vital technology in modern manufacturing, enabling the mass production of diverse and precise products. This process involves injecting molten material into a mold to create parts, and it can be used with various materials, including plastics, glass, metals, and elastomers. The injection molding machine comprises several key components: a hopper, an injection unit, a clamping unit, and a mold. The mold, typically made of steel or aluminum, is crafted to form the desired shape. Common materials used in this process include polypropylene, polyethylene, polystyrene, nylon, rubber, and glass.
The clamping unit ensures that the two halves of the mold are securely closed during injection. Plastic pellets are fed into a heated barrel, where they are melted. The molten material is then injected into the mold cavity through a nozzle under high pressure. Inside the mold, the material cools and solidifies into the desired shape. Once the part has solidified, it is ejected by the ejection system, and any excess material is trimmed from the part.

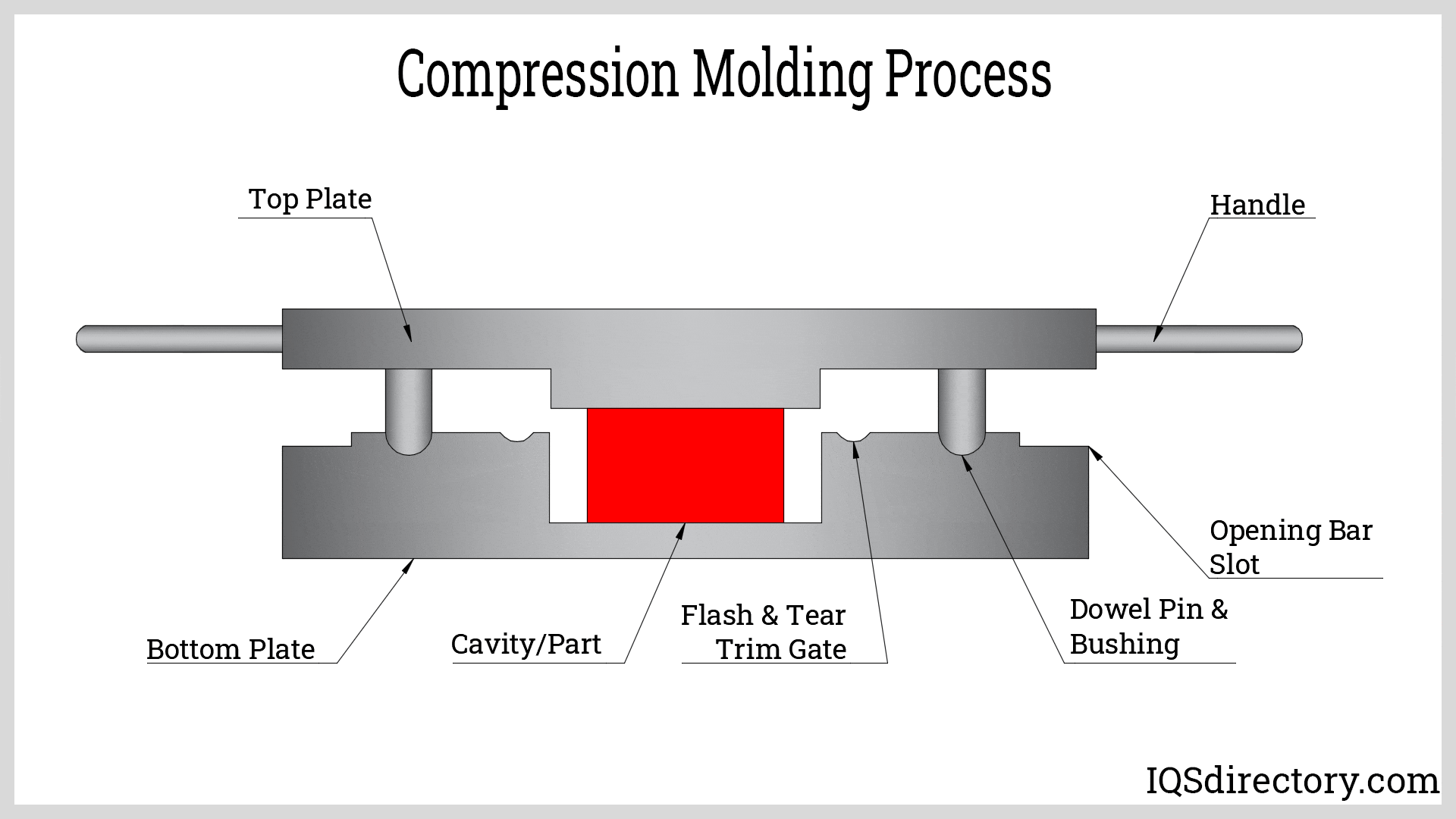

Compression molding is a versatile and widely utilized manufacturing process, ideal for creating robust, high-quality parts across various industries. It is commonly used with thermosetting plastics such as epoxies, phenolics, and unsaturated polymers, though thermoplastic materials can also be employed. The material is pre-measured and pre-heated, typically in the form of pellets, powder, or solid sheets.
During the process, the preheated material is placed into a heated mold. The mold is then closed, and pressure is applied using a hydraulic press. This pressure helps the material flow and fill the mold cavity completely, taking on its shape. For thermosetting plastics, the material undergoes a curing process through a chemical reaction triggered by heat and pressure. In contrast, thermoplastic materials solidify as they cool within the mold. Once cooled, the finished part is ejected from the mold using ejector pins.
Compression molding is an efficient and cost-effective method for producing intricate parts with fine details. It results in minimal material waste and yields durable components with excellent mechanical properties.
The final step in the manufacturing process is printing on plastic bags, a crucial aspect of modern packaging. This process involves applying text, logos, graphics, or designs to plastic bags for promotional and advertising purposes. Various printing methods are available, each offering different benefits depending on the design, cost, complexity, and desired quality of the product. Many industries and businesses use these techniques to achieve effective advertising within a budget-friendly framework.
Various types of plastics are used for printing, with common materials including PVC, polycarbonate, and PETG. There are seven primary printing methods used for plastic bags.

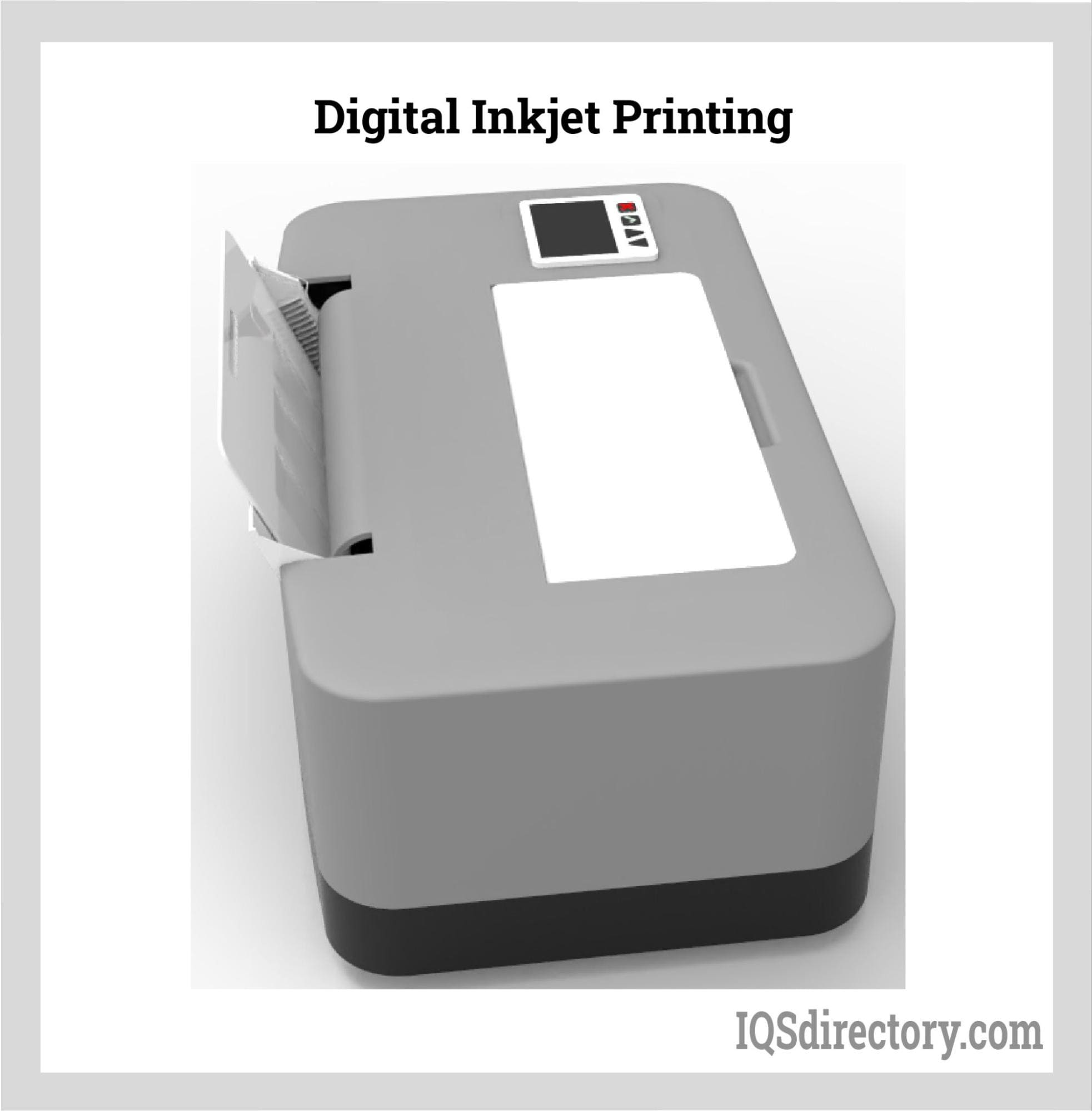

The digital inkjet process utilizes inkjet technology to produce high-quality images on plastic surfaces. This method involves using a digital file containing the desired images or prints, which are then applied to the plastic surface via a nozzle. The digital file is prepared using compatible software like Adobe Photoshop or HP Smart. Once the file is ready, the inkjet nozzle is activated to eject ink onto the plastic, creating the image. Drying is achieved through heat or airflow. It is crucial to ensure that the print is both smudge-proof and water-resistant. Digital inkjet printing is an affordable, efficient method that delivers durable and versatile results.

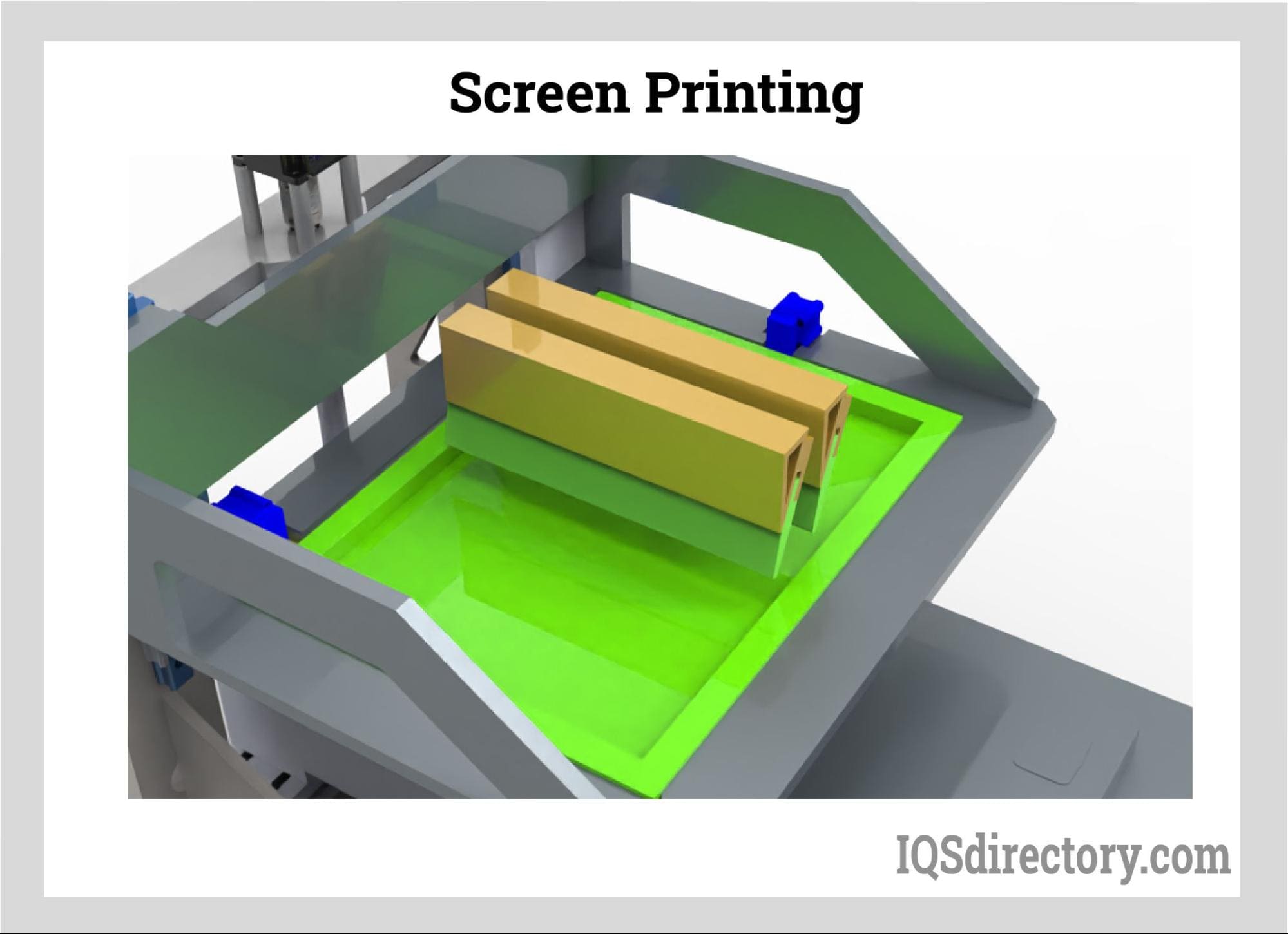

Screen printing is a widely used method for printing on plastic bags. This technique involves transferring ink through a mesh or stencil onto the plastic surface. A stencil is created using either a vinyl sheet or a photosensitive emulsion-coated sheet, which is then mounted on a frame to form the screen. The design, prepared using software like Adobe Illustrator or Filmmaker, is translated into a special ink that is mixed with hardeners or catalysts to ensure quick adhesion and drying. To print, the screen is placed over the plastic substrate, and a squeegee is used to push the ink through the stencil. The printed image is then dried using heat and airflow to complete the process.

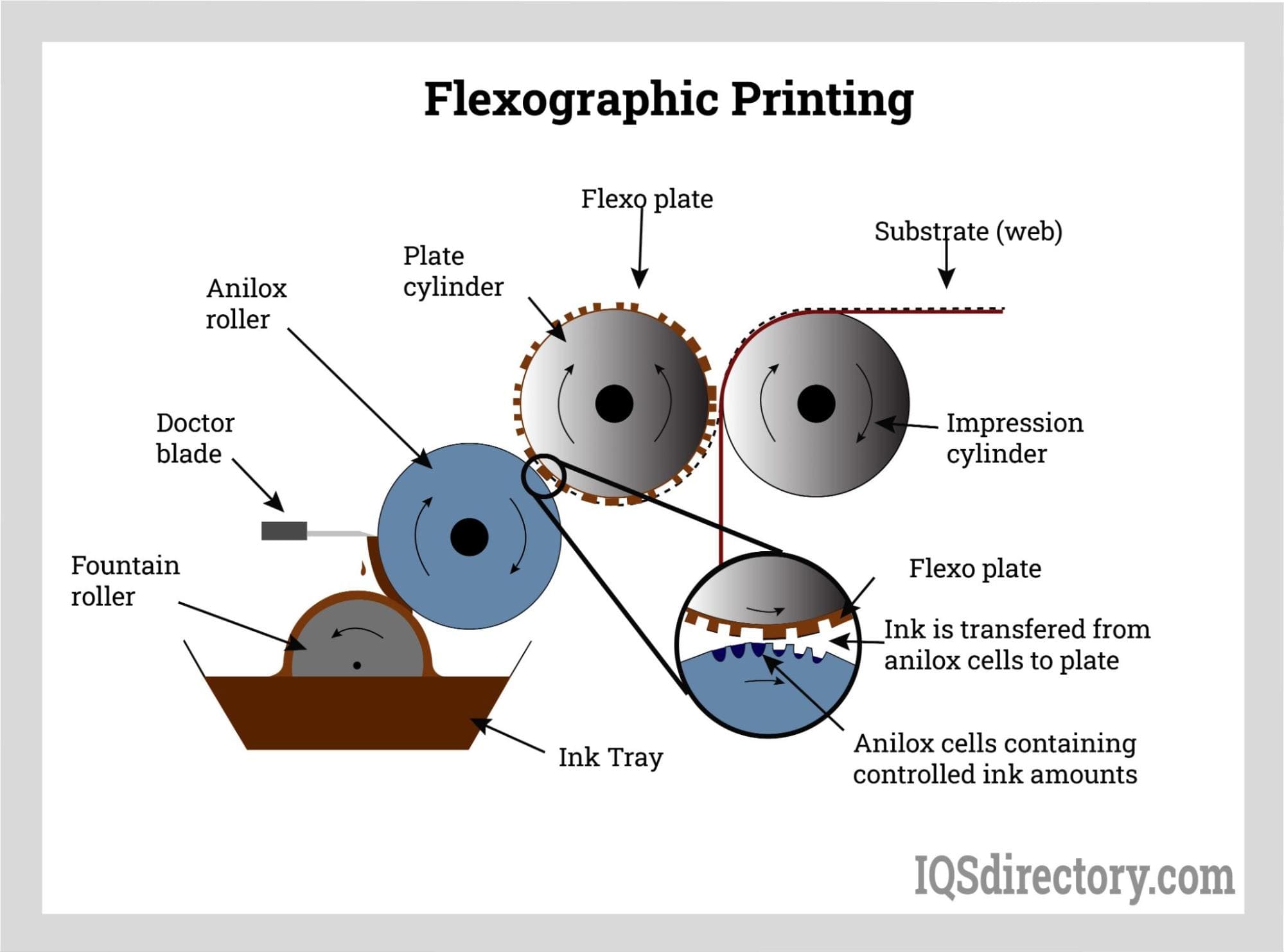

Flexographic printing uses flexible printing plates made from materials like rubber or photopolymer to imprint images onto plastic surfaces. This process involves creating a relief image on the plate, which is then inked with special formulations mixed with solvents or water-based carriers for quick adhesion. The printing press features multiple stations, each equipped with a plate cylinder, an ink fountain, and an impression cylinder. The plastic substrate is fed through these stations, where ink is transferred from the plate to the surface, producing the desired print.
Following the printing process, the plastic material goes through a drying chamber to evaporate the solvents from the ink. The printed material is then cut to size and may undergo additional finishing processes such as lamination or embossing. Flexographic printing is favored in the industry for its ability to produce high-quality images rapidly.
This technique is adaptable to both rigid and flexible plastics and is widely used for printing on labels, packaging, and bags. Known for its precision and vibrant color reproduction, flexographic printing is ideal for detailed logos, graphics, and other colorful designs.

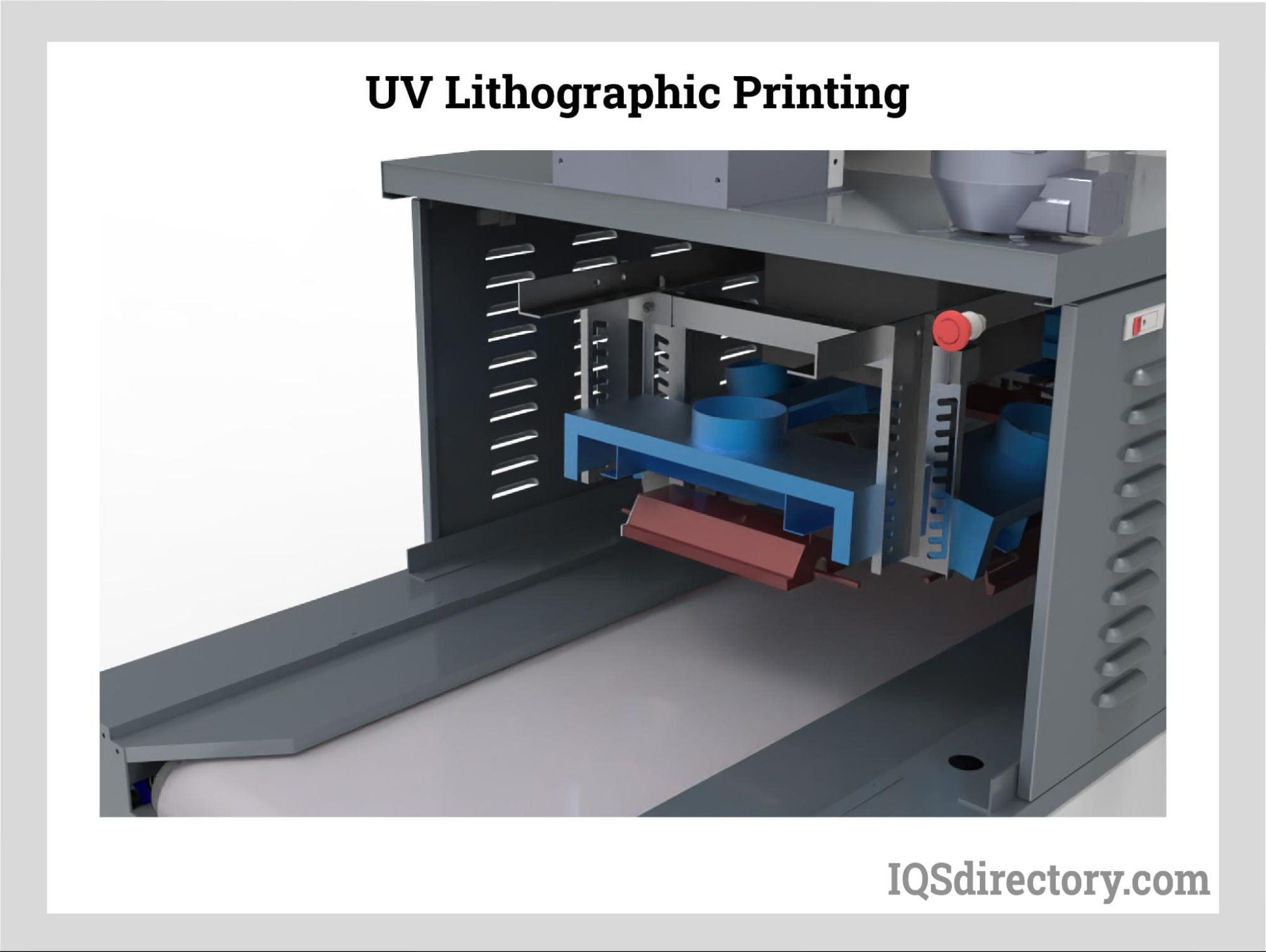

UV lithographic printing, also known as UV offset printing, employs ultraviolet light to cure or dry ink, coatings, adhesives, acrylics, or foams. In this process, aluminum printing plates are coated with photosensitive materials, and a relief surface is created by exposing the plate to UV light. The UV lithographic ink, made from pigments, binders, and additives, is applied to the plate with rollers on the printing press. The ink is then transferred from the plate to the plastic substrate and instantly cured by UV light, resulting in a durable and long-lasting image. After printing, the image undergoes a thorough inspection and may receive final touches such as varnishing, lamination, or die cutting.
Pad printing, also known as tomography, is an indirect printing process that transfers a two-dimensional image from a laser-engraved plate to a three-dimensional surface using a silicone pad. The process begins with plate etching, where a design is created on a metal or polymer plate. Ink, which can be solvent-based or UV-curable, is spread over the plate, and a doctor blade removes excess ink from the etched areas.
Next, a pad presses against the plate to pick up the ink from the design. This inked pad is then carefully stamped onto the plastic substrate, conforming to its surface for precise printing. The final step is curing the ink to ensure durability and adhesion, achieved through UV light or heating. Pad printing is favored for its ability to print on irregular and curved surfaces, with the flexible rubber pad ensuring even and consistent application. This technique is especially effective for detailed and fine designs on substrates.
Laser printing is a non-contact method used for labeling and marking components with precision. This process utilizes a computer-controlled laser to etch designs onto the plastic substrate. The substrate is placed on a flat surface, and the laser printer settings are adjusted according to the type of plastic being used, as each type requires specific configurations.
To create the desired image, the laser beam is focused on the substrate to heat and melt specific areas, forming the print. Controlled movements of the laser across the surface are crucial for achieving accurate and detailed results. After printing, the substrate is allowed to cool, and any excess or loose material is removed. Laser printing produces high-quality prints with clear lines and edges, making it ideal for intricate designs, even on small surfaces.
Being a non-contact process, laser printing avoids physical contact with the substrate, thus minimizing the risk of damage. It is a clean and environmentally friendly method, generating minimal waste and ensuring high precision in printing.
Hot stamping, also known as foil stamping, is a technique used to transfer pre-dried inks, foils, or stamps onto a plastic surface. This process requires high temperatures to ensure a clean and visible print. The first step involves engraving the desired design onto a metal die. This die then transfers the design onto a foil, which is subsequently applied to the plastic surface.
Foils come in various colors and finishes, such as glossy, metallic, or holographic, so selecting the appropriate foil is crucial. The plastic surface is prepared by applying a heated adhesive or coating to ensure it is ready for hot stamping. The foil is placed on the surface, and pressure is applied to transfer the image. After printing, the hot die is removed, and the print is left to cool.
Hot stamping is highly versatile, suitable for printing on materials like plastic, leather, paper, and fabrics. It is widely used in industries such as manufacturing, packaging, aerospace, and automotive. The method is durable, resistant to fading, scratching, and wear, and produces high-definition, intricate designs with fine lines.
There are several types of printed plastic bags, each designed for specific uses and purposes.

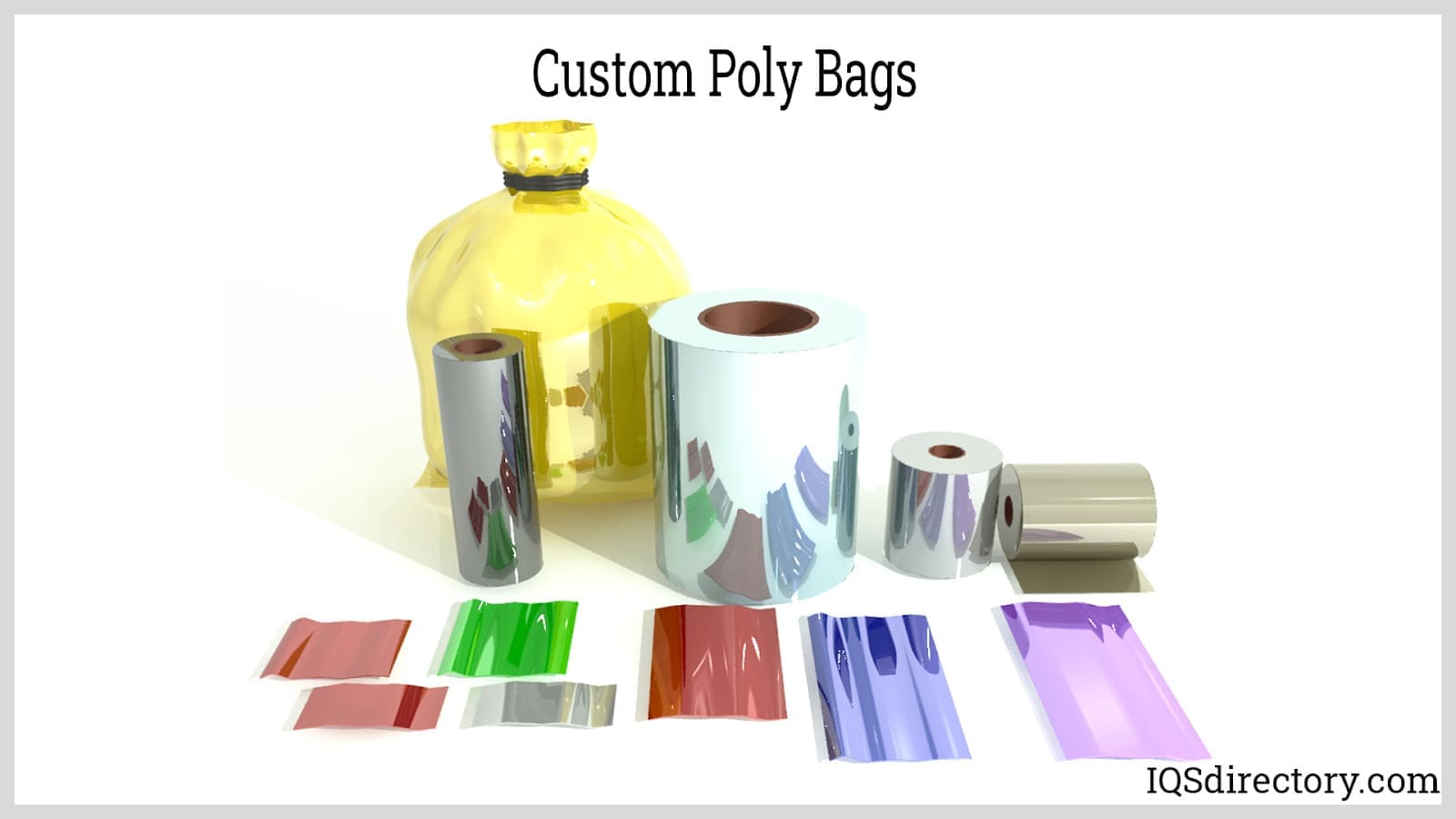

A customized plastic bag, poly bag, or pouch is a container made of thin, flexible plastic film, nonwoven fabric, or plastic textile tailored to meet a product's particular requirements. Chemicals, food, powders, ice, periodicals, and...
