This article contains everything you need to know about Plastic Injection Molding.
Read further to learn more about topics such as:
Plastic injection molding, often referred to as injection molding, is a manufacturing technique employed for the mass production of plastic components. This process involves injecting molten plastic into a precisely engineered mold or cavity. Once the plastic cools and solidifies, it takes the shape of the final product. Due to its capability to produce parts in large volumes with high dimensional accuracy, plastic injection molding is widely used across various industries, including automotive, electronics, consumer goods, and medical devices.

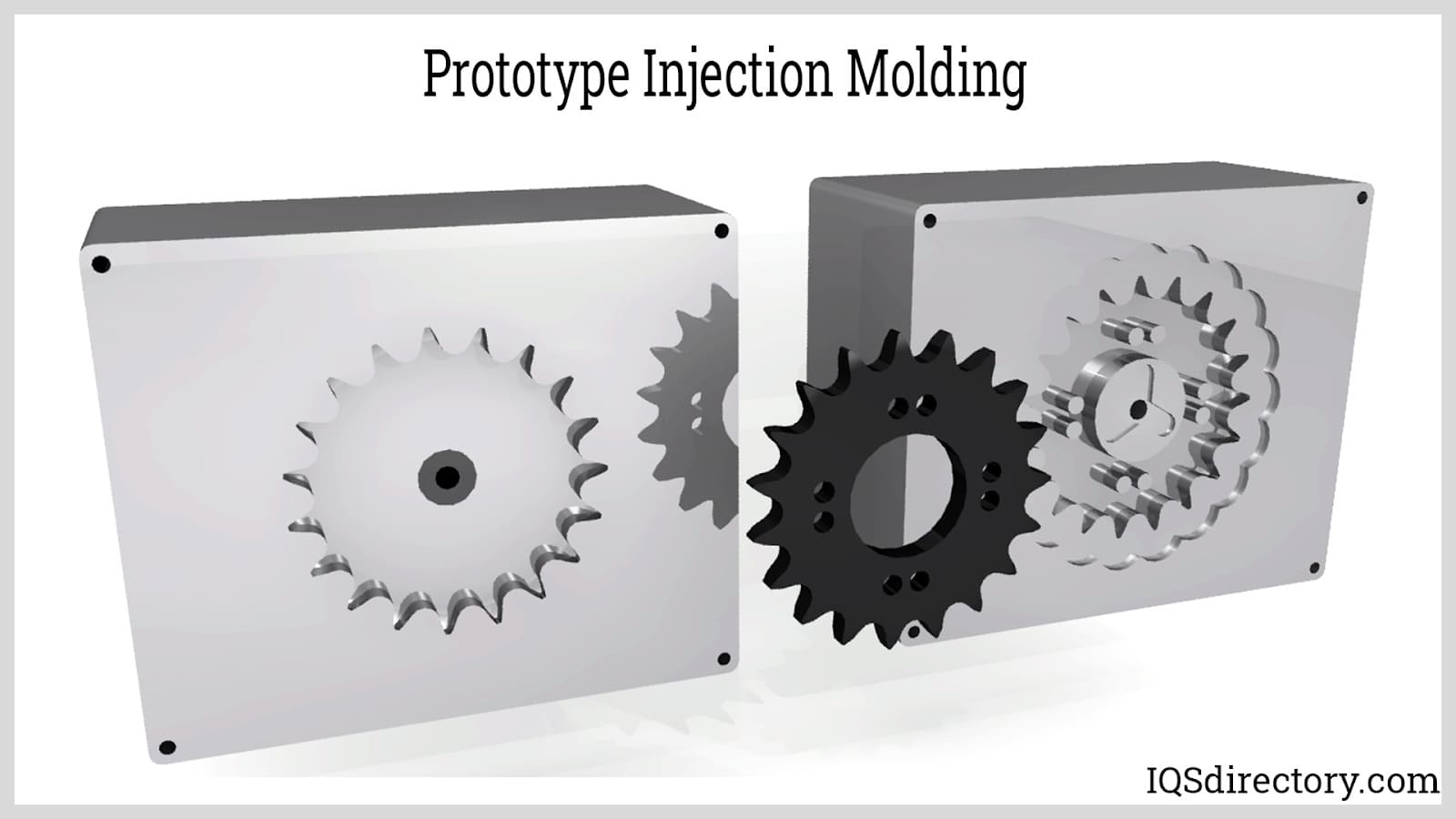

The mold is customized during the tooling phase, which defines the shape and specifications of the part. This process allows for the production of numerous identical and dimensionally consistent parts, even for components with complex designs and stringent dimensional tolerances. By precisely engineering the mold, manufacturers can ensure that each part produced is uniform and meets the required specifications, making plastic injection molding an ideal choice for high-volume production with exacting standards.
The injection molding process is beneficial to the manufacturer of the plastic part because of the below advantages:
Plastic injection molding is highly efficient for mass-producing plastic parts. It excels in generating a large volume of identical components with minimal material waste, making it an economical choice for high-volume production runs. The process ensures consistent quality and precision across all parts, further enhancing its cost-effectiveness and suitability for large-scale manufacturing.
Injection molding offers exceptional precision and repeatability, allowing for the creation of complex and intricate parts with tight tolerances. This high level of accuracy ensures that every part produced is consistent and meets stringent quality standards. Such precision is crucial in industries such as automotive, aerospace, and medical devices, where the reliability and performance of components are critical.
Injection molding accommodates a diverse range of thermoplastic and thermosetting materials, enabling manufacturers to select materials with specific properties tailored to their needs. Whether it's strength, flexibility, heat resistance, or transparency, the versatility of injection molding ensures that the chosen material can meet the precise demands of various applications and industries.
Once the injection mold is set up and optimized, the process becomes highly automated, minimizing the need for extensive manual labor. This automation not only streamlines production but also leads to significant cost savings, especially for large-scale production runs. The efficiency of automated molding ensures consistent quality and reduces labor costs over time.
Injection molding facilitates the creation of complex and detailed parts with features such as undercuts, overhangs, and varying wall thicknesses. Additionally, it enables the integration of multiple components into a single part, which minimizes the need for assembly.
However, there are some disadvantages to injection molding:
The mold tooling must be designed, fabricated, and tested before mass production begins, which can significantly increase the investment cost. Prior to full-scale production, a prototype mold is created to produce initial parts of the design. Multiple iterations and trial runs are often required to ensure the mold produces parts with precise dimensions, making this process both costly and time-consuming.
Any alteration in the part's form or dimensions necessitates changes to the mold cavities. If the part size needs to be increased, part of the cavity must be removed to allow the molten plastic to fill a larger volume. Given that the tooling is constructed from hard metal, metal fabrication techniques are required for these modifications. Conversely, if the part size is to be reduced, a new tool with smaller cavities will need to be created.
The part design should, as much as possible, include:
The plastic injection molding process cycle is as follows: it occurs in an injection molding machine, which primarily consists of three components: the clamping unit, the injection unit, and the mold.
During the clamping step, the mold halves are closed before injecting the molten plastic and are held together while the material solidifies in the cavities. This step occurs in the clamping unit, which is responsible for:

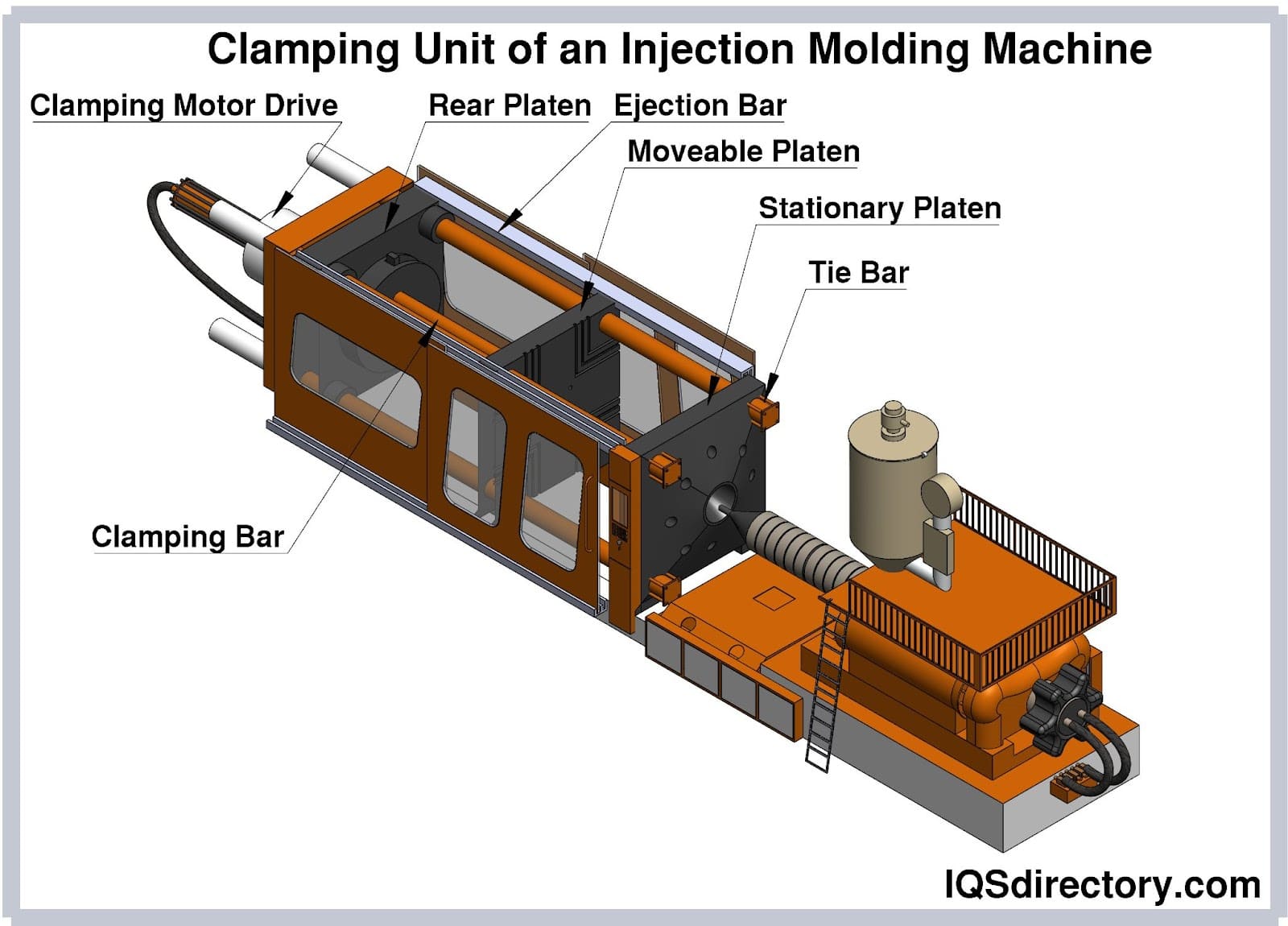

The clamping unit consists of:
The platen holds the mold halves when it is attached to the injection molding equipment.
The clamping system is responsible for moving the movable platen towards the stationary platen. There are three main types of clamping systems used in injection molding machines:

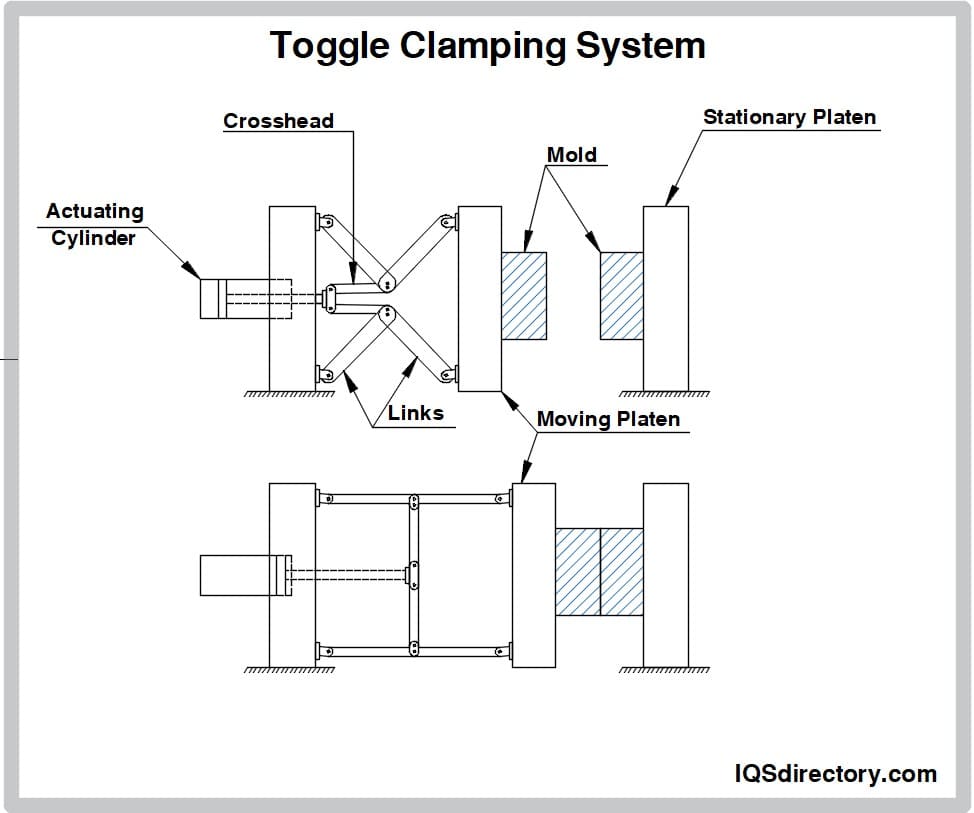

Toggle clamps are ideal for injection molding machines with low tonnage requirements. They feature an actuator that advances the crosshead, which extends the linked arms that hold the movable platen at its end.

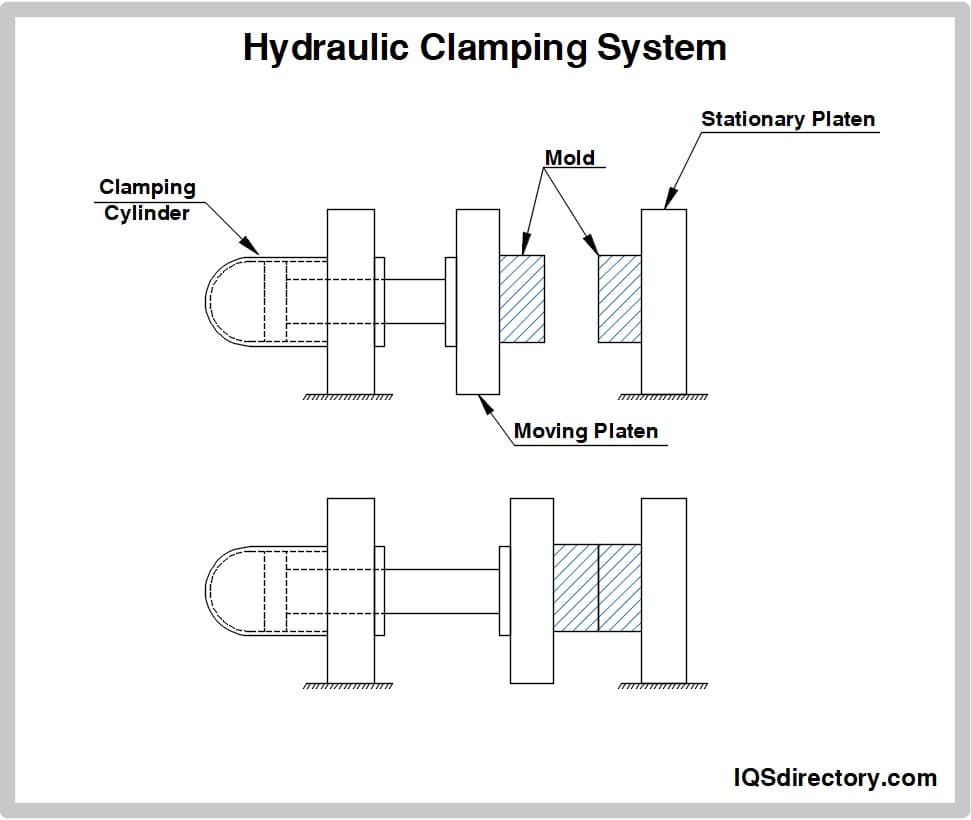

Hydraulic clamps offer flexibility in tonnage settings, accommodating a wide range from 150 to 1,100 tons. They use hydraulic pressure to move the movable platen and generate the force needed to secure the mold halves during the injection process.
The ejection system, which will be covered in detail later.

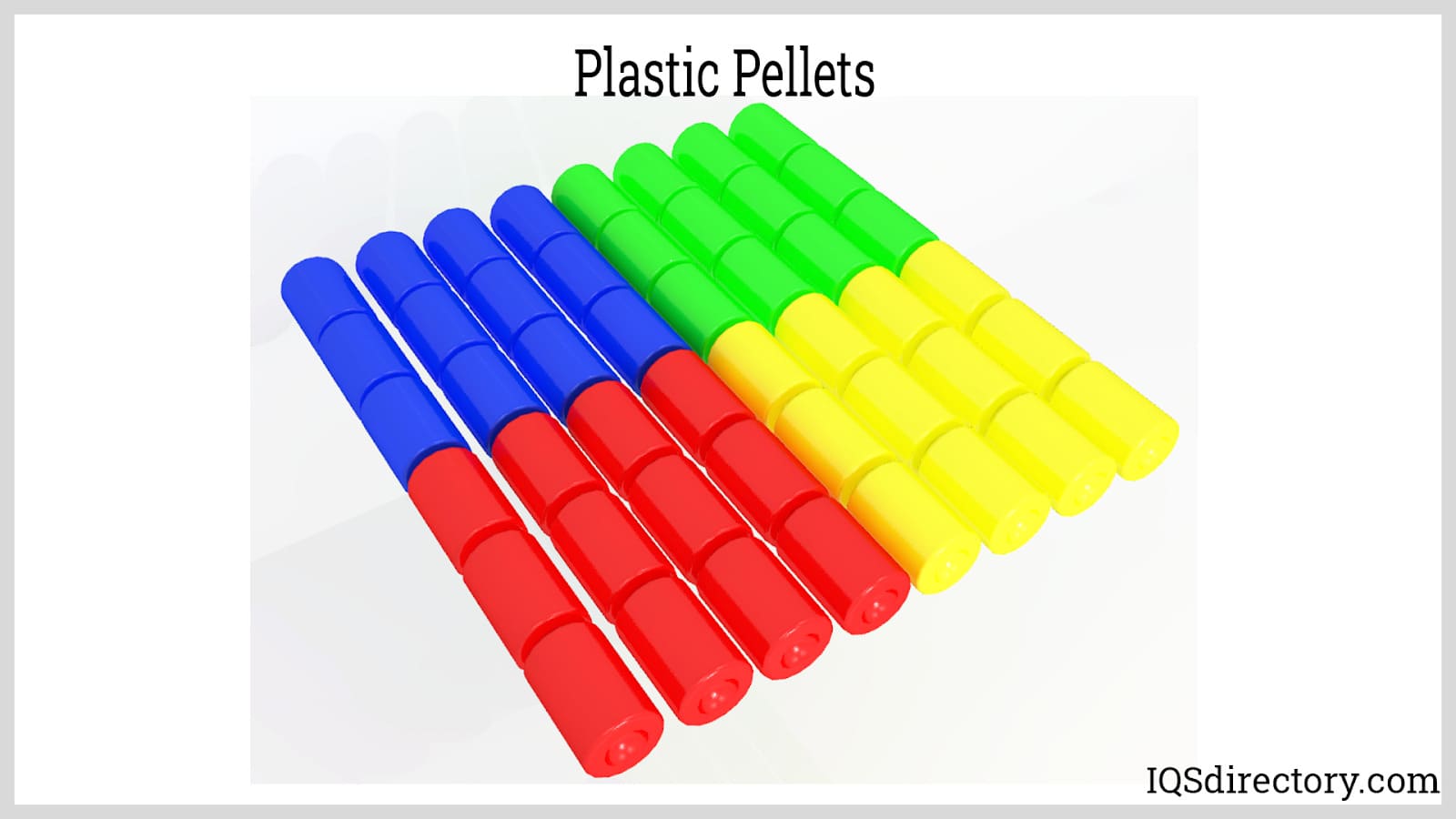

During the injection step, raw plastic pellets are melted and then injected into the mold. This process occurs within the injection unit, which is responsible for:

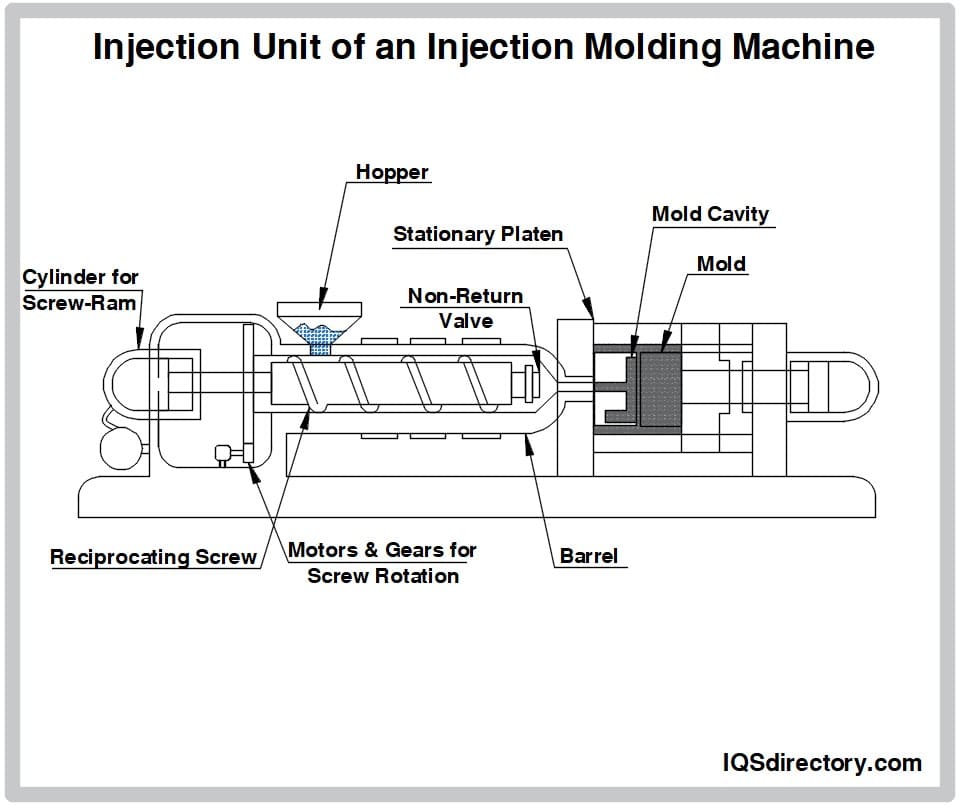

The injection unit consists of:
The reciprocating screw advances the plastic through the length of the barrel by rotating and moving axially. A hydraulic cylinder provides the necessary injection pressure. As the plastic travels along the barrel, it acquires fluid properties due to the heat, pressure, and friction. The molten plastic collects in front of the screw, with a non-return valve preventing backflow. The reciprocating screw is the most widely used injection system in modern molding machines.
Another injection mechanism is the screw pre-plasticizer. This system features two separate barrels: one for melting the plastic and another for injecting it into the mold. The first barrel uses a mechanism similar to the reciprocating screw to melt the plastic. After melting, the plastic is transferred to the second barrel, where a plunger is used to inject the molten plastic into the mold.
Older injection molding machines typically use a single barrel, plunger-type injection system to both melt and inject the plastic.
Once the molten plastic is transferred into the mold, it is allowed to remain in the cavities. During this stage, the injection pressure is replaced by holding pressure to ensure the molten plastic is compacted as it solidifies.
Cooling begins as the molten plastic comes into contact with the mold cavities. A coolant system within the mold helps remove heat to facilitate cooling. During this phase, the part may shrink, so additional melt is allowed to flow in to compensate for this shrinkage. Once the plastic has cooled for an adequate period, the mold halves are separated, and the molded part is ejected.
In the ejection step, the cooled part is removed from the mold. The ejection system, housed within the clamping unit, facilitates the separation of the molded part from the mold cavities.
The ejection system includes an actuating ejector bar that drives the ejector plate equipped with ejector pins. These pins push the solidified part out of the open mold plates at the end of the molding cycle. Adequate ejecting force is necessary, as the part tends to adhere to the mold during cooling.
A mold release agent helps facilitate the removal of molded parts from the mold cavities. It can be reapplied before each clamping step after several molding cycles, or it may be permanently applied to the surface of the mold cavities.
The final step in the production of injection-molded plastics is trimming. During this process, excess plastic from the molding process is removed, and individual molded units are separated from the remaining parts. Trimming is performed using separate equipment.

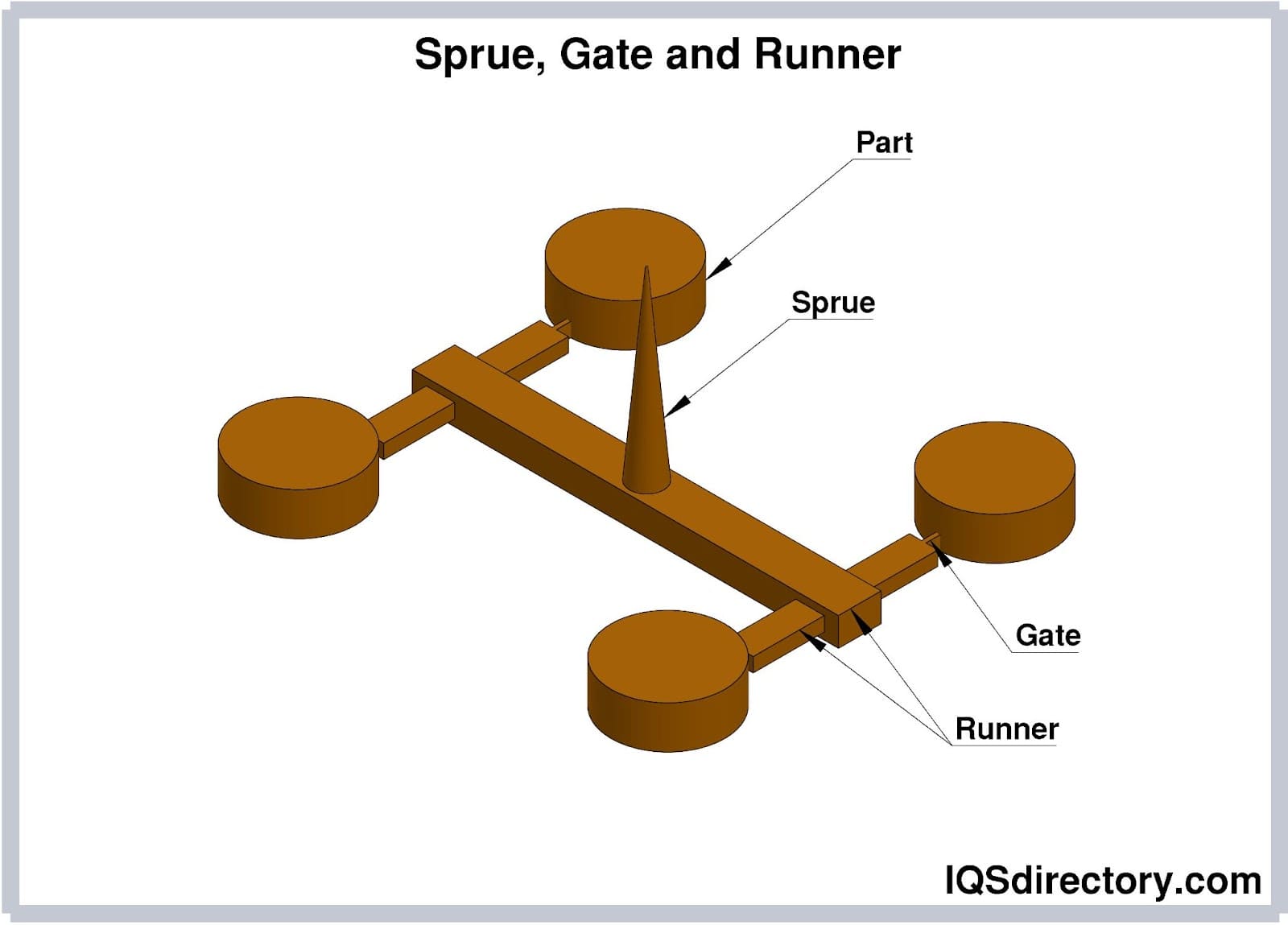

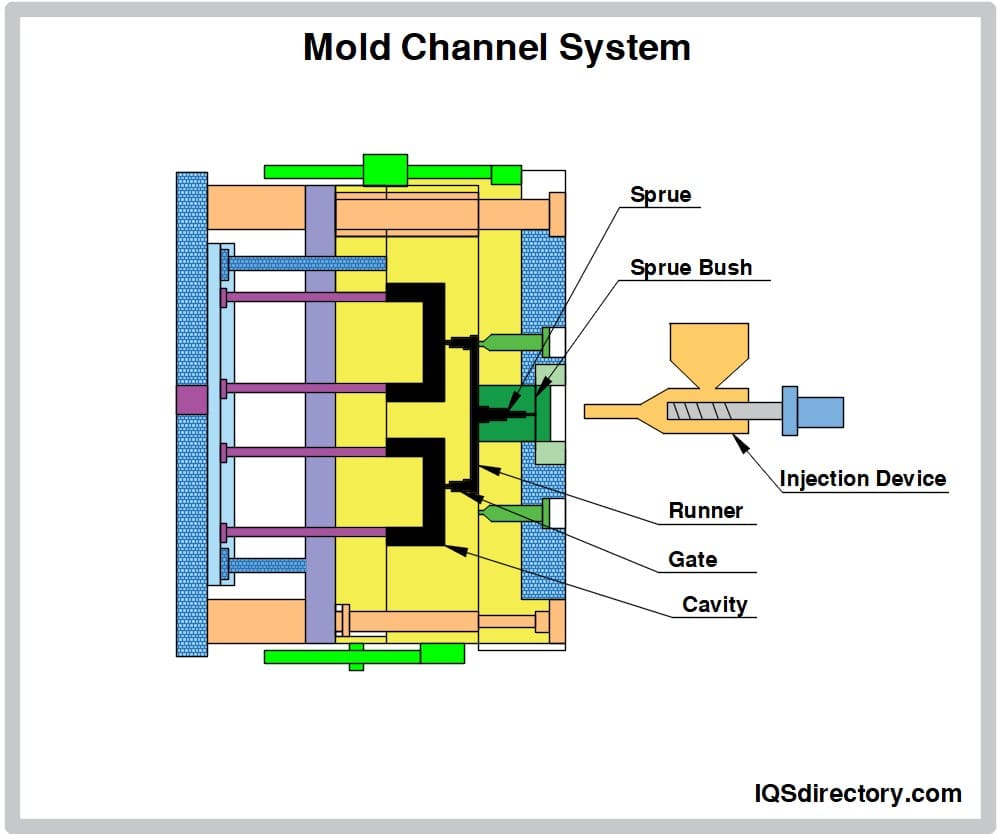

During the injection of molten plastic, the mold channels such as the sprue, runners, and gates fill with plastic. This molten plastic in the channels solidifies along with the material in the cavities. Additionally, flashes may appear on the edges of the part. After cooling, these excess plastic materials adhere to the part and must be cut away.

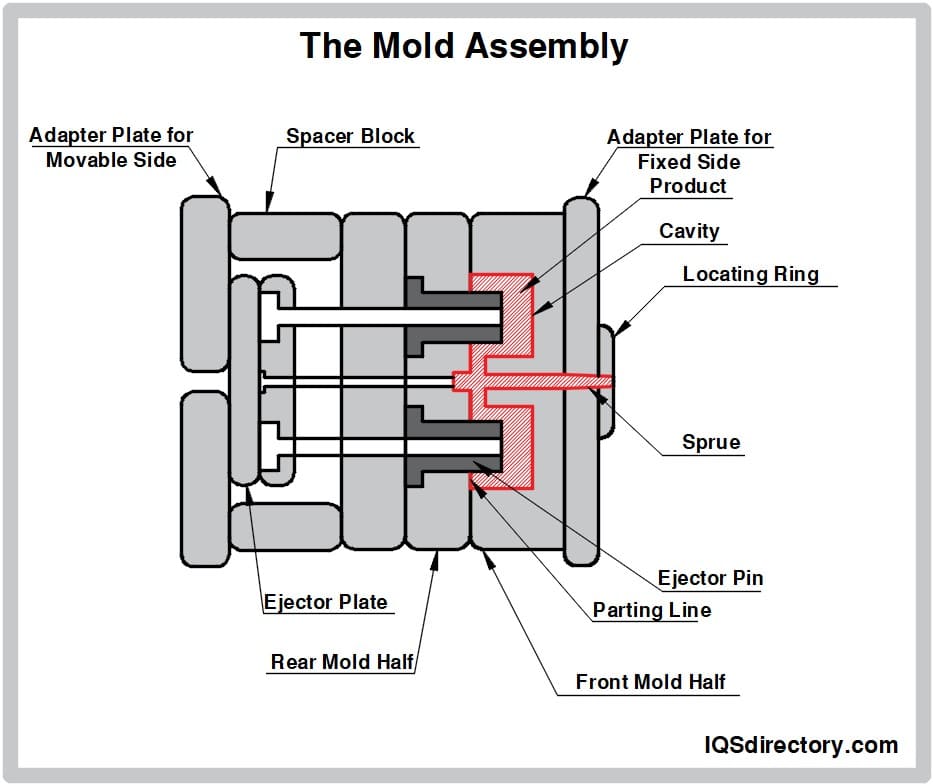

The parting line is a visible line in the closed mold halves that marks their separation. This line can be straight or curved, depending on the complexity of the tooling design. The parting line is the most convenient location for venting air, which causes the molten plastic to often flow along this region. In some finished parts, the parting line may be noticeable, indicating that the two sides of the part were formed on separate plates.

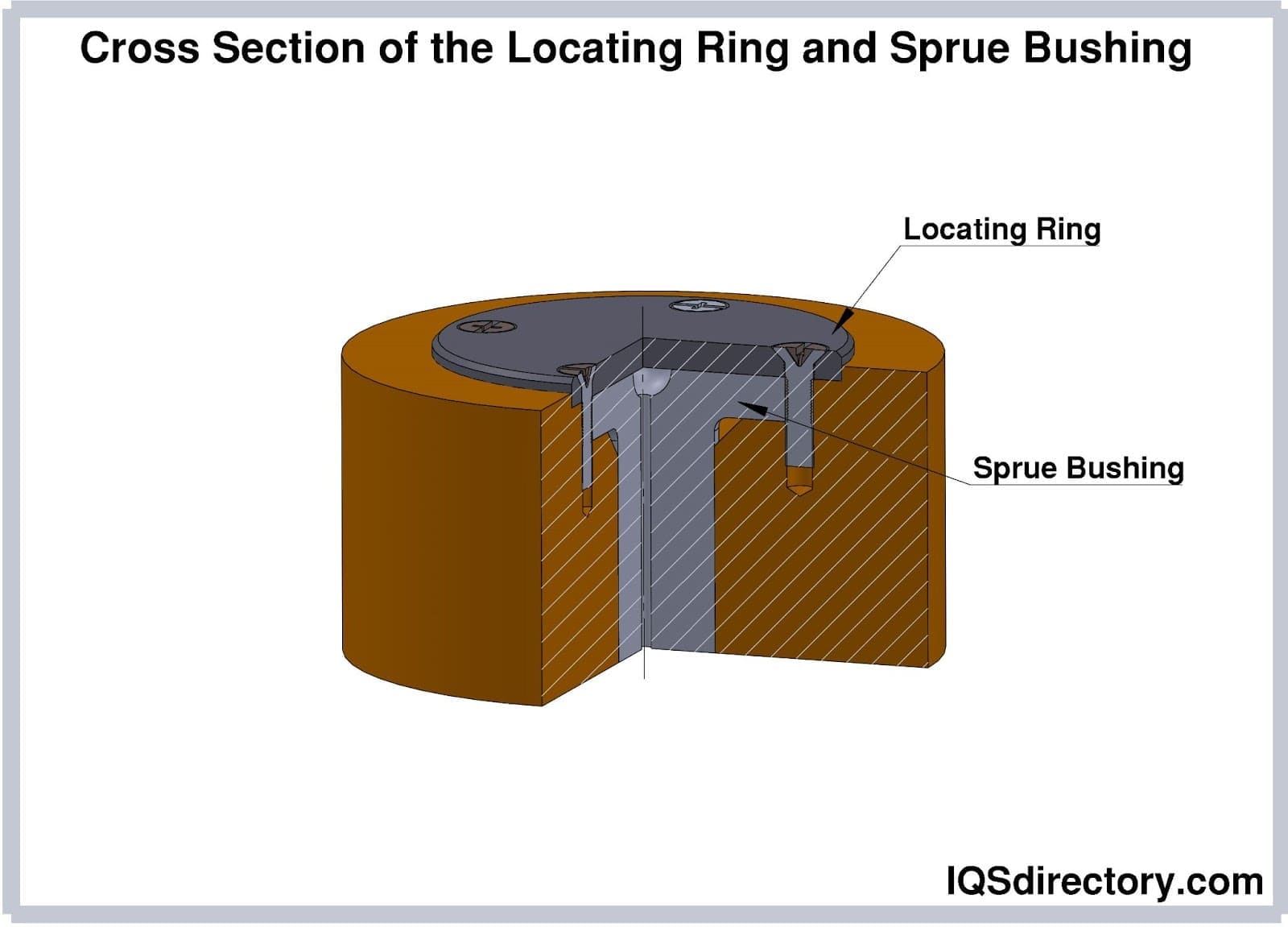

The sprue bushing aligns the nozzle's opening with the front mold plate, serving as the seat for the nozzle.
Other features of the mold tool include air vents, which remove trapped gases from inside the mold, and cooling channels, which help dissipate heat by transferring it to a coolant.
Injection speed refers to the rate at which the screw or plunger moves to transfer molten plastic into the mold cavities. For most applications, it is advantageous to maximize the injection speed to fill the cavities with molten plastic as quickly as possible.
When evaluating the effectiveness of a plastic injection molding machine, several key characteristics must be considered. An efficient machine should produce parts with high accuracy and consistency, ensuring each piece meets the specified requirements. It should also operate swiftly and minimize waste, thereby boosting production rates and reducing the cost per unit. User-friendliness is crucial, with intuitive controls and software that are easy to operate. Durability and reliability are essential for a machine to run efficiently over long periods without frequent maintenance. Versatility is also important, as a machine that can handle various materials and mold designs offers greater production flexibility. Additionally, after-sales service and technical support are vital for addressing any operational issues. With increasing emphasis on sustainable manufacturing, an energy-efficient machine that reduces electricity consumption is both cost-effective and environmentally friendly. Finally, built-in safety measures are necessary to protect the operator and prevent accidents. Ultimately, the "best" machine will depend on specific needs, including the type of parts produced, materials used, production volumes, and budget constraints.
The injection molding industry features a variety of reputable manufacturers known for their quality, innovation, and versatility. While the selection of injection molding machine manufacturers based in North America is relatively limited compared to Europe or Asia, there are several notable companies in the United States and Canada. Many of these are branches or subsidiaries of international firms, including:
Husky is a prominent manufacturer of injection molding machines, especially known for their systems used in the PET preform industry. Their machines are celebrated for high speed, precision, and energy efficiency. Husky systems are engineered to handle high production volumes with minimal waste and downtime.
Husky's major strength is their specialization and expertise in the PET preform industry. Their HyPET systems are tailored specifically for this niche, delivering exceptional performance and efficiency in PET preform manufacturing. This specialized approach makes Husky a preferred choice for businesses in the beverage packaging sector.
Milacron is a renowned name in the injection molding industry, known for producing machines that emphasize consistency, precision, and reliability. Their 'Magnas' and 'Elektrons' series are particularly popular, with the Elektrons representing their all-electric models. Both series are designed for versatility and can accommodate a broad range of applications.
Milacron’s strength lies in its extensive range of offerings that address diverse needs. They provide options from hydraulic to all-electric machines, catering to various applications. The Elektron series, known for its energy efficiency and precision, represents their all-electric solutions. Meanwhile, the Magna series is valued for its versatility and reliability in hydraulic machines.
Negri Bossi, an Italian company with a notable presence in North America, provides a variety of injection molding machines. Their 'Canbio sT' series is particularly recognized for its reliability, precision, and versatility. Negri Bossi machines are also designed to be user-friendly and energy-efficient.
Negri Bossi is renowned for integrating advanced and innovative technologies into their machines. Their equipment frequently includes state-of-the-art control systems that enhance precision and ease of use. For instance, the Canbio sT series features the Tactus™ touch-screen controller, which provides an intuitive user interface and allows for the saving of mold settings for future use, thus reducing setup time.
Niigata, a Japanese company with a presence in the U.S., is renowned for its all-electric injection molding machines. Their 'MD' series is noted for its high precision, energy efficiency, and minimal maintenance needs. Niigata machines are built for reliability and durability, providing consistent performance over time.
Niigata's strength lies in their specialization in all-electric injection molding machines. Their MD series is designed for high precision, clean operation, and energy efficiency. These all-electric machines are often preferred for their lower operating costs over time and their suitability for cleanroom environments.
Although Haitian is a Chinese company, it has a notable presence in the U.S. through its subsidiary, Absolute Haitian. The 'Mars' series is Haitian's best-selling line globally, recognized for its servo-hydraulic efficiency and cost-effectiveness.
Haitian's Mars series has achieved success due to its balance of performance and affordability. Equipped with energy-saving servo-hydraulic technology, the Mars series offers both efficiency and cost-effectiveness. This combination of high performance and economical pricing has made Haitian machines particularly popular in cost-sensitive markets.
Remember, selecting the right machine depends on your specific requirements, including the type of parts you’re producing, the materials you’re using, your production volumes, and your budget. Always take these factors into account, alongside the key characteristics of a quality plastic injection molding machine, when choosing a model.
Thermoplastic polymers are more prevalent than thermosetting polymers in injection molding. Thermoplastics are plastics that can be repeatedly melted and solidified by heating and cooling, making them highly recyclable. Excess materials from previous molding cycles can be re-ground and added back to the injection chamber along with virgin pellets. However, this recycled material is typically limited to a maximum of 30% of the bulk material to prevent degradation of the plastic's original physical properties.
Thermosetting plastics, in contrast, can only be molded once after the initial application of heat due to the cross-linking of their polymer chains. During the molding process, the molten thermosets must be transferred quickly to the mold to prevent settling in the screws and valves, which could damage the injection unit. Despite this challenge, thermosetting plastics are highly valued for their strength, rigidity, and exceptional resistance to high temperatures.
Some of the commonly used materials in plastic injection molding include:

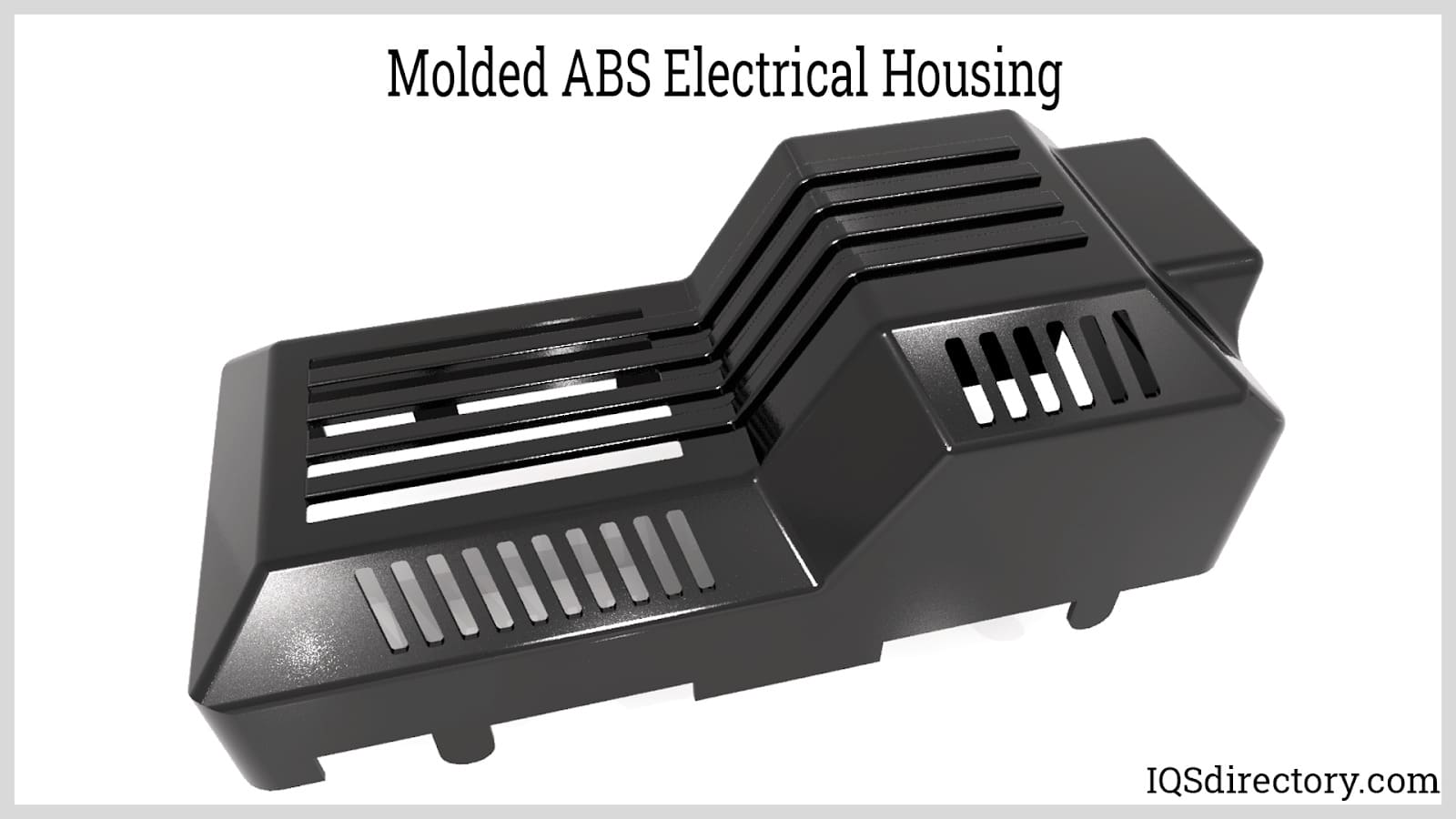

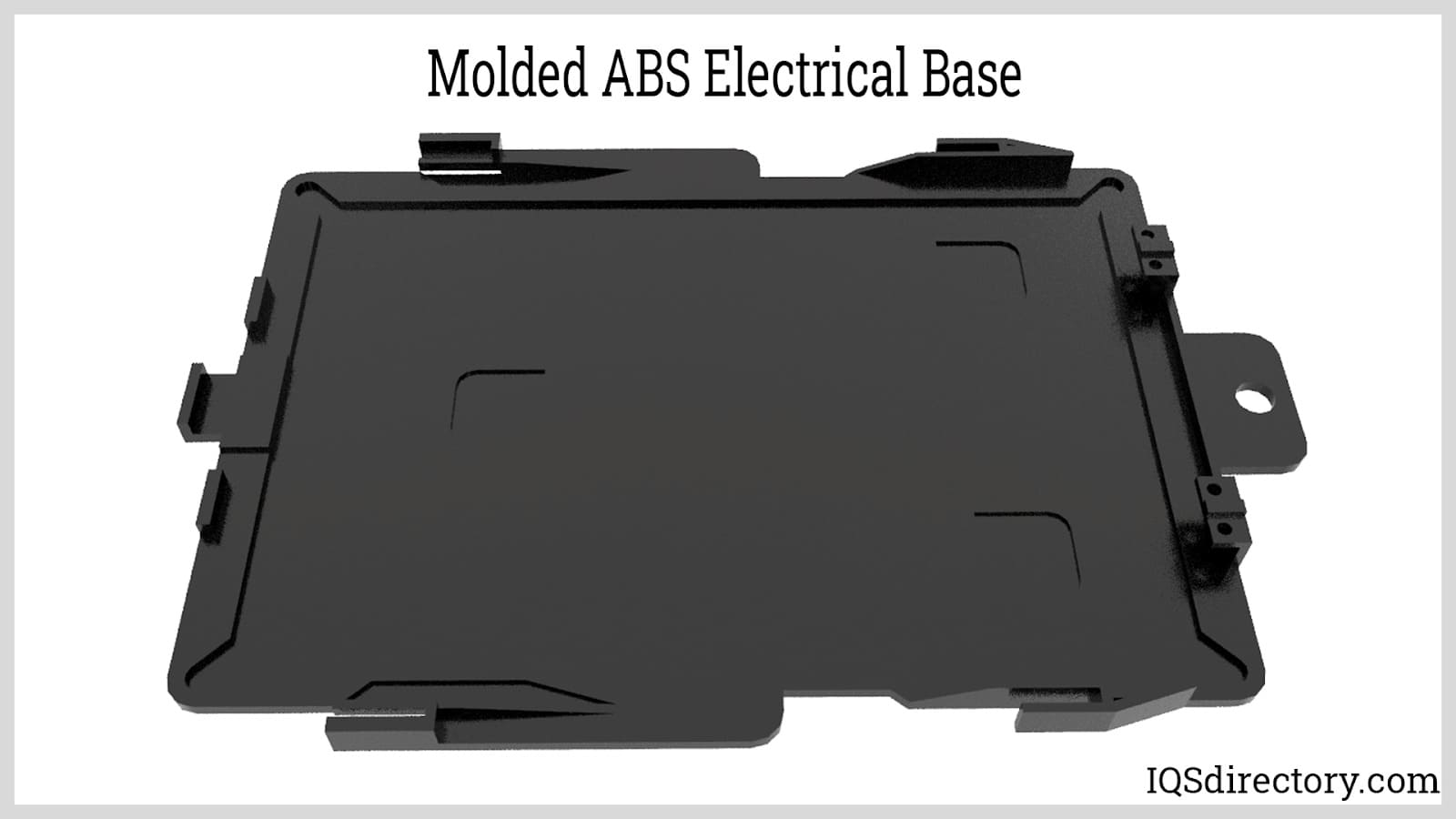

Acrylonitrile Butadiene Styrene (ABS) is an opaque, amorphous thermoplastic known for its light weight, rigidity, and resistance to impact, heat, and corrosive chemicals. Its low melting point allows for efficient processing in injection molding machines with reduced heat energy consumption. ABS is commonly used in automotive parts, sports and recreational equipment, and piping materials. Notably, Lego Bricks are made from this material.

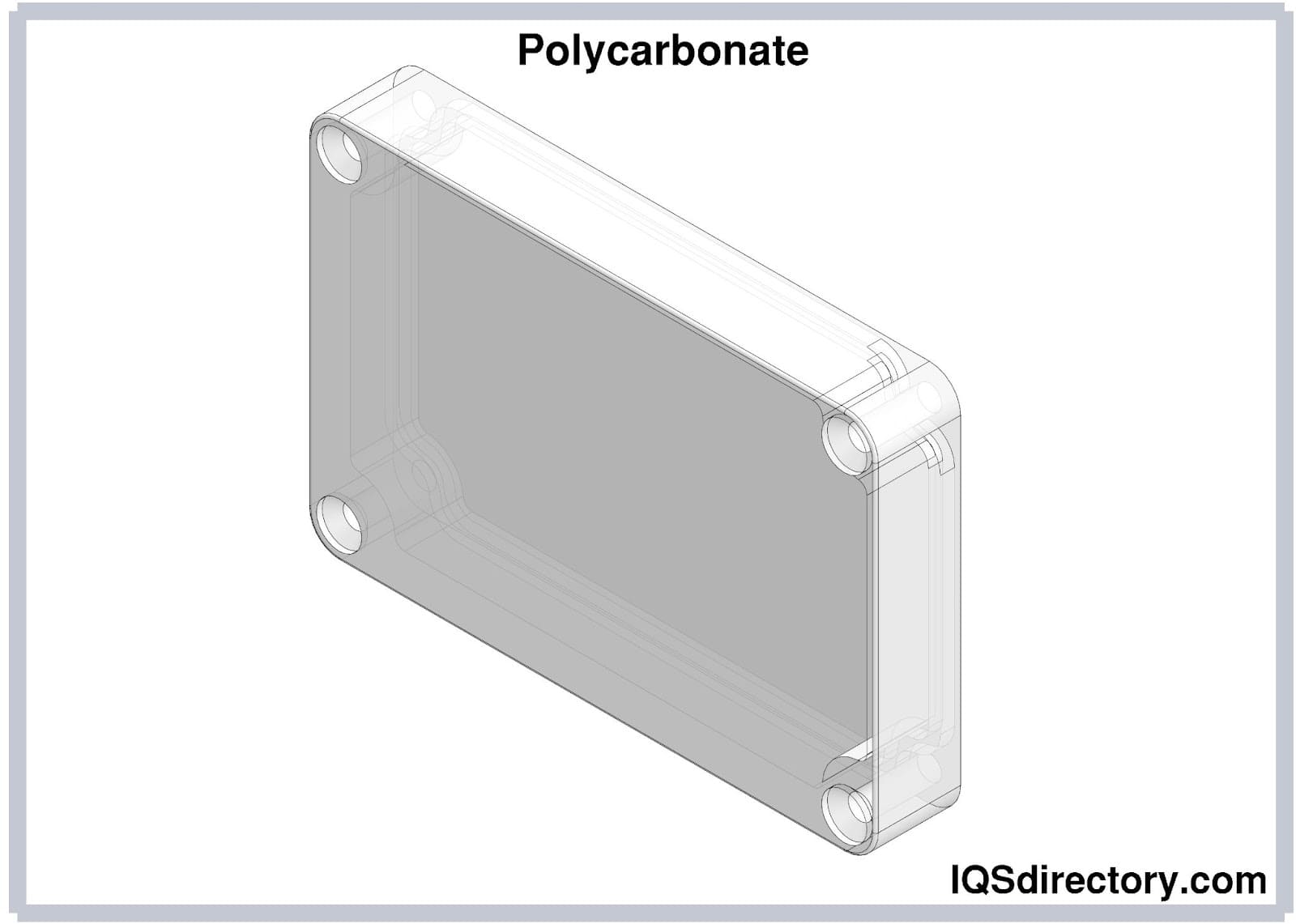

Polycarbonates are transparent thermoplastics characterized by carbonates in their polymeric chains. They are renowned for their strength, toughness, and impact resistance. Common applications of polycarbonates include eyewear lenses, bulletproof glass, automotive components, and containers.

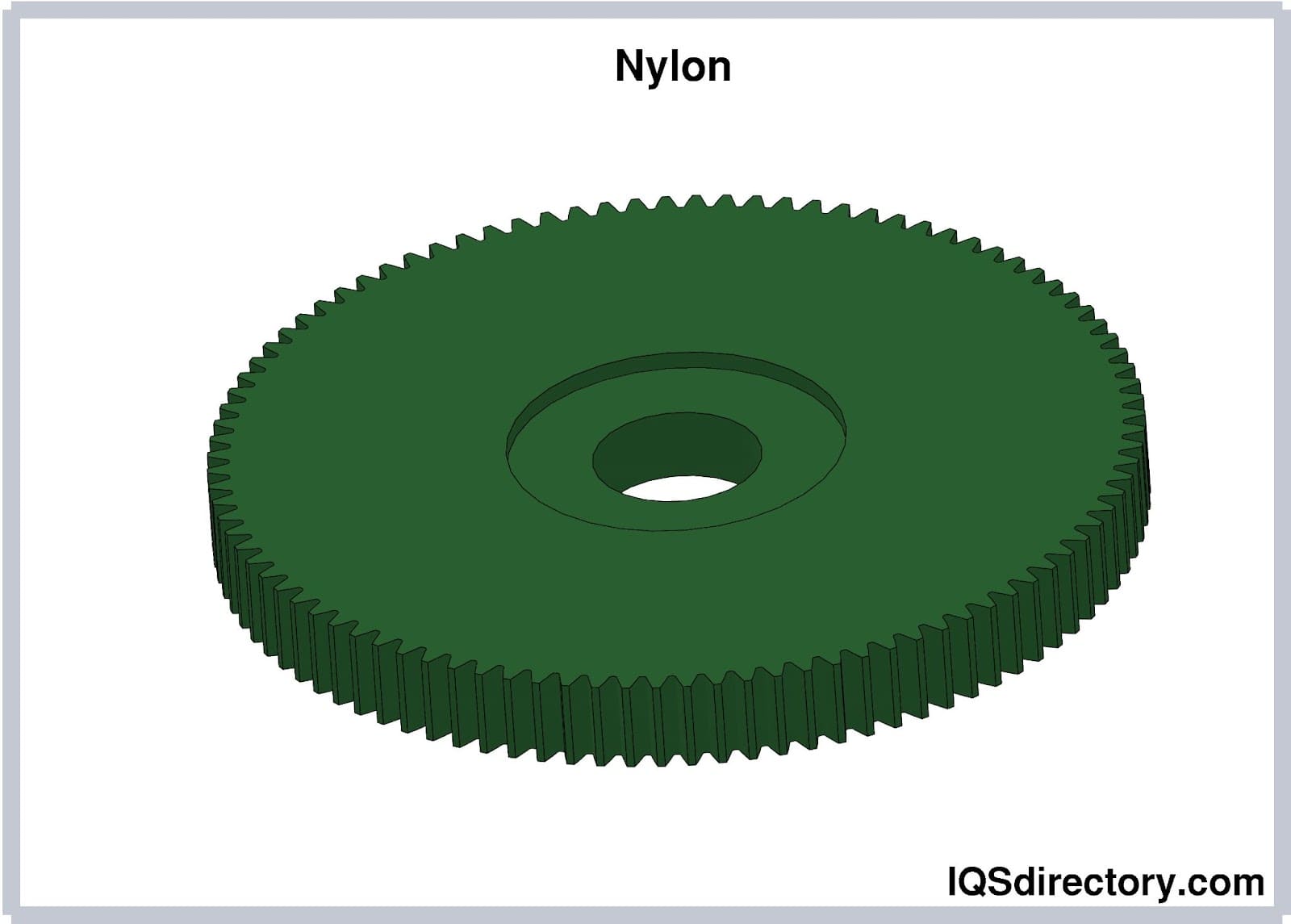

Nylon is a thermoplastic composed of polyamides. It is known for its durability, flexibility, and resistance to impact and chemicals. Often reinforced with glass fibers to enhance tensile strength, nylon is used in applications requiring low friction. With a high melting point, it can serve as an alternative to metals in high-temperature environments, although it is flammable. Nylon's hygroscopic nature, shrinkage, and tendency to release gases at high temperatures can make it challenging to mold.

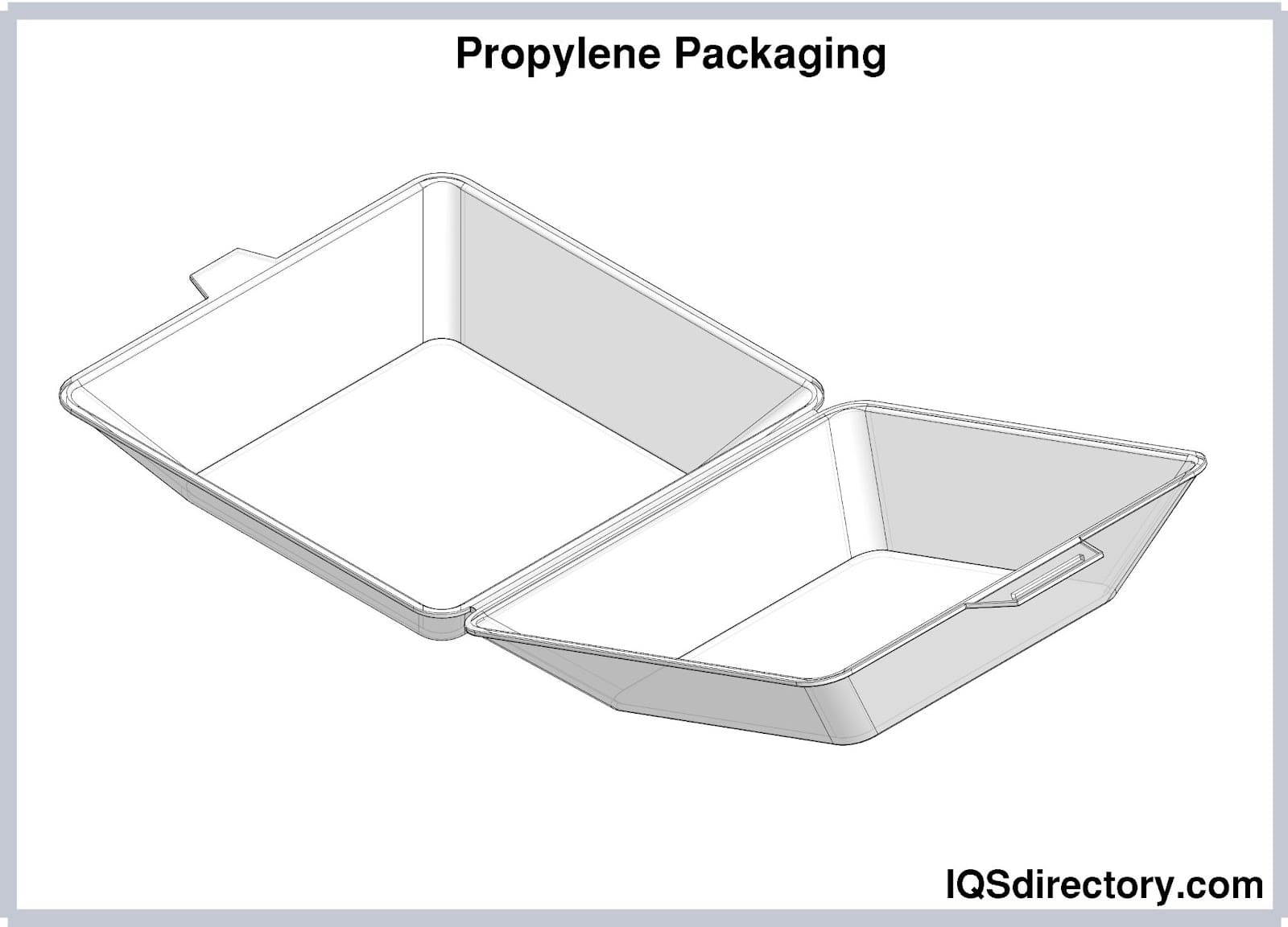

Propylene is an elastic, tough, and fatigue-resistant semi-crystalline thermoplastic. It is also an excellent electrical insulator. Commonly used in packaging materials, automotive parts, and household and office items, propylene's low melt viscosity facilitates easy flow from the injection chamber, simplifying the molding process despite its semi-crystalline nature.

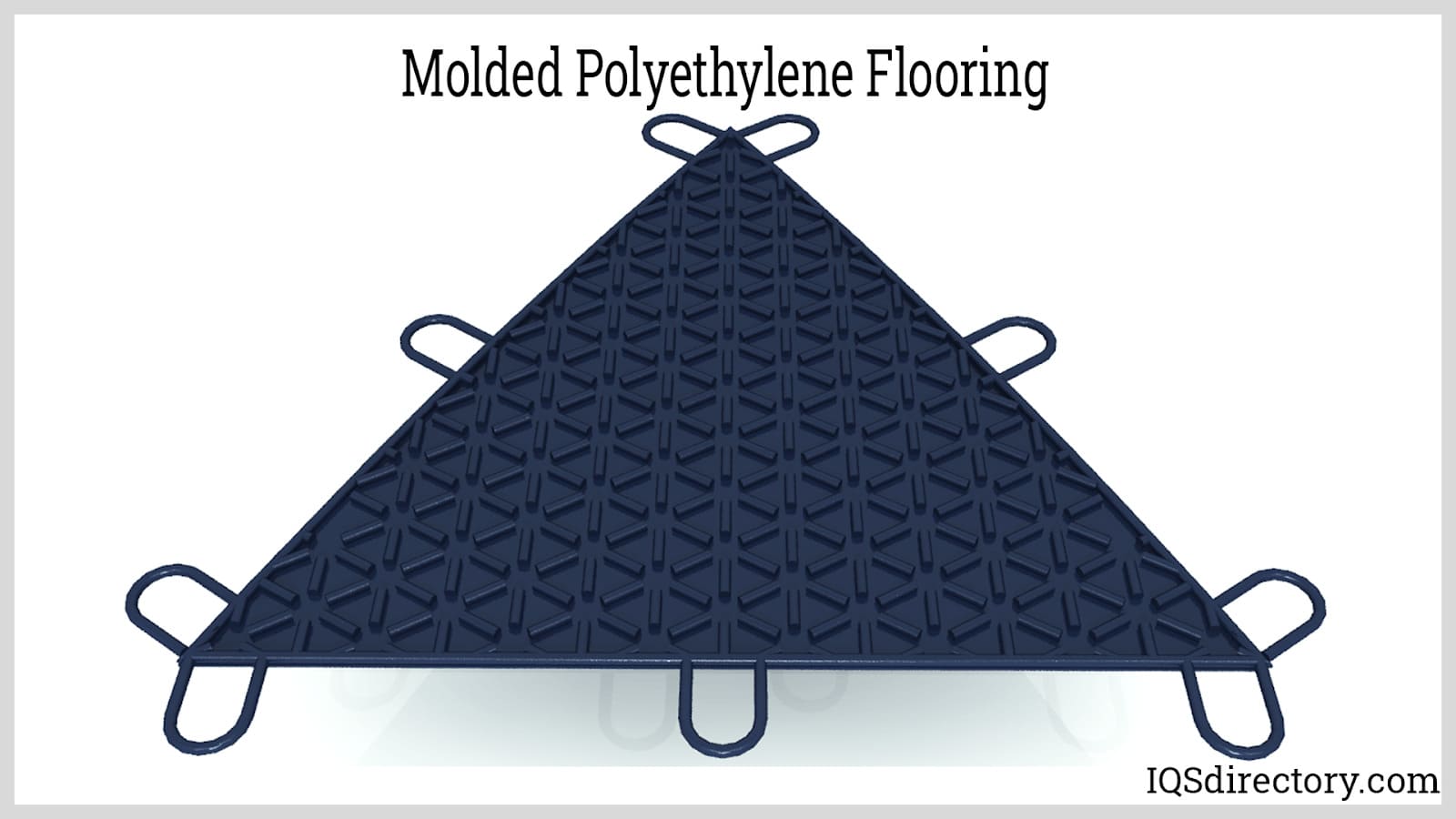

Polyethylene comes in several types, distinguished by their densities: low-density polyethylene (LDPE), medium-density polyethylene (MDPE), high-density polyethylene (HDPE), and ultra-high molecular weight polyethylene (UHMWPE). As a thermoplastic, polyethylene is lightweight, offers good chemical resistance, and is impermeable to liquids and gases. Higher-density polyethylenes provide increased tensile and flexural strength and toughness but may exhibit reduced elongation and become brittle at low temperatures. Polyethylene is used in a wide range of applications, including packaging materials, medical devices, rigid containers, and bulletproof vests.

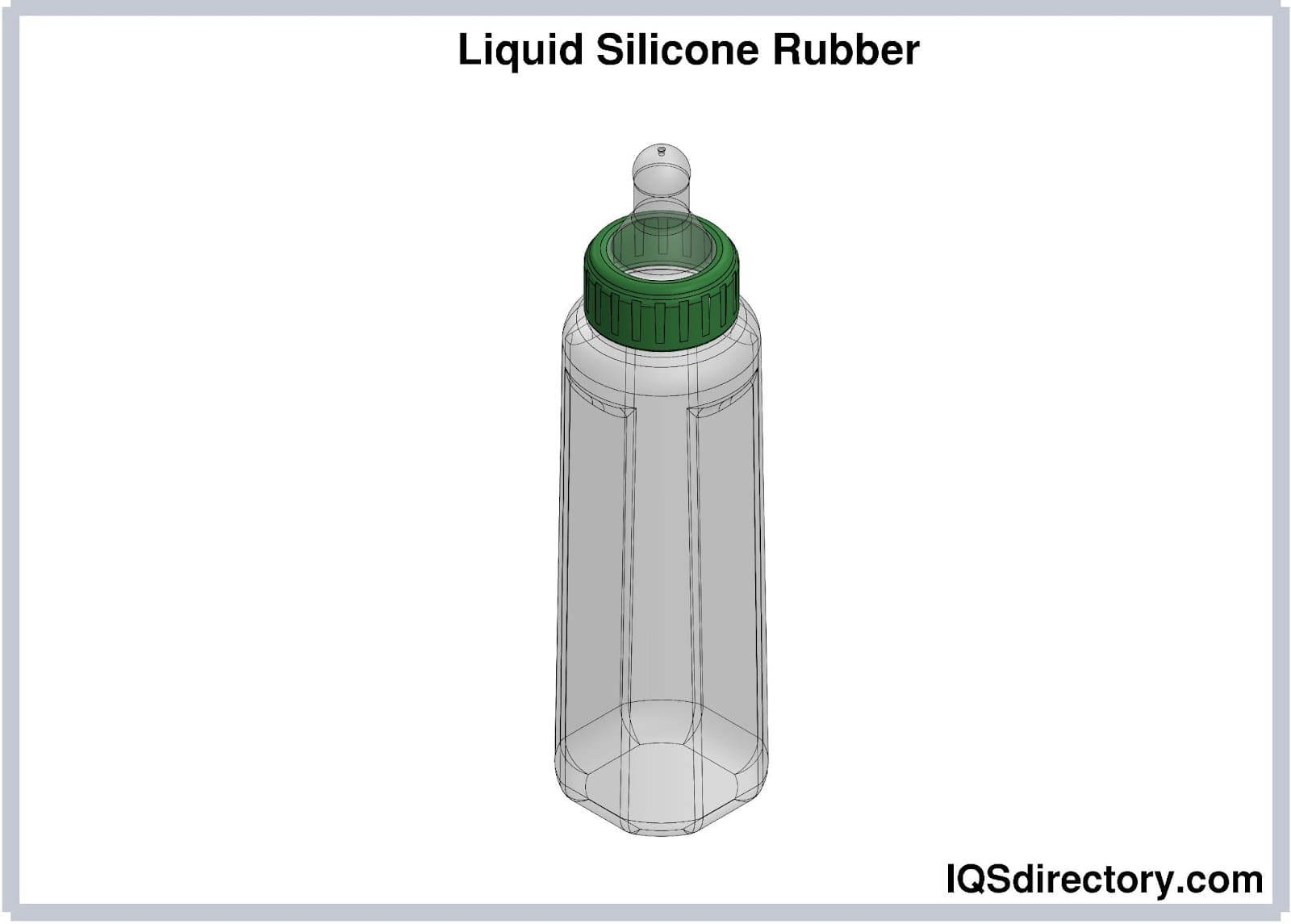

Liquid Silicone Rubber (LSR) is a widely used synthetic thermosetting resin, often referred to as "liquid rubber" due to its relatively low viscosity. This property allows it to flow easily into mold cavities, making it ideal for parts with tight dimensional tolerances. LSR is also resistant to UV degradation. It is commonly used in applications such as automobile parts, heat insulation, medical devices, and infant feeding bottles, which need to withstand high temperatures during sterilization or autoclaving.
Reaction injection molding (RIM) is a process that uses low viscosity liquid thermoset polymers, in contrast to traditional plastic injection molding, which employs thermoplastic resins. In RIM, the liquid thermoset polymer undergoes a series of chemical reactions that cause it to expand, thicken, and harden inside a heated mold. The raw materials, tooling design, and reaction mechanisms can be customized and adjusted to achieve specific properties such as hardness, strength, and density in the finished part.
Lightweight thermoset polyurethane is the most frequently produced material using Reaction Injection Molding (RIM), although the process can also be used for materials like nylon and polyesters. In the RIM process for polyurethane, the polymer liquids polyol and isocyanate are stored in large reservoirs and continuously recirculated. These polymers are pumped from the reservoirs to a multi-stream mix-head connected to the mold tooling, and then cycled back to the reservoirs. When a part is to be molded, the polymers are injected into the mold by retracting a plunger or piston within the mix-head. This action breaks the recirculation loop, allowing the polymers to mix through high-velocity impinging. The mixture is then allowed to cure and settle in the mold at relatively low pressures and temperatures. The curing time depends on factors such as the size, thickness, and complexity of the part.
Reinforced Reaction Injection Molding (RRIM) is an advanced variation of RIM that involves adding reinforcing agents, like glass or carbon fibers, to the liquid polymers. These agents significantly improve the strength, rigidity, and impact resistance of the final part. During the RRIM process for polyurethane, chopped or milled fibers are blended with the polyol before the mixture is injected into the mold. This technique is frequently employed in the production of automobile components such as body panels, bumpers, and fascia, where enhanced strength and durability are essential.
Structural Reaction Injection Molding (SRIM) is a specialized RIM process where glass mats, fiber meshes, or preforms are positioned inside the mold prior to the injection of liquid polymers. These reinforcing elements significantly boost the strength and structural rigidity of the final part. SRIM is typically used for manufacturing components like doors, shelves, and panels, where increased durability and stiffness are critical.
RIM operates at lower pressures (approximately 100 psi) and temperatures (about 80-150°C) compared to traditional plastic injection molding. This lower operational range enables the use of cost-effective mold tooling, such as aluminum molds. Additionally, RIM simplifies the incorporation of reinforcements into the part's structural matrix, thereby improving its mechanical properties.
The common defects in injection-molded plastics and their causes are summarized in the table below. While some issues in injection molding can be resolved by optimizing process parameters, others may be challenging and expensive to address, particularly if the mold design itself is contributing to the defect.
| Defect | Illustrations | Definition | Causes |
|---|---|---|---|

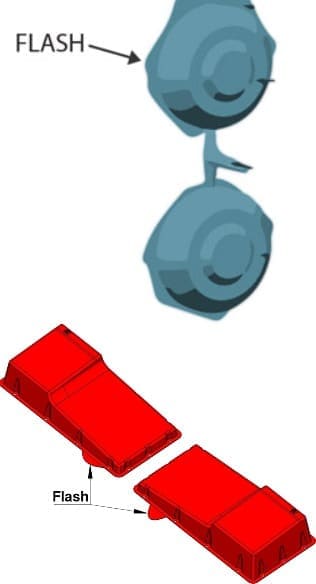

| Flash |  |
Excess plastic on the edges of the part. |
|

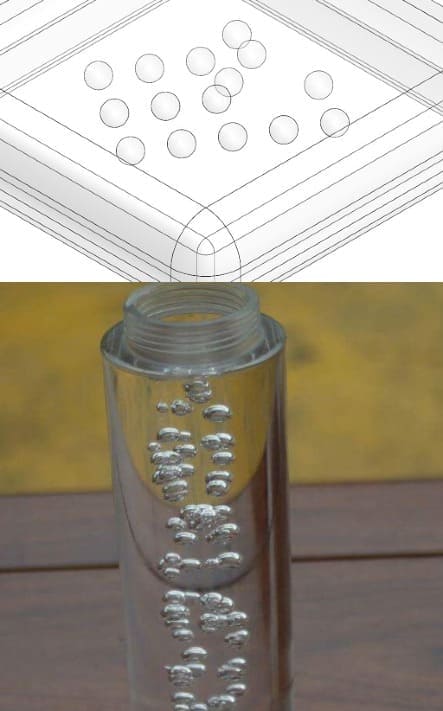

| Vacuum voids |  |
Air entrapped inside the molded part. Large air pockets can weaken the part that can be not acceptable in some applications. |
|

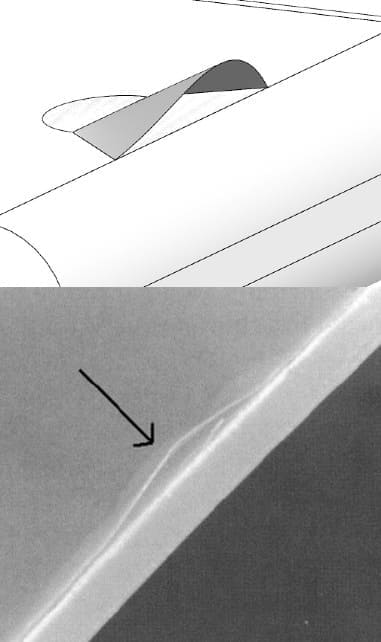

| Delamination |  |
The molded part can easily disintegrate layer by layer. Flakes on the surface of the part is seen. It is a critical defect in the injection molding process. |
|

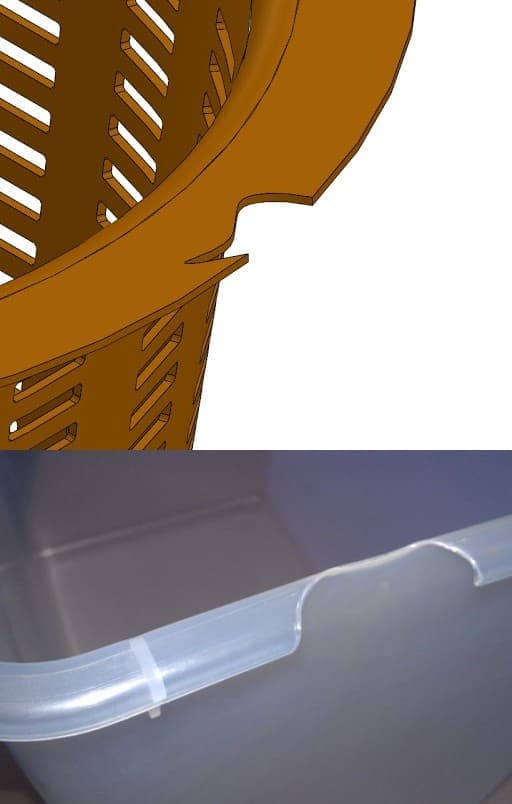

| Short shots |  |
Missing sections on the molded parts due to unfilled mold cavity. |
|

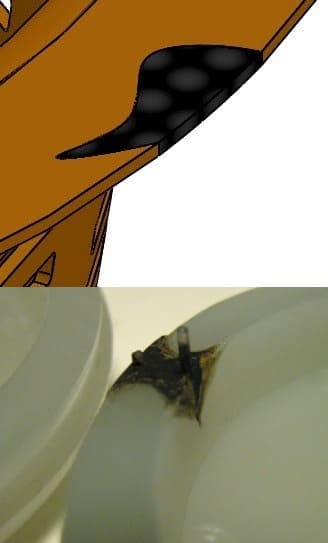

| Discoloration and burnt marks |  |
Any deviation from the original color of the molded part or burnt marks observed. |
|

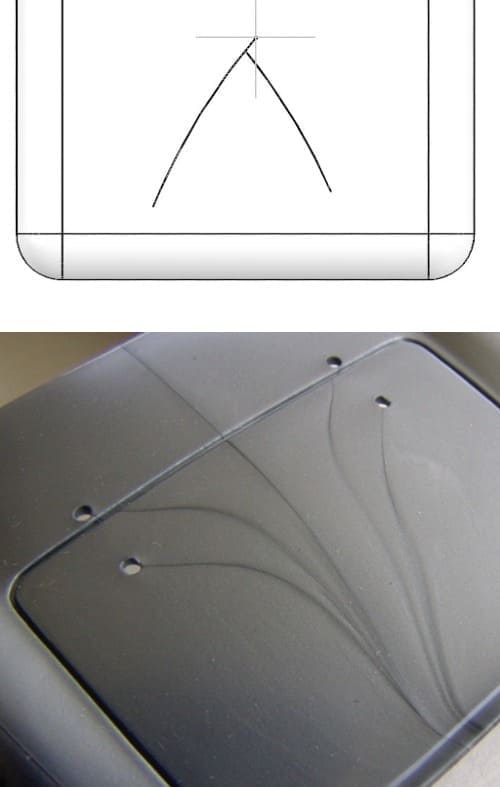

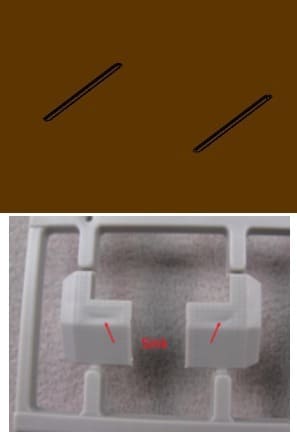

| Flow lines |  |
Patterns observed in the surface of the mold imprinted by the molten plastic during cooling. |
|
| Sink lines |  |
Depressions present in the surface of the molded part, which is usually observed on thicker areas. |
|
