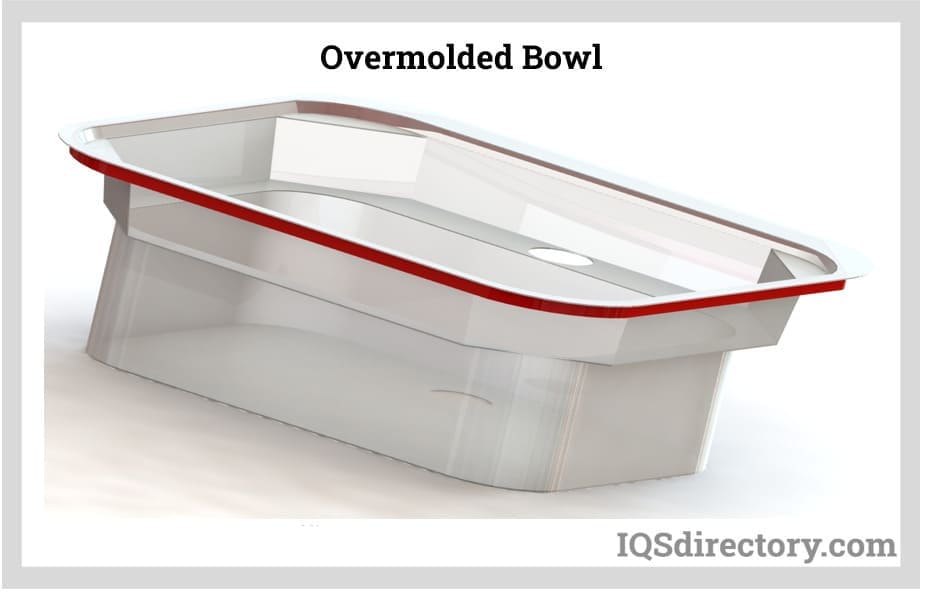

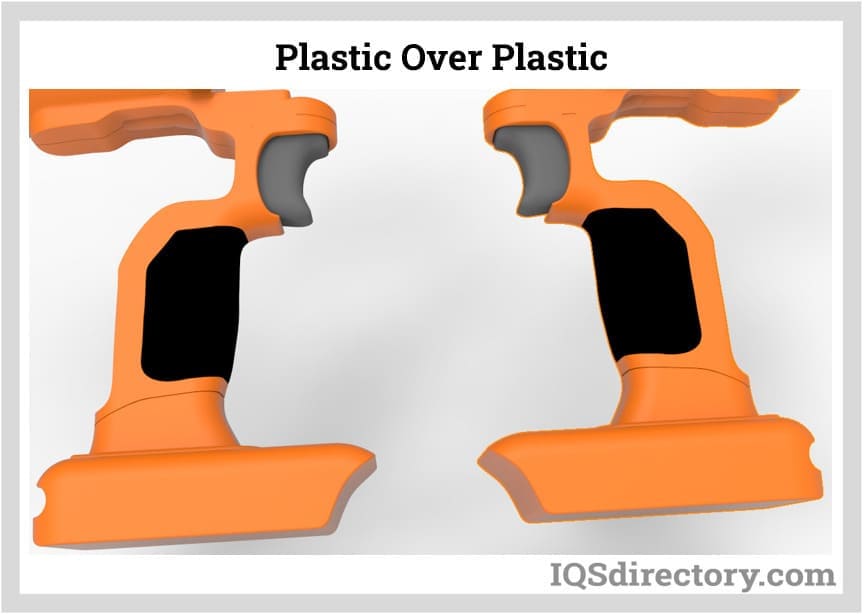

Plastic overmolding is a technique used in manufacturing where multiple types of plastic materials are molded together to form a single cohesive part. This technique improves the performance, longevity, and visual appeal of plastic components by layering plastics that either share similar properties or have distinct characteristics.
In plastic overmolding, a pre-shaped substrate, which can be made from plastic, metal, or other materials, is covered with an additional layer of plastic. This process typically uses thermoplastics because they can be reheated and reformed multiple times without losing their inherent qualities.
Plastic overmolding can be carried out using various techniques such as co-injection molding, two-shot molding, and co-extrusion. One of the key factors in this process is choosing the right materials to ensure they are compatible and meet the required specifications for the finished item. This involves evaluating factors such as bonding strength, thermal stability, and mechanical performance.

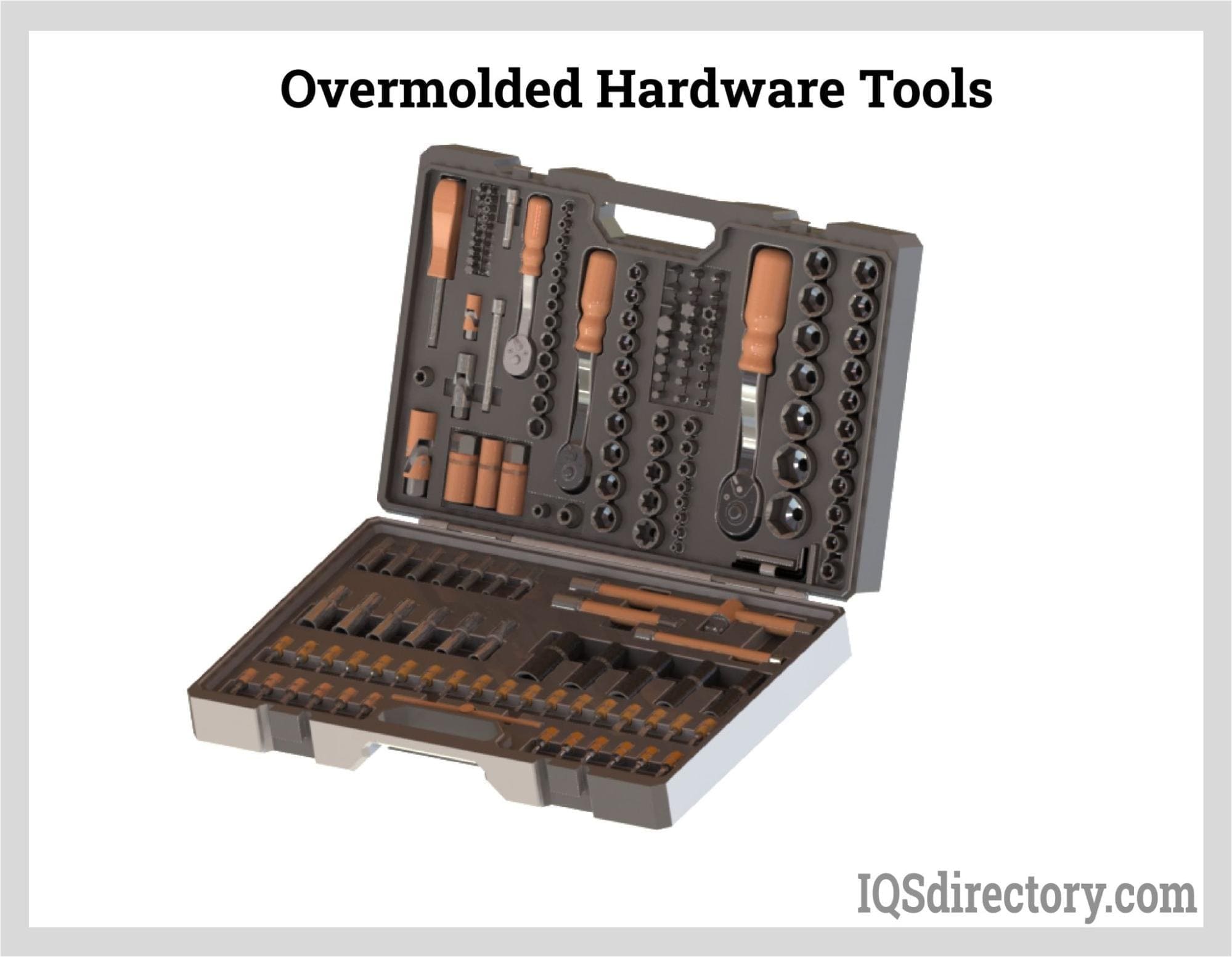

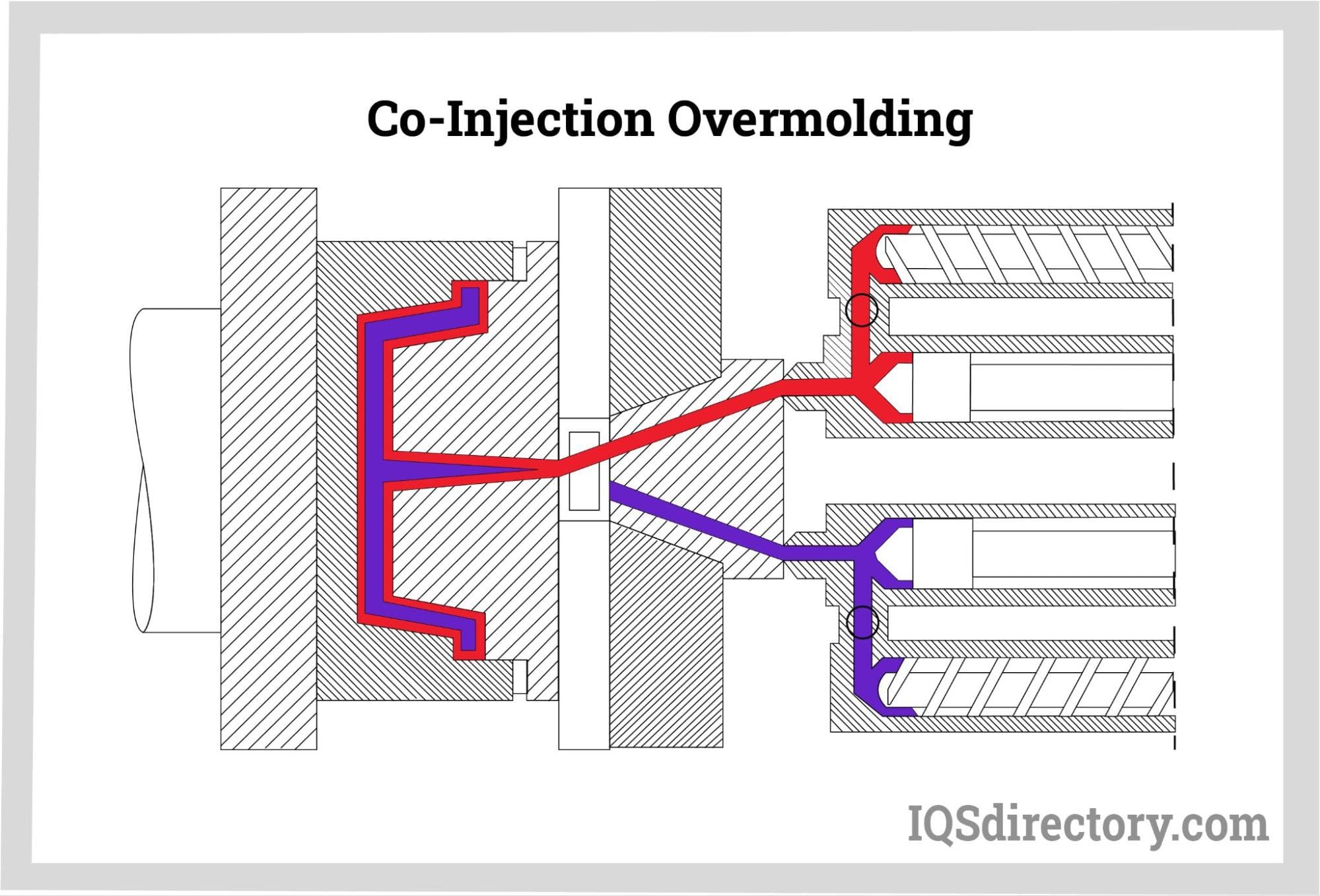

Co-injection overmolding is a technique that combines two or more materials to form a single component, where these materials may have either similar or distinct properties. This process typically involves a two-layer system: the core plastic, which serves as the base material, and the skin plastic, which is overmolded onto the core. Co-injection molding machines are equipped with dual barrels and a single nozzle.
Initially, the skin plastic is injected into the mold cavity, followed by the core plastic. A subsequent injection of skin plastic then pushes the core material to ensure the mold is completely filled. The resulting product has a layered structure, with the core plastic in the center and the skin plastic covering all exterior surfaces. After cooling and solidification, the mold is opened, and the final part, fully encapsulated in the skin plastic, is ejected.

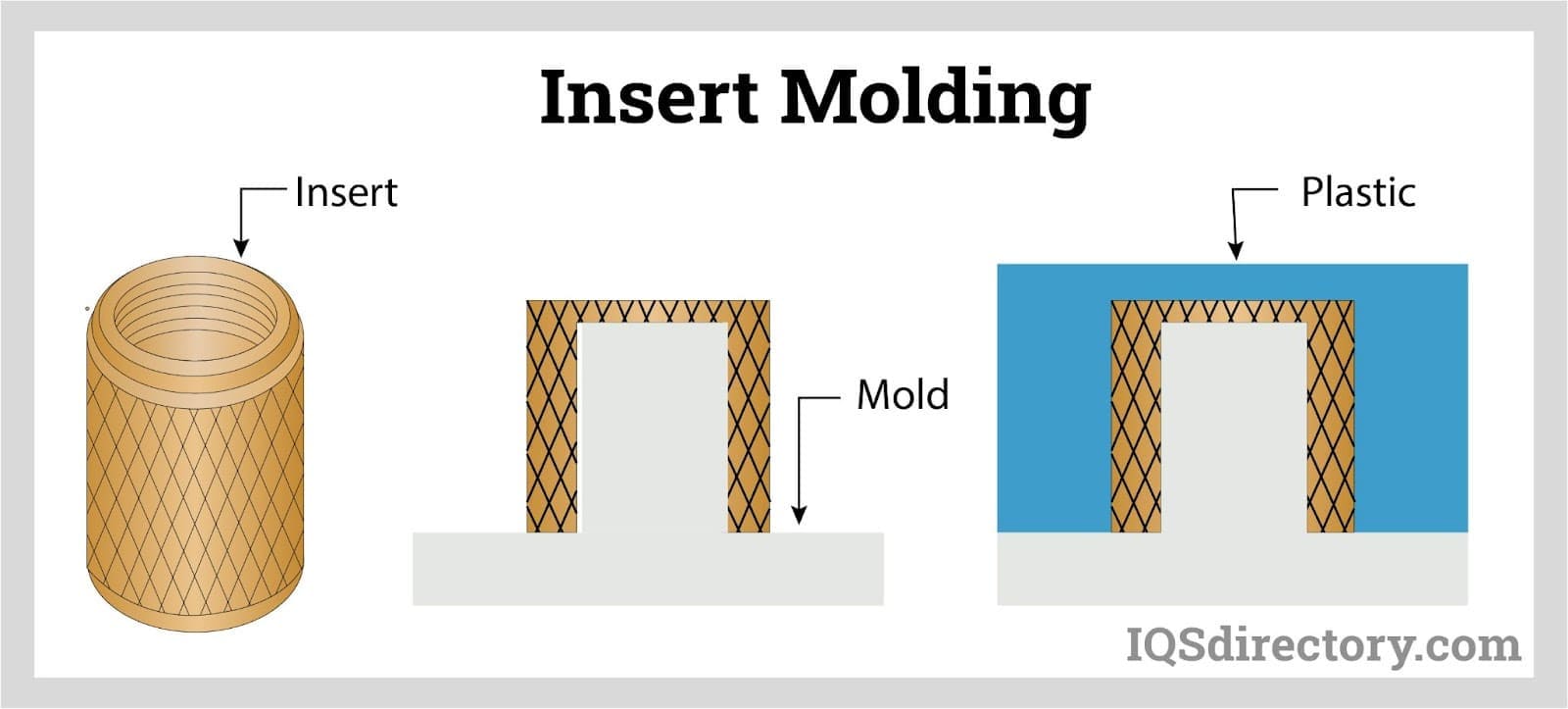

Overmolding is a subset of insert molding that involves inserting a preformed component, such as a metal or plastic insert, into the mold before the plastic is injected. The plastic then flows around the insert, creating a strong bond between the two materials. The bond created between the insert and the substrate can be chemical or mechanical or both since some chemical bonds are not strong enough and require mechanical bonding.
Insert molding is preferred for parts that require additional functionality, such as electrical contacts or threaded inserts. Today, insert molding is largely becoming an automated process of molding automation used to insert components, such as metal inserts or electrical components, into the mold cavity before the molding process begins. This process involves the use of specialized automation equipment, such as robotic arms or pick-and-place machines, to precisely place the inserts in the mold cavity. The benefits of insert molding automation include improved efficiency, reduced cycle times, and increased consistency and accuracy.
In the overmolding process, the item to be overmolded is placed into a new mold that creates space for the additional overmolding material. Alternatively, the mold can be designed with a rotating hot side to alter the cavity's shape, or co-injection can be employed. In co-injection, the first plastic material is injected and allowed to set, followed by the injection of a second, lower-temperature material through a separate screw and barrel on the molding machine.
Two-shot molding, also referred to as multi-shot molding or two-component injection molding, is a technique where two distinct materials are injected into a mold to form a single, multi-material component. This process starts with a mold specifically designed to accommodate two separate sections. Initially, the first material is injected to fill one part of the mold, followed by the injection of the second material into the remaining section.
The primary benefit of two-shot molding is its ability to create intricate parts with multiple colors or materials in a single cycle, thus minimizing the need for additional assembly operations. Moreover, this method enhances the part’s durability and functionality by combining materials with varying characteristics, such as rigidity and flexibility, within one component.
Co-extrusion is a process where two or more materials are simultaneously extruded through a single die, resulting in a unified piece. This technique leverages the beneficial properties of each material, creating a composite that offers advantages not achievable with individual materials alone.
While co-extrusion is based on traditional extrusion principles, it involves feeding multiple types of resin into the hopper. As these resins move through the barrel, they are blended by a heated screw and then forced through the die. This method is particularly useful for producing specialized tubing, such as medical tubing that must comply with FDA regulations.

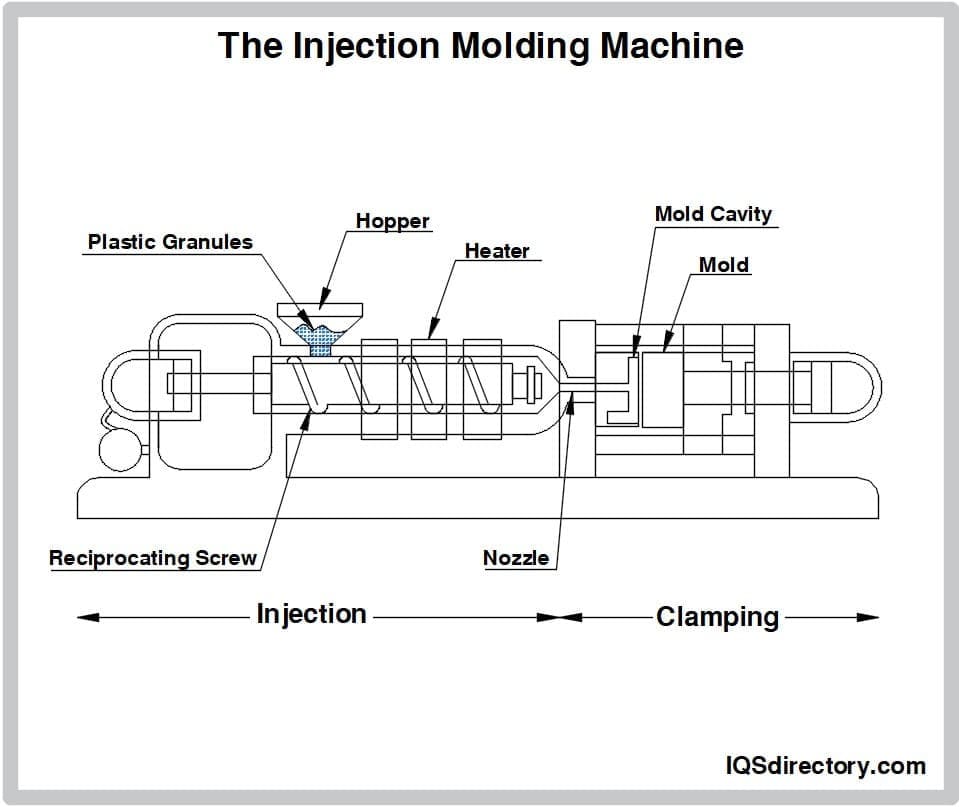

There are numerous machines designed for plastic overmolding, playing a crucial role in modern manufacturing. These machines facilitate the creation of intricate and multi-material components, enhancing functionality, appearance, and durability. They open up new opportunities across various sectors such as automotive, electronics, and consumer goods. The following is an overview of several prominent brands known for their expertise in plastic overmolding machinery:
An example of a machine from Arburg used in plastic overmolding is the Arburg Allrounder 520 A. This model is part of the Allrounder series, renowned for its versatility and accuracy in injection molding. The Allrounder 520 A is equipped with advanced control systems, ensuring high repeatability and efficient energy use, making it ideal for a range of overmolding tasks. Its modular design provides flexibility for configuration and customization to meet specific needs. The machine offers precise injection control, effective material handling, and automated features that facilitate smooth overmolding operations.
The Engel Victory series is designed to handle plastic overmolding effectively. This series is known for its exceptional precision and energy efficiency, making it suitable for diverse molding applications, including overmolding. Engel Victory machines feature advanced technologies like servo-electric drives and multi-component capabilities, which ensure accurate and reliable overmolding processes. Their ability to manage multiple materials or colors allows for the creation of intricate, multi-component parts with high quality and efficiency, making them ideal for plastic overmolding tasks.
The Sumitomo (SHI) Demag IntElect Multi series is engineered for plastic overmolding and multi-component applications. This series excels in producing intricate parts that incorporate various materials, colors, or functional layers. The IntElect Multi series is known for its high-speed injection capabilities, precise control, and advanced automation features, all of which are crucial for effective plastic overmolding processes.
The Milacron Elektron Multi-Shot series is specifically crafted for plastic overmolding and multi-shot molding applications. These machines are designed for high-performance tasks, including overmolding. The Elektron Multi-Shot series provides precise control, rapid cycle times, and exceptional repeatability—key factors for successful overmolding. Capable of managing multiple materials or colors, these machines facilitate the production of intricate and multi-component parts with excellent quality and efficiency.
The Wittmann Battenfeld SmartPower COMBIMOULD series is engineered for plastic overmolding. These machines integrate both injection molding and overmolding functions within a single system, enabling the creation of intricate parts with multiple materials or colors. The SmartPower COMBIMOULD series is known for its high precision, energy efficiency, and adaptable automation options, all of which are crucial for effective overmolding. Featuring advanced control systems and versatile mold configurations, these machines provide efficient and reliable production of overmolded plastic components.
These brands and their equipment are well-regarded for their capability to fulfill the demands of plastic overmolding, including precision, efficiency, and versatility, with advanced features that guarantee high-quality results. For detailed information on specific models, unique features, and the latest updates, it is best to contact the manufacturers directly or refer to their product catalogs.
When designing a part for plastic overmolding, several critical factors must be considered, such as material compatibility, part geometry, gate and runner design, wall thickness, and the presence of undercuts or overhangs. These and other design elements are detailed below.

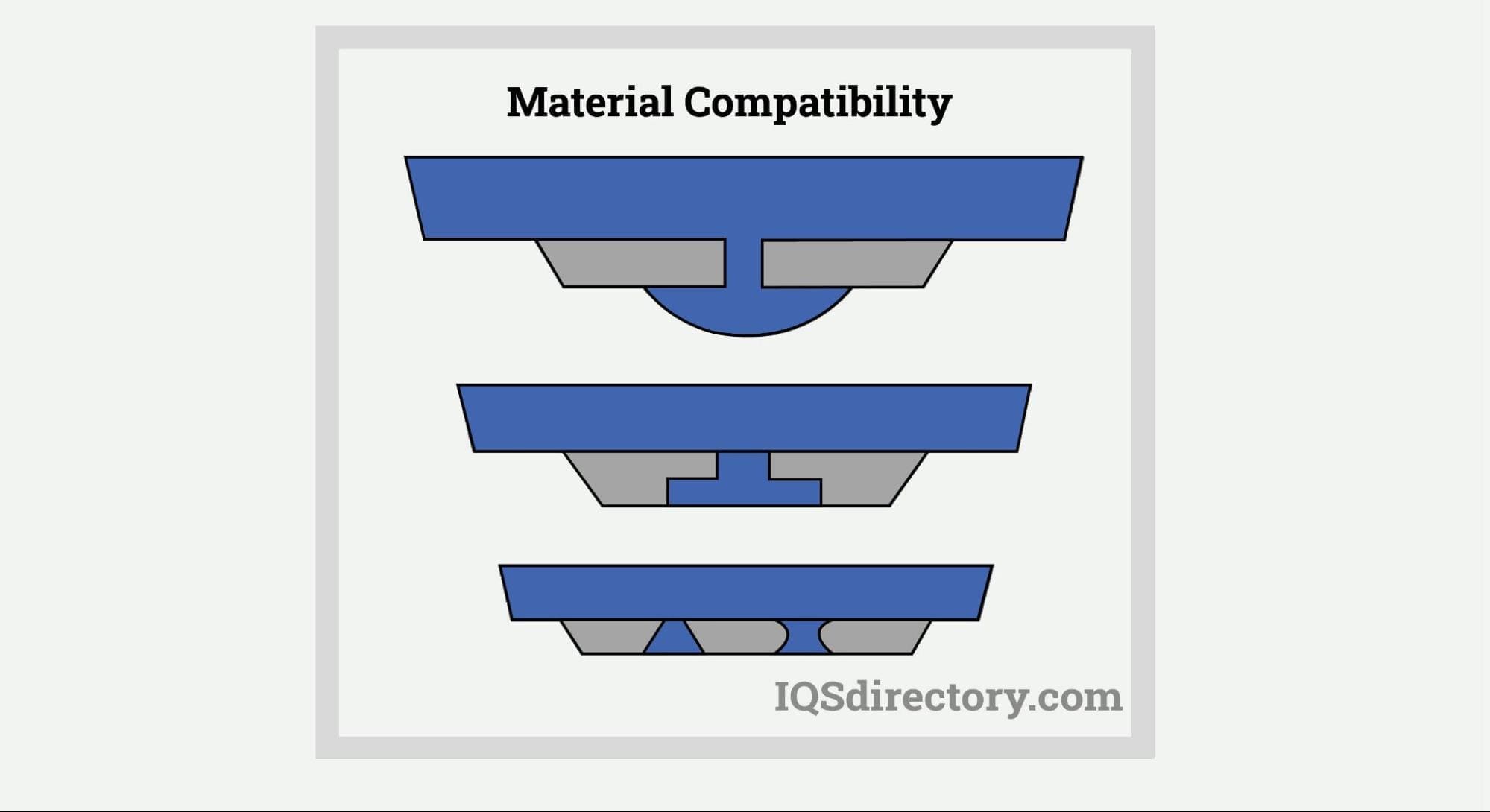

Material compatibility is a critical factor in plastic overmolding design. It is essential that the materials used are compatible to achieve a strong adhesion between the layers. Factors influencing compatibility include melting temperatures, shrinkage rates, and coefficients of thermal expansion.
The design of the part being overmolded plays a crucial role in the success of the process. The part must be designed to ensure even plastic flow throughout the mold, avoiding air pockets or voids. Additionally, it should incorporate adequate draft angles and radii to facilitate smooth ejection from the mold.

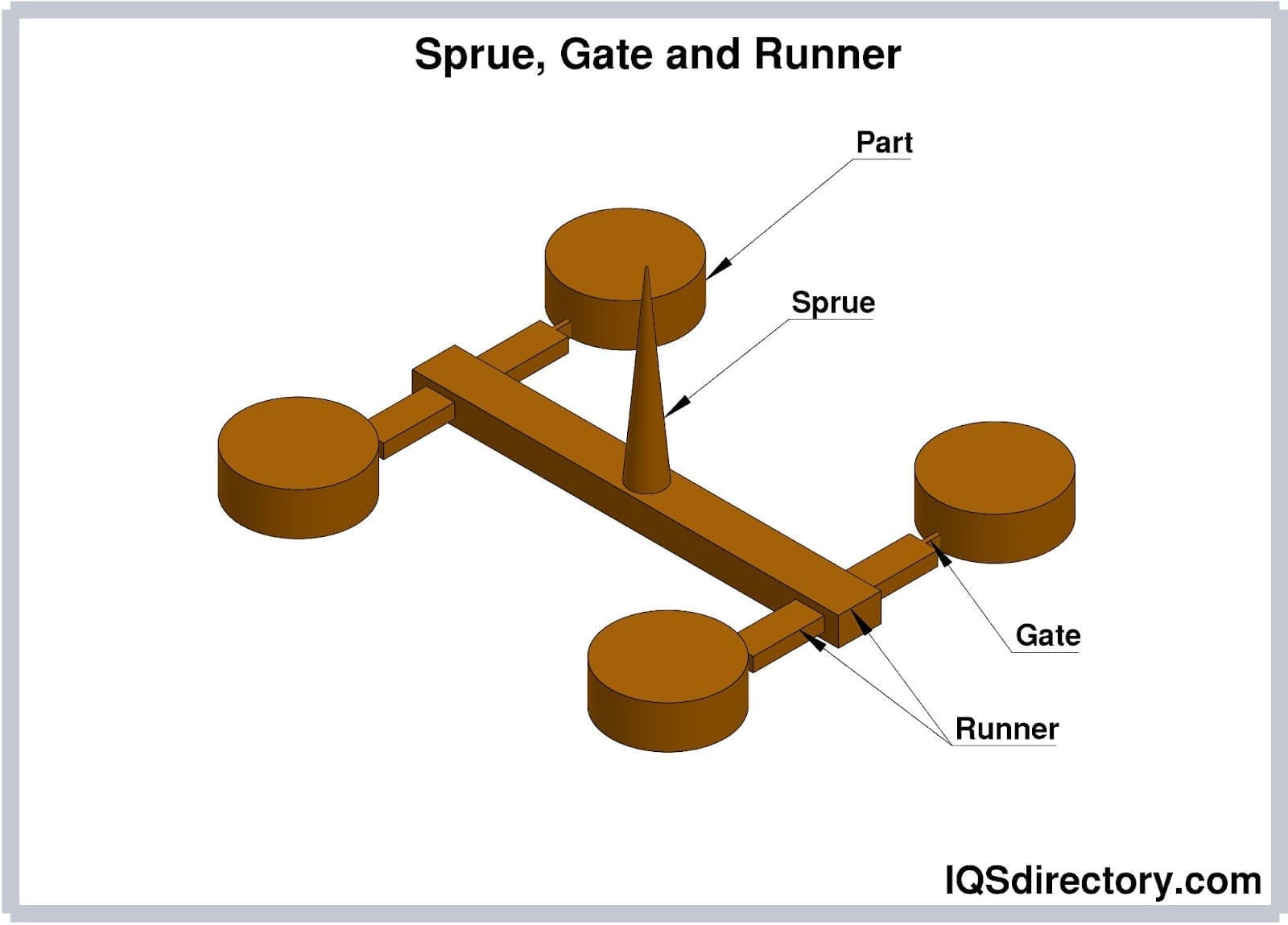

The design of the gate and runner is essential for the success of the overmolding process. The gate is the entry point for molten plastic into the mold, and the runner is the channel that directs the plastic to the gate. Proper design of both the gate and runner is crucial to ensure the plastic flows evenly throughout the mold.
Wall thickness is a critical factor in the design of overmolded parts. Parts that are too thin may suffer from warping or deformation during the overmolding process, whereas excessively thick parts might not fully fill the mold, leading to air pockets or voids. The ideal thickness will vary based on the materials used and the specifics of the overmolding process.

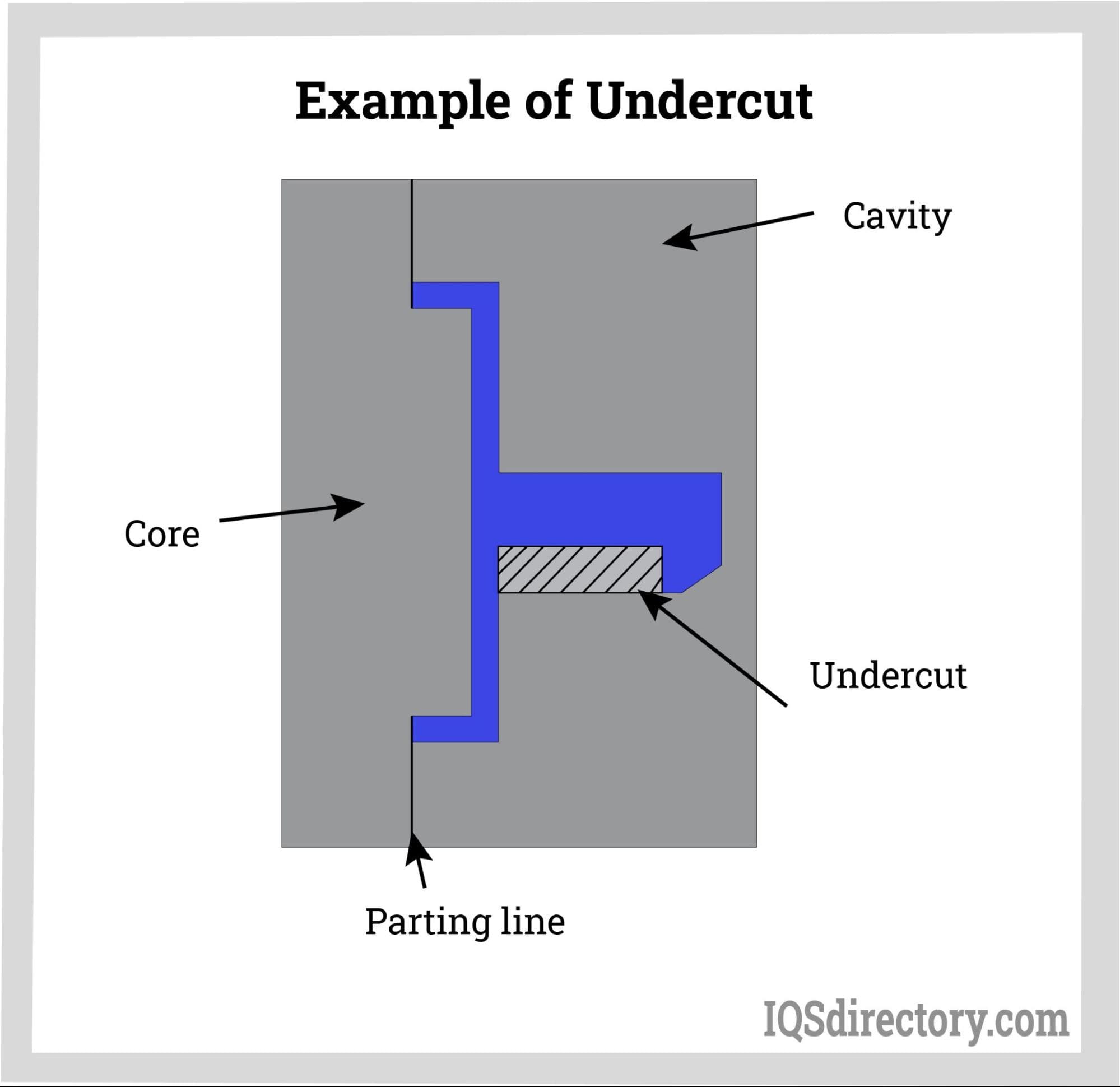

Designing parts with undercuts and overhangs can present challenges in overmolding, as these features may impede the even flow of plastic into the mold. Techniques such as side-core pulls or collapsible cores may be required to accommodate these design elements effectively.
Additional design factors for plastic overmolding include the part's size and shape, the positioning of any inserts or features, and the desired surface finish of the final product. Collaborating with a design engineer or overmolding expert is essential to address all design considerations and ensure a successful overmolding process.
There are several types and grades of plastic used for overmolding, including thermoplastics, elastomers, engineered resins, and medical-grade plastics. Here are some more details on the various types and grades of plastic overmolding:

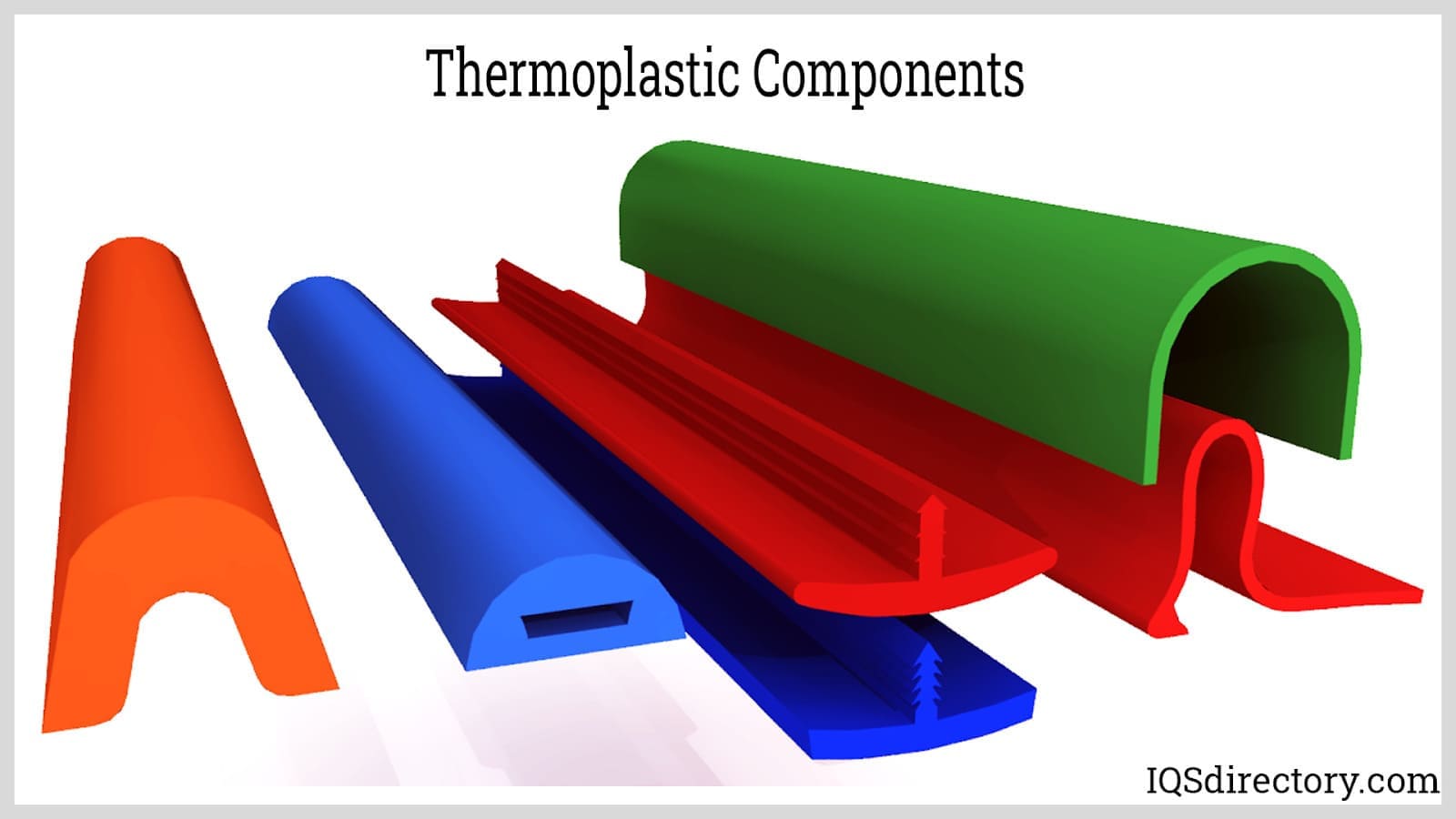

Thermoplastics are the most common type of plastic used in overmolding applications. They are known for their high strength, flexibility, and durability, and are available in a wide range of grades and formulations. Some common thermoplastics used in overmolding include ABS, PC, and nylon.
Benefits: Thermoplastics are straightforward to process and can be shaped into intricate forms with high precision. They are also recyclable and reusable, making them an environmentally friendly option.
Negatives: Thermoplastics may experience warping or shrinkage during cooling and might not be suitable for applications involving high temperatures.

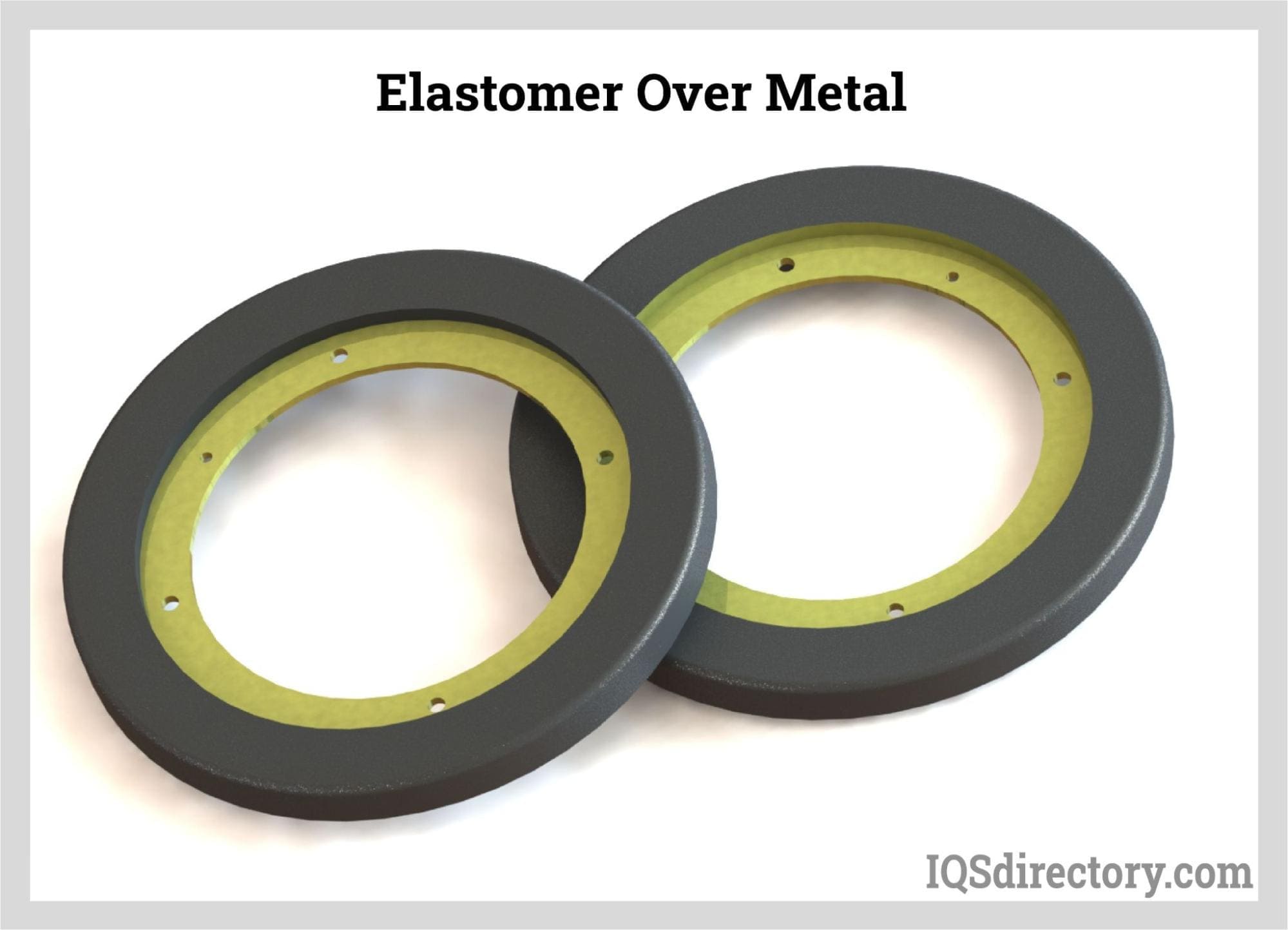

Elastomers are polymers with elastic properties, making them well-suited for overmolding applications that require flexibility and durability. Common elastomers used in overmolding include silicone and TPE.
Benefits: Elastomers offer excellent resistance to chemicals and extreme temperatures and can be molded into intricate shapes with high precision. Additionally, they provide a soft, tactile feel that is ideal for consumer products.
Negatives: Processing elastomers can be challenging and may require specialized equipment or techniques. They are also generally more expensive than other types of plastics.
Engineered resins are a category of plastics engineered to exhibit specific characteristics such as high strength, stiffness, or resistance to heat. Common examples used in overmolding are PEEK and Ultem.
Benefits: Engineered resins are exceptionally durable and offer strong resistance to heat and chemicals. They also allow for precise molding into complex shapes.
Negatives: These resins tend to be more costly compared to other plastics and may require specialized equipment or processing techniques.
Medical-grade plastics are designed to meet the stringent standards of the medical field. They must be biocompatible, non-toxic, and resistant to bacteria and other pathogens to ensure safety and effectiveness in medical applications.
Advantages: These plastics are well-suited for overmolding where safety and hygiene are paramount. They offer excellent resistance to chemicals and extreme temperatures, making them reliable for demanding medical applications.
Drawbacks: Medical-grade plastics can be more costly than other types, and may necessitate specialized processing equipment or techniques, which can add to the overall production costs.
Selecting the right plastic for overmolding depends on various factors including the part's strength, flexibility, and resistance to heat and chemicals. Cost and manufacturing considerations are also crucial. Consulting with a materials specialist or overmolding expert is recommended to determine the most suitable plastic for your specific application.
Ensuring that plastic overmolding parts adhere to precise specifications is essential for quality control. Below is an overview of quality control methods commonly employed in the plastic overmolding process:
Process monitoring utilizes sensors and various instruments to observe key aspects of the molding process, including temperature, pressure, and flow rate. By keeping a close watch on these factors in real-time, manufacturers can detect issues early and make necessary adjustments to maintain the process within desired tolerances.
Statistical Process Control (SPC) is a quality control technique that involves gathering and analyzing data from the production process. This analysis helps manufacturers spot trends and patterns, enabling them to make process improvements. SPC is particularly useful for identifying sources of variation in the molding process, such as fluctuations in material properties or equipment degradation.
Inspection methods are employed to ensure the quality of final products. Common techniques for plastic overmolding include visual checks, dimensional verification, and surface finish assessment. Visual checks involve detecting defects like surface irregularities or parting lines. Dimensional verification uses tools such as calipers or coordinate measuring machines to confirm that parts adhere to specified dimensions. Surface finish assessment uses specialized instruments to measure the texture or roughness of a part's surface.
Non-destructive testing (NDT) is an inspection method that enables manufacturers to detect defects or issues without harming the part. Common NDT techniques in plastic overmolding include X-ray inspection, ultrasonic testing, and dye penetrant inspection. X-ray inspection uses X-rays to reveal internal defects such as voids or inclusions. Ultrasonic testing utilizes sound waves to detect flaws like cracks or delamination. Dye penetrant inspection involves applying a dye to the part’s surface to uncover surface defects.
Additional quality control methods in plastic overmolding may include root cause analysis, aimed at identifying the fundamental cause of a quality issue, and continuous improvement programs, which focus on the ongoing enhancement of the process and product quality. The choice of quality control processes will be influenced by the specific application requirements and the manufacturer’s preferences.
While plastic overmolding has some limitations, it provides numerous advantages such as enhanced functionality, greater durability, expanded design versatility, and improved visual appeal. Below, we delve into each of these benefits.
Plastic overmolding facilitates the combination of various materials with distinct characteristics into one product. This process allows for the development of functional parts with enhanced grip, better shock absorption, improved insulation, or decreased vibration.
Plastic overmolding enables the production of multi-component parts, enhancing a product's functionality. For instance, a plastic over-molded handle can feature a soft, ergonomic grip area, providing greater comfort and a better user experience.
Overmolding enhances product durability by adding a protective layer to components. For instance, a plastic over-molded electrical connector can shield against harsh environmental factors like dust, moisture, and vibrations.
Overmolding enables the creation of intricate shapes, offering significant design flexibility. For instance, a plastic over-molded medical device can be designed with complex contours that fit the human body, enhancing both comfort and precision.
Overmolding enhances the ergonomics of a product by incorporating a soft-touch layer and a visually appealing finish. This technique allows for the addition of ergonomic grips to handles, increasing user comfort and minimizing fatigue. It is especially advantageous for tools, appliances, and handheld devices. For example, a toothbrush handle with plastic overmolding can feature a soft, comfortable grip and an aesthetically pleasing appearance.
Plastic overmolding provides designers with the ability to craft aesthetically pleasing products by combining various materials. This technique allows for the integration of contrasting colors, textures, and soft-touch surfaces, which enhances the visual appeal and overall design of the final product.
Plastic overmolding streamlines production by consolidating multiple components into a single unit, eliminating the need for additional assembly steps. This reduction in labor costs and simplification of assembly processes contribute to overall production efficiency.
Plastic overmolding leverages the advantageous characteristics of plastic, such as:
Furthermore, plastic overmolding incorporates various beneficial properties of plastic, including:
Overmolding can enhance a product's strength by reinforcing vulnerable areas with more robust materials. For instance, a plastic overmolded automotive component might include a metal core to provide additional strength and durability.
Overmolding can increase the stiffness of a product by incorporating a rigid layer into its design. For example, a plastic overmolded smartphone case might feature a sturdy outer shell to enhance protection against impacts.
Overmolding can enhance the flexibility of a product by incorporating a soft layer into its design. For instance, a plastic overmolded medical device might feature a pliable tip to increase patient comfort.
Overmolding can enhance the chemical resistance of a product by applying a protective layer of material that withstands chemical exposure. For instance, a plastic overmolded laboratory tool might feature a layer designed to resist harsh chemicals used during experiments.
Overmolding can enhance a product's thermal properties by incorporating a material layer that offers resistance to temperature extremes. For example, a plastic overmolded handle for cookware might include a heat-resistant layer, improving safety during use.
In summary, plastic overmolding offers numerous advantages that can boost a product's performance, longevity, and visual appeal.
Plastic overmolding finds applications across various industries, with numerous examples detailed below.
Plastic overmolding is extensively utilized in the production of electronic devices such as smartphones, laptops, remote controls, and game controllers. This technique enhances the aesthetics, ergonomics, and durability of these products, resulting in sleek, lightweight, and stylish designs.
In the automotive sector, plastic overmolding is commonly employed to produce components like dashboard switches, door handles, interior trims, and exterior parts. This technique benefits the industry by enabling the creation of lightweight, durable parts with a visually appealing finish. By integrating various materials, plastic overmolding enhances both the functionality and aesthetics of automotive interiors.

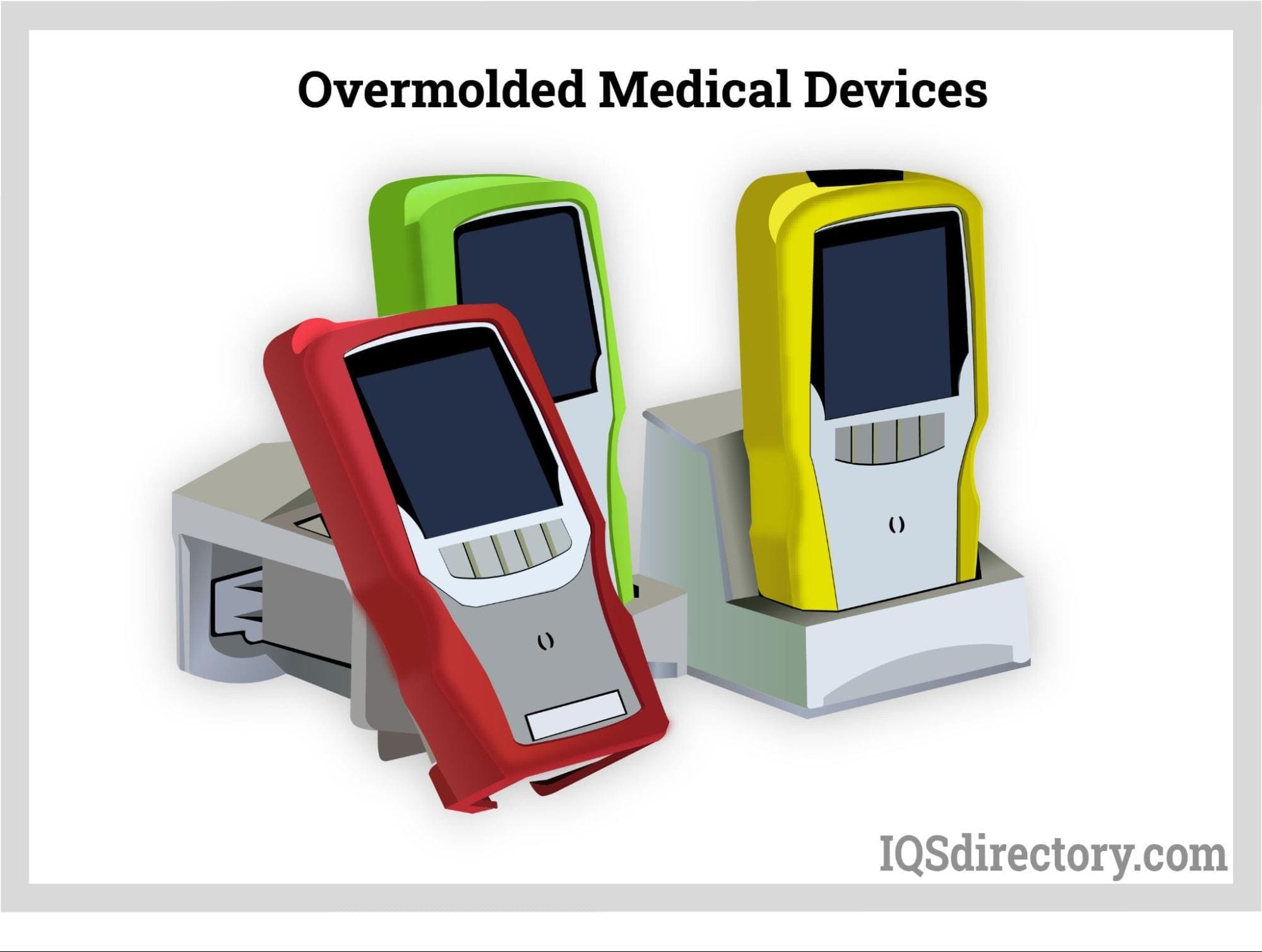

In the medical industry, plastic overmolding is widely used to produce components like surgical instruments, diagnostic equipment, and drug delivery systems. This technique provides advantages such as biocompatibility, sterilizability, and cost-effectiveness. Plastic overmolding enhances medical products with improved grip, soft-touch surfaces, and ergonomic features, thereby increasing the usability and comfort of medical instruments.
Plastic overmolding is widely used in the manufacturing of household appliances such as blenders, vacuum cleaners, and washing machines. The household appliance industry benefits from plastic overmolding as it allows for the creation of parts that are lightweight, durable, and have an attractive appearance.
In the aerospace industry, plastic overmolding is employed to create components like cockpit controls, air conditioning vents, and electrical connectors. This technique offers benefits such as lightweight construction, enhanced strength, and superior chemical resistance, making it ideal for the demanding requirements of aerospace applications.
In the packaging sector, plastic overmolding is utilized to produce components like bottle caps, closures, and dispensers. This technique provides advantages such as lightweight construction, enhanced durability, and an appealing visual finish, making it ideal for packaging applications.
In the industrial equipment sector, plastic overmolding is employed to manufacture components like pumps, valves, and sensors. This process is advantageous for creating parts that are not only lightweight and robust but also exhibit superior chemical resistance.
In the consumer products sector, plastic overmolding is commonly utilized for creating items like toothbrushes, razors, and pens. This technique enhances both the ergonomic and aesthetic aspects of these products, providing improved comfort and visual appeal.
When producing plastic overmolded parts, it's crucial to comply with various rules and regulations, including safety standards, FDA regulations, RoHS compliance, and ISO certifications. Below is an overview of these important guidelines:
Safety standards are regulations established to guarantee that products are safe for consumer use. In the U.S., these standards are created and enforced by organizations like the Consumer Product Safety Commission (CPSC) and Underwriters Laboratories (UL). They set guidelines for various products, including those manufactured with plastic overmolding. Adhering to these safety standards is often required, and non-compliance can lead to legal consequences and product recalls.
The U.S. Food and Drug Administration (FDA) oversees products that interact with food, drugs, and medical devices, including those made through plastic overmolding. Manufacturers of overmolded items in contact with these substances must adhere to FDA regulations, which may involve testing and certification. Non-compliance with these regulations can lead to legal penalties and recalls.
The Restriction of Hazardous Substances (RoHS) Directive is an EU regulation that limits the use of specific hazardous materials in electrical and electronic equipment, including overmolded products. Manufacturers selling overmolded items in the EU must adhere to RoHS regulations, which often involve testing and certification. Non-compliance with RoHS can lead to legal penalties and restrictions on sales.
ISO certifications are a set of international standards that ensure products and processes adhere to specific quality criteria. For manufacturers involved in plastic overmolding, these certifications can offer a framework for quality control and ongoing enhancement. Relevant ISO certifications for overmolding include ISO 9001 (Quality Management Systems) and ISO 13485 (Medical Devices).
Additionally, different industries or applications may have unique regulations. For instance, the automotive sector may impose specific rules regarding plastic usage or safety and durability testing. Manufacturers should be aware of applicable regulations and collaborate with regulatory experts to maintain compliance.
Plastic overmolding comes with certain limitations and drawbacks, such as the requirement for specialized tooling, extended lead times, and higher upfront costs. Furthermore, the overmolding process may not be ideal for all part geometries or materials. Each of these factors is explored in more detail below.
Specialized tooling is necessary for plastic overmolding to produce the final part. This tooling may consist of custom molds, inserts, and other components tailored specifically for the part. The cost of this specialized equipment can be high, especially for small-scale or low-volume production runs.
The need for specialized tooling in plastic overmolding often leads to longer production lead times compared to other manufacturing methods. The design and creation of the necessary tooling can span several weeks to months, depending on the complexity of both the part and the tooling required.
The specialized tooling necessary for plastic overmolding often results in higher upfront production costs. This can be a significant challenge for smaller businesses or those operating with limited budgets. Since the process requires the creation of two distinct molds—one for the base material and another for the overmolding—preproduction expenses are effectively doubled.
Additionally, the overmolding process can be more costly due to the increased labor involved. After each cycle, the press door must be manually opened, the substrate inserted, and a new cycle initiated. This additional handling extends cycle times and raises costs associated with materials, labor, and time spent on each part.
Plastic overmolding might not be the best choice for parts with intricate geometries or those requiring precise placement of the overmolded material. For these complex designs, alternative manufacturing methods like machining or assembly could be more effective.
Certain materials might not be ideal for plastic overmolding, especially if they have varying coefficients of thermal expansion or lack compatibility with the overmolding material. This incompatibility can lead to issues such as warping or delamination.
Plastic overmolding might not be the best choice for low-volume or high-mix production scenarios. The specialized tooling and setup can make it less cost-effective for smaller runs compared to other manufacturing methods.
While plastic overmolding is highly effective for applications needing multiple materials or complex geometries, it's important to weigh its limitations and drawbacks to determine if it's the right option for the specific application.
The future of plastic overmolding is promising with advancements in materials, designs, and processes aimed at enhancing efficiency, sustainability, and cost-effectiveness. A key trend is the shift toward sustainable plastic overmolding, driven by environmental concerns over plastic waste. This includes the use of biodegradable and recycled plastics to minimize environmental impact.
Automation and digitalization are also making significant strides in the industry. The integration of technologies like robotics and machine learning is optimizing overmolding processes by reducing costs, enhancing quality control, and boosting production efficiency. Advanced simulation tools, such as mold flow analysis, enable engineers to model and analyze the overmolding process, predicting potential issues and improving process efficiency before production starts.
Additionally, additive manufacturing, including 3D printing, is expected to influence the future of plastic overmolding. Although current 3D printing technologies are mainly used for prototyping and low-volume runs, they hold potential for quicker and more cost-effective production in the future.
Plastic overmolding is a versatile manufacturing process that offers several benefits, including improved functionality, enhanced durability, and increased design flexibility. While there are limitations and negatives associated with the process, advancements in material science and manufacturing technology are expected to further expand the capabilities of plastic overmolding. With its wide range of industrial applications, plastic overmolding is a critical process in modern manufacturing. Meanwhile, the future of plastic overmolding is likely to continue to evolve as new technologies and materials are developed, and the demand for sustainable, efficient, and cost-effective production processes continues to grow.
