This article will give detailed information on air pressure switches.
The article will cover the following:
An air pressure switch is a mechanical device that controls the operation of an electric air compressor by regulating air pressure. It manages the electrical supply to the motor through its pressure-sensitive mechanism. Additionally, a pressure switch relief valve is an integral component of the pressure switch found in air compressors.
By venting both head and line pressure, the relief valve simplifies and eases the start-up process for the machine. While various air pressure switches offer different functionalities, they generally operate on similar principles across devices.
Once the air compressor is connected, the operator can set the switch to the auto position. This action activates the motor and begins pressurizing the compressor simultaneously, thereby establishing the device's pressure system.
A diaphragm within the switch interrupts the motor by breaking the circuit when the preset pressure level is reached. At the same time, the pressure relief valve vents excess pressure. As the air is expelled, the pressure drops to a predetermined level. When the pressure returns to the required range, the motor restarts. This cycle continues until the air compressor is in operation.
Air pressure switches are widely used across various industries for different applications. They monitor fluctuations in system pressure and provide electrical feedback based on these changes.
Pneumatic pressure switches are designed for monitoring changes in air pressure within pneumatic systems. They are suitable for both pressure and vacuum applications and come in various types, including adjustable and non-adjustable models. These switches are commonly used to automatically monitor pressure in compressed air systems and are also applicable in hydraulics and manufacturing processes. When a specific pressure threshold or setpoint is reached, the pneumatic pressure switch triggers an output. This switch operates by applying process pressure to a piston or diaphragm, which generates a force similar to that of a pre-compressed spring. Pneumatic pressure switches can also detect fluid pressure. Often, a diaphragm is used as the sensing element in these switches. The movement of the diaphragm is utilized to activate one or more switch connections, which can then initiate a control action or trigger an alarm.
Pneumatic pressure switches function as pressure control valves that can direct airflow in various ways. Generally, there are two main operating conditions to consider. First, when the switch is set to the first position, airflow to the secondary slot is initially blocked. Switching to the opposite position reverses this action. For manually operated pneumatic pressure switches, users simply alternate between these settings based on the current situation and demand. Second, electrically powered pneumatic pressure switches can automatically switch between an open or broken circuit and a closed circuit. This feature allows for the regulation of airflow between two different locations.
A pneumatic pressure switch automatically activates a water pump when water is drawn from the pressure tank. Similarly, it can turn off an electrically powered gas compressor once the reservoir reaches a preset pressure level. An air pressure switch, which regulates consistent pressure, can deactivate the compressor when the tank achieves the desired air pressure. Conversely, the switch can also start the compressor if the air pressure drops and additional air is required.
Air pressure switches and pneumatic pressure switches are commonly used in various industrial control systems. Some of their applications include:
It is now clear how crucial the pressure switch is. If the pressure switch fails to operate correctly, the compressor may not achieve the expected performance levels.

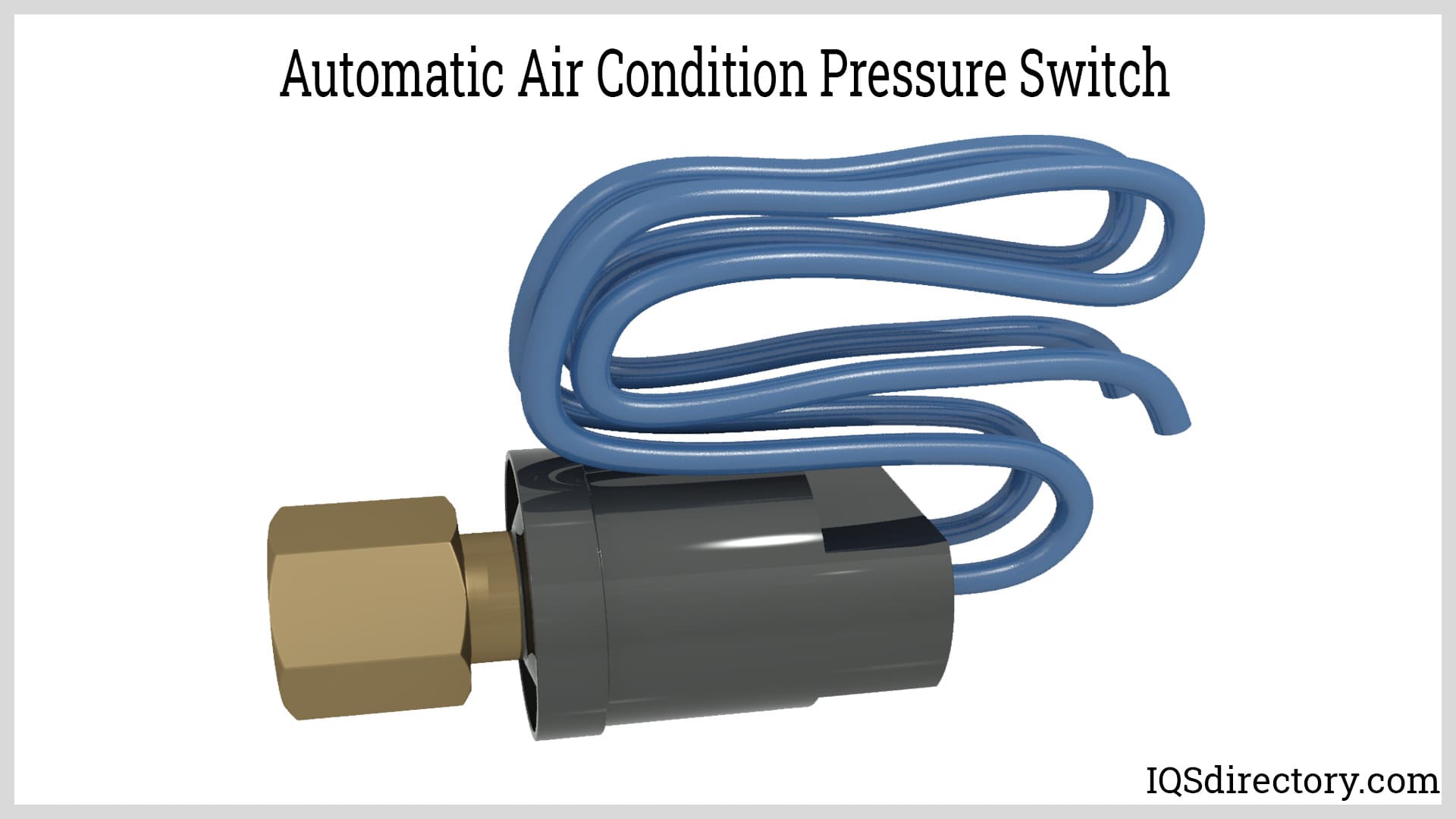

HVAC systems, used in both residential and commercial buildings, provide essential heating and cooling functions. To ensure safety, these systems incorporate pressure switches. Air pressure switches in HVAC equipment monitor the maximum and minimum pressure levels, a feature commonly found in air conditioning systems.
This functionality allows the system to automatically start or stop based on the setpoint levels, ensuring smooth operation. However, if the air pressure switch malfunctions, it can negatively impact the performance of the heating and cooling system.
Air pressure switches are widely utilized in the manufacturing industry. They play a crucial role in ensuring the smooth operation of manufacturing and industrial processes. By maintaining consistent gas and liquid flow, these switches enhance production efficiency and support continuous system operation across various sectors.
The main function of an air pressure switch is to regulate the fluid level in pumps. It activates and deactivates water pumps based on predefined pressure points.
In summary, a pressure switch operates by detecting a specific pressure level to open or close an electrical contact. This type of industrial sensor is commonly used as an ON/OFF switch to control electrical components, actively monitoring air pressure or fluid levels within a system.
The adjustment features for the air compressor pressure switch are typically located inside the cover. If you don't have the specific instructions, you can follow the general guidelines below.
The main adjustment involves turning the primary spring either clockwise or counterclockwise to modify the cut-in or cut-out settings. This adjustment allows you to increase or decrease the differential pressure of the air compressor.
To test an air pressure switch, follow these procedures:
Begin by disconnecting the power. This involves turning off the breaker to ensure no electricity is flowing.
Remove the switch cover using a screwdriver, typically by unscrewing the central screw.
Detach the blue or brown wires from the terminal block. It’s important to leave the black and white power wires intact.
Apply pressure to the switch using a pressure source.
Connect the ohmmeter leads to the exposed wires. When pressure is applied, the switch should close. The ohmmeter should read zero if the switch is functioning correctly, indicating that the air pressure is adequate.
Adjust the pressure switch using the setpoint screw as needed.
A pressure switch is constructed from various components, including a diaphragm, adjustment spring, on/off lever, electrical contacts, and terminals.

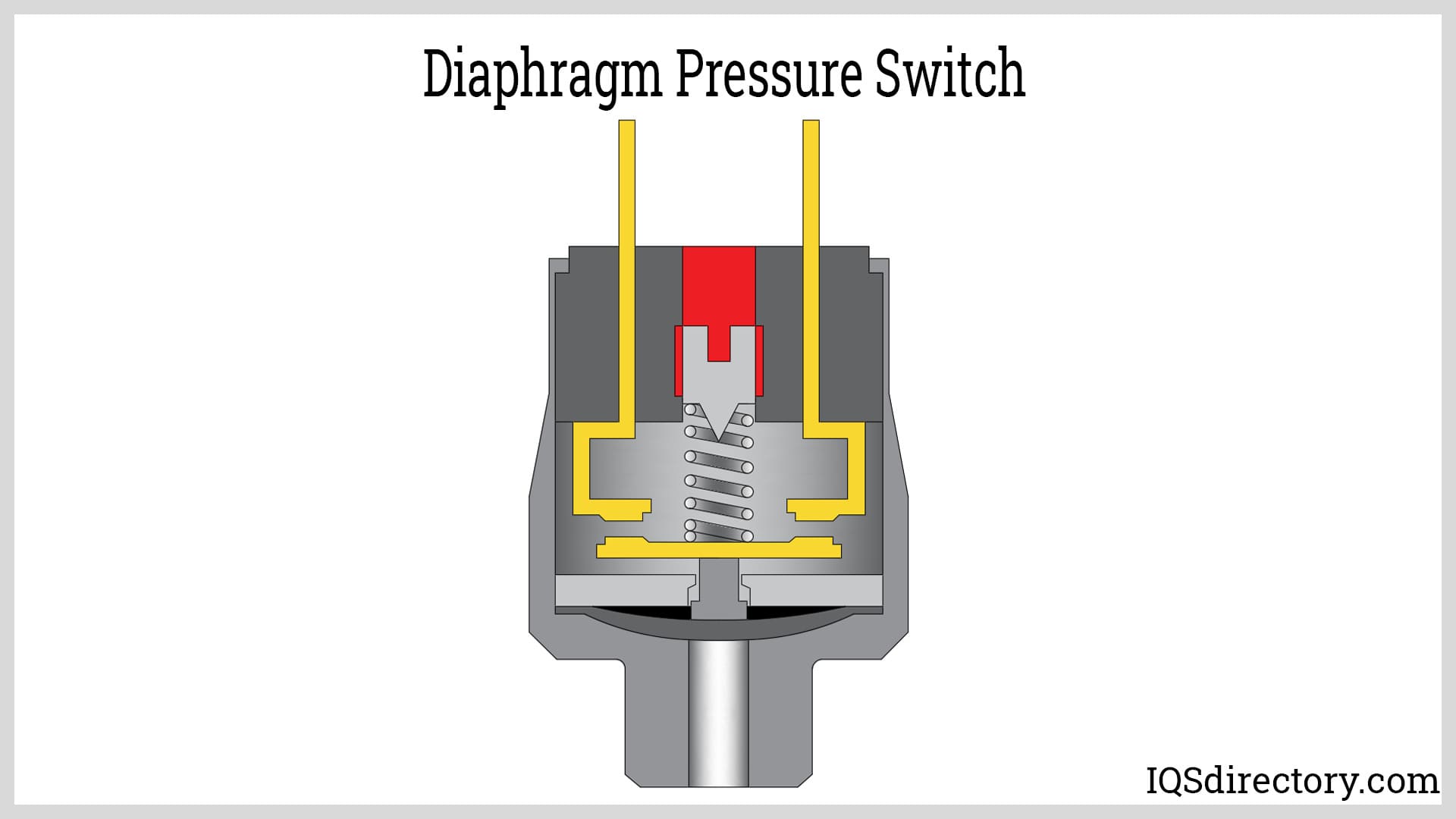

An air pressure switch uses a diaphragm as the sensing element to measure pressure. This diaphragm is typically made from a pressure-sensitive polymer or plastic.
The adjustment spring allows for modification of the cut-out points. Additionally, certain switches have their set and cut-out points managed by separate springs.
The switch can be turned on or off manually with an AUTO/OFF lever. This lever is particularly useful for turning off the switch during installation or maintenance. Sometimes, a knob serves as a substitute for the lever, but it functions in a similar manner.
Electrical contacts enable current to pass through when they connect with an external power source. These contacts are linked to the power source via the switch's terminals. For instance, a pressure switch activates an electrical circuit when a predetermined liquid pressure is achieved. The switch will establish an electrical connection when the pressure deviates from this set level, depending on whether it increases or decreases.
Here are the specifications for the pressure switch:
Different types of sensing elements include:
There are two main types of pressure switches available: mechanical and electronic.
Electronic pressure switches have a pressure transducer similar to a strain gauge. These switches' analog capabilities enable them to deliver a continuous and varied signal for more precise monitoring rather than being limited to an open or closed position. These are, therefore, transmitters or measuring devices in addition to switches. These electronic switches also have features like switching functionality, on-site time delay, hysteresis, setpoint, etc. A few benefits are greater accuracy, less contact wear, superior long-term stability, ease of use, and the capacity for millions of switching cycles.
These compact and robust switches are favored for straightforward applications. Mechanical pressure switches are activated by a spring and piston mechanism. The spring's resistance to the inlet pressure can be adjusted using a set screw or knob. The activation pressure of the switch is directly influenced by the spring's tension. When the pressure decreases, the switch resets to its original position. Mechanical pressure switches are generally better suited for handling high voltages and currents compared to their electronic counterparts. They can be used to either increase or decrease pressure through a change in contact.
Due to their lower cost and simplicity, mechanical pressure switches are used more often than electronic ones. These switches can be equipped with a mechanical pressure-sensing component that deforms in response to fluid pressure. They are categorized as either electronic or electromechanical based on the pressure detection method used. Below, we explore the various types of mechanical pressure switches.
This switch is highly favored and widely used across various applications. It operates by moving the piston axially in response to changes in liquid pressure, which activates the switch. The switch can detect liquid pressure either directly or indirectly. For direct detection, O-ring seals are typically employed to prevent liquid from contacting the internal components. Conversely, indirect detection uses a flexible diaphragm to separate the piston from the liquid.
These high-quality switches are designed specifically for safety-critical applications. A key benefit is that they do not need a voltage supply for operation. Instead, a metal membrane connects the diaphragm, which activates the switch, directly to the wet section of the switch. These switches are used to monitor pressure and control processes across various industries such as chemical, petrochemical, gas, and oil.
One end of the switch is linked to an elastomeric or flexible metal tube, while the other end remains open. As the liquid pressure inside the tube rises, it stabilizes, which is primarily used to activate the switch. Consequently, these switches are suitable for use in various industries, such as chemical processing, conventional power plants, and petrochemical facilities, where a moderate to high operating force is necessary.

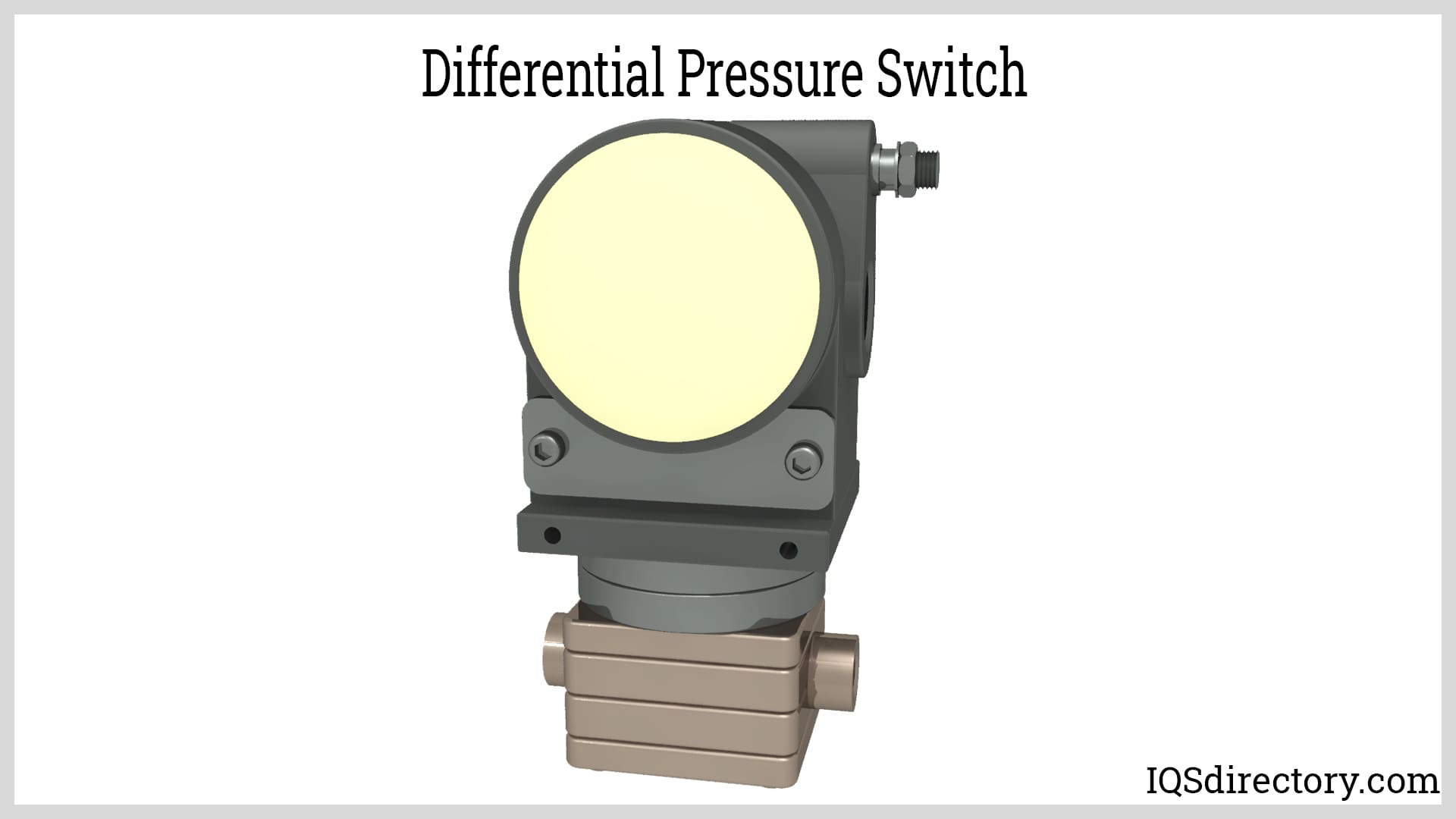

This switch is particularly useful for measuring the force difference between two points within a system. It connects to the system's upper and lower points via two process ports. The switch activates when the pressure difference between these two sides surpasses a preset threshold. These switches are commonly employed to monitor pressure drops in tanks, filters, and screens.
Here are the key differences between a flow switch and a pressure switch:
Unlike a pressure switch, which controls an electrical circuit based on pressure levels, a flow switch monitors the rate of water flow and the pressure of air and liquids within a system, duct, or loop.
While a pressure switch is also known as a pressure sensor, a flow switch is also known as a flow indicator or flow sensor.
Flow switches are activated by detecting water flow. Generally, when one to two gallons of water flow through and the pressure is below 500 PSI, the pressure switch will turn ON. Pressure switches become operational once the pressure ranges between 500 and 700 PSI. At this pressure level, the switch can activate the hot water burner.
Flow switches can be used in engine-driven hot water pressure washer machines. Conversely, pressure switches are more suitable for applications that require lower hot water pressure.
Below is a diagram illustrating a pressure switch circuit featuring a force-sensing resistor. Generally, creating lighting circuits or switches triggered by sensors is straightforward. In this guide, we will describe the design process for an AC pressure switch. Such circuits find use in various applications, such as pressure monitoring, security alarms, and automatic lighting systems.
To design this pressure switch circuit, you'll need a sensor, such as a force-sensing resistor (FSR). An FSR is a type of resistor that changes its resistance in response to applied force. When force is applied, the FSR's resistance drops to around 100 kiloohms, and with a stronger force, it can decrease further to 100 ohms.
The circuit operates when the FSR detects force on its plate. The resistor R1 and the FSR are connected in series to form a voltage divider.
The output voltage from this voltage divider is fed into the non-inverting terminal of a comparator. A second voltage divider, consisting of R3 and a variable resistor (RV1), provides the voltage for the inverting terminal of the comparator. The variable resistor allows adjustment of the pressure or triggering voltage within the circuit.
When no force is applied, the output voltage from the FSR and R1 combination is lower than that from the RV1 and R3 divider. As force is applied and the FSR's resistance decreases, the voltage from the FSR and R1 divider increases. This causes the voltage at the comparator's non-inverting terminal to exceed that at the inverting terminal. Consequently, the comparator's output becomes high, activating the connected transistor as a switch.
Subsequently, a 12V relay, rated for 12A, is used to power any AC appliance. The relay is triggered by a 2N2222 transistor, which is activated when the LM193IC output is low. To safeguard the circuit from reverse current when the relay turns off, a diode labeled "D1" is included as a protective measure.
Like many other instruments, pressure switches require calibration to ensure accuracy and reliability. However, calibrating a switch can be more complex compared to calibrating a transmitter. Incorrect calibration can lead to significant inaccuracies. In this section, we'll cover the correct procedure for calibrating pressure switches. Follow these steps for proper calibration:
First, connect the switch to a pressure source. For example, you can use a hand pressure regulator and test gauge to connect an air supply as your pressure source.
Next, use a digital multimeter or an ohmmeter to check the switch contacts to determine if they are normally closed (NC) or normally open (NO).
In the third step, connect the ohmmeter across the two switch terminals, such as NO and NC. The ohmmeter should initially show an "open circuit." Adjust the hand pressure regulator to increase the pressure towards the switch’s setpoint until the switch activates.
At this point, the ohmmeter should indicate a "short circuit." Do not reduce the pressure reading, as this pressure represents the switch's setpoint for activation under increasing pressure.
For the fourth step, increase the air pressure towards the switch's maximum setting. Once the switch is activated, carefully reduce the pressure until it returns to its normal open state. Note this pressure reading as it represents the switch's setpoint for decreasing pressure.
Finally, measure the pressure differential between the rising and falling pressure settings. This differential, known as the switch's dead band, should be equal to or less than the manufacturer's specified dead band. The manufacturer's documentation will usually indicate the maximum allowable dead band. If the measured dead band exceeds the manufacturer's limit, the switch may be defective and require replacement.
Begin by examining the lever or knob on the pressure switch. The design and placement can vary depending on the switch's type and manufacturer.
Some switches feature a lever positioned on either the right or left side, while others may have a red knob located on the top. Regardless of their position or appearance, both types of controls serve the same function: they separate the contacts.
Power cords for incoming and outgoing connections should be attached to the designated terminals. The specific terminal locations may vary depending on the type of pressure switch being used.
Contacts are components crafted from a conductive material, typically composed of 90% silver and 10% nickel.
The primary function of these contacts is to complete the electrical circuit, allowing power to flow to the motor. When the contacts are closed, the circuit is complete, enabling the motor to operate. Conversely, when the contacts are open, the circuit remains incomplete, causing the motor to stop.
The next component is the diaphragm, made from a flexible material. Its role is to control the contacts.
As air pressure increases, the diaphragm's flexible structure presses against the barrier. Once the pressure reaches the designated "cut-out pressure," the diaphragm moves the contacts apart, effectively turning off the motor.
This type of valve is designed to release excess pressure from both the head and the line, acting as a safety measure. Essentially, it functions as a fail-safe mechanism. If the pressure switch fails to stop the motor from receiving power, the pressure in the tank could reach hazardous levels, potentially causing an explosion. To prevent this, the Pressure Relief Valve (PRV) is equipped with an orifice that opens when pressure exceeds a certain threshold. This mechanism is tailored to the specific design and operation of the air compressor. The PRV allows excess pressure to escape, which helps reduce the tank's pressure to safer levels before the compressor resumes normal operation.
The main role of the adjustment spring is to set the cut-in and cut-out pressure levels. Some types of pressure switches, however, include an additional spring known as the "secondary spring," which is smaller than the primary spring. The secondary spring is specifically designed to adjust only the cut-out pressure, leaving the cut-in pressure settings unaffected.
Depending on the system's needs, you might choose between different types of sensors that detect pressure in various ways.
Absolute pressure sensors measure pressure relative to a perfect vacuum. These are less commonly used, except in specialized experimental setups.
Gauge pressure sensors measure pressure relative to atmospheric pressure. For example, in tire pressure measurements, a zero reading indicates that the internal pressure equals the atmospheric pressure.
The difference in pressure between two places is measured using a differential air pressure sensor(such as before and after a filter in an air conditioning system).
In the most basic air pressure gauges, pressurized air is mechanically linked to a pointer. Mechanisms such as Bourdon tubes and pistons are commonly employed for this purpose. As the pressure increases, the pointer moves further, reflecting the level of pressure applied.
However, air pressure sensors, which translate the effect of pressure into a proportionate electrical output, should be considered for higher accuracy and control. The term "pressure transducer" is frequently used to describe this pressure sensor.
To measure pressure accurately, various technologies and principles are used, each offering its own set of benefits and limitations. Below are brief overviews of the three most commonly employed methods in air pressure sensing.

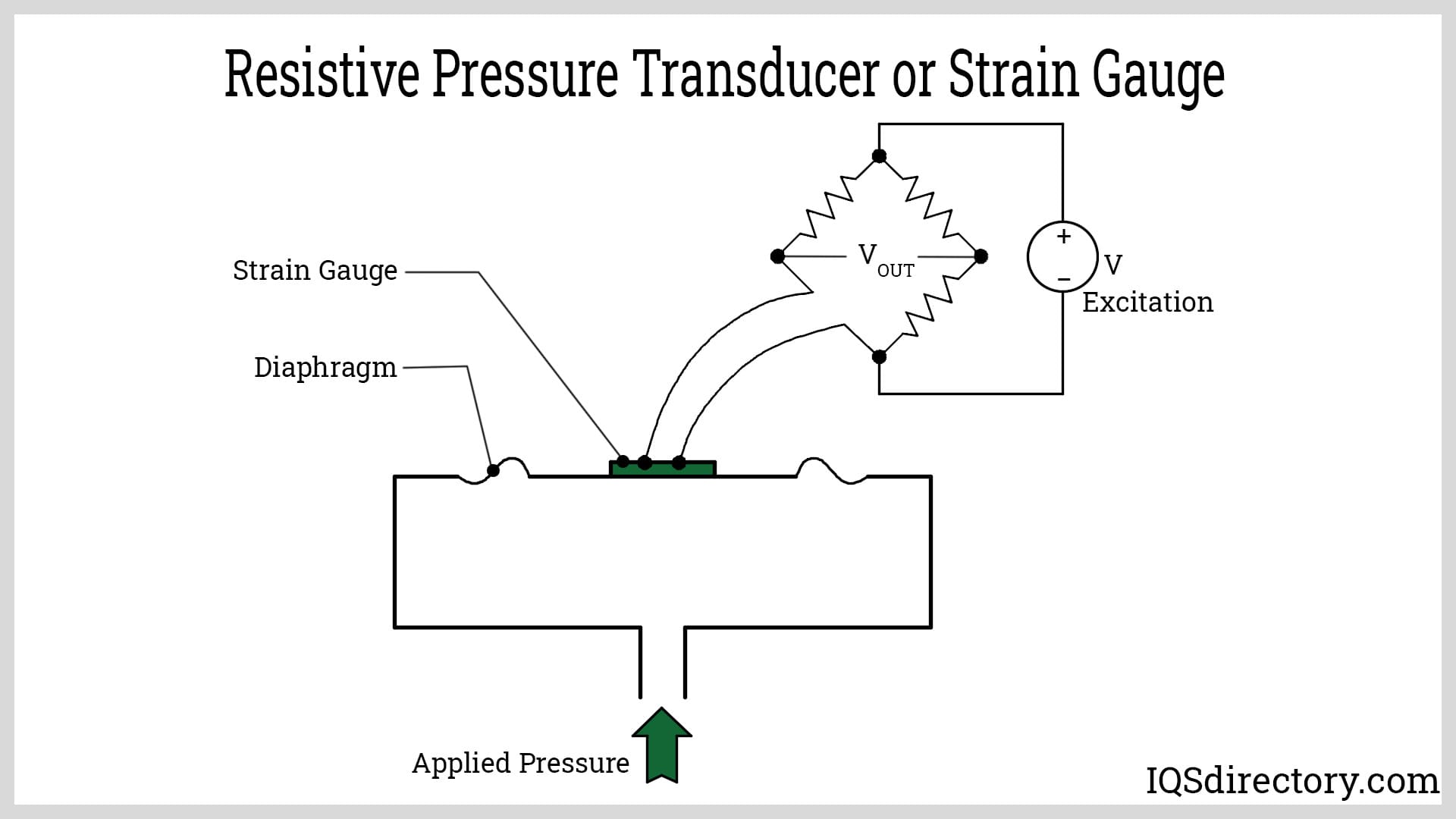

As pressure increases, a diaphragm that is exposed to the measured air deforms. This deformation is also observed in strain gauges attached to the diaphragm's non-exposed side. The change in resistance of the strain gauge material, due to piezoresistive effects, is converted into an electrical signal.

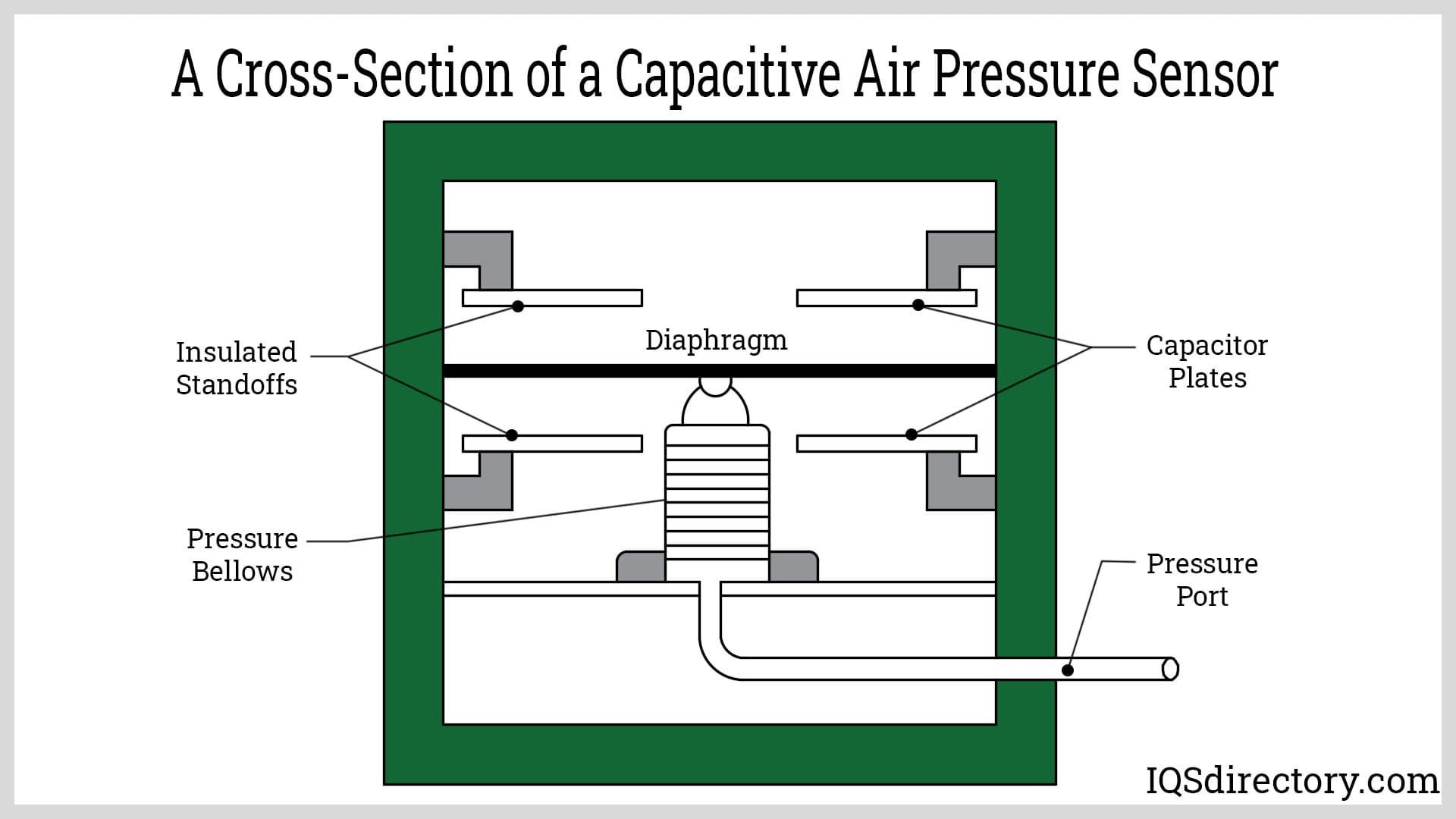

This technique employs two capacitive plates that are very close to each other. One plate is stationary, while the other is a flexible diaphragm that moves in response to air pressure. As the air pressure increases, the diaphragm deforms, which reduces the capacitance and causes the plates to move closer together. The resulting change in capacitance is then converted into an electrical signal.

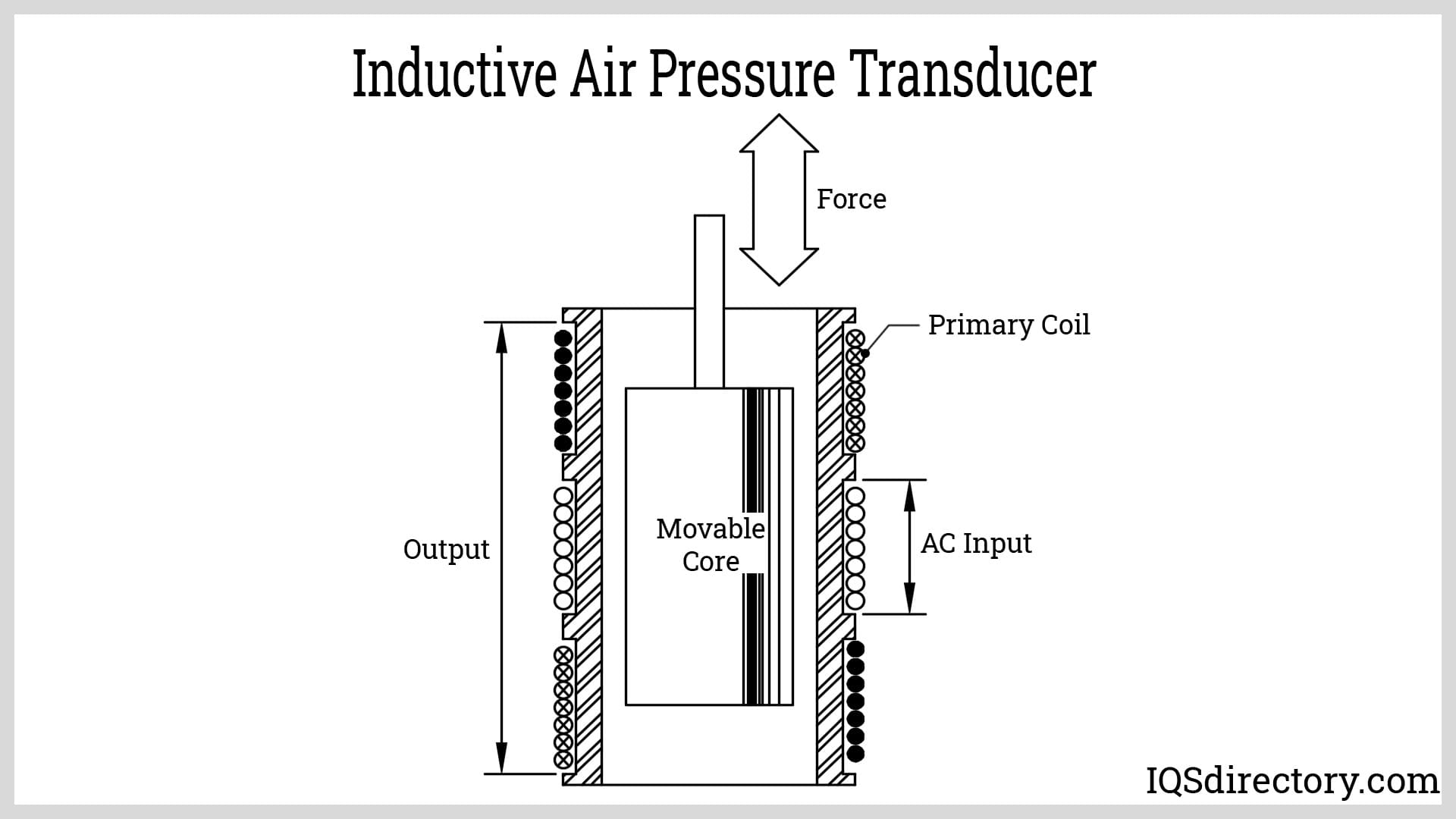

This method utilizes the principle of inductance to convert diaphragm deformation into linear movement of a ferromagnetic core. As the core moves, the inductance changes in an AC-powered coil and its corresponding secondary pick-up coil. The variations in the induced current due to the core's movement are then transformed into an electrical signal.
Different applications may have varying requirements, so it's important to assess how well each air pressure switch on your shortlist meets these needs to make the best decision. Here are some key factors to consider:
Pressure Range: Ensure that the pressure range of the switch at least covers the maximum pressure that the equipment can handle. Excessive pressure is a common cause of air pressure switch failure.
Temperature Sensitivity: Most air pressure switches are quite accurate at ambient temperatures but may become less precise at higher temperatures. For critical applications where accuracy is paramount, consider using digital electronics and high-precision sensors. Some sensors offer calibrated and temperature-compensated signals.
Environmental Conditions: Sensors can be affected by vibrations, shocks, and extreme temperatures in their operating environment. If remote installation isn’t feasible, choose a robust design. Ensure that the sensor’s housing can withstand exposure to high temperatures or humidity.
Compatibility: Verify whether the sensor's fittings are compatible with your current setup. Check if the signal conditioning equipment is suitable for the sensor's analog output.
Response Time: Some pressure transmitters allow for adjustments to response time, which can help avoid false triggers.
Cost: While it’s important to stay within budget, be aware that lower-cost sensors may lack features such as precision and durability.
Long-Term Costs: Consider not just the initial purchase price but also factors like maintenance needs, durability, and overall robustness when evaluating lifetime costs.
When it comes to air pressure switches, you can choose between capacitive and resistive types. The resistive or strain gauge switches are particularly popular due to their advantages, such as effective overpressure protection, problem-solving capabilities, and resilience to shocks, vibrations, and varying pressures.
However, it’s important to consider the different material options available for resistive air pressure transducers. These materials vary in their response to temperature, humidity, and sensor output stability.
Capacitive air pressure switches, while also handling overpressure effectively, excel in applications involving low pressures. They outperform strain gauges in areas such as hysteresis, linearity, stability, reproducibility, and static pressure measurement.
However, capacitive air pressure switches are more expensive to manufacture and tend to be larger. They are also susceptible to damage from particulates and humidity that may accumulate between their capacitive plates.
The air pressure switch's specifications mentioned above can help one comprehend how it functions and is utilized. Additionally, one would have learned much about adjustable air compressor pressure switches. The above information might produce greater results when one operates pressure switches in the field.
Technicians and pressure switch operators are needed in many manufacturing and industrial sectors. By mastering the techniques, one can seize the opportunity for a profitable profession. Additionally, one must know how pressure switches are used in the aforementioned suitable systems. This knowledge would give one a thorough understanding of the applications of pressure switches.
Differential pressure is the difference in pressure between two points that is measured using different types of pressure sensing devices. An essential part of differential pressure measurement are gauges and switches that are...
A pressure switch is a mechanical or electronic device activated by the pressure of the process fluid upon reaching a certain threshold or setpoint. A pressure switch can have a bourdon tube, piston, diaphragm, or membrane that moves or...
A pressure gauge is a method of measuring fluid, gas, water, or steam intensity in a pressure powered machine to ensure there are no leaks or pressure changes that would affect the performance of the system. Pressure systems are designed to operate within a specific pressure range...
A pressure transducer is a mechanical device that converts applied pressure, a physical quantity, into a measurable and industry-standard electrical signal which is linearly and proportionally related to the applied pressure...
