This article will take an in-depth look at screw machined parts and products.
The article will bring more detail on topics such as:
This chapter will explore screw machined parts and products, including their definitions and the various machining processes used to produce them.
Screw machined parts are intricate components, typically cylindrical and threaded, produced using specialized machinery. Screw machined products are created by automatic lathes designed for small to medium-sized components. Items such as screws, bolts, pins, fittings, bushings, rivets, fasteners, and studs are commonly manufactured with screw machines. These parts are essential in the production of countless products and are widely used in building and maintenance applications.
A screw machine refers to any specialized, non-manual metalworking lathe designed for high-speed production of parts. These machines often feature multiple spindles, with the six-spindle configuration being one of the most common. Each spindle processes the same material simultaneously, allowing for efficient, high-volume production. Screw machines can handle a variety of materials, including aluminum, plastic, wood, brass, and steel, to create a wide range of screw machine parts.
Screw machine products are crucial to various industries, including automotive, agricultural, medical, electronic, and leisure. Multi-spindle screw machines use multiple spindles to manufacture items with precise tolerances. This approach enables faster and more cost-effective production, helping manufacturers save resources and reduce costs for consumers.
Manufacturers achieve greater efficiency in screw machine shops, where employees have access to all the necessary equipment for precision screw machining. Based on customer requirements, they select the design, material, and machining options for each product. Screw machines can be either single or multi-spindle and are fed with bars of up to 12 feet in length, available in square, round, or hexagonal shapes. These machines often resemble the old Gatling guns from the Civil War in their appearance.
Automated tools, such as drilling, cutting, notching, or knurling tools, work by making contact with the spinning bar stock to shape it into desired pieces. These tools are integrated into the screw machine and are used to drill holes, remove excess material, and smooth the stock. Manufacturers often arrange these tools in stations positioned at various axes, including turret, horizontal slide, and vertical slide configurations. Different screw machines are capable of performing a range of processes, including but not limited to:
Knurling is a method used to create a patterned texture on a metal surface to enhance grip on the finished item. This process involves using specialized knurling tools to produce various patterns. Commonly knurled items include tool handles, metal flashlights, knurled nuts, and knurled knobs, all of which benefit from the increased tactile grip provided by the knurled texture.
Knurling also finds extensive use in various manufacturing and maintenance applications across diverse industries, including electronics, automotive, construction, aerospace, telecommunications, fitness equipment, and maritime sectors. It is typically performed on a lathe using the same automatic-feed mechanisms employed for producing screw-machined goods. This versatility allows businesses to cater to a broad range of markets with precision and efficiency.
Knurling tools are used in conjunction with a lathe to emboss patterns onto a material, creating a three-dimensional design. There are four main types of knurling patterns: diamond, straight, angular, and circular rings. Each of these designs can be used individually or combined with others to achieve specific effects. Annular rings, for example, are commonly used when working with plastic mating components to enhance grip and functionality.
While annular rings facilitate easy coupling of parts, they can also make it difficult to separate them due to the ridges. A straight knurling pattern, also known as a linear knurl pattern, consists of multiple straight, parallel ridges. Alternatively, a helical knurling pattern is created by forming these straight ridges into helical grooves, offering another design option.
Angular knurling is used to enhance traction on external handles or other connecting parts. This pattern features straight ridges angled in a single direction. Among knurling patterns, diamond knurling is the most popular for hand grips due to its ability to provide maximum traction. A diamond knurling pattern is characterized by ridges arranged in a cross-hatch design, optimizing grip and control.
Screw heads are manufactured using processes that apply pressure to a workpiece with a shaped die. Techniques such as thread rolling and shaping are cold forming methods that require the workpieces to have a certain level of ductility. This means that the metals used in thread rolling and shaping must be capable of being compressed at low temperatures.
Screw heads are produced through thread-forming processes. Manufacturers often prefer using lathes over screw machines for threading due to the time required. Thread rolling is a common method, utilizing hardened steel dies that roll against the workpiece to create threads. Unlike traditional cutting methods, thread rolling transfers material rather than removing it, allowing for more efficient production.

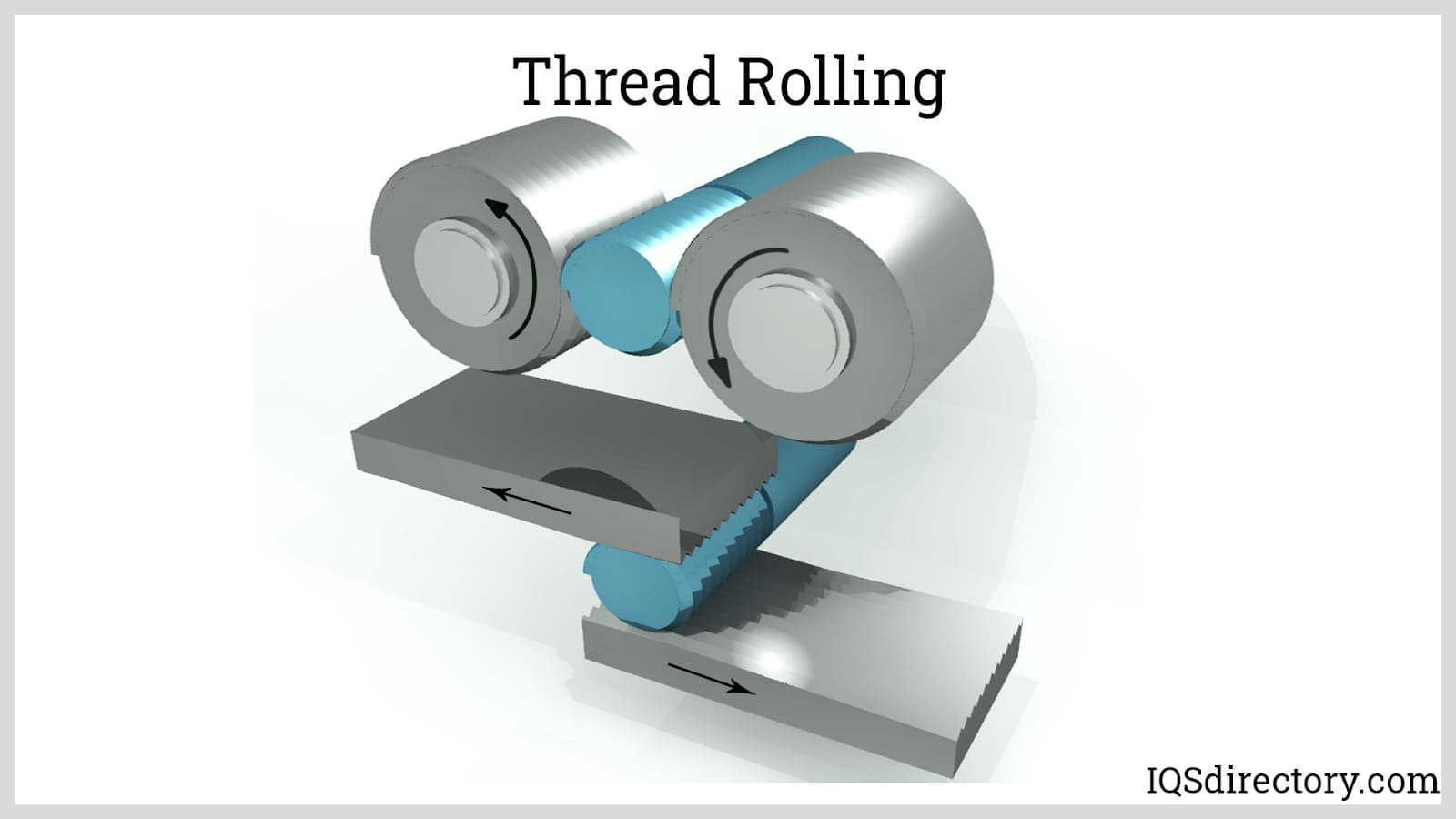

Thread rolling enhances the strength of screws and other threaded machine parts. Manufacturers prefer this method for their screw machine components because it produces robust parts with uniform, smooth, and precise threads. The process utilizes two main types of dies: flat dies and cylindrical dies.
Flat dies are rectangular dies with a simple contour, commonly used for manufacturing woodscrews, thread tapping, and machined metal screws. In contrast, cylindrical dies come in two main types: two-feed and three-feed. Cylindrical two-feed dies are often used for producing large or balanced screws, while three-feed cylindrical dies are typically employed for making spark plugs and tube fittings.
Thread rolling offers several benefits, including a stronger surface and greater dimensional accuracy of the product. However, it also has some drawbacks. This technique deforms the metal, which limits its use to softer metals and results in higher tooling costs. The rolling dies must be precise and durable, but achieving the required hardness for the dies can be challenging. Any deformation in the dies can lead to poor thread dimensional accuracy.

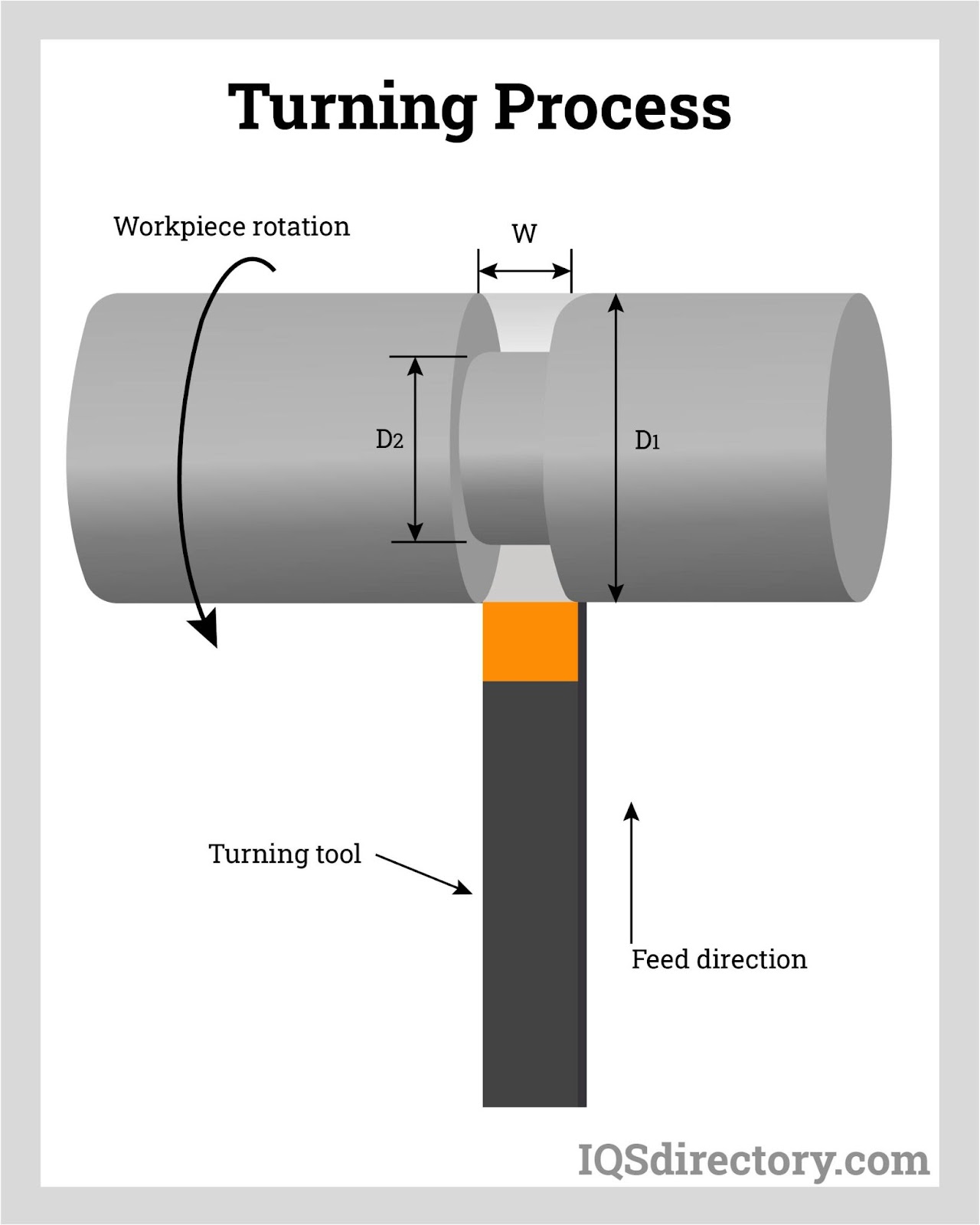

In the machining process known as turning, a cutting tool usually a non-rotary tool bit moves linearly while the workpiece rotates, creating a helical toolpath. This cutting action is generally used to shape exterior surfaces, which is commonly referred to as "turning." When the same cutting action is applied to create interior surfaces, it is known as "boring."
The broader category of lathing processes encompasses both "turning and boring." Additionally, the term "facing" can be considered a subset of either category. Facing involves cutting the faces of the workpiece using either a turning or boring tool.
Turning can be performed manually on a traditional lathe, which often requires constant operator supervision, or on an automated lathe, which operates with minimal human intervention. The most common form of automation in modern lathes is computer numerical control (CNC).
To achieve precise diameters and depths during turning, the workpiece whether made of wood, plastic, metal, or stone is rotated while a cutting tool is moved in one, two, or three axes of motion. Turning, which can also involve drilling, is performed either on the interior or exterior of the workpiece to create tubular parts with various geometries.
Manufacturers can use this rotary machining technique to perform a range of operations on a component, including drilling, slotting, knurling, threading, and milling.
Hard turning: Hard turning is a specialized form of turning performed on materials with a Rockwell C hardness of 45 or higher. This process is typically conducted after the heat treatment of the workpiece and aims to minimize or eliminate the need for traditional grinding. While rough grinding and hard turning can be competitive for stock removal, grinding is generally preferred for finishing operations where precise shape and dimension are critical.
Tapered turning: Tapered turning involves creating a cylindrical form where the diameter gradually decreases from one end to the other, producing a conical shape.
Grooving: In grooving, a single-point turning tool cuts an equal-width groove into the side of the workpiece as it advances radially. To create grooves wider than the tool's width, multiple passes can be made, or specialized form tools can be used to achieve different groove geometries.
Parting: Parting involves using a single-point cut-off tool that operates similarly to a grooving tool. It moves radially into the side of the workpiece and continues until it reaches the inner or center diameter, effectively dividing or cutting off a portion of the workpiece.
Screw machining can be employed not only to shape metal objects but also to achieve various surface finishes. For instance, a knurled finish or a smooth, nearly polished finish can be produced through turning. In some cases, a twin spindle CNC Swiss screw machine may use the second spindle to perform secondary operations, which can often replace the need for manual operator intervention.

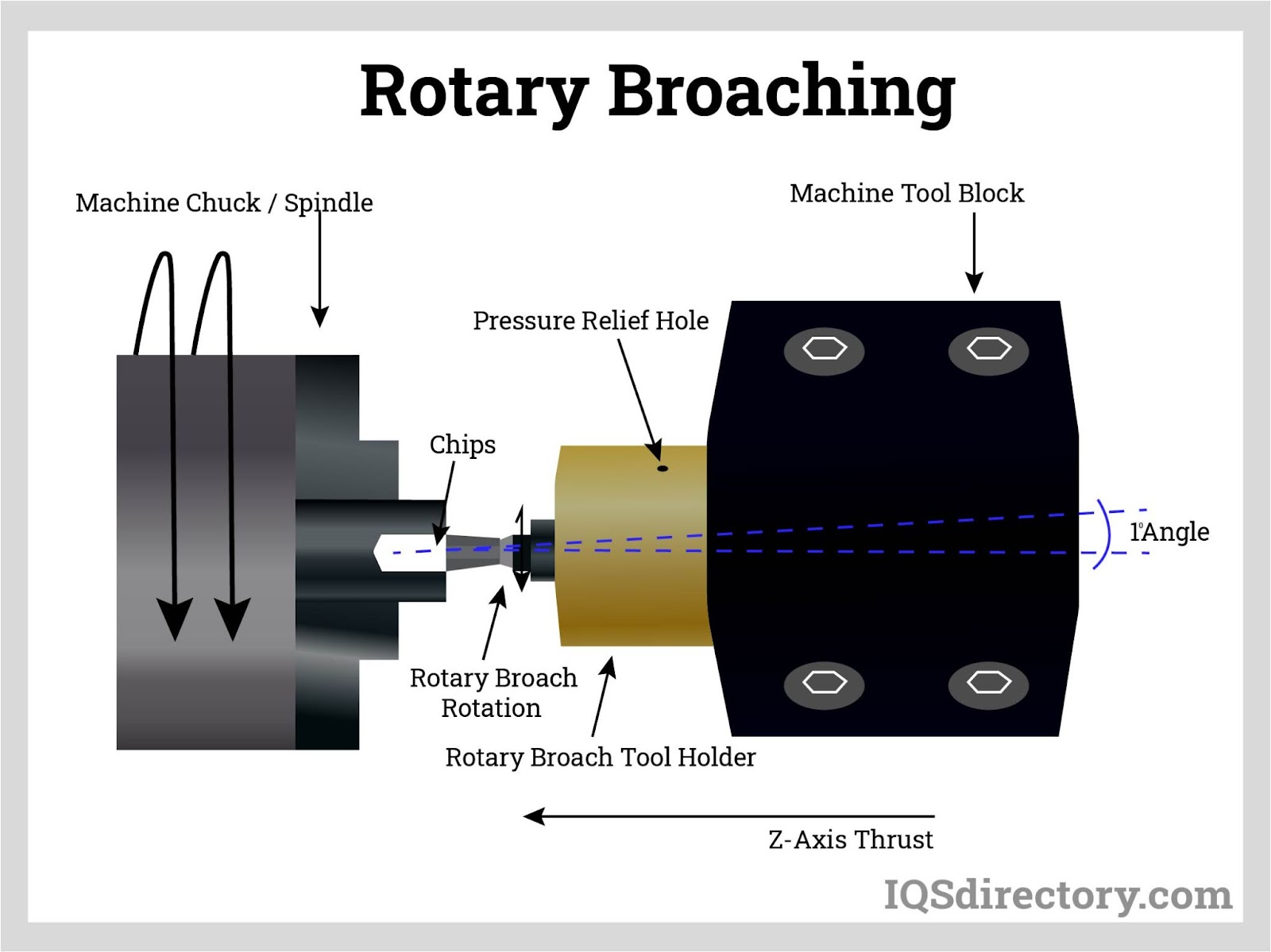

Rotational broaching, also known as wobble broaching, differs from traditional broaching methods. Traditional broaching involves pushing a series of progressively larger polygonal or other shapes through a hole until the desired form is achieved. In contrast, rotational broaching can accomplish this in a single pass by cutting the entire form one corner at a time. This method is particularly effective on machines with horizontal or vertical spindles, such as lathes and mills, often eliminating the need for additional operations.
Rotary broaching is a rapid and precise technique for creating internal polygonal shapes. The process can be completed in just seconds, achieving accuracies of at least 0.0005 inches. This advanced method has become increasingly popular, especially in industries such as plumbing, automotive, aerospace, and medical, due to its efficiency and high precision.
The key to the effectiveness of rotary broaching lies in the cutting tool’s 1-inch angle relative to the workpiece’s midline. As the rotary broach is fed into the component to the required depth, it shears into the material with a chiseled or scalloping effect. The broaching tool is maintained in position by a live spindle in the rotary broach tool holder, which permits the spindle to rotate freely within the holder. This rotation is driven by the contact with the revolving workpiece in a lathe.
This chapter will discuss the various screw machined parts and products and the processes involved in their production.
Manufacturers of screw machined products create parts and goods for clients across a variety of critical and specialized industries. These include home appliances, construction, manufacturing, automotive, electronics, laboratories, military and defense, and the medical and healthcare sectors.
The results of screw machining are often referred to as precision-turned parts or CNC-turned parts. This process is used to produce a wide variety of components, including button machine screws, hex machine screws, pan machine screws, truss machine screws, and many other specialty fasteners and screws. In the military sector, screw-machined components are integral to items such as combat helmets and weapons. However, screw machining is not limited to just fastening tools. It can also be used to manufacture metal knobs, small medical devices, bio-implants, tire gauges, threaded rods, splines, spindles, fittings, and countless other unique metal parts with precise tolerances.

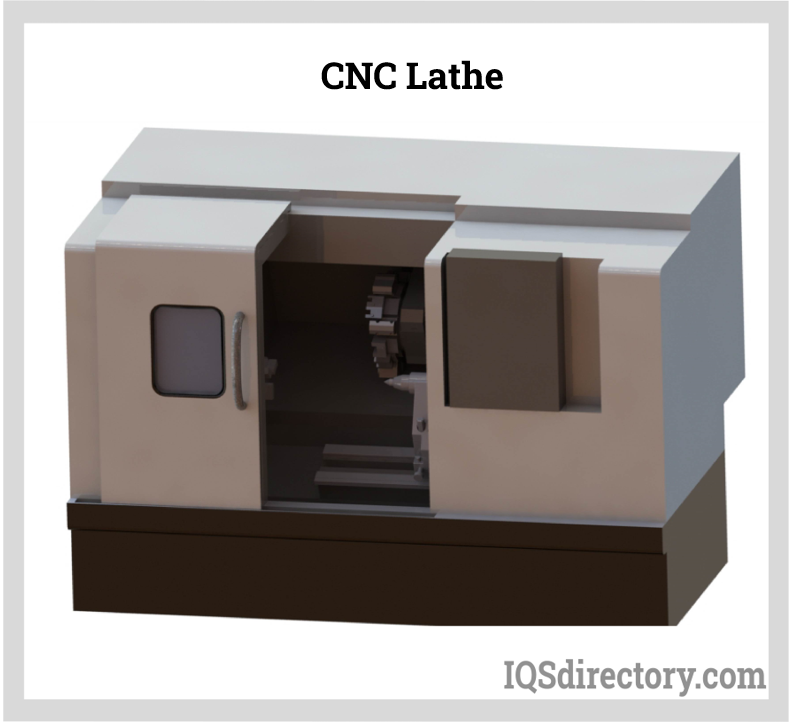

In addition to the traditional CNC lathe, a Swiss (CNC) lathe is another option for producing screw machined products. Unlike a traditional CNC lathe, a Swiss lathe is capable of moving along a third (Z) axis. This additional axis allows for greater precision and flexibility in machining long, slender, or compact, complex parts. Generally speaking, Swiss screw machining is particularly well-suited for producing components with intricate geometries and tight tolerances, making it a valuable tool for applications requiring high precision.
The options for screw machine tooling processes are numerous after screw-machined parts have been manufactured. These parts find crucial applications in various fields, including precise medical instruments, automotive tools, laboratory tools, electronics components for both IT and consumer purposes, appliance components, and military parts, among others. The versatility of Swiss screw machines, which can handle both common and rare metals as well as non-metallic materials like plastic, significantly contributes to their importance across these diverse industries. This adaptability ensures that Swiss screw machines are essential in producing high-precision components for a wide range of applications.

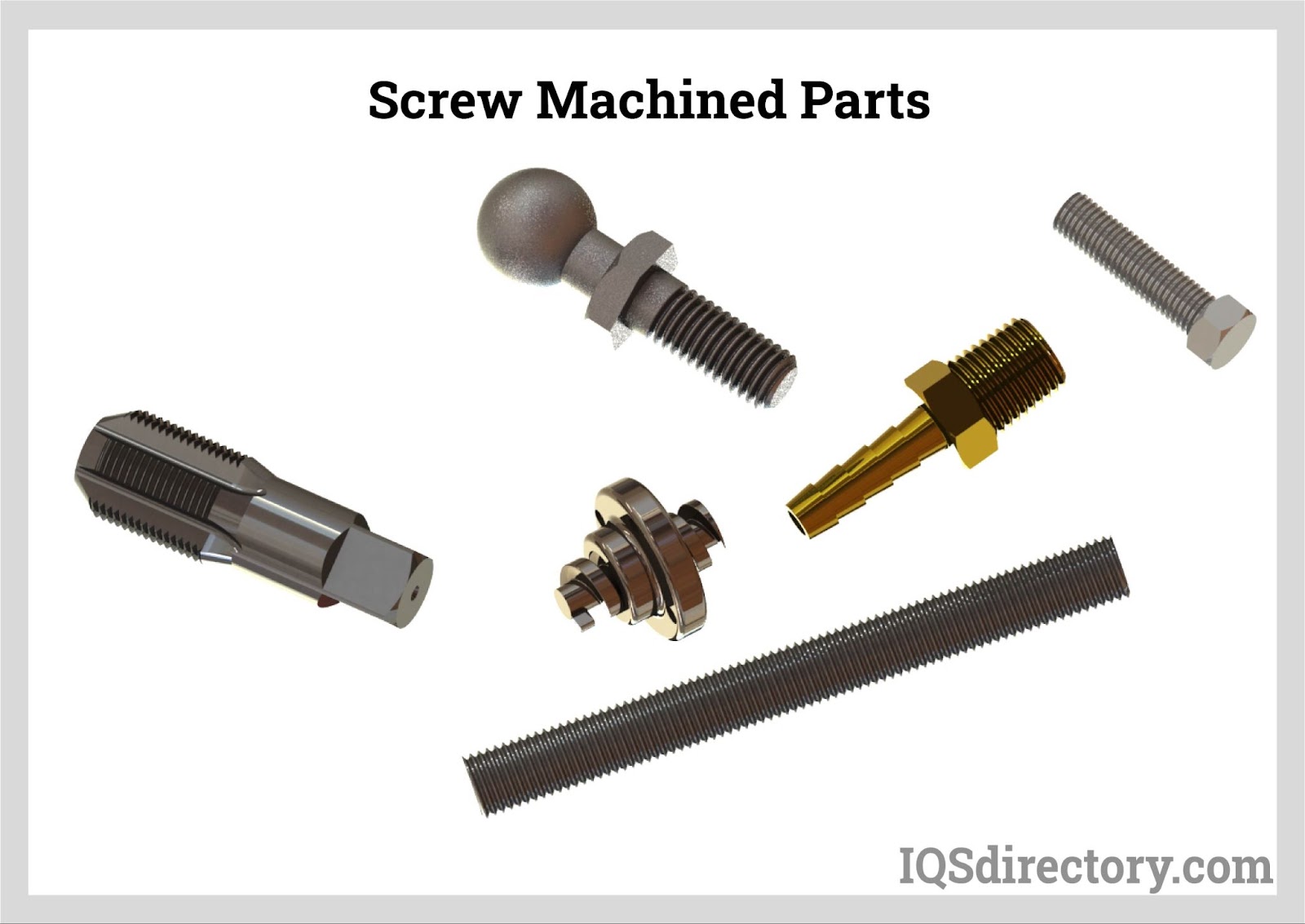

Screw machines don't merely make screws, despite what their name suggests. They produce a wide range of parts and goods using various economical, mechanical, and CNC machining techniques. Examples of these products include custom and conventional bio-implants, fittings, tiny medical devices, metal knobs, specialized fasteners, spindles, splines, keyways, threaded rods, tire gauges, and many other metal parts machined to exact tolerances. High-quality automatic screw machining services can be used to produce a variety of goods, including but not limited to:
These are produced with incredibly tight tolerances, which is especially helpful for turning out large quantities of parts. High-grade metals are used, along with thorough production-stage checks, to ensure that parts meet stringent tolerances and maintain high quality throughout the manufacturing process.
These products are used in a wide range of applications in the pharmaceutical, scientific, and medical fields. Examples include dental implants, screws, and spinal implants, which are all precision components that require meticulous manufacturing to ensure safety and effectiveness.

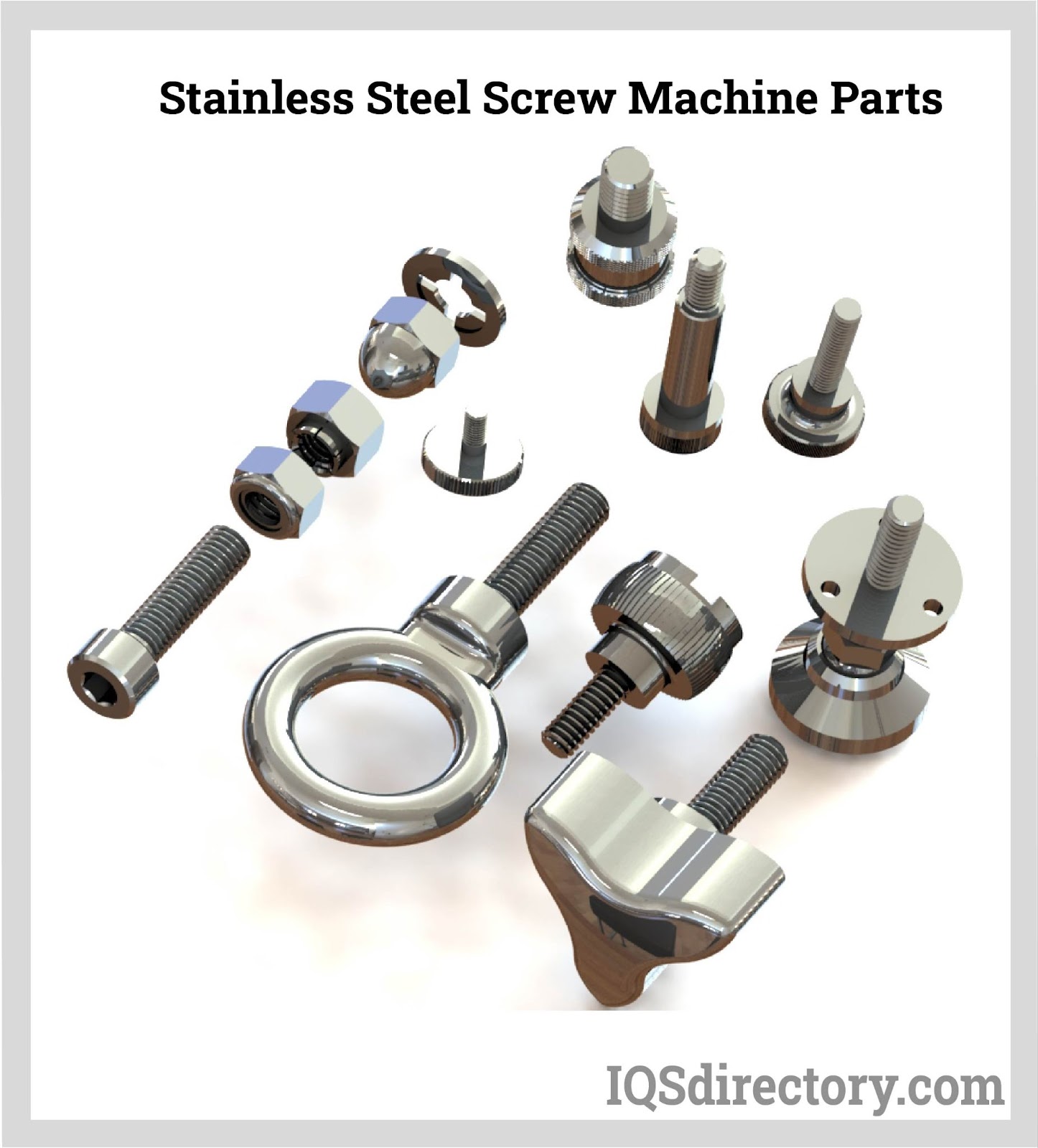

These products exhibit high chemical and corrosion resistance. Stainless steel screw machined components are particularly valuable in industrial settings where they are exposed to harsh temperatures, moisture, and chemicals. Their durability ensures reliable performance and longevity in challenging environments.
There are numerous types of screw-machined parts, each designed for specific applications and functionalities. Machined screws come with a variety of driver heads to accommodate different tools and needs. Common types include Phillips® heads, which are cross-shaped for use with Phillips screwdrivers; slotted heads, which have a single flat groove for flathead screwdrivers; hex socket heads, designed for use with Allen wrenches; and Torx™ heads, which feature a six-pointed star pattern for increased grip. Additionally, some screws are equipped with security heads, making them challenging to remove and providing an extra layer of security against tampering.
Screw-machined parts may undergo various manufacturing processes to achieve their final form. Some screws have material removed from the threads or are produced using die-cutting methods. In other cases, material is rolled into grooves to achieve a uniform diameter and shape. For optimal results, it's crucial to provide the machining business with detailed specifications and quality expectations when seeking a precision screw machining service. This ensures that the finished parts meet the precise requirements and standards you need.
When using precision parts, there are several factors to consider. Machine screws, for instance, come in a wide range of sizes and configurations. They can be recessed or countersunk, with machine screws specifically designed to sit flush against the surface of housings. This is a notable difference from other types of countersunk screws. Additionally, machine screw parts are available in both imperial and metric sizes, allowing for flexibility in different applications and standards.
Screw machines can work with a diverse array of metal materials to perform their various functions. Among the most commonly used materials are aluminum, brass, steel, stainless steel, and titanium. Aluminum, which is an element with the atomic number 13, is naturally occurring and characterized by its ductility, low density, non-magnetic properties, and corrosion resistance. Due to these qualities, aluminum screws are widely utilized in industries such as transportation, aerospace, and construction, where strength and lightweight properties are essential.
Brass is an alloy primarily composed of copper and zinc. It is often recognized for its bright, gold-like appearance. Brass offers several advantageous properties including low friction, excellent workability, durability, and a non-sparking nature. These attributes make it ideal for a variety of screw machined products such as nuts, bolts, washers, and injectors. Additionally, brass's natural antibacterial qualities make it particularly suitable for plumbing, aesthetic, and architectural applications.
Steel alloys, which primarily consist of iron and carbon, are among the most frequently turned metals due to their high tensile strength. They are widely used in various industries, including transportation and defense. Stainless steel, a notable type of steel alloy, is particularly strong and contains at least 10.5% chromium by mass. This composition gives stainless steel exceptional strength, stain resistance, and corrosion resistance, making it easy to sanitize. Consequently, stainless steel is extensively used in diverse applications such as construction, manufacturing, household items, medical equipment, and various parts industries.
Ti is the symbol for titanium, a transition metal known for its remarkable strength, exceptional corrosion resistance, and low density. These properties make titanium a highly desirable material in various industries, including aerospace, automotive, sanitary, and medical fields. Its strength and durability, combined with its resistance to harsh conditions, contribute to its widespread use in high-performance and critical applications.
Secondary operations refer to additional actions or procedures applied to manufactured items to improve their physical characteristics or achieve precise tolerances. While the primary function of CNC machining machines is to shape or form parts from materials like sheet metal or plastic, secondary operations further refine these components. These additional processes can include milling, turning, shaping, tapping, and various other techniques to enhance the final product's quality and specifications.
However, after the primary manufacturing processes, items or products often require additional finishing touches. These secondary operations are essential for refining the product's quality and ensuring it meets the required specifications. The majority of secondary processes involve fine-tuning methods such as polishing, surface finishing, coating, and other treatments. Additionally, techniques for testing and inspecting products to ensure their functionality and performance are included. Some common secondary activities are:
Plating: This technique involves applying a thin layer of metal onto the substrate. Common metals used for plating include copper, silver, nickel, and chromium. Plating not only improves the appearance of the product but also provides enhanced corrosion resistance and wear resistance, extending the lifespan of the component.
Plating is a specialized finishing process that involves applying a metal layer onto a base metal substrate to impart various desirable properties. This technique enhances the object’s aesthetic appeal, corrosion resistance, and wear resistance. In modern industrial applications, plating is crucial for extending the lifespan of materials and components, making it an essential part of many manufacturing processes.
Two kinds of plating exist:
Electroplating - Through the process of electroplating, an ionic metal is given electrons to create a non-ionic coating on a substrate. In a typical setup, a chemical solution containing the metal in its ionic state is combined with an anode and a cathode, where electrons are provided to create a film of the non-ionic metal. Electronics, corrosion prevention, and the automobile sector all employ electroplating. Electroless plating - When plating is done electrolessly, many simultaneous chemical reactions take place in an aqueous solution without the use of external electricity. Electroless plating is frequently done using nickel coating.

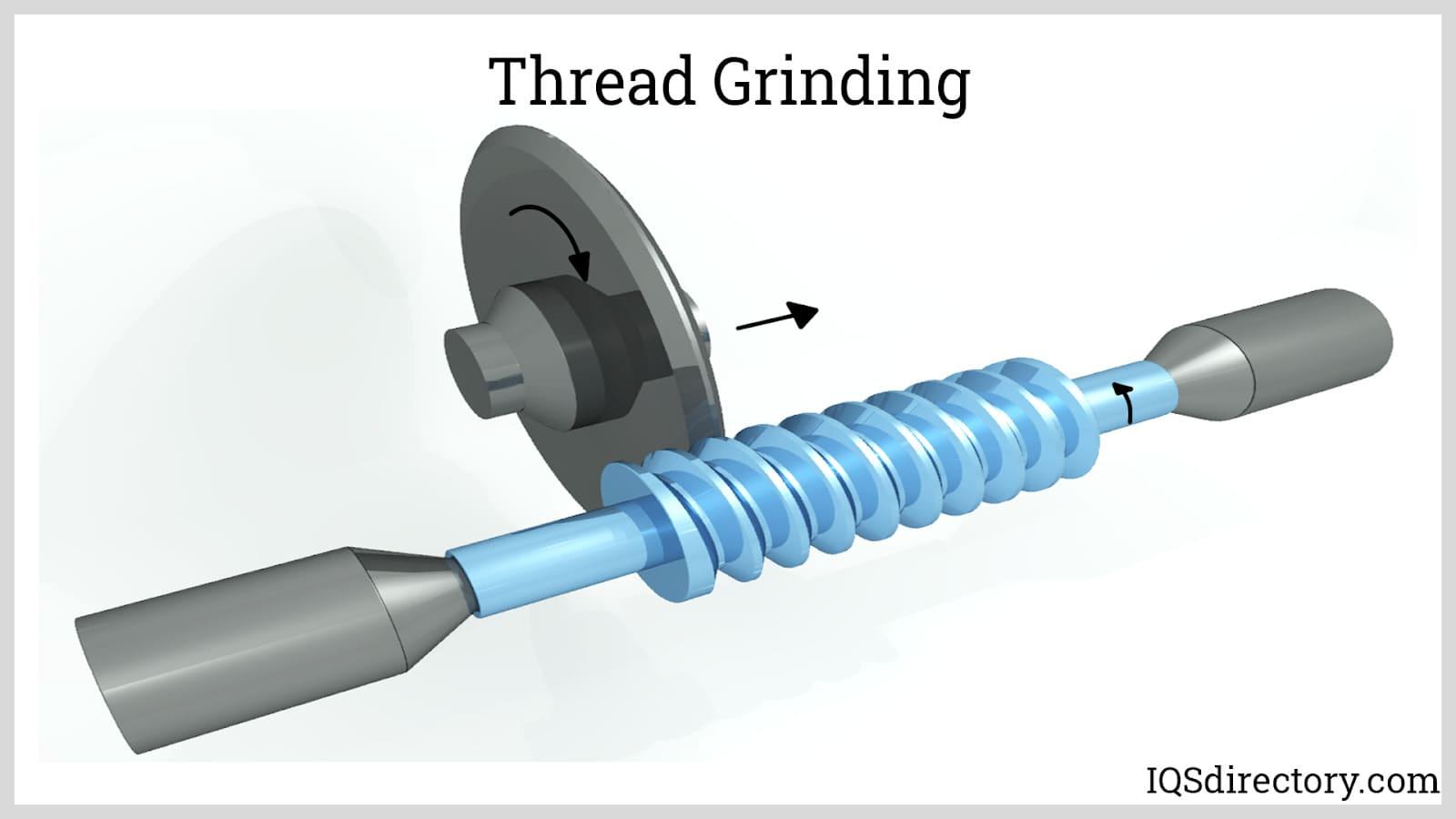

Grinding: This method involves removing uneven and coarse materials or particles from the surface of a workpiece. It is used to achieve a smooth and precise finish, refining the surface to meet specific tolerances and enhancing the overall quality of the part.
Hard materials can be ground down to size and tools can be sharpened using this procedure, which is typically carried out in multiple stages. Initially, the material is crushed to break it down into smaller pieces, and then grinding further refines it to achieve a specified level of fineness. For example, in mineral processing, ore is first crushed to reduce its size and then ground to a powder, with the final fineness dependent on the desired particle size of the mineral.
Depending on the procedure being used, grinding can be performed either wet or dry. For dry grinding, materials may first need to be dried in cylindrical, rotating dryers to remove moisture before the grinding process begins.
Heat Treating: Heat treatment may occur either before or after the machining process on parts or components. This process is used to enhance their physical attributes, such as strength, hardness, and structural stability. During heat treatment, metals are heated and cooled according to precise, predefined procedures to achieve the desired characteristics. Both ferrous and non-ferrous metals undergo heat treatment to improve their performance and durability.
Numerous techniques have been developed over time to improve the heat treatment process. Metallurgists are continually seeking ways to enhance these processes for greater efficiency and cost-effectiveness. They achieve this by creating new cycles or schedules, which vary the rate at which the metal is heated, held, and cooled. By carefully following these schedules, it is possible to produce metals with a range of grades and distinct physical and chemical properties.
Generally speaking, screw machines are specialized, non-manual metalworking lathes. By definition, lathes are industrial devices designed to shape a workpiece by rotating it around an axis. Both standard lathes and screw machines can be used to produce screw-machined items. However, screw machines, which can support multiple spindles, are particularly suited for large-scale manufacturing due to their increased efficiency and ability to handle high-volume production.
Screw machines can be equipped with multiple spindles, allowing them to manufacture up to six pieces simultaneously. This capability makes them exceptionally valuable for mass production applications. For even greater precision and consistency in producing intricate parts, CNC screw machining and CNC turning are used, offering advanced control and accuracy in the manufacturing process.
While CNC lathes can machine and turn up to six pieces simultaneously, they generally offer less flexibility and are limited in the number of spindles they can handle compared to CNC screw machines. Consequently, CNC lathes are not as efficient for high-volume production. Screw machines come in various types, including mechanical screw machines, multi-spindle CNC screw machines, Swiss-type screw machines, and roll machines. Mechanical screw machines are traditional, non-CNC devices used for high-speed production of precision parts. Multi-spindle CNC screw machines, on the other hand, are designed for high-volume, precise production with the capability to handle multiple spindles. Swiss-type screw machines are known for their precision in producing complex, long, and slender parts due to their ability to move along a third (Z) axis. Roll machines utilize rolling dies to form threads and other features on parts, offering an efficient method for producing threaded components in high volumes.

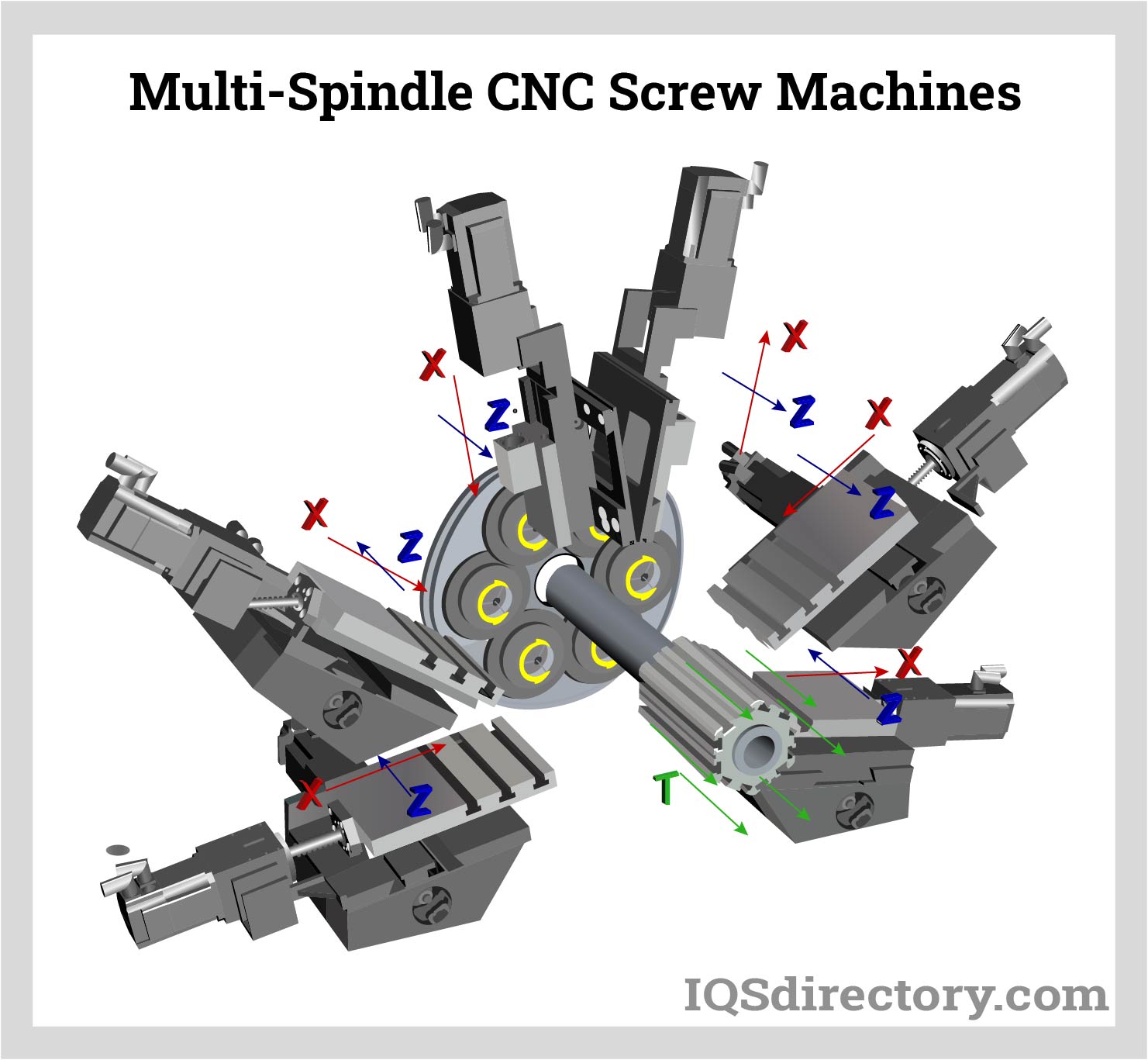

These devices feature two front camshafts, a motor, and eight or more spindles that can operate simultaneously. The metal bar stock is secured to the spindles' spring collets, allowing for precise machining. The main drive shaft powers the bed lead work shaft and the front two camshafts. The motor, situated at the machine's base, provides the power necessary for all the machine's functions. The design ensures that all operations are synchronized and efficient, facilitating high-speed and accurate production of machined parts.
The multi-spindle CNC screw machine is a hybrid device that integrates features from both mechanical and CNC screw machine designs. Setting up these machines involves detailed part design, CAD modeling, and comprehensive system programming, which can be time-consuming. However, once the setup is complete, they prove to be cost-effective, particularly for extended production runs. Their design allows for simultaneous machining of multiple parts, making them ideal for high-volume manufacturing with enhanced precision and efficiency.

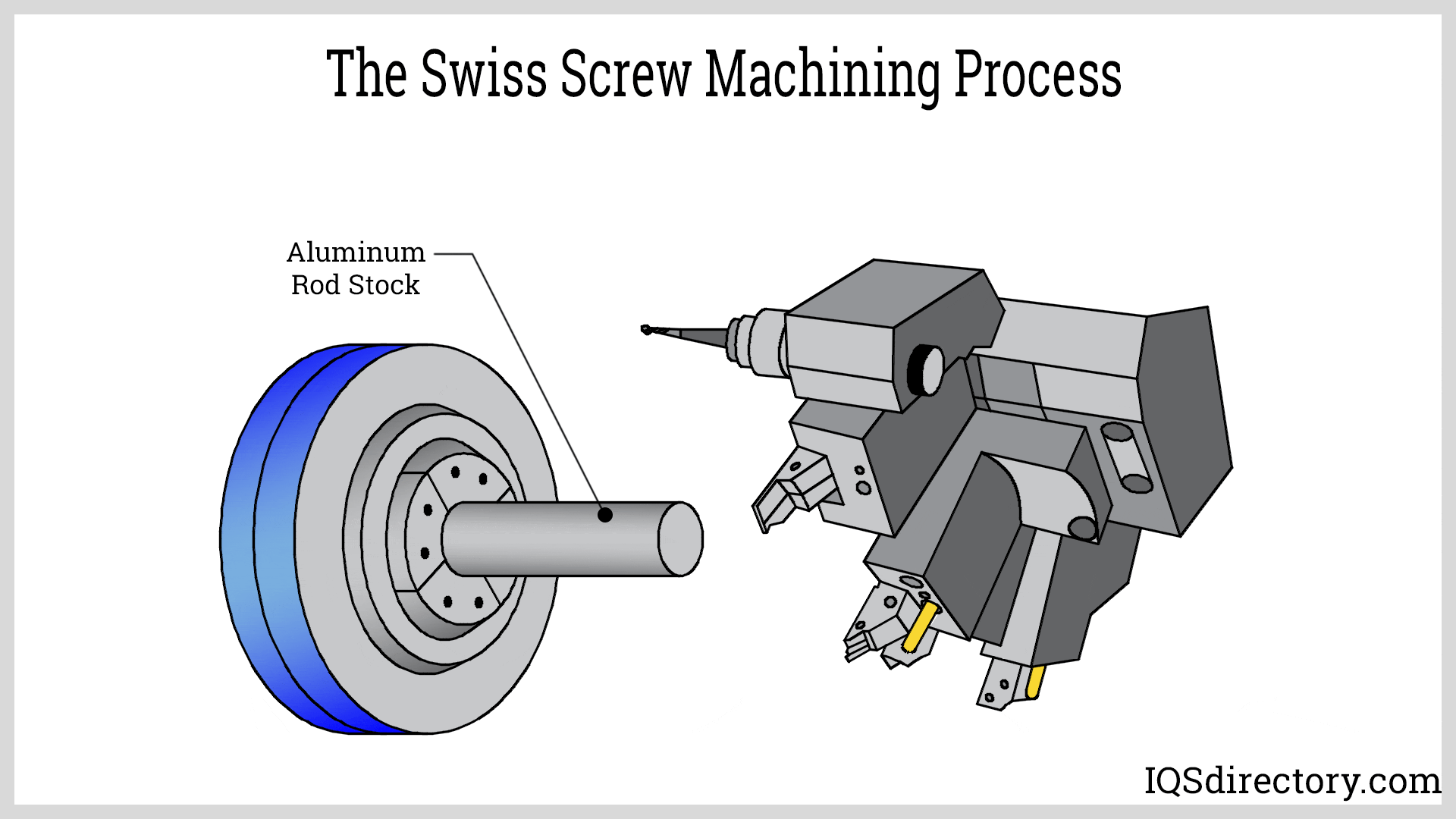

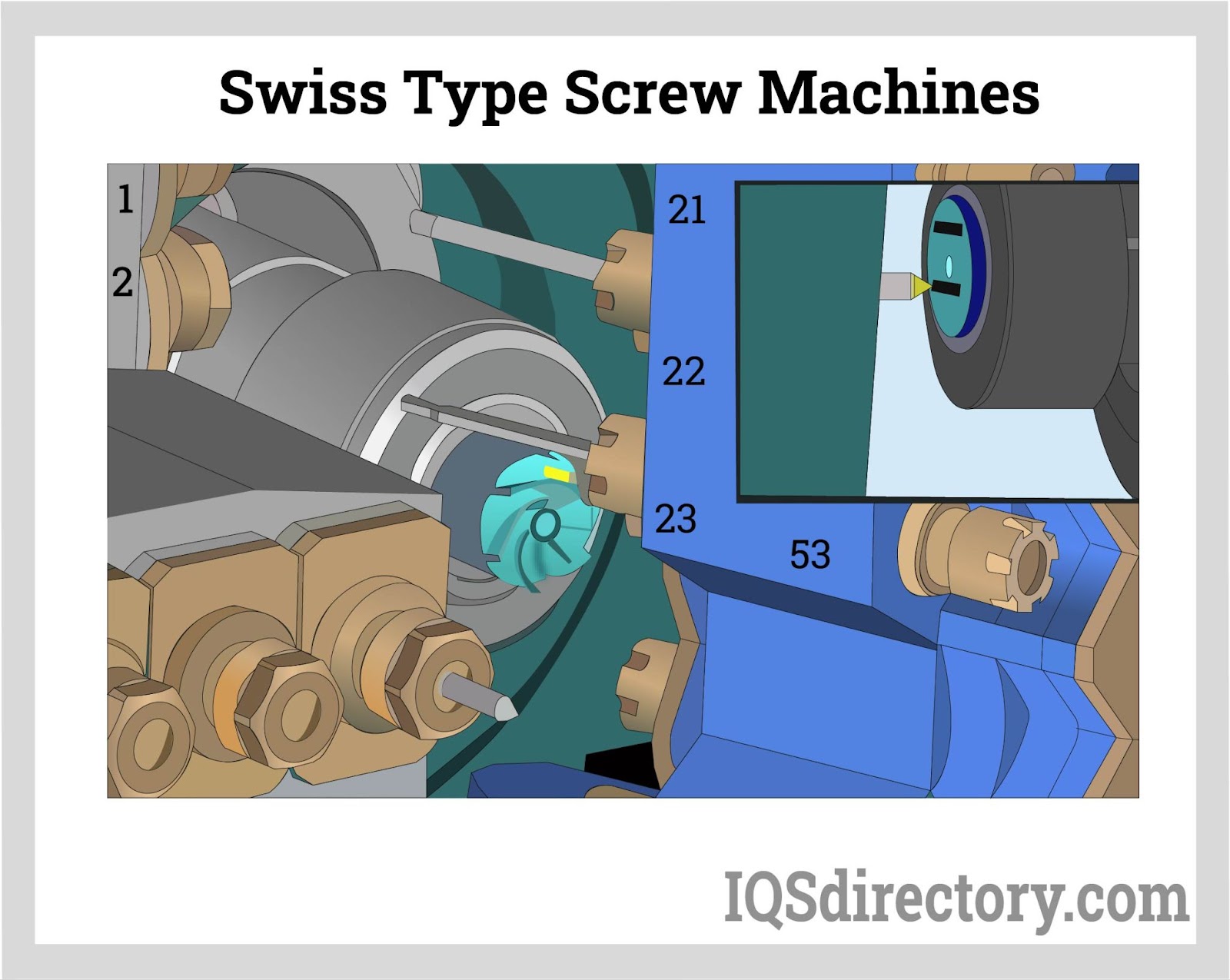

Swiss screw machines, also referred to as Swiss automatic lathes or Swiss turning machines, were initially developed in Switzerland during the first industrial revolution for the precision manufacturing of small, complex parts used in the watch industry. Their introduction revolutionized the production of intricate screw machined components, and over time, they have become indispensable in various industries for their ability to produce high-precision parts efficiently. Swiss screw machines are especially valued for their capability to handle complex geometries and tight tolerances, making them essential tools in modern manufacturing.
Swiss screw machines operate by holding the bar stock securely and advancing it through a guide bushing, which exposes only the portion being machined. This setup minimizes deflection and enhances accuracy, enabling the machining of intricate parts in a single operation. In this process, both the workpiece and the cutting tools move simultaneously, which allows for the efficient and precise production of complex components. This design is particularly effective for maintaining tight tolerances and high-quality finishes in small, detailed parts.
Traditional screw machines operate by moving the workpiece along the X, Y, and Z axes while keeping the cutting tool stationary. In contrast, Swiss screw machines offer enhanced precision by moving the workpiece along five axes: X, Y, Z, A (for X-axis revolution), and B (for Y-axis revolution). This multi-axis movement allows Swiss screw machines to achieve tighter tolerances and produce more complex, intricate parts with greater accuracy and efficiency.
In traditional screw machining, the tool approaches the stationary part to begin the cutting process. However, Swiss machining utilizes a disc cam to guide, support, and move the workpiece toward the cutting tool while the workpiece remains fixed in position by a collet. This method is particularly effective for machining longer, thinner components and smaller parts with complex geometries. The disc cam moves the tools radially, enabling simultaneous cutting operations that enhance efficiency and throughput. Additionally, the headstock in Swiss screw machines adjusts the workpiece for longitudinal changes, allowing for precise and versatile machining capabilities.
The close spindle collets on Swiss screw machines are designed to prevent deflected debris from interfering with the cutting process, ensuring a clean and precise operation. CNC Swiss screw machines, also known as CNC turning machines or lathes, operate on the same fundamental principles as automated Swiss screw machines. They leverage computer numerical control to enhance accuracy, automate complex tasks, and improve efficiency, all while maintaining the key features of Swiss screw machining such as precise guiding and minimal deflection.
The increased tooling capabilities of CNC-guided Swiss screw machines allow them to perform multiple operations on the same workpiece efficiently. While automatic Swiss screw machines offer versatility, they do not match the CNC Swiss screw machines in terms of accuracy, speed, and precision. CNC Swiss screw machines can rotate a workpiece at speeds up to 10,000 RPMs with a precision range of 0.0002 to 0.0005 inches, making them highly effective for producing intricate parts with tight tolerances.
Although CNC Swiss screw machines require significant setup time, this is counterbalanced by reduced labor costs and enhanced machine efficiency. The use of guide bushings and the variety of tools available, which differ by model, further enhance their utility. The optimal spacing and size of these tools contribute to the machine's versatility. Additionally, the high-quality surface finish achieved during machining often eliminates the need for further finishing processes, streamlining production and improving overall efficiency.
Manufacturers use thread rolling machines to create internal screw threads efficiently. These machines primarily consist of a thread rolling die that presses into a blank workpiece. By deforming the material rather than cutting it, thread rolling machines can handle large production runs with precision and speed. This process is particularly advantageous for producing high volumes of threaded components with consistent quality and durability.

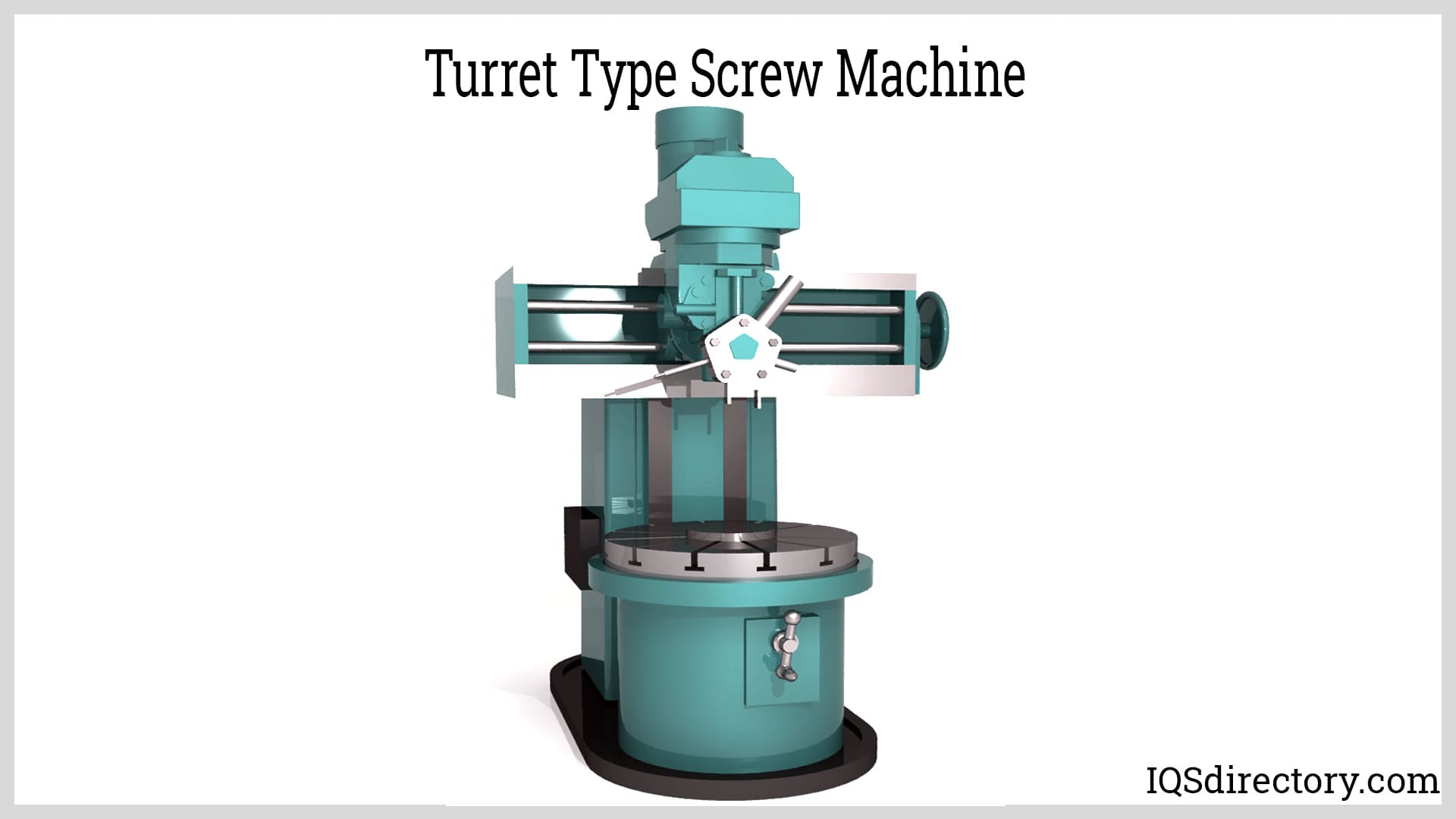

Turret machines, while less precise than Swiss-style machines due to challenges in alignment, are still capable of performing similar operations. They excel in certain areas such as having greater power at live tool stations, larger shank sizes, and greater rigidity. Additionally, turret-style machines offer the advantage of automatic part transfer capabilities, similar to those found in Swiss screw machines. Despite their lower precision, their robust design and versatility make them valuable for various machining tasks.
Turret machines offer greater adaptability with a wider range of tools compared to Swiss screw machines. However, Swiss screw machines, particularly CNC models, leverage multiple tooling fixtures and advanced automation to reduce or eliminate the need for operator intervention. In CNC Swiss screw machines, functionalities previously managed by the operator are now automated, with processes transferred and adjusted seamlessly via a slide mechanism. The CNC controller's precise calculations continuously adjust and correct tooling processes, providing Swiss screw machines with superior accuracy and precision compared to turret machines.
A cam-driven screw machine utilizes a series of cams and mechanical mechanisms to control the movement of cutting tools, enabling the rapid and precise production of small parts. The machine’s operations are synchronized by a drum cam, which coordinates each cycle of the machine. This drum cam indexes the revolving head of the machine and drives the cam bank, which in turn controls the movement of the spindle’s end working components. This intricate system ensures efficient and accurate machining of parts.
The cam-driven system in screw machines regulates the movements of cutting tools to perform specific operations with precision. Each cam is meticulously designed to control the speed and force applied by the tools, ensuring that they operate efficiently and accurately. This system allows for synchronized and precise machining of parts, as the cams dictate the exact timing and movement necessary for each operation.
Despite the growing prevalence of CNC machines, cam-driven screw machines remain a staple in many manufacturing environments. Their enduring popularity is largely attributed to their cost-effectiveness and reliable efficiency. These machines continue to offer a valuable solution for producing parts with high speed and precision, making them a practical choice for various industrial applications.
Cam-driven screw machines are renowned for their efficiency and capability to produce large quantities of parts quickly and accurately. Since their inception during the first industrial revolution, these machines have been integral to manufacturing small precision components. They continue to be widely used in industries such as automotive, aerospace, and electronics, where the demand for high-volume, precise parts remains crucial.
This chapter will explore the diverse applications and advantages of screw machined parts and products. We will delve into how these precision-engineered components are utilized across various industries, highlighting their critical roles in sectors such as automotive, aerospace, electronics, and medical fields. Additionally, the discussion will cover the benefits of screw machining, including enhanced accuracy, efficiency, and the ability to produce complex and intricate parts to tight tolerances. By understanding these aspects, readers will gain insight into the significance and versatility of screw machined products in modern manufacturing.
Screw machined products, also known as turned components, are frequently parts with tight tolerances and are used in a variety of delicate and important applications, including:
Due to a variety of considerations, screw machining is regarded as one of the most efficient and affordable methods for manufacturing small rotary parts. The efficiency of CNC machining and turning equipment is well-established, with the capability to produce high-quality components quickly and cost-effectively. For instance, some CNC screw machines can handle up to six components simultaneously, significantly increasing production efficiency. Additionally, the tooling area of these machines can accommodate up to 20 different tools, allowing for complex operations and reducing the need for frequent tool changes. This high level of automation and versatility contributes to the overall cost-effectiveness and precision of screw machining, making it a preferred choice for producing intricate and high-tolerance parts in various industries.
Screw machines excel at producing multiple components simultaneously, leading to high production rates and significantly reduced cycle times. This efficiency not only shortens production times but also ensures that parts are highly uniform. By utilizing several screw machines, manufacturers can minimize labor costs associated with large workforces, as a single operator can manage multiple machines and oversee secondary tasks. Swiss screw machining, in particular, offers substantial cost savings for bulk production of high-quality metal parts, making it a crucial technology for industries where precision and efficiency are paramount.
No other production process matches the cost-effectiveness and structural advantages offered by screw machining. The precision achieved with screw machining is unparalleled compared to many other metal forming and manufacturing techniques. This high level of accuracy makes precision turning and machining essential for producing components where exact tolerances are critical, such as customized fasteners. Consequently, screw machining remains a preferred method for crafting parts that require meticulous detail and reliability in various applications.
However, for items such as tiny precision tools used in critical medical applications, screw machining remains the only practical manufacturing method. While some types of metal stamping can achieve tolerances comparable to screw-machined products, screw machining does have its drawbacks. One notable disadvantage is the setup time required before machine operation can commence. This setup period can be considerable, potentially affecting overall production efficiency.
Multi-spindle CNC screw machines involve a labor-intensive setup process that includes part design, system programming, and CAD design, which can sometimes take one to two hours for a Swiss machine. This setup time can be a drawback, making extended production runs more economical. Despite this, even short-run screw machines offer a relatively cost-effective method for precision production since they don’t require custom dies or hardware. Another disadvantage of screw machining is the significant production of scrap, with each bar potentially generating up to a foot of waste material.
Screw machines, first introduced during the first industrial revolution, are often considered older technology. The latest versions of these machines, despite advancements, still require a manual setup process that can take between six to nine hours. Once set up, however, they are capable of producing between 200 to 400 parts per hour, demonstrating their efficiency in high-volume production.
If you're considering purchasing highly-customized screw machined parts, working with a reliable manufacturer is crucial. It’s advisable to invest the time and resources needed to select a supplier with the expertise and transparency to create a tailored solution for your specific needs. When evaluating screw machining suppliers, several factors should be considered: the quality and source of the materials used, the extent of product customization available, the supplier's reputation for turnaround times, and their ability to meet delivery schedules to ensure your business deadlines are met.
Similar considerations apply when evaluating your own operations as a manufacturer or provider of screw machining services. Flexibility is a crucial, yet often undervalued, quality in equipment investment. The ability to adapt to varying production needs, handle diverse materials, and accommodate different part designs can significantly impact your operational efficiency and ability to meet customer demands.
Investing in advanced machinery, such as CNC machines with versatile tooling options, is recommended for staying adaptable to future developments in Swiss screw machining. This proactive approach contrasts with a more conservative strategy that depends on consistent high production runs and is less flexible in accommodating changes. Generally, turret screw machines offer less accuracy compared to Swiss screw machines, while CNC Swiss screw machines provide superior speed and precision over automated Swiss screw machines. Investing in state-of-the-art CNC technology can help ensure that your operations remain competitive and adaptable to evolving industry demands.
