This article will take an in-depth look at shredding machines.
The article will bring more detail on topics such as:
In this chapter, we delve into the concept and fundamentals of shredding machines, focusing on their structure, design, and the underlying mechanisms that govern their operation.
A shredding machine is an apparatus designed to slice or shred various materials into smaller fragments. While many online sources highlight shredding machines mainly as tools for document destruction to safeguard privacy and prevent identity theft, these machines are available in multiple types crafted for specific materials and uses.
Shredding machines are meticulously designed to manage a wide array of materials across different recycling applications. This includes plastic reclamation, scrap metal recovery, electronic waste management, wood recycling, and tire shredding or repurposing.
The shredding process generates raw materials ready for reintroduction into manufacturing cycles, as well as finished products like landscape mulch. Several terms such as grinders, granulators, chippers, and hammer mills are used to describe machines focused on material size reduction, which is their primary function.
The architecture and construction of shredding machines comprise several components:
A shredding machine consists of significant elements like feed shafts (found in industrial models), a feed zone for loading materials, crushing gears or slicing blades, a motor to drive the blades, and a chute (in industrial settings) that channels the shredded materials onto a conveyor for additional processing or directs them into a bin for disposal.
Typically, shredding machines are fitted with screens to capture material that remains too large following initial shredding. This oversized content is routed back through the machine repeatedly for proper sizing.
The blueprint of a shredding machine involves analyzing multiple factors like the target material for shredding, material volume, operating context (such as farm, office, outdoor, or indoor environments), designated space for the machine, frequency of use, and the client's financial limitations.
The hooks' size and configuration on shredding cutters are contingent upon the kind of material they are tasked with handling. Typically, larger hooks can grasp more material, thus boosting production rates. Nevertheless, it is crucial that the hooks don't surpass the shredder’s capacity to process material in one go, as this could cause frequent blockages and decrease efficiency. Shredding blades are commonly crafted from tool steel and carburizing steel, although materials like molybdenum, chromium, and manganese low-alloy steels serve specific end-use applications.
The primary design of a shaft revolves around calculating the ideal diameter necessary to maintain adequate rigidity and endurance as the shaft transmits power under various loading and operational conditions.
The chosen material for the shaft should demonstrate the following qualities:
Carbon steel is predominantly used for shafts; however, when superior strength is necessary, alloy steel such as nickel-chromium, nickel, or chrome-vanadium becomes the material of choice.

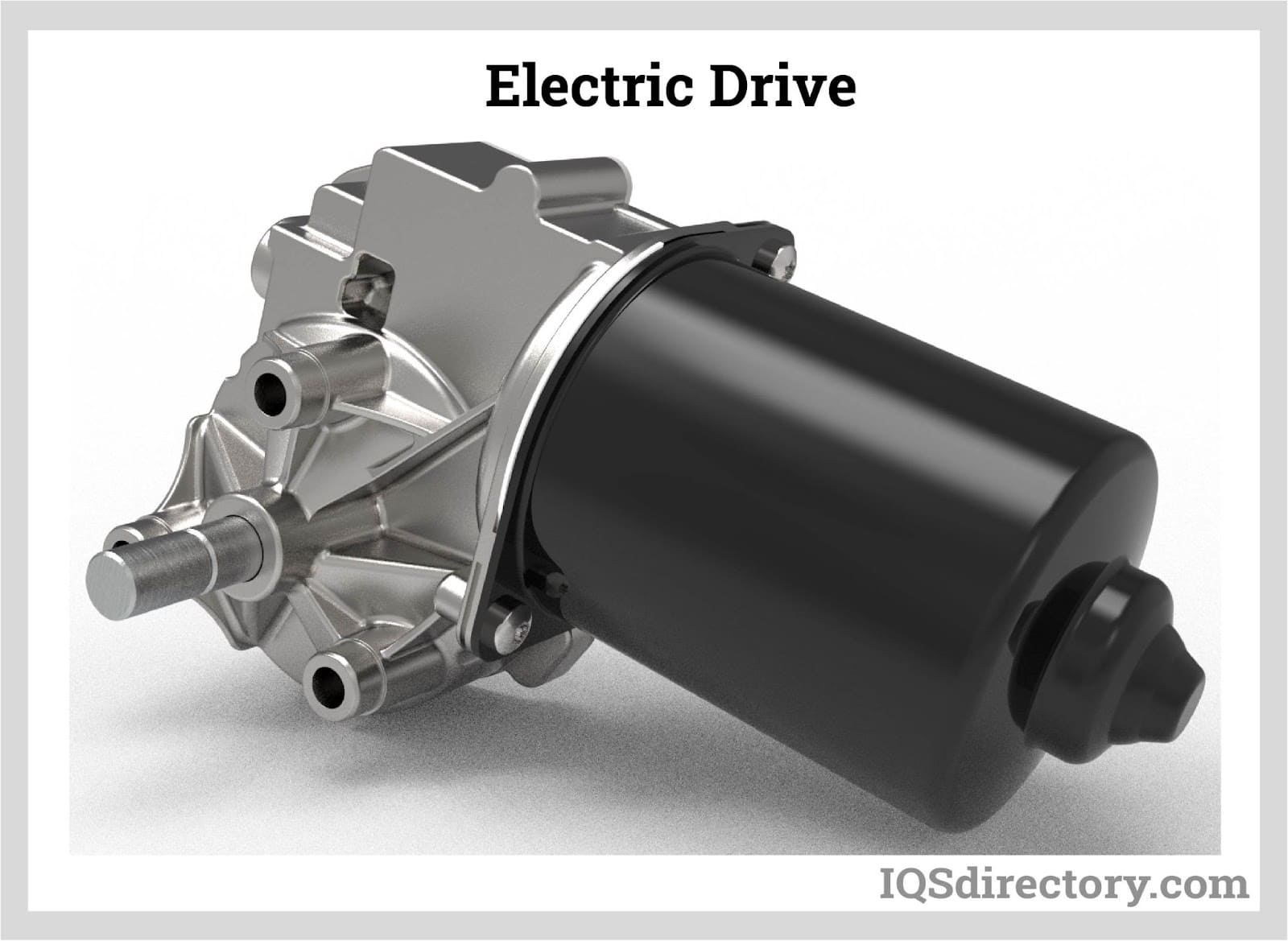

Electric Drives – Electric systems power blade rotation and their size varies depending on the shredding machine type. Small-scale shredders, like those for paper, often have DC motors, whereas metal shredders typically utilize three-phase AC induction motors. In general, electric shredding machines are more compact, user-friendly, easier to maintain, and exhibit greater energy efficiency compared to hydraulic alternatives. They also offer a cost-effective and potent solution for processing a diverse range of materials.
Hydraulic Drives – Hydraulic systems fulfill the same role as electric drives but are favored for heavy-duty scenarios, like tire shredding. They are particularly adept at handling materials that experience frequent overloading from batch feeding, making them a staple in industrial shredding. Additionally, hydraulic systems provide superior protection against shock loads from unshreddable objects.
Hydraulic drive systems are advisable in scenarios involving:
The structure of a shredding machine can diverge greatly contingent on its application, from small hand-fed units suited for office or domestic use to large industrial machines designed for processing hundreds or thousands of kilograms per hour in commercial environments.
Below are three primary shredding techniques discussed:
Shearing entails cutting materials with blades, akin to how scissors operate. Success in shearing is reliant on the sharpness of the cutting edges and their precise spacing. Advanced concepts such as ACLS and annealed alloys are employed to maintain sharpness and tolerance, ensuring the capacity for clean cuts even with extended usage.
The tearing mechanism employs force to separate materials. Items like fabric, soft metals, tires, and plastics are more susceptible to tearing. Tearing machines excel in processing heterogeneous waste materials where achieving a uniform particle size is not essential.
Brittle materials such as hard plastics, glass, and certain metals often undergo fracturing during shredding. If cutters lack sharpness or loosen, the material might unleash explosive energy, potentially propelling fragments, thus necessitating protective eyewear.
All three techniques—shearing, tearing, and fracturing—are harnessed within shredding machines. Most efficiency is usually achieved via shearing, when cutters are sharp and maintain tight tolerances.
Each type of material is best matched with specific shredder configurations and settings. Material properties determine how they react to the shredding process.
Ductile Material – Such materials oppose fracturing and have a tendency to tear into long strips. Shearing is most effective for these materials to achieve reduced particle size. This includes materials like paper, cloth, soft plastics, rubber, soft metals, and cardboard.
Friable Materials – These materials fracture easily, a property opposite to that of ductile materials, and typically break down into fragments. Examples impact materials like glass, stone, cast metals, wood, and hard plastics. Shredded friable materials often emerge as small bits rather than strips.
A variety of factors should be considered when selecting a shredding machine:
Specific shredders are optimized for particular materials. For example, tree branches are usually dealt with using a high-speed chipper, while plastics typically are shredded initially prior to granulation. Automobiles are generally shredded using a hammer mill, and diverse waste products may best be treated with a twin-shaft shredder to minimize dust and noise.
Understanding the desired output size is critical when choosing the right equipment. While some processes require separation of items, others might call for further shredding or grinding. Although a single-pass shredder could be more economical, achieving highly reduced sizes may necessitate additional machinery for compaction.
Choosing an appropriately sized shredder is vital for effective operation. Capacity is often measured in kilograms per hour and is influenced by the physical size, weight, and volume of material being processed. Ensure the shredder possesses slightly higher capacity than necessary to mitigate wear or excessive power use.
Verify the shredder’s capacity rating before purchasing and plan for extra capacity to prevent running it at max capacity, which could shorten lifespan, while an oversized machine might mean inefficient power use and unnecessary space utilization.
Two Feed Type Options: manual and automatic. Manual shredders usually have a hopper for material loading by hand or forklift. On the other hand, automatic conveyors or feeders improve efficiency by delivering a constant material stream to the shredder.
Among the key considerations when selecting a shredding machine are safety, mobility, and noise levels. The right location for the shredder is important, as moving heavy equipment poses challenges. Moreover, dust and airborne debris pose environmental risks, and noise levels can vary substantially from one shredder to another.
Given the substantial stress shredders endure, consistent maintenance is crucial to sustain optimal functionality. Blades, hammers, or cutters will eventually succumb to wear and require adjustment, sharpening, or replacement. The ease of accessing replacement parts and simple maintenance should be taken into account when choosing a manufacturer and determining the shredder’s location.
The different types of shredding machines are:

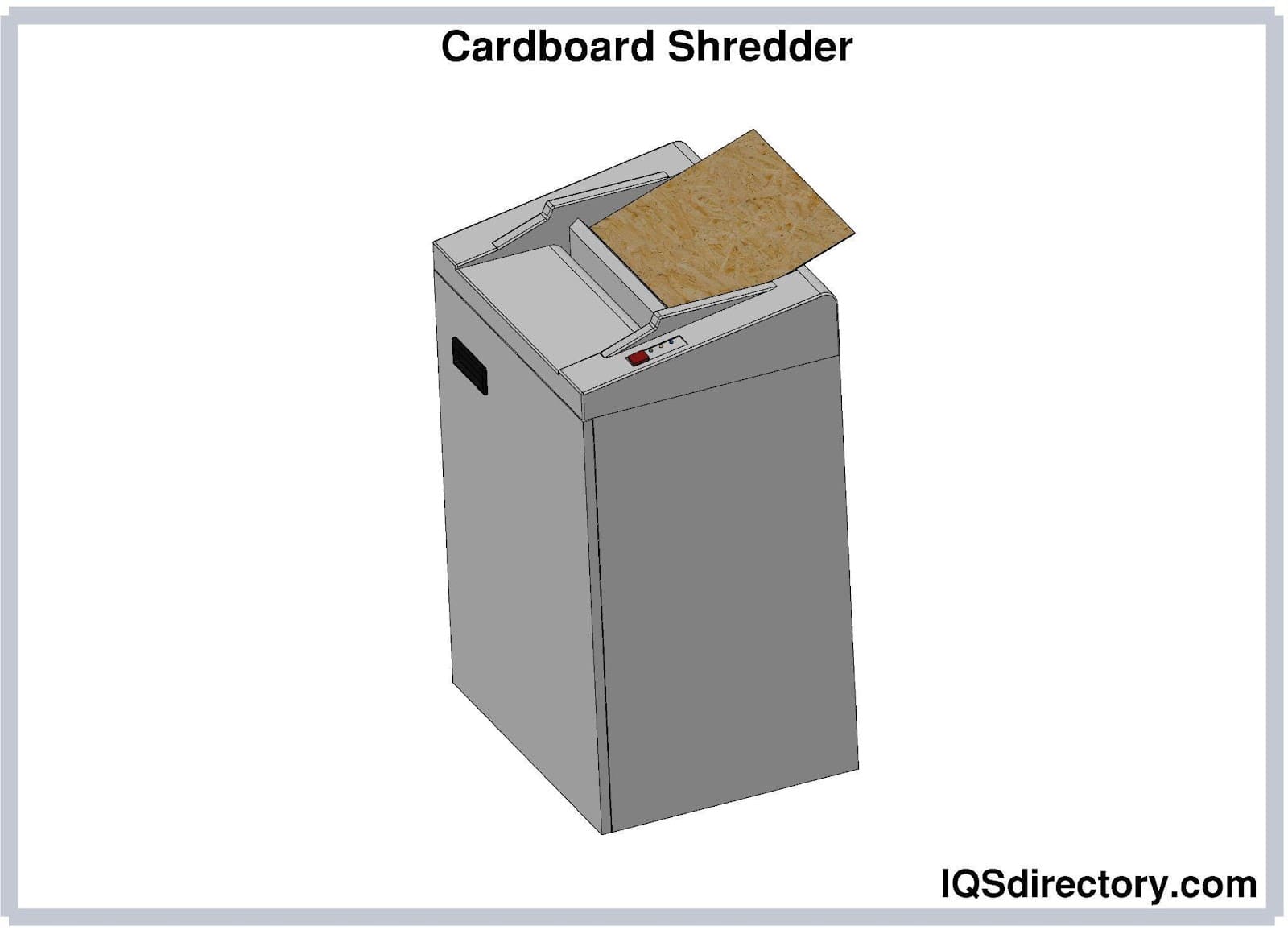

A cardboard shredding machine is a commercial or industrial recycling device designed to convert cardboard waste into useful packaging materials. These machines can produce various forms of packaging material, including cushioning netting, chips, flat netting, or strips.
Operating similarly to a paper shredder, a cardboard shredding machine processes discarded cardboard boxes to create eco-friendly and high-quality cardboard void fill materials, such as strips, chips, or netting. The machines are user-friendly, easy to operate, and designed with safety in mind. To use the machine, simply turn it on with a switch, feed a piece of cardboard through the front opening, and collect the shredded material from the back of the shredder.
A cardboard shredding machine efficiently transforms cardboard waste into reusable packaging materials. This process not only helps reduce waste disposal costs but also eliminates the need for purchasing new packing materials. The machine produces void fill materials in various sizes and shapes to safeguard goods during transportation, all while repurposing cardboard waste in an environmentally friendly manner.
A paper shredding machine is electronic equipment used to shred (usually sensitive or confidential) paper documents into indecipherable particles. The shredding machine shreds documents using a set of spinning cutting blades spun by an electric motor.
The size of the output pieces varies based on the type of paper shredding machine. Shredders are typically classified into strip-cut, cross-cut, and micro-cut categories. Depending on the model, a shredding machine can produce paper fragments as small as confetti or long strips. The output of paper shredding machines adheres to the security levels established by DIN 66399.
Paper shredding machines do not all produce the same cut size. In other words, different machines create particles of varying sizes. To differentiate between them, paper shredding machines are categorized into three types:
A strip cut shredding machine (also known as ribbon cut, straight cut, or spaghetti cut) is designed for shredding non-confidential documents. It slices paper into long, narrow strips that remain relatively readable.
This type of shredder offers the benefit of being easy and quick to operate due to its straightforward cutting mechanism.
However, a strip cut shredding machine provides less data protection compared to cross-cut or micro-cut shredders. The characteristics of strip cutting include:
A cross cut shredding machine (also known as confetti cut or diamond cut) is designed for shredding confidential documents. It cuts paper diagonally from two corners into small pieces that are nearly unreadable. Cross cut shredders with P-4 or P-3 security levels are well-suited for disposing of sensitive personal information or private documents in a workplace setting. Its characteristics include:
A micro cut (also known as particle cut or security cut) shredding machine is a high-security paper shredder designed for handling highly confidential documents. It cuts paper diagonally from two corners into small, square-shaped pieces that are nearly impossible to read. Its characteristics include:
A plastic shredding machine is designed to break down large plastic items into smaller pieces for further processing. Unlike plastic granulators, which are suited for smaller, more uniform plastic waste, shredding machines handle larger plastic products such as car bumpers, drums, pipes, and other sizable items that cannot be processed by granulators.
During operation, large plastic items are fed into the shredding machines. The blades, operating at slower speeds compared to granulators, break the plastic into smaller chunks. These particles are then collected, cleaned, and processed in recycling facilities before being granulated and supplied to manufacturers.
In addition to breaking down plastics for use as raw materials in products like storage containers, packaging bags, toys, and consumer electronics, plastic shredding machines offer several advantages. They are utilized across various sectors, including the plastic industry, catering industry, laboratories, manufacturing units, pharmaceutical companies, biomedical waste management plants, food processing facilities, nursing homes, cardboard manufacturing units, healthcare facilities, and supermarkets.
Hard drives often contain sensitive data, ranging from financial records and social security numbers to critical plans. Hard drive shredding is a commonly used method for physically destroying hard drives. While a hard drive shredder crushes the drive to make data retrieval more difficult, it does not completely eliminate the possibility of recovery. Modern technology means that even shredded particles, which can be as small as 2 mm, may still hold up to 600,000 data pages—smaller than a grain of rice!
A common misconception is that shredding media makes the data completely unrecoverable. However, physically destroying or shredding the media does not erase data from the disk platters, as data is stored magnetically. Tools and applications available online can recover data from larger particles of a shredded drive. Even smaller particles can be analyzed using magnetic force microscopes to retrieve information.
Tire shredders are shredding machines that are capable of reducing tires into a constant particle size. This type of shredder can also be utilized for a wide range of materials such as aluminum, plastics, paper, and cables. The tire shredding is capable of reducing tires and hence making recycling of tires easier. The end result, the tire waste, may often be sold.

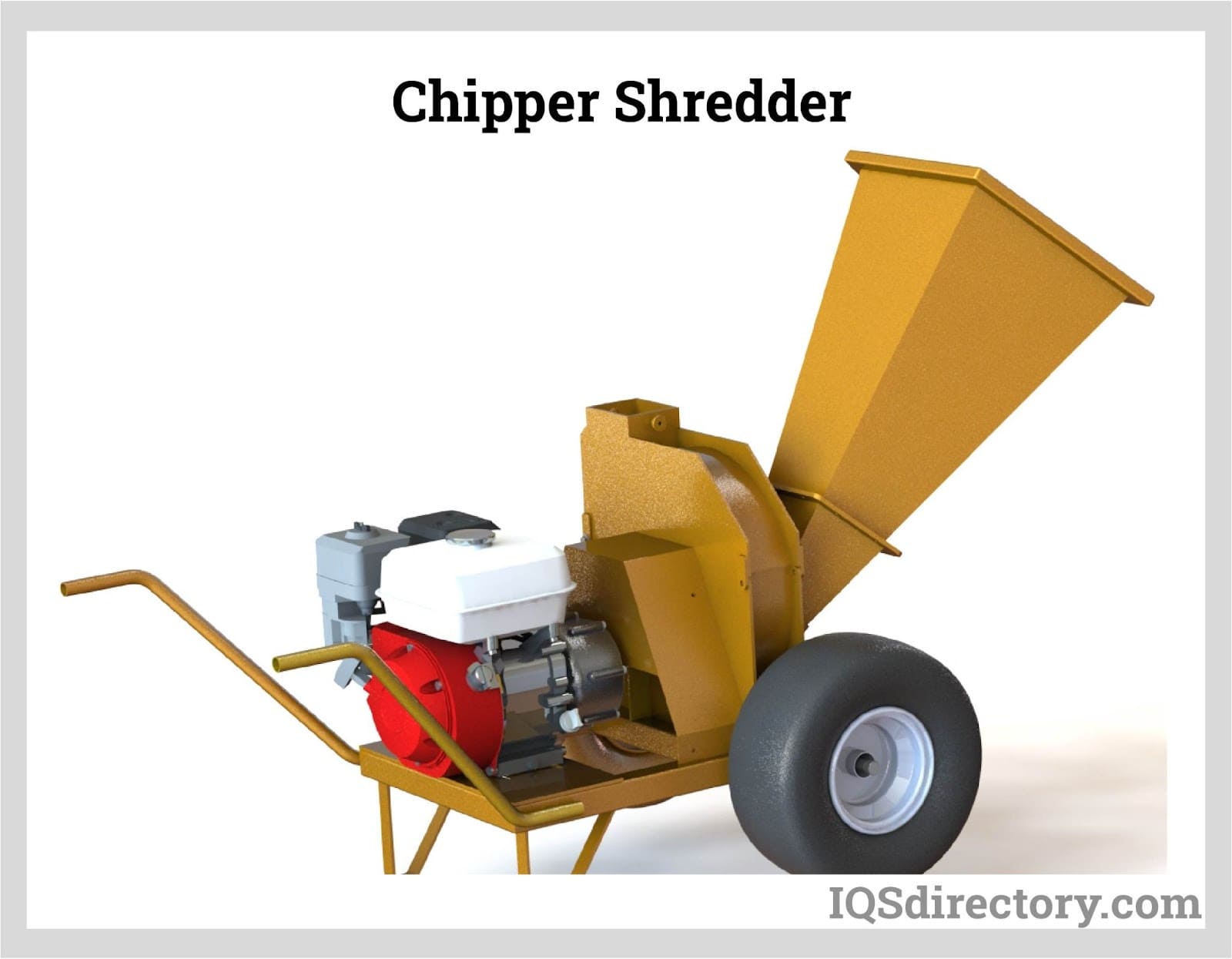

A chipper shredder, also known as a wood chipper, processes twigs, branches, and leaves into compost and mulch, contributing to the maintenance of attractive landscapes. Chipper shredders range from light-duty electric models to heavy-duty gasoline-powered machines capable of handling branches several inches in diameter.
A chipper shredder is equipped with a chute where branches are fed for chipping. A rotating blade or multiple blades break the branches into wood chips. For smaller debris like grass and leaves, the machine uses a different shredding mechanism, which typically involves a set of hinged blades, also known as hammers or flails. Larger shredding machines can handle small twigs as well. After processing, the shredded or chipped material is expelled into a collection bag or directly onto the ground.
The shredder's hopper and chipper chute are designed to keep the user safely away from the chipping and shredding mechanisms. Some models include a tamper or paddle to assist in feeding debris, ensuring that hands remain clear of the operating parts.
Metal shredders are machines designed to process a variety of scrap metal. They are commonly used in metal recycling facilities and scrapyards to break down metal waste into uniform sizes and shapes for easier disassembly and subsequent processing.
Metal shredders come in various sizes, ranging from smaller units that can handle items like coins and tin cans to large-scale models capable of operating at 10,000 horsepower and processing up to 4,000 tons of metal per day. These larger machines are used to shred vehicles as part of the end-of-life car recycling process, large drums, and virtually all types of scrap metal.
This chapter will cover the applications, benefits, and standards associated with shredding machines.
Industrial shredding machines are used across a range of applications to process various materials. These include foods, pharmaceuticals, pallets, rubber, steel, furniture, plastic drums, construction debris, containers, tires, corrugated boxes, labels, packaging, and other large items. Additionally, shredding machines are employed to reduce documents, x-rays, hard disk drives, and other electronic devices to protect personal and corporate privacy.
In municipal settings, shredding machines are commonly used at recycling centers and wastewater treatment plants. Smaller shredders with numerous cutting teeth are utilized for thorough reduction. The recycling industry benefits from shredding machines that process tires to recover rubber, which is then used in products like hot melt asphalt, playground surfaces, basketball courts, and footwear.
Recycled rubber also finds use in civil engineering for backfilling, road insulation, and as "Tire Derived Fuel." Shredded scrap wood is recycled into various wood products such as particleboard and paper. Plastic bottles are shredded and recycled into polyethylene terephthalate (PET) for producing new bottles. By shredding these materials, environmental waste is minimized, corporate profitability is enhanced, and carbon emissions are reduced.
Shredding machines are integral to numerous applications, including recycling, manufacturing, solid waste reduction, wastewater treatment, security, oil and gas production, and bio-solids management. Beyond simple size reduction, shredding machines offer many advantages such as producing raw materials or fuel, protecting sensitive information by destroying confidential documents, recycling waste, and ensuring the smooth operation of other processes and equipment. Shredders are utilized by corporations, municipalities, and government agencies alike.
Enhance Security – A primary benefit of having a high-quality shredding machine is the improvement in data security for a business. It is essential for modern enterprises to ensure that sensitive information remains inaccessible to unauthorized individuals. Effective shredding machines help protect confidential data from being exposed to unintended parties, fulfilling both competitive and regulatory requirements.
Reduce Waste Volume – Shredding documents and other media reduces the volume of waste produced by a business. This reduction in waste size streamlines waste management processes and can lower costs, particularly when waste disposal fees are based on volume.
Cut Costs – Purchasing a personal shredder can lead to significant cost savings compared to outsourcing shredding services. Quality shredding machines are now more affordable and accessible for businesses of all sizes. The long-term savings of having an in-house shredder versus paying for external shredding services can be substantial. Additionally, having a shredder on-site enhances security by eliminating the need to send sensitive information off-site for destruction.
Boost Efficiency – Owning a personal shredder can greatly improve operational efficiency. With an on-site shredder, there’s no need to wait for third-party shredding services or deal with the logistics of organizing and storing documents before destruction. Sensitive information can be shredded immediately, reducing delays and improving workflow.
These are some of the fundamental advantages that a shredding machine offers a business. However, the benefits can vary depending on the type and scale of the shredding equipment chosen.
Here are some potential drawbacks of using machine shredders:
To ensure the safety of operators, employers should train their staff on proper shredding practices, including safe loading and unloading procedures. OSHA provides comprehensive guidelines and standards for workplace safety. As a leading safety regulatory body, OSHA is highly recognized for its work safety regulations. It's crucial for customers to verify that their shredding machines are OSHA certified to ensure compliance.
Additionally, many industries, including metal recycling, adhere to OSHA regulations. Therefore, it is important to be aware of and follow the specific safety and compliance standards applicable to the industry and the shredding equipment used.
Shredding machines can be categorized into industrial and consumer types based on their intended use. Typically, paper shredding machines are considered consumer shredders, as they are primarily used by individuals or small businesses.
Industrial shredders, on the other hand, are robust and designed for high-volume applications. They handle a wide range of materials, including plastics, electronic waste, wood, and paper. These shredders feature various cutting mechanisms, such as horizontal and vertical shaft designs, as well as single, dual, triple, and quad-shaft cutting systems.
There are various factors to consider before choosing a suitable shredding machine. Collecting all the important information to compare against the shredding machine specifications will aid in shortening the process of comparing the equipment to the requirements. For recycling, the necessary permits must be at hand. Seeking knowledge and advice from a trustworthy company is a great start, and asking for a demonstration using a sample will approve the shredding machine’s effectiveness. Visiting a manufacturer’s website to check the company’s background and going through some case studies to learn how other companies have used shredding machines to solve operating difficulties is also a good start. The last step of the equation is figuring out the budget. Keep in mind that some machines, though initially less expensive, can be inferior in quality and in actuality are costlier in the long term to use and maintain.
A cardboard shredder is a machine designed to turn cardboard boxes and sheets into small shards or strips. Specialty cardboard shredders are configured to convert cardboard into flexible perforated material for packaging...
An industrial shredder is a piece of heavy duty equipment designed to shred dense and light materials to prepare them for recycling or for the destruction of unusable products. They are an environmentally sound device that...
Scrap metal must be processed to be effectively recycled and ready for reuse. Metal shredders are machines used to process a variety of metal scraps. Metal shredders are frequently used to reduce metal debris to...
Tire shredders are a type of recycling equipment used to reduce the volume of tires to scrap using high torque shredding systems. The various types of tire shredders are capable of handling large loads of...
A baler is a piece of equipment used to compress solid industrial waste or recyclable materials (e.g., paper, plastic, foam, cans, etc.) to achieve better material handling and storage. Eliminating empty space between individual items of these bulk products is a great way to save costs attributed to storage and transport...
A bowl feeder is a mechanism for supplying small parts and components to a production line or for sorting bulk items for rapid use. A self contained bowl feeder system has a bowl that sets on a spring loaded base that moves vertically...
A cardboard baler is a mechanism that uses a metal plate driven by a hydraulic ram to apply tremendous pressure and force to crush, compact, and compress pieces of cardboard into tightly formed and easy to transport cubes and...
A Trash compactor is a machine or device designed to compress, reduce, and compact a variety of materials through hydraulic, mechanical, or pneumatic force. The initial steps in the compacting process are the collection of the material to be compacted...
Vibratory conveyors are material-handling equipment used to transport fine to coarse-grained bulk materials. These vibratory conveyors are strong conveying equipment utilized for bulk commodities with fine to coarse graininess...
Vibratory feeders are short conveyors used to transport bulk materials utilizing a controlled vibratory force system and gravity. The vibrations impart a combination of horizontal and vertical acceleration through tossing, hopping, or sliding-type of action to the materials being handled...
A vibratory screening is a process that separates bulk solid materials from solids and slurries using inertial vibration that causes various sizes of particles to pass through openings in a screen or...
Modern balers are descendants of hay presses, invented in the mid-nineteenth century, that made it easier to gather and stack hay. The earliest hay presses were stationary units built into a barn and extending two to three stories into the hayloft...
