This article contains everything you need to know about solenoid control valves and their use.
You will learn:
Solenoid control valves are advanced electro-mechanical devices used to regulate the flow of fluids, such as liquids or gases. These valves work by utilizing an electromagnetic solenoid to either open or close, allowing for precise automation in fluid control systems. Their versatility makes them suitable for a wide range of applications, with various designs available to meet specific requirements.
There are different types of solenoid valves, including direct acting, internally piloted, and externally piloted, which can be classified by the number of ports or flow paths. The materials used for solenoid valves depend on their application. Neutral fluid valves are commonly made from bronze or brass, while high-temperature or corrosive applications use galvanized steel or stainless steel, suitable for handling steam, corrosive fluids, and gases.

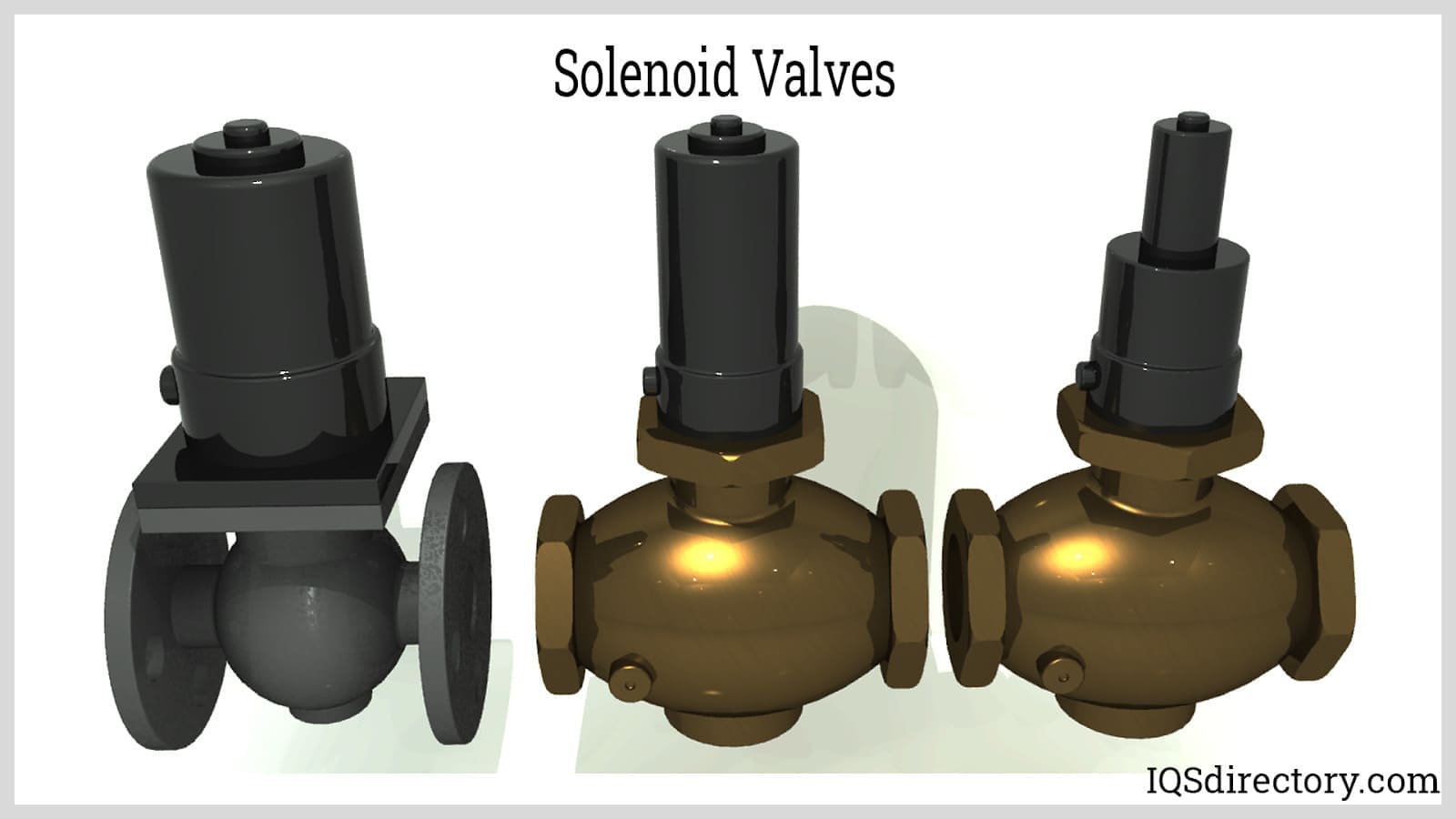

A solenoid valve is comprised of an assembly that includes an electromagnet, a plunger, and a valve body with ports containing discs or plugs that regulate flow. It controls the passage of flow or blocks it by utilizing the magnetic plunger. When the coil of the solenoid valve is energized, the plunger retracts, allowing flow through the ports.

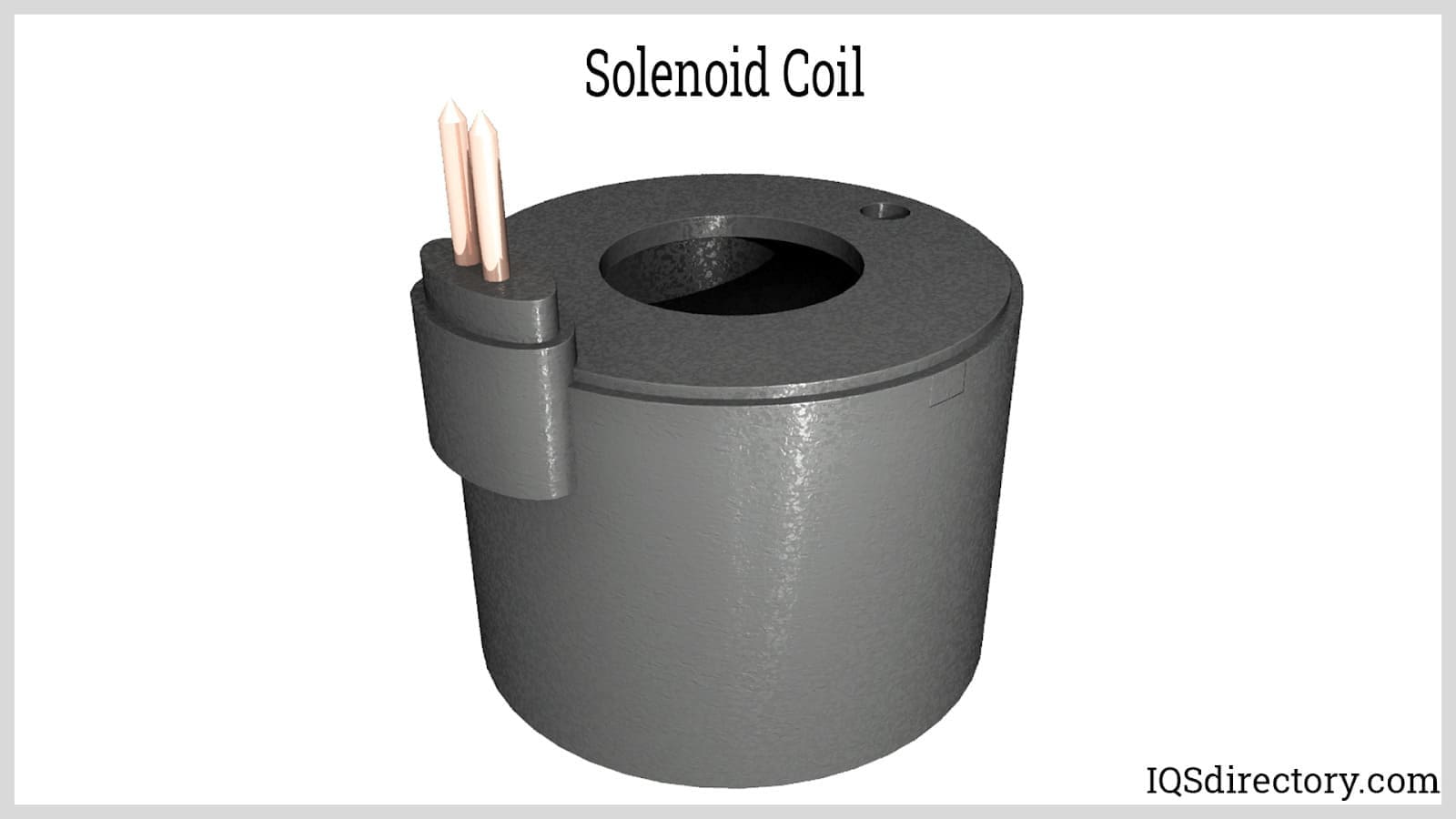

The solenoid coil is the primary component that generates an electromagnetic field when an electric current is passed through it. The coil is usually made of copper wire and is wrapped around a metal core, which amplifies the magnetic field.

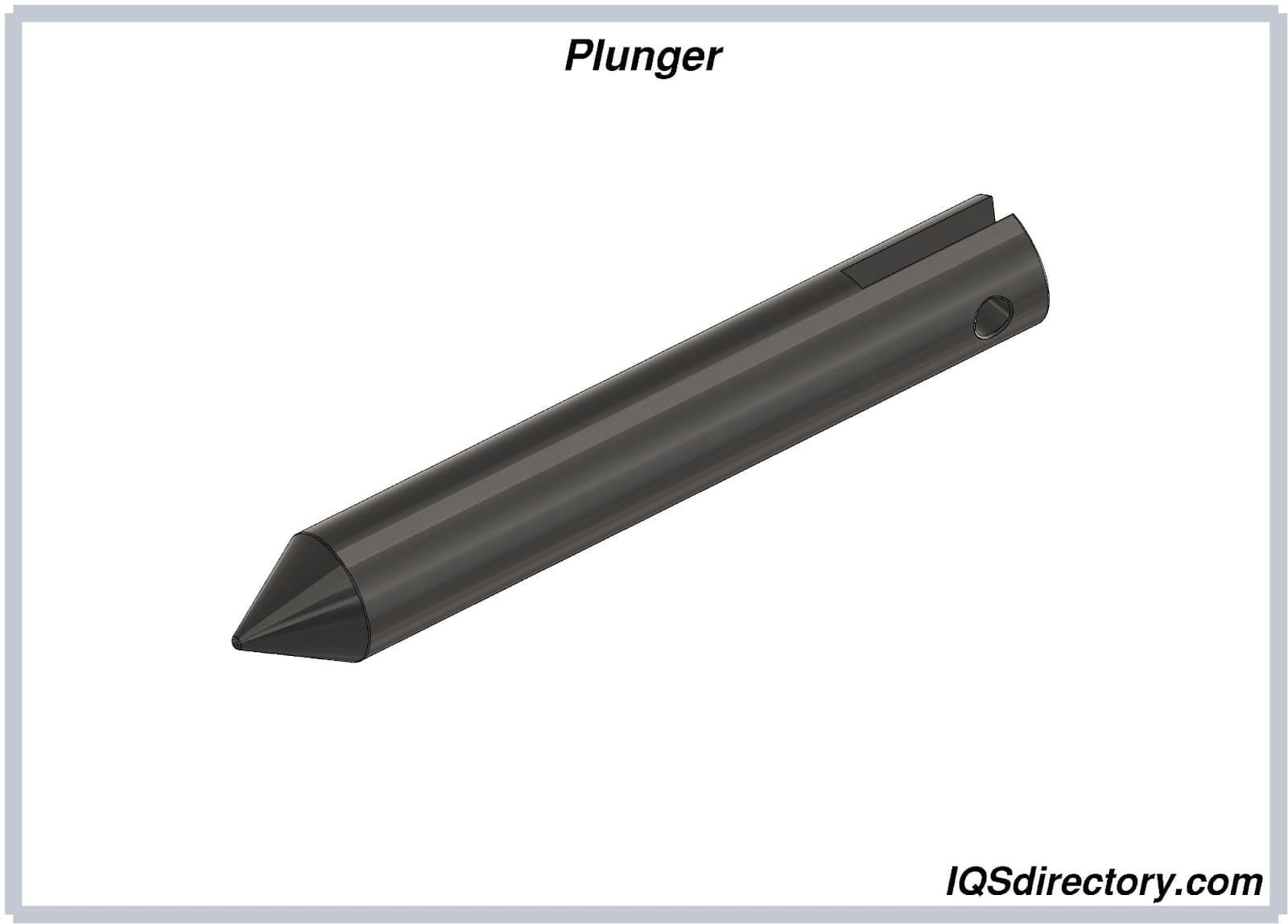

The plunger, also known as the armature, is a movable component located inside the solenoid coil. When the coil is energized, the magnetic force pulls the plunger toward the center of the coil. Once the coil is de-energized, the plunger is pushed back to its original position by a spring.
The solenoid assembly is attached to the valve body, which is part of the circuit controlling the fluid flow. The valve body has two main openings: the inlet port and the outlet port. It is constructed from materials specifically chosen to suit the media being controlled and designed to withstand the conditions of the application, ensuring durability and efficiency.
The valve seat features a machined surface that ensures a tight seal between the valve and the fluid ports. It is typically made from soft materials like Teflon™ or rubber for effective sealing. The number of seats in a solenoid valve depends on the number of ports, with three-way valves having two seats.
The disc is the internal mechanism responsible for controlling the flow of fluid through the valve. It is connected to the plunger and moves back and forth within the valve body to open or close the fluid ports when the solenoid is energized or de-energized.
The spring counteracts the magnetic force produced by the solenoid coil. When the coil is not energized, the spring pushes the plunger and the valve disc or spool back to its original position.
These components work together to control the flow of fluid through the valve. When the solenoid coil is energized, the plunger is drawn towards the center of the coil, which moves the valve disc or spool to open the fluid ports. When the coil is de-energized, the spring returns the plunger and the valve disc or spool to their original positions, closing the valve.
Solenoid coils feature a compact design, low power consumption, quick response, and exceptional performance. The success of solenoid valves hinges on their electromagnetic action. With countless variations, each solenoid valve is specifically designed and configured to meet the requirements of various applications.

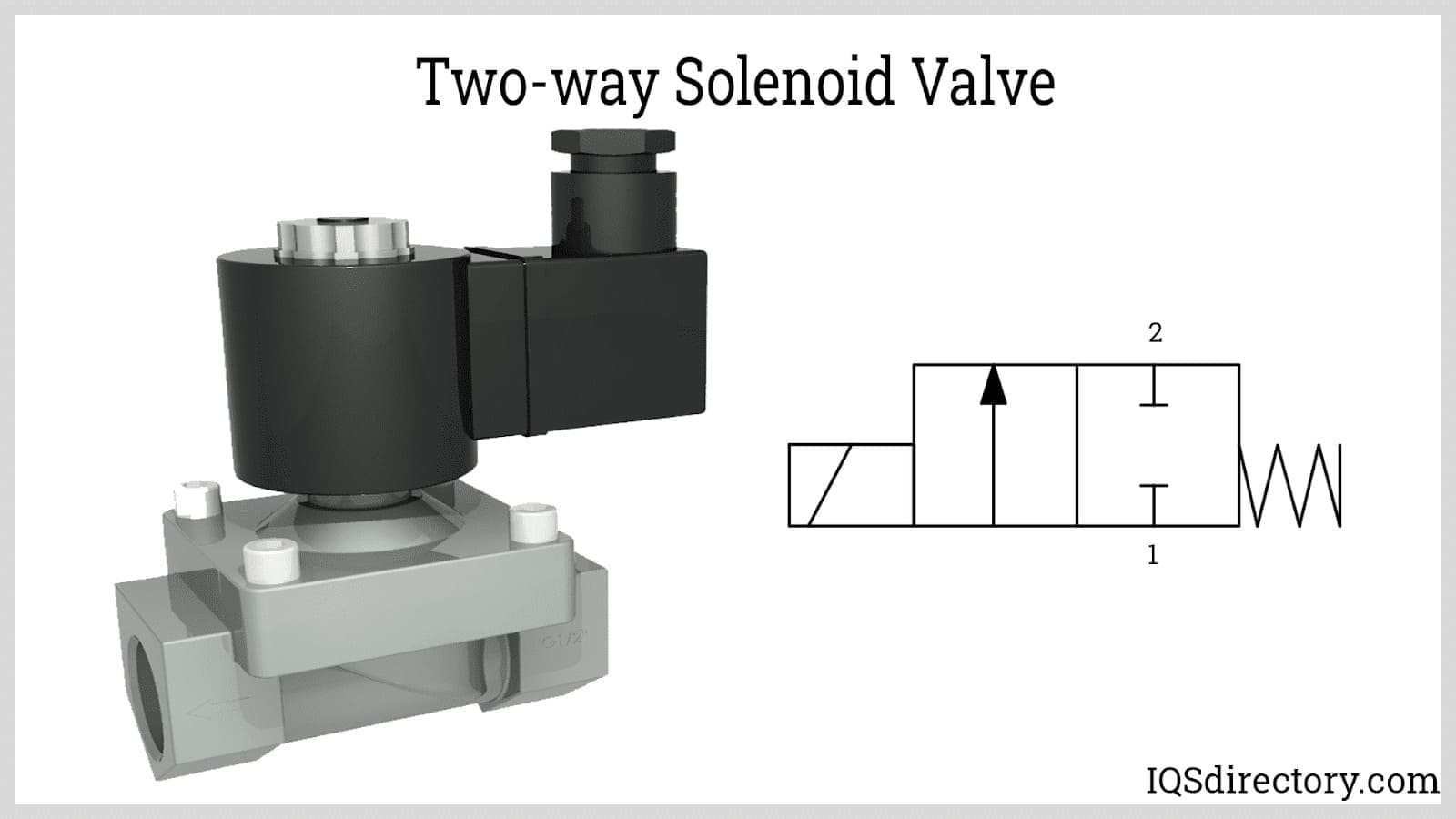

A 2-way solenoid valve features an inlet and an outlet port, allowing it to control the flow of fluids or gases within a system. Common applications include regulating water flow in irrigation systems, managing refrigerant flow in air conditioning systems, and controlling gas flow in fuel cells.

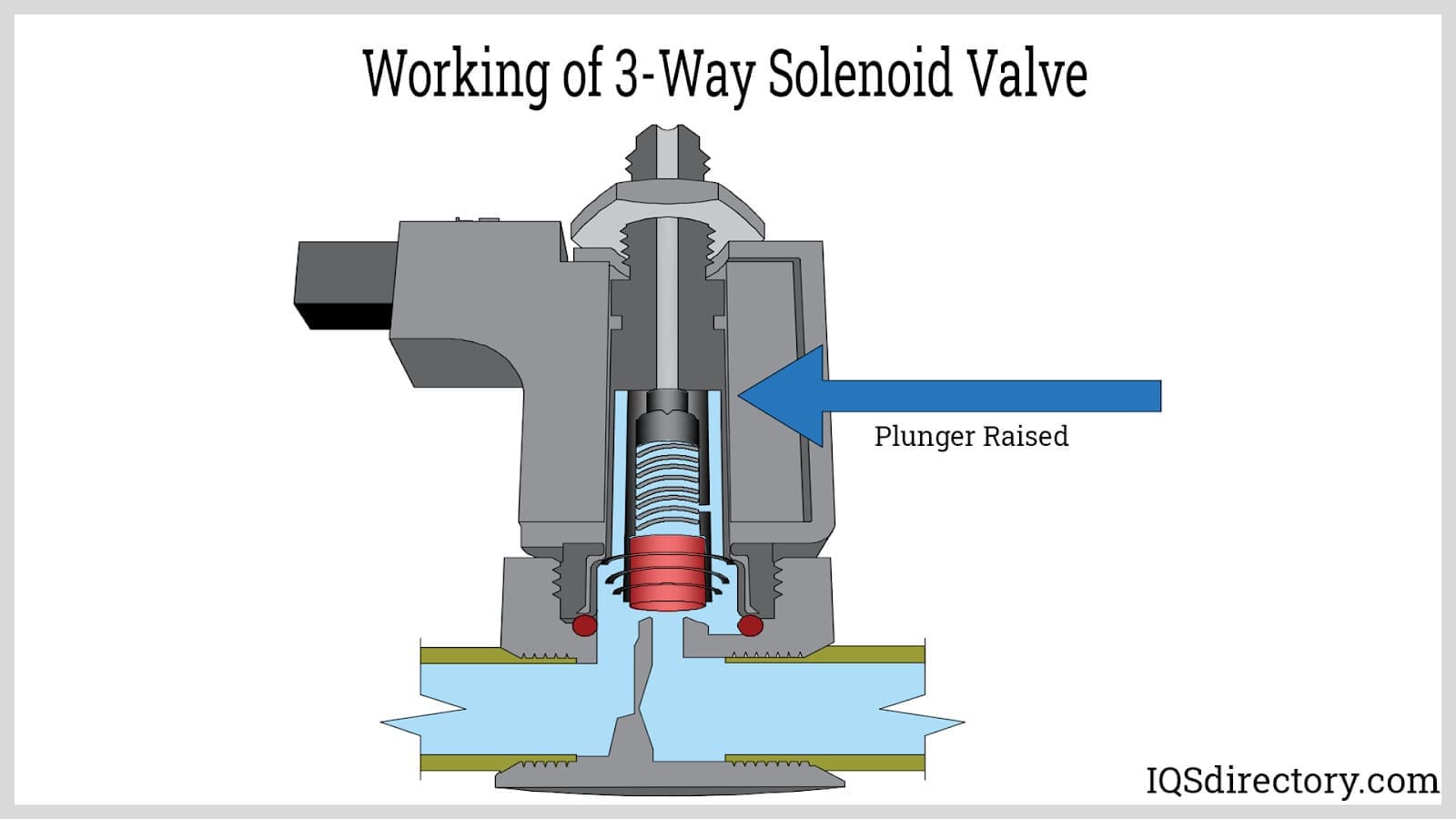

A 3-way solenoid valve has three ports: one inlet and two outlets. It is used to divert flow between two separate paths, typically to switch between two different processes or operations. Applications include controlling the flow of steam in boilers, controlling the flow of liquids in chemical processing, and controlling the flow of air in pneumatic systems.

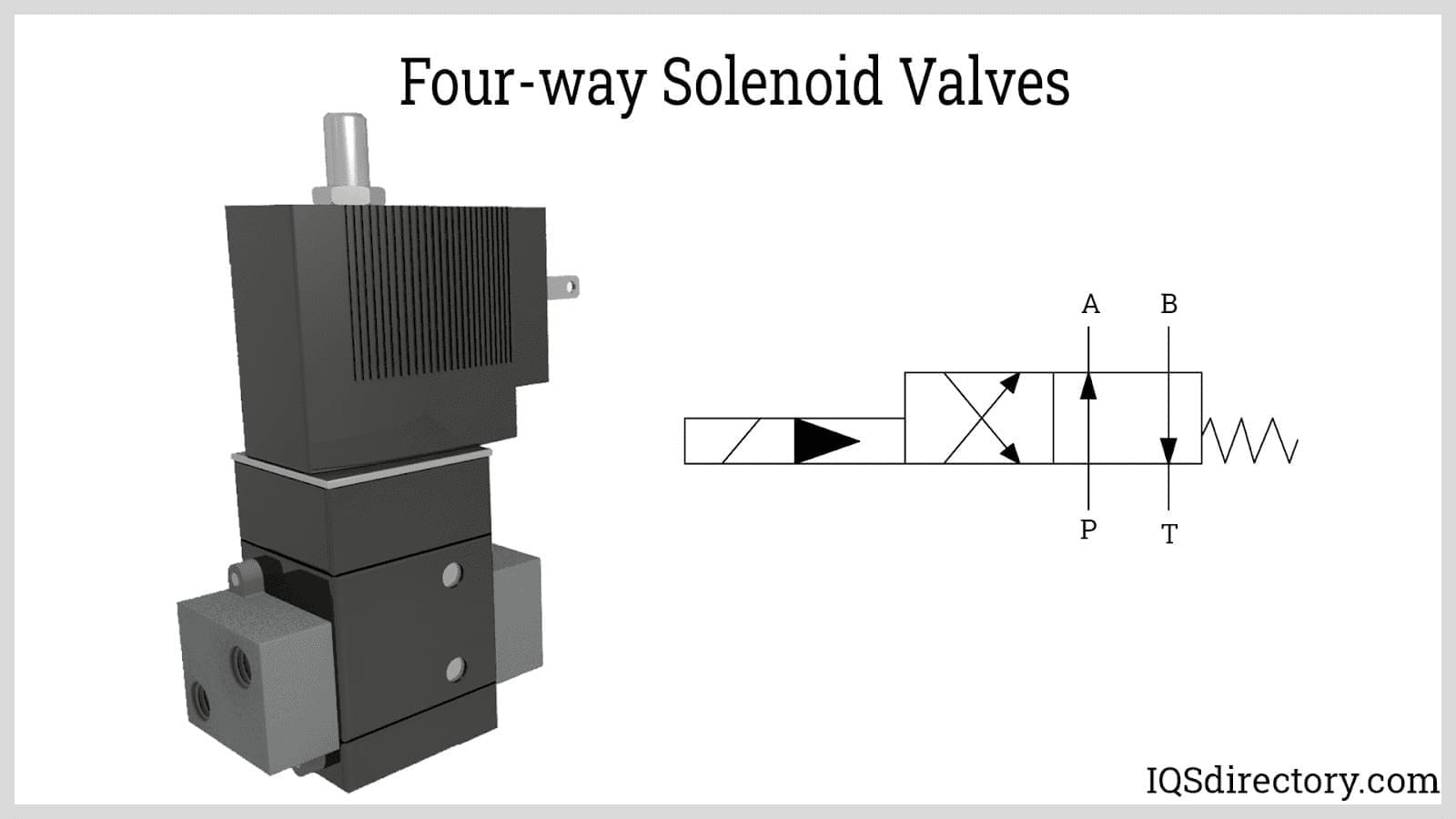

A 4-way solenoid valve features four ports: two inlets and two outlets. It is designed to control the flow of fluids or gases between two separate paths or circuits, allowing it to switch between different operations. Common applications include regulating hydraulic fluid flow in machinery, managing gas flow in combustion systems, and controlling water flow in wastewater treatment processes.

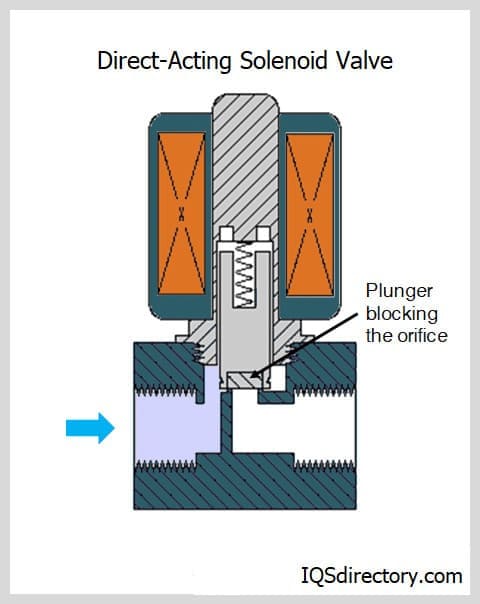

A direct-acting solenoid valve operates independently of pressure differentials, meaning it can open or close regardless of the pressure difference between the inlet and outlet. This type of valve is ideal for applications that require precise control over fluid or gas flow. Common applications include regulating the flow of chemicals in pharmaceutical manufacturing, managing fuel flow in automotive engines, and controlling refrigerant flow in refrigeration systems.
A pilot-operated solenoid valve uses a smaller pilot valve to control the operation of a larger main valve. This type of valve is suited for applications requiring high flow rates or high pressure. Typical applications include regulating the flow of steam in power generation, managing natural gas flow in pipelines, and controlling water flow in large-scale irrigation systems.

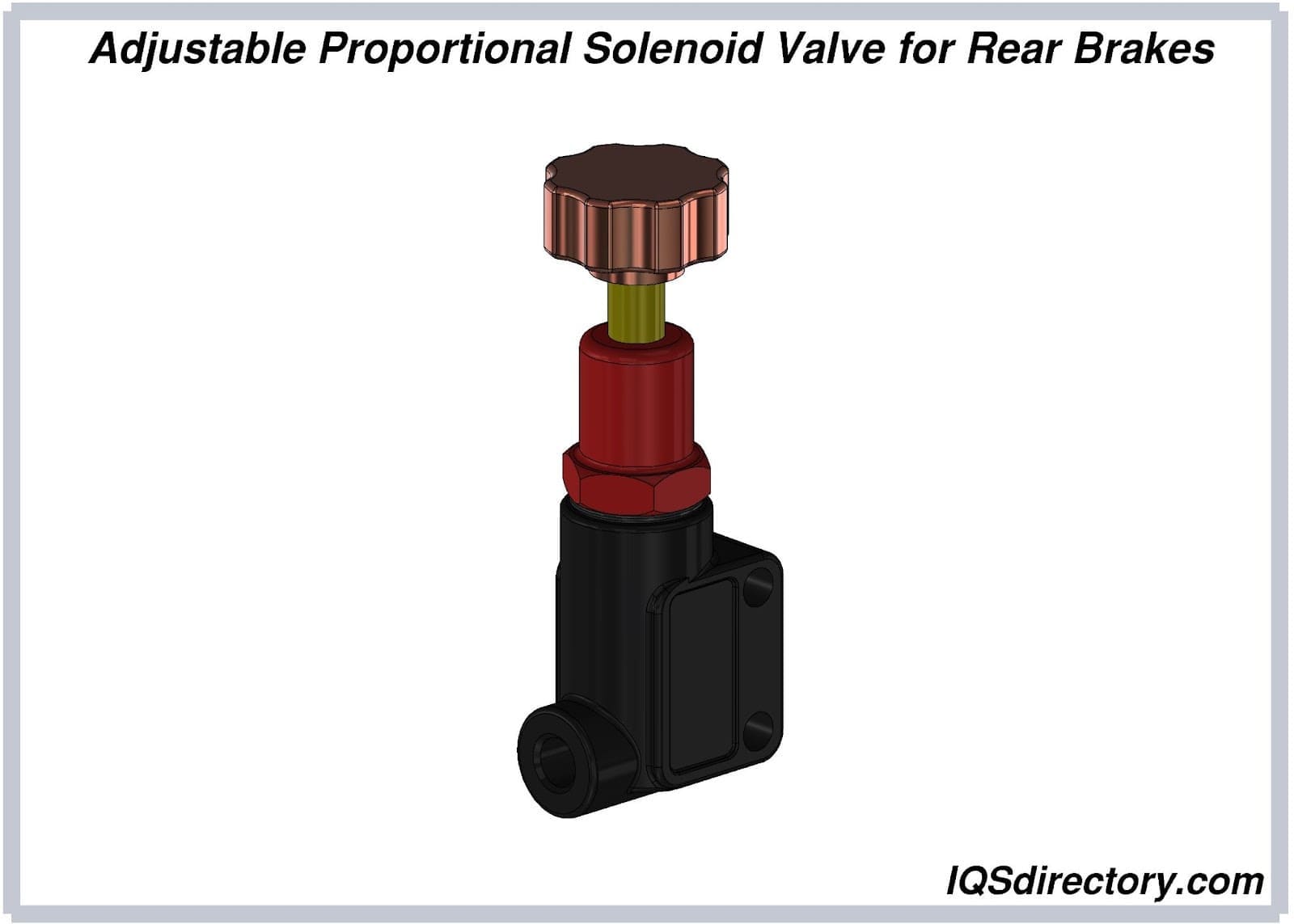

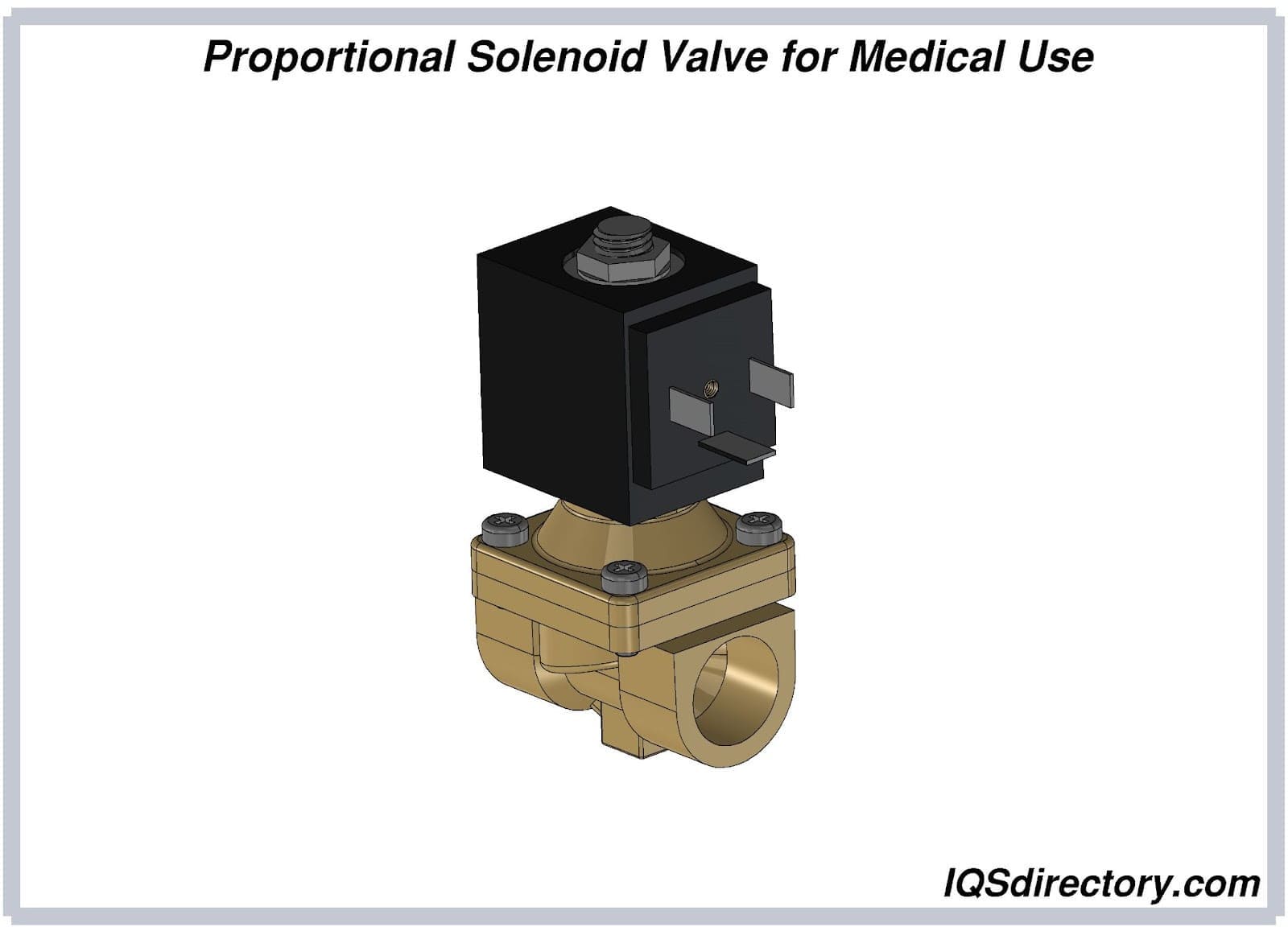

A proportional solenoid valve is designed for applications that require precise control of fluid or gas flow, adjusting dynamically to varying conditions. It operates by modulating the magnetic field strength to control the valve's position. Common applications include managing air flow in HVAC systems, regulating fuel flow in jet engines, and controlling water flow in high-precision irrigation systems.
A latching solenoid valve is engineered to retain its position even when power is disconnected, meaning it doesn't require a continuous power supply to stay in its set state. This feature makes it ideal for applications that need low power consumption or remote valve control. Typical uses include managing water flow in remote irrigation systems, regulating fuel flow in unmanned vehicles, and controlling air flow in remote pneumatic systems.
In summary, solenoid control valves are available in various types and designs to address specific needs across different applications. Selecting the appropriate type of solenoid valve is crucial for ensuring reliable and efficient operation.
Solenoid control valves are among the most commonly used methods for regulating the flow of gases and liquids. They save time and money by eliminating the need for engineers, technicians, and workers to manually oversee and monitor the movement of media. This feature allows solenoid control valves to be installed in remote or isolated locations. Their precision and rapid response have made them a crucial element in fluidic control systems.
Solenoid control valves offer precise control over the flow of fluids or gases, making them ideal for applications where accuracy is essential. These valves can be adjusted to achieve exact dosing or flow rates, ensuring consistent output and minimizing waste.
Solenoid control valves can open and close rapidly, making them ideal for applications that require quick changes in flow rate. Their fast response time is especially beneficial in pneumatic systems and other applications where precise timing is crucial.
Solenoid control valves consume very little power, making them an efficient choice for applications where energy usage is a concern. Their low power consumption also makes them suitable for use in battery-powered devices.
Solenoid control valves are usually small and lightweight, making them easy to install in tight spaces or applications where weight is a concern. Their compact size also makes them ideal for use in mobile equipment and other situations where space is limited.
Solenoid control valves are built to endure harsh environments and heavy use, making them a dependable choice for various applications. They are often constructed from corrosion-resistant materials and can be designed to operate in extreme temperatures, making them suitable for use across different industries.
Solenoid control valves require minimal maintenance, making them a cost-effective option for applications where downtime is a concern. With few moving parts and no need for lubrication, these valves reduce the need for regular upkeep.
Solenoid control valves can be engineered to handle a broad range of fluids and gases, making them a versatile option for various applications.
Solenoid control valves can be equipped with safety features such as fail-safe mechanisms, which ensure the valve closes in the event of a power failure or other malfunction.
Solenoid control valves can be easily automated with computerized controllers or timers, making them ideal for applications that require remote control or scheduling.
Solenoid control valves are generally less expensive than other types of control valves, making them a cost-effective option for applications where budget is a concern.
Solenoid control valves offer consistent output across a wide range of operating conditions, making them a reliable choice for applications where stable performance is essential.
The selection of a solenoid valve begins with a clear understanding of the conditions where it will be used. A crucial part of the process is the compatibility of the solenoid valve materials with the medium being transported and the ambient temperature. Solenoid valves may seem to be the ideal tool for the needs of an application but must be carefully chosen using an established set of criteria.
Solenoid control valves come in various types, each with distinct characteristics and applications. Choosing the right valve depends on the specific needs of the application, including the type of fluid being controlled, the required flow rate, and the pressure range.
Choosing the right material for a valve is crucial and should be based on the type of fluid being controlled as well as any environmental conditions that could impact the valve’s performance. The material must be compatible with the fluid and the connections it will interface with. For instance, if the valve will be subjected to high temperatures or corrosive chemicals, materials like stainless steel might be more suitable.
Choosing the appropriate valve size is essential for meeting the required flow rate of the application. A valve that is too small may restrict fluid flow, potentially causing performance issues, while a valve that is too large could be more costly and occupy unnecessary space.
When selecting a solenoid valve, it's important to consider its electrical requirements, including voltage, current, and power consumption. The valve must be compatible with the available power supply in the application and should be efficient to avoid unnecessary power consumption.
When choosing a solenoid valve, it is crucial to consider the environment in which it will operate, including factors such as temperature, humidity, and exposure to dust or other contaminants. Since solenoid valves are highly sensitive to dirt and only function properly with clean liquids or gases, the valve should be selected based on its ability to withstand these environmental conditions.
Consider the performance requirements of the valve, including response time, accuracy, and repeatability. Choose a valve based on its ability to meet these performance criteria effectively.
Solenoid valves typically come with standard female-threaded ports, which might seem straightforward. However, there are various thread standards for piping, each with different thread counts per inch and thread angles, even though the outside diameter (OD) may be similar across standards. To ensure a proper fit, it's crucial that the thread type of the solenoid valve matches the thread standard used in the application.
Solenoid control valves are used in a variety of applications because they can automatically control the flow of fluids and gases. They require minimal plumbing, wiring, cost, and effort, making them a highly effective control mechanism. The range of applications for solenoid control valves is continuously expanding, from offshore pilot valves to hydraulic fluid control.
Solenoid control valves are frequently employed in irrigation systems to manage the flow of water to various sections of a field or garden. Typically, these valves are operated by a timer or a computerized controller that activates and deactivates them at preset times. Their efficiency, reliability, and ease of automation make solenoid valves an ideal choice for irrigation applications.
Solenoid control valves are also utilized in chemical processing plants to regulate the flow of chemicals through pipelines. They are ideal for this application because they can handle corrosive and hazardous chemicals, and their precise control capabilities ensure accurate dosing.
Solenoid control valves are employed in various automotive applications, such as fuel injection systems, transmission control systems, and turbocharger control systems. Their precise control capabilities enable efficient and reliable operation, which is crucial for optimal vehicle performance.

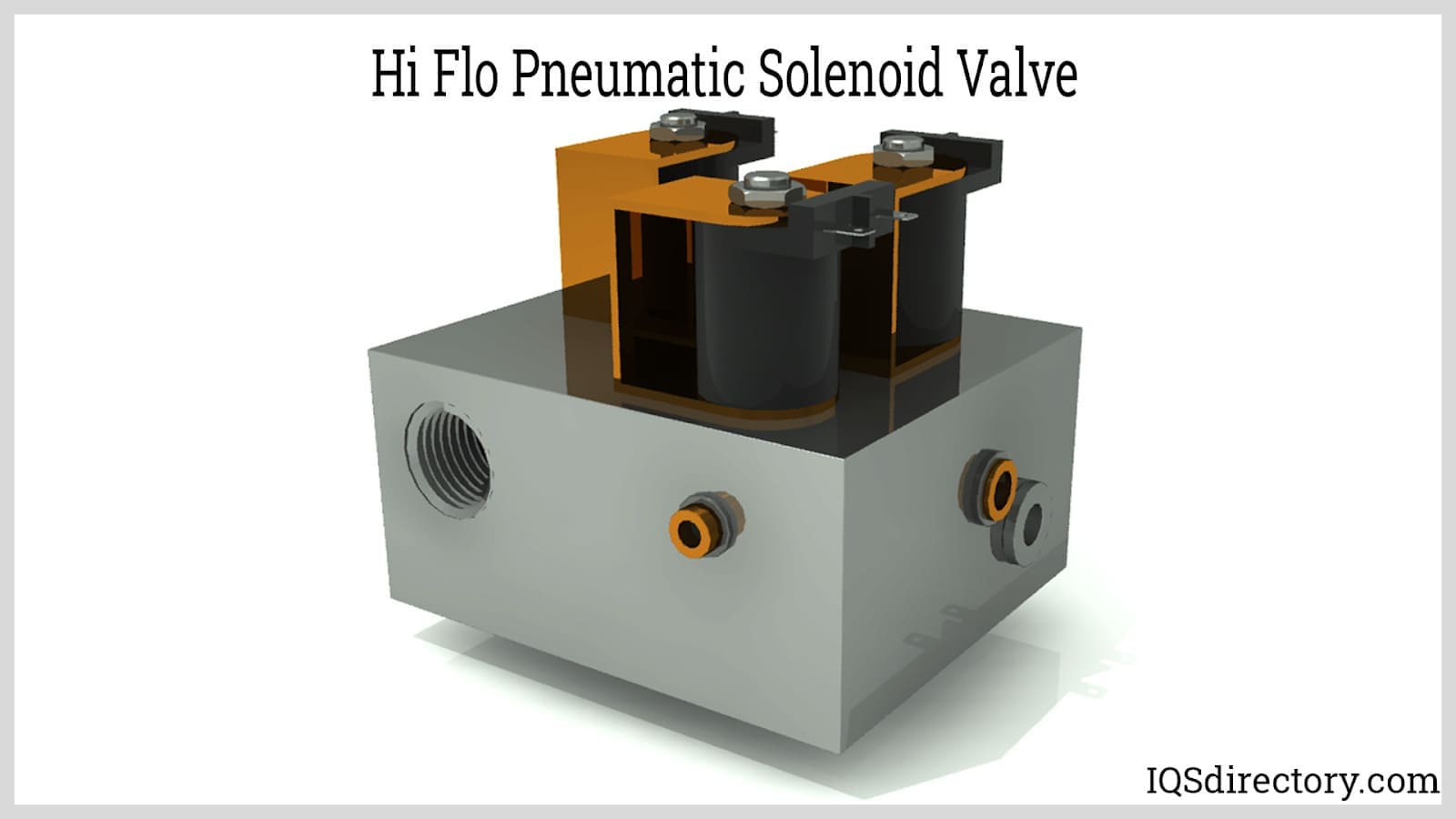

Solenoid control valves are frequently utilized in pneumatic systems to regulate the flow of air or other gases. Their ability to be controlled quickly and accurately makes them ideal for ensuring efficient operation within these systems.
Solenoid control valves are employed in medical equipment such as anesthesia machines, oxygen concentrators, and ventilators. They are used in these applications due to their precise control capabilities, which ensure accurate dosing of medications or other substances.
Solenoid control valves are utilized in water treatment facilities to regulate the flow of water through various stages of the treatment process. These valves are ideal for this application because they can handle corrosive chemicals and provide precise control, ensuring accurate dosing of treatment chemicals.
Solenoid control valves are employed in heating and cooling systems to manage the flow of hot or cold water throughout the system. They are used in this context because they offer precise control, ensuring that the temperature of the air or water remains at the desired level.
Solenoid control valves are utilized in refrigeration systems to regulate the flow of refrigerant throughout the system. They are chosen for this application due to their precise control capabilities, which help ensure the system operates efficiently.
Solenoid control valves are employed in aerospace applications such as fuel control systems and hydraulic systems. They are used in these contexts because they provide quick and precise control, ensuring the reliable operation of critical systems.
Solenoid control valves are utilized in manufacturing processes to regulate the flow of fluids or gases through various stages of production. They are preferred for their precise control capabilities, which ensure efficient and dependable operation throughout the process.
Solenoid control valves are employed in food and beverage processing to manage the flow of liquids and gases through various stages of production. Their precise control capabilities are essential for accurate ingredient dosing and efficient process operation.
Solenoid control valves are utilized in fire protection systems to regulate the flow of water or other extinguishing agents. Their ability to be controlled quickly and precisely ensures that the system operates efficiently and effectively during a fire emergency.

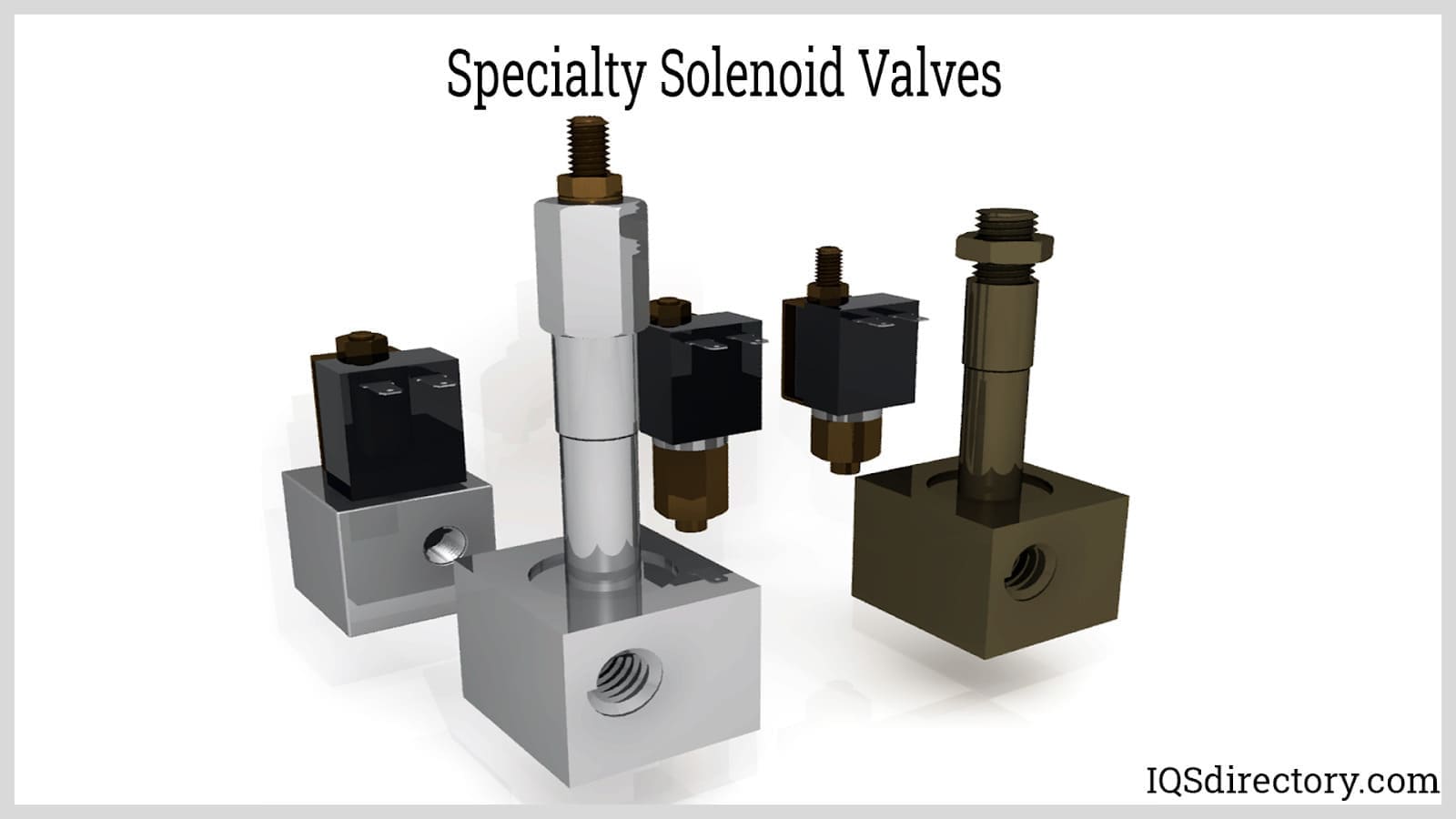

High temperature solenoid valves are used for steam, hot air, and hot water applications that involve heating and sterilizing autoclaves and boiler plants. This type of solenoid valve works well in applications with flowing liquids and gases where the temperatures reach 176°C (350°F), such as hot oils and hot non-flammable gases. They are designed for use in harsh environments and environments where steam pressure can reach 100 PSI.
Liquids that are considered to be cryogenic operate at temperatures below -101°C (-150°F) and are specially designed for such low temperatures. Typical materials for construction of such solenoid valves include autistic stainless steel, bronze, and monel. Cryogenic solenoid valves provide exceptional performance when operating at extremely low temperatures, such as when handling liquid nitrogen or liquid carbon dioxide that operate at -184°C (-300°F).
The moving parts of solenoid valves contract by 0.1778 mm (0.007 inch) when exposed to cryogenic liquids. To prevent issues like lockup and ice formation, cryogenic solenoid valve designs must account for this contraction.
As environmental concerns increase, legislation and regulations have been introduced to monitor the effectiveness and efficiency of various control mechanisms, including solenoid control valves. The exceptional performance of solenoid control valves has led to their scrutiny under environmental regulations aimed at controlling pollution and contamination.
The Clean Air Act regulates air pollutant emissions from various sources, including industrial facilities. Solenoid control valves used in these facilities may need to comply with emissions regulations, and manufacturers might have to obtain certifications to ensure they meet these requirements.
The Clean Water Act regulates the discharge of pollutants into navigable waters in the United States. Solenoid control valves used in processes involving water discharge may need to adhere to specific regulations to ensure compliance.
The Safe Drinking Water Act establishes standards for drinking water quality and regulates contaminants in public water systems. Solenoid control valves used in these systems may need to meet specific standards and comply with relevant regulations.
OSHA establishes workplace safety standards and regulates the handling of hazardous materials. Solenoid control valves used in industrial processes may need to adhere to OSHA standards to ensure safe operation and compliance.
The NEC sets standards for electrical installations and wiring in buildings. Solenoid control valves used in such settings may need to comply with NEC standards to ensure safe and effective electrical integration.
The IEC sets international standards for electrical systems and components. Solenoid control valves intended for export or used in products destined for international markets may need to comply with IEC standards to ensure global compatibility and safety.
The Restriction of Hazardous Substances Directive (RoHS) limits the use of specific hazardous substances in electrical and electronic equipment sold within the European Union. Solenoid control valves intended for export to the EU must adhere to RoHS regulations to ensure they do not contain restricted materials.
The Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH) regulation is designed to protect human health and the environment from the risks associated with chemicals. Solenoid control valves containing specific chemicals must comply with REACH regulations to ensure safety and environmental protection.
Proposition 65 mandates that businesses must provide warnings to consumers about significant exposures to chemicals known to cause cancer, birth defects, or other reproductive harm. Solenoid control valves containing certain chemicals may need to comply with Proposition 65 regulations.
These regulations are in place to safeguard workers, consumers, and the environment. Manufacturers and users of solenoid control valves are vigilant about these regulations, ensuring compliance to prevent potential legal or financial repercussions.
While solenoid control valves are renowned for their exceptional and consistent performance, they can accumulate debris, impurities, or corrosion over time, which can compromise their functionality, reduce flow rates, and cause leaks. Regular maintenance and inspections are essential to address these issues and ensure optimal performance of the solenoid control valve.
Regular maintenance is crucial for keeping solenoid control valves functioning effectively. This includes tasks such as cleaning or replacing filters, checking for leaks, and testing the valve's performance to ensure it operates properly.
Understanding the various components of a solenoid control valve—such as the solenoid coil, plunger, spring, and seal—is essential for diagnosing and troubleshooting any issues that may arise.
Clogging can happen in the valve or the connected piping, leading to reduced flow or valve malfunction. Regular inspection and cleaning of filters and strainers can help prevent clogging.
Leaks can result from damaged seals, improper installation, or general wear and tear. Regularly checking for leaks and repairing or replacing damaged components is essential to maintain the valve's effectiveness.
Regular testing of the solenoid control valve is crucial for detecting performance issues like slow response times or inadequate flow. This involves measuring the valve's response time or flow rate and making necessary adjustments or repairs to ensure optimal performance.
Always refer to the manufacturer's guidelines and specifications for the solenoid control valve to follow proper maintenance and troubleshooting procedures.
Personnel should receive adequate training on the operation, maintenance, and troubleshooting of solenoid control valves to handle them correctly and address issues quickly. Proper maintenance and troubleshooting are essential for ensuring the longevity and effectiveness of solenoid control valves.
Although solenoid control valves are highly functional and versatile, they may not be suitable for every application. When issues arise, they are typically due to straightforward factors that can be easily fixed. These problems often stem from a lack of proper oversight and inspection, which is essential for maintaining any type of mechanism.
Solenoid control valves might not be suitable for applications requiring very high flow rates, as their small size and limited internal diameter can restrict fluid or gas flow.
Solenoid control valves usually have lower pressure ratings compared to other types of control valves and may not be suitable for applications that require high pressures.
Solenoid control valves might not be suitable for extreme temperature environments because the materials used in their construction may not withstand very high or very low temperatures.
Solenoid control valves might not be suitable for use with certain chemicals or fluids, as the materials used in their construction may not be compatible with these substances. It is important to choose a valve made from materials that are appropriate for the specific application.
Solenoid control valves can be prone to electrical interference. To avoid malfunctions, it is crucial to properly shield and ground the wiring and power source.
Solenoid control valves can generate a loud clicking sound when they open and close. This noise might be an issue in applications where keeping noise levels low is important.
Although solenoid control valves typically consume low power, they need a constant power supply to function. This requirement can be problematic in battery-operated devices or situations with limited power availability.
Solenoid control valves usually need less maintenance compared to other types of control valves, but they still require regular inspection and cleaning to operate correctly. Neglecting maintenance can lead to malfunctions or failures.
Although solenoid control valves are typically more affordable compared to other control valve types, they can still represent a considerable investment for certain applications. When choosing a valve, it's important to consider not only the cost of the valve itself but also the expenses associated with installation and maintenance.
As with any mechanical component, solenoid control valves can experience wear and tear over time, potentially leading to leaks or malfunctions. A failed or leaking valve can damage equipment or create safety risks. Therefore, it's crucial to regularly monitor solenoid control valves and replace them if you notice any signs of wear or damage.
In certain applications, a failure of a solenoid control valve can lead to environmental damage, especially if the valve controls hazardous or toxic substances. For instance, a malfunction in a chemical processing plant could cause a spill, potentially contaminating soil or water sources. It is crucial to choose a valve that is suitable for the specific application and to put safety measures in place to prevent spills or leaks.
Advancements in solenoid control valves continue to evolve with technological progress. One significant area of innovation is the integration of solenoid control valves with Internet of Things (IoT) technology. The IoT involves a network of physical devices, vehicles, home appliances, and other items equipped with sensors, software, and connectivity, allowing these objects to connect and exchange data.
By incorporating IoT technology, solenoid control valves could be monitored and controlled remotely from anywhere in the world. This integration would enhance the efficiency of processes that depend on solenoid control valves, particularly in sectors like manufacturing, oil and gas, and agriculture. For instance, in agriculture, IoT-enabled solenoid control valves could automate irrigation systems, enabling farmers to control water flow based on real-time weather and soil data.
Another key area of interest for the future of solenoid control valves is their role in Industry 4.0. This term refers to the ongoing trend towards automation and data exchange in manufacturing and other industrial sectors. Solenoid control valves are crucial components in many automated processes, and their integration with Industry 4.0 technologies such as machine learning and artificial intelligence could further enhance efficiency and productivity.
Additionally, smart valves are emerging as a notable innovation. These valves feature embedded sensors and advanced algorithms to self-diagnose and self-regulate, allowing for continuous optimization and improved efficiency. Smart valves can also lower maintenance costs by identifying and addressing issues before they lead to costly downtime.
Advancements in materials science and manufacturing processes are also contributing to the development of more durable and reliable solenoid control valves. For example, advanced materials like ceramics and composites enhance valve performance in harsh environments, while 3D printing technology allows for the precise and rapid production of complex valve components.
Looking ahead, solenoid control valves may also contribute to the development of renewable energy technologies. They could be used in the control systems of tidal and wave energy converters, providing precise regulation of power output.
Overall, the future of solenoid control valves appears promising, with ongoing advancements expected to drive improvements in efficiency, reliability, and performance.
