Chapter 1: What is Titanium Metal?

Titanium, denoted by the symbol “Ti” and holding the atomic number 22, is a chemical element with an atomic weight of 47.9. It ranks as the ninth most abundant element in the Earth's crust. Titanium is primarily extracted from minerals such as rutile (titanium dioxide), ilmenite (iron titanium oxide), and sphene (calcium titanium silicate).

Titanium is ideal for various applications due to its high strength-to-weight ratio, ductility, corrosion resistance, and biocompatibility, which makes it suitable for medical implants. Its exceptional strength, combined with its resistance to heat, water, and salt, contributes to its lightweight nature. These qualities make titanium a popular choice for both everyday items like jewelry and critical uses such as medical implants, aircraft, and ship construction.

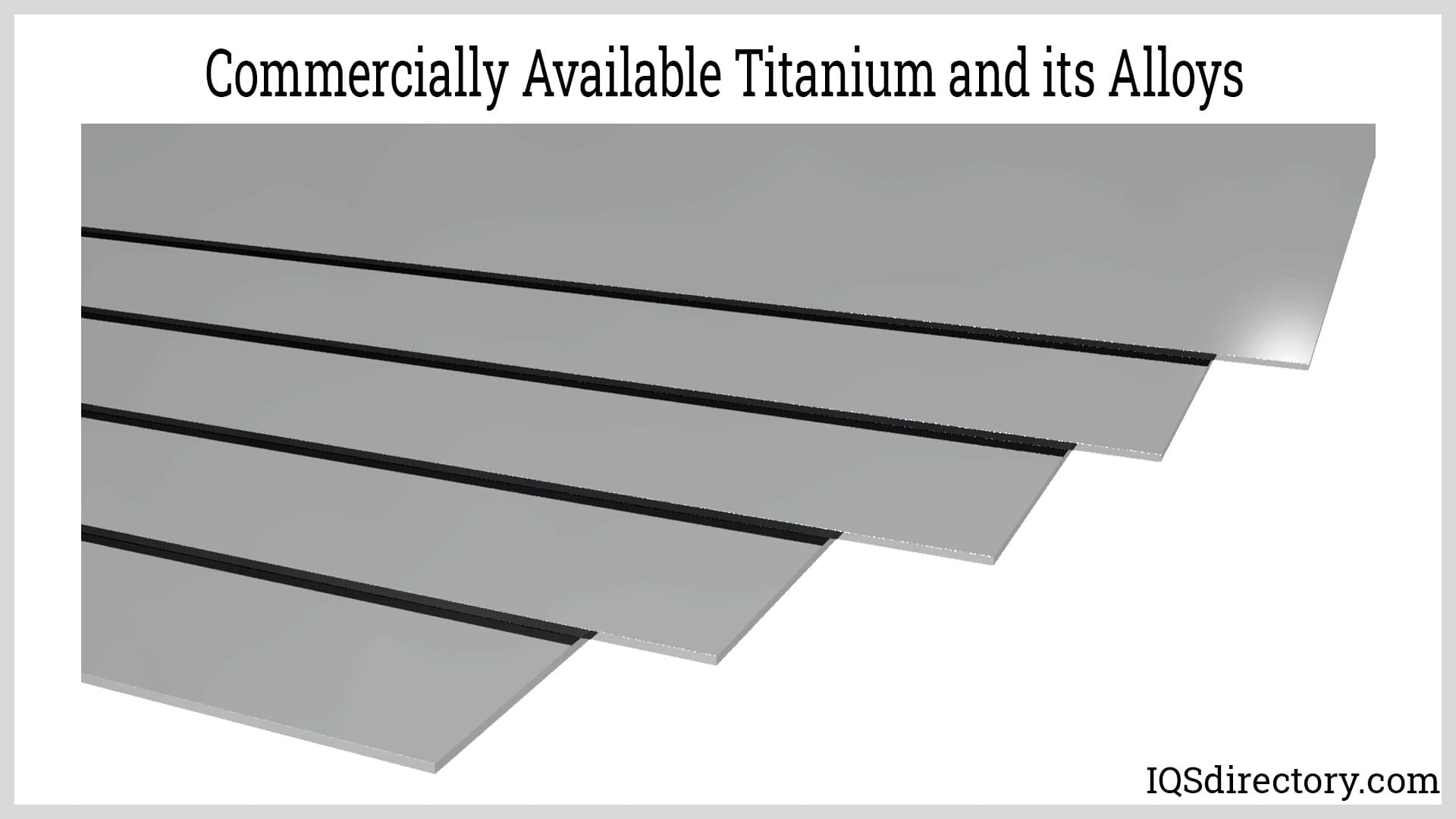

Titanium alloys maintain the core properties of pure titanium while incorporating additional characteristics such as flexibility and malleability, making them more versatile. Pure titanium comes in six grades—1, 2, 3, 4, 7, and 11—which serve as the basis for four main titanium alloys. These alloys are enhanced with elements like aluminum, molybdenum, vanadium, niobium, tantalum, zirconium, manganese, iron, chromium, cobalt, nickel, and copper. The primary titanium alloys are identified as Ti 6Al-4V, Ti 6Al ELI, Ti 3Al 2.5V, and Ti 5Al-2.5Sn.

Periodic Placement

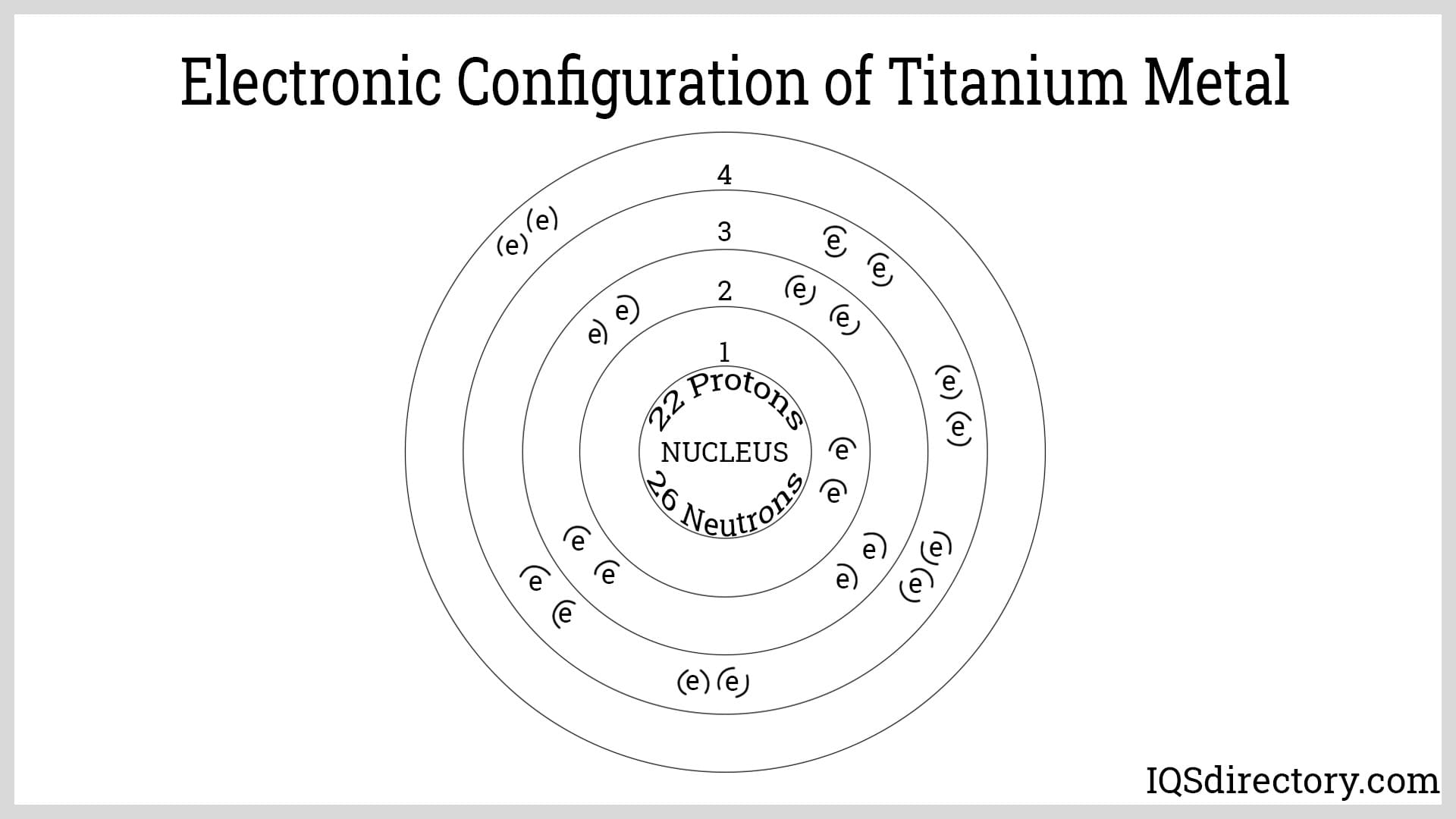

Titanium is the first element in the D-block of the periodic table. It has 22 electrons and 22 protons, placing it in period 4 and group 4 due to its electron configuration. The electron arrangement for titanium is 1s² 2s² 2p⁶ 3s² 3p⁶ 3d² 4s². This configuration of its electrons, particularly those in the fourth orbital, explains titanium's chemical bonding and its various properties.

Occurrence in Nature

Titanium makes up about 0.63% of the Earth's crust, with roughly 90% of this titanium found in ilmenite minerals, which are iron titanium oxides (FeTiO₃). The rest of the titanium is distributed among other minerals, including anatase, perovskite, rutile, leucoxene, and sphene.

Titanium is extracted from sand, rocks, soil, and clay through open-pit or underground mining, depending on the location of the deposits. To enhance the titanium content and remove impurities, beneficiation techniques such as crushing, grinding, screening, magnetic separation, and flotation are employed.

Oxidation States and Isotopes

Titanium metal has five stable isotopes: titanium-46, titanium-47, titanium-48, titanium-49, and titanium-50. The most abundant of these is titanium-48, which makes up 73.8% of naturally occurring titanium. In addition, there are 21 known radioisotopes of titanium. Among these, the most stable are titanium-44, titanium-45, titanium-51, and titanium-52, each with varying half-lives. Titanium-44 has a half-life of 63 years, titanium-45 has a half-life of 184.8 minutes, titanium-51 lasts 5.76 minutes, and titanium-52 has a half-life of 1.7 minutes.

Titanium has five stable isotopes, with titanium-48 being the most abundant at 73.8%.

Titanium Isotopes

Titanium-46 (⁴⁶Ti) 8% abundant

Titanium-47 (⁴⁷Ti) 7.8% abundant

Titanium-48 (⁴⁸Ti) 73.8% abundant

Titanium-49 (⁴⁹Ti) 5.5% abundant

Titanium-50 (⁵⁰Ti) 5.3% abundant

Titanium has an oxidation state of +4, meaning it cannot be further oxidized when forming chemical bonds. As a transition metal, titanium can exhibit multiple oxidation states: +2, +3, and +4. Among these, the +4 and +2 oxidation states are the most stable.

Titanium and its alloys rapidly oxidize upon exposure to air, forming a layer of titanium oxide. Although titanium reacts quickly with air, it reacts slowly with water due to the formation of a protective oxide coating. This initial layer is 1 to 2 nanometers (nm) thick and can grow to 25 nm over four years. This oxide layer is responsible for titanium's resistance to corrosion.

Titanium has 21 radioisotopes with atomic weights ranging from 39.99 unified atomic mass units (u) for titanium-40 to 57.966 u for titanium-58, each with its own distinct half-life. The most stable of these radioisotopes are titanium-44, titanium-45, titanium-51, and titanium-52.

Chapter 2: What Are the Key Properties of Titanium Metals?

Physical Properties

Titanium is an inert metal known for its exceptional physical properties. Its high strength-to-weight ratio makes it particularly suitable for applications requiring both lightness and durability, such as joint replacements and dental implants. Titanium has a density of 4.5 g/cm³, a melting point exceeding 3000°F (1650°C), and a boiling point of 5948°F (3287°C). These high melting and boiling points contribute to its valuable refractory qualities.

In an oxygen-free environment, titanium exhibits high ductility. Its lustrous gray-white appearance makes it ideal for metal coatings. Titanium dioxide, with its nearly clear form and high refractive index, creates optical dispersion greater than that of diamonds. Compared to other metals, titanium has low thermal and electrical conductivity. When cooled below its critical temperature of 0.49 K, titanium displays superconducting properties. Additionally, in its elemental form, titanium can become radioactive when bombarded with deuterons.

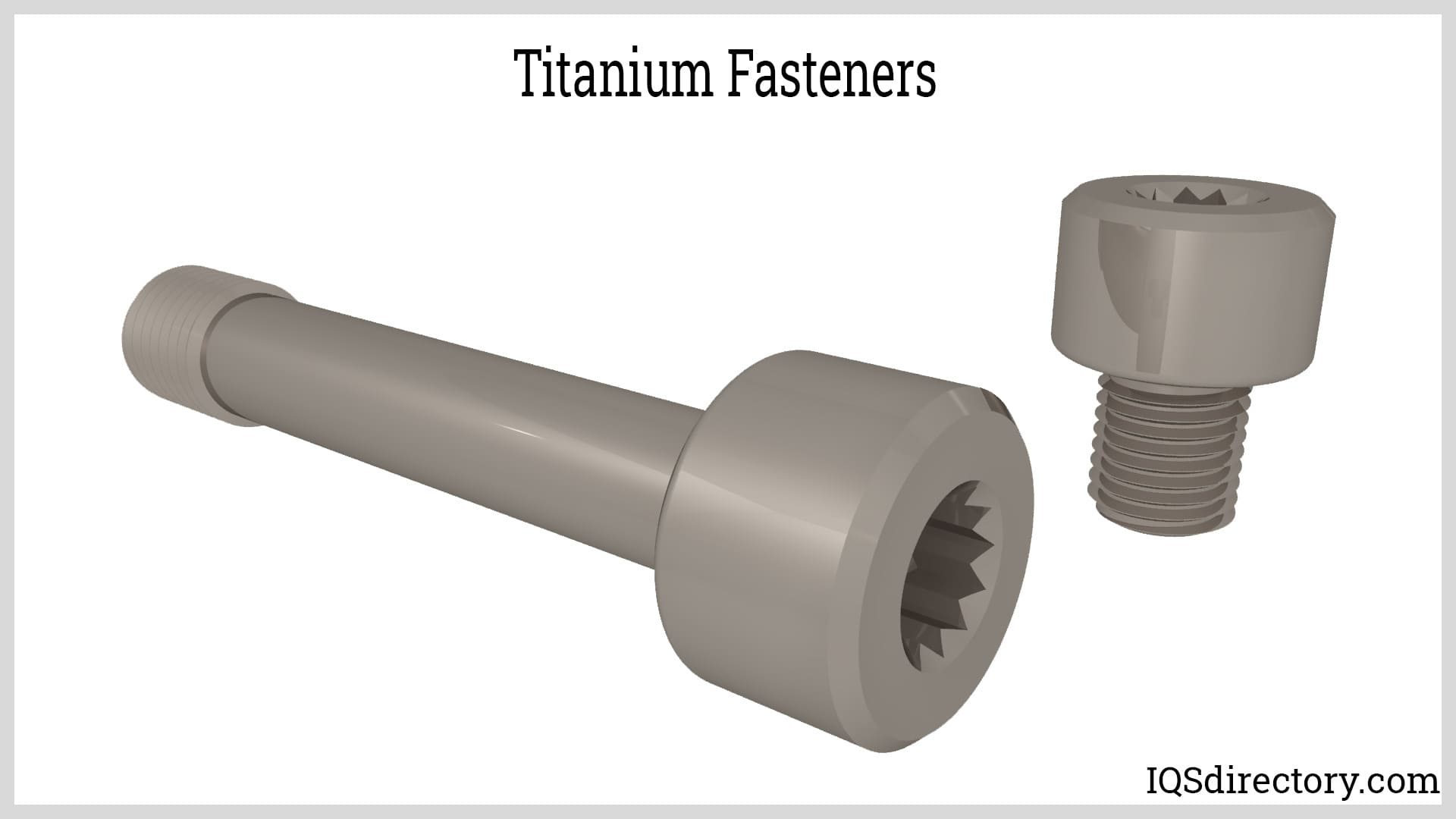

1. Commercially pure titanium is 99% pure and has tensile strength of 434 MPa or 63,000 psi, strength that is equal to low grade steel alloys. It can be used as a replacement for steel and is 45% lighter than steel, twice as strong as aluminum, and 60% denser than aluminum.





2. The oxide layer that forms on titanium when exposed to the air makes it resistant to corrosion. Additionally, it is resistant to sulfuric acid, wet chlorine gas, chloride solutions, hydrochloric acid, and organic acids.
3. Titanium is a light metal with a density of about 4540 kg/m³, compared to steel’s density of 7900 kg/m³ and aluminum’s at 2710 kg/m³.
4. When titanium is mixed with other metals, the produced alloys can reach a tensile strength of more than 1400 MPa or 200,000 psi.
5. As a dimorphic element, titanium has a hexagonal form that converts to a body centered cube at 1616°F (880°C). In cubic beta (β) form, its specific heat becomes constant.

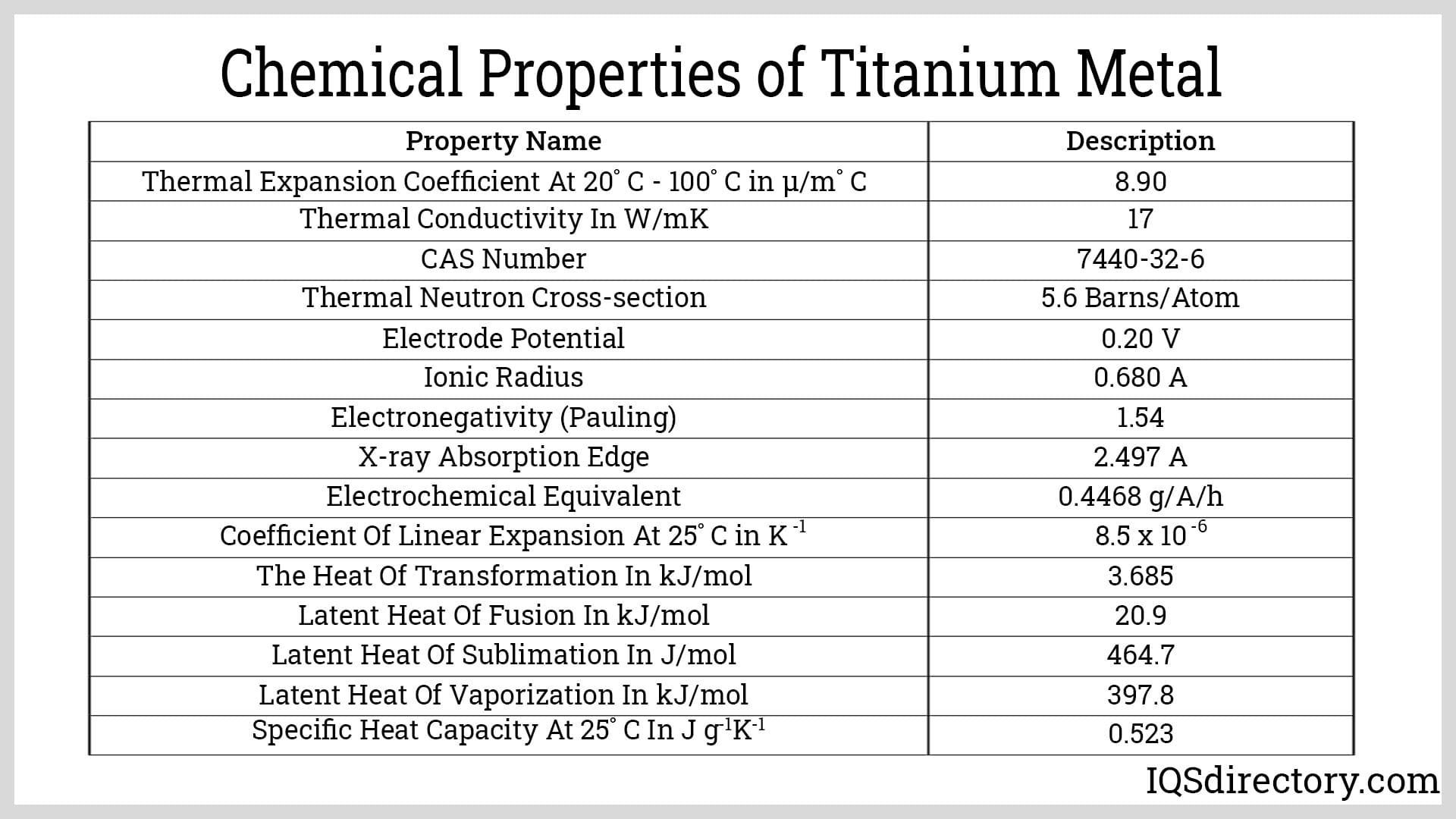

Chemical Properties

Titanium's chemical properties resemble those of zirconium and silica, which are also in Group 4 (IVB) of the periodic table. Elements in this group share similar chemical characteristics and exhibit properties that place them between metals and nonmetals. Like magnesium and aluminum, titanium and its alloys readily oxidize when exposed to air.

Titanium reacts with oxygen at approximately 1200°C and shows similar reactivity at 610°C when oxygen is in its purest form. In the presence of oxygen and water, titanium behaves as an inert element due to the passive oxide coating that forms, protecting it from further oxidation. The thickness of this oxide layer increases with prolonged exposure to oxygen.

1. Titanium’s oxide layer provides excellent protection against corrosive elements, which is almost as effective as platinum. The oxide layer makes titanium resistant to stronger elements, such as sulfuric acid, moist chlorine gas, chloride solutions, hydrochloric acid, and most organic acids. However, it can be corroded when exposed to concentrated acids.
2. Thermodynamically, titanium burns in the atmosphere at a temperature lower than its melting point. The melting of titanium happens in a chemically inert atmosphere such as a vacuum. Its thermodynamic properties do not allow it to melt in normal conditions because it is reactive at high temperatures and can catch fire if oxygen is present.
3. Titanium reacts with chlorine at 550°C and combines with other halogen gases although it absorbs hydrogen.
4. Titanium is a transition metal that exhibits similarities in its chemical behavior in its lower oxidation states to that of chrome and vanadium.
5. Titanium oxide ore reduces with water vapors and forms dioxides and hydrogen and reacts the same with hot concentrated acids. When reacting with hot concentrated acids, it creates chlorhydric acid and trichlorides.

Leading Manufacturers and Suppliers

Chapter 3: What Are the Compounds and Properties of Titanium Metal?

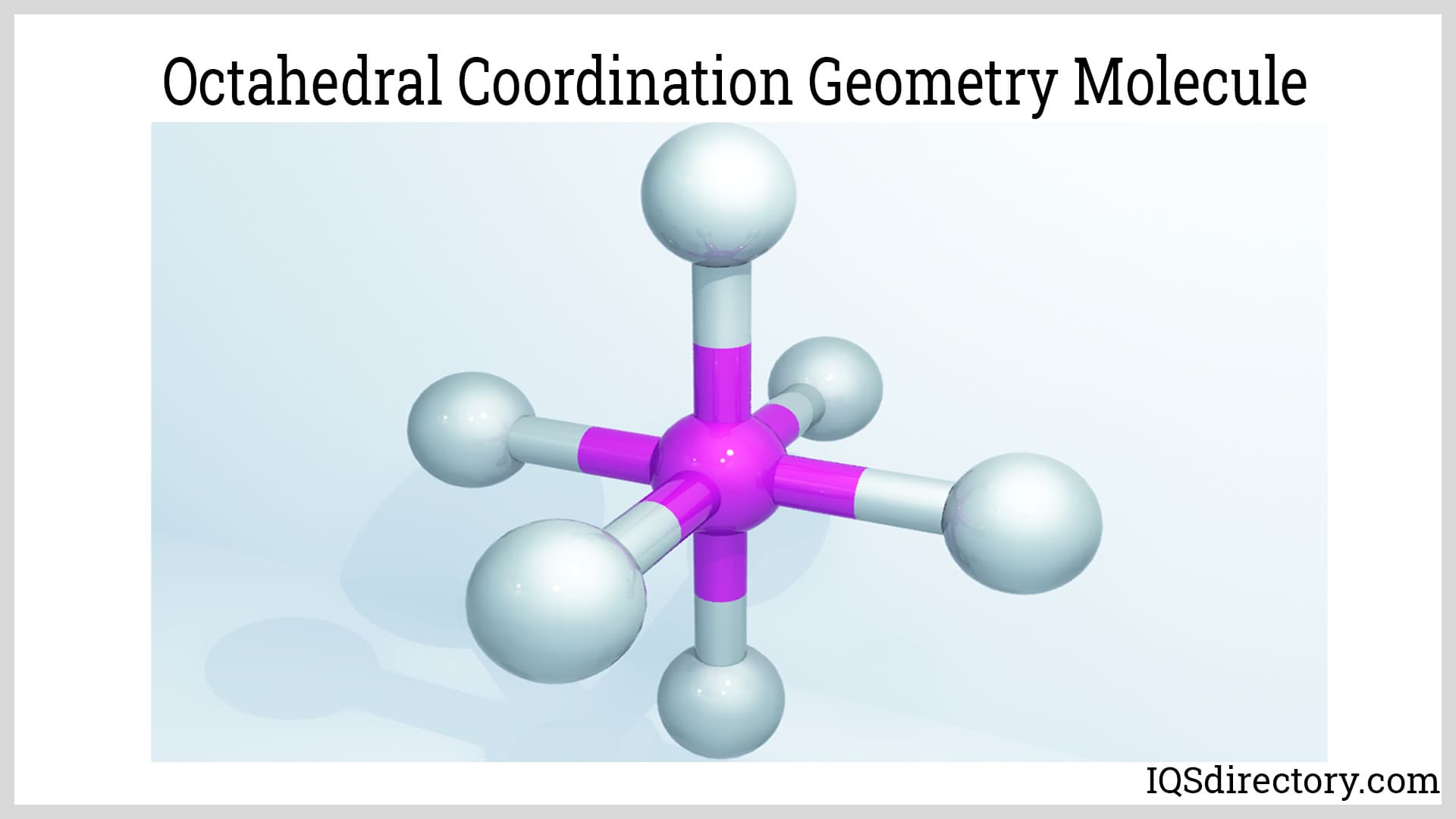

Titanium chemistry is primarily characterized by its +4 oxidation state, which is its most stable form. Most titanium complexes exhibit an octahedral coordination geometry, except for titanium tetrachloride (TiCl₄), which has a tetrahedral geometry. The high oxidation state of titanium tetrachloride leads to a greater degree of covalent bonding. As a transition metal, titanium also forms aqua Ti (IV) complexes, commonly known as water ligand titanium ion complexes.

Oxides, Sulfides, and Alkoxides

1. Titanates are titanium tetra compounds, such as titanium tetrachloride (TiCl&sup4;) and barium titanate (BaTiO³), which have piezoelectric properties and serve as interconversion of sound and electricity as transducers. Ilmenite (FeTiO³) is a titanate compound.
2. The most important oxide of all titanium oxides is titanium dioxide (TiO²), which is found in the three polymorphous states of rutile, anatase, and brookite, which are white diamagnetic solids. Stars, rubies, and sapphires have the titanium dioxide (TiO²) properties of asterism, which is the reason they have a star forming shine.
3. Titanium (III,V) oxide (Ti³O&sup5;) is a purple semiconductor made from the reduction of titanium dioxide (TiO²) in the presence of hydrogen gas at elevated temperatures.
4. Titanium (III,IV) oxide (Ti³O&sup4;) is used to vapor coat surfaces with titanium oxide for corrosion resistance and aesthetic purposes.
5. The alkoxides of titanium are produced by reacting titanium tetrachloride with alcohol and are used for depositing solid titanium dioxides with the help of the sol-gel process.
6. Titanium isopropoxide is used in the preparation of chiral organic compounds with the help of the Sharpless epoxidation process.
7. There are various titanium sulfite compounds with titanium disulfide being the only one that is regularly used. It has a layered structure and serves as a cathode in the manufacturing of lithium ion batteries.

Nitrides and Carbides

Titanium nitrides and carbides are part of the refractory transition metal family.

Titanium nitrides exhibit properties characteristic of covalent compounds:

• Extreme Hardness
• High Melting Point
• High Boiling Point
• Thermodynamic Stability
• Thermal Conductivity
• Electrical Conductivity

Titanium nitride (TiN) has a hardness of 9.0 on the Mohs scale, equivalent to that of sapphire and carborundum. It is used as a coating material for cutting tools, such as drill bits, and for aesthetic applications due to its shiny gold finish. Additionally, TiN serves as a barrier material in semiconductor fabrication.

Halides

Titanium halides are created through a direct reaction between titanium and halogen gases (X₂). The most common titanium halide is titanium tetrachloride (TiCl₄), which is a colorless and volatile liquid. In industrial settings, titanium tetrachloride appears yellowish and hydrolyzes in air, producing white clouds.

1. Titanium tetrachloride is used in the extraction of titanium metal from its ores as a part of the Kroll process.
2. Titanium halides are used as a Lewis acid.
3. Titanium tetraiodide (TiI&sup4;) halide of titanium comes from the Van Arkel process.
4. Titanium (III) and titanium (II) are used to form titanium trichloride and titanium dichloride, which are used as a catalyst for the production of polyolefins and serve as reducing agents in organic chemistry.

Organometallic Complexes

1. Titanocene dichloride [(C₅H₅)₂TiCl₂] is the most common titanium organometallic compound.
2. Other titanium organometallic complexes are Petasis reagent, which is used as a methylenation agent for carbonyl compounds, and Tebbe’s reagent.

Chapter 4: What Is the Fabrication Process for Titanium Metal?

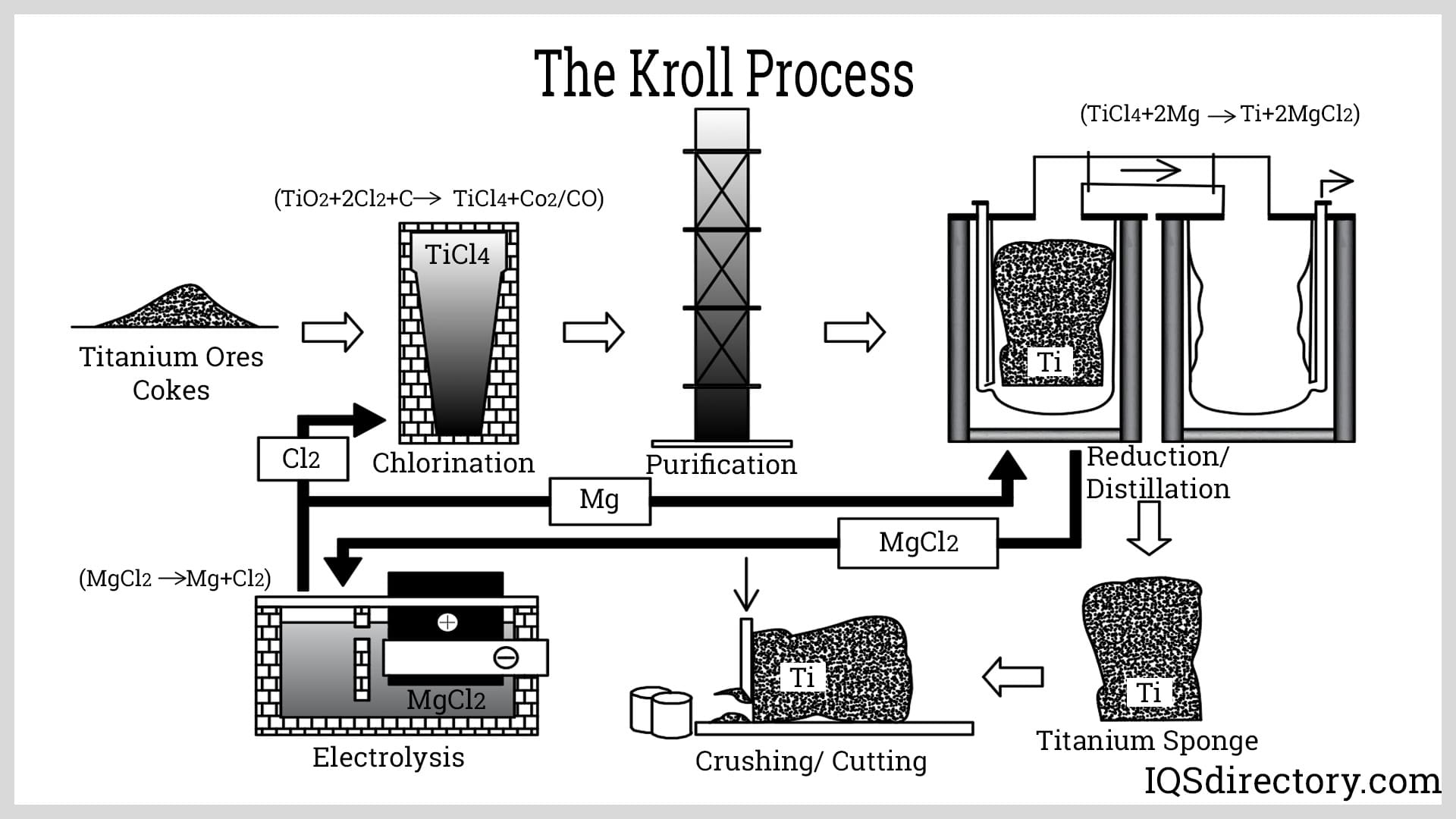

The Kroll process is employed to convert crude titanium into titanium metal. This process involves several stages: extraction, purification, sponge production, alloy creation, and forming and shaping. Due to the high cost and time required for each step, no single industry typically handles all five stages. Instead, different industries specialize in various stages of the process.

Extraction

In the extraction process, ore containing titanium minerals is shipped to a processing facility. Among the various types of ore, rutile and ilmenite are the most commonly used. Ilmenite must be pre-processed to remove its iron content. The ore is placed in a fluidized bed reactor with chlorine and carbon, then heated to 900°C. This reaction produces titanium tetrachloride in an impure form, with carbon monoxide as a byproduct. To obtain titanium dioxide, impurities, including iron, must be removed from the titanium tetrachloride.

Purification

Titanium tetrachloride is purified through high-temperature vacuum distillation. The metal from the extraction process is placed into large distillation tanks and heated. During this purification process, impurities are separated via fractional distillation and precipitation. As different elements have distinct boiling points, they are removed sequentially as they reach their respective boiling points. The impurities removed include vanadium, silicon, magnesium, zirconium, and iron.

Sponge Formation

In the sponge formation stage, purified titanium tetrachloride is transferred into a stainless steel reactor vessel while still in liquid form. Magnesium is added to the vessel, and the mixture is heated to 1100°C, allowing the magnesium to react with chlorine and form magnesium chloride. Argon gas is then introduced into the vessel to displace air and prevent reactions with oxygen and nitrogen. The resulting titanium, though not pure, is in solid form. It is extracted from the vessel through a boring process and treated with a mixture of water and hydrochloric acid to remove any residual magnesium and magnesium chloride. The final product is titanium in the form of sponge.

Alloy Creation

The pure titanium sponge is blended with various alloys and scrap metals in a consumable electrode arc furnace to produce alloys. After melting and mixing the metals in the correct proportions, the mixture is compacted and welded into a sponge electrode. This electrode is then melted in a vacuum arc furnace to produce ingots, which are further processed to create a range of industrial and commercial products.

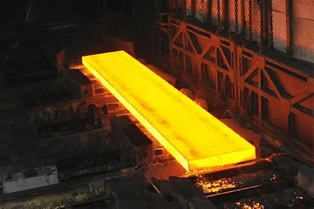

Forming and Shaping

The ingots are removed from the furnace, inspected for defects, packaged, and shipped to be used to manufacture titanium alloy goods. The properties of each ingot are checked to ensure they meet customer requirements. The ingots go through different processes, such as welding, forming, casting, forging, and powder metallurgy during product manufacturing.

Byproducts of the Kroll Process

When titanium is purified, magnesium and magnesium chloride, byproducts of the Kroll process, are left behind. These byproducts are recycled in specialized cells where magnesium and chlorine are separated into their stable forms: solid magnesium and chlorine gas. During the recycling process, chlorine gas is captured at the top of the cell, while the solid magnesium is recovered. Both the solid magnesium and chlorine gas are saved for reuse in the Kroll process.

Alloy Creation

In the fourth stage, pure titanium sponge is combined with various alloys and scrap metals using a consumable-electrode arc furnace to produce usable alloys. Once the metals are melted and mixed in the correct proportions, the mixture is compacted and welded into a sponge electrode. This electrode is then melted in a vacuum arc furnace to produce ingots. These ingots are typically melted multiple times to ensure they meet commercial quality standards.

Forming and Shaping

In the final stage of the Kroll process, ingots are removed from the furnace and inspected for defects before being sent out for further processing. Each ingot's properties are evaluated to ensure they meet customer specifications. The ingots undergo various procedures, including welding, forming, casting, forging, and powder metallurgy, to be shaped into the final product. The specific processes used depend on the requirements of the finished product.

Byproducts of the Kroll Process

During the Kroll process, the separation of titanium from impurities leaves behind a substantial amount of magnesium and magnesium chloride. These byproducts are promptly recycled in a specialized cell. The recycling cell separates the magnesium and chlorine into their stable forms: solid magnesium and chlorine gas. The chlorine gas is collected from the top of the cell, and both the solid magnesium and chlorine gas are reused in the Kroll process.

Chapter 5: What Are the Grades and Characteristics of Pure Titanium?

Pure titanium is available in various grades, each suited for specific applications. Titanium CP4, or Grade 1, is the softest grade, offering the highest levels of ductility, toughness, and corrosion resistance. Its excellent cold-forming and welding properties make it widely used in architecture, automotive production, the medical field, and various processing industries. Grade 1 is offered in forms such as bars, flanges, sheets, welding wires, and forgings.

Another grade with excellent cold-forming properties, corrosion resistance, and welding capabilities is CP3, or Grade 2. This grade is utilized in a range of industries, including aerospace, automotive production, chemical processing, architecture, marine applications, and the medical field.

• Grade 1 - CP4 - is the softest titanium and is ductile, tough, and corrosion resistant.
• Grade 3 - CP2 - is stronger than all previous grades.
• Grade 4 - CP1 - is the strongest and most corrosion resistant but has low ductility and is used in medical and aerospace applications.
• Grade 7 - has the best mechanical and physical properties with excellent fabrication and welding properties. It is corrosion resistant to reducing acids.
• Grade 11 - CP Ti-0.15Pd - has properties similar to Grade 2.

The following tables outline the available standards and forms for various grades of pure titanium.

The following tables provide the standards for the different grades of titanium.

Alloy Based Titanium Grades

Alloy-based titanium grades, including Grades 5, 6, 9, 12, 19, and 23, are known for their excellent toughness, high strength, and strong welding and fabrication properties.

• Grade 9 - can be used at higher temperatures than other grades.
• Grade 12 - has enhanced corrosion-resistance due to its chemical composition.
• Grades 19 and 23 - offer resistance to stress and creep.

Other grades, such as Titanium 6-6-2 (6Al-6V-2Sn) and Titanium 6-2-4-2 (6Al-2Sn-4Zr-2Mo), are two-phase alpha-beta alloys that can be heat treated. These grades offer exceptional strength but exhibit lower toughness and ductility. Due to their high strength, cold forming and welding these grades can be challenging; however, they can be welded using an inert gas shield and fusion welding process. The areas affected by welding will have reduced toughness and ductility compared to the original material.

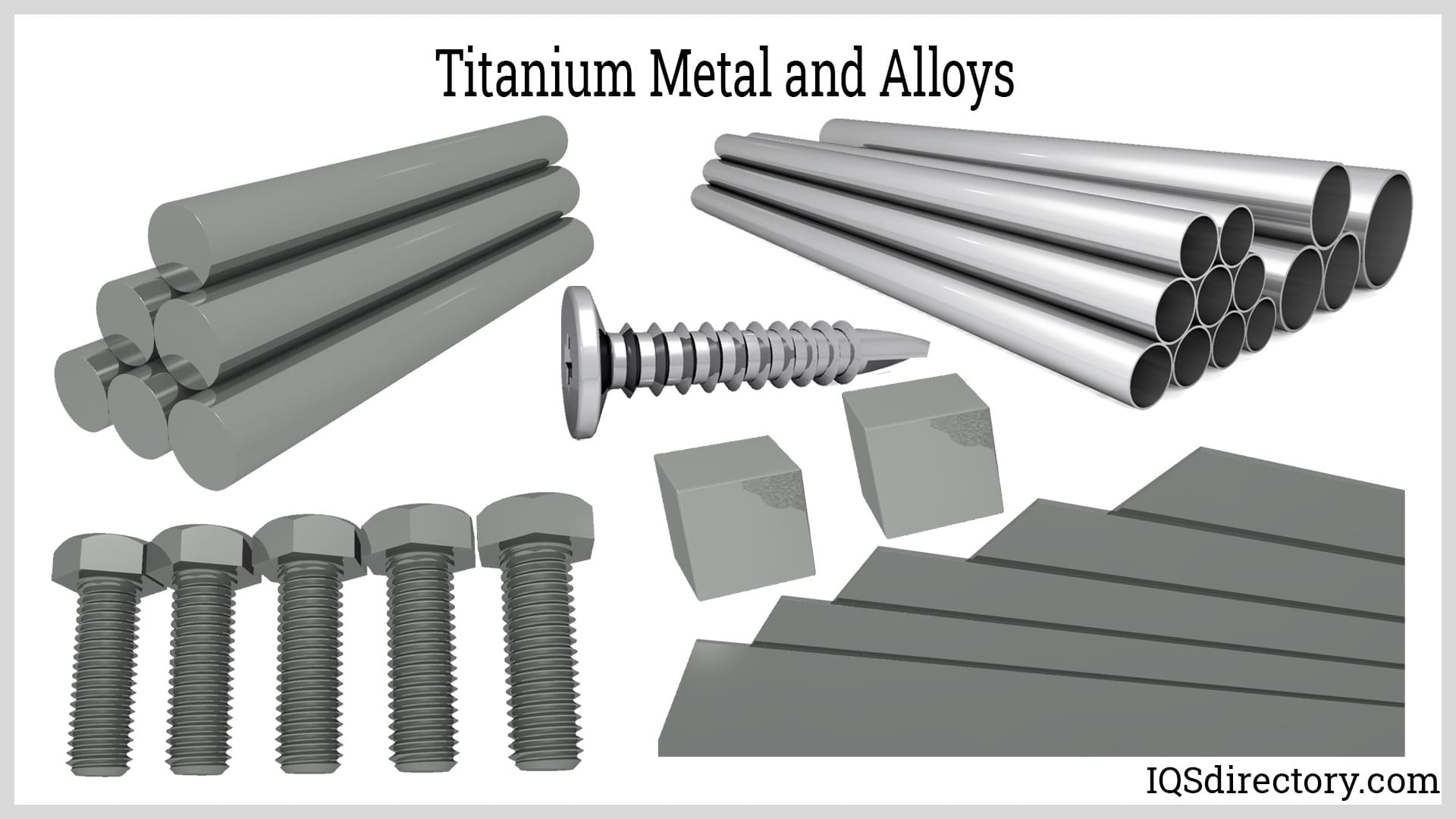

Chapter 6: What Are the Different Forms of Titanium?

Titanium is a durable, lightweight metal with an exceptionally high strength-to-weight ratio. It is alloyed with steel to decrease grain size and with stainless steel as a carbon substitute. Its white pigmentation makes it useful in paints, paper, and plastics. The various forms of titanium are provided to satisfy the high demand for a metal that offers strength, resistance to corrosion, and resilience against fatigue and cracking.

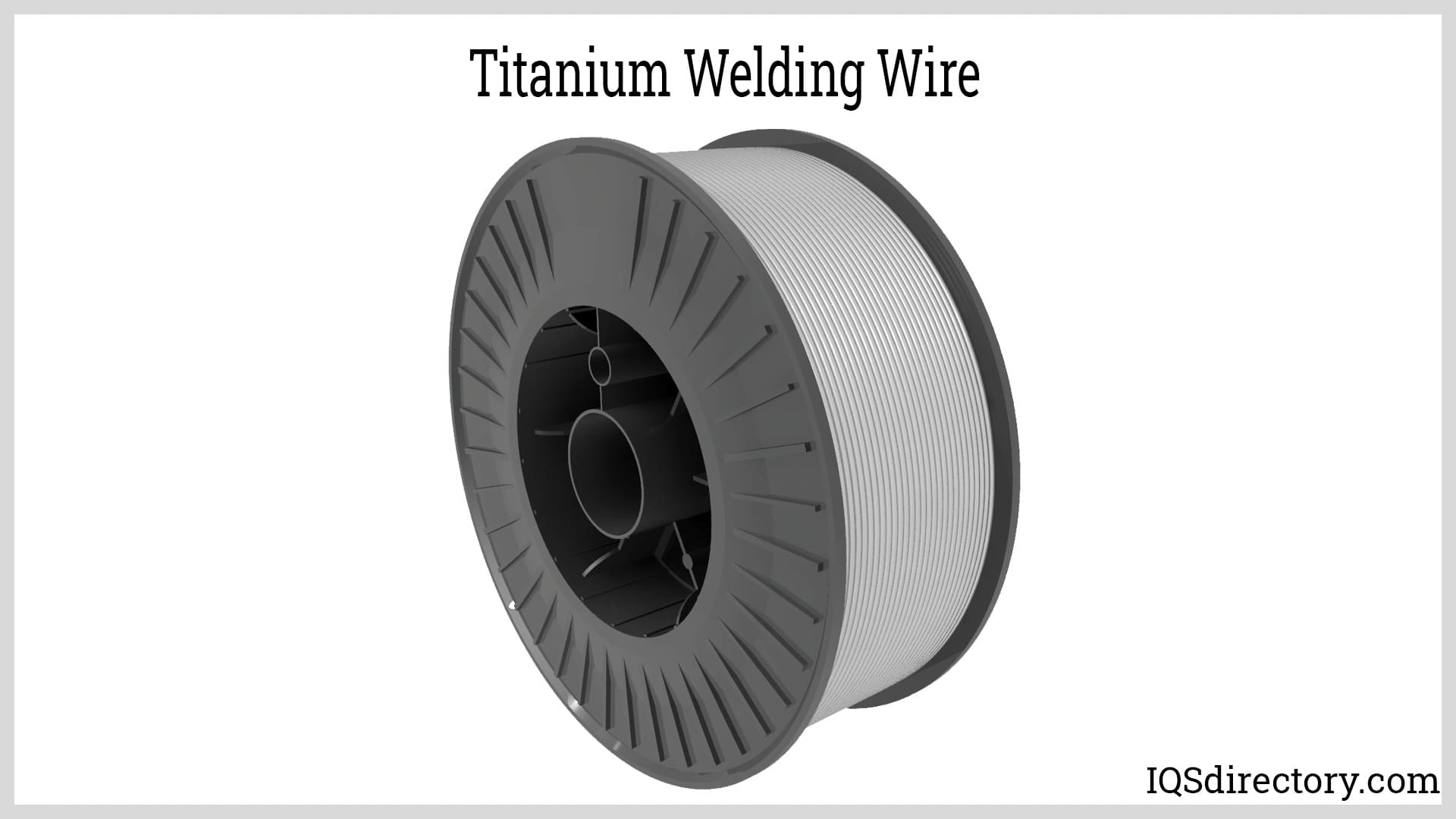

Titanium Wire

The different types of titanium wire are pure, alloy, glasses, straight, welding, hanging, coil, bright, medical, and nickel with each type having different properties and uses. Titanium wire has all of the advantages of titanium, which makes it useful in a wide range of applications for several industries. Since its discovery in the 18th century, researchers have been developing new and innovative ways to make use of titanium wire.

Titanium wire is produced from TiO₂, Ti₃Al₂O₅, and Ti₄SiC₆, which are melted and extruded through a die or milling cutter at 1760°C (3200°F) for a brief period. This process yields wire with diameters ranging from 0.2 mm to 0.25 mm (0.008 in to 0.01 in) that can endure temperatures up to 900°C (1652°F). The high strength of titanium wire is attributed to its ductility, elasticity, and low shear strength at elevated temperatures. These properties make it especially suitable for applications in aerospace and biomedical engineering.

Similar to other wire types, titanium wire is available in a variety of gauges and grades. Grades 1 through 4 are unalloyed, while higher grades are alloyed with various metals. Titanium wire gauges range from 1 to 39, with gauge 1 being very firm, hard, and solid, and higher gauges becoming more pliable. The most commonly used gauges are between 10 and 30.

Titanium Pipes

Titanium pipe is a lightweight and strong pipe that is widely used in heat exchangers. Several grades are used with grade 5 being the most used due to its distinctive strength and toughness. The strength of titanium is equal to that of steel but 57% steel’s weight. In atmospheres at 500°C (932°F), titanium pipe is able to maintain its strength and durability, which is also true at -250°C (-418°F).

Titanium pipe has a density of 4.5 g/cm³, which is 60% that of steel. Some titanium alloys offer a higher strength-to-density ratio compared to steel alloys. Furthermore, titanium pipe has a thinner wall thickness than copper while retaining its key characteristics and properties. This allows titanium pipe to be used in a wider range of applications due to its lighter weight and enhanced strength.

The strength and lightweight nature of titanium pipe make it an ideal material for airplane construction. Its durability and resistance to chemical effects also make it suitable for use in chemical processing. In the oil and gas industry, titanium pipe is valued for its ability to withstand high pressure and elevated temperatures.

Titanium pipe can be processed using four main methods: forging, rolling, extrusion, and drawing. Forging is the most commonly used method due to its ability to refine the structure of titanium. Among the remaining methods, rolling is the most widely used and is a standard process for manufacturing pipes.

Titanium Flanges

Titanium flanges are employed to join titanium pipes and divide pipe networks for inspection and cleaning. Grade 2 titanium is commonly used because of its low density, which is advantageous in weight-sensitive applications. Its corrosion resistance and strength also make it well-suited for marine environments, chemical processing, and desalination systems.

Titanium flanges are designed with protruding rims that are either welded or bolted to create a secure connection in piping systems. Their primary function is to distribute the load and reinforce the connection. Weld neck titanium flanges feature a tapered end that is butt welded to the end of the pipe fitting. These flanges are resistant to deformation, making them ideal for high-pressure piping systems under various conditions.

Another type of titanium flange is the slip flange, which slides over the end of a pipe and is welded both inside and outside. It features a low hub and offers excellent strength, making it suitable for low-pressure applications.

Unlike other types of titanium flanges that are welded, threaded titanium flanges are designed for specific applications and do not require welding. They are typically used with small-diameter piping under high pressure. Threading is feasible only for smaller flanges because larger flanges are too hard to thread effectively.

The three types of titanium flanges described above are just a few of the many available. Other types include blind, integral, orifice, socket weld, plate, and custom flanges. These flanges come in various facing types such as flat, raised, ring joint, tongue and groove, and male and female. Each type is classified by its pressure-temperature rating, which indicates the maximum allowable working pressure. As the rating increases, the flange can withstand higher pressures.

Titanium Plates

Titanium plate is utilized across various industries, including medicine, due to its biocompatibility. It is available in thicknesses ranging from 2 mm (0.079 in) to 150 mm (6 in) and comes in all grades of titanium. The Kroll method is employed to produce titanium from titanium tetrachloride. Known for its toughness and exceptional strength, titanium plate effectively withstands repeated load stress.

The Kroll process for producing titanium plate is a pyrometallurgical method that starts with titanium tetrachloride, which is generated by oxidizing TiO₂ with chlorine at 1000°C (1832°F). Metal chloride impurities are distilled out to obtain a pure TiCl₄ mixture, which is then mixed with magnesium. At temperatures around 1000°C, a reaction takes place in an argon atmosphere, gradually removing the chloride to produce pure titanium in sponge form.

The sponge titanium undergoes leaching or vacuum distillation to eliminate impurities. The purified material is then jack hammered, crushed, pressed, and melted. Titanium plates are subsequently formed into various sizes and dimensions through processes such as sintering, hot rolling, and cold rolling. Each method starts with a slab of titanium that is shaped and processed to meet the desired specifications.

Titanium Rods

Titanium rods are available in various shapes, including square, hexagonal, and flat, which facilitate their storage and transport. These rods are produced through methods such as forging, rolling, extrusion, casting, and spinning. While they can serve as structural supports, titanium rods are typically melted down to manufacture other titanium products.

Titanium rods come in various shapes and are made from either pure titanium or its alloys. They possess all the advantageous properties of titanium, making them a popular choice across many industries. Common manufacturing processes for titanium rods include hot forging, hot rolling, extrusion, casting, and spinning. These techniques may be used individually or in combination, depending on the specific requirements for the titanium rod.

Titanium rods are utilized across various industrial, medical, and commercial applications, similar to other forms of titanium. In orthopedic surgery, specific types of titanium rods are used, featuring various end styles to meet patient needs. Often, titanium alloy rods are preferred for their superior strength.

Titanium rods are widely used in the aerospace industry because of titanium's lightweight and exceptional strength. Thin titanium rods are also employed in the production of notebook computers for their aesthetic appeal. Additionally, titanium finds a unique application in military armor, where it is used in armored vests that are lightweight and comfortable to wear.

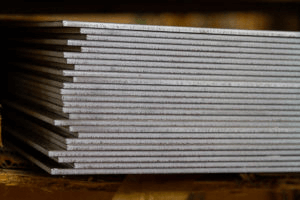

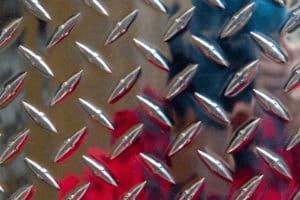

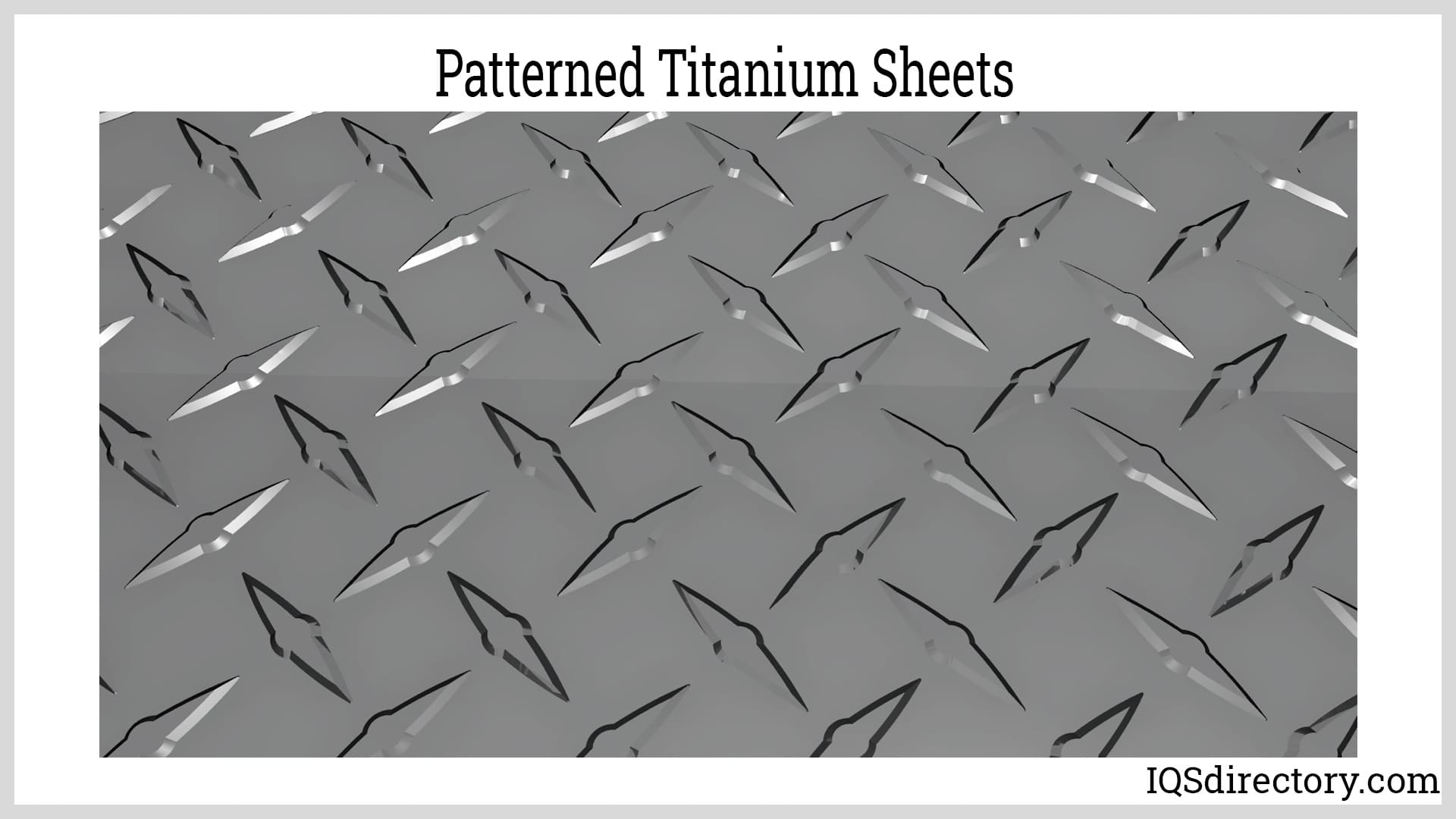

Titanium Sheets

Similar to titanium plates, titanium sheets are highly valued for their exceptional properties. The remarkable strength of titanium makes these sheets ideal for applications that require a lightweight yet robust metal for protection. Additionally, titanium’s non-magnetic and biocompatible qualities make it suitable for medical implants and aerospace equipment. Titanium sheets come in various grades to meet specific application needs, with Grade 2 and Grade 5 being the most commonly used, while other grades are selected for particular requirements.

Titanium sheets are manufactured similarly to titanium plates, with the main difference being their thickness. Their flexibility makes them suitable for a variety of applications. Titanium sheets are often used as heat barriers to block and prevent the spread of heat, a property that has made them a popular choice for protective materials in race cars.

Titanium sheets' resistance to heat necessitates using cold cutting methods to avoid altering their chemical properties. Common techniques for cutting and shaping titanium sheets include waterjet cutting and stamping. These methods are employed in manufacturing various titanium products, such as jet engines, springs, and deep-sea production risers.

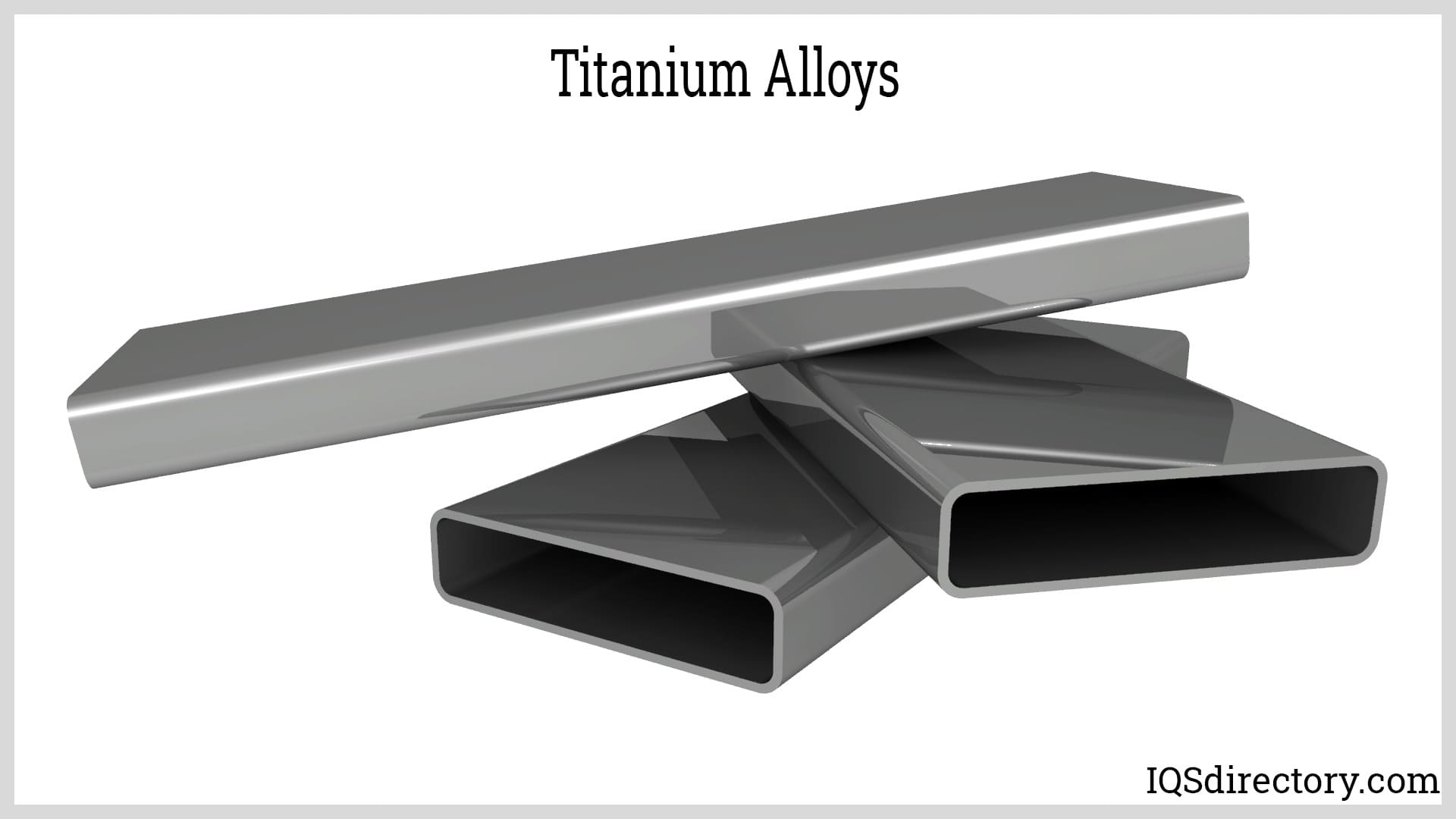

Titanium Tubing

Titanium is widely used in high-quality tubing due to its strength, low density, and excellent corrosion resistance. It serves as a lightweight alternative to steel and stainless steel. Titanium tubing has a density that is 60% lower than steel or nickel-based alloys, while offering greater strength than austenitic or ferritic stainless steels. Although stainless steel is known for its corrosion resistance, titanium surpasses it in this regard and has a higher melting point, making it a superior choice for many applications.

The various sizes of titanium tubing are used in applications that require a strong, tough, and highly resistant metal. Many of these conditions are where stainless steel fails and does not have sufficient strength. This aspect of titanium has made it one of the most dependable metals on the market.

Titanium tubing, known for its lightweight and strength, is ideal for applications where weight is a critical factor. Despite having thinner walls, titanium tubing maintains its strength and durability. It retains its stiffness and high melting point even after being shaped into various configurations. Industries and applications that rely on titanium tubing include aircraft hydraulic systems, medical implants, offshore drilling rig components, subsea equipment, and marine and chemical processing plants.

Titanium Bars

Titanium bars are produced from titanium sponge that is melted with alloying elements and then remelted through die casting or vacuum arc remelting (VAR) to form slabs. These slabs are then cast or forged to create titanium bars. Like other forms of titanium, titanium bars are lightweight, corrosion-resistant, and highly durable. They are used as raw material for various applications, including aerospace components, military armor, and architectural elements.

Raw or crude titanium is extracted from rutile, ilmenite, and sphene ores and processed using the Kroll method to produce titanium sponge. Titanium bars come in various grades, each with distinct strengths, resistance properties, and durability. The most commonly used grades for titanium bars are Grade 2 and Grade 5. Grade 2, composed of 99% titanium, is known for its low density and lightweight nature. Grade 5, which is alloyed with aluminum and vanadium, offers a superior strength-to-weight ratio and enhanced scratch resistance compared to Grade 2.

Titanium bars are one of the most frequently sold and shipped forms of titanium by producers. They are available in various diameters, up to 35.56 cm (14 inches), and come in multiple shapes including round, square, rectangular, octagonal, and hexagonal. The specific shape of each bar is determined by the manufacturing process and the preferences of the manufacturer.

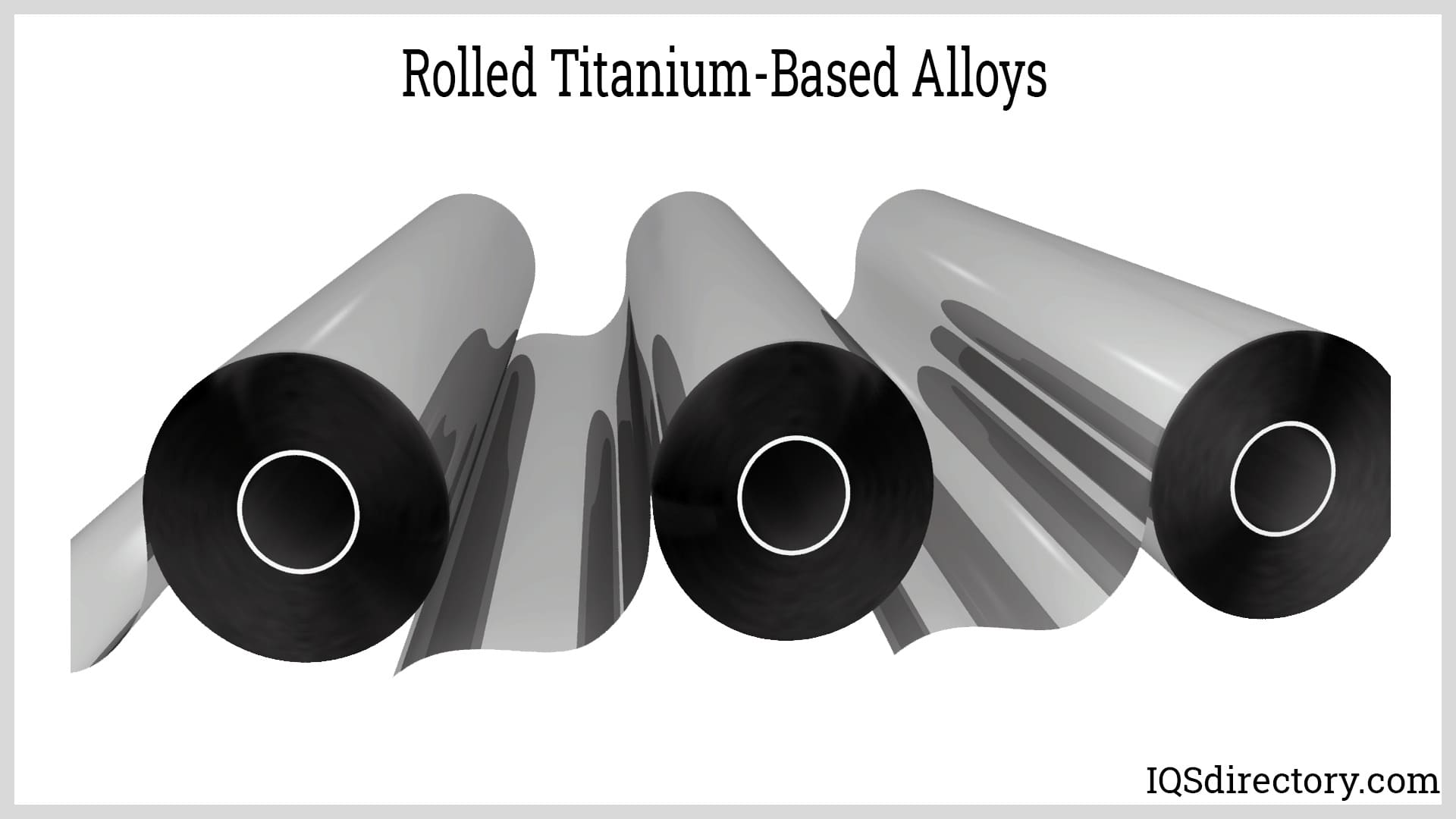

Titanium Foil

Titanium foil is a thin, highly flexible, durable, and strong layer of pure titanium with thicknesses of 0.254 mm (0.01 in) up to 0.0762 mm (0.003 in). It is formed by being rolled or pressed multiple times in order to thin it to the desired thickness. Titanium foil’s thickness gives it several advantages in regard to manufacturing and processing. Since it comes in rolled coils, titanium foil can be cut, pressed, shaped, configured, and engineered to meet the needs of a wide range of products.

Like many other forms of titanium, titanium foil starts as titanium sponge, which is melted, pressed, rolled, and cut to precise dimensions. Unlike titanium sheets, titanium foil is distinguished by its thickness, which is measured in fractions of an inch or millimeter. Titanium foil can be produced from any grade of titanium, with Grades 1, 2, 3, and 4, which are 99% pure titanium, and Grade 9 being the most commonly used.

Titanium foil is widely used because of its superior strength compared to aluminum and copper foils. It offers excellent durability in chemical environments and withstands high temperatures effectively. Additionally, titanium foil is easily molded and shaped, making it ideal for enhancing the protection of products, equipment, and devices.

The Cost of Titanium

Titanium is highly regarded for its strength and durability, making it ideal for applications that demand a robust metal capable of withstanding significant stress and pressure. It is lighter than steel yet as strong, and it boasts twice the strength of aluminum. With a melting point of 1,668°C (3,034°F), titanium is resistant to abrasion, cavitation, and erosion.

Most titanium ore is processed into titanium dioxide (TiO₂), and its cost can be a good indicator of titanium prices. The price of titanium dioxide fluctuates based on market conditions. Over the years, the cost of titanium metal has steadily decreased. For instance, in 2005, a metric ton of titanium was priced at $21,000, whereas by 2016, it had dropped to $3,750 per metric ton. This reduction in cost is attributed to advancements in techniques for separating oxygen atoms from pure titanium.

Compared to other metals, titanium is generally more expensive. For instance, stainless steel typically costs between $1 and $1.50 per kilogram, while aluminum ranges from $2 to $2.50 per kilogram. In contrast, titanium costs between $35 and $50 per kilogram. This significant price difference often leads manufacturers to seek alternative materials to reduce costs.

Titanium's cost-effectiveness stems from its remarkable durability and superior properties, which surpass those of other metals. Although using titanium may increase the initial cost of a product, it guarantees extended longevity and outstanding performance.

Chapter 7: Who are the top titanium manufacturers?

U. S. Titanium Industry, Inc. (USTi)

USTi offers a diverse array of titanium products, including bars, rods, pipes, tubes, plates, and sheets. As a leading metals producer, USTi processes titanium and titanium alloys, as well as zirconium, tantalum, and niobium, among others. The company serves various industries, including construction, aerospace, medicine, automotive, and marine. USTi handles all grades of titanium, from the malleable GR1 to WPT12, unalloyed titanium. Committed to customer satisfaction, USTi collaborates closely with clients to create products tailored to their specific needs and requirements.

Atlantic Equipment Engineers, Inc. (AEE)

AEE specializes in supplying high-purity metals, powders, and compounds. They provide top-quality titanium powder, ideal for producing complex parts that demand a high strength-to-weight ratio, as well as for paints, coatings, and electronic applications. AEE’s titanium powder is available in various particle sizes and spherical forms. Their mission is to deliver titanium and titanium powders with exceptional purity to meet the diverse needs of their industrial clients.

A-1 Alloys

A-1 Alloys is renowned for its exceptional customer service and extensive selection of metal products, including titanium, steel, stainless steel, lead, and nickel. To cater to the specific requirements of each project or application, A-1 Alloys offers custom metal forming and shaping services. With extensive expertise in metal forming, casting, extrusion, and finishing, A-1 Alloys delivers titanium and other metals with precise tolerances and the high-quality standards the company is known for.

Reliable Source, Inc.

Reliable Source offers a diverse selection of metals tailored to fit any company's budget. Their primary objective is to reduce customer costs while delivering exceptional service, ensuring that each customer receives top-quality titanium at the most competitive prices. Reliable Source provides a comprehensive range of metal forming services, including welding, cutting, heat treating, stamping, and more. Committed to customer satisfaction, the company continually strives to advance its business with a focus on meeting customer needs.

Admat, Inc.

Admat specializes in supplying titanium sheets and plates with precise thicknesses and widths tailored to specific applications. Our flat-rolled titanium can be custom-cut to lengths of up to 3000 mm (118 in) and widths of up to 1000 mm (39.3 in). We offer titanium plates in thicknesses up to 35 mm (1.38 in) and diameters up to 1000 mm (39.3 in). All products are manufactured to meet ASTM or AMS standards, with custom options available upon request.

Chapter 8:What Are the Key Applications of Titanium Metal?

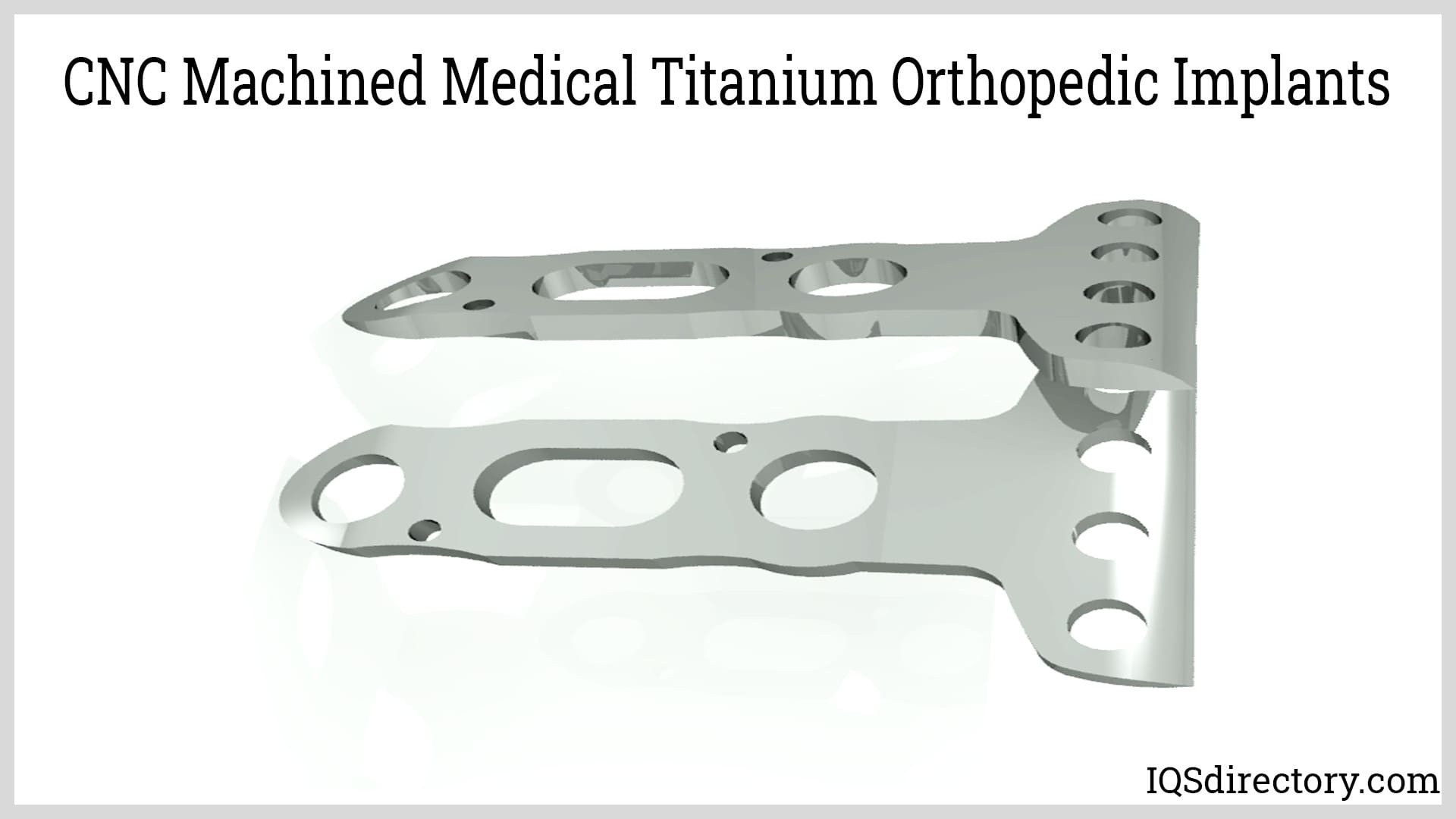

Medical Industry

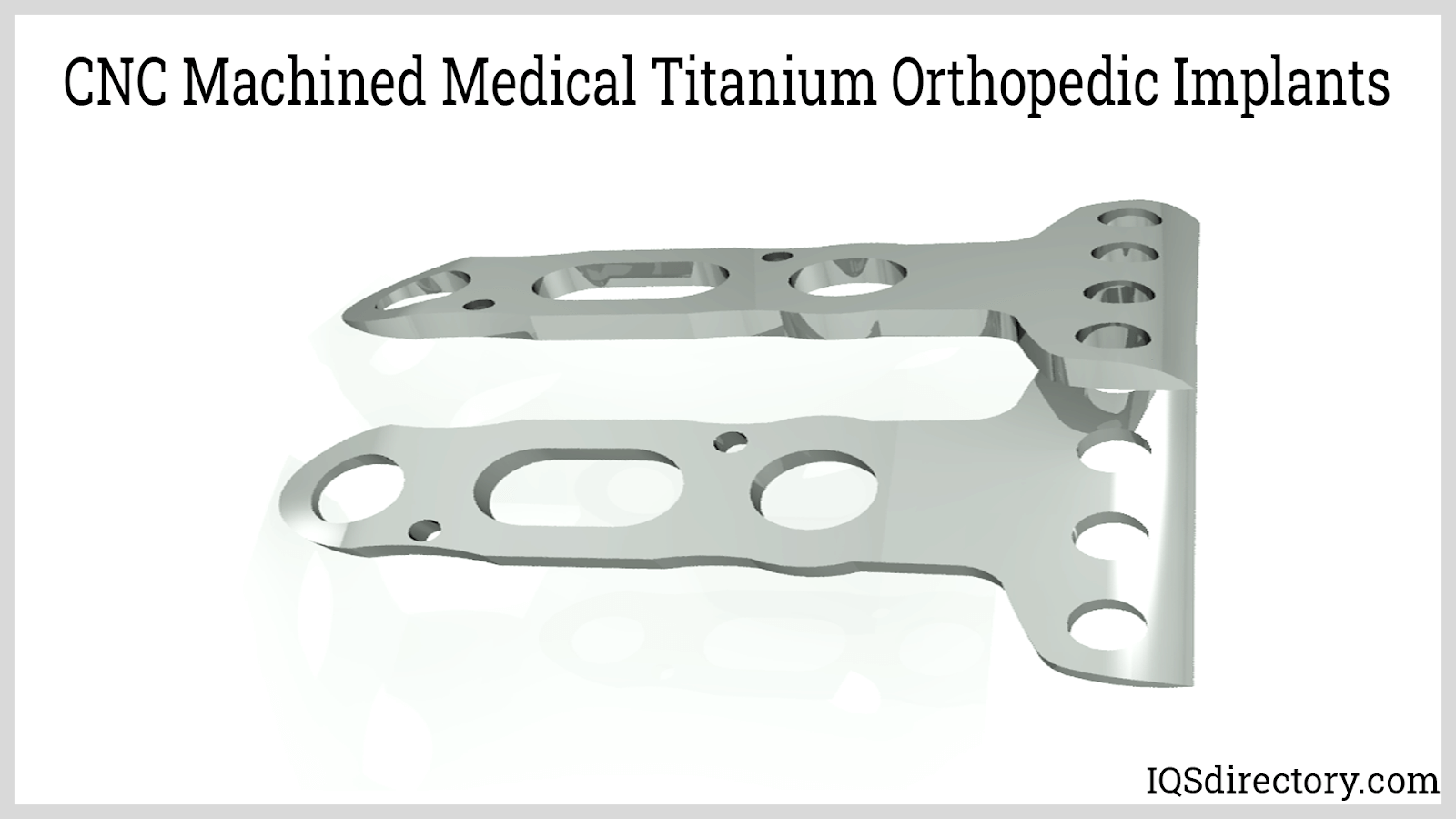

Titanium is crucial in the medical field due to its biocompatibility. As a non-toxic material, it is widely used in surgical instruments and implants. From hip replacements to dental implants, titanium's applications are diverse and reliable. These implants can remain effective for over 20 years. Typically, titanium implants include approximately 4% vanadium and 4% to 6% aluminum.

Titanium’s unique ability to osseointegrate makes it ideal for dental and orthopedic implants, with a lifespan of up to 30 years. Its lower modulus of elasticity ensures that the load is evenly distributed between the bone and the implant, helping to reduce bone degradation and the risk of periprosthetic fractures. While titanium is stiffer than human bone, this increased stiffness can lead to bone deterioration under excessive load.

Pigments and Additives

Titanium is processed into titanium dioxide, a white pigment commonly used in products like paper, toothpaste, plastics, and paints. When included in paint, titanium dioxide enhances the mixture's performance in extreme temperatures and humid conditions. Additionally, titanium dioxide is incorporated into graphite composite fishing rods and golf clubs to boost their strength.

Titanium dioxide is a chemically stable substance that resists corrosion and remains unaffected by sunlight. Its opaque quality makes it ideal as a pigment in household plastics. Additionally, titanium dioxide is utilized in sunscreens because of its high refractive index and optical dispersion properties.

Aerospace Industry

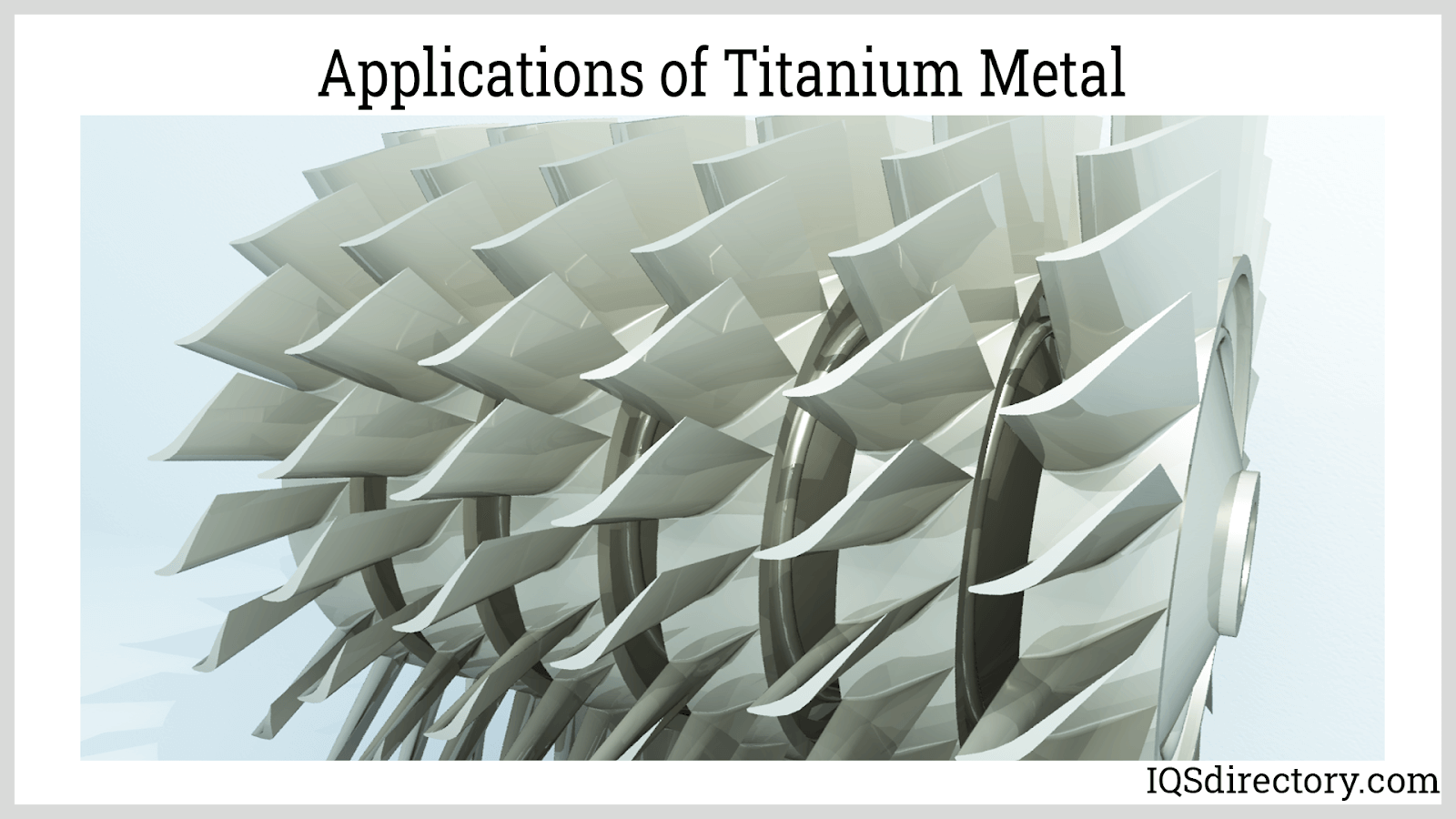

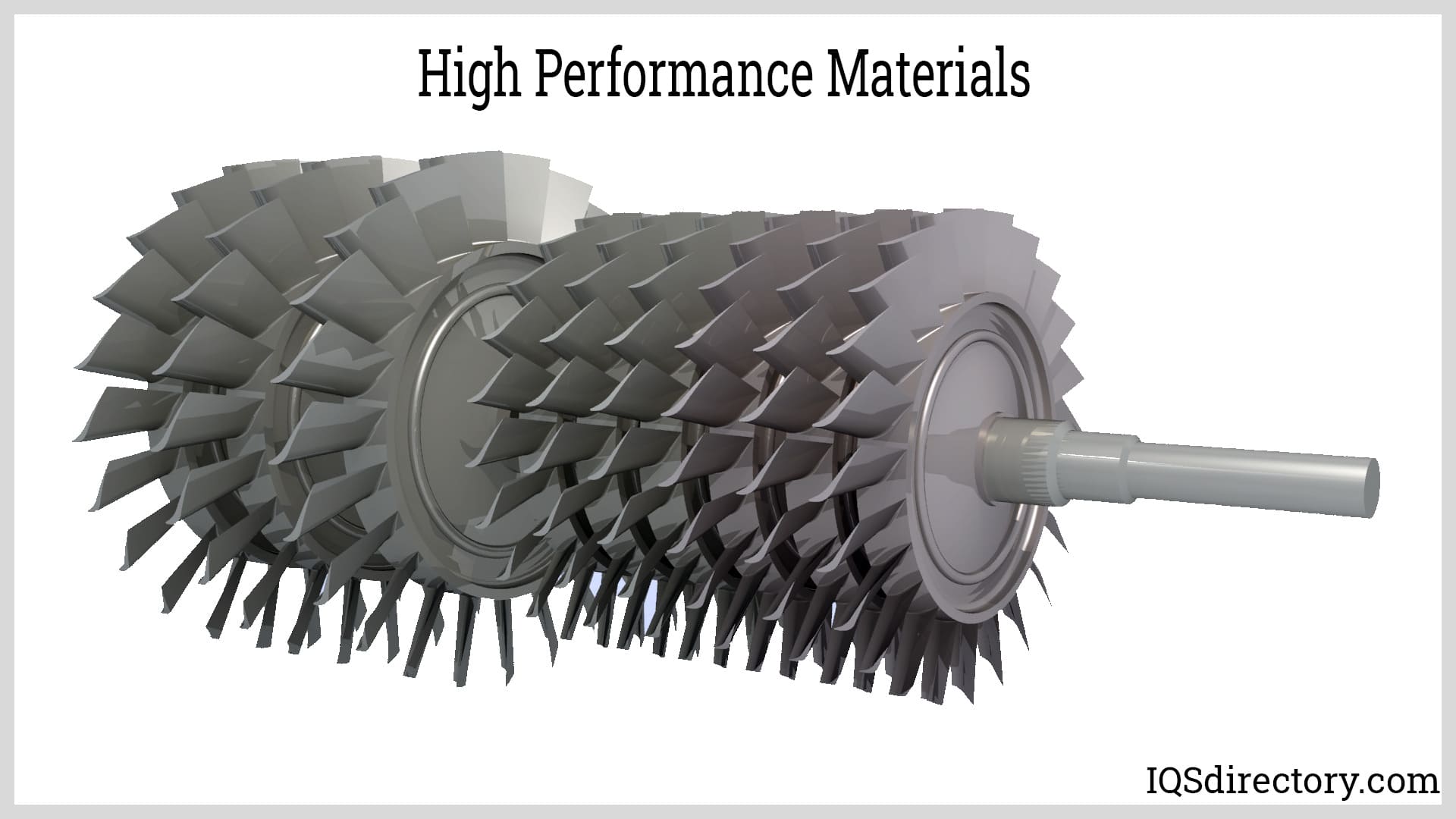

Titanium is an ideal material for the manufacture of aircraft, missiles, and armor plating and is used in the manufacture of structural parts, landing gear, exhaust ducts, firewalls, and hydraulic systems. It accounts for almost 50% of materials used in aircraft production. The titanium alloys used consist of aluminum, nickel zirconium, and vanadium.

Jewelry

Titanium's durability and biological inertness have made it increasingly popular in the jewelry industry. Its hypoallergenic properties are especially appealing to those with sensitivities or living in humid environments. Additionally, titanium's resistance to dents, lightweight nature, and corrosion resistance make it an ideal material for crafting wristwatches and watch cases.

Artists often use titanium to craft sculptures and decorations. When combined with gold to create a 24-karat gold alloy, this blend results in an alloy that is tougher than pure 24-karat gold. Additionally, anodized titanium features optical interference fringes and a spectrum of vibrant colors, making it a popular choice for body piercings.

Marine Industry

Titanium, known for its exceptional corrosion resistance, is highly valued in the marine industry. It is commonly used in the construction of naval ship hulls due to its ability to withstand seawater corrosion. The material is also utilized in a range of marine applications, including propeller shafts, heat exchangers, rigging, saltwater aquarium chillers, driver knives, finishing lines, and leaders. Furthermore, titanium is employed in housing and equipment for ocean-based surveillance and monitoring.

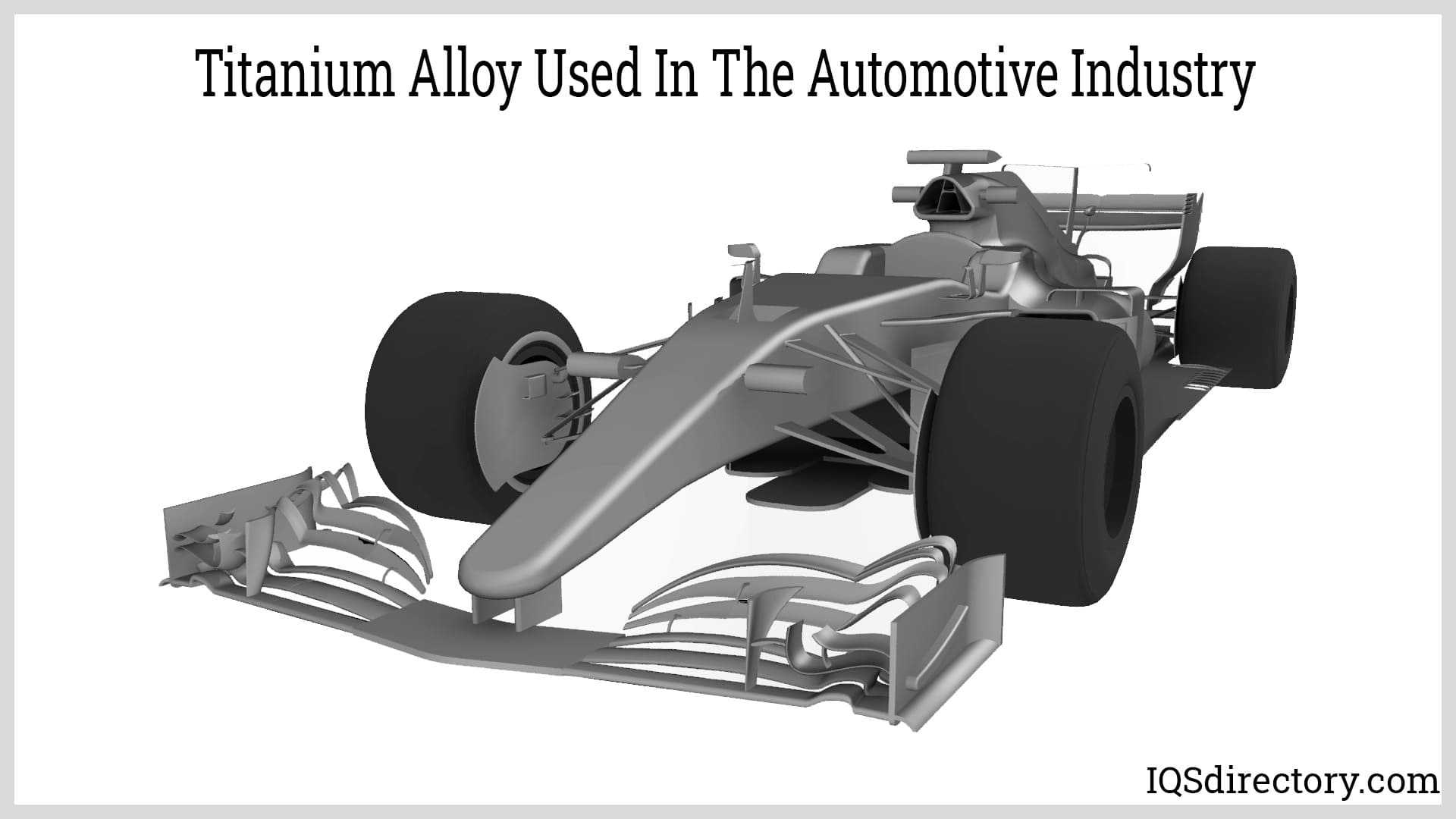

Automotive Industry

Titanium is employed in the automotive industry, especially in applications demanding both lightweight and high strength. Despite its high cost, titanium is considered cost-effective due to its superior properties compared to other metals. Its heat resistance and strength make it ideal for manufacturing exhaust and intake valves in engines.

Chapter 9: What Are the Health and Environmental Effects of Titanium Metal?

Titanium cannot be found naturally in its metallic state. In urban environments, its concentration in the air is typically below 0.1 µg/m³. However, in areas near factories, levels can reach up to 1.0 µg/m³. This presence of titanium can impact drinking water and food. The reported daily intake of titanium by humans ranges from 300 µg to 2 mg.

Research on both animals and humans indicates that inhaled titanium dioxide remains inert. Fibrosis linked to titanium exposure is more likely due to other elements found in titanium dust rather than titanium dioxide itself. In animals, titanium nitrides, titanium hydrides, and titanium carbides have been shown to cause fibrogenic effects as well as kidney and liver dystrophy.

Titanium tetrachloride affects humans and animals differently. In humans, it can cause skin burns and eye irritation. When administered in powdered form to rats, it has been linked to the development of lymphosarcoma and fibrosarcoma. However, there is no evidence suggesting that titanium is carcinogenic to humans. Additionally, research has not demonstrated any harmful effects of titanium dioxide on the lungs.

Titanium implants and prosthetics are inert and do not affect human tissue, as both bone and soft tissue are generally tolerant of titanium. Various compounds, including dioxides, oxides, tannates, and salicylates, are significant in dermatology and cosmetics. However, exposure to specific titanium compounds has been associated with pulmonary fibrosis.

Conclusion

• Titanium is a shiny gray metal with a low corrosion rate and high strength.
• It is a very useful metal for its refractory properties due to its high melting and boiling points.
• Titanium metal compounds include oxides, sulfides, alkoxides, nitrides, carbides, etc.
• Titanium metal is fabricated by a method called the ‘Kroll method’.
• Various industries, including medical, aerospace, and automotive, use titanium metal and its alloys due to its high strength.
• Some titanium compounds may have adverse effects on health and the environment.
