Introduction

This article provides a complete guide to the operating principles, configurations, and constructions of a three-phase transformer.

  • What is an Electrical Transformer? How Does It Work?
  • Three-phase Transformer Operating Principle
  • Three-phase Transformer Configurations
  • Three-phase Transformer Construction
  • Parts of a Three-phase Transformer
  • And much more...
Three Phase Transformers

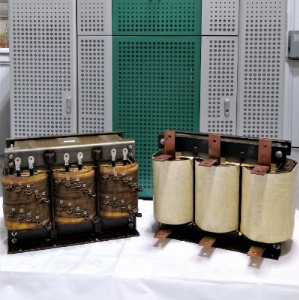

Three Phase Transformers (from Johnson Electric Coil Co.)

Chapter 1: Understanding Electrical Transformers and Their Operation

An electrical transformer is a passive component that transfers electrical energy between different circuits using magnetic flux, which induces an electromotive force. It can either boost (step-up) or reduce (step-down) voltage levels, while maintaining the frequency of the electrical current. Moreover, transformers offer electrical isolation between circuits, which is particularly advantageous in signal processing applications.

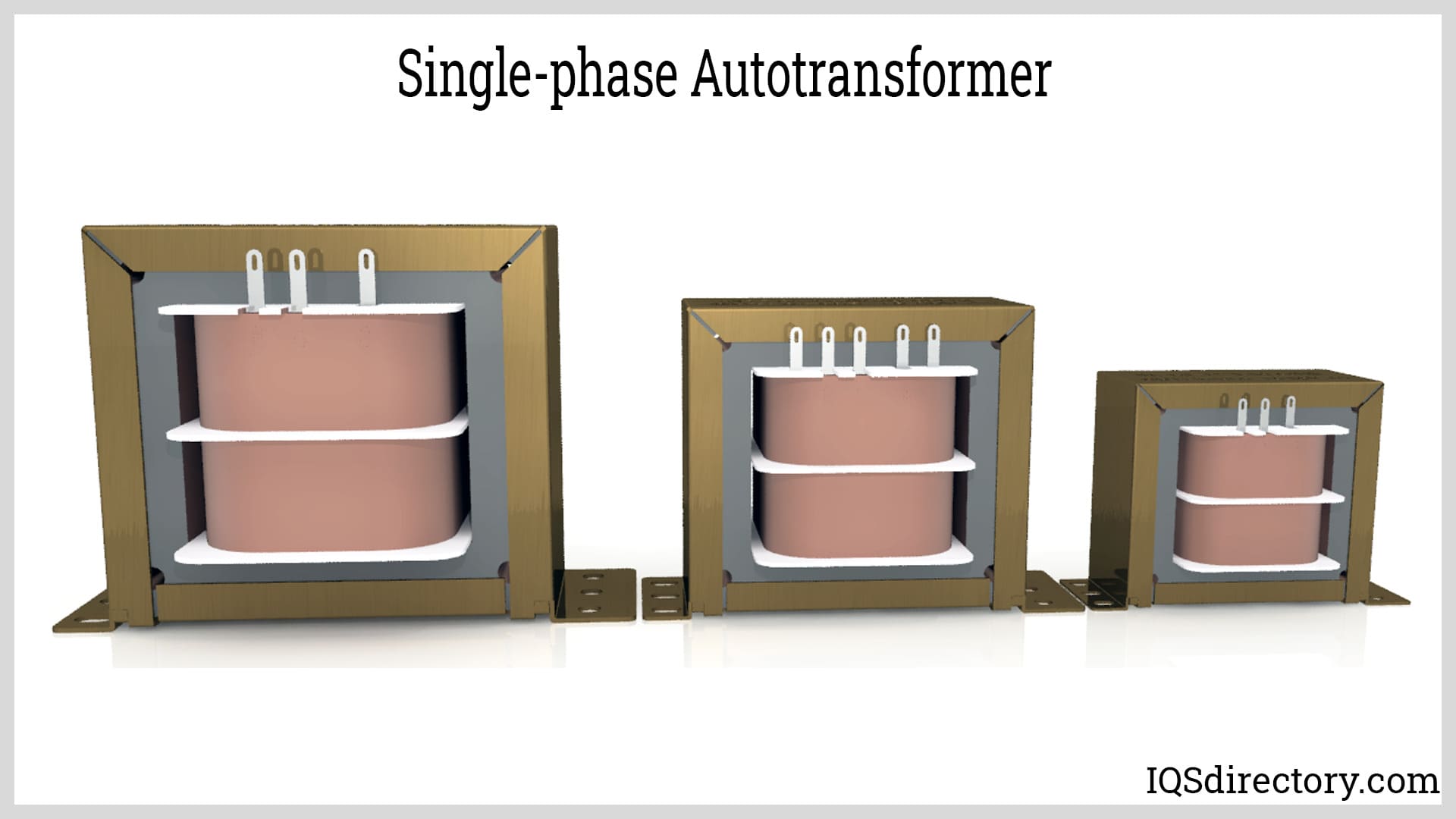

Single-phase Autotransformer

Faraday's Law of Induction

Electrical transformers operate on the principle of Faraday's law of induction, which describes the connection between changing magnetic flux and induced electric fields. It was found that when a conductor is exposed to a changing magnetic field, an electric current is generated in that conductor. The magnetic field can originate from an electromagnet with a fluctuating current, like an alternating current (AC). The part of the transformer where this happens is known as the primary winding. As the current increases and decreases at a consistent frequency, a corresponding magnetic field also fluctuates, inducing a current in nearby conductors. Typically, this conductor forms the secondary winding. The frequency of this induced electrical current matches that of the primary circuit.

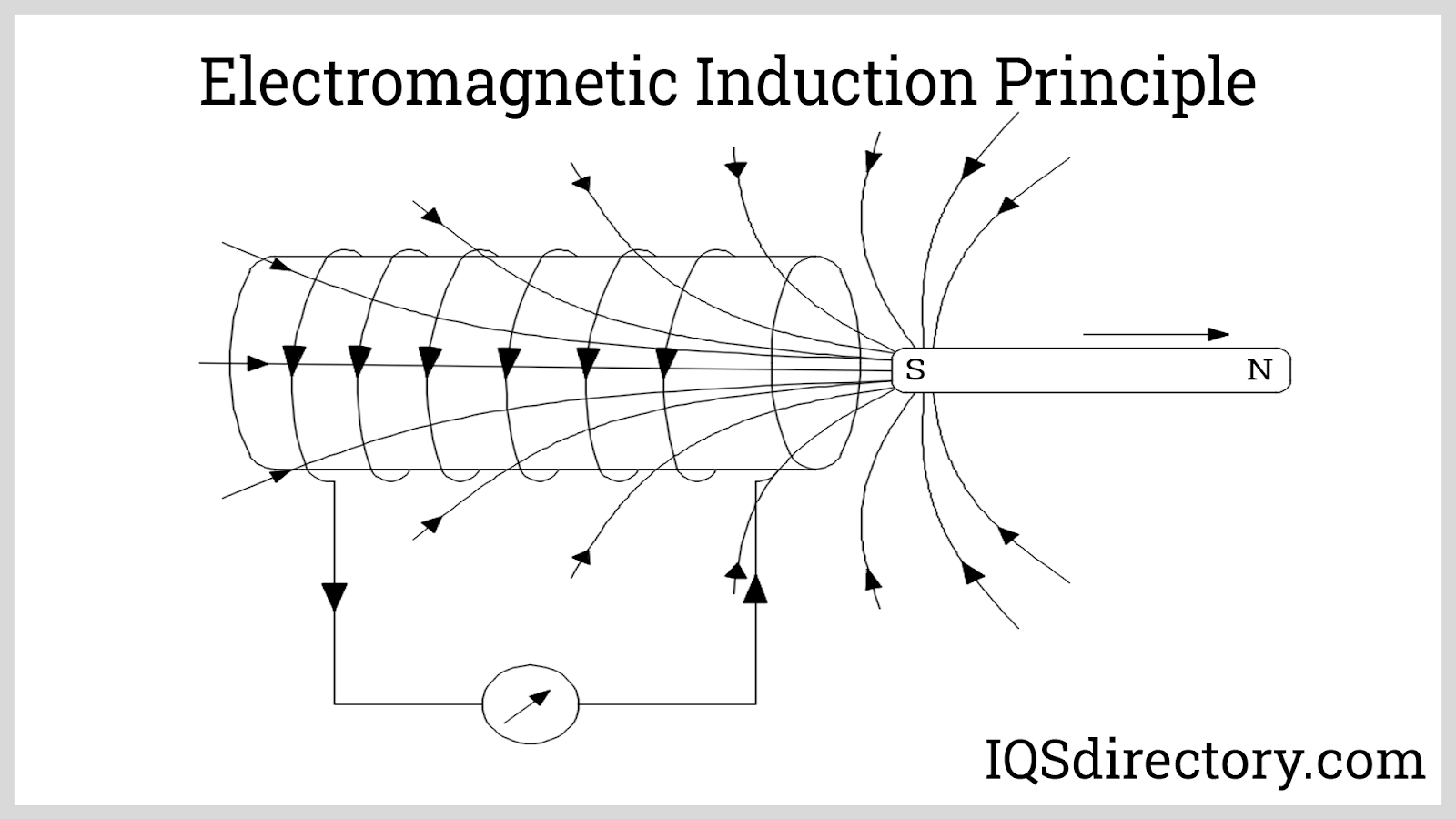

Electromagnetic Induction Principle

A static magnetic field isn't the only way to create a current. Consider a magnetic field as being made of numerous induction lines. When a conductor traverses these lines, it can generate a current, a principle often utilized in electrical generators.

Construction of Transformers

As previously explained, transformers adjust voltage according to demand. To grasp how three-phase transformers function, it's helpful to first understand the makeup of a single-phase transformer. A single-phase transformer includes two electrical coils known as the primary and secondary winding. The primary winding receives the power supply, whereas the secondary winding is where the electricity is induced.

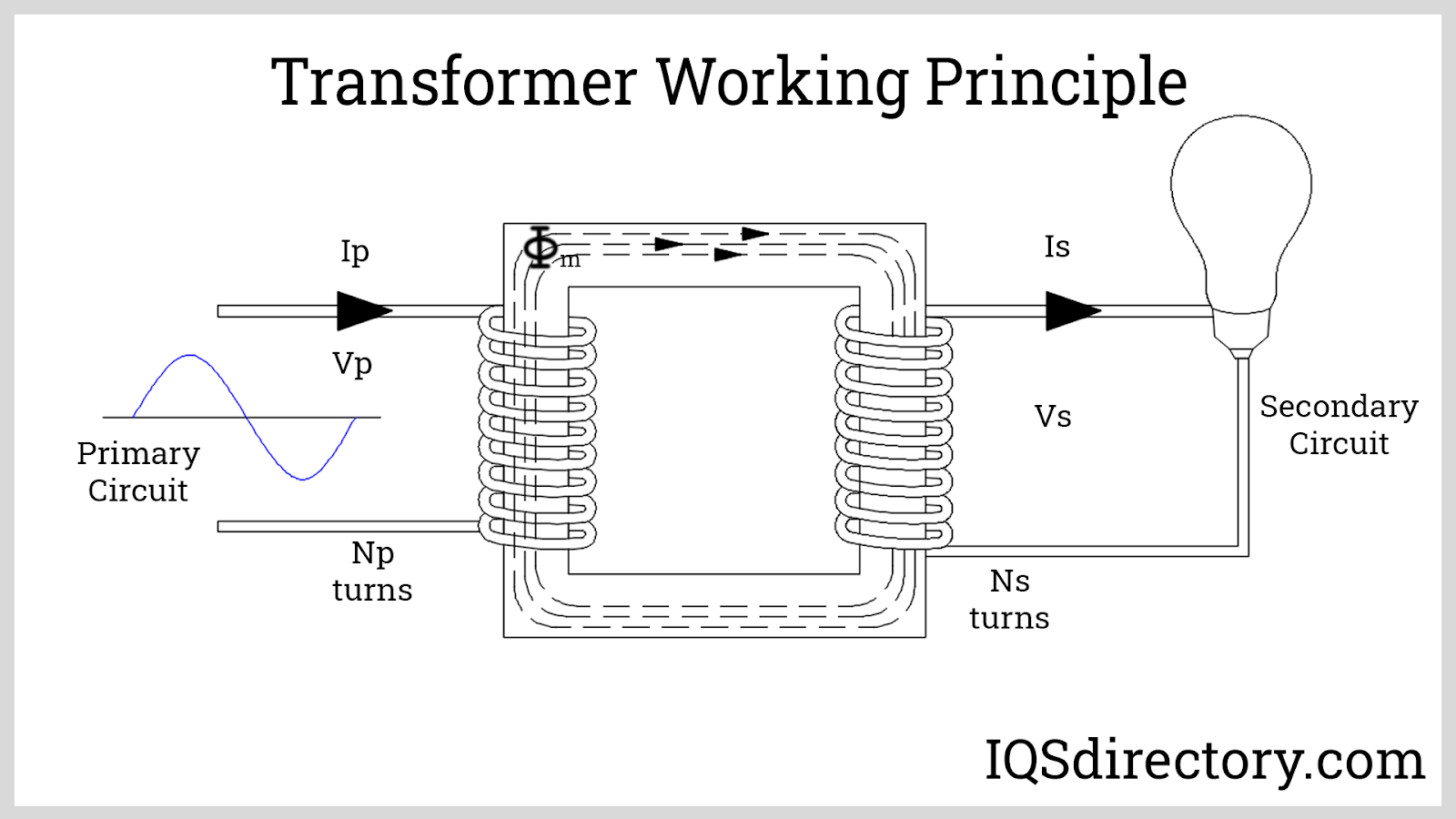

Transformer Working Principle

The two coils in a transformer are not physically connected but are instead linked by a closed-loop magnetic iron core, acting as a conduit for the magnetic field. As this magnetic field courses through the core, which acts as a conductor, it induces electrical currents known as eddy currents, which cause energy losses and heating in the transformer. These effects are mitigated by boosting the core's resistivity with thin sheets or laminations to reduce eddy currents.

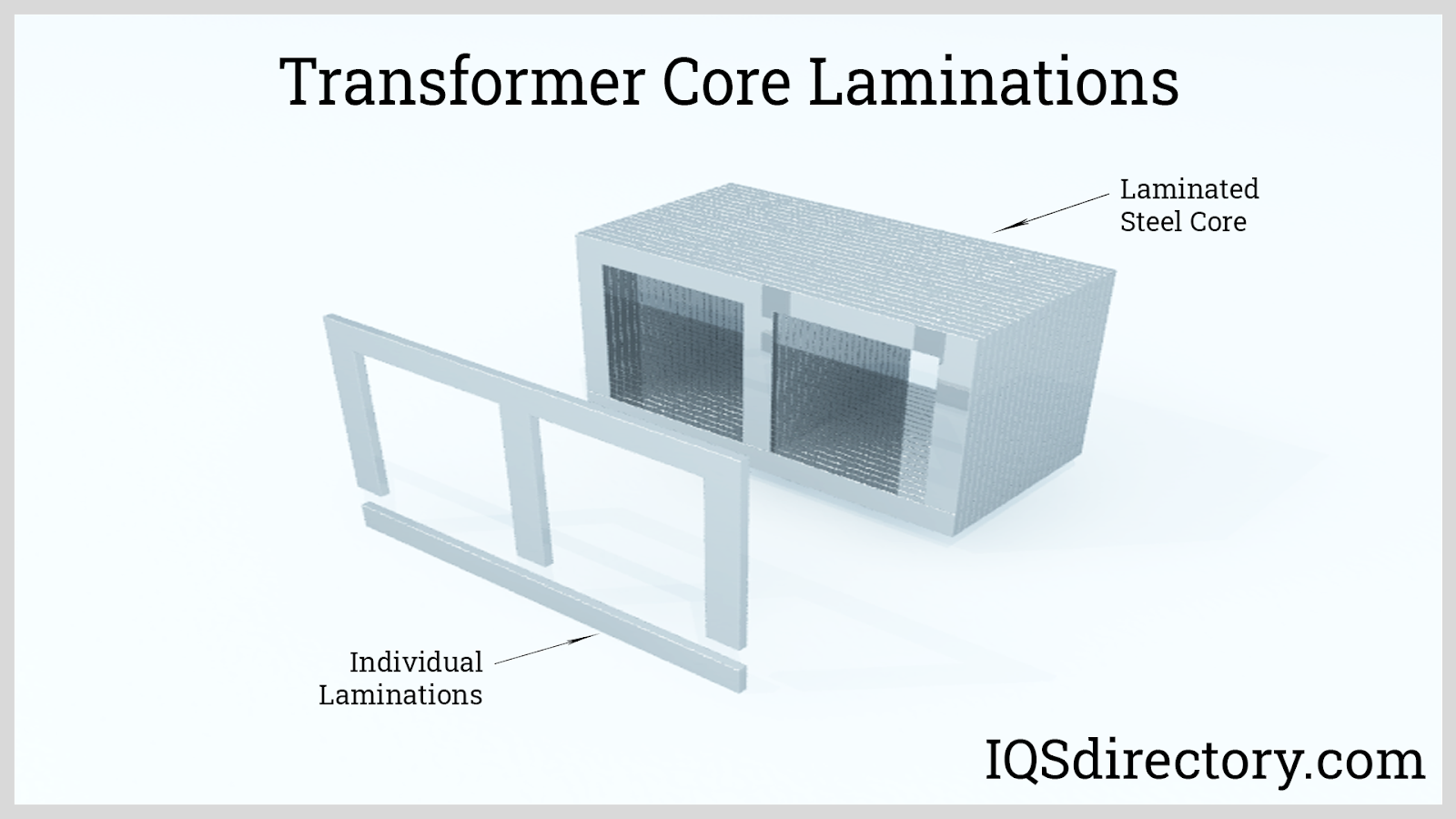

Transformer Core Laminations

The two windings of a transformer are connected via magnetic linkage and are not electrically connected. Adjusting the number of coils in the secondary versus the primary winding allows for altering voltage up or down. As a linear device, a transformer's output voltage can be calculated based on the turns ratio (TR)—the comparison of primary to secondary winding loops. The voltage ratio between the windings is directly related to the turns ratio.

Power and Efficiency in Transformers

In simple terms, electrical power is determined by multiplying voltage by current. In an ideal transformer, free of losses, power remains constant between primary and secondary windings, ensuring that power out equals power in. Hence, if voltage increases, current decreases and vice versa.

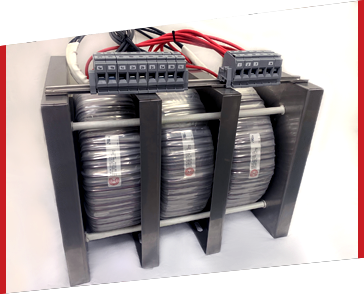

Custom Three-phase Transformer

Transformers generally have power efficiency ratings ranging from 88% to 99%. Power losses in transformers fall into categories like iron or core losses, copper losses, stray losses, and dielectric losses. Core losses include hysteresis and eddy currents. Hysteresis losses are due to energy needed to switch the magnetic field's direction, which dissipates as heat. Eddy currents are magnetically induced within the core but do no work. These currents are minimized by adding laminations to the core.

Copper loss occurs from the resistance in copper windings. As current flows through these conductors, it encounters resistance, leading to voltage drops and energy release as heat. To lessen copper loss, increasing conductor size is common, which makes the transformer larger and more costly.

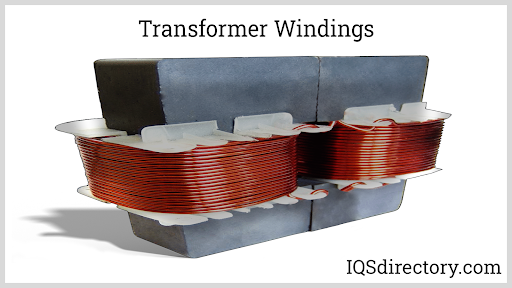

Transformer Windings

Stray losses result from the leakage of the magnetic field affecting other conductive transformer parts. Even though this field is weaker than that in the iron core, it induces eddy currents in nearby conductive materials, but these currents have minimal impact compared to core-generated ones.

In transformers, dielectric materials insulate between windings, while transformer oil insulates further, prevents arcing, and helps disperse heat. Dielectric loss occurs when insulating substances and transformer oil degrade over time.

Chapter 2: What are the Key Components and Construction Features of a Three-Phase Transformer?

Three-phase transformers play a critical role within industrial and commercial three-phase electrical systems, supporting the efficient transmission and distribution of electrical power. Unlike single-phase transformers, which serve smaller, lower-load applications, three-phase transformers are engineered for balanced, consistent power delivery in high-demand environments. While the core operating principle—Faraday’s Law of Electromagnetic Induction—remains the same, the construction, wiring configurations, and applications of three-phase transformers set them apart in the power engineering industry. Understanding these differences is essential for those evaluating transformer options for energy infrastructure, manufacturing facilities, or power distribution grids.

Three-Phase Electrical System: Structure and Benefits

Both single-phase and three-phase electrical systems utilize alternating current (AC), characterized by its periodic, sinusoidal waveform that changes direction and amplitude over time. However, a key distinction lies in the arrangement and phase relationship of the conductors. In a three-phase AC system, power is supplied through three separate conductors or power lines, with each phase offset by 120°. This phased approach produces three distinct waveforms, each reaching their respective peak and trough at staggered intervals during the 360° AC cycle.

As a result, while a single-phase electrical circuit experiences peaks and troughs only once per cycle, a three-phase circuit realizes multiple peaks and a consistent flow of power. This configuration minimizes fluctuations and enables steady voltage and reduced energy losses over long distances, making three-phase systems ideal for large-scale power transmission and heavy machinery operation. Three-phase electrical power is also preferred in industries requiring motors, heating, and high-capacity loads due to its reliable torque and high efficiency.

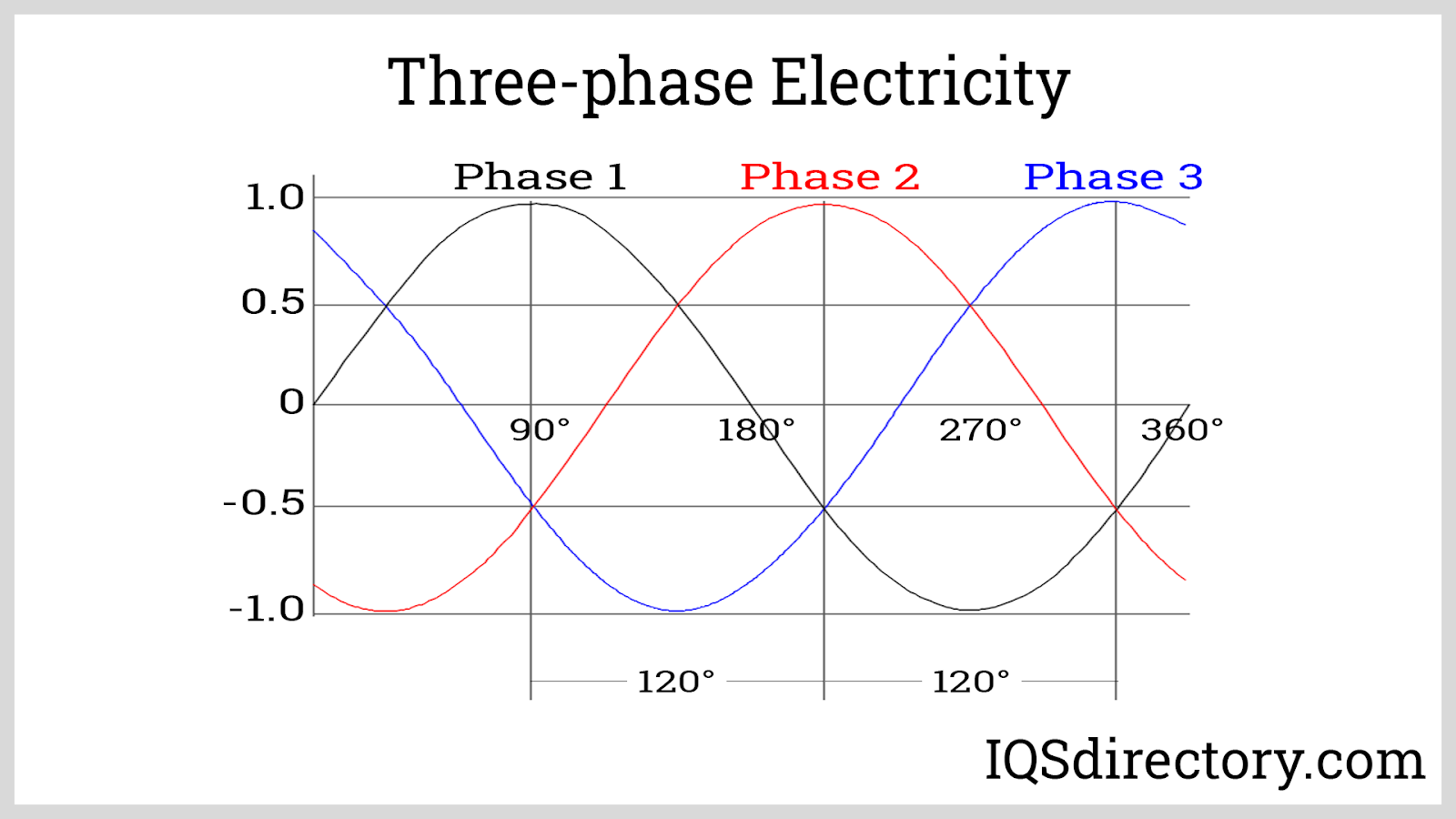

Three-phase Electricity

Three-Phase Transformer Windings and Configurations

A standard three-phase transformer consists of six windings: three primary windings and three secondary windings. These windings are arranged around a laminated steel core to maximize magnetic flux and minimize energy loss. Each set of primary and secondary windings can be interconnected in a delta (Δ) or star (Y) configuration, allowing for flexible voltage and current management according to system requirements.

The delta connection is often deployed when lower line voltages and higher currents are needed, while the star (wye) connection is commonly used for higher voltage, lower current applications. These connection types not only affect the transformer’s voltage transformation ratio but also impact the neutral grounding and fault tolerance of the overall power distribution system. It is also possible to construct a three-phase transformer by linking three single-phase transformer units, but integrated three-phase transformer designs are generally more compact, efficient, and cost-effective. Additional construction features may include cooling systems (oil-immersed or dry-type), tap changers for voltage adjustment, protective relay systems, and robust insulation for safe, long-term performance.

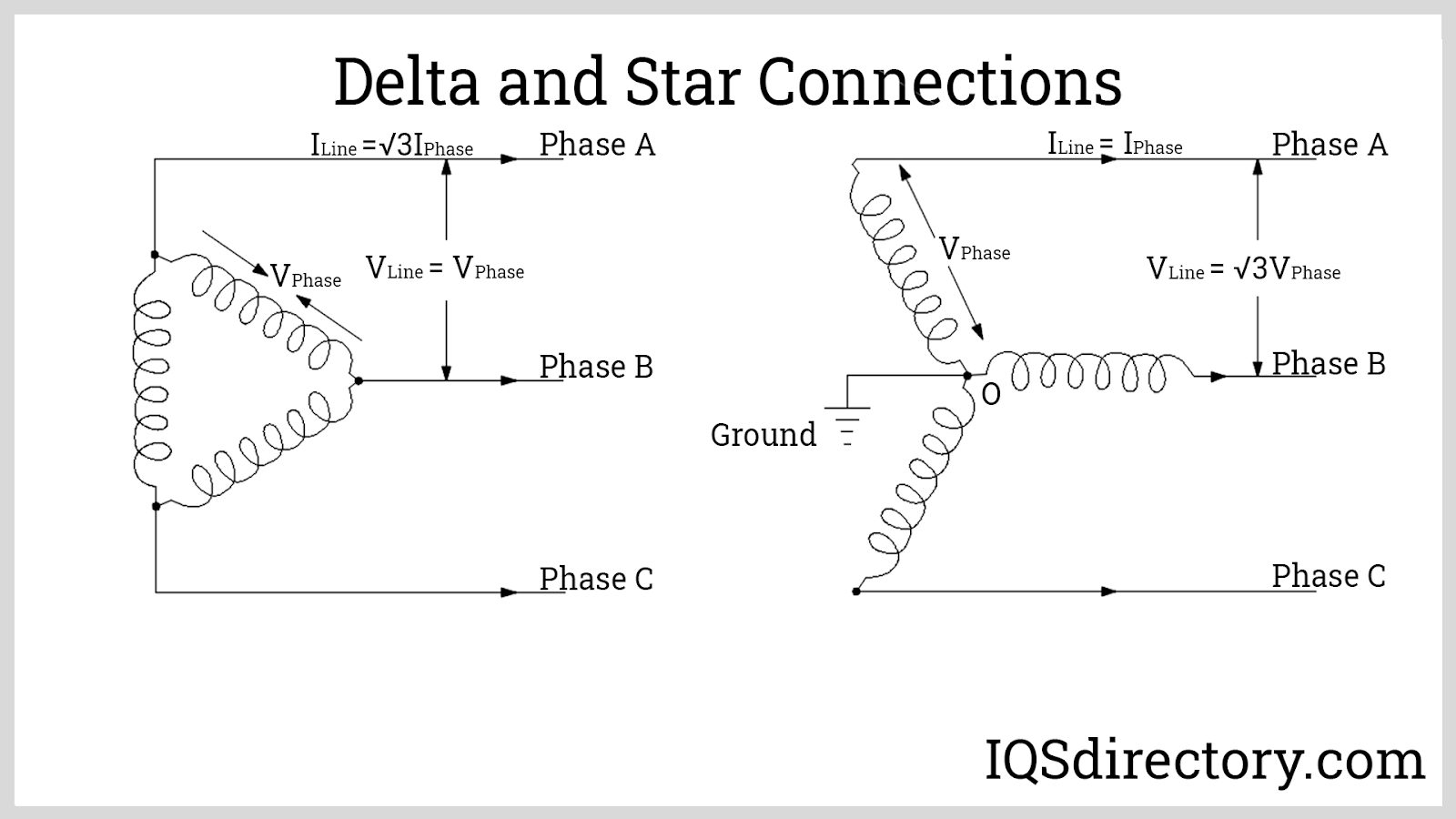

Delta and Star Connections

Key Components of a Three-Phase Transformer

Core components found in most industrial-grade three-phase transformers include:

  • Laminated Iron Core: Provides a low reluctance path for magnetic flux and reduces eddy current losses.
  • Primary and Secondary Windings: Copper or aluminum windings insulated for high-voltage operation, engineered to handle three-phase alternating currents.
  • Insulation and Bushings: Critical for preventing short circuits and ensuring safe operation under high voltage.
  • Cooling Mechanisms: Options include natural air cooling (dry-type) or oil-immersed cooling for larger transformer capacities.
  • Tap Changers and Protective Relays: Allow for voltage regulation and automatic fault protection, enhancing system reliability and safety.
  • Terminal Boxes and Enclosures: Provide grounded, weather-resistant housing for safer installation in diverse environments.

When evaluating three-phase transformer manufacturers or product options, consider application-specific requirements such as voltage ratio, kVA rating, insulation class, ambient temperature rating, and desired efficiency level. Consulting with industry-leading transformer suppliers ensures you find the best solution for your specific electrical distribution or industrial automation needs.

Leading Manufacturers and Suppliers

    Mouse Over Company Names to see their previews

    Chapter 3: What are the different configurations for three-phase transformers, and how do they impact performance?

    The two primary configurations for three-phase transformer connections are delta (Δ) and star (wye, Y) connections, which play a crucial role in electrical power distribution and industrial applications. The delta connection, also known as a mesh connection, links three transformer windings end-to-end to form a closed loop, making it ideal for heavy-duty equipment and robust power transmission scenarios. In a delta system, there is no neutral point; instead, grounding connections are employed to maintain system stability and safety. Furthermore, delta connections allow high-leg, or "wild-leg," systems by grounding the midpoint of one phase—often used in American commercial power distribution—producing a higher voltage across the "high leg" compared to the voltages across other terminals. This feature is particularly useful for mixed single-phase and three-phase loads commonly found in commercial buildings.

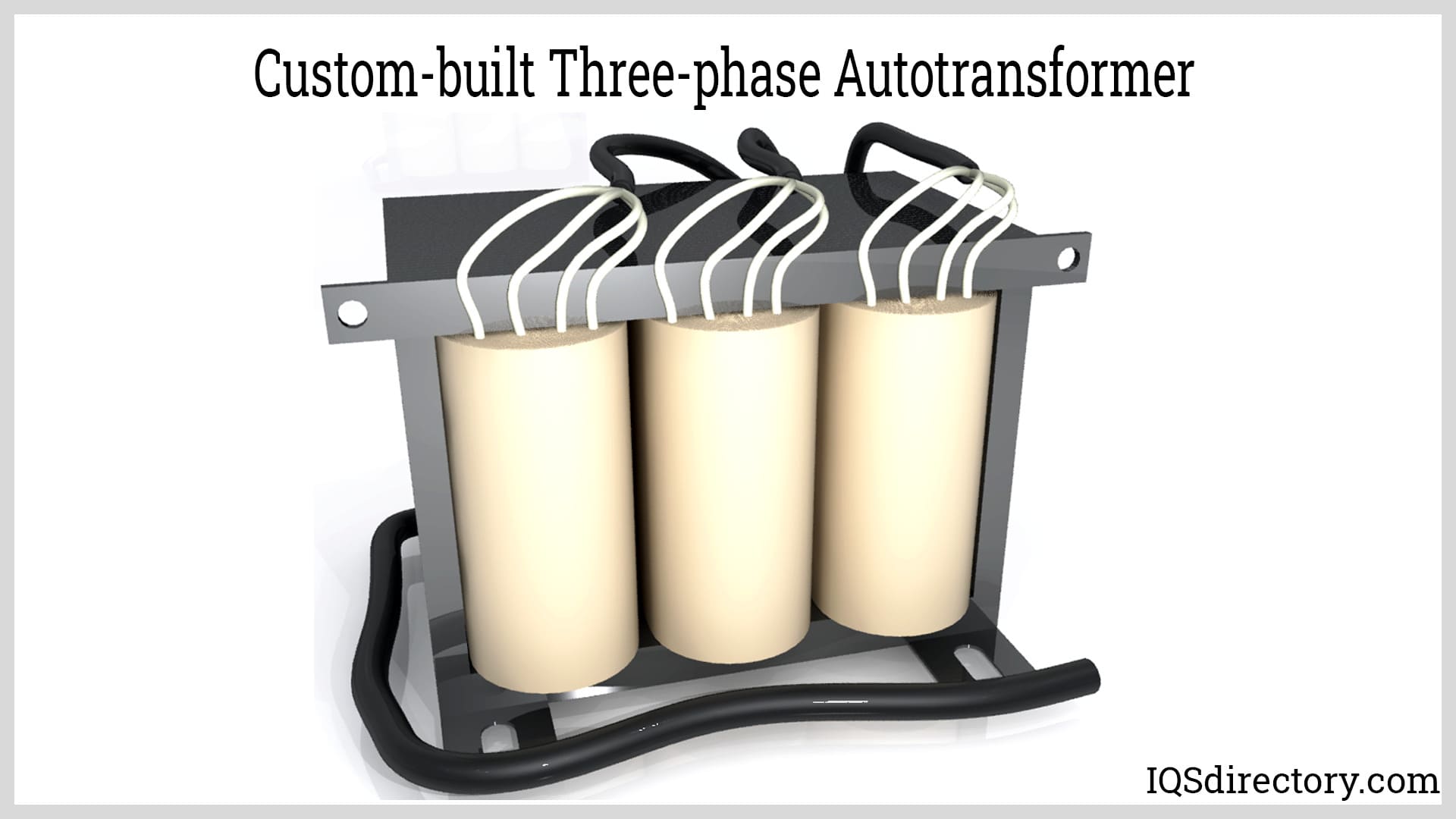

    Custom-built Three-phase Autotransformer

    The star connection—also referred to as the wye (Y) connection—is characterized by three windings and four terminals. In this arrangement, one end of each winding joins at a common neutral point while the free ends provide the three phases. This setup is preferred for transmission and distribution in utility power grids, as it offers versatility in supplying multiple voltages and a convenient neutral for grounding, enhancing system protection and facilitating reliable single-phase supply alongside three-phase output.

    Three-phase Voltage and Current Characteristics

    Choosing between delta and star connections impacts the functionality, cost-effectiveness, and safety of three-phase transformers. Understanding this choice requires distinguishing phase voltage (voltage across a winding) and line voltage (voltage between any two lines), along with associated currents. Below is a concise summary of the voltage and current relationships for each configuration, which are foundational for system design, load balancing, and transformer sizing:

    Delta Star
    Voltage VL = VP VL = VP x √3
    Current IL = IP x √3 IL = IP

    Where: VL = Line Voltage

      VP = Phase Voltage

      IL = Line Current

      IP = Phase Current

    In star (wye) connections, phase current and line current are equal, while line voltage exceeds phase voltage by a factor of √3. This allows for the supply of multiple voltages with a single transformer: for example, a 230V phase-to-neutral connection provides 400V between any two phases, covering common residential and industrial voltage requirements without additional equipment. The existence of a neutral wire further offers overcurrent protection, supports unbalanced loads, and ensures ground fault detection.

    In delta connections, the line voltage is equal to the phase voltage, and the line current is √3 times the phase current. This results in higher line currents, requiring transformers with greater thermal capacity and robust insulation. Delta configurations are well-suited for delivering large amounts of current to heavy industrial machinery. Their ability to handle short-term overloads and maintain operation in the event of a single winding failure enhances system reliability and power continuity.

    Transformer connection type affects not only power delivery but also energy efficiency, power quality (e.g., reduction in harmonic distortion), system fault tolerance, and overall installation costs. Selecting the right transformer configuration is critical for compliant and cost-effective power systems in manufacturing plants, data centers, commercial facilities, and public infrastructure projects.

    Both primary and secondary windings of three-phase transformers can be independently configured as star or delta, resulting in four core configuration permutations:

    • Star-Star (Y-Y)
    • Star-Delta (Y-Δ)
    • Delta-Star (Δ-Y)
    • Delta-Delta (Δ-Δ)

    Star-Star Connection

    The star-star (Y-Y) connection features star windings on both the primary and secondary sides of the transformer. In this configuration, the line voltage is √3 times the phase voltage on each side, enabling medium-voltage power transmission directly to end-users. A key advantage of Y-Y configurations is the presence of a neutral terminal on both sides, which can be grounded for increased safety and to minimize voltage waveform distortion. Star-star transformers are widely used for balanced three-phase loads, but they require effective grounding and load balancing for optimal operation, especially in distribution systems and substations.

    Star-Star, Delta-Delta, Star-Delta, Delta-Star Connections

    Star-Delta Connection

    In a star-delta (Y-Δ) transformer configuration, the primary winding is star-connected and may be grounded at the neutral, reducing electromagnetic interference and stabilizing the phases. The secondary winding is delta-connected, ideal for industrial motor applications which require stable line-to-line voltage. With a 1:1 turns ratio, the output voltage on the delta side is reduced to roughly 58% compared to the input, making this an effective step-down transformer configuration. Consequently, these transformers provide robust voltage reduction for regional and urban electrical grids.

    The phase angle difference (typically 30º) between primary and secondary sides complicates paralleling with other transformer types, potentially impacting scalability and redundancy in large installations. Careful system planning is required in power distribution networks incorporating both star-delta and other connection schemes.

    Delta-Star Connection

    The delta-star (Δ-Y) transformer offers significant advantages for step-up transformer applications, as commonly utilized in electrical transmission substations connecting power plants to distribution networks. The primary delta connection delivers high current-carrying capability and robust fault tolerance, while the secondary star side introduces a neutral point for multi-voltage distribution. The output line voltage is boosted by a factor of √3 compared to the phase voltage, delivering both single-phase and three-phase supplies for diverse consumer needs. As with star-delta arrangements, a phase shift between windings means delta-star transformers cannot be paralleled directly with configurations lacking this phase difference, requiring synchronized planning in grid expansion projects.

    Delta-Delta Connection

    The delta-delta (Δ-Δ) connection is preferred for installations where transformer reliability, straightforward voltage relationships, and load sharing are priorities. The absence of a neutral makes this setup unsuitable for unbalanced loads, but it is highly resilient to single-phase winding failures and ideal for low voltage, high current applications (e.g., powering large industrial equipment). Power engineers often select the delta-delta transformer in circumstances where system simplicity, redundancy, and reduced phase shift are required. Note that robust insulation and increased material costs are trade-offs for this configuration, limiting its use in large scale transmission systems.

    Other Types of Three-phase Transformers

    Beyond standard star and delta permutations, several specialized three-phase transformer configurations exist to meet specific industry requirements. Understanding these designs enhances system flexibility and enables integration with legacy or unique power systems.

    Open Delta Connection

    The open delta (V-V) connection forms when two transformers, or two windings in a bank, are connected in delta, providing a cost-effective approach to supply three-phase power when load demand is too low to justify a full three-phase transformer. While it offers three-phase voltage at no-load conditions, the total power capacity is limited to about 58% (or 2/√3) of a complete delta-delta bank. Open delta connections are often used for temporary service during maintenance, low-load rural distribution, or budget-limited upgrades. When future expansion is anticipated, a third transformer can be added, converting the system to standard delta-delta operation and increasing power capacity and reliability.

    Open Delta Connection

    Scott-T Connection

    The Scott-T (T-T) connection is designed to convert three-phase power to two-phase, or vice versa, commonly applied in industrial settings requiring legacy two-phase equipment or unique power supply demands such as certain types of electric furnace systems. It uses two single-phase transformers, with one acting as the main transformer (with center taps on both primary and secondary), and the other as a teaser transformer (with a 0.87 tap). This configuration ensures balanced loading, but the teaser transformer operates at 87% of its full rating, resulting in slight efficiency reductions. The Scott connection is vital for adapting modern three-phase grids to older two-phase applications still in operation.

    Scott-T Connection

    High Leg Delta Connection

    The high-leg delta (wild-leg or red-leg delta) arises by center-tapping one secondary winding and grounding it in a standard delta configuration. This structure is frequently seen in North American three-phase, four-wire distribution systems, especially within small commercial or mixed-use facilities. It supplies both 240V line-to-line for heavy equipment and 120V line-to-neutral for lighting and standard outlets, providing an efficient, versatile solution for sites with mixed loading needs. The phase with the highest voltage to ground ("high leg" or "orange leg" at 208V) is generally marked for identification and code compliance.

    High Leg Delta Connection

    Toroidal Transformers

    Toroidal transformers represent an advanced transformer design that excels in power efficiency and noise reduction. Unlike conventional laminated-core transformers, toroidal transformers utilize a doughnut-shaped core, enabling exceptionally compact primary and secondary windings and resulting in low magnetic flux leakage, low core loss, and minimal acoustic noise. This makes them ideal for sensitive electronic devices, audio equipment, medical instruments, and precision measurement systems.Toroidal transformers operate efficiently, maintain low operating temperatures, and significantly reduce electromagnetic interference (EMI).

    The voltage in a toroidal transformer is stepped up or down according to the turns ratio, with magnetic flux interactions minimizing energy losses. Their alternating current operation promotes smooth, cyclical switching that diminishes audible hum. The compact windings and closed-loop core minimize vibrations, virtually eliminating transformer noise and contributing to safer, more reliable installations, particularly in noise-sensitive environments.

    Considered a top choice for modern electrical and electronics applications, toroidal transformers set a new benchmark for power conversion efficiency, compactness, and low EMI. Their superior performance and quiet operation make them popular in renewable energy inverters, laboratory power supplies, and specialized medical and communication devices.

    Advantages of Toroidal Transformers
    • Higher energy efficiency
    • Low operating temperature
    • Minimal audible hum
    • Space-saving and compact design
    • Light-weight construction
    • Low stray magnetic field reduces EMC/EMI issues
    • Low electromagnetic interference (EMI) emissions
    Toroidal Transformer Core

    Choosing the appropriate three-phase transformer configuration—whether standard star/delta or specialized forms like open delta, Scott-T, or toroidal—is integral to optimizing power quality, efficiency, and performance in electrical distribution, industrial automation, grid infrastructure, and commercial building systems. Consulting with experienced transformer manufacturers and electrical engineers ensures the best fit for system requirements, code compliance, and long-term operational reliability.

    Chapter 4: What is the construction of a three-phase transformer?

    The previous chapter covered the different types of three-phase transformers based on their phase windings. Three-phase transformers can also be classified according to their construction. They can be built using either a single core with combined primary and secondary windings or by connecting three separate single-phase transformers.

    Core-type Transformer

    In a core-type transformer, the windings are evenly split and wound on the limbs of the core. The core consists of three limbs on the same plane. Each of these limbs contains both the primary and secondary windings. These windings may be better referred to as the high voltage and low voltage windings. The low voltage windings are wound closest to the core since it is easier to insulate. The high voltage coil is then wrapped around the low voltage winding with insulation between them. In this construction, the windings are magnetically coupled with each other, where one winding uses the other two limbs as a return path for its magnetic flux.

    Core and Shell Types

    Shell-type Transformer

    The shell-type transformer can be considered as three separate single-phase transformers due to the almost independent magnetic fields of the three phases. This transformer features a core with five limbs. The high voltage and low voltage windings are positioned around the three main limbs, with the low voltage winding closest to the core, similar to the core-type transformer. The two outer limbs provide additional return paths for the magnetic flux. As the magnetic field reaches the yoke, the flux splits into two paths. Consequently, the yoke and outer limbs can be sized to half of the main limbs. This reduction in yoke size helps decrease the overall height of the transformer.

    Chapter 5: What are the parts of a three-phase transformer?

    The previous chapter provided a detailed discussion on the windings and cores of three-phase transformers. However, other components are equally important. This chapter will cover these additional parts of a three-phase transformer.

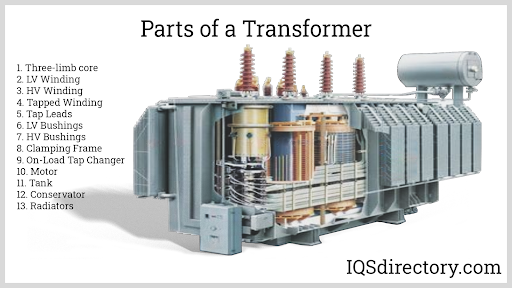

    Parts of a Transformer

    Insulation

    Insulations serve as a barrier system, separating the windings from the core and the two windings from each other. Transformers utilize various types of insulation, including oil, paper, tape, pressboard, and laminated wood.

    • Oil - Oil insulation acts as an electrical insulator and coolant. It is used in 11kV or higher transformers and placed in the tank with the core.
    • Insulating Paper - Insulating paper is made of vegetable fibers that are felted together to form a sheet. The fibers come from cotton, straw, hemp, manila, and coniferous trees.
    • Insulating Tape - Types of insulating tape are cotton, woven, glass woven, and phenol laminated paper-based sheets. They are used where high strength is required.
    • Pressboard - Pressboard is made of vegetable fibers that contain cellulose. They are molded into angle rings and caps.
    • Laminated Wood - Wood laminates are made from a wide range of veneers and timbers. They are used in areas that require higher mechanical and lower electrical strength.

    Transformer oil

    Insulations act as a barrier system, providing separation between the windings and the core, as well as between the two windings themselves. Transformers use a range of insulation materials, including oil, paper, tape, pressboard, and laminated wood.

    Tank

    The tank safeguards the cores and windings from external environmental factors and also serves as a container for the oil. It is evacuated of air and other substances that could contaminate the oil and affect the dielectric properties of the insulation.

    Oil Conservator

    Heating the oil causes it to expand, so a separate vessel, called the conservator, is installed alongside the tank.

    Cooler

    As the oil absorbs heat from the transformer, it transfers this heat to the cooling system. The cooling system collects the hot oil, cools it through air- or water-cooled tubes, and then returns it to the windings and core. The designations for transformer cooling systems, as standardized by IEC, are listed below.

    • ONAN – Oil Natural, Air Natural
    • ONAF – Oil Natural, Air Forced
    • OFAN – Oil Forced, Air Natural
    • OFAF – Oil Forced, Air Forced
    • OFWF – Oil Forced, Water Forced

    Voltage Regulators

    Tap changers are used to adjust the output voltage of a transformer. Under load conditions, the transformer's output voltage may drop, necessitating an adjustment of the voltage ratio by modifying the tapping turns. This adjustment is achieved using a tap changer. The type of tap changer used depends on how frequently the output voltage needs to be adjusted.

    Gas Actuated Relay

    Also known as the Buchholz relay, this component collects free gas bubbles from the transformer tank. The presence of these gas bubbles can indicate a fault within the transformer.

    Thermometers

    These devices are used to monitor the oil temperature in the transformer.

    Breathers

    These devices are used to remove moisture from the air space above the oil level in the conservator, helping to maintain the dryness of the transformer oil.

    Pressure Relief Systems

    These are safety devices designed to relieve overpressure in the event of oil flashing caused by short circuits.

    Conclusion

    • Electric transformers are passive, electrical machines that use magnetic flux to induce an electromotive force. Transformers are used to step-up or step-down voltages between electrical systems. Other types of transformers such as isolation transformers do not change the voltage but provide a means of isolating circuits.
    • Three-phase transformers are a type of transformers that are used to change voltages of electrical systems with three phases. There are different types of configurations, namely: star-star, delta-delta, star-delta, and delta-star.
    • Other types of configurations resulted from the modification of the basic star and delta windings. The most common are open delta, Scott, and high-leg types of connections.
    • Core-type transformers act as single-core, three-phase transformers where each phase is magnetically coupled to each other.
    • Shell-type transformers act as three separate single-phase transformers since their magnetic fields are independent of one another.
