Introduction
This article offers a detailed guide to pneumatic solenoid valves Read further to learn more about:
What are Pneumatic Solenoid Valves?
Working Principle of Solenoid Valves
Solenoid Valve Parts and Components
Different Types of Pneumatic Solenoid Valves
And much more…
Chapter 1: What are Pneumatic Solenoid Valves?

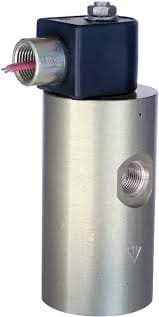

Pneumatic solenoid valves are electromechanical devices that control the flow of air or process gas and are used for controlling pneumatic actuators such as cylinders, turbines (pneumatic motors), diaphragms, and tubes. Using actuators, they form auxiliary air circuits to control plant equipment. The function of pneumatic solenoid valves is to control fluids by allowing flow or restricting it using a plunger located in the solenoid core.
When activated, a pneumatic solenoid valve uses an external wire coil to generate a magnetic field within the solenoid core. This magnetic field moves the plunger, either opening or closing the flow within the system. Common types of pneumatic solenoid valves include direct-acting, pilot-operated, and two-way valves. In situations where standard solenoid valves may not be suitable, engineers may design custom solutions to address specific and unique requirements.
Pneumatic solenoid valves are designed to enhance efficiency and simplify operations in machinery, equipment, and control systems. In modern industry, automation plays a crucial role in production, utilizing advanced technological and computer-controlled systems. Pneumatic solenoid valves are central to these systems, allowing processes to be easily programmed to start or stop without manual intervention.
Engineers have multiple options for controlling system processes with pneumatic solenoid valves. Their ease of installation and straightforward operation mean they can be placed in remote or hard-to-reach areas and controlled electronically. This capability makes pneumatic solenoid valves invaluable for designing complex systems that operate off-site.
The versatility of pneumatic solenoid valves makes them essential in various processing equipment and industrial settings. They are critical for managing compressed air systems, vacuum systems, ventilation systems, and air-operated machinery, ensuring reliable and safe operation.
One key advantage of pneumatic solenoid valves is their ability to be remotely controlled through low-frequency electrical signals transmitted over long distances. These signals are easily managed by a facility’s control system, which sends commands from a control panel or unit to manipulate valves in remote process areas. Pneumatic solenoid valves are widely used across industries including oil and gas, power generation, chemicals, and plastics.
In industries such as medicine, pharmaceuticals, and food and beverage production, adherence to strict FDA standards is required to ensure public safety. Equipment and instrumentation involved in producing medicines, drugs, or food must meet these regulations. Pneumatic solenoids are crucial in these fields for maintaining precise control over mixing and flow processes, contributing to quality and production efficiency.
Unlike hydraulic solenoid valves, pneumatic solenoid valves operate without the use of fluids, which makes them much cleaner and contaminant free. This characteristic is why they are preferred for use in the production of medical instruments, pharmaceuticals, and foods and beverages. Pneumatic solenoid valves are sealed to prevent them from contaminating products that could seam into their core or inner mechanism. Their tight, impenetrable seal lessens the potentiality of product contamination.
Since pneumatic solenoid valves use pneumatic operation to control a pneumatic system and only require a small amount of electrical input, they are an ideal choice for the operation of robotic arms, automated assemblies, feeder mechanisms, and conveyors. The air pressure operation of pneumatic solenoids makes them a more efficient replacement for small DC motors and hydraulic actuators. Robotic arms, automated actuators, and end effectors depend on pneumatic solenoid valves for actuation. The wide assortment of applications that depend on pneumatic actuators includes assembly, sorting, packaging, material transfer, and safety control systems.
Chapter 2: How does the working principle function?

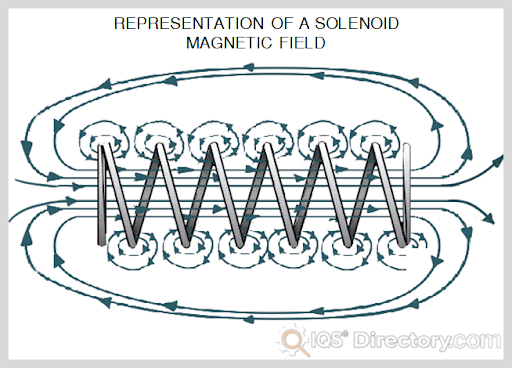

The core component of a pneumatic solenoid valve is the solenoid itself. A solenoid is an electromagnetic actuator that transforms electrical energy into mechanical movement. It comprises a wire coil wound around an iron core and a ferromagnetic plug or plunger. When electrical current flows through the coil, it generates a magnetic field. This magnetic field can be visualized as concentric circles oriented along the axis of the current. For a current flowing through a looped coil, these circles merge to create a unified magnetic field.
The magnetic field generated by the coil attracts the ferromagnetic plunger. There are two primary ways to enhance the electromagnetic force. One method is to increase the number of loops or windings in the coil, which boosts the number of magnetic field lines, or flux, extending from the coil.
Another method is to raise the current passing through the coil, which increases the voltage supplied to the solenoid. Pneumatic solenoid valves can operate with either direct current (DC) or alternating current (AC) voltages.
The other critical component of a pneumatic solenoid valve is the valve itself. This part interfaces directly with the air or gas and is constructed to endure system pressures. It is designed to resist corrosion and erosion caused by contaminants within the pneumatic system.

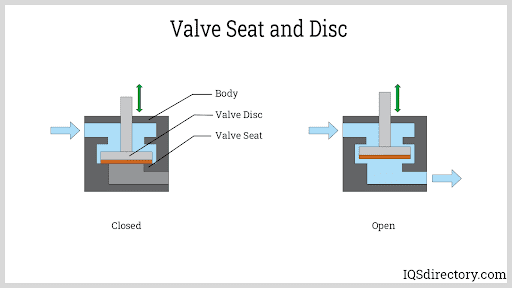

Within the valve, there is a disc that aligns with a seat or opening. When the disc seals the seat, it halts the flow of air or gas. The opposite side of the disc is connected to the ferromagnetic plunger via a stem. The position of the disc—whether raised or lowered—depends on the solenoid’s action.

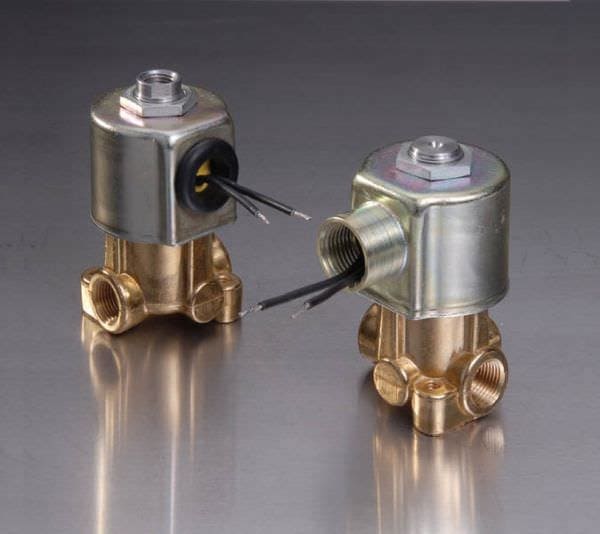

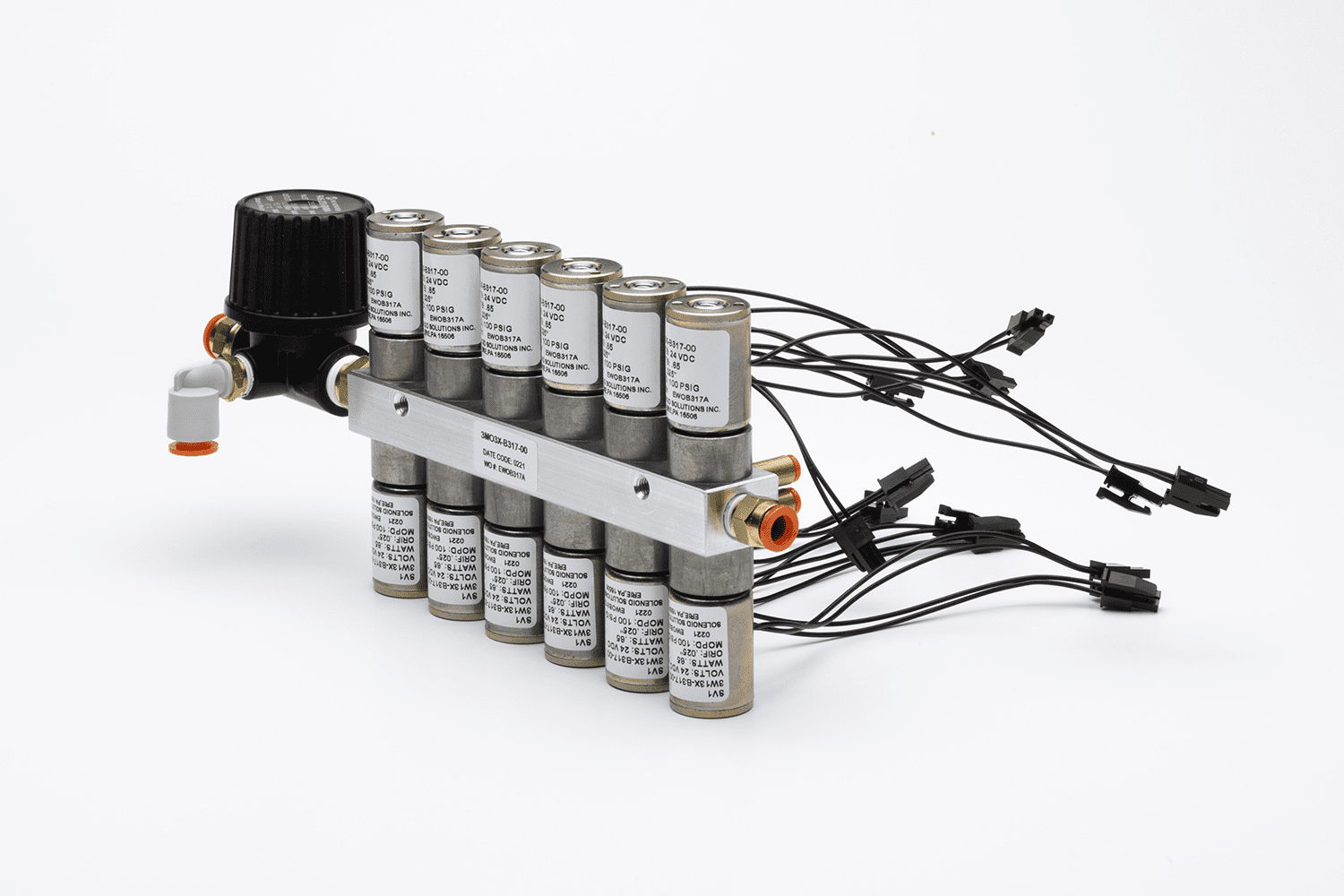

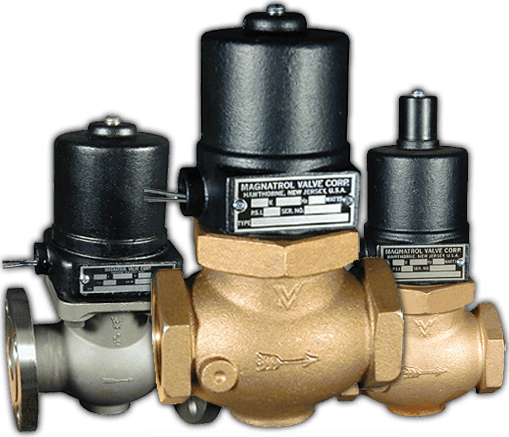

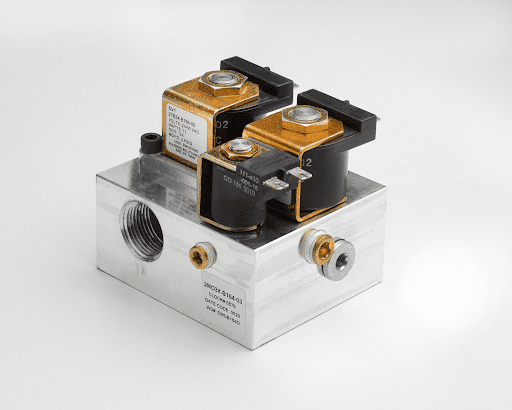

Leading Manufacturers and Suppliers
Chapter 3: What are the parts of a pneumatic solenoid valve?

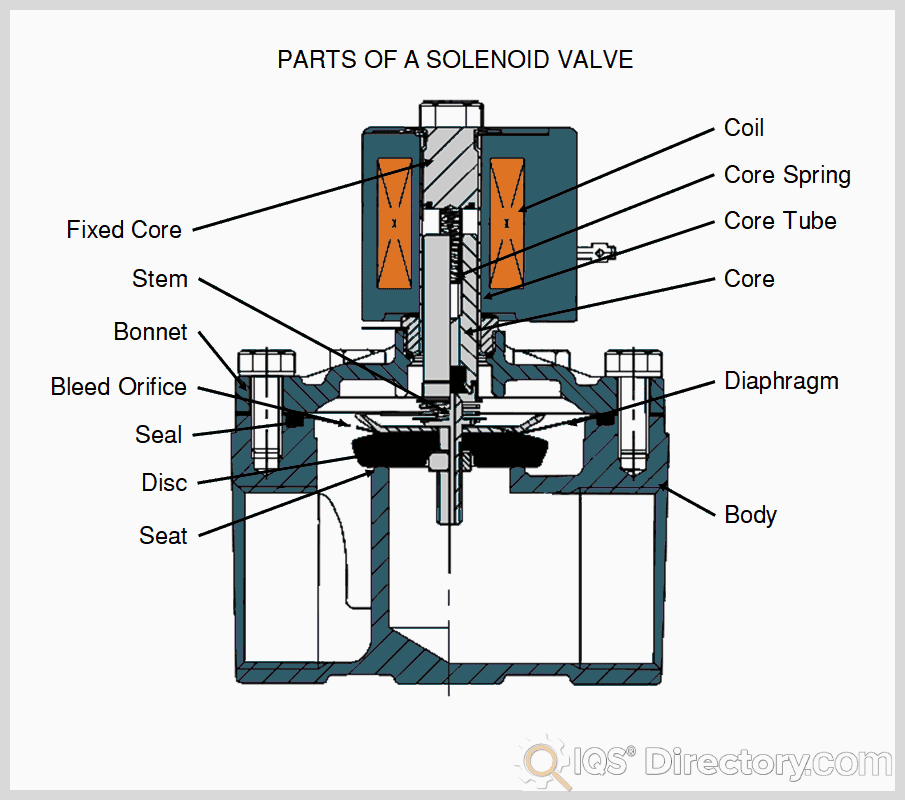

The previous chapter provided an overview of the two primary components of a pneumatic solenoid valve: the solenoid and the valve. To gain a deeper understanding of how the valve functions, it is beneficial to examine its specific components. The following sections outline the essential parts found in nearly all pneumatic solenoid valve designs.
Core
The core, sometimes known as the armature or plunger, is the movable component within a solenoid. Made from a soft magnetic material, it can be easily magnetized and demagnetized even with weak magnetic fields. When the coil is energized, it creates a magnetic field that pulls the core, thereby opening or closing the valve.
Core Spring
The core spring is responsible for moving the core back to its initial position once the magnetic field is deactivated. The design and setup of the core spring in a solenoid assembly can differ based on the type of valve operation. For instance, latching-type solenoid valves may not utilize springs for the return mechanism.
Core Tube
The core tube serves as the structure around which the coil is wound. Additionally, it functions as a soft magnetic core that enhances the magnetic flux generated by the coil.
Fixed Core
Located at the closed end of the core tube, this component further enhances the magnetic flux. It is composed of a soft magnetic metal to optimize magnetic performance.
Coil
The coil is a crucial element of the solenoid, made up of insulated copper wire coiled densely around the core tube. When an electric current passes through the wire, it generates a magnetic field as previously explained.
Diaphragm
The diaphragm is a pliable component that separates the solenoid mechanism from the fluid system. It is engineered to withstand and contain the pressure exerted by the fluid.
Stem
The stem connects the core or plunger to the valve mechanism. When the coil generates a magnetic field and attracts the core, the stem moves with it, thereby actuating the valve.
Disc
In a closed valve, the disc acts as a barrier to stop fluid flow. Alternative designs may use diaphragms, bellows, or pinch mechanisms in place of a disc to achieve this function. The disc is typically crafted from durable, corrosion-resistant materials like PTFE or stainless steel, depending on the specific requirements of the application.
Seat
The seat is the component that the disc presses against to seal the valve. Both the seat and the disc are generally made from matching materials to ensure a proper seal. If either the seat or disc becomes damaged, the valve may fail to fully close, resulting in leakage and an inability to stop the flow.
Seals
The seal functions similarly to the diaphragm by separating the solenoid mechanism from the surrounding environment and the fluid. There are various materials used for seals, including PTFE, FKM, NBR, and EPDM.
Bonnet
The valve bonnet is positioned at the upper part of the valve body. The core tube and stem pass through the bonnet and into the interior of the valve.
Body
The body serves as the central component of the valve, containing the diaphragm, disc, seat, and valve ports.
Bleed Orifice
In indirect or semi-direct acting solenoid valves, a bleed orifice is incorporated into the diaphragm. Alternatively, some valve designs feature an equalizing hole. The bleed orifice allows the valve to utilize the line pressure for its opening and closing functions.
Pilot Channel
Indirect acting solenoid valves are equipped with a pilot channel within the valve body. This channel directs air from above the diaphragm to the downstream side of the valve.
Chapter 4: What are the different types of pneumatic solenoid valves?
Solenoid valves are categorized based on their default state, mode of operation, and circuit function. It is essential to identify all these factors when choosing and integrating a new solenoid valve into an existing system.
Solenoid valves, like other automated valves, are typically categorized by their default (de-energized) state, which also indicates their fail-safe position. When power is lost, internal springs in the solenoid valve return the plunger to its default position.
Normally Open Solenoid Valves
Normally open solenoid valves remain open when de-energized. When the solenoid is activated, the valve closes. This design is advantageous in scenarios where it is crucial to maintain air or gas flow even during a power outage.
Normally Closed Solenoid Valves
Unlike normally open solenoid valves, normally closed valves are blocked when not powered. When electrical power is supplied to the solenoid, the valve opens. Normally closed solenoid valves are more widely used, as most applications necessitate closing or isolating system lines during disturbances or system failures.

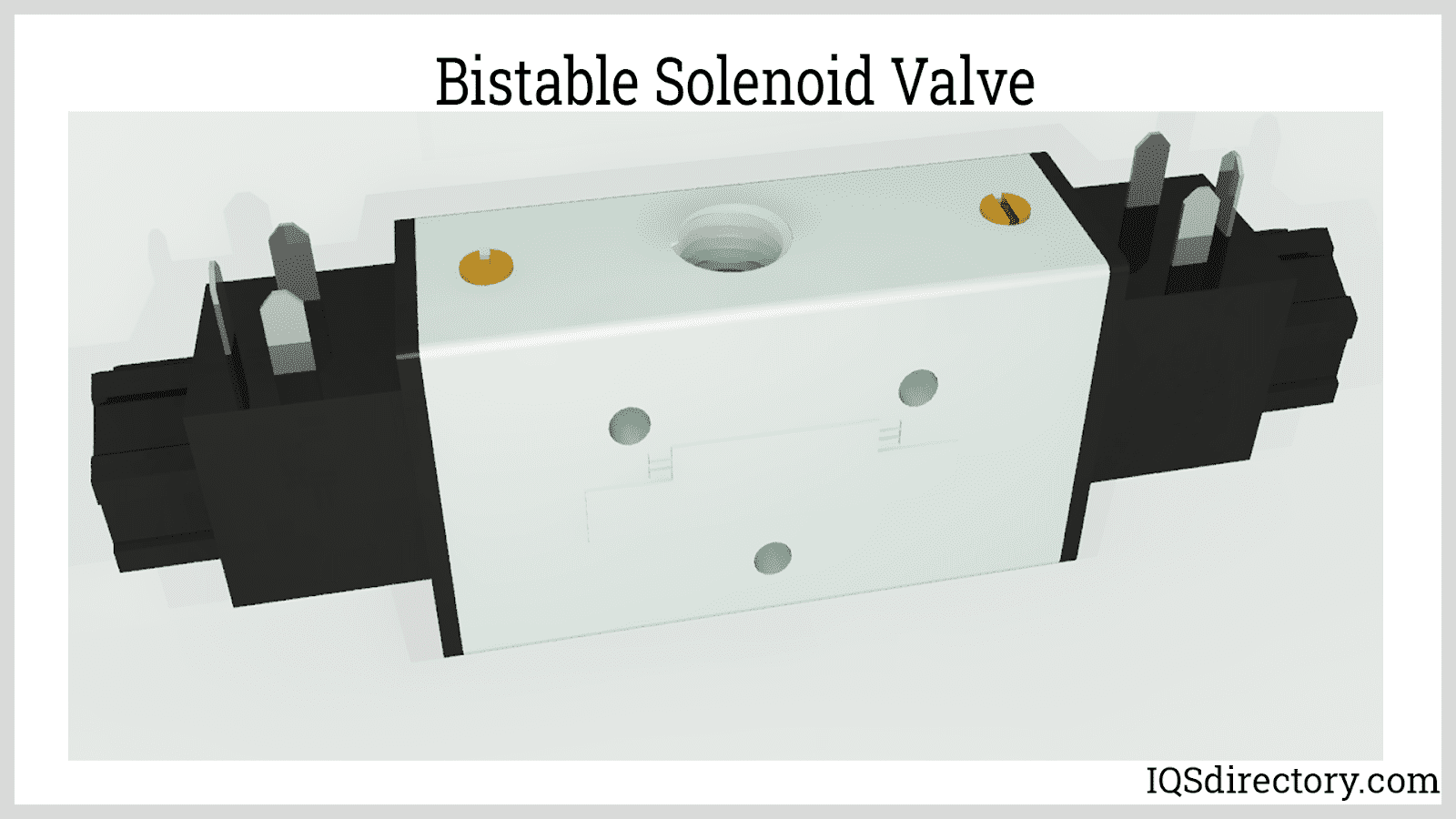

Bistable Solenoid Valves
Normally open and normally closed solenoid valves are categorized as monostable valves. In contrast, bistable solenoid valves feature an additional solenoid instead of a spring return mechanism. These valves lack a default position and stay in their last actuated state even after power is removed.
Solenoid valves can also be classified based on their operation method. They primarily operate in two ways: direct action, where the valve is activated solely by the electromagnetic force of the solenoid, and indirect action, which involves pressure from pilot lines. Additionally, some valves use a combination of both electromagnetic force and line pressure to function.

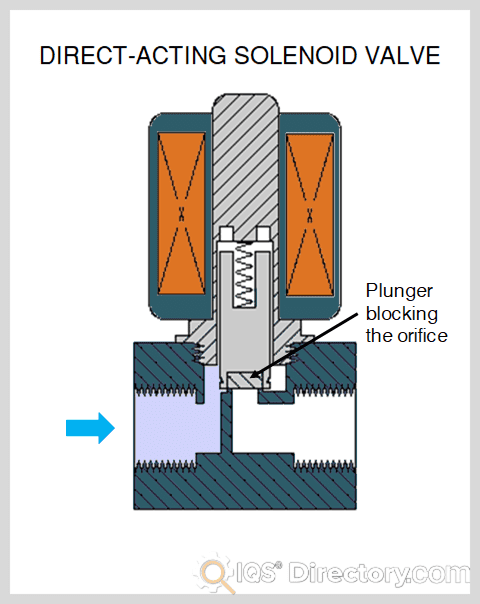

Direct Acting Solenoid Valves
In this type of solenoid valve, static pressure rises with the increase in orifice size. This elevated pressure demands a more powerful solenoid action and a stronger magnetic field. Therefore, larger flow rates necessitate larger solenoids for a given pneumatic pressure. As a result, the solenoid size is directly proportional to the pressure and flow rate. These valves are typically used in applications involving lower flow rates and operating pressures.
Internally Piloted Solenoid Valves
Internally piloted solenoid valves are designed for applications requiring high flow rates and high pressures. In these valves, the pressure differential across the valve controls its operation. An orifice or equalizing hole is incorporated to facilitate this. Typically, the core obstructs flow through the orifice. When the valve is closed, air flows through the orifice, building pressure on both sides of the diaphragm. This creates a shut-off force due to the larger effective area above the diaphragm. When the valve opens, the core shifts to expose the orifice, reducing the pressure above the diaphragm and allowing line pressure to open the valve.
Externally Piloted Solenoid Valves
This valve operates on a similar principle as internally piloted valves, but it uses externally supplied air to actuate the valve. It incorporates a separate air circuit via an additional port.
Both internally and externally piloted solenoid valves are referred to as indirect or servo-assisted valves. In these designs, the primary actuating force is derived from the pressure differential between the valve’s upstream and downstream lines.
Semi-direct Acting Solenoid Valves
Semi-direct acting valves integrate aspects of both direct and indirect-acting mechanisms. In addition to the magnetic force exerted by the solenoid, the pressure differential across the valve helps in its operation. When the plunger is activated, it lifts the diaphragm to open the valve, simultaneously opening an orifice that relieves pressure from above the diaphragm. Closing the orifice by the plunger increases the pressure above the diaphragm, thereby closing the valve.

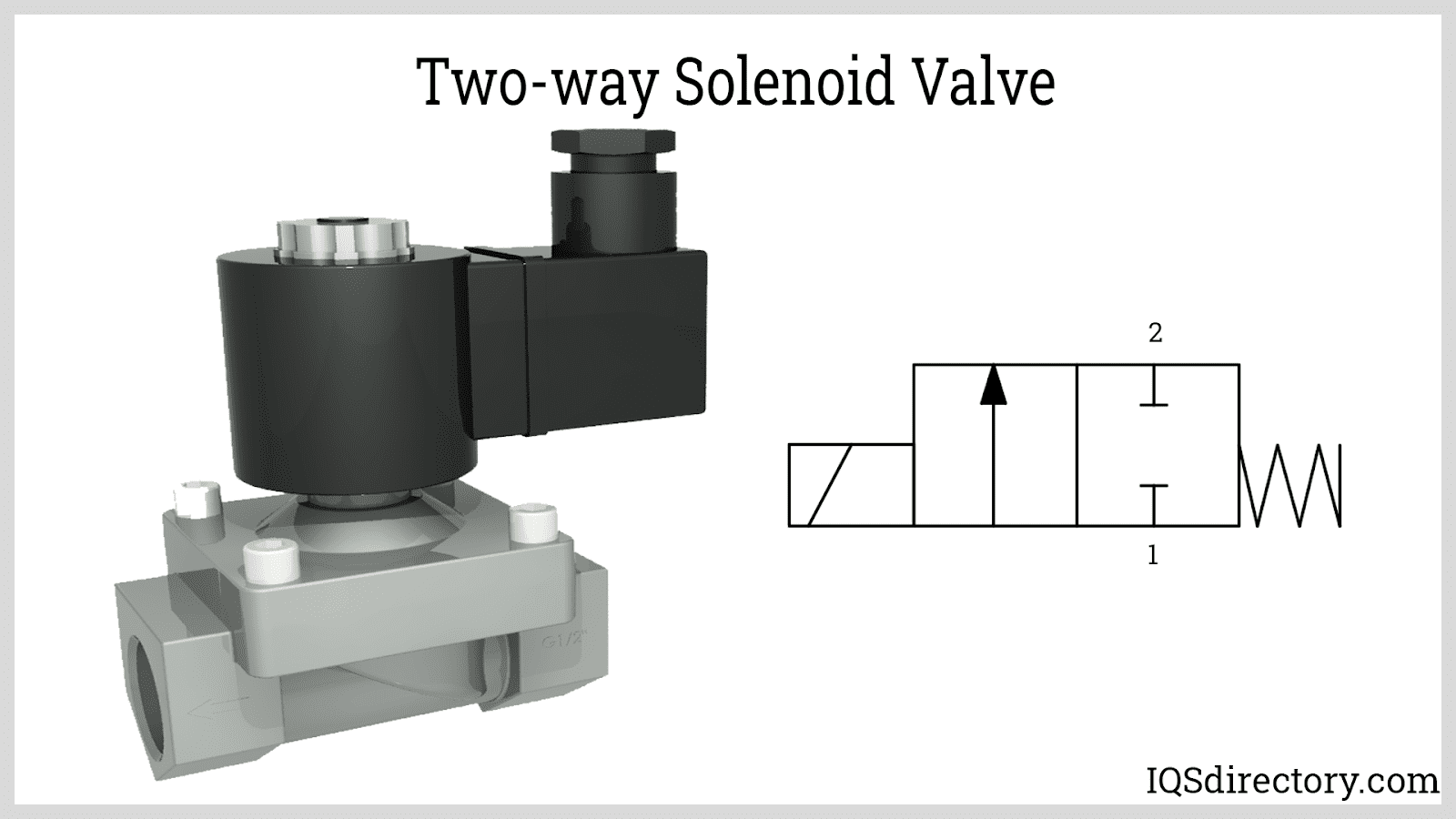

Additionally, solenoid valves are classified by their circuit function. They can serve as simple isolation valves for a single flow path or be designed for applications requiring multiple flow directions. For example, a pneumatic cylinder may need valves that manage both pressurization and exhaust flow paths.
These solenoid valves feature one port for upstream flow and another for downstream flow. They are the simplest types, used primarily to either block or permit airflow. Two-way solenoid valves can be set up as either normally open or normally closed.

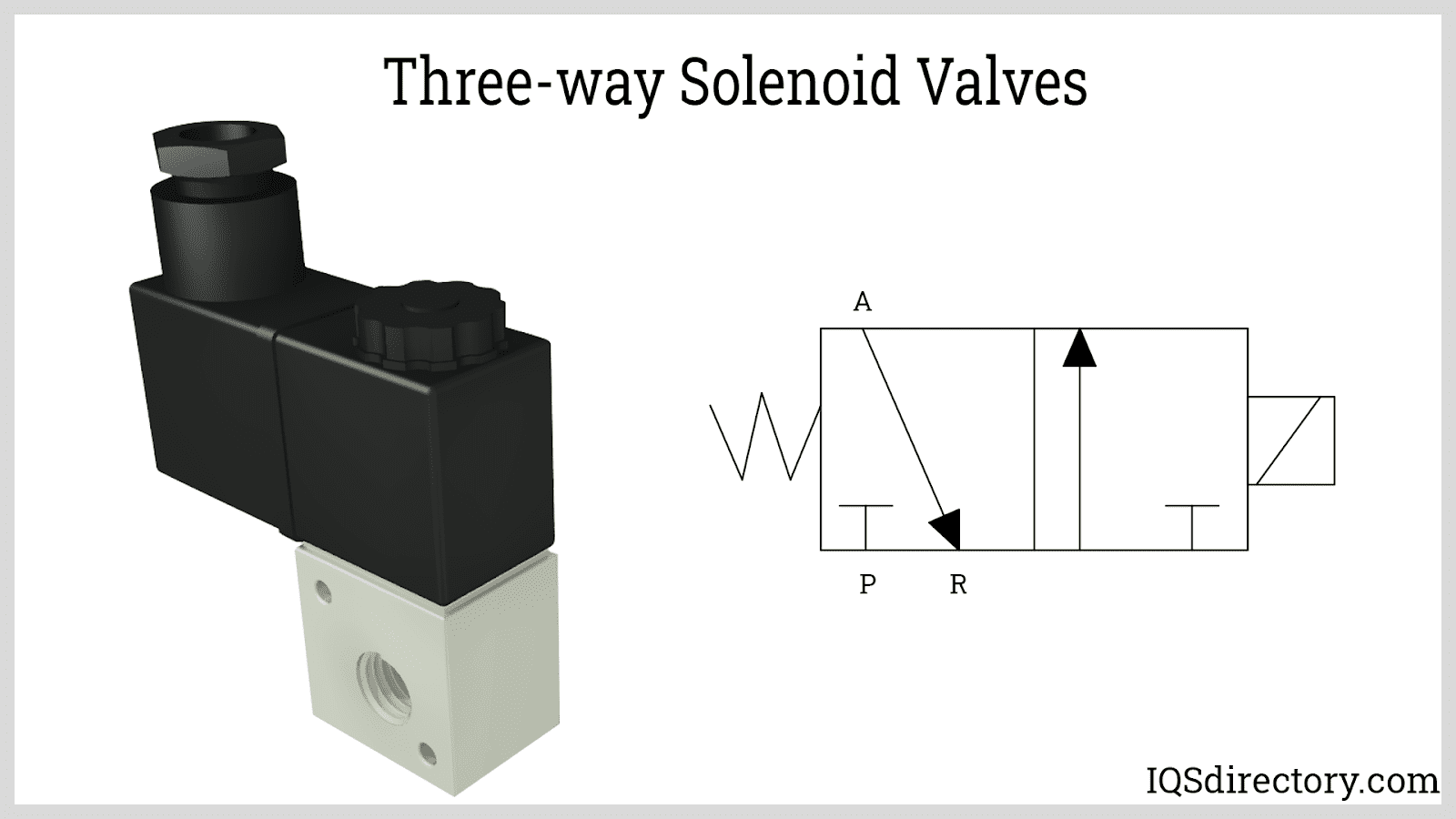

Three-way Solenoid Valves (3/2-way Valve)
Three-way solenoid valves are equipped with three ports: an inlet (pressure port), an exhaust, and an outlet (actuator port). These valves operate in two distinct states, alternately applying and venting pressure to an actuator or downstream equipment.
Three-way solenoid valves can be configured as either normally open or normally closed, with a universal function added. In a normally open configuration, when the valve is de-energized, air flows from the inlet port to the outlet port, while the exhaust port remains closed. When energized, the valve closes the inlet port and connects the outlet port to the exhaust. For normally closed valves, the behavior is reversed.
The universal function, in contrast, is employed to direct the flow from one port to another.

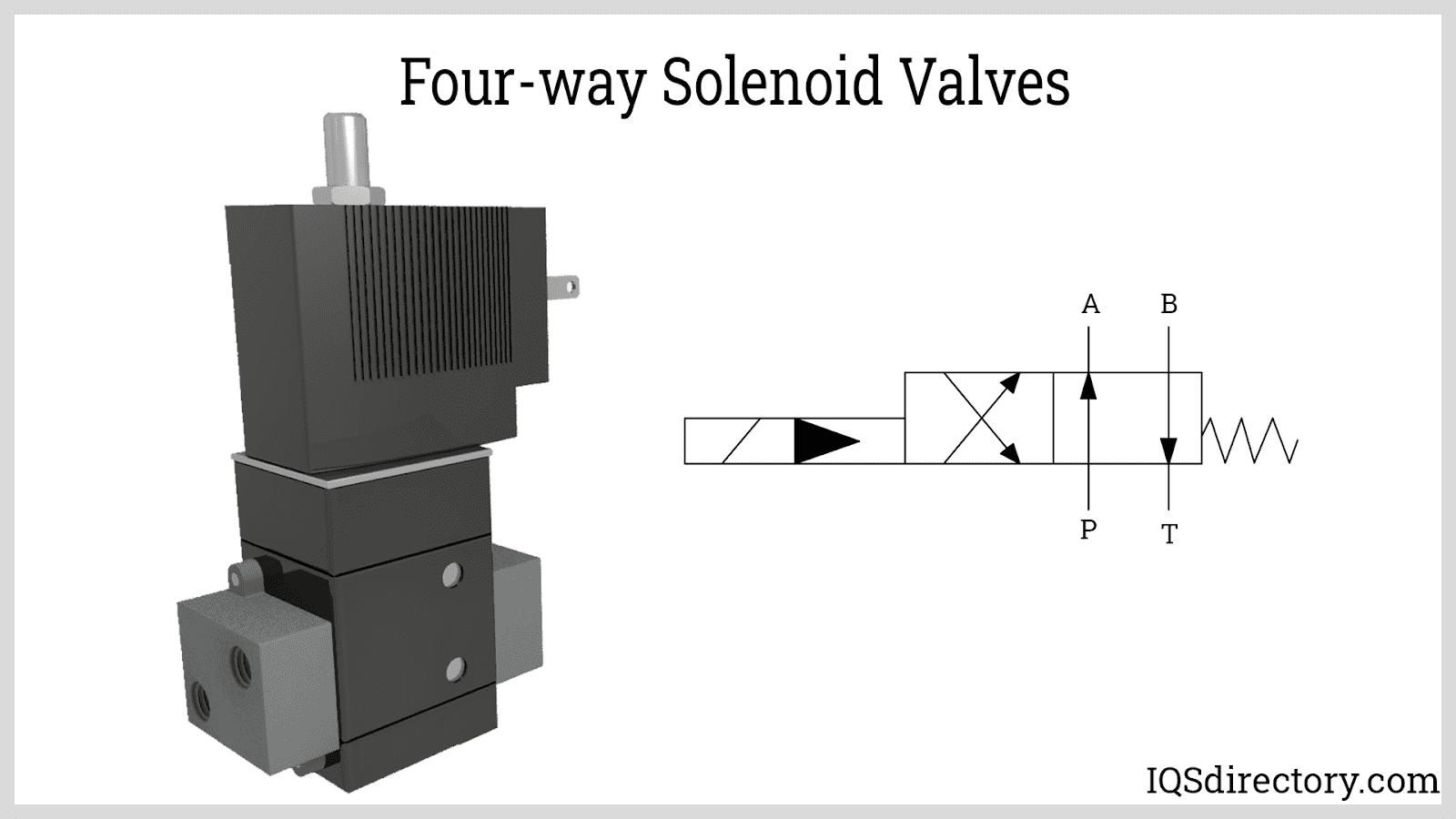

Four-way Solenoid Valves (4/2-way Valves)
Four-way solenoid valves have four ports: an inlet (pressure port), two outlet or actuator ports, and an exhaust port. The two states of this valve allow flow from the pressure port to one of the outlet ports while venting pressure from the other port to the exhaust. There is no normally open or closed position; they mainly act as a directional control valve.

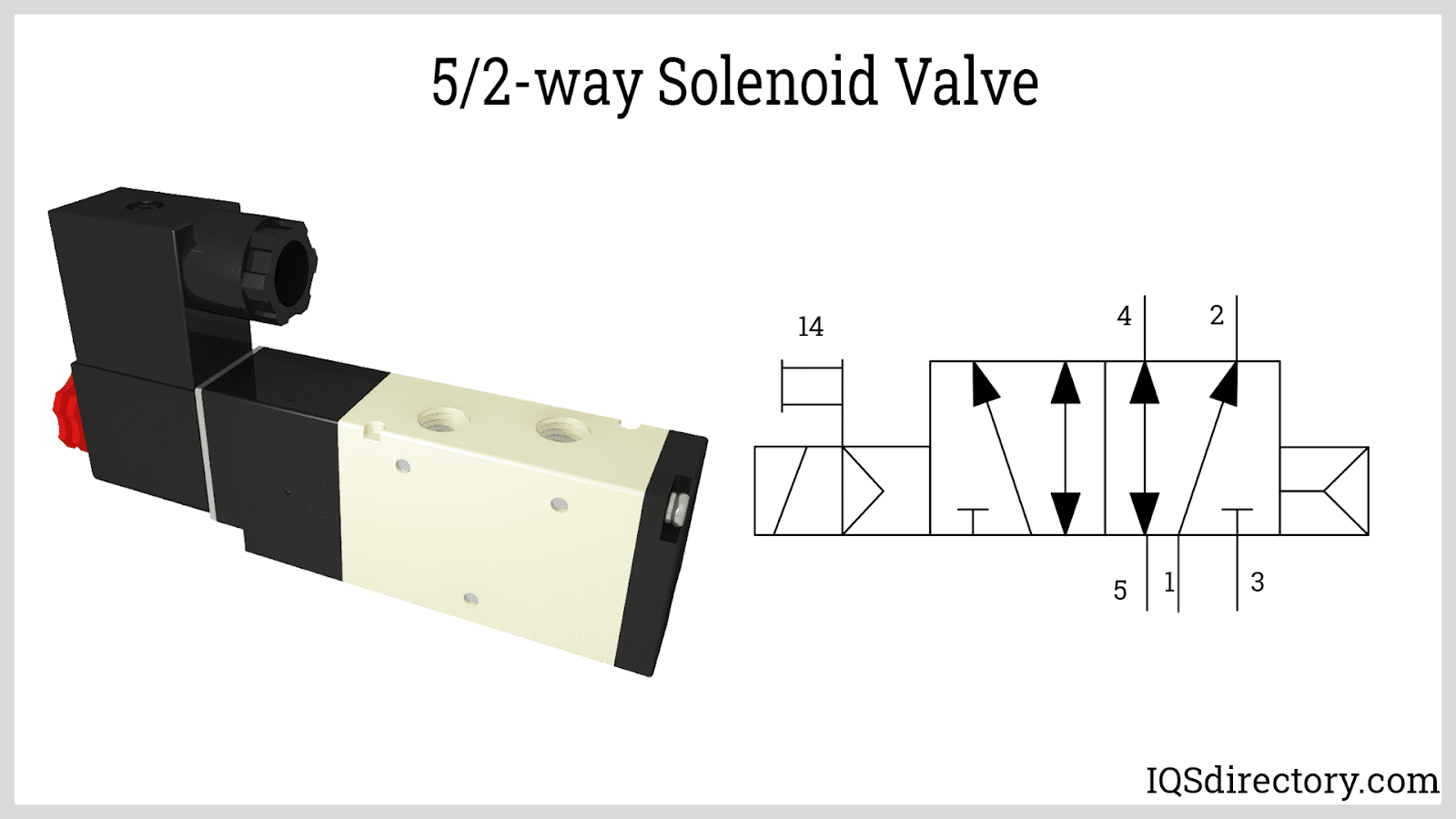

Five-way Solenoid Valves (5/2-way Valves)
Five-way solenoid valves are similar to four-way valves, but they feature an additional exhaust port. They function as directional control valves, enabling flow in one line while venting the other. Each line has its own dedicated exhaust port.
Five-way solenoid valves offer an advantage over four-way valves by allowing different exhaust speeds for the two lines. In applications with double-acting cylinders, this allows for adjustments where the retraction or extension speed of the cylinder can be faster than the opposite movement.

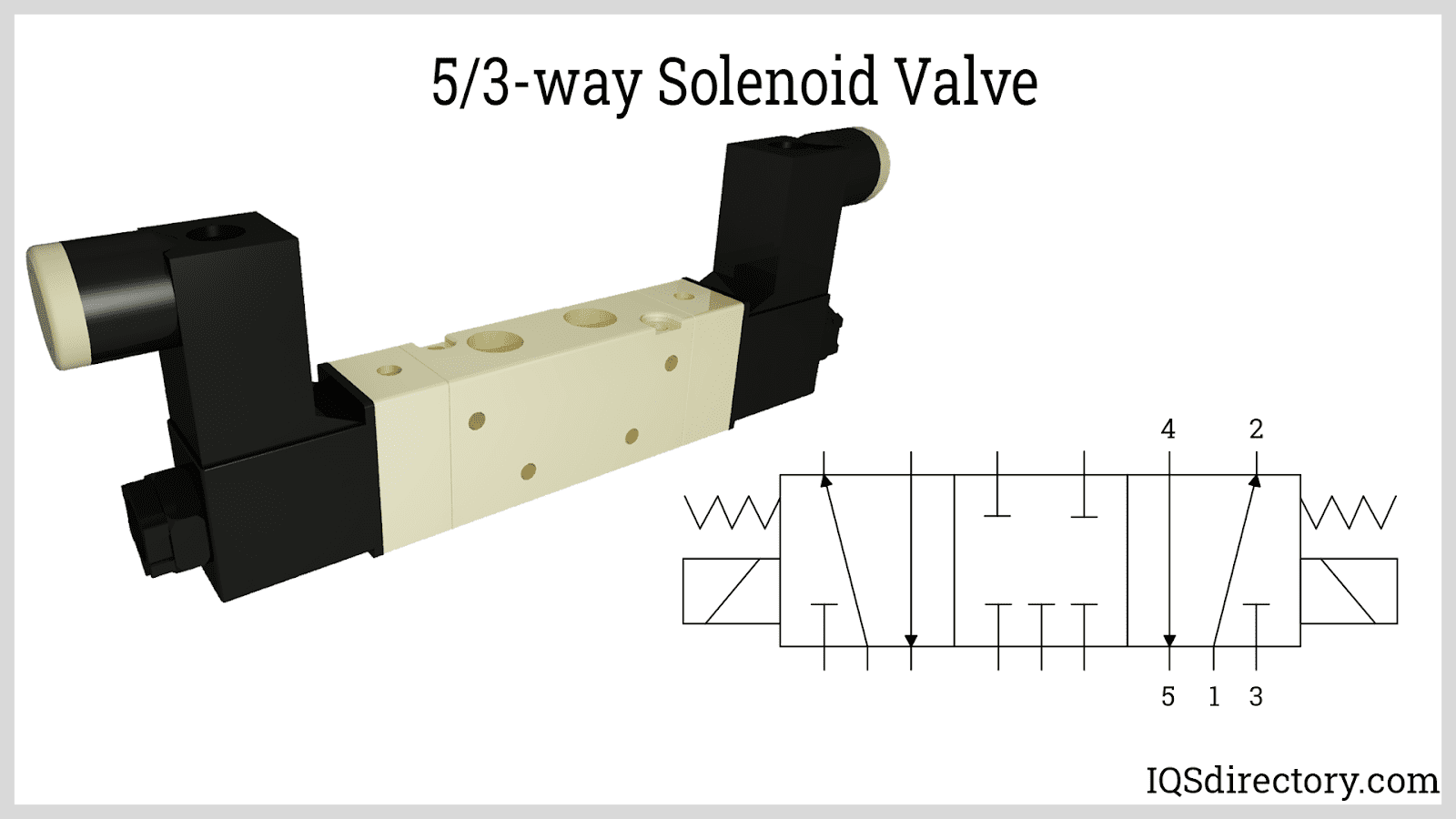

Five-way Solenoid Valves with Intermediate Position (5/3-way Valves)
These solenoid valves are similar to standard 5/2-way valves, but they include a central position as the default state. They feature two solenoids and two spring return mechanisms to enable the actuator to return to its resting position. Various 5/3-way valves are classified based on the function of their default state. Typically, this default state is the valve's "rest" position, which maintains the actuator's position when the valve is not actively engaged.
Chapter 5: What other factors should be considered when evaluating pneumatic solenoid valves?
In addition to selecting the appropriate type of pneumatic solenoid valve, it's crucial to define other valve specifications, including the material, pressure rating, pipe or tubing size, and voltage rating, among others. These details are outlined below.
Valve Body Material

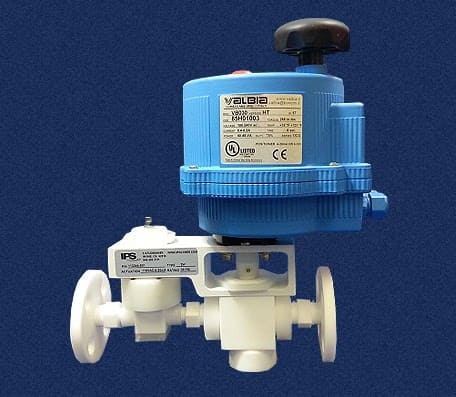

The valve body material surrounds the internal components and offers structural integrity. It needs to be robust enough to endure the process line pressure and resistant to environmental factors like corrosion and weathering. Typical materials for valve bodies include stainless steel, cast iron, bronze, brass, and engineering plastics such as PTFE and PP. Stainless steel and brass are commonly chosen for outdoor settings, while PTFE and PP are preferred for food-grade and ultra-clean applications.
Seat and Disc Materials
These components come into direct contact with the process gas and must be highly resistant to corrosion and erosion. Process gases can carry moisture, corrosive agents, dirt, and particulates that can wear down the seat and disc over time. Common materials for seats and discs include stainless steel and PTFE, known for their excellent corrosion resistance, abrasion resistance, and impact strength.

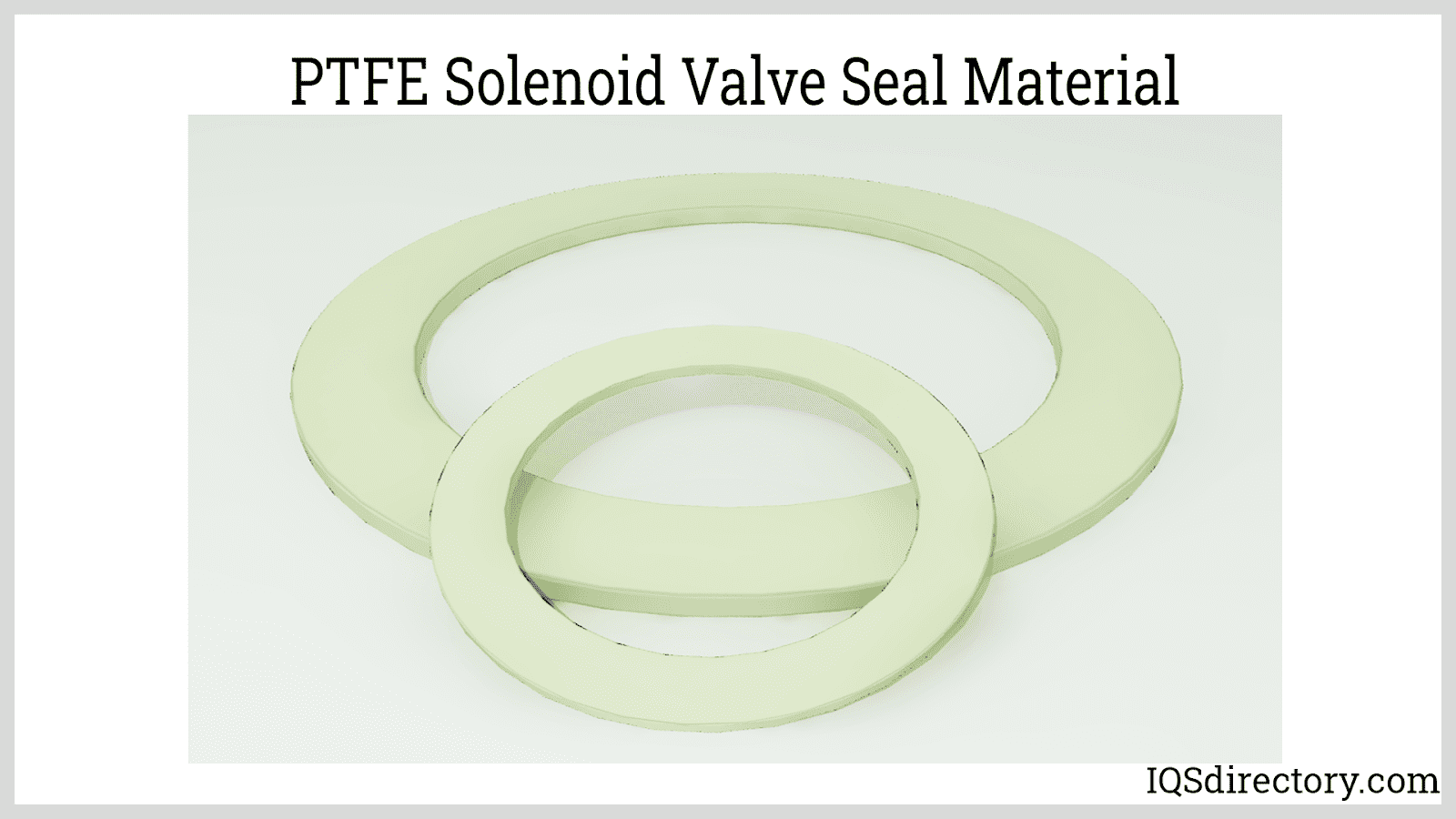

Seal Material
The choice of seal materials depends on the type of process gas, any chemicals present in the air supply, and the system’s temperature. Seals must be flexible and maintain stable physical and chemical properties when exposed to external conditions. Commonly used seal materials include EPDM, NBR, FKM, PEEK, and PTFE.
Line Size
Line size refers to the nominal diameter of the solenoid valve ports that connect to the supply and actuator piping. It’s also important to specify the type of connection required.
Maximum Operating Pressure Differential (MOPD)
MOPD stands for Maximum Operating Pressure Differential, which refers to the pressure difference between the inlet and outlet ports for which the solenoid valve is designed. Typically, the outlet port is vented to the atmosphere, so in these instances, the MOPD corresponds to the system’s supply pressure.
For indirect, servo-assisted, or piloted solenoid valves, it's essential to specify the Minimum Operating Pressure Differential (Min. OPD). These valves feature internal mechanisms that apply force to close the pilot lines. When the Min. OPD is reached, the pilot lines open, allowing airflow to actuate the valve.
Valve Flow Coefficient (Cv)

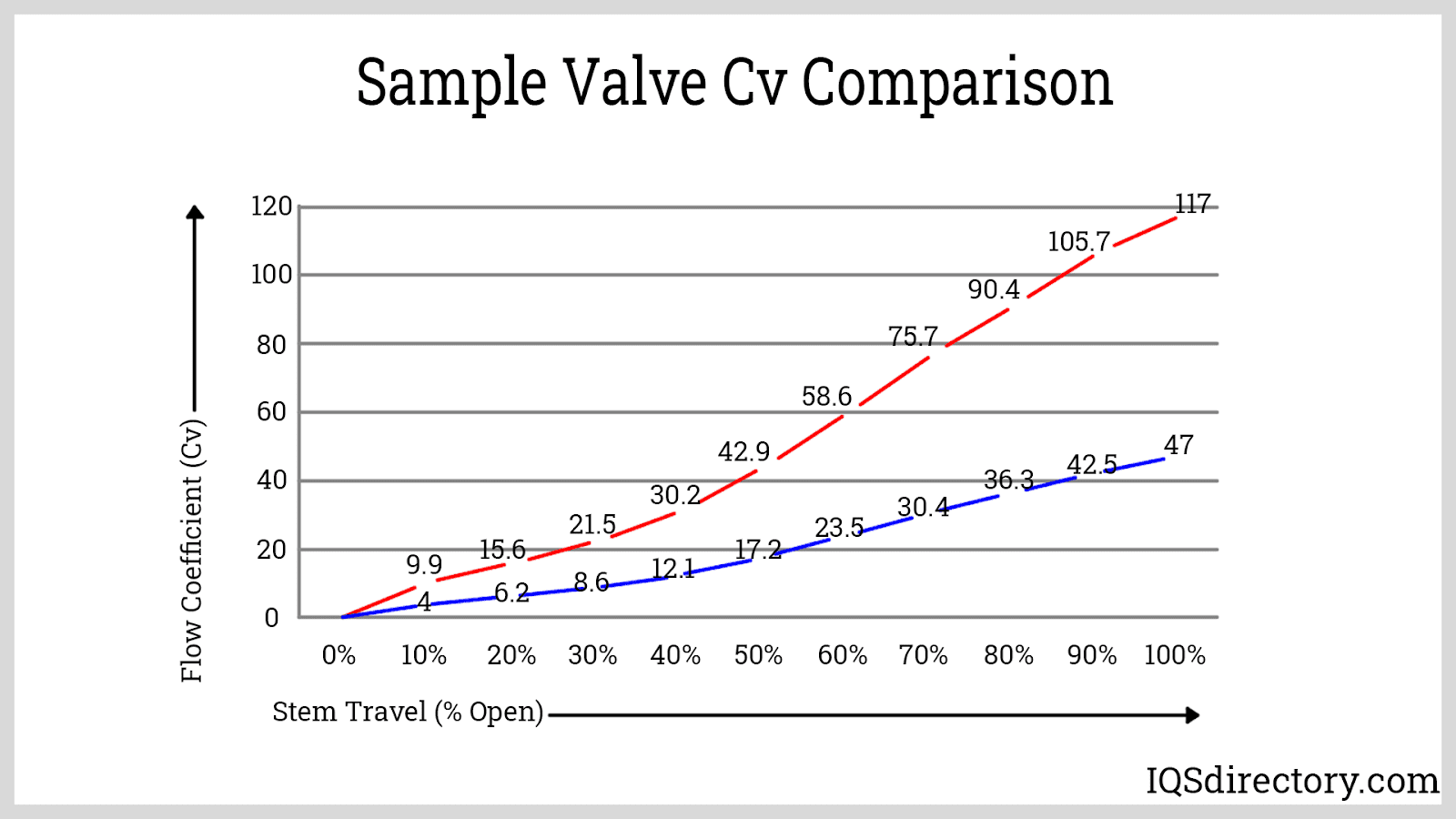

This specifies the valve’s flow capacity, typically indicating the relationship between flow rate and the pressure drop across the valve orifice. It is especially useful for comparing the flow efficiency of two solenoid valves with similar designs.
Working Pressure
Working pressure, also known as safe working pressure, refers to the range of internal pressure within which the system operates safely.
Proof Pressure
This represents the maximum pressure that a solenoid valve can endure without experiencing permanent damage. It is typically several times higher than the system’s working pressure.
System Voltage
This specifies the voltage for the solenoid's control circuit, including current, frequency, and power requirements. Proper voltage rating is essential for the solenoid to activate correctly and perform reliably.
Control circuits are typically DC, though AC is sometimes used. Common DC voltages include 8, 12, 24, and 30 volts. For AC systems, the signal frequency is specified as either 50 or 60Hz. AC voltages at 60Hz include 24, 120, 240, and 480 volts.
Response Time
Response time refers to the duration required for the valve to transition between states (energized or de-energized). This timing is affected by both the mechanical and electrical components of the solenoid valve. Response times can range from 5 to 200 milliseconds and are crucial for applications that demand rapid activation of the solenoid valve in critical equipment.
Operating Temperature Range
This indicates the range of ambient temperatures in which the solenoid valve is designed to function. Typically, only the maximum ambient temperature is provided. For applications involving significant water vapor, a minimum ambient temperature of 32°F (0°C) is often specified to prevent freezing problems.
Enclosure Protection Rating
The enclosure protection rating specifies the environments in which the solenoid valve can safely operate. Solenoid valves may encounter conditions such as rain, dust, snow, washdown, and explosive gases. Protection ratings are defined using NEMA and IP standards.
A higher rating number signifies better protection. For general indoor use, enclosures rated NEMA 1 to 2 or IP 10 to 11 are typically adequate. For outdoor applications, NEMA 3S to NEMA 4X or IP 54 to IP 64 ratings offer protection against dust, rain, and snow. For situations involving occasional washdown or immersion, NEMA 6 and IP 68 ratings are recommended.

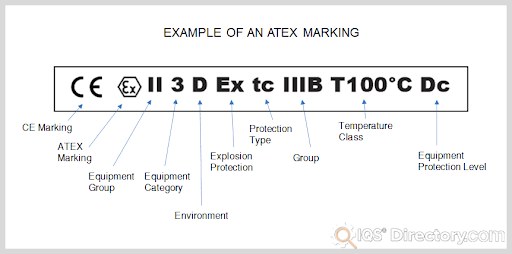

In addition to protection against solids and liquids, enclosures are also rated for compatibility with explosive environments. ATEX and IECEX certifications indicate the suitability of solenoid valves and other electronic devices for hazardous applications. ATEX ratings are based on the type of hazardous area where the device will be used. Accurately specifying these ratings is crucial, as higher protection levels can significantly increase the cost of the device, and a higher rating does not necessarily imply better overall protection.
Other Certifications
When selecting a solenoid valve, it is important to consider product certifications in addition to design parameters. Certifications ensure that the valve meets safety standards set by national and international organizations. This is particularly crucial for applications that impact consumer health and safety, such as in food manufacturing, fire protection, and flammable gas handling. Common certifications include Underwriters Laboratories (UL Listed or Recognized), CSA, FM Approval, CE, ATEX, and IEC.
Conclusion
Pneumatic solenoid valves are electromechanical devices that control the flow of air or process gas. They are mostly used for controlling pneumatic actuators such as cylinders, turbines (pneumatic motors), diaphragms, and tubes.
A solenoid is an electromagnetic actuator that converts electrical energy into mechanical action. It consists of a coiled wire tightly wrapped around an iron core, and a ferromagnetic plug or plunger.
Solenoid valves are classified according to their normal state, type of operation, and circuit function.
Aside from determining which type of pneumatic solenoid valve to choose, it is important to specify other valve properties such as materials, pressure, pipe or tubing size, voltage rating, and so on.
