The content of this article will provide everything you need to know about vibratory screening.
You will learn:

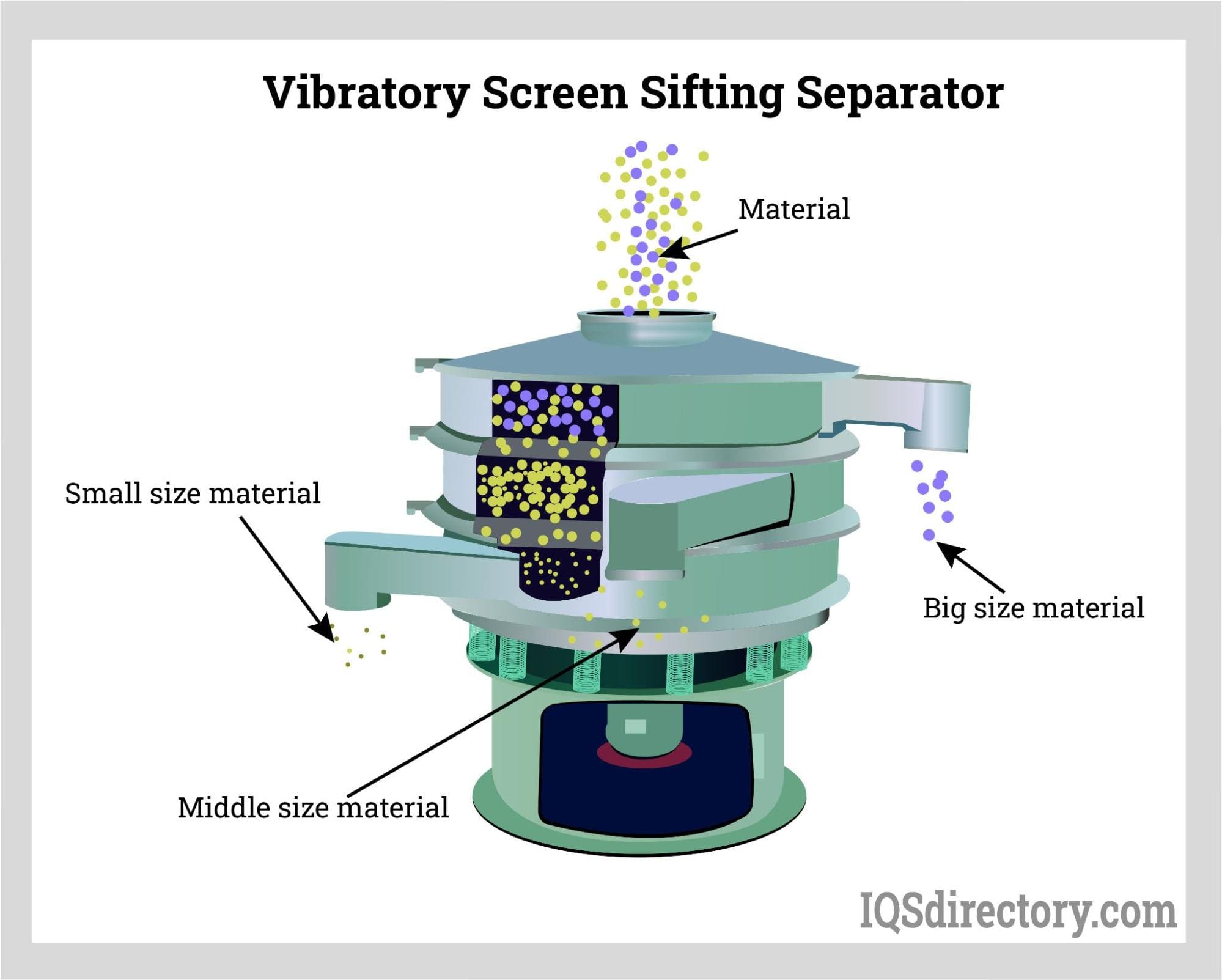

Vibratory screening is a method used to separate bulk solid materials from solids and slurries through inertial vibrations. These vibrations cause particles of different sizes to either pass through openings in a screen or move across its surface. The process starts with vibrations that shift materials horizontally, vertically, or in a circular motion, pushing them across a screen mesh. This separation allows for multiple classifications as the materials flow from one deck of the vibratory screener to the next.
Vibratory screening is used to separate 2D materials like plastic film, paper, cardboard, and fibers from 3D materials such as containers, plastic bottles, cans, stone, and wood. After sorting, materials are collected through the screen openings. Vibratory screeners classify materials by size and shape using a gyratory motion. For effective screening, materials must pass across the screen surface and through mesh openings sized appropriately for each material.
The separation process has been integral to industry for centuries, playing a crucial role in mining. Early methods used square or rectangular devices moved back and forth across a screen. While effective, they lacked precision. During the Great Depression, gyratory motion screens were found to offer improved efficiency and accuracy in separation.

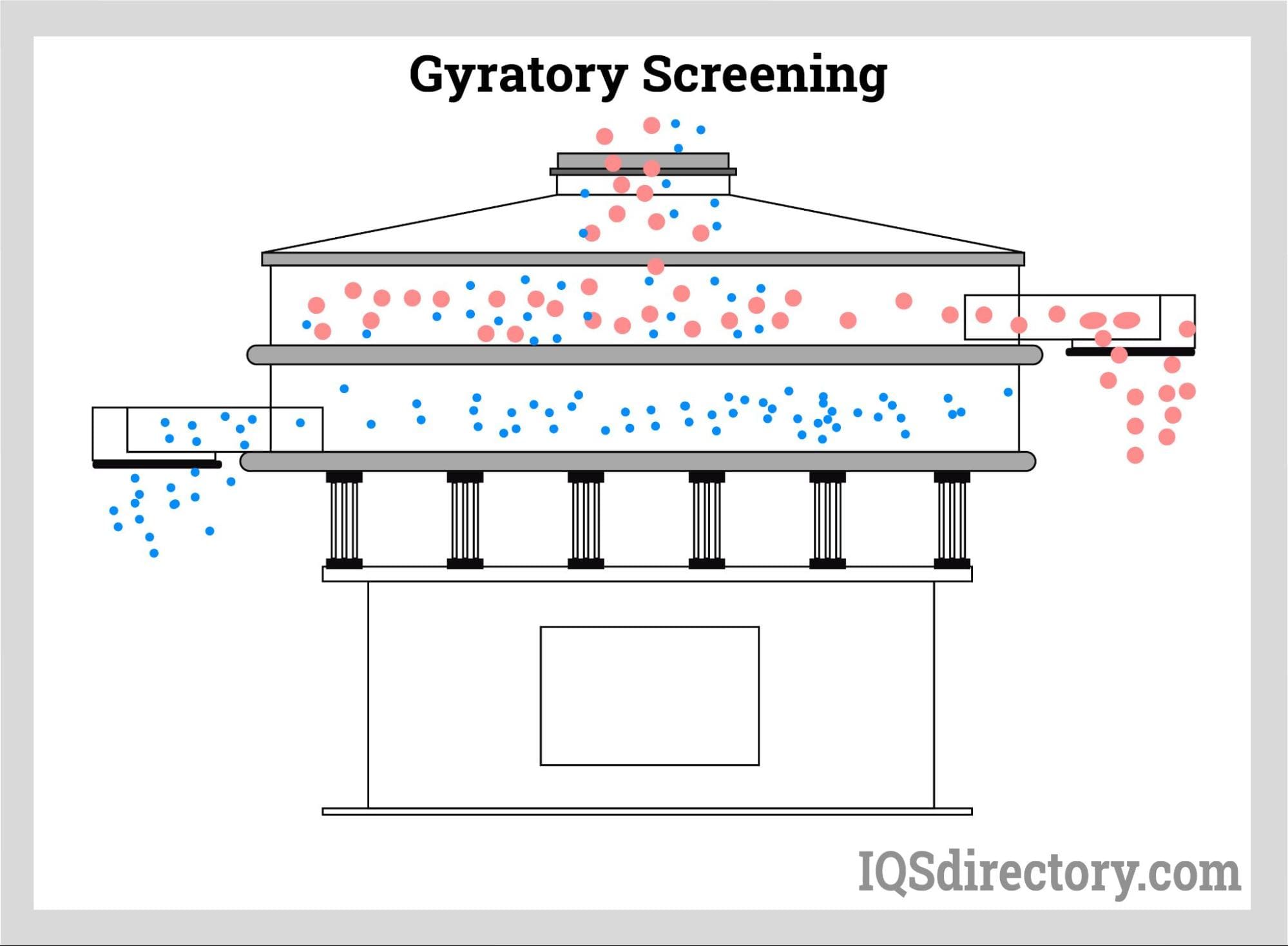

Gyratory motion enhances material distribution during screening, sifting, and separation processes. This motion allows for more efficient use of the screen's surface. The gyratory movement drives the screen, resulting in a longer stroke and lower frequency screening, which improves the overall effectiveness of the process.
The gyratory motion's popularity in screening stems from its ability to quickly distribute material across the entire screen deck, ensuring an even depth. This horizontal movement helps stratify the material, with smaller particles shifting to the bottom and larger ones staying on top, making the separation, screening, and sifting process more efficient.

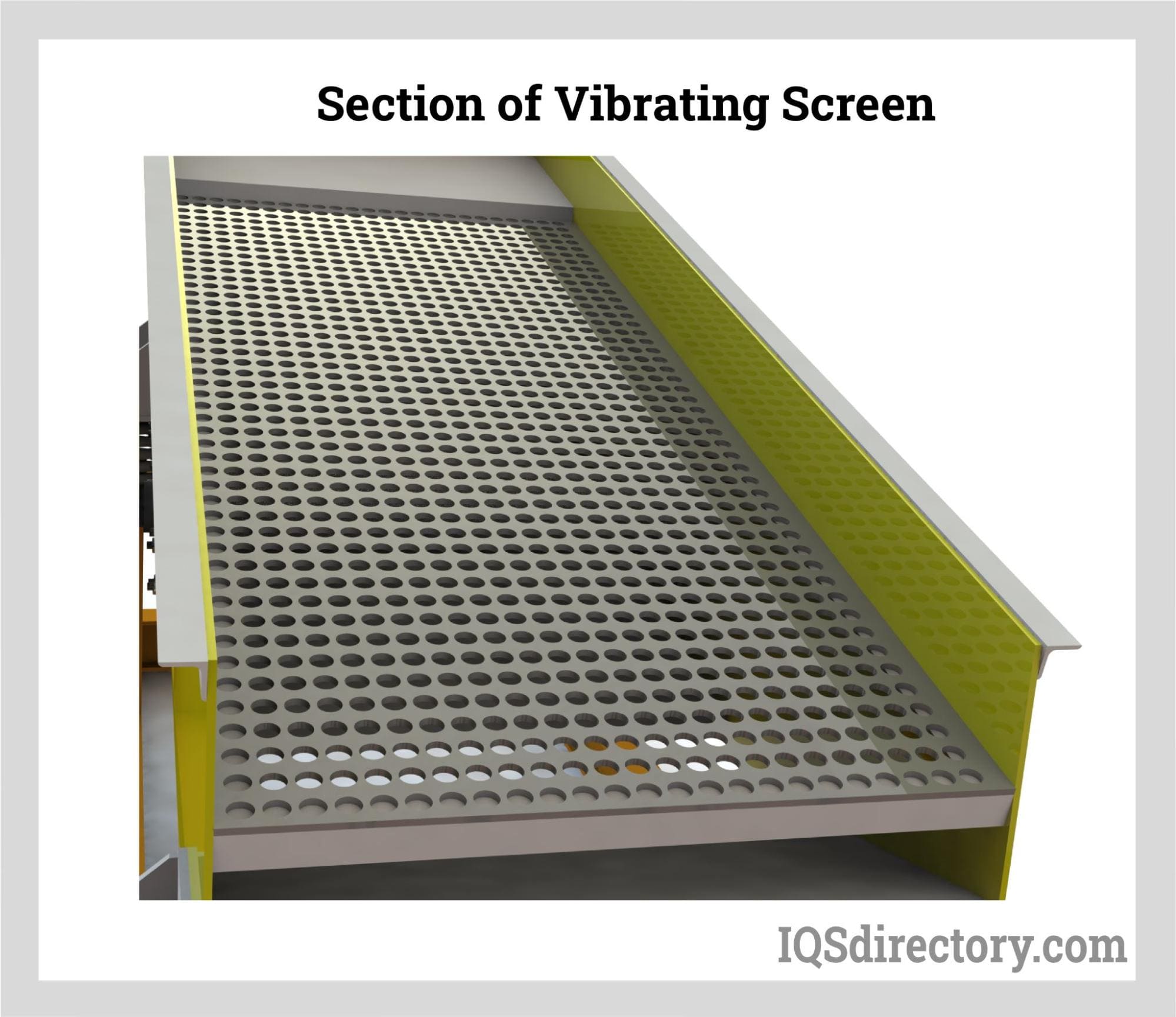

The welded or bolted screen body forms the primary structure of a vibrating screen, acting as the support base for the screen mesh. Supported by coil springs, it allows the vibrating screen to move freely. The screen body provides the necessary counterweights for the gyrating and vibrating motion in both linear and circular vibrating screens.
The number of screens in a vibrating screener depends on its design, with models typically featuring two to six screen decks made of wire mesh. Each screen is designed with the appropriate hook system and opening size. Given the intensity of the screening process, these screens must be highly durable to withstand constant motion and material weight. They also need to be flexible to allow particles to pass through easily without clogging, which prevents material from getting stuck in the screen openings.

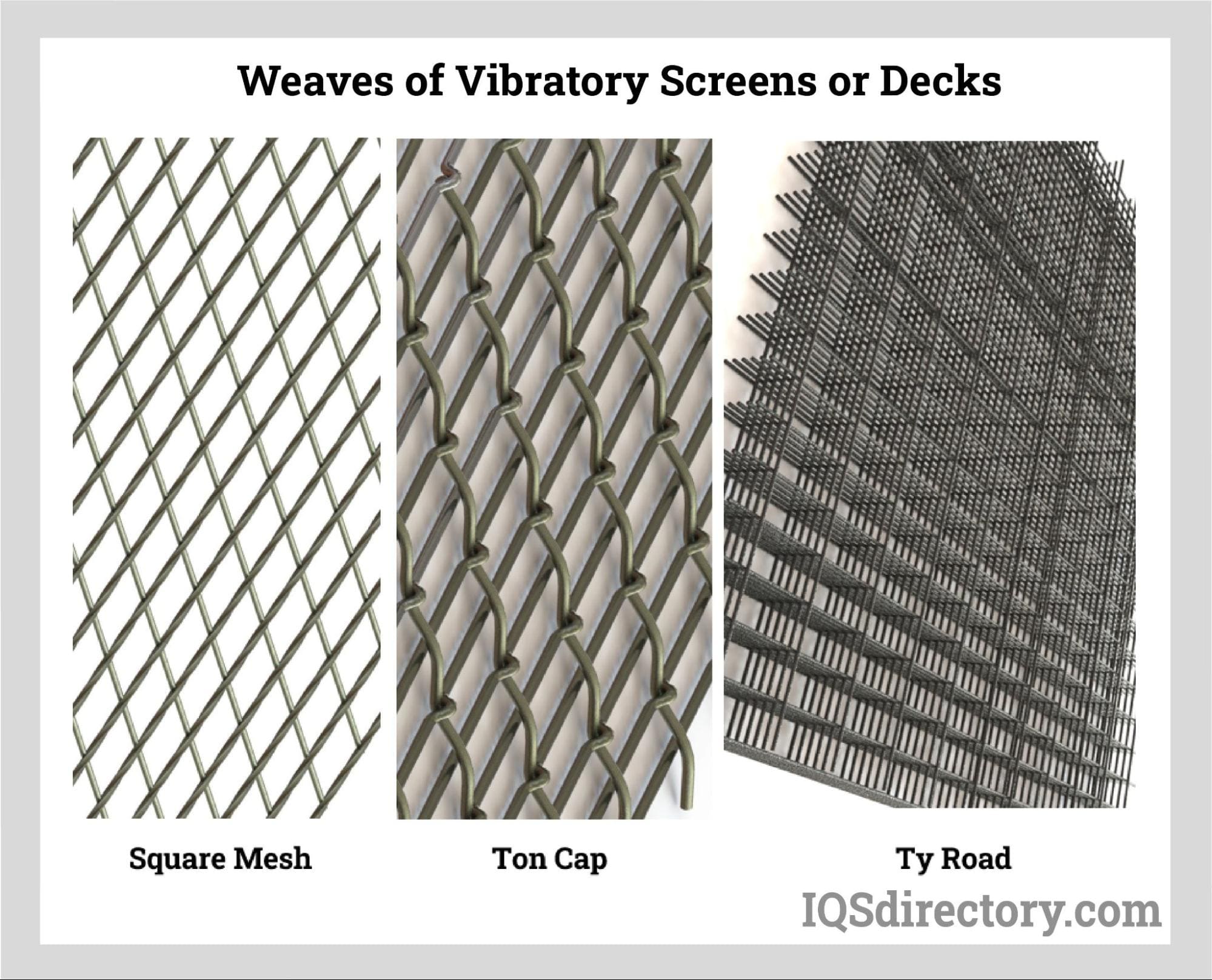

A key component of the screen is its weave, available in square mesh, ton cap, and ty rod. Each layer of the screen deck differs in the weave's opening size, with square mesh being the most commonly used option.

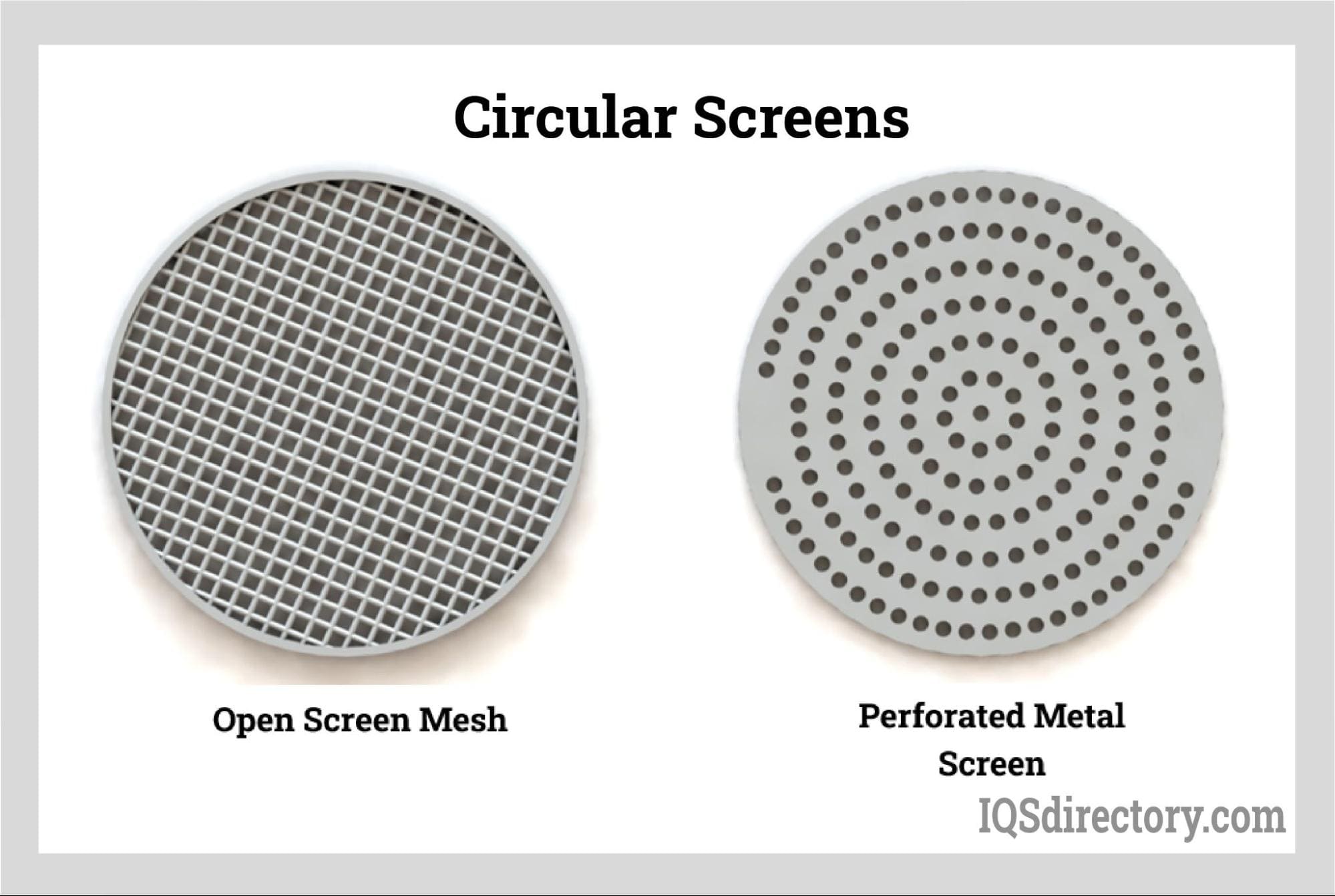

The meshes used for circular screens are similar to those found in linear vibratory separators, with the key difference being their rotational movement. These screens are constructed from various woven metals or punched screen plates. Their design allows for adjusting the screen’s angle by changing its position or the height of its spring supports.
Circular screens function through the movement of the screen mesh and the screen's angle, with optimal angles ranging from 15° to 30°. Similar to linear screen mesh, circular screen mesh needs to be highly durable to withstand continuous motion and the weight of the materials being sieved or separated.
The vibration mechanism employs a counterbalance or shaft to ensure balanced and controlled vibrations, which are crucial for preventing machine damage. Different types of vibration mechanisms generate vibratory motion. For instance, linear screen separators use dual motors to create linear motion, while hummer screen mechanisms rely on solenoid action mounted on a stationary box.
Among various mechanisms, inclined screens are notably popular. They use circular vibratory motion to lift materials through vibrations and an angled incline. This mechanism is extensively utilized in the mining industry to separate materials of different sizes.

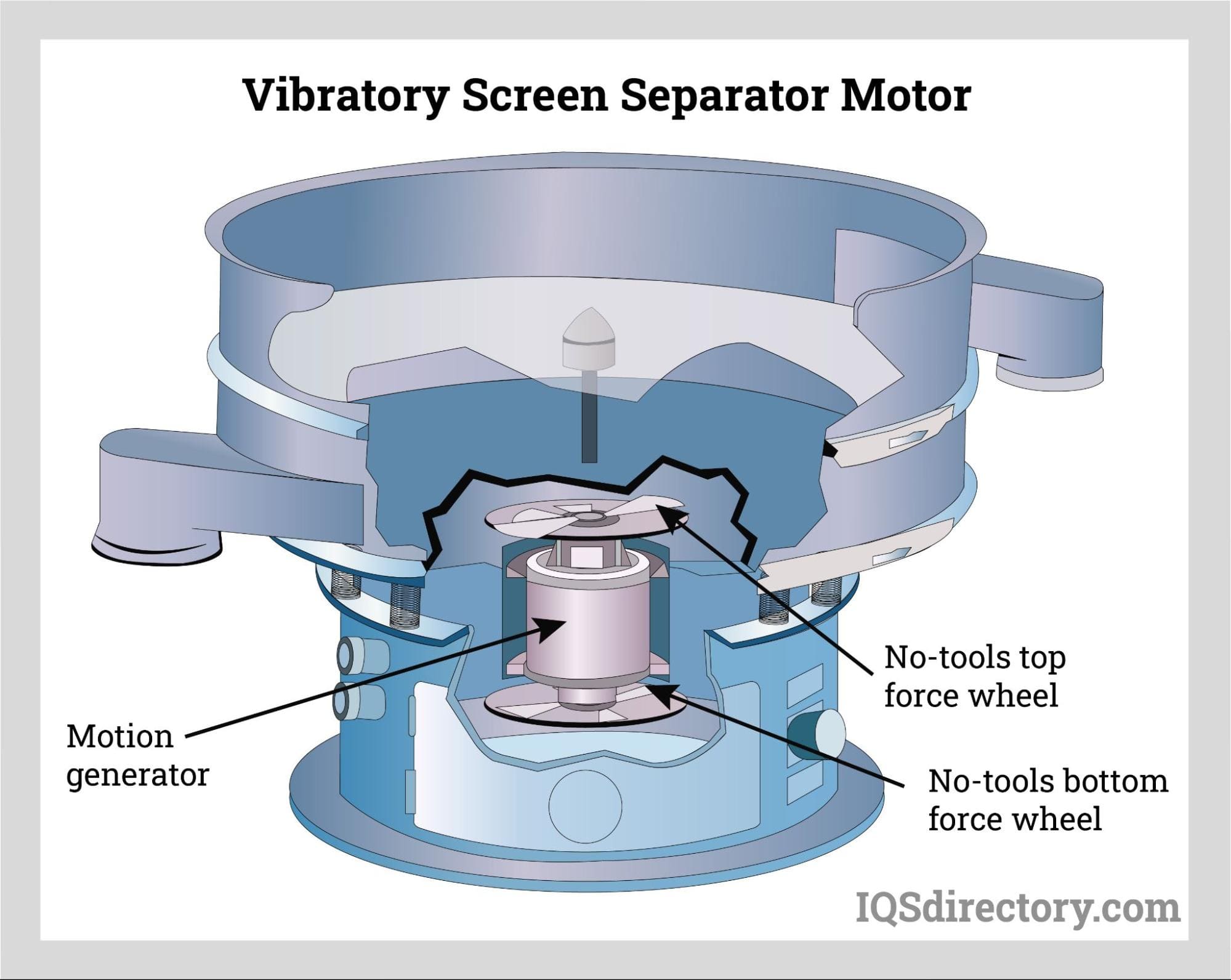

For effective separation, sifting, and screening, a motor is essential to power the vibrating screen. This motor connects to the vibration mechanism to create the necessary vibratory motion. Installed on the frame support at the center of a circular vibratory separator, the motor sits on a spring base, enabling free vibration and adjustable speed.
Motors for vibratory screens, sifters, and separators are engineered to create multiplane vibrations. They feature weights at both ends of the motor shaft to distribute force effectively. The top weight, located near the center, generates horizontal motion, aiding in material movement and rapid discharge of larger particles. The bottom weight, positioned below the center, causes vertical tilting and vibration of the screen on the tangential plane.
A vibratory separator primarily consists of the screen body, screen mesh, vibration mechanism, and motor. These are the core components of the machine. Additional parts support these main elements and ensure stability during the continuous motion of the mechanism.
The components mentioned above represent a general overview of vibratory screeners. Each manufacturer offers different designs tailored to various operational needs. However, a common element in all vibratory separators is the variety of screens used, which depend on the design of the vibratory mechanism. When evaluating vibratory separators, it’s important to focus on their unique functionality and high efficiency, which surpasses other separation methods.
Vibratory screeners come in various types, each designed to efficiently perform the separation process. The numerous and evolving variations cater to different materials, with each type requiring specific handling methods to effectively sift, screen, and separate materials.
In material handling, separators play a vital role in enhancing efficiency, effectiveness, and productivity. Vibratory separators are typically categorized into linear and circular types, distinguished by their shape, vibration method, and the materials they process. Each type offers unique benefits tailored to specific handling requirements.
Circular and linear vibratory separators, despite their differences, can efficiently separate various materials using multiple decks or screens. This allows them to sort two, three, or even more types of materials with high precision. The use of multiple decks helps streamline the separation process into a single, efficient unit.
Linear vibratory screeners are frequently used in the recycling industry to process rubber products and metals. They are designed to handle irregularly shaped materials that need dynamic and robust processing. Their heavy-duty construction allows them to manage high material volumes efficiently, thanks to their large screen surfaces and effective vibrational amplitude.
A linear vibratory screen sifting separator utilizes vibrating motors to power a linear motion vibrating screen. Material placed on the screen moves in a straight line due to the screen's double exciters, which include housings, bearings, shafts, and masses, set at an angle. The excitation force, combined with gravity, propels the material upward and forward. As it separates, the material is directed to hoppers, bags, or further processing.
The out-of-balance motors in a linear vibratory separator generate both vertical and forward motion. Depending on the tray length, different linear vibratory separators use either single or multiple electromagnetic drives. The number of decks determines the number of fractions produced. The larger screening area allows for high throughput and increased volume handling.
Circular vibratory screening differs from linear vibratory screening in its round appearance rather than linear. These screens were developed to enhance the efficiency of recovery, recycling, and separation processes. Circular vibratory separators can sieve, classify, de-dust, and filter various materials. Their unique design allows for adjusting the vibrating motion to accommodate changes in material behavior.
Maintaining and cleaning circular vibratory screeners is straightforward, as the screens can be easily removed and replaced. Circular vibratory screeners come in one to four stages, offering two to five fractions based on application needs. The diameters range from 600 mm to 1800 mm (24 in to 71 in) for standard models, with custom sizes available.
Circular vibratory screeners, often known as fine screening machines, include various types such as circular vibrating screens, circular ultrasonic vibrating screens, circular direct discharge sifters, circular umbler screens, circular filter sieves, and circular high-frequency vibrating screens.
Vibro sifters are designed to separate materials by size using gyratory motion. These devices, like most circular vibratory separators, vibrate around their center of gravity, enabling movement across multiple planes. The vibration is generated by weights placed at the top and bottom of the sifter’s motor, facilitating effective separation, scalping, and grading.

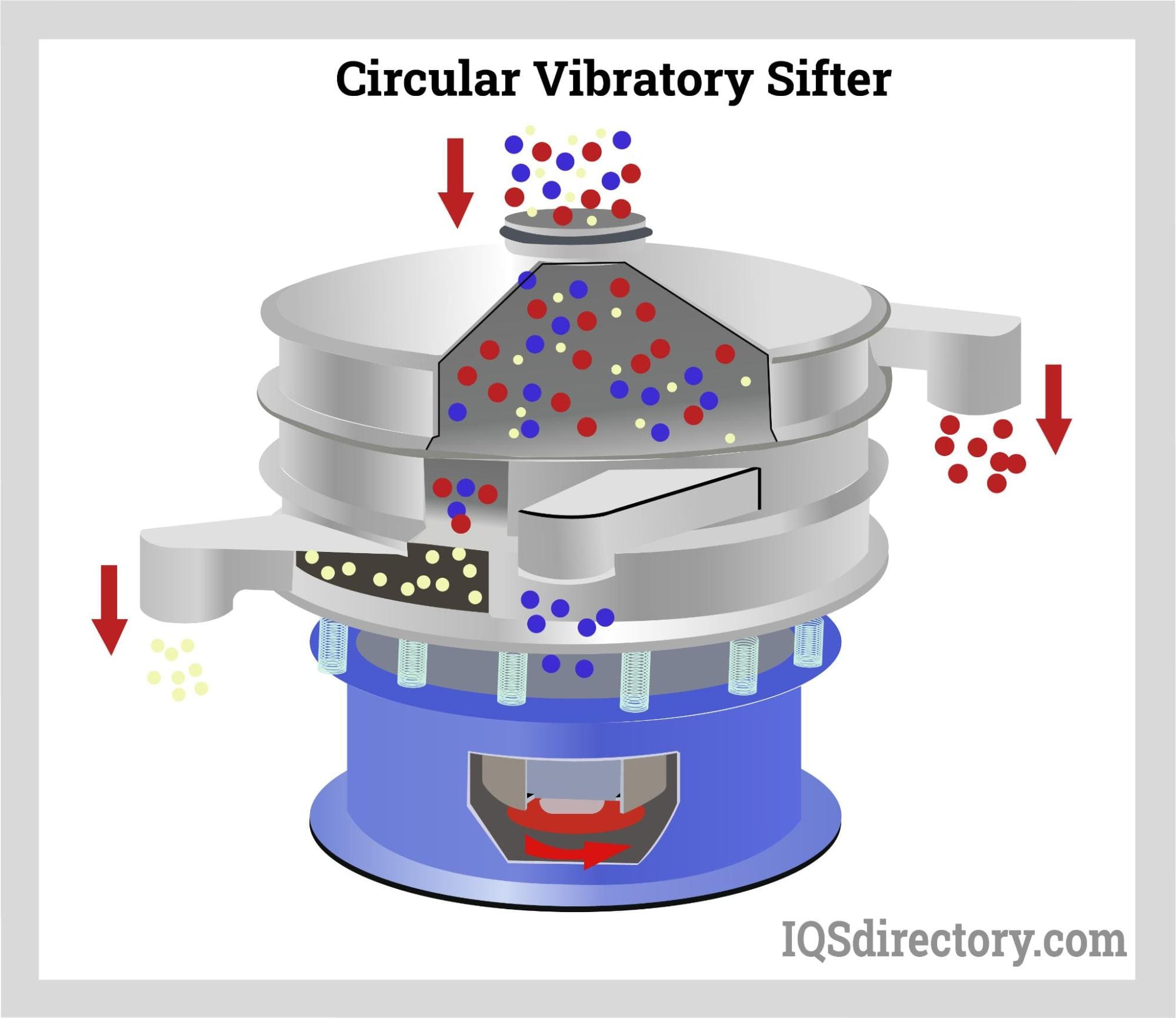

Circular vibratory sifters are widely favored due to their straightforward and efficient operation. These machines classify materials based on particle size, with the number of decks varying depending on the material being processed. As the screen rotates, larger particles are discharged while smaller ones pass through. The motor at the base rotates, tilting the circular screen, causing it to vibrate both vertically and tangentially.
Circular vibratory sifters are primarily used for screening raw materials and inspecting final products. Their distinctive design allows them to effectively remove agglomerates and contaminants, and they can separate materials into up to five distinct fractions.

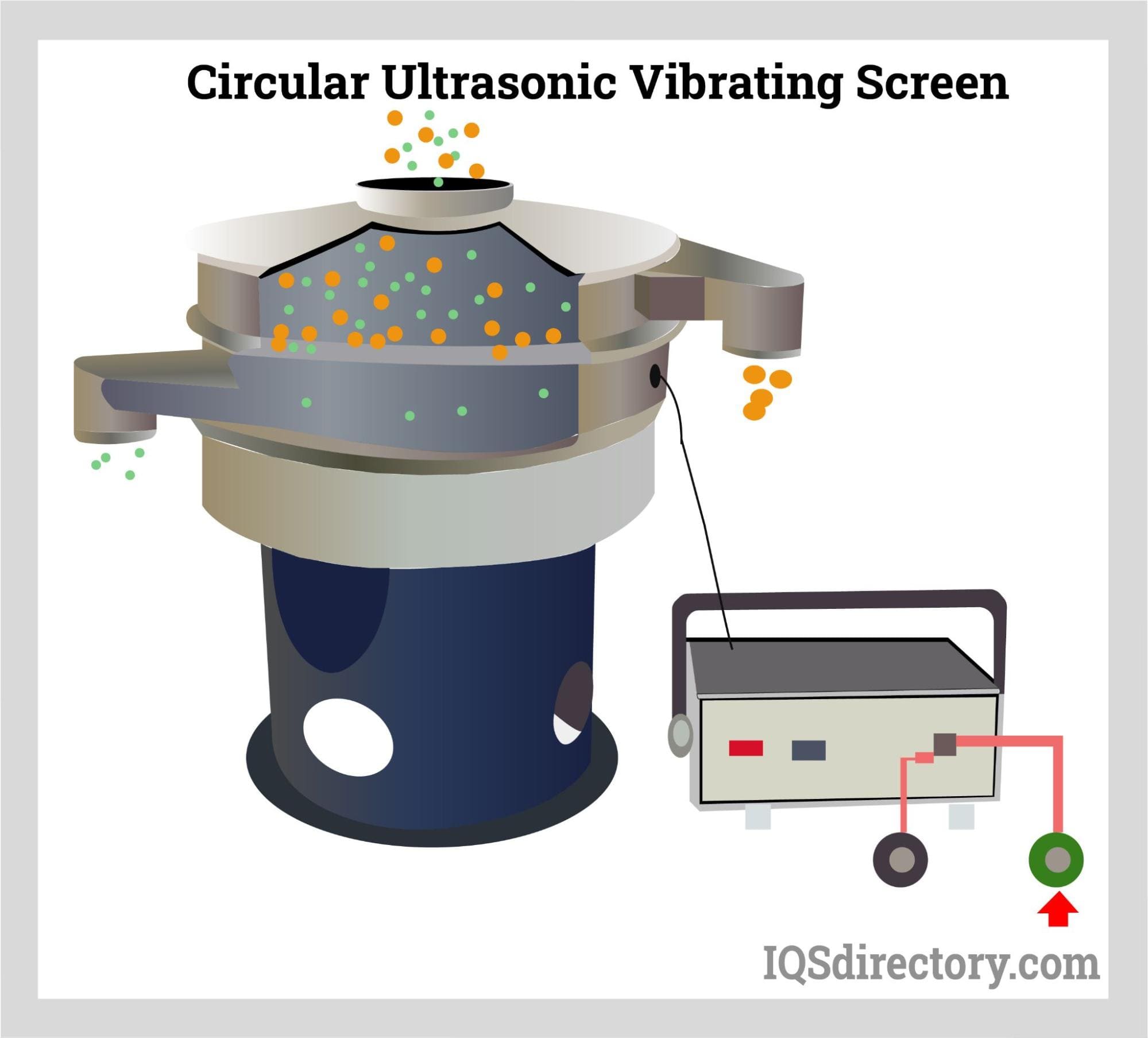

A circular ultrasonic vibrating screen includes an ultrasonic power supply, a transducer, and a resonance ring. The power supply generates high-frequency electric oscillations, which the transducer converts into high-frequency sinusoidal waves. These waves cause the resonance ring to vibrate, transmitting vibrations to the screen surface. As a result, the material on the screen undergoes low-frequency, three-dimensional vibrations.
The circular ultrasonic vibrating screen was developed to enhance the precision of the screening process. Unlike traditional vibratory screens, which often suffer from material escape and precision issues, this advanced system addresses these problems effectively. The circular ultrasonic vibrating screen prevents material from blocking or blinding the screen, enabling the screening of particles as small as 20 micrometers (µm). It offers 80% greater accuracy and an output increase of 2 to 5 times compared to conventional methods.

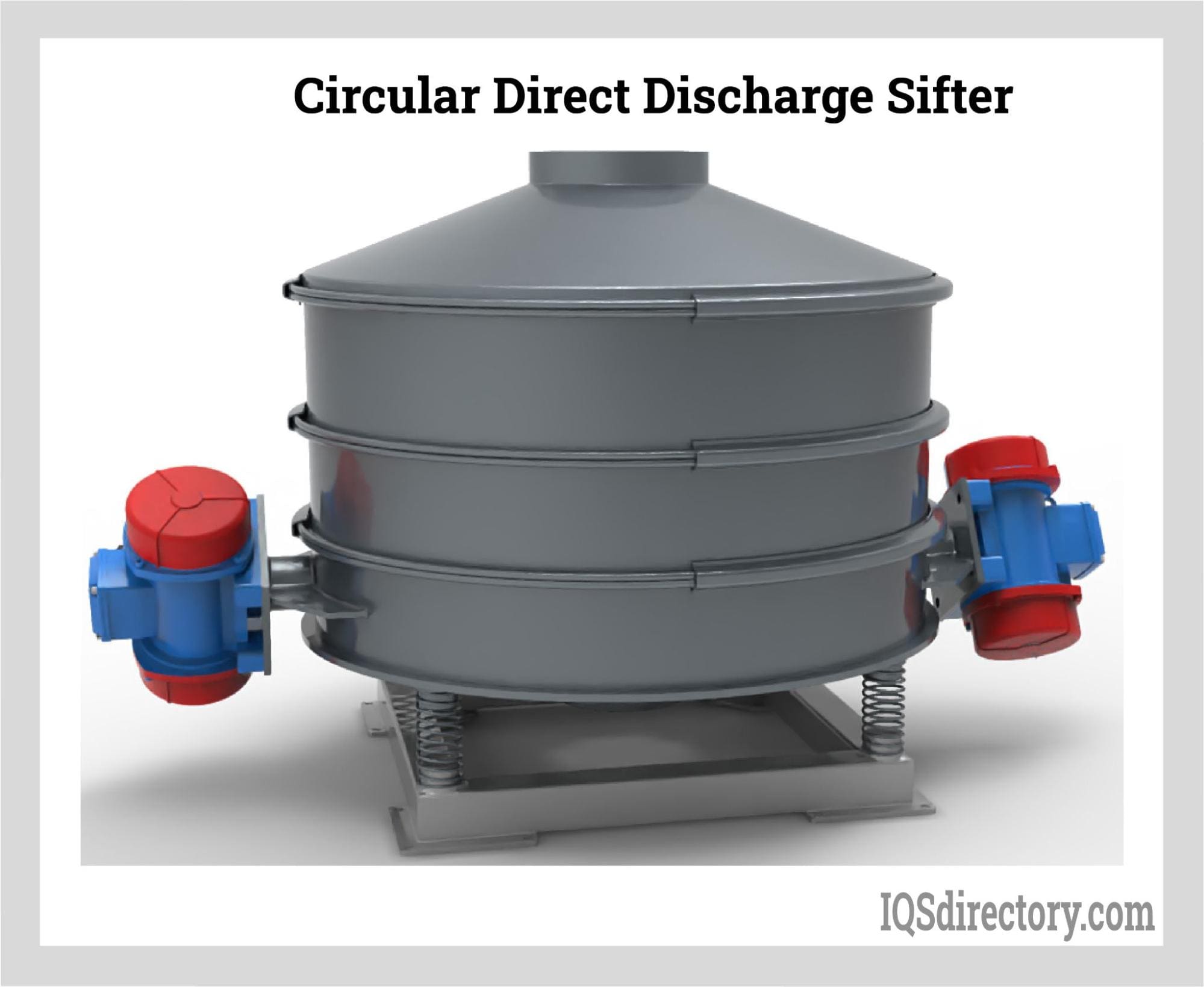

Circular direct discharge sifters, also known as flour sieves, are designed to sift powders and remove impurities from raw materials. They can be equipped with either single or dual vibrating motors, depending on the material type, quantity, and screen size. Dual motor designs create a stronger force and vortex motion on the screen surface, while single motor designs provide a vertical vibration.
Unlike a vibro sifter, a circular direct discharge sifter is designed for powder materials like flour, starch, milk powder, chili powder, and additives. It differs from a vibro sifter primarily in size, being up to four times larger due to its open design that supports higher output. Circular direct discharge sifters are ideal for screening coarse materials that a fine screening process cannot handle.

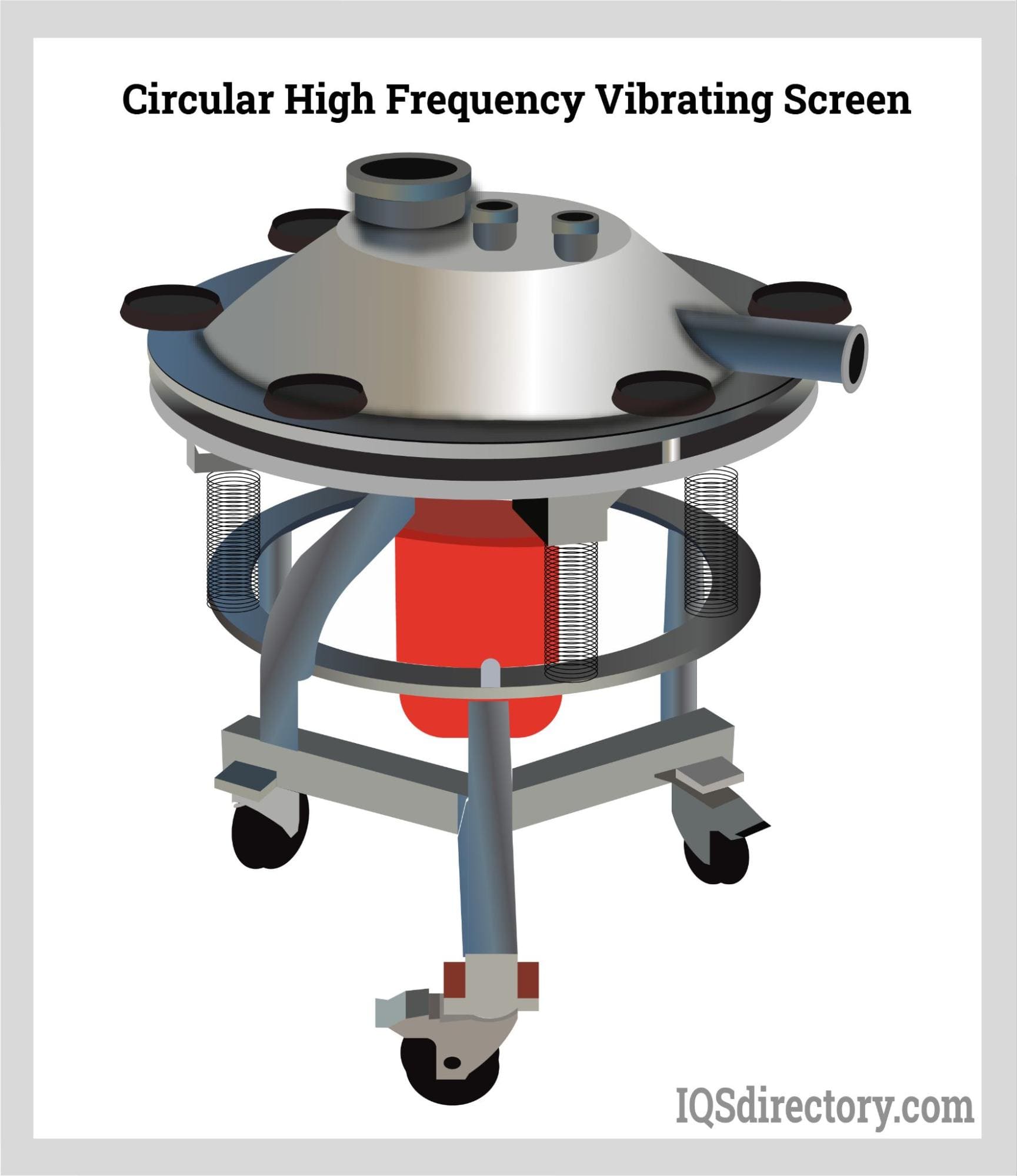

Circular high-frequency vibrating screen separators utilize a high-frequency motor with two-stage frequency vibration motors, operating at a 50 Hz vibration frequency and high motor speed. This high frequency reduces viscosity, allowing glazed liquids to pass through the screen while expelling non-permeable impurities. The vibration intensity is two to three times greater than standard vibrating screens, making these screens particularly effective for separating high-viscosity slurries.
A two-stage motor operating at 3000 rpm generates excitation to disrupt the tension of liquid molecules in a slurry. As vibration frequency increases, the slurry particles become smaller than the mesh size and pass through to a lower layer. Impurities remain on the mesh surface and are expelled through an upper discharge port. The straightforward design of the circular high-frequency vibrating screen facilitates easy maintenance and screen replacement.
A circular high-frequency vibrating screen features a single-layer screen box with two outlets—one for discharge and one for slag. These screens are designed to handle high concentrations of ceramic glaze and paint, serving both screening and filtration purposes.
An elliptical motion vibration screening machine merges the benefits of both linear and circular motion. The screen's mechanical and elliptical movements can be adjusted either via a control panel or manually. These machines are highly valued for their superior screening performance and large capacity.
An elliptical motion vibration screening machine consists of a screen box, vibration exciter, and supporting springs. The excitation shafts feature eccentric blocks, with both shafts driven by gears that rotate in opposite directions at the same speed. When activated, the excitation shafts make the screen box move in an elliptical path. This changing angle of vibration causes particles to collide with the screen surface more frequently, increasing their retention time on the screen.

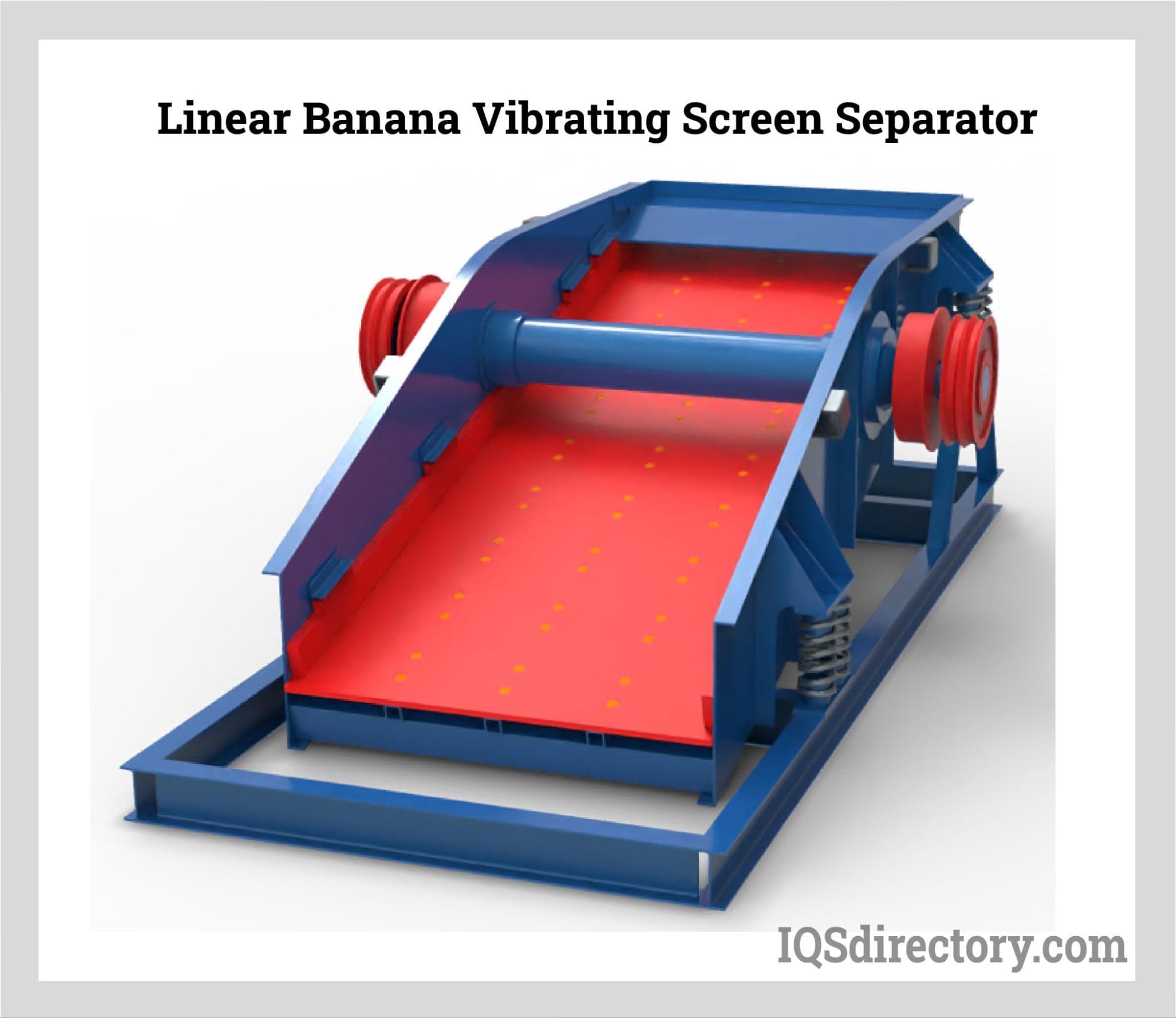

Banana vibrating screening machines feature a structure akin to linear vibrating screens, including a screen box shaped like a banana, screen mesh, vibration exciter, damping springs, and a seat frame. The exciter is linked to the screen box’s side plate via a motor, using either a V belt or soft connection. These screens are designed for handling large to medium-sized materials with fine content and are effective in processes such as dehydration and desliming.
The surface of a banana vibrating screen features a series of broken lines, each with a different angle of inclination. The screen is shaped like a banana and consists of several segments arranged on a linear vibrating screen. The feeding end is inclined and steps down through various angles until reaching the discharge port. This inclined design increases the screening speed, enabling more material to pass through. Larger particles move faster, allowing finer particles closer to the screen surface to pass through the gaps more effectively.
Banana vibrating screens are popular for their high efficiency, large capacity, uniform screening, low noise, and energy efficiency. They are widely utilized for their impressive screening yield and exceptionally low noise levels.
The vibratory screeners mentioned are just a few examples of the separators used in manufacturing for separation processes. Often, separation tasks require customized solutions for materials that don’t suit traditional vibratory methods. Originally developed for mining, vibratory screeners have quickly expanded to various industries, proving essential and versatile.
The various materials used in the separation process require specific methods for effective separation, as a single vibratory separation technique does not suit all materials. Among the many methods employed for recycling, cleaning, or manufacturing, size separation is one of the most common. However, it is limited to dry materials that can be easily processed.

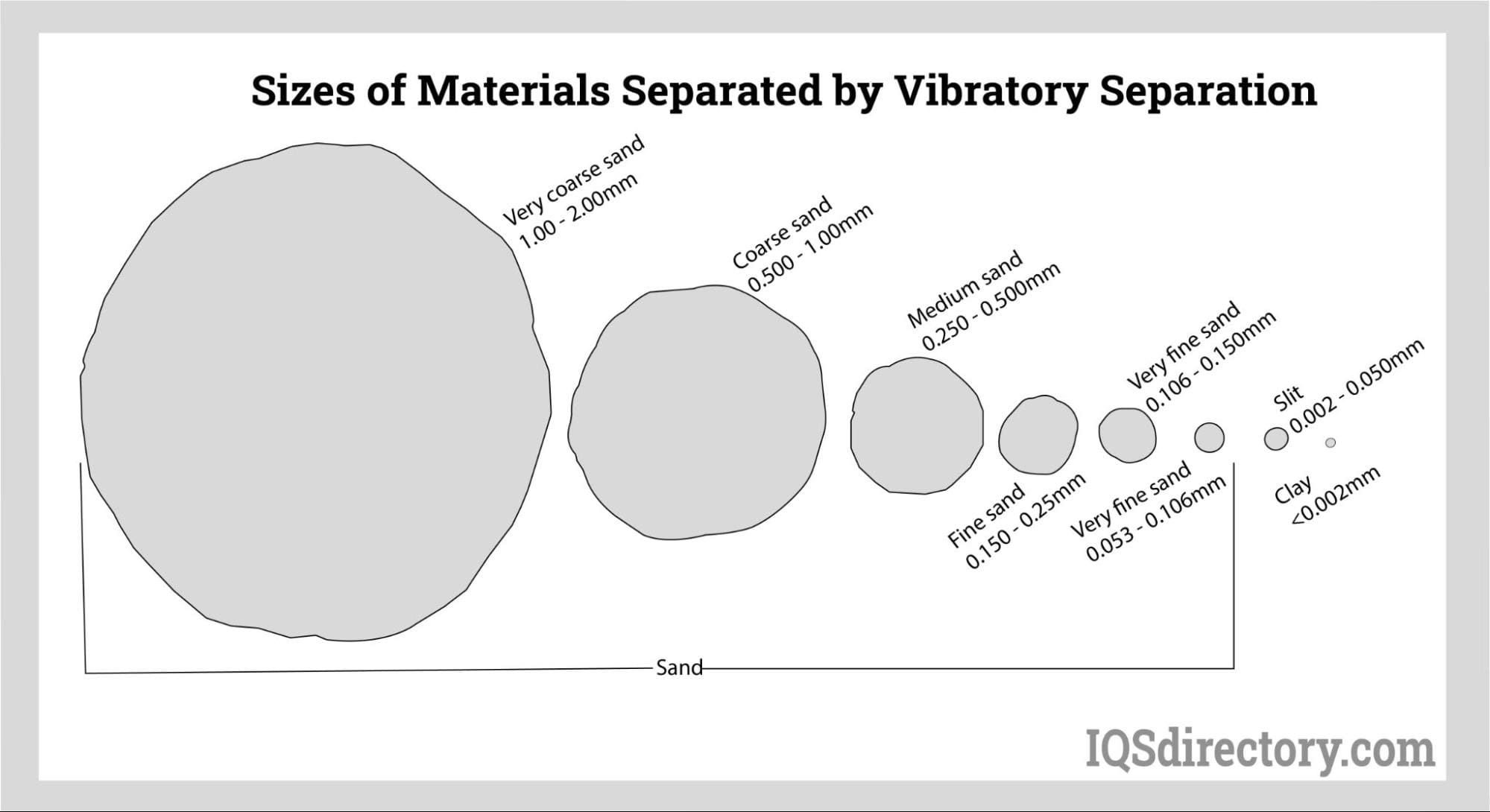

Separation by size is a process of grouping materials based on their size. Vibration screen sifting separators can feature up to five screens, creating four to six size fractions. While shape and density also influence particle classification, size separation is commonly used. Materials flow through a screen, stack of screens, or sieve. Material that passes through is called undersized, while material that remains on top is called oversized.
Each screen used in the process is labeled with a mesh number, indicating the number of openings in the mesh. Higher mesh numbers correspond to smaller openings, designed for finer particles. All openings of a given mesh size are uniform. Screens can be positioned horizontally or at an angle, depending on the material being screened.

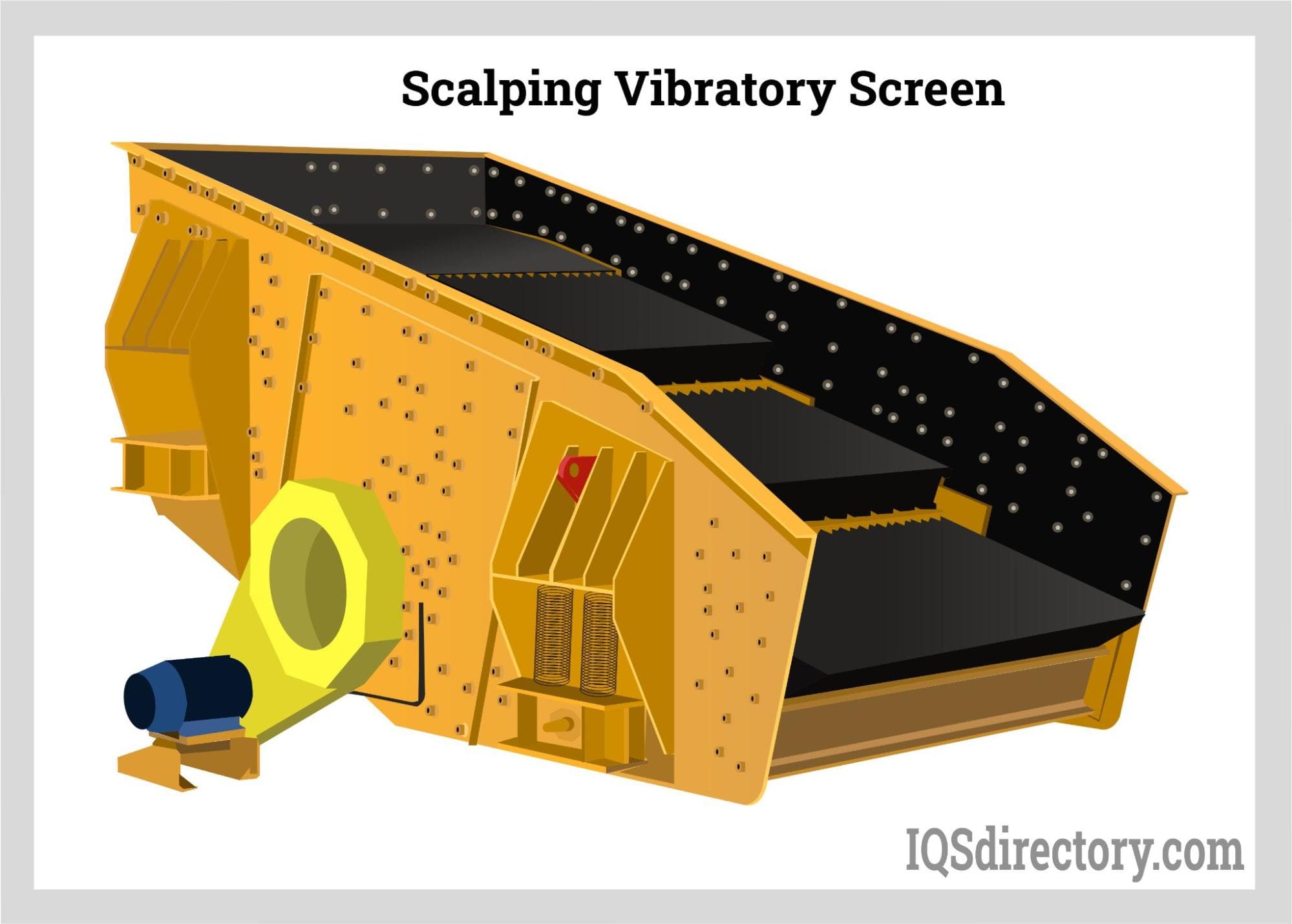

Scalping is a screening technique used in mining, recycling, waste management, and aggregate industries to separate materials based on size. Unlike traditional size separation, which sorts particles by size, scalping focuses on breaking down large particles for further separation. As the separator vibrates, large particles break apart, allowing smaller fragments to settle into a lower deck of the separation process.
For the process to be successful, scalping screens must be exceptionally strong, durable, and sturdy to withstand continuous motion and breaking. Scalping vibratory machines are typically made from stainless steel, carbon steel, and high-grade aluminum to ensure long-lasting performance and durability.
Gravity filtering, also called gravity filtration, filter sieve, or filter sifter, is a technique for removing impurities from liquids by passing them through a filter. This method is vibratory and helps separate solids from slurries or aid in dewatering. The vibratory screeners used in this process feature large outlet channels to quickly discharge the separated liquid, handling between 400 kg and 1200 kg (882 lbs. to 2646 lbs.) of slurry or powder per hour.
Several types of circular vibratory screeners are utilized for the gravity filtration process. This straightforward process typically involves just one deck and one screen.
Vibratory screeners are essential tools in industries handling powders, fluids, granular materials, and chemicals. They are crucial for removing contaminants and sorting raw materials. Additionally, vibratory screeners are widely utilized in the recycling industry to separate recyclable materials from general waste.
Material separation is crucial in the food and beverage industry, particularly during ingredient preparation. Vibratory screeners are widely used for various tasks, including preparing ingredients for packaging, screening tea, straining juice, ensuring flour consistency, and removing lumps from icing sugars.
Vibratory screening has long been a staple in the mining industry, initially operated manually by shaking a box with a wire mesh at the bottom. With technological advancements, modern vibratory separators are now automated and designed to remove dust from minerals. These sifters are cost-effective, efficient, and reduce labor, contributing to the production of high-quality minerals.
With growing environmental concerns, vibratory screeners and separators have become crucial for distinguishing between waste and recyclable materials. These devices efficiently process large quantities of what may appear to be waste, extracting metals, plastics, and other recyclable materials for reuse and remanufacturing.
The process of mixing and blending chemicals to create medicines generates dust and moisture, which must be eliminated before the product can be prepared for mixing and packaging. Vibratory screeners and sifters are employed to purify and clean medicines, ensuring they are ready for delivery.
Preparing raw products for shipment in the agriculture industry includes removing dust and water and sorting out items that are the wrong size or quality. This process involves classifying and categorizing grains, beans, crops, and seeds, as well as a variety of raw vegetables, nuts, and condiments.
The industries mentioned above represent just a small subset of those relying on vibratory screening as a crucial component of their processes. As technology advances and the demand for higher product quality increases, vibratory screeners, separators, and sifters are finding applications in an expanding range of industries.
Choosing the right vibratory screening device can be challenging due to the many options available. It's crucial to select a separator that fits the specific application and material type. The ideal choice depends on several factors, which can be clarified by consulting with a vibratory screener manufacturer for expert guidance and recommendations.
Finding the right vibration frequency for a vibratory separator is crucial for effective separation. Frequencies that are too high or too low can lead to damage or inefficiency. The frequency directly affects the vibration force, which must be within the optimal range for successful operation.
A wide variety of screen types are used with vibratory separators, differing in porosity, opening sizes, and open area percentages. To help with selecting the right screen, manufacturers employ engineers who evaluate customer requirements and recommend screens tailored to the specific application.
When installing a vibratory screen sifting separator, two key factors must be considered: noise level and foundation stability. The separator sits on springs that vibrate constantly during operation, so the placement area must withstand this movement. Additionally, since vibratory screeners generate significant noise, they should be situated away from uninvolved workers and in locations where the noise does not bounce off walls.
The direction and types of excitation must be specified because vibratory separators can create gyratory movement in various directions. It is also crucial to decide whether the excitation will be horizontal, vertical, rotational, or a combination of these types.
Vibratory separators are robust machines built to handle various conditions. Their capacity depends on their size and the materials being separated. Mining operations need especially durable separators, while those for food and beverage might not require such strength. The constant motion and vibration stress the equipment, with larger loads increasing the demands. Assessing the load size and frequency is crucial for determining the appropriate size and specifications of a vibratory separator.
All the steps mentioned may become irrelevant if the selected vibratory screen sifting separator doesn't integrate well with the production flow. Often, these separators supply essential materials for subsequent operations, which must function efficiently and without interruptions. Production engineers can offer efficiency data to help determine the best vibratory screen sifting separator for your process.
