Chapter 1: What is the principle behind the design and functionality of wire racks?

This chapter will explore what wire racks are and how they are manufactured.

What is a Wire Rack?

A wire rack is a flat wire structure used to store and display various products, typically in retail settings. The base is composed of multiple interwoven metal strands, creating a sturdy surface for holding items. While similar to wire shelving in their design to maximize horizontal and vertical space, wire racks often refer to smaller units or shelves that are not meant to be freestanding.

Wire racks provide additional vertical storage space, making them ideal for displaying or storing retail and commercial goods. Often designed with multiple tiers or stackable components, they are versatile for various uses. Beyond promotional applications, wire racks have extensive industrial uses. For example, drying and cooling racks are commonly made from wire because it supports items while allowing air circulation, which is essential for products like baked goods.

While storage racks are typically horizontal, cooling and display racks are sometimes tilted to enable products or excess items to slide forward. Additionally, some tilted units and wire racks are designed with wire bends or forward lips to prevent products from sliding completely off the shelf.

Additional finishes such as painting, coating, heat treatment, and electro-polishing may be applied during the manufacturing of racks to meet specific application requirements. Caster wheels can also be added to the bottom of each supporting bar in full rack units to enhance mobility and ease of movement.

Wire Form

Wire racks are created through a process called wire forming. This involves taking wire from a blank length or spooled coil and bending it into specific shapes. The flexibility of wire forming allows for a wide range of shapes and configurations, making it ideal for producing various types of wire racks.

Wire forms can be coiled, angled, bent, or cut in all different ways, making them perfect for customized projects. Whether formed into small springs for machinery pieces to big chains for carrying heavy objects, to wire racks for storing products for retail or commercial, wire forming is beneficial for multiple applications.

Manufacturing Wire Racks

Wire racks are made by bending wires into specific shapes. This process involves bending the wire beyond its yield strength but within its tensile strength. In other words, the wire must be bent to achieve the desired angle without breaking or returning to its original shape. This careful manipulation ensures that the wire retains its new form and functionality in the final rack.

As previously discussed, wire forming involves shaping wires into a specific configuration, such as creating an interwoven rack. This process is carried out by machines designed to bend and manipulate the wire into the desired form.

The wires can be bent to a diameter of up to 1 ½ inches using these machines. This automated process enables the bending of multiple wires quickly and efficiently within a short period.

Wire Forming Process

In the wire forming and assembly processes of wire racks, optimal results can be achieved by:

• Ordering and managing materials to reduce client list and lead time.
• Setting up pull structures for a customer’s maximum flexibility.
• Offering a complete piece and assembling it to customer specifications
• Designing custom packaging, which saves on costs.

The processes involved in wire forming for manufacturing wire racks include:

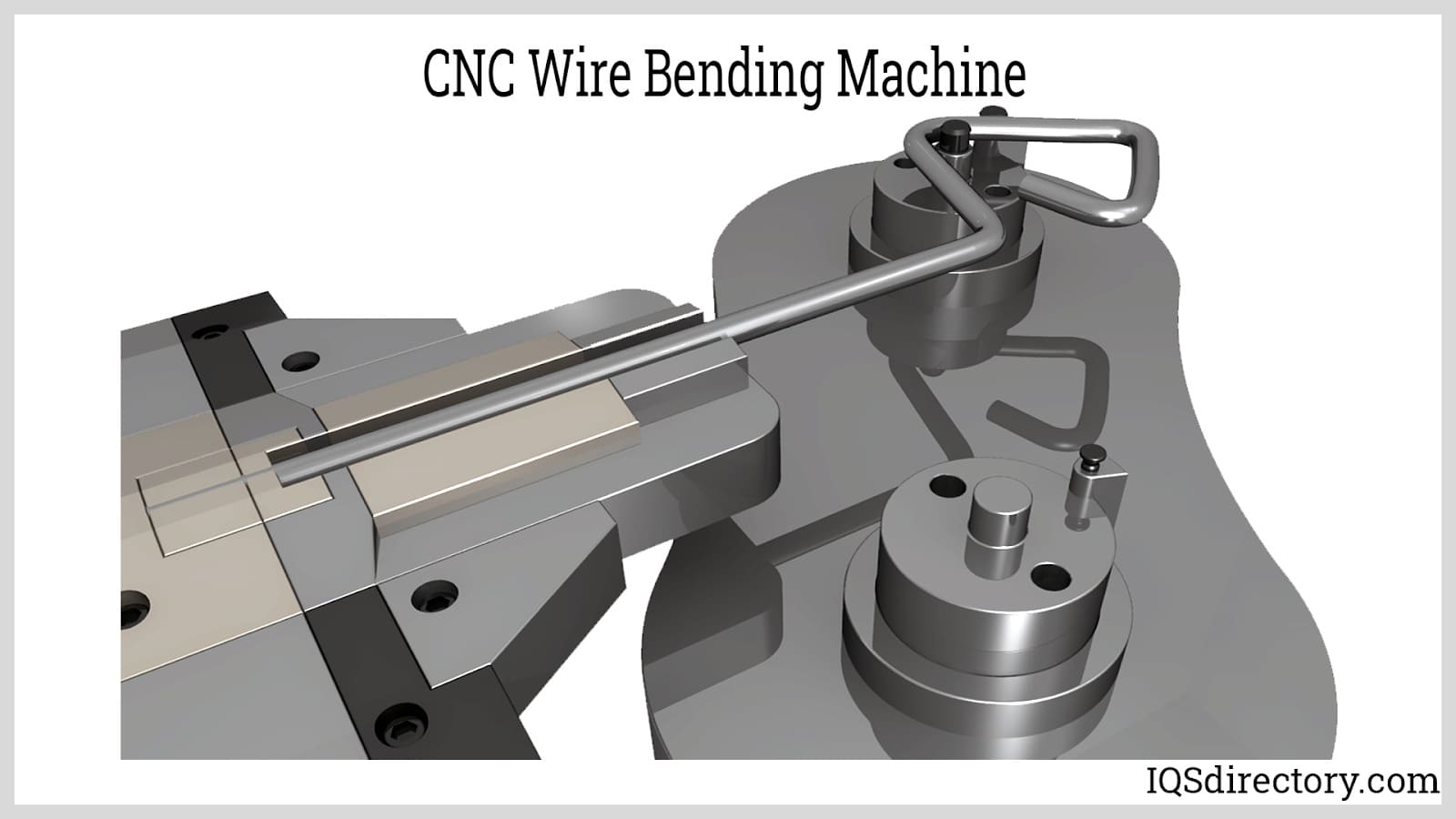

CNC Wire Bending

CNC bending stands for "computer numerical control" bending. Contemporary CNC wire bending machines, widely used in today's manufacturing industries, consist of several essential components.

Together, these five essential components enable the creation of intricate forms and wire shapes. They include:

• Coil Feeder – it is important to guarantee the wire is cut from the coil without snagging or tangling, halting the whole procedure. The winder must be motorized, enabling the wire to lift easily from the coil without compression of the coil and hence binding.
• Straightener – The straightening device guarantees that all characteristics which the wire achieved through manufacture and storing in coil shape are undone. Whether the wire is to be formed into a spring, or level shape, the fed wire's straightness is critical to the exactness and recurrence of the process.
• Chamfering – One or both wire’s ends must be chamfered in the same forming machining and process, removing burrs sharp or sheared edges from the cut-off process. A quality machine integrates the chamfering process in the bender directly and does not need a separate manual chamfering operation.
• Forming Head – This is where all the forming is done. The angle, radii, and forms are made by one or several articulating bending heads enabling the wires to be formed and wound yet still being fed through the feeding device for varying or acute angles and radii.
• Wire – The cutting or shearing mechanism on 3D wire benders must be programmable axes of the machines since this is the final step of the forming process.

The computer uploads the specifications to the CNC machine. Next, the wire forming CNC machine uses a system to uncoil the raw material from the spool and (using the robotic arm) force it via a number of opposing wheels (or servo-driven rollers) that are utilized to straighten the wire before the shaping and forming step.

Once a straight wire is fed between the straightening servo-driven rollers, it is directed to an articulating head. Through a series of pins and dies, the head twists and spins around the wire, creating a series of pre-programmed bends. When the wire reaches the desired length, an automatic shearing blade cuts it from the coil to the exact size needed. This process ensures that each wire is produced with precise dimensions and shape. Wire forming can bend a wire in any direction—up, down, left, or right—and at any angle.

Many wire benders on the market have varying capabilities. Some, such as 2D bending machines, are limited to creating flat, two-dimensional patterns and are constrained in their application. In contrast, advanced 3D benders provide extensive flexibility, allowing for wire bending in three-dimensional space. These 3D benders are highly preferred for wire forming due to their ability to adapt to complex programming and design requirements, offering unparalleled versatility in wire shaping.

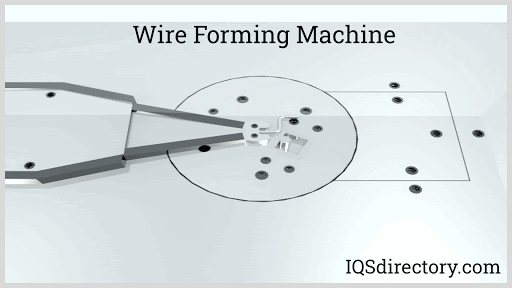

Manual Wire Forming

The earliest wire forming technique involved manual machines equipped with a spindle and hand lever. These manual machines, which may be rotary die or drawn types, use gears to amplify the bending pressure, allowing for more controlled and precise shaping of the wire.

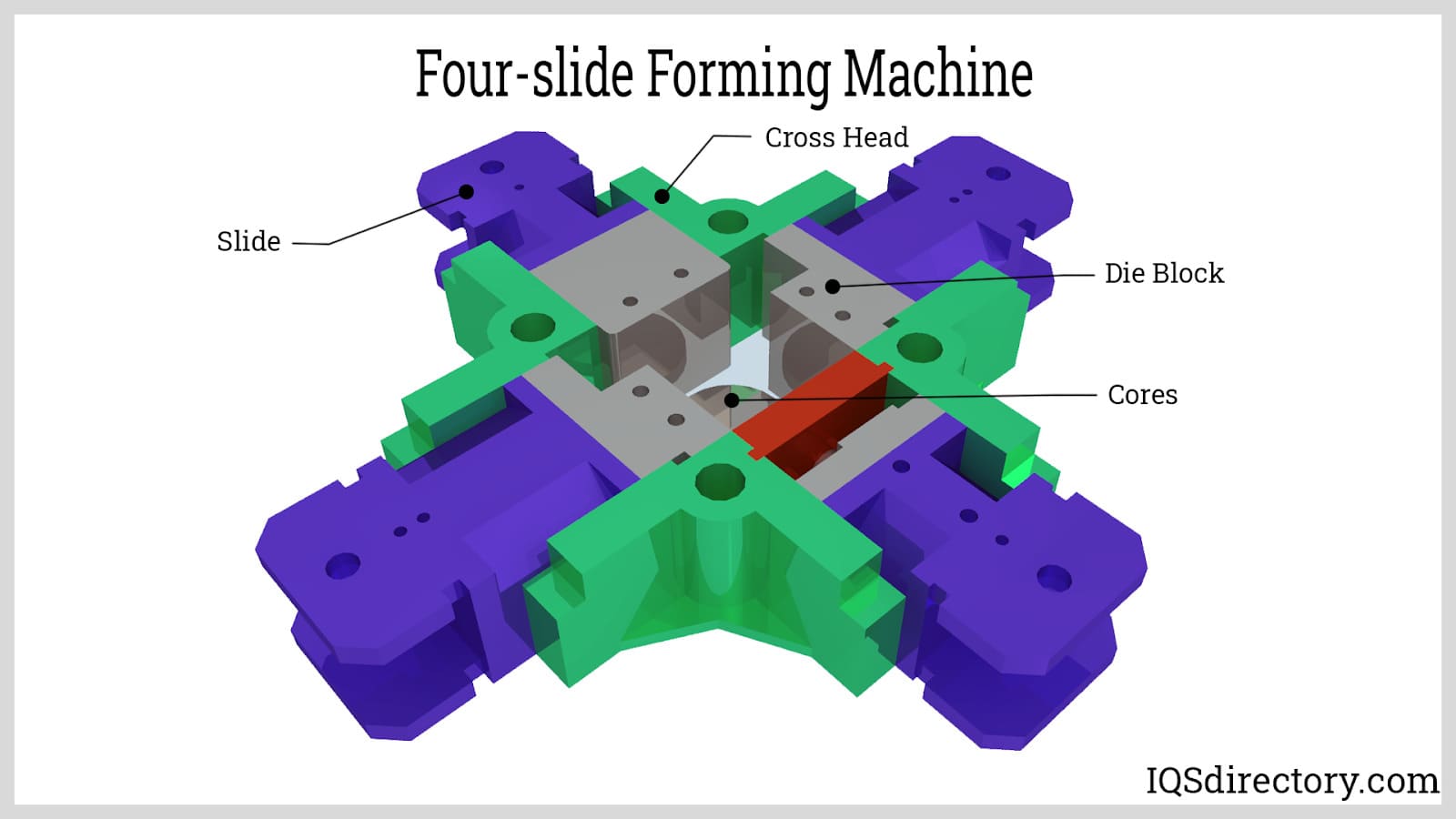

Four-Slide Wire Forming

Four-slide forming, or stamping, operates similarly to a flat stamping press but incorporates cams. This system includes cams, shafts, an electrically powered motor, a press, a die, and sliding gears. The four-slide mechanism uses four sliding gears to shape the wire from all sides, which enhances production speed.

Approximately 3,500 simple wire forms can be produced per hour. The cam system regulates the movement of the four gears, enabling the process to perform vertical actions such as punching, as well as horizontal movements in various directions.

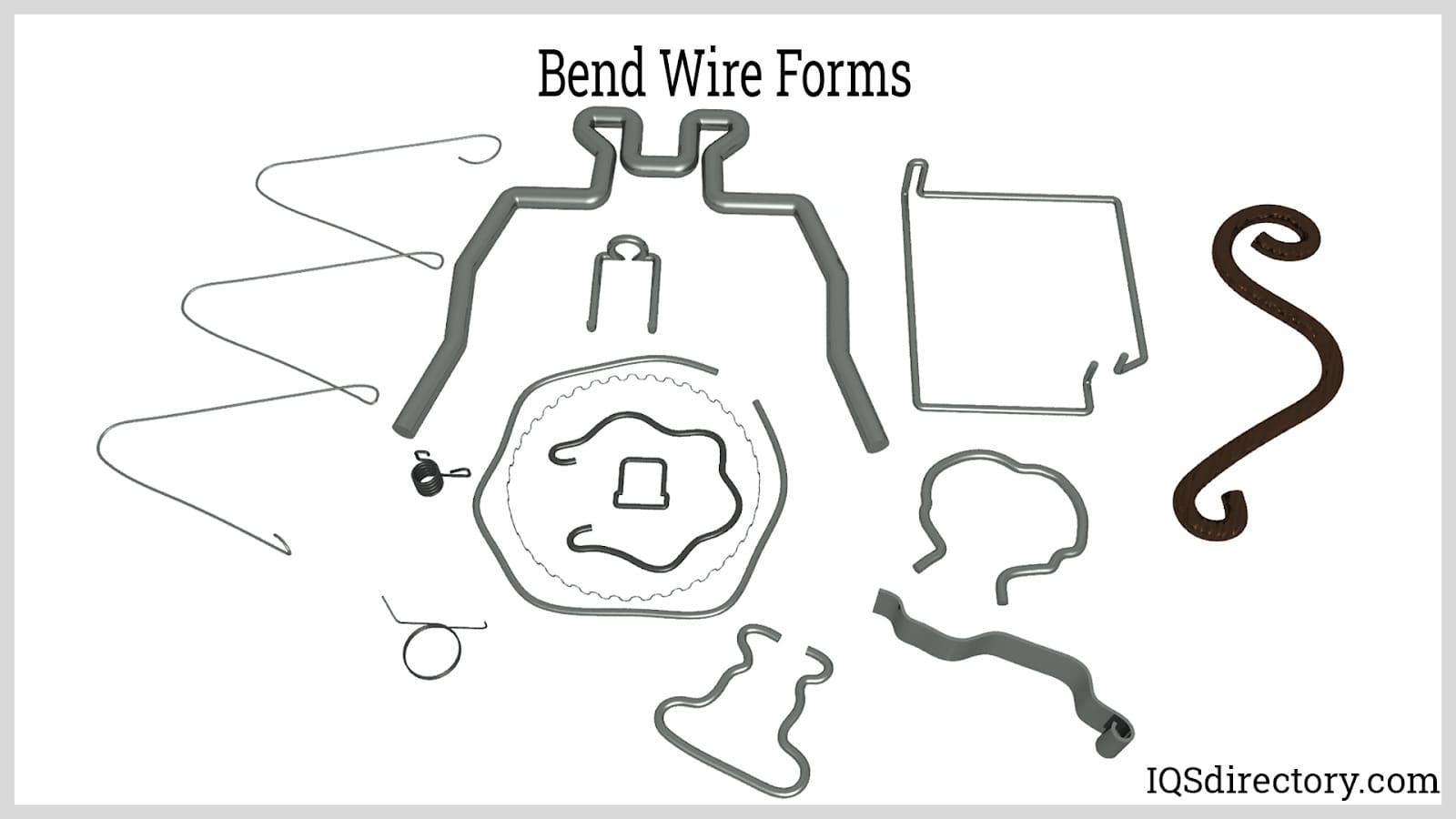

Bend Wire Forming

In wire bending, the wire can be shaped into a wide range of configurations to create virtually any design. Diameters ranging from 0.016 inches (0.41 mm) to 0.625 inches (1.59 cm), or 0.4 mm to 16 mm, can be easily formed. Since the bends are made before the wire is cut, this method produces no waste or scrap and eliminates the need for secondary finishing.

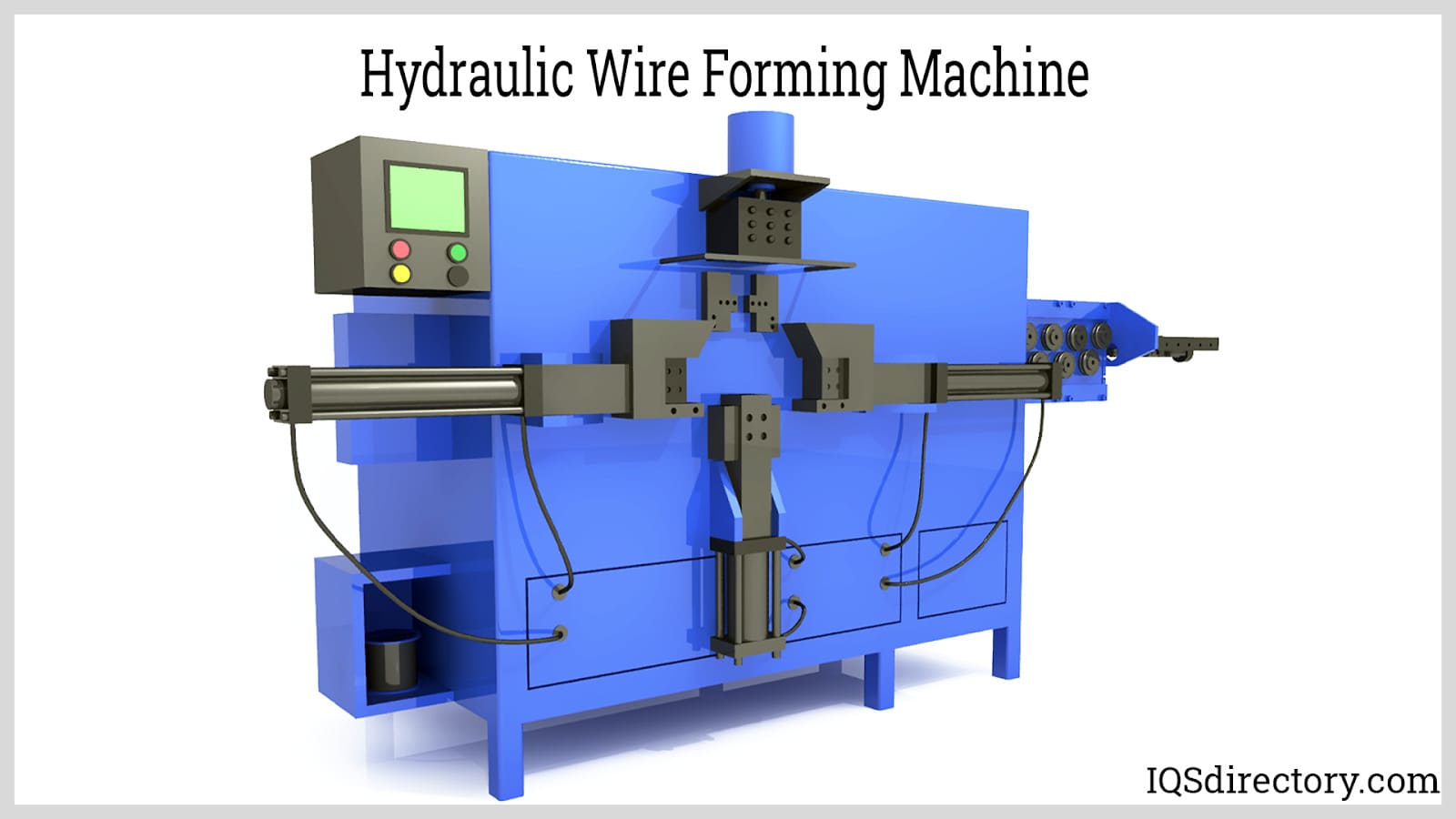

Hydraulic Wire Forming

In a hydraulic wire forming system, a hydraulic motor powers the shaping rollers. A servo motor, controlled by CNC programming software, configures the system to achieve the desired wire shapes. Once the finishing step is complete, the wire shapes are routinely removed from the system.

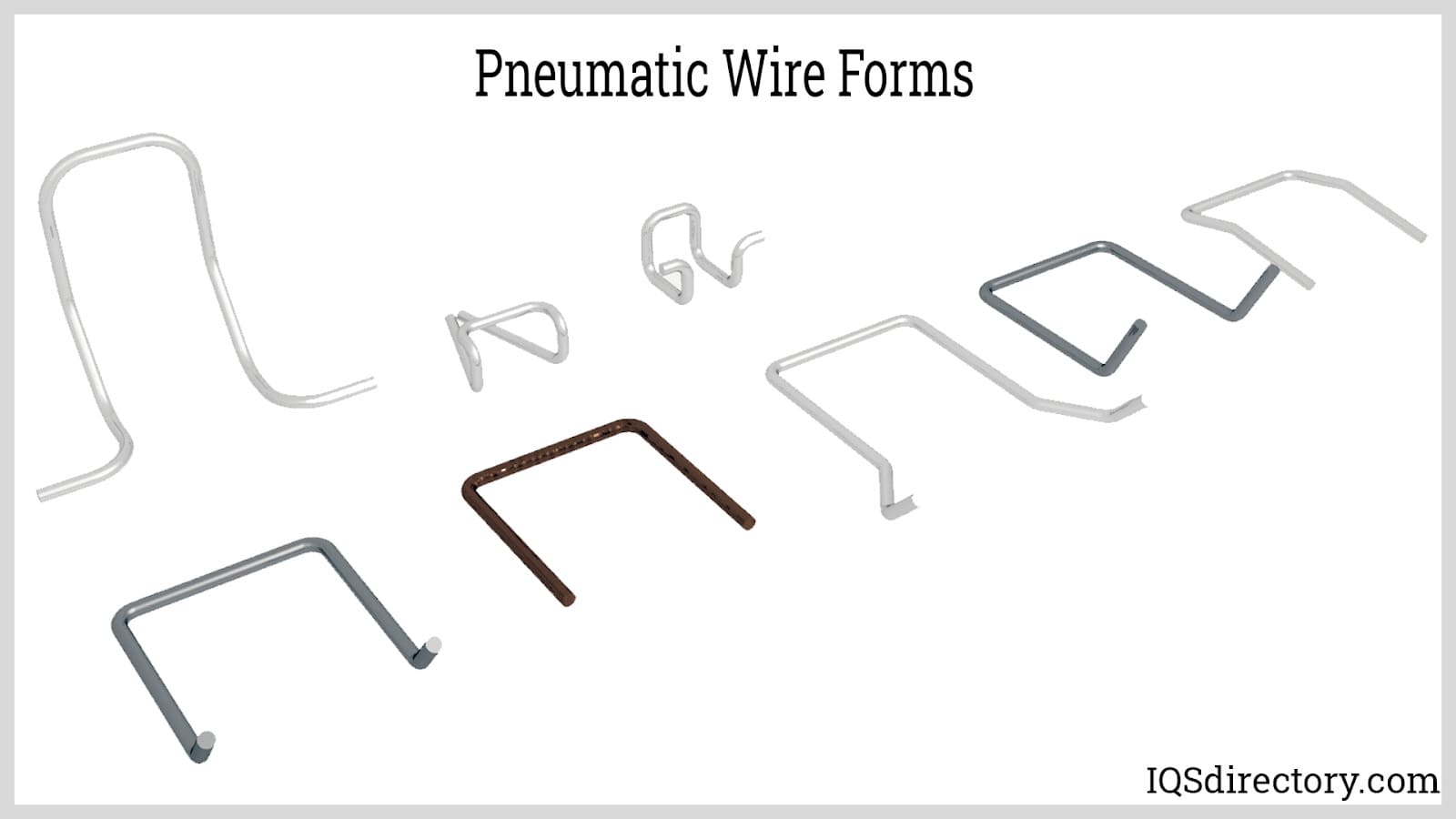

Pneumatic Wire Forming

In the pneumatic process, the wire is fed into a straightening system, where it is shaped according to the required specifications. It is then pneumatically reduced to the correct length.

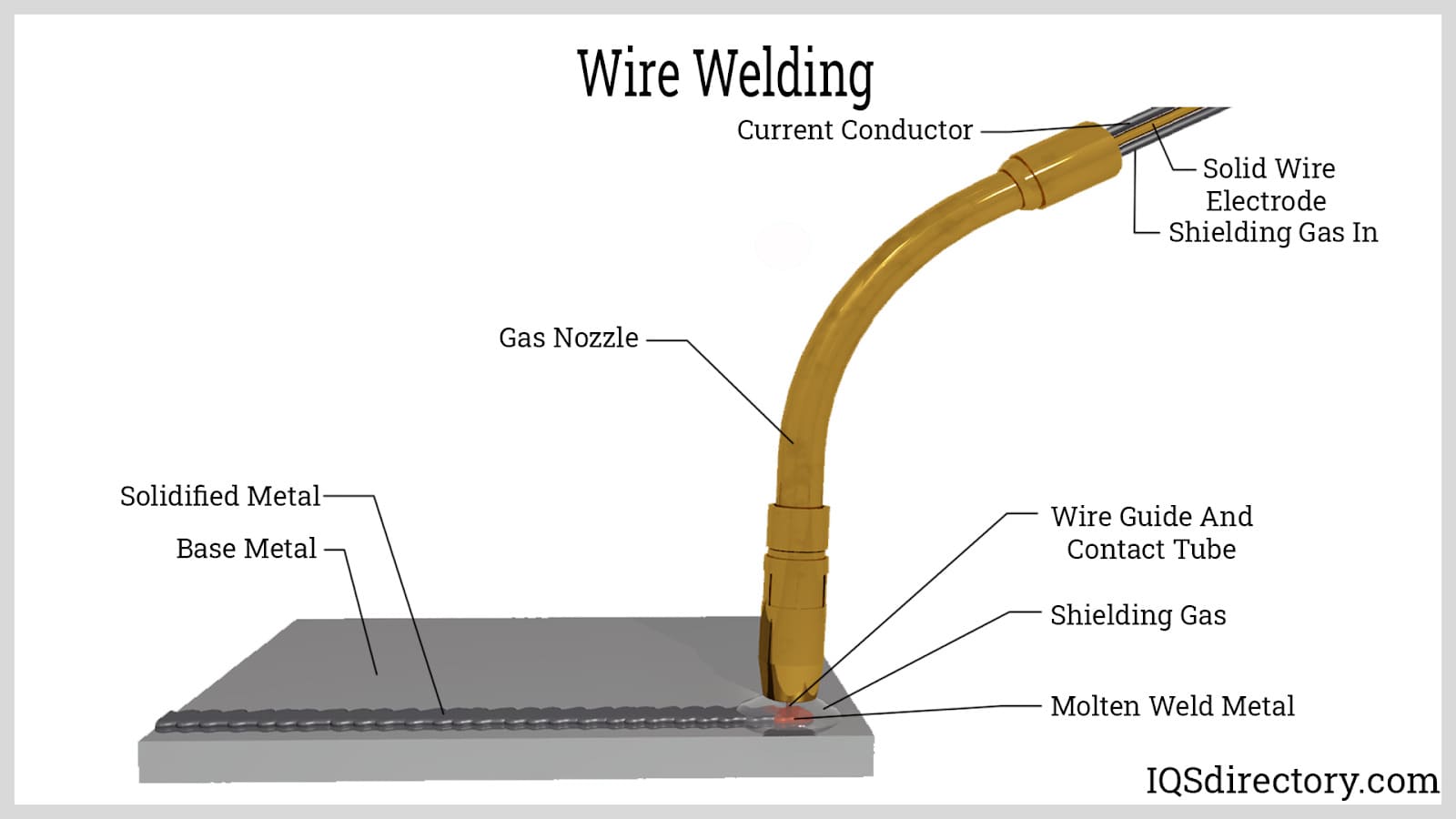

Wire Welding

Welding is used to join the formed, shaped, and bent wire to create wire racks. This process can involve various welding techniques, including metal inert gas (MIG) welding, tungsten inert gas (TIG) welding, or electric resistance welding (ERW). ERW utilizes an electrical current combined with mechanical pressure to weld the wires together.

TIG, MIG, and ERW welding methods use inert gas to reduce contamination. While tungsten inert gas (TIG) welding offers superior results, it is more complex and requires a highly skilled operator, resulting in longer production times. Consequently, metal inert gas (MIG) welding is often preferred for its efficiency. Additionally, weaving techniques can be employed to create wire forms such as grids, screens, or guards.

Finishing Wire Racks

After wire forming and welding, the wire forms can be plated, coated, or painted depending on the product requirements. Finishing may not always be necessary, depending on the design of the product. However, some wire forms may require additional modifications such as grooves, cuts, heading, swaging, or coining. The primary goal of these finishing processes is to ensure that sharp edges and burrs are addressed and removed for a smooth, safe final product.

Things to Consider When Choosing a Wire Rack

Consumers can create additional storage space without renovating their buildings by using wire racks. These versatile racks are designed to hold a variety of items, such as books, shoes, and children's toys. Some racks are even built to support heavier objects. To address storage issues effectively, it's essential to select the right wire rack for your needs. Consider the following steps:

Determine the Needs – How is the rack intended to be used? Will it need to hold books, baked goods, or retail products? Understanding your specific needs is crucial in selecting a wire rack that will best accommodate the intended purpose.

Size – Ensure you focus on the size of the wire rack. It must fit the available space and accommodate the items you plan to store. Consider the overall dimensions—height, width, and length—making sure they align with both your storage needs and the space available.

Design – If the wire rack is intended to serve as a decorative element, consider choosing one with an attractive or stylish design.

Weight – The total weight of all items placed on the rack must not exceed its loading capacity, as overloading can result in hazardous and costly mechanical failures.

Slit or Gap Size – The spacing between the wires is also crucial when selecting a wire rack. It should be smaller than the smallest product you plan to store to prevent items from falling through or getting stuck.

Today, there are many wire racks available on the market. To choose the perfect one for your needs, be sure to follow the suggestions mentioned above.

Chapter 2: What are the different types of wire racks and what materials are commonly used for wire racks?

This chapter will explore the different types of wire racks and the materials commonly used in their construction.

Types of Wire Racks

There are several types of wire racks, including:

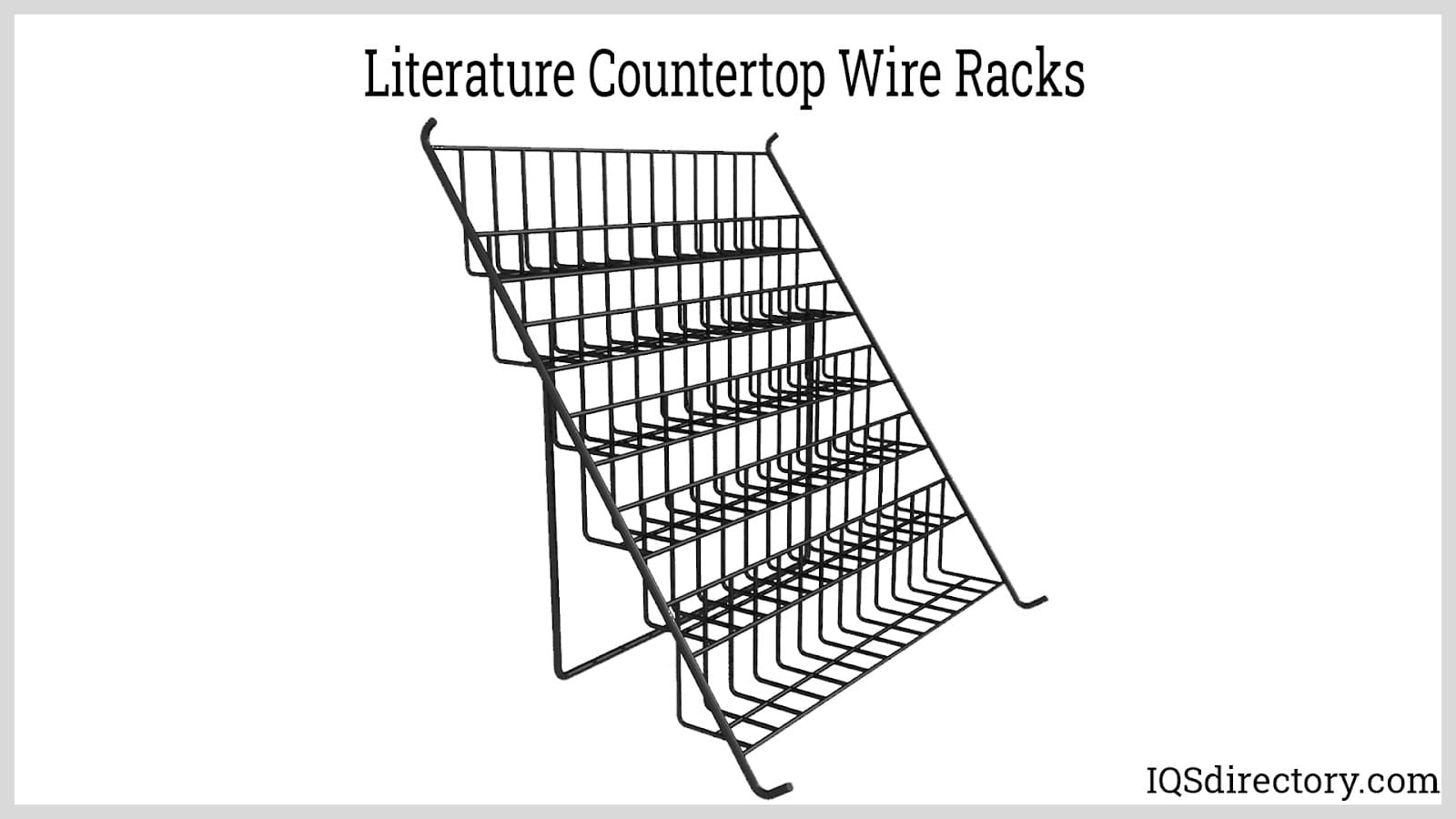

Literature Stands

Literature stands are designed to hold various types of periodicals and can be used to display products for sale or organize a waiting room. Floor stands, featuring multiple levels or adjustable tiered pockets, can showcase numerous magazines or folded brochures for easy access and visibility.

Unlike wooden racks with pockets, wire frame constructions offer visibility from all angles. Countertop styles are typically smaller versions of floor racks and come in both single and multiple pocket designs. Tabletop fixtures are ideal for displaying takeaway literature or keeping service centers and doctor’s offices organized. Additionally, rotating styles are available in both countertop and floor models.

Merchandising Displays

These wire racks are popular among retailers due to their durability and affordability. They come in various designs to accommodate almost any type of product. For example, rotating spinner stands, which can have up to 72 wire pockets, are ideal for displaying greeting cards or postcards. Conversely, bulk bins are perfect for storing and displaying items that are challenging to place on shelves, such as stuffed animals, beach balls, and pillows.

Racks with adjustable slant shelving are ideal for displaying bakery items, bottles, and various other products. Many models come with rolling casters, making it easy to move them as needed. Countertop racks are well-suited for holding small items such as blister packs, souvenirs, keychains, and other impulse-buy items. Typically located at or near checkout counters, these racks can significantly boost sales for retailers. Additionally, revolving racks are effective for showcasing postcards.

Grid-Wall Fixtures

In addition to industry-standard slat-wall fixtures, grid-wall wire racks are also popular in retail stores. They have a similar design to slat-wall but are more affordable and lightweight. Grid-wall racks can be mounted on walls or placed on the floor. Once a wire rack is chosen, various add-ons such as baskets and hanging hooks can be used to fully customize the layout and maximize the grid-wall’s potential for showcasing merchandise.

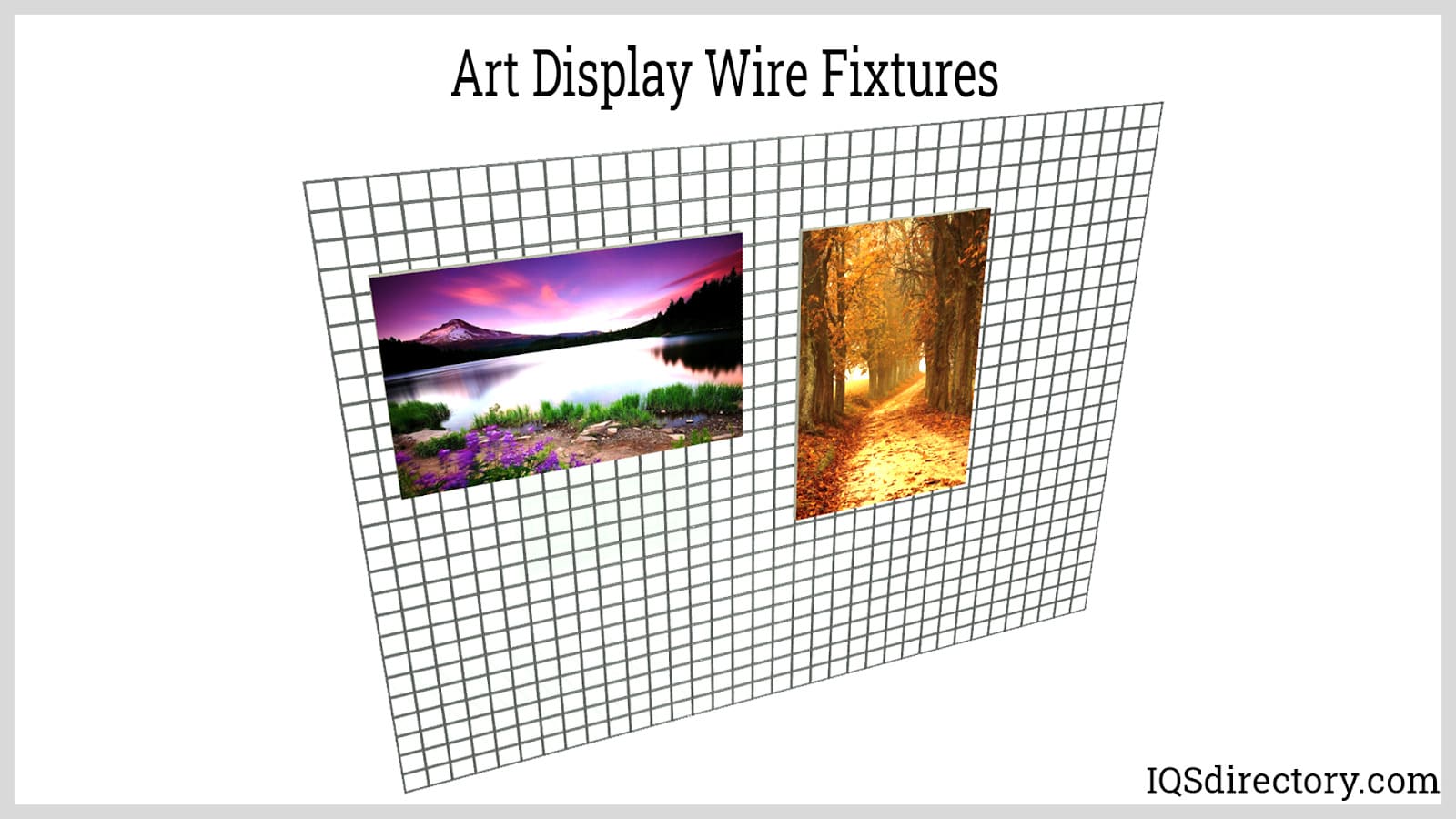

Art Display Panels

Art display panels are similar to grid-wall racks but are specifically designed for showcasing artwork. With a comparable wire frame design, these panels are lightweight and ideal for outdoor art festivals, galleries, and trade shows. They allow for quick and efficient hanging of mirrors, canvases, or other artwork. The modular design facilitates custom layouts, which can be easily assembled using cotter pins that lock the panels together. Portable and affordable, art display panels are also compatible with grid-wall hanging accessories.

Cooling Rack

A wire cooling rack allows air to circulate completely around whatever is placed on it. This promotes faster cooling compared to placing items on a trivet or countertop. Since a hot pan continues to cook the food inside it, using a wire rack helps prevent over-baking by cooling the items more quickly.

Most recipes for cakes, cookies, or muffins recommend placing the hot pan directly on a cooling wire rack for the initial cooling phase. Once this time has passed, the baked goods are often transferred to the rack to complete the cooling process. This final stage helps prevent steam and condensation from accumulating, ensuring that the freshly baked items remain crisp and don’t become soggy.

Cooling wire racks are typically constructed from stainless steel, featuring a mesh of crisscrossed wires or closely aligned parallel wires. This design ensures that products can be securely placed without falling through, while still allowing ample air circulation to the base of the food to prevent excess moisture. Cooling racks can be single-layered or multi-layered, with two or three stackable rows to accommodate large batches of breads, cakes, cookies, or pies. They come in various shapes, including square, round, oval, and rectangular, and roasting racks can also serve as cooling racks.

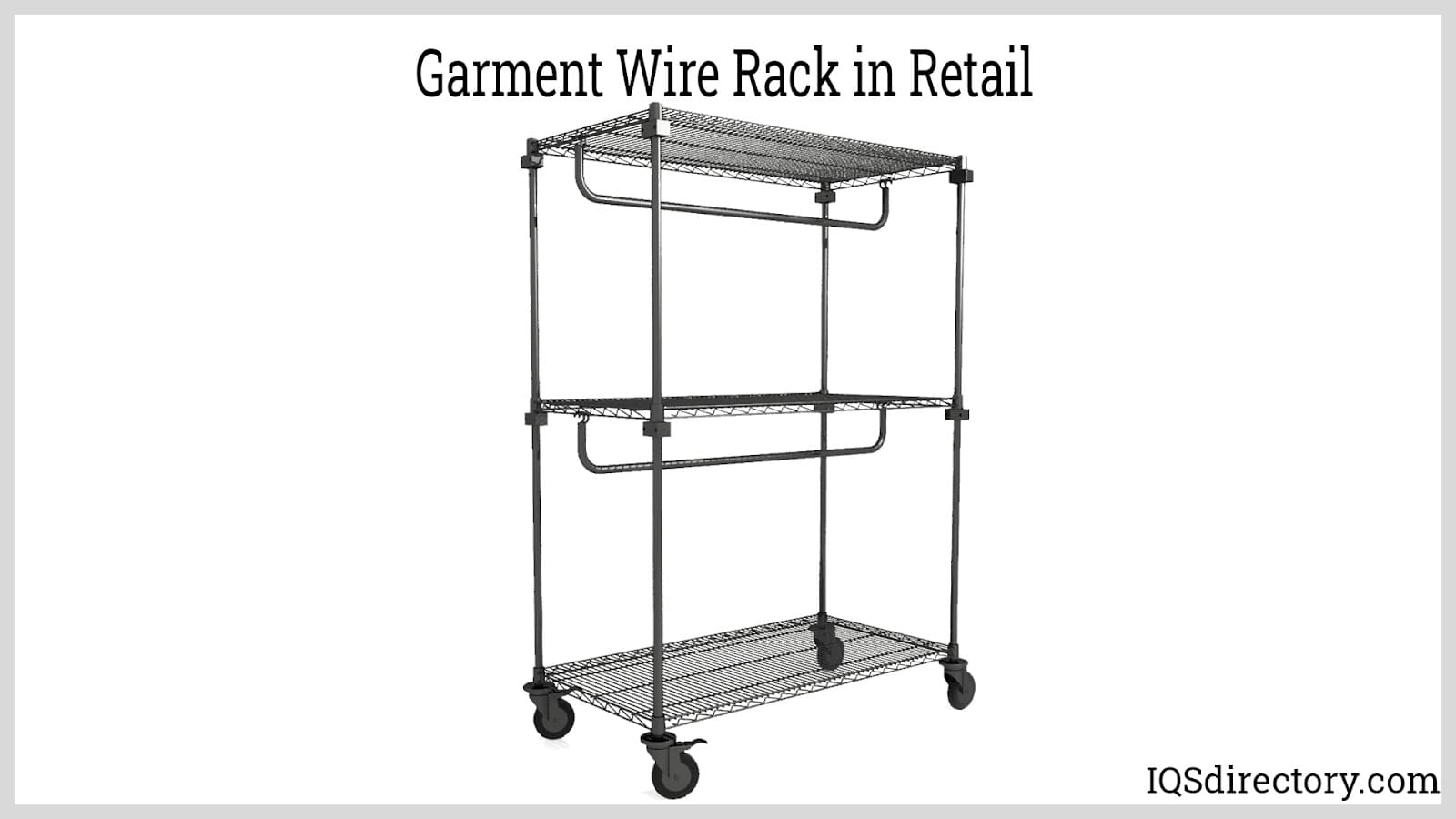

Garment Rack

A garment or clothes rack is a rail used in stores to display clothing items such as shirts and coats. Folding garment wire racks are particularly convenient for retail settings due to their ease of movement and storage, making them a popular choice for clothing stores.

Leading Manufacturers and Suppliers

Chapter 3: What are the different types of materials used for wire racks?

Many different metals can be used for wire rack projects, depending on the intended application. Below is a list of some of the best metals for wire racks:

Grade 304 Stainless Steel

Grade 304 stainless steel, an austenitic alloy, offers exceptional corrosion resistance and a high tensile strength of 621 MPa (90 ksi). This makes it ideal for supporting heavier loads and performing well in mildly corrosive environments. Compared to iron or plain steel, grade 304 stainless steel also exhibits superior resistance to oxidation.

Grade 316 Stainless Steel

Grade 316 stainless steel is more resistant to corrosion than grade 304 stainless steel. In essence, 316 stainless steel is good at resisting chlorides, like salt, making this stainless steel grade perfect for applications having caustic conditions too hostile for grade 304 stainless steel.

Grade 434 Stainless Steel

Grade 434 stainless steel, a ferritic alloy, is known for its excellent resistance to pitting. While it is less resistant to chemicals compared to grade 304 stainless steel, it still offers superior protection against corrosion, pitting, and oxidation compared to plain steel.

Polyester TGIC Powder Coat

Polyester (triglycidyl isocyanurate, or TGIC) is a specialized powder coating used to protect wire forms from harsh chemicals and high temperatures. This coating is highly resistant to chlorides and abrasions, making it an excellent choice for enhancing durability and longevity in demanding environments.

Epoxy High Solid Coat

Similar to polyester TGIC powder coating, epoxy solid coating provides strong resistance to staining, marring, humidity, chipping, and various solvents. This makes it an excellent protective layer for metal wire forms, ensuring enhanced durability and longevity.

Plastisol (PVC) Coat

Plastisol is a flexible coating material with properties that can vary based on the plasticizers and application methods used. It is particularly effective at protecting wire forms from chemical exposure, offering a durable shield against harsh environments.

Grade 330 Stainless Steel

Another alloy specifically designed for high-temperature applications is grade 330 stainless steel. It can withstand extended exposure to temperatures up to 1,037°C (1,900°F).

Chapter 4: What are the applications, benefits, and maintenance requirements of wire racks?

This chapter will explore the applications and benefits of wire racks, as well as the maintenance required to keep them in optimal condition.

Applications of Wire Racks

A wire rack is an excellent tool for businesses to display informational materials about their products or services. Placing a wire rack at the store entrance, on the counter, or inside the store allows customers to easily access and take pamphlets. These pamphlets can include marketing content, important business information, or anything else the business owners deem essential for customer awareness.

Wire racks come in various designs, including rotational and circular stands, as well as immovable ones where customers need to navigate around to find what they need. The dimensions of the wire rack depend on the size of the brochures it holds, such as A5, A4, or DL. The height of the stand is influenced by the number and size of pockets it has. For example, a wire rack with three standard pockets, each 1.25 inches deep, might measure approximately 7 inches in height with a base radius of about 1.1 inches.

Benefits of Wire Racks

Some advantages of wire racks include:

Wire racks can feature interchangeable panels that can be added or removed as needed. This flexibility allows the racks to adapt to changing space requirements and inventory needs. By rearranging or updating these fixed components, businesses can efficiently reflect new or additional inventory, ensuring that the display or storage setup remains functional and relevant.

This versatility enhances efficiency, especially when preparing for professional shows. The point-of-purchase (POP) display pieces can be quickly and easily assembled or disassembled as needed, streamlining the setup and takedown process.

Wire Rack Durability – Wire racks are highly durable, crafted from top-quality materials that ensure they withstand extensive use without breaking or bending. They can support significant weight, making them ideal for displaying heavy items like mirrors and tools. Despite their strength, they remain lightweight, which makes them easy to store and relocate as needed.

Beautiful Designs and Customization – Customized wire racks offer flexibility in design, allowing for a variety of shapes and features tailored to specific needs. Their sleek, open designs ensure products are showcased effectively, while new fittings can be created to accommodate any display item. Powder coating can be applied to match exact color requirements, ensuring a perfect fit for customer preferences. Manufacturers can collaborate with clients to bring their vision to life, leveraging the unique advantages of wire racks for optimal results.

Economics of Wire Racks – Wire racks offer exceptional value and high quality. Their durability ensures they are a wise investment, providing efficient and long-lasting solutions for storage and display needs.

Easy Product Access – Similar to shelving, wire racks are accessible from all four sides. This feature of customer psychology suggests that if clients "connect" with an item, they are more likely to make a purchase.

Wire Racks are Portable – Wire racks, despite being made from durable metals, are lighter compared to other storage options. This allows them to be easily mounted on rolling casters, making them mobile. Increased mobility helps maximize storage space and facilitates changing the layout of a business or office as needed.

Easy to Clean – A wire rack offers a safe environment for products by protecting them from damage. Its open design allows for easy airflow, preventing dust and debris accumulation. Additionally, the rack can be easily wiped down and disinfected when needed, ensuring a clean and hygienic display.

Food Safe – In addition to their ease of cleaning, wire racks are ideal for cold storage in butcheries and restaurants, as the mesh design allows for optimal airflow around products, enhancing quality and extending shelf life. They can also be coated with antifungal and antimicrobial epoxy to further improve hygiene and prevent contamination.

Benefits of Using Wire Forming Products

Selecting the appropriate wire forming product can significantly enhance efficiency, reduce costs associated with damaged equipment, and minimize the risk of employee injury.

Increased Efficiency – High-quality wire forming products equip manufacturers with the right tools to complete operations swiftly and efficiently, thereby boosting overall productivity.

Decreased Costs – High-quality wire forms are designed to endure years of repeated use without breaking. This durability minimizes the risk of stoppages, which can lead to increased costs and potential damage to products.

Drawbacks of Wire Racks

One issue with wire racks is their potential for deterioration. They can buckle and break if mishandled and may rust over time, requiring regular maintenance. For instance, chrome wire racks are prone to rust, making them more suitable for indoor use. In contrast, stainless steel or epoxy-coated racks are better choices for outdoor environments or for storing goods that need to be kept cool, as they offer enhanced durability and resistance to rust.

Wire racks are ideal for storing small items and lightweight products, but they may not be suitable for high-volume, heavy items that require more robust shelving solutions.

Wire Rack Maintenance

Regular maintenance steps are crucial for extending the lifespan of wire racking units. These include:

Dust Daily – Whether a shop has air conditioning or not, dust will accumulate over time. Dusty racks are unattractive to customers and can negatively impact business. Regular dusting prevents stale odors and promotes a healthier environment for everyone..

Organized Display – An organized product display transforms the store's appearance, making it easier for customers to find what they need and enhancing their impression of the store's spaciousness and neatness.

Sanitize Often – Sanitization is crucial as racks are frequently touched by both customers and employees throughout the day. Implement a regular cleaning routine that includes thoroughly wiping down all racks within the retail setup. Use high-quality wipes, sprays, or disinfectants to ensure a thorough and effective clean.

Doing Maintenance Checks – Most types of racks experience wear and tear over time. Conducting a biannual service ensures that all critical components of the racking units remain in good condition, helping them to withstand use and last for many more years.

Conclusion

Wire racks are level wire forms for storing and showing a number of products, usually retail. Although they’re similar to wire shelving since they are both designed for taking full advantage of horizontal and vertical space, the term ‘wire rack’ more frequently refers to miniature units or those ledges not made to stand alone.

Wire racks come from wire forming which is a process of acquiring a wire, from either a blank length or spooled coil, and bending it into definite forms. Wire forms are particularly flexible, enabling them to be changed into a vast variety of shapes and particular configurations. They are applied mostly in retail to encourage consumers with impulse buying as they provide easy access to products.
