How to weld titanium
Titanium and most titanium alloys are readily weldable, using several welding processes. Properly made welds in the as-welded condition are ductile and, in most environments, are as corrosion resistant as base metal. Improper welds, on the other hand, might be embrittled and less corrosion-resistant compared to base metal.
Commercially pure titanium and most titanium alloys are readily welded by a number of welding processes being used today. The most common method of joining titanium is the gas tungsten-arc (GTAW) process and, secondarily, the gas metal-arc (GMAW) process. Others include electron beam and more recently laser welding as well as solid state processes such as friction welding and diffusion bonding. Titanium and its alloys also can be joined by resistance welding and by brazing.
The techniques and equipment used in welding titanium are similar to those required for other high-performance materials, such as stainless steels or nickel-base alloys. Titanium, however, demands greater attention to cleanliness and to the use of auxiliary inert gas shielding than these materials. Molten titanium weld metal must be totally protected from contamination by air. Also, hot heat-affected zones and root side of titanium welds must be shielded until temperatures drop below 800°F (427°C).
Commercially pure titanium and most titanium alloys are readily welded by a number of welding processes being used today. The most common method of joining titanium is the gas tungsten-arc (GTAW) process and, secondarily, the gas metal-arc (GMAW) process. Others include electron beam and more recently laser welding as well as solid state processes such as friction welding and diffusion bonding. Titanium and its alloys also can be joined by resistance welding and by brazing.
The techniques and equipment used in welding titanium are similar to those required for other high-performance materials, such as stainless steels or nickel-base alloys. Titanium, however, demands greater attention to cleanliness and to the use of auxiliary inert gas shielding than these materials. Molten titanium weld metal must be totally protected from contamination by air. Also, hot heat-affected zones and root side of titanium welds must be shielded until temperatures drop below 800°F (427°C).
Welding Environment
While chamber or glove box welding of titanium is still in use today, the vast majority of welding is done in air using inert gas shielding. Conventional welding power supplies are used both for gas tungsten arc and for gas metal arc welding. Tungsten arc welding is done using DC straight polarity (DCSP) while reverse polarity (DCRP) is used with the metallic arc. Field welding is common. Wherever the welding is done, a clean environment is necessary in which to weld titanium. A separate area, specifically set aside for the welding of titanium, aids in making quality welds.
Inert Gas Shielding
An essential requirement for successfully arc welding titanium is proper gas shielding. Care must be taken to ensure that inert atmosphere protection is maintained until the weld metal temperature cools below 426°C (800°F). The first or primary shield gas stream issues from the torch and shields the molten puddle and adjacent surfaces. The secondary or trailing gas shield protects the solidified weld metal and heat-affected zone during cooling. The third or backup shield protects the weld underside during welding and cooling. The backup shield can take many forms. One commonly used for straight seam welds is a copper backing bar with gas ports serving as a heat sink and shielding gas source. During GTA and GMA welding, argon or helium shielding gases of welding grade with dewpoint of -50°F (-46°C) or lower are used to provide the necessary protection. Separate gas supplies are needed for Primary shielding of the molten weld puddle, Secondary shielding of cooling weld deposit and associated heat affected zones, Backup shielding of the backside of weld and associated heat affected zones.
Primary Shielding
Primary shielding of the molten weld puddle is provided by proper selection of the welding torch. Standard water-cooled welding torches equipped with large (3/4 or 1-inch) ceramic cups and gas lenses, are suitable for titanium. The gas lens provides uniform, nonturbulent inert gas flow. Manufacturer’s recommended gas flow rates to the torch should be used. Excess flow to the torch may cause turbulence and loss of shielding. The effectiveness of primary shielding should be evaluated prior to production welding.
Secondary Shielding
Secondary shielding is most commonly provided by trailing shields. The function of the trailing shield is to protect the solidified titanium weld metal and associated heat-affected zones until temperature reaches 800°F (427°C) or lower. Trailing shields are generally custom-made to fit a particular torch and a particular welding operation. Design of the trailing shield should be compact and allow for uniform distribution of inert gas within the device. The possible need for water-cooling should also be considered, particularly for large shields. Porous bronze diffusers have provided even and nonturbulent flow of inert gas from the shield to the weld.
Welding Processes
Titanium and its alloys are most often welded with the gas tungsten-arc (GTA or TIG) and gas metal-arc (GMA or MIG) welding processes. Resistance, plasma arc, electron beam and friction welding are also used on titanium to a limited extent. All of these processes offer advantages for specific situations. However, the following discussion will be concerned primarily with GTA and GMA welding. Many of the principles discussed are applicable to all processes.

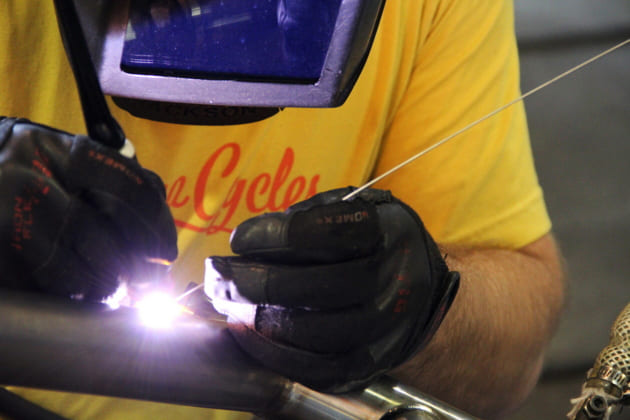

Welding Technique
In addition to clean joints and weld wire, proper parameters, and proper inert gas shielding, welder technique requires attention when titanium is being welded. Improper technique can be a source of weld contamination. Before starting an arc in welding titanium, it is good practice to prepurge the torch, trailing shield and backup shield to be sure all air is removed. Whenever possible, high frequency arc starting should be used. Scratch starting with tungsten electrodes is a source of tungsten inclusions in titanium welds. On extinguishing the arc, the use of current downslope and a contactor, controlled by a single foot pedal, is encouraged. Torch shielding should be continued until the weld metal cools below 800°F (427°C).
Evaluating Weld Quality
Prior to making production welds on titanium, procedures and techniques should be closely evaluated. For pressure vessel construction, the ASME Boiler and Pressure Vessel Code, Section IX (Welding Qualification), details procedure and performance tests which must be met.
